  • Great tool! Adjustable tongs and fittings. Fantastic! Wish I had one. I've used ones with loose probes, requiring marking of every spot. Cost?
    Jack (analog man from the stone age)

    Comment


    • Yes, how much? Very nice...
      Justin Rio

      Comment


      • That Telwin unit 230 is about $1300 back when we bought a 400 series for the 911.
        Amazing machine.

        Comment


        • On to the engine tray.


          Click image for larger version

Name:	2.jpg
Views:	72
Size:	52.7 KB
ID:	62082

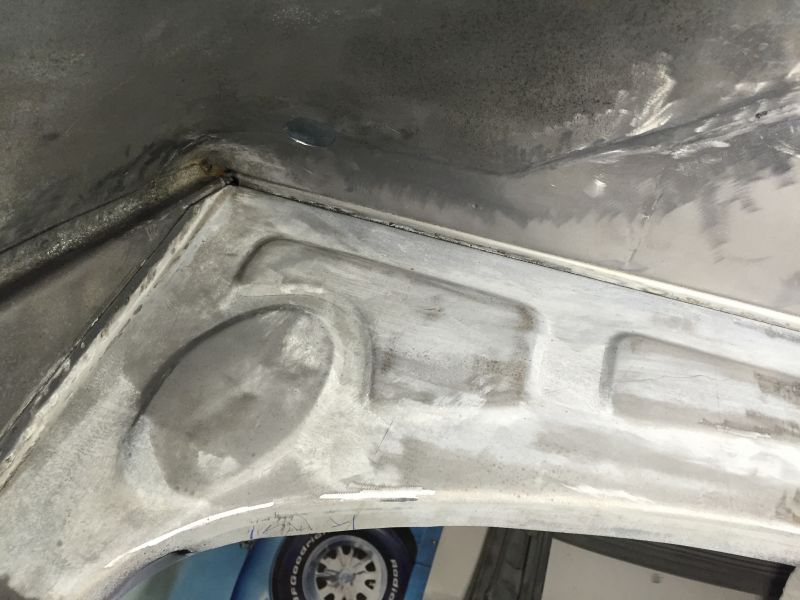

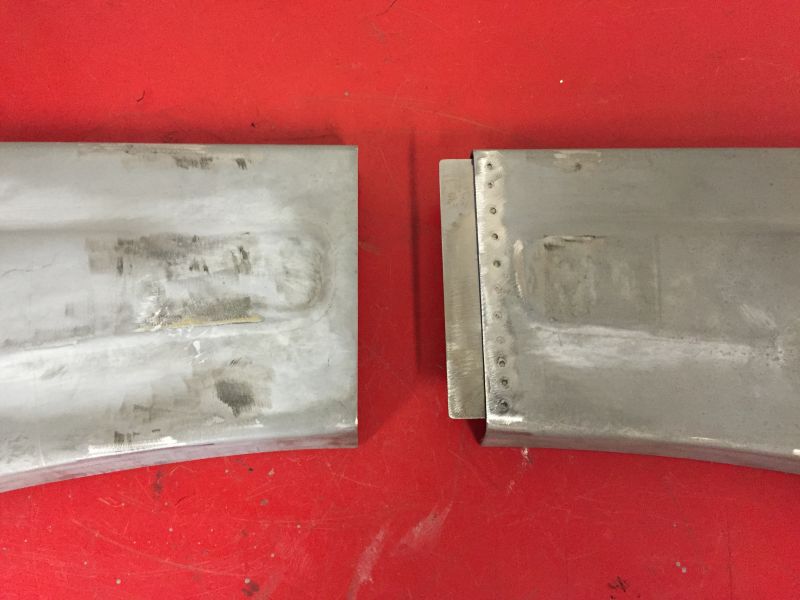

          I spot welded the bridging plate to the underside prior to installation.


          Click image for larger version

Name:	IMG_2688copy.jpg
Views:	87
Size:	63.3 KB
ID:	62083

          Click image for larger version

Name:	IMG_2689copy.JPG
Views:	83
Size:	56.4 KB
ID:	62084
          The replacement tray pieces come oversized and need to be fitted. Each front end is symmetric with a gap along the side. The left gap needed to be closed off and rounded to fit the firewall while the right needed the electrical harness hole.


          Click image for larger version

Name:	3.jpg
Views:	78
Size:	70.4 KB
ID:	62085

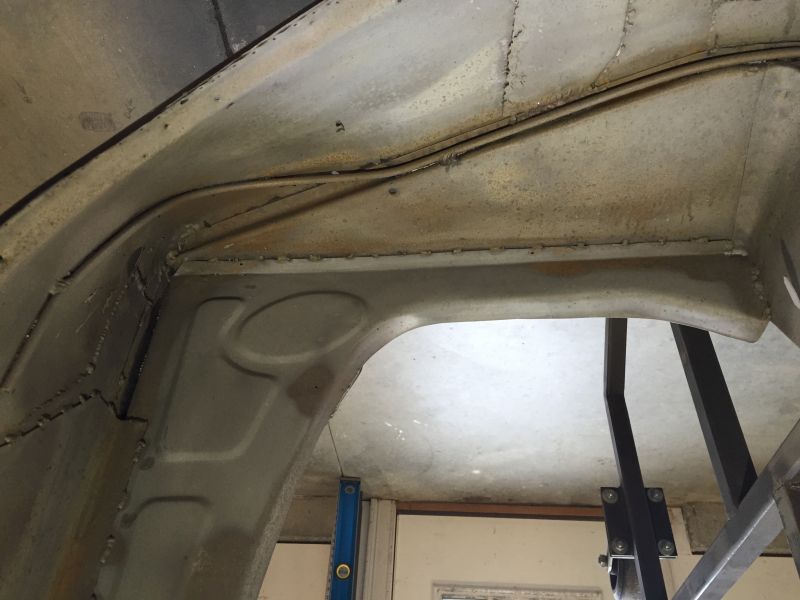

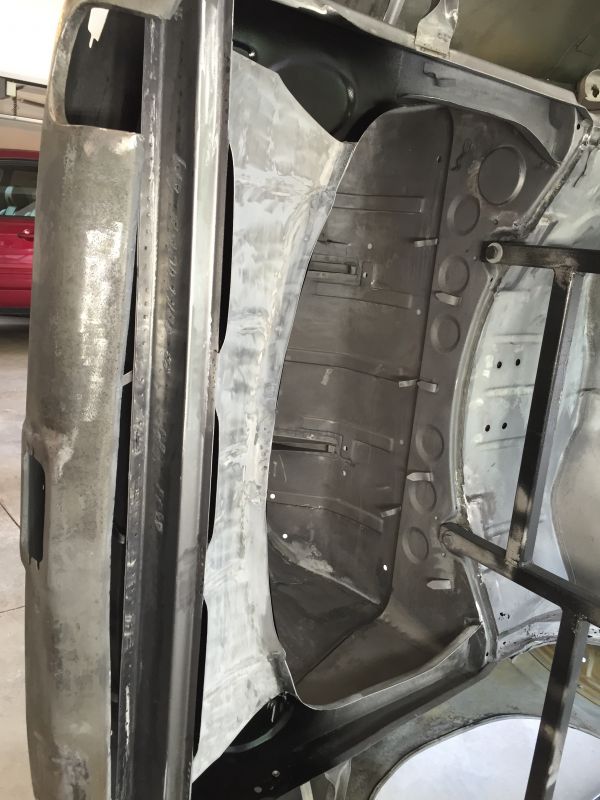

          Lots of spot welds and it's in. Seen from below.


          Click image for larger version

Name:	4.jpg
Views:	79
Size:	66.7 KB
ID:	62086

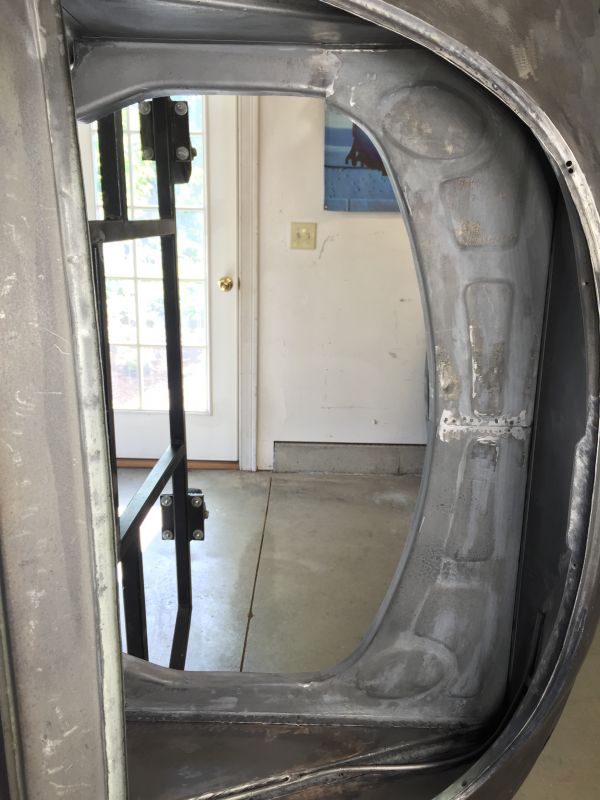

          Seen from above.


          Click image for larger version

Name:	5_2015-06-05.JPG
Views:	81
Size:	40.3 KB
ID:	62087

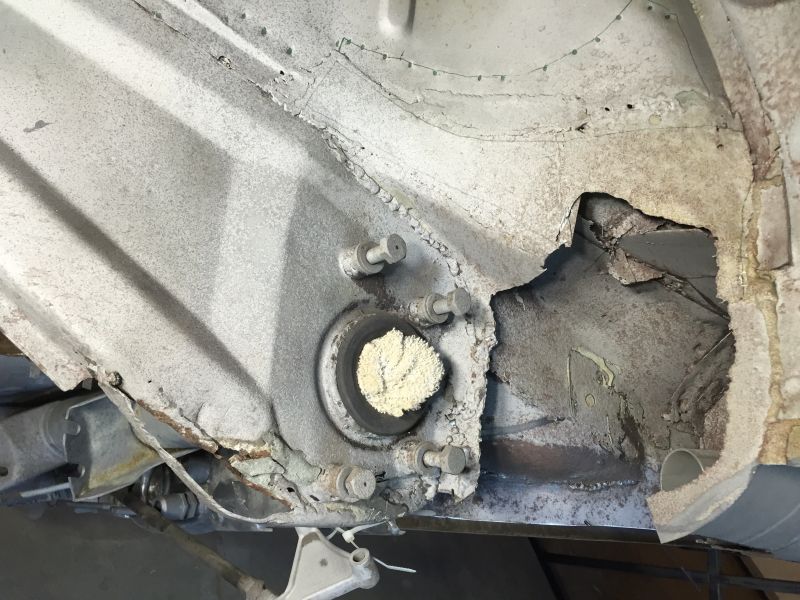

          Right rear inner corner as bought.


          Click image for larger version

Name:	6.jpg
Views:	71
Size:	64.9 KB
ID:	62088

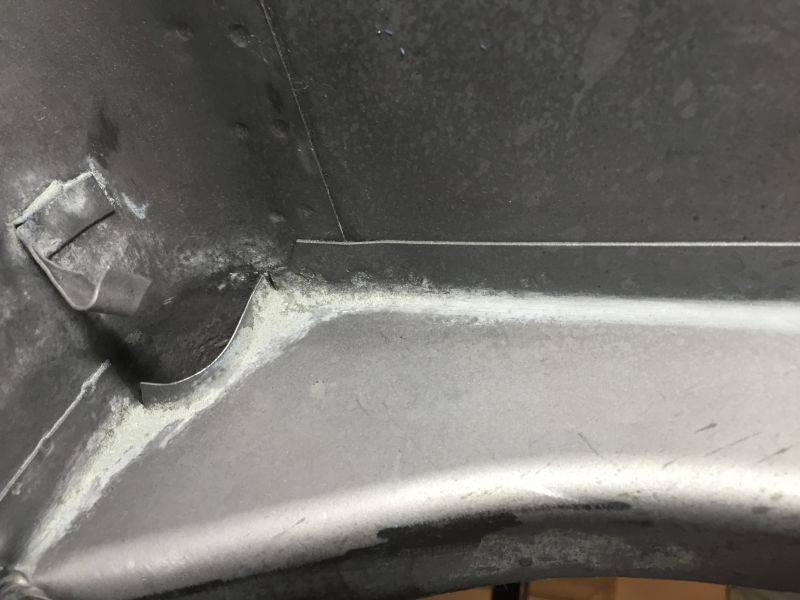

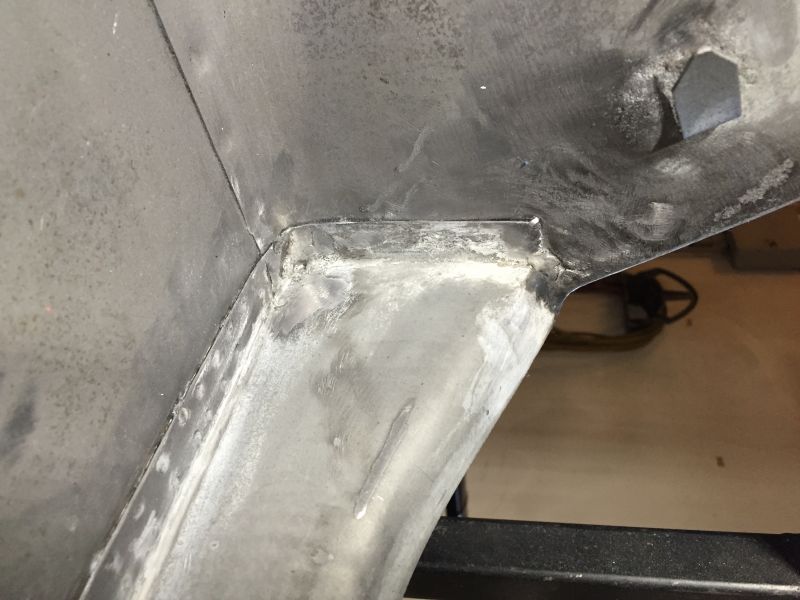

          Right rear inner corner repaired and buttoned up.


          Click image for larger version

Name:	7_2015-06-05.JPG
Views:	73
Size:	56.6 KB
ID:	62089
          Left inner frame and inner fender as bought.


          Click image for larger version

Name:	8.jpg
Views:	88
Size:	64.5 KB
ID:	62090

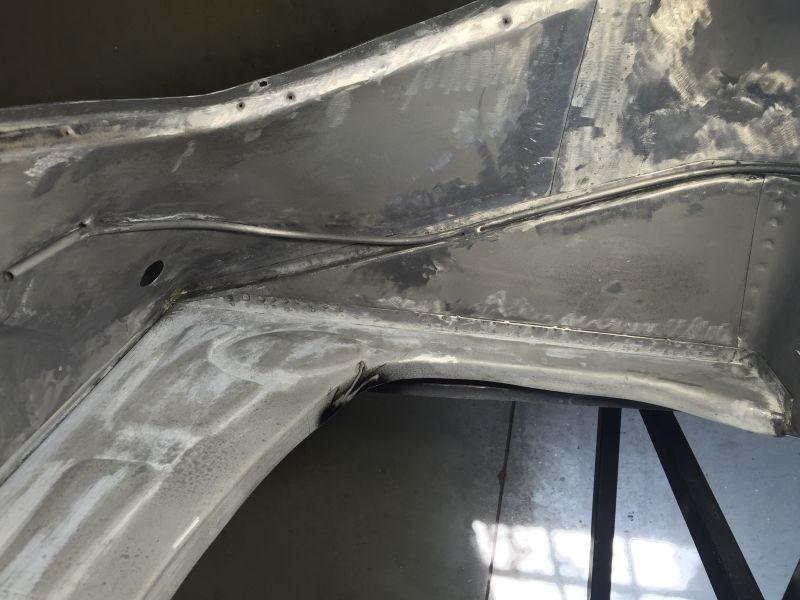

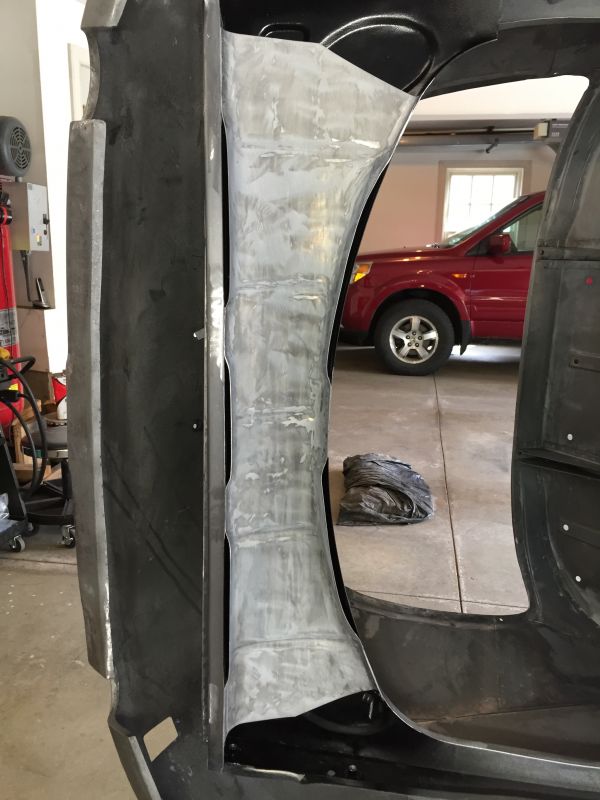

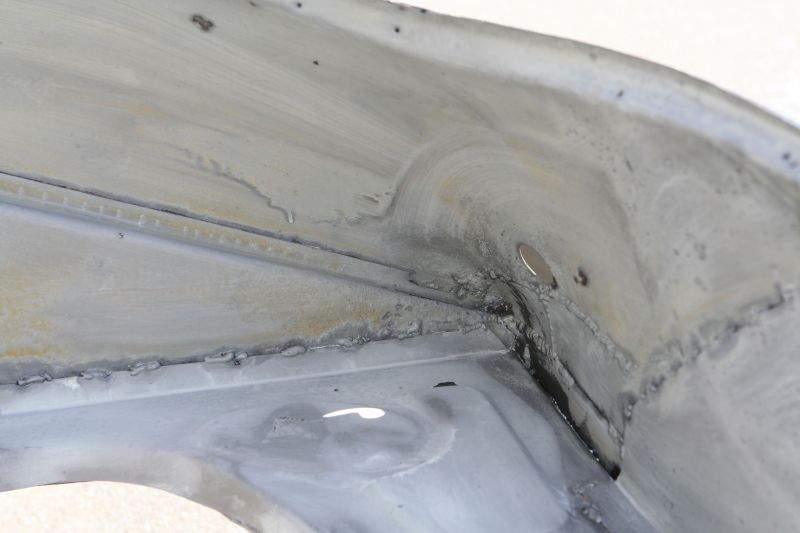

          Left inner frame and inner fender repaired. Looking MUCH better.


          Click image for larger version

Name:	9.jpg
Views:	75
Size:	51.8 KB
ID:	62091
          I have to reinstall the rear body supports. Any words of advice before welding them in? Should the rear sheet metal remain in a relaxed position when welding in the supports or should I place some tension on the metal?

          Thanks for following.
          jjgpierce@yahoo.com

          Comment


          • John

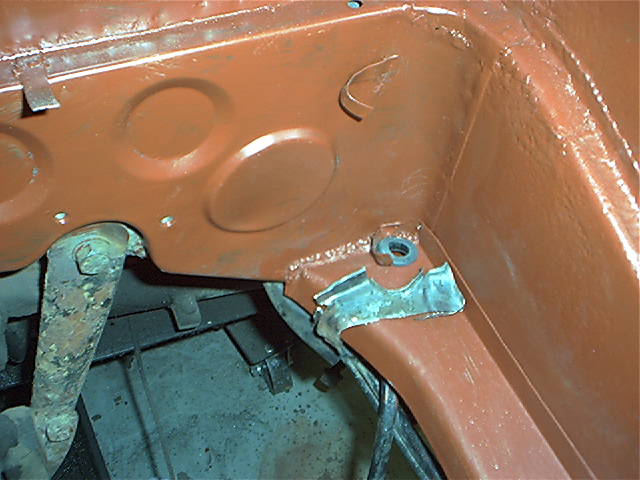

            I need to install those braces also. Awaiting advice. You now have a concours engine compartment. Very nice work. I made a deviation for the harness routing on Foam Car:


            Click image for larger version

Name:	IM001548.jpg
Views:	73
Size:	54.2 KB
ID:	62095

            Phil

            Comment


            • Next is the heat shield.


              Click image for larger version

Name:	IMG_2679copy.jpg
Views:	72
Size:	77.0 KB
ID:	62250
              Since this area won't see the light of day and is probably a sand trap a little priming and top coating was in order.


              Click image for larger version

Name:	IMG_2680copy.jpg
Views:	74
Size:	47.3 KB
ID:	62251

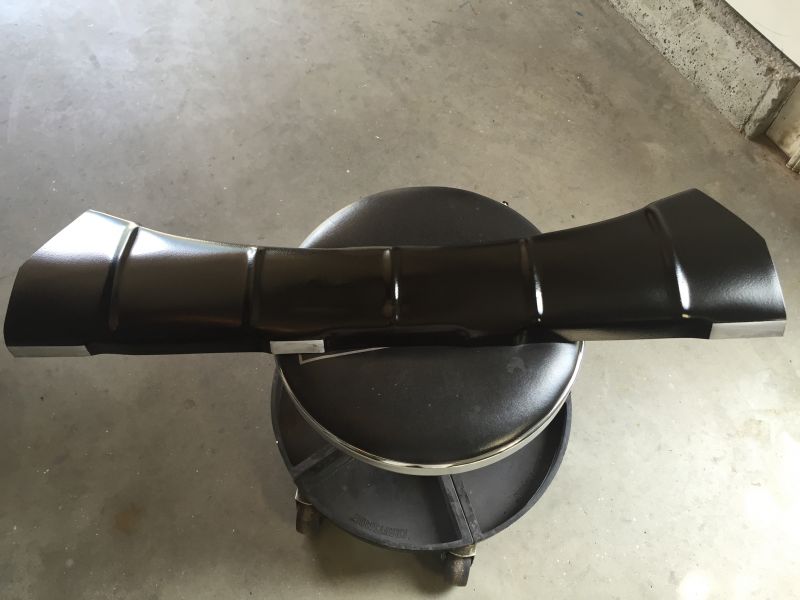

              The shield had to be tweaked to fit well. It was then primed and top coated with the areas of spot welding only getting weld thru primer.


              Click image for larger version

Name:	IMG_2691copy.jpg
Views:	76
Size:	68.1 KB
ID:	62252
              Spot welded in place.


              Click image for larger version

Name:	IMG_2695copy.jpg
Views:	78
Size:	76.2 KB
ID:	62253

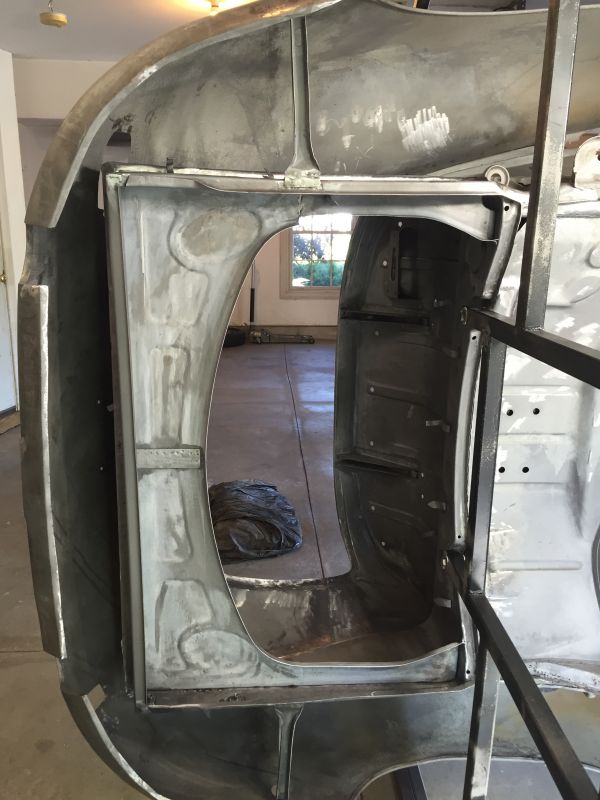

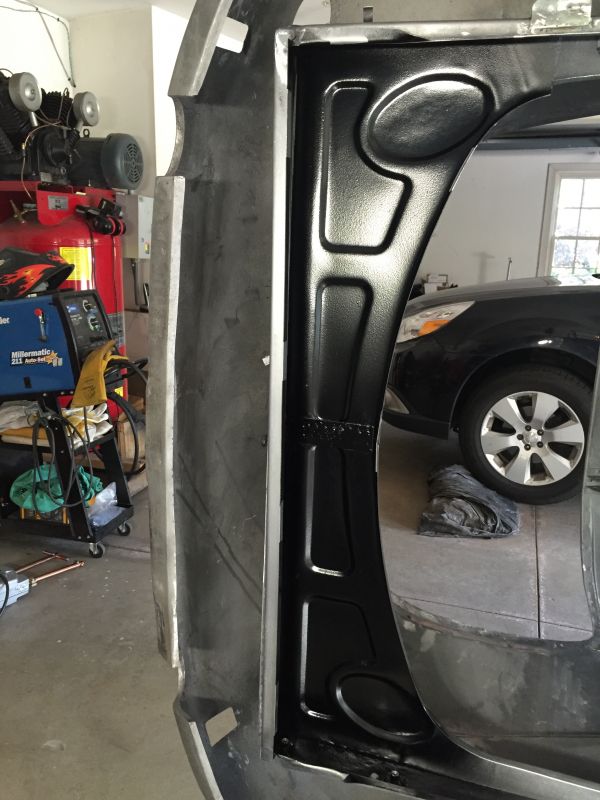

              The engine bay looks so much better.

              I still have to install the rear body supports. Any advice?

              Thanks for following.
              jjgpierce@yahoo.com

              Comment


              • Advice?? Yes but you won't like it. Fit trans, with mounts. Fit engine with muffler. Fit rear bumper, with guards and funnels. All of these part should be what you are using on the finished product. Adjust bumper as needed to allow funnels to be centered to the cut outs on the rear panel. Now try to install "s" pipes on muffler, without interference of the s pipe support brackets on the rear valance lower lip. At least 1/2" upper clearance here to allow for rubber mount flex. If too close, it will rub the lower lip. Check s pipe fit to funnels. Rubs, huh? Move the bumper back a little more, perhaps. Bend, tweek, trim, s tubes. Bend, tweek, rear body panel to allow clearance. Don't allow the lower lip of the body to lose symmetry. Small deviations are ok here. Now check that the reverse light will fit without contact to the lower edge of the bumper in it's installed position. Be sure to use a huge cushion under the rear of the car when working on the reverse light. I can't tell you how many folks have broken them when dropped on installation. You finally got it all to fit right? Good! Now weld on the support brackets. If anyone finds this procedure to be absurd, you are right. We are called upon several times a year to deal with these fittment problems on finished cars, without doing body and paint work! It's a nightmare. BTW, while you have the engine installed, fit the perimeter shrouding. Dolly the engine surround sheet metal as needed.
                Comments, Bruce?
                Jack (analog man from the stone age)

                Comment


                • Its really looking clean back there John! Nice work!

                  Jack, I think that is the most sound advice that I have heard. It will be a total PIA to follow it John but fitment, clearance, and proper alignment of all the various components is always an issue with these cars as you know well by now. Your choice of course but its an avoidable future aggravation at this point.
                  Justin Rio

                  Comment


                  • Thanks Jack and Justin! That sort of advice from people who've done this before is exactly what is needed. I have no problem waiting. The rest of the car goes through the same fitment process with the deck lid, hood, door, etc.... so doing the same with the rear body supports makes a lot of sense. Making it right, not quick, is the object here. I'm definitely going to fit the engine tray once the engine and tranny are in. I still have one section to weld tight. If anyone sees something that isn't being done correctly please let me know.

                    Getting advice like this is a Godsend. The ABCGT forum is a great down to earth place where questions are answered without condescension and advice is freely given. Thanks again, Justin for hosting it.
                    jjgpierce@yahoo.com

                    Comment


                    • John,

                      You are doing some great work on the car. Very neat indeed. Its so nice though information to help you is so forthcoming so you don't make mistakes and have to go all over the good work again.

                      Roy

                      Comment


                      • Hi John,

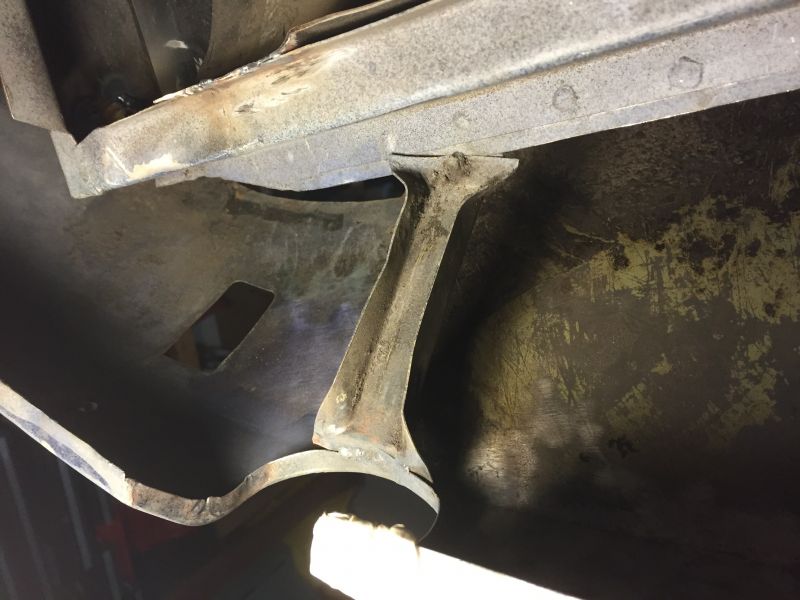

                        Good advice as always. I can only offer a pic of my cars braces as originally installed as far as I know.
                        Notice how they were installed crooked and barely contacting the flange. Maybe the factory adjusted it as needed

                        Click image for larger version

Name:	image_2015-06-10.jpg
Views:	74
Size:	64.0 KB
ID:	62273

                        Tom

                        Comment


                        • Hey Tom! Good to hear from you. How's the painting going?

                          That's an interesting installation you've got there. I've checked how the supports were installed in a bunch of cars, but haven't seen it done that way before. Wonder if your car was made early on a Monday or late on a Friday
                          jjgpierce@yahoo.com

                          Comment


                          • One step at a time. Moving forward to the suspension stop area.


                            Click image for larger version

Name:	_MG_3443copy.JPG
Views:	85
Size:	43.2 KB
ID:	62428

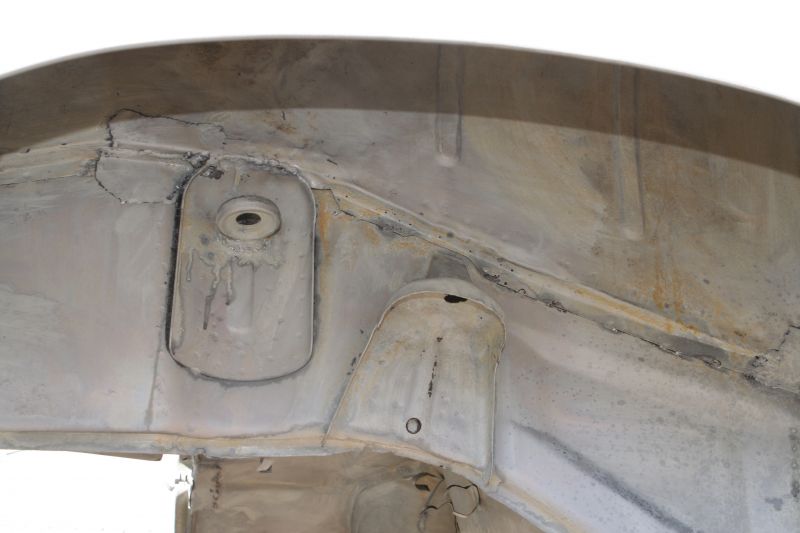

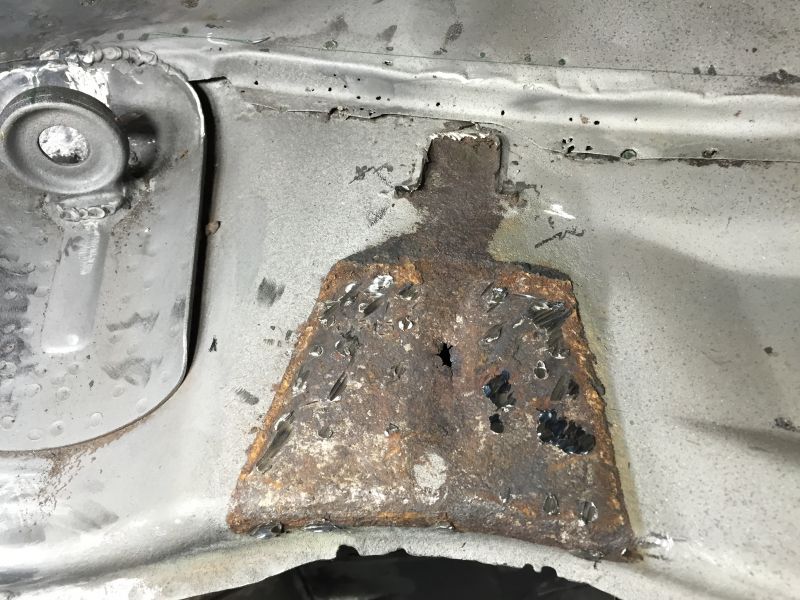

                            The suspension stop is rusted through as is the turned flange of the inner fender.


                            Click image for larger version

Name:	IMG_2722copy.JPG
Views:	76
Size:	92.3 KB
ID:	62429

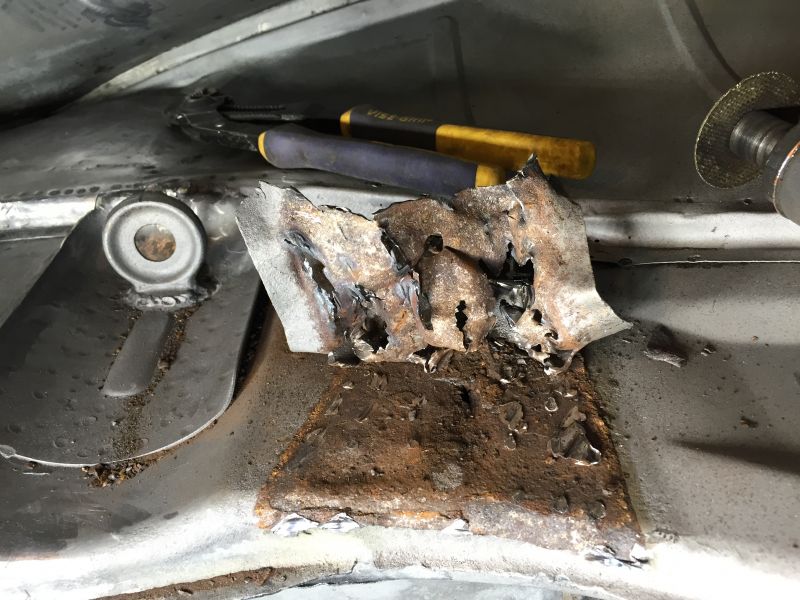

                            Bad rust hiding underneath.


                            Click image for larger version

Name:	IMG_2723copy.JPG
Views:	73
Size:	101.7 KB
ID:	62430

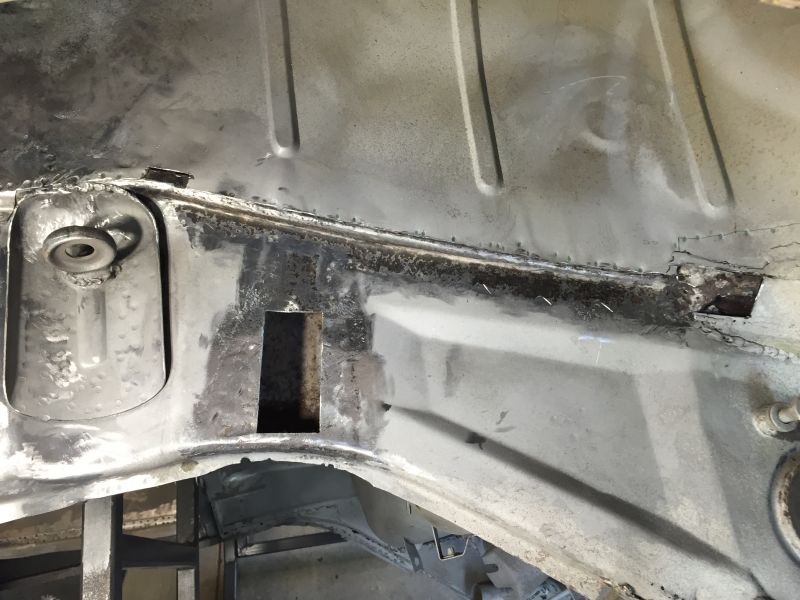

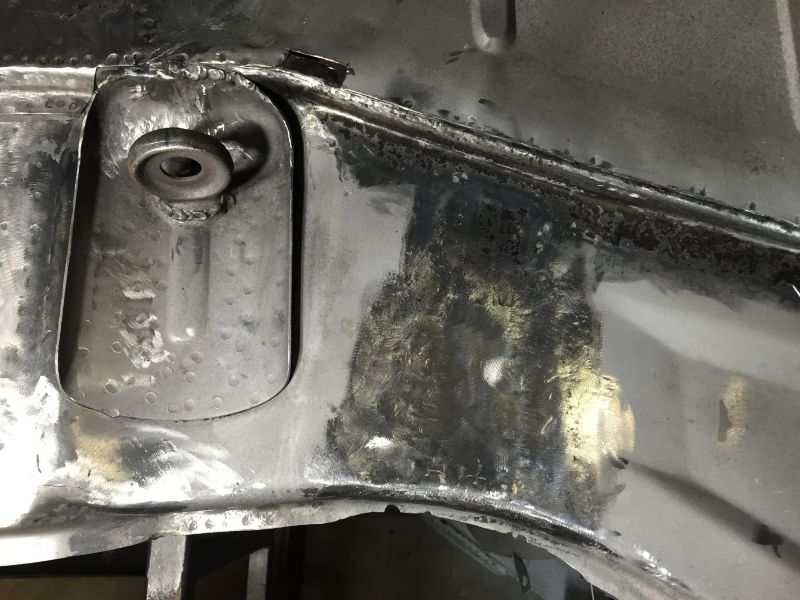

                            The frame was also rusted through and thinned, most likely due to collected water.


                            Click image for larger version

Name:	IMG_2724copy.JPG
Views:	73
Size:	75.5 KB
ID:	62431
                            All cleaned up and ready for new metal. It was interested that the turned flange of the inner fender did not follow the frame edge. There was a good 10 mm offset leaving a good sized cavity.


                            Click image for larger version

Name:	IMG_2732copy.JPG
Views:	74
Size:	83.1 KB
ID:	62432
                            One less hole.


                            Click image for larger version

Name:	IMG_2733copy.jpg
Views:	74
Size:	70.1 KB
ID:	62433

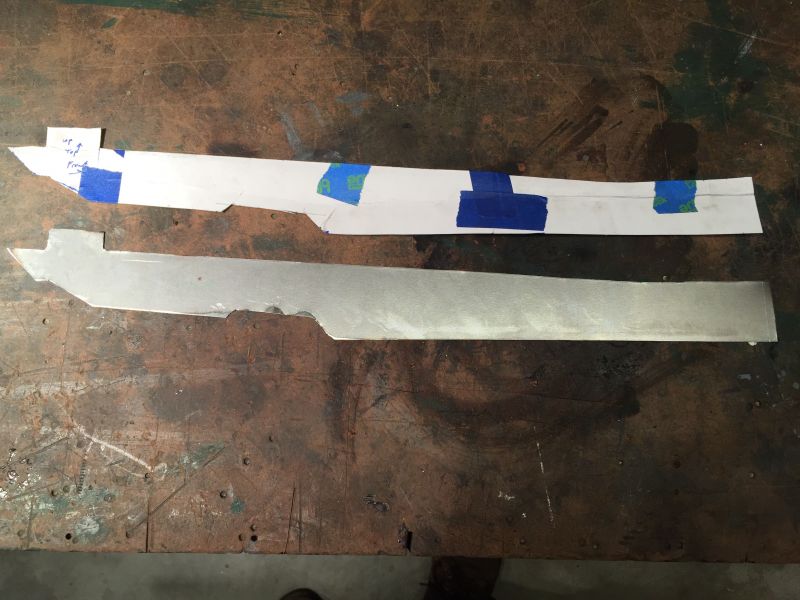

                            Inner fender flange piece.


                            Click image for larger version

Name:	IMG_2770copy.JPG
Views:	74
Size:	87.3 KB
ID:	62434

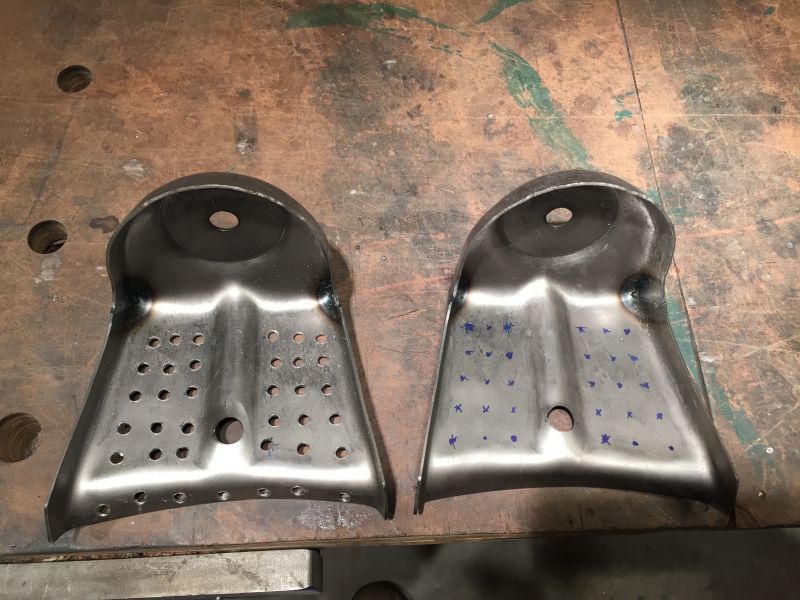

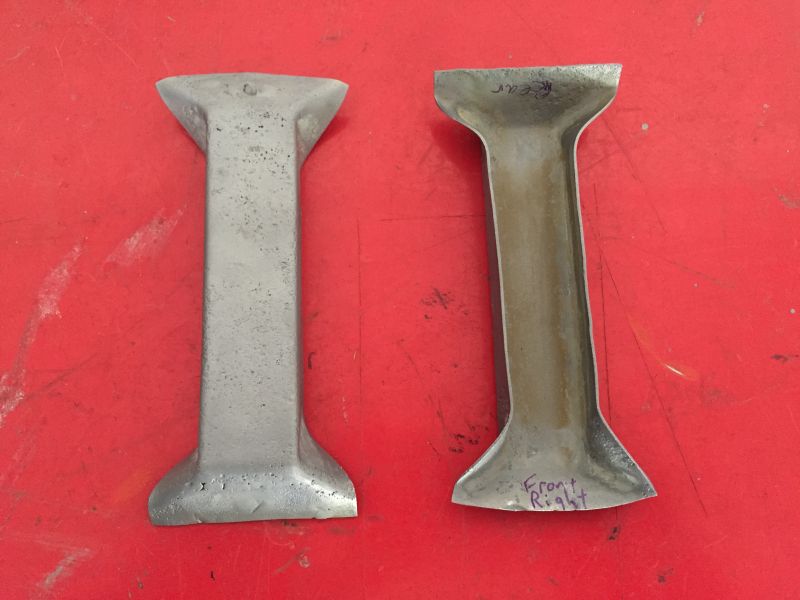

                            Suspension stop drilled and ready for spot welds. My car was built in 1962 and titled as a 1963 so it had the older style suspension stop.


                            Click image for larger version

Name:	IMG_2777copy.JPG
Views:	74
Size:	80.9 KB
ID:	62435

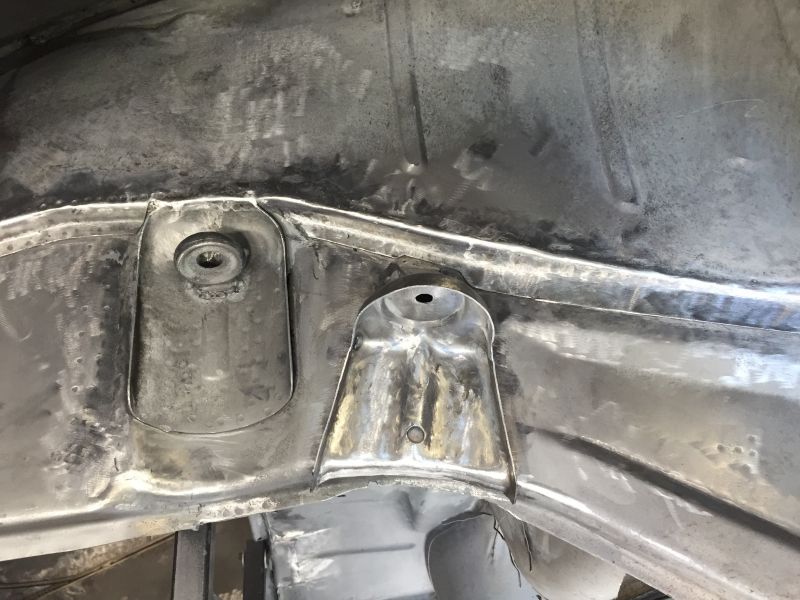

                            All buttoned up.


                            Click image for larger version

Name:	IMG_2718copy.JPG
Views:	73
Size:	99.2 KB
ID:	62436
                            Moving forward to the next area brings me to what I've been dreading. The amount of rust and bad repairs at the base of the B pillar and longitudinal closing area is fantastic. There are not a lot of original landmarks to use. The picture shows some of the repairs removed. Up inside is more rust.

                            Thanks for following.
                            jjgpierce@yahoo.com

                            Comment


                            • They are all rustier than you think behind those plates John. Nice work mounting the new one! God, you still have so much yet to do Absolutely, one step at a time. Keep chipping away you are getting there!
                              Justin
                              Justin Rio

                              Comment


                              • Beautiful work John on the stop. If found a mouse nest when I tackeled your next area.
