      • On to more undoing of previous repairs and putting in fresh new metal.


        Click image for larger version

Name:	_MG_3400copy.JPG
Views:	77
Size:	63.2 KB
ID:	61608

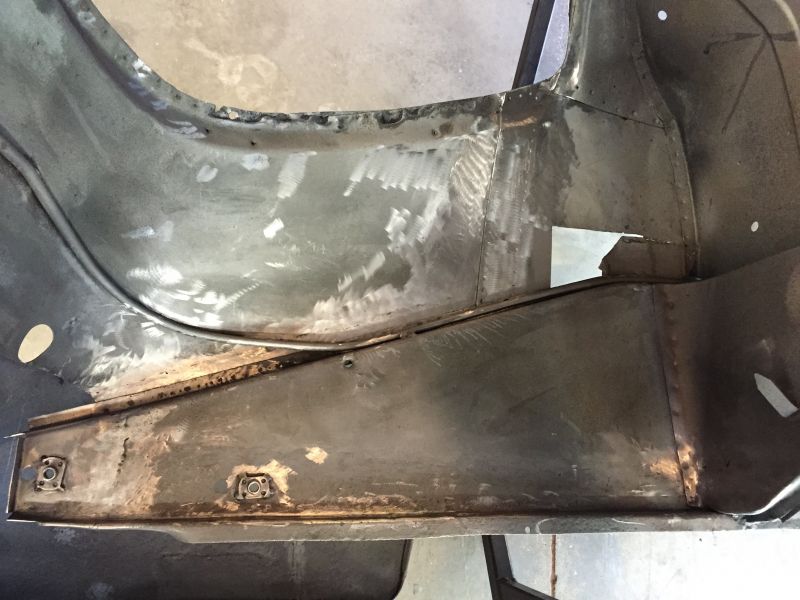

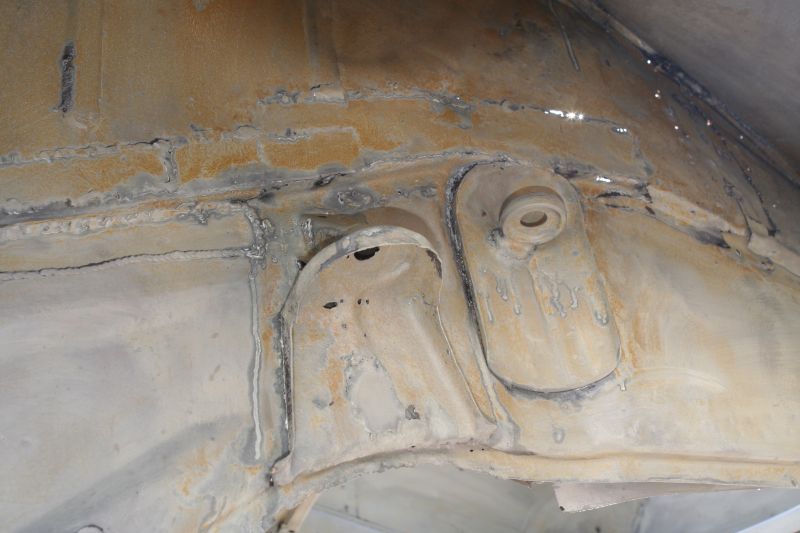

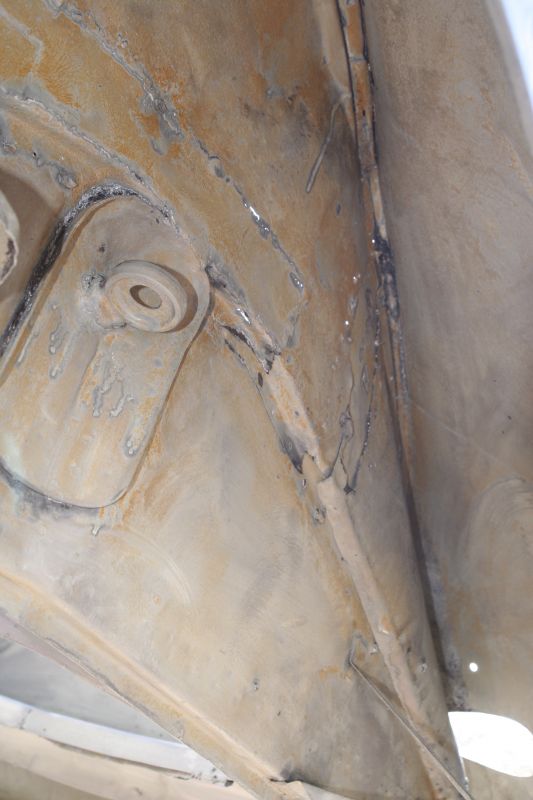

        This is the rear left inner fender with multiple patch panels overlying rusted out areas. The engine tray was put in level, but needs to be removed so I can get to the rear closing panel.



        Click image for larger version

Name:	_MG_3412copy.JPG
Views:	80
Size:	53.5 KB
ID:	61611

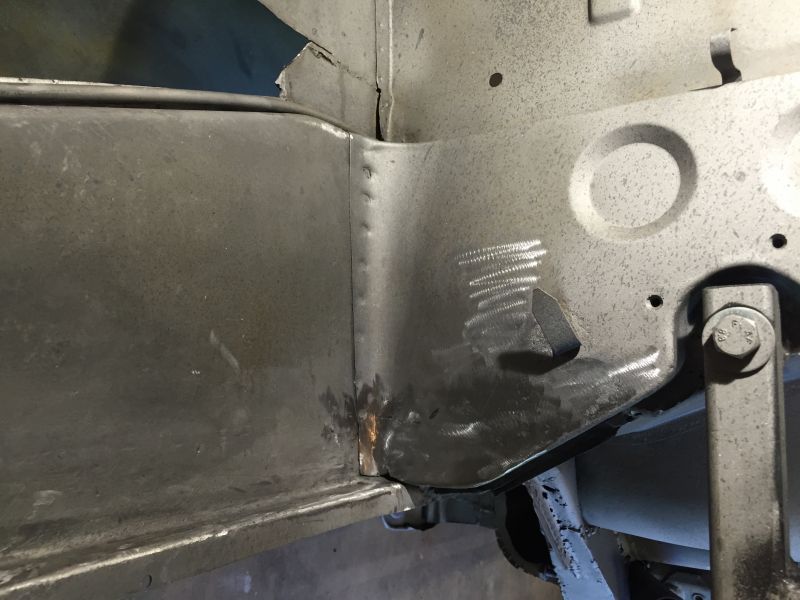

        Hard to get a good picture of the outer portion as the fender is in the way.


        Click image for larger version

Name:	IMG_2089copy2.JPG
Views:	79
Size:	83.3 KB
ID:	61610

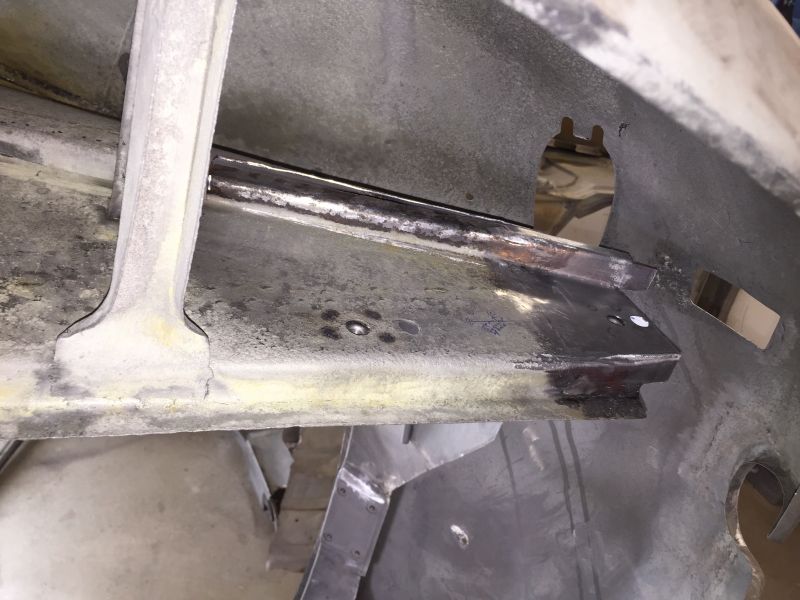

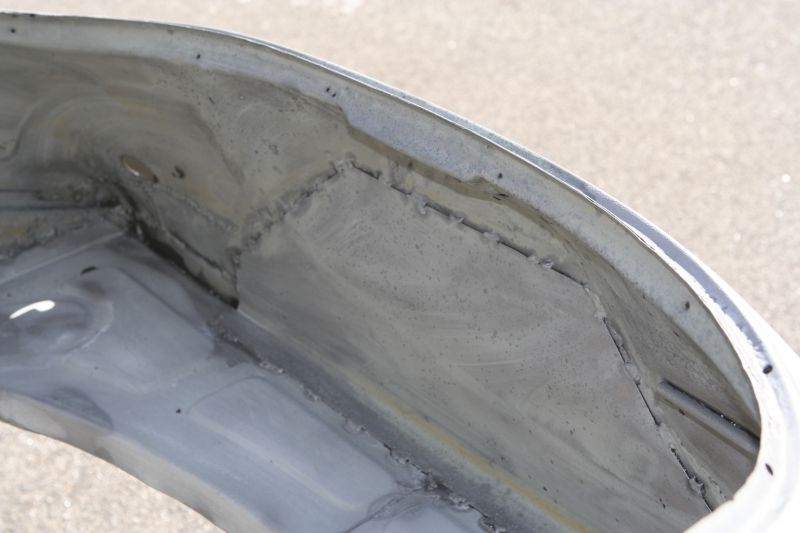

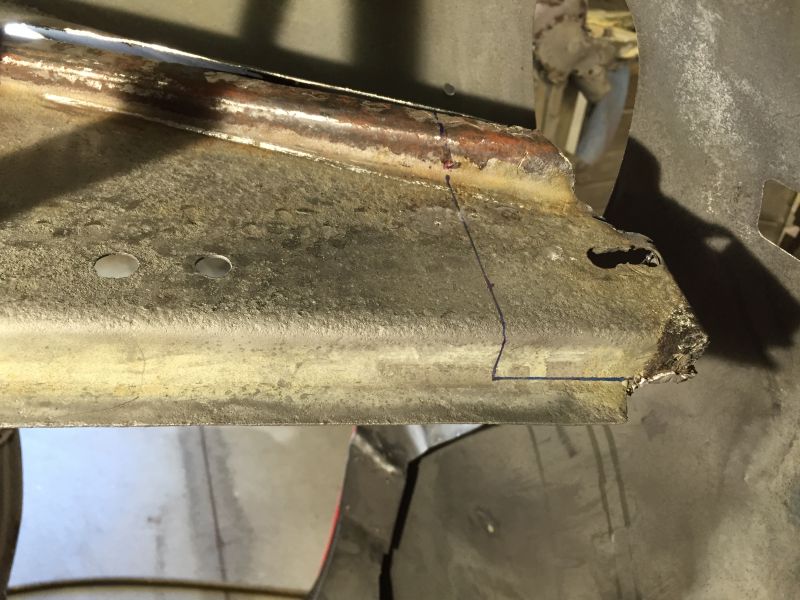

        The rearmost portion of the frame needs a repair patch. The bent over edge of the inner fender is a prime location for water to collect and rust to form. This edge came out revealing caked layers of rust.


        Click image for larger version

Name:	IMG_2094copy.JPG
Views:	80
Size:	71.1 KB
ID:	61612

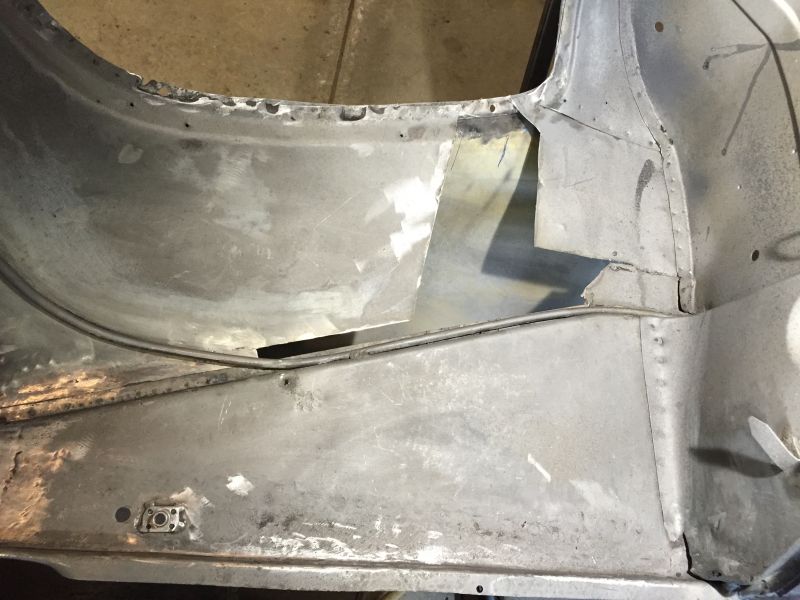

        The rear frame end repaired and the overlap area derusted.


        Click image for larger version

Name:	IMG_2486copy.JPG
Views:	78
Size:	86.7 KB
ID:	61613
        The rear portion of the inner fender is repaired and spot welded in place. I'm doing this in sections as the rust is so extensive and it will help maintain the original position of the metal.


        Click image for larger version

Name:	IMG_2489copy.JPG
Views:	77
Size:	87.2 KB
ID:	61614

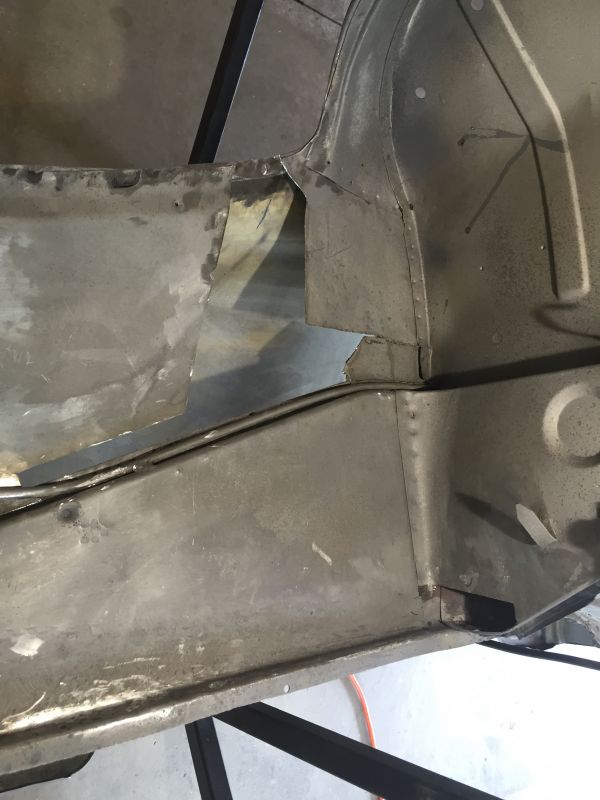

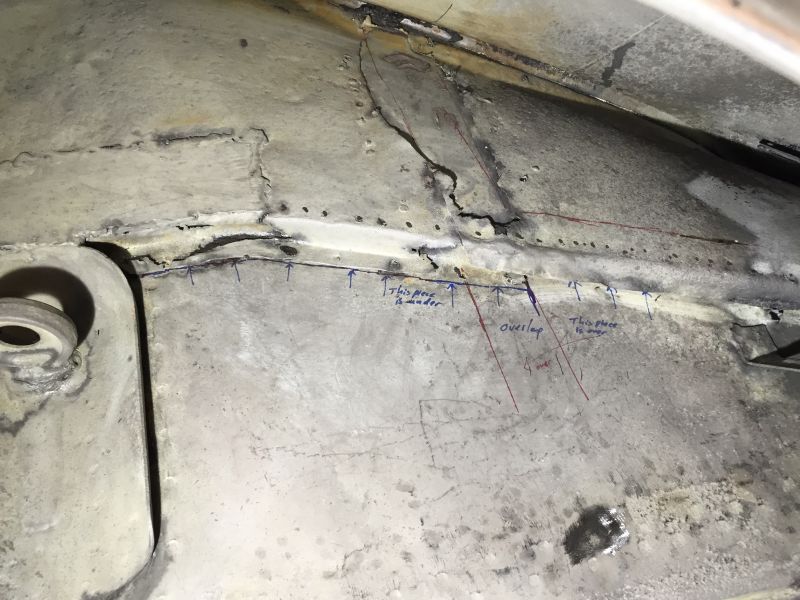

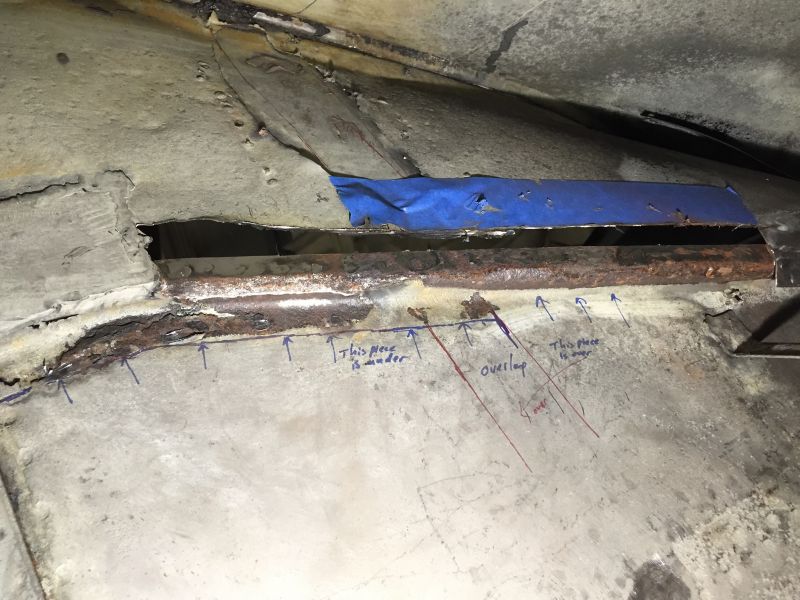

        On to the bad and ugly! There is supposed to be an overlap here between the front and rear portions of the inner fender metal. It's nonexistent and the previous repair patch doesn't do much to stop further rusting. You can see that this type of repair occurred along the whole lower edge.


        Click image for larger version

Name:	IMG_2492copy.JPG
Views:	76
Size:	88.6 KB
ID:	61615

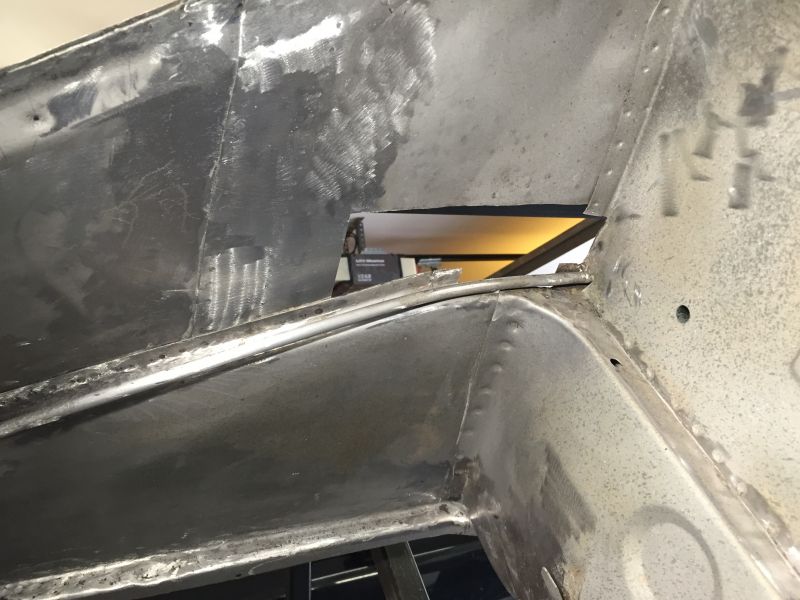

        Starting the removal process. Gobs of rust everywhere with red dust getting on everything.


        Click image for larger version

Name:	IMG_2493copy.jpg
Views:	76
Size:	71.8 KB
ID:	61616
        The offending area removed and cleaned up.


        Click image for larger version

Name:	IMG_2522copy.JPG
Views:	77
Size:	60.5 KB
ID:	61617

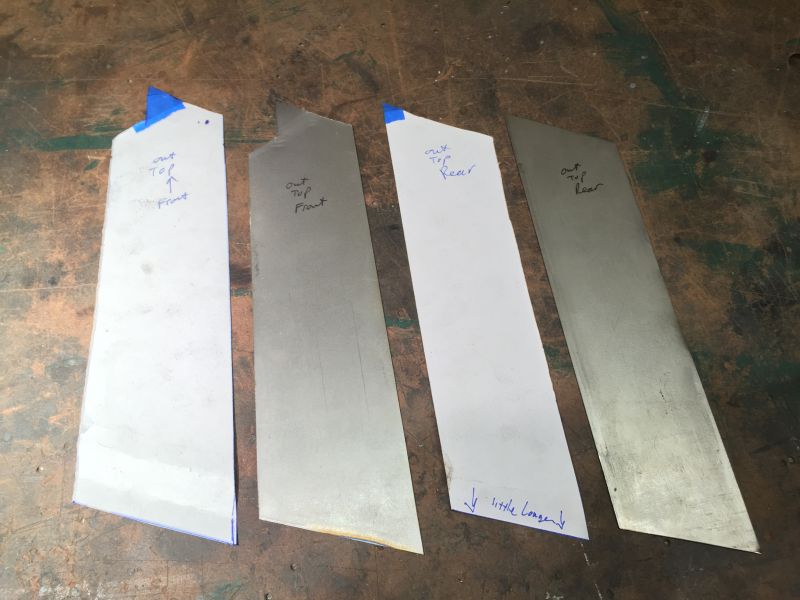

        Unlike the repair on the right side, which only went up half way, the left overlap region is absent all the way to the top of the engine bay. This precludes spot welding in such a tight space so I opted to make the overlap "ex-vivo." Two templates were made and the metal was cut to size.


        Click image for larger version

Name:	IMG_2527copy.jpg
Views:	81
Size:	36.0 KB
ID:	61618
        The finished product will look exactly like the original installation.


        Click image for larger version

Name:	IMG_2528copy.jpg
Views:	75
Size:	72.0 KB
ID:	61619
        Installed and looking much better. Ahh......


        Click image for larger version

Name:	IMG_2532copy.JPG
Views:	75
Size:	73.2 KB
ID:	61620

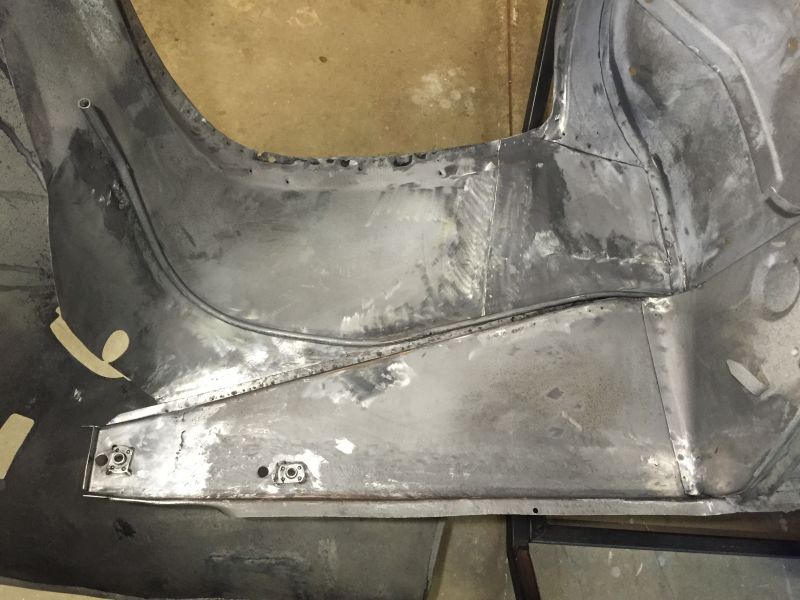

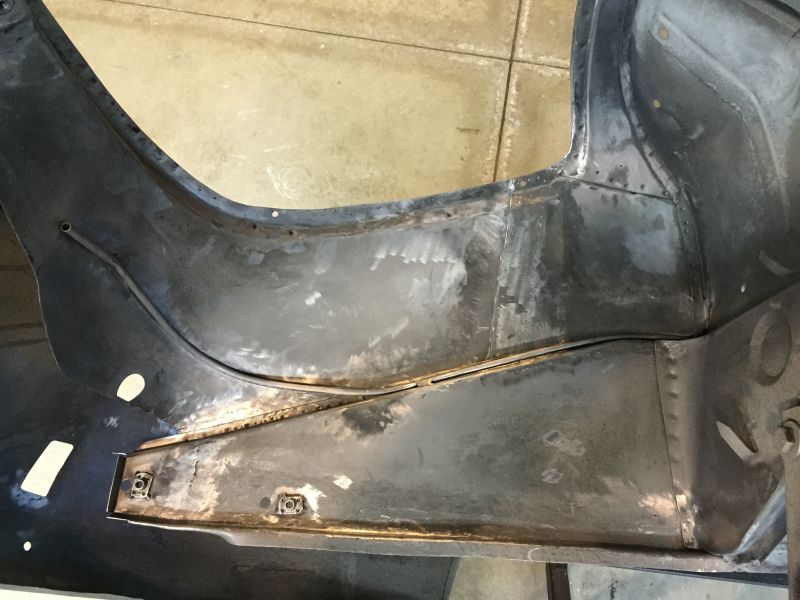

        Repair patches as seen from the outside. The front portion of the inner fender comes down farther on the frame than the rear portion and the 90 degree flange is spot welded to the frame. Some work still needs to be done to tidy things up.

        I've just gotta keep plugging away at this and always picture driving the car when done. If I focus on one section at a time it doesn't become overwhelming....much! The next play is to remove the more forward previous repair patches.

        Thanks for following.
        Attached Files
        jjgpierce@yahoo.com

        Comment


        • What a mess this guy made of your car, so much crap to unwind! I think you've beat me hands down in the patience department my friend. It would be hard to hang in there with all this and its everywhere. You're doing a marvelous job on the spot-weld and lap joint details; just fantastic! Justin
          Justin Rio

          Comment


          • The things I'm repairing are not sexy, but really need to get done. Grunt work.


            Click image for larger version

Name:	IMG_2496copy2.JPG
Views:	72
Size:	57.9 KB
ID:	61710

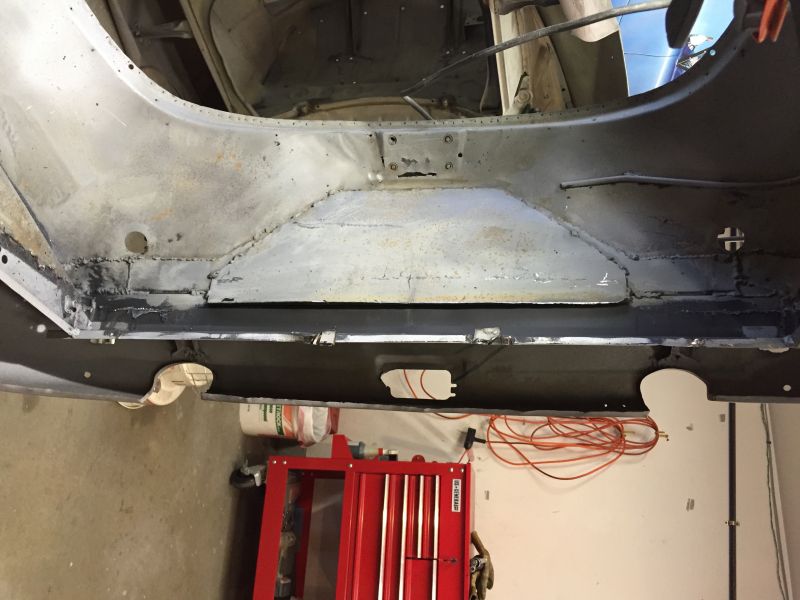

            The bottom corners of the firewall were previously repaired and hidden by the engine tray. Once the tray was out the repairs had to be removed. The inner fender is being repaired at the same time.


            Click image for larger version

Name:	IMG_2503copy.jpg
Views:	72
Size:	75.3 KB
ID:	61712

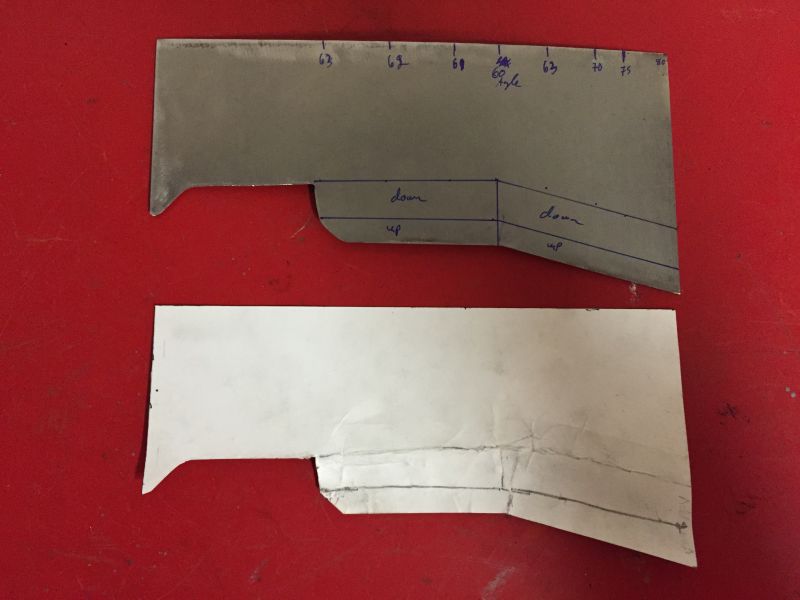

            Things cleaned up and template made.


            Click image for larger version

Name:	IMG_2523copy.jpg
Views:	70
Size:	66.7 KB
ID:	61711
            One less thing on the checklist.


            Click image for larger version

Name:	_MG_3414copy.JPG
Views:	70
Size:	53.9 KB
ID:	61713

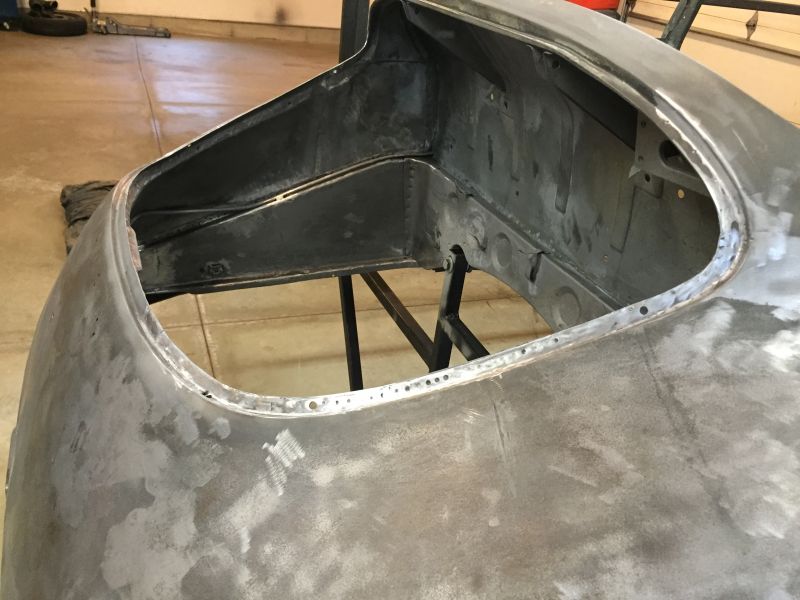

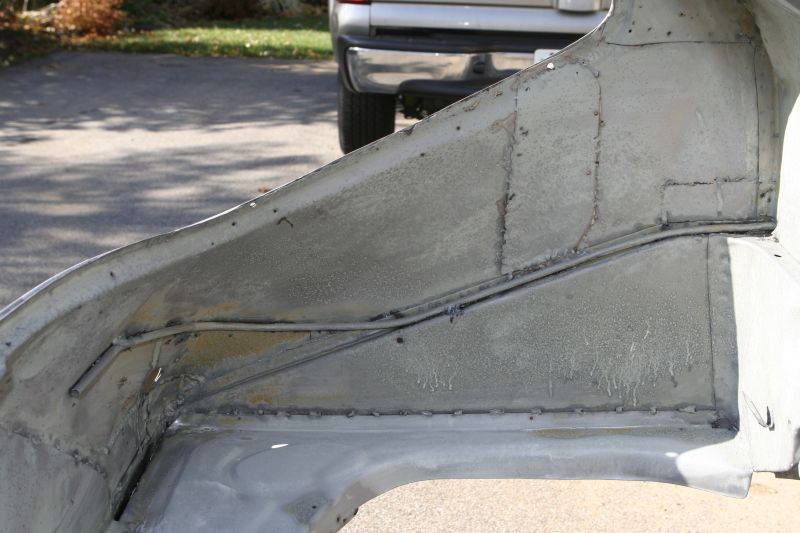

            Continuing with the inner fender. This is how the car looked after media blasting. Just a few patches.


            Click image for larger version

Name:	IMG_2543copy.JPG
Views:	71
Size:	71.3 KB
ID:	61714
            Offending metal out. The cockpit rear wall flange and frame flange were eaten by the rust bug and had to come out.


            Click image for larger version

Name:	IMG_2544copy.JPG
Views:	69
Size:	72.1 KB
ID:	61715
            Seen from the inside.


            Click image for larger version

Name:	IMG_2554copy.jpg
Views:	72
Size:	41.4 KB
ID:	61716

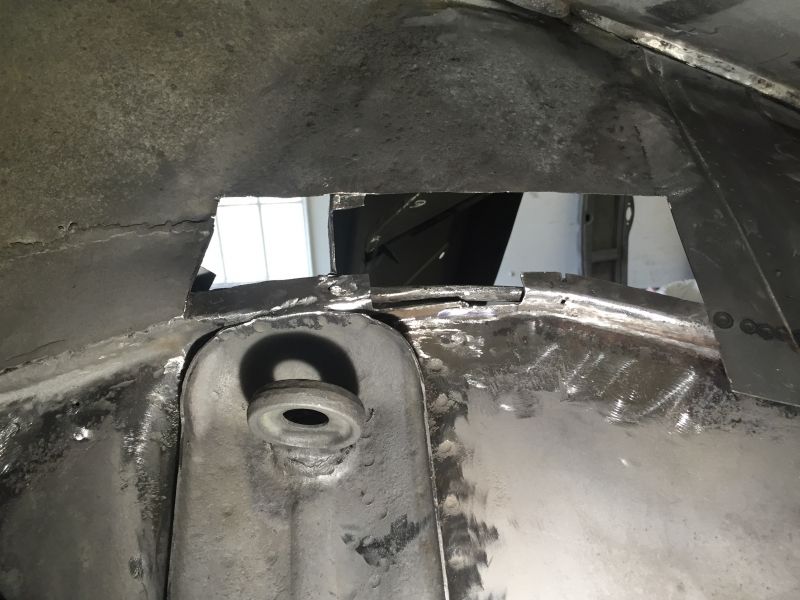

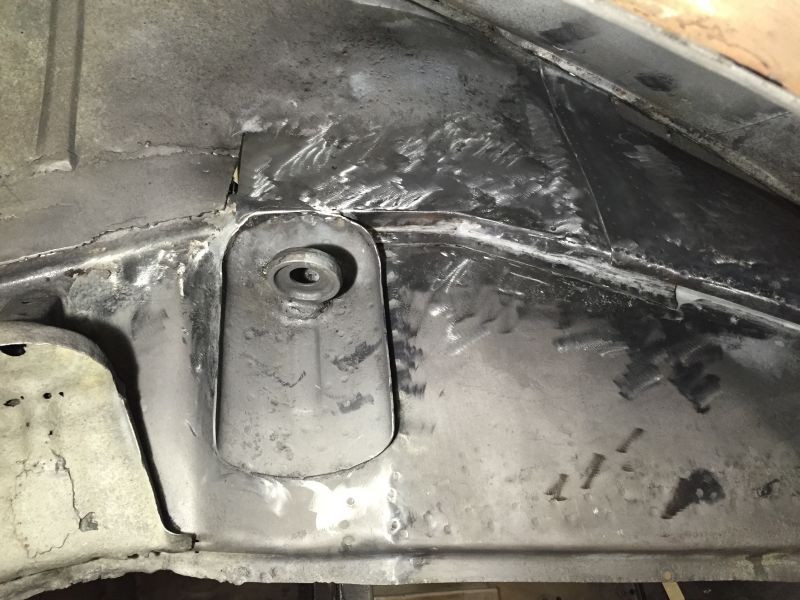

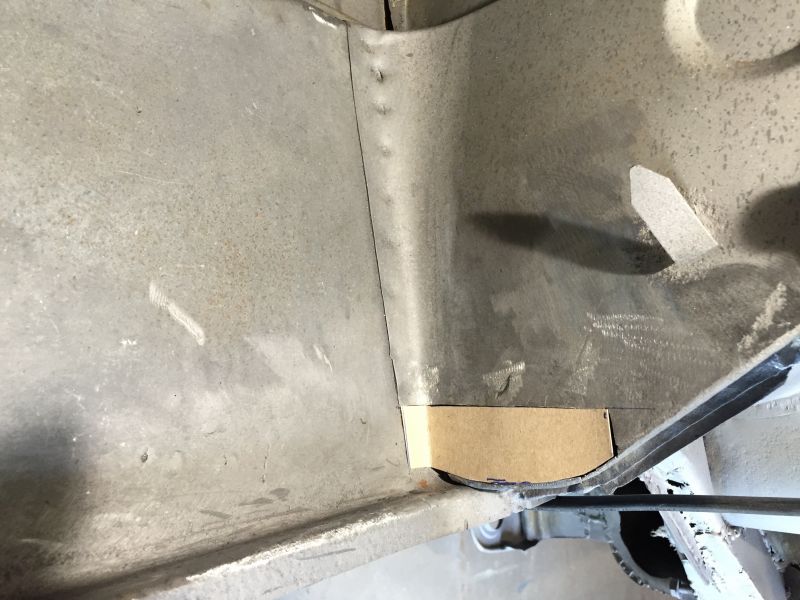

            Templating the area, which is pretty tight with the shock mount in the way. The fender was installed before the shock mount so the metal flange needs to be tucked behind it.


            Click image for larger version

Name:	IMG_2556copy.jpg
Views:	71
Size:	79.4 KB
ID:	61717

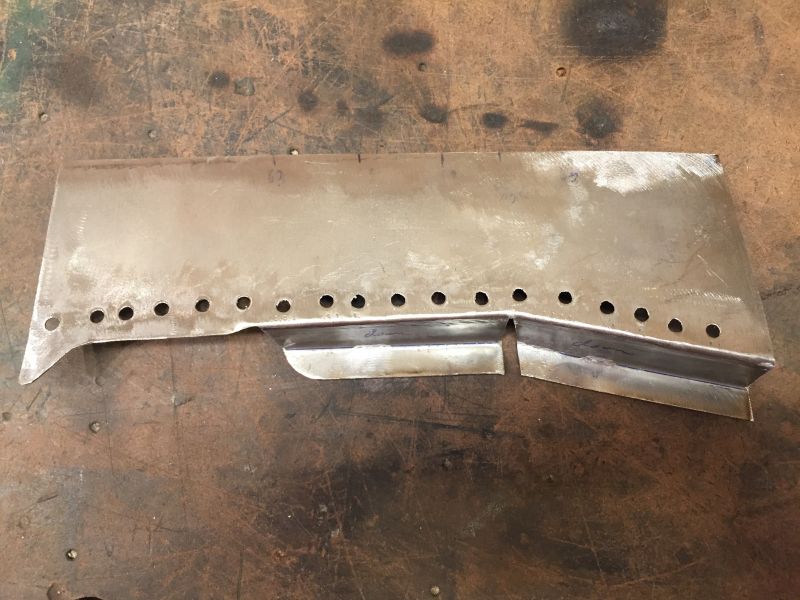

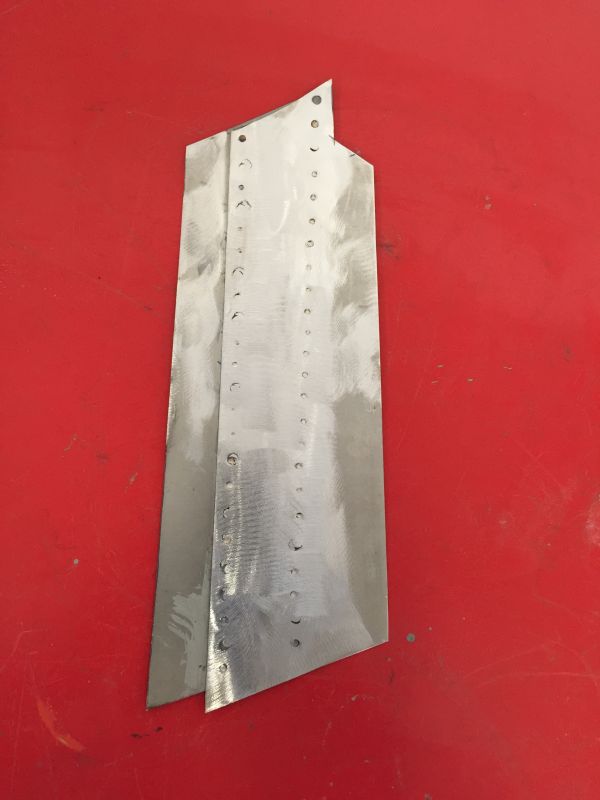

            Ready for installation. I had to punch holes for rosette welding as the spot welder couldn't reach this area with the trunk release tube still in place.


            Click image for larger version

Name:	IMG_2563copy.JPG
Views:	73
Size:	83.0 KB
ID:	61718
            Looking better every day.


            Click image for larger version

Name:	IMG_2561copy.JPG
Views:	70
Size:	71.9 KB
ID:	61719

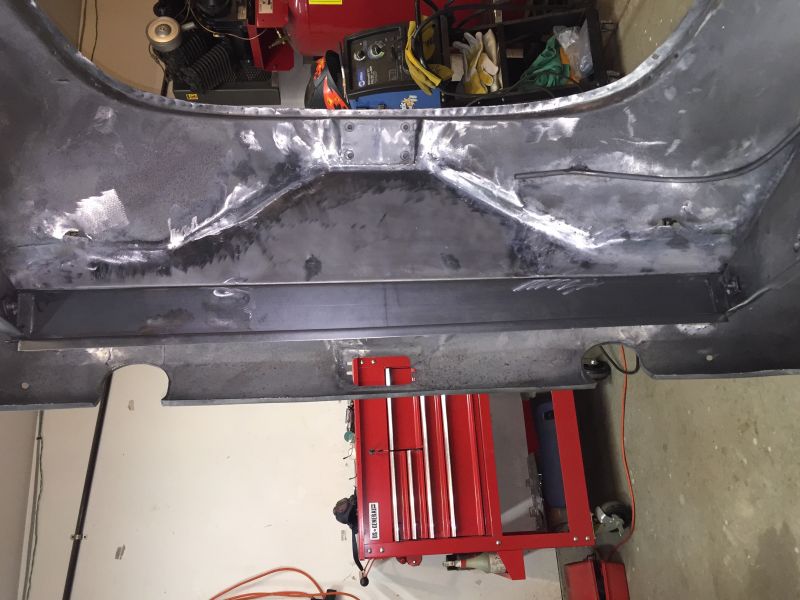

            The engine bay fender is once again solid. The top where it meets the outer sheet metal had rusted through and will be tackled next.

            Thanks for following.
            jjgpierce@yahoo.com

            Comment


            • John

              Really nice work. Brings back memories of my repairs to that area on Foam Car. Fortunately I did not have to undo someone else poor repairs.

              Phil

              Comment


              • Yuck! No fun, I feel your pain. Its looking great, keep widdling away at that to do list John.
                Justin Rio

                Comment


                • John

                  One thing I did not do but wish I had was to check the match or mismatch of the surrounding engine tray with the engine sheet metal where the rubber seal is. I have read about this mismatch on T6 bodies, but forgot to check it, or did not notice it on Foamcar. If there is a mismatch, this could be remedied when installing the new tray parts. As I did not do the check, I installed the repro tray exactly(+- .005 ) where the original one was.

                  Phil

                  Comment


                  • Thanks guys. I also thought of fitting the engine sheet metal. Great minds.

                    Still getting the engine bay buttoned up. Lots of little stuff that eats up a lot of time.


                    Click image for larger version

Name:	IMG_2568copy.jpg
Views:	70
Size:	67.9 KB
ID:	61796

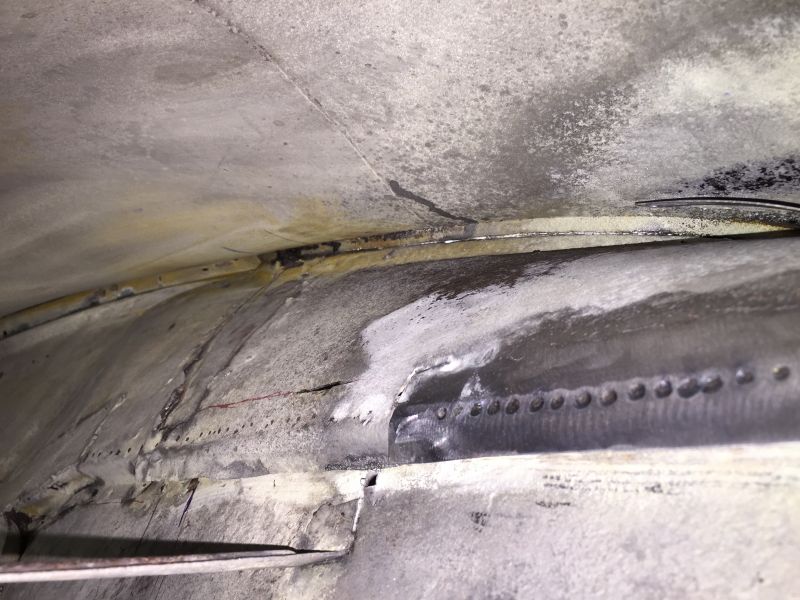

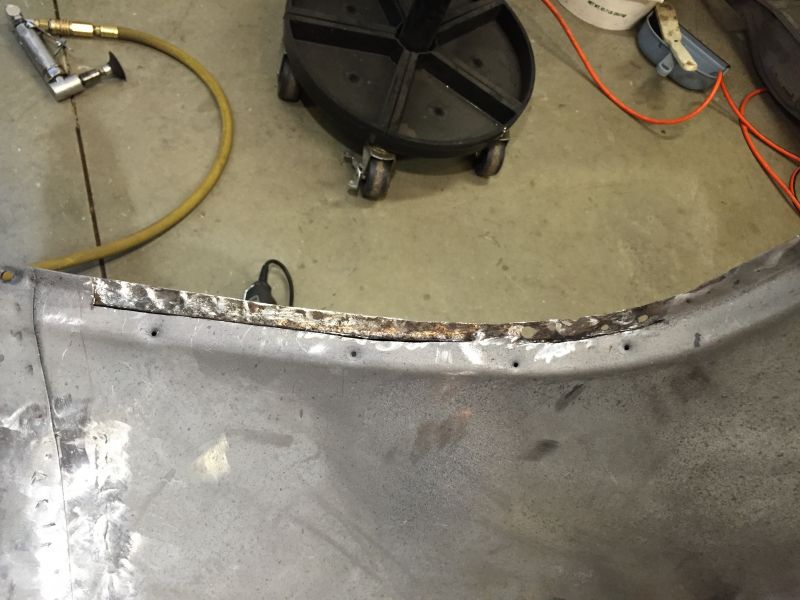

                    The top edge seems to be a prime location for rust to form. There was lots of thinned metal with blow through. Most of the edge had to be cut back with new metal spot welded in place.


                    Click image for larger version

Name:	IMG_2647copy.jpg
Views:	70
Size:	70.9 KB
ID:	61797

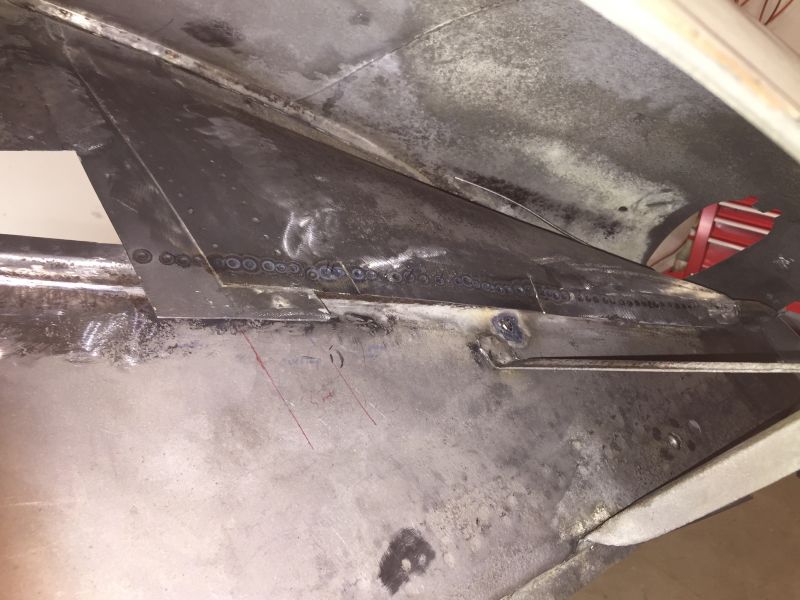

                    The top edge is nice and solid again and the deck lid release is welded back in position. The rear closing panel still has a big hole.


                    Click image for larger version

Name:	IMG_2649copy.JPG
Views:	70
Size:	70.6 KB
ID:	61798
                    The engine bay is looking MUCH better!

                    On to the rear closing panel. Thanks for following.
                    jjgpierce@yahoo.com

                    Comment


                    • Nice work, John. To fit the engine surround, you will have to install the trans with the mounts that you will be using, then the engine, with the needed shrouding. In the past, I have fitted these parts after paint, to assure good fit, as it's a non invasive area. Just a thought.
                      Jack (analog man from the stone age)

                      Comment


                      • Great job!
                        I ended up with the seal on my C pulling away from the body about 8" on each side of the center in the back. I was thinking new engine mounts would take care of it and they did help but still have that issue but to a lesser amount. If the engine was 1/2" higher I'm guessing that would take care of it. Something I missed in the process.
                        Ashley Page

                        Comment


                        • My "C" also had the ill fitting rear tin seal. The "European" seal from Int. Merc. solved the problem, just my $.02.

                          Comment


                          • Thanks for the information regarding the engine tin and tray fitment. My rotisserie is connected at the transmission bolts, which makes fitting the engine a tad difficult. I guess I could lift it up on a jack, but will probably wait till later like Jack does.

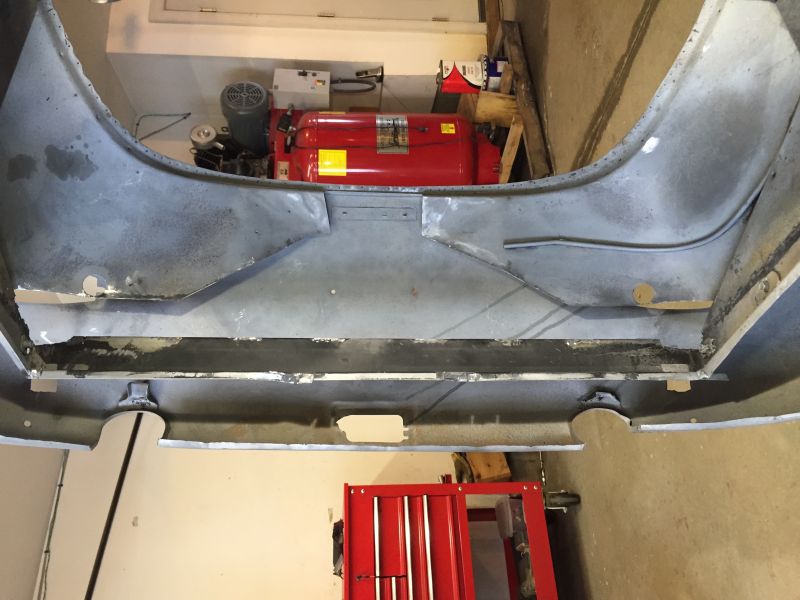

                            I'm finally back to the area that I started to fix months and months ago: the rear closing panel. Everything else had to be repaired first before getting back to it.


                            Click image for larger version

Name:	_MG_3407copy.JPG
Views:	70
Size:	44.2 KB
ID:	61877
                            This is the amazing repair job that was done before I got the car!


                            Click image for larger version

Name:	IMG_1595copy.jpg
Views:	67
Size:	66.6 KB
ID:	61878
                            Once the engine tray was removed the previous repairs were much more visible. That's an 18 gauge piece of triangular metal spot welded on.


                            Click image for larger version

Name:	IMG_1646copy.jpg
Views:	70
Size:	54.3 KB
ID:	61879
                            I thought I could save some of the repairs, but no luck. Once the covering triangular piece of metal was removed I found another piece of metal beneath it welded in. I have no idea why that was done.


                            Click image for larger version

Name:	IMG_1649copy.jpg
Views:	67
Size:	44.3 KB
ID:	61880
                            This is the back side with lots of cat hairs. Parts of the rusted original metal were never removed.


                            Click image for larger version

Name:	IMG_1666copy.jpg
Views:	65
Size:	68.9 KB
ID:	61881

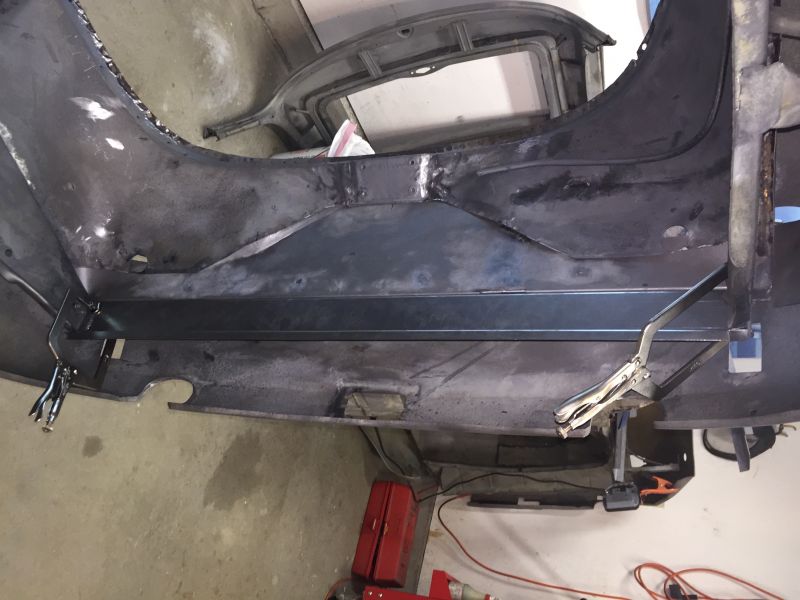

                            All the offending metal removed. The rust went around both sides into the inner fenders and rear frames, which needed repairing. That lower crossmember will also come out. Now to start making repair patches.


                            Click image for larger version

Name:	IMG_1669copy.JPG
Views:	64
Size:	54.5 KB
ID:	61883

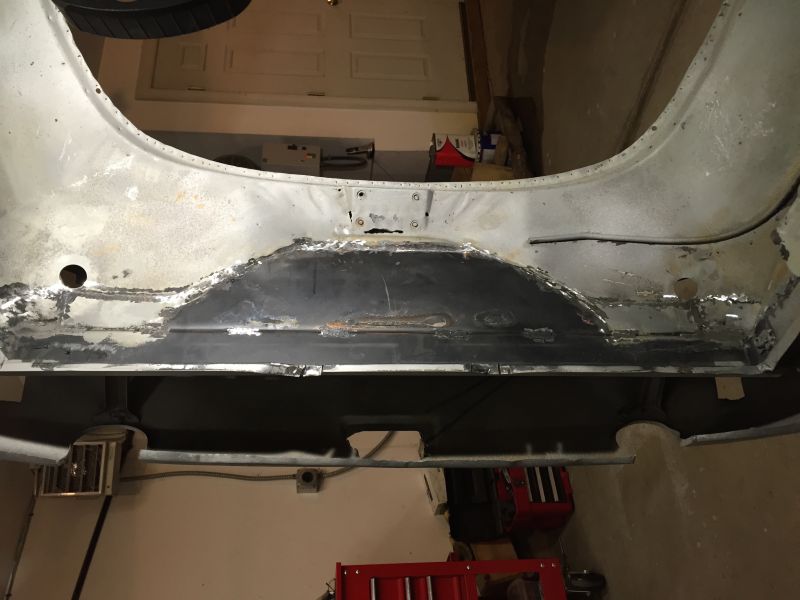

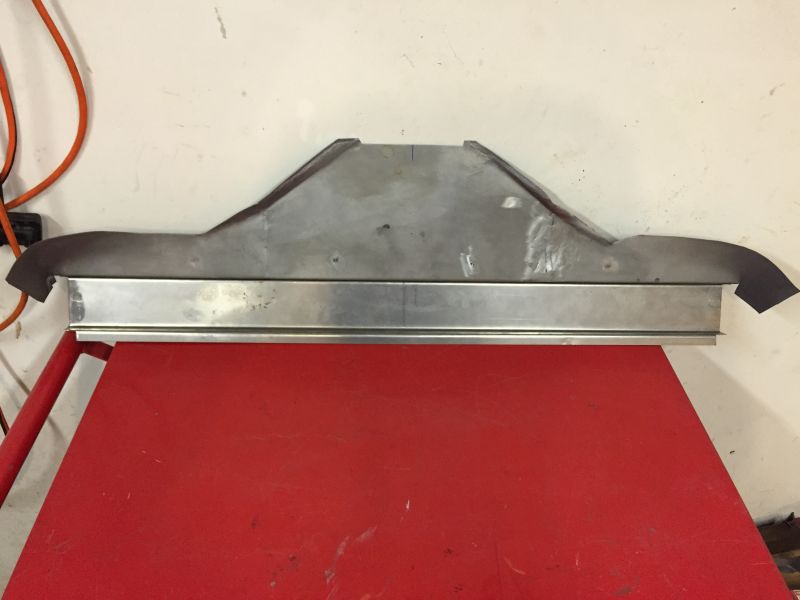

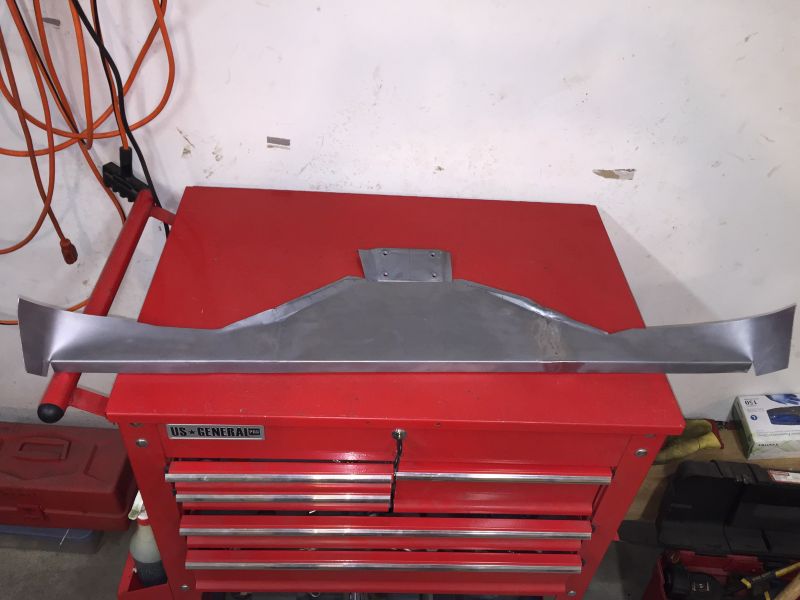

                            A few measurements and bending got a reasonable facsimile.


                            Click image for larger version

Name:	IMG_2529copy.JPG
Views:	66
Size:	63.1 KB
ID:	61884
                            The crossmember and electrical harness tabs were spot welded on as this area would not be accessible later.


                            Click image for larger version

Name:	IMG_2653copy.JPG
Views:	65
Size:	40.2 KB
ID:	61886
                            Everything ready for installation.


                            Click image for larger version

Name:	IMG_2538copy.jpg
Views:	62
Size:	64.6 KB
ID:	61885
                            The fitment is good. Just a bit of trimming to do.


                            Click image for larger version

Name:	IMG_2657copy.jpg
Views:	63
Size:	71.5 KB
ID:	61887
                            Solid once again. What a relief!

                            I've got a few things to button up then onto the engine tray next. Thanks for following.

                            JP
                            Attached Files
                            jjgpierce@yahoo.com

                            Comment


                            • Great save and it Looks fantastic John! What a mess that once was, I just don't understand the logic behind repairs like those. Like your spot welder. What type and model is it? Keep up the great work!
                              Justin
                              Justin Rio

                              Comment


                              • Thanks Justin.

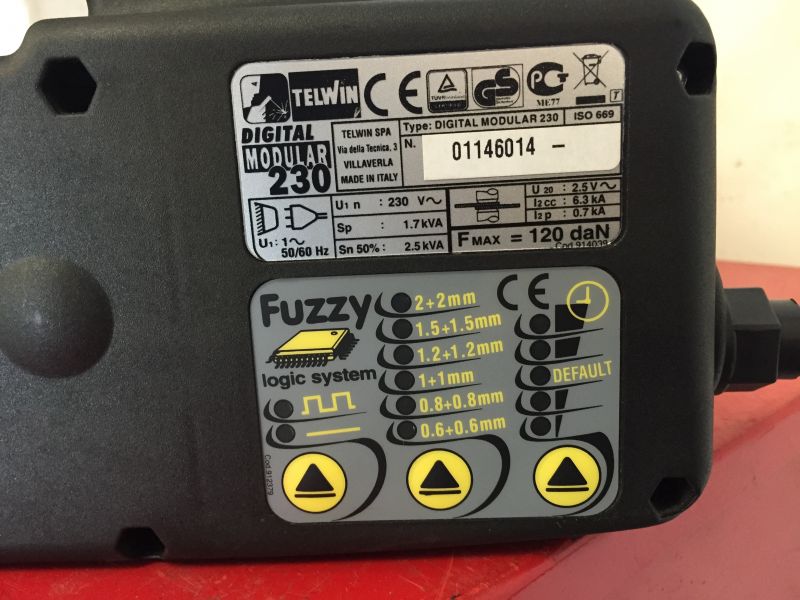

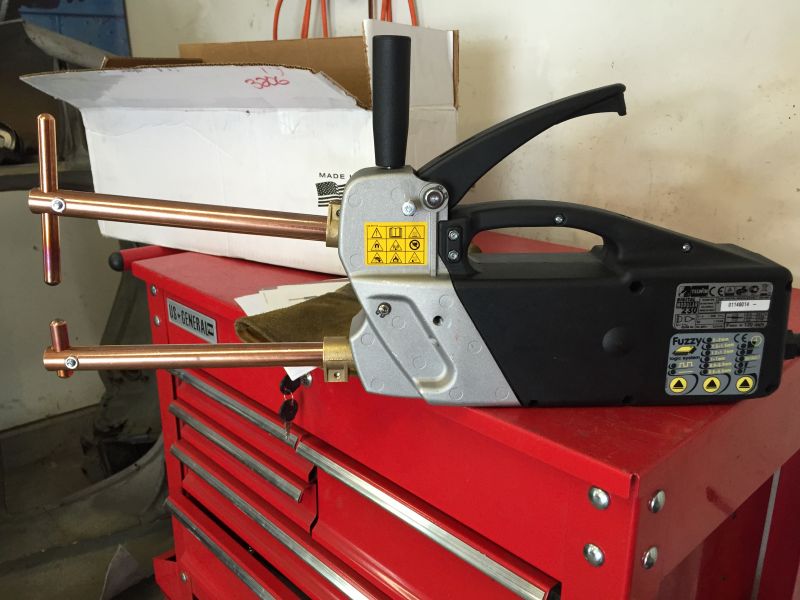

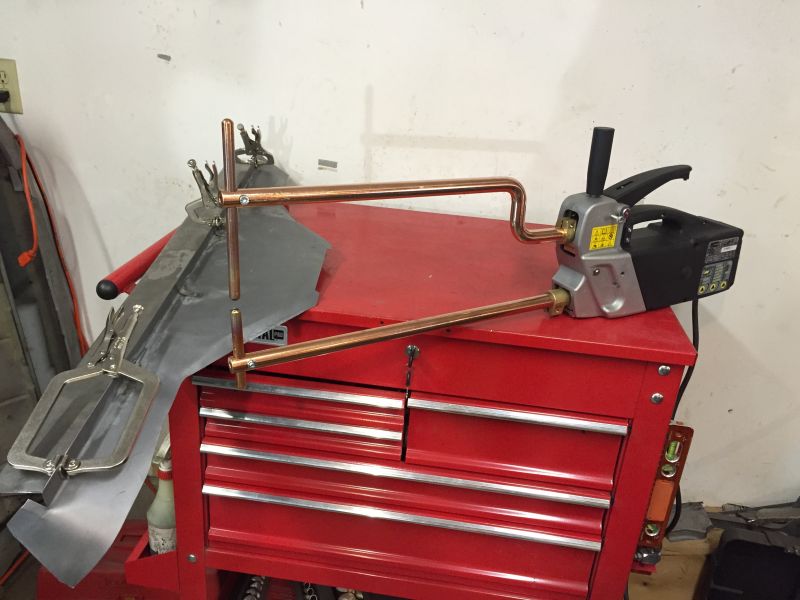

                                DG recommended this spot welder from Italy. It's got smart circuitry and welds much better than the ones made by Miller. It can be set for the thickness of the metal being welded along with static vs pulse waves if the metal has a zinc coating on it. Pretty cool machine.
