          2/11/14

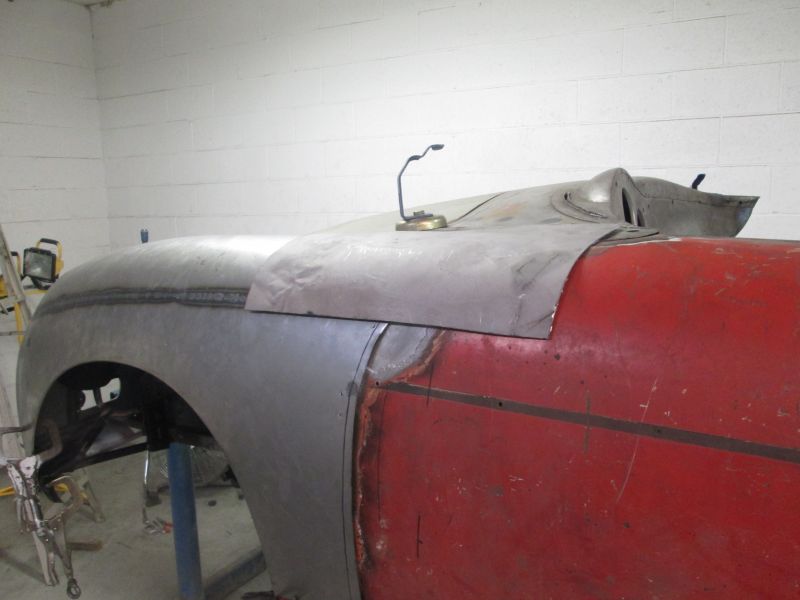

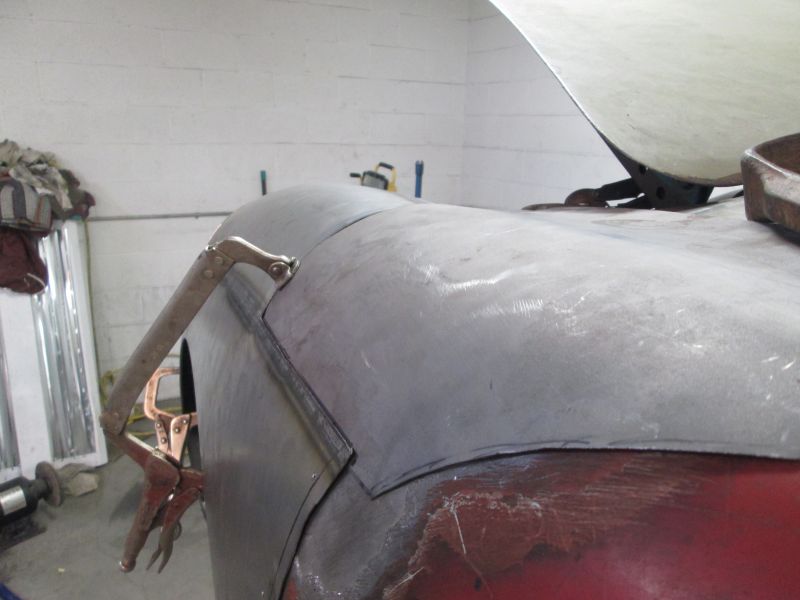

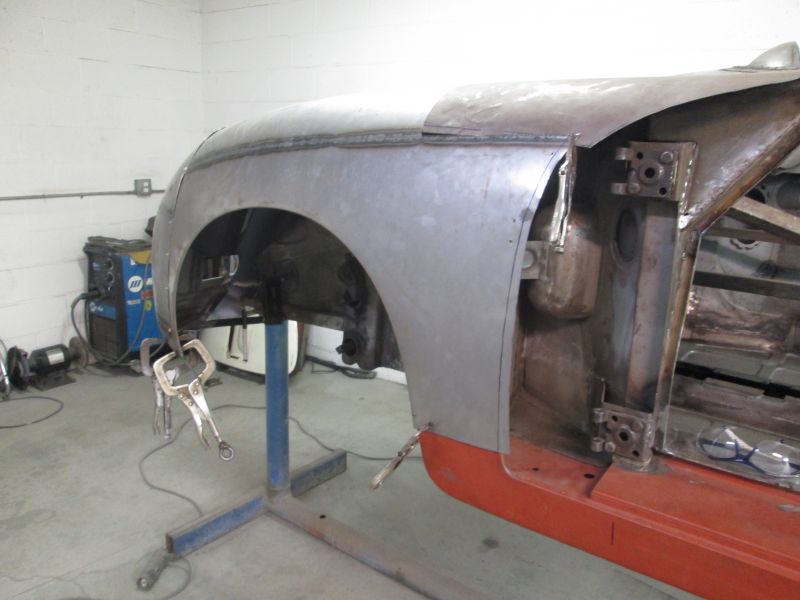

          Left fender at cowl joint

          Click image for larger version

Name:	Con-vert139.JPG
Views:	100
Size:	52.6 KB
ID:	84703

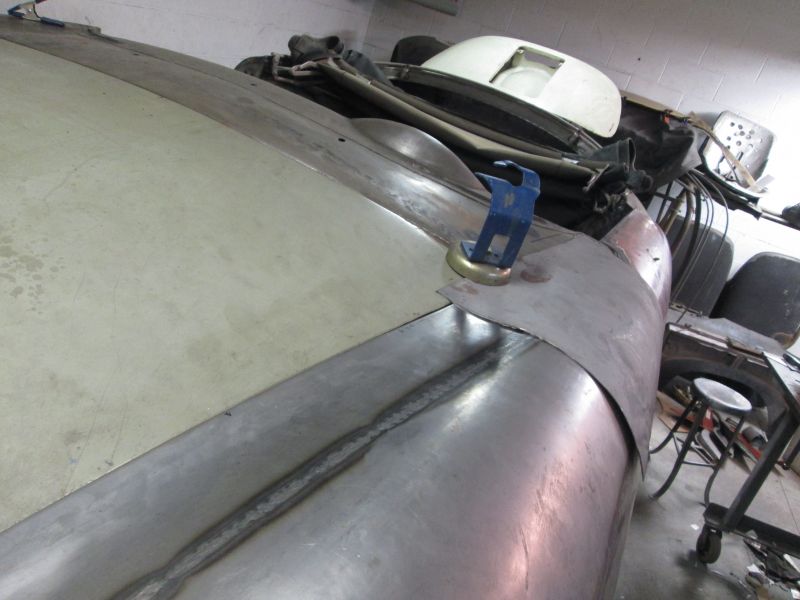

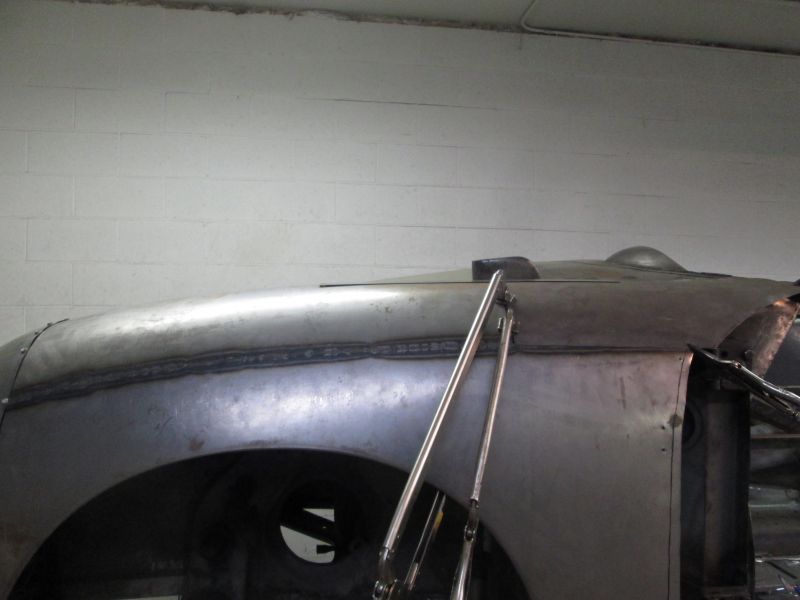

          Some time spent experimenting with different tensions and pressure points to try to raise this area into alignment.
          Click image for larger version

Name:	Con-vert141.JPG
Views:	113
Size:	55.3 KB
ID:	84704

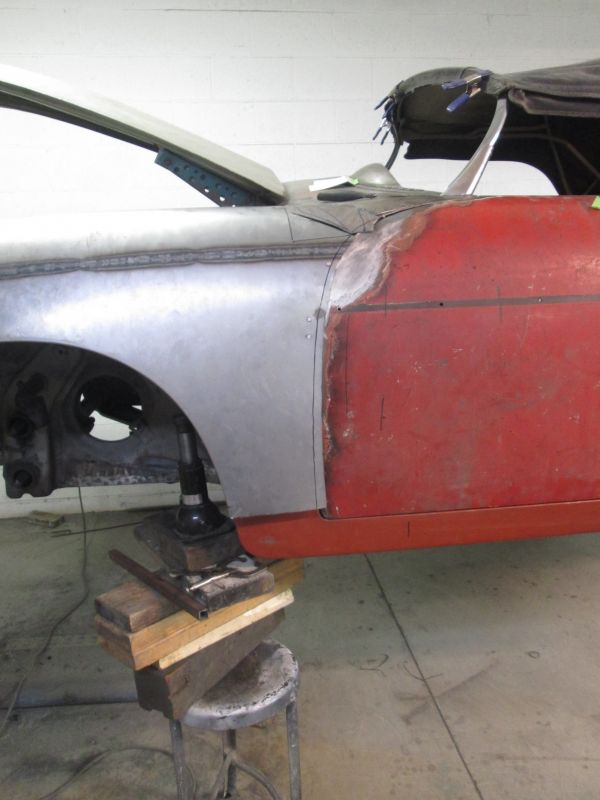

          with some help from that bottle jack underneath the contour improved some but both panels where still fighting and wanting to run down hill where they met.
          Click image for larger version

Name:	Con-vert140.JPG
Views:	106
Size:	54.3 KB
ID:	84705
          I soon came to realization that this approach simply isn't going to give me the end result I'm looking for. I've welded enough sheet steel to now know that even if I got these sections talked into or "forced" into position this area would be a wavy mess after all the heat and would with absolute certanty collapse back into that undesired position if not worse. To compound the issue the weld joints are just at the splash pan so accessiblity to metal finish the welds to bring it back out would be very difficult if not impossible. The end result would be a mud hole requiring liberal amounts of lead or filler to be right again. I should have realized that earlier but sometimes you just have to discover or rediscover things when your ready to.
          Click image for larger version

Name:	Con-vert142.JPG
Views:	102
Size:	50.1 KB
ID:	84706
          To make this right I need to eliminate that bridge section and get my weld joints out in the open where I can get to them from the back side. I need a large patch section with the right contours. I was a little upset with myself at this point for cutting this fender earlier for that stupid filler section but after some study I still have enough here to make my new repair with.
          Click image for larger version

Name:	Con-vert143.JPG
Views:	98
Size:	55.0 KB
ID:	84707

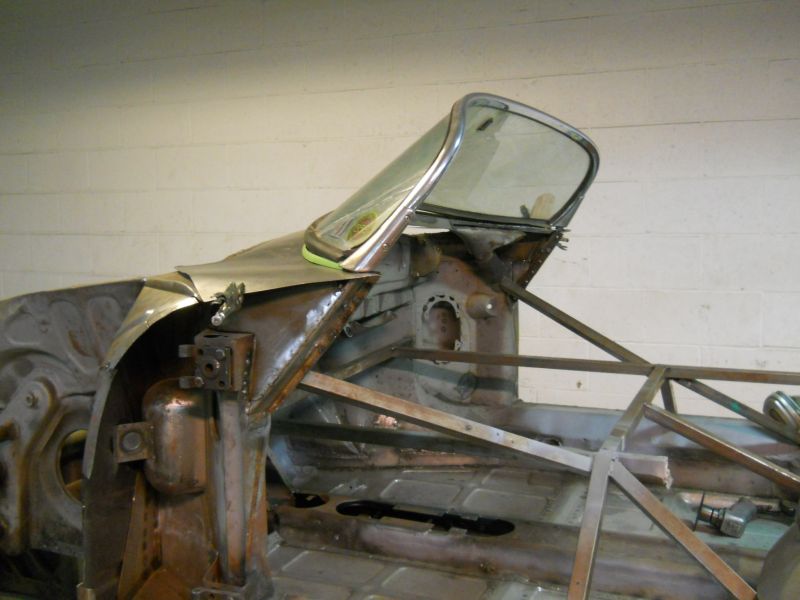

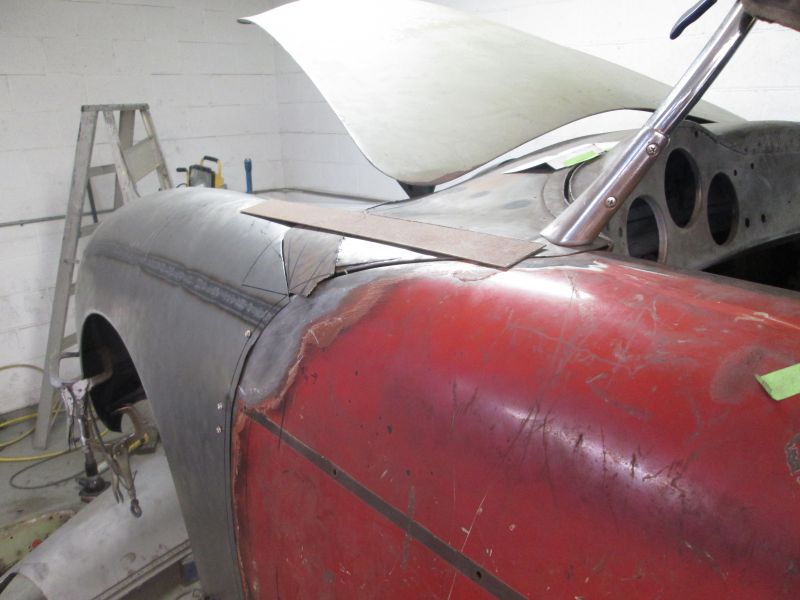

          Before any more hasty cutting I went back to my original speedster dash section to carefully study the contour and plan out the new repair section. Will post that tomorrow.
          Thanks for reading this!
          Justin
          Justin Rio

          Comment


          • Justin,

            Your repair work never ever 'bores' me. I wish you all the best on this repair I just don't know how you manage to correct things the way you do. Really quite amazing to watch.

            Roy

            Comment


            • And never "boring"...
              Craig Richter

              Comment


              • Justin
                Ref 37264 post with many pictures; looking at the side view where the top, rear pulls down, could this possibly have been caused from weld shrinkage of that top seam? If so, stretching that area might bring it up without having to patch in a piece. If you lay some thin cardboard up there to create the proper shape you could determine how large an area needed to be stretched.
                Just a thought.
                Phil

                Comment


                • Thanks for the feedback Craig and Roy!

                  I appreciate the input Phil. The back of the fender does taper and flatten too quickly. It could be raised and that was a thought a few days back but as I've gotten my head around the situation the fender is only one half of the problem. I have several issues going on with the cowl which is compounding everything. Some of it is my fault and some of it the way it was made.
                  Click image for larger version

Name:	Achassis2672.JPG
Views:	92
Size:	56.1 KB
ID:	84764

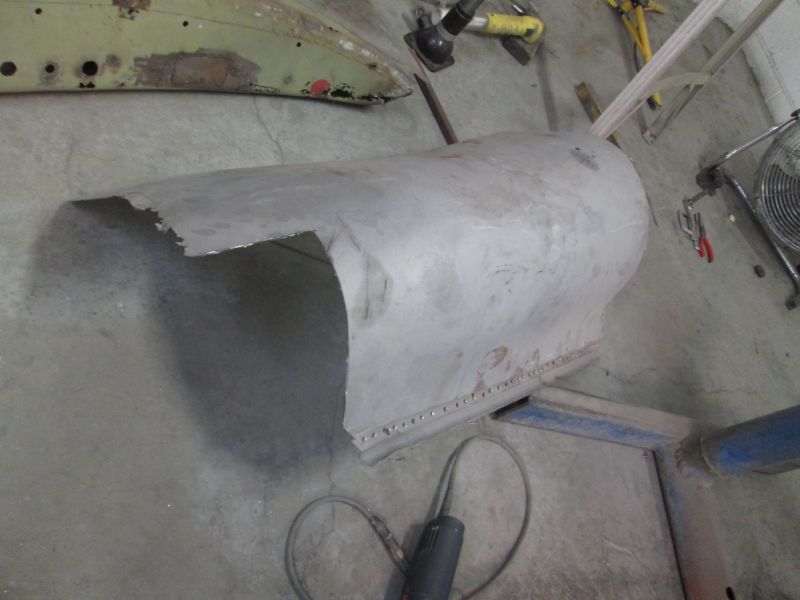

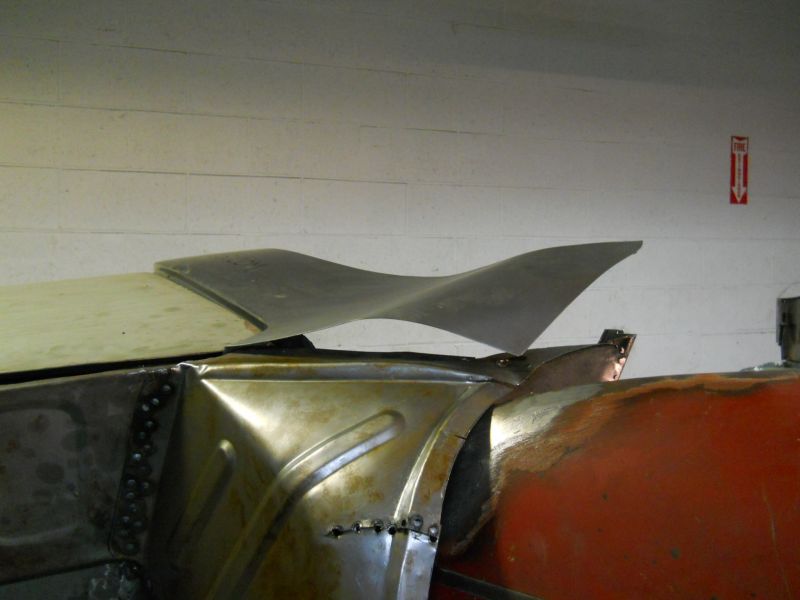

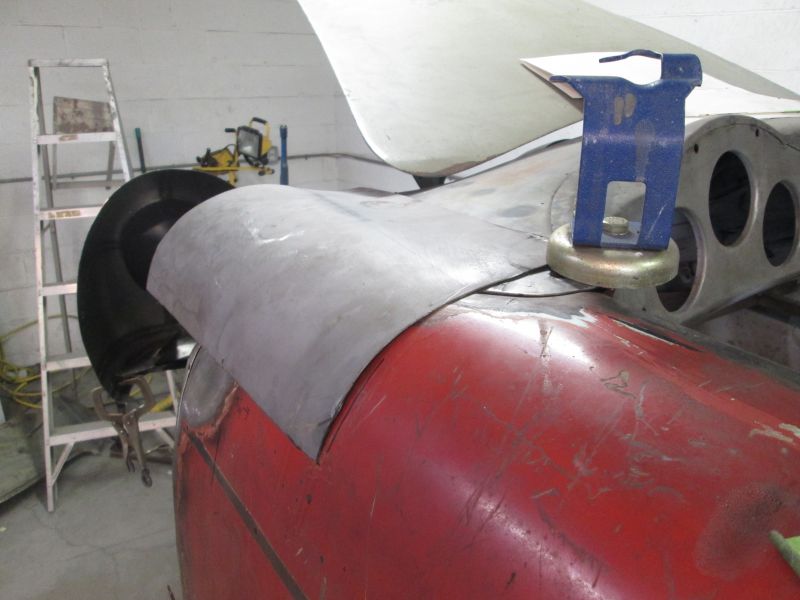

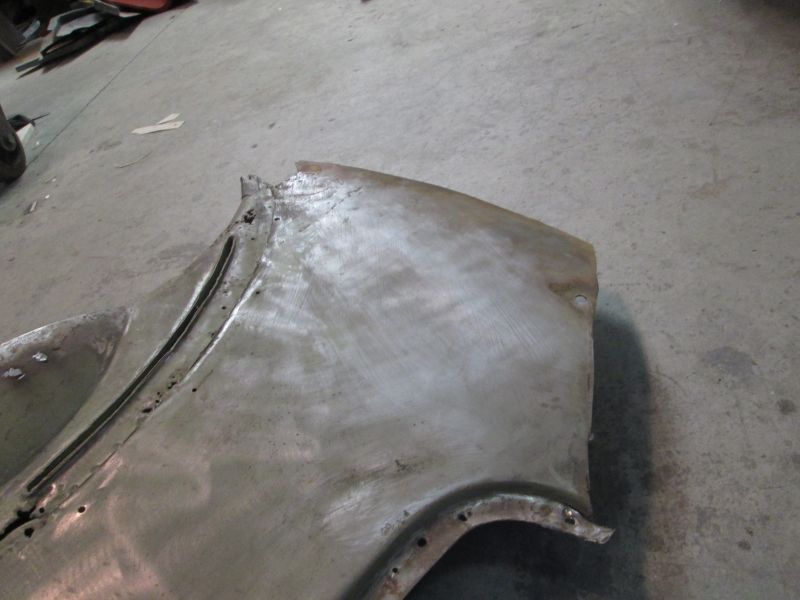

                  Just a quick recap as I was sent an extremely over exagerated cowl shape both at the sides and at the center.
                  Click image for larger version

Name:	Achassis2691.JPG
Views:	84
Size:	44.4 KB
ID:	84765
                  Alot of this exagerated trough relaxed out once the inner flange was cut free however the general surface was still stretched inward too far. Hindsight being what it is I should have sent this dash and cowl back for a refund and got in line at Trevor's for his offering. Live and learn...
                  Click image for larger version

Name:	Achassis2901.JPG
Views:	89
Size:	57.2 KB
ID:	84766
                  Again it relaxed but was never quite right as the surface began to "oil can" as I pushed down where it needed to be.
                  Click image for larger version

Name:	Achassis3190.JPG
Views:	92
Size:	56.6 KB
ID:	84767
                  I heat shrunk it to stabilize the area but as you can see the trough was still weird and lumpy in places. Too complex of an area for a guy with my skill level to have any shot of correcting cleanly after being stretched out that far. I realize that now.
                  Click image for larger version

Name:	Achassis3215.JPG
Views:	90
Size:	50.5 KB
ID:	84768
                  To make matters worse my mistake was flanging the edge of this cowl over way too soon. I was careful to make sure it continued the contour line from the door inwards but I completely overlooked setting the front to back profile which can only be can only be established against the eventual "set" fender. A simple oversight that I chalked up to my inexperience.
                  Click image for larger version

Name:	Con-vert168.JPG
Views:	81
Size:	62.3 KB
ID:	84769
                  So in taking everything into account I decided to cut and replace past all the bullshit in one swoop. It was the right decision as I'll post next...
                  Justin Rio

                  Comment


                  • Tin-man Justin,
                    Sorry to hear about your problems to tame the metal to place...
                    May I ask where you obtain these cowl & dash from?
                    It looks extremely off from the photos.
                    Keep on pounding the pieces and they will/must fit
                    Per
                    JOP

                    Comment


                    • Looking forward to the next instalment Justin. I remember the cowl problems on your Carrera You managed that in the end but as you say it comes down in the end to the supplier. How many end users of items that need so much modification end up pulling out their hair in frustration. You are far, far more experienced than you think Justin. People are buying items from here and there who are streets behind you in compensating for items they receive. Its a mine field.

                      Roy

                      Comment


                      • Hey Per,

                        Those were Steve Hogue panels. The rear firewall assembly was very nice and the rear closing side walls were okay but the dash and cowl assembly were a completely different story.

                        Thanks once again Roy! The cowl on my coupe was factory with no issues, I believe your thinking of this project and all I had to go through to get this thing to fit and work.

                        Thanks again for all the sympathy guys!
                        Justin


                        2/16/17
                        Click image for larger version

Name:	Con-vert148.JPG
Views:	93
Size:	65.9 KB
ID:	84910

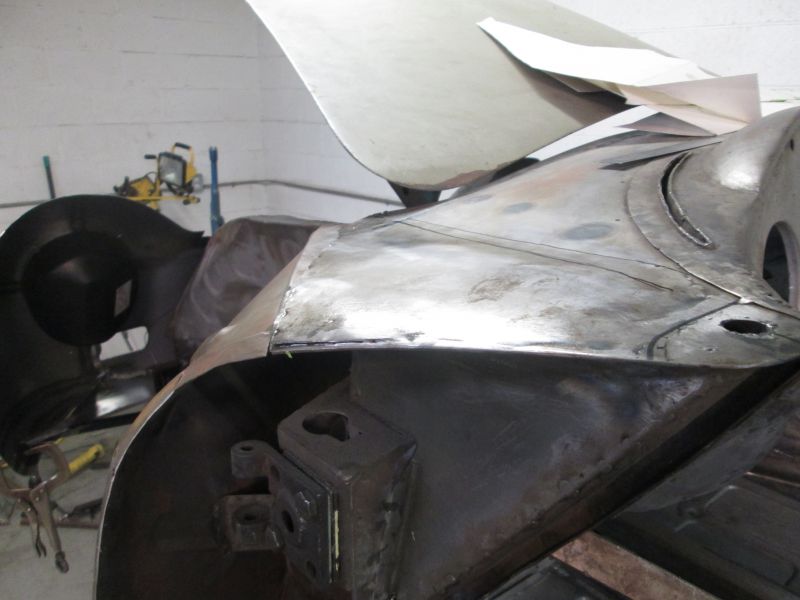

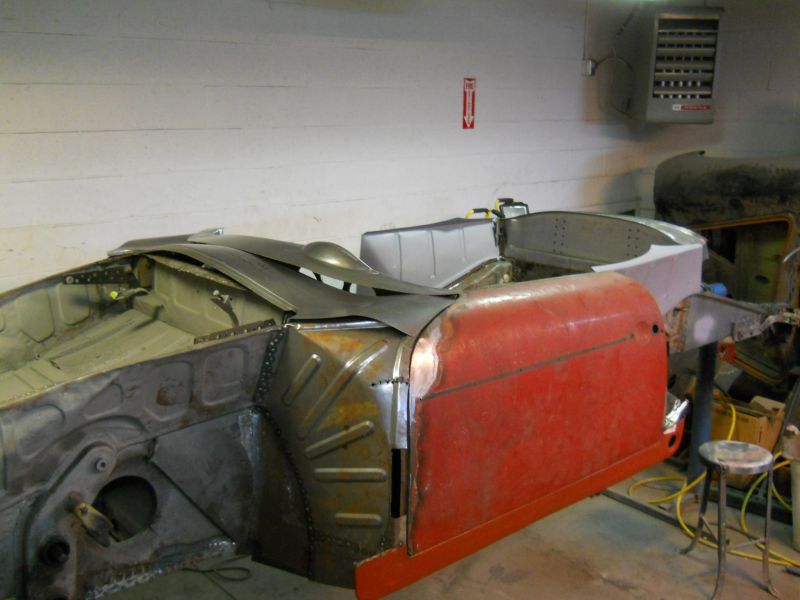

                        Spent some time to really get my head around the actual and correct contour shape of this transfer from cowl to fender crown. Though no longer prestine there was enough left here on my original speedster cowl to point me in the right direction.
                        Click image for larger version

Name:	Con-vert176.JPG
Views:	83
Size:	42.8 KB
ID:	84911

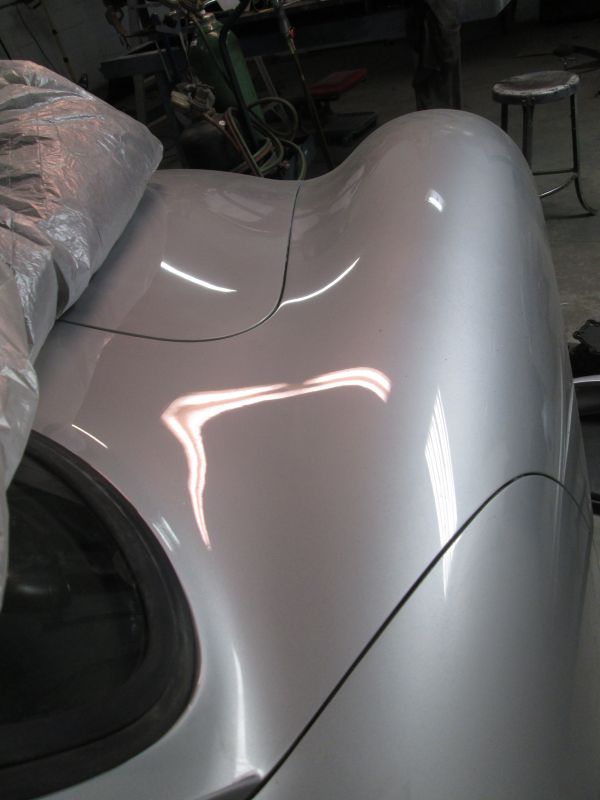

                        My coupe also helped as its very similar though the speedster is of course flatter as it approaches the window frame.
                        Click image for larger version

Name:	Con-vert150.JPG
Views:	82
Size:	57.6 KB
ID:	84912

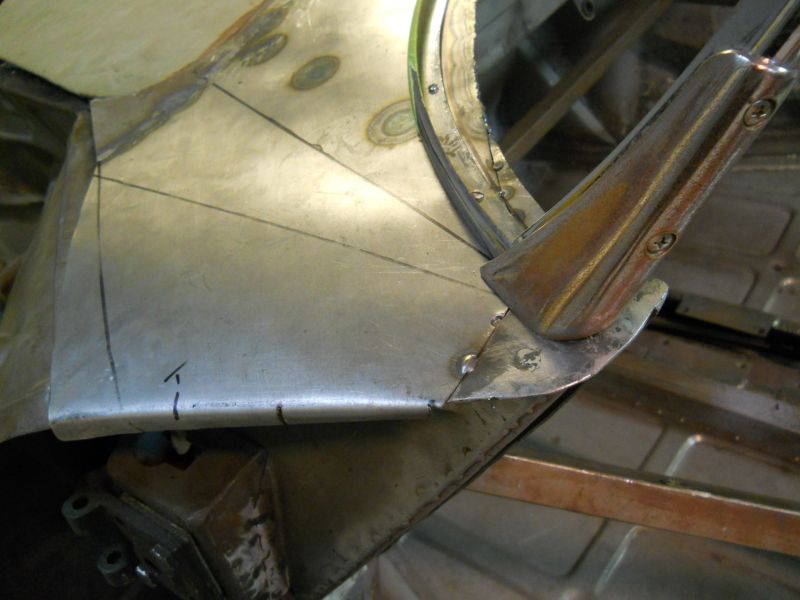

                        traced out the basic shape of the trough and how it fans out and fades on up to the windshield posts.
                        Click image for larger version

Name:	Con-vert149.JPG
Views:	93
Size:	59.4 KB
ID:	84914
                        Carrying on that contour line to the fender.
                        Click image for larger version

Name:	Con-vert166.JPG
Views:	96
Size:	51.4 KB
ID:	84913

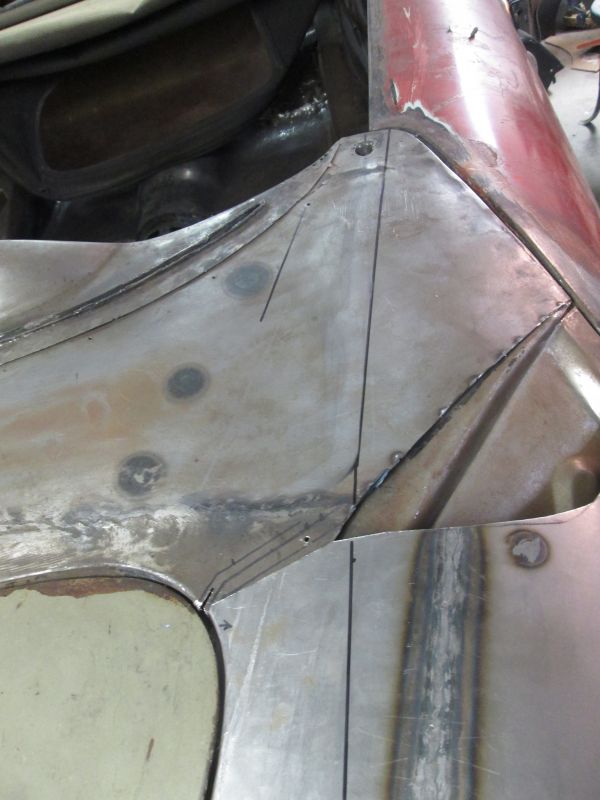

                        It eventually dawned on me that not only is this panel sloping too steeply to align with the fender profile but the overall surface and shape of this section is just fucked.
                        Click image for larger version

Name:	Con-vert160.JPG
Views:	97
Size:	57.6 KB
ID:	84915

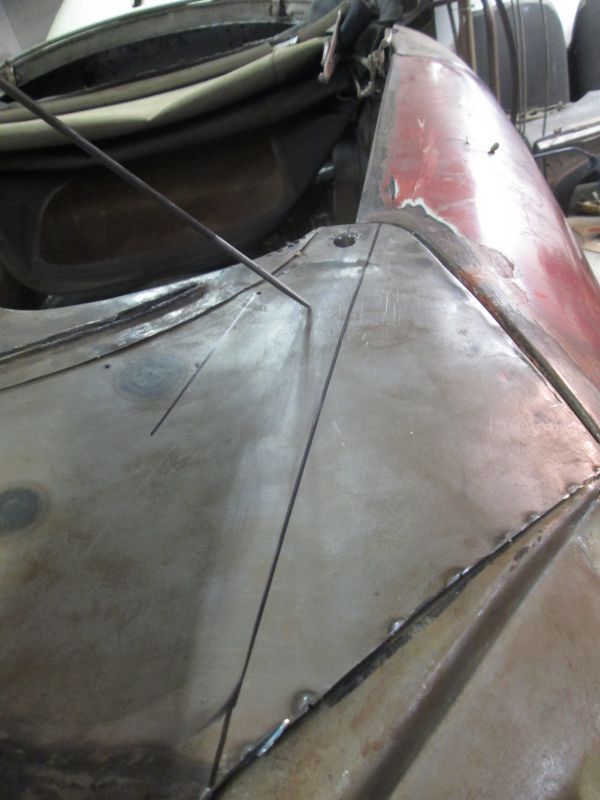

                        I needed that remaining donor section to do several things all at once to have any shot of a half way decent outcome. It needed to be large enough to eliminate the troubled cowl surface, eliminate (and to soften the approach) the slightly rolled under rear fender section, eliminate that initial shortfall gap and move the weld joints out where I can work the back sides after all the welding; not asking for much. Basic cut lines to accomplish this are marked out here.
                        Click image for larger version

Name:	Con-vert169.JPG
Views:	81
Size:	54.1 KB
ID:	84916
                        I was kicking myself earlier for burning a now very valuable section of the old fender but I had just enough left of it make this patch panel.
                        Click image for larger version

Name:	Con-vert145.JPG
Views:	84
Size:	44.2 KB
ID:	84917

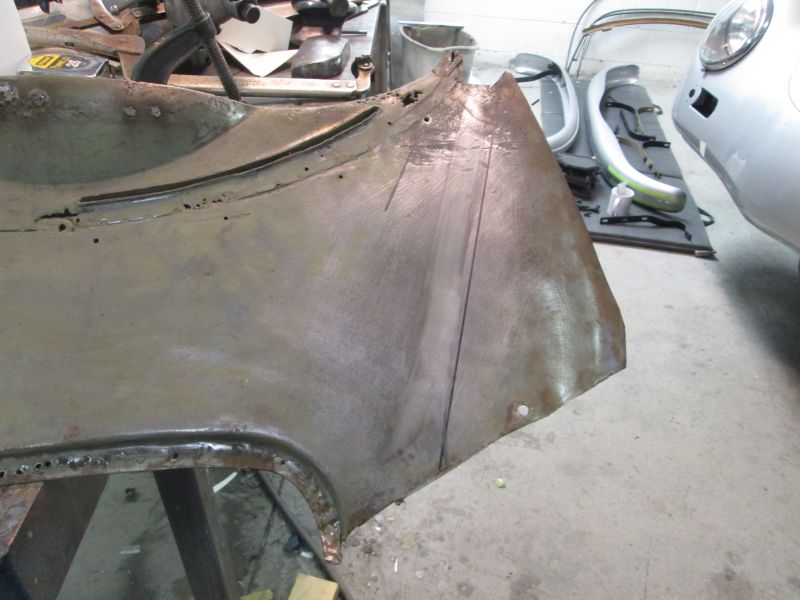

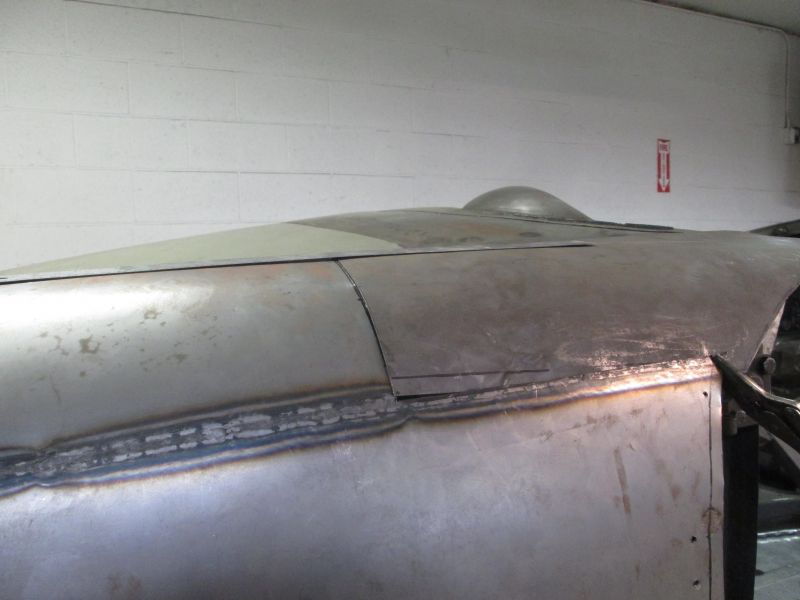

                        This is originally the mid/rear portion of the old fender now slid all the way to the back for my needs but after some time spent positioning it and fiddling around it was clear that the overall shape was consistent enough to give me what I'm after.
                        Click image for larger version

Name:	Con-vert147.JPG
Views:	89
Size:	59.1 KB
ID:	84918
                        It was a natural and bridged all my concerns almost immediately.
                        Click image for larger version

Name:	Con-vert146.JPG
Views:	89
Size:	54.0 KB
ID:	84919
                        I was so relieved to have finally had a solid path forward out of this mess. More on this tomorrow.
                        Thanks for looking!
                        Justin
                        Justin Rio

                        Comment


                        • Morgen Justin,

                          I thought it might be SH panels but was not sure....
                          A lesson I learned the hard way is never never throw away old pieces just because you bought new one!
                          Like in your case it can get you out of a jam
                          But also valueable countors of an OEM piece is nice to have on hand even if badly rusted.

                          We have said it earlier that it is a "Made by Hand" car and almost all new produced needs some work but as a producer not taking a litle bit of extra time to get it all right is weired in my world!
                          ( NOS also needs TLC to fit but altleast it came from the right place way way back )

                          Atleast you have the right rear battery box wall in your Speedster
                          JOP

                          Comment


                          • Justin,

                            You are correct I got confused in my mind as that cowl repair took place 2 years and 2 months ago, on page 103 of this thread. No wonder I got confused I went back to page one and then sped through all your work to page 103. That amount of work alone was so impressive, the fact you are now over 2 years on from that cowl and the fact from my measurements I sent and photos the cowl you purchased it was so far out of any dimensional accuracy to an original you deserve a medal just to modify and fit that item alone.

                            My goodness what a job to date you have carried out and to see the result coming on in leaps and bounds is fantastic.

                            Well done, just don't know how you do it.

                            Roy

                            Comment


                            • Thanks Per, I have a few piles of old metal that I'd love to throw away but I have found myself on more than a few occasions picking through them for an odd shape or two that might turn the trick. So as much as I'd like the space and less clutter I know I'd live to regret it.

                              Thanks once again Roy. Having looked through a few really early progress shots when it was just a bare chassis with a pair of doors hinged on I find it hard to believe I made it this far myself before a full mental breakdown. The only thing I can attribute it to is: Small steps and Small bites.

                              Thanks again guys!
                              Justin

                              2/28/17

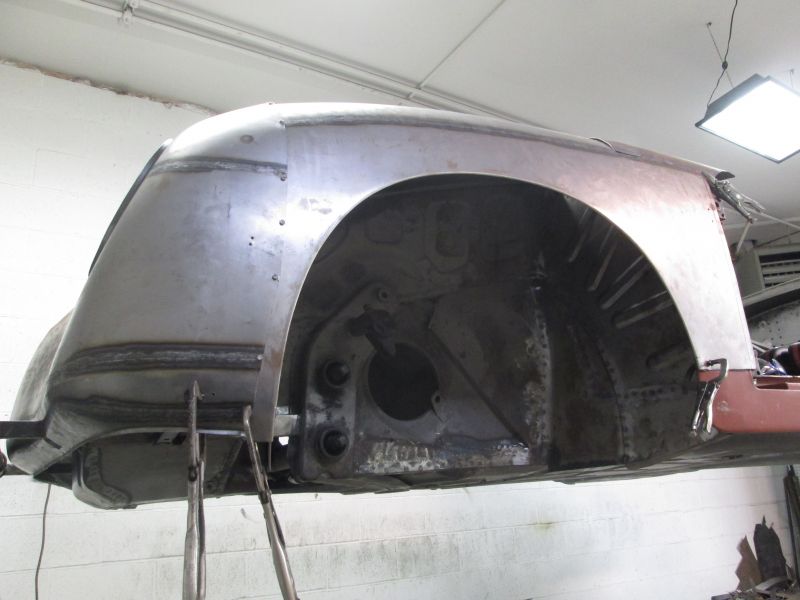

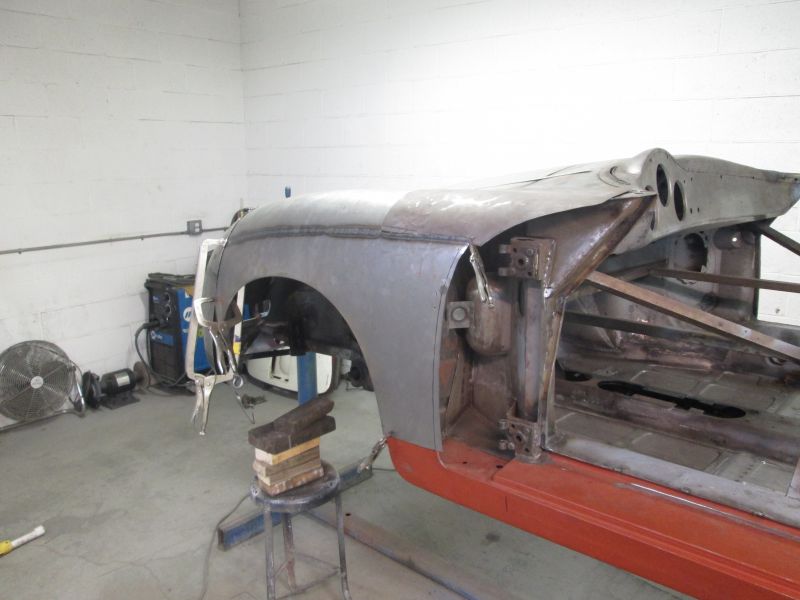

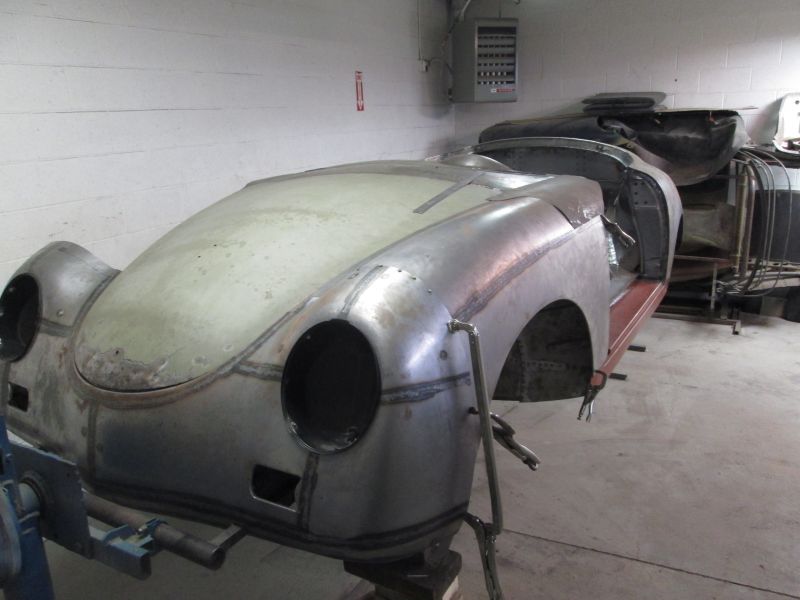

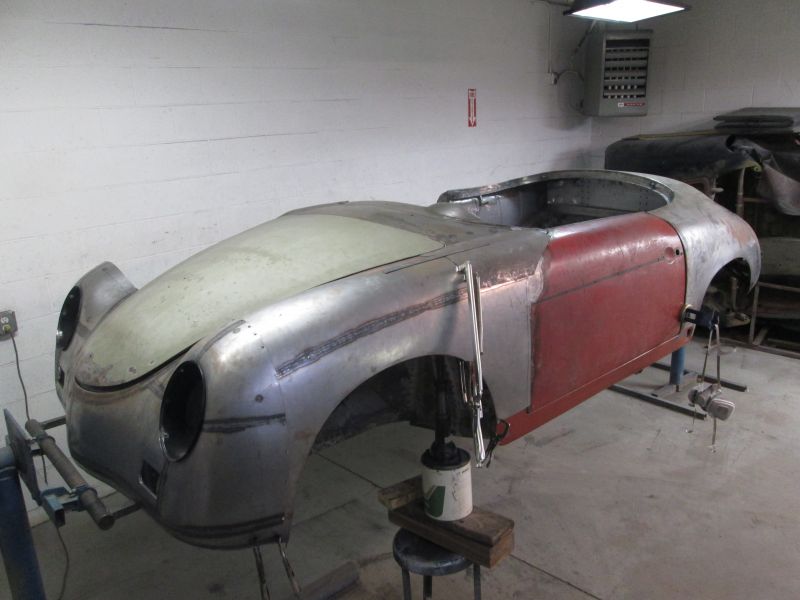

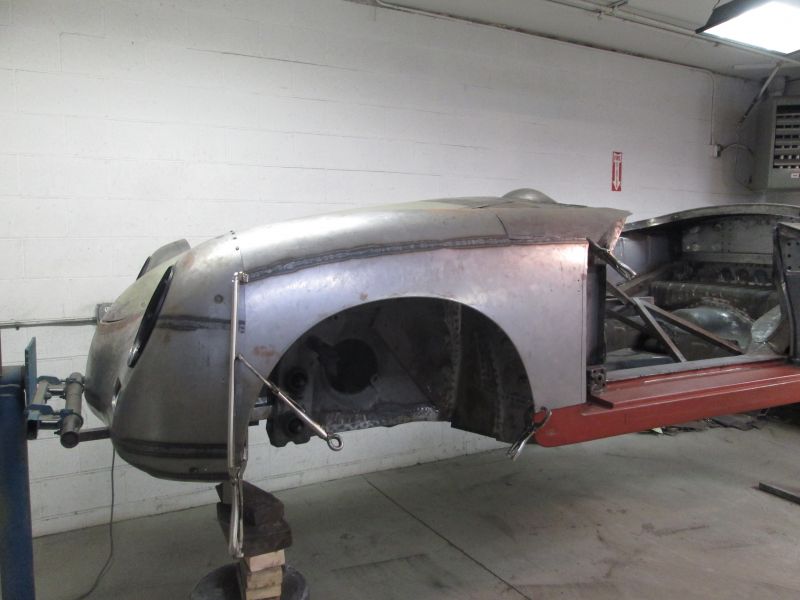

                              Left fender fitment about dialed in.

                              Click image for larger version

Name:	Con-vert199.JPG
Views:	80
Size:	48.8 KB
ID:	85528

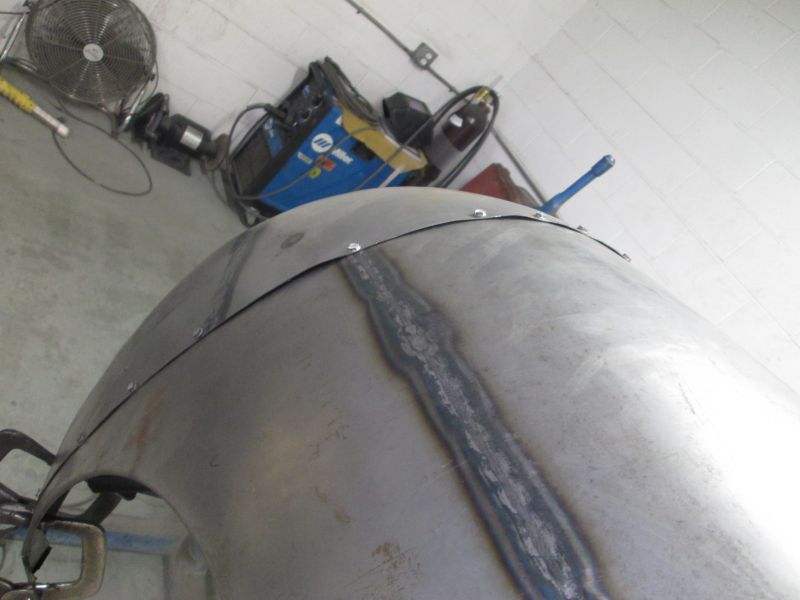

                              Trimming and fitment of the new sectioned continued but I was still fighting that double humped profile where they met.
                              Click image for larger version

Name:	Con-vert198.JPG
Views:	89
Size:	54.8 KB
ID:	85529

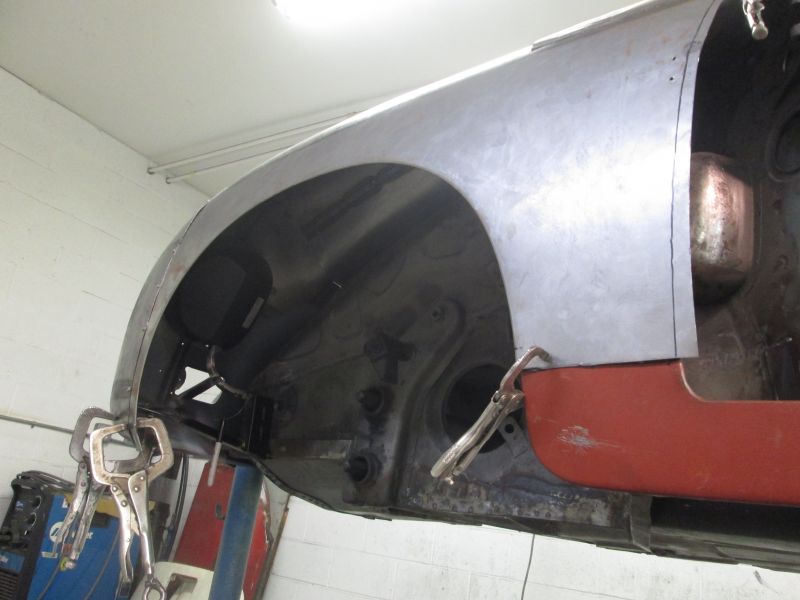

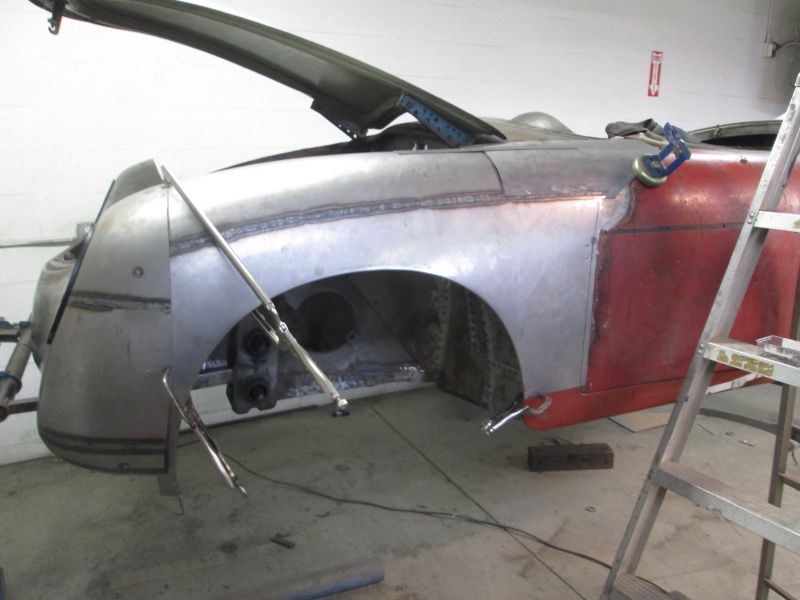

                              Changed the approach by tucking the front of the fender under the nose allowing me to slightly tilt the fenders attitude to soften arched profile toward the back where it meets up with the new/old section.
                              Click image for larger version

Name:	Con-vert154.JPG
Views:	79
Size:	42.6 KB
ID:	85530

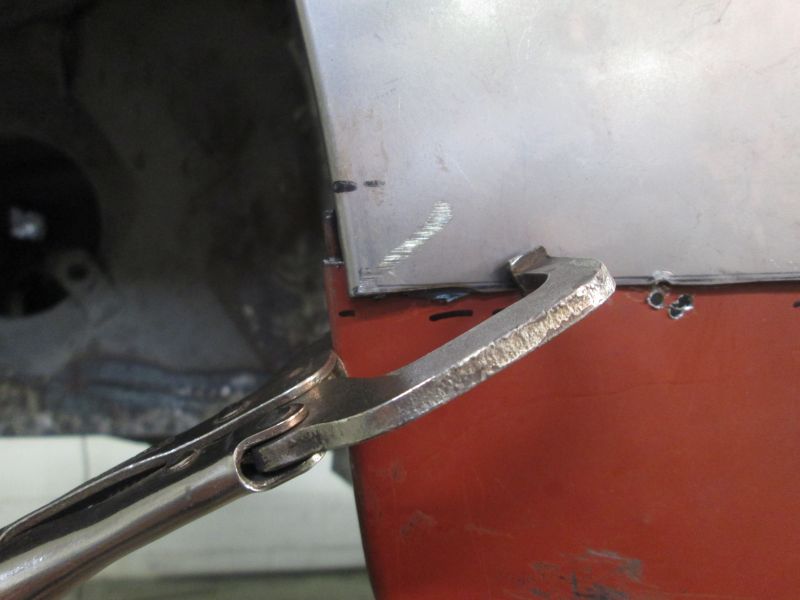

                              The tilt is ever so slight but was enough to misalign my wired edge at the rocker but still within easy correction distance.

                              Click image for larger version

Name:	Con-vert215.JPG
Views:	74
Size:	45.0 KB
ID:	85531
                              That slight adjustment gave me the needed approach angle to now transition onto the new section within tolerance.
                              Click image for larger version

Name:	Con-vert217.JPG
Views:	79
Size:	53.8 KB
ID:	85532
                              With the rear portion taking shape I felt confident enough to begin slowly set screwing the front of it to the nose.
                              Click image for larger version

Name:	Con-vert216.JPG
Views:	88
Size:	42.4 KB
ID:	85533
                              Transfer across this joint is fortunately looking pretty close. It of course won't be welded like this but after its all trimmed back for a butted weld the fender will only need to rise about the thickness of the skin. By that time the rear of this fenders skin will be all but set with that old section.
                              Click image for larger version

Name:	Con-vert218.JPG
Views:	83
Size:	53.5 KB
ID:	85534
                              Will continue to slowly add in screws down the side.
                              Click image for larger version

Name:	Con-vert220.JPG
Views:	76
Size:	53.4 KB
ID:	85535
                              I'll add the door back in next to continue fine tuning the shape for consistency.
                              Click image for larger version

Name:	Con-vert219.JPG
Views:	75
Size:	52.2 KB
ID:	85536
                              A big relief by sessions end as I finally had a basic contoured fender shape across the joints that I could work with.
                              More to come.
                              Thanks for looking!
                              Justin
                              Justin Rio

                              Comment

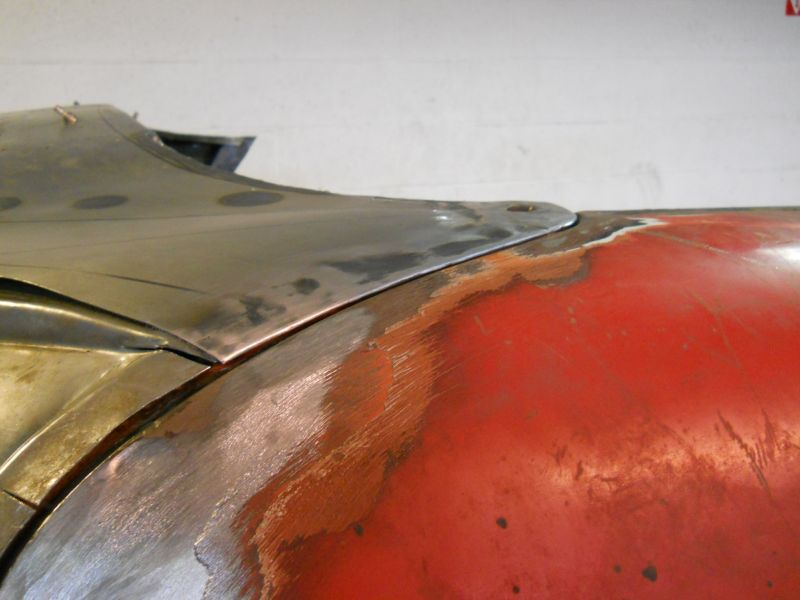

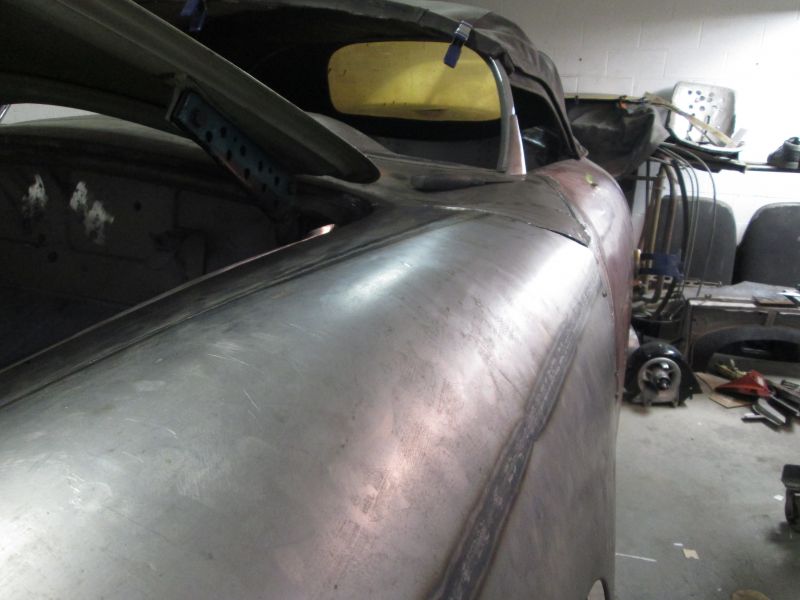

                              • 3/1/17
                                More left fender
                                Click image for larger version

Name:	Con-vert224.JPG
Views:	82
Size:	52.5 KB
ID:	85564

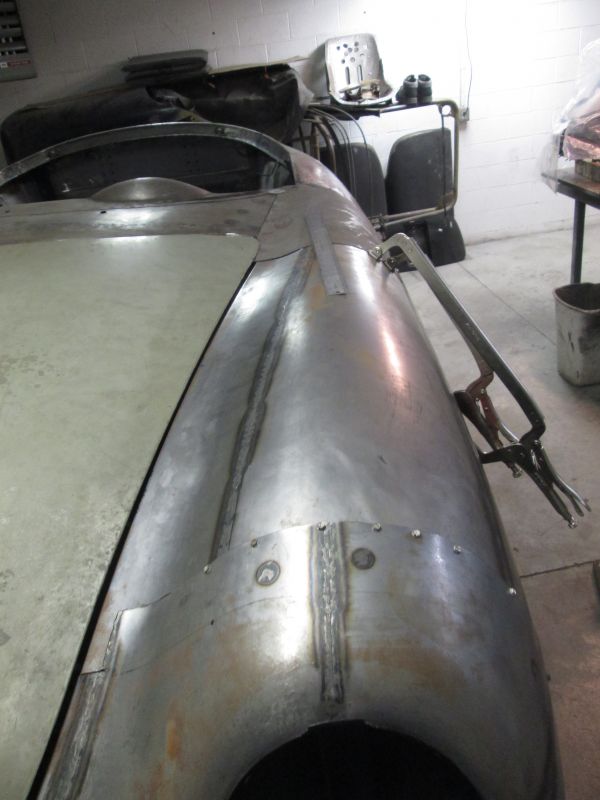

                                Forward joint all but set screwed initially.
                                Click image for larger version

Name:	Con-vert223.JPG
Views:	81
Size:	46.4 KB
ID:	85565
                                Tried to keep it tight as I went but can see there are going to be spots that will probably end up needing some shrinking as it goes.
                                Click image for larger version

Name:	Con-vert222.JPG
Views:	79
Size:	50.6 KB
ID:	85566
                                To synch up the rest I had to trim more excess here and free the wire so it would make that bottom roll.
                                Click image for larger version

Name:	Con-vert228.JPG
Views:	81
Size:	51.0 KB
ID:	85567
                                Position not set in stone but a promising jumping off point.
                                Click image for larger version

Name:	Con-vert225.JPG
Views:	75
Size:	51.6 KB
ID:	85568

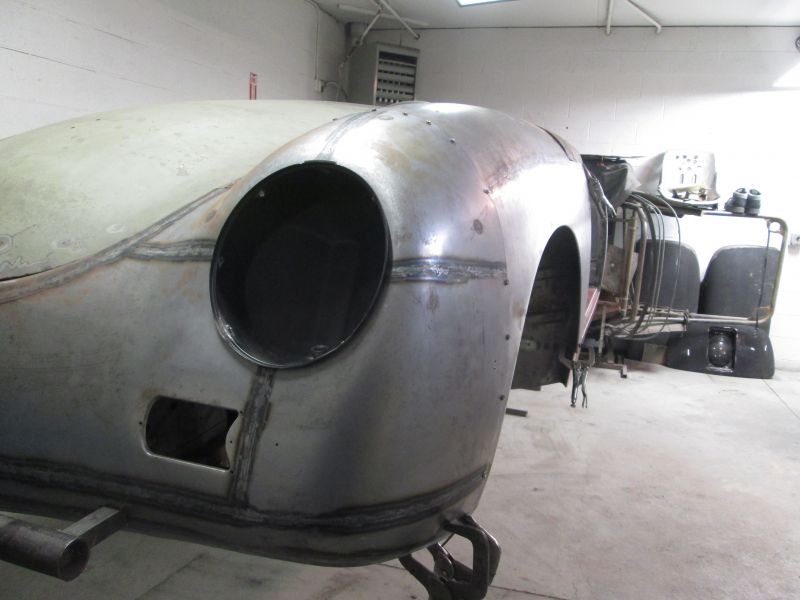

                                Very relieved with the initial fit. Close transition profile from nose to fender with a good overall shape with no fender flair/crown.
                                Click image for larger version

Name:	Con-vert227.JPG
Views:	74
Size:	52.6 KB
ID:	85569
                                Gone about as far as I can here for now.
                                Click image for larger version

Name:	Con-vert229.JPG
Views:	73
Size:	53.3 KB
ID:	85570

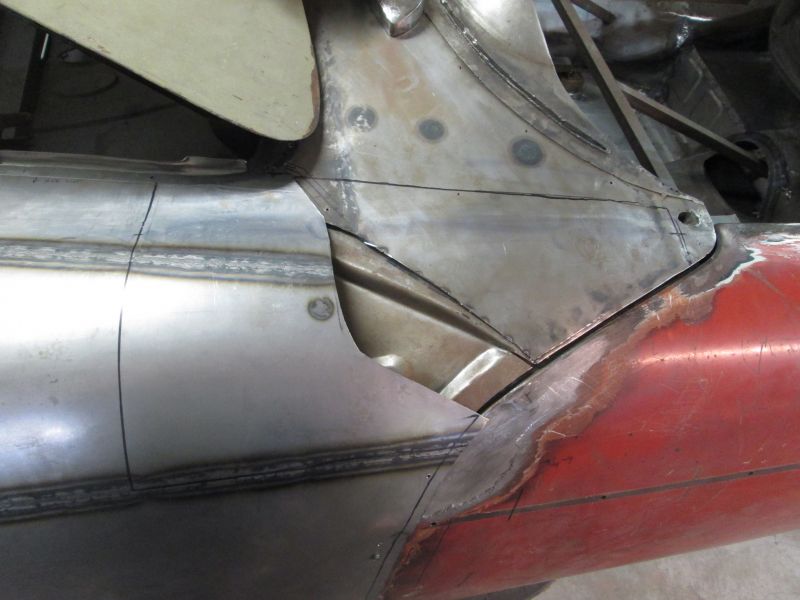

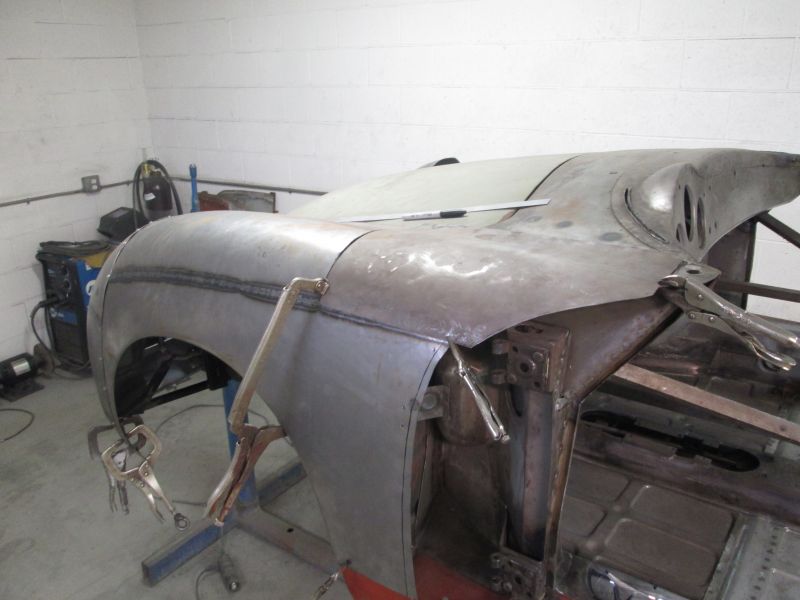

                                With the front tied in I could go back to locating this section.
                                Click image for larger version

Name:	Con-vert230.JPG
Views:	73
Size:	42.7 KB
ID:	85571
                                Top transitional profile was still fighting me but was able to get it back to "close" with some pressure underneath from my bottle jack.
                                Click image for larger version

Name:	Con-vert231.JPG
Views:	70
Size:	47.2 KB
ID:	85572

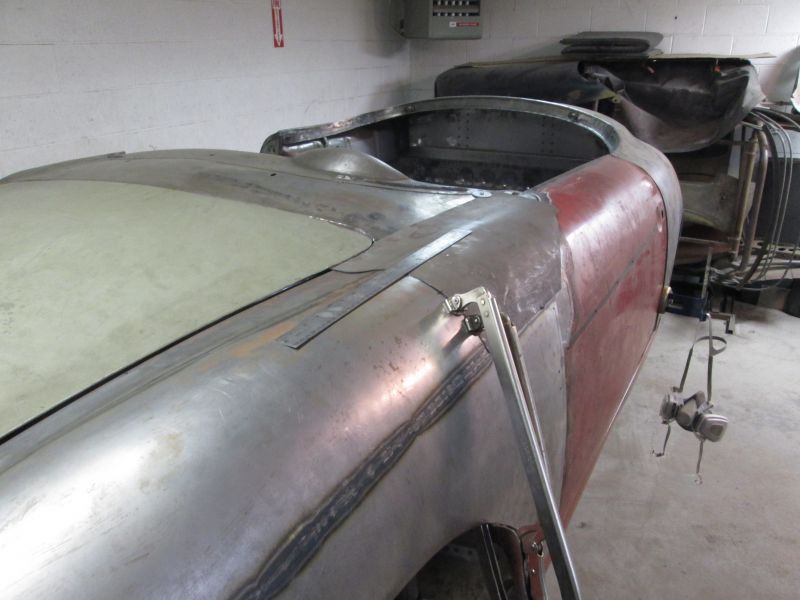

                                Door added back on to ensure this panel flows off of its profile shape.
                                Click image for larger version

Name:	Con-vert232.JPG
Views:	77
Size:	56.9 KB
ID:	85573

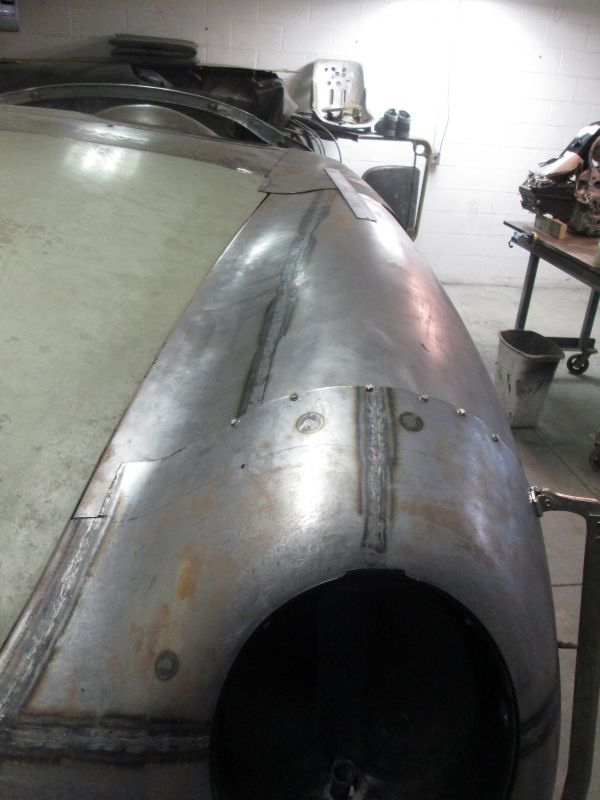

                                Once again all kinds contours and shapes all going on at once to think about before I commit.
                                Click image for larger version

Name:	Con-vert233.JPG
Views:	69
Size:	55.7 KB
ID:	85574
                                Alot more tighening up yet to do but its slowly forming the body flow I'm looking for. So happy I got rid of that intermediate patch I was originally thinking about.
                                Click image for larger version

Name:	Con-vert234.JPG
Views:	74
Size:	52.6 KB
ID:	85575
                                Hope to be at least tacking that new section onto this fender by my next visit.
                                Thanks for stopping by!
                                Justin
                                Justin Rio
