  • Thanks for explaining about the seal, you see, you are 50 steps ahead of me that's just looking! The way you advance on this job just keeps amazing me.

    No wonder you liked opening and closing that lid just to hear the click! I still feel that delight every time I now start my car hot or cold and it fires up like my BMW ! It is an amazing feeling when things go as you want them to. ( I wonder if Mic cured his starting problem not heard from him now for some months? )

    Roy

    Comment


    • Thank you Roy, the sound of that latch engaging then not being locked out of the trunk after the fact was a huge victory for me.

      12/20/16

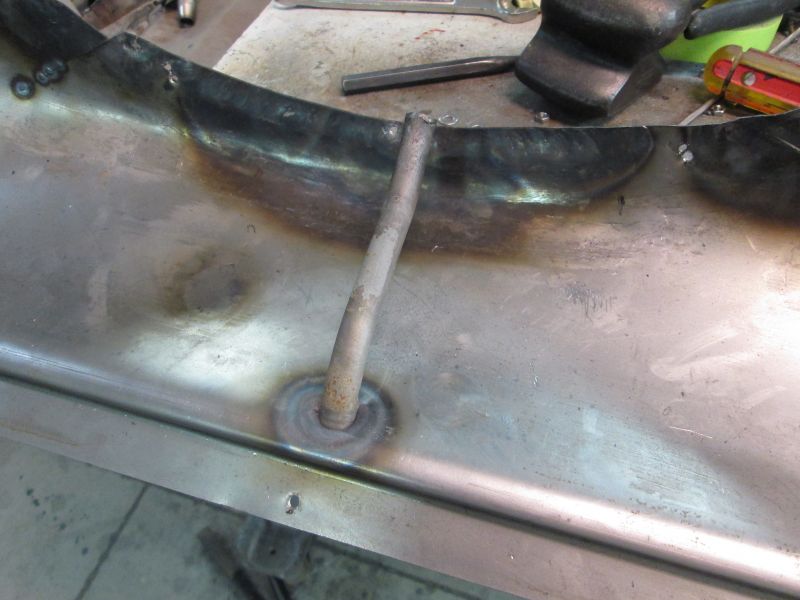

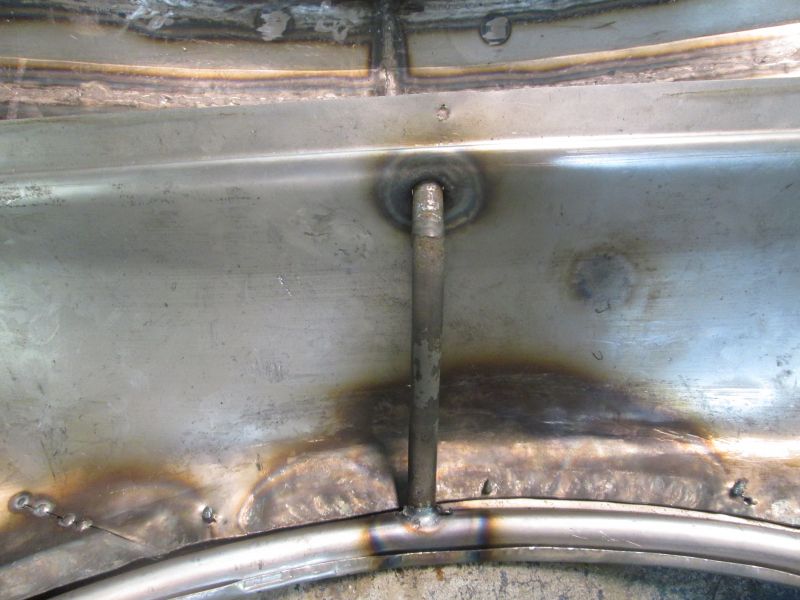

      Drain tube
      Click image for larger version

Name:	acoupst352.JPG
Views:	124
Size:	65.8 KB
ID:	83073

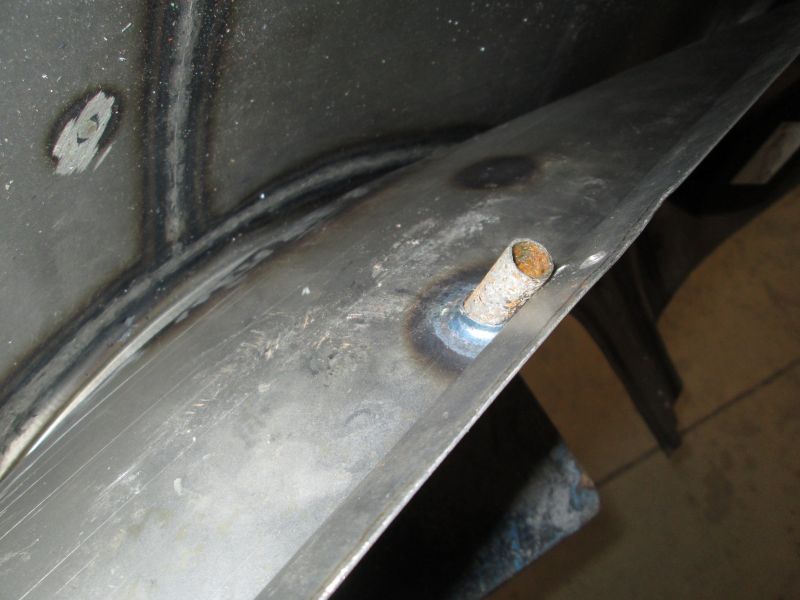

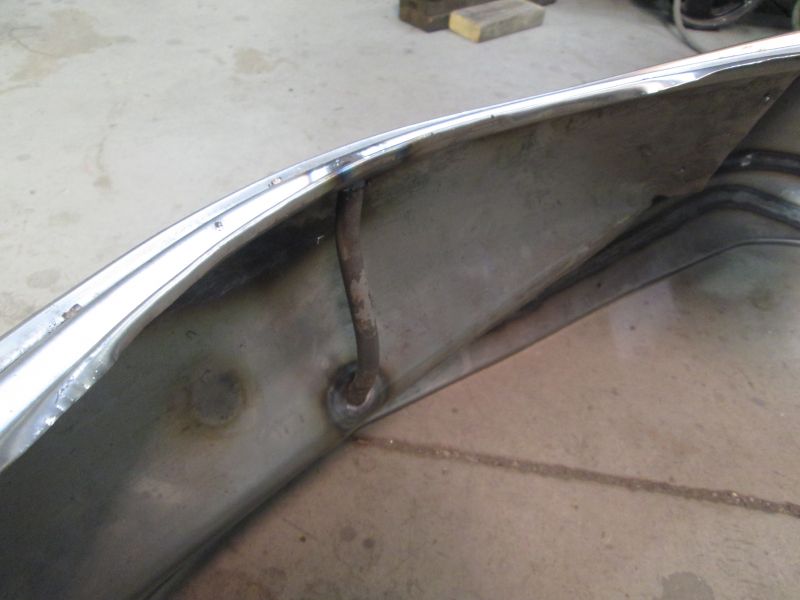

      The holes for this tube where flare punched originally so a smaller hole was drilled then the opening was heated and flared with this spike handled wrench as I did for the E-brake bungs some time back.
      Click image for larger version

Name:	acoupst353.JPG
Views:	127
Size:	61.4 KB
ID:	83074
      Opened to size and manipulated into the needed position.
      Click image for larger version

Name:	acoupst354.JPG
Views:	108
Size:	68.9 KB
ID:	83075
      Upper hole located and also flared open.
      Click image for larger version

Name:	acoupst355.JPG
Views:	107
Size:	55.2 KB
ID:	83076
      A small detail but that is what I wanted to see when I look up at the underside of this nose.
      Click image for larger version

Name:	acoupst356.JPG
Views:	111
Size:	45.7 KB
ID:	83077
      One thing I did learn is that all the welding at least around the bottom of the tube will have to be completed before the mechanism base can go on for good.
      Click image for larger version

Name:	acoupst357.JPG
Views:	128
Size:	54.9 KB
ID:	83078
      Positioned and set the front end about as far as I can on its own. Now time to begin fitting the fenders for contour to confirm 100% that its in the right spot. Fender fitment up next.
      Thanks for stopping by!
      Justin
      Justin Rio

      Comment


      • Originally posted by JTR70" post=36494


        Justin
        I'd be tempted to deal with the apparent rust issues on the hood, as well as the "mummy skin" right inner panel damage at this point. It's impossible to anticipate the changes in tension and movement of a few mm. As you know, while endlessly fitting the panels, things can move around inexplicably, and the slightest adjusments can make all the difference. Just a thought... I'd be hard pressed to do what you are doing.
        Attached Files
        Jack (analog man from the stone age)

        Comment


        • Thanks Jack, I remember us just getting into that discussion at your shindig last Saturday. I'll clean the area to see how far the rot goes here shortly.

          12/22/16

          Left fender fitment.
          Click image for larger version

Name:	acoupst361.JPG
Views:	117
Size:	53.8 KB
ID:	83134
          Initially removed the front for more gap adjustment freedom.
          Click image for larger version

Name:	acoupst360.JPG
Views:	109
Size:	48.6 KB
ID:	83135
          Initial gap was a touch too tight.
          Click image for larger version

Name:	acoupst362.JPG
Views:	129
Size:	55.5 KB
ID:	83136
          Have a lot of subtle adjustment to go at the corner as the panels meet and make the turn.
          Click image for larger version

Name:	acoupst364.JPG
Views:	113
Size:	52.3 KB
ID:	83137

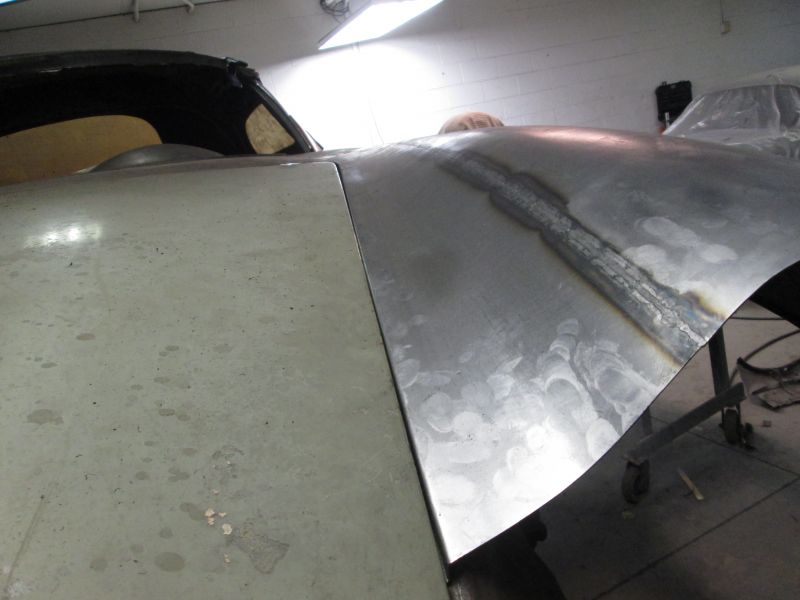

          An initial fitment and contour concern is at the fenders crown profile to the transition onto the cowl/door profile.
          Click image for larger version

Name:	acoupst365.JPG
Views:	105
Size:	48.0 KB
ID:	83138

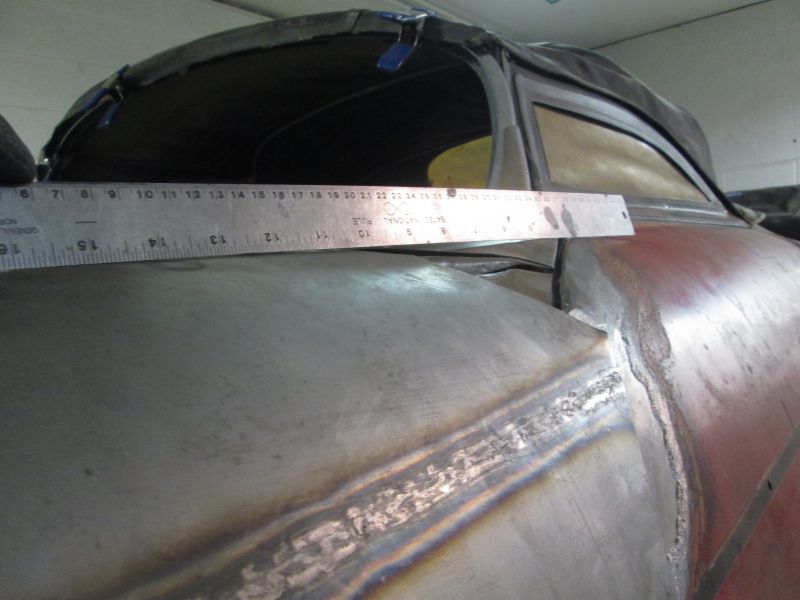

          Fender stands proud and is creating a trough. I think a lot of it will work itself out as trimming continues but it is an initial concern.
          Click image for larger version

Name:	acoupst369.JPG
Views:	131
Size:	49.4 KB
ID:	83140

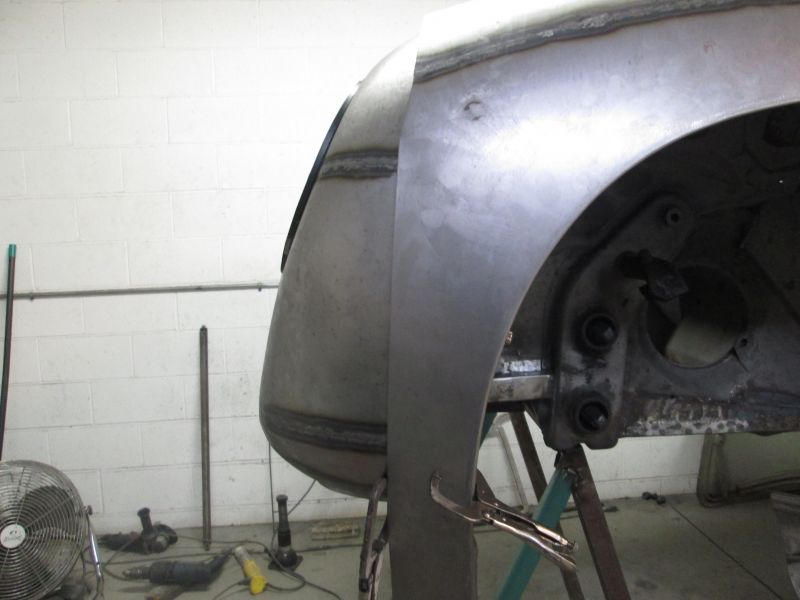

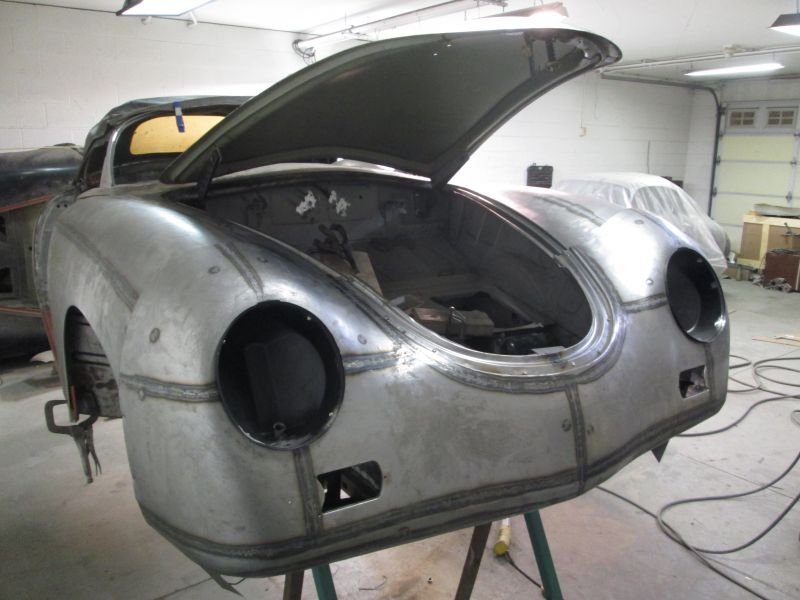

          Fender hangs and contorts too much under its own weight so I added the nose back on to support it.
          Click image for larger version

Name:	acoupst367.JPG
Views:	132
Size:	71.3 KB
ID:	83139

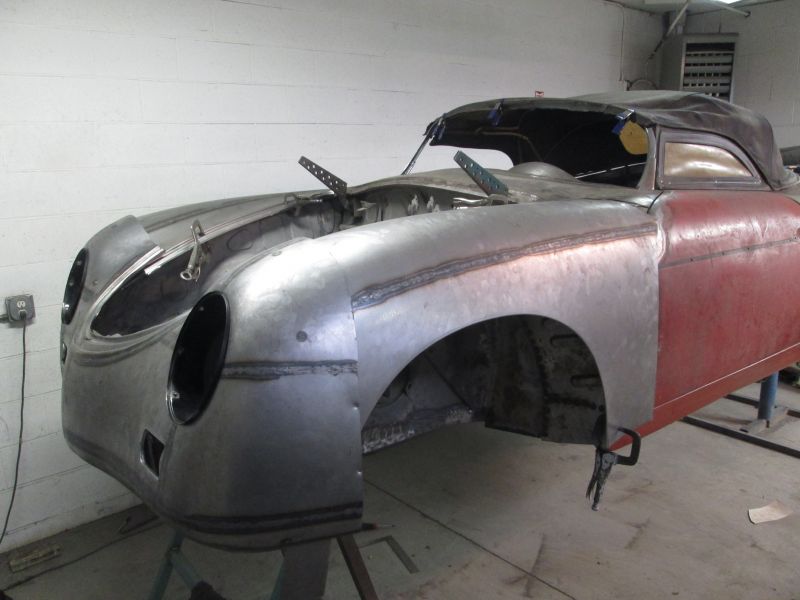

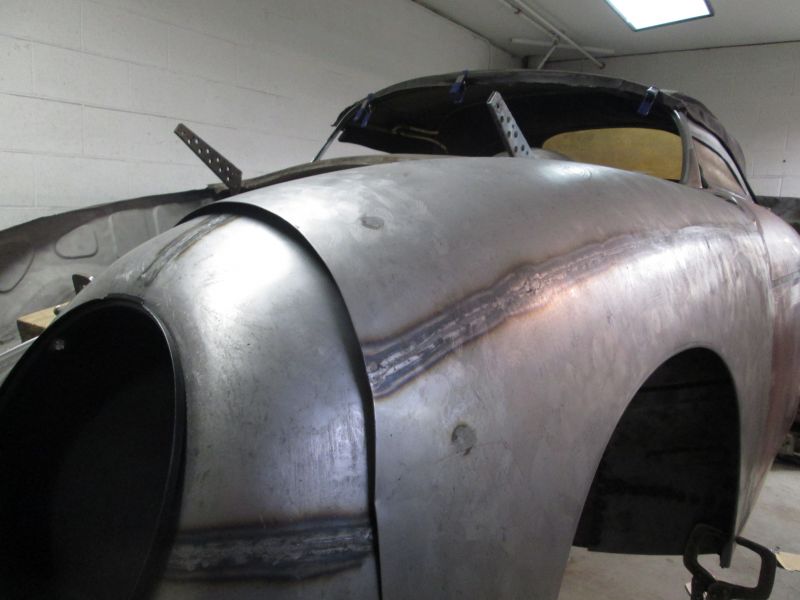

          Speaking of the nose, Trevor leaves the leading edge for you to finish rolling tight so that was another little side chore to begin taking care of.
          Click image for larger version

Name:	acoupst371.JPG
Views:	104
Size:	63.2 KB
ID:	83141
          Fender was getting closer but lots of fine adjustment, trimming and jockeying yet.

          Click image for larger version

Name:	acoupst368.JPG
Views:	98
Size:	46.7 KB
ID:	83142
          ready to begin trimming away some of the excess on the nose next.
          Thanks for looking!
          Justin
          Justin Rio

          Comment


          • Really nice to see you on Sat!
            I like how Trevor leaves quite a bit of extra material to trim on the nose and the front of the fender, but it could be longer at the cowl. How are you determining the fore/aft position of the wheel arch?
            Jack (analog man from the stone age)

            Comment


            • Thanks Jack!
              Yeah, I'm really bummed out with that rear joint at the cowl coming up short.
              Click image for larger version

Name:	acoupst2016007.JPG
Views:	103
Size:	55.0 KB
ID:	83153
              My initial fitment baseline for this fender was the rear wired lip and my best average gap contour against the trunk.
              Click image for larger version

Name:	Acoupst2016001.JPG
Views:	112
Size:	48.6 KB
ID:	83154
              After this initial trim to remove the excess that was intruding into the wheel arch a new perspective opened up.
              Click image for larger version

Name:	Acoupst2016002.JPG
Views:	116
Size:	47.4 KB
ID:	83155
              Once the entire arch profile was unobstructed this forward corner just didn't look right. It seemed too skinny. I thought at first that opening might be too big but a few comparison measurements confirmed that Trevor damn near got this opening right on the money.
              Click image for larger version

Name:	acoupst2016003.JPG
Views:	116
Size:	41.7 KB
ID:	83156

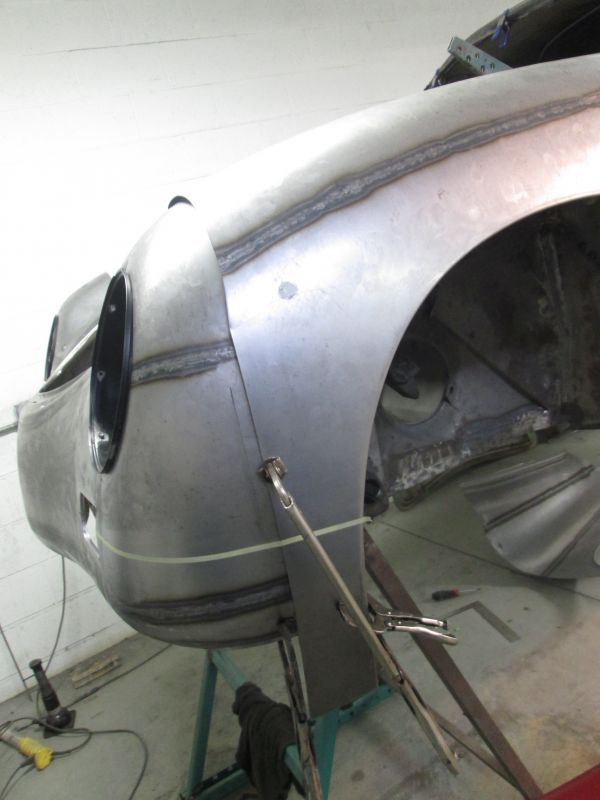

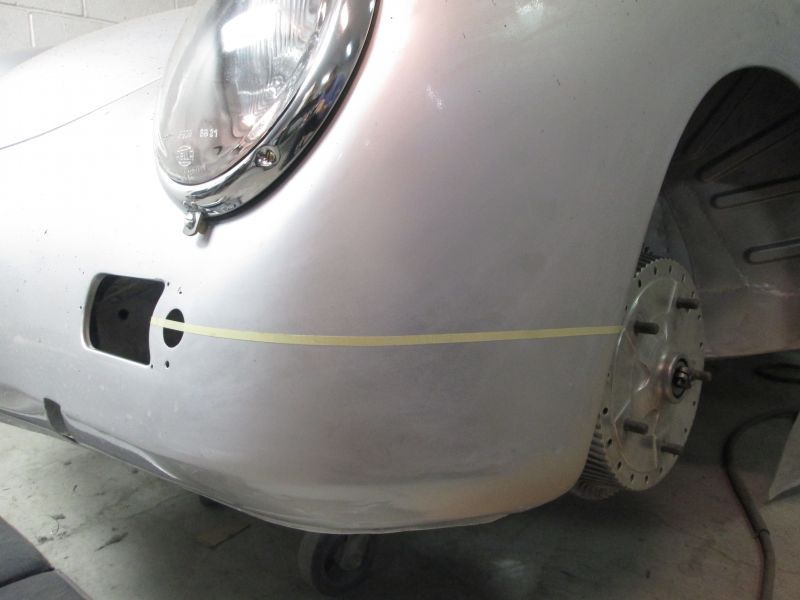

              Needed to figure out what the distance was on my original. I decided on a length of tape set at the center edge of the horn grill opening straight to the lip.
              Click image for larger version

Name:	acoupst2016004.JPG
Views:	112
Size:	56.1 KB
ID:	83157

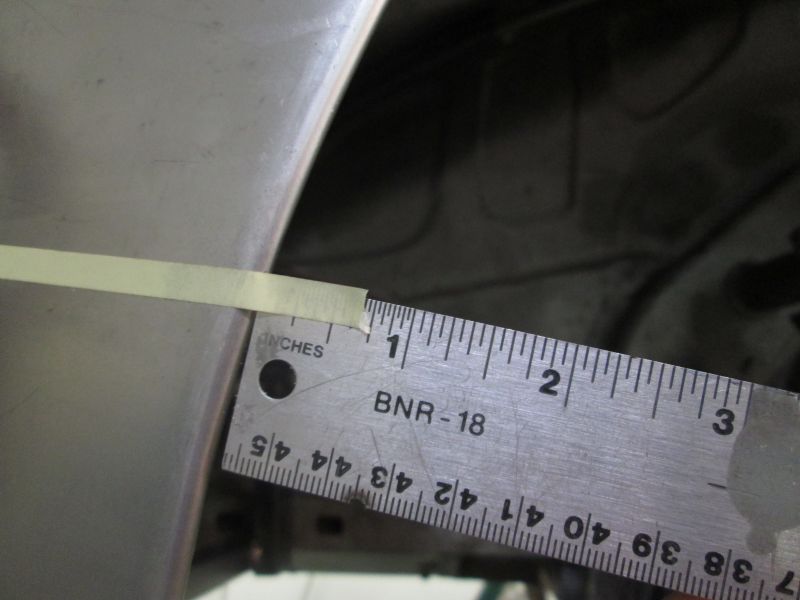

              Same piece of tape was positioned in the same spot.
              Click image for larger version

Name:	acoupst2016005.JPG
Views:	113
Size:	45.6 KB
ID:	83158
              It was a good 3/4 of an inch narrower. Confirmation that my eyes weren't playing tricks on me.

              Click image for larger version

Name:	acoupst2016006.JPG
Views:	112
Size:	49.5 KB
ID:	83159
              Slowly began moving the fender back a little at a time. Its almost there in this shot but still a little more to go. Magic marker line highlights where it started from.
              Click image for larger version

Name:	acoupst2016010.JPG
Views:	112
Size:	43.4 KB
ID:	83160

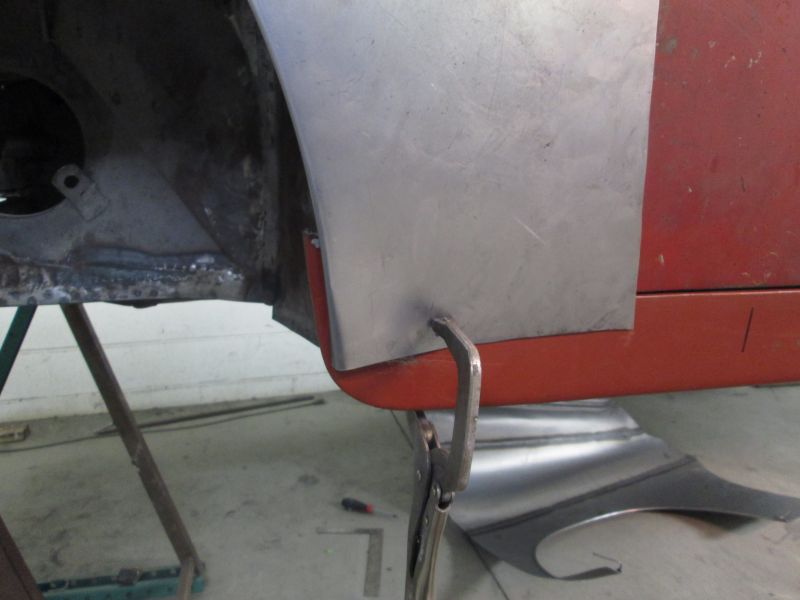

              I of course lost my initial wired edge alignment back here but I'll fix it like I did the rear arches.
              Click image for larger version

Name:	acoupst2016011.JPG
Views:	111
Size:	55.6 KB
ID:	83161
              This was the right move as a lot of fitment issues immediately got better. The corner looked right and the overlap joint between the nose and fender is lying a lot closer. The fore and aft adjustment is pretty much dialed in so I'm back to trunk gaps and top profile transition to the cowl and door.
              Thanks again!
              Justin
              Justin Rio

              Comment


              • Moin Justin,
                Dont you use the wheel center as an alignment as well ?
                And then measure like you did with known distance that can be trusted....
                Also If you go from top of wheel arc/wheel center and upwards to truck area to have a distance to play with there.....

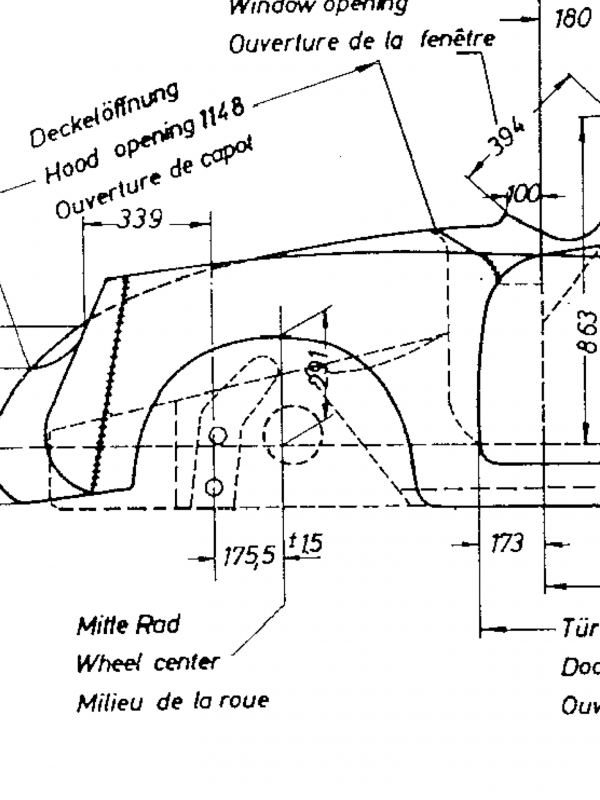

                I can get you the Speedster measurements later today IF it helps you.
                Wireedges can not always be trusted to be 100% correct....and then just get an alignment that works for you and looks right

                Are U not @ home when Santa comes by this year?
                Hoo hoo hoo

                Click image for larger version

Name:	IMG_9660.PNG
Views:	108
Size:	209.8 KB
ID:	83163
                JOP

                Comment


                • That's some job to get looking correct. Datums are so difficult sometimes to get correct.The fact you have an original that looks correct to the eye is for me the number one choice. That measurement you made Justin to compare I think was your best choice. If it looks perfect in comparision to the original, and it ties in better in every other respect, you must be on a winner. Sure the wired edges need work but although again difficult you have experience on that.

                  You cannot do this work though without having a perfect example to refer to. Well done!

                  Roy

                  Comment


                  • Click image for larger version

Name:	IMG_34261.JPG
Views:	110
Size:	63.1 KB
ID:	83168

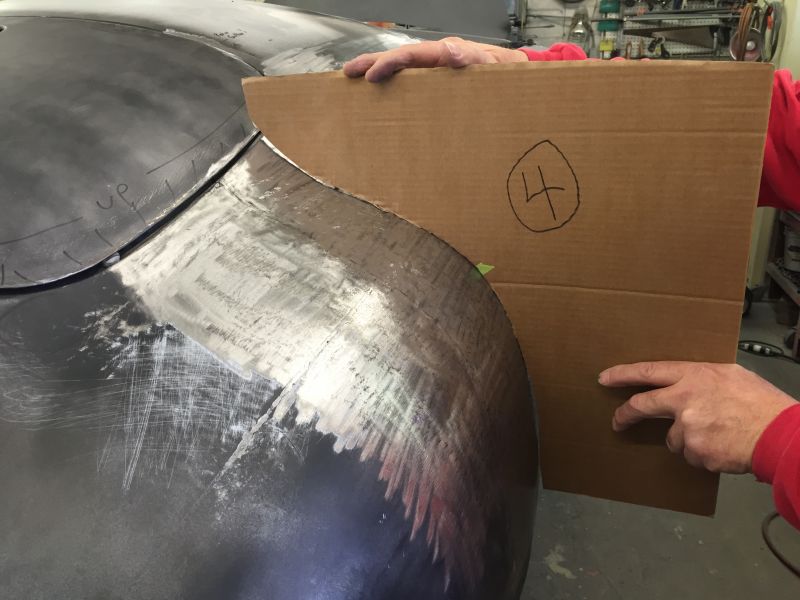

                    I am also blessed by having a Speedster at the shop that I know quite well. Never hit, I have been making as many cardboard templates as I can to check. While discrepancies will occur on every 356 'made by hand,' getting the closest symmetry side-to-side PLUS the 'eye' confirmation is a must. The example shown is verifying a repaired area on another Speedster...the work being almost an exact repetition of Justin's project.

                    I must also agree with Jack (again) that getting the front lid/cover/bonnet finished is critical while attending parts are still adjustable. EVERYTHING is based on an average...gaps and the like...but the latch has it's own geometry. Get the latch upper and lower parts set in a middle position and then the "wiggle room" needed later is possible.

                    All of this work became clear this past Monday when Ray Wills told me the meaning of the Porsche model number 356. Ray said that number comes from "Having to do things at least 3, maybe 5 or 6 times to get them right."

                    Merry Christmas, Happy Hanukkah, Happy New Year, etc, etc....
                    Bruce

                    Comment


                    • ..........and yes, JOP, I would be very happy to see a copy of the Speedster dimensions, as that is not in any of my Factory literature but over the years I have seen it as a poster and never been able to buy a copy!
                      Thanks,
                      Bruce
                      bbspdstr@aol.com

                      Comment


                      • I really appreciate all the feedback guys! I will be going back to those cardboard templates to check for wheel opening "center" and symmetry side to side but I'm not there just yet. You guys are really getting ahead of me. BTW: thanks for those factory dimensions Per. I've noted that wheel opening center from the back tip of the suspension horn. Thanks also for offering to measure off of your Speedster but this is nothing Speedster unique. No difference between Speedster or coupe concerning the front end group.

                        I would be absolutely toast without original reference cars Roy.

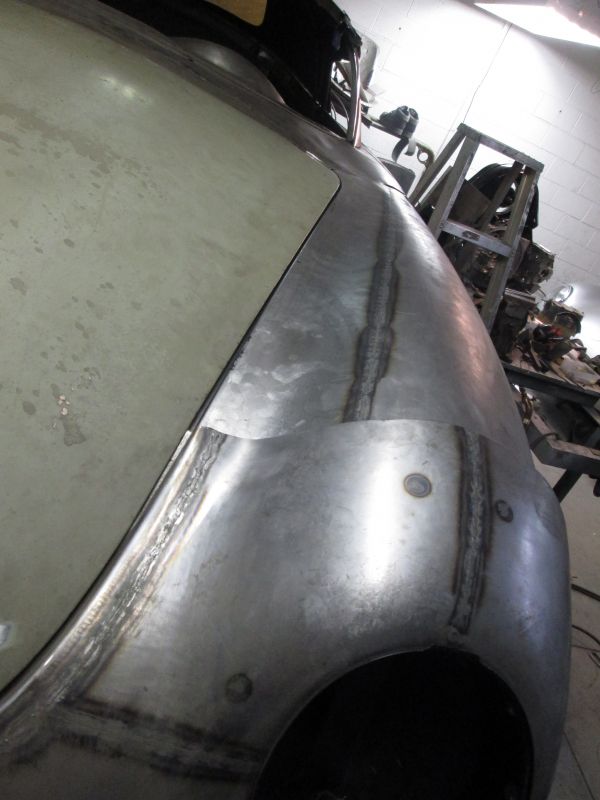

                        That quarter panel is really shaping up beautifully Bruce!

                        Thanks again guys and wishing you all well in the coming new year!
                        Justin
                        Justin Rio

                        Comment


                        • 1/4/17

                          Happy New year to everyone!

                          Finally got past all the holiday distractions freeing me up to put more time back in this project. I can't say exacly when I'll be done here but I can say that 2017 will be my last year with this
                          project then it becomes the bodyshops "baby". A nice light I'm now seeing in this tunnel.

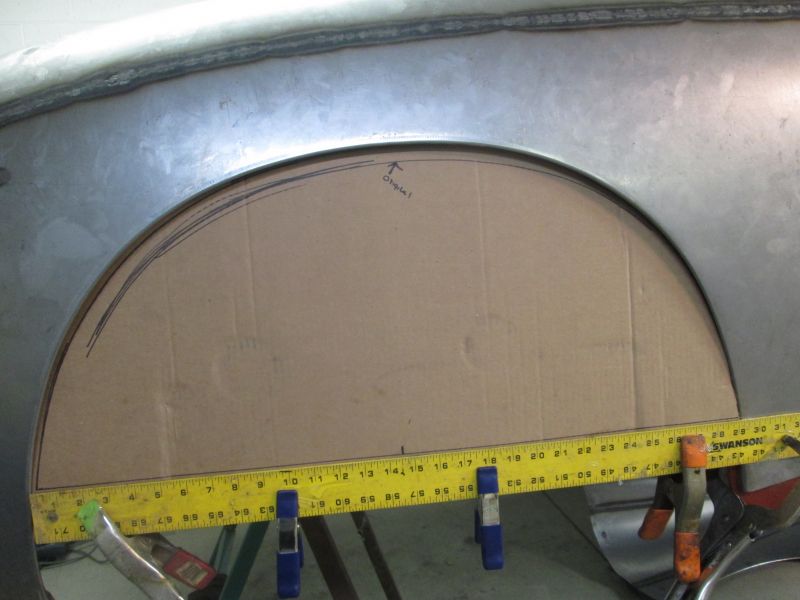

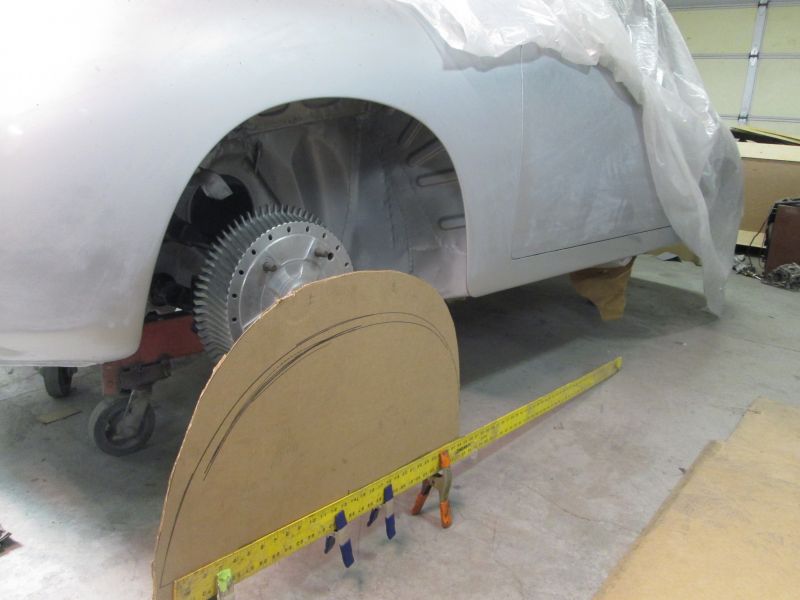

                          Template and measurements for front wheel arch.
                          Click image for larger version

Name:	Coupster001.JPG
Views:	97
Size:	53.3 KB
ID:	83374

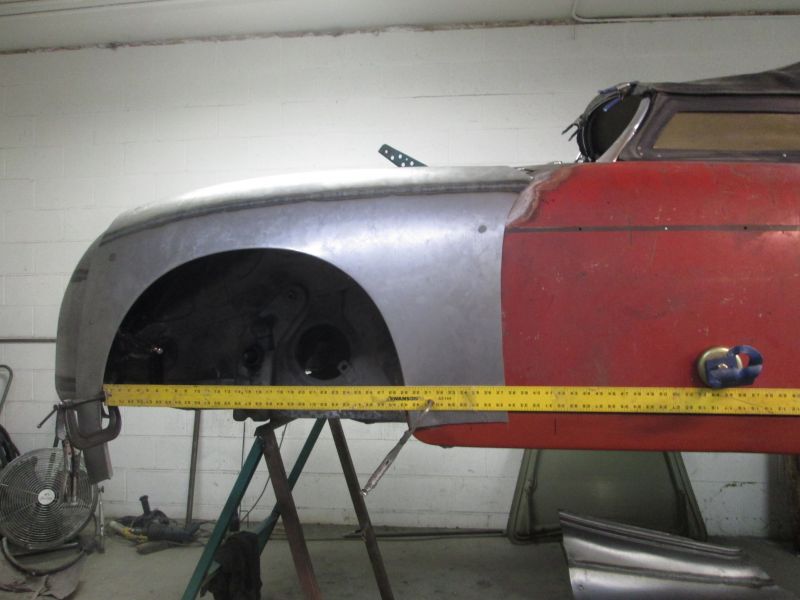

                          Checking the opening for center with the chassis first.
                          Click image for larger version

Name:	Coupster002.JPG
Views:	110
Size:	57.1 KB
ID:	83375

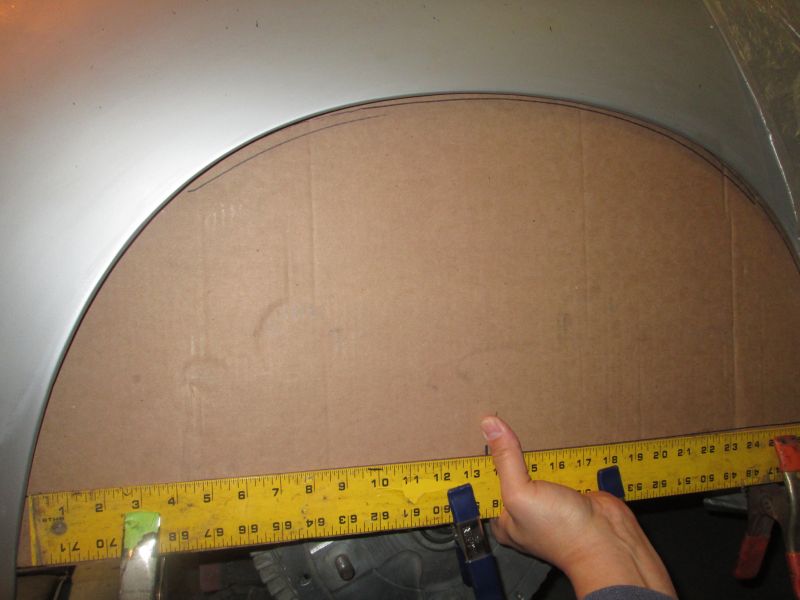

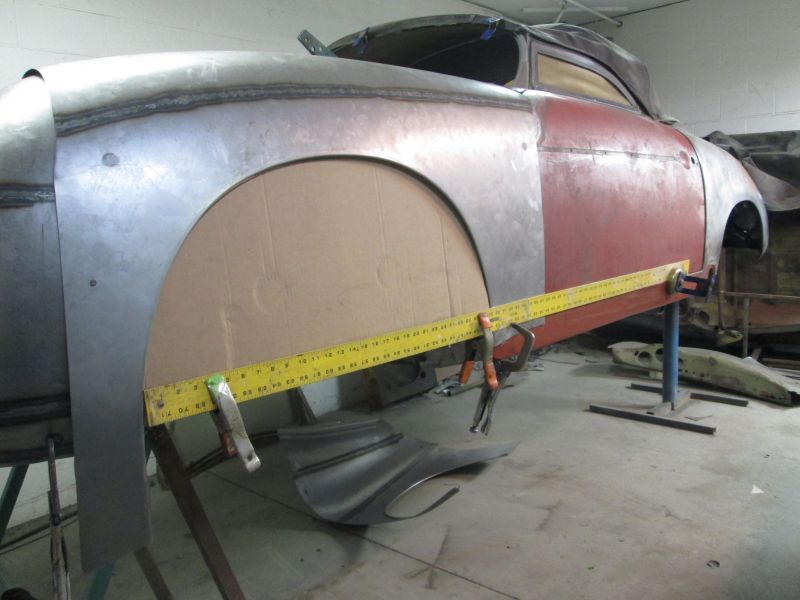

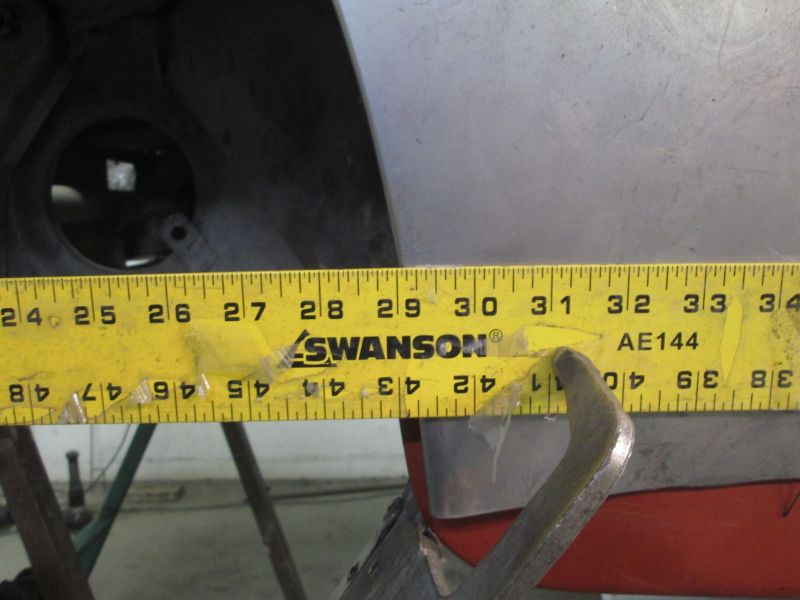

                          Arch opening coming in at 29 inches with yard stick edge positioned at level with the bottom of the doors edge.
                          Click image for larger version

Name:	Coupster003.JPG
Views:	102
Size:	42.6 KB
ID:	83376

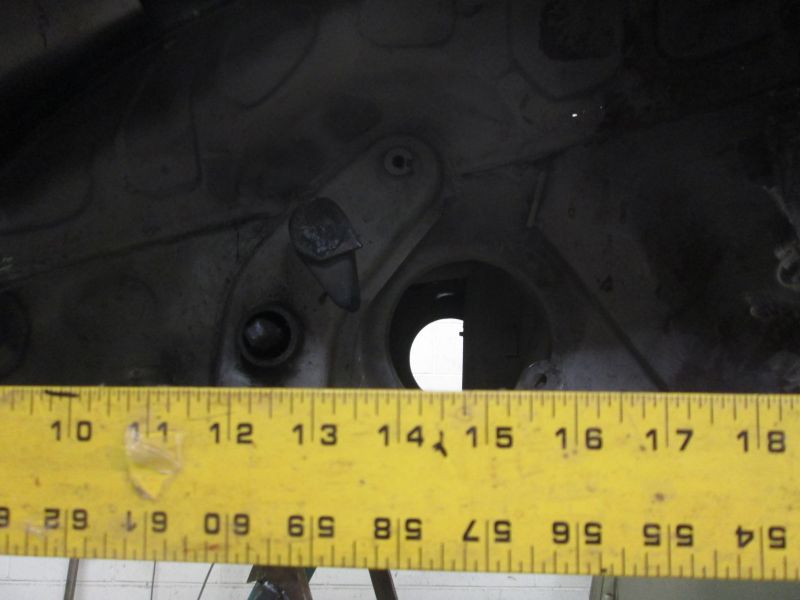

                          Center is going to be 14.5 inches.

                          Click image for larger version

Name:	Coupsterg004.JPG
Views:	102
Size:	68.4 KB
ID:	83377

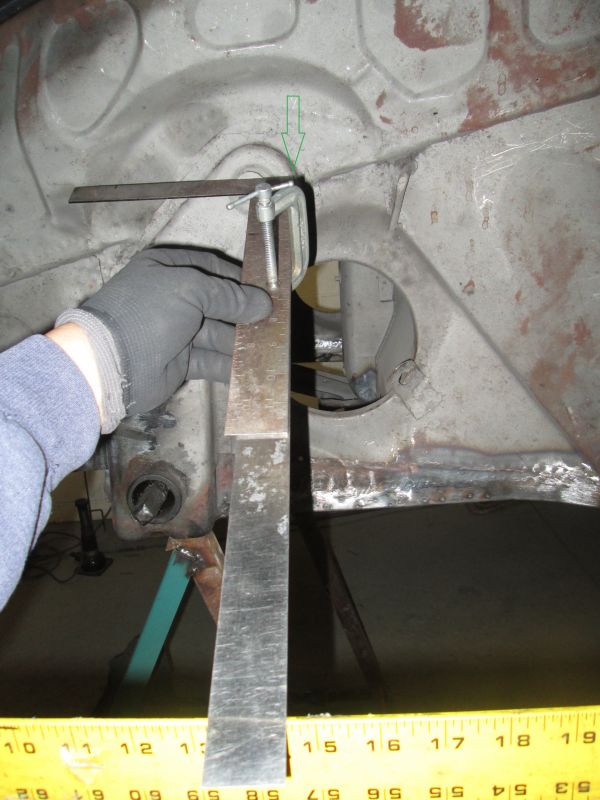

                          Using my square (with extension) shouldered up against the shock mount surface to ensure its sitting at square here. Leading edge is set at flush with the back tip of the upper horn which will be the center of the eventual wheel according to the factory diagram that Per was nice enough to post a while back. Current position has the center of this arch within a few MM's of "center" at the frame. In other words its all good.
                          Click image for larger version

Name:	Coupster005.JPG
Views:	108
Size:	57.2 KB
ID:	83378
                          Checking for wheel arch height against an original next. My baseline is the bottom edge of the doors since rockers are not original and will most certainly vary a little.
                          Click image for larger version

Name:	Coupster007.JPG
Views:	115
Size:	49.2 KB
ID:	83379

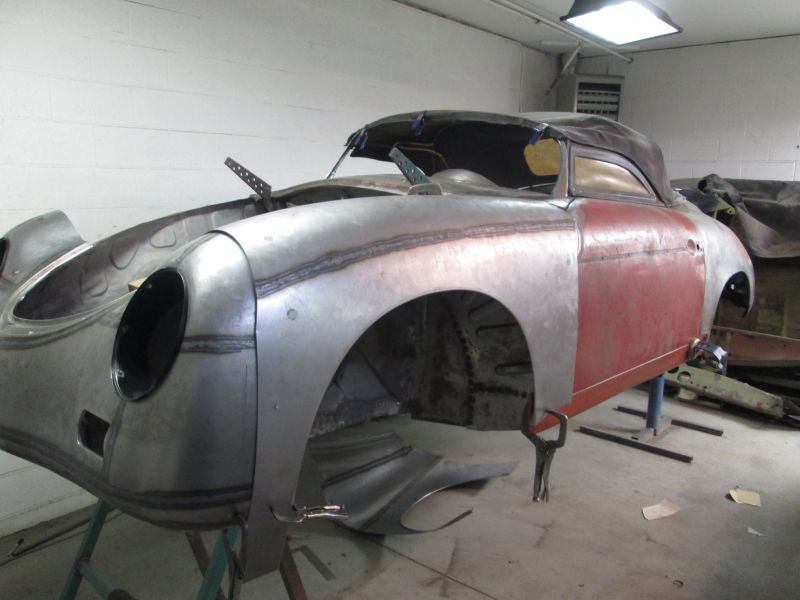

                          Careful mock up on my coupe was next. Biggest danger was scratching or chipping my new finish.

                          Click image for larger version

Name:	Coupster006.JPG
Views:	96
Size:	49.6 KB
ID:	83380
                          Luckily I got it in without damage. Position with the doors lower edge then the arch was traced.
                          Click image for larger version

Name:	Coupster009.JPG
Views:	92
Size:	54.0 KB
ID:	83381

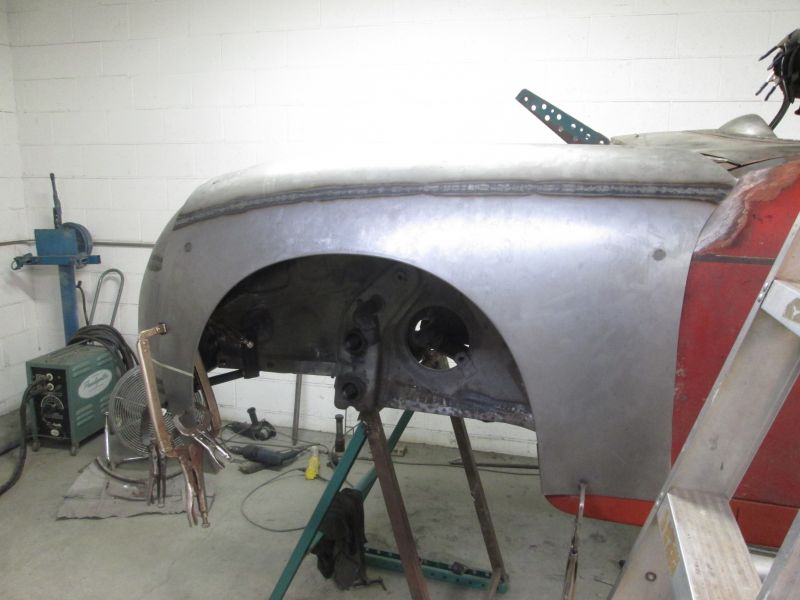

                          Mounted back on the car to see how it compares with an original.
                          Click image for larger version

Name:	Coupster008.JPG
Views:	102
Size:	51.6 KB
ID:	83382
                          At the moment I'm higher by about a 1/2 inch. There is plenty of trimming and fine fitment yet to come which will allow this lip to slide down further but its certainly within striking distance either way.

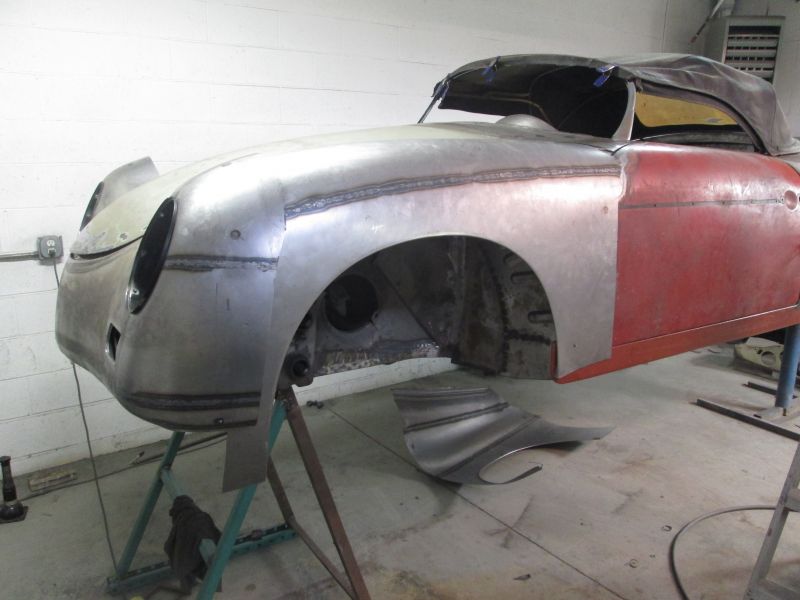

                          Basic fender placement established. Setting the gap against the latched hood next.
                          Thanks for looking!
                          Justin
                          Justin Rio

                          Comment


                          • That looks really good Justin
                            But you say only 1/2" diff and I say it is atleast 11-13 mm off
                            I guess I need to send you a ruler that is 4000 mm to keep you covered
                            You have learned alot on this 356 so will 8 months hold on next project?
                            Cheerio
                            JOP

                            Comment


                            • Sorry Per, I know standard measurements drive you nuts..old habits die hard. No, what I have learned is I need more than 8 months for anything 356 related. Thanks again!

                              1/5/17

                              Click image for larger version

Name:	Coupster011.JPG
Views:	105
Size:	59.4 KB
ID:	83422

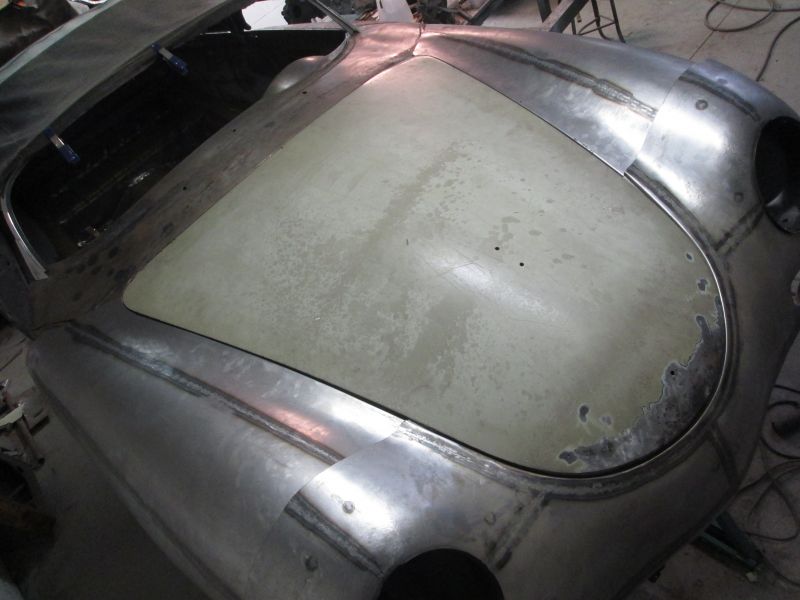

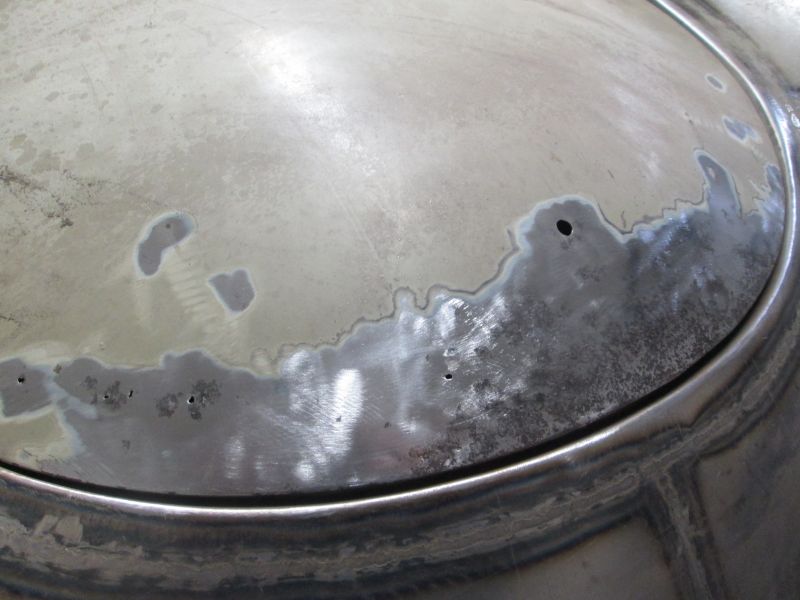

                              Took Jack's advice and cleaned off the "mummy skin" on the front of this hood.
                              Click image for larger version

Name:	Coupster010.JPG
Views:	116
Size:	58.0 KB
ID:	83423

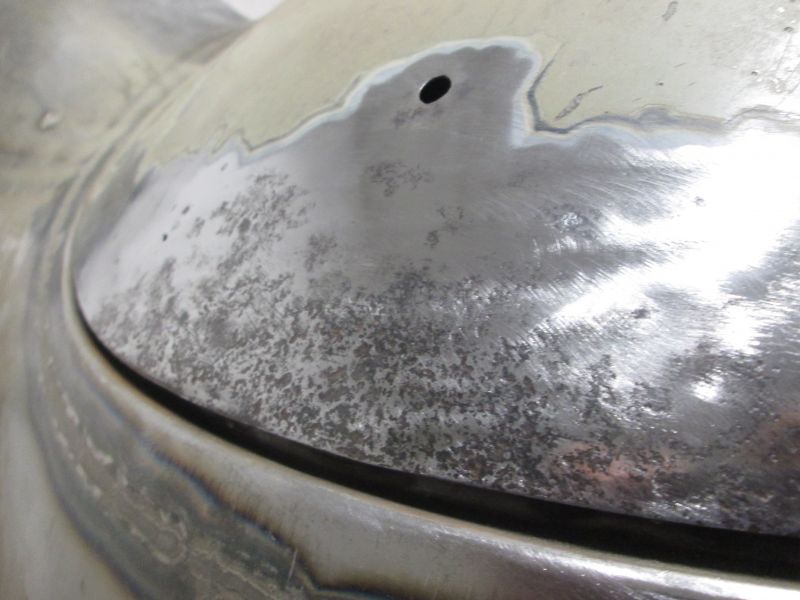

                              Though deeply pitted it only went through in few spots here and there.
                              Click image for larger version

Name:	Coupster012.JPG
Views:	88
Size:	53.8 KB
ID:	83424

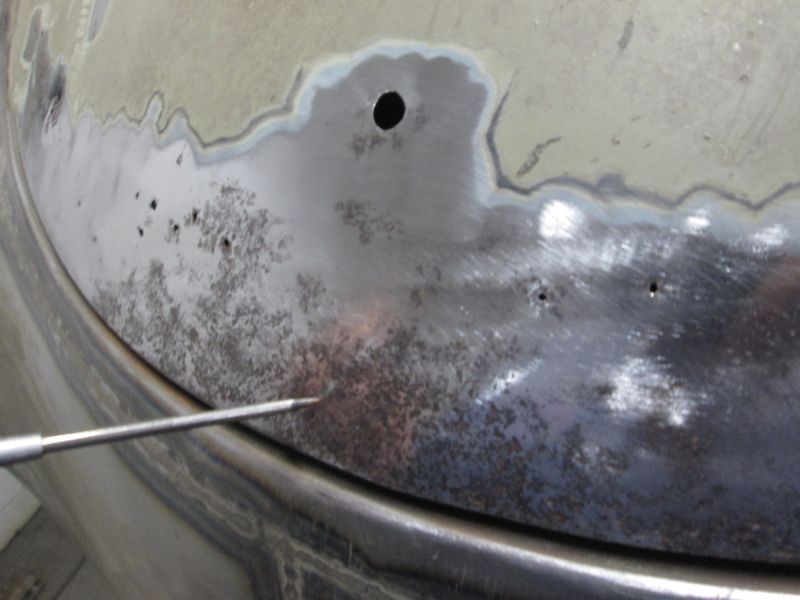

                              I tested the area thoroughly with a poker and it was stable much to my suprise however I'm under no illusions, the back side has to be as equally rusty and pitted so it is a time bomb. I'll talk with the owner to discuss our options. (patch versus blobing the holes closed)

                              Click image for larger version

Name:	Coupster016.JPG
Views:	92
Size:	55.8 KB
ID:	83425

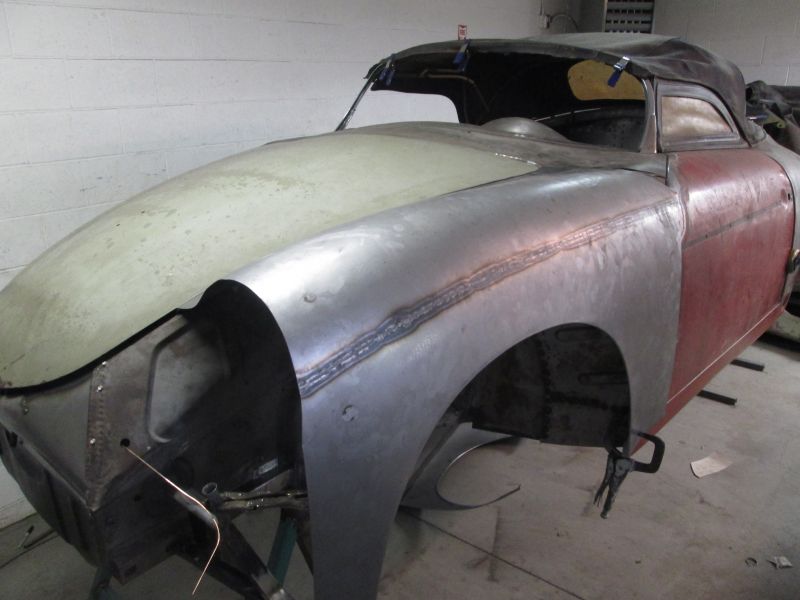

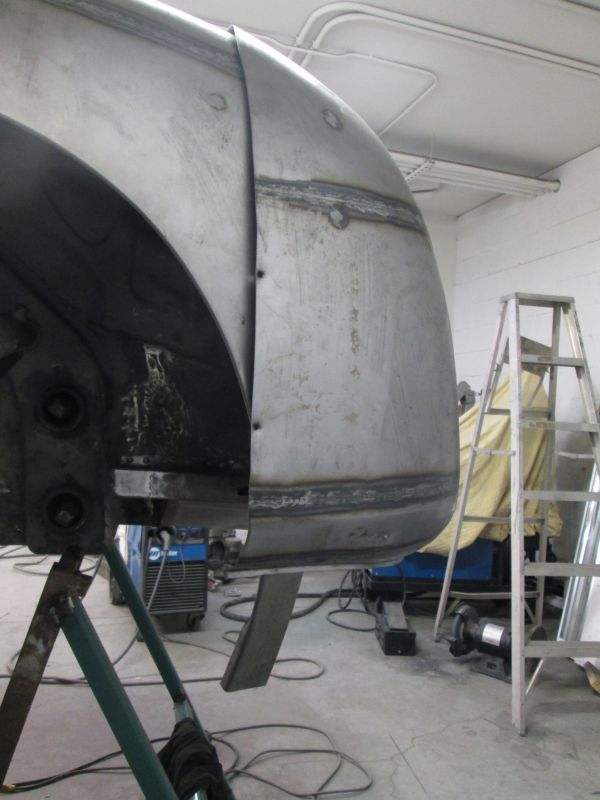

                              Fender to hood gap set initally. Alot of variables in fitment here. With this set screwed on the gap would close up as I manipulated the lower areas into alignment. Slight adjustments to the lower corner with the rocker for example. Alot of fit and refit in trying to get all of the fender in the right spot usually under some form of tension.
                              Click image for larger version

Name:	Coupster017.JPG
Views:	98
Size:	55.5 KB
ID:	83426

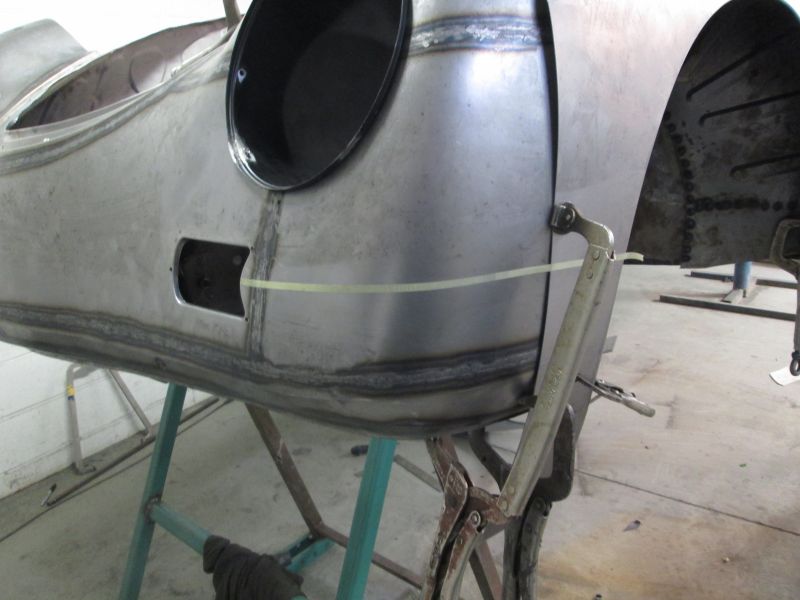

                              I was finally comfortable enough with lower corner's best alignment with the rocker to add in a quick set screw. Again this is all just a jumping off point as it will most certainly change shape as things progress and will have to compensate for that when it happens. I know these overall shoots are beginning to look identical but the pieces are fitting closer with each new post. Moving onto the right side fender tomorrow.
                              Thanks for stopping by!
                              Justin
                              Justin Rio

                              Comment


                              • 1/14/17
                                Begin Right fender fitment
                                Click image for larger version

Name:	Coupster020.JPG
Views:	2
Size:	55.3 KB
ID:	83674
                                Started with dialing in the best average fit.
                                Click image for larger version

Name:	Coupster022.JPG
Views:	2
Size:	56.0 KB
ID:	83675
                                Best initial gap and corner fitment against the hood here. Next was finding out how off the wheel arch is from center with the chassis.

                                Click image for larger version

Name:	Coupster024.JPG
Views:	3
Size:	65.7 KB
ID:	83676
                                After some slight adjustment center was eventaully located. Upper gap and corner alignment was effected during this so alot trim, try and retry was process. The hood also had to be removed and reinstalled with each pass too. A total PIA but I eventually won.

                                Click image for larger version

Name:	Coupster025.JPG
Views:	2
Size:	41.7 KB
ID:	83677
                                Arch height is suprisingly close to original right off the bat.
                                Click image for larger version

Name:	Coupster029.JPG
Views:	2
Size:	69.4 KB
ID:	83678

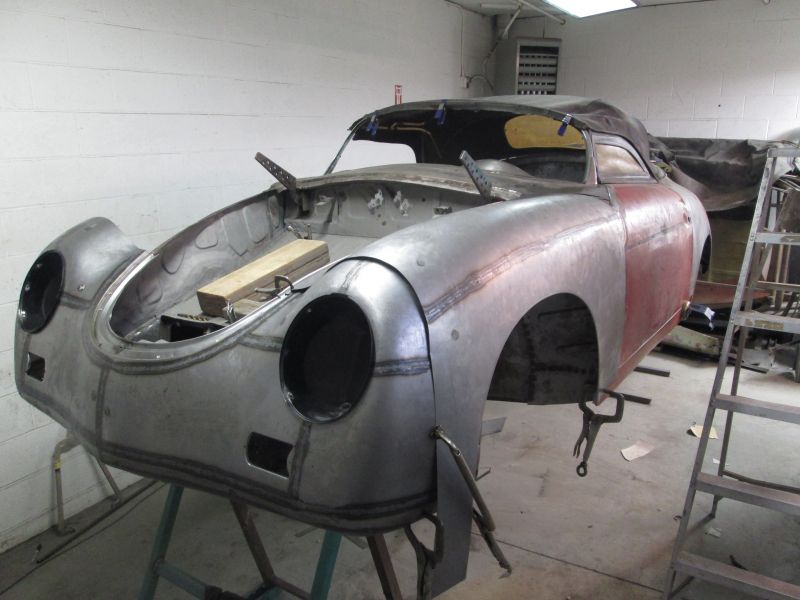

                                Nose laid over top and set screwed into its inital sweet spot.
                                Click image for larger version

Name:	Coupster026.JPG
Views:	93
Size:	55.3 KB
ID:	83679
                                Getting better as the days go by. The gap at the nose is large because of all the excess and overlap not allowing it to seat all the way down. Next is removing the excess and deciding which side of the joint I'm going to keep or remove.
                                Click image for larger version

Name:	Coupster032.JPG
Views:	105
Size:	57.4 KB
ID:	83680

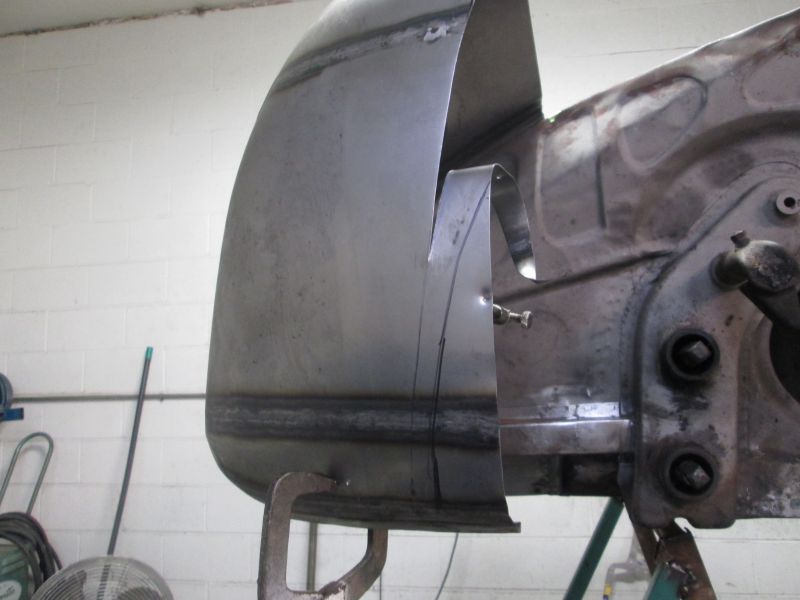

                                Begin by clearing away the initial excess on the nose side at the wheel opening.
                                Click image for larger version

Name:	Coupster030.JPG
Views:	88
Size:	62.7 KB
ID:	83681
                                Alot of careful deliberation and planning before I commit to cutting off the overlap of either side. I'm thinking it will most likely be a combination of both sides. Either way I'm just taking extra precaution so I don't have to weld a section back on because I committed too soon.
                                Click image for larger version

Name:	Coupster031.JPG
Views:	112
Size:	54.1 KB
ID:	83682
                                Planning my trim lines next.
                                Thanks for looking!
                                Justin
                                Justin Rio
