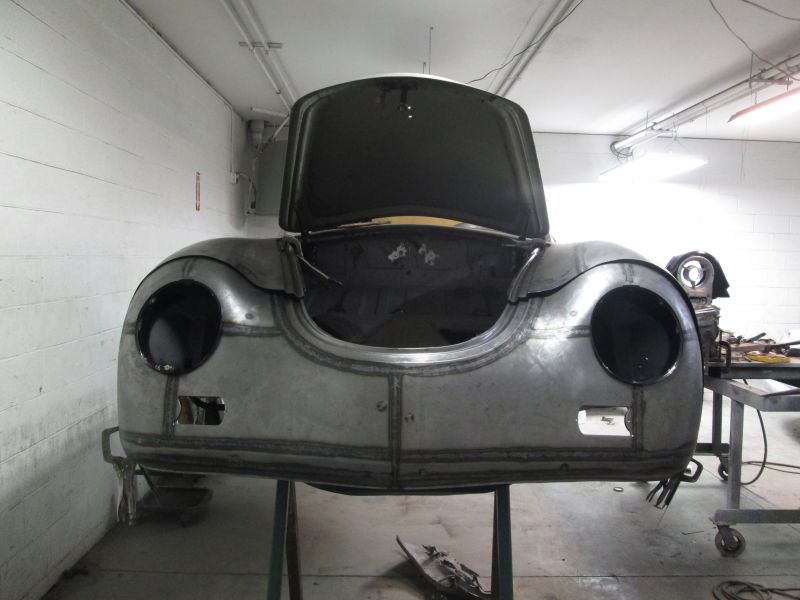

    With the front very close to being in its final position I got just over 26 inches with the front still needing to come down just a bit more before its all over. Close enough Thanks again.

    11/18/16

    Fitting new front fender braces. (about a week ago)
    Click image for larger version

Name:	acoupst125.JPG
Views:	106
Size:	51.0 KB
ID:	82117
    Since this is my first front end I went back and fourth on whether to go from fenders to nose or establish the nose first.
    Click image for larger version

Name:	acoupst126.JPG
Views:	109
Size:	54.2 KB
ID:	82118
    I eventually settled on the nose first then working backward.

    Click image for larger version

Name:	acoupst111.JPG
Views:	104
Size:	60.0 KB
ID:	82119
    As the nose fitment continued the need for additional locating anchor points for it grew. Now was the time to begin fitting and prepping the front braces.
    Click image for larger version

Name:	acoupst108.JPG
Views:	109
Size:	73.1 KB
ID:	82120

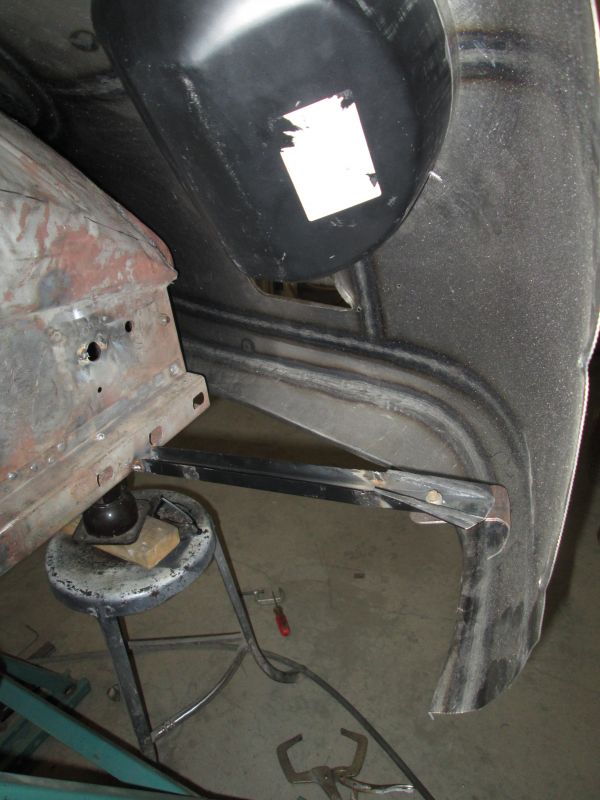

    Initial prep was to heel the sides over flat on the lower footing just as the OG braces where showing.

    Click image for larger version

Name:	acoupst113.JPG
Views:	91
Size:	64.6 KB
ID:	82121

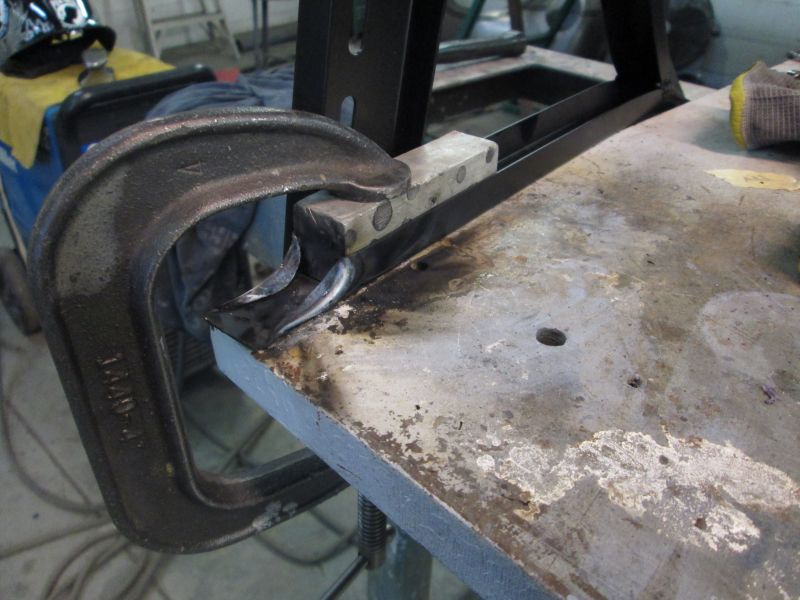

    Tip now doubled over and ready to fit to the car.
    Click image for larger version

Name:	acoupst119.JPG
Views:	105
Size:	59.1 KB
ID:	82122

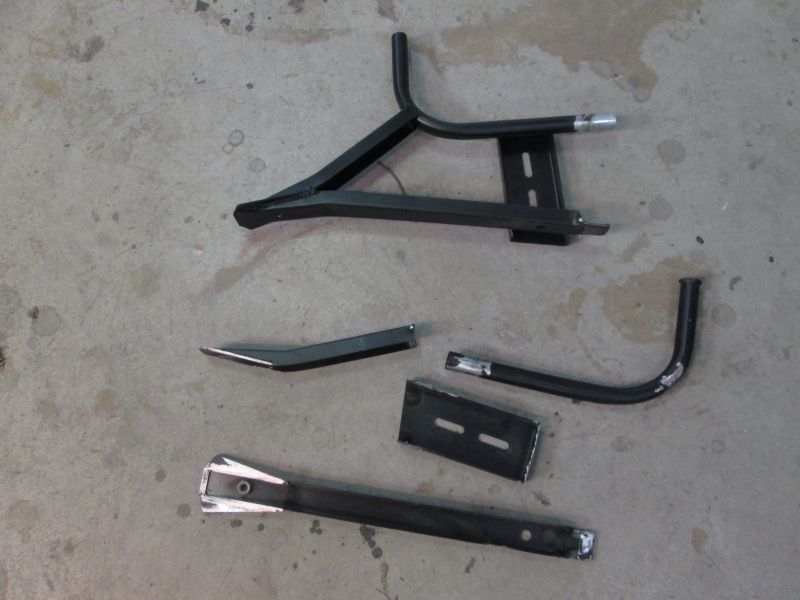

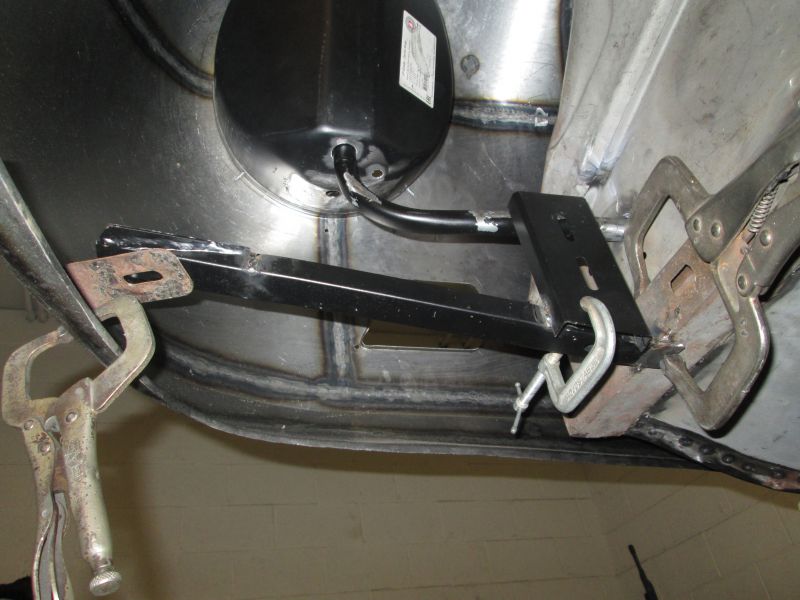

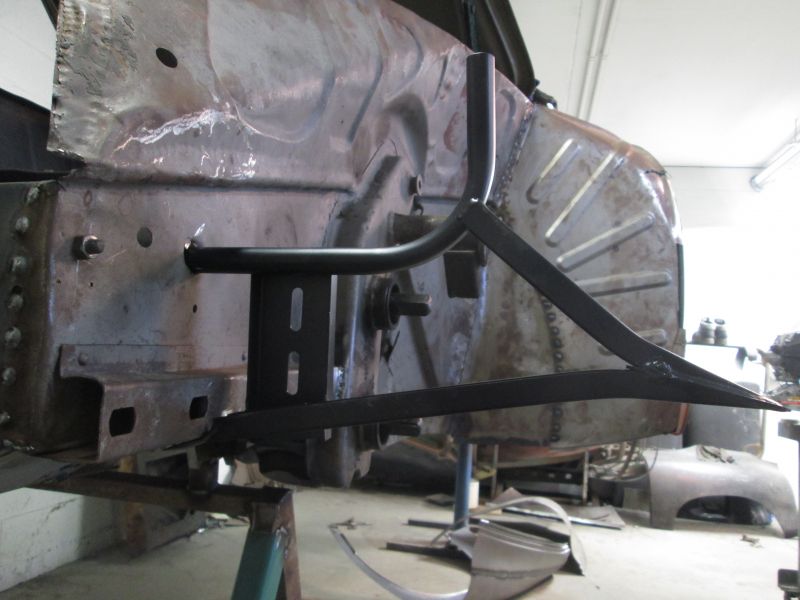

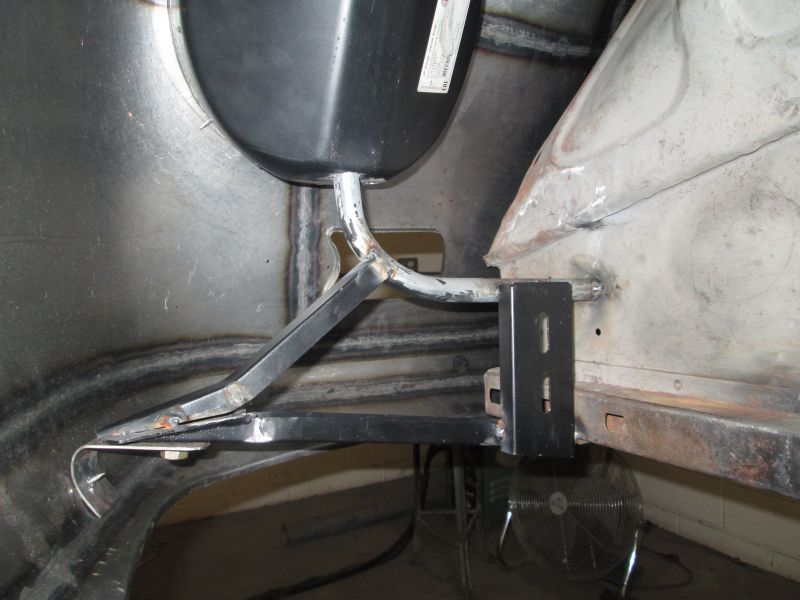

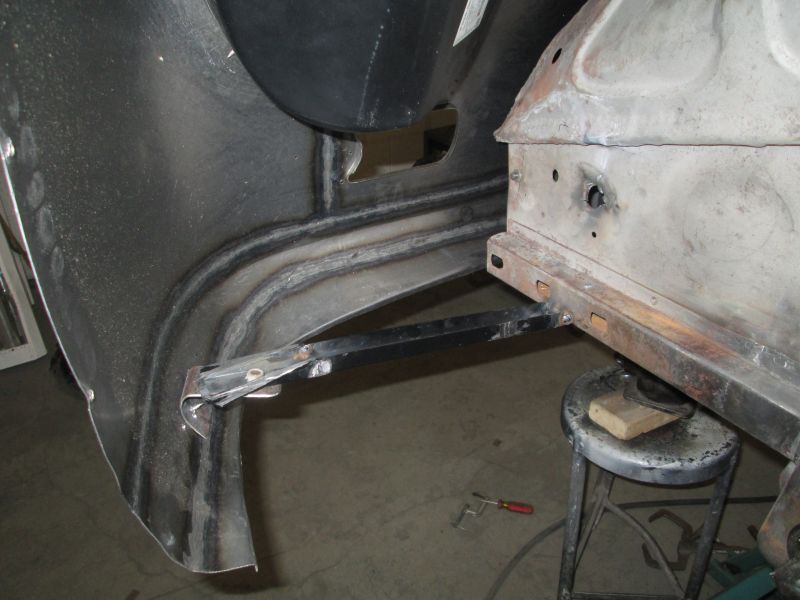

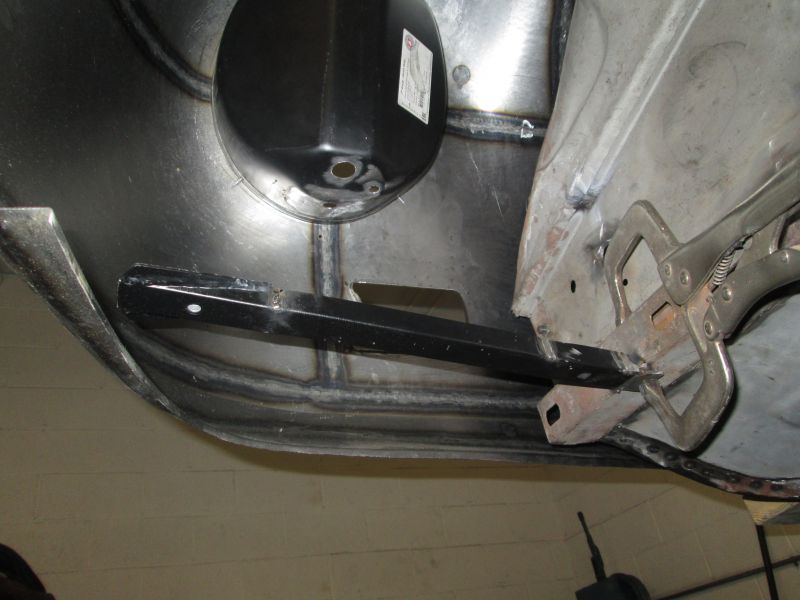

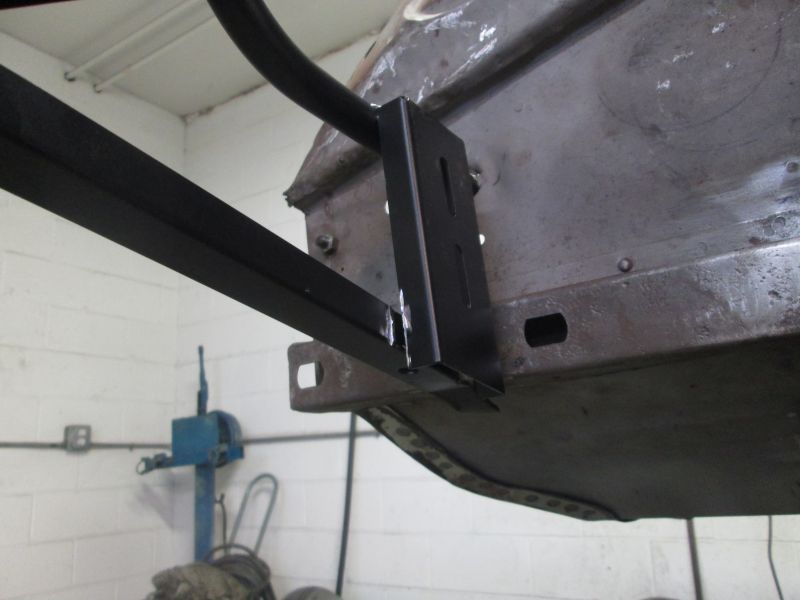

    Initial fitment issue with these braces from Dansk was they seems a touch too narrow and would not allow an easy fit under the bracket mount and into the hole of the trunk wall. At first I thought this was my mistake as I repaired this hole in the wall and could very well have been off by "that much".
    Click image for larger version

Name:	acoupst109.JPG
Views:	112
Size:	64.0 KB
ID:	82123

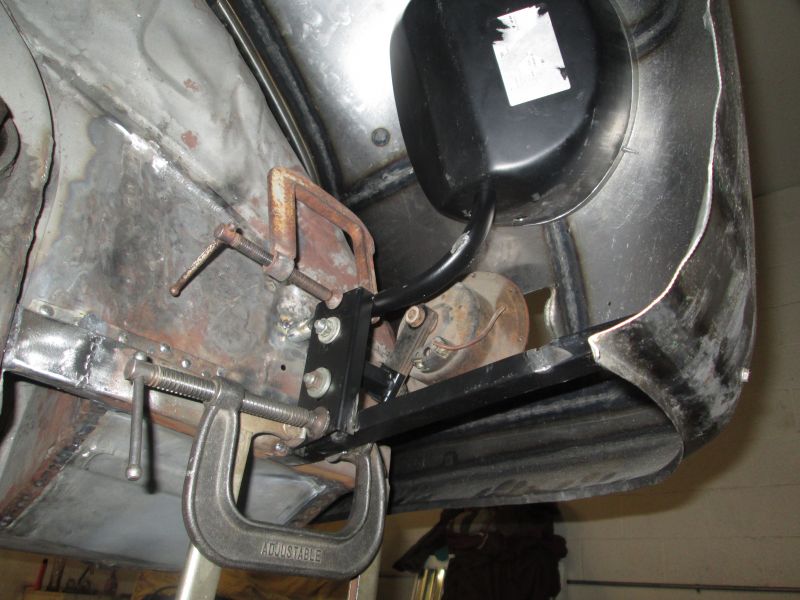

    But this side is factory and the problem was the same.
    Click image for larger version

Name:	acoupst110.JPG
Views:	97
Size:	45.7 KB
ID:	82124

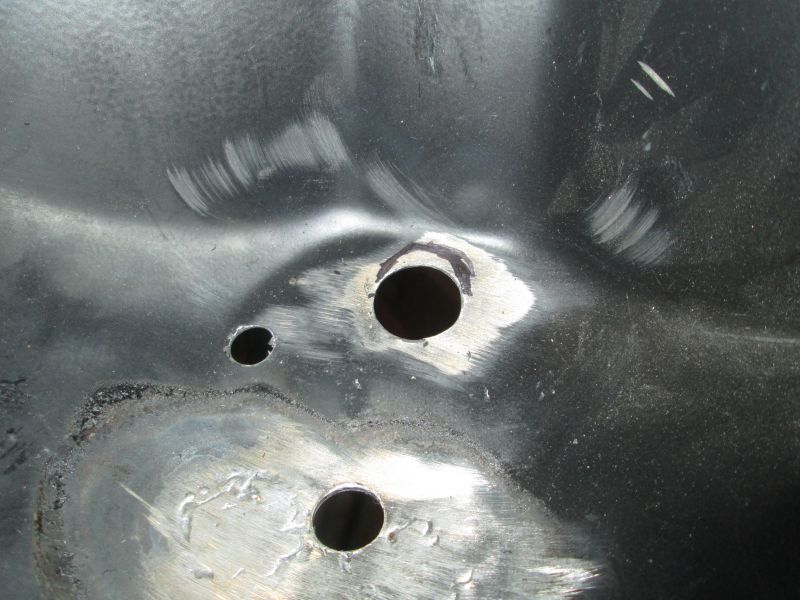

    I thought about relocating the holes but the easiest fix was to cut the lower welds on the horn bracket mount allowing the bottom brace to relax down the needed distance.

    Click image for larger version

Name:	acoupst111.JPG
Views:	98
Size:	60.0 KB
ID:	82125
    That turned the trick for the time being anyway.
    Click image for larger version

Name:	acoupst120.JPG
Views:	91
Size:	60.3 KB
ID:	82126

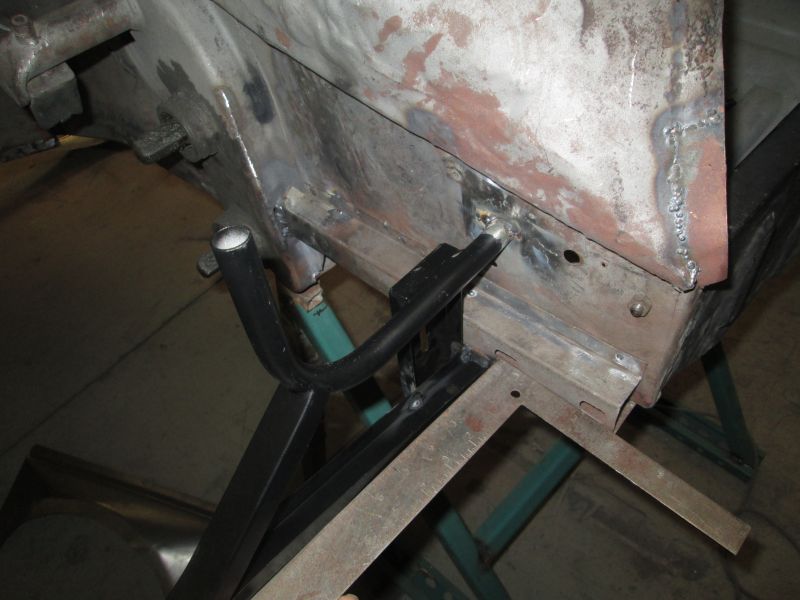

    Right side set for square and tacked on. I would soon learn that I was getting way ahead of myself.
    Click image for larger version

Name:	acoupst121.JPG
Views:	112
Size:	55.3 KB
ID:	82127
    Braces tacked and ready to begin refitting the nose to see where it was at. All that mess coming up next.
    Thanks for stopping by!
    Justin
    Justin Rio

    Comment


    • 11/19/16

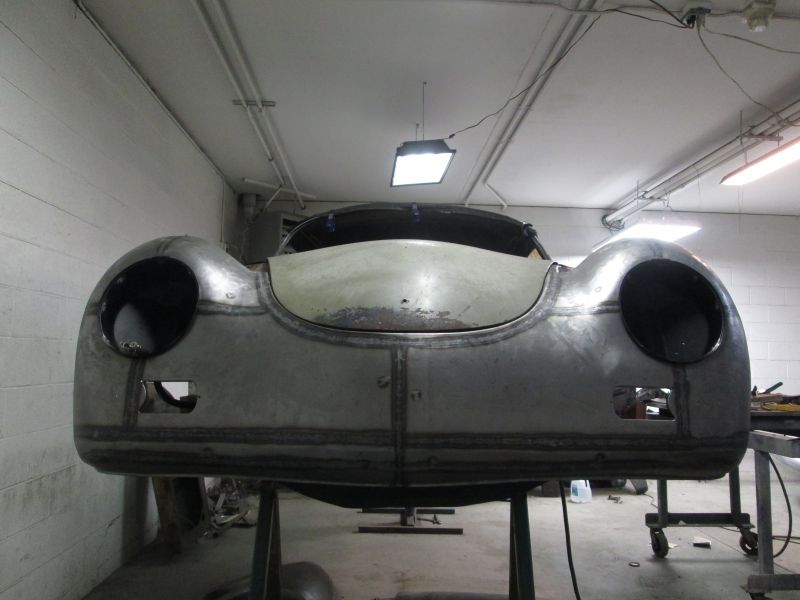

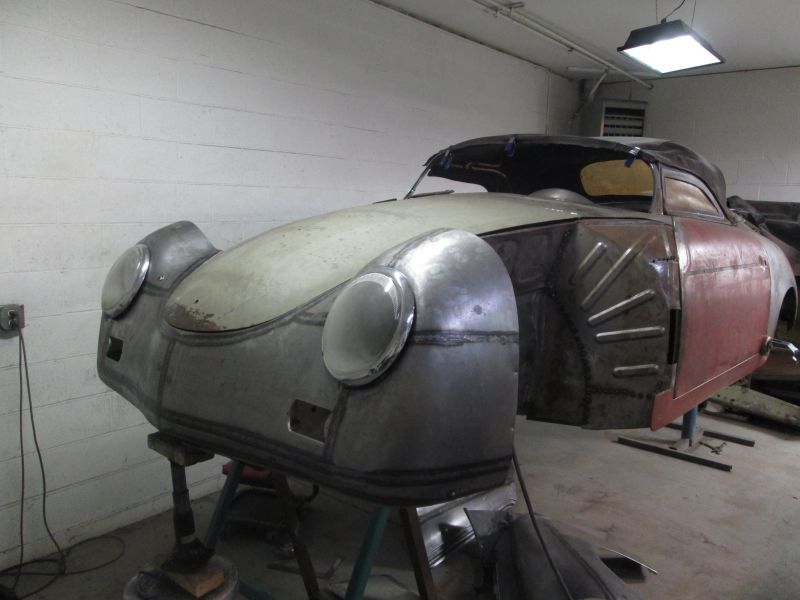

      Nose mock ups with a headlight bucket... First signs of trouble.

      Click image for larger version

Name:	acoupst114.JPG
Views:	87
Size:	59.7 KB
ID:	82139

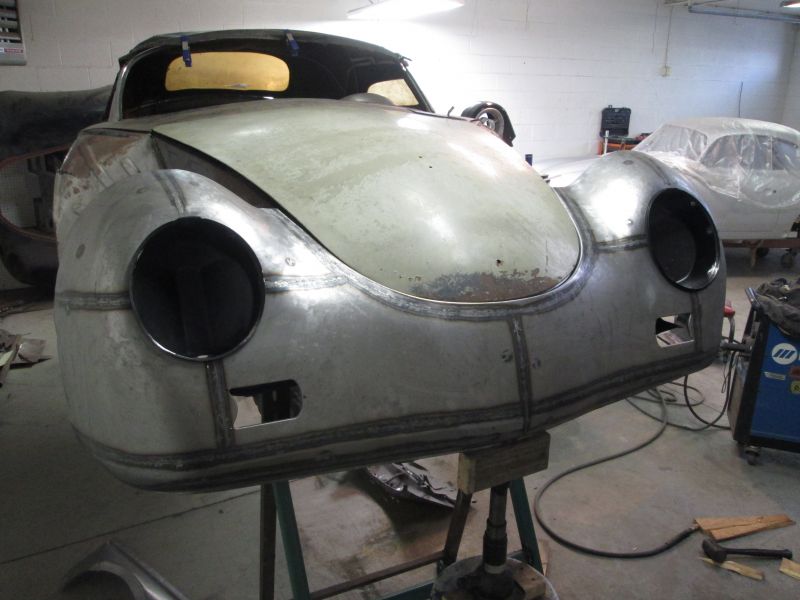

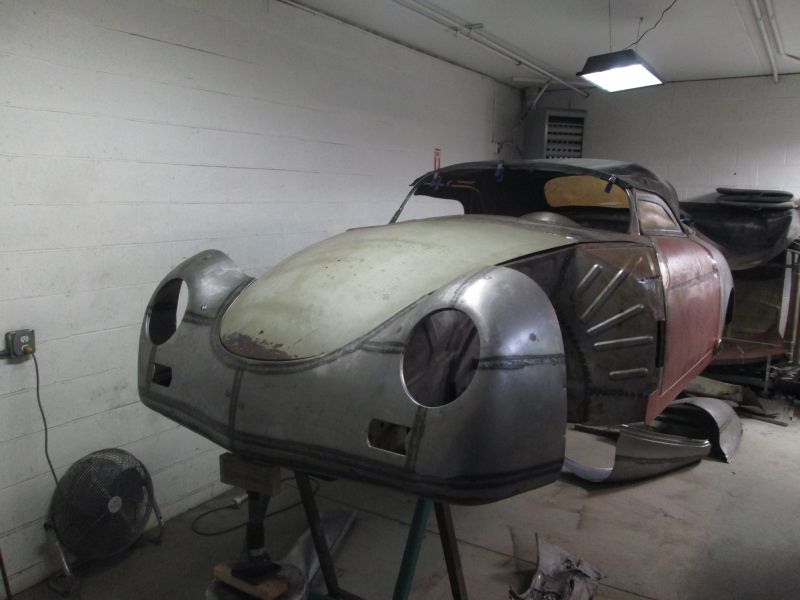

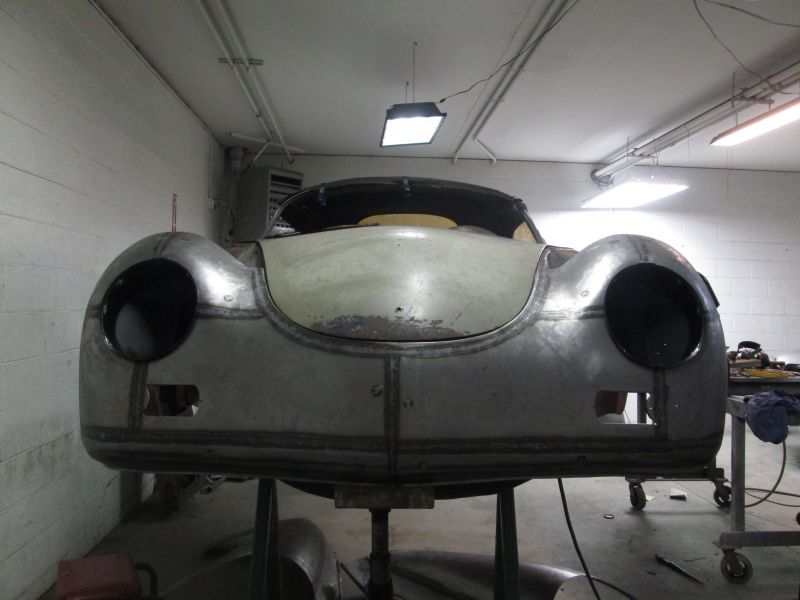

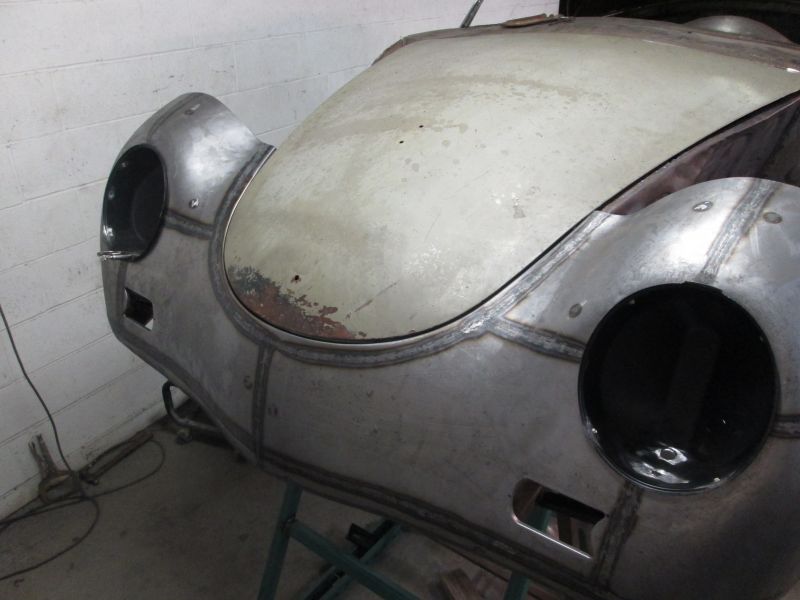

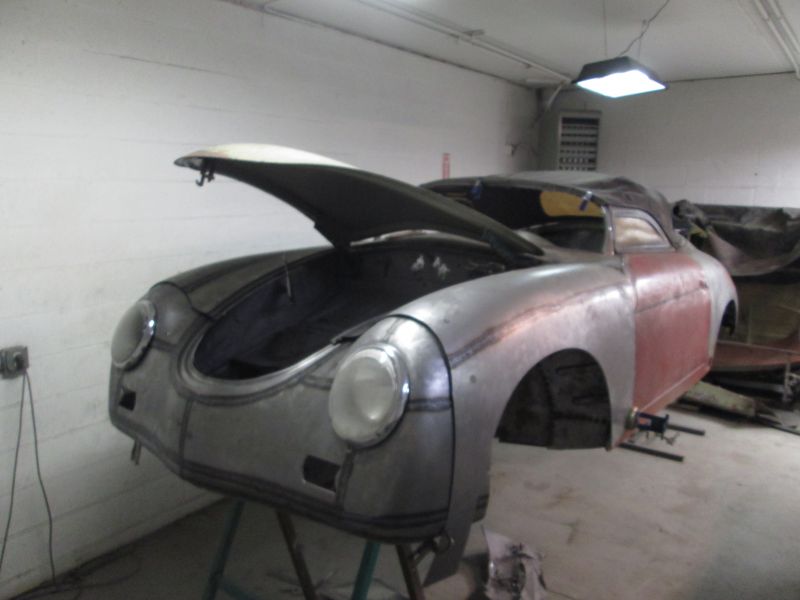

      Initial fitment with the nose seemed promising.
      Click image for larger version

Name:	acoupst115.JPG
Views:	95
Size:	58.1 KB
ID:	82140

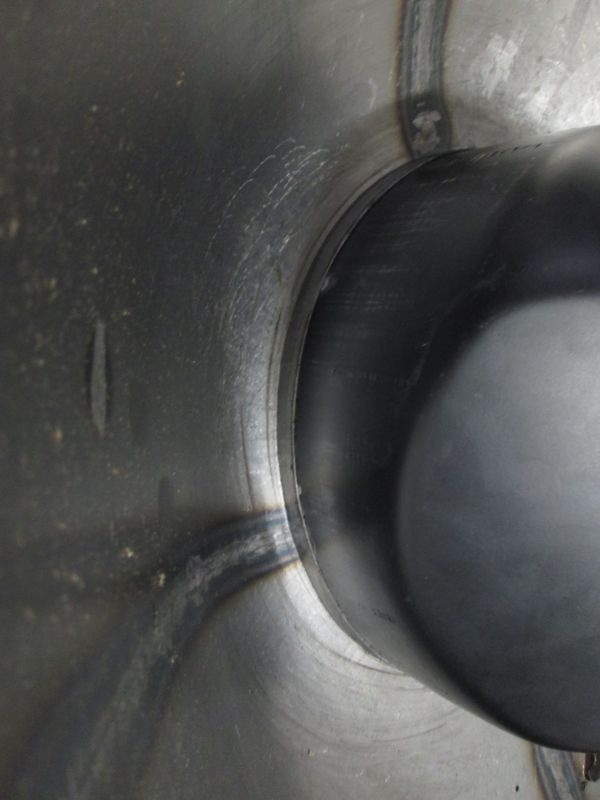

      Tube peaked out almost at dead center on both light openings.

      Click image for larger version

Name:	acoupst116.JPG
Views:	91
Size:	58.5 KB
ID:	82141

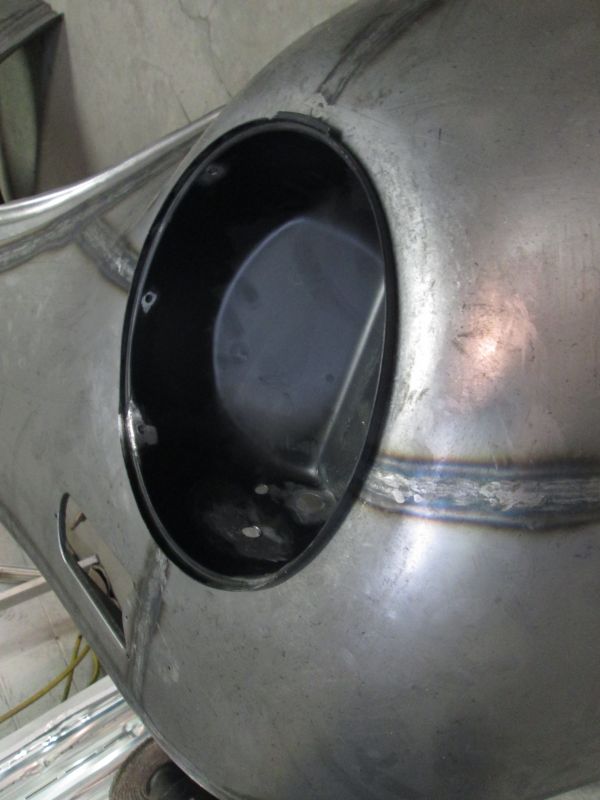

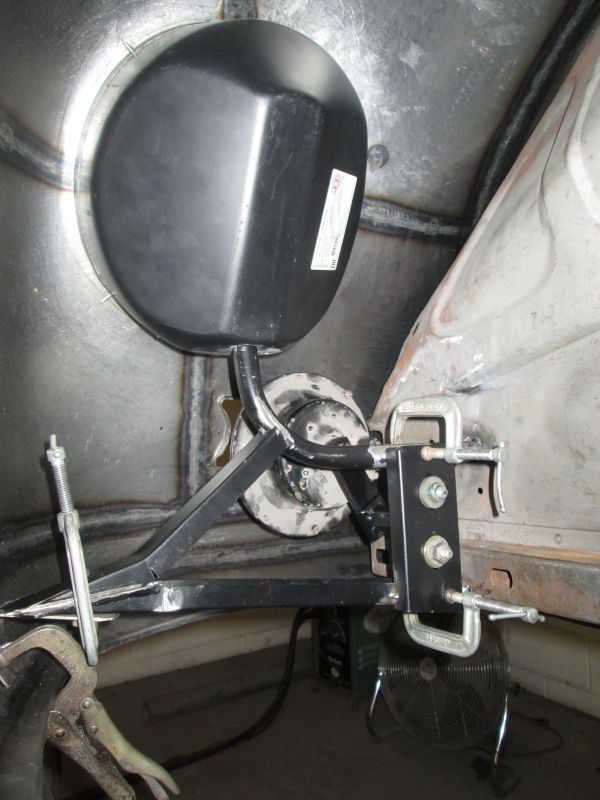

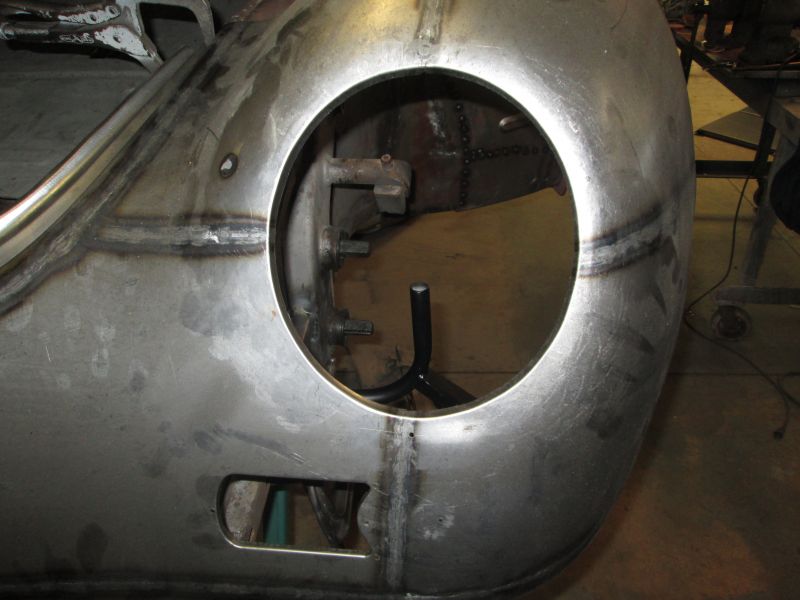

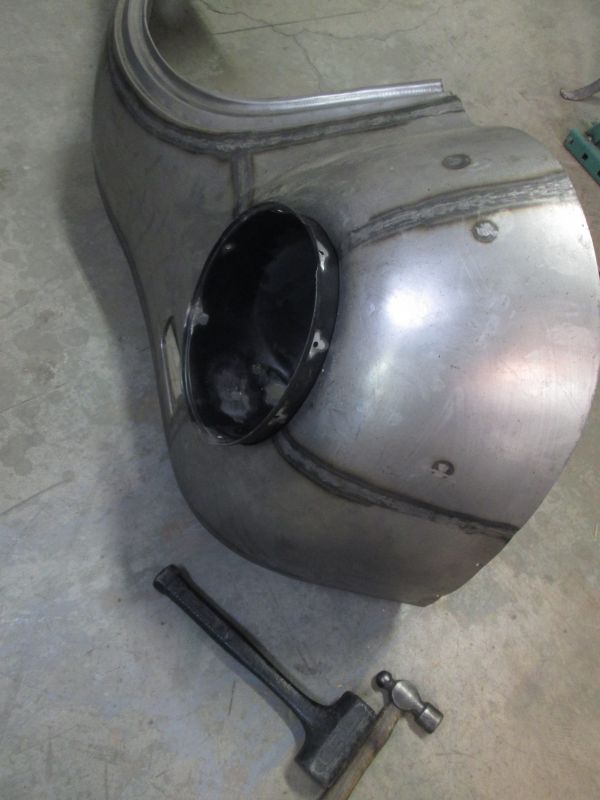

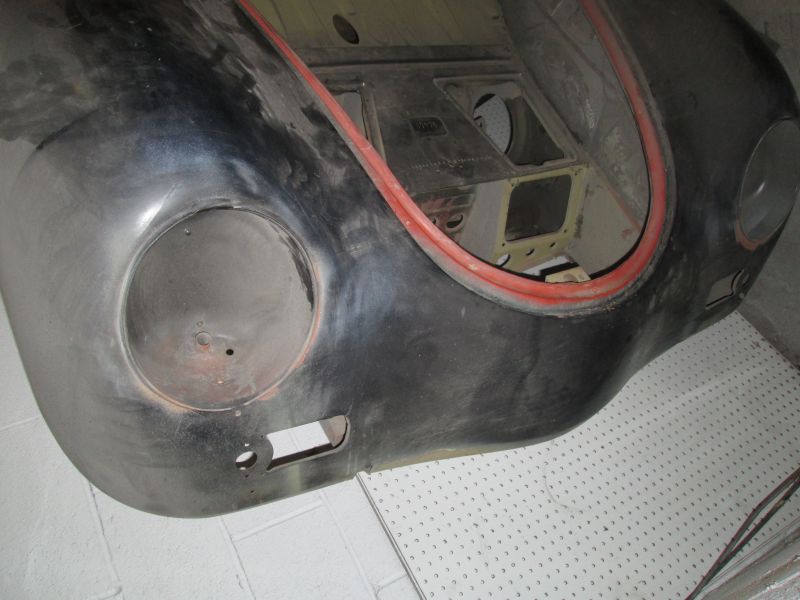

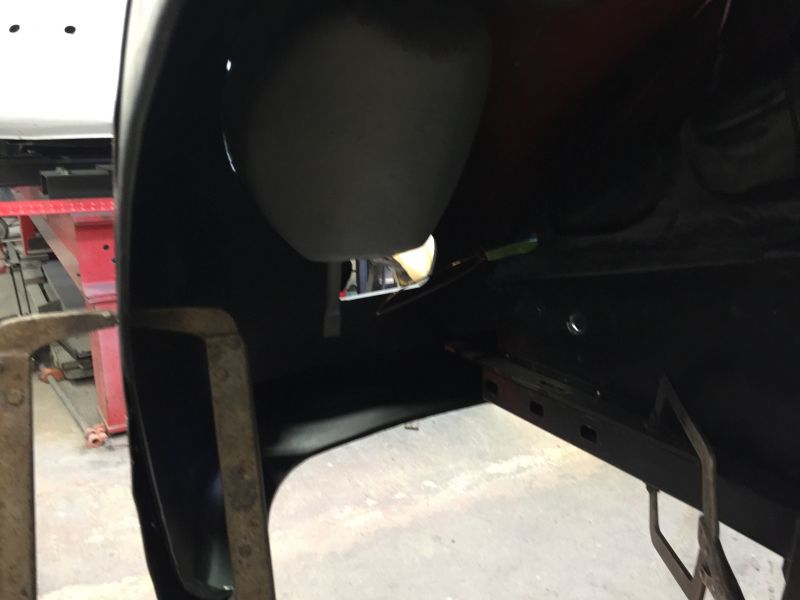

      Mocked up the bucket from the inside and noticed I was heading into the same problem as Drew was experiencing earlier.
      Click image for larger version

Name:	acoupst118.JPG
Views:	105
Size:	58.9 KB
ID:	82142

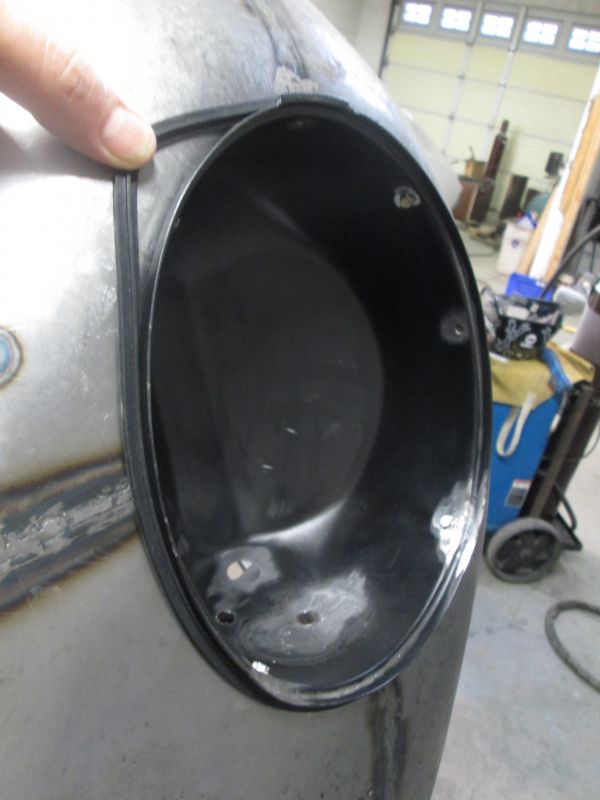

      Though relatively centered the tube position forces the bucket to be way too far back. Once the bucket is mounted into the skin there is no way the conduit will line up with the opening at the bottom of the bucket. The simple fix is to move the brace forward to compensate but I'm shooting to keep it in the stock position for horn and stand-off clearance from the skin.
      Click image for larger version

Name:	acoupst067.JPG
Views:	104
Size:	63.2 KB
ID:	82143
      I wanted to know what was causing this discrepancy so after some comparison measurements against my original buckets pictured above it was clear; the original buckets are a full 1/2 inch deeper than these new ones from Dansk.
      Click image for larger version

Name:	acoupst117.JPG
Views:	99
Size:	55.8 KB
ID:	82144
      While they got the basic shape pretty nice these buckets just don't reach back far enough. Some give and take as well as some heavy modification to these brackets is going to be required to bridge this gap so off these brackets must come. This is where I got ahead of myself. To be able to determine just how much and what has to be done to them hinges on the buckets ultimate placement. I realized now was the time to get them mounted in the nose section. Just bumping my way along in the dark but eventually "I see". Prepping buckets for mounting next. Thanks for looking!
      Justin
      Justin Rio

      Comment

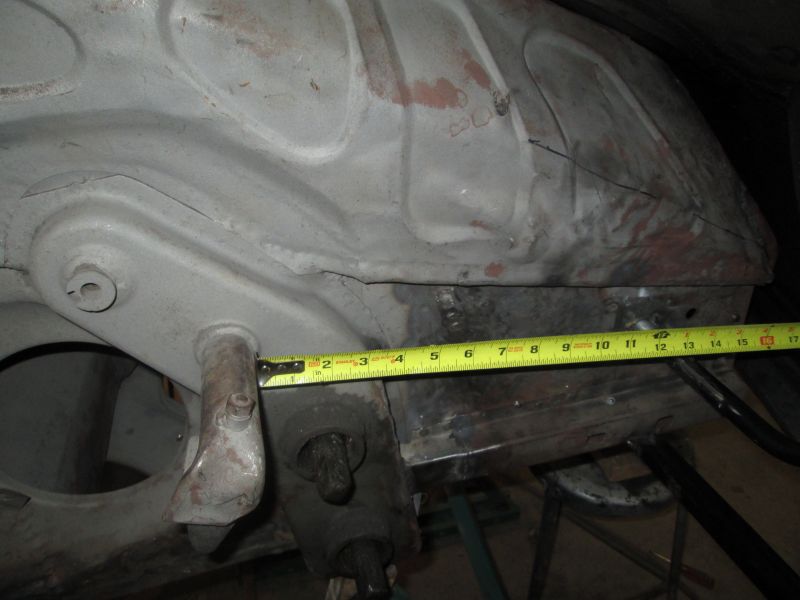

      • Justin,

        Now those discrepancies in size to the factory originals as also Drew found must have been a real disappointment. To me trained as a press toolmaker it seems clear they used some close tooling to the original for the bucket that could be made to fit with modification but a straight forward remove a rusted part and re-fit with the new.

        In these cases, did they mention the fact they are not direct replacements but would need alteration before final fitting?? Sure, items like this are not easy to make in low volume because perfect examples would be involve high tooling costs but it should be made very clear on that fact.

        Looking at my originals below, the measurements would be easy to make, is it a case of what's a half inch or so ???

        Click image for larger version

Name:	2012_1057winbrace4_2016-11-20.jpg
Views:	92
Size:	92.5 KB
ID:	82146

        Click image for larger version

Name:	2012_1057wingbrace5_2016-11-20.jpg
Views:	91
Size:	85.6 KB
ID:	82147

        You are doing so well on this Justin many would throw in the towel !

        Great thread.

        Roy

        Comment


        • Justin,

          I should have put above: ' but not a straight forward remove a rusted part'....

          The word 'not ' is important !!

          Roy

          Comment

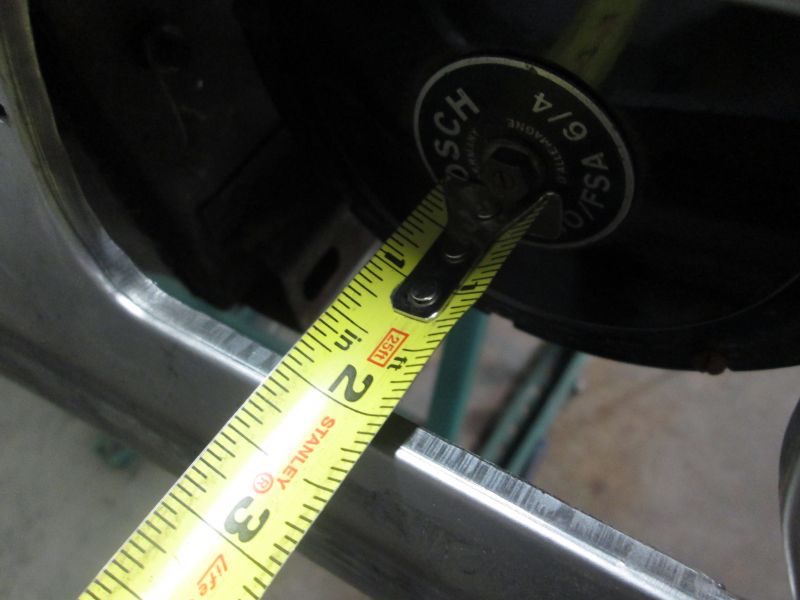

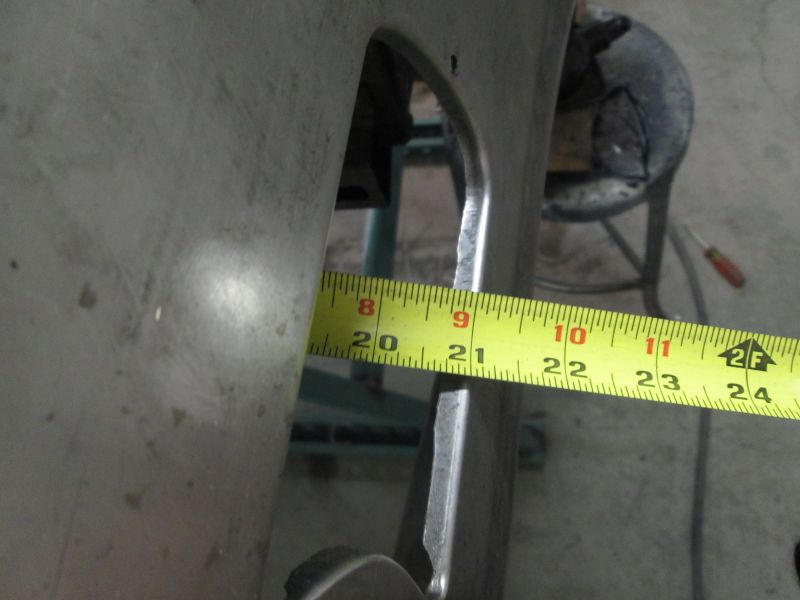

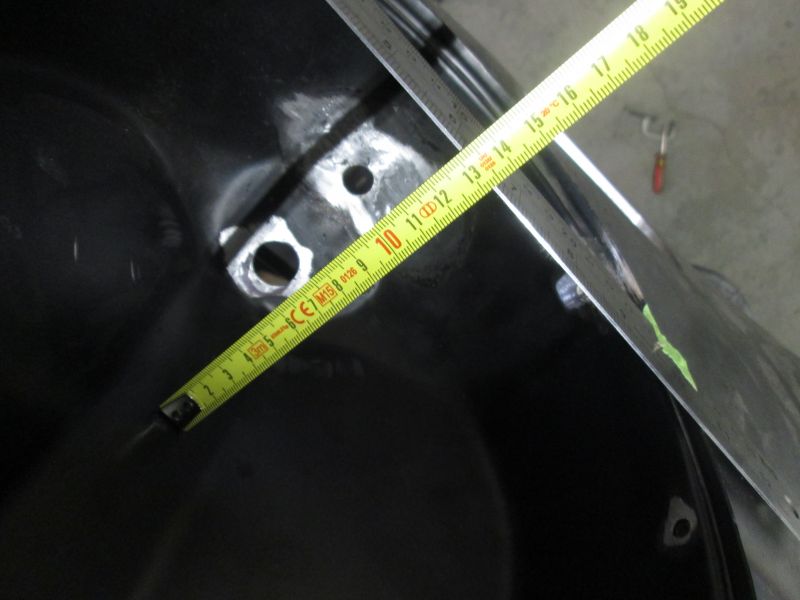

          • Oops! Sorry about that guys I mistakenly put down a 1/2 inch last night I meant to say there was a 1/4 inch worth of difference.
            Click image for larger version

Name:	acoupst178.JPG
Views:	91
Size:	45.7 KB
ID:	82156

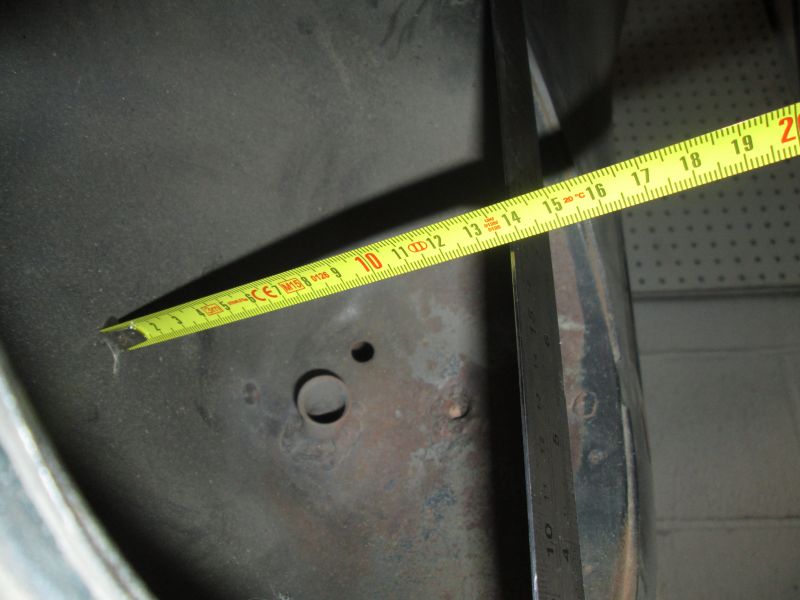

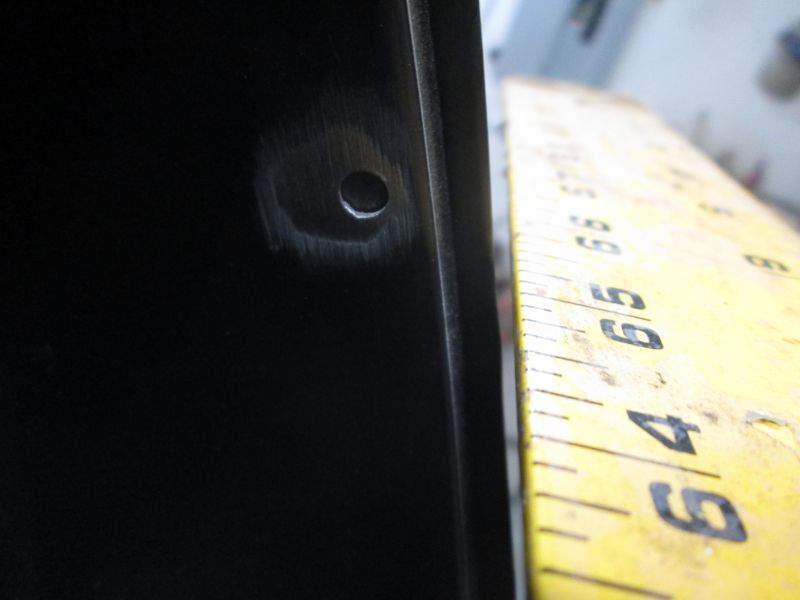

            I remeasured this afternoon in MM's this time. Got a depth of approximately 131MM on the repro.
            Click image for larger version

Name:	acoupst180.JPG
Views:	81
Size:	53.5 KB
ID:	82157
            The original came in at approximately 137mm.
            Click image for larger version

Name:	acoupst181.JPG
Views:	86
Size:	54.5 KB
ID:	82158
            This is the Original's outer flange that the base ruler is resting on. The reproduction's flange is approximately 2mm wider than this one so by the time I'm done grinding the new one down to spec. the depth measurement will change to about 129mm so there is about an 8mm or 1/4 inch discrepancy. Certainly not as bad as I had you believing it was but enough to cause trouble. Thanks for the confirmation pics Roy. Not a whole lot of room between the horn and the body aye? BTW: Love your drive with the black brick and moss covered joints... Cool!



            11/20/16
            Headlight bucket prep.
            Adding 356A details to these new shells.
            Click image for larger version

Name:	acoupst136.JPG
Views:	77
Size:	45.8 KB
ID:	82159

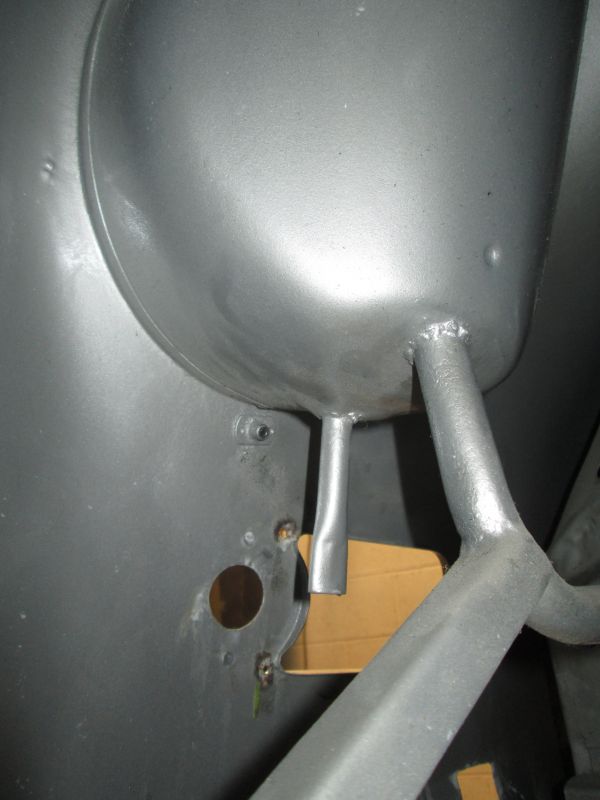

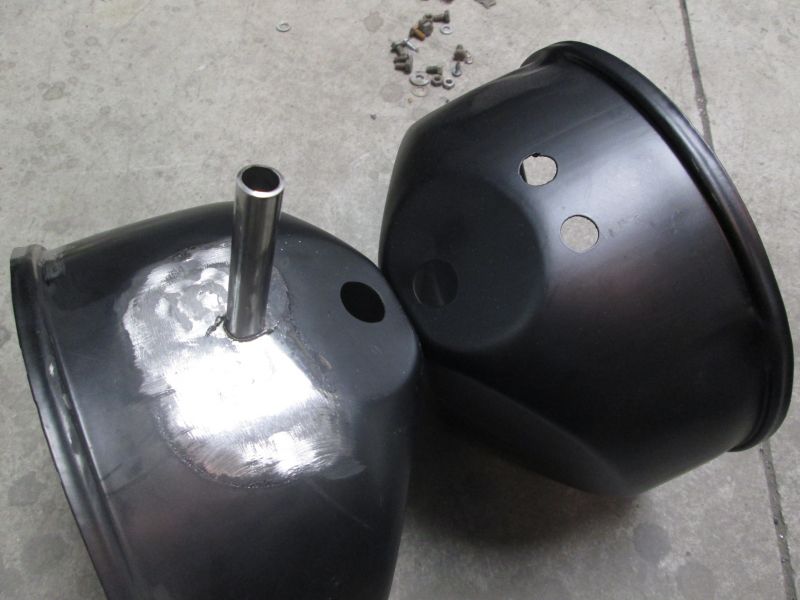

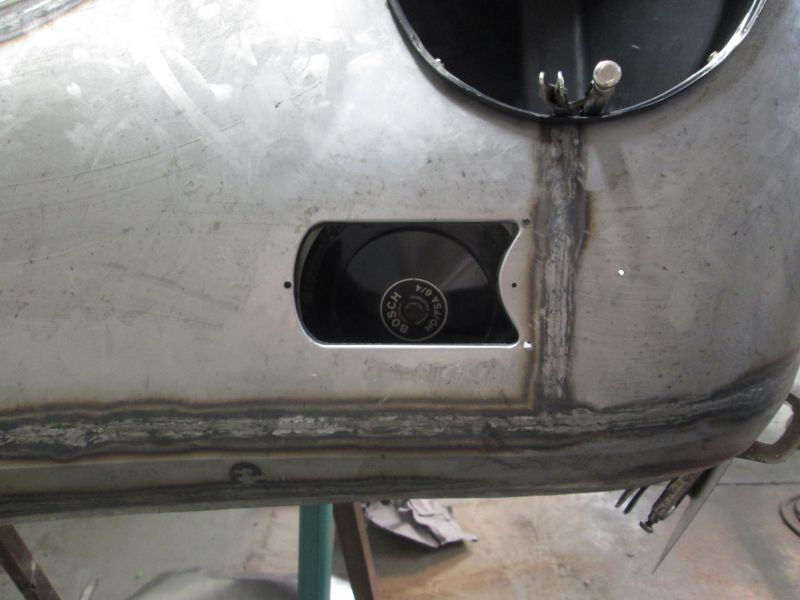

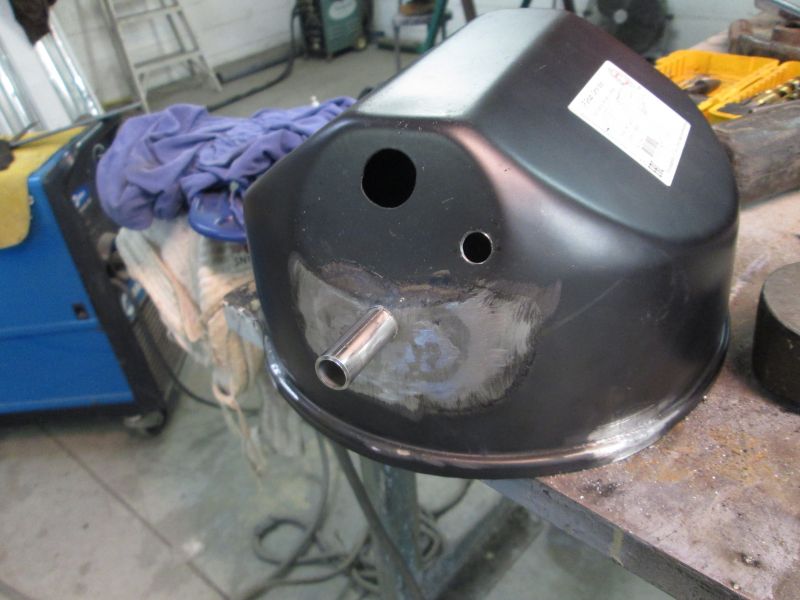

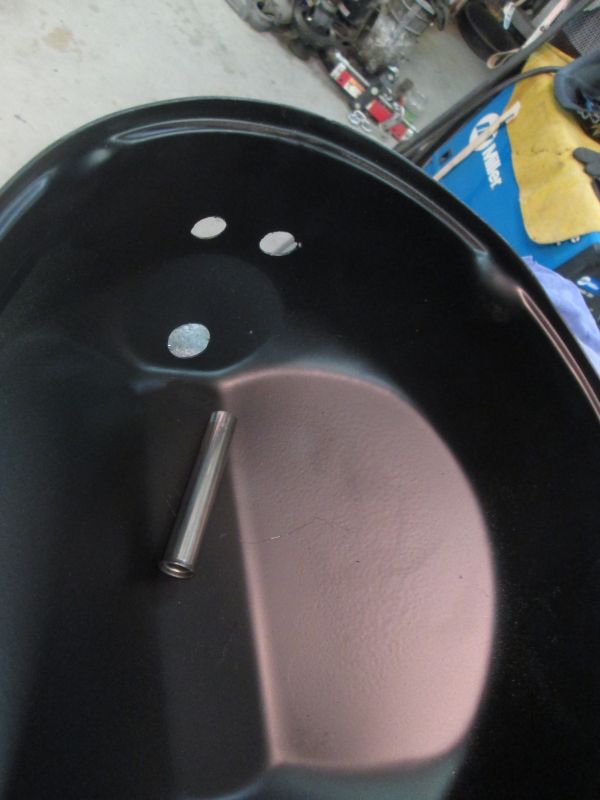

            Need to close the twin forward holes and add a center drain tube in their stead. The lower lateral detents on the lip will also need to be finished out like the rest of this edge.
            Click image for larger version

Name:	acoupst129.JPG
Views:	83
Size:	41.0 KB
ID:	82160
            Normally I wouldn't bother but the shoulder they create on the outer surface will interfere with the units final fitment down into the holes.
            Click image for larger version

Name:	acoupst130.JPG
Views:	87
Size:	47.5 KB
ID:	82161

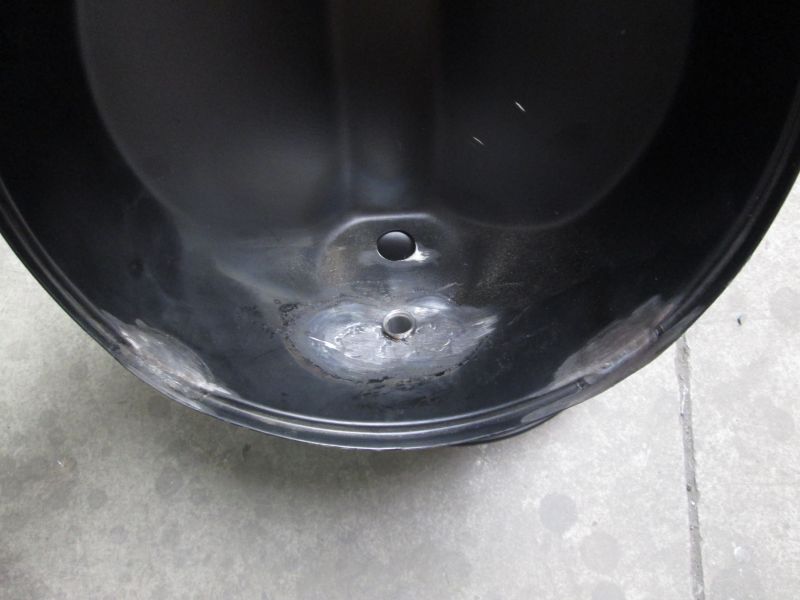

            Holes welded with new central drain tube. Detents smoothed out.

            Click image for larger version

Name:	acoupst128.JPG
Views:	75
Size:	53.9 KB
ID:	82162

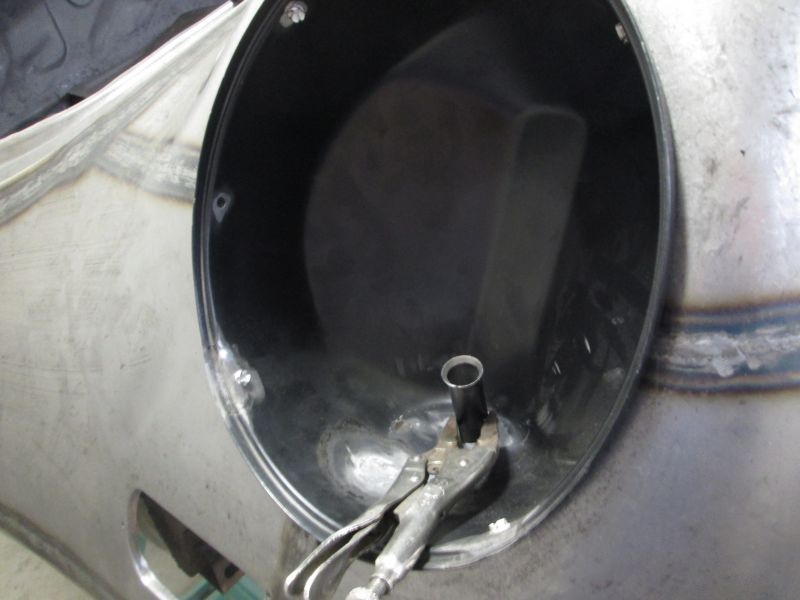

            I'll weld the tube in after the buckets are seated in the nose.
            Click image for larger version

Name:	acoupst131.JPG
Views:	76
Size:	46.6 KB
ID:	82163
            The tip gets crimped. Another detail for later.
            Click image for larger version

Name:	acoupst132.JPG
Views:	81
Size:	60.3 KB
ID:	82164
            One more small hole to be added is for the turn signal leads to go through. Its positioned to the inside so this unit has been officially designated for the left side. One more to go...
            Thanks for looking!
            Justin
            Justin Rio

            Comment

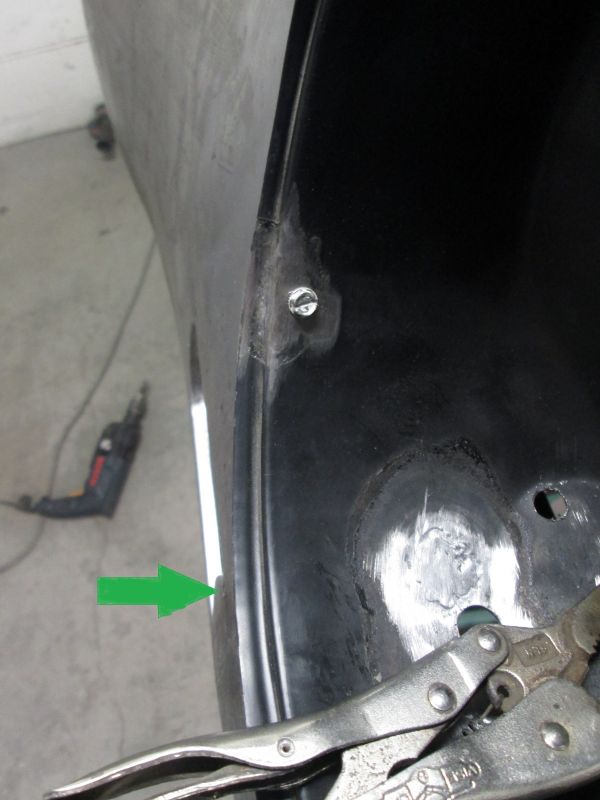

            • Yeah, that was a bit premature to fit the fender braces first. It's a busy place on the front end. You might want to take a measurement on how far the nose panel extends from the bottom lip to the spare tire well. I've seen a few that looked too blunted, and others that look too extended. Get that right first. Get a reasonable fit to the front bumper that you are using, before fitting fenders. Both will likely need work. Fit the headlight buckets with the headlights and gaskets that you are going to use in place. Allow a little extra for primer and paint. Often the headlight openings are the wrong egg shape for all this to fit correctly. The last thing to fit is the fender braces. Some slight movement of the panels can be made there, but keep tension as low as possible. Before welding the braces, fit the horns to allow clearance. They can be very close to the nose panel at times.
              Oh, don't let the headlight buckets point in different directions. Lay a long 2x4 across them to check. There is usually a little outward facing difference, but 1/4" on each side is getting a bit far out.
              Jack (analog man from the stone age)

              Comment


              • Definitely Jack, The bucket lip clearance away from the fender for the seal and paint was something I was warned about by my buddy here in town several years ago when I repaired the right side on my coupe. I heeded that warning. I can also remember Bruce Baker on the R suggesting a long straight edge across both buckets to check for square; that was also noted. This nose is being located for distance and attitude by measuring off the suspension points to sight markers on the skin from both my coupes. I then jockeyed this one for best average fit against those numbers all the while making sure it continues a smooth transition off the end of the hood. Its surprisingly close to the originals and its looking pretty close as it does it. Thanks Jack, timeless tips for sure...
                Click image for larger version

Name:	acoupst199.JPG
Views:	75
Size:	64.7 KB
ID:	82177

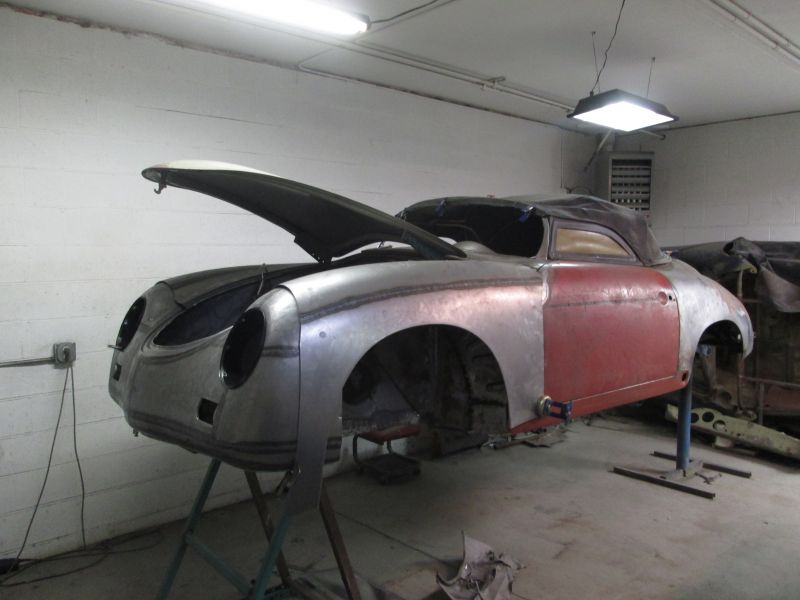

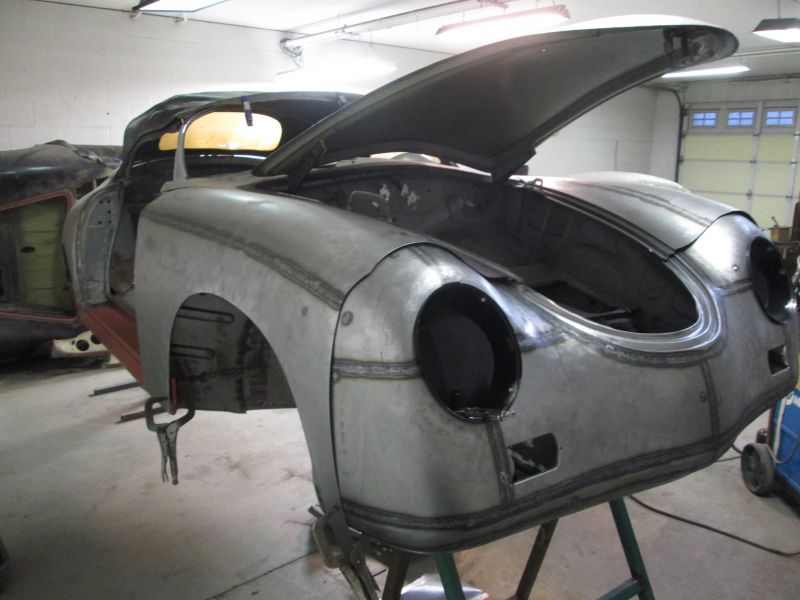

                Photo is where I'm at as of today (11/21/16) with the front located just about where I need it to be. With that I'm beginning to rough fit the fenders. I think its going to go a lot smoother than the rear did. Famous last words... Added some eyeballs to give a better idea how the front is shaping up.


                11/21/16

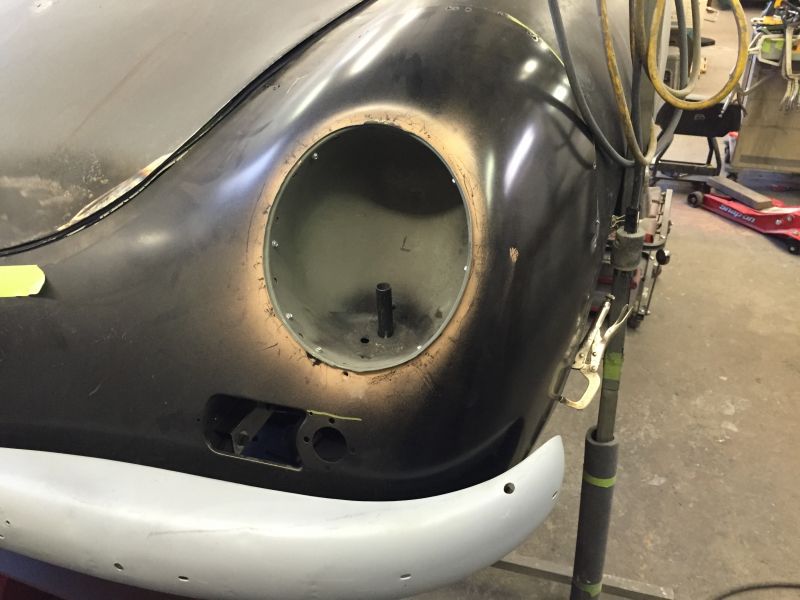

                Headlight bucket installment from last week.
                Click image for larger version

Name:	acoupst137.JPG
Views:	72
Size:	43.2 KB
ID:	82178
                Cleaned with plug weld holes; ready to install.
                Click image for larger version

Name:	acoupst138.JPG
Views:	75
Size:	51.6 KB
ID:	82179
                It was a very tight fit and took some convincing with a section of wood and a dead blow hammer.
                Click image for larger version

Name:	acoupst139.JPG
Views:	73
Size:	51.7 KB
ID:	82180
                Eventually drove it home. If I hadn't been through this before with all original parts the amount of force that was needed to get these in would have really concerned me. The originals were tight and so where these. Anyway got them in without distorting the area of the fender around the opening.
                Click image for larger version

Name:	acoupst140.JPG
Views:	69
Size:	42.7 KB
ID:	82181
                Very impressed with how well these two parts eventually fit together though. Certainly don't want to have to remove these for any reason. Can't see any need to... Thank god.
                Click image for larger version

Name:	acoupst145.JPG
Views:	71
Size:	48.9 KB
ID:	82182

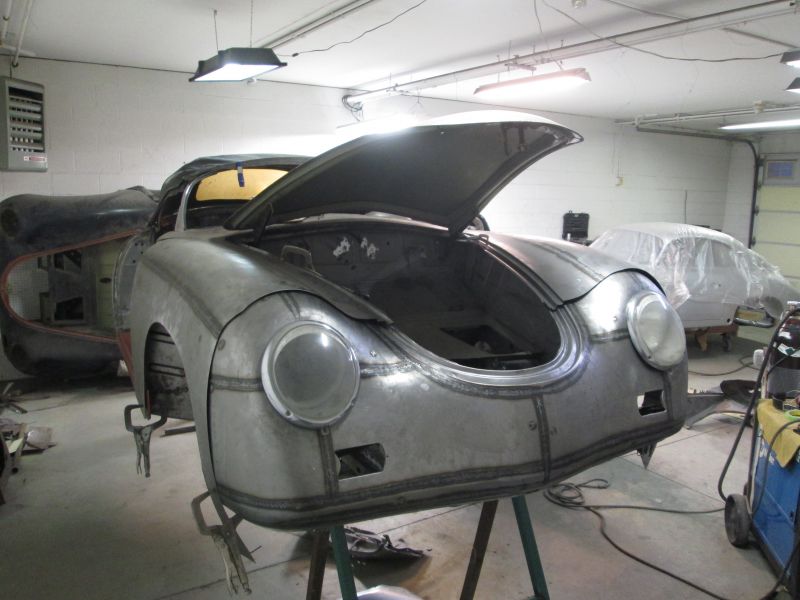

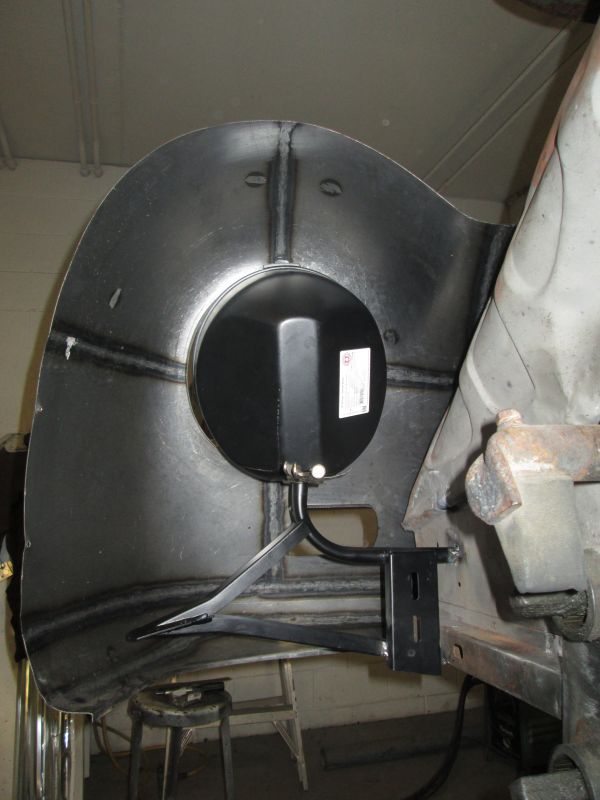

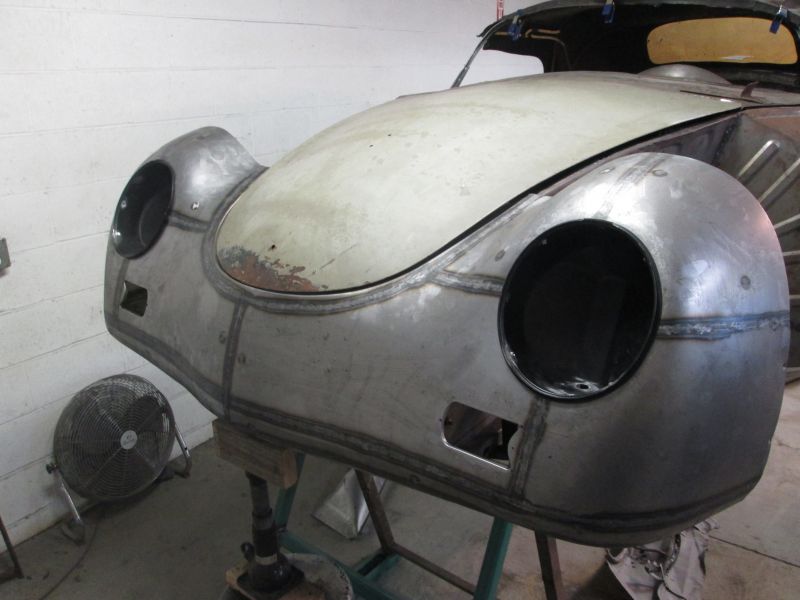

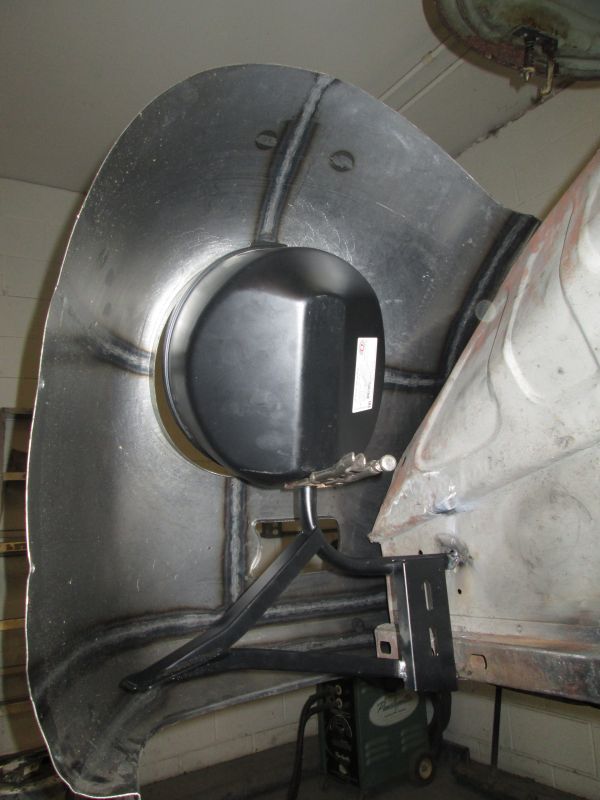

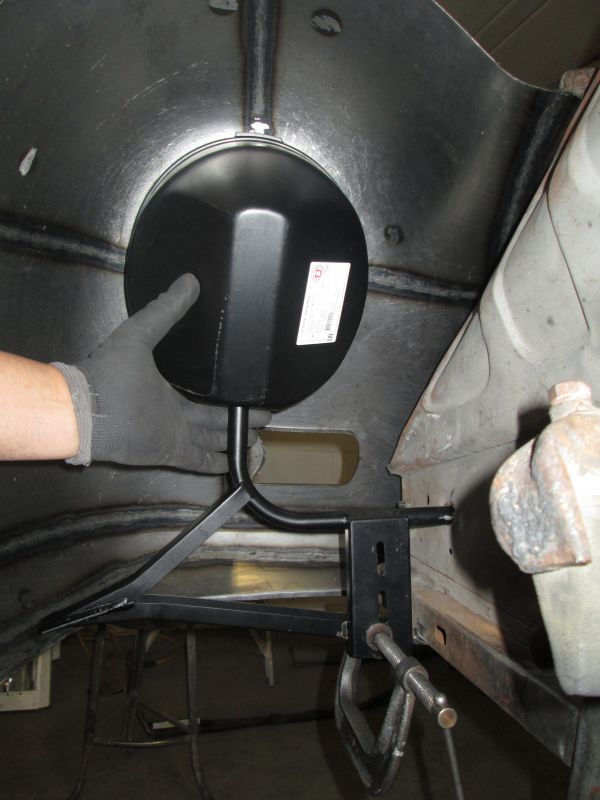

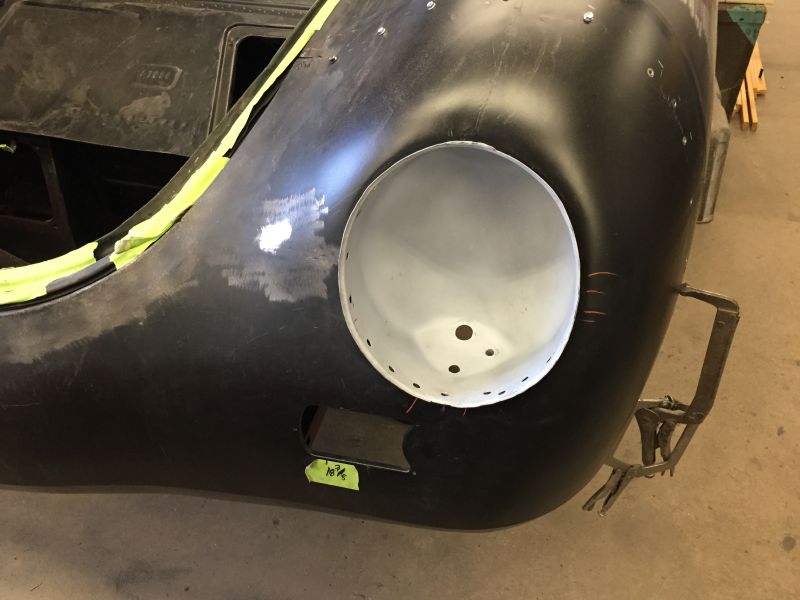

                Getting ready to set screw the bucket into position and as Jack mentioned seal thickness is being taken into account.
                Click image for larger version

Name:	acoupst147.JPG
Views:	71
Size:	60.0 KB
ID:	82183
                Both buckets now in.
                Click image for larger version

Name:	acoupst148.JPG
Views:	82
Size:	54.8 KB
ID:	82184
                back to the fender braces... I'll eventually get this thread caught up and current.
                Thanks for looking and Happy Thanks Giving to everyone!
                Justin
                Justin Rio

                Comment

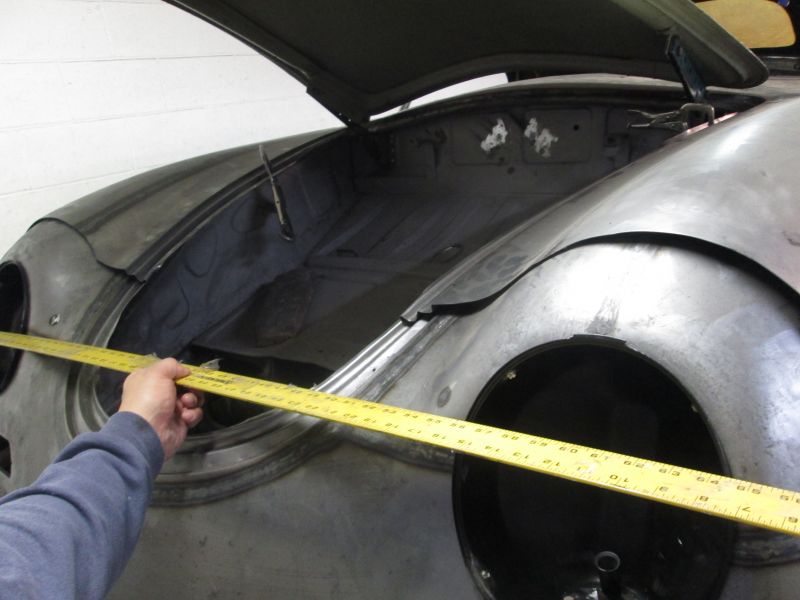

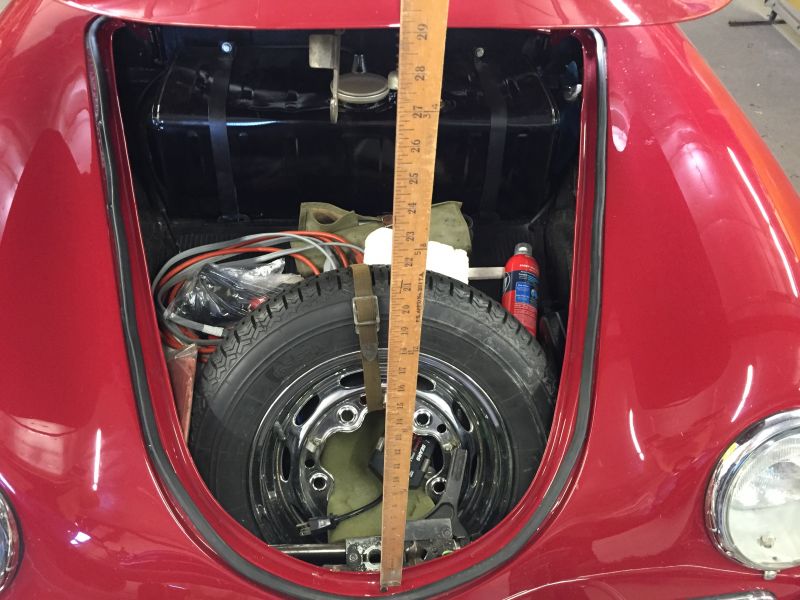

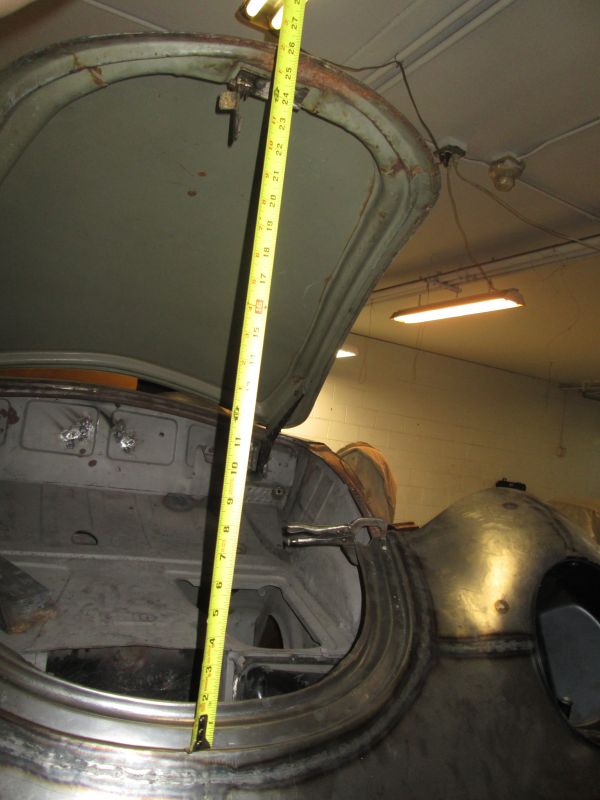

                • Late data:

                  Click image for larger version

Name:	IMG_33511.JPG
Views:	73
Size:	80.8 KB
ID:	82211
                  29" or 740mm, original Speedster, original numbers matching lid, one owner numbers matching car with a very desirable history (for sale)

                  Click image for larger version

Name:	IMG_33521.JPG
Views:	73
Size:	61.7 KB
ID:	82212

                  Click image for larger version

Name:	IMG_33531.JPG
Views:	73
Size:	54.8 KB
ID:	82213

                  Click image for larger version

Name:	IMG_33541.JPG
Views:	69
Size:	35.2 KB
ID:	82214
                  One Trevor nose and one Trevor-part modified at seal landing and gutter Porsche-supplied nose. Trevors openings were an easier fit for re-used original bucket, the HA!!! "Made in Germany" repro required quite a bit of "encouragement" for insertion of original recycled buckets. (Note metal drain tube, another cruel joke from Porsche when the pinched lower end clogs...but hey, it's "original.")

                  Still, similar 'issues' with fender supports fit, etc.

                  Good work Justin....I now follow your postings before I do my work. Please remind me to send you a royalty check!

                  Happy Thanksgiving!
                  Bruce
                  P.S. Always try to use original buckets and always fit with the headlights that will reside on the car when all finished, prior to paint.

                  Comment


                  • Bruce, Thanks for the confirmation measurement on that Speedster. BTW what is the asking price on that car? Helpful insights regarding the various New and OG headlight and bucket opening combos for sure. I held off on installing those drain tubes until after the buckets were in. No sense in making it harder than it already was. LOL, you want to send me an information royalty check on repairs you've done a hundred times over in the past? You'll learn nothing new here my friend. Thanks again!


                    11/27/16
                    Fender braces

                    Click image for larger version

Name:	acoupst141.JPG
Views:	68
Size:	62.3 KB
ID:	82289

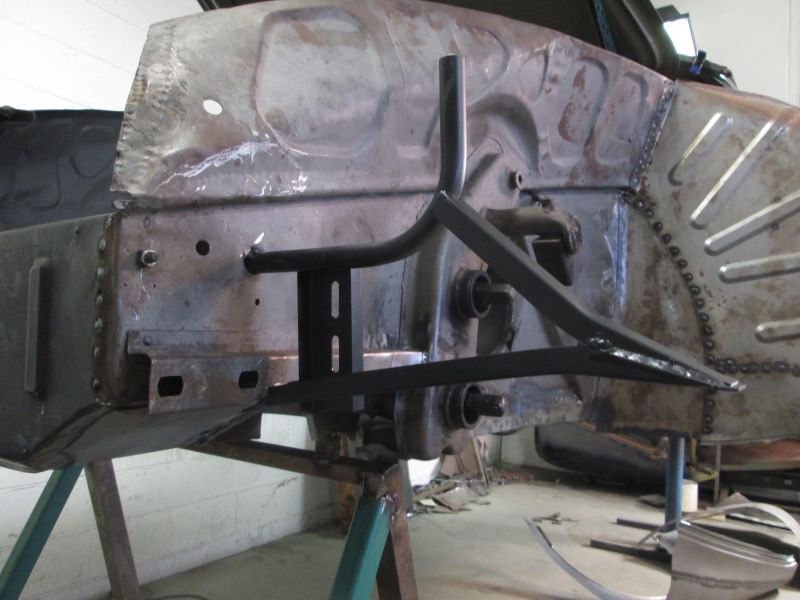

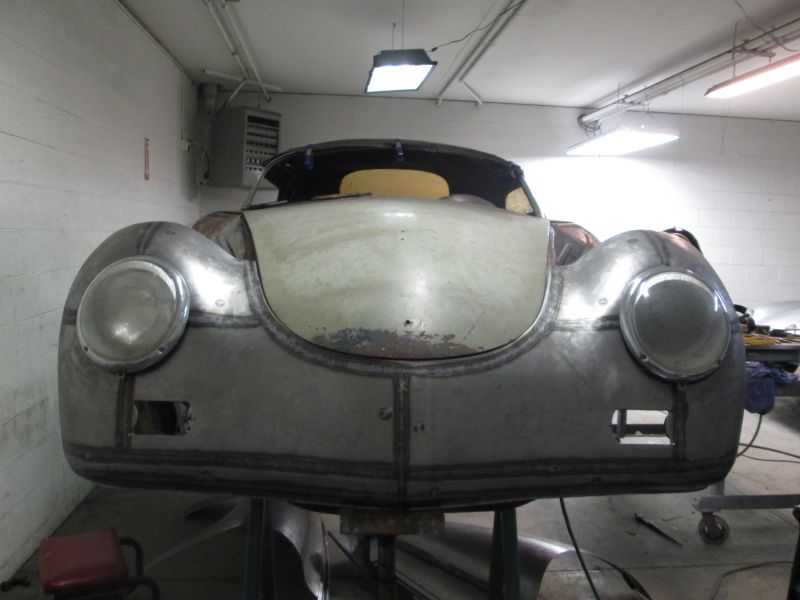

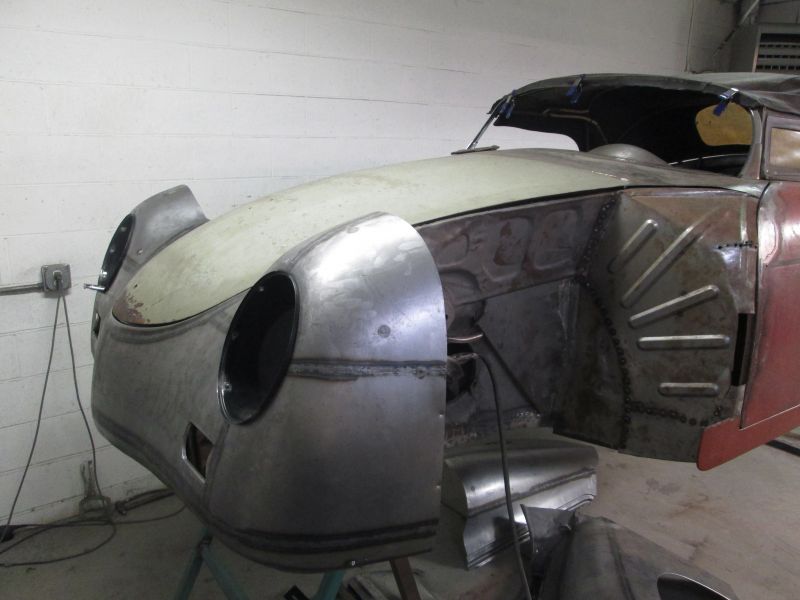

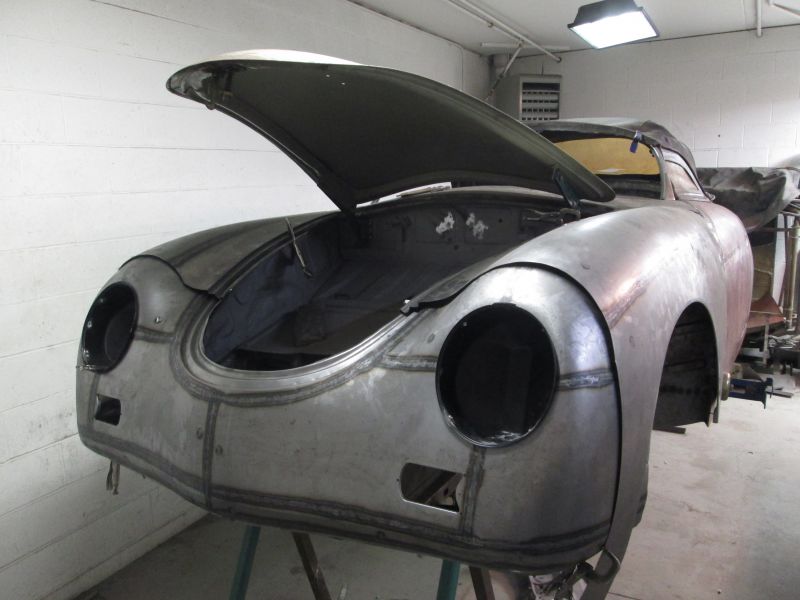

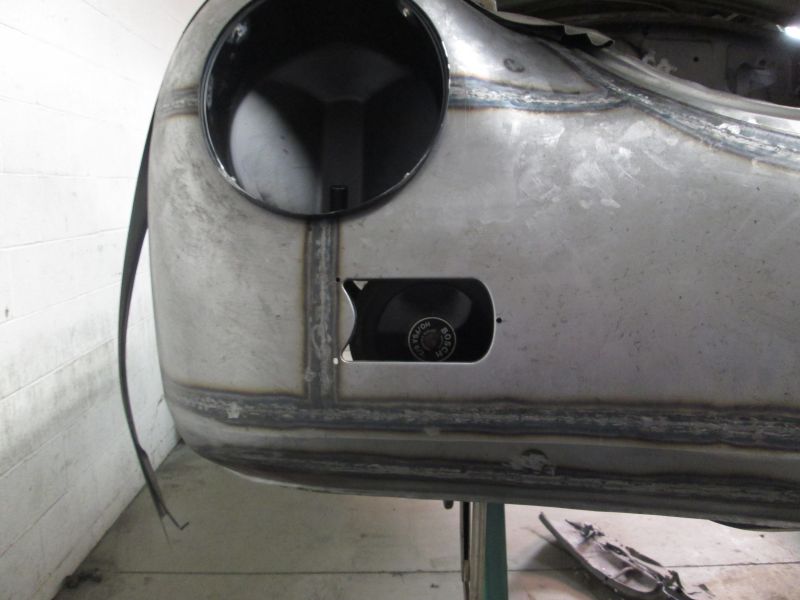

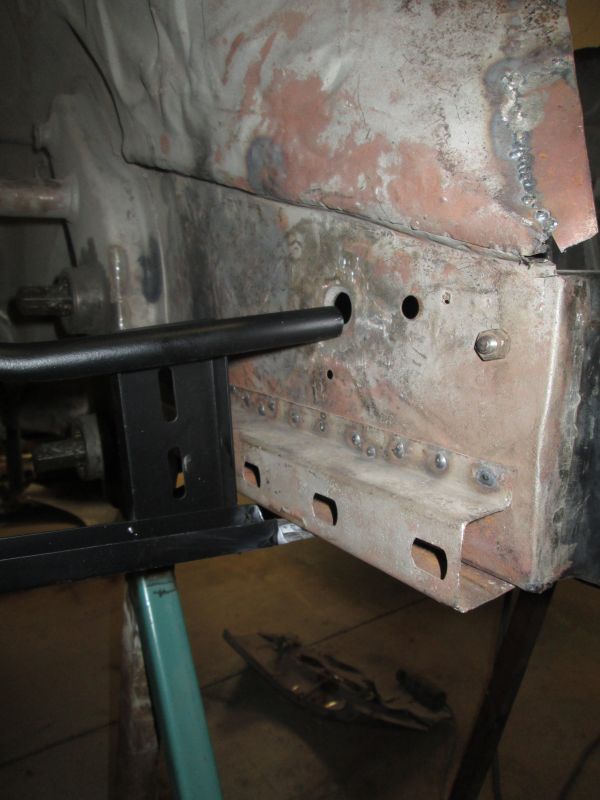

                    With the buckets seated and the nose in approximate position this is the misalignment I was facing with bracket in old factory spot. Easiest thing is to of course move it forward but as Roy's underside photos showed the horns won't clear the body. I need to maintain that Horn mounts distance.
                    Click image for larger version

Name:	acoupst149.JPG
Views:	68
Size:	63.7 KB
ID:	82290
                    Fitment was at least consistently wrong from side to side showing me some symmetry.
                    Click image for larger version

Name:	acoupst160.JPG
Views:	68
Size:	54.7 KB
ID:	82291

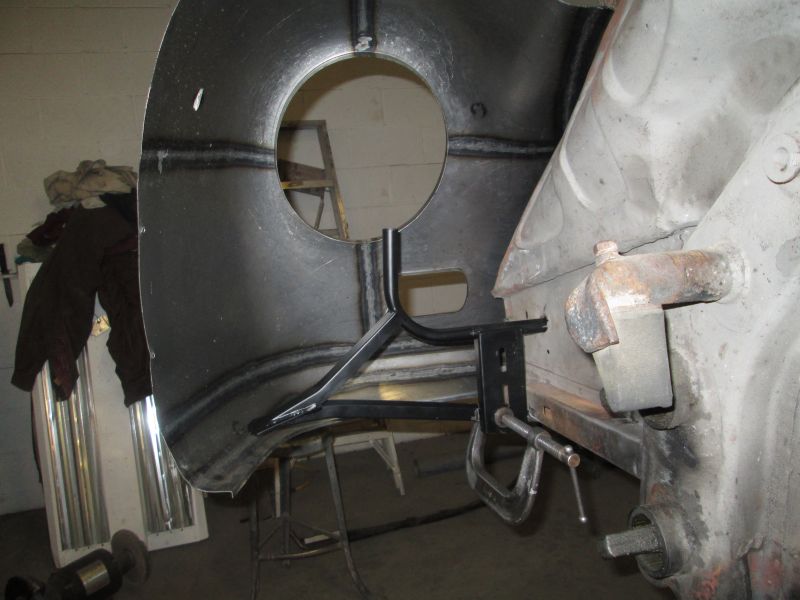

                    Resisted but eventually came to the conclusion that my best bet would be to cut the braces completely apart then reassemble them to suit on the car.
                    Click image for larger version

Name:	acoupst153.JPG
Views:	77
Size:	60.8 KB
ID:	82292

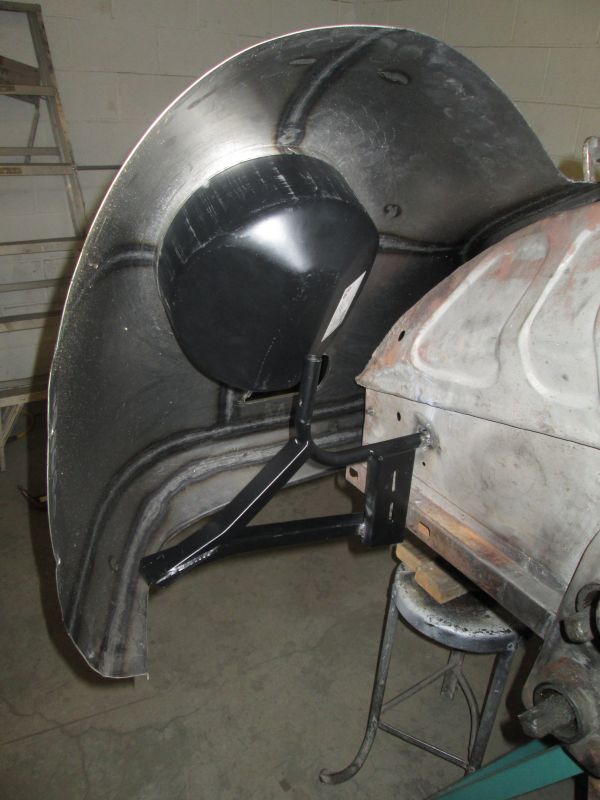

                    One of the most important benefits is the ability to rotate the tube elbow to help compensate for this shortfall.
                    Click image for larger version

Name:	acoupst182.JPG
Views:	70
Size:	75.8 KB
ID:	82293
                    I'm also going to cheat this hole back a few mm's more to help soften that needed tube rotation.
                    Click image for larger version

Name:	acoupst131.JPG
Views:	69
Size:	46.6 KB
ID:	82294

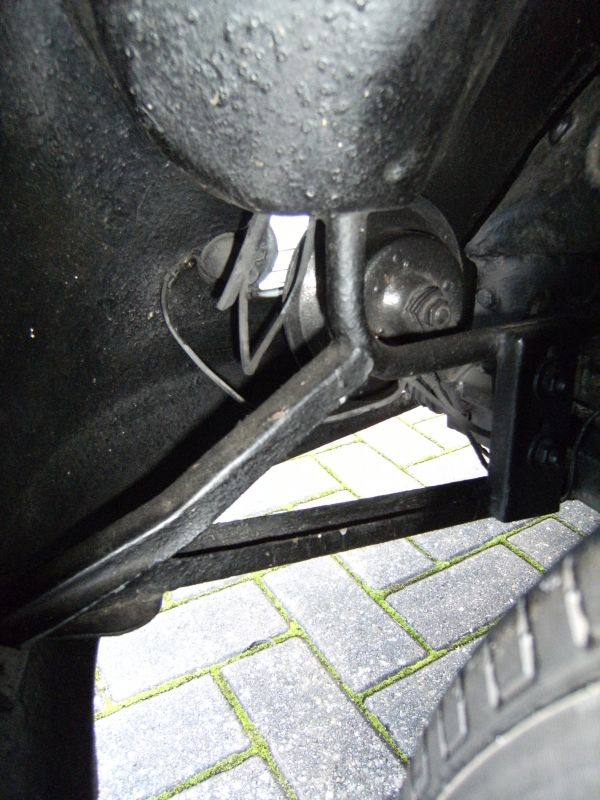

                    My original shows a slight rotation forward so its all perfectly legal in my mind.
                    Click image for larger version

Name:	acoupst162.JPG
Views:	68
Size:	57.0 KB
ID:	82295
                    Bottom run is set at the factory distance.
                    Click image for larger version

Name:	acoupst164.JPG
Views:	65
Size:	61.6 KB
ID:	82296

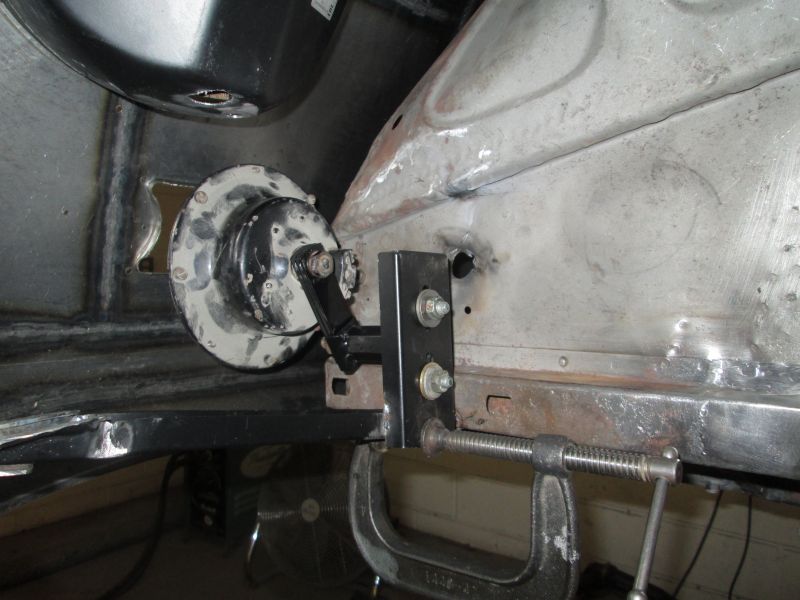

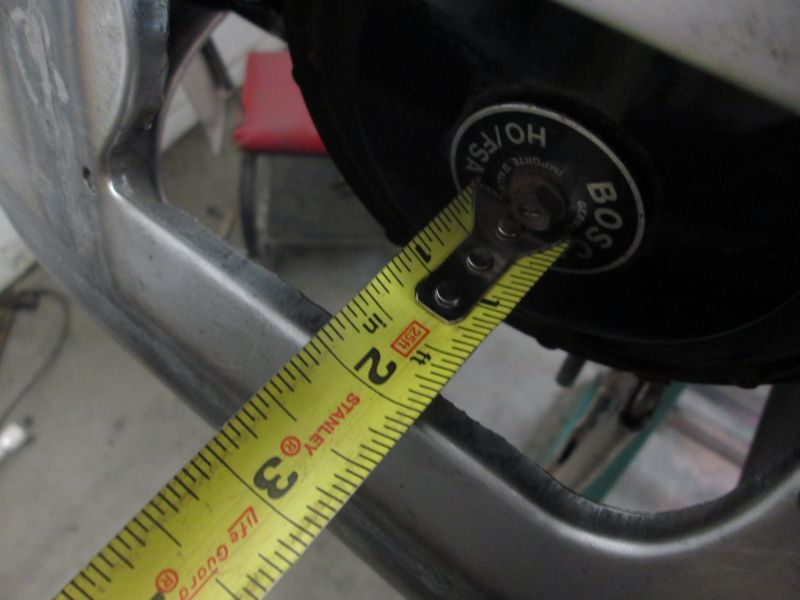

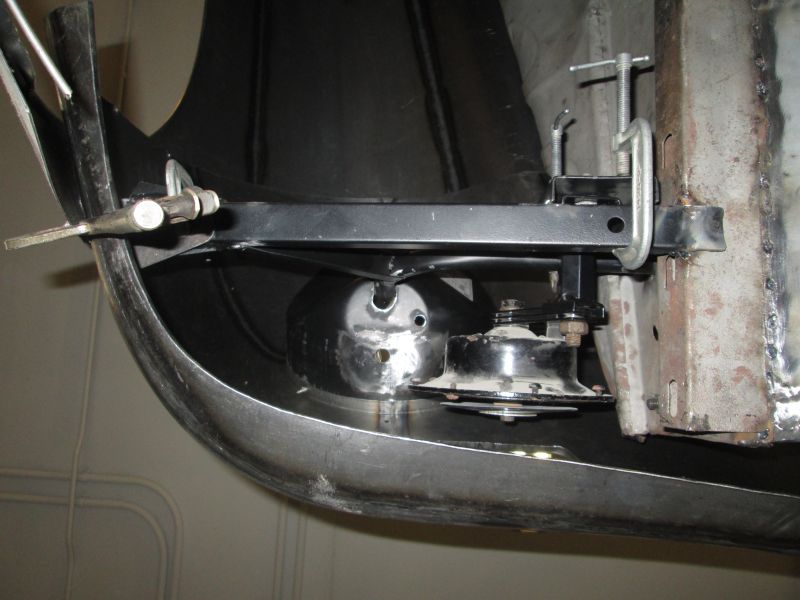

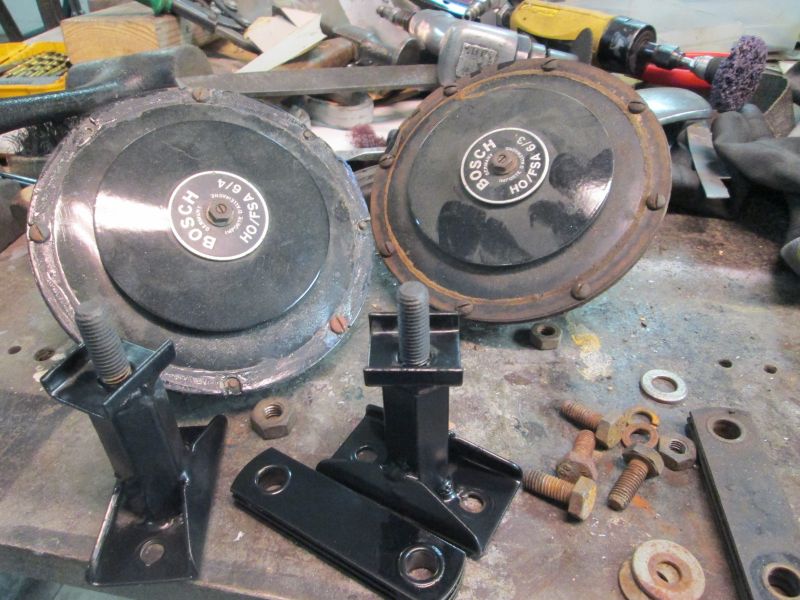

                    This ensures the horn pedestal mount will remain at the correct distance away from the skin to allow for horn clearance. You can see how far the tube has yet to go to be aligned again.
                    Click image for larger version

Name:	acoupst161.JPG
Views:	64
Size:	56.1 KB
ID:	82297

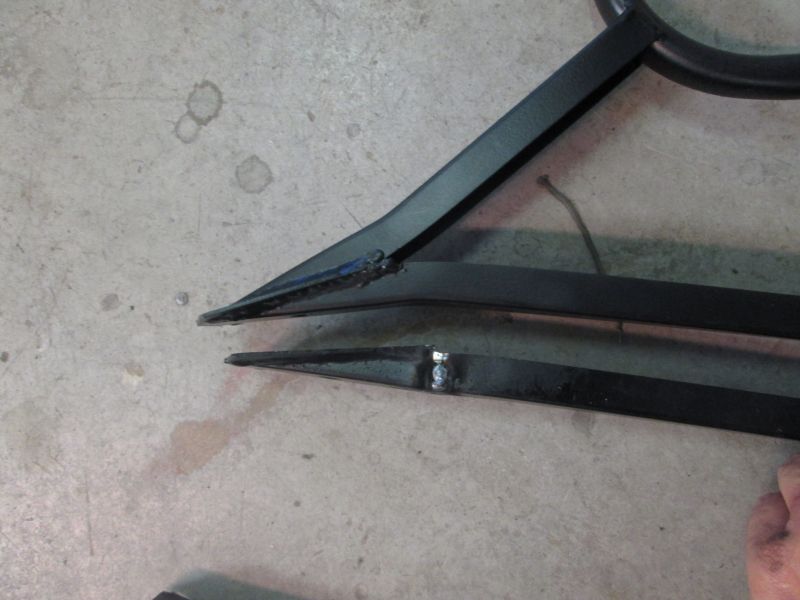

                    That added kick in the base profile is not supposed to be there so I straightened it back out while I'm here.
                    Click image for larger version

Name:	acoupst166.JPG
Views:	62
Size:	65.2 KB
ID:	82298

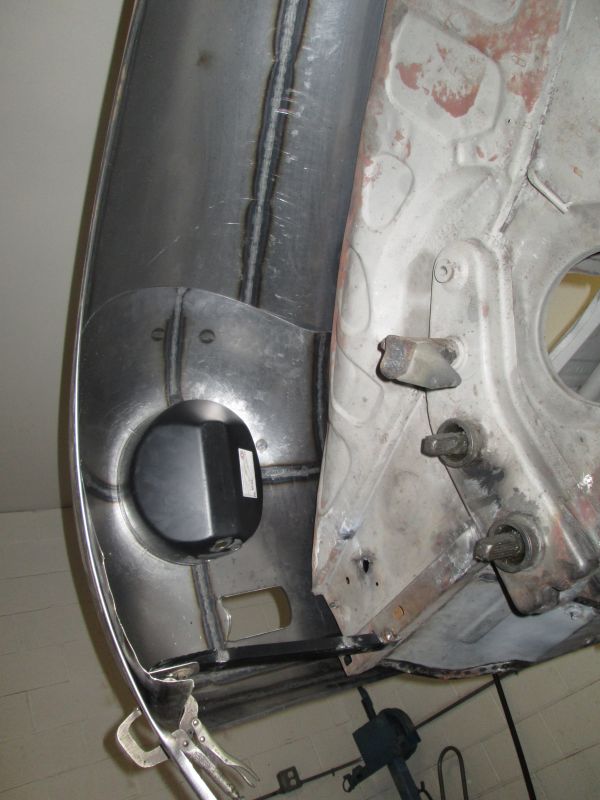

                    Ready to begin attaching the nose to the base struts to locate and steady the front further.
                    Click image for larger version

Name:	acoupst124.JPG
Views:	65
Size:	59.1 KB
ID:	82299

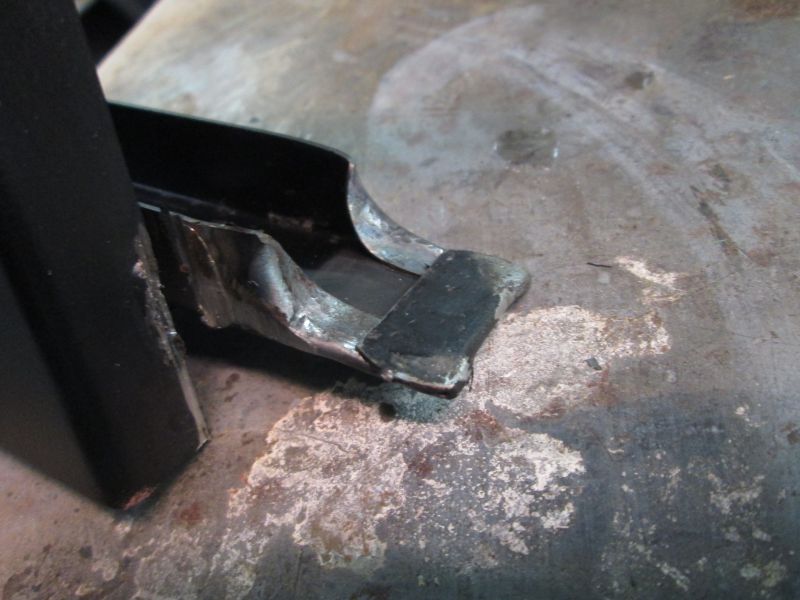

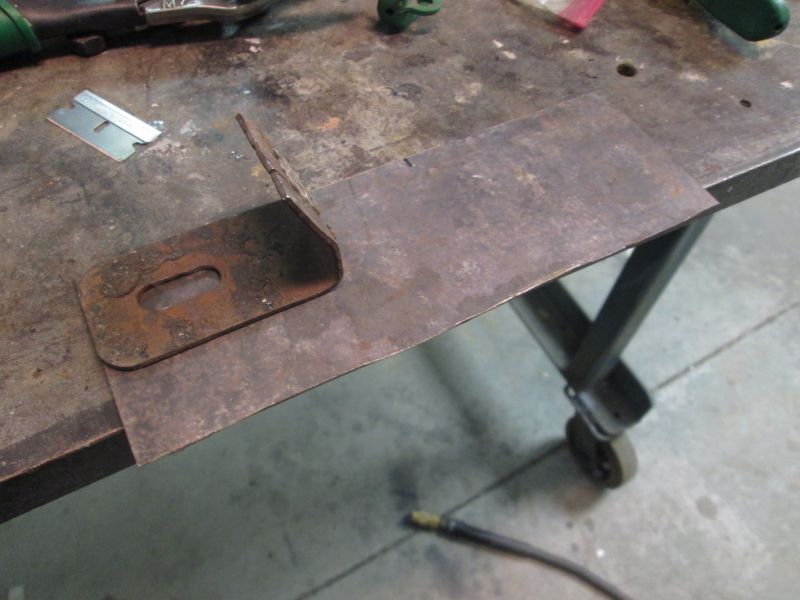

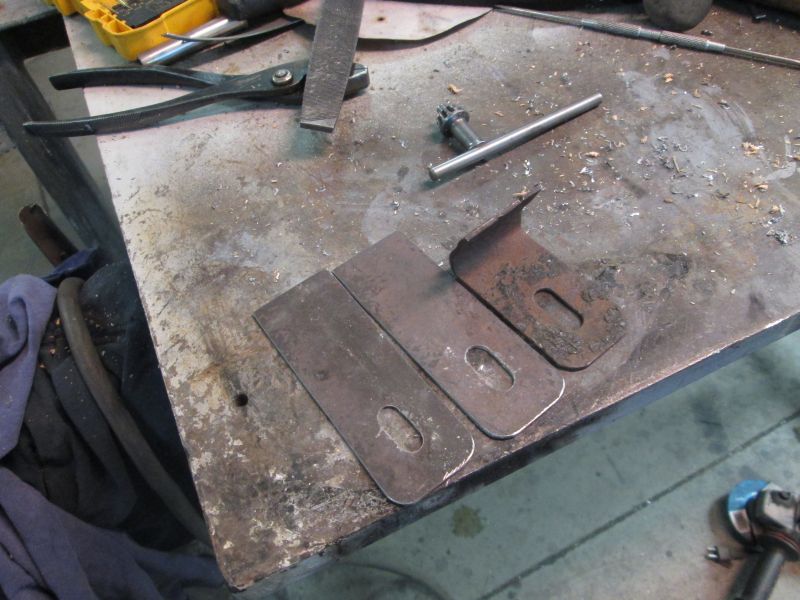

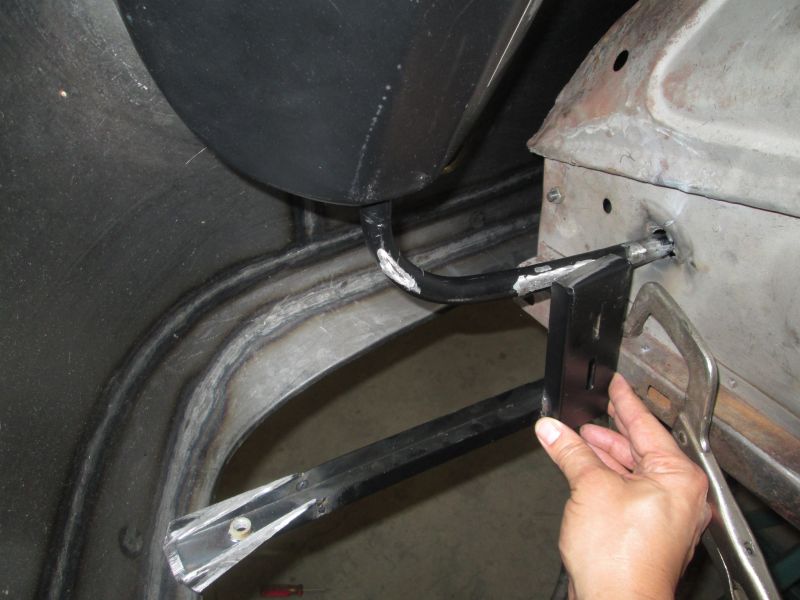

                    Begin cutting out a pair of new tangs from some old 16 gauge templated off this original.
                    Thanks for looking!
                    Justin
                    Justin Rio

                    Comment


                    • 11/28/16

                      Nose fitment continues with lateral anchor points.
                      Click image for larger version

Name:	acoupst167.JPG
Views:	63
Size:	81.6 KB
ID:	82327

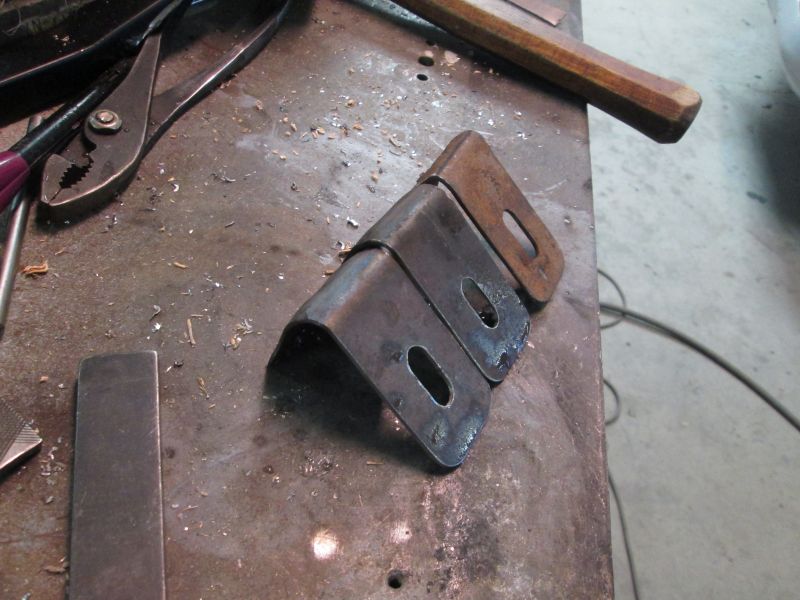

                      New tangs cut and slotted
                      Click image for larger version

Name:	acoupst168.JPG
Views:	63
Size:	76.3 KB
ID:	82328
                      Gentle rolled corner replicated.
                      Click image for larger version

Name:	acoupst172.JPG
Views:	62
Size:	61.7 KB
ID:	82329
                      Lower brace section tacked into position with new tab set screwed into the skin for preliminary fitment.difference tying this in made.

                      Click image for larger version

Name:	acoupst173.JPG
Views:	61
Size:	67.9 KB
ID:	82330
                      The brace/bases are now set, any needed adjustments will be made by changing the position of tab where it attaches to the skin. What a
                      Click image for larger version

Name:	acoupst174.JPG
Views:	63
Size:	52.0 KB
ID:	82331
                      The additional anchors now in place allowed for fitment to move to the next level. Pretty good initial gap with the hood.
                      Click image for larger version

Name:	acoupst175.JPG
Views:	61
Size:	41.4 KB
ID:	82332

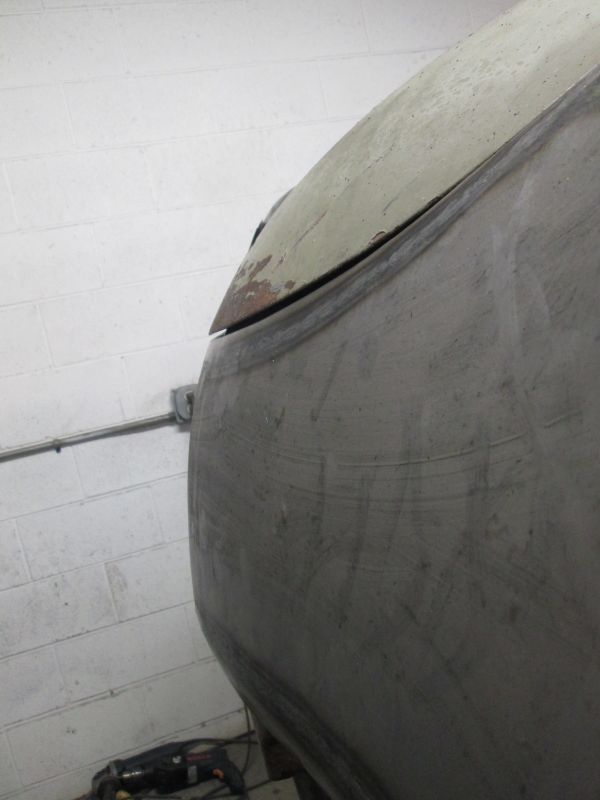

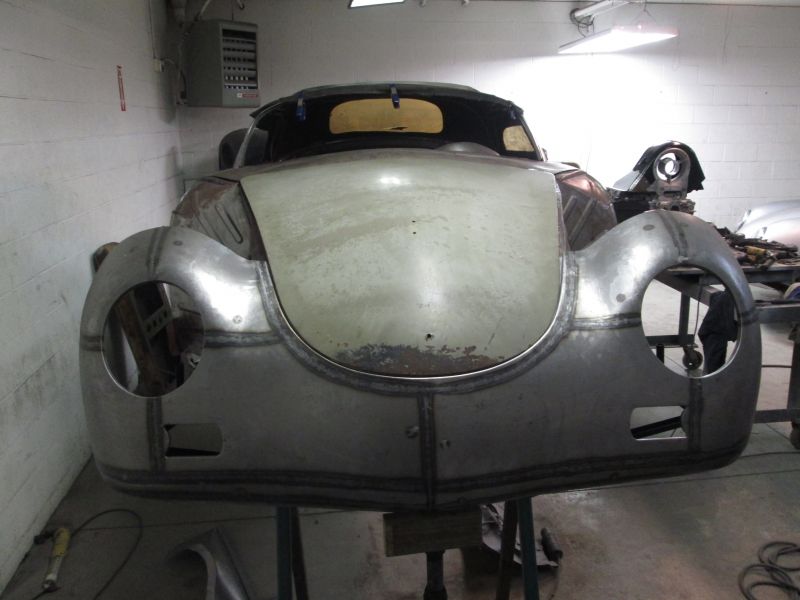

                      Though it did have a slight overbite at this point. More fine tuning required.
                      Click image for larger version

Name:	acoupst176.JPG
Views:	61
Size:	53.5 KB
ID:	82333
                      Along with leveling out that misalignment against the hood the next step was getting basic reference measurements from my original cars.
                      Click image for larger version

Name:	acoupst177.JPG
Views:	62
Size:	51.7 KB
ID:	82334
                      Would be sight measuring from points on the chassis to the skin to help dial in the correct distance and attitude or rake of the nose.
                      That up next. Thanks for looking!
                      Justin
                      Justin Rio

                      Comment


                      • Very nicely done - tricky tricky - not a straight flat edge on the nose anywhere.
                        1960 356B T5 - under major resurrection.
                        356 Registry main thread;
                        http://forum.porsche356registry.org/viewtopic.php?f=4&t=35854
                        1968 912 - running like a scalded cat.

                        Comment


                        • Thanks a lot Scott!

                          11/29/16

                          Nose section set
                          Click image for larger version

Name:	acoupst188.JPG
Views:	60
Size:	53.0 KB
ID:	82401
                          Continued slight adjustments around the lid and at the lower brace sections were finally getting it close.
                          Click image for larger version

Name:	acoupst186.JPG
Views:	72
Size:	51.4 KB
ID:	82402
                          Cross measurements with my coupe from the front of the bump stop
                          Click image for larger version

Name:	acoupst187.JPG
Views:	60
Size:	45.2 KB
ID:	82403
                          To the lower leading cornered edge of the horn opening got me within a couple of MM's of difference.
                          Click image for larger version

Name:	acoupst189.JPG
Views:	60
Size:	52.7 KB
ID:	82404
                          That measurement also helped me determine if the panel was on square in relation to the frame because as Scott mentioned there's not a flat section on it.
                          Click image for larger version

Name:	acoupst191.JPG
Views:	61
Size:	52.9 KB
ID:	82405
                          Basic gap set with good transfer elevation off the hood all the while maintaining a lower measured distance away from my sight markers within MM's from the factory which help determine the correct rake ..... its as close as I'm ever going to get. The nose was now set.
                          Click image for larger version

Name:	acoupst192.JPG
Views:	62
Size:	51.2 KB
ID:	82406
                          Begin rough fitting the fenders with the now established nose.
                          Click image for larger version

Name:	acoupst195.JPG
Views:	74
Size:	59.8 KB
ID:	82407
                          Still remaining hopeful that this will go smoother than the rear did.
                          Click image for larger version

Name:	acoupst193.JPG
Views:	62
Size:	55.0 KB
ID:	82408

                          Click image for larger version

Name:	acoupst194.JPG
Views:	64
Size:	56.7 KB
ID:	82409

                          Click image for larger version

Name:	acoupst200.JPG
Views:	61
Size:	43.5 KB
ID:	82410
                          This is how I left it at the beginning of Thanks giving week before I left to visit family.
                          Click image for larger version

Name:	acoupst196.JPG
Views:	61
Size:	62.9 KB
ID:	82411
                          Begin rebuilding the rest of the brace to suit this car.
                          Thanks for stopping by!
                          Justin
                          Justin Rio

                          Comment


                          • 11/30/16
                            Finishing up the fender braces
                            Click image for larger version

Name:	acoupst201.JPG
Views:	64
Size:	91.7 KB
ID:	82433
                            Dug out my coupe's original horn assemblies for mock up.
                            Click image for larger version

Name:	acoupst202.JPG
Views:	64
Size:	66.0 KB
ID:	82434
                            Again a major benefit in rebuilding these to suit is the ability set the base bracket in place so the horn is centered in the opening. There is adjustment up or down but not laterally otherwise.
                            Click image for larger version

Name:	acoupst204.JPG
Views:	64
Size:	52.5 KB
ID:	82435

                            Centered in the opening here so I'm ready to tack that base in position.

                            Click image for larger version

Name:	acoupst205.JPG
Views:	65
Size:	69.5 KB
ID:	82436
                            Bracket now fully mocked up here with conduit slightly rotated forward so it now reaches up into the bucket. Also had to increase the kick in the downward section to compensate for the other changes I've made.
                            Click image for larger version

Name:	acoupst206.JPG
Views:	65
Size:	47.5 KB
ID:	82437
                            Only shortfall after all this is the conduit lead tilts slightly forward; its just going to have to be. Before its all over I do need to shorten it about a quarter inch more which will soften the look. I tested my flaring tool on the excess here to see how well it replicated what the factory did to protect the wires from chaffing on the edge; I think it'll turn the trick.
                            Click image for larger version

Name:	acoupst207.JPG
Views:	62
Size:	60.9 KB
ID:	82438
                            Modifications were slight but enough to keep the horn in the right spot while making up for the shortfall in the headlight bucket stamping.
                            Click image for larger version

Name:	acoupst236.JPG
Views:	60
Size:	62.4 KB
ID:	82439
                            Brace now tacked together. I'll finish up the welding after I remove the nose panel for a clear shot at it. Onto the right side.
                            Thanks for looking!
                            Justin
                            Justin Rio

                            Comment


                            • Well done Justin, It looks great.

                              Roy

                              Comment


                              • Thanks Roy!

                                12/1/16

                                Right fender brace
                                Click image for larger version

Name:	acoupst213.JPG
Views:	63
Size:	75.3 KB
ID:	82456
                                To get the horn position in the opening matched up with the left, the bracket base had to be moved outward a bit more than on the other side. The relief came after I looked at my original cars and found their position to be asymmetrical as well.
                                Click image for larger version

Name:	acoupst211.JPG
Views:	65
Size:	51.1 KB
ID:	82457
                                Right horn now matches the left in position in the opening.
                                Click image for larger version

Name:	acoupst219.JPG
Views:	63
Size:	47.7 KB
ID:	82458
                                More positive confirmation came as I measured off the horn to the leading cornered edge...
                                Click image for larger version

Name:	acoupst218.JPG
Views:	64
Size:	46.3 KB
ID:	82459
                                They only differ by a few MM's, of course this will all vary and change before its all welded up and complete but its at least starting out close.
                                Click image for larger version

Name:	acoupst214.JPG
Views:	65
Size:	56.0 KB
ID:	82460
                                Before dismounting the nose to weld up the braces I laid my straight edge across the buckets to check for alignment as both Jack and Bruce have suggested.
                                Click image for larger version

Name:	acoupst216.JPG
Views:	61
Size:	33.9 KB
ID:	82461
                                Pleasantly surprised to find that they both sit pretty square with one another save for the outer edge of the left side. As you can see its only out by about 2mm or so. Bruce has suggested they are all supposed to be a little "wall-eyed" (but never cross-eyed) so I think it should be fine.
                                Click image for larger version

Name:	acoupst217.JPG
Views:	63
Size:	50.2 KB
ID:	82462

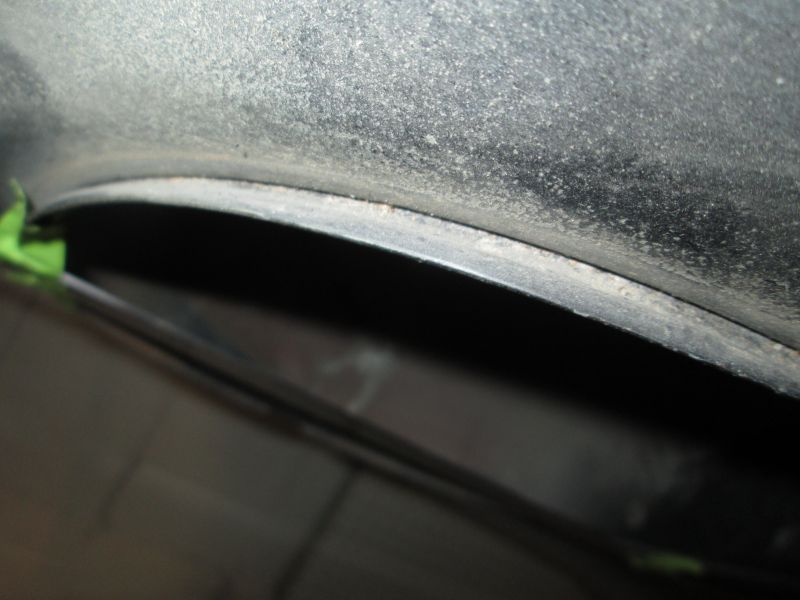

                                Also have to take into account that the flange that the yard stick is resting on is not perfect. You can see here that the lip varies quite a bit as it makes its way down. (green arrow) I'll be following Drew's checklist in thinning this lip down to match the original which is thinner by at least a MM and more in some areas. We'll see how square they are after that's done but hopefully it won't change much.
                                Dismounting the nose and welding up the braces next. Thanks for looking.
                                Justin
                                Justin Rio

                                Comment

                                Working...
                                X
