1959 356A S/R coupe project chassis # 108625

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • JTR70
    replied
    Hood re assembly:

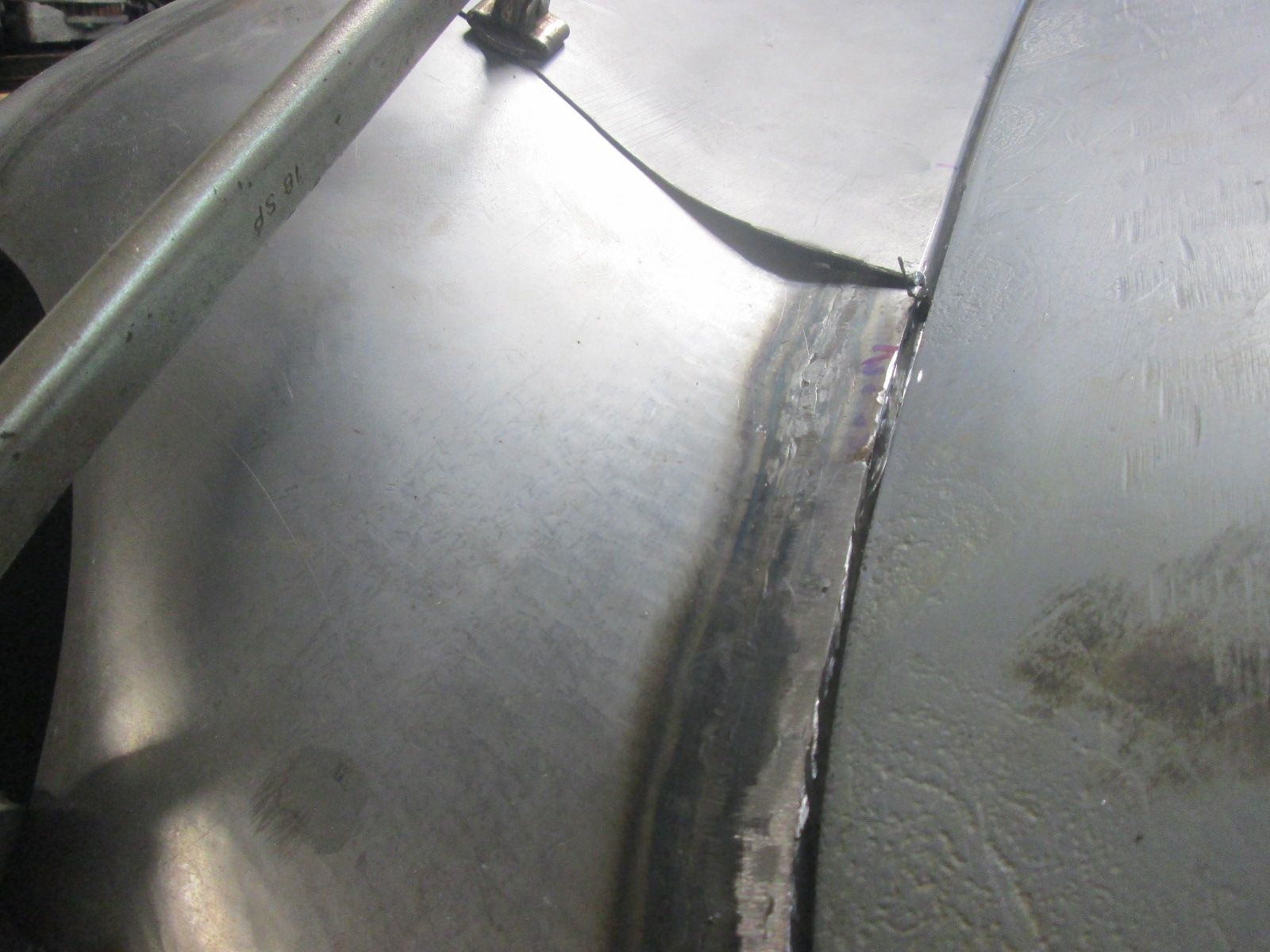

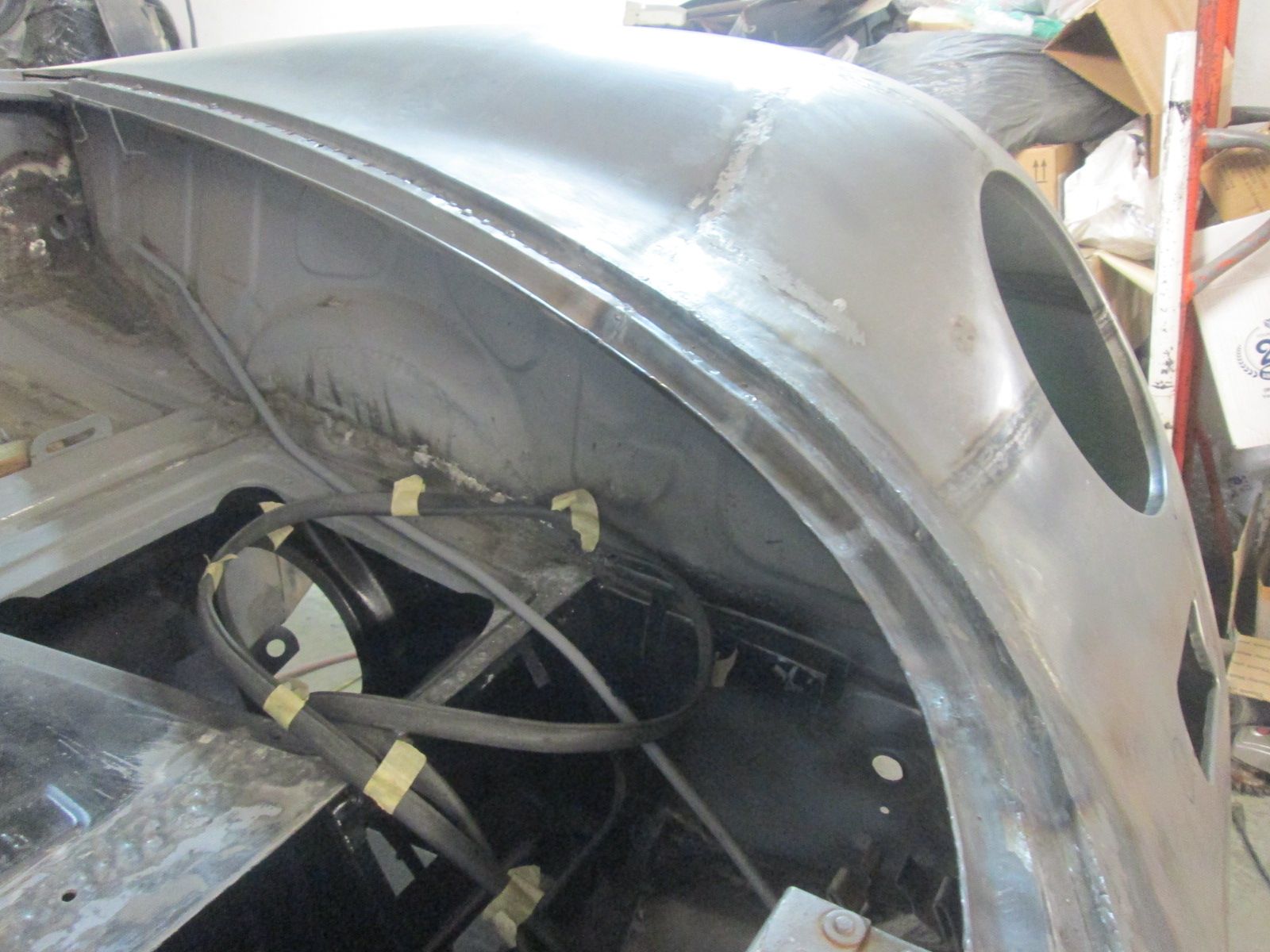

    Click image for larger version  Name:	IMG_2641.jpg Views:	0 Size:	198.8 KB ID:	116246 New section all stitched in.
    Click image for larger version  Name:	IMG_2638.jpg Views:	0 Size:	187.2 KB ID:	116247 Slightest pressure brings the new edge and general contour of the hood out into a much better profile shape with the new nose.

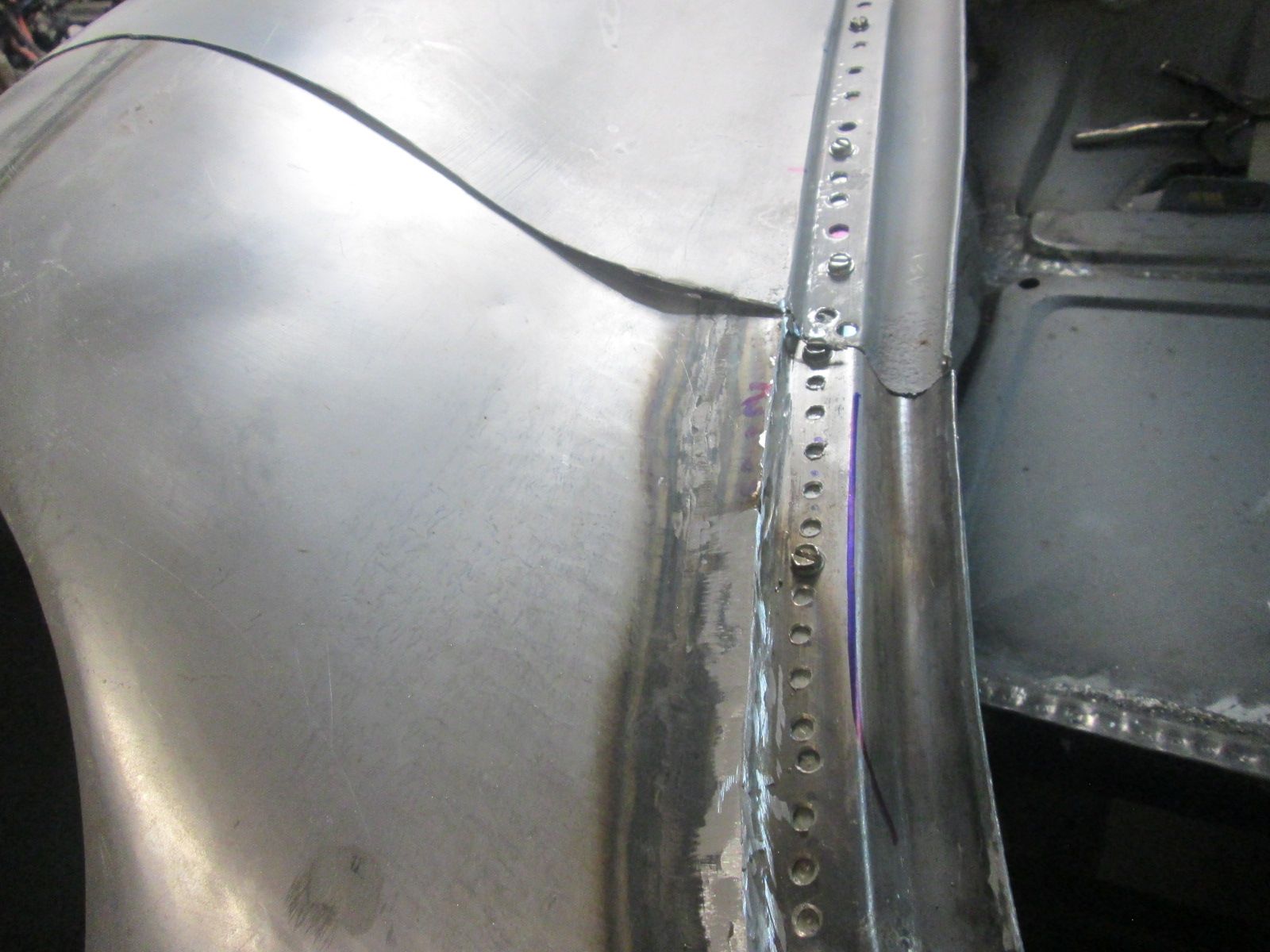

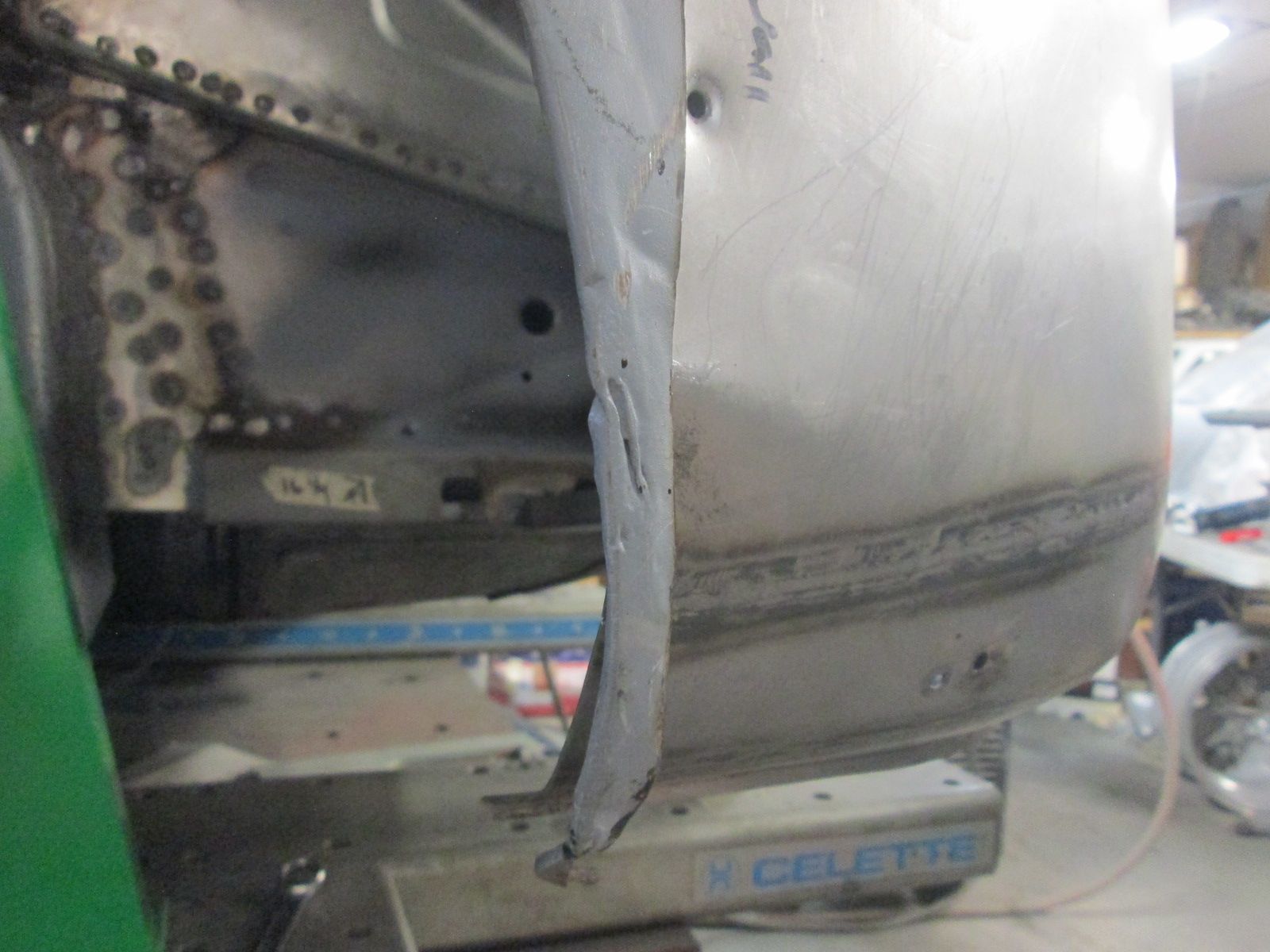

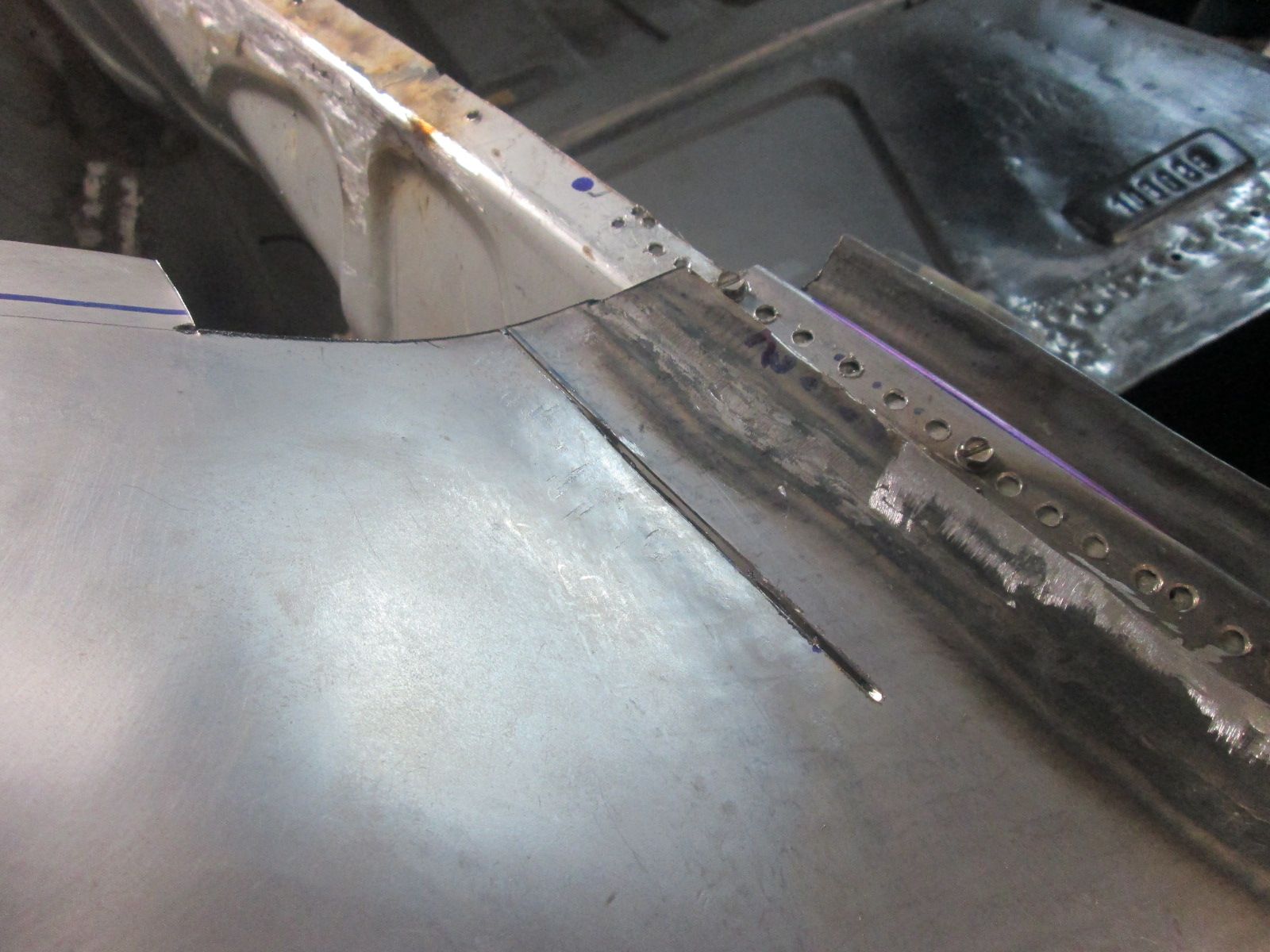

    Click image for larger version  Name:	IMG_2642.jpg Views:	0 Size:	199.4 KB ID:	116248 Tried to avoid it but to work this weld joint and section into the needed shape I had to have access to the back side. Removed just enough subframe to allow a clean shot at it.
    Click image for larger version

Name:	IMG_2644.jpg
Views:	72
Size:	170.9 KB

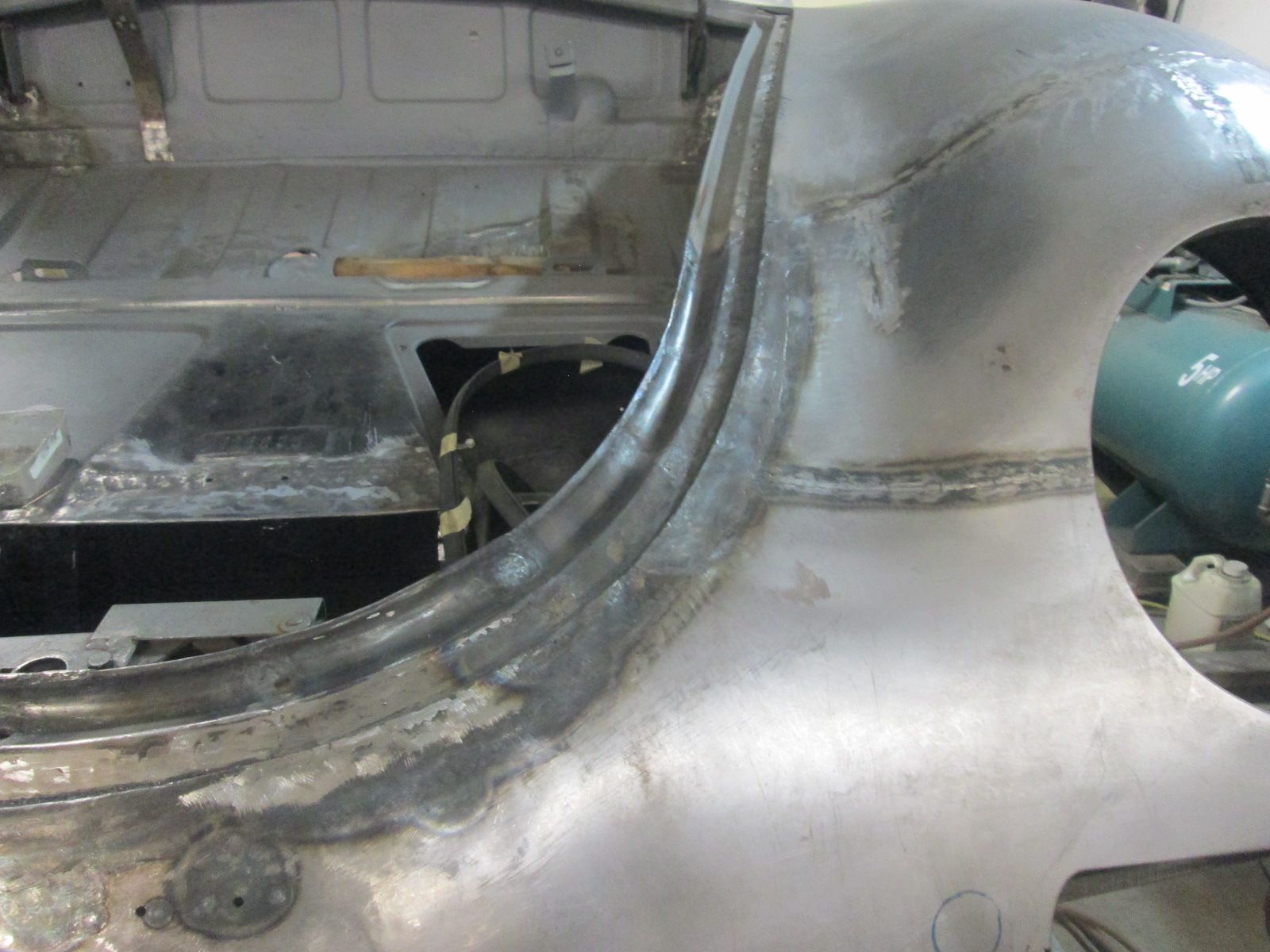

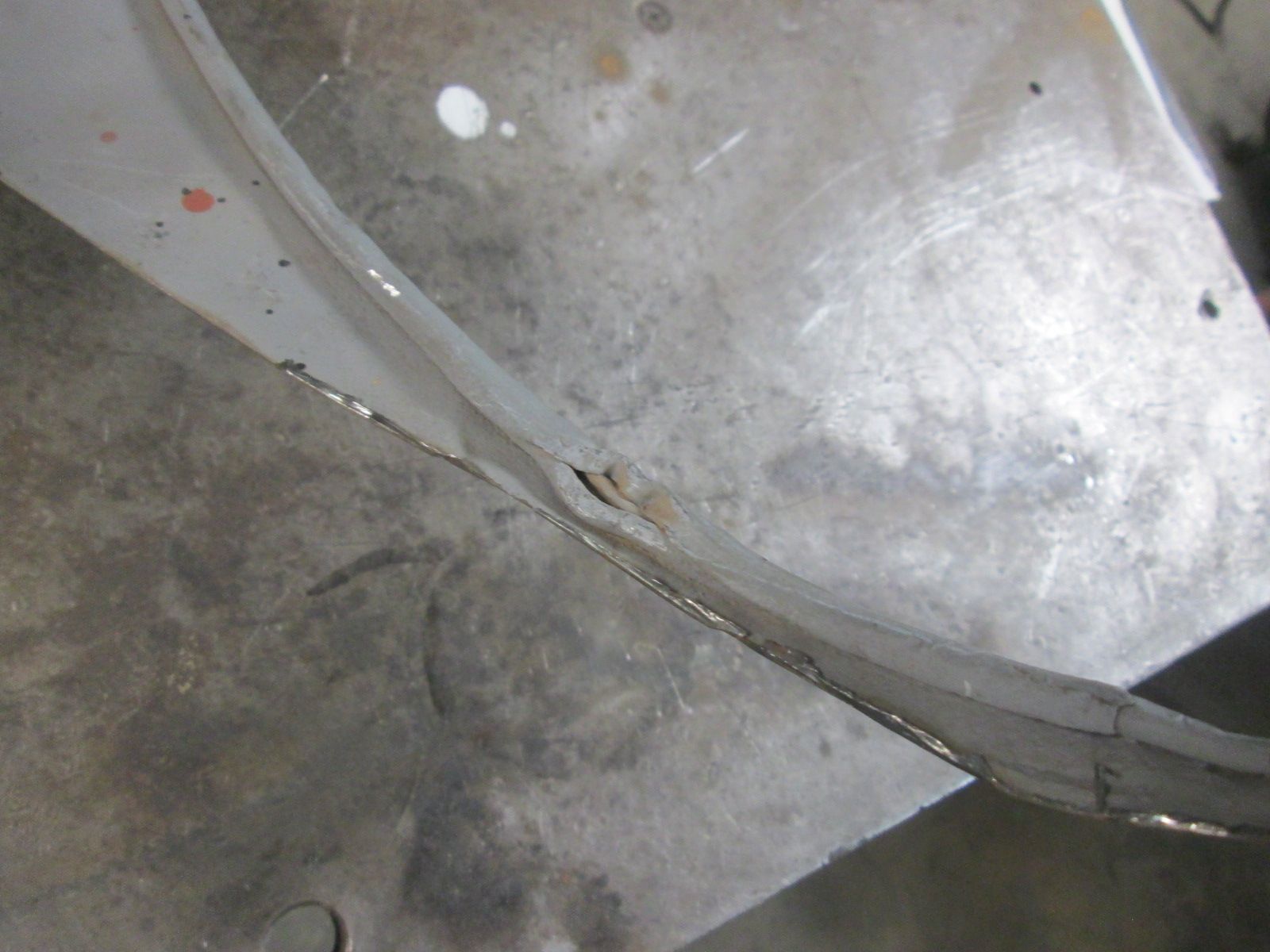

ID:	116249 Ready to add it back in but had to take out a little residual crash damage out first.
    Click image for larger version

Name:	IMG_2645.jpg
Views:	77
Size:	225.4 KB

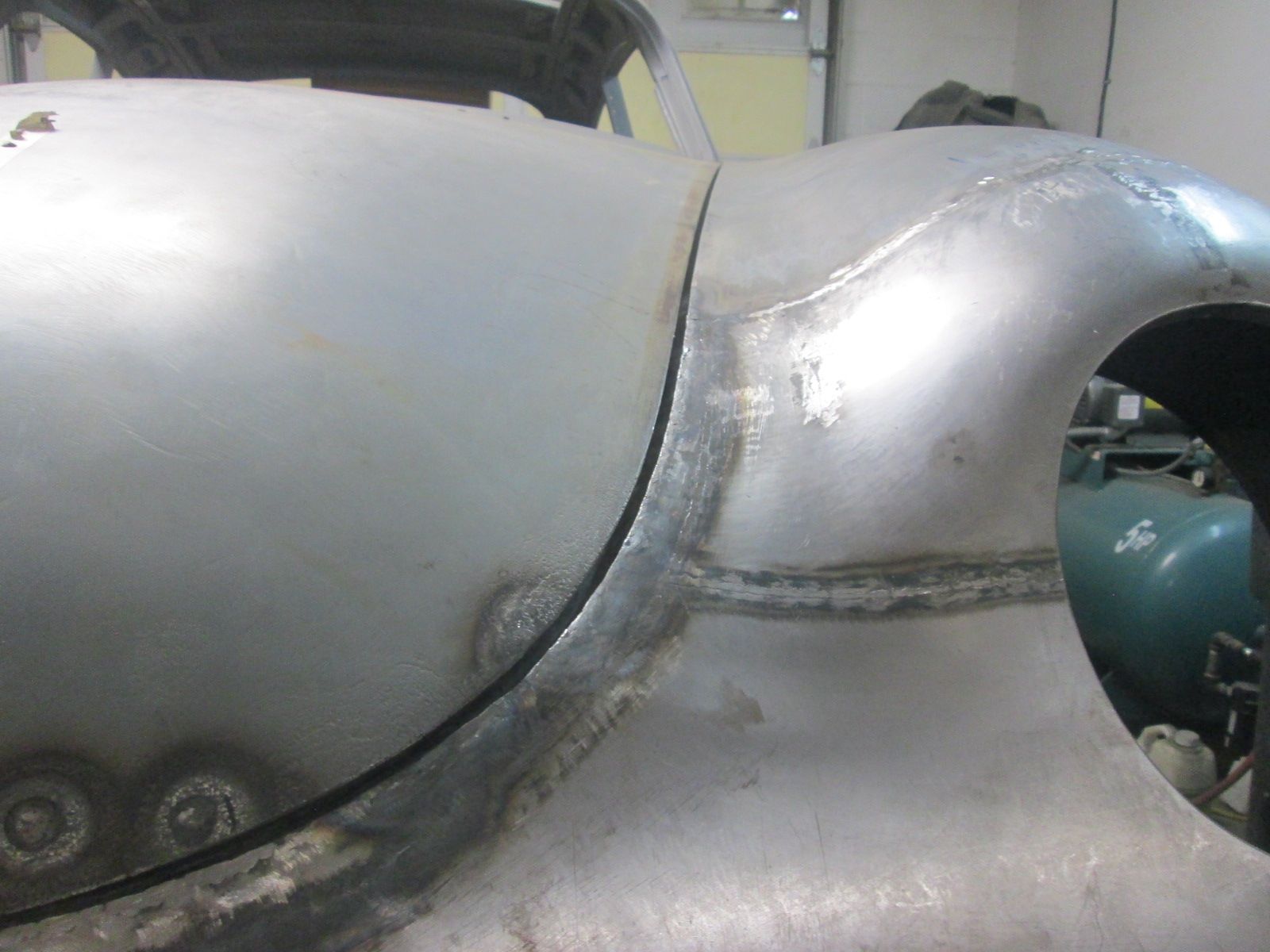

ID:	116250 Tacked back in and slowly stitching it back together.

    Thanks for looking.

    Justin
    Last edited by JTR70; 02-19-2025, 08:39 AM.

    Leave a comment:


  • JTR70
    replied

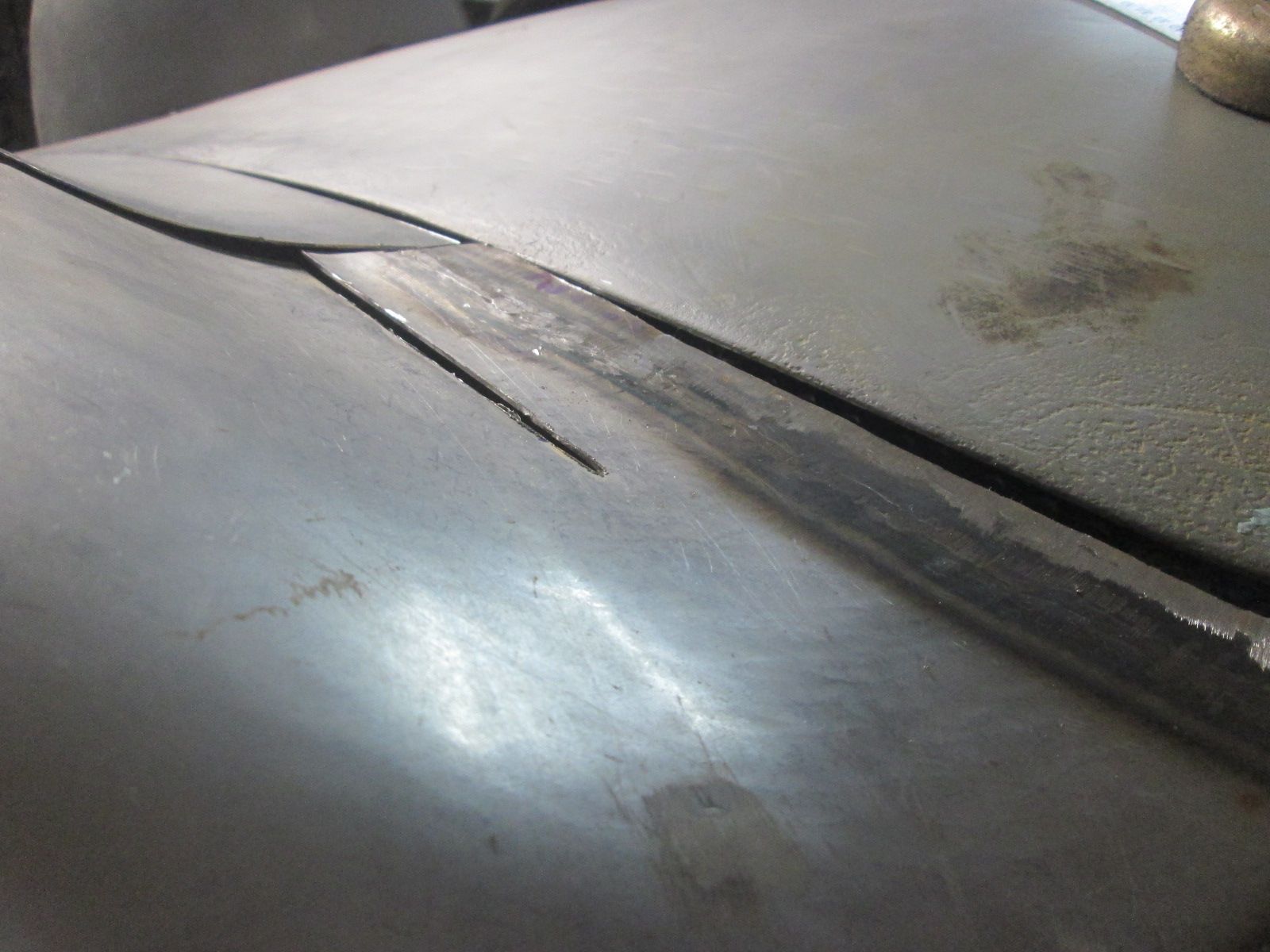

    Click image for larger version  Name:	IMG_2630.jpg Views:	3 Size:	234.6 KB ID:	116240 The end of the hood is that domed shape which is pretty rigid and doesn't really lend itself to relaxing much. I could beat the leading edge upward where its needed but everything behind it wasn't moving. The arch marked out in blue highlights the entire area that drops too quickly and needed to come and outward a few more MM's. After a lot of debate I finally settled on cutting out the smallest arch that I could then relief cutting the center and spooning out the rest of that tight area.
    Click image for larger version

Name:	IMG_2631.jpg
Views:	88
Size:	234.4 KB

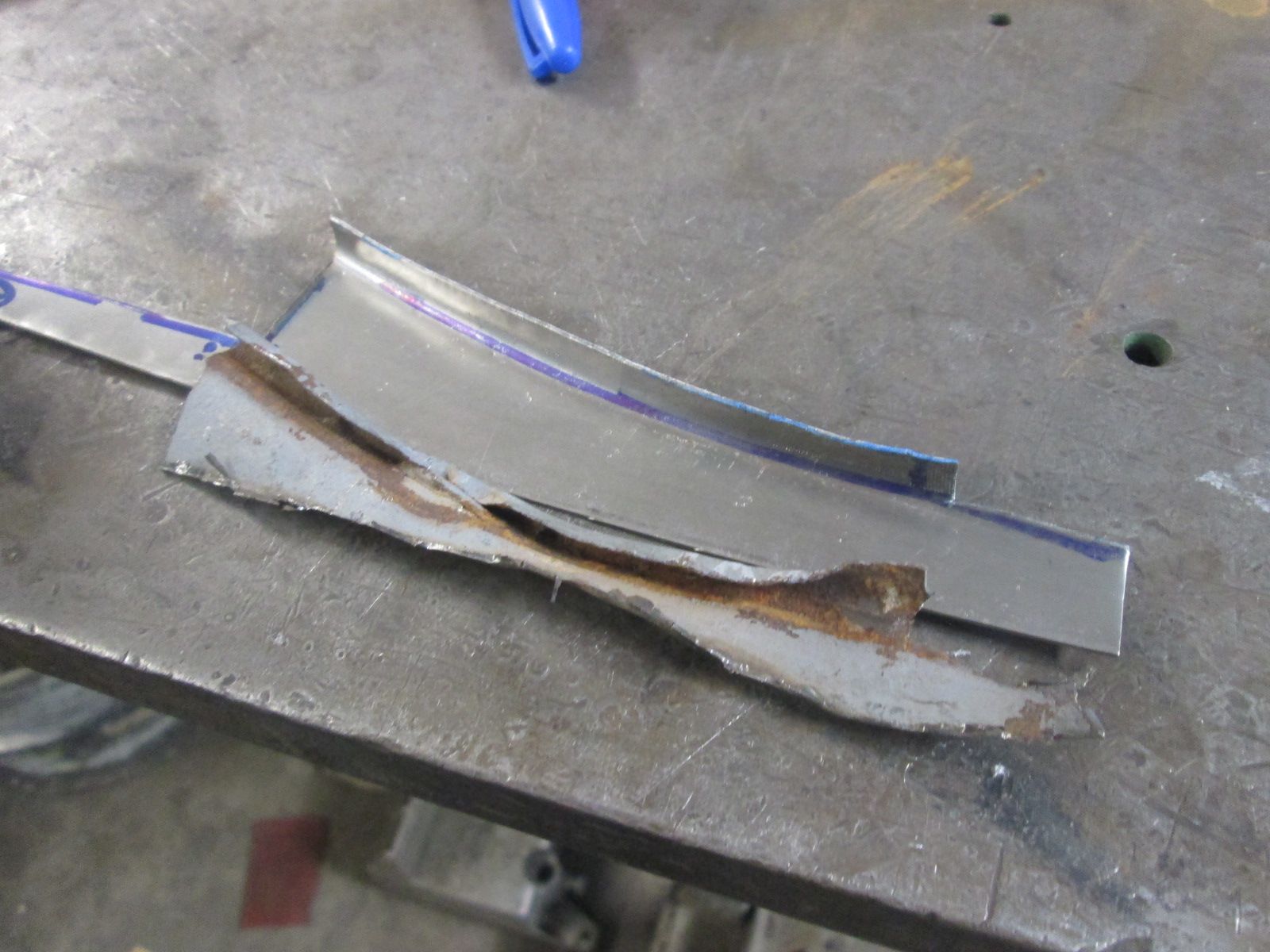

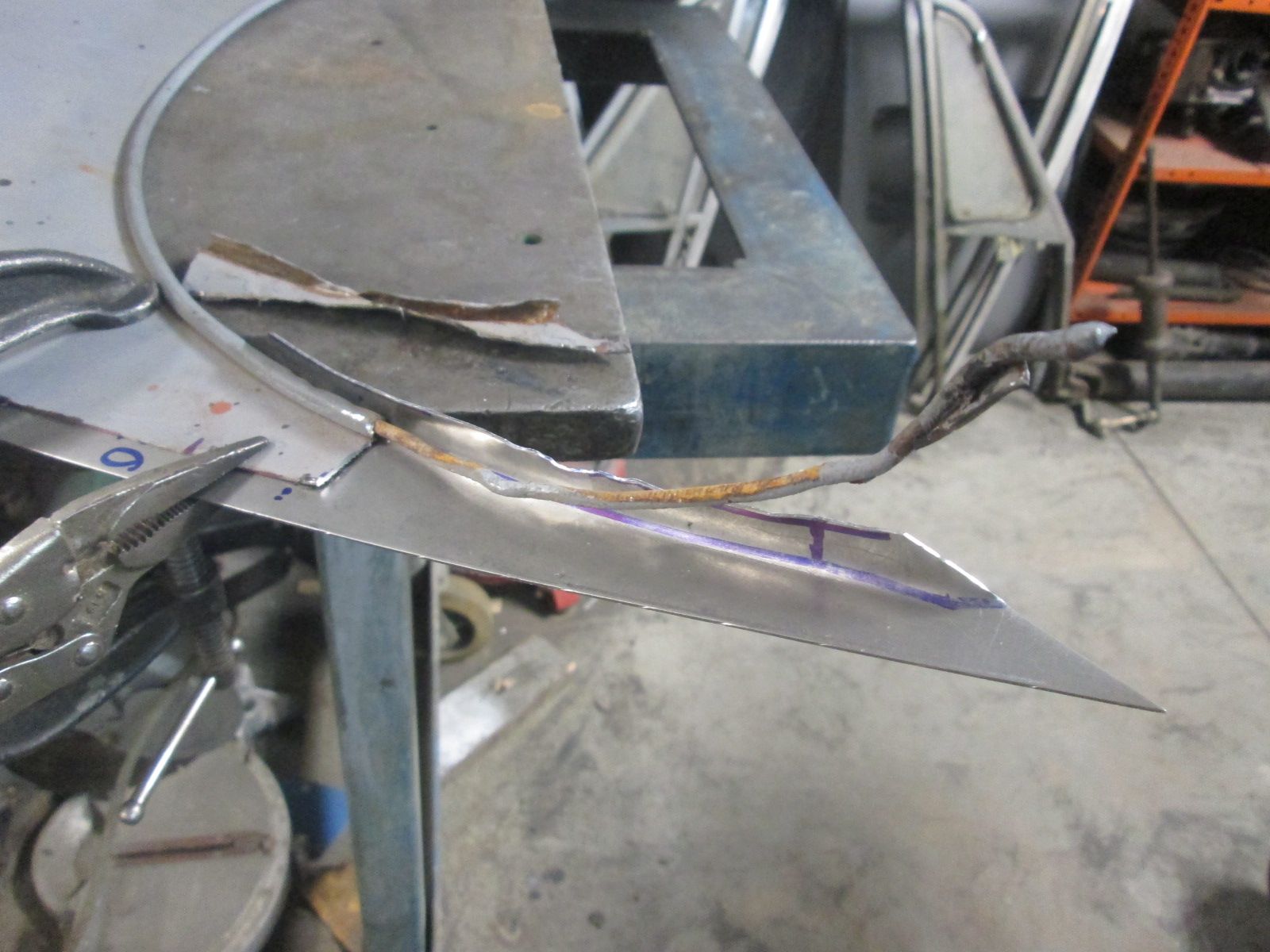

ID:	116241 On a positive note I am getting rid of a very thin and heavily pitted section on both sides with a fresh piece.
    Click image for larger version

Name:	IMG_2633.jpg
Views:	89
Size:	217.7 KB

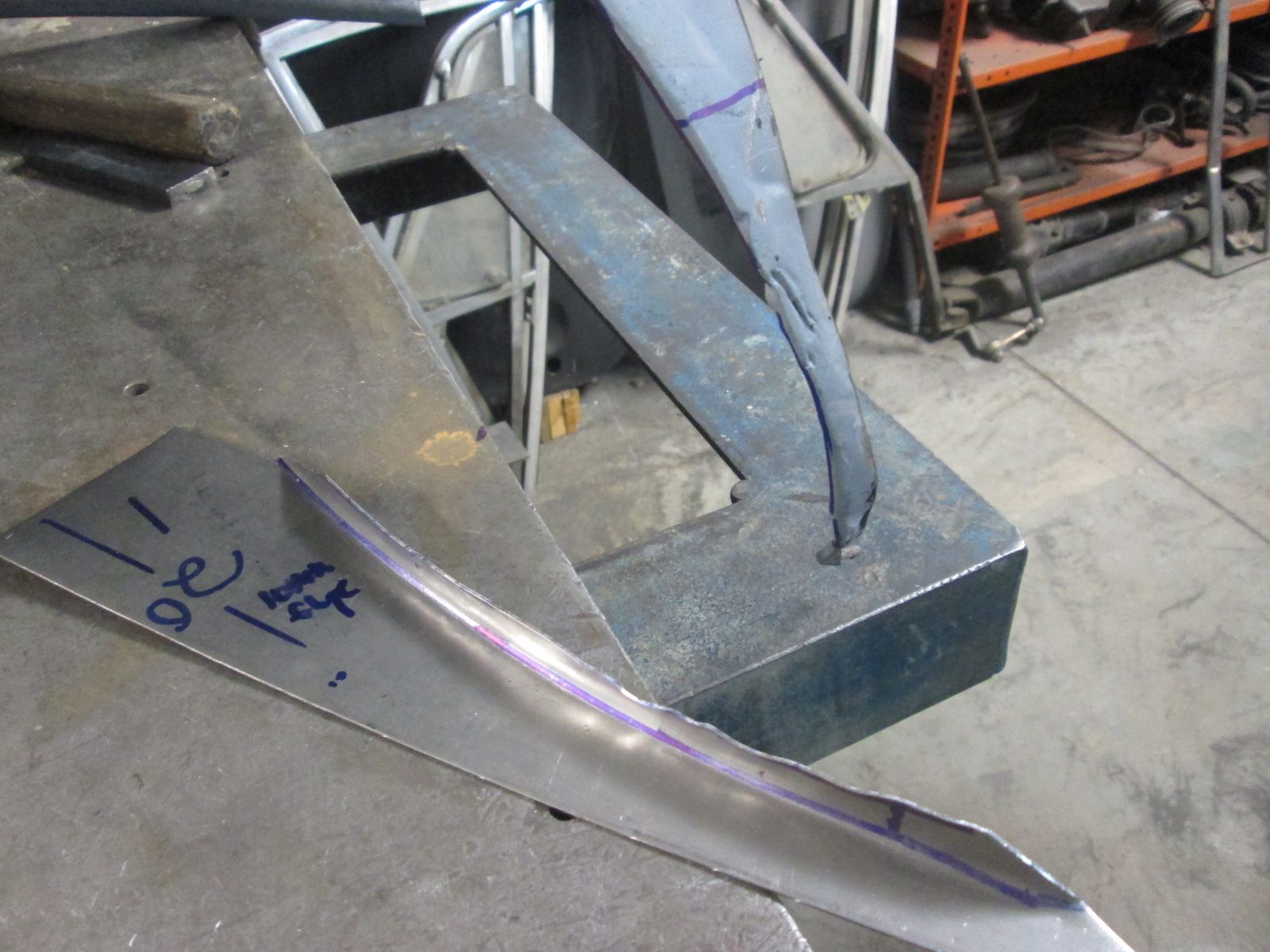

ID:	116242 Hammering the new section into the needed domed shape.
    Click image for larger version

Name:	IMG_2632.jpg
Views:	85
Size:	231.0 KB

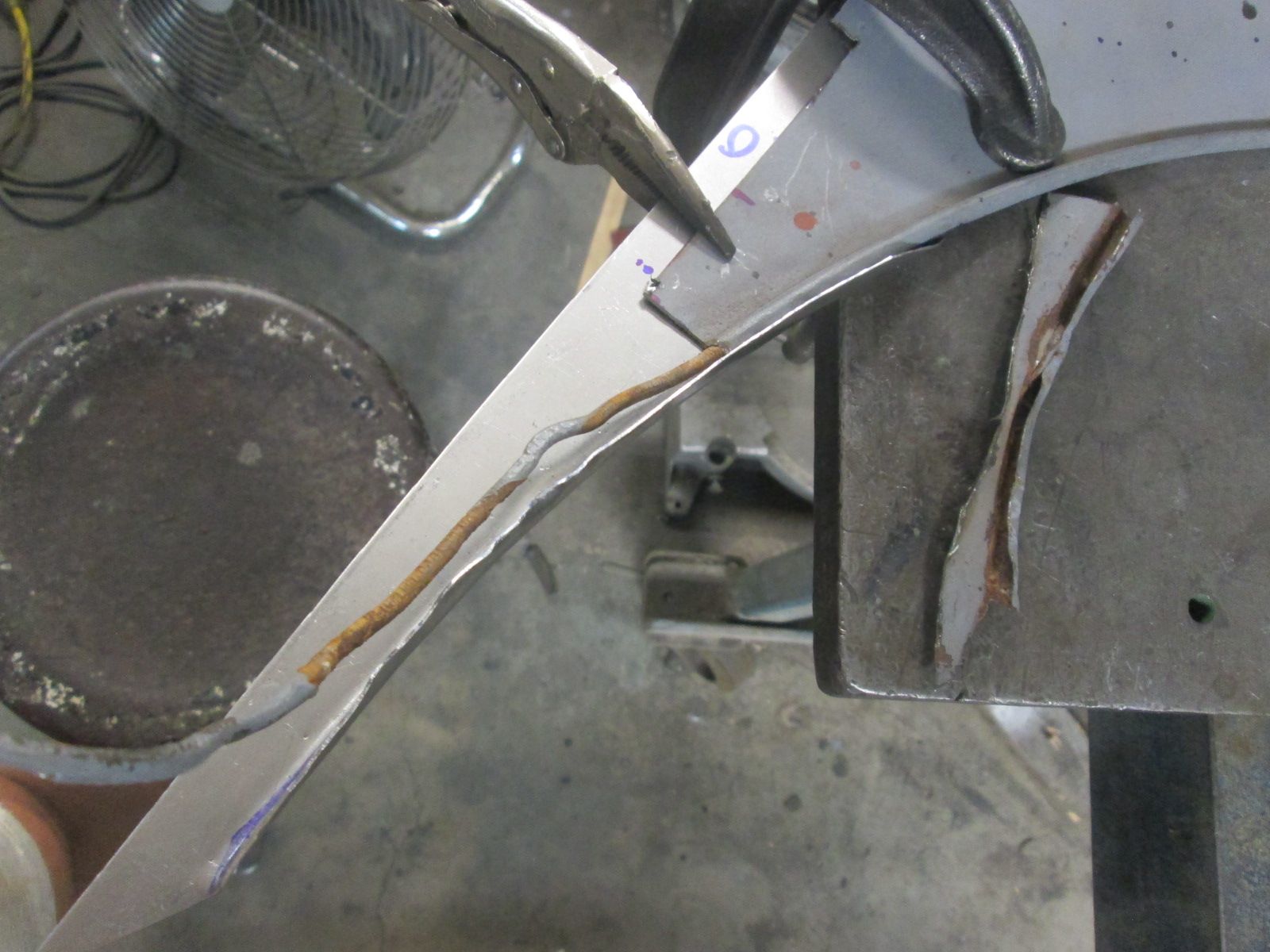

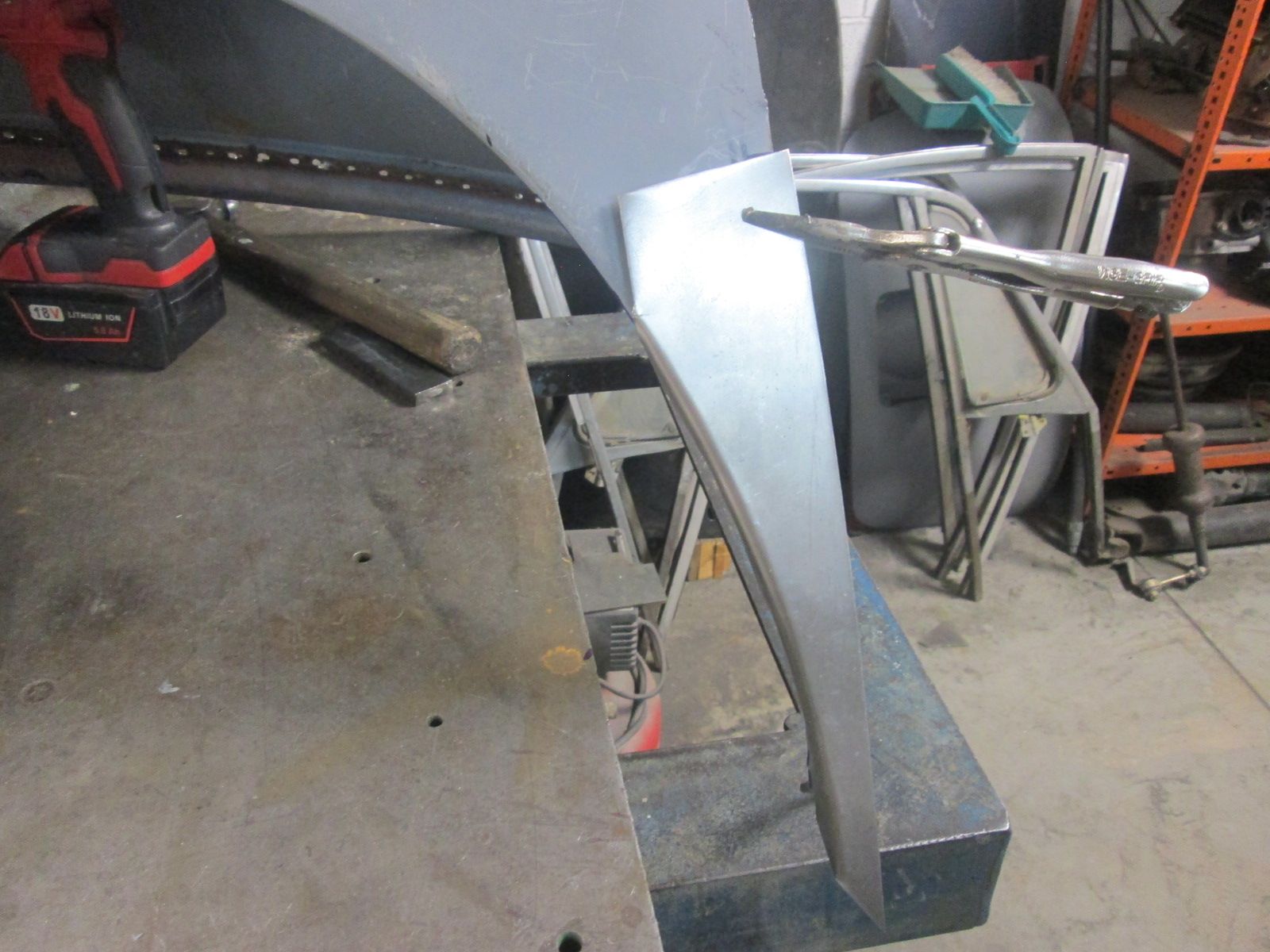

ID:	116243 One of many tests as the needed shape progressed.
    Click image for larger version

Name:	IMG_2634.jpg
Views:	88
Size:	236.9 KB

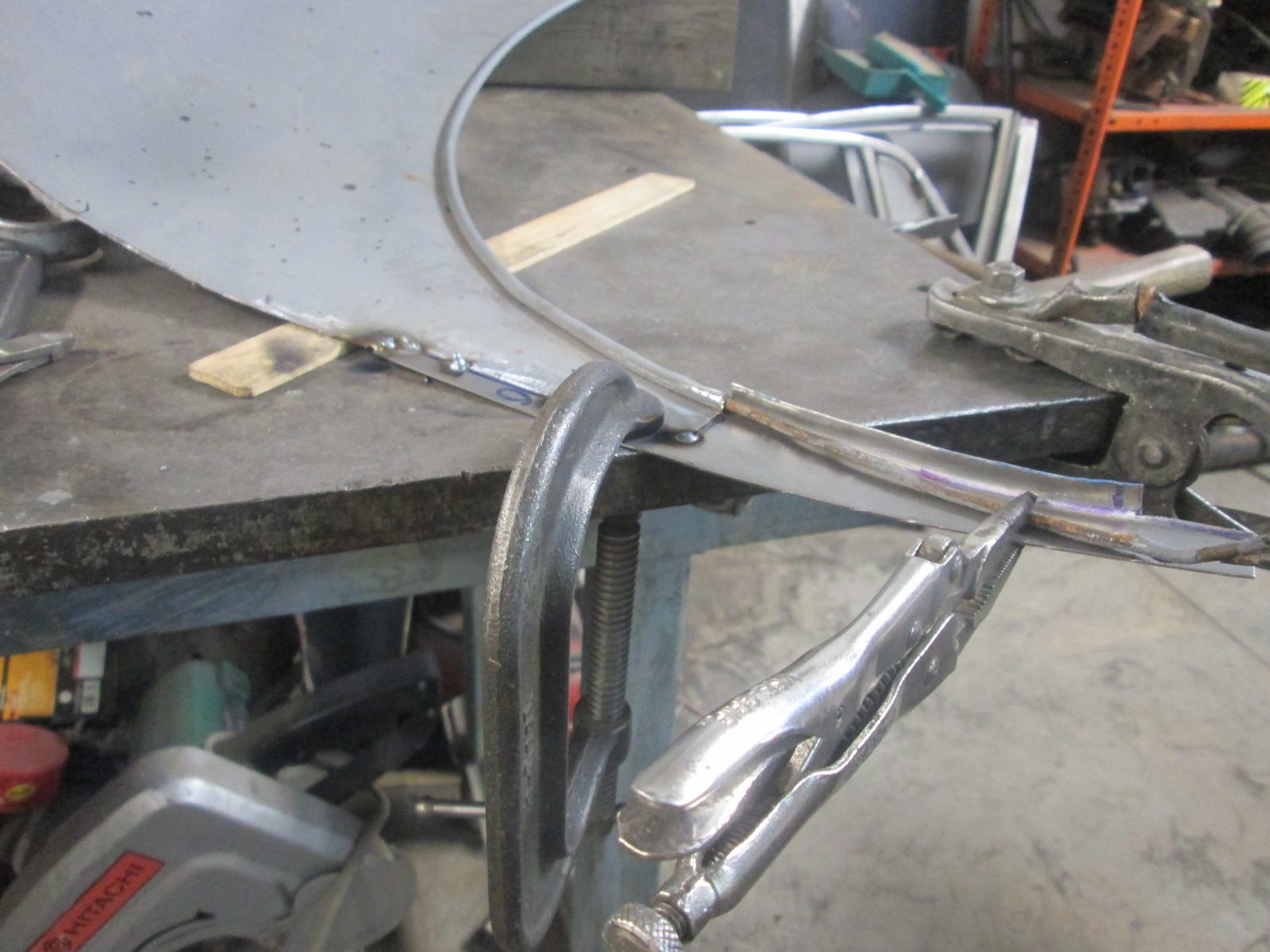

ID:	116244 The rest of the area was pulled and tacked to help hold the needed new contour. Its a touch shy here but well within striking distance. A lot variables still come was the reassembly and welding phase begins. I found myself wishing I would have caught this while I had the hood apart but hindsight being what it is I would have never known this was an issue until the nose and hood were set in their final assembled and best adjusted position. A real catch 22. Reassembly next.

    Thanks for looking.

    Justin
    Last edited by JTR70; 02-18-2025, 05:19 PM.

    Leave a comment:


  • JTR70
    replied
    Needed a little break from the front bumper.

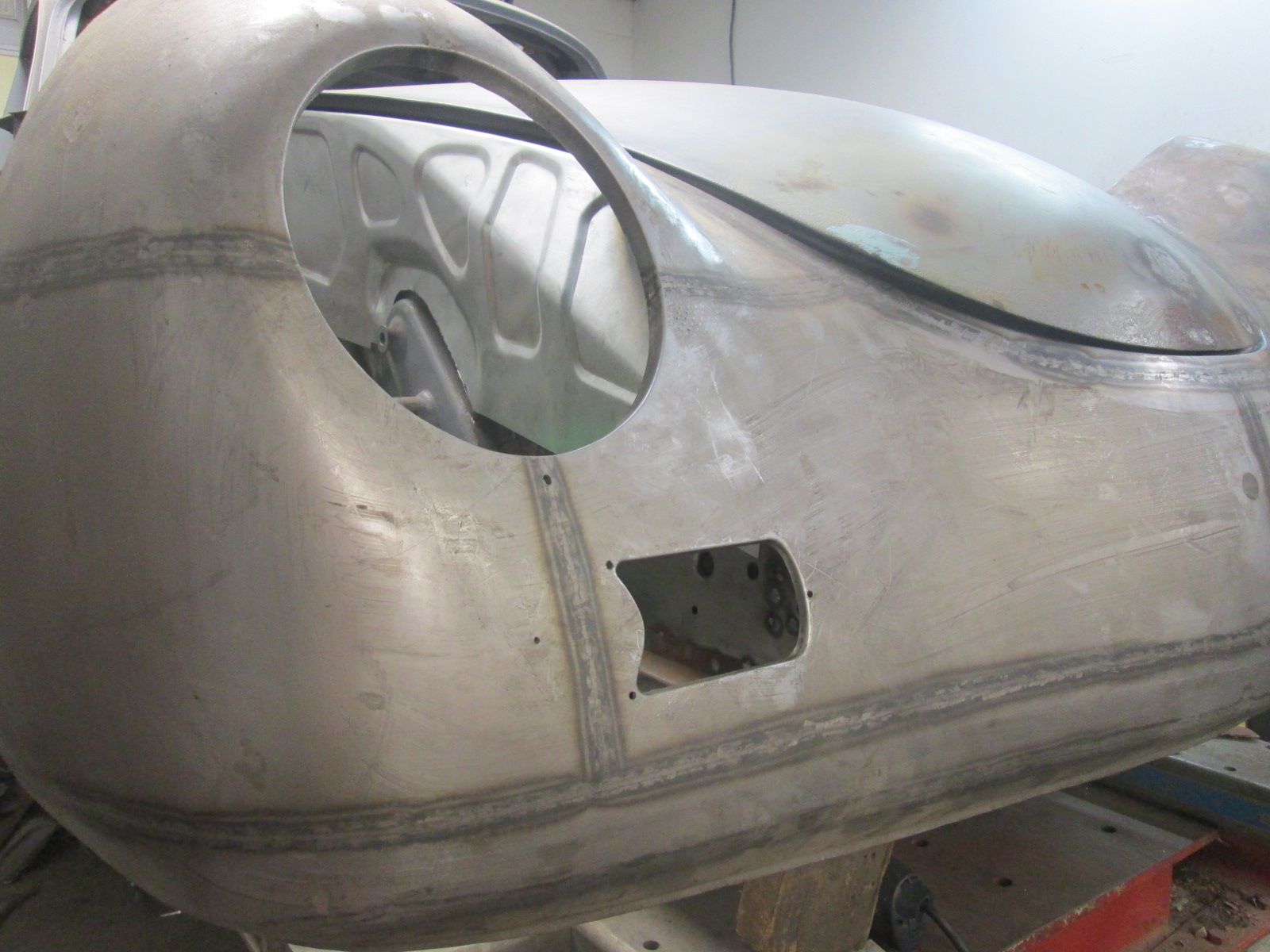

    Click image for larger version  Name:	IMG_2626.jpg Views:	0 Size:	251.4 KB ID:	116231 So I went back to lead soldering the leading edge of the nose for final contour shape and eventual hood gap.
    Click image for larger version  Name:	IMG_2627.jpg Views:	0 Size:	226.8 KB ID:	116232 I haven't done this for a while so it took a minute to get my feel back as to how much heat to throw at it without having it run off onto the floor as I added and shaped it. By these runs I was in the middle of figuring it out again.
    Click image for larger version  Name:	IMG_2629.jpg Views:	11 Size:	195.7 KB ID:	116233 After several rounds of solder and file shaping I had a good shoulder built up that softened and carried the new noses profile into the hood.
    Click image for larger version  Name:	IMG_2628.jpg Views:	11 Size:	205.0 KB ID:	116234 The problem I was running into now was the hood's profile towards the edge tucked under too quickly giving it an underbite. This would prove to be a little tricker to correct than I first thought. Couldn't shave the leaded edge back to the hood as the contour and transition would be completely wrong as both sides would be subducting as they met creating puckered effect. The edge of the hood had to be relaxed and brought outward. It would require a little cutting on the hood side to get these two panels to flow out smoothly together some where in the middle.

    That up next..

    Thanks for looking!

    Justin
    Last edited by JTR70; 02-18-2025, 08:17 AM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Thanks Roy!!

  • JTR70
    commented on 's reply
    Thanks Scott! I was just shooting for a match to my factory original example as closely as I could.

  • roy mawbey
    replied
    Yes Scott I agree with you he has transformed the front so well. Amazing bit of work to make it for me perfect.
    Well done Justin indeed.

    Roy

    Leave a comment:


  • Scott B
    replied
    Nice elegant long smooth taper between body and bumper to outside tip. Huge difference. Looks so comfortable and matted.

    Leave a comment:


  • JTR70
    replied
    Begin refitment of the bumper trim.
    Click image for larger version  Name:	IMG_2602.jpg Views:	0 Size:	225.7 KB ID:	116127 Completed the shape adjustments to the front bumper to match up with the new nose as closely as my original reference is showing. Onto refitting the bumper trim to its slight changes.
    Click image for larger version  Name:	IMG_2606.jpg Views:	0 Size:	211.8 KB ID:	116128 Began with the uprights since their position remains fixed. Then the tube was slipped in afterward.
    Click image for larger version  Name:	IMG_2612.jpg Views:	0 Size:	203.9 KB ID:	116129 That 3mm of additional width in the overall relaxed arch did throw of the needed hole position out at the tips of the tube off.
    Click image for larger version  Name:	IMG_2613.jpg Views:	0 Size:	193.8 KB ID:	116130 The holes on both side had to be moved inward about the holes width. Will backfill this once everything is fitted and set for the final time.

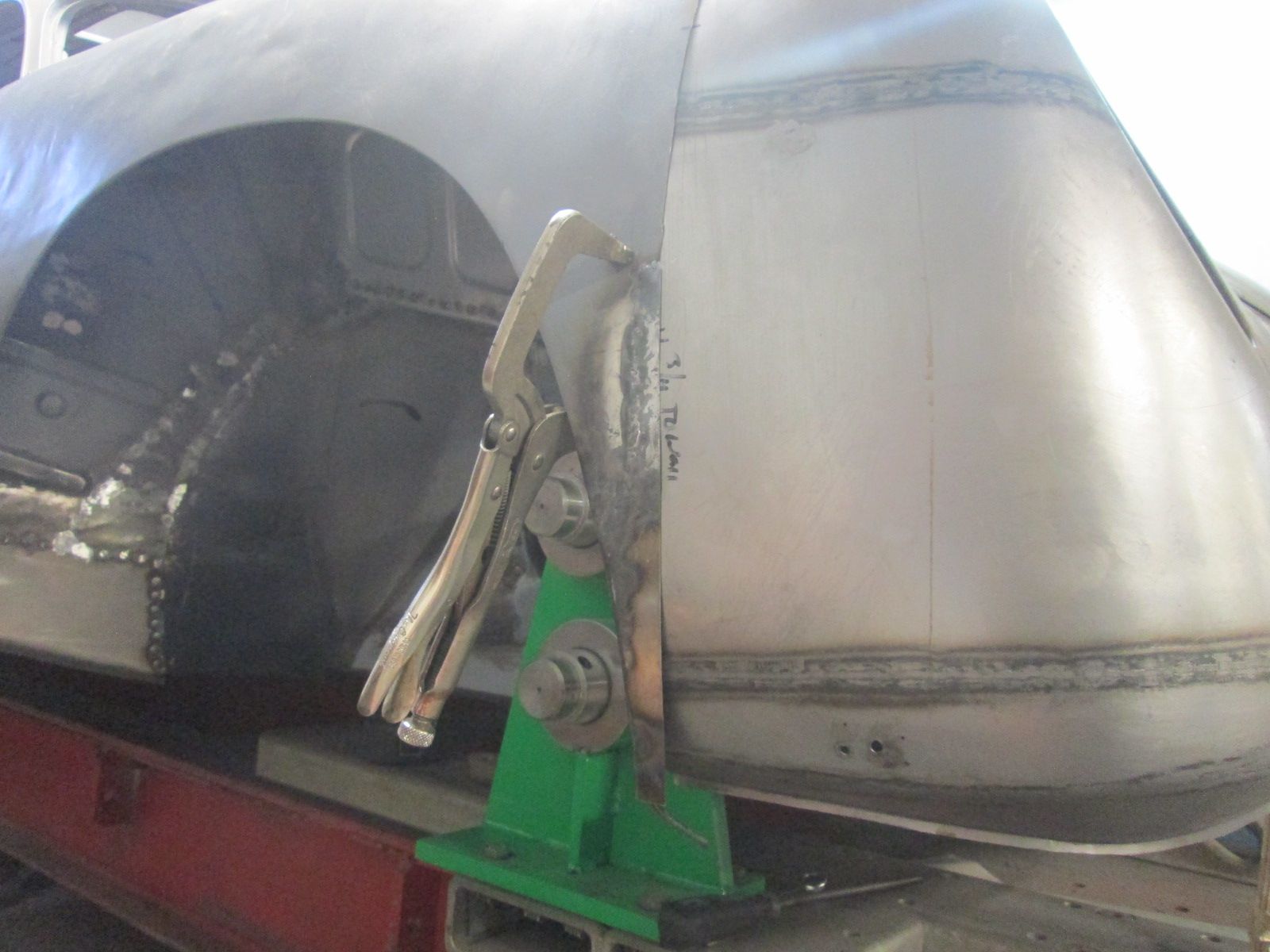

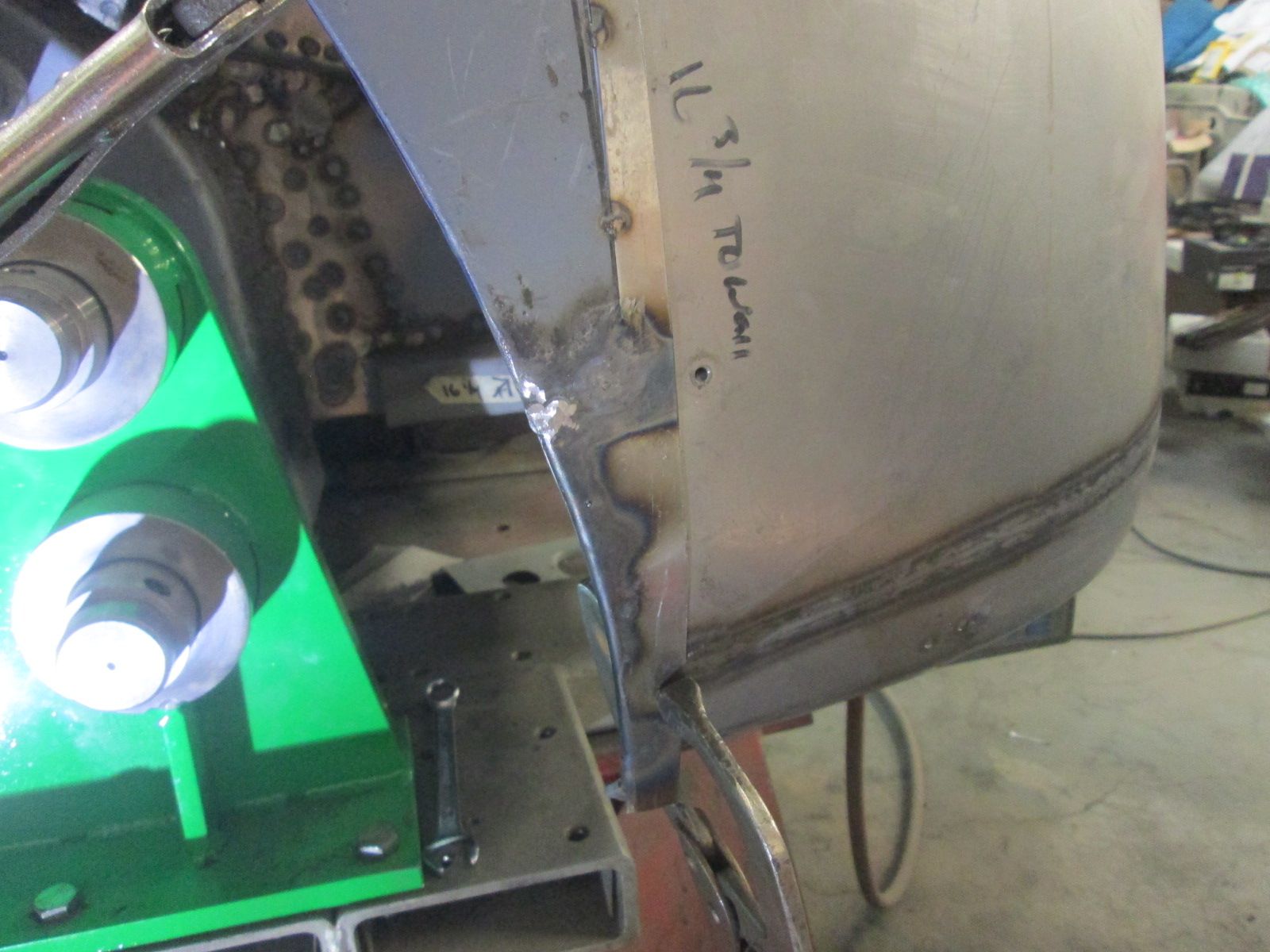

    Click image for larger version  Name:	IMG_2616.jpg Views:	0 Size:	216.7 KB ID:	116131 All bumper trim fully mocked up and bolted down. Making the needed changes to bumper iron mounts themselves next to allow a shift to the left that was needed from the beginning.

    Thanks for looking.

    Justin
    Last edited by JTR70; 12-10-2024, 05:31 PM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Thanks once again Roy! It is a process that keeps on repeating itself doesn't it? You just can't realistically expect these pieces to just fall into place. Everything needs at least some adjustment to fit or flow together properly and some a lot more than others as you have well noted.

  • roy mawbey
    replied
    Well done Justin a good method of getting the bumper alignment correct. Again I have to say relief cutting was never in my head to make corrections until you started this restoration. I will never forget the process now !!

    There is so much involved in body restoration so that it looks really correct.

    Great bit of work !

    Roy

    Leave a comment:


  • JTR70
    replied
    Bumper halves going back together:
    Click image for larger version  Name:	IMG_2597.jpg Views:	0 Size:	209.5 KB ID:	116073 After several rounds of mock up with the nose an additional 3MM width was added in along with the slightly more relaxed profile to give both the reveal and spacing from the nose I was looking for.
    Click image for larger version  Name:	IMG_2600.jpg Views:	0 Size:	167.6 KB ID:	116074 Began backfilling and tack welding from the middle so I could still adjust the overall profile shape of the bumper as it went back together. Once the edges were welded the final shape was locked in.
    Click image for larger version  Name:	IMG_2598.jpg Views:	0 Size:	186.5 KB ID:	116075 There is the reveal spacing and shape against the nose I was looking for.
    Click image for larger version  Name:	IMG_2599.jpg Views:	0 Size:	190.2 KB ID:	116076 Got the right side spaced to match the left but again I lose the line as it relaxes and sweeps too wide just after the mounting hole for the overrider tube.
    Click image for larger version  Name:	IMG_2601.jpg Views:	0 Size:	182.0 KB ID:	116077 Now I could begin relief cutting to tighten up this turn. Initially tacked and on for another test fit before I commit to more welding. The bumper was slid over tight for this shot so I could get a better feel for the shape match. Getting closer.

    Thanks for looking.
    Justin
    Last edited by JTR70; 11-23-2024, 07:00 PM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Hi Roy, Thanks! Definitely a process to get all of these components both old and brand new to fit and work together like they need to but its steadily getting there. Thank you for that confirmation info on your car. Justin

  • roy mawbey
    replied
    Justin yesterday I took the measurement of the bumper tips to the right and left fender. The gap was equal at 3/4 of an inch ( 19mm ) I was surprised they were so equal its not an easy job to get those gaps correct you are winning with that. So many difficult decisions to get this result. Not that many would have attempted your way round this. So many things to think of Justin.

    Roy

    Leave a comment:


  • JTR70
    replied
    Front bumper fitment continued:
    Click image for larger version  Name:	IMG_2592.jpg Views:	3 Size:	187.3 KB ID:	116027 Eventually came to the conclusion that it would be much simpler to continue the cut and fit each side individually to the body.
    Click image for larger version  Name:	IMG_2596.jpg Views:	3 Size:	192.8 KB ID:	116030 Cleaning up the edges so the halves can be retacked in their newly needed position. Bodywork was done previously by someone with a very acceptable thickness of filler.
    Click image for larger version  Name:	IMG_2593.jpg Views:	3 Size:	178.6 KB ID:	116028 This approach immediately turned the trick for this left side and closely resembles my original reference reveal in both width and contour shape.
    Click image for larger version  Name:	IMG_2594.jpg Views:	3 Size:	170.8 KB ID:	116029 Was able to get a similar shape and width on the right side but it begins to sweep away from the skin starting just after that mounting hole.
    Click image for larger version  Name:	IMG_2595.jpg Views:	3 Size:	201.5 KB ID:	116031 Direct comparison laid over top highlights that this shape discrepancy. Confirmation that this issue is with the bumper and not on the body. Will be tightening up this bend as the fitment continues.

    Thanks for looking.

    Justin
    Last edited by JTR70; 11-11-2024, 06:03 PM.

    Leave a comment:


  • JTR70
    replied
    front bumper fitment to this car:
    Click image for larger version  Name:	IMG_2586.jpg Views:	0 Size:	187.5 KB ID:	116021 Bumper is now resting on wood pegs so I can "float" it into its best adjusted position with the new nose. It needed to come in a touch closer for about a 2 inch reveal or spacing away from the body. By the time I achieved that the tip of bumper closed down to nothing.
    Click image for larger version  Name:	IMG_2587.jpg Views:	3 Size:	199.8 KB ID:	116022 Pretty much the same issue on this side though the radius shape on this side isn't quite as tight and the tip begins to swing out.

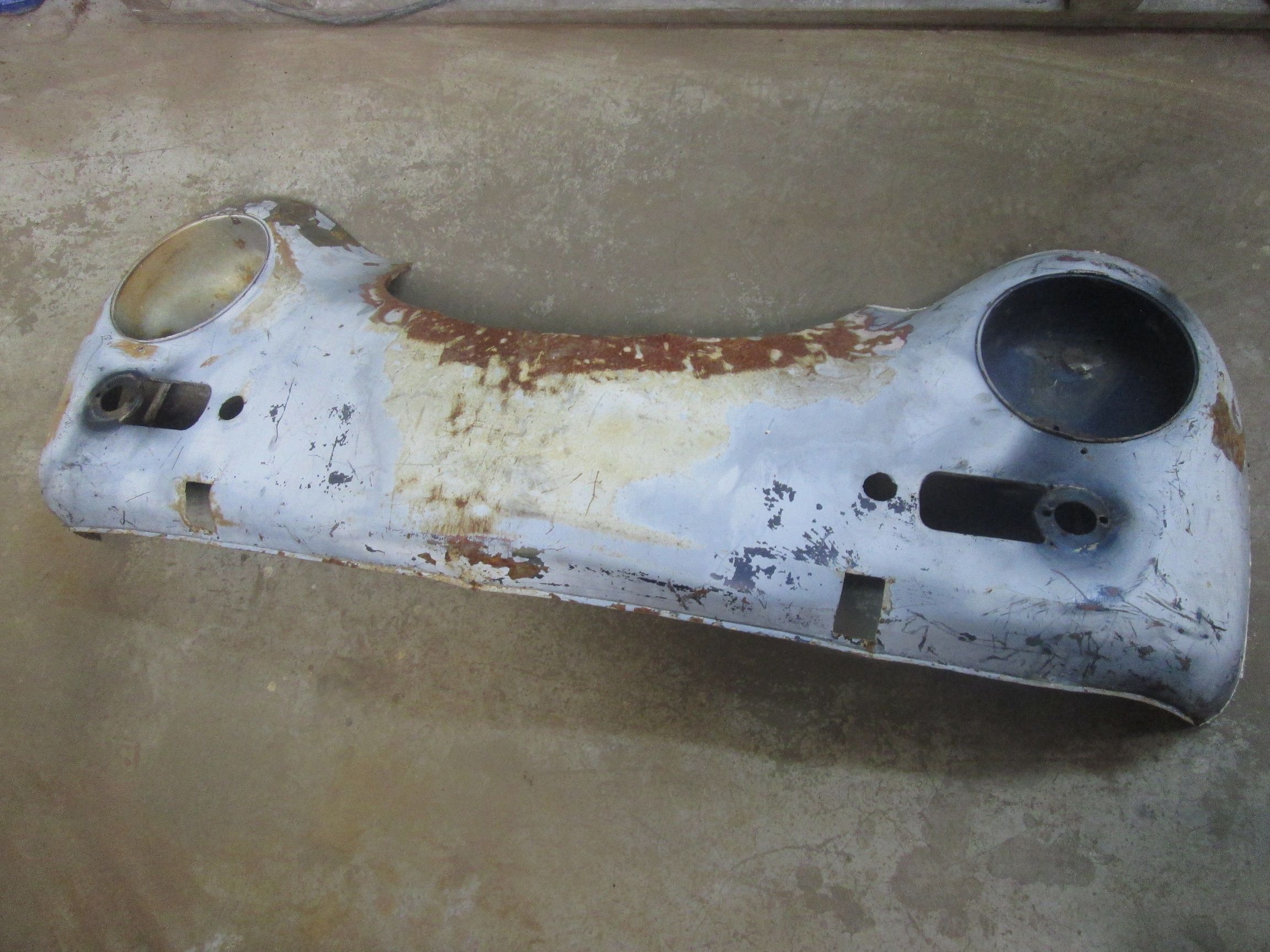

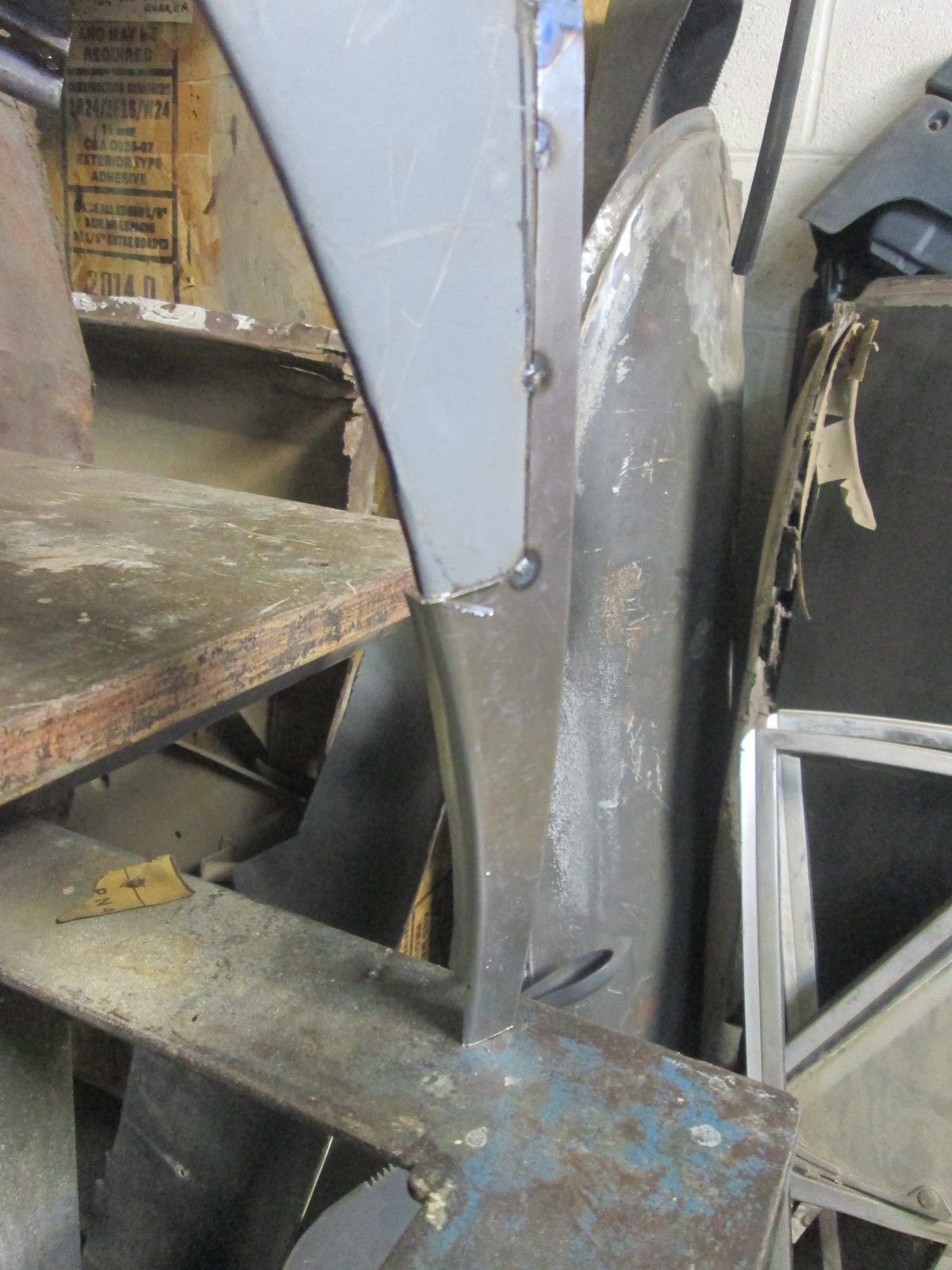

    Click image for larger version  Name:	IMG_2589.jpg Views:	3 Size:	180.1 KB ID:	116023 I'm using this original nose and bumper as my guide. The general distance through the center is just shy of 2 inches with a livable but slightly tighter spacing as it makes the turn towards the tip.
    Click image for larger version  Name:	IMG_2590.jpg Views:	3 Size:	234.7 KB ID:	116024 The mock ups are telling me that the general overall contour of this bumper is a touch too tight; at least for this newly established nose. The center of this bumper has been rewelded at some point and I detect residual crash damage through its center. Knowing that its not pristine stock makes contour adjustment changes much easier.
    Click image for larger version  Name:	IMG_2591.jpg Views:	3 Size:	197.0 KB ID:	116025 Began by relief cutting it through the weld joint to begin relaxing and opening up its shape. This quick cut immediately allowed the bumper to come in closer and bottom out against the skin at the center; extreme but just working back from there. While it was heading in the right direction, swinging it opening this way was now flattening its profile shape a bit too much at its center. It was taking on a bit of reproduction look so I needed another approach to get the clearance and final contour shape I was looking for.

    Last edited by JTR70; 11-11-2024, 05:37 PM.

    Leave a comment:
