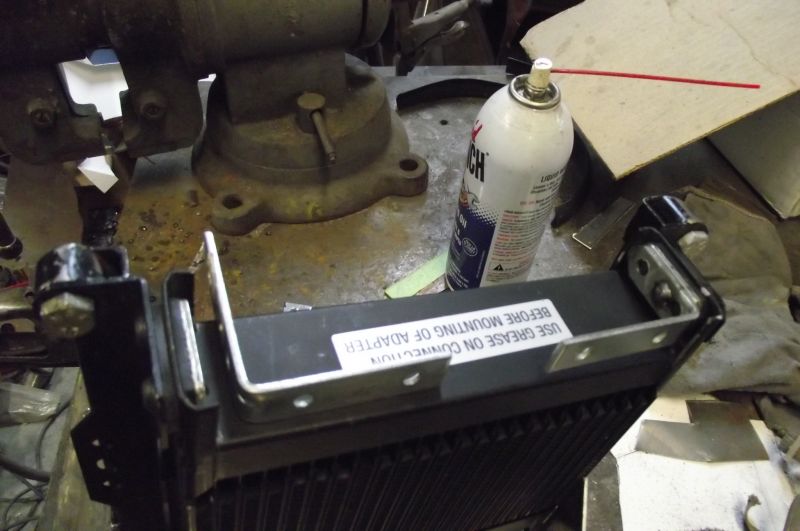

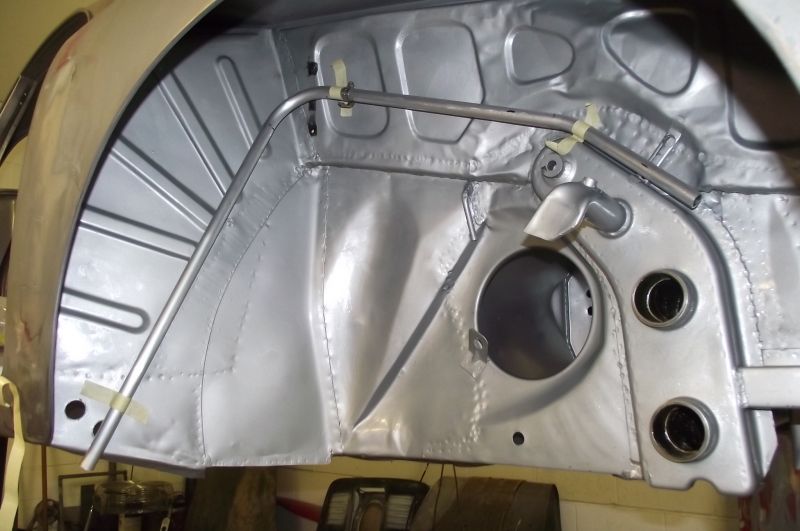

  • After taking delivery of my new collar clamp I was able to complete the cooler frame.

    Click image for larger version

Name:	547612.jpg
Views:	124
Size:	65.7 KB
ID:	6892

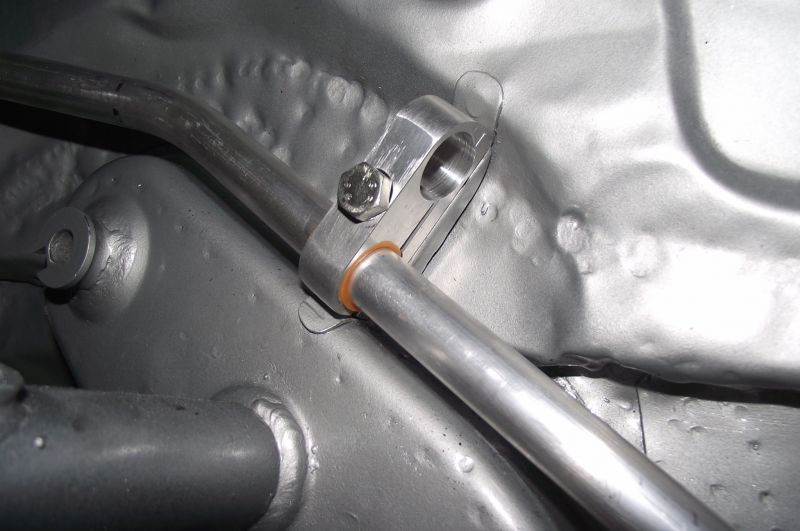

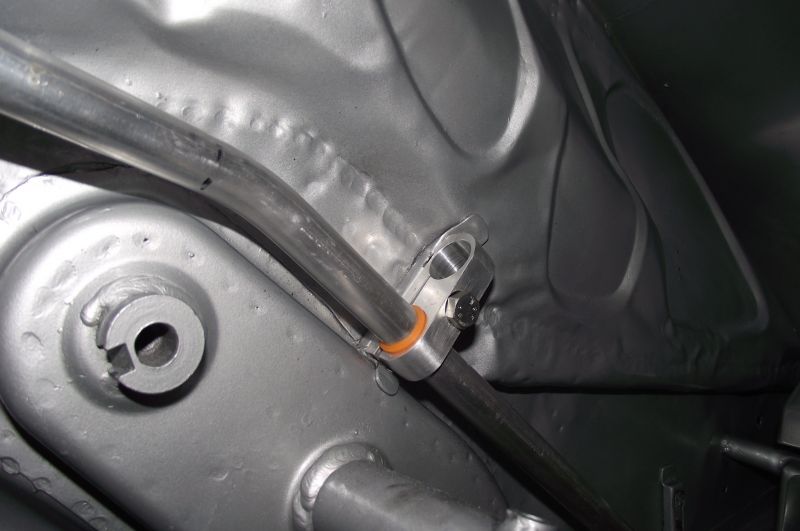

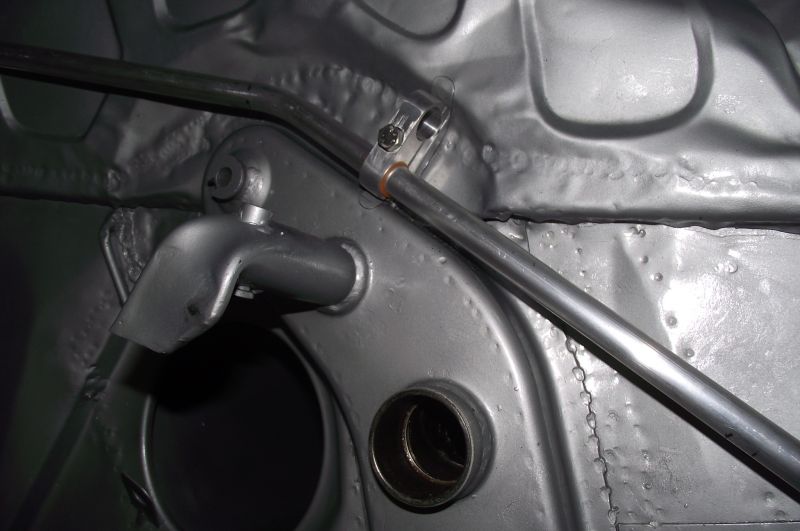

    Found this standard 3/4 inch clamp on Ebay and it fit perfectly snug around the original metric tubing stand-off.

    Click image for larger version

Name:	carrera54720614.jpg
Views:	124
Size:	42.2 KB
ID:	6893
    Had to weld the clamp on just a bit cock-eyed in relation to the rest of the frame so it would seat correctly on the tube. Also went to smaller square stock on the cross member for a better fit and finish.

    Click image for larger version

Name:	547617.jpg
Views:	126
Size:	52.4 KB
ID:	6894

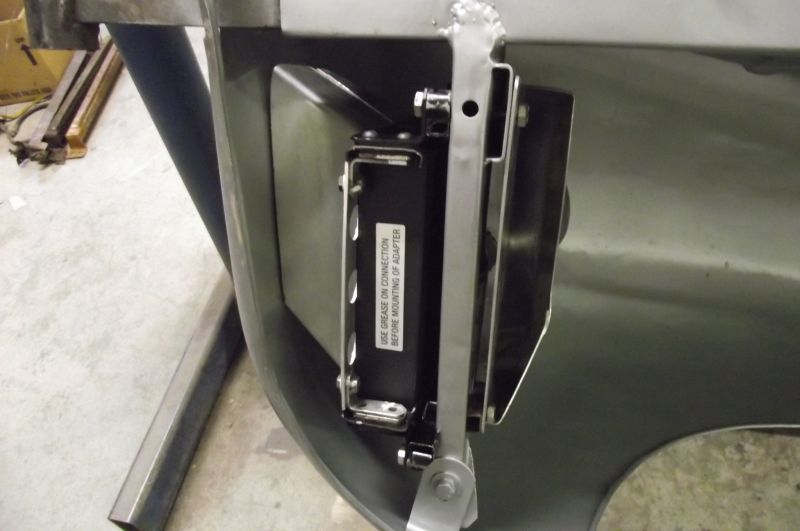

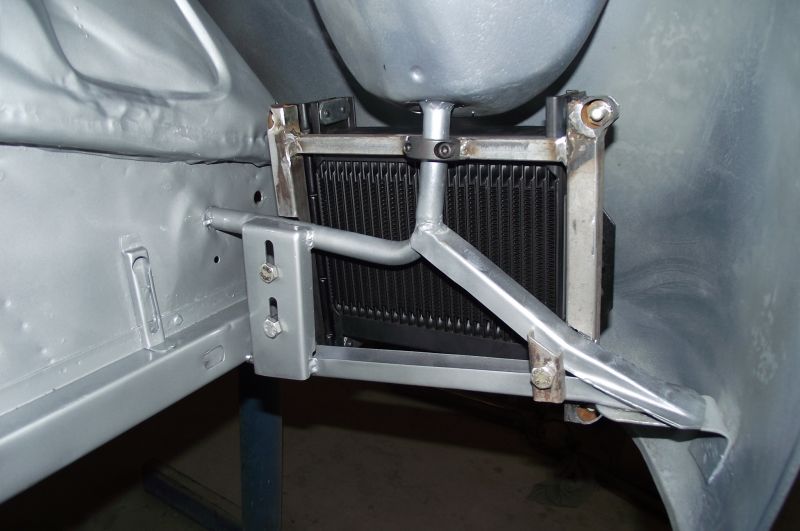

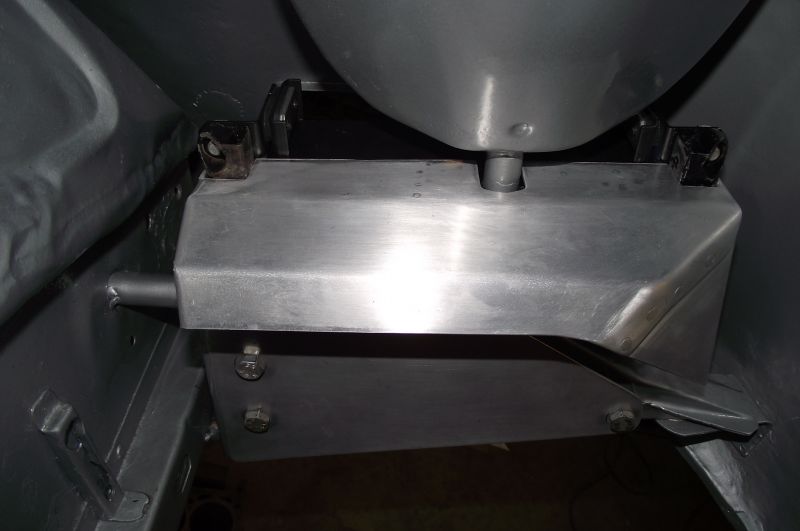

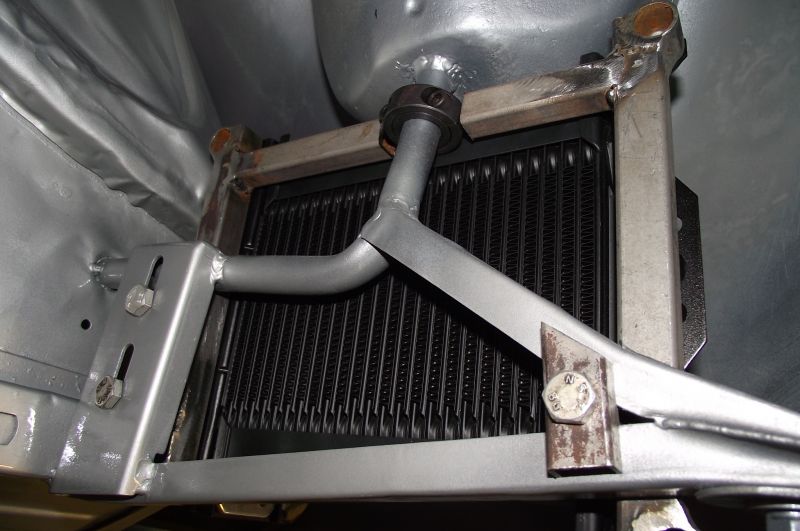

    Welding complete and cooler is securely mounted. It serves its purpose well; the cooler is firmly mounted with no flex as I try to wiggle it at the corners. Nice thing too is that the cooler is fully rubber isolated off of the mount flanges that I bought with it.

    Click image for larger version

Name:	carrera54720619.jpg
Views:	123
Size:	43.1 KB
ID:	6895

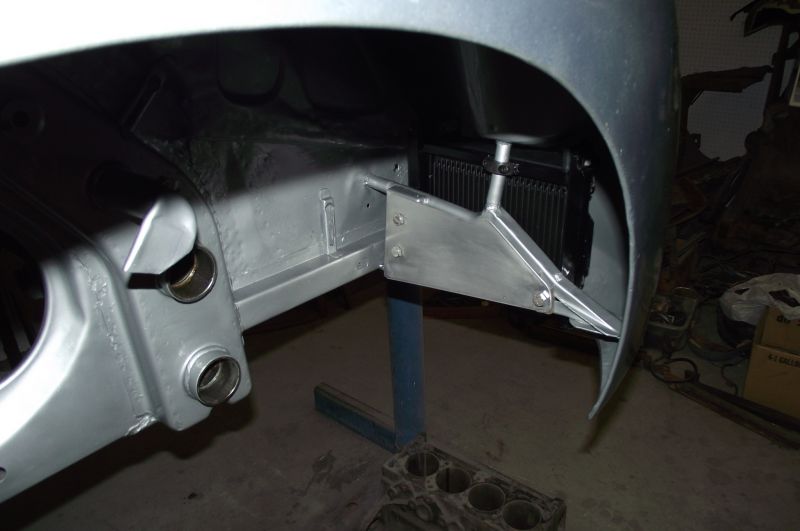

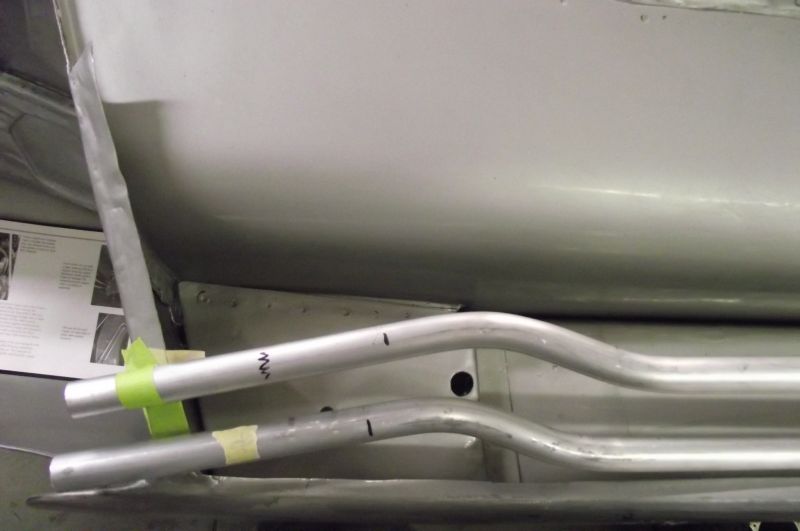

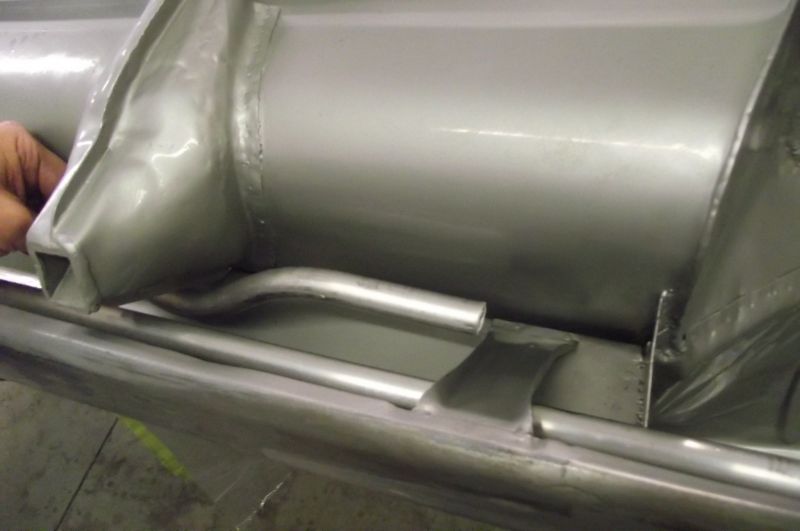

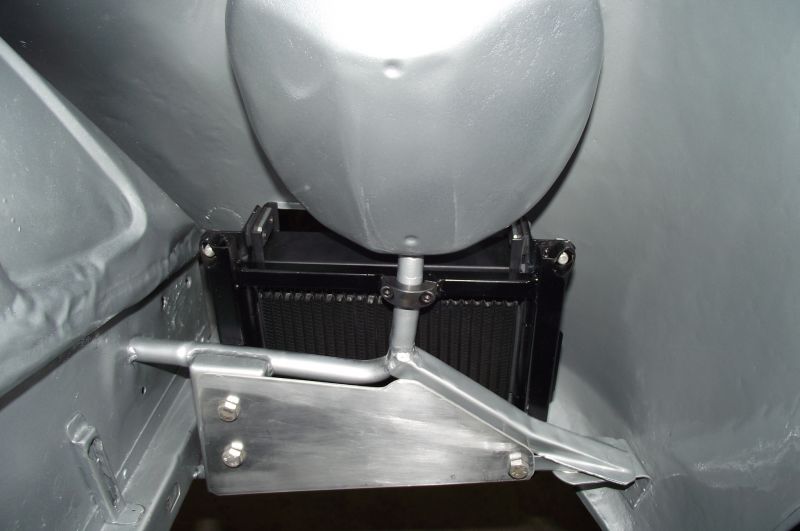

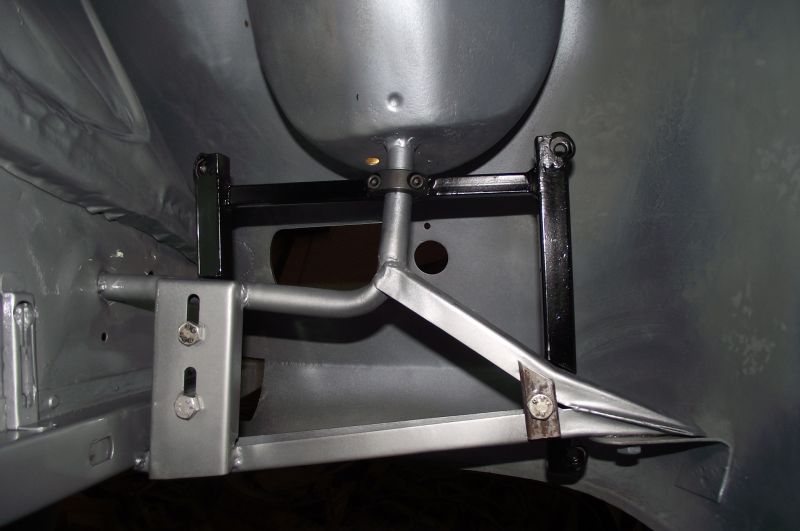

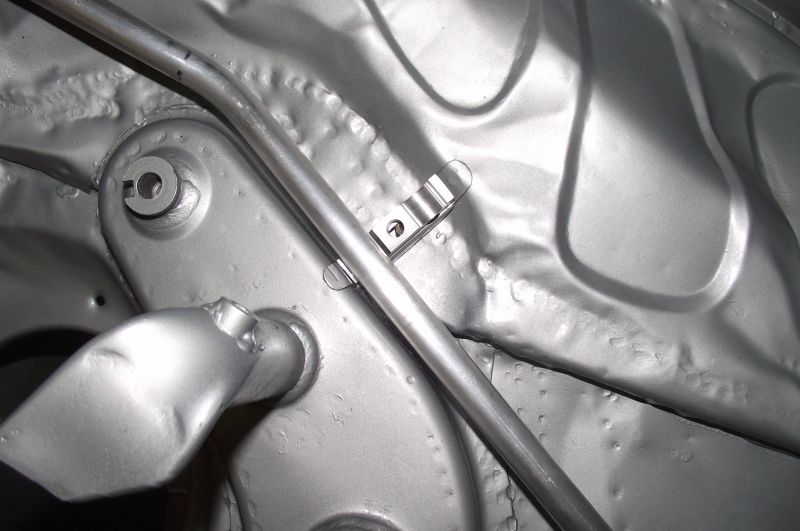

    Just what I was hoping for; a simple bracket to make it possible to run this cooler with NO modifications to the fender brace. Lost of time spent getting it all to fit and mount right, especially after the welding. Shrouding and oil lines next.

    Got my hands on some aluminum flat stock and finished the first section of the oil cooler deflector shield this evening. My Father also came in to visit for a couple of days. He was extremely happy and complimentary with the repairs on his old car. A nice trade off for the loss of progress for most of this week. His approval is of course very important to me! In many respects I'm trying to get this thing done for us both. Also to break the "Rio Curse" of never finishing a restoration project! My dad, his brother, his son and of course myself have yet to complete one of our 20+ year projects. I'm determined to be the first!
    Click image for larger version

Name:	547628.jpg
Views:	127
Size:	46.1 KB
ID:	6899
    Dad and his old 356 reunited once again. Installed the doors for him so he could see the initial fit and finish.

    Click image for larger version

Name:	547630.jpg
Views:	119
Size:	49.2 KB
ID:	6896

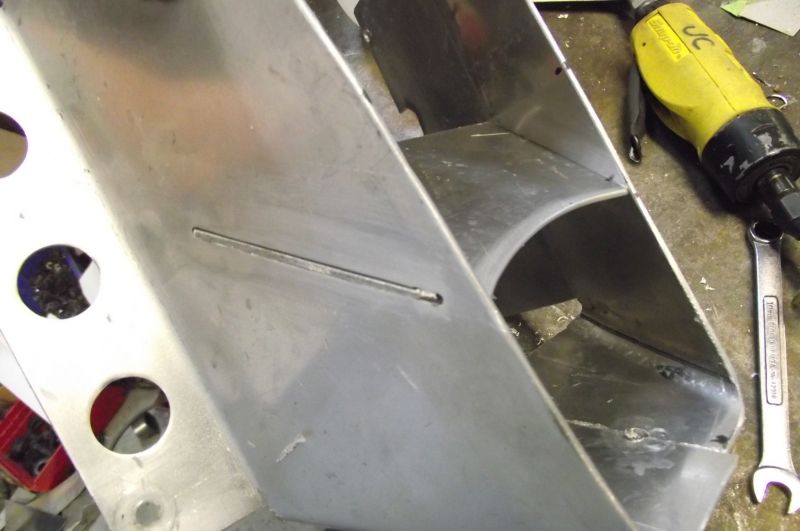

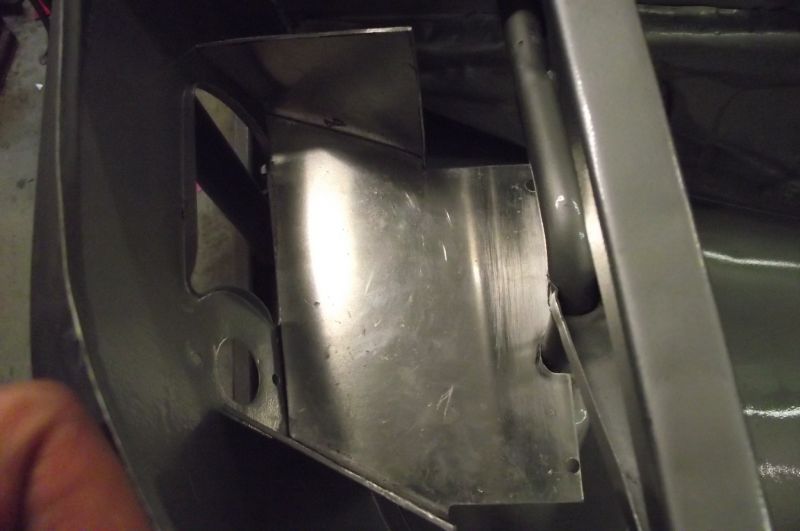

    lower deflector plate cut to shape and installed.

    Click image for larger version

Name:	547632.jpg
Views:	119
Size:	42.9 KB
ID:	6897

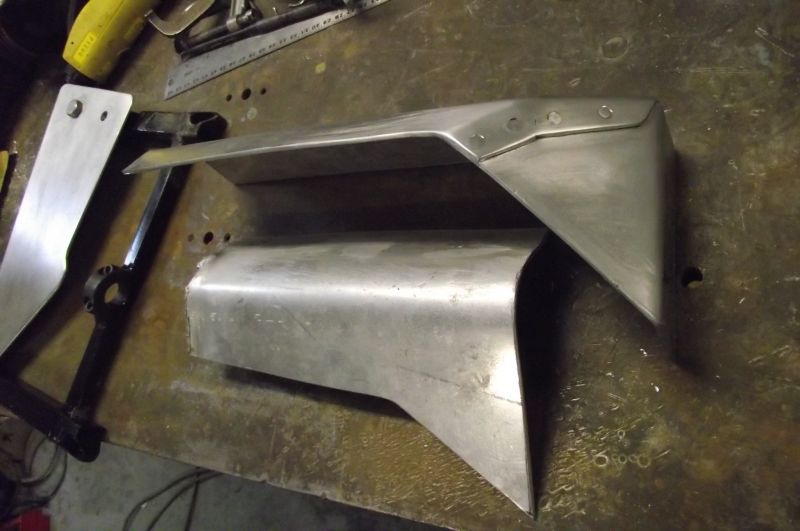

    Same basic concept as the original version but with my own little cut-out shape.

    Click image for larger version

Name:	547638.jpg
Views:	120
Size:	41.0 KB
ID:	6898
    Developing my paper templates for the upper shrouding next.
    Justin Rio

    Comment

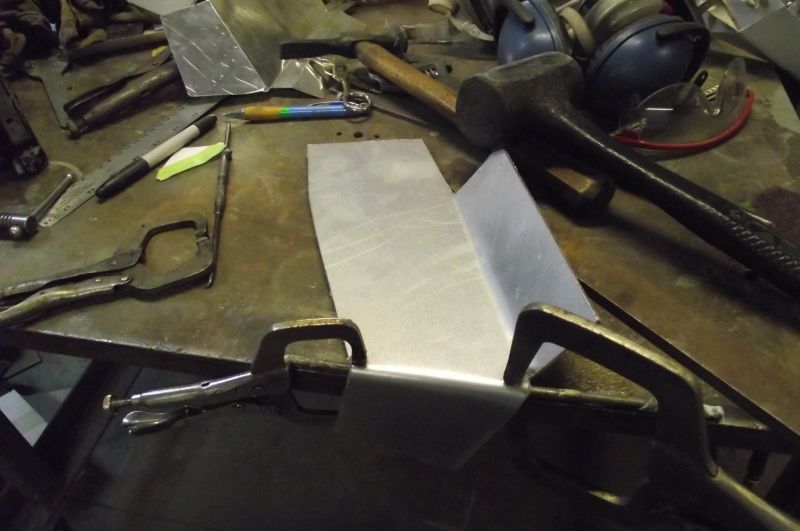

    • After one abandoned attempt,along with several generations of paper templates and finally some close study of my one and only picture of an original unit; I finally built the upper portion to this deflector shield to my liking.
      Click image for larger version

Name:	547639.jpg
Views:	125
Size:	30.5 KB
ID:	6903
      Lots of adding and trimming on my original template. Once I had the desired basic shape I made the final pattern (all green one). I was also shooting for single piece construction.

      Click image for larger version

Name:	547640.jpg
Views:	130
Size:	35.2 KB
ID:	6904
      Final pattern taped and mounted. I was finally satisfied with the look of it to move onto metal.

      Click image for larger version

Name:	547642.jpg
Views:	111
Size:	32.5 KB
ID:	6905
      Had to make sure my bends cleared the collar for a clean fit.
      Click image for larger version

Name:	547643.jpg
Views:	98
Size:	50.1 KB
ID:	6907

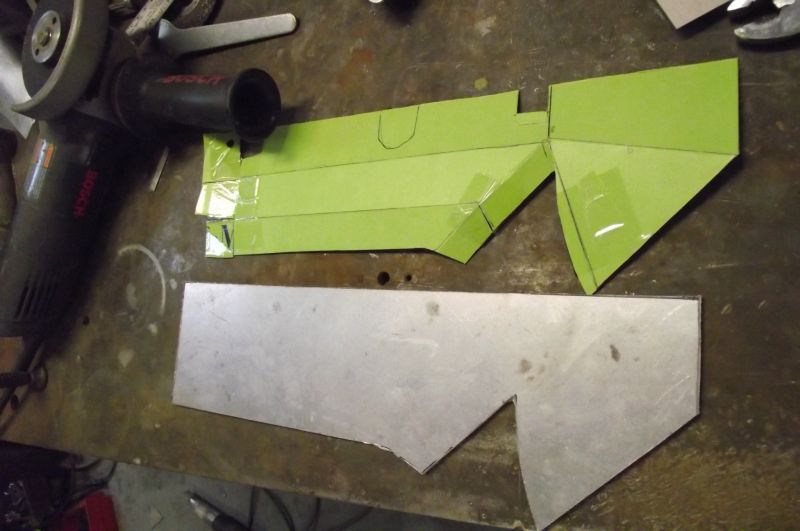

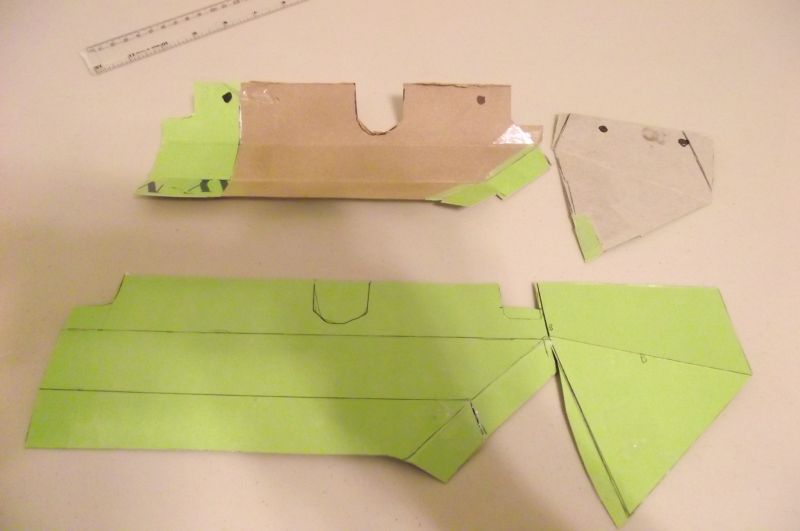

      Got my final template back to the shop and traced it on a piece of alloy.Basic shape cut out here. Lots of planning and careful cutting and folding was next.

      Click image for larger version

Name:	547644.jpg
Views:	108
Size:	41.7 KB
ID:	6906
      The sequence of each fold had to be planned in advance so I did not lock myself out or distort a previous bend.
      Click image for larger version

Name:	547646.jpg
Views:	117
Size:	56.0 KB
ID:	6908
      Almost there; right in the middle of getting the overlapping tabs to lay down without distrubing the rest of the part.

      Click image for larger version

Name:	547651.jpg
Views:	112
Size:	59.2 KB
ID:	6909
      My one and only photo of an original. After some close study I realised the lap joint on the corner and decided to replicate that as well.

      Click image for larger version

Name:	547649.jpg
Views:	109
Size:	47.1 KB
ID:	6910
      Corner and lap joint finished and riveted together with some solid units I had on hand.

      Click image for larger version

Name:	547650.jpg
Views:	111
Size:	53.4 KB
ID:	6911

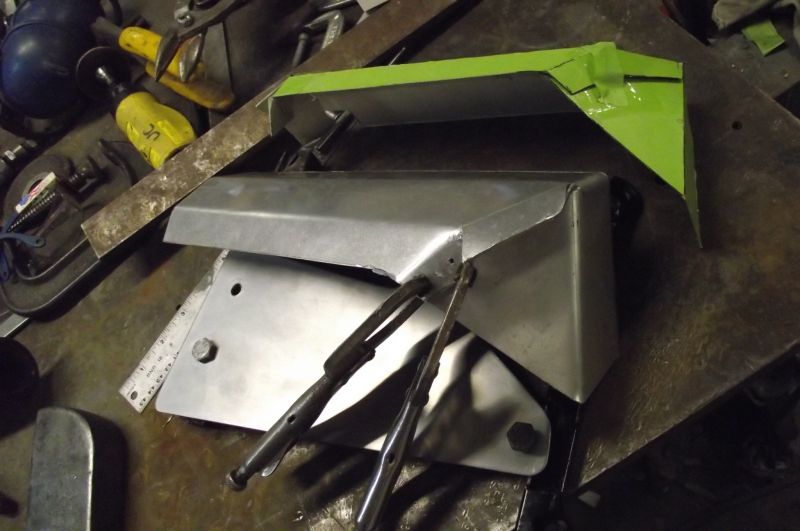

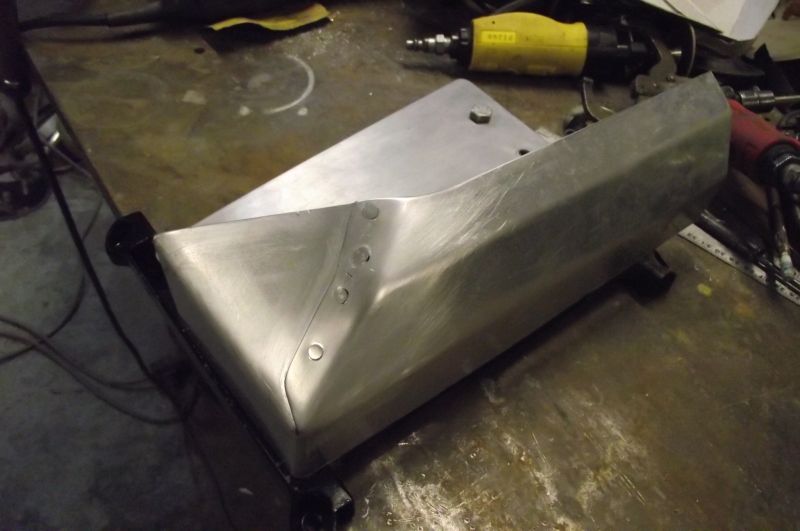

      My first idea and attempt at this upper shroud is pictured below my final version. Wasn't really liking it and knew it wasn't going to fly. It was soon abandoned and I went back to that old photo for more help.

      Click image for larger version

Name:	547648.jpg
Views:	101
Size:	46.3 KB
ID:	6912

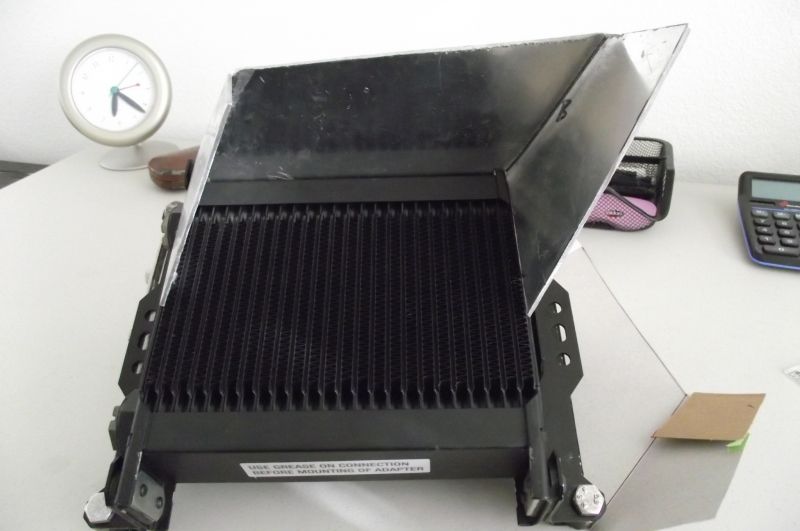

      Upper shroud basically complete. I have alot of overhang on the left side that will be cut and flanged over for strength and a finished look. I like it so far, its made from a single piece, it works for this special application and it mimics the original. Follows the contour of the base plate pretty well to for uniform opening.

      Upper shroud trimmed and mounted.
      Click image for larger version

Name:	547659.jpg
Views:	111
Size:	43.4 KB
ID:	6913

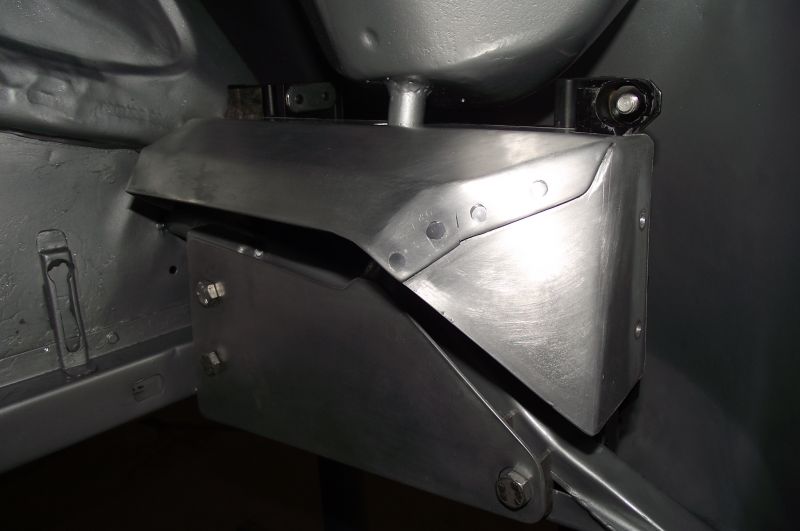

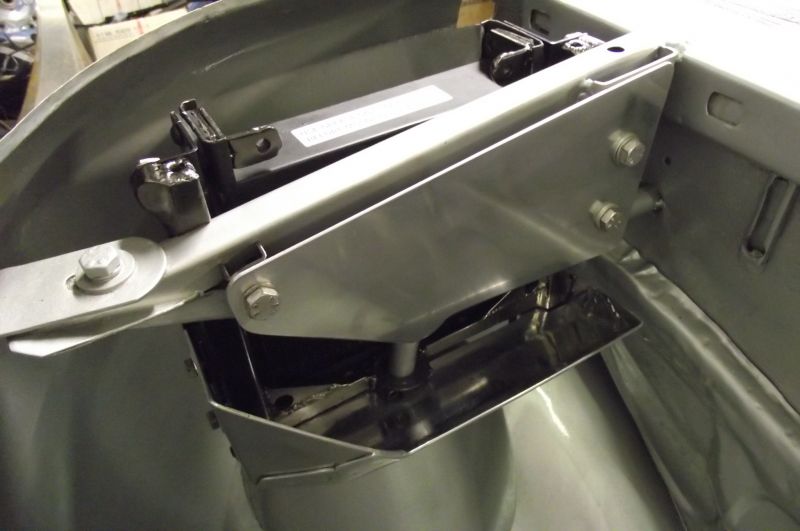

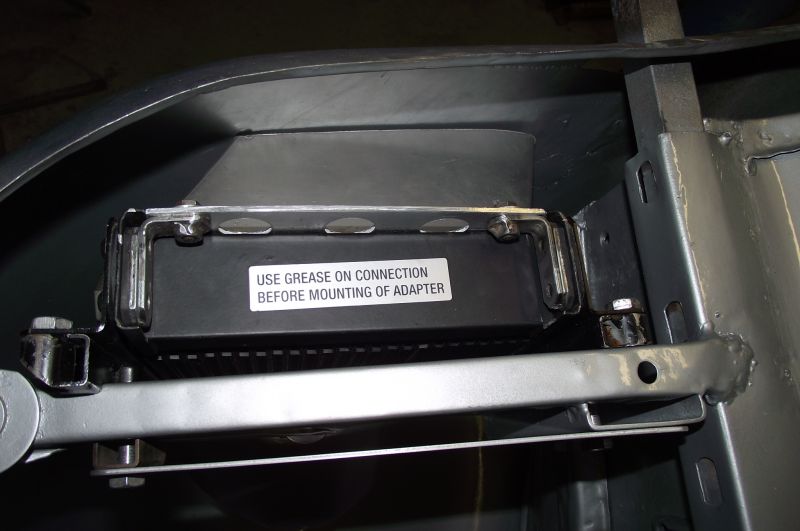

      Sits in there squarely and fits better than I had hoped!
      Click image for larger version

Name:	547658.jpg
Views:	99
Size:	36.2 KB
ID:	6914

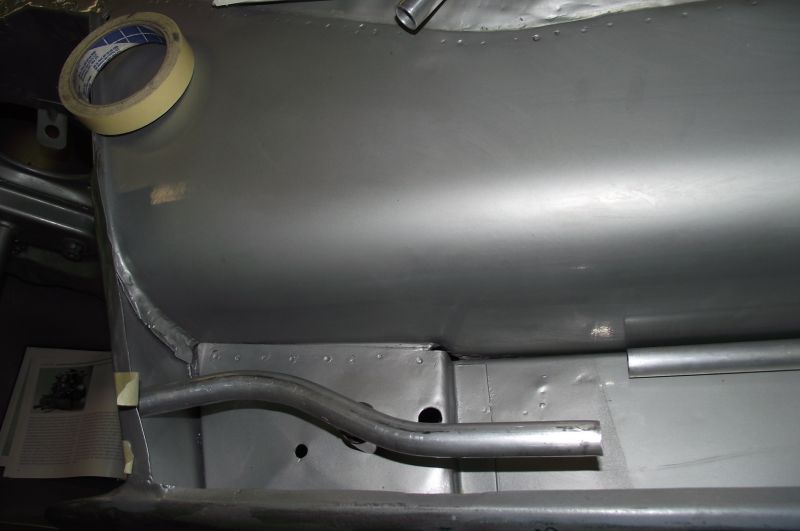

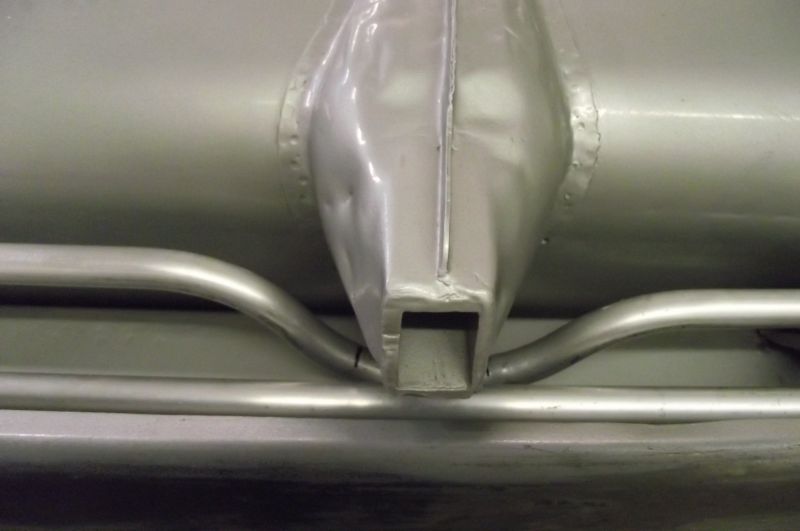

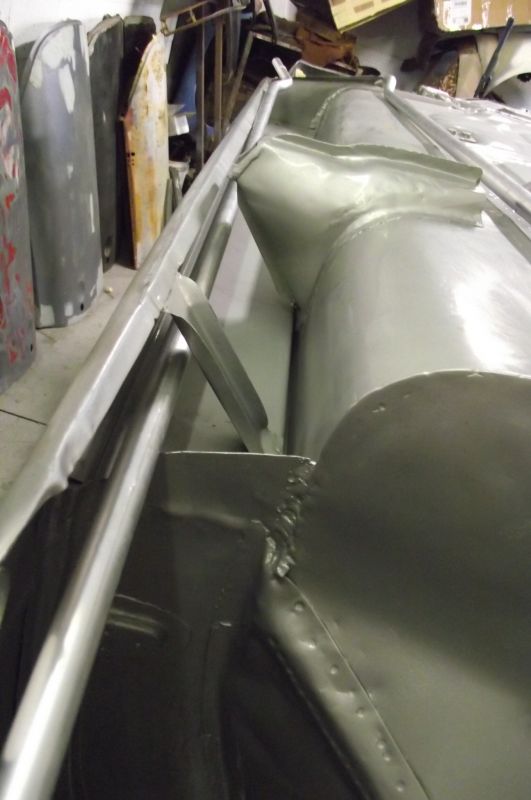

      Thankfully got the recess cuts for the uprights and harness tube in the right place. Left side has been flanged over and will need a little heli-arcing but its there.

      Click image for larger version

Name:	547668.jpg
Views:	113
Size:	37.9 KB
ID:	6915
      Drilled the outer side mounting holes here.
      Click image for larger version

Name:	547661.jpg
Views:	101
Size:	41.5 KB
ID:	6916
      Aside from the uprights sticking through it looks close enough to my sample photo.

      Click image for larger version

Name:	547669.jpg
Views:	101
Size:	43.2 KB
ID:	6917

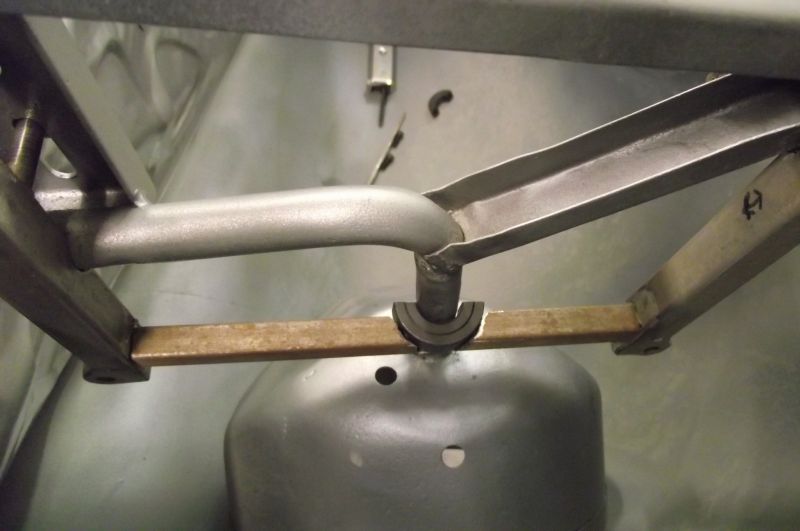

      Fits nicely with the collar clamp. Inner flange needs a little tig-welding but its there.
      Click image for larger version

Name:	547664.jpg
Views:	108
Size:	42.3 KB
ID:	6918
      Basically done with this. Onto the front ducting next. Thanks for reading this! Justin
      Justin Rio

      Comment


      • Perfect Justin, the Japanese 'origani' paper folding experts would be proud for you to join their club I think.

        Looks factory for sure!

        Roy

        Comment


        • Thanks Roy, I'm glad you like it so far! Here's a bit more oragani but I'm not quite ready to join a club yet.

          When I began this front oil cooler side project it did not compute as to how much time and work it was going to turn out to be. You think I would have learned by now. I have at least 20 solid sessions on this thing already. The good news is that its almost complete. I have some fine trimming on the upper front duct and fabrication on the lower section. After that I'm onto the hardlines.

          Click image for larger version

Name:	547696.jpg
Views:	115
Size:	57.5 KB
ID:	6942
          Initial paper template for the front ducting shroud. Basic shape there. Time for a second template based on this one to begin cleaning up the shape.

          Click image for larger version

Name:	547692.jpg
Views:	114
Size:	37.2 KB
ID:	6943
          here's the inside, Very rough and fish plated example to get all the gaps filled and correct shape. A change in plans was including the turnsignal light inside of this housing. My original plan was to have the mouth of this duct match the horn grille opening. However the angle needed to clear the light base was way to steep and would disrupt the air flow to the outer face of the cooler. Its a smooth and straight shot this way.

          Click image for larger version

Name:	547698.jpg
Views:	106
Size:	52.3 KB
ID:	6944

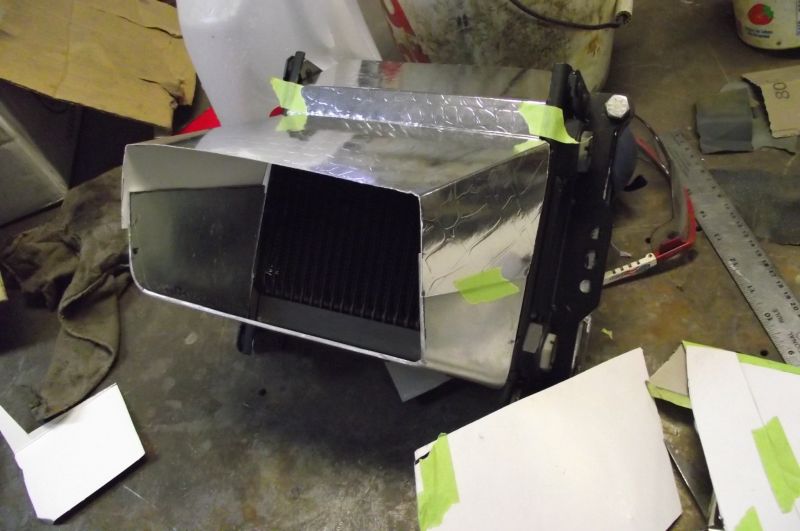

          second template. A much clearer picture is coming into focus. Just a about to move onto metal.
          Click image for larger version

Name:	547704.jpg
Views:	107
Size:	38.7 KB
ID:	6945

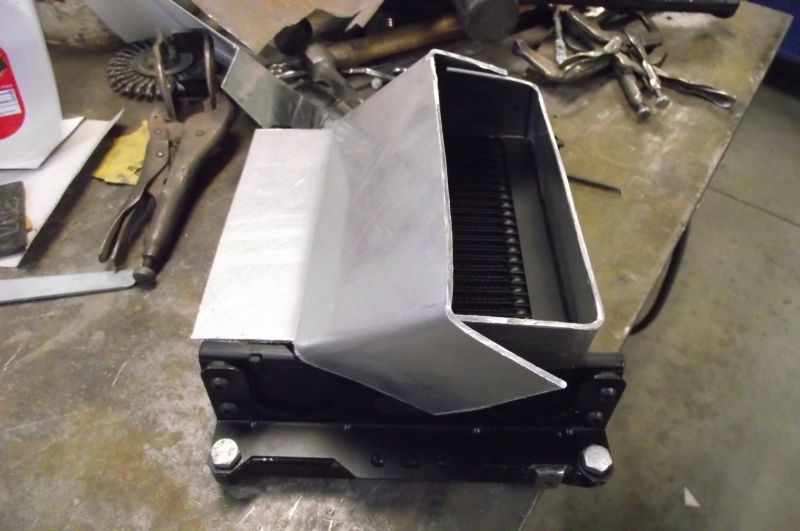

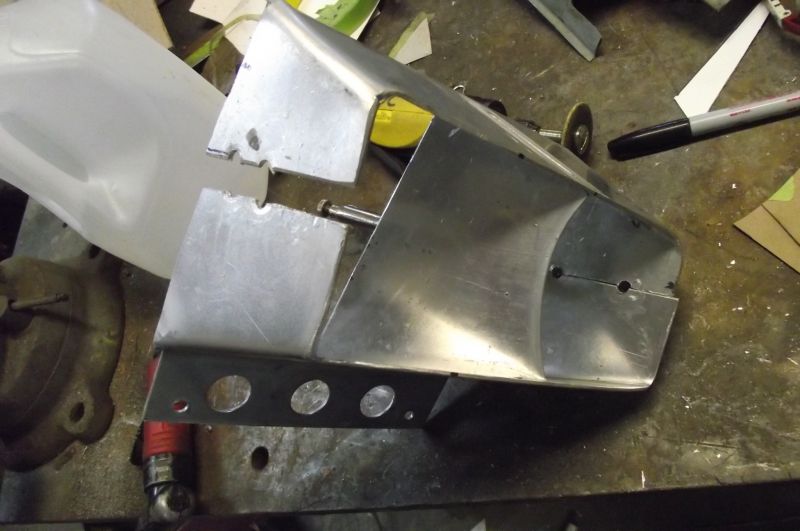

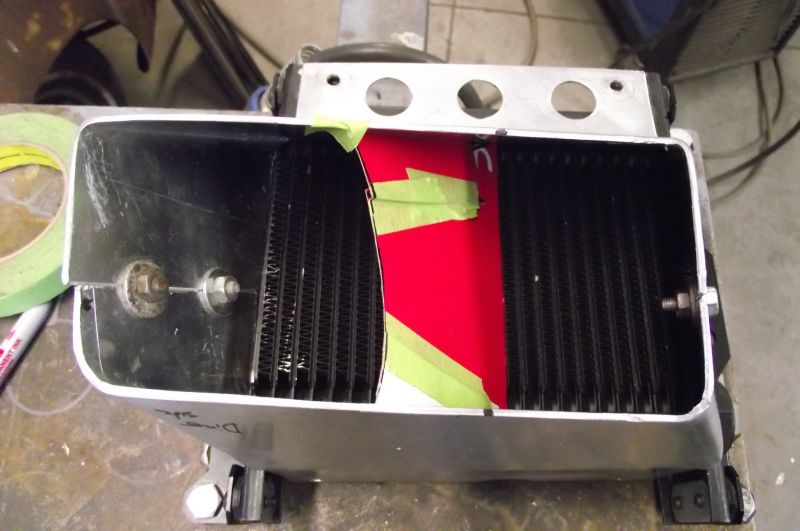

          Upper half of the front duct fabricated. Once I was comfortable with the fitment of the second template; I went ahead and fabricated this section. An all day project just to get it this far.

          Click image for larger version

Name:	547703.jpg
Views:	106
Size:	44.6 KB
ID:	6946

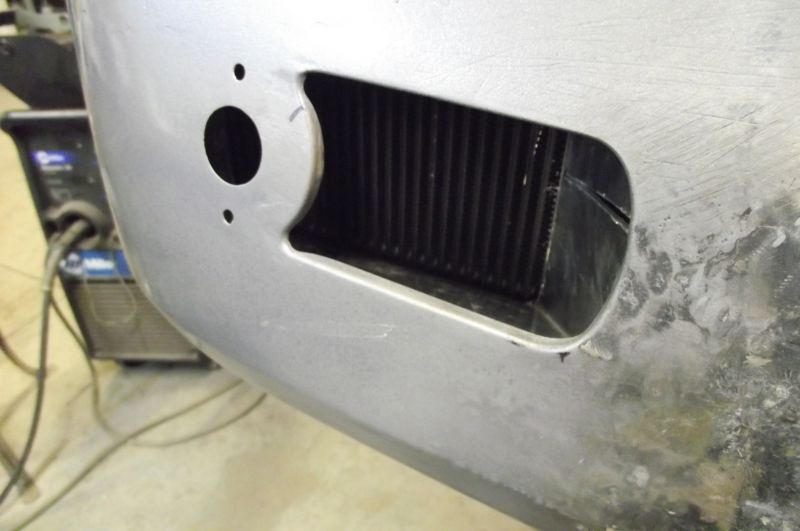

          here is that straight on feed created by bringing the turnsignal light into this housing.

          Click image for larger version

Name:	547708.jpg
Views:	111
Size:	45.1 KB
ID:	6947
          The front and rear housing interlock for a smooth transition.

          Click image for larger version

Name:	547712.jpg
Views:	93
Size:	39.4 KB
ID:	6948

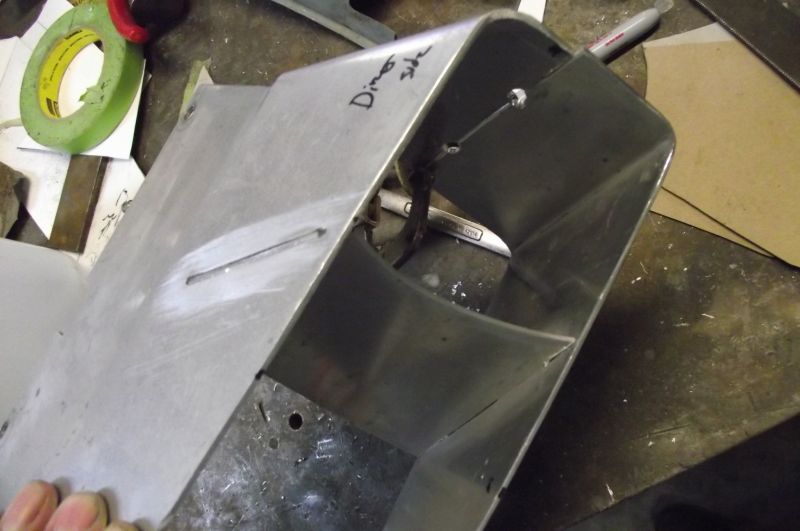

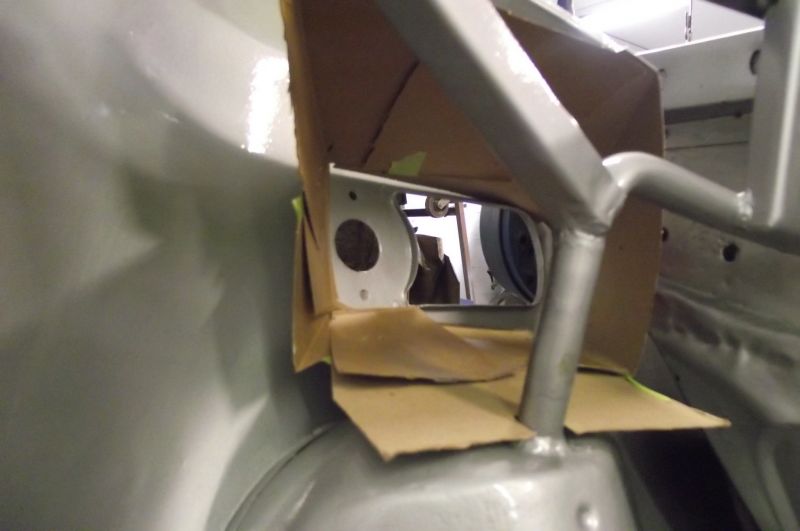

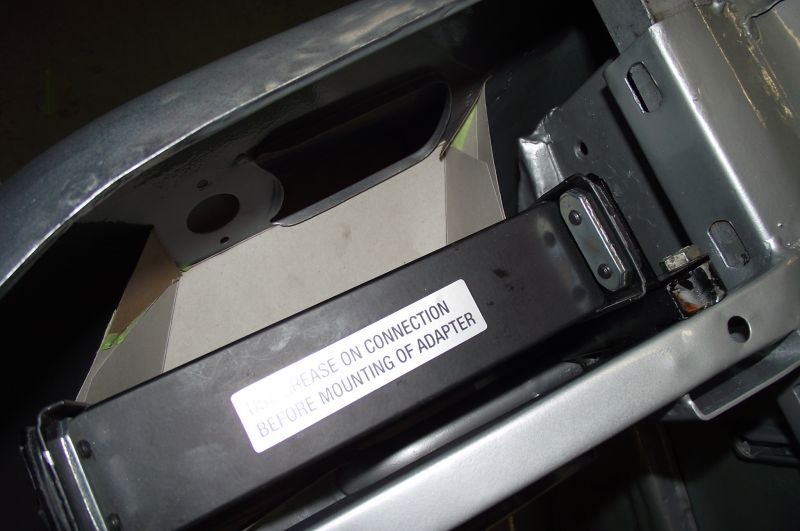

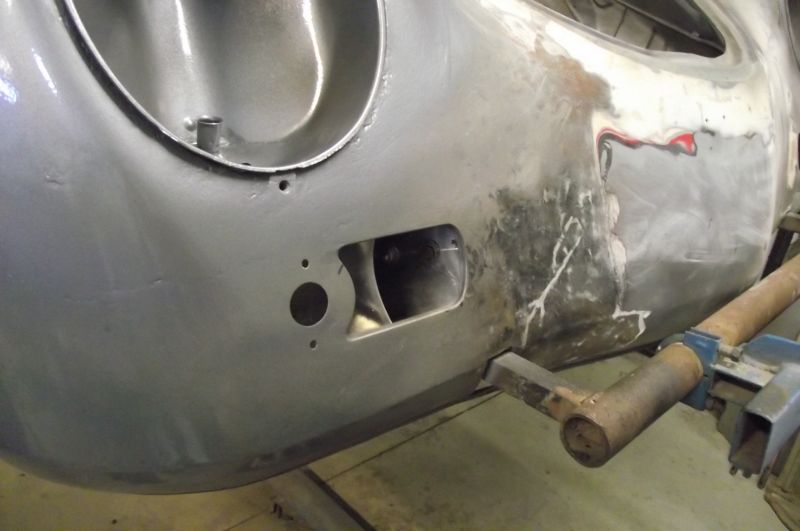

          trial fitments with lots of trimming to go. The leading edge will not touch the body, there will be a rubber seal between the two when finished.

          Click image for larger version

Name:	547709.jpg
Views:	102
Size:	39.3 KB
ID:	6949
          Beginning paper templates for the lower section next.
          Justin Rio

          Comment


          • It took a while but I Finally wrapped up the basic fabrication and mounting of this lower duct section. I had so much time invested in mounting the cooler that it was becoming hard to keep the motivation up to finish this last major section.

            Click image for larger version

Name:	547728.jpg
Views:	94
Size:	54.7 KB
ID:	7061

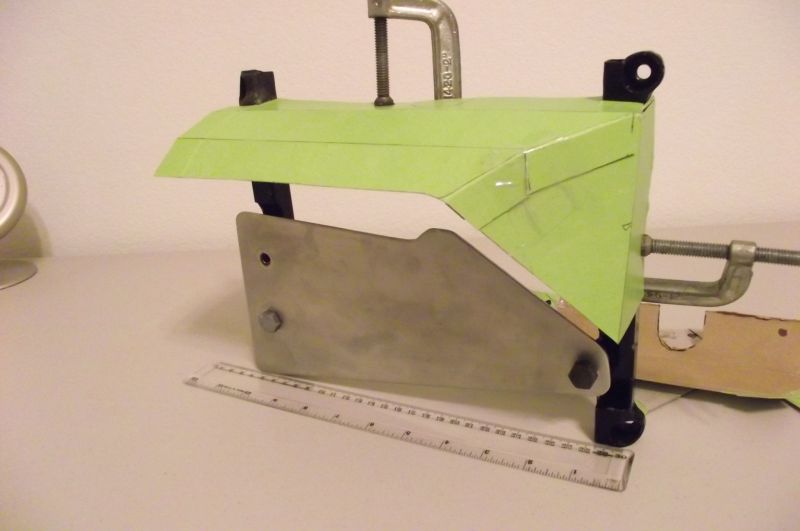

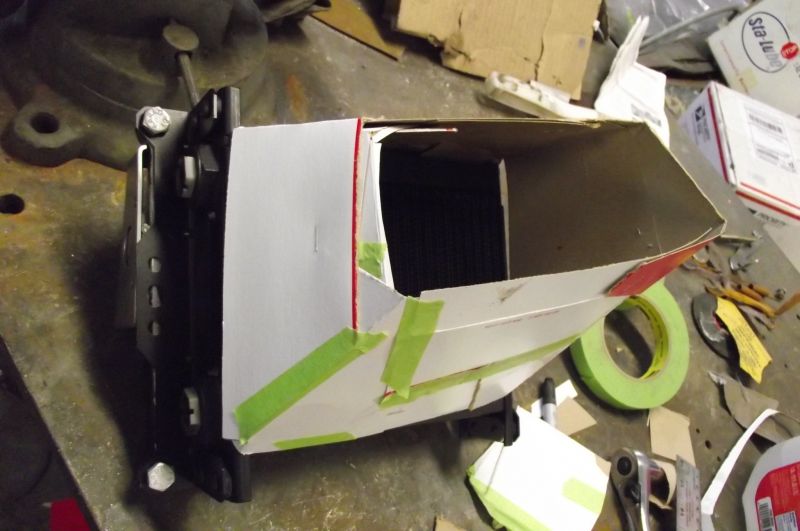

            three generations of cardboard templates later I had my final model.

            Click image for larger version

Name:	547731.jpg
Views:	92
Size:	46.9 KB
ID:	7062
            In again for its one of many test fits.
            Click image for larger version

Name:	547733.jpg
Views:	92
Size:	54.3 KB
ID:	7063

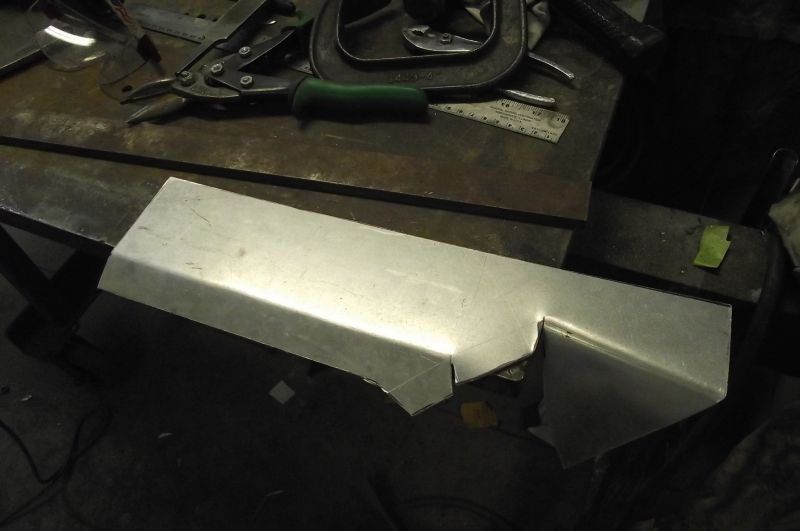

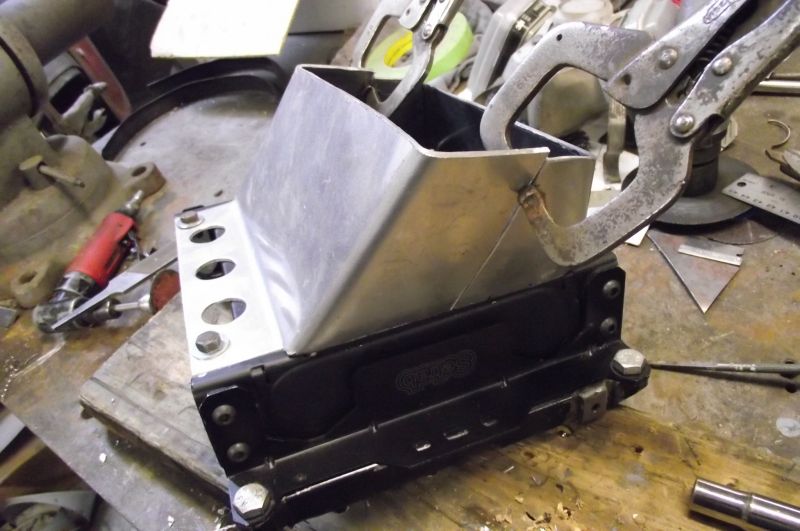

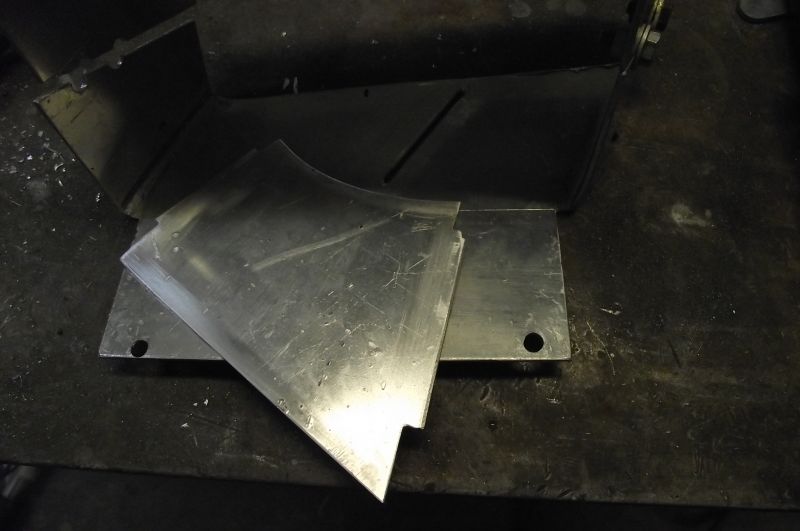

            Finally able to move onto metal. Piece cut and putting in the bends here.
            Click image for larger version

Name:	547734.jpg
Views:	94
Size:	55.6 KB
ID:	7064
            Very basic shape here.
            Click image for larger version

Name:	547736.jpg
Views:	109
Size:	55.1 KB
ID:	7065
            Lots of fine trimming and bend tweaking still to come.
            Click image for larger version

Name:	547737.jpg
Views:	124
Size:	62.6 KB
ID:	7066

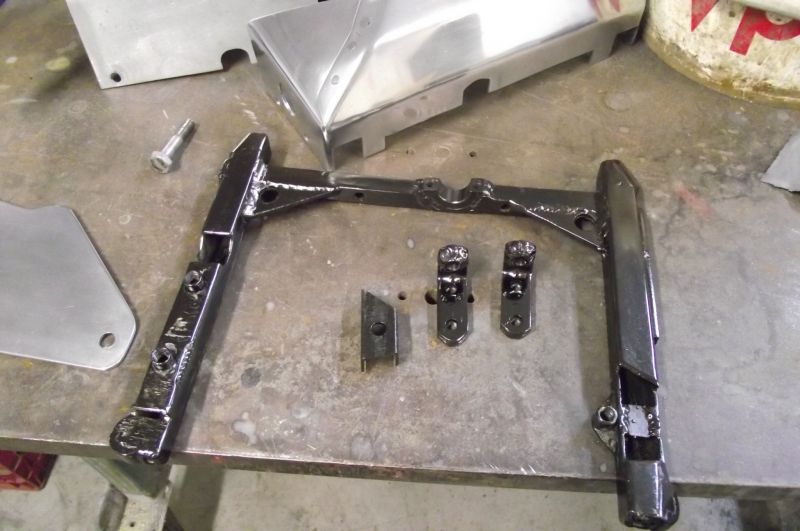

            Along the way I decided on how I was going to mount the lower section to the cooler. I had these generic L-brackets on hand and figured I could make the cooler nut plate a compound mount.

            Click image for larger version

Name:	547739.jpg
Views:	94
Size:	56.9 KB
ID:	7067
            Right bracket plug welded together. Left side still to do along with some final cutting for length.
            Click image for larger version

Name:	547741.jpg
Views:	88
Size:	68.7 KB
ID:	7068
            With the lower mounts set I was able to finish off most of the trimming and final shaping.

            Click image for larger version

Name:	547743.jpg
Views:	97
Size:	49.1 KB
ID:	7069

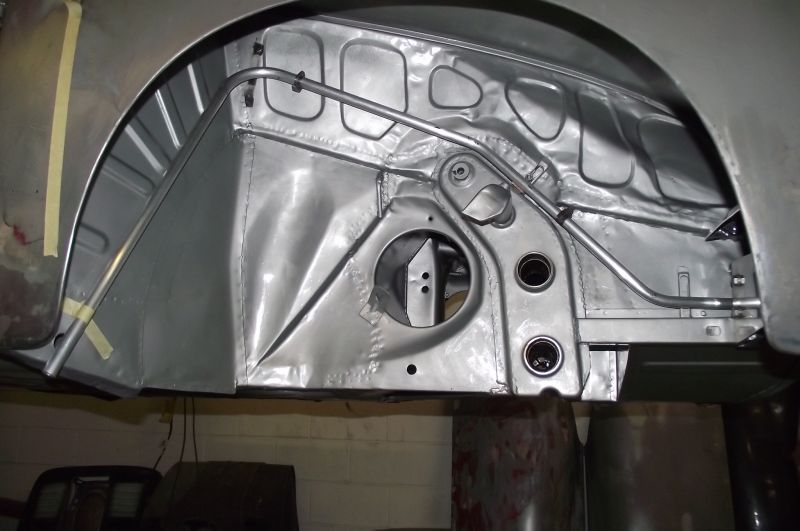

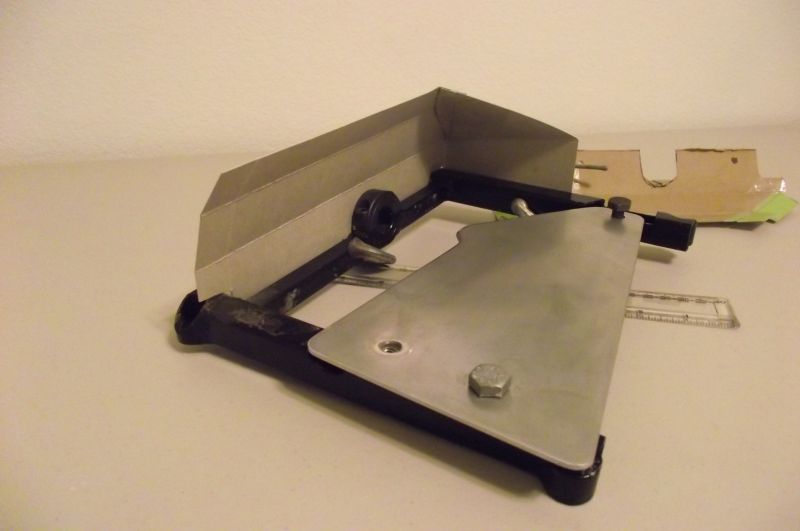

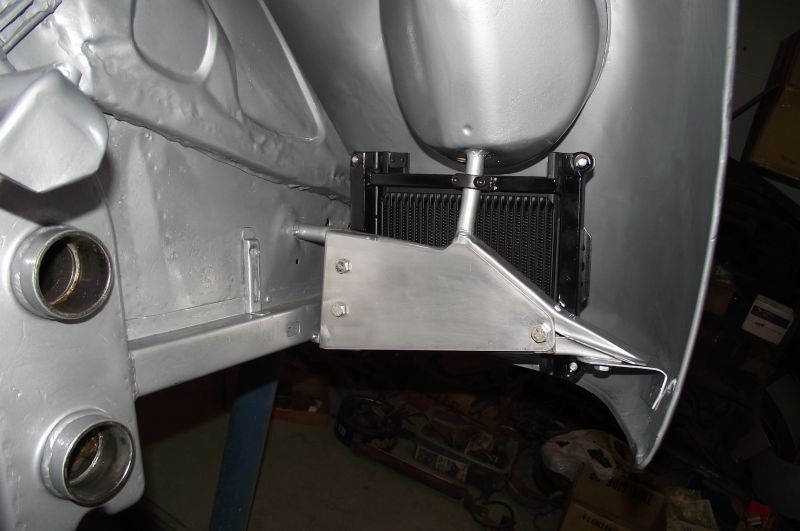

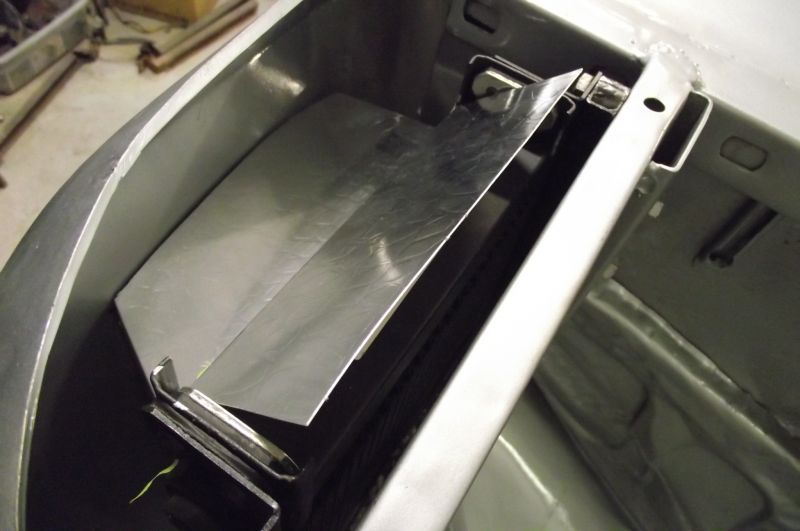

            Mocked up in the car. It fits!! Lower L brackets trimmed to final shape.

            Click image for larger version

Name:	547744.jpg
Views:	83
Size:	36.8 KB
ID:	7070
            Profile view.
            Click image for larger version

Name:	547745.jpg
Views:	96
Size:	46.6 KB
ID:	7071

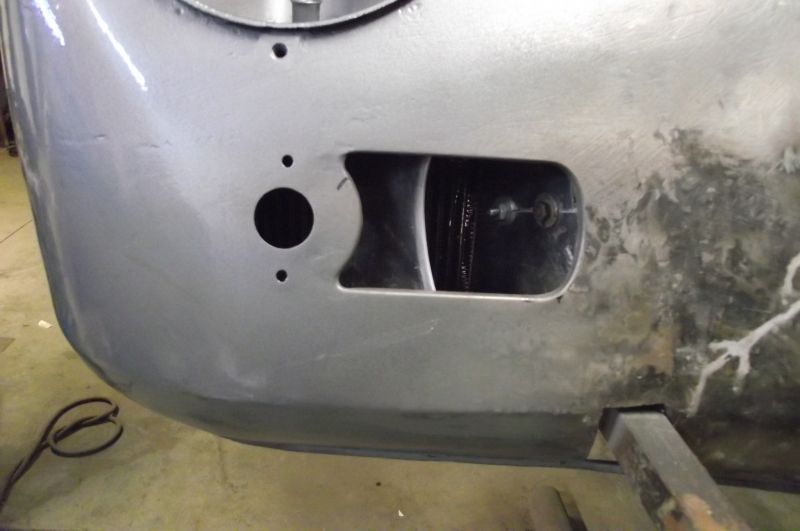

            View through the inlet. Just have to fabricate a vein but its a simple flat piece.

            Click image for larger version

Name:	547750.jpg
Views:	85
Size:	45.9 KB
ID:	7072
            A very long road to get here but I can live with it! A little trimming, welding and a vein still to do but its basically there. Thanks for looking at this! Justin
            Justin Rio

            Comment

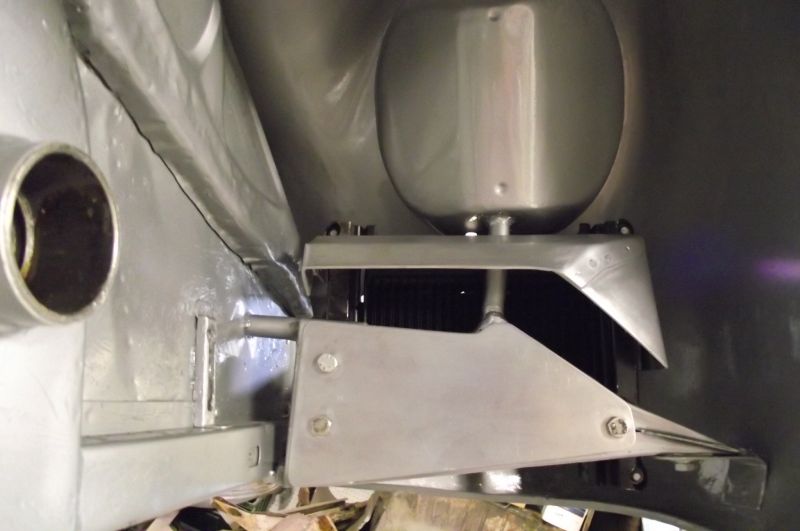

            • Finished the vein! I'm officially done mounting this oil cooler and building its alloy shroud. Just have to get it all heli-arced but I'm done making parts for this conversion. Can't believe how involved it all became.

              Click image for larger version

Name:	547756.jpg
Views:	87
Size:	56.0 KB
ID:	7138

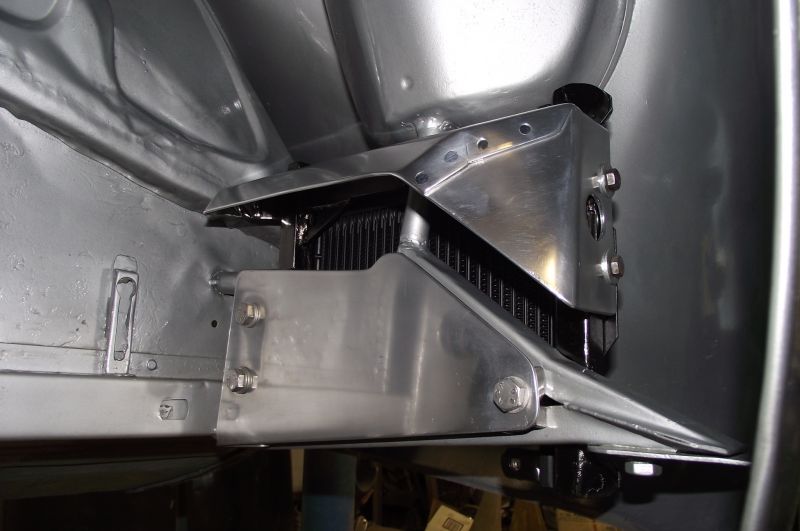

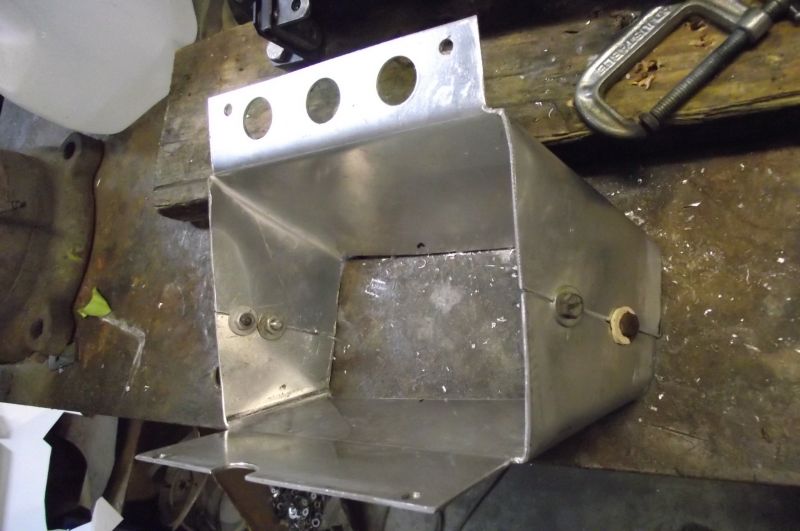

              All the fine trimming and fitment to the cooler complete. Bolted it together so I could make the vein template and to get it ready for welding.

              Click image for larger version

Name:	547762.jpg
Views:	109
Size:	58.2 KB
ID:	7139

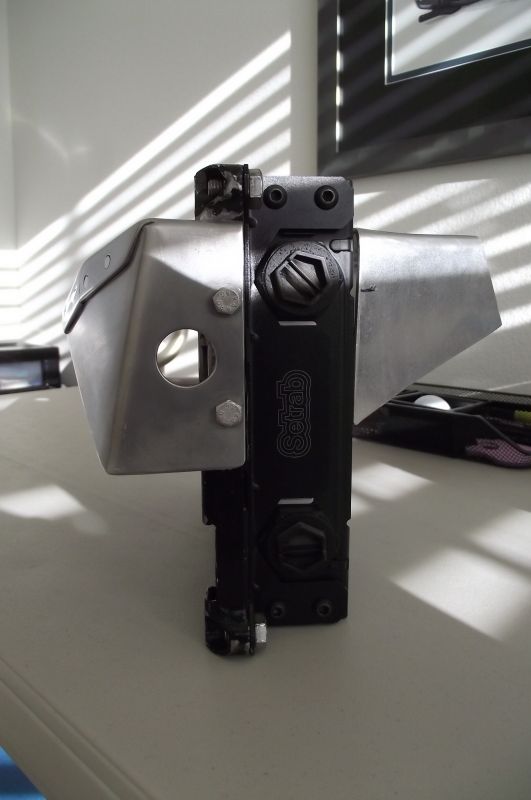

              Basic position and shape.
              Click image for larger version

Name:	547760.jpg
Views:	97
Size:	40.8 KB
ID:	7140
              Mocked up with this nose section. Happy enough to move onto metal.

              Click image for larger version

Name:	547773.jpg
Views:	103
Size:	43.1 KB
ID:	7141
              final cut out shape in metal. Note the stepped edges for a mount/flange with the housing.
              Click image for larger version

Name:	547764.jpg
Views:	83
Size:	55.0 KB
ID:	7142
              lots of careful trimming to get it to fit and close tightly again.
              Click image for larger version

Name:	547765.jpg
Views:	97
Size:	50.3 KB
ID:	7143
              With its final position determined I put these relief cuts in both side so the center stepped portion of the vein would poke through for a clean and strong weld joint.

              Click image for larger version

Name:	547766.jpg
Views:	79
Size:	50.9 KB
ID:	7144
              Inside joints will be clean and all welding will be to the outside.

              Click image for larger version

Name:	547771.jpg
Views:	78
Size:	56.1 KB
ID:	7145
              Almost there, just a little more trimming still but its getting tighter.
              Click image for larger version

Name:	547779.jpg
Views:	77
Size:	43.1 KB
ID:	7146

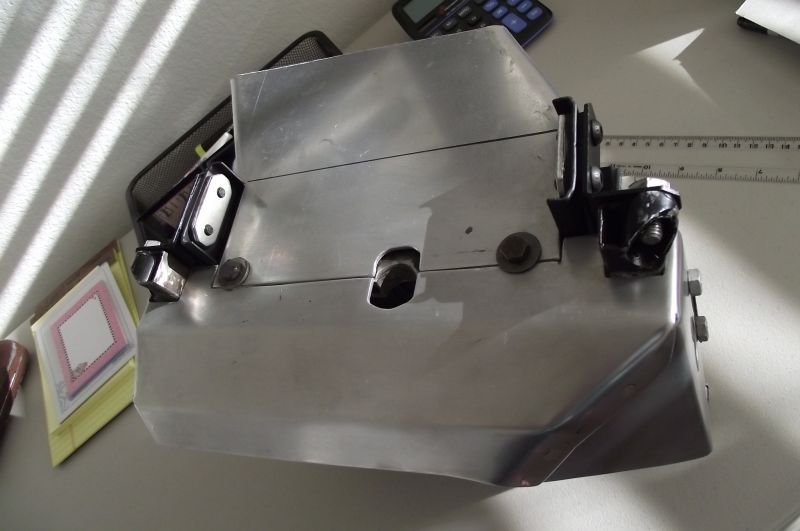

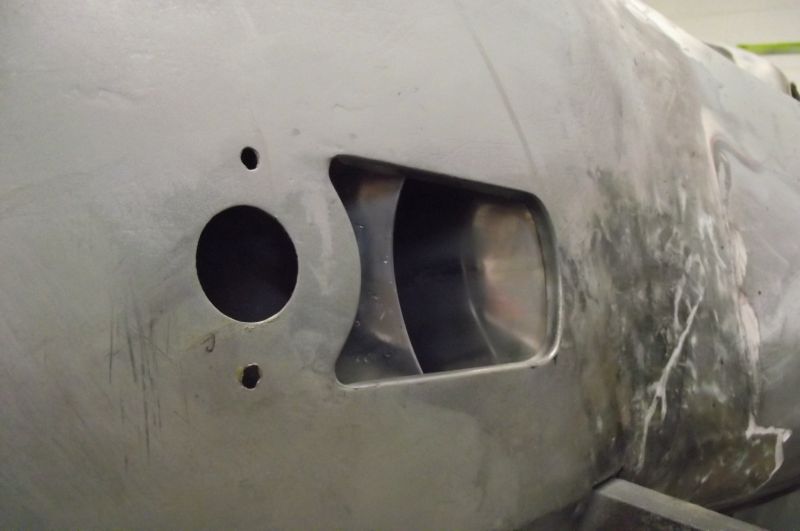

              Done! Back on the car for yet another test fit!
              Click image for larger version

Name:	547777.jpg
Views:	92
Size:	45.9 KB
ID:	7147
              I'm happy! Just gotta get it welded together.
              Justin Rio

              Comment

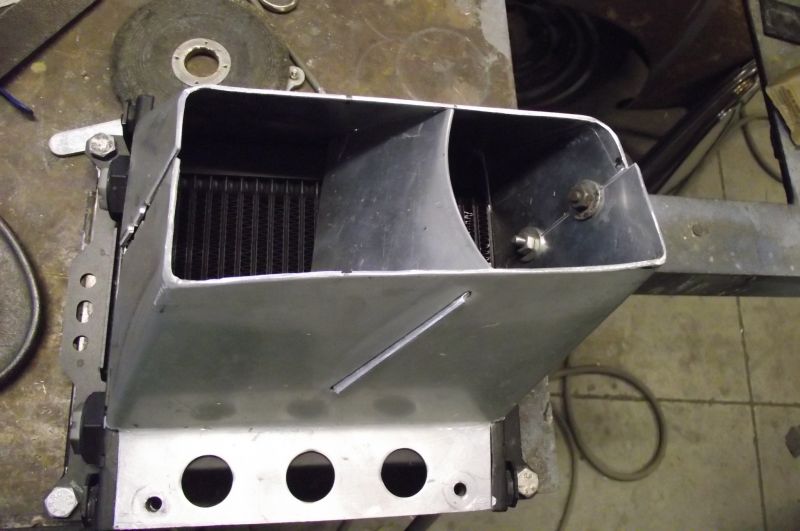

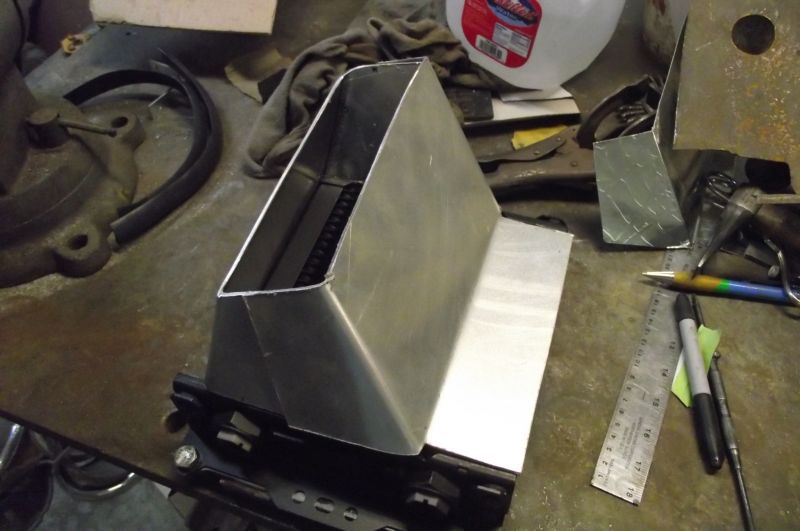

              • Ducting all tigged-up!

                Click image for larger version

Name:	carrera030A.JPG
Views:	73
Size:	54.2 KB
ID:	7149

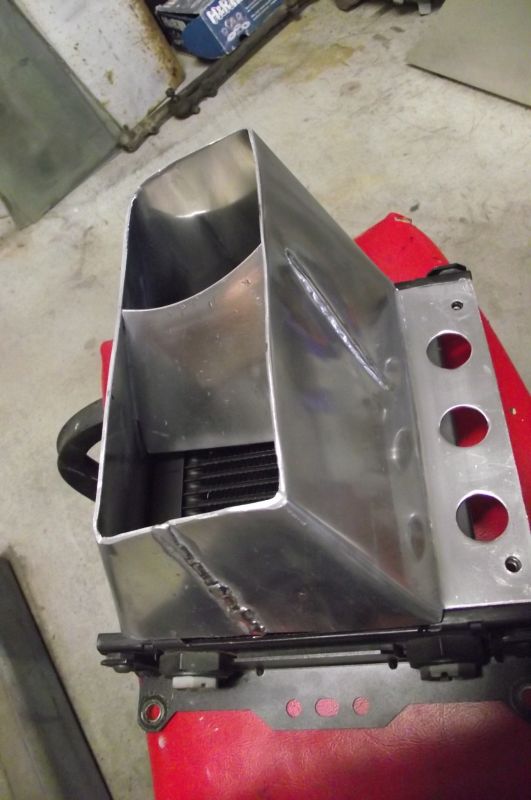

                front duct all tigged up and ready to go! finally done with this! More time and work than then i thought it was going to be. Always is...

                Click image for larger version

Name:	carrera031A.JPG
Views:	72
Size:	49.3 KB
ID:	7150

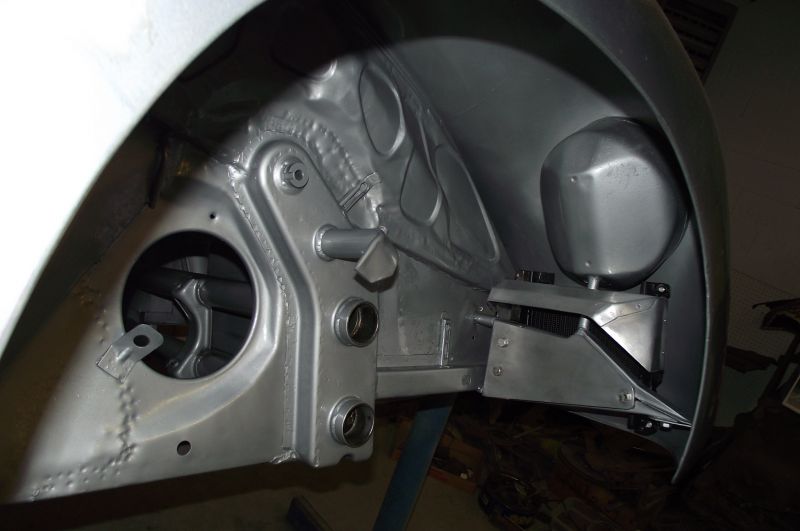

                Another test fit! no distortion and no fitment issues.
                Click image for larger version

Name:	carrera037A.JPG
Views:	90
Size:	36.3 KB
ID:	7151
                filed and polished the outer joint seam since it is very visible. I'm happy with it, only some detail polishing down the road. Cooler and ducting are mounted solid in here. I can grab that center deflector plate and really crank on it with virtually no flex. The car starts rocking first. Really done fabricating this unit now. Sending the mounting chassis out for coating, With everything set as far as shrouds go I was able to finalize this frame. Instead of paint I decided to have it all plated.The chromer here in town offers a really cool translucent black nickle plate finish which I think should look great! Even though you wont see most of it.


                Click image for larger version

Name:	547780.jpg
Views:	78
Size:	56.3 KB
ID:	7152

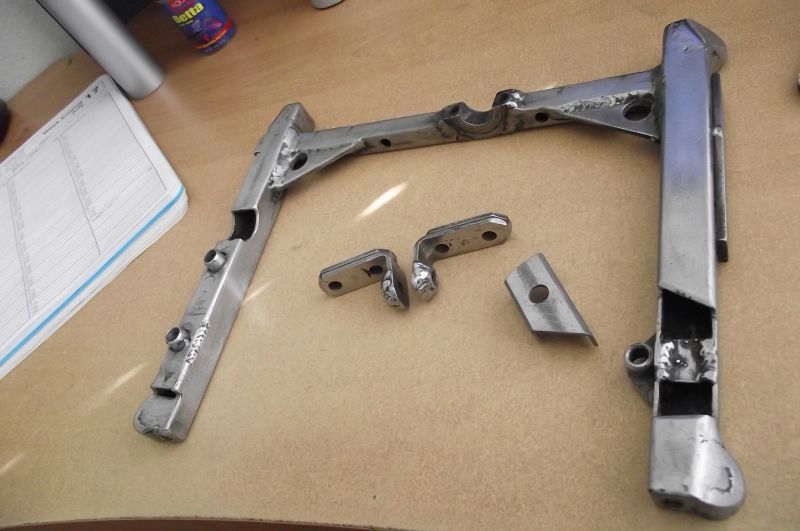

                A tortured piece of metal! Many cuts, splices, welding and grinding to get it to do all that I needed and to line up and fit. Not much to look at but this repesents a huge chunk of my time. There are 14 tapped holes in this little frame. It does several jobs at once, which is what I like. Frame and brackets ready for the plater. Straight plating with no polish by the way. I told him not to bother I just wanted a coating on it. Besides I did not want to risk this thing getting tweeked out of shape if it got clipped on the polisher.


                Click image for larger version

Name:	547783.jpg
Views:	79
Size:	64.2 KB
ID:	7153
                Back from plate. Very cool and unique color tint. I'd really like to do my roll-bar in this as well but the chromers charge double over just regular chrome rates; these four small pieces alone were 110.00. A large item like the hoop may prove too expensive to justify. I'll look into it though.

                Click image for larger version

Name:	547784.jpg
Views:	91
Size:	75.2 KB
ID:	7154

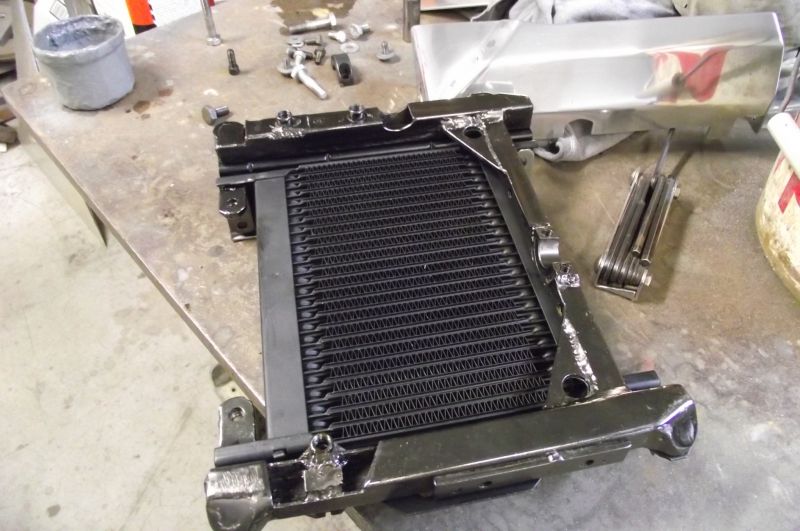

                reassembly begins yet again!
                Click image for larger version

Name:	547785.jpg
Views:	71
Size:	48.4 KB
ID:	7155

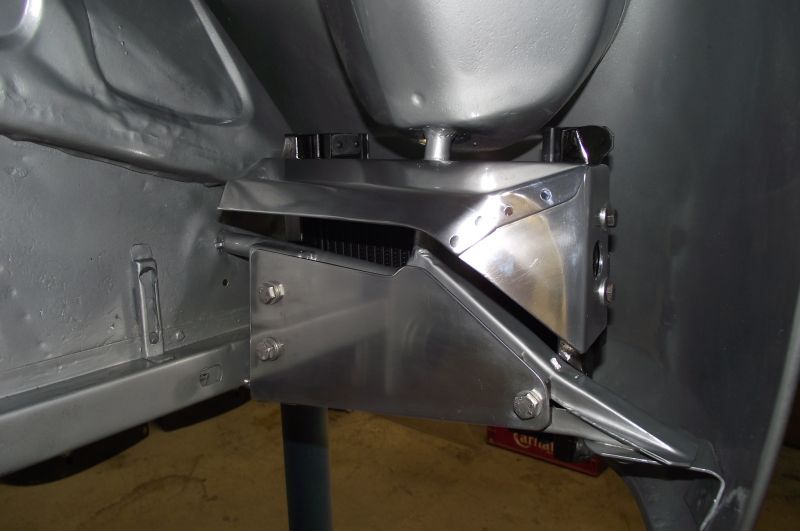

                Mounted one more time!
                Click image for larger version

Name:	547788.jpg
Views:	70
Size:	50.4 KB
ID:	7156
                Don't really see too much of it once all the shrouding is on but what does show ties in real nice with the alloy I quickly hand polished. Best of all its not going to chip like regular paint would have.BTW used all original NSF hardware to hold this entire unit together.

                Click image for larger version

Name:	547787.jpg
Views:	71
Size:	42.6 KB
ID:	7157
                The easiest assembly sequence for this contraption means the cooler unit must come out first and go in last. This means the sub-frame and flat deflector shield are most likely in for good at this point. Okay done with this; onto hardlines now. Thanks for looking at this! Justin
                Justin Rio

                Comment


                • Super Nice fabrication and finish work. Its more like a work of art .

                  Comment


                  • great result

                    Roy

                    Comment


                    • Thank you Bruce! That is really a very nice compliment; I appreciate it!
                      Thank you too Roy! It was a very long road just to get this far. The hardlines are next which posed thier own set of problems. Thanks once again! Justin

                      Now with the cooler mounted and covered I went ahead and ordered the tubing and the bender for the hardlines.

                      Click image for larger version

Name:	carrera20103.JPG
Views:	83
Size:	44.8 KB
ID:	7165

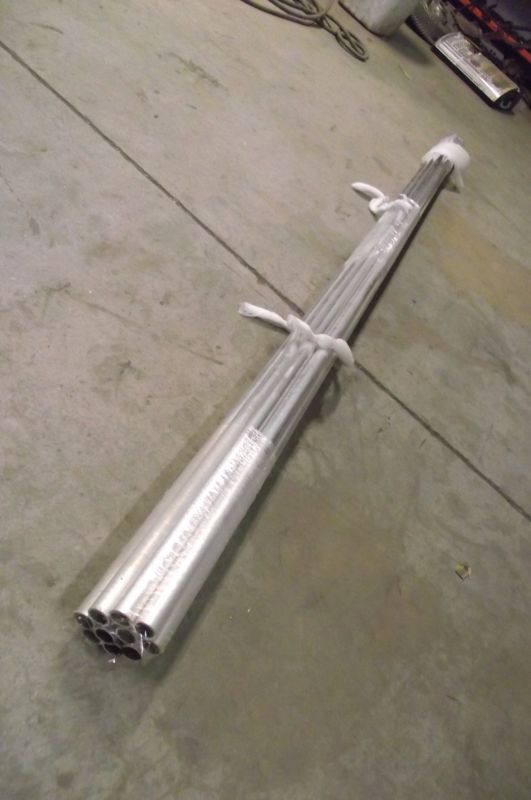

                      My shipment of 18mm T6060 alloy tubing the day it arrived.
                      Click image for larger version

Name:	carrera105A.JPG
Views:	95
Size:	56.2 KB
ID:	7166

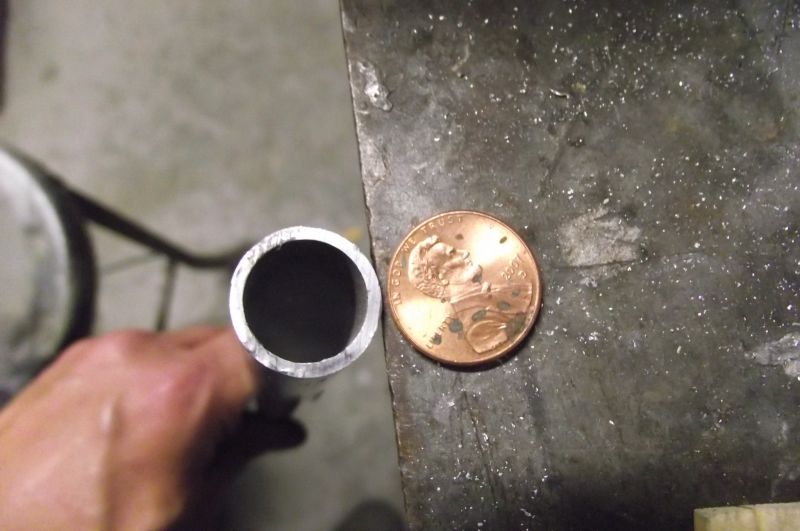

                      this is going to be an oversized Carrera system like the one Warren Eads built for his '58 GT coupe. A few MM's bigger then a stock system and a MM smaller then a stock 911 unit. Right in the middle; should be fine for that 4 cylinder going in.

                      Click image for larger version

Name:	carrera107A.JPG
Views:	81
Size:	48.6 KB
ID:	7167

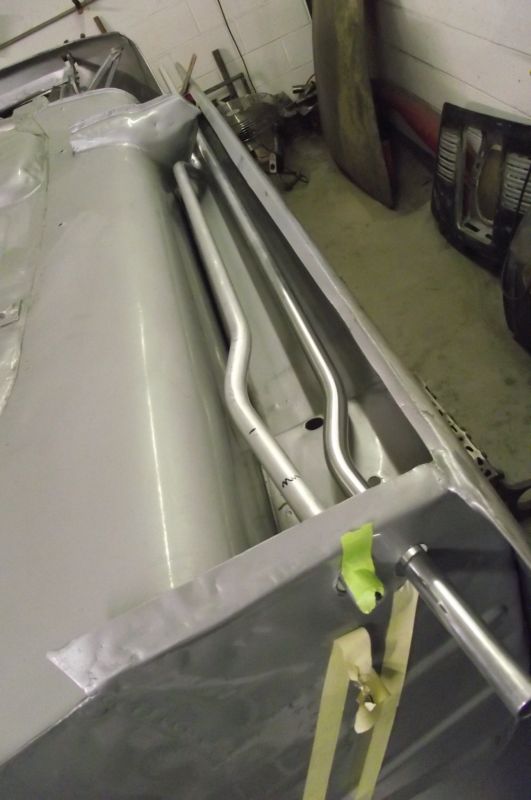

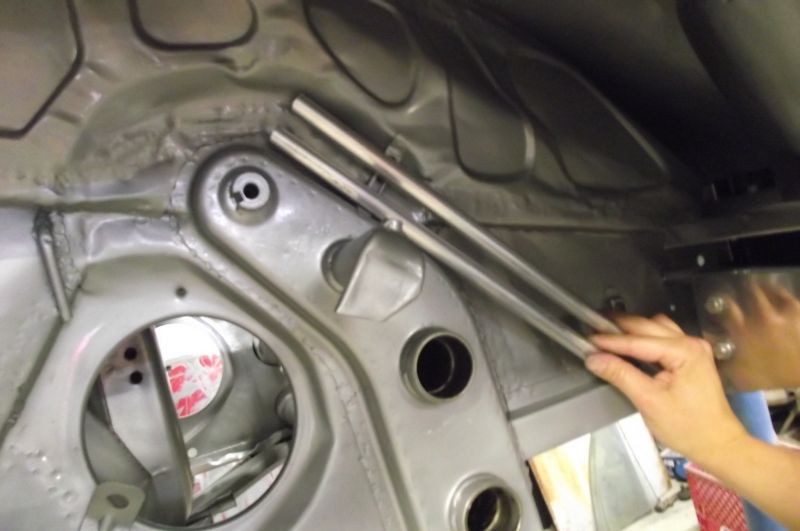

                      Just having a quick look at how the system might look with the bracket placement from page 30. A couple of scrap ends that were included in the shipment are pictured here. I could not do a thing until the bender arrived. Thanks for stopping by! Justin
                      Justin Rio

                      Comment

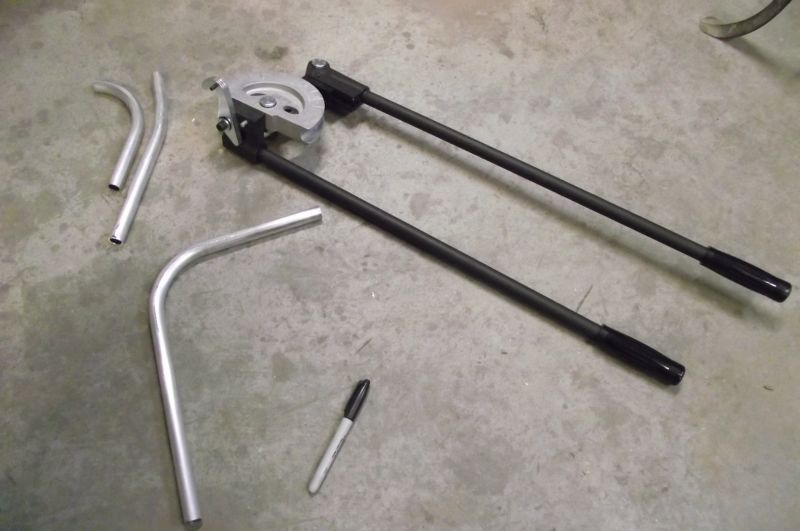

                      • Once the bender arrived this new journey began.


                        Click image for larger version

Name:	carrera120A.JPG
Views:	85
Size:	52.8 KB
ID:	7174
                        Bender worked beautifully. Getting to know it here with varying degrees of bend in my scrap pieces.


                        Click image for larger version

Name:	carrera121A.JPG
Views:	85
Size:	53.0 KB
ID:	7173

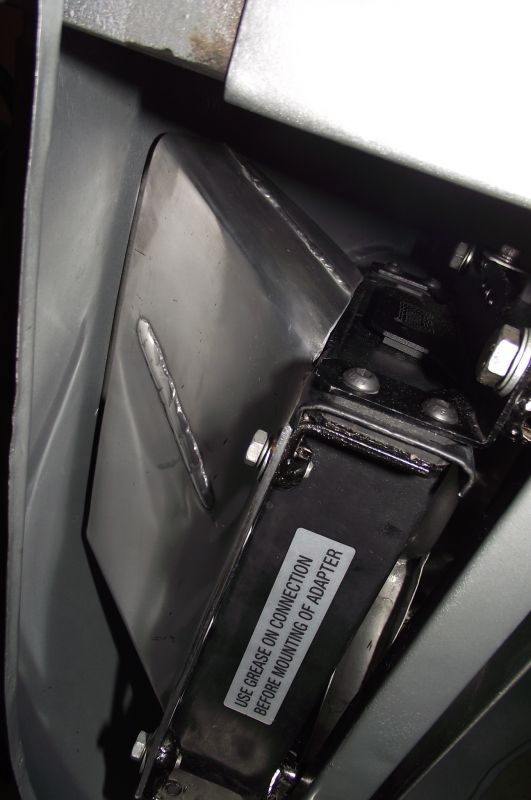

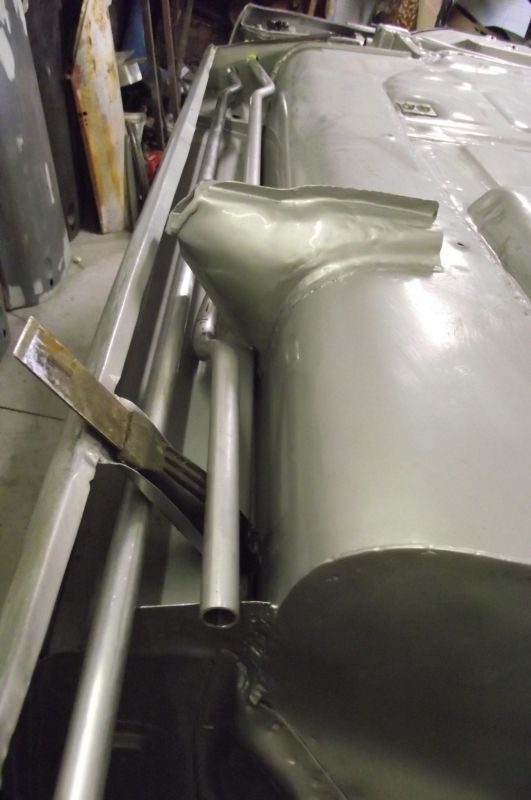

                        Here is when I learned that this bracket was in the wrong place. It sits too close and is in the radious. I'd have to move it forward for a proper fit. Fortunately this is the only brakcet up here that would need to be remount.



                        Click image for larger version

Name:	451AA.JPG
Views:	74
Size:	40.2 KB
ID:	7176

                        Same process as the rest of the work on this project; gradual progress with many repeated test fits to get the shape and fitment I'm after.


                        Click image for larger version

Name:	453AA.JPG
Views:	95
Size:	37.3 KB
ID:	7175

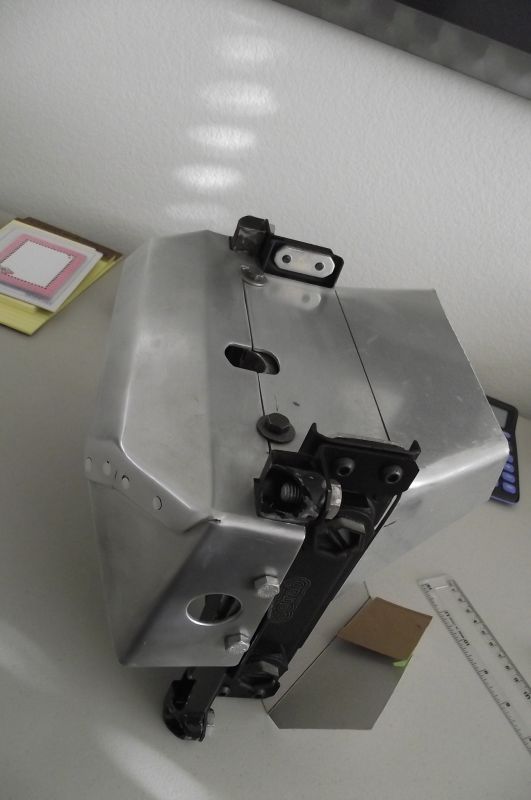

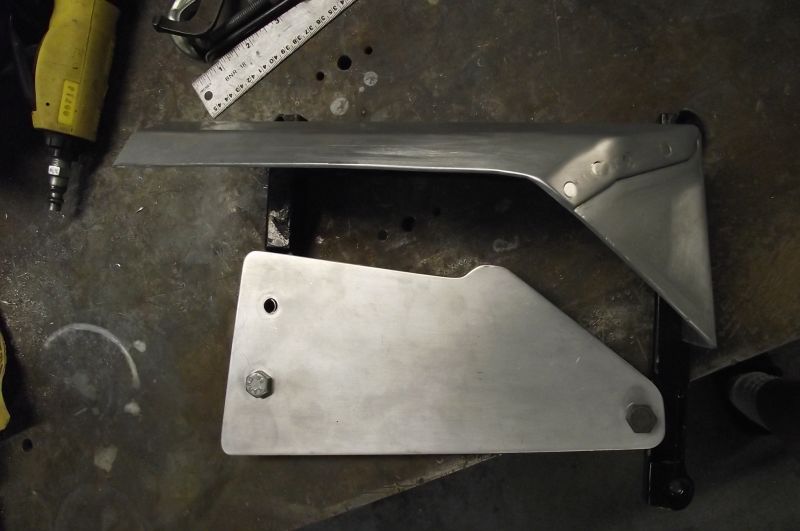

                        Rocker sections will need this "S" shape to meet flush and square with the splash pan and clear the access hole for the hinge pin. Playing with shapes using this test piece, its getting close to what I'm after. This is all part of getting aquanted with a new tool and a new task.
                        Justin Rio

                        Comment


                        • some progress on the oil line fabrication. I have been taking extra time planning and rethinking how each tube will lay before I commit to bending them. I've got over 300 bucks in this tubing alone and am really trying to avoid any mistakes or afterthoughts... But eventually you just have to jump in; which I did starting with the rocker sections. They will be the easiest, making them a perfect experience and confidence builder before I get into the real curly sections.

                          Click image for larger version

Name:	carrera136A.JPG
Views:	68
Size:	47.6 KB
ID:	7196

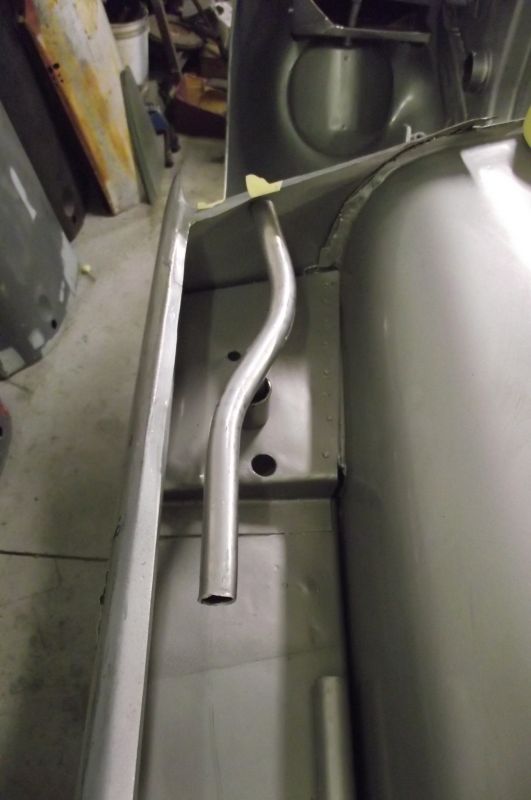

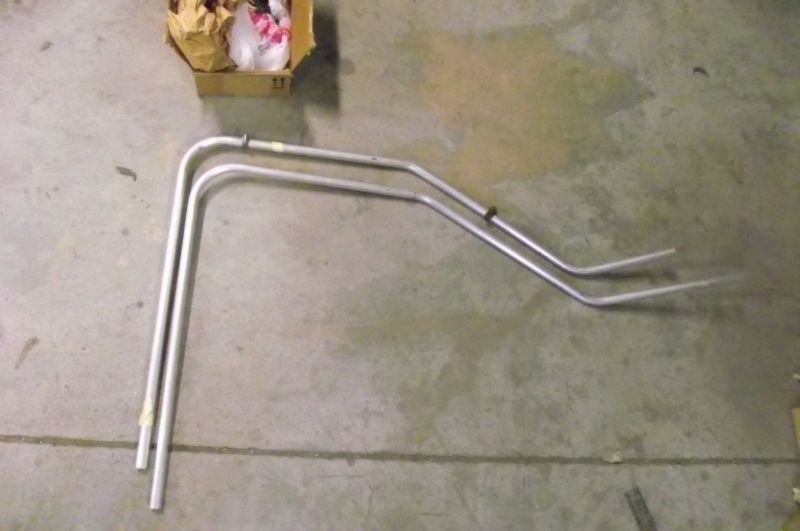

                          outer runner tube is going to be the simplest of this system. Once the two bends were set up front its just a straight shot out the back. Later 4-cams and Bill's Faux cam project have the rocker brace set horizontally and tied into the longitudinal. There are also some U-shaped reliefs cut into the door stricker flange for the oil lines. While this is the way it was done by the factory I cannot follow it. Same rule applies to the lines as with the oil cooler before; all modifications have to held to a bare minimum. With no reliefs being cut into the striker these lines will come out just a bit lower. A non invasive bracket will be fabricated to clamp onto either the rocker brace or flange to secure the ends on the lines. This will also eliminate the need for a mount flange to be welded to the jack spur like the factory did. Another little project down the road.

                          Click image for larger version

Name:	carrera138A.JPG
Views:	83
Size:	45.9 KB
ID:	7197
                          Front of both lines are pretty much set. Some fine adjustment down the road I'm sure.

                          Click image for larger version

Name:	carrera140A.JPG
Views:	69
Size:	36.4 KB
ID:	7198

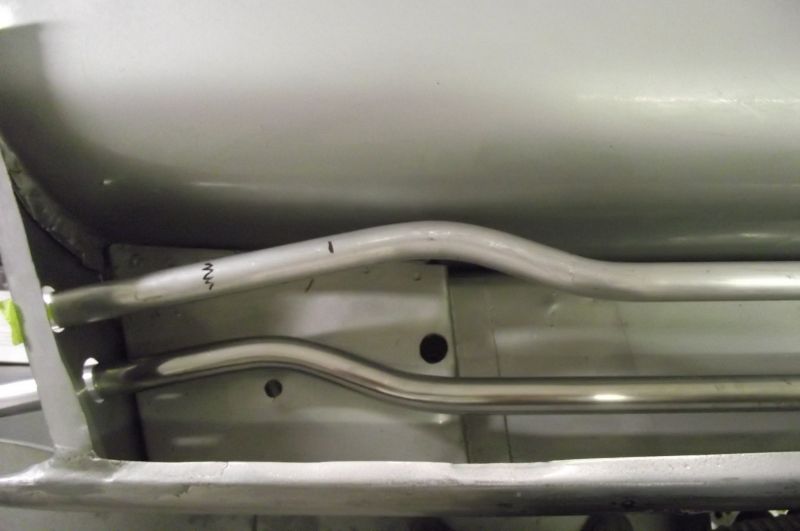

                          Both tubes are bent identically but by staggering thier placement a nice relief presents itself for a clear shot at the hinge pin access hole. This is one of those simple remedies that came into focus after hours staring at it and planning then replanning. My first ideas made it so much harder then it had to be. Always learning!

                          Click image for larger version

Name:	carrera135A.JPG
Views:	88
Size:	38.3 KB
ID:	7199
                          planning my next couple of bends to snake around the jack spur with this scrap stock. A plan is taking shape.


                          Rocker hardline section fabricated. One - third of the way there.
                          Click image for larger version

Name:	carrera153A.JPG
Views:	89
Size:	47.1 KB
ID:	7200

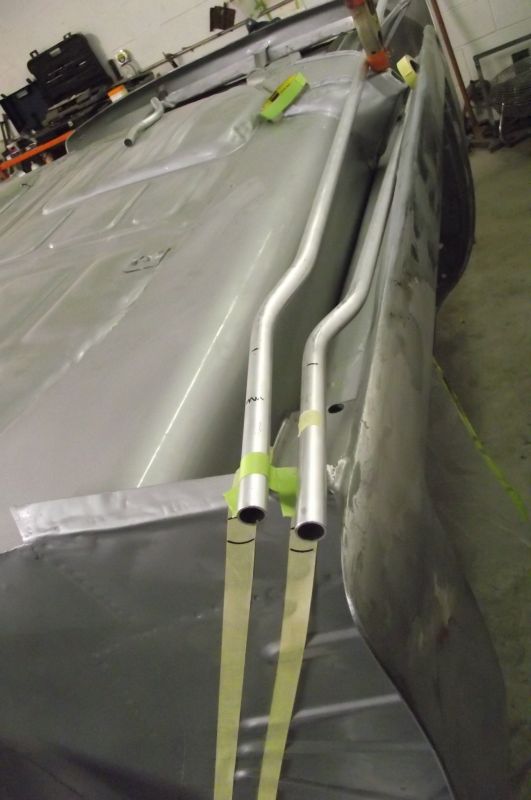

                          Both lengths installed and in thier final positions.
                          Click image for larger version

Name:	carrera154A.JPG
Views:	69
Size:	34.9 KB
ID:	7201

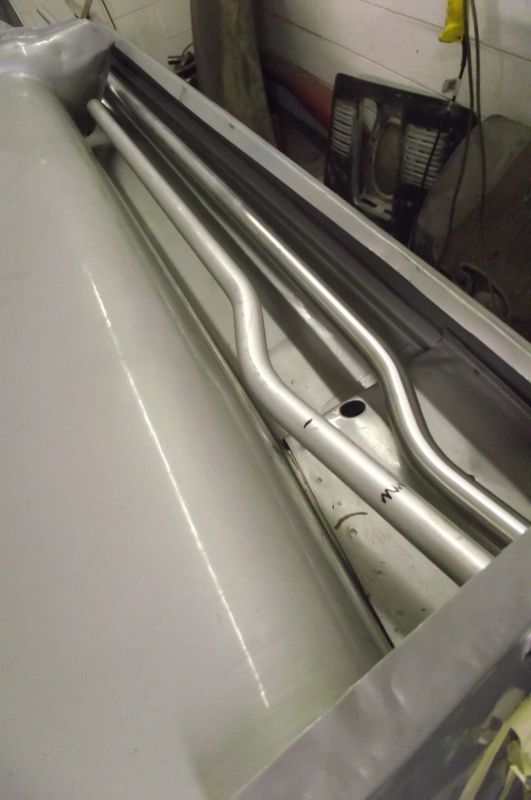

                          Relief bend for the spur was of course the trickiest. It Took extra time and care while bending it up in small stages. Fortunately it worked out okay.

                          Click image for larger version

Name:	carrera151A.JPG
Views:	68
Size:	46.2 KB
ID:	7202

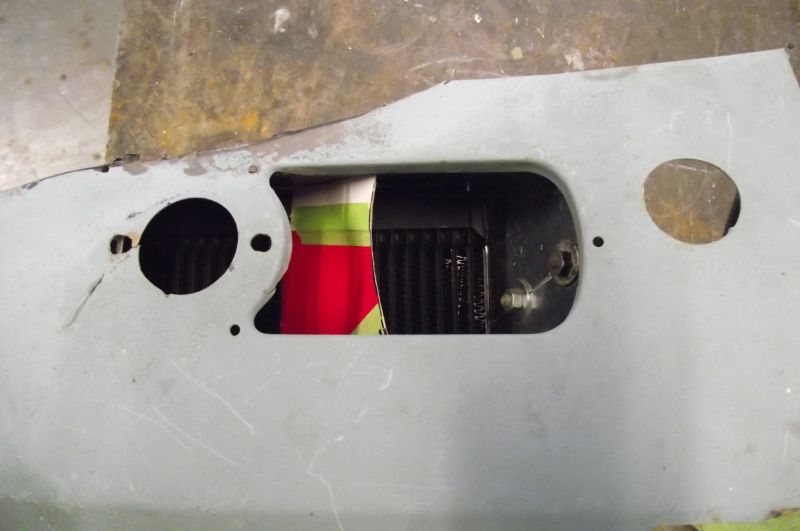

                          To feed the inner section into position I had to go ahead and punch the access holes into the splash pan. wasn't real excited about doing it but it had to be done. On the upside these two holes and two more holes into the engine compartment will be the most invasive modifications I have to make to the car for this entire system. Not too bad I guess.

                          Click image for larger version

Name:	carrera152A.JPG
Views:	89
Size:	36.2 KB
ID:	7203
                          with the bends set and the holes punched here are the tubes set in there best position for clearance. Did not care if the drain hole was blocked but it just worked out this way.

                          Click image for larger version

Name:	carrera155A.JPG
Views:	80
Size:	45.3 KB
ID:	7204

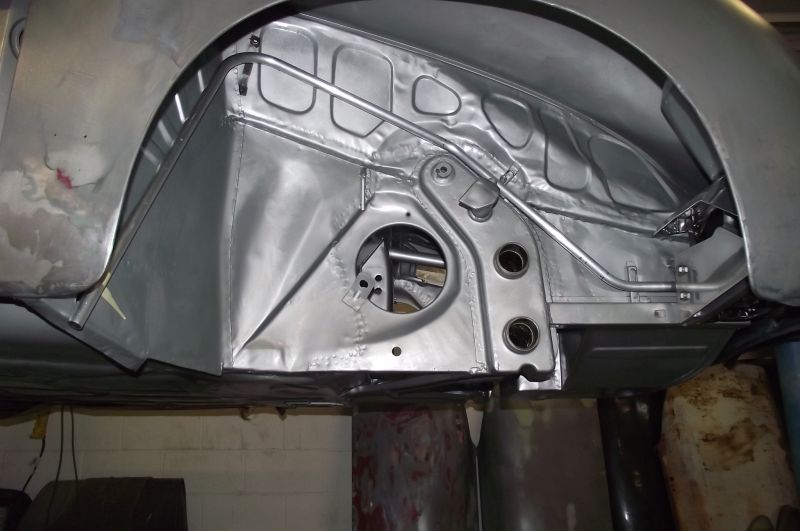

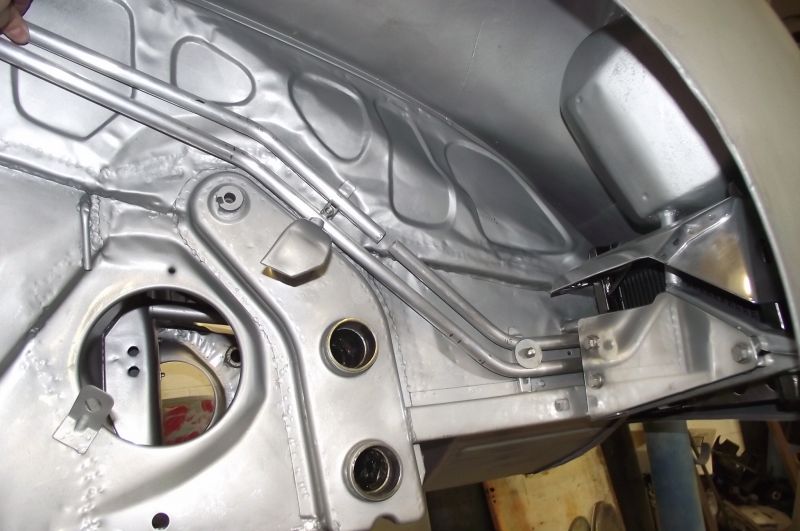

                          I'm happy so far; With everything set the tubes still run pretty much parallel with rocker and frame for a cleaner look. Onto the more tricky front sections now. Thanks for stopping by! Justin
                          Justin Rio

                          Comment


                          • Hardlines continued from page 32.

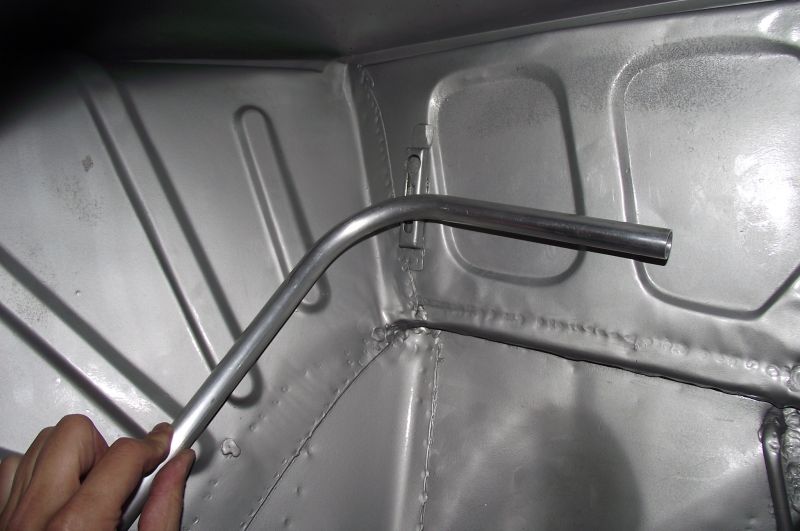

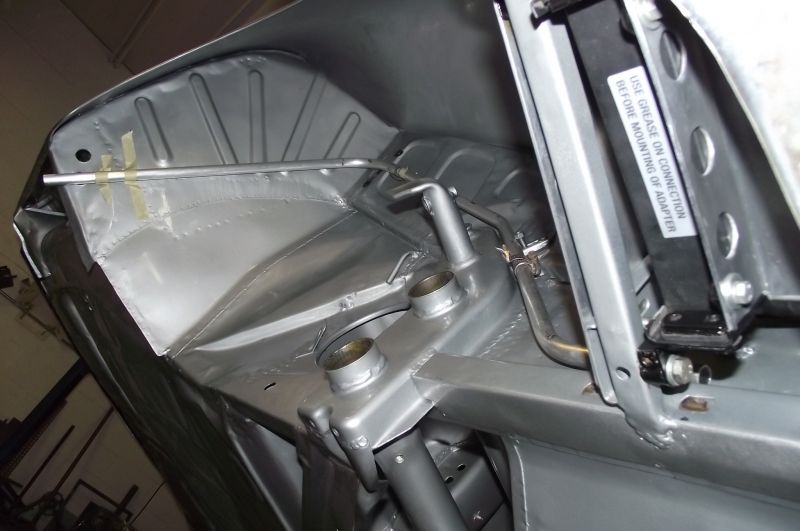

                            Front cooler lines proved to be as tricky as I had thought they might be. To hug the inner structure the bends all have to be indexed in relation to one another. After an initial failed attempt I learned alot. No substitute for just jumping in and making your mistakes.


                            Click image for larger version

Name:	carrera156A.JPG
Views:	81
Size:	45.8 KB
ID:	7206
                            All my prep in order to avoid a mistake was in vain. Burned a full piece here after I indexed the second bend in wrong. Damn it! I have 3 extra full sections so I have two more strikes before I have to order more tubing to complete this job. Also have removed that upper clamp bracket in this shot.

                            Click image for larger version

Name:	carrera158A.JPG
Views:	68
Size:	42.8 KB
ID:	7207
                            Even though this section was now unusable I continued with the rest of the bends for more practice and planning.

                            Click image for larger version

Name:	carrera159A.JPG
Views:	88
Size:	59.3 KB
ID:	7208
                            All was not lost however, this failed attempt was now my full model example. I cut it after the 90 degree bend and hose clamped a new section on with the proper bend and index. This is going to work out perfect for my next attempt. With this unit on the ground it will tell me where and how to bend the next piece. It will take all the guess work away. Again just things you figure out as you go and because you have to!

                            Click image for larger version

Name:	carrera163A.JPG
Views:	70
Size:	56.5 KB
ID:	7209
                            Last length by the front suspension horn bent to desired shape and hose clamped into position.
                            Click image for larger version

Name:	carrera162A.JPG
Views:	76
Size:	57.3 KB
ID:	7210
                            Model complete and Just what I wanted. At the end of this excersize it had to look good in there too; not some piece of garbage. I was now ready to try it again with another full piece.

                            Click image for larger version

Name:	carrera166A.JPG
Views:	80
Size:	41.8 KB
ID:	7211
                            First front section sucessfully fabricated from one piece. That sectioned model turned the trick! Life was so much more simplier with a 1 to 1 model to copy from.


                            Click image for larger version

Name:	carrera168A.JPG
Views:	87
Size:	42.7 KB
ID:	7212
                            new section succesfully copied. I had an afternoon invested here just to get these 3 bends in the right place. This is the extra time that must be invested when you don't know what you're doing.

                            Click image for larger version

Name:	carrera170A.JPG
Views:	65
Size:	55.4 KB
ID:	7213
                            New section fits just like the model. Some adjustment to do but I can at least use this piece.
                            Click image for larger version

Name:	carrera173A.JPG
Views:	71
Size:	65.9 KB
ID:	7214
                            Nice thing is I can use the same sections to mock up the upper runner. Some slight differences but I can at least get the shape I'm after before I commit. While doing this mock up I came up with an idea for tubing clamps. I was going to use the factory style steel clips but I want to make a full craddle version out of some billet alloy. I'm going to have those made by my machinist Bill before I bend up any more tubing just to ensure it all fits together like I want. Thanks for stopping by! Justin
                            Justin Rio

                            Comment


                            • Nice Justin, with that bender you can get now some extra work as a plumber! I had one long ago it was a great too. The pipes look very professional.

                              Roy

                              Comment


                              • Thanks Roy! I might call myself a plumber is these pipes don't leak.
                                Yes, these tubing lever bender work nice. You simply must have the right tools for the job to get a clean result. Thanks again! Justin

                                12/21/11 Back in business; Bill my machinist finished up my alloy clamps this afternoon. By the time I got back to the shop I only had an hour to play with them. looking forward to my next visit.

                                Click image for larger version

Name:	carrera209A.JPG
Views:	76
Size:	42.1 KB
ID:	7238

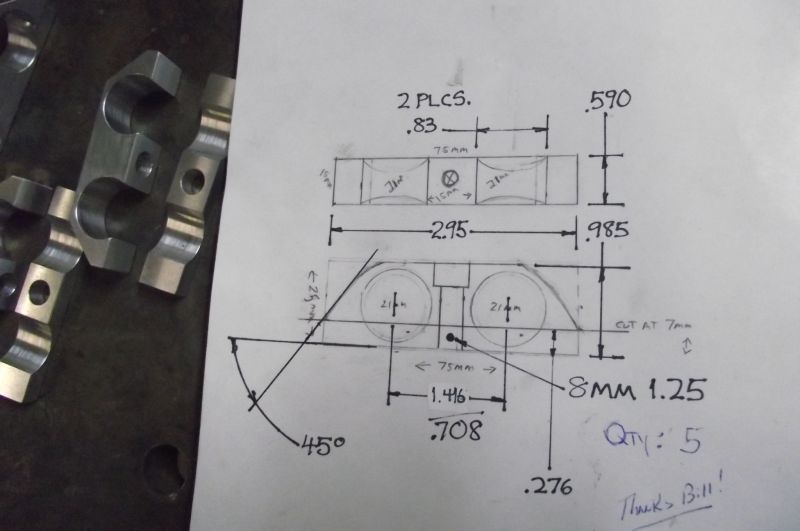

                                Put my thoughts on paper and drew out what I had in mind the best that I could. Bill was able to take this crued laymans plan; scale it and produced them just like I wanted.
                                Click image for larger version

Name:	carrera207A.JPG
Views:	91
Size:	55.6 KB
ID:	7239

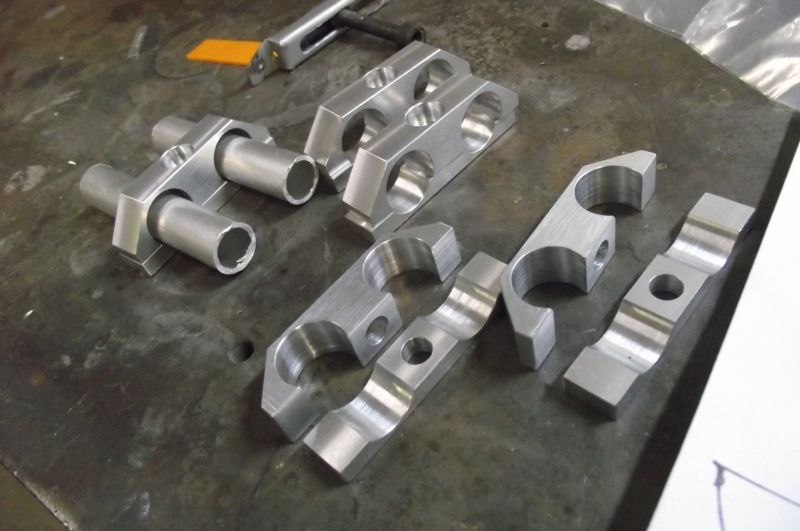

                                All five as ordered in basic form here. Corners will be rounded and shaped. Some lengths will be trimmed to fit. Holes are oversized for a silicone unsulator wrap.

                                Click image for larger version

Name:	carrera215A.JPG
Views:	75
Size:	58.3 KB
ID:	7240
                                Warren Eads told me that the original carrera oil line rubber insulators were orange. I later found this high heat silicone pot holder in orange. Just cut it into strips for a nice factory style touch.

                                Click image for larger version

Name:	carrera210A.JPG
Views:	64
Size:	52.5 KB
ID:	7241
                                Quick mock-up here. I have some cool allen head bolts coming so I just used a standard bolt to hold it together so I could have a look.

                                Click image for larger version

Name:	carrera211A.JPG
Views:	71
Size:	57.6 KB
ID:	7242
                                This middle clamp required the most shortening to fit down flush in this trough.
                                Click image for larger version

Name:	carrera213A.JPG
Views:	71
Size:	52.3 KB
ID:	7243
                                Clamp trimmed to fit with the corners rounded and shaped. I think they look so much better then the angular profiles.

                                Click image for larger version

Name:	carrera212A.JPG
Views:	87
Size:	45.9 KB
ID:	7244
                                Silicone insulator sleve also installed. tube already has a very nice positive, secure feel to it.
                                Click image for larger version

Name:	carrera214A.JPG
Views:	83
Size:	55.5 KB
ID:	7245

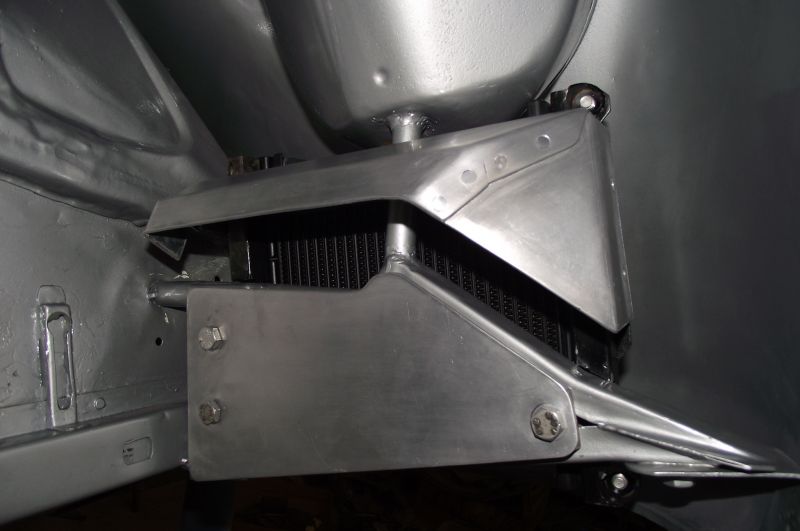

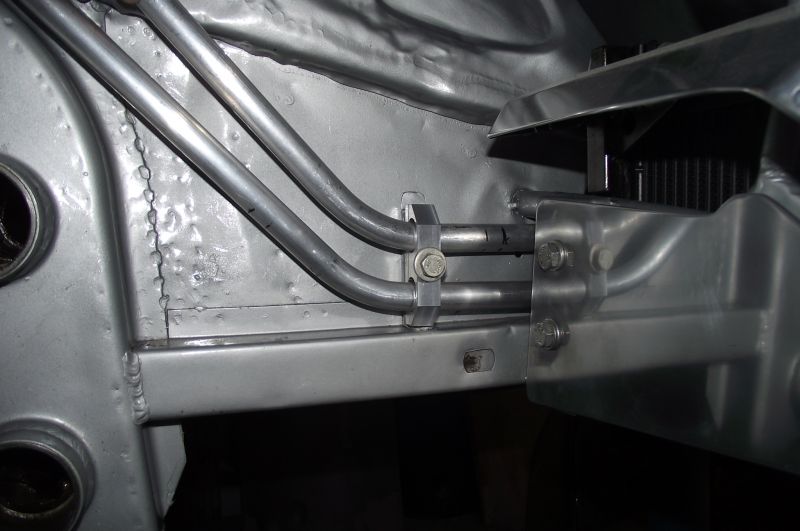

                                Similar and based off the original design but with my own little twist.
                                Justin Rio

                                Comment

                                Working...
                                X
