  • John,

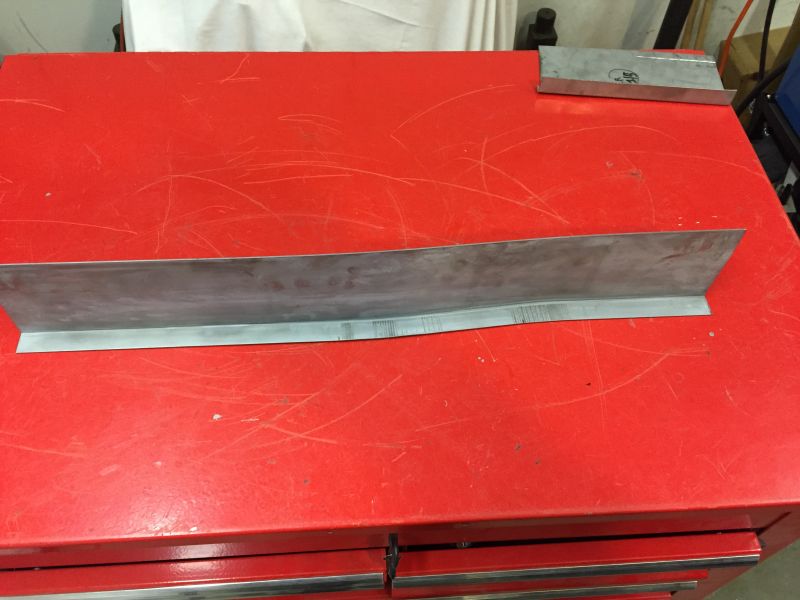

    What you have done is looking really great. Regarding your question, the outer rear frame member (the piece with the 4 threaded inserts) is approx 16 ga. (metric equivalent). The inner rear frame member is approx. 18 ga. Phil provided a couple of great photos of this area when I was fabricating a repair for the Swiss Miss.
    Take care,
    DG

    Comment


    • Originally posted by John Pierce" post=22692

      This is the inner boot from International Mercantile.


      This is the inner boot from Stoddard.
      I've been away, sorry. This is my first posting in a week but wanted to say that the original shift rod boot on the inner (tunnel) side looks more like the Stoddard version and the outer boot looks like the IM version. I bought a few of the Stoddard versions and think they look like CV joint boots but really only care if they fit. I'll be trial fitting any of those prior to assembly on both inner and outer.

      Truthfully, most cars I see have only the outer boot and when fresh, are still a PITA to install.

      Early shift rods are thinner than the later, so many parts look the same but have different dimensions, so be alert.

      Nice collar! Be aware that the shifter universal must be as centered as possible when the trans goes back in, as some mounts can create a misalignment in that nice pass-through and a part of the shift universal can get caught, sometimes moving the clamping point so as to eliminate a gear or two from selection...IF too much wear is in one or more of that intersection and it can slip rather than just 'feel' like it's hitting. Some awareness of that need for centering allows that prying, correct shimming on the forward round mounts will generally get the job done if the cradle mounts are close to the original height.

      Kudos. Nice work overall.

      -Bruce
      Attached Files

      Comment


      • On to the big stuff that makes things look good real fast


        Click image for larger version

Name:	_MG_3453copy.JPG
Views:	85
Size:	68.0 KB
ID:	51445

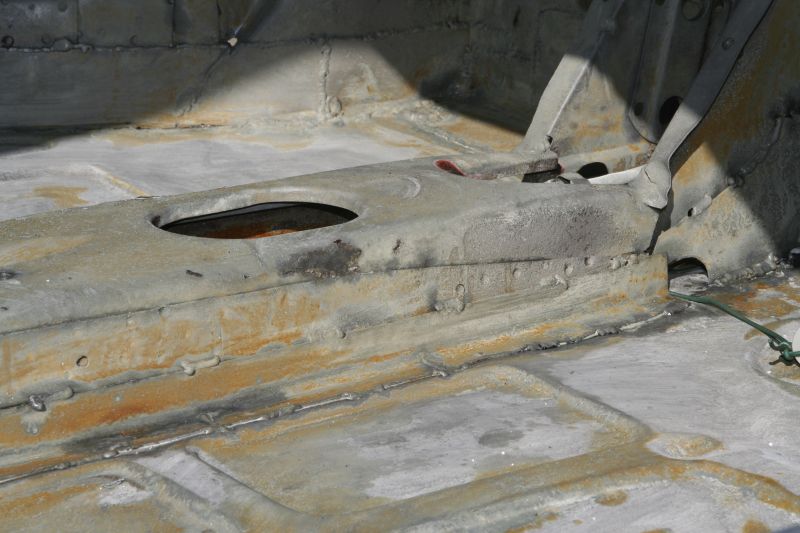

        This is the tunnel upon arrival Kind of scary.


        Click image for larger version

Name:	_MG_3457copy.JPG
Views:	84
Size:	66.3 KB
ID:	51446
        There were 3 levels of patches: one right over the other with no regard to originality.....or rust.


        Click image for larger version

Name:	IMG_0054copy.jpg
Views:	85
Size:	68.1 KB
ID:	51447
        A little grinding left the original metal, which is very thinned out and a bit swiss cheesy.

        Click image for larger version

Name:	IMG_0195copy.jpg
Views:	86
Size:	78.5 KB
ID:	51448
        Rotten metal cut up to and overlapping the center reinforcement, which leaves a nice flange to weld to. I left the cross-members in place for now to support the inner tubing and to retain accurate placement.


        Click image for larger version

Name:	IMG_0450copy.JPG
Views:	84
Size:	68.1 KB
ID:	51449

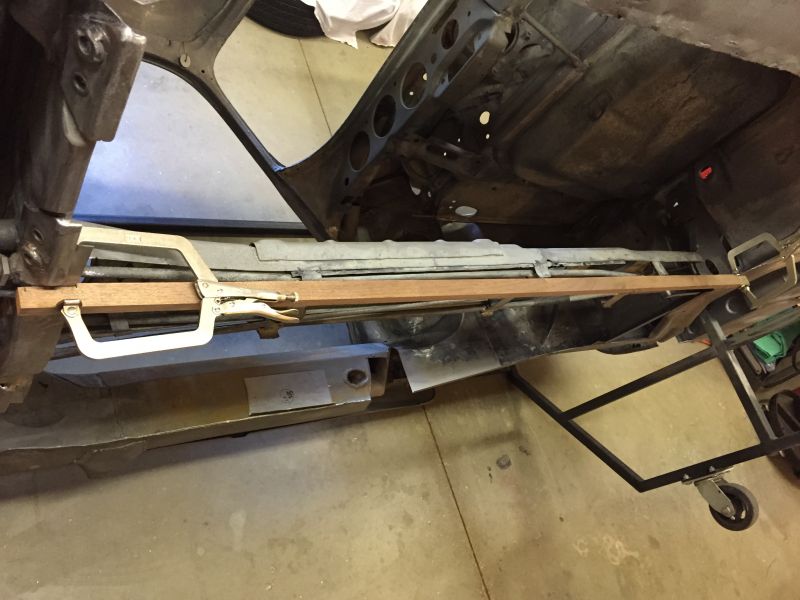

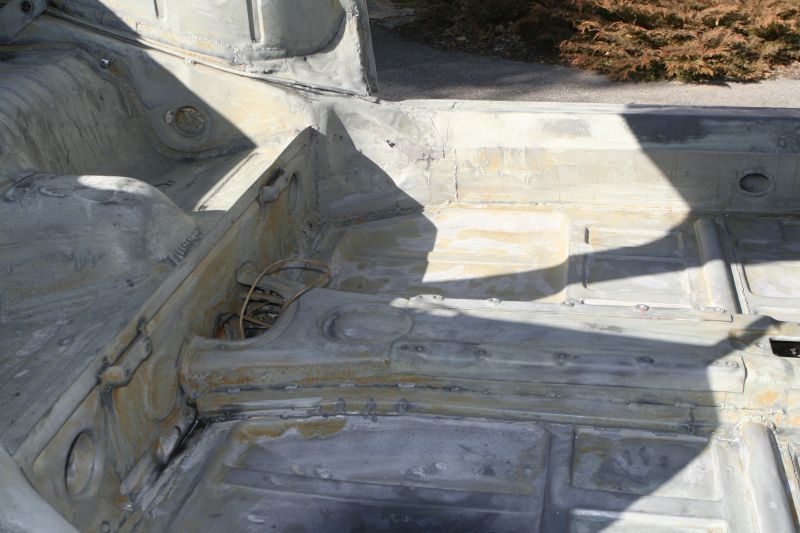

        Media blasting really improves the look. I used a nice piece of hard black walnut that was left over from a boat project. The grain is end-on so it doesn't bow. Indents were cut into either end mimicking the thickness of the floor flanges and pan to provide an accurate height for the tunnel flange.


        Click image for larger version

Name:	IMG_0457copy.JPG
Views:	85
Size:	57.2 KB
ID:	51450

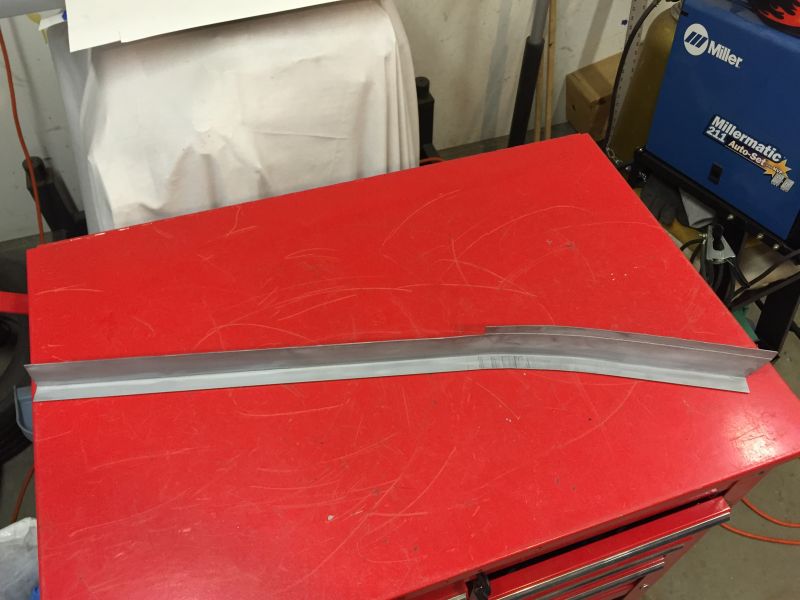

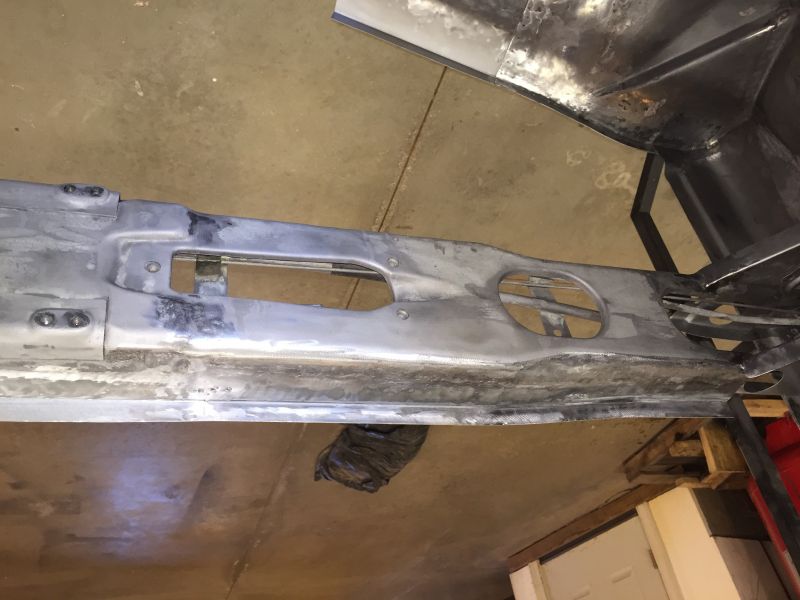

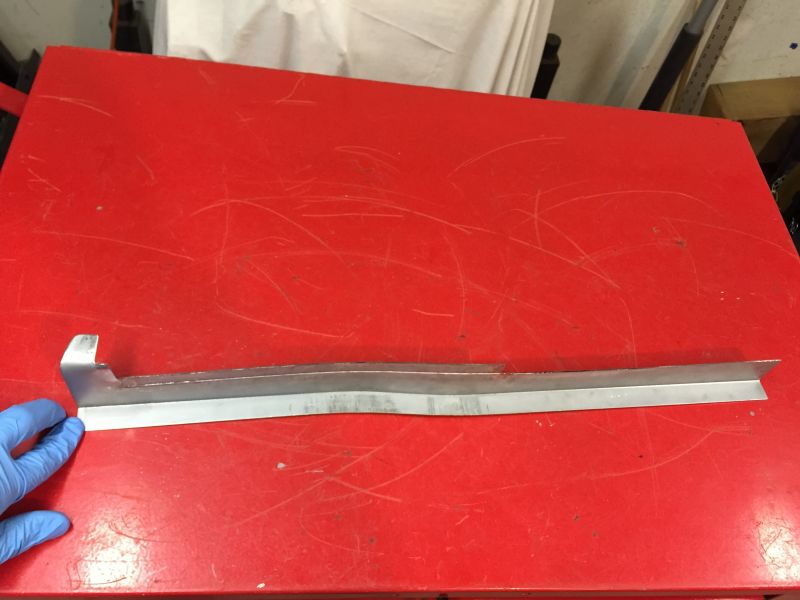

        The later 356 tunnels were stamped from one piece of metal and had several compound curves. The Stoddard repair panels come in useful once again.


        Click image for larger version

Name:	IMG_0474copy.JPG
Views:	85
Size:	61.2 KB
ID:	51451

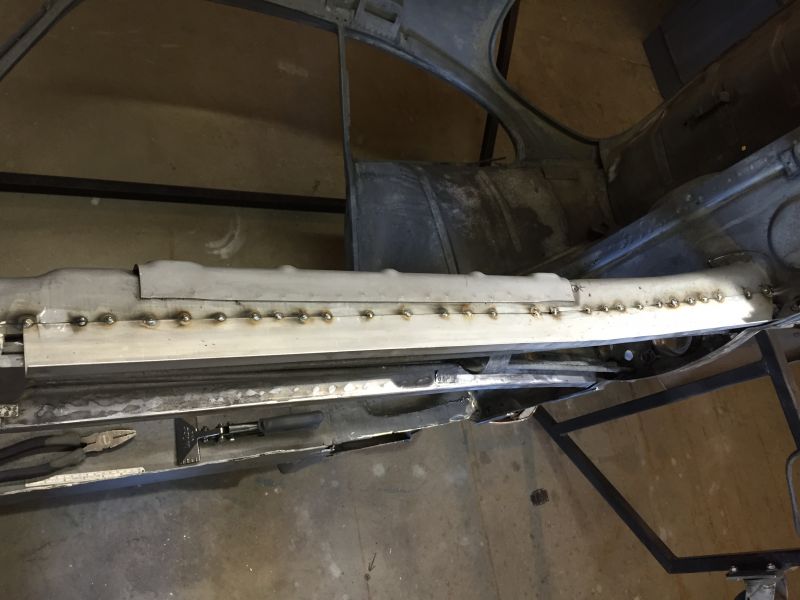

        The center cross-members were spot welded like original. I chose the center of the middle cross-member for the overlap as it provided a nice landing spot.

        Click image for larger version

Name:	IMG_0478copy.JPG
Views:	86
Size:	66.1 KB
ID:	51452
        Looking much better. Now to the other side.

        Thanks for looking.
        jjgpierce@yahoo.com

        Comment


        • Another very nice repair John. Can't believe how fast you are progressing. You must be either retired, or have a very understanding wife!

          DG

          Comment


          • Hah! Kids are in high school and are busy with homework and friends. I do miss not hanging out with them as much though. We're off to Disney and Universal Studios today for Halloween. Should be fun. Time to get reconnected.
            jjgpierce@yahoo.com

            Comment


            • WOW! You did a beautiful job on that tunnel flange John! This chassis has already come such a long way, Fantastic job!
              Justin Rio

              Comment

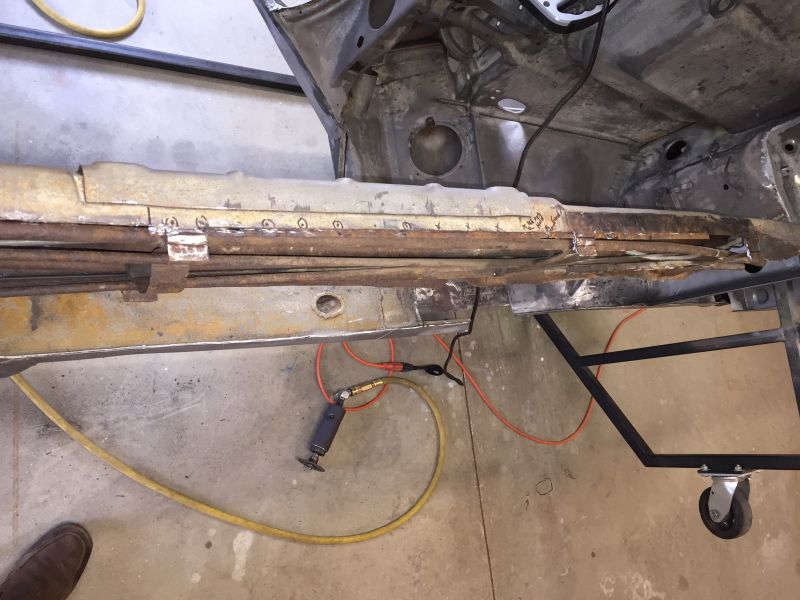

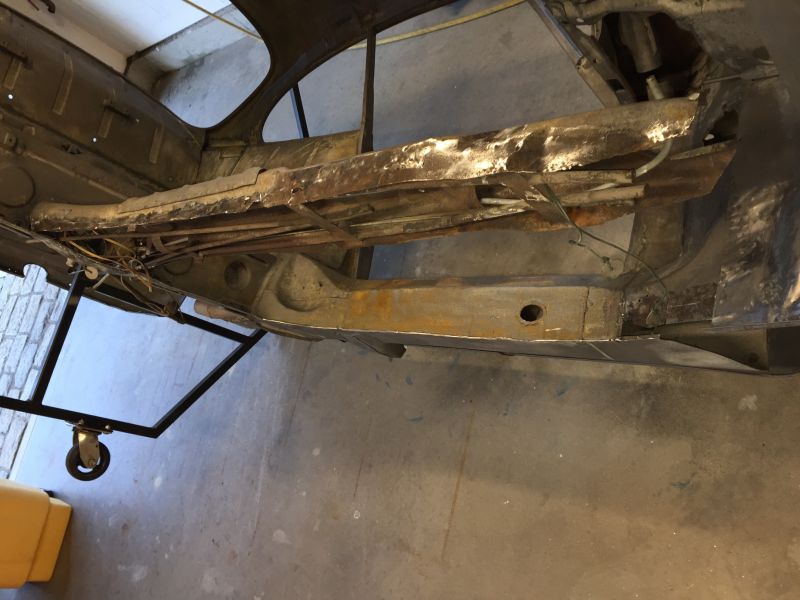

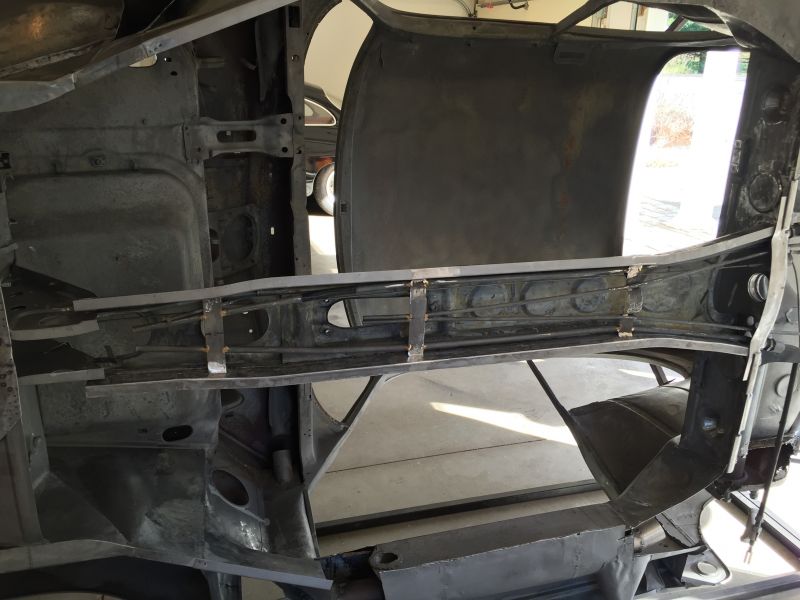

              • Got some time to finish the left tunnel flange. Same process as the right, but this side was a bit more rusty.


                Click image for larger version

Name:	IMG_0848copy.JPG
Views:	83
Size:	67.4 KB
ID:	52171

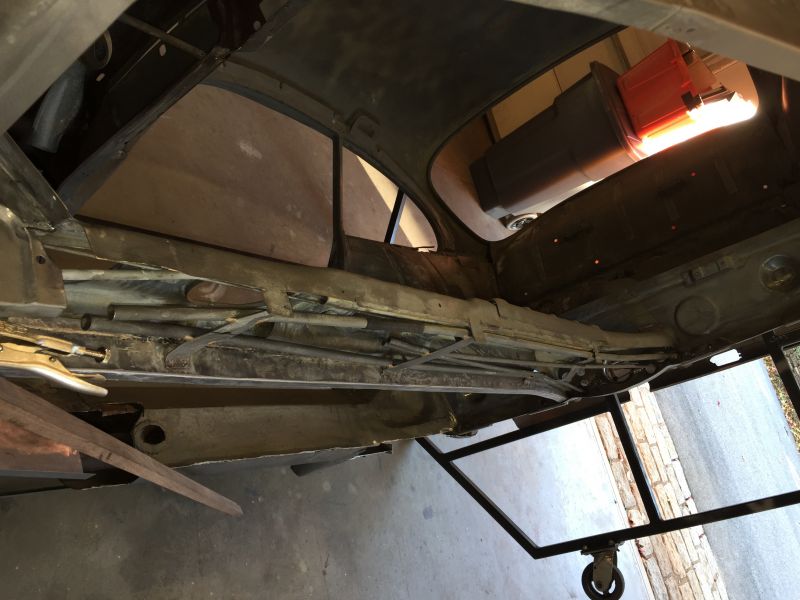

                The front and rear ends of the tunnel had to be removed due to very thin/holey metal.

                Click image for larger version

Name:	IMG_0859copy.JPG
Views:	85
Size:	56.8 KB
ID:	52172
                The rear was flanged to give a larger welding surface as the tubes were left in the tunnel and I wouldn't be able to grind the welds down afterwards. I didn't want the welds to rub against any internals.


                Click image for larger version

Name:	IMG_0862copy.JPG
Views:	82
Size:	56.4 KB
ID:	52173
                Spot welded in.


                Click image for larger version

Name:	IMG_0869copy.JPG
Views:	82
Size:	52.3 KB
ID:	52174
                The front piece with a double curve and new front piece. I put a flange here also to protect the internals.


                Click image for larger version

Name:	IMG_0874copy.JPG
Views:	82
Size:	67.2 KB
ID:	52175

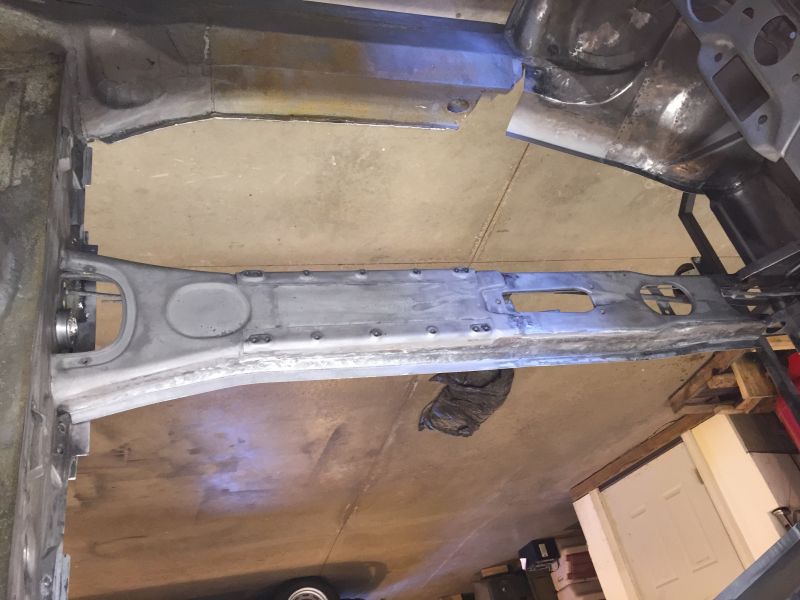

                Complete and looking so much better.
                jjgpierce@yahoo.com

                Comment


                • Great repair John. Looking good.

                  Comment


                  • Looking great John! You're making me want a shrinker/stretcher more and more. Keep up the nice work! Justin
                    Justin Rio

                    Comment


                    • Duplicate
                      jjgpierce@yahoo.com

                      Comment


                      • I'm getting the courage up to tackle the nose piece. Bruce's recent pictures have given me the impetus.


                        Click image for larger version

Name:	IMG_0881copy.JPG
Views:	80
Size:	68.0 KB
ID:	52388

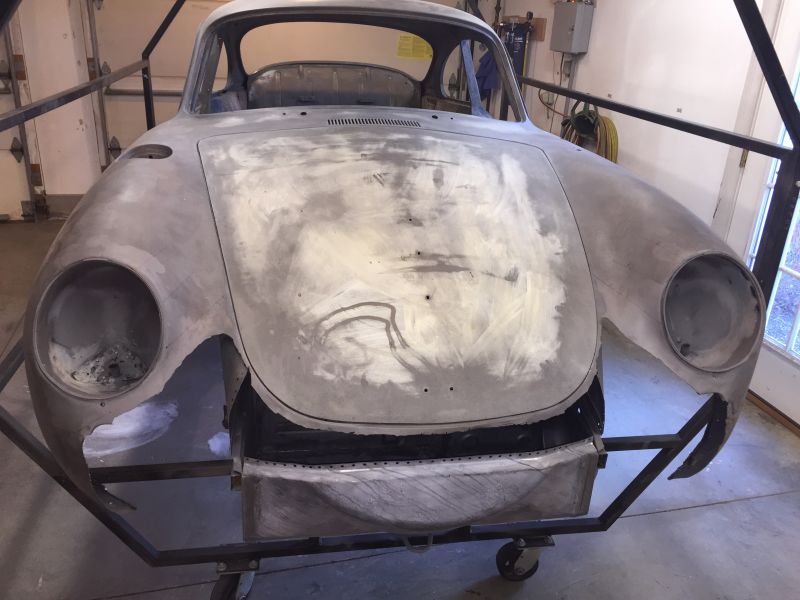

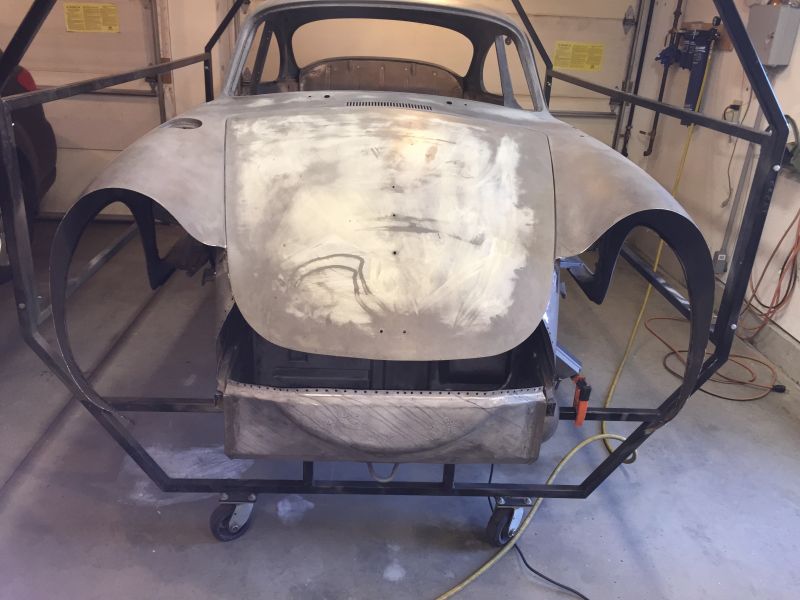

                        I reinstalled the hood to give the lay of the land. Just a few things missing here


                        Click image for larger version

Name:	IMG_0885copy.jpg
Views:	79
Size:	60.5 KB
ID:	52389

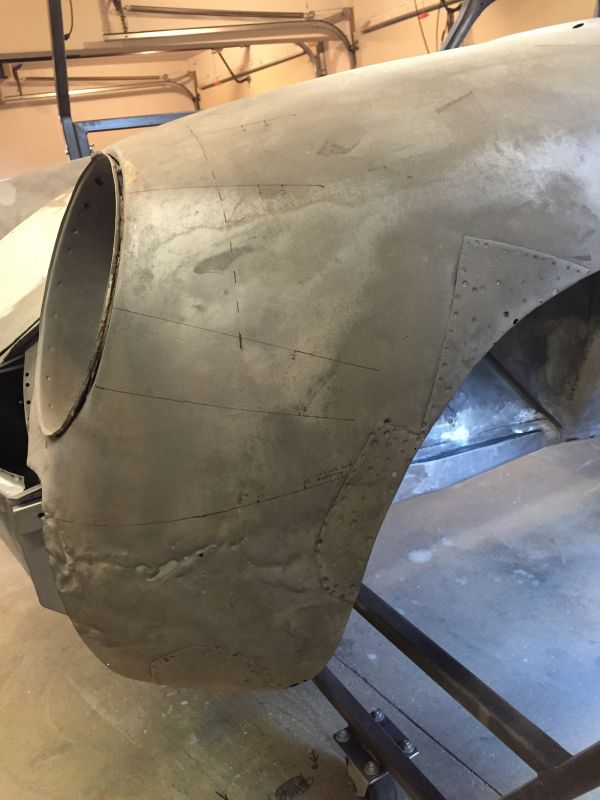

                        I then marked where the weld seam is and the distance to the light bucket edge. As you can see, the rear arch will need some work in the future.

                        My plan is to first cut out the rain gutter and fit the front closing panel with some screws. Then cut the remainder of the original nose back to the weld line leaving 1-2 cm extra for wiggle room. The weld line is best seen from the inside.

                        I've read Ron's book several times, but I'd love any advice on how to proceed, especially from our resident experts. This is one part and section that I don't want to mess up. It would be quite an eyesore.


                        Click image for larger version

Name:	IMG_0158copy.JPG
Views:	80
Size:	129.8 KB
ID:	52390

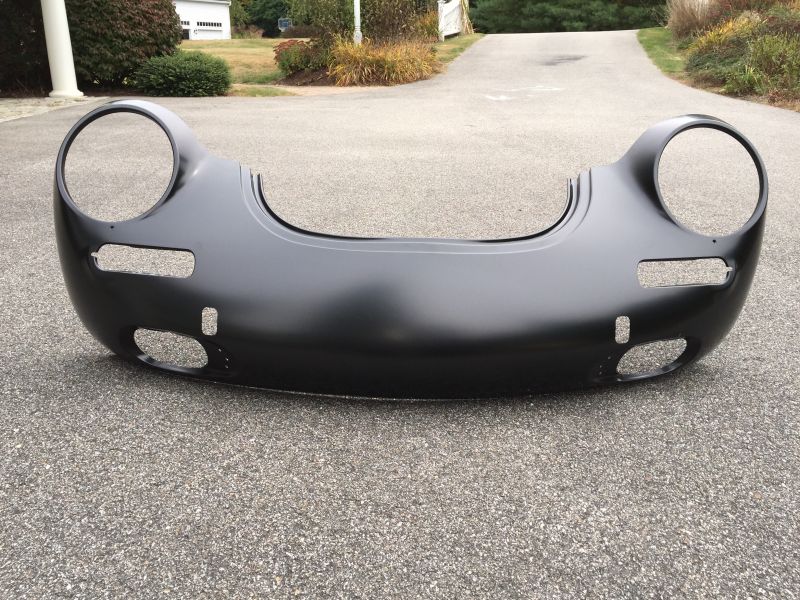

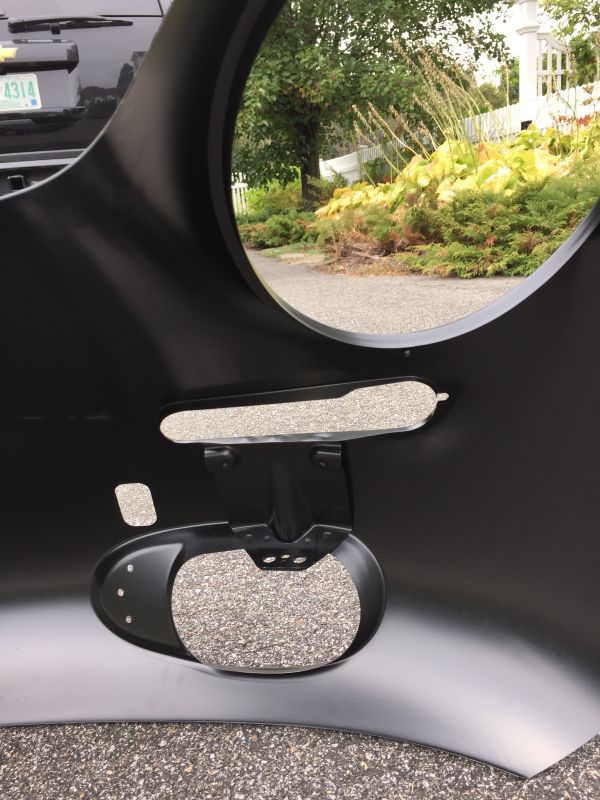

                        The Porsche Classic part has nice contours and is stamped as one piece


                        Click image for larger version

Name:	IMG_0160copy.jpg
Views:	81
Size:	85.8 KB
ID:	52391
                        The appropriate parts come welded in.


                        John
                        jjgpierce@yahoo.com

                        Comment


                        • That's a pretty new piece of metal John! Like the progress photos Bruce just shared this fresh panel sure changes the outlook quickly. I'd say priority #1 is establishing a proper gap and body profile elevation with the closed and latched hood. I'd work backwards from there. I noticed in Bruce's photo that his panel needed some nip and tucking at the trough along the left side. You may find this necessary as well. I'm sure Bruce can advise better than I can though. This will be interesting to watch.
                          Justin
                          Justin Rio

                          Comment


                          • Time for an update. We're in the middle of a mid winter cold snap and my garage is a bit cold so it's been slow work.


                            Click image for larger version

Name:	IMG_0942copy.JPG
Views:	81
Size:	65.8 KB
ID:	52673

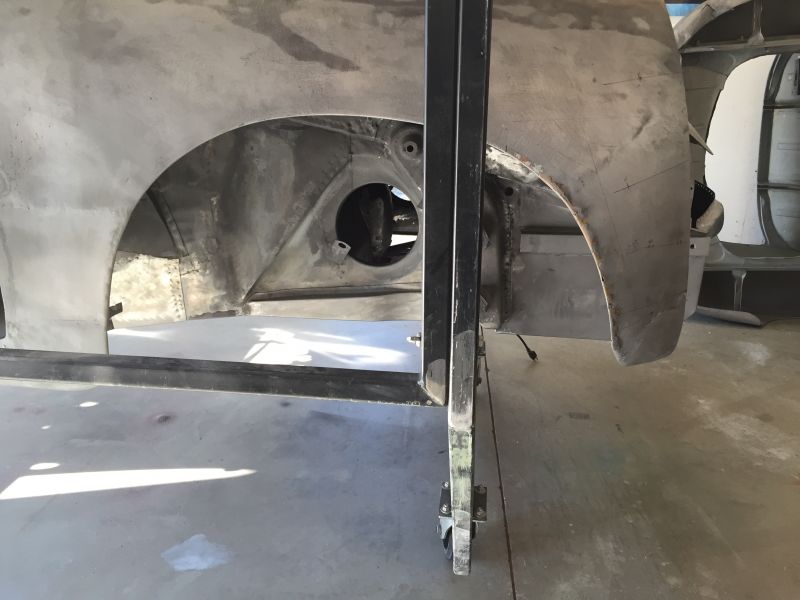

                            The remaining nose piece was cut back to the original weld line. I first made sure that the replacement panel really did have enough overlap before cutting


                            Click image for larger version

Name:	IMG_0947copy.jpg
Views:	79
Size:	63.6 KB
ID:	52674
                            The fender edge patches were spot welded on top of the original metal. When removed the edge rust and holes are obvious. It still amazes me that such a large patch was put in to repair a small area.


                            Click image for larger version

Name:	IMG_0949copy.jpg
Views:	79
Size:	56.4 KB
ID:	52675

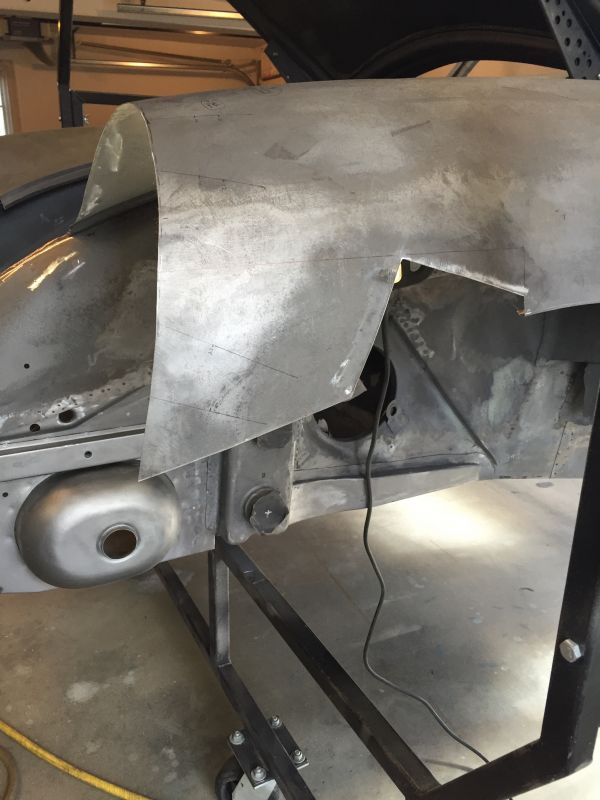

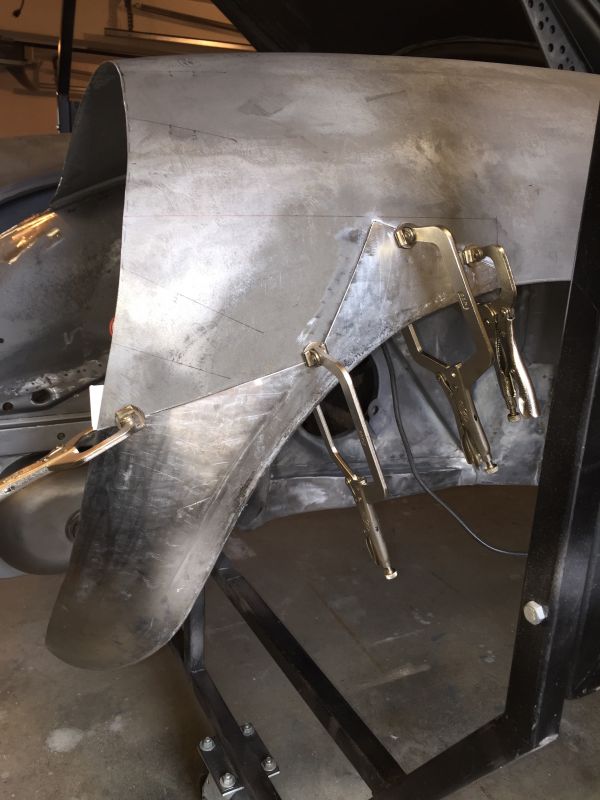

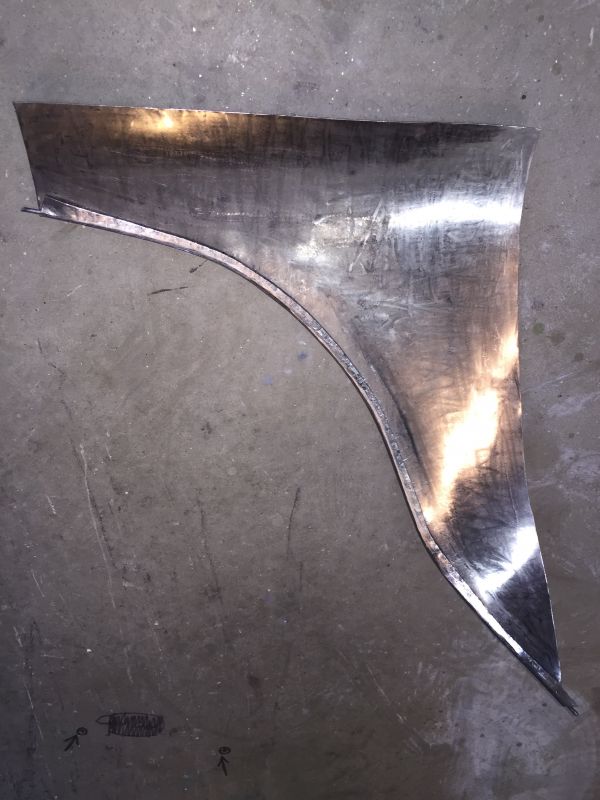

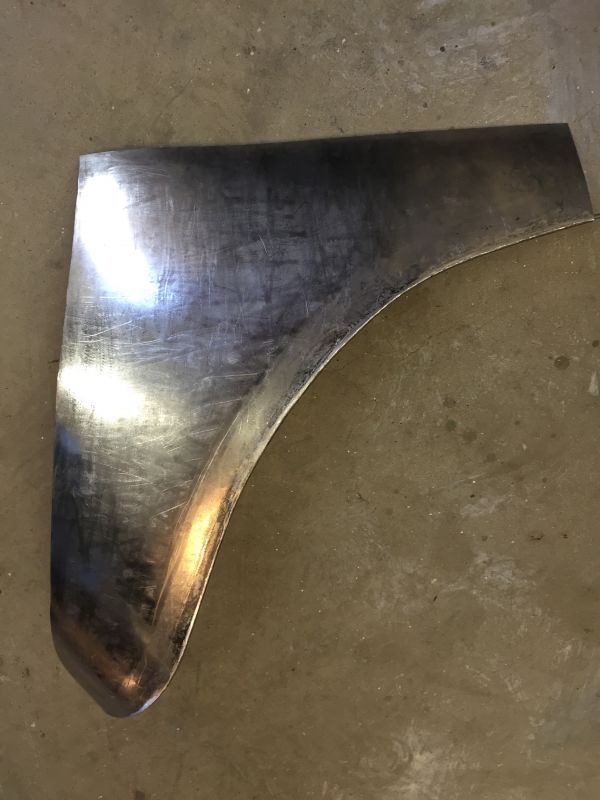

                            I made a cardboard template of the fender then cut it out in 20 gauge CRS. The fender is a compound curve front to back and top to bottom so the planishing air hammer came in handy.


                            Click image for larger version

Name:	IMG_0953copy.jpg
Views:	82
Size:	68.2 KB
ID:	52676
                            The edge was turned with a hand brake then hammered around the inner fender edge wire, which really stiffens things up.


                            Click image for larger version

Name:	IMG_0957copy.jpg
Views:	80
Size:	61.9 KB
ID:	52677
                            Some creative cutting to save the good original metal and cut out the bad.


                            Click image for larger version

Name:	IMG_0958copy.jpg
Views:	78
Size:	64.1 KB
ID:	52678
                            A good fit.


                            Click image for larger version

Name:	IMG_0960copy.jpg
Views:	78
Size:	60.9 KB
ID:	52679

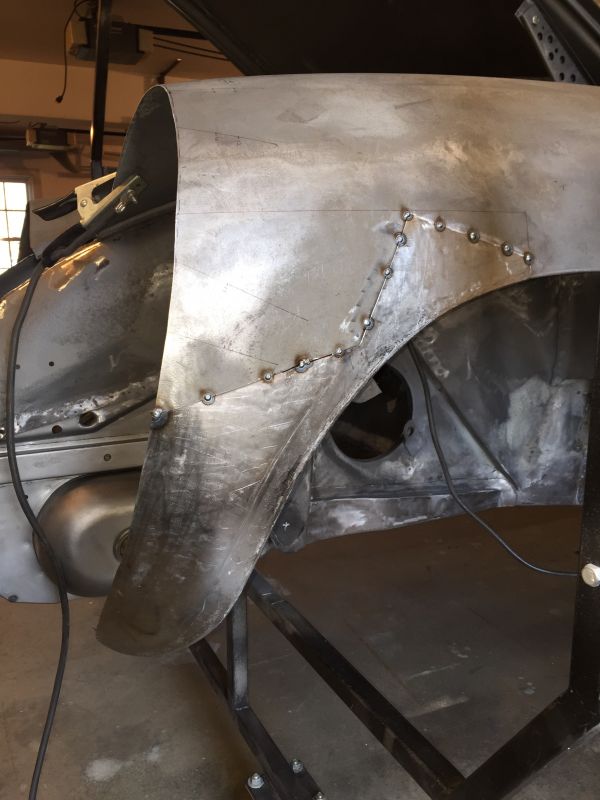

                            Spot welded in. I'm going to try my hand at TIG'ing the panel in place as there is little to no gap. Lots of planishing to come.

                            Thanks for looking.
                            jjgpierce@yahoo.com

                            Comment


                            • John,

                              Well done indeed, just to attempt that wired edging is brave, but to get such a close fit before welding and the line of the fender correct really shows you know how to do it. Thata a great piece of work. I look forward to seeing tghe results of your TIG effort.

                              You know, as I have said many times to Justin, it all looks so easy on a series of photos with a few words. ( Not so in practice )

                              Roy

                              Comment


                              • Roy, your words of encouragement are much appreciated! It keeps me going through the frustrations.


                                Click image for larger version

Name:	IMG_0973.JPG
Views:	79
Size:	54.7 KB
ID:	52714

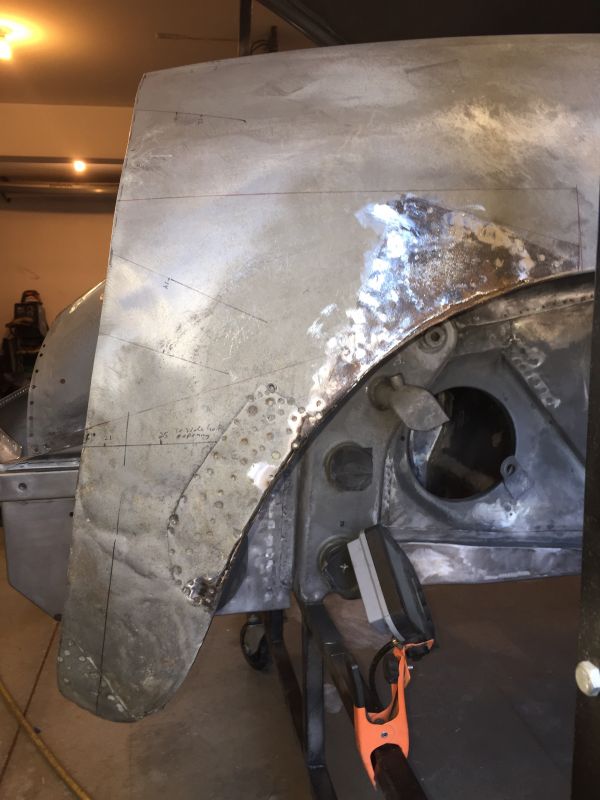

                                Left fender TIG'ed, planished and filed. It still needs some work to get flat, but it's looking much better.


                                I found something that really underscores that these cars are truly hand-made. The next step is to mock up the right fender, which needs the same repair. Why not use the same template from the left fender I thought? Makes sense. Only to discover that the two fenders have different wheel opening contours, where the right is more rounded. I verified this on a complete car built by the same karosserie (Karmann) and year (1963). Both sets of wheel arches are the same when the template of each car is compared. The left template fits both cars to a tee as does the right template.


                                Click image for larger version

Name:	IMG_0974.jpg
Views:	78
Size:	28.9 KB
ID:	52715

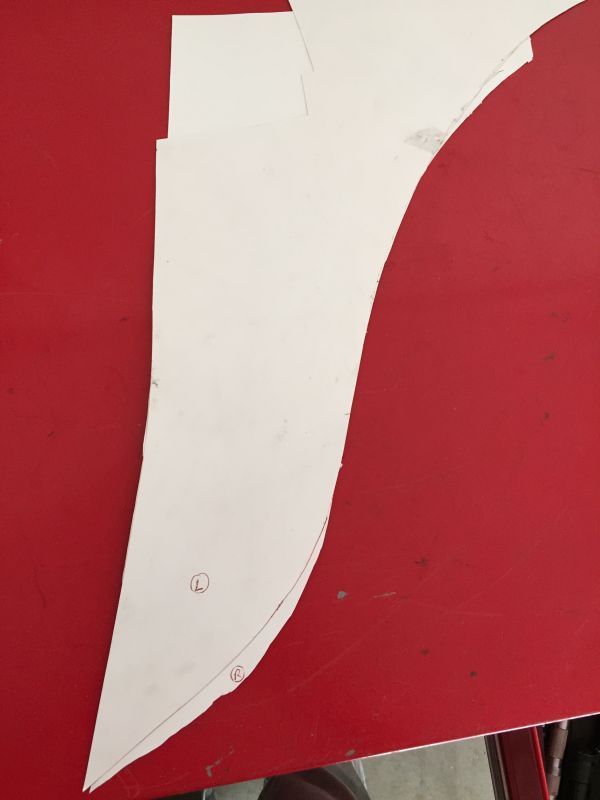

                                Two templates compared. The right fender template is more rounded at the front.


                                Click image for larger version

Name:	IMG_0971.JPG
Views:	77
Size:	88.4 KB
ID:	52716

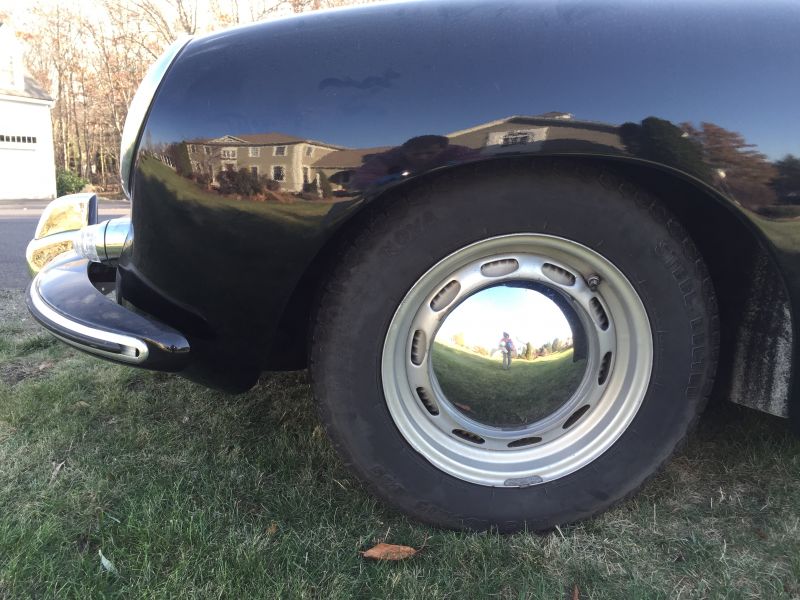

                                Left fender from a 1963 Karmann coupe.


                                Click image for larger version

Name:	Right.JPG
Views:	79
Size:	83.0 KB
ID:	52717

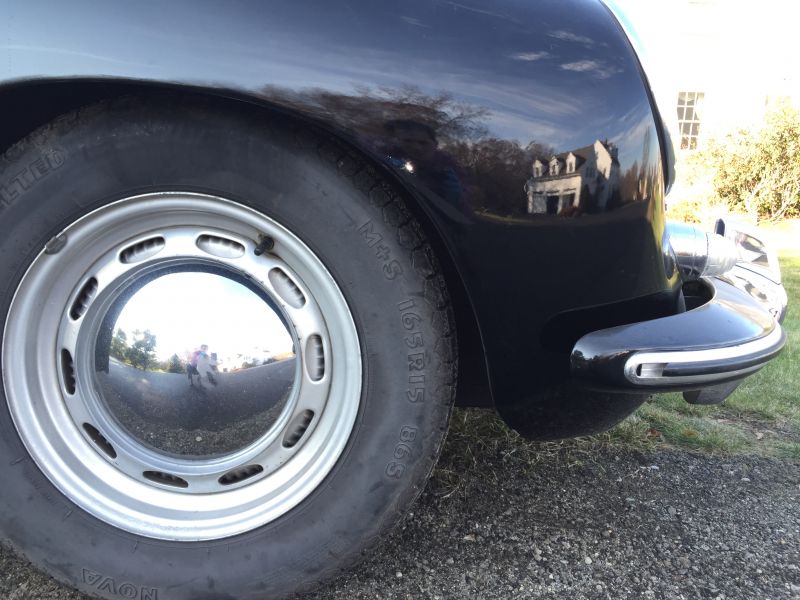

                                Right fender from a 1963 Karmann coupe.


                                Click image for larger version

Name:	Right1.JPG
Views:	77
Size:	55.0 KB
ID:	52718

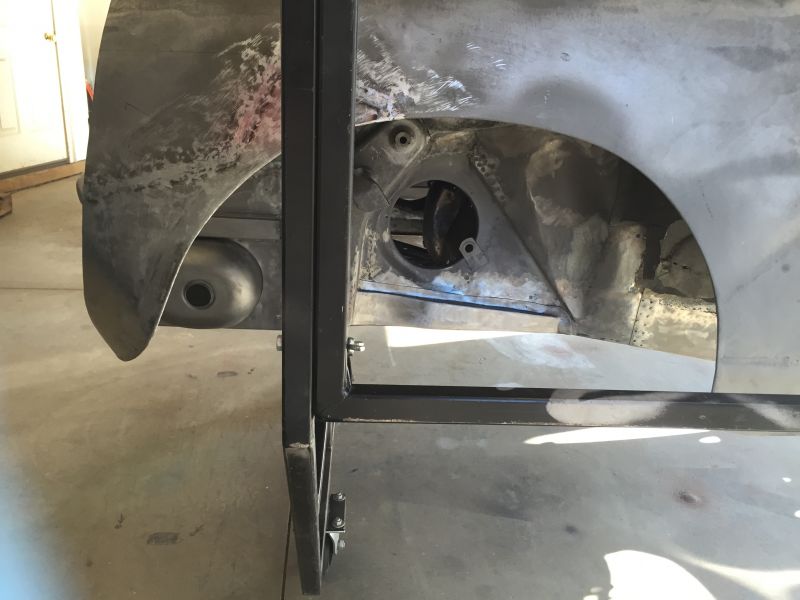

                                Right fender from my 1963 Karmann coupe. I've got to cut out the brazed areas and non-original metal.

                                John
                                jjgpierce@yahoo.com

                                Comment
