  • Thanks guys. I've thought about an English Wheel, but have been able to make everything I need so far without one. I've used them before and they're a nice tool to have. Bending over a curved object usually gets the desired results. If not then a hammer and bag followed by planishing can form the deeper curves.

    Thanks Jack. I'll email you.

    With the outer frame top flange done it's time to work on the rest of the mess.

    Click image for larger version

Name:	7_2015-11-22.jpg
Views:	92
Size:	68.7 KB
ID:	69845
    Starting to cut out the outer frame bottom flange back to where there's solid metal. With good landmarks I can then make a replacement piece.


    Click image for larger version

Name:	16.jpg
Views:	80
Size:	52.6 KB
ID:	69846
    Forming 16 gauge metal into multiple bends and curves eats up a lot of time


    Click image for larger version

Name:	8_2015-11-22.jpg
Views:	80
Size:	62.7 KB
ID:	69847
    Once the outer frame was cut I could then flip the car over and cut out the rusted area of the transmission panel and fit a replacement piece.


    Click image for larger version

Name:	14.jpg
Views:	76
Size:	51.2 KB
ID:	69848
    Doing this in a piecemeal fashion allowed me to use the remaining landmarks to make a pretty accurate replacement. The next part was the lower inner frame and flange. As you can see it's pretty much a goner.


    Click image for larger version

Name:	9_2015-11-22.jpg
Views:	77
Size:	43.2 KB
ID:	69849
    This area is 18 gauge. I placed the flange then shrank it to fit the curve.


    Click image for larger version

Name:	10.jpg
Views:	78
Size:	54.8 KB
ID:	69850

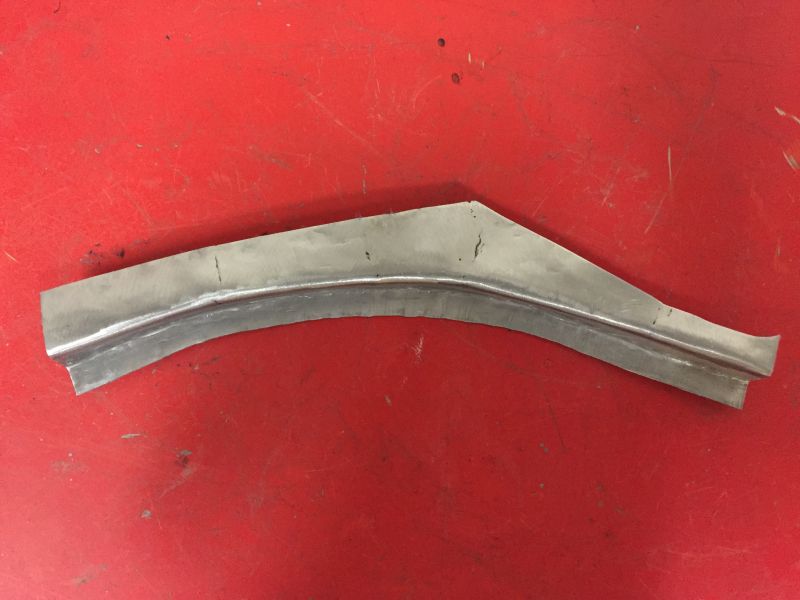

    Sitting pretty well. The next part was a bit tougher. Turning the metal over into the second curve.


    Click image for larger version

Name:	11_2015-11-22.jpg
Views:	74
Size:	48.7 KB
ID:	69851
    I ended up having to place several relief cuts as it didn't want to lay flat. In the end, with a bit of hammer massaging, it turned out pretty well.


    Click image for larger version

Name:	12_2015-11-22.jpg
Views:	72
Size:	69.3 KB
ID:	69852
    After all the bad was removed and the cavity derusted as much as possible. Time to reverse the process.


    Click image for larger version

Name:	13.jpg
Views:	76
Size:	67.3 KB
ID:	69853
    I started with the lower inner frame.


    Click image for larger version

Name:	15.jpg
Views:	76
Size:	57.4 KB
ID:	69854
    Then the transmission panel.


    Click image for larger version

Name:	17.jpg
Views:	73
Size:	73.6 KB
ID:	69855
    And finally, flip the car, and install the lower outer frame.

    Lots of fun. Next to the rest of the frame behind the suspension stop. Thanks for following.

    JP
    jjgpierce@yahoo.com

    Comment


    • WOW John, it seems there is no end to the fun you are having. Both Mother nature followed up by Bubba were very, very busy under this car. An amazing amount of patience you have. Keep it up, its looking great!
      Justin
      Justin Rio

      Comment


      • Awesome work John, very inspiring. Thanks for sharing,

        Jonesy

        Comment


        • Thanks guys. Posting here truly keeps me motivated. Especially hearing from the experts on how to do things correctly.

          Just a quick update.


          Click image for larger version

Name:	18.jpg
Views:	78
Size:	69.6 KB
ID:	69910
          The last of the rotted outer frame removed. It looks so nice now


          Click image for larger version

Name:	19.jpg
Views:	76
Size:	61.5 KB
ID:	69911
          The piecemeal restoration really kept what remaining landmarks there were and the template is nice and flat for the suspension stop to sit upon.


          Click image for larger version

Name:	20.jpg
Views:	77
Size:	67.4 KB
ID:	69912
          No movement.


          Click image for larger version

Name:	21.jpg
Views:	76
Size:	71.7 KB
ID:	69913

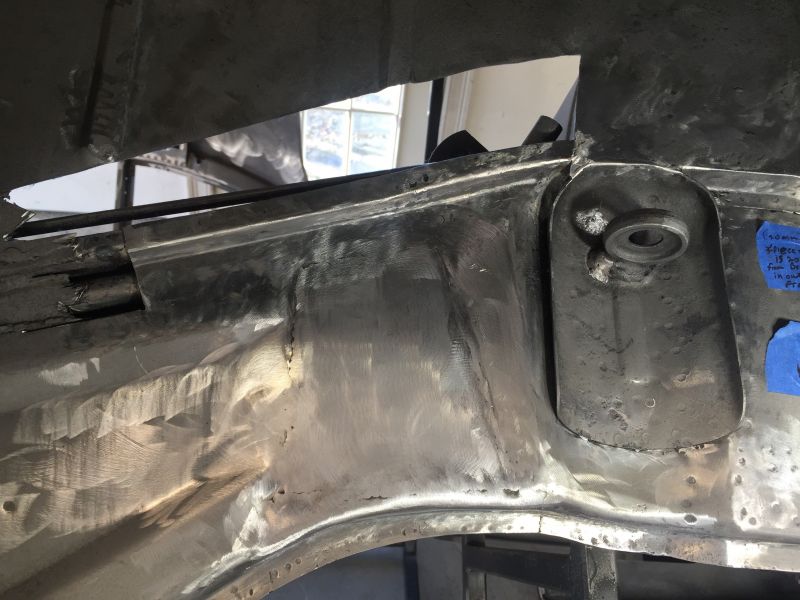

          Fresh, like a new car! And strong.....like bull.


          Next to the inner fender.

          John
          jjgpierce@yahoo.com

          Comment


          • Another quick day.


            Click image for larger version

Name:	IMG_4383.jpg
Views:	74
Size:	70.6 KB
ID:	69985

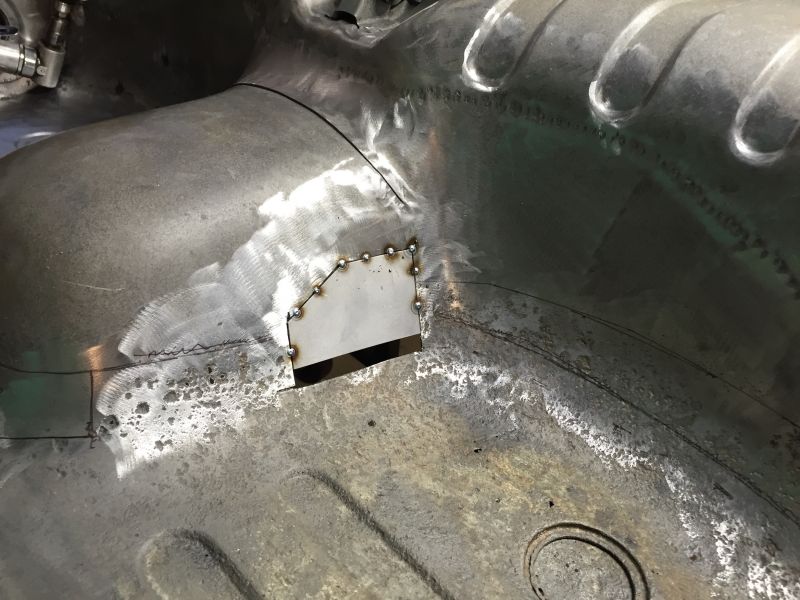

            Further repair of the inner fender. I put an indent into the flange for the suspension stop. I'd rather be working with the 16 and 18 gauge frame metal than 20 gauge as they're much more forgiving


            Click image for larger version

Name:	IMG_4386.jpg
Views:	78
Size:	92.4 KB
ID:	69986
            Of course the rusted area had to go through the area of embossment. I cut out a replacement piece from a panel I had. Easier than trying to hammer it correctly.


            Click image for larger version

Name:	IMG_4388.jpg
Views:	72
Size:	80.1 KB
ID:	69987
            This one foot section has eaten up a lot of time, but it had to be done. Baby steps will get me there.


            Click image for larger version

Name:	IMG_4389.jpg
Views:	75
Size:	71.6 KB
ID:	69988
            The inner side is looking so much better.

            On to the suspension stop next.

            I hope everyone has a great Thanksgiving! We've got so much to be thankful for. And thank you Justin for providing this outlet and resource.

            Cheers,

            John
            jjgpierce@yahoo.com

            Comment


            • Ah....the last fix of this messy area!


              Click image for larger version

Name:	IMG_4334.jpg
Views:	76
Size:	49.2 KB
ID:	70042
              The suspension stop drilled for rosette welds. Gotta be strong.


              Click image for larger version

Name:	IMG_4390.jpg
Views:	71
Size:	41.4 KB
ID:	70043

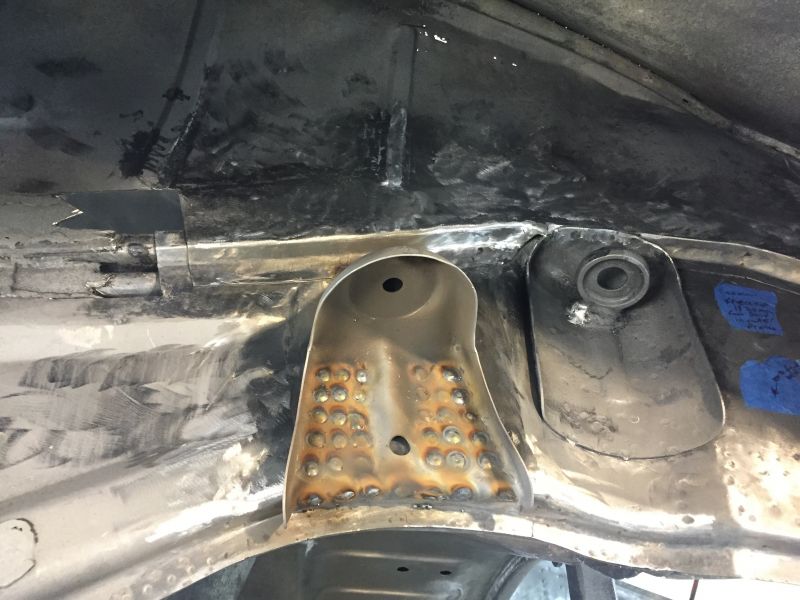

              I welded the reinforcement piece on and fitted it prior to installation as I'd never get the MIG in there.


              Click image for larger version

Name:	IMG_4391.jpg
Views:	75
Size:	74.8 KB
ID:	70044
              Plug welded onto the new outer frame metal.


              Click image for larger version

Name:	IMG_4393.jpg
Views:	74
Size:	78.5 KB
ID:	70045
              So nice to get this area done.


              Click image for larger version

Name:	1_2015-11-21_2015-11-28.jpg
Views:	70
Size:	61.2 KB
ID:	70046

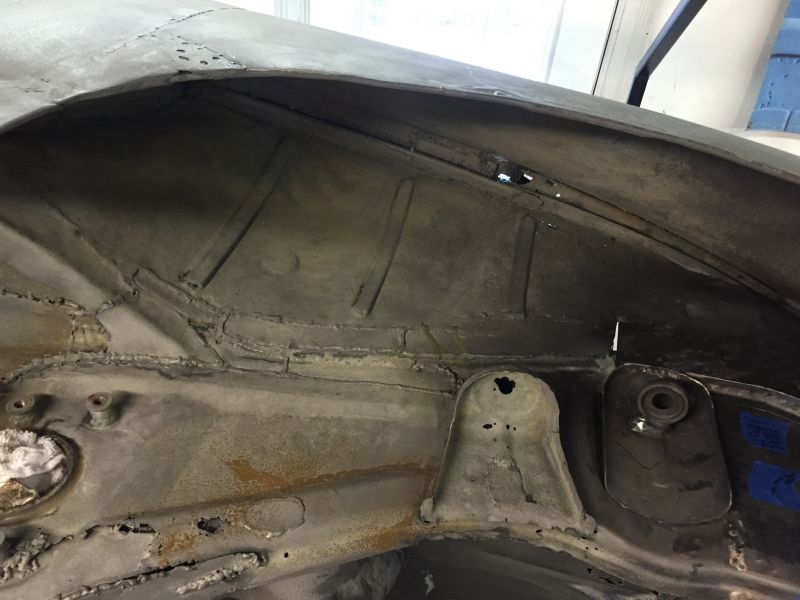

              Stepping back and to see where I started.

              Gotta keep on moving forward, one section at at time.

              John
              jjgpierce@yahoo.com

              Comment


              • John
                Again, great work on a really messy area. While I thought I was done with this area, my suspension stop "drain recess" is full of hard crud. As much as I hate removing it, I think I may find what you did underneath, so it will come off before I reinstall the transaxle.
                Phil

                Comment

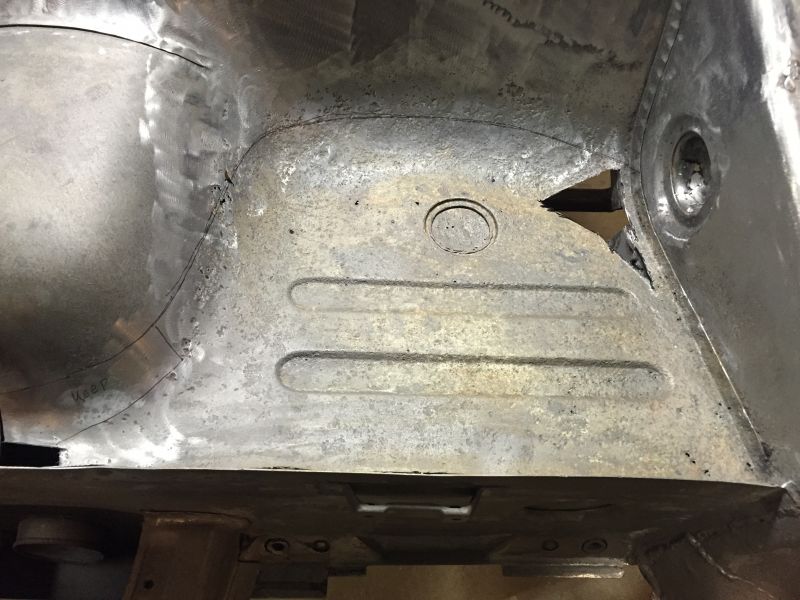

                • Before I can dig into the mess around both sides of the torsion bar I have to remove the seat bottom as it will provide better access.


                  Click image for larger version

Name:	IMG_4411.jpg
Views:	75
Size:	79.7 KB
ID:	70488
                  Besides.....it's got so many holes it needs to be replaced anyhow.


                  Click image for larger version

Name:	IMG_4412.jpg
Views:	71
Size:	47.7 KB
ID:	70489

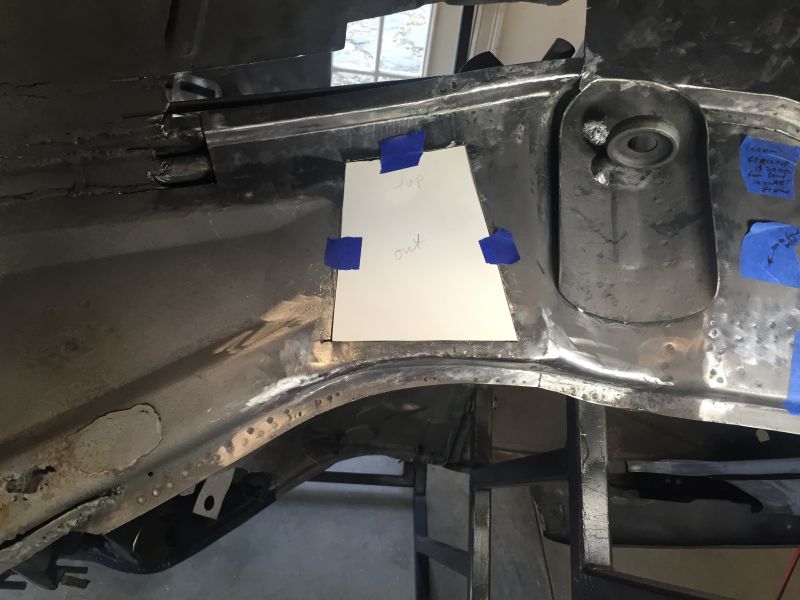

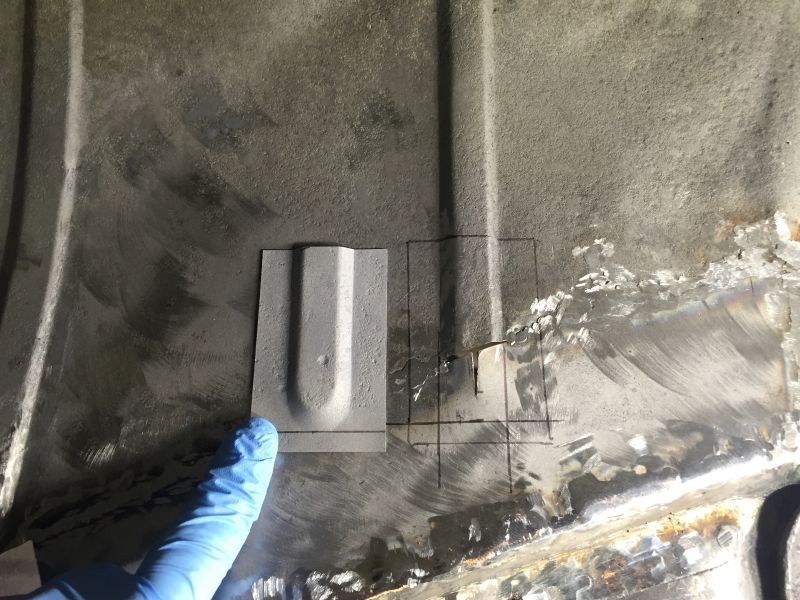

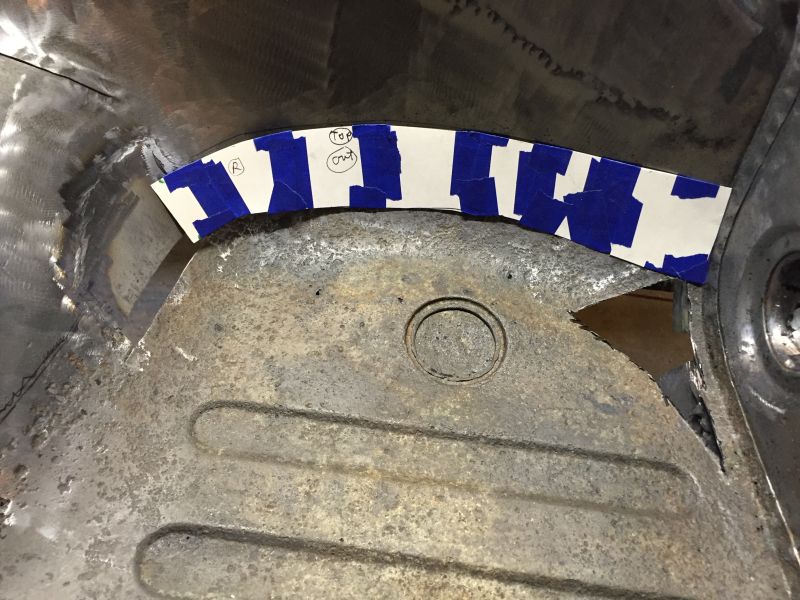

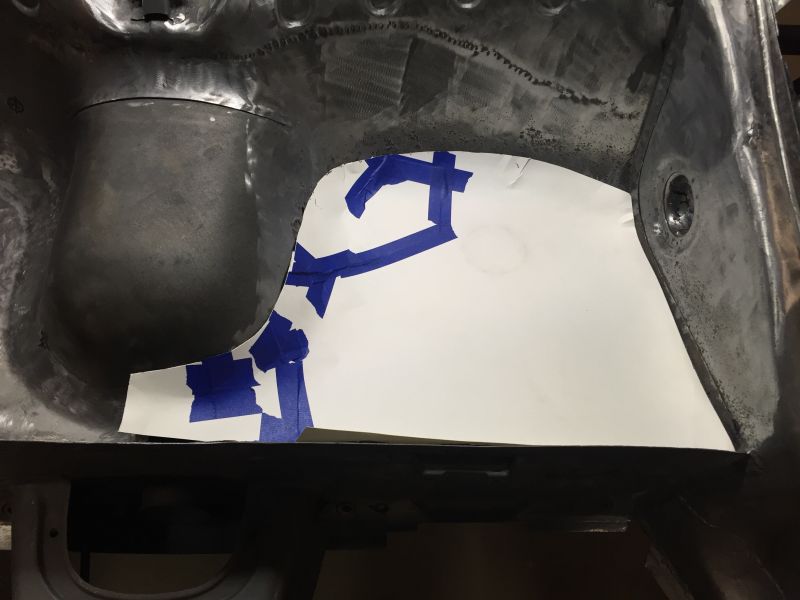

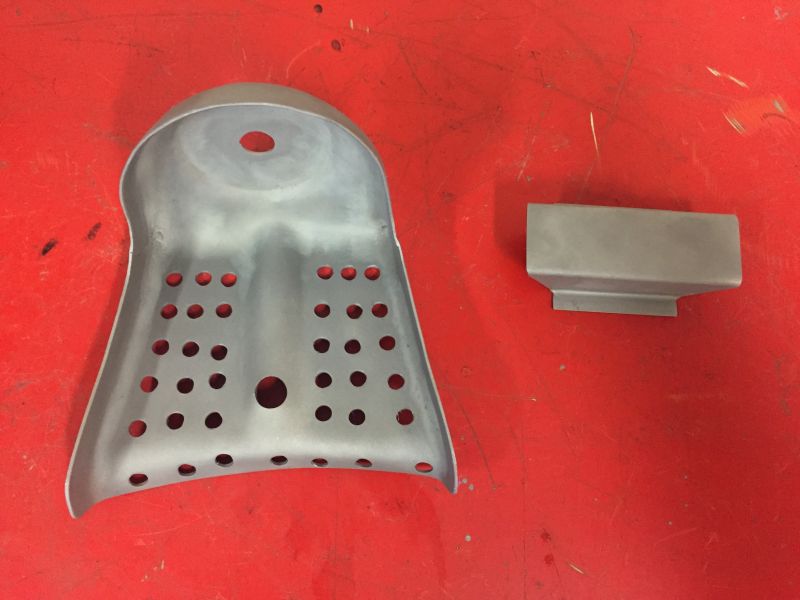

                  I made a paper template of the reproduction seat bottom and marked the upper edge.


                  Click image for larger version

Name:	IMG_4413.jpg
Views:	75
Size:	81.0 KB
ID:	70490
                  This showed that the extent of the weakened and corroded metal went pretty high. This area definitely needed to be replaced. Best to get the correct curvature with the seat bottom still in place.


                  Click image for larger version

Name:	IMG_4415.jpg
Views:	73
Size:	81.0 KB
ID:	70491
                  I decided to install the patch panels in 2 pieces due to the complex curves.


                  Click image for larger version

Name:	IMG_4432.jpg
Views:	72
Size:	96.2 KB
ID:	70492
                  I made a paper template for the rear panel, which also included the side flange.


                  Click image for larger version

Name:	IMG_4436.jpg
Views:	70
Size:	79.2 KB
ID:	70493

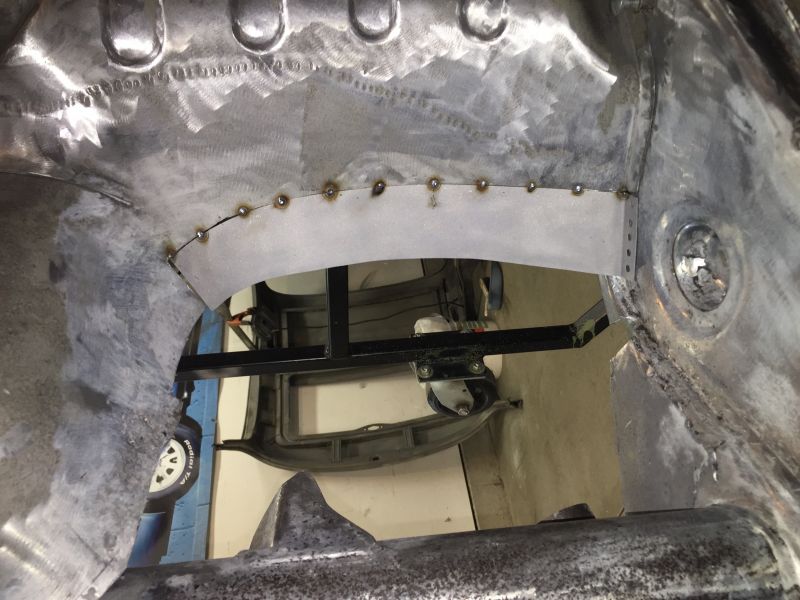

                  Tacked in place.


                  Click image for larger version

Name:	IMG_4438.jpg
Views:	73
Size:	81.6 KB
ID:	70494
                  While repairing this area and taking out the seat bottom I found that the inner frame where the seat flange is installed was rotted through also. Looks like another area needing help.

                  Thanks for following.
                  jjgpierce@yahoo.com

                  Comment


                  • Looking good! Yes, its a nice luxury to be able to remove certain closing panels out of the way for access. Do I spot a sunroof clip there leaning against the wall? Keep up the great work!
                    Justin
                    Justin Rio

                    Comment


                    • Thanks Justin! I was wondering who would spot the clip in the background The clip came with none of the needed internals, but I've managed to scrounge them up. The fun part of this game is trying to find the parts you need. You meet a lot of interesting peeps along the way.
                      jjgpierce@yahoo.com

                      Comment


                      • John,
                        Not too important but THANKS for orienting the pictures in the cars natural stance! Sometimes people have their cars on a rotisserie, take a shot upside down and it's up to us to try and figure what's going on. I'm sure if you've been down the rebuild road it makes sense but some of us are trying to learn before we jump in. Thanks again!
                        Don

                        Comment


                        • My nightmare!!


                          Click image for larger version

Name:	_MG_3422copy.JPG
Views:	70
Size:	50.3 KB
ID:	70713

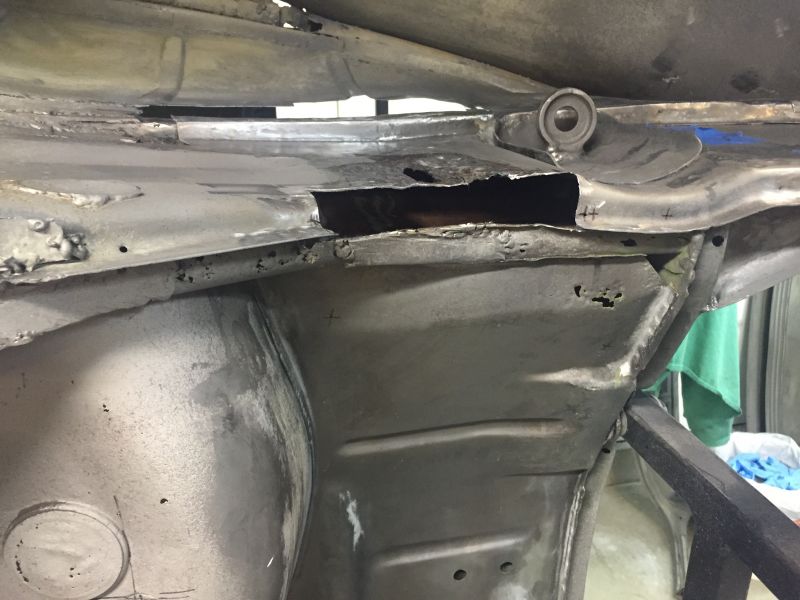

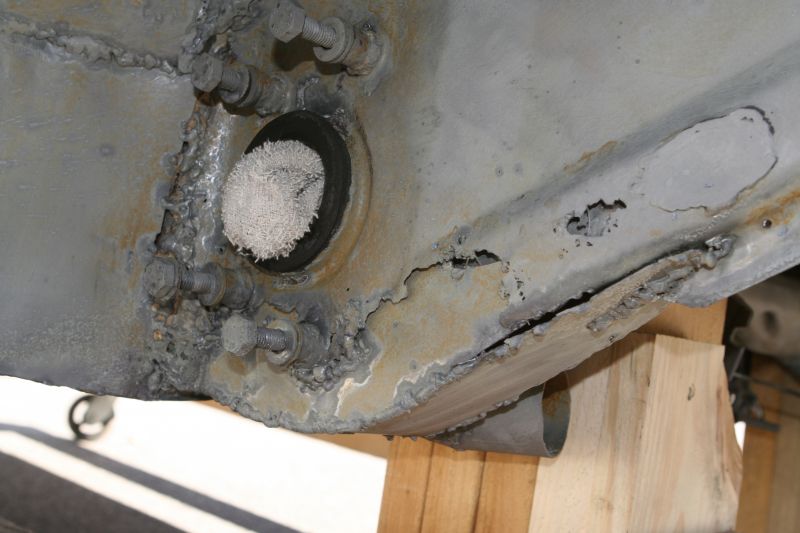

                          Left rear torsion region. Just a few holes.


                          Click image for larger version

Name:	IMG_4441copy.jpg
Views:	75
Size:	61.6 KB
ID:	70712

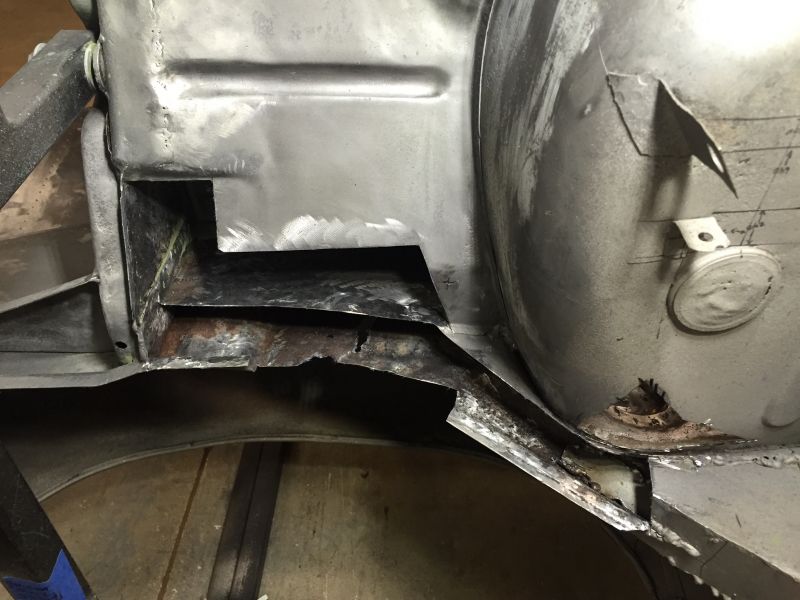

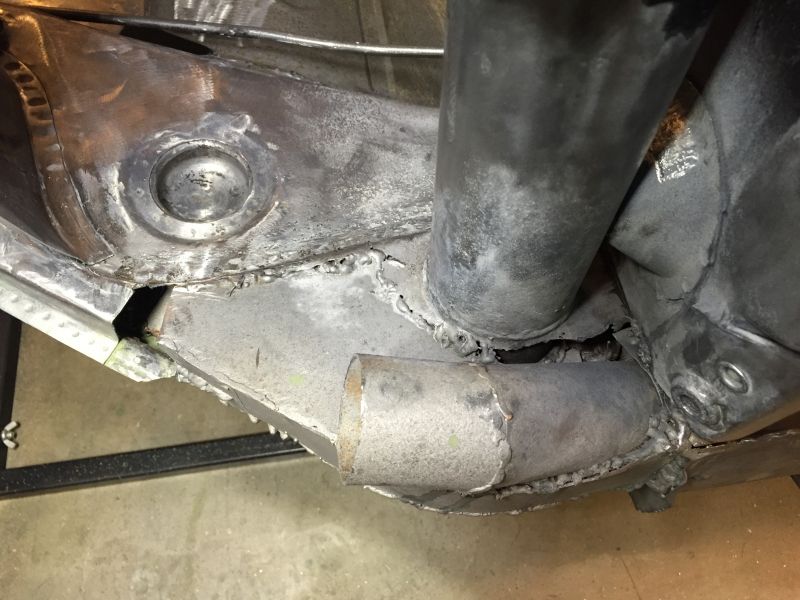

                          After some repair and removal of the seat bottom the extent of the badness can be seen to a better degree. The flat bottomed torsion area and heater tube are wrong for a B T-6.


                          Click image for larger version

Name:	IMG_4442copy.jpg
Views:	72
Size:	79.0 KB
ID:	70711

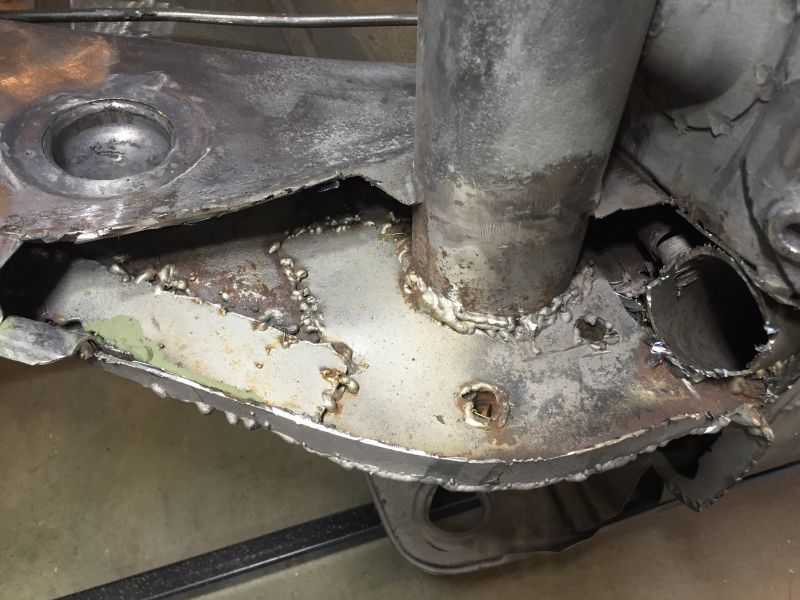

                          I can't believe anyone could weld some metal on, leaving huge gaps for water and dirt to get in, and leave it that way!


                          Click image for larger version

Name:	IMG_4445copy.jpg
Views:	71
Size:	81.1 KB
ID:	70710

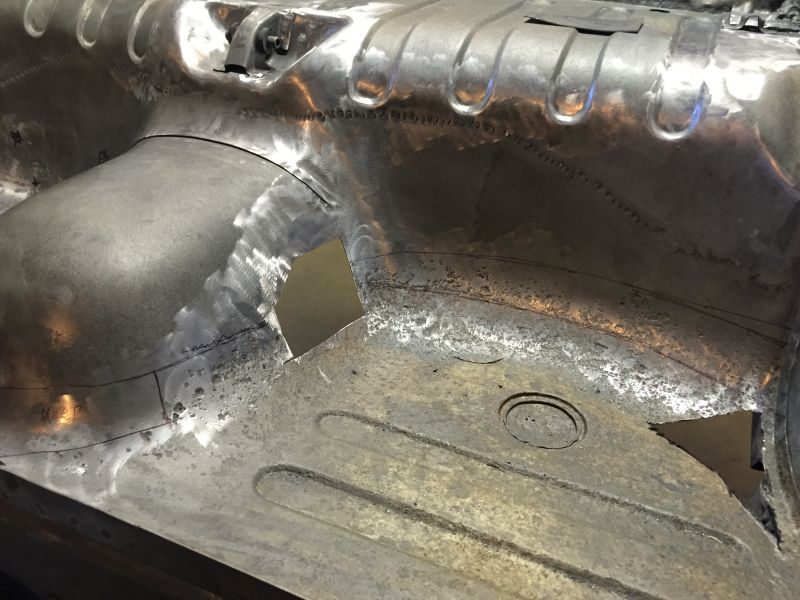

                          Removal of the offending inner frame repair brings to light the worse off outer frame.


                          Click image for larger version

Name:	IMG_4444copy.jpg
Views:	67
Size:	62.4 KB
ID:	70709
                          The poorly repaired inner frame continues on the other side of the rear bulkhead.


                          Click image for larger version

Name:	IMG_4457copy.jpg
Views:	73
Size:	70.2 KB
ID:	70708

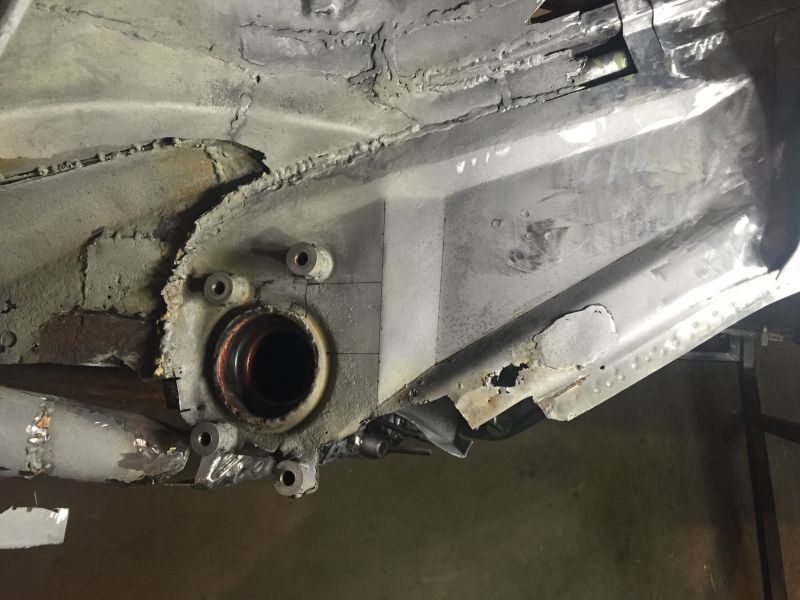

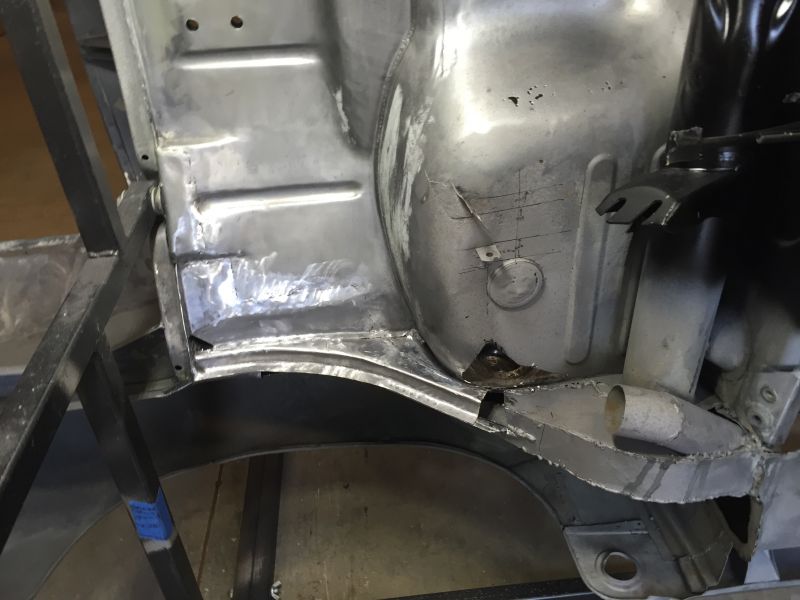

                          The inner frame and rotted portions of the rear bulkhead flanges were removed.


                          Click image for larger version

Name:	IMG_4464copy.jpg
Views:	69
Size:	63.4 KB
ID:	70707

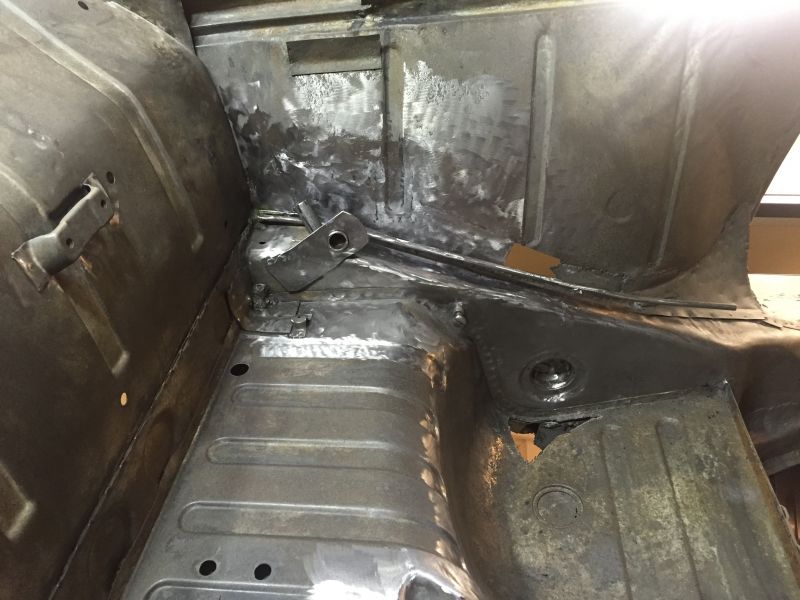

                          Bulkhead flanges repaired. I figure if I take it in small steps this area will not get me depressed


                          Click image for larger version

Name:	IMG_4465copy.JPG
Views:	71
Size:	56.5 KB
ID:	70717
                          Now to the outer frame. Ugh........ What else can I say.


                          Click image for larger version

Name:	IMG_4466copy.jpg
Views:	68
Size:	70.5 KB
ID:	70718

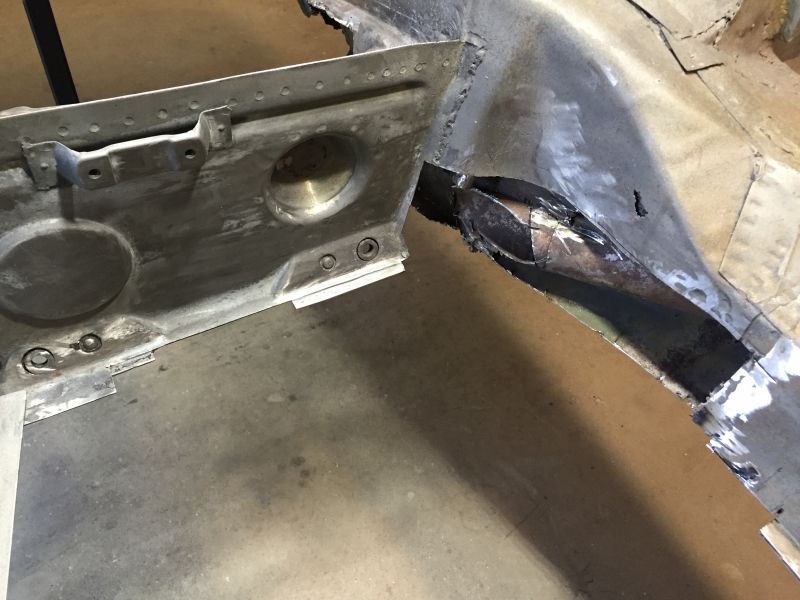

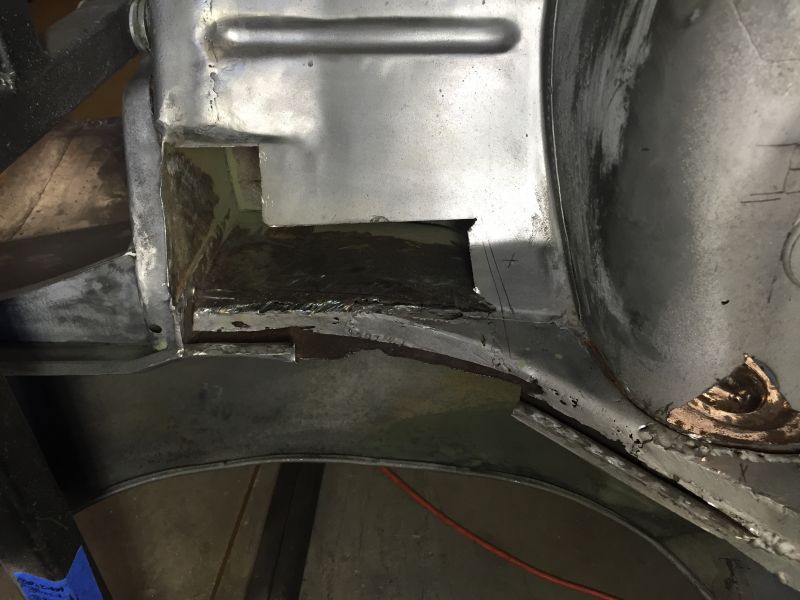

                          It took some careful cutting and grinding to remove the previous repairs while trying to preserve any landmarks to go from. Very tedious. The bottom standoffs will need to be removed and tossed as they are garbage. I drew in lines where the metal was solid and where to cut to.


                          Click image for larger version

Name:	IMG_4469copy.jpg
Views:	65
Size:	52.5 KB
ID:	70719

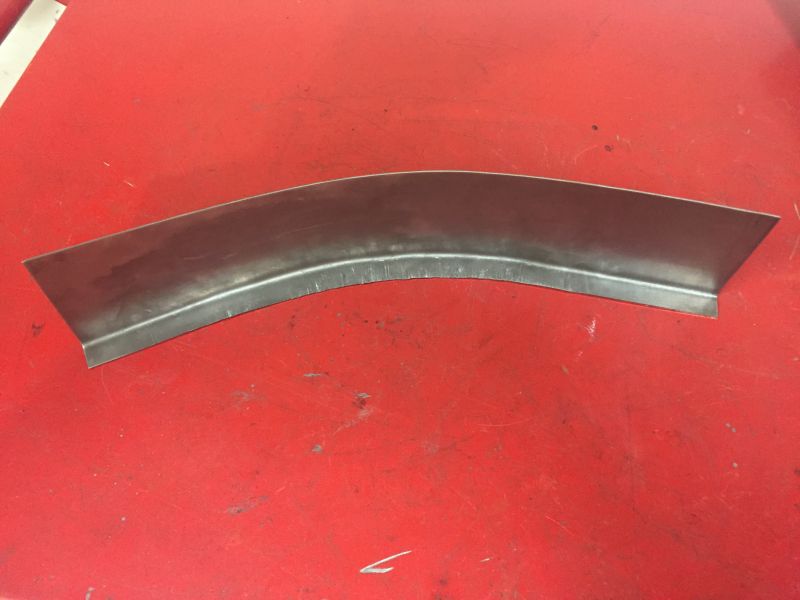

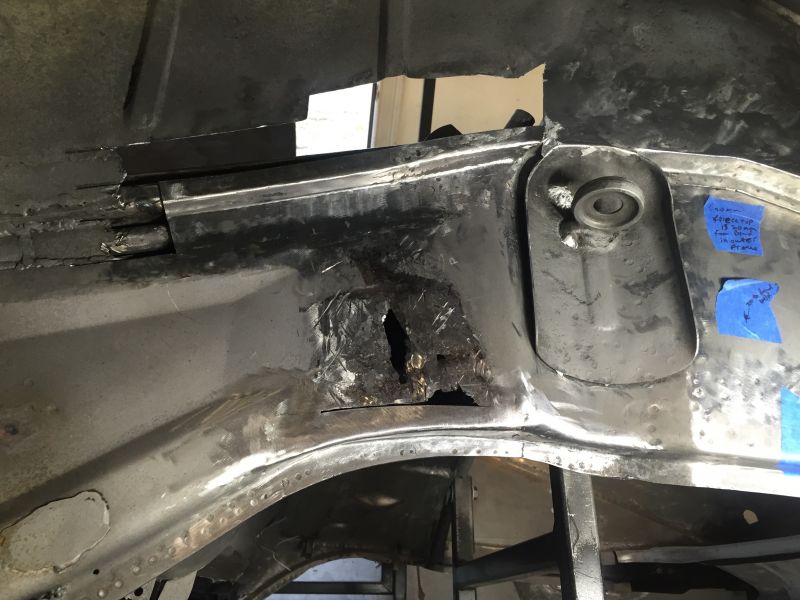

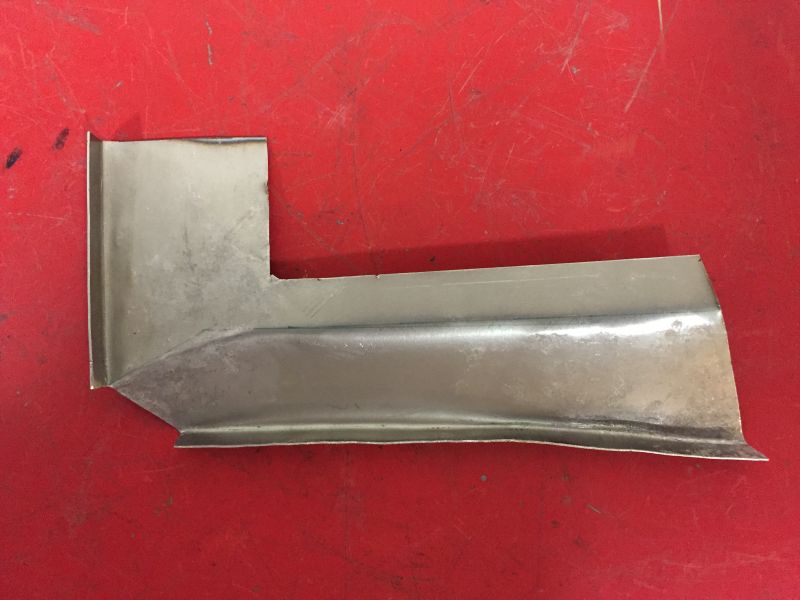

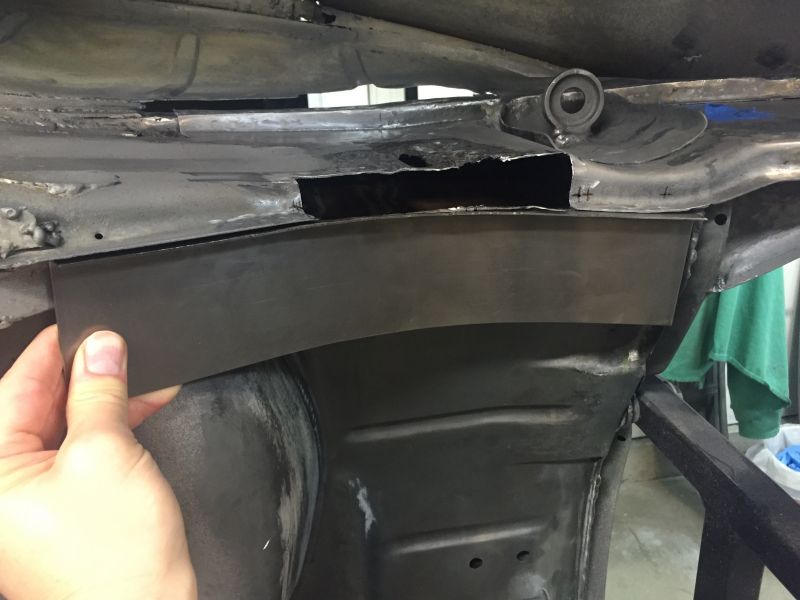

                          Ahhh....the first repair. I made the repair piece out of 16 gauge metal and formed the depression that goes around the torsion tube along with a flange to weld to.


                          Click image for larger version

Name:	IMG_4486copy.jpg
Views:	68
Size:	85.7 KB
ID:	70716

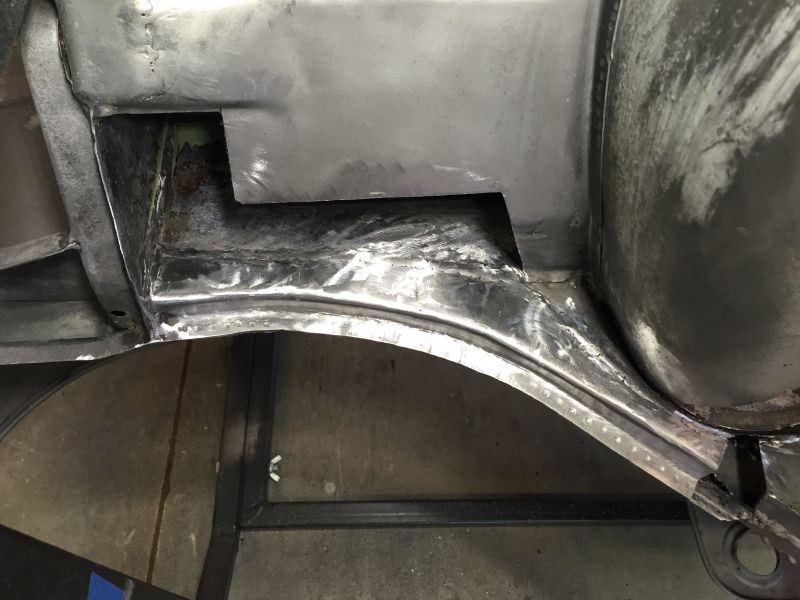

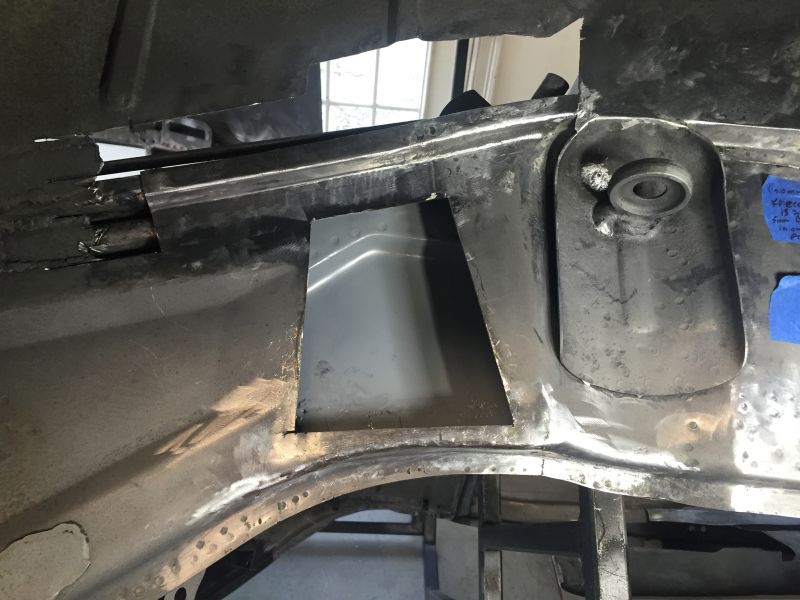

                          Metal cut back to receive the repair patch.


                          Click image for larger version

Name:	IMG_4490copy.jpg
Views:	67
Size:	76.8 KB
ID:	70715

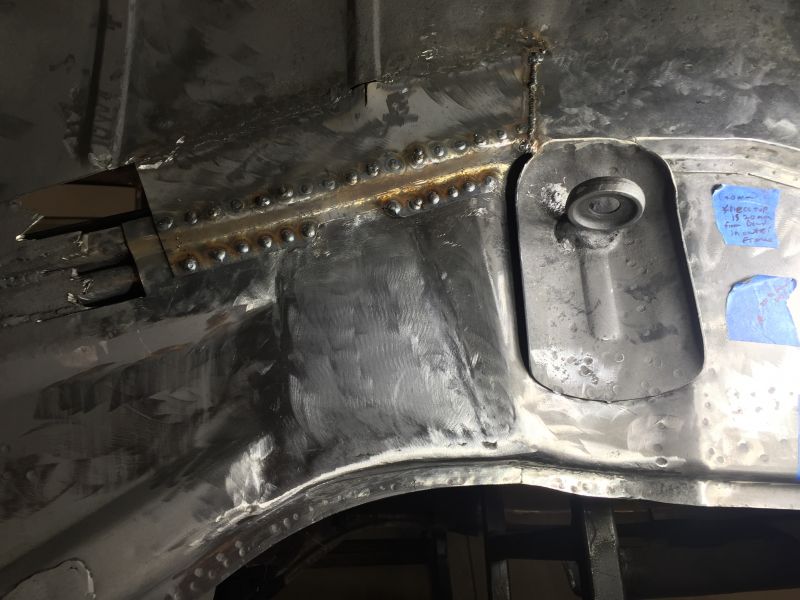

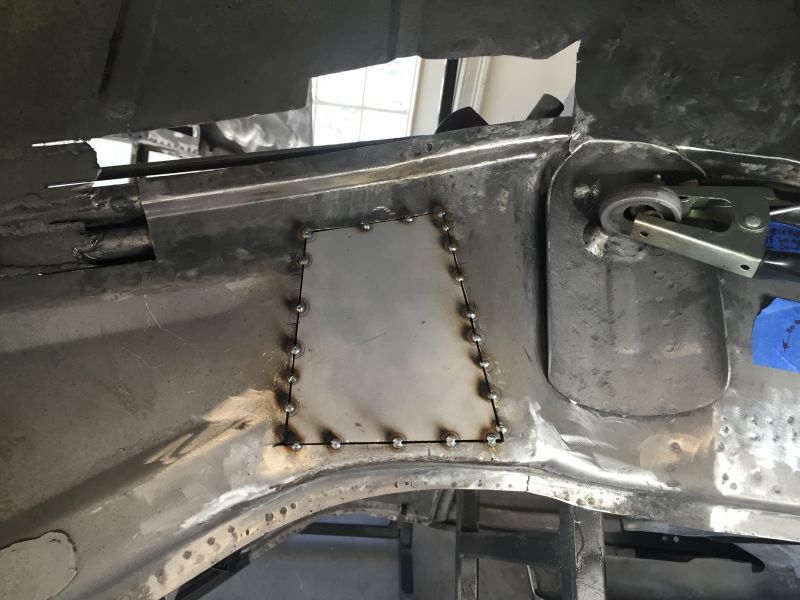

                          Tacked in place.


                          Click image for larger version

Name:	IMG_4496copy.jpg
Views:	62
Size:	68.5 KB
ID:	70714
                          Looking so much better. First step in a long process.

                          Thanks for following.
                          jjgpierce@yahoo.com

                          Comment


                          • John
                            As the texters say: OMG!

                            A lot of us have been at that point where we say: "If I had known it was this bad before I started, I would have never started."

                            This T6 will owe you big time.

                            Keep at it, and keep up the great work.

                            I agree, you have to wonder who would do those repairs with any kind of pride.

                            Phil

                            Comment

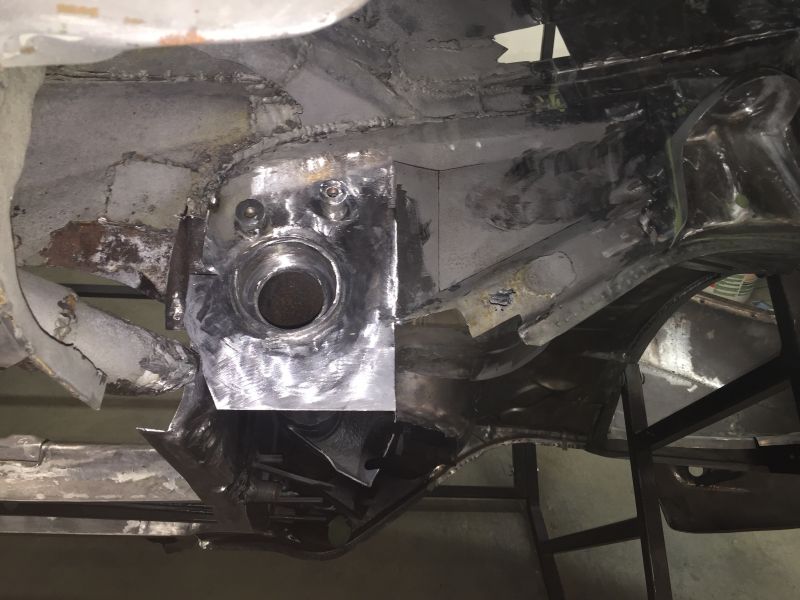

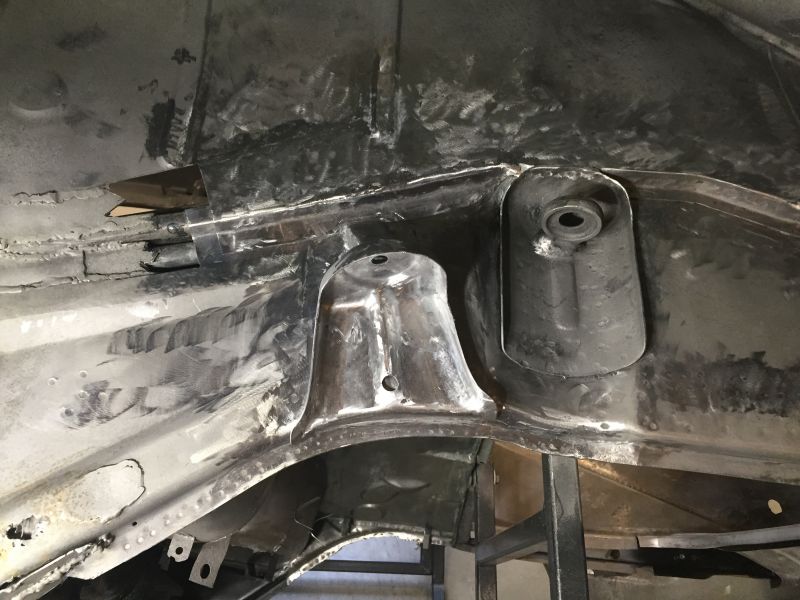

                            • John, I wouldn't be too quick to toss the lower standoff bosses, as they are NLA. You may be able to clean them up for re-use. In a pinch, I have had good success by welding on 616 upper cyl head nuts, with a thick larger OD washer between the nut and the torsion bar cover. Just a thought before you go to the expense of having them custom made.
                              Although the "agricultural" repairs are ugly, it at least saved the car from a certain fate of being scrapped out years ago. Gotta be thankful for something...
                              Once again, really nice work! Thanks for sharing.
                              Jack (analog man from the stone age)

                              Comment

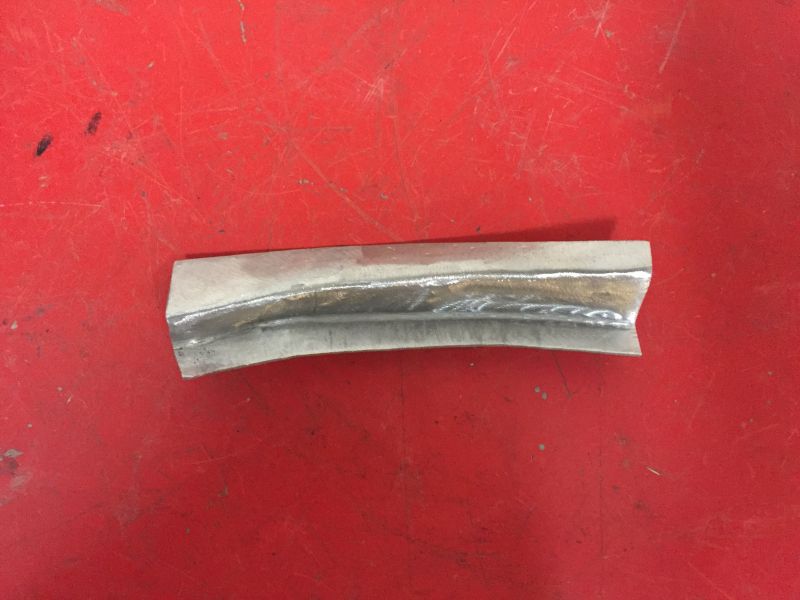

                              • Thanks Jack for the advice. The threads on the pair that were on there were so buggered up as to be useless. Luckily the sunroof clip I have had some nice ones I could salvage.

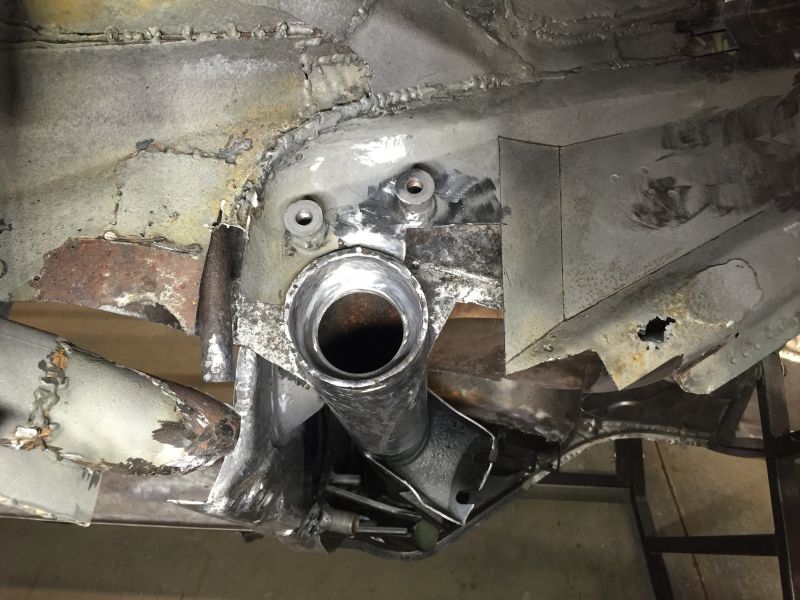

                                Click image for larger version

Name:	IMG_4489copy.jpg
Views:	61
Size:	46.4 KB
ID:	70723
                                Welds ground off and media blasted. As good as new.


                                JP
