  • John,
    This is shaping up very nicely. Any time you feel like coming to New Mexico and taking over on my projects, feel free!

    I think #17 in the e-brake relay diagram is a bushing. From your photo I think it may be in place over the pin already. I'll look at one of mine this evening to be sure, but probably others will chime in before then.

    DG

    Comment


    • Very nice John. Lot of work there, but it really looks great now>
      Phil

      Comment


      • John that flared tube turned out great! Nice work everywhere and superb attention to detail. Always look forward to these update posts.

        Comment


        • You're really nailing all the details, Beautiful job John!!
          Justin Rio

          Comment

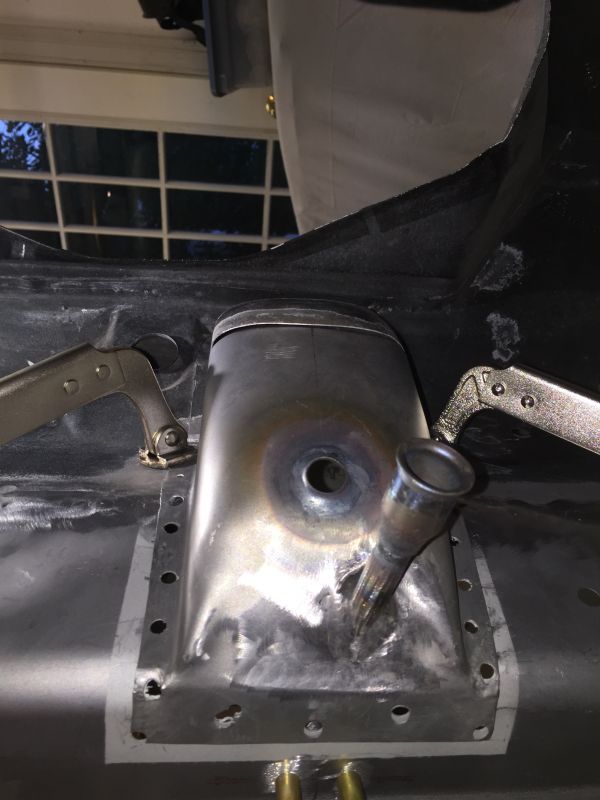

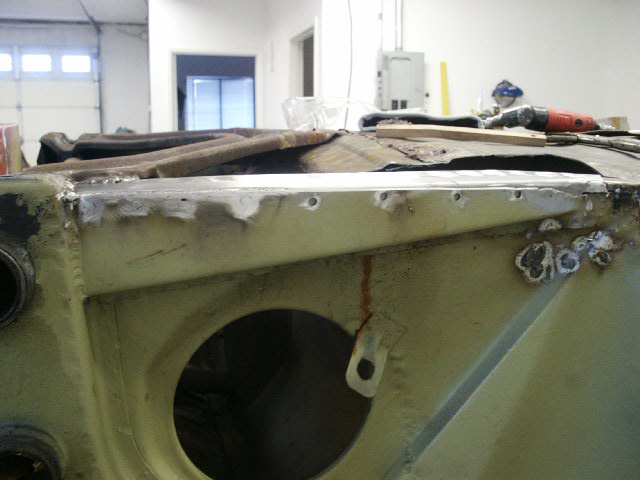

          • Buttoned up the pedal bulkhead bumpout. It took much longer than I expected due to necessary remodeling.

            Click image for larger version

Name:	IMG_0005copy.jpg
Views:	97
Size:	56.4 KB
ID:	49730

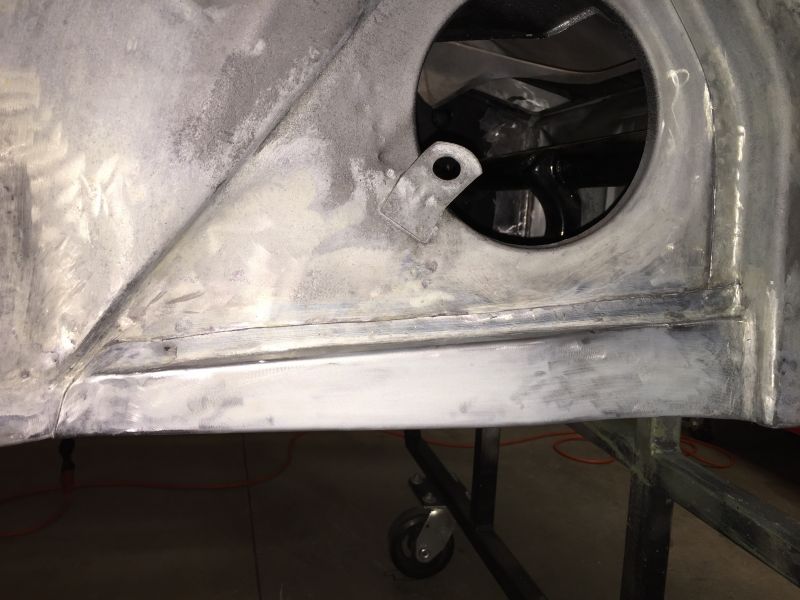

            The bumpout measurements were spot on side to side, but were off by 2-3 mm front to back. I had to rebend the flanges to get it to sit correctly.

            Click image for larger version

Name:	IMG_0023copy.jpg
Views:	93
Size:	59.7 KB
ID:	49733

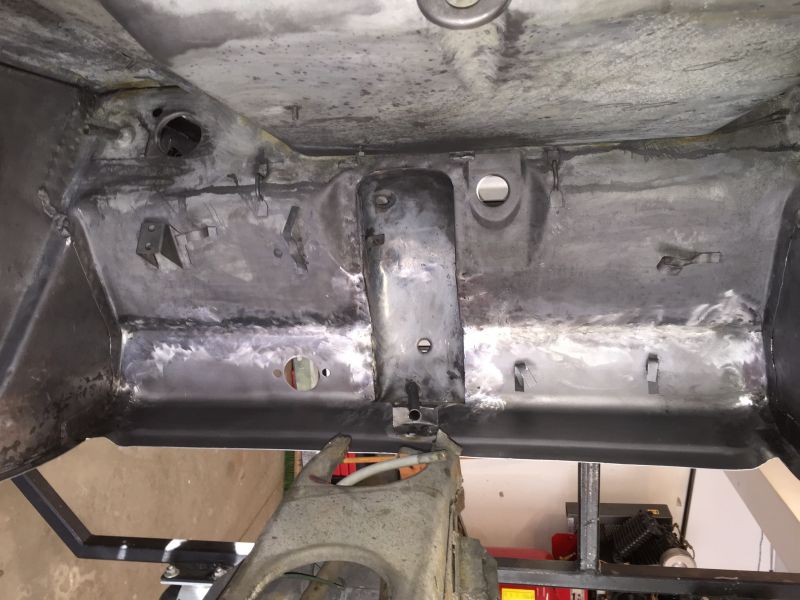

            A bit of welding and grinding and things are complete.

            Click image for larger version

Name:	IMG_0025copy.jpg
Views:	91
Size:	61.3 KB
ID:	49734

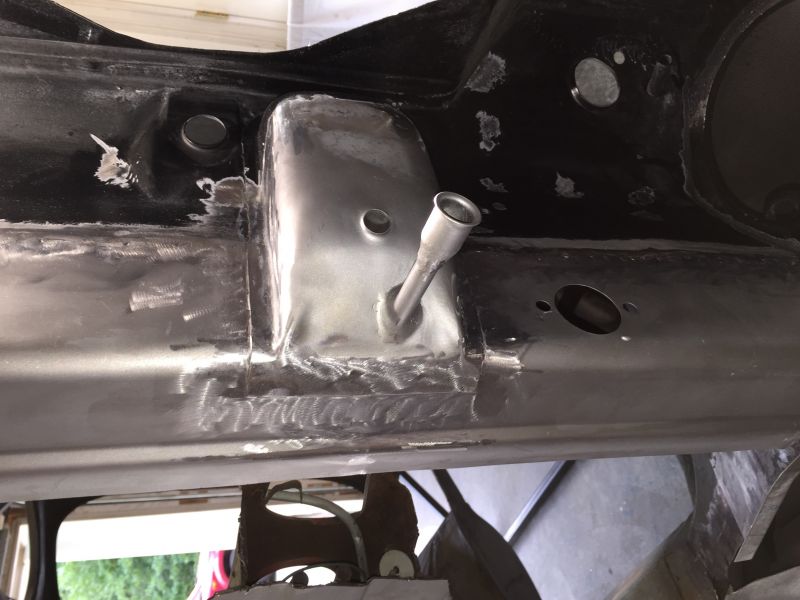

            I ended up TIG welding the funnel onto the 12 mm tube and everything lined up nicely. TIG is so nice to work with. Congrats Justin on your purchase. There are a lot of spot welds to mimic so I'm still using MIG mostly.

            Click image for larger version

Name:	IMG_0027copy.jpg
Views:	94
Size:	74.1 KB
ID:	49732

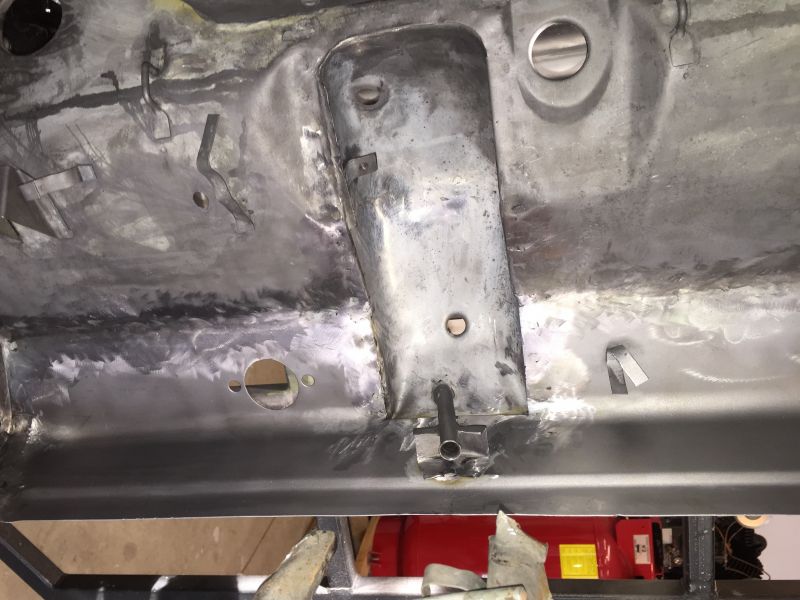

            The bulkhead and bumpout provide a lot of strength to the front end. Things are now much more solid.

            Click image for larger version

Name:	IMG_0029copy.jpg
Views:	94
Size:	73.7 KB
ID:	49731
            The next job is to start working on the pedal bulkhead supports.

            Thanks for looking.
            jjgpierce@yahoo.com

            Comment


            • Thanks John, really looking forward to taking delivery of it. You're doing such a clean job on this bulkhead; beautiful work! Keep going!
              Justin
              Justin Rio

              Comment


              • Installed a bunch of fiddly parts on the front end I want to get these things installed before moving onto the diagonal cross brace.


                Click image for larger version

Name:	IMG_0169copy.jpg
Views:	95
Size:	48.4 KB
ID:	50223

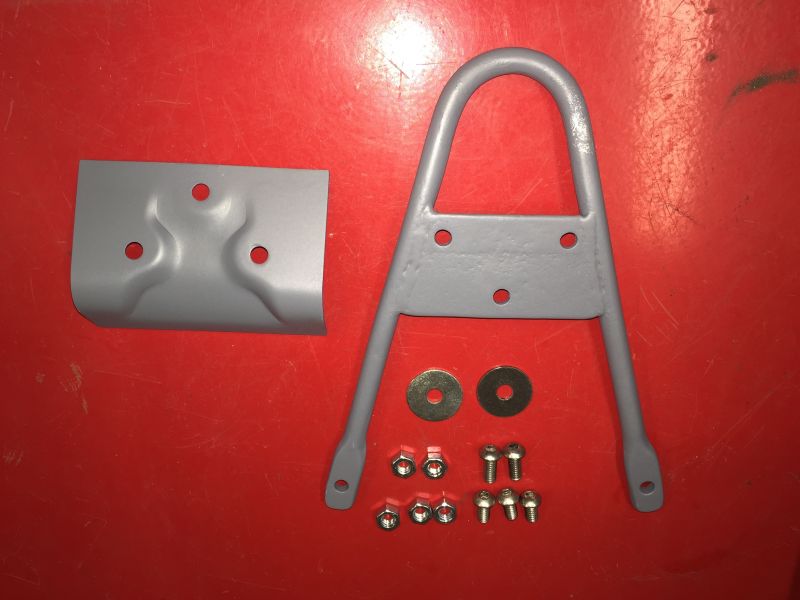

                Tow hook. Everything epoxy primered. I bought rivets, but wanted a real tight fit so ended up using 1/4"-20 button head bolts and really snugging them down.

                Click image for larger version

Name:	IMG_0171copy.JPG
Views:	94
Size:	73.8 KB
ID:	50224

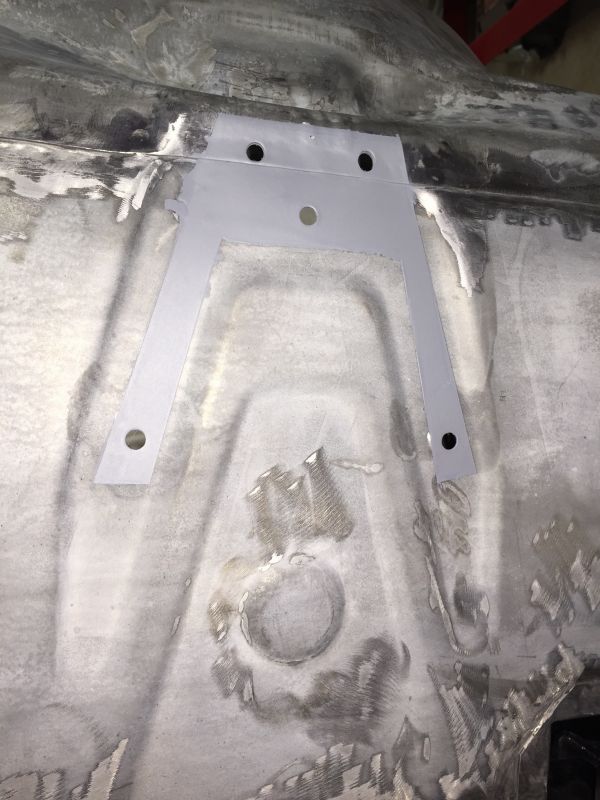

                The areas under the tow hook parts were epoxy primered, inside and outside the battery box.

                Click image for larger version

Name:	IMG_0176copy.jpg
Views:	94
Size:	74.6 KB
ID:	50225

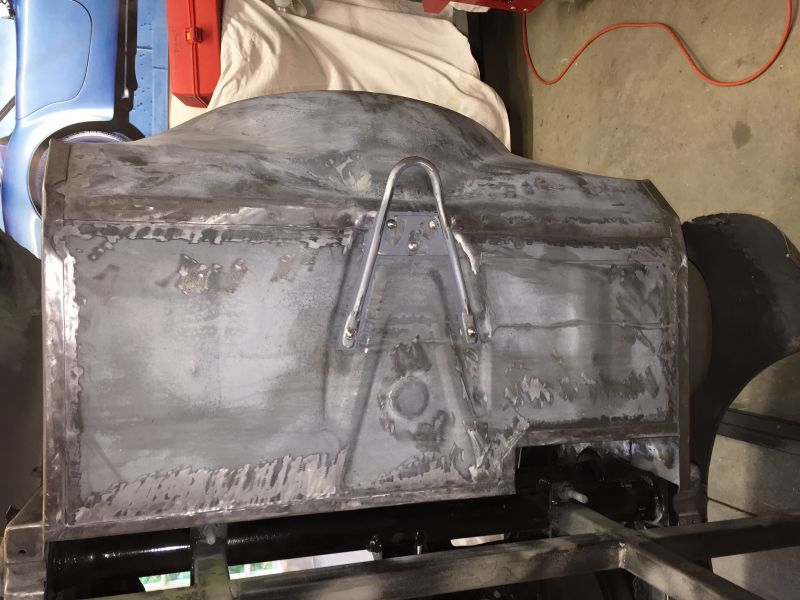

                I then put a dollop of weld in the bolt head hole and top of the nut then ground them down to look like rivets. As Phil said: a faux rivet.


                Click image for larger version

Name:	IMG_0187copy.jpg
Views:	106
Size:	78.9 KB
ID:	50226

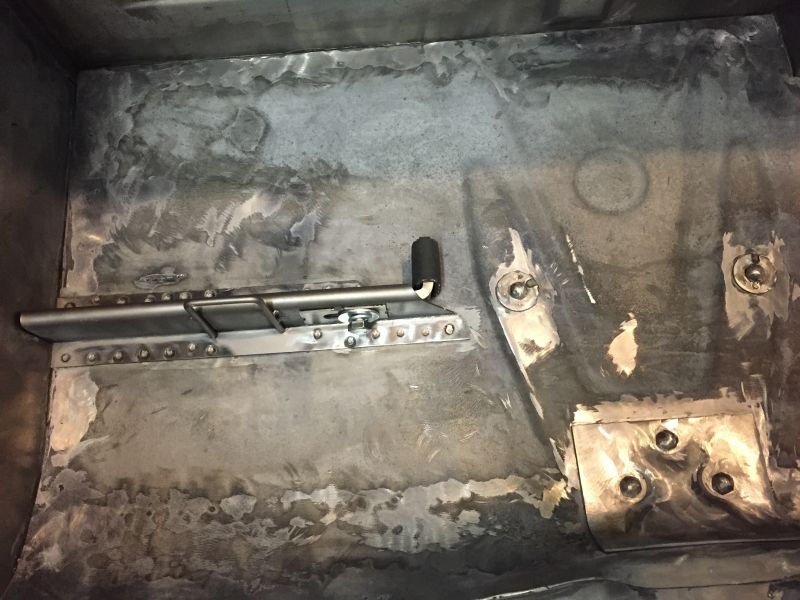

                Battery holder installed with the spot welder. The rear top of the holder is 7 1/4" from the rear wall. Thanks guys for the measurements. The inside was epoxy primered as that area is not going to see the light of day again.


                Click image for larger version

Name:	IMG_0172copy.JPG
Views:	110
Size:	63.4 KB
ID:	50227

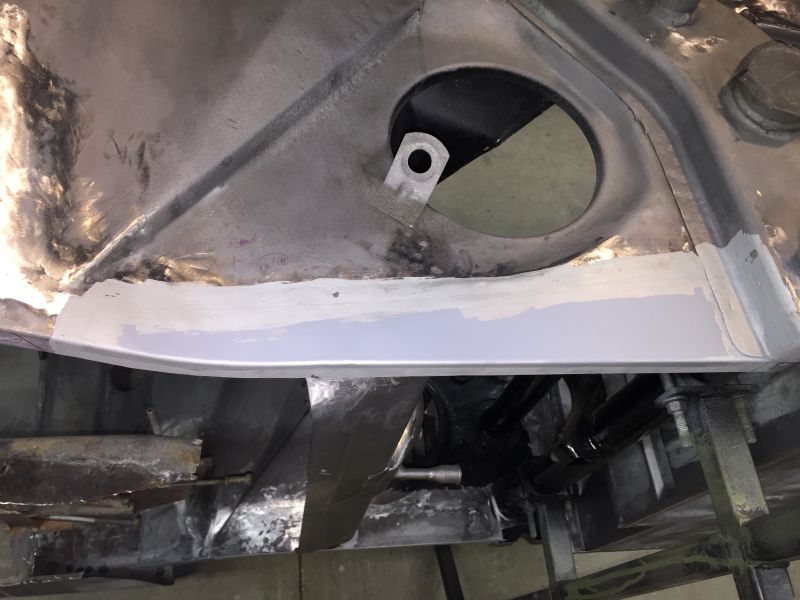

                Onto the front longitudinal reinforcement piece for the later 356's. The area was epoxy primered as was the inside of the reinforcement as these pieces notoriously rust out. The flanges were primered with zinc weld-thru.


                Click image for larger version

Name:	IMG_0193copy.JPG
Views:	90
Size:	61.9 KB
ID:	50228
                I looked at a few of these reproduction pieces and found that the Simonsen piece had the nicest curves and just looked right.


                Click image for larger version

Name:	IMG_0179copy.JPG
Views:	94
Size:	67.5 KB
ID:	50229

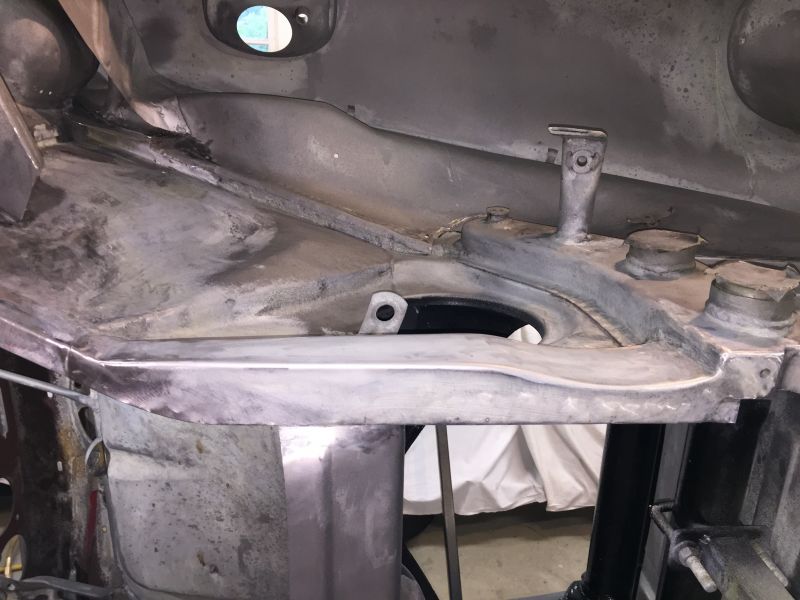

                Everything buttoned up. The extra piece of metal near the torsion support will be removed when the diagonal is installed.


                Thanks for looking.
                jjgpierce@yahoo.com

                Comment


                • Quality work John
                  Looking better with each post.

                  Phil

                  Comment


                  • Beautiful John! The curve you're describing in the lower reinforcement piece is there to create weakness or a crumble zone to try and localize potential accident damage. Keep up the great work! Justin
                    Justin Rio

                    Comment


                    • That dip near the lower torsion bar bore is there so that the lower leg of the shock absorber can be slid on or off of the stud on the control arm. Without this relief, the control arms would have to be pulled off of the torsion bar a bit for shock r&r. Bad scene, Bix.
                      Jack (analog man from the stone age)

                      Comment


                      • Definitely Jack, it does provide as a side benefit additional wiggle room for shock-absorber service but that isn't its only purpose.
                        Click image for larger version

Name:	540740.jpg
Views:	90
Size:	104.1 KB
ID:	50275

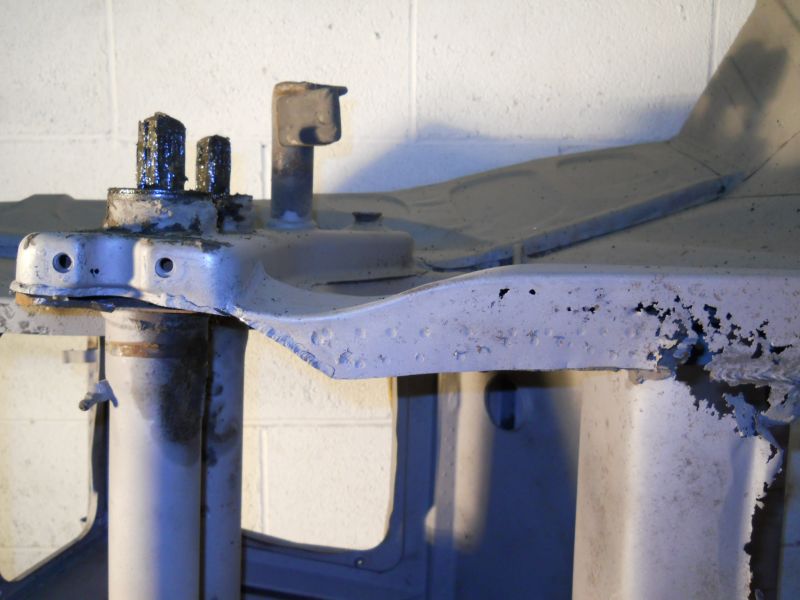

                        Late T1 Speedster with original first gen. reinforcement strut without recess shape.
                        Click image for larger version

Name:	540741.jpg
Views:	92
Size:	127.5 KB
ID:	50276
                        It was tight but the shock was removed first.

                        Click image for larger version

Name:	Achassis133.JPG
Views:	90
Size:	56.9 KB
ID:	50277

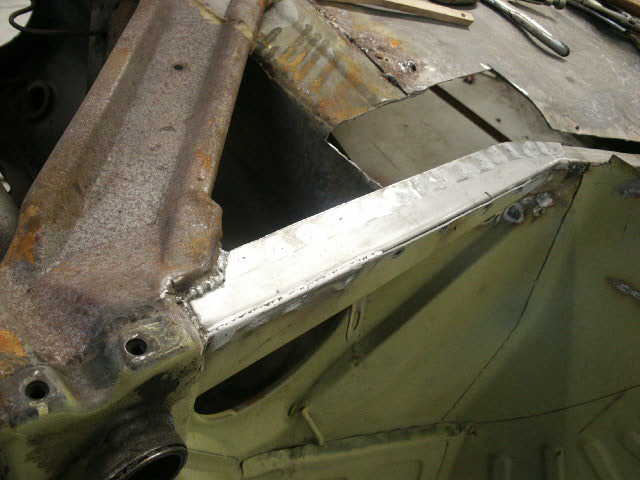

                        Fast forward to 1959. Like you said a lot more wiggle room but at the same this new profile relief has compromised its strength. Its designed to fail and buckle right there first. If shock clearance alone was its only purpose it would have been far more structurally prudent to lower the entire profile of this strut and eliminate this relief. A while back we discussed the various "weaknesses" both fore and aft of the front torsion housing that Porsche was beginning to introduce from T1 to T2. Its starts at the bottom of page 2 on up through page 4. http://www.abcgt.com/forum/4-356-Forum/5072-Evolution-of-the-356A-T1--T2-How-they-differ.html?limit=6&start=6 See what you think of our theories.
                        Justin Rio

                        Comment


                        • Good that you were able to remove the front shocks In the past couple of years, I have had two different mid/ late '57 Speedsters in the shop and there was no way those front shocks were coming off without additional work. One with Koni, the other with German Boge. I couldn't tell you the difference from these cars to the one in your photo. They looked very similar, IIRC.
                          Jack (analog man from the stone age)

                          Comment


                          • Oh, maybe I shouldn't have been able to do that then. The rubber bushings were probably so ratted out that I had more maneuverability than I should have had. Never tried installing new shocks on that Speedster so I'll take your word for it... Okay, so the relief definitely serves two purposes then.
                            Justin Rio

                            Comment


                            • Geez, guys....next we'll ass-u-me that the gas tank was flattened and moved forward on a T-6 as an additional 'crumple zone' and not just to allow more luggage and external gas filling.

                              We may be giving the engineers at Porsche too much credit. I'm guessing that the scallop for the shock R&I was done due to complaints from the field. When were "flat rate" and "book time" instituted?

                              I've owned, driven and serviced 356s from a '51 to a '65 and been amazed at the changes that appeared all along. Some seemed planned and some seemed random. Most good and a few bad during model evolution, some designed and some done quickly due to a 'holy shit!' realization....bottom sender T-6 tanks come to mind......but overall, we love 'em because they were a great evolution from their roots, the VW.....and most of us have owned at least one of those, I'll bet.

                              -Bruce

                              Comment


                              • Thanks Bruce. I think you're probably correct, Roy and I may have gotten too far out into the weeds and perhaps given more engineering credit than in reality there actual was. As both you and Jack said guys were having problems removing the shocks when that '57 brace was introduced and the swoop was a simple correction added for clearance, nothing more nothing less. We are very fortunate have you seasoned pro's here to keep us hacks from getting too far out of line. Thanks again Guys!

                                Sorry for the detour on your build post John. Keep up the fantastic work!
                                Justin
