  • Thanks a lot Torsten, I appreciate it!

    1/13/18

    The body shop is just about ready to accept this car in the next several weeks which is perfect as I need my rotisserie back for the S/R coupe. I had one more rust repair to address (It never seems to end! ) and it was yet another PIA chore I could not get motivated to touch until absolutely necessary. I finally got motivated to knock it out so this car can finally go.

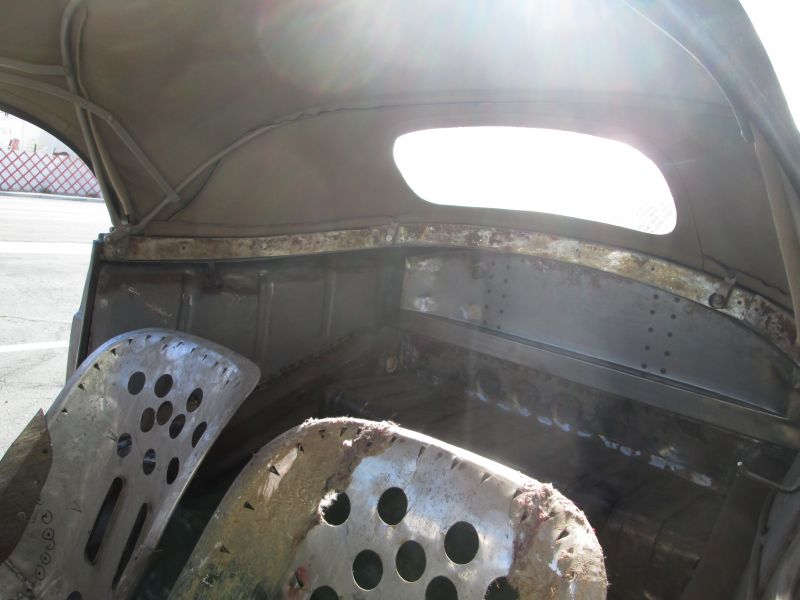

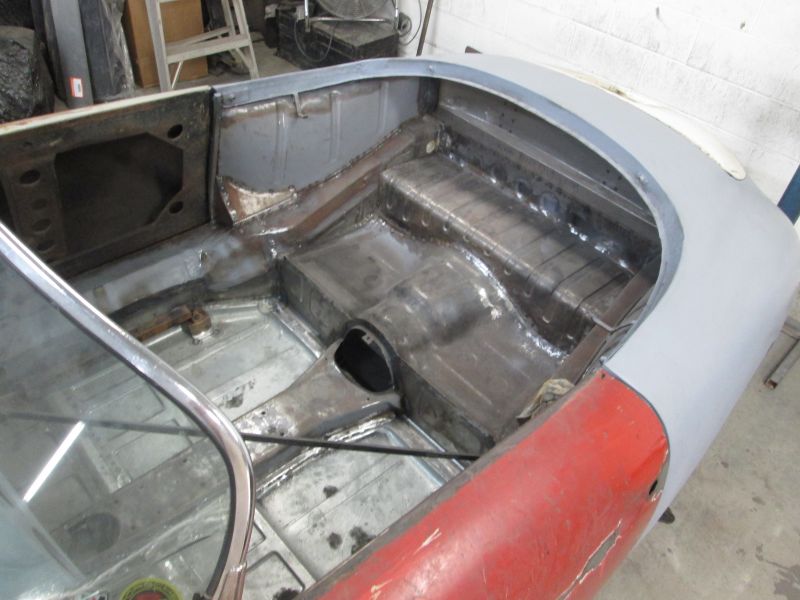

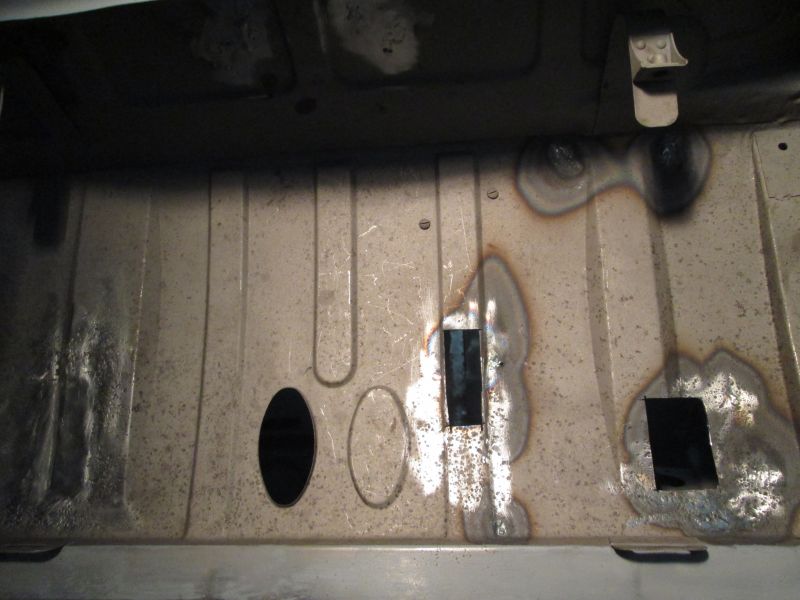

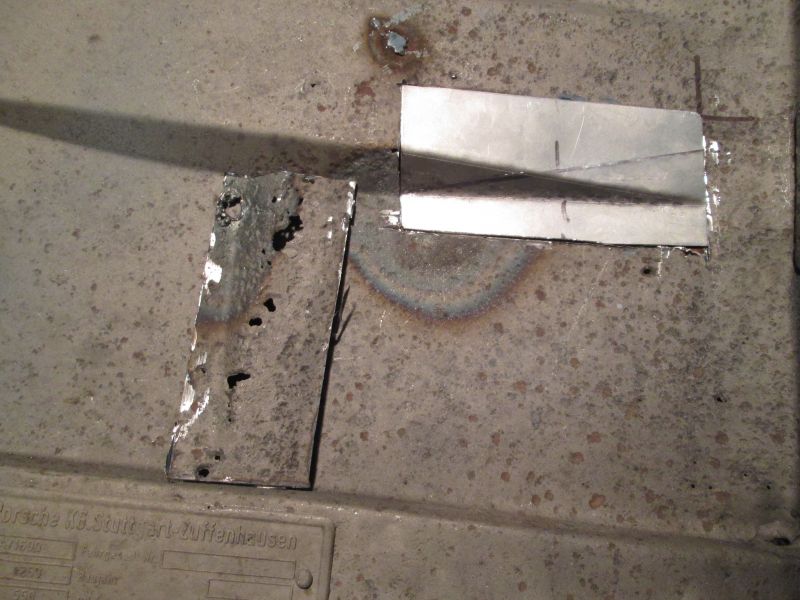

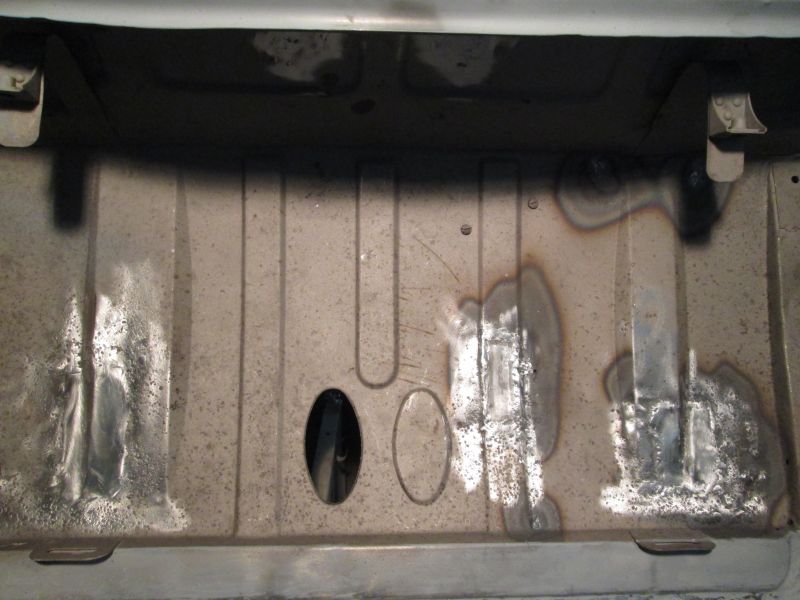

    Upper trunk floor repair:
    Click image for larger version

Name:	IMG_6450.JPG
Views:	140
Size:	78.1 KB
ID:	95705

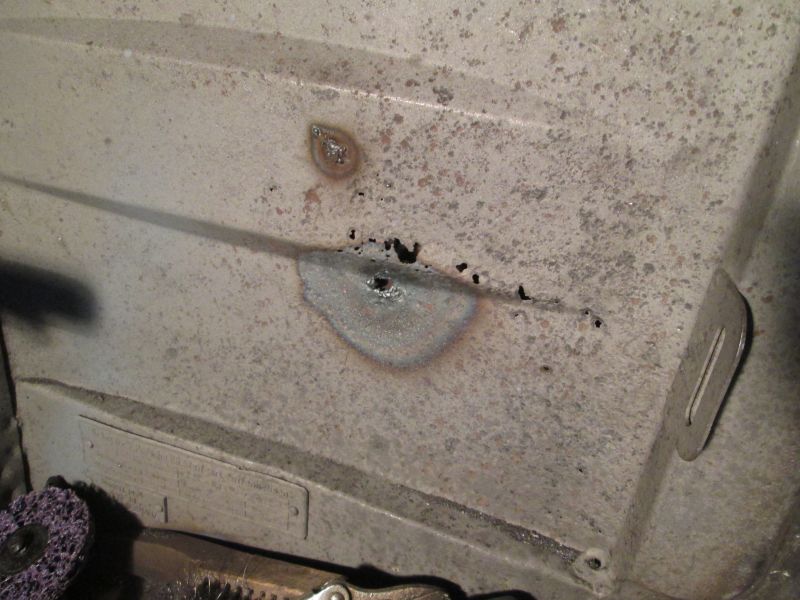

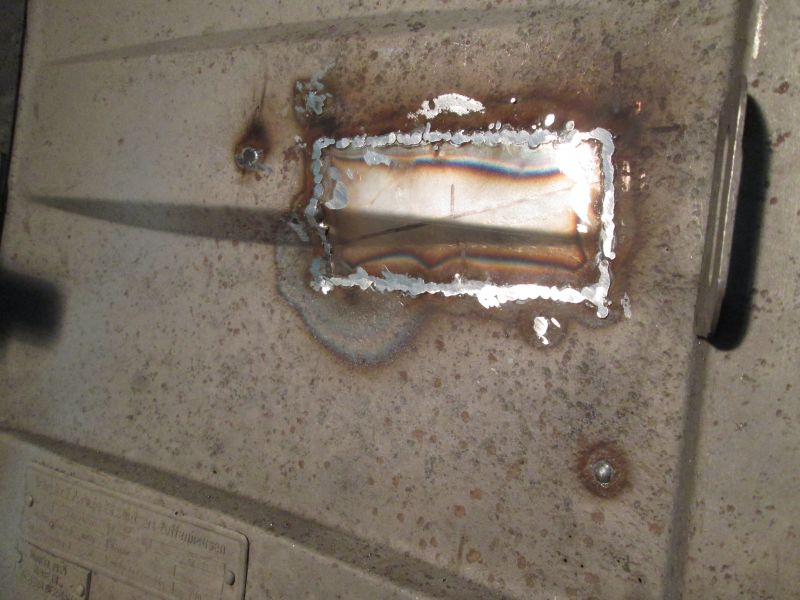

    Trunk floor is pretty thin and pitted overall but the work involved to replace it was just too much. Especially at this late stage. I attempted to back fill a several holes with a good result but three areas in particular like this one where just too far gone.
    Click image for larger version

Name:	IMG_6453.JPG
Views:	134
Size:	78.6 KB
ID:	95706
    Part I most dreaded was replicating the shoulder shapes.
    Click image for larger version

Name:	IMG_6454.JPG
Views:	134
Size:	73.2 KB
ID:	95707
    But it was the only way to fix it correctly as it was way too thin to spot fill. It would just blow out and melt away in an instant which really raised my blood pressure.
    Click image for larger version

Name:	IMG_6455.JPG
Views:	135
Size:	61.5 KB
ID:	95708
    One down and the last two really bad spots to go. It of course rusted away in the same spot on the opposite side but I at least have some practice.

    Thanks for looking!
    Justin
    Justin Rio

    Comment


    • 1/20/18

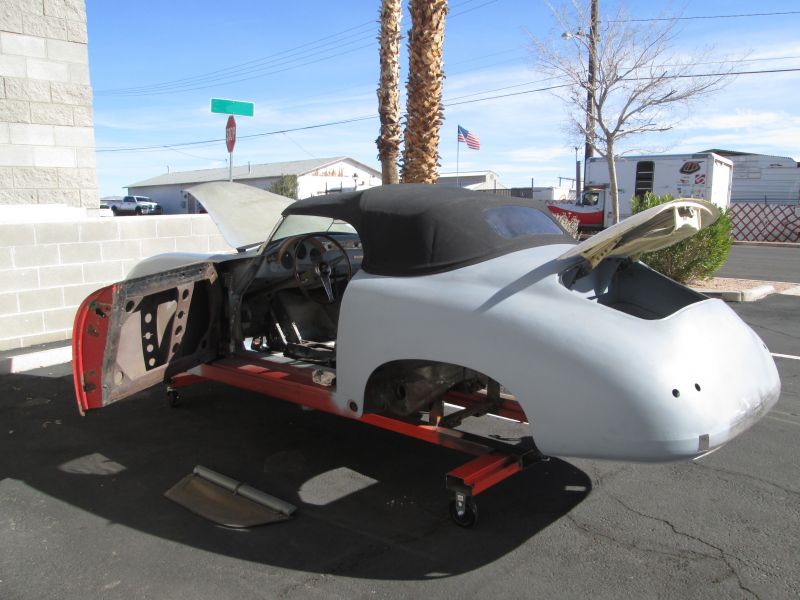

      Getting ready to get it on the ground.
      Click image for larger version

Name:	IMG_6456.JPG
Views:	129
Size:	67.0 KB
ID:	95787

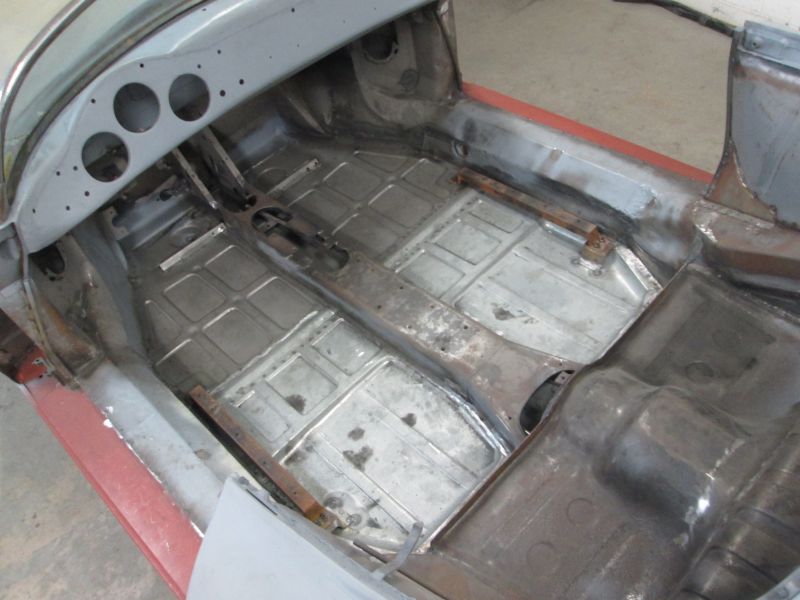

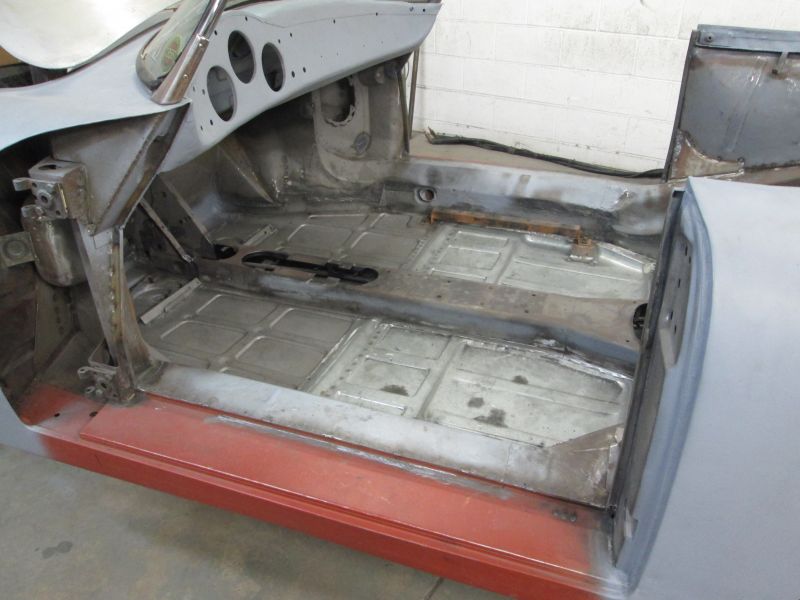

      A total pain but I finally got the rust repair to the floor completed. Okay, now I'm done with welding and rust repair on this car.
      Click image for larger version

Name:	IMG_6473.JPG
Views:	132
Size:	57.9 KB
ID:	95788

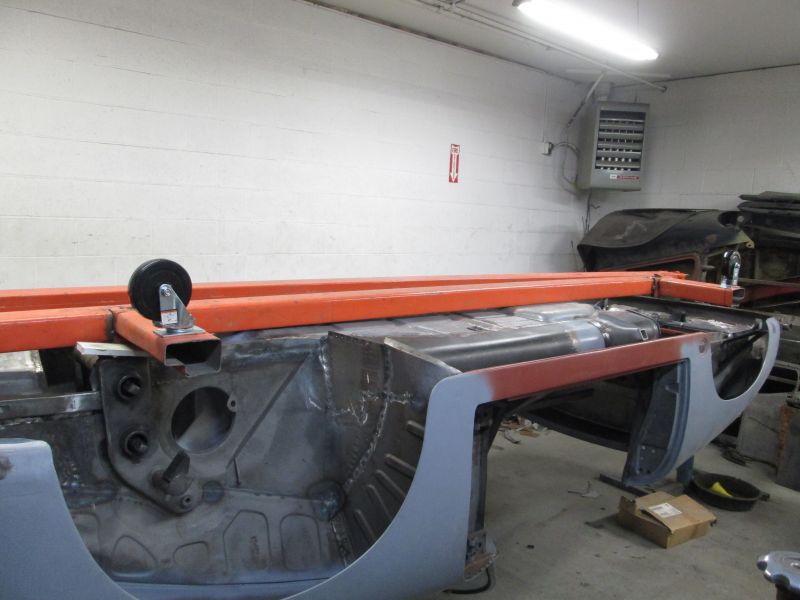

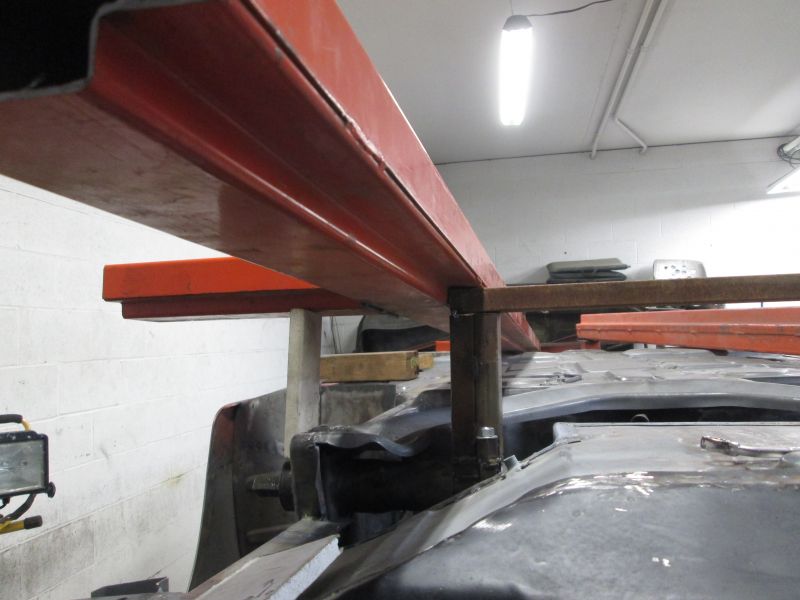

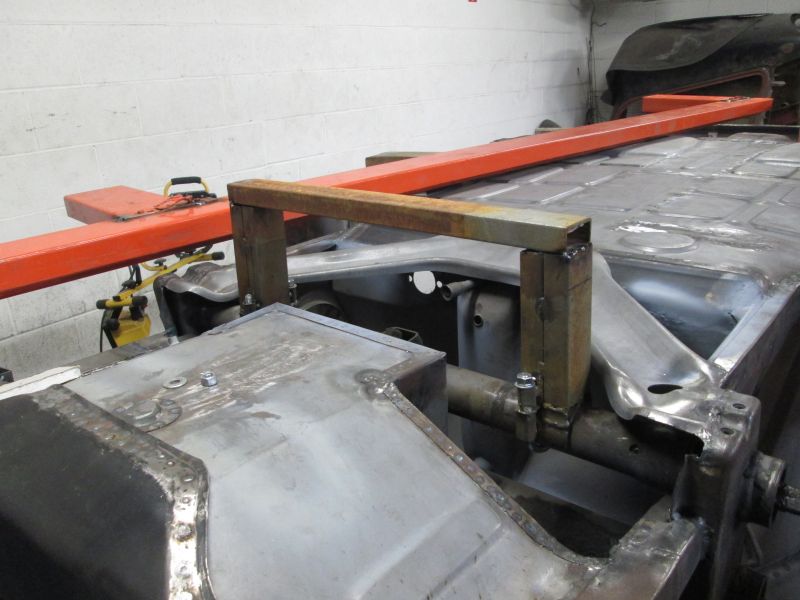

      Building the chassis dolly next. These pallet rack runners are a little longer than I need but the excess length came in very handy as the planning went on.
      Click image for larger version

Name:	IMG_6474.JPG
Views:	130
Size:	55.3 KB
ID:	95789

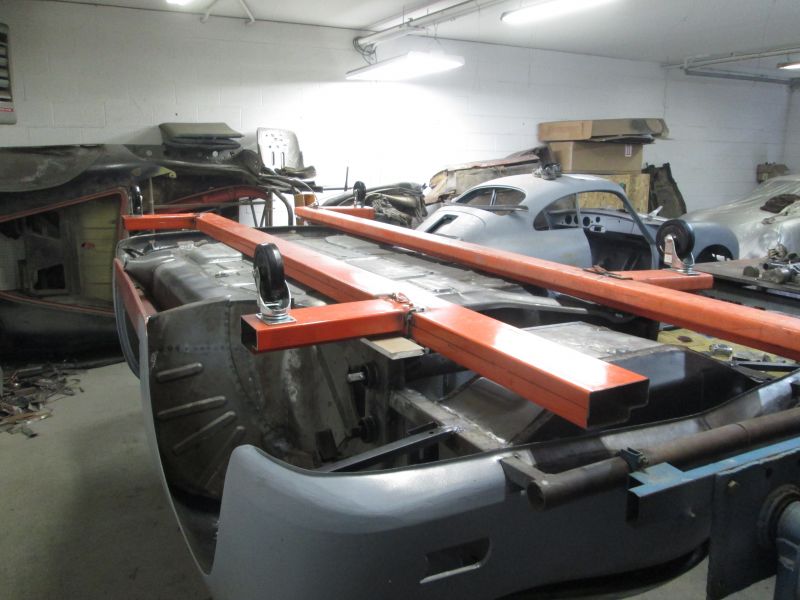

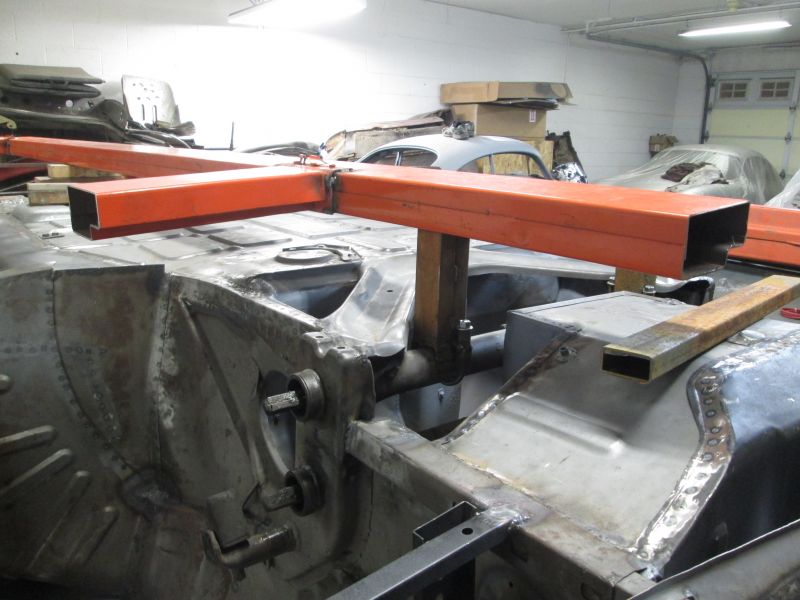

      Excess length and flange mount ends made for perfect out riggers for the castors. I'll set the track width to match a suspended car as close as possible for ease of transport. Building the other side and the upright mounts to the torsion housings next.
      Thanks for looking!
      Justin
      Justin Rio

      Comment


      • 1/21/18

        Chassis dolly Continued.
        Click image for larger version

Name:	IMG_6475.JPG
Views:	99
Size:	65.7 KB
ID:	95864
        Other length runner trimmed with out riggers tacked.
        Click image for larger version

Name:	IMG_6479.JPG
Views:	108
Size:	79.1 KB
ID:	95865

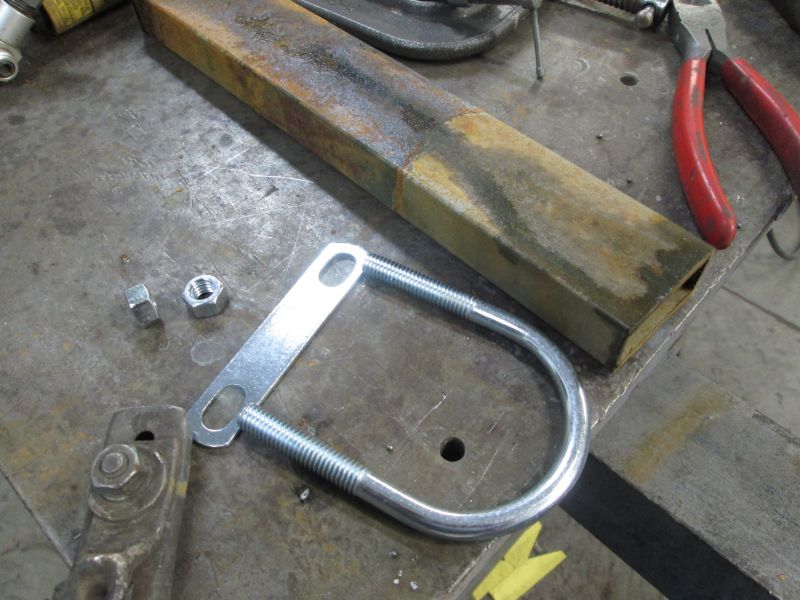

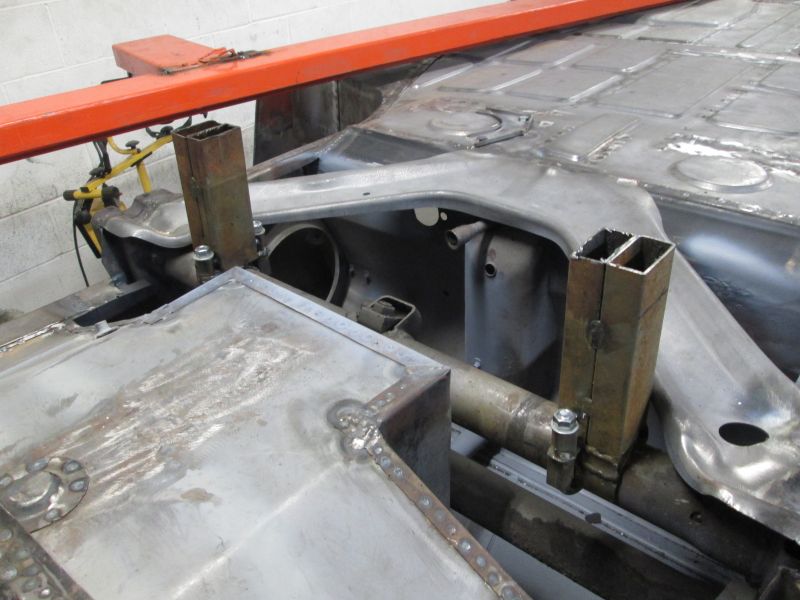

        Time to begin planning out the uprights and clamp mounts. Only U-bolts I could find locally where these. I was looking for the muffler clamp type with the saddled cleat shaped end but I just had to make do. A buddy had some scrap 1X2 laying in his yard so to help hold down the cost I decided to use it. I figured doubling them up would produce the profile I'd use normally.
        Click image for larger version

Name:	IMG_6480.JPG
Views:	113
Size:	77.0 KB
ID:	95866

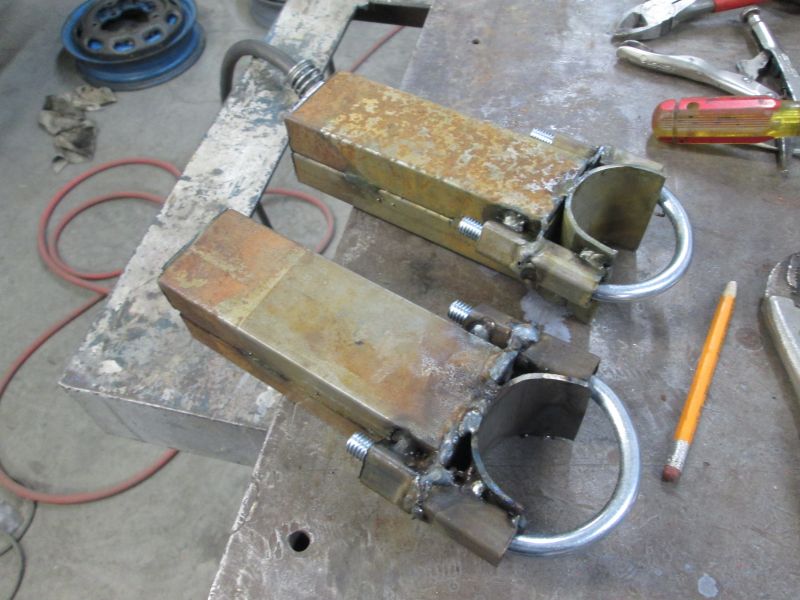

        Front upright clamps complete. Knarly and fugly but they just have to work.
        Click image for larger version

Name:	IMG_6481.JPG
Views:	95
Size:	70.4 KB
ID:	95867
        Mounted and ready to tie them together.
        Click image for larger version

Name:	IMG_6484.JPG
Views:	102
Size:	64.1 KB
ID:	95868

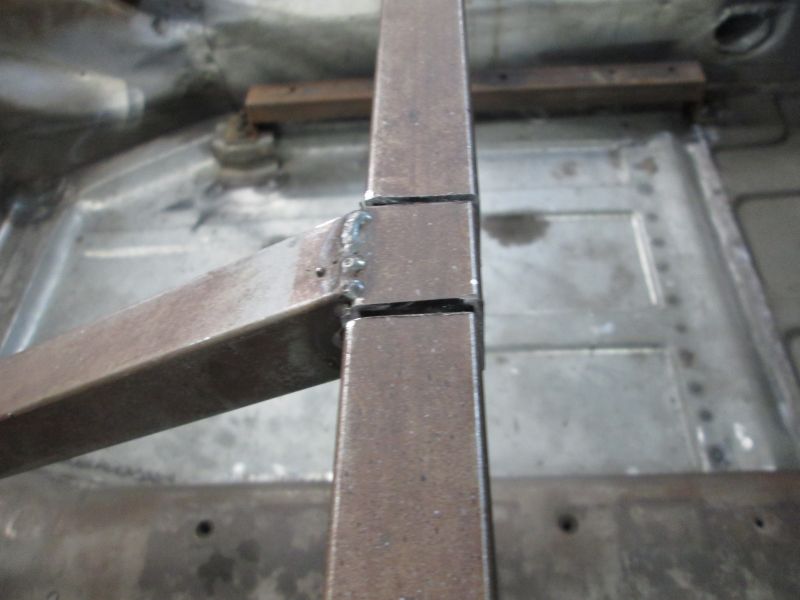

        Simple cross member
        Click image for larger version

Name:	IMG_6483.JPG
Views:	93
Size:	55.5 KB
ID:	95869
        That will sit down into this saddle profile when its all over. It will gusseted as well.
        Click image for larger version

Name:	IMG_6482.JPG
Views:	105
Size:	69.3 KB
ID:	95870
        Debated how high I wanted the car to sit as i wanted to keep it low for better stability during transport but also high enough for utility while at the body shop. I decided on this height as it will sit about 3 inches lower than my car currently on its dolly. I'm good with it here. Working on the rear stand-offs next.

        Thanks for looking!
        Justin
        Justin Rio

        Comment


        • 1/29/18

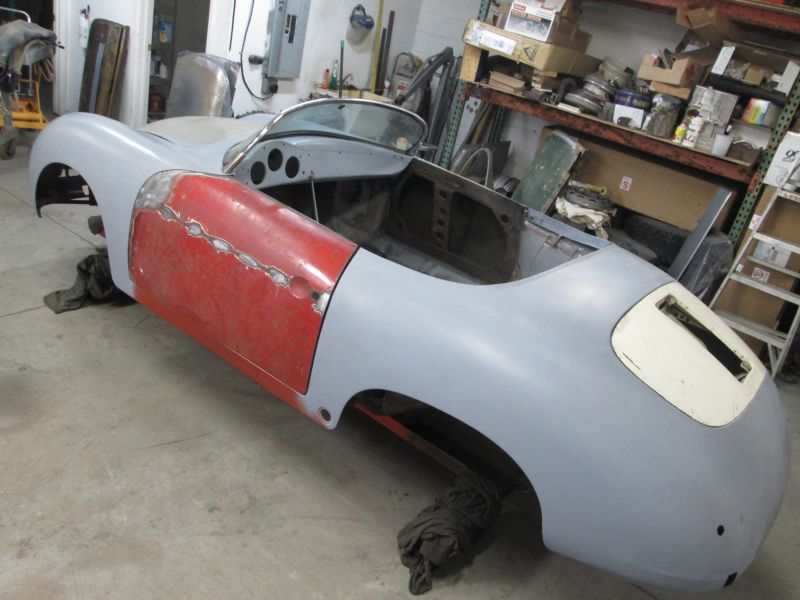

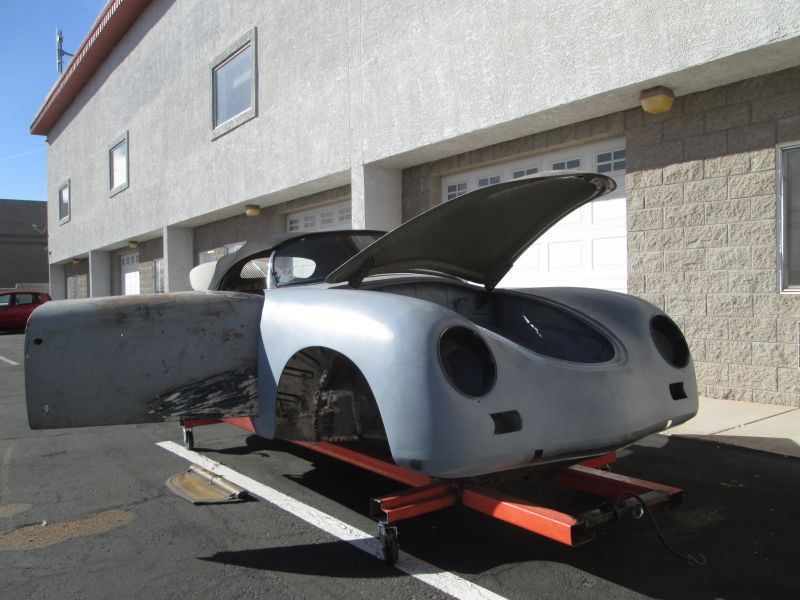

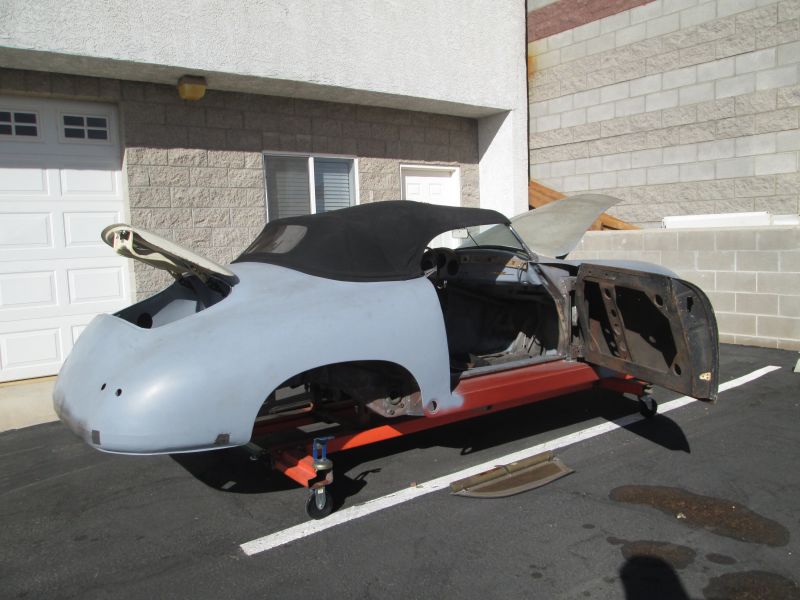

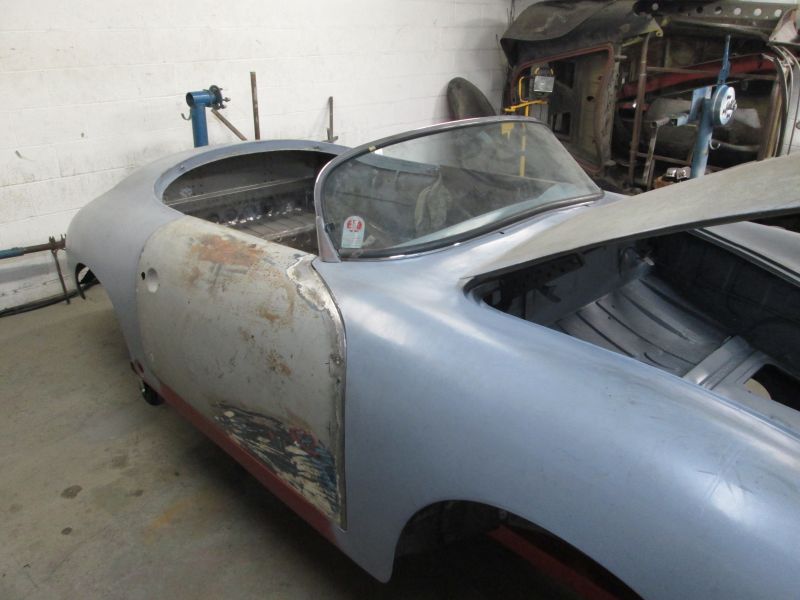

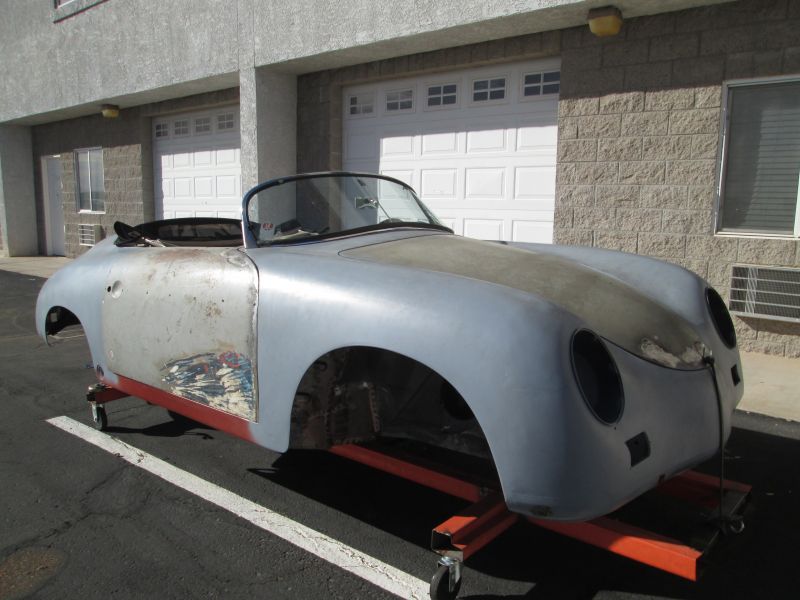

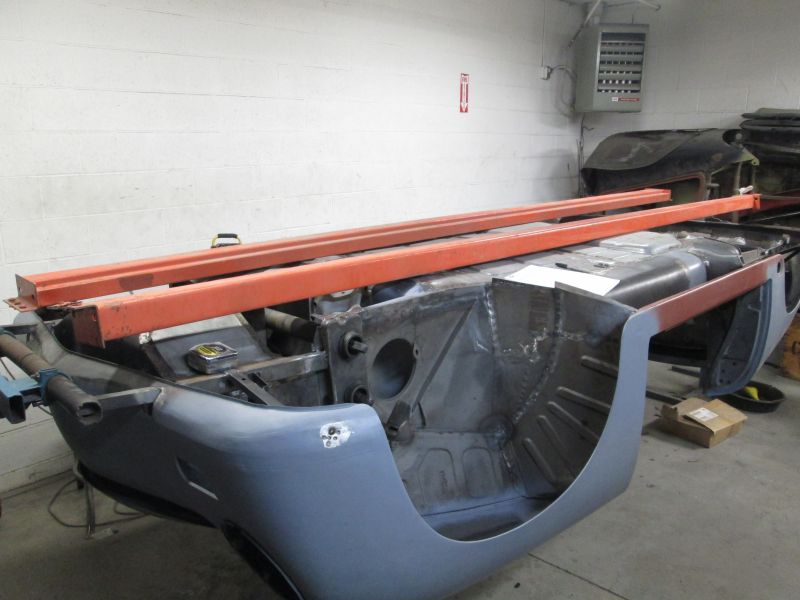

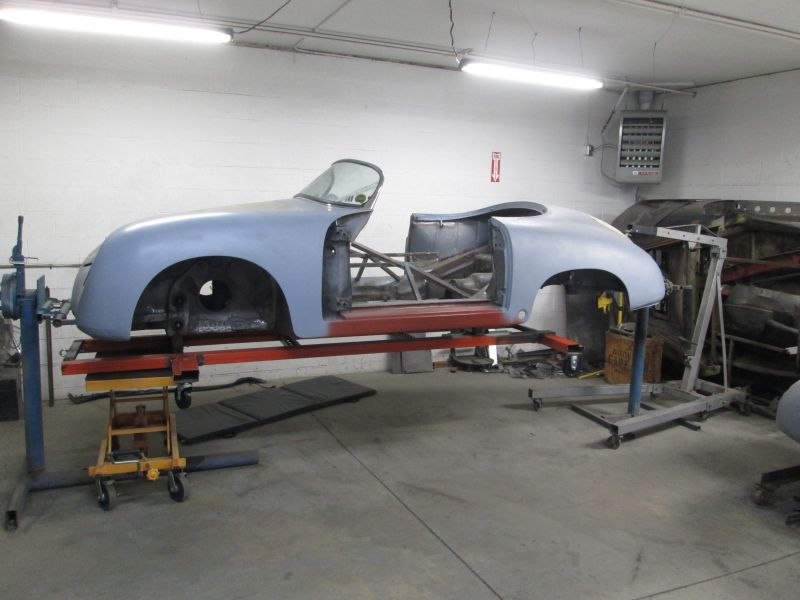

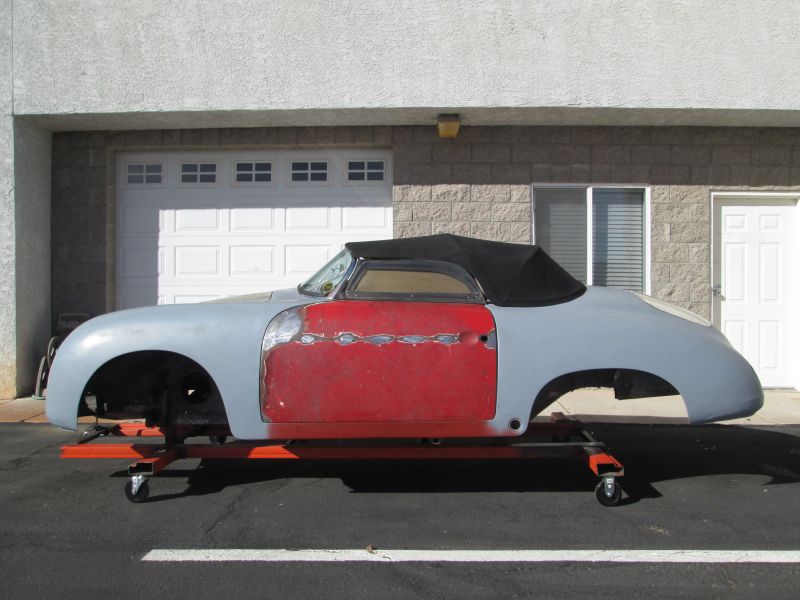

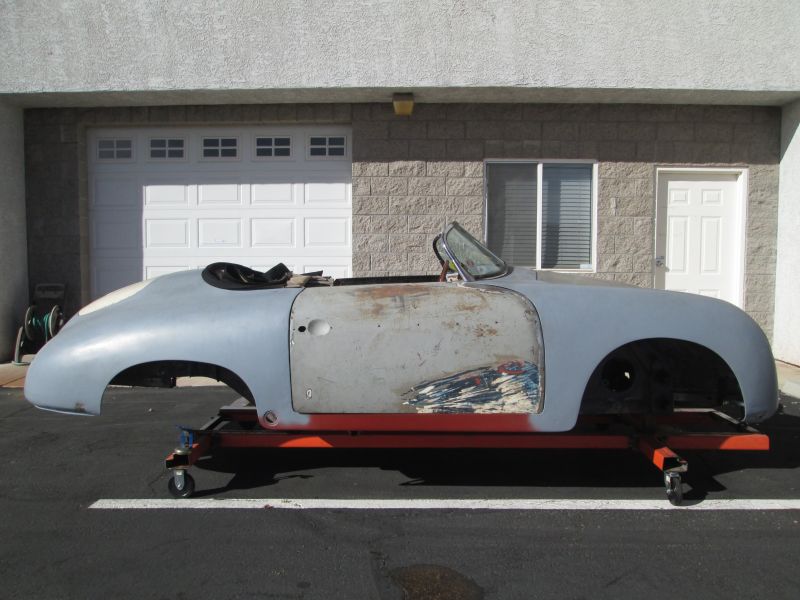

          Dolly built, car now dismounted from the hoist and on the ground for good.

          Click image for larger version

Name:	IMG_6507.JPG
Views:	110
Size:	56.7 KB
ID:	96144

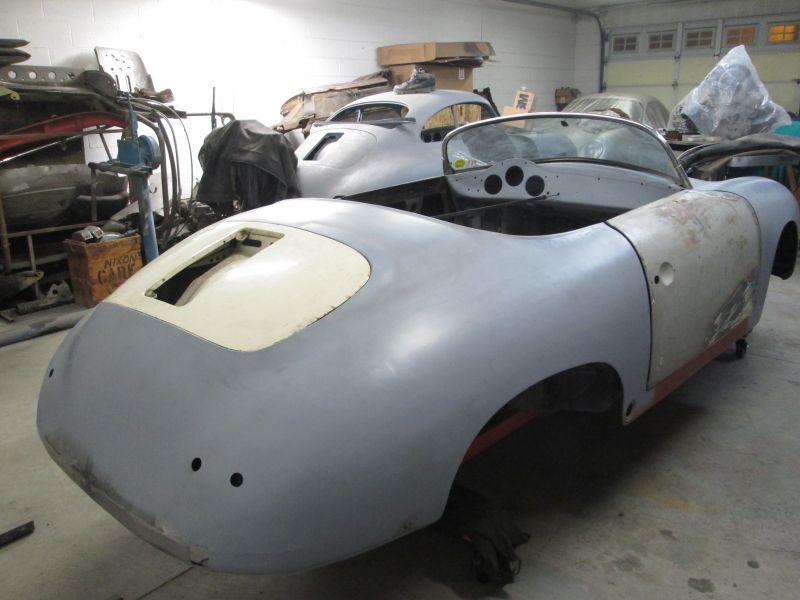

          5 years to get here but we both finally made it. I didn't think I'd live to see this day.
          Click image for larger version

Name:	IMG_6512.JPG
Views:	120
Size:	64.8 KB
ID:	96145

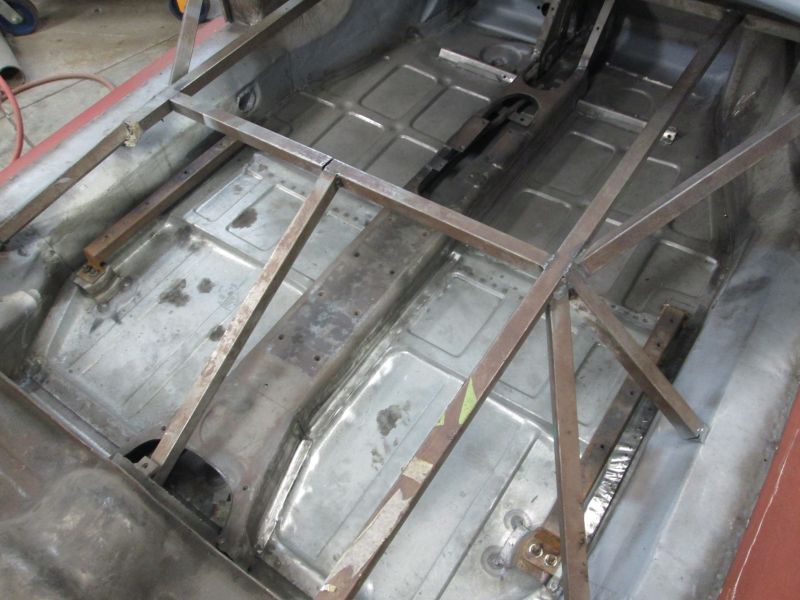

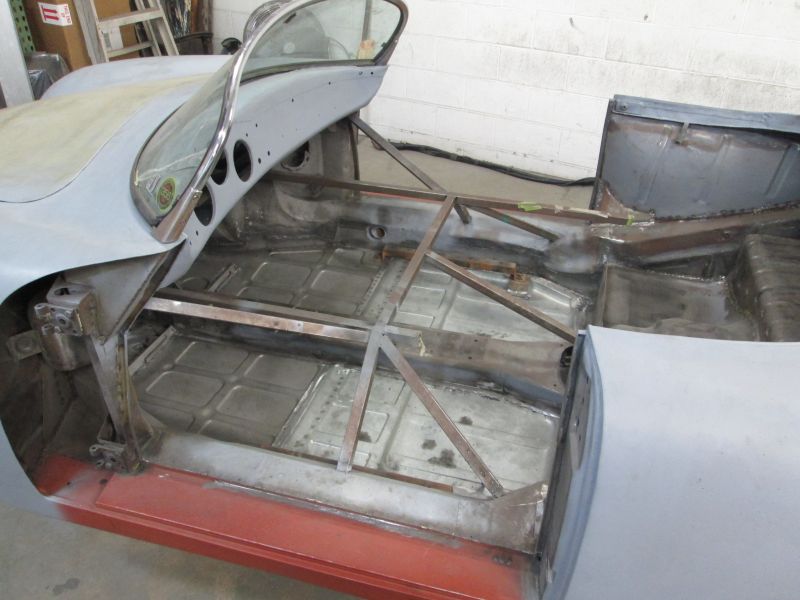

          This session was a long time coming for not only dismounting it from the hoist but it was also time now to cut the holding Jig out which has been here since the beginning. I was nervous and scared to do it as the fear and thought of this frame curling like a potato chip loomed big but there was of course no choice it was time to come out and see if it worked or not.
          Click image for larger version

Name:	IMG_6513.JPG
Views:	122
Size:	64.4 KB
ID:	96146

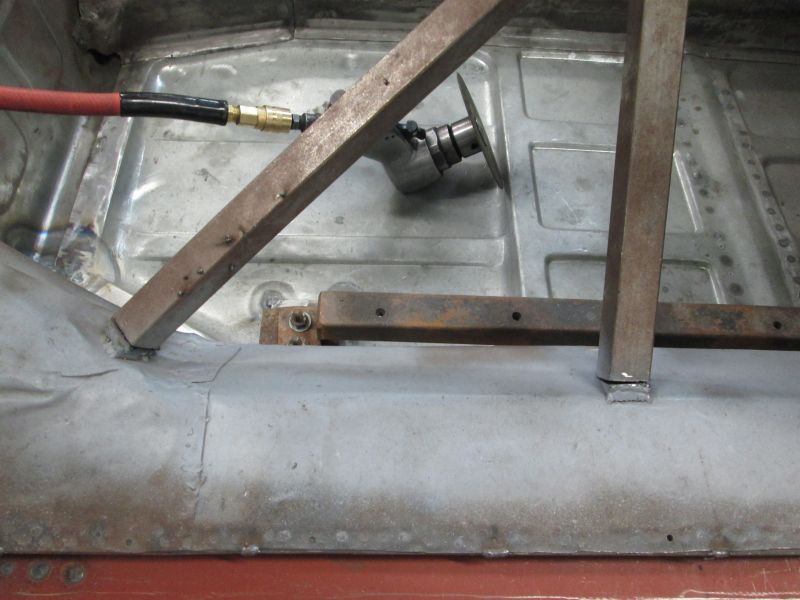

          I began cutting just above the footings to highlight any shifting in the chassis as it went. So far so good as any notable unloading was in the Jig itself as the cutting went.
          Click image for larger version

Name:	IMG_6514.JPG
Views:	119
Size:	61.2 KB
ID:	96147

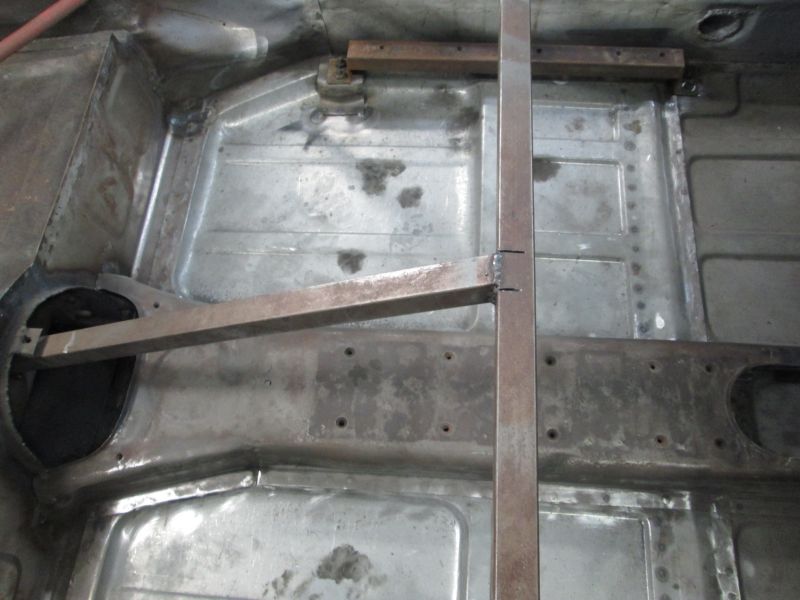

          The laterals all went free with no notable changes but this last outrigger was going to be the final word for sure. I cut it straight through on both sides to so I could clearly see if any collapse occurred between the A&B pillars.
          Click image for larger version

Name:	IMG_6515.JPG
Views:	116
Size:	46.5 KB
ID:	96148
          As I sawed through I was bracing myself for the big "thud" and a notable misalignment here but much to my great relief it was severed with no real tension detected. and as you can see any movement or shift was extremely minimal. The Jig did the job.
          Click image for larger version

Name:	IMG_6516.JPG
Views:	111
Size:	73.6 KB
ID:	96149
          This was my last big hurdle and a huge fear now finally put to bed. I could now calmly remove it the rest of the way.
          Click image for larger version

Name:	IMG_6517.JPG
Views:	107
Size:	65.1 KB
ID:	96150
          out at last...
          Click image for larger version

Name:	IMG_6518.JPG
Views:	108
Size:	62.6 KB
ID:	96151

          Click image for larger version

Name:	IMG_6519.JPG
Views:	109
Size:	70.4 KB
ID:	96152

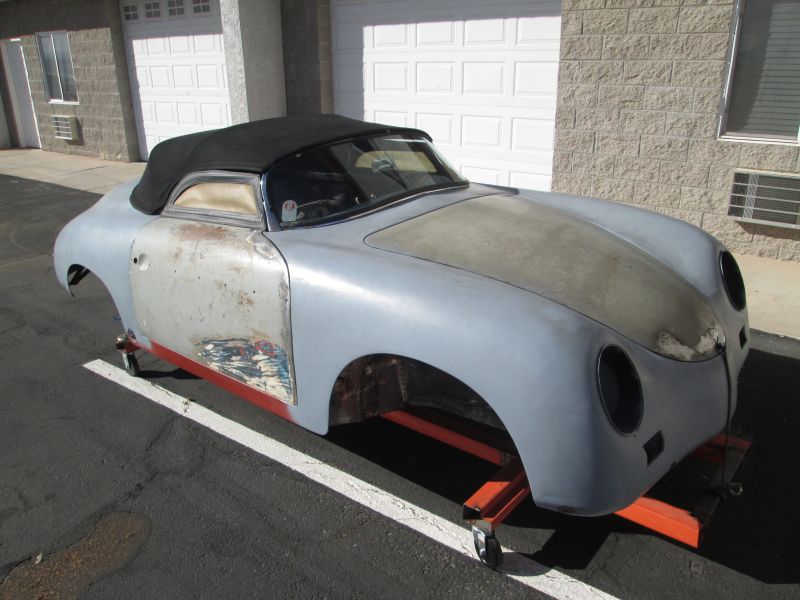

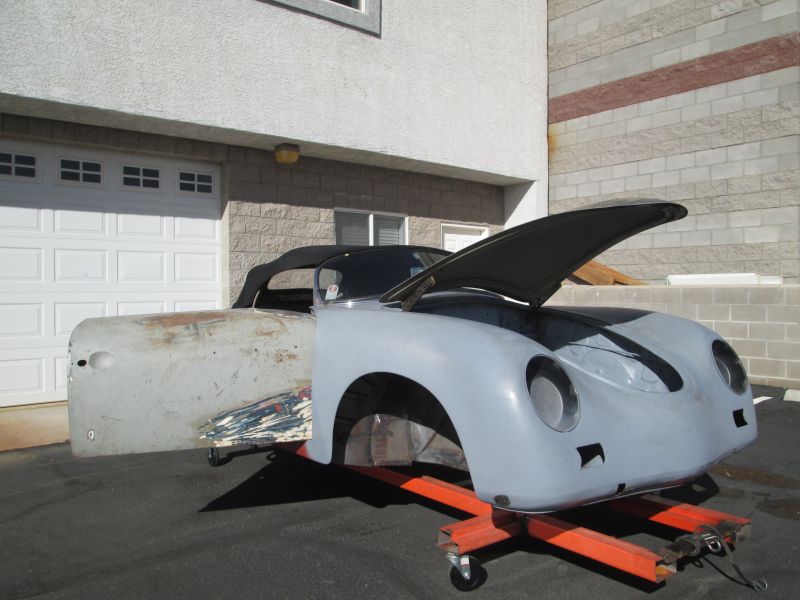

          After 5 years of looking at it, it was really weird not seeing it in here

          Click image for larger version

Name:	IMG_6520.JPG
Views:	108
Size:	53.0 KB
ID:	96153

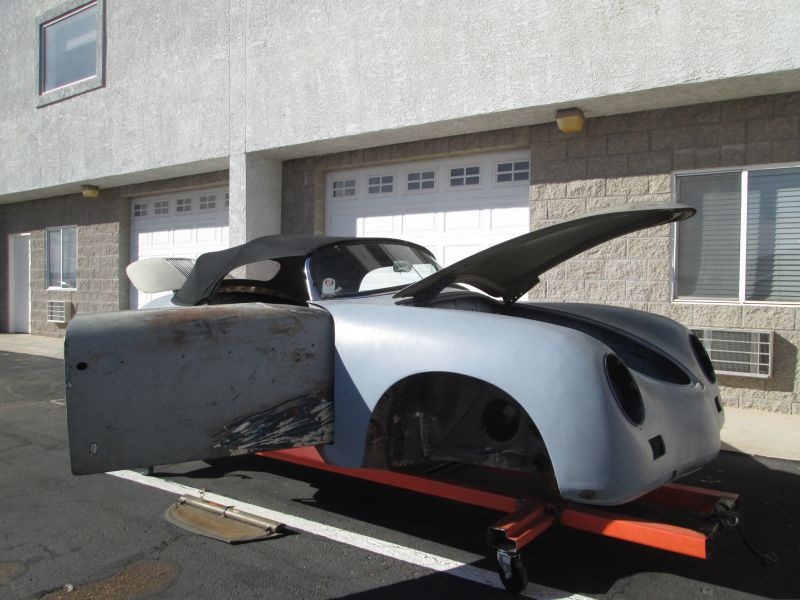

          Now onto remounting the doors for my final time.
          Click image for larger version

Name:	IMG_6527.JPG
Views:	106
Size:	53.6 KB
ID:	96154

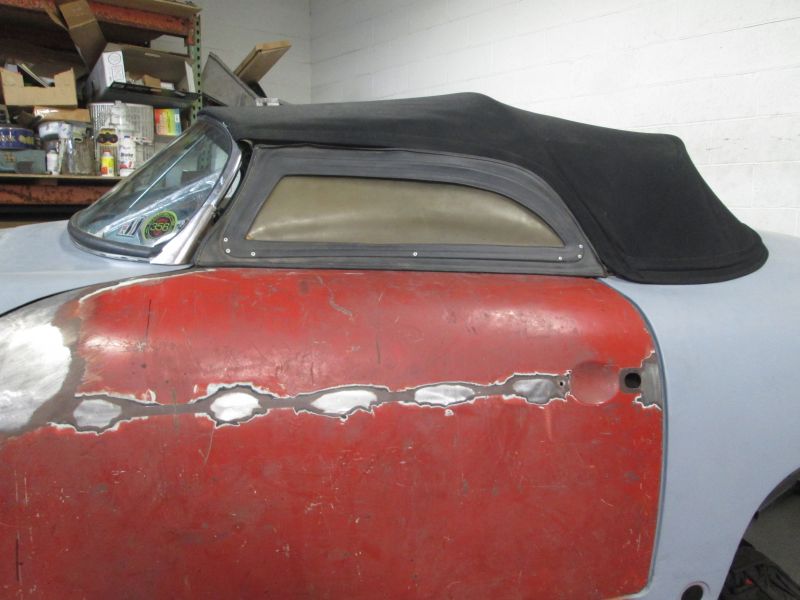

          Mounting the doors also gives me more confirmation about any changes with that JIG now out.
          Click image for larger version

Name:	IMG_6526.JPG
Views:	114
Size:	53.6 KB
ID:	96155

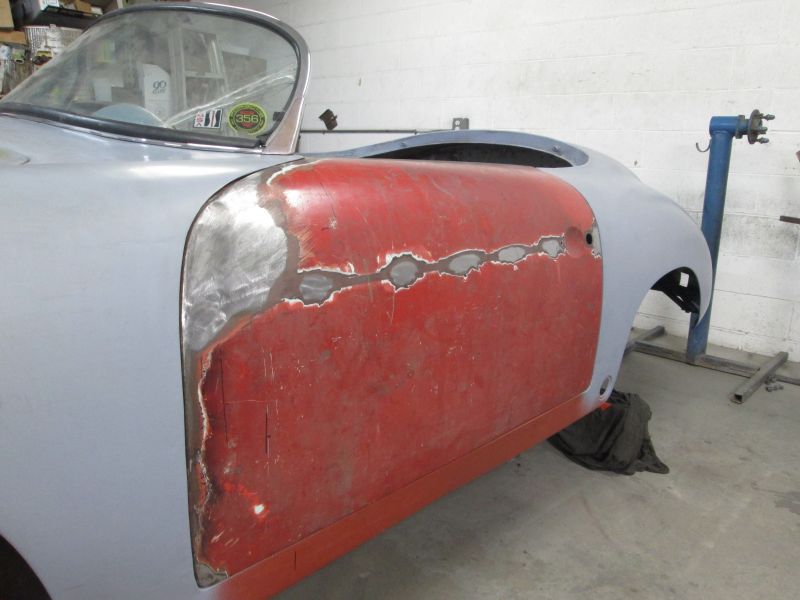

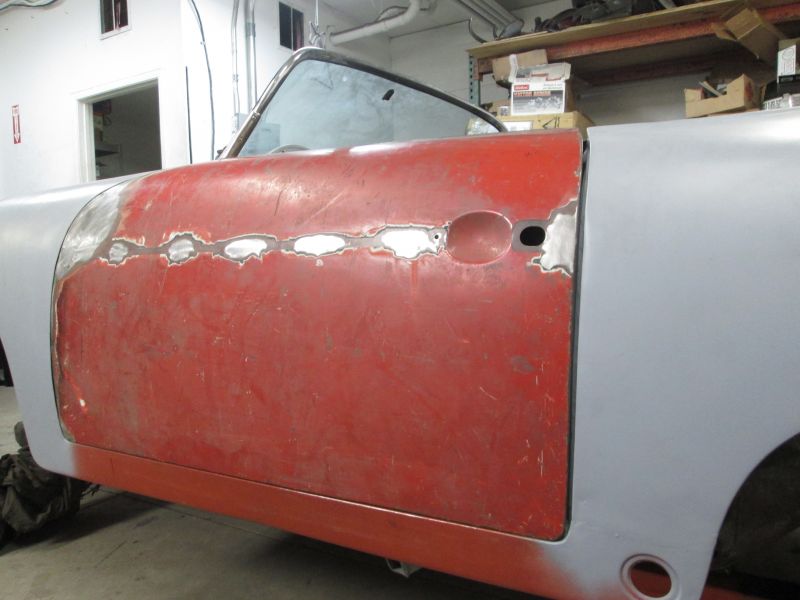

          Another great relief as this door fits exactly the way it did when I built the body around it. Gaps are raw and big and need to be leaded but at least the door isn't touching anywhere due to some sort of chassis shift.
          Click image for larger version

Name:	IMG_6521.JPG
Views:	109
Size:	56.4 KB
ID:	96156

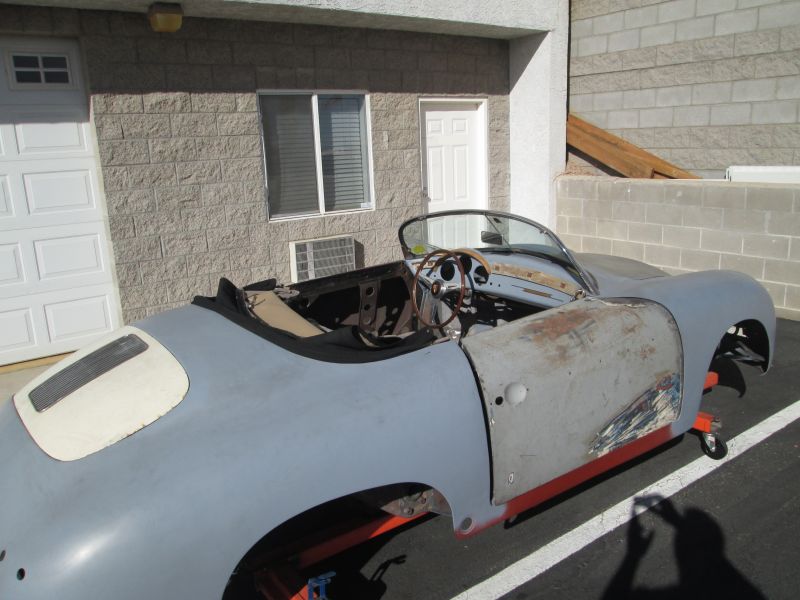

          Right side test next
          Click image for larger version

Name:	IMG_6534.JPG
Views:	107
Size:	57.6 KB
ID:	96157
          Fits the same
          Click image for larger version

Name:	IMG_6525.JPG
Views:	107
Size:	66.4 KB
ID:	96158

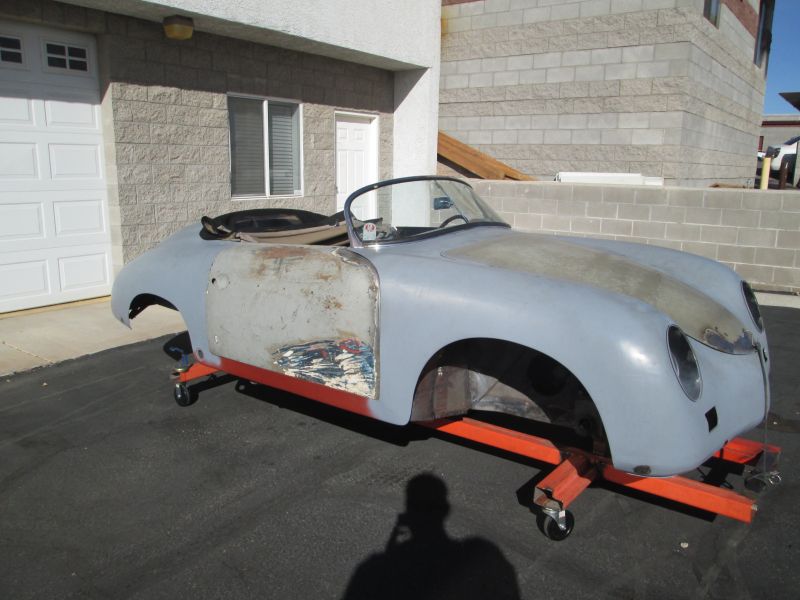

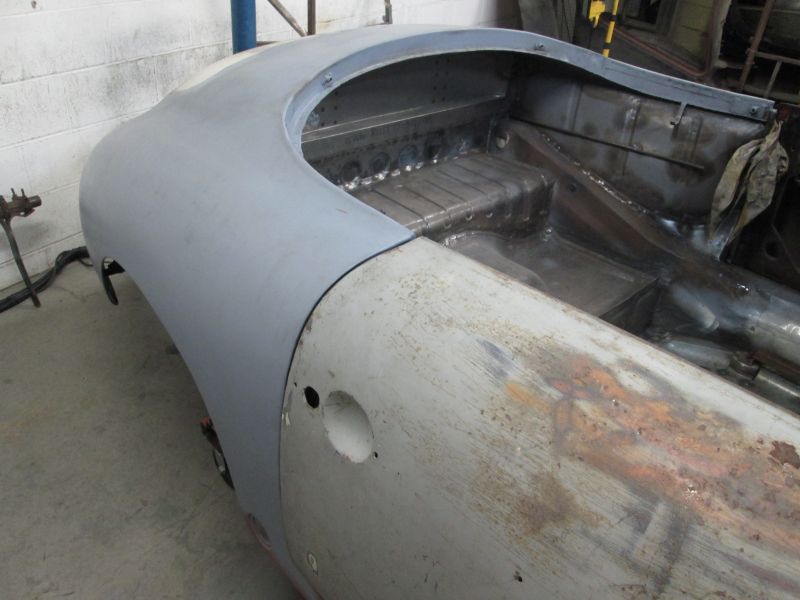

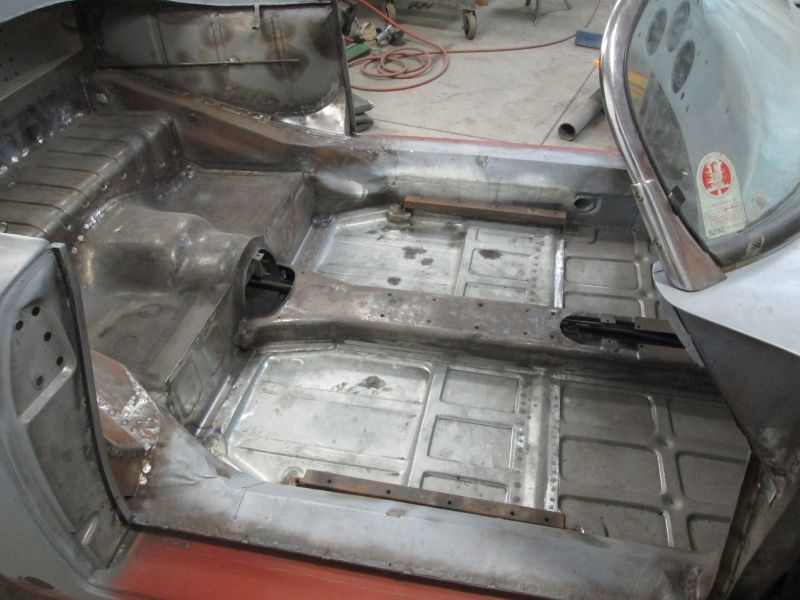

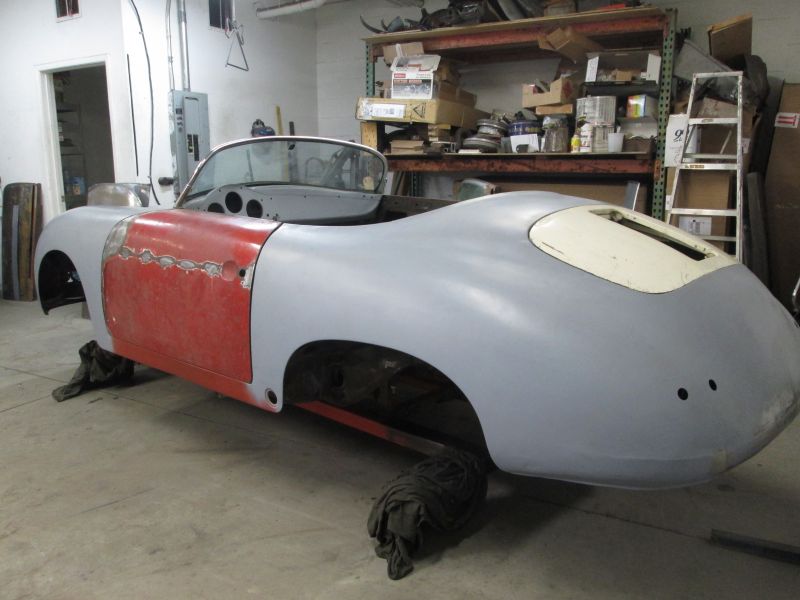

          Here are a few overview shots...
          Click image for larger version

Name:	IMG_6530.JPG
Views:	106
Size:	58.2 KB
ID:	96159

          Click image for larger version

Name:	IMG_6523.JPG
Views:	102
Size:	67.4 KB
ID:	96160

          Click image for larger version

Name:	IMG_6522.JPG
Views:	97
Size:	56.9 KB
ID:	96161

          Click image for larger version

Name:	IMG_6529.JPG
Views:	109
Size:	60.0 KB
ID:	96162

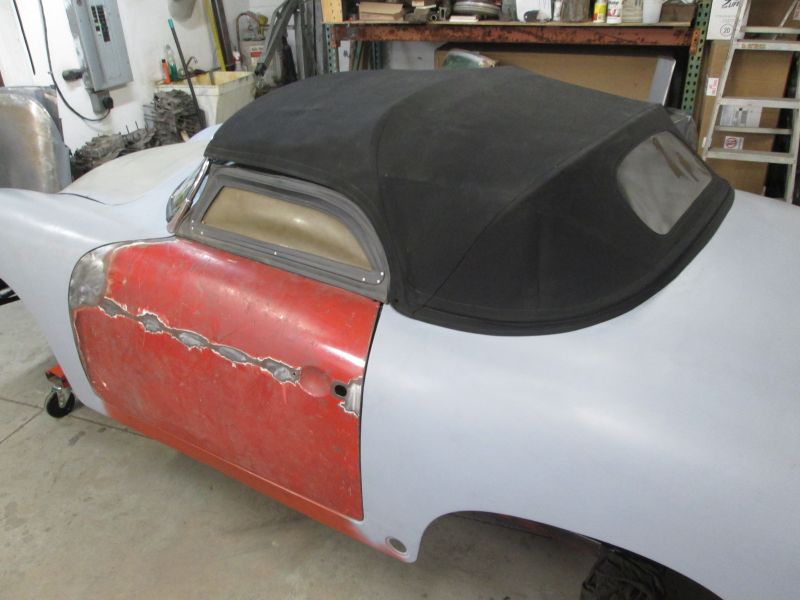

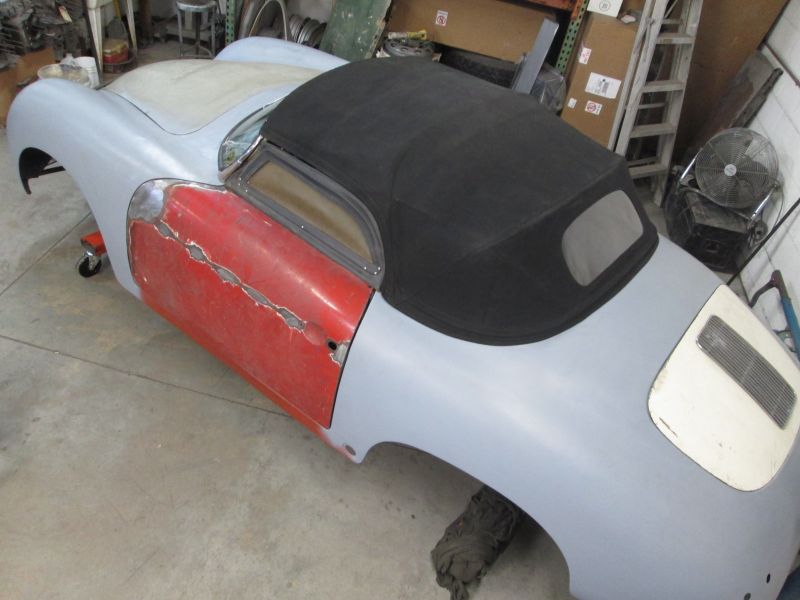

          My involvement with this project is all but complete and as a final entry/ sign off I'll be posting some shots of this body mocked up with all the original Speedster parts that I own to give an idea of what the finished out body might look like. Here's a teaser...
          Click image for larger version

Name:	IMG_6555.JPG
Views:	106
Size:	57.1 KB
ID:	96163
          Posting those up next.







          Thanks for looking!
          Justin
          Justin Rio

          Comment


          • JOP

            Comment


            • Hey!! That looks like a Speedster
              jjgpierce@yahoo.com

              Comment


              • Fantastic job Justin! The Doc should be getting excited.

                Comment


                • Mark Erbesfield
                  57 356A
                  65 911
                  68 912
                  73 911S
                  66 Toyota Land Cruiser FJ45LV
                  79 450SL Dad's old car

                  Comment


                  • Justin - job well done. You never relaxed your high standards throughout this project. That takes real drive and character. So often it is easy to cut corners or not take it that extra mile or in this case fraction of inch. Thanks for capturing and reporting this journey - not only exciting and interesting to watch but an education as well.


                    Made by hand - again!

                    Scott
                    1960 356B T5 - under major resurrection.
                    356 Registry main thread;
                    http://forum.porsche356registry.org/viewtopic.php?f=4&t=35854
                    1968 912 - running like a scalded cat.

                    Comment


                    • Justin,

                      Five years of work, five years to appreciate the effort you put in to this car. Really super result. Well done my friend, Gold star!!

                      Roy

                      Comment


                      • Thank you Per and thanks for saying so! I do hope this might help a person or two along their journey though I don't think many would want to sit and actually sift through all couple hundred pages of this mess. but at the very least its a good record for me personally as I have already forgotten a lot of the challenges I've been through to make it here.

                        Once I put that nice canvas top on it John I was thinking the same thing.

                        Thanks Don! The Doc is very excited.

                        Appreciate that Mark! I'm to relieved to be finished to be depressed.

                        Thanks for that Scott! I did the best that I could with what little tools and talent that I currently have; just hope it was enough...

                        Roy, you were the first to comment on this build post way back when and I thank you once again for all the really nice thoughts and words of encouragement along the way! Its all been a great help, really!

                        Thanks again you guys!
                        Justin

                        2/1/18

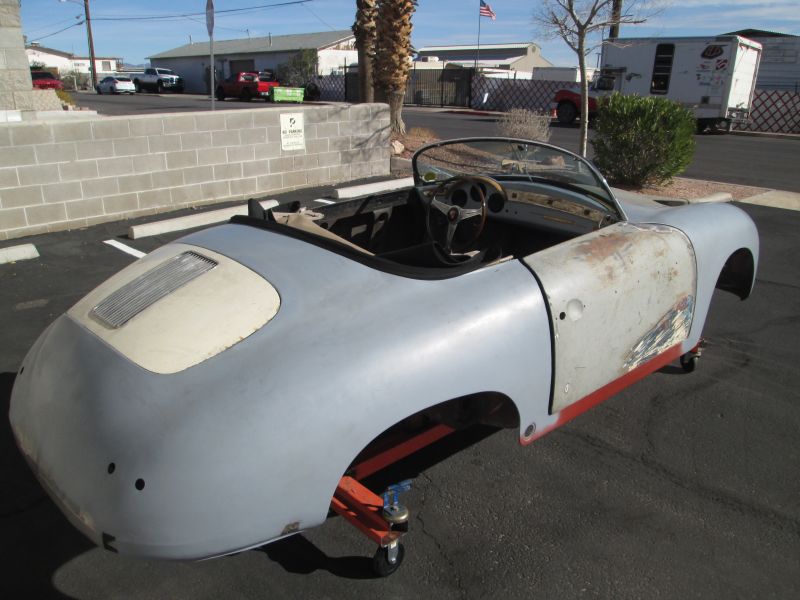

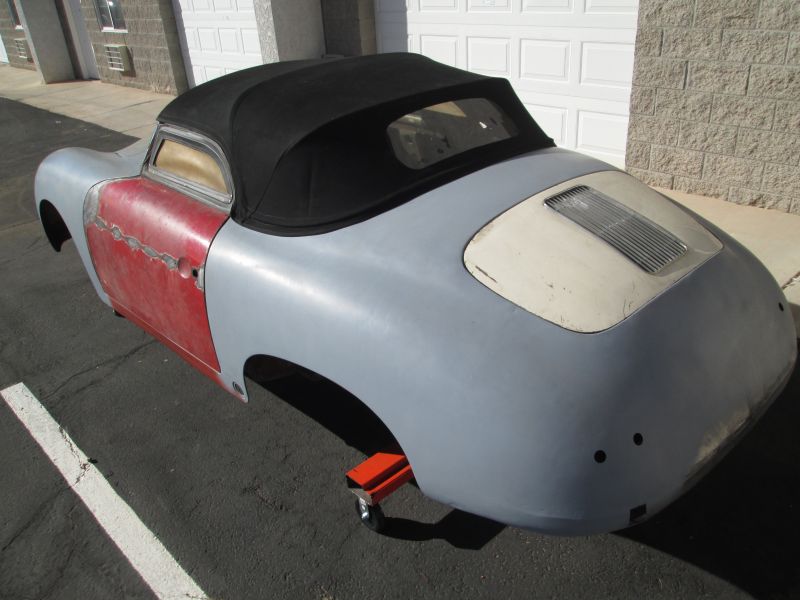

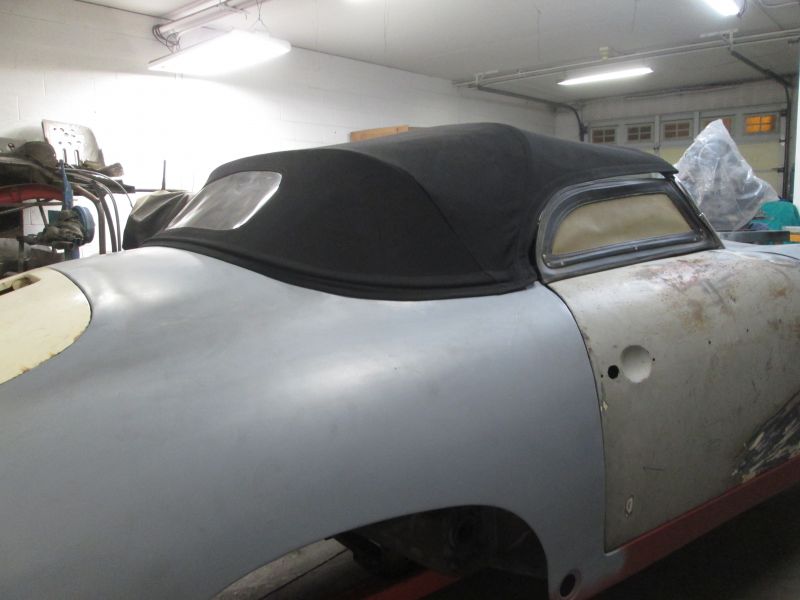

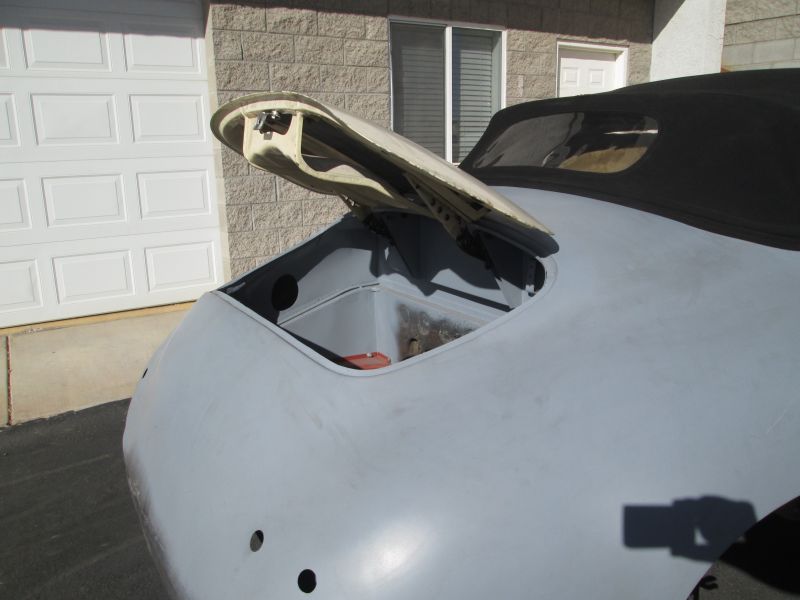

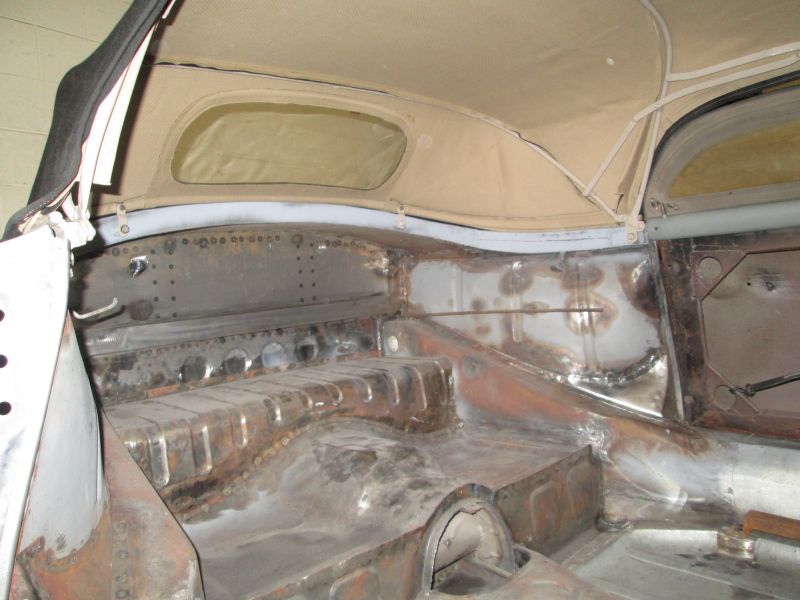

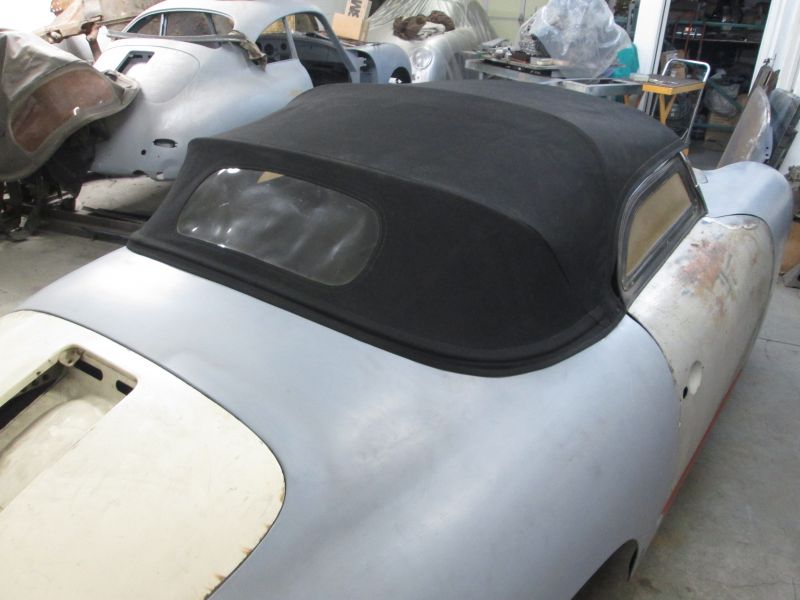

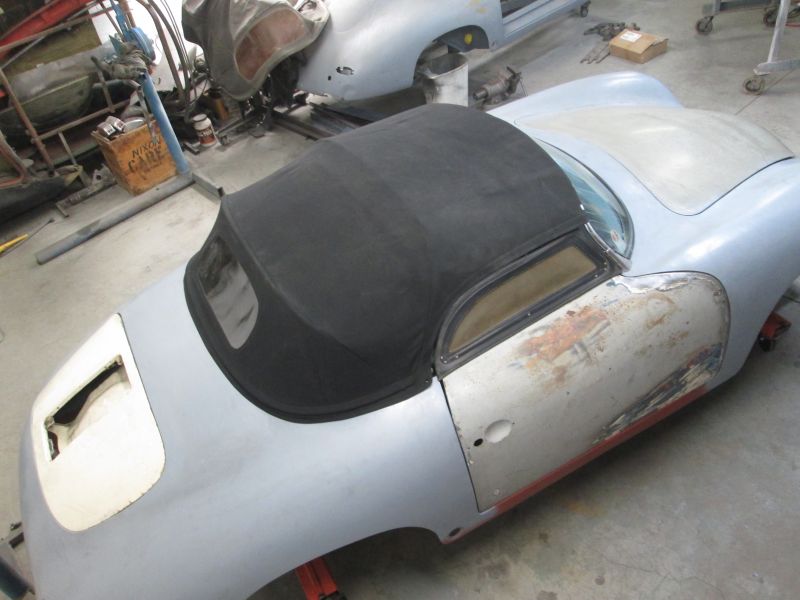

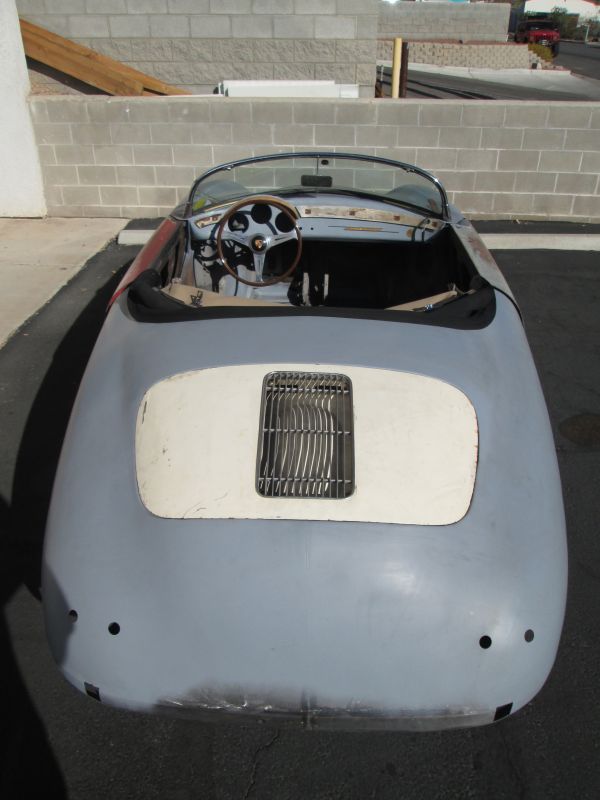

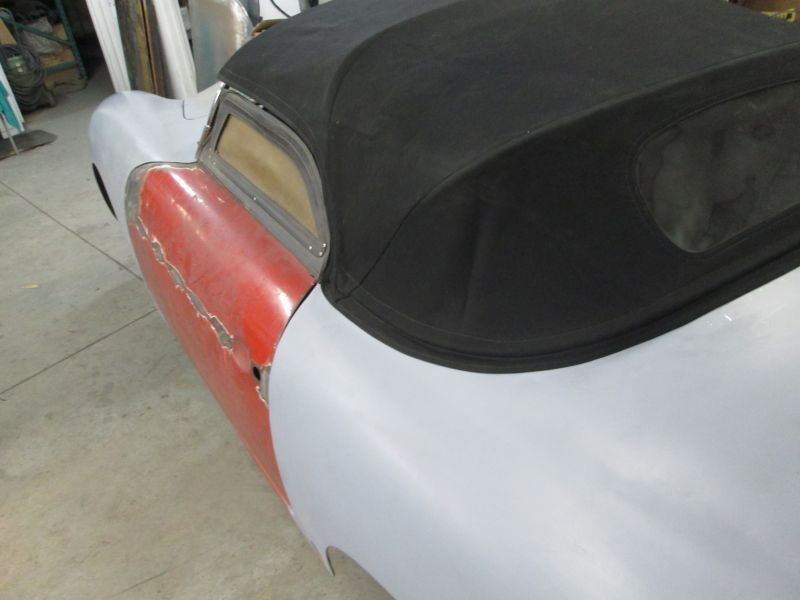

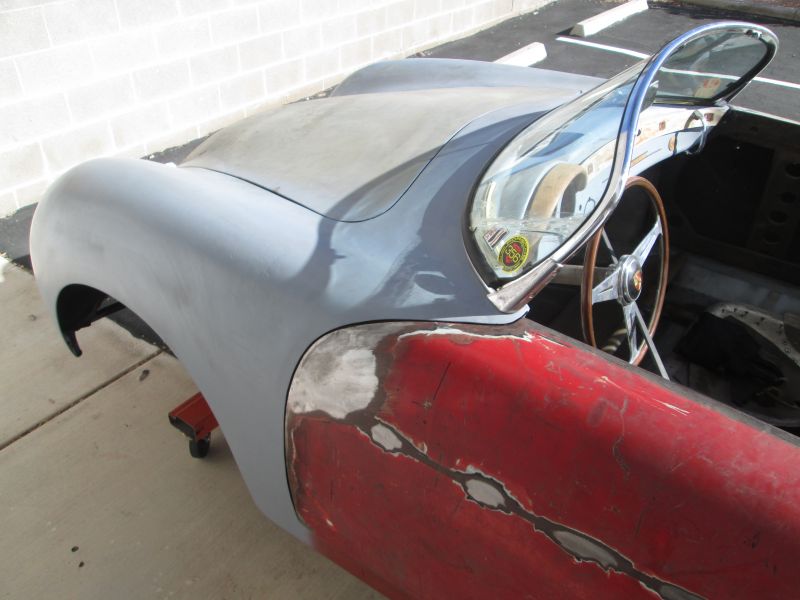

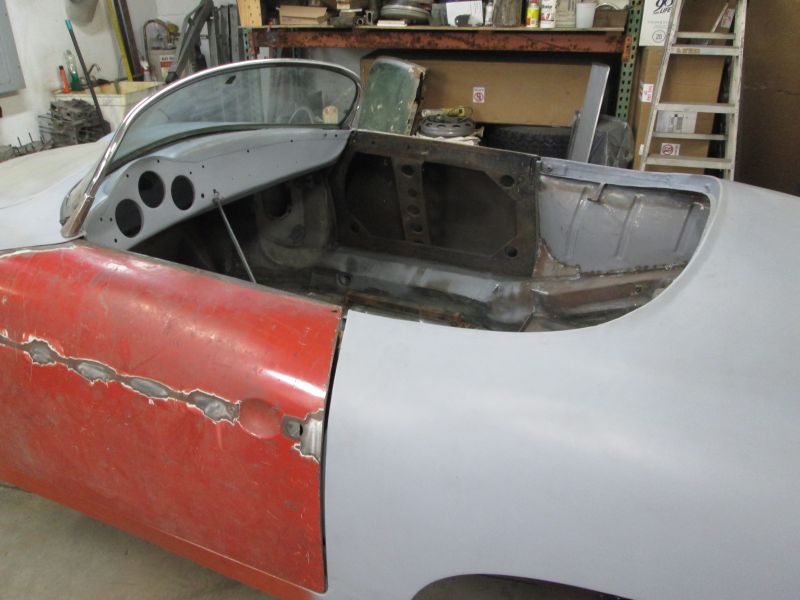

                        Here are my final shots with it dressed in all the original factory Speedster specific components that I own. (Just like I promised Armand )
                        I decided to share them all to give the clearest and most thorough final presentation I can since it can't be viewed in person. They'll be no repeats but there are a few similar vantage points. Okay, pictures now:
                        Click image for larger version

Name:	IMG_6537.JPG
Views:	94
Size:	57.4 KB
ID:	96363

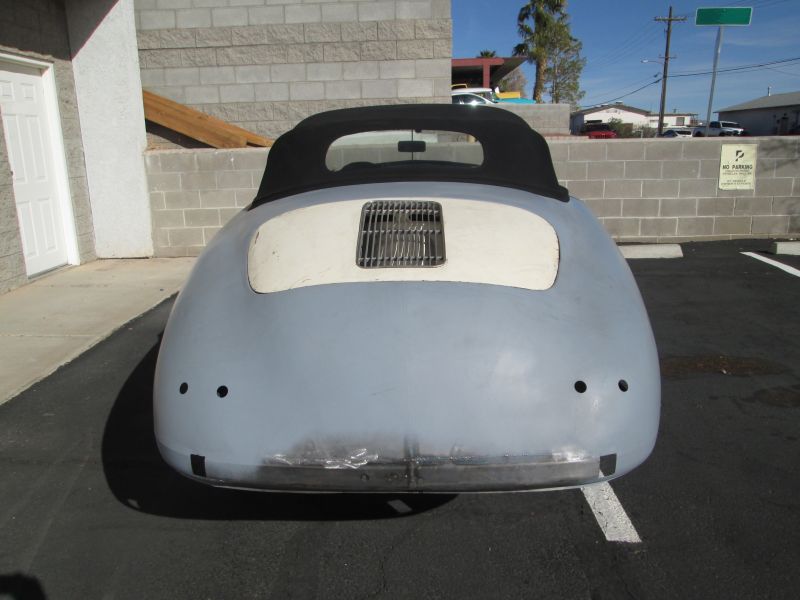

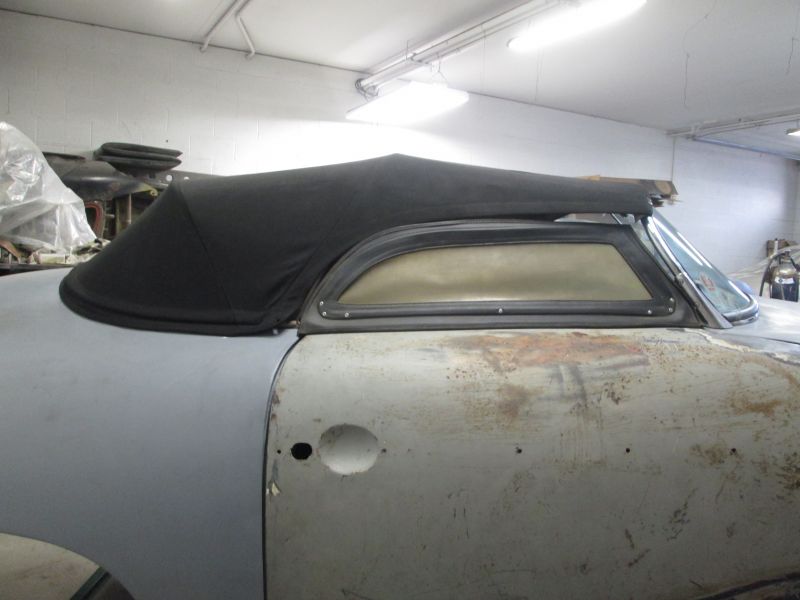

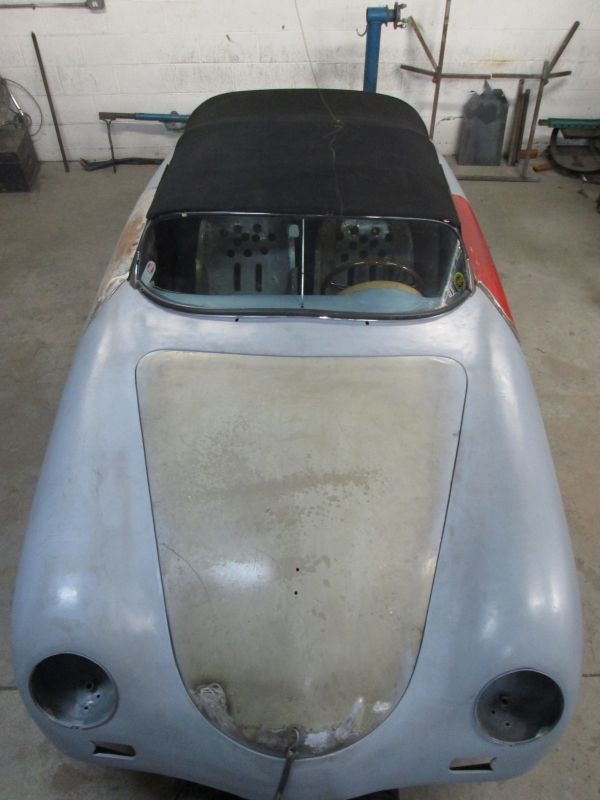

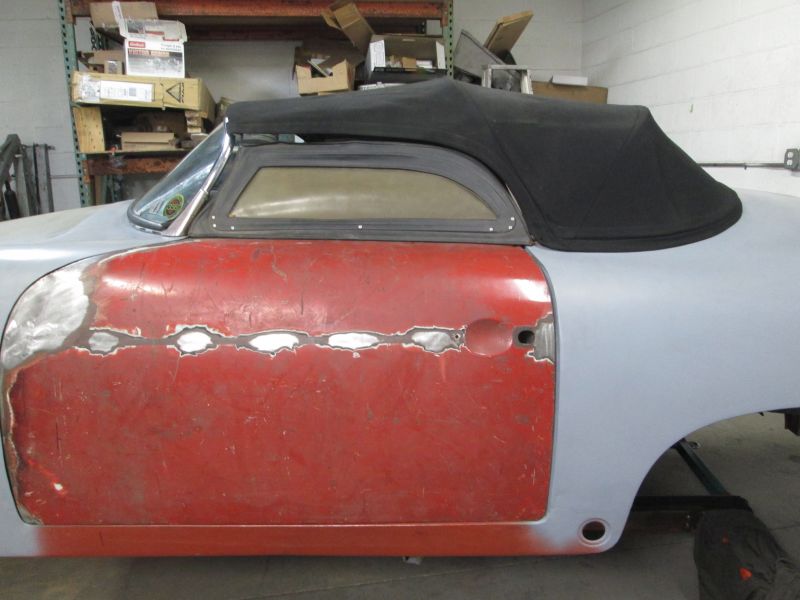

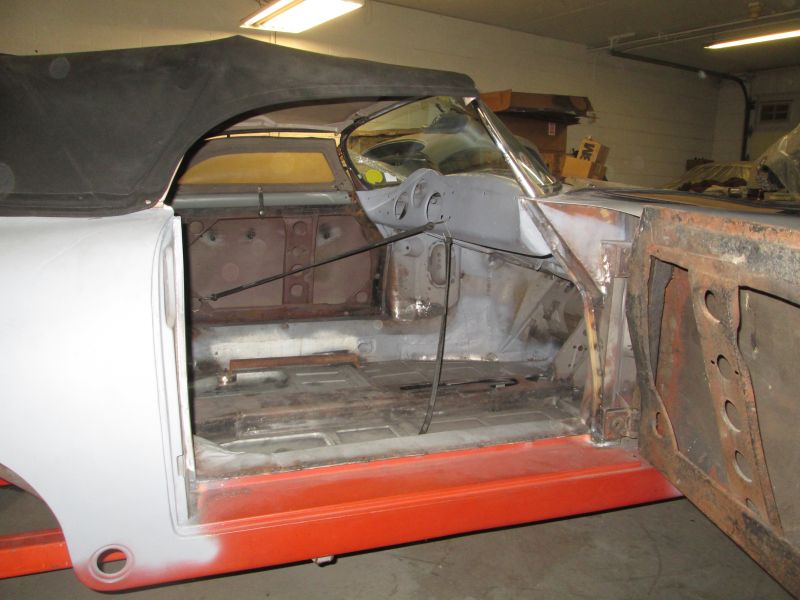

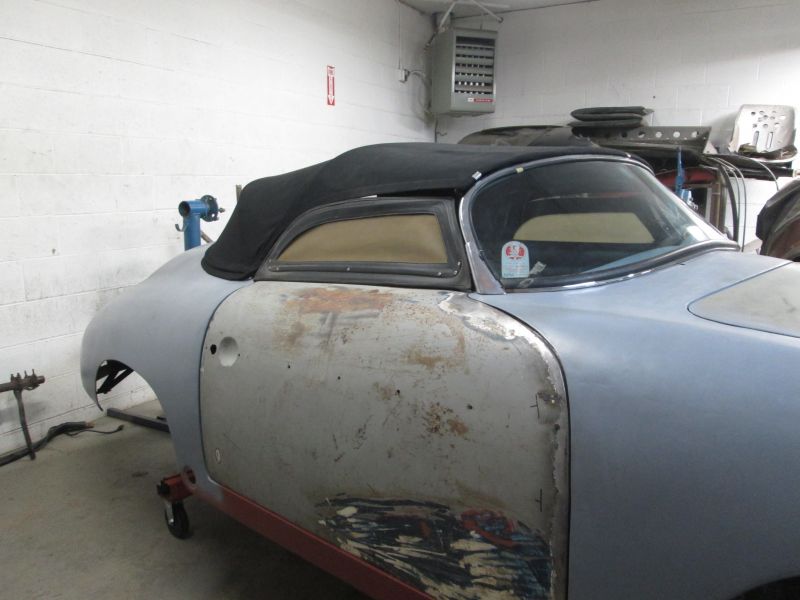

                        Decided to get out my proper canvas instead of that baggy old ratty example I've been using over the progress mock ups.
                        Click image for larger version

Name:	IMG_6536.JPG
Views:	92
Size:	55.6 KB
ID:	96364

                        Click image for larger version

Name:	IMG_6545.JPG
Views:	91
Size:	41.0 KB
ID:	96365

                        Click image for larger version

Name:	IMG_6535.JPG
Views:	91
Size:	45.9 KB
ID:	96366

                        Click image for larger version

Name:	IMG_6538.JPG
Views:	89
Size:	53.8 KB
ID:	96367
                        Hadn't found my top latches at this point for a full synch against the W/S frame so I was relying on wire for the moment.
                        Click image for larger version

Name:	IMG_6539.JPG
Views:	95
Size:	45.4 KB
ID:	96368

                        Click image for larger version

Name:	IMG_6541.JPG
Views:	88
Size:	54.2 KB
ID:	96369

                        Click image for larger version

Name:	IMG_6540.JPG
Views:	90
Size:	59.0 KB
ID:	96370

                        Click image for larger version

Name:	IMG_6542.JPG
Views:	89
Size:	64.4 KB
ID:	96371

                        Click image for larger version

Name:	IMG_6543.JPG
Views:	91
Size:	67.2 KB
ID:	96372

                        Click image for larger version

Name:	IMG_6544.JPG
Views:	87
Size:	72.4 KB
ID:	96373

                        Click image for larger version

Name:	IMG_6547.JPG
Views:	90
Size:	80.0 KB
ID:	96374

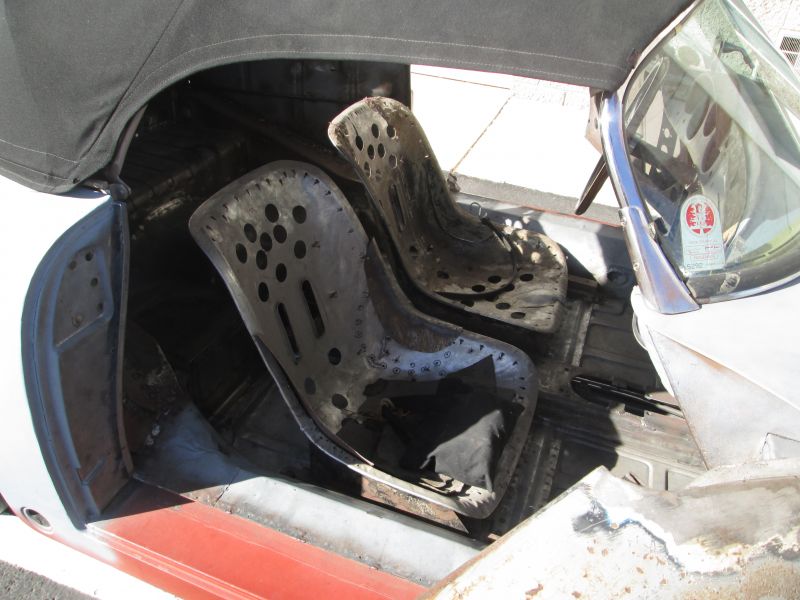

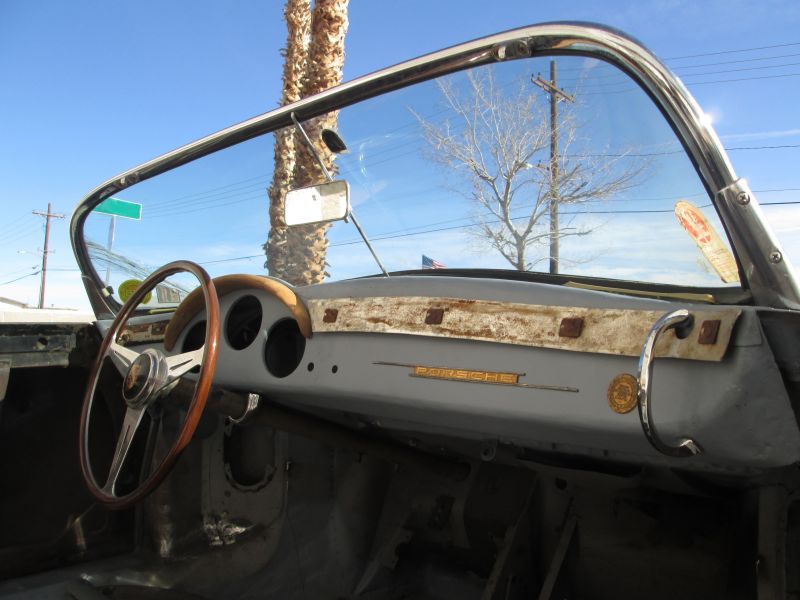

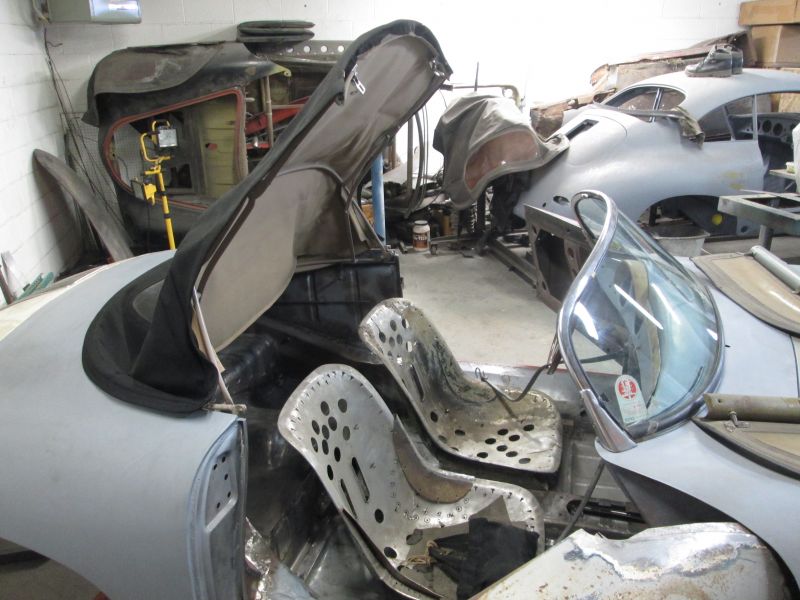

                        Top latches found. Mocking up my GT seats along with a few other dash components to complete the picture.
                        Click image for larger version

Name:	IMG_6549.JPG
Views:	90
Size:	58.1 KB
ID:	96375

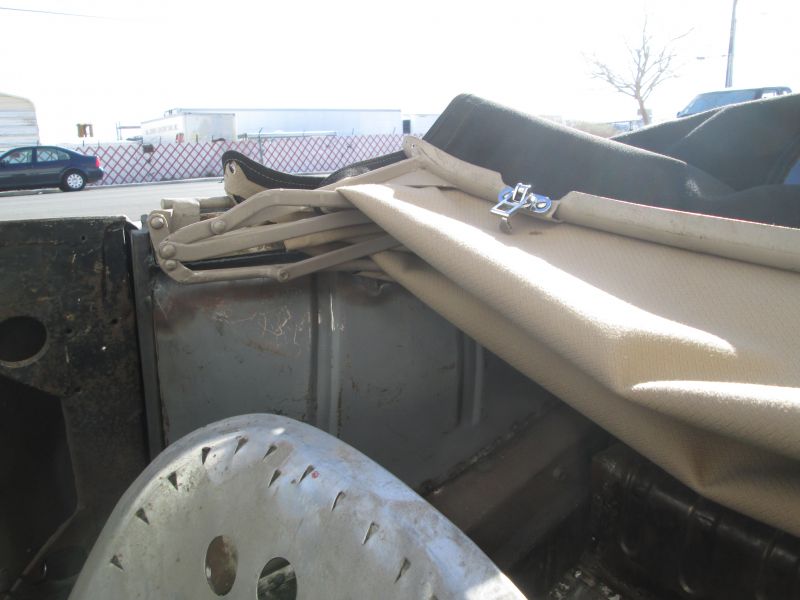

                        Top now fully latched. They lined up and engaged with a good snap over with the canvas sounding like a drum. Could not have been happier or more relieved.
                        Click image for larger version

Name:	IMG_6550.JPG
Views:	87
Size:	52.5 KB
ID:	96376

                        Click image for larger version

Name:	IMG_6551.JPG
Views:	88
Size:	47.9 KB
ID:	96377

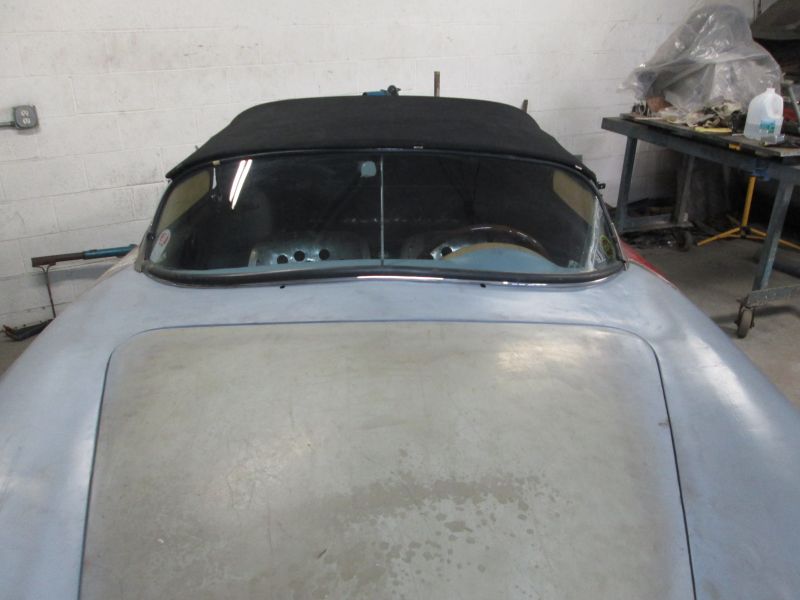

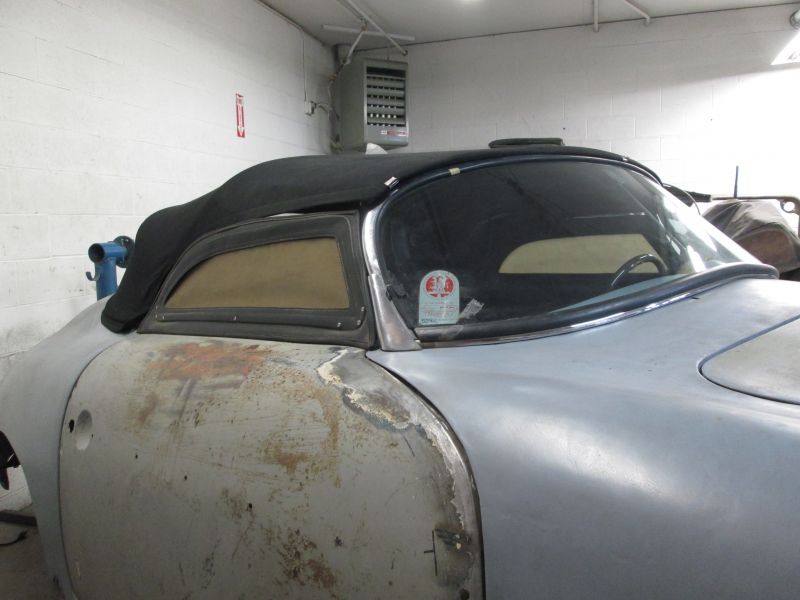

                        BTW: this canvas top was made wrong. The secondary lip for the side curtains was not sewn in so this is why your seeing more daylight through there than you otherwise would.
                        Click image for larger version

Name:	IMG_6552.JPG
Views:	87
Size:	52.7 KB
ID:	96378

                        Click image for larger version

Name:	IMG_6553.JPG
Views:	86
Size:	47.4 KB
ID:	96379

                        Click image for larger version

Name:	IMG_6554.JPG
Views:	89
Size:	58.1 KB
ID:	96380

                        Click image for larger version

Name:	IMG_6556s.JPG
Views:	81
Size:	51.5 KB
ID:	96381

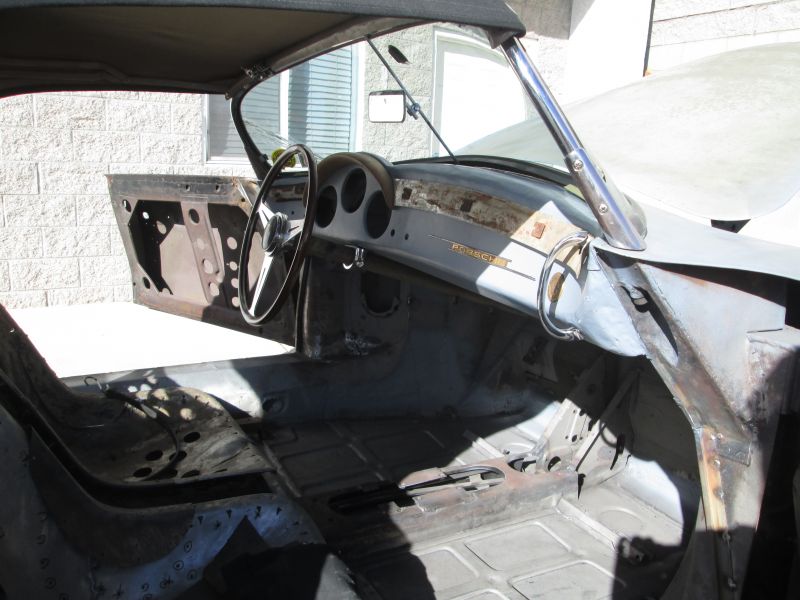

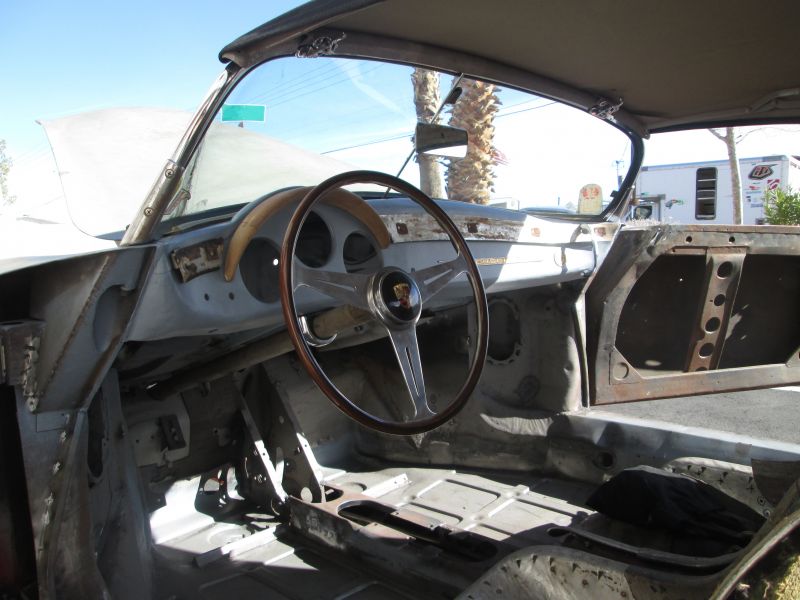

                        Tension rod, dash eyebrow, wheel and column added. All mocked up for my final shoot outside the next day.
                        Those coming up...
                        Justin Rio

                        Comment


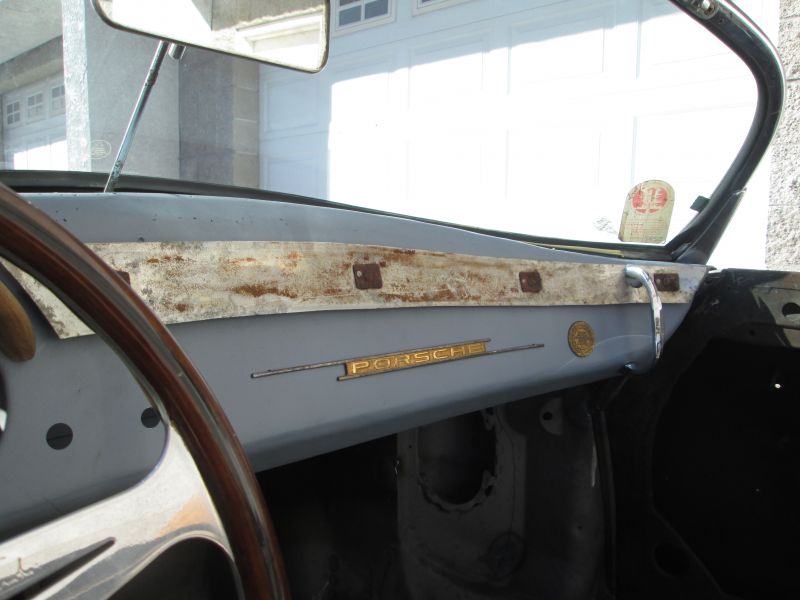

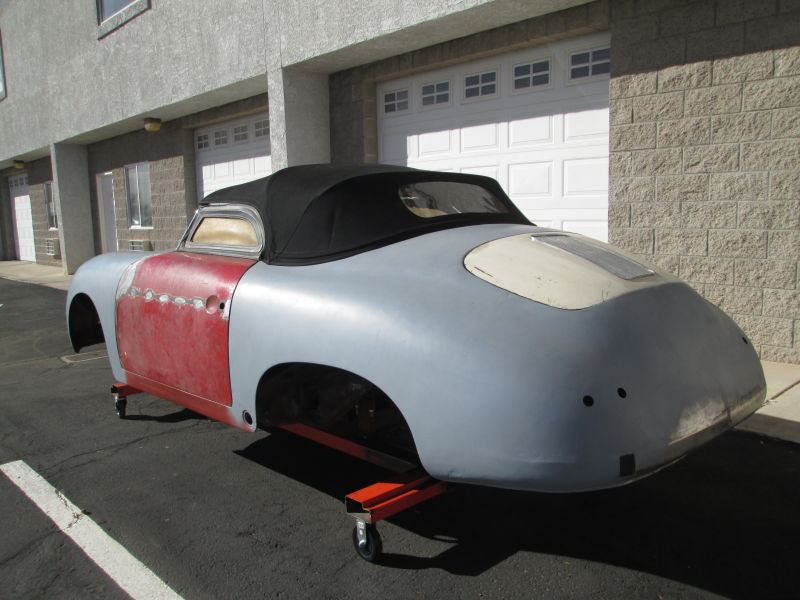

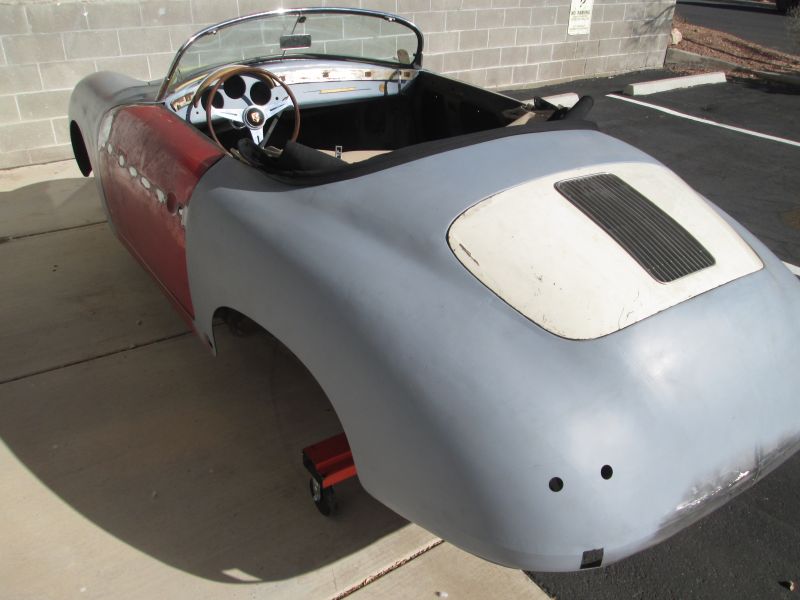

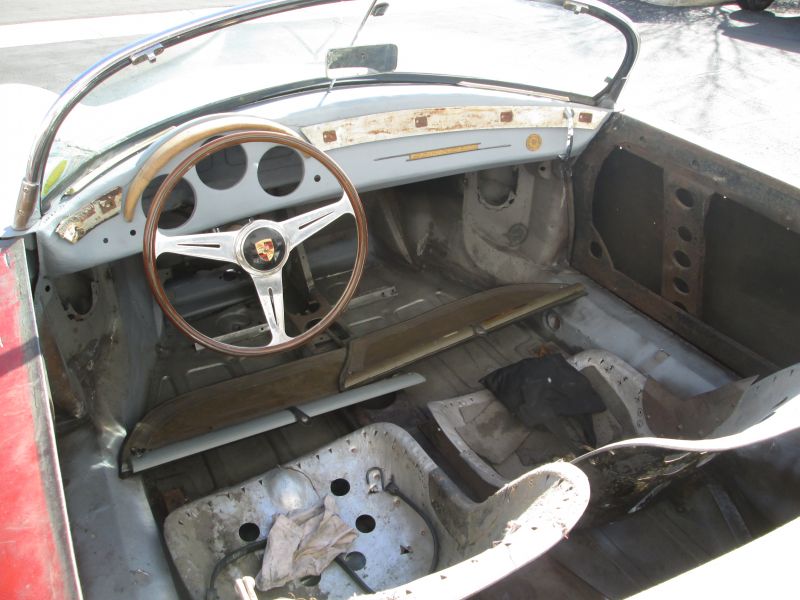

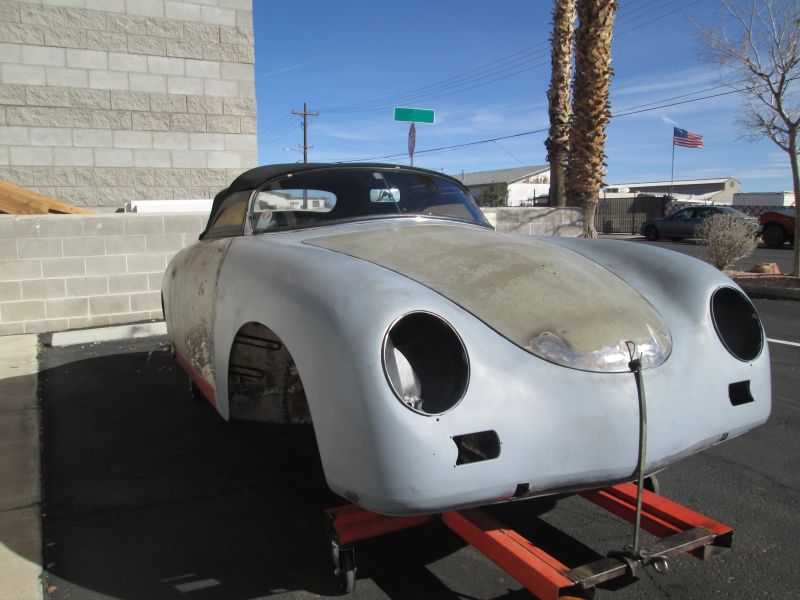

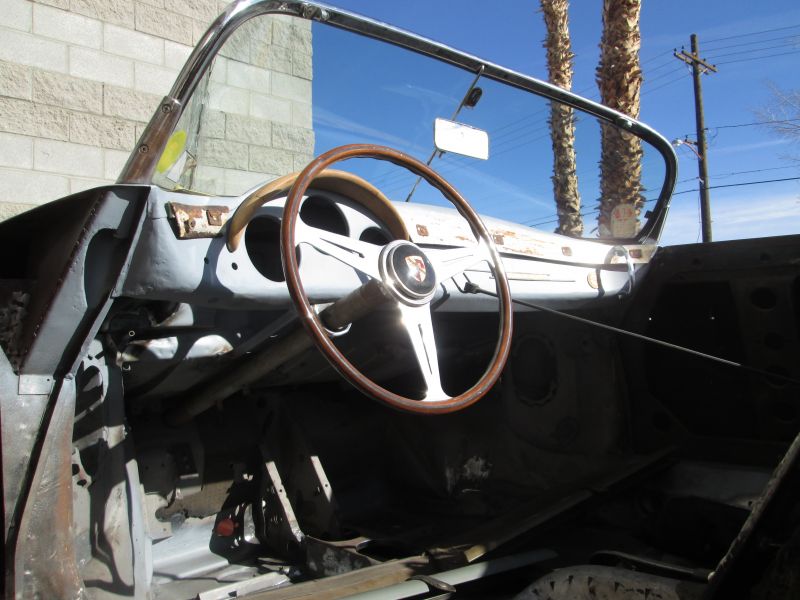

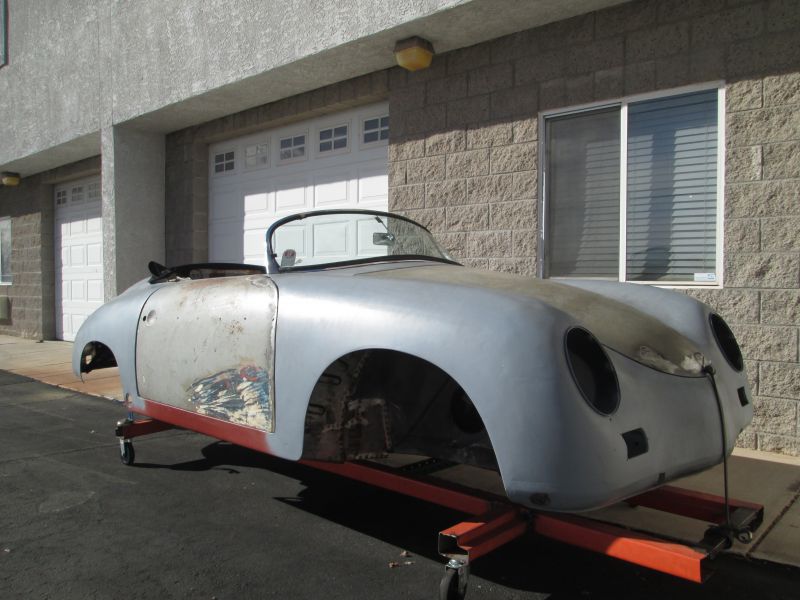

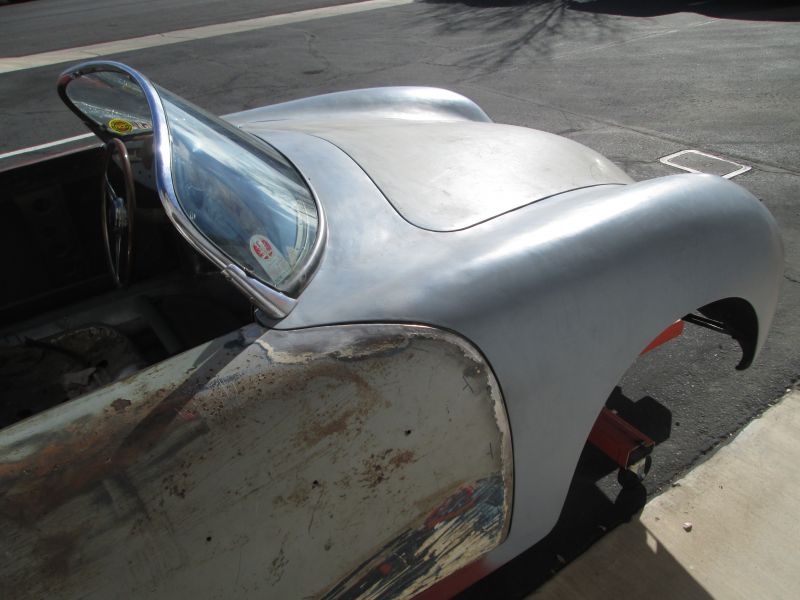

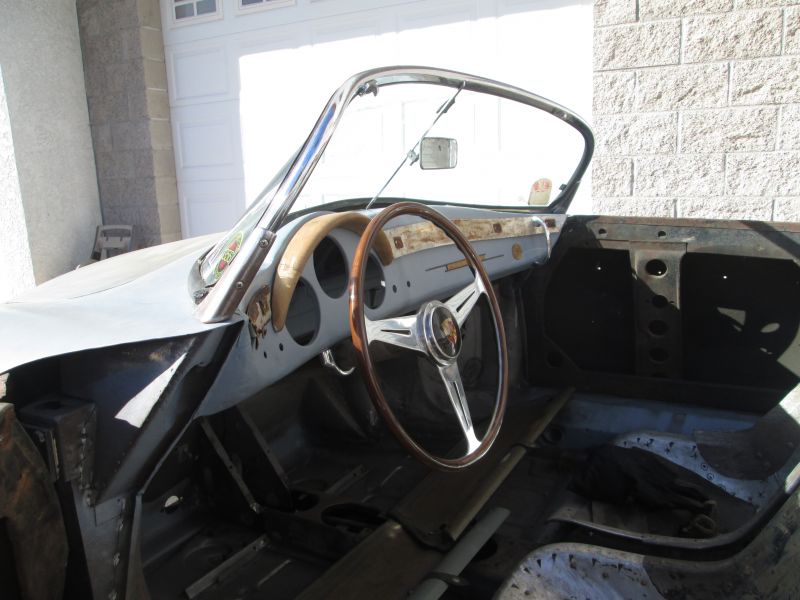

                        • Several years to get here but.... "the big day"

                          Click image for larger version

Name:	IMG_6557.JPG
Views:	82
Size:	66.3 KB
ID:	96383

                          Click image for larger version

Name:	IMG_6558.JPG
Views:	83
Size:	62.9 KB
ID:	96384

                          Click image for larger version

Name:	IMG_6559.JPG
Views:	83
Size:	68.3 KB
ID:	96385

                          Click image for larger version

Name:	IMG_6560.JPG
Views:	85
Size:	66.1 KB
ID:	96386


                          Click image for larger version

Name:	IMG_6561.JPG
Views:	80
Size:	61.3 KB
ID:	96387

                          Click image for larger version

Name:	IMG_6562.JPG
Views:	82
Size:	55.1 KB
ID:	96388

                          Click image for larger version

Name:	IMG_6563.JPG
Views:	85
Size:	67.6 KB
ID:	96389

                          Click image for larger version

Name:	IMG_6564.JPG
Views:	86
Size:	70.7 KB
ID:	96390

                          Click image for larger version

Name:	IMG_6565.JPG
Views:	86
Size:	48.9 KB
ID:	96391

                          Click image for larger version

Name:	IMG_6566.JPG
Views:	83
Size:	70.9 KB
ID:	96392

                          Click image for larger version

Name:	IMG_6567.JPG
Views:	85
Size:	68.5 KB
ID:	96393

                          Click image for larger version

Name:	IMG_6568.JPG
Views:	84
Size:	74.2 KB
ID:	96394

                          Click image for larger version

Name:	IMG_6569.JPG
Views:	83
Size:	73.3 KB
ID:	96395

                          Click image for larger version

Name:	IMG_6570.JPG
Views:	82
Size:	73.6 KB
ID:	96396

                          Click image for larger version

Name:	IMG_6571.JPG
Views:	79
Size:	73.1 KB
ID:	96397

                          Click image for larger version

Name:	IMG_6572.JPG
Views:	91
Size:	59.0 KB
ID:	96398

                          Click image for larger version

Name:	IMG_6573.JPG
Views:	80
Size:	71.2 KB
ID:	96399

                          Click image for larger version

Name:	IMG_6574.JPG
Views:	84
Size:	53.3 KB
ID:	96400

                          Click image for larger version

Name:	IMG_6575.JPG
Views:	81
Size:	68.0 KB
ID:	96401

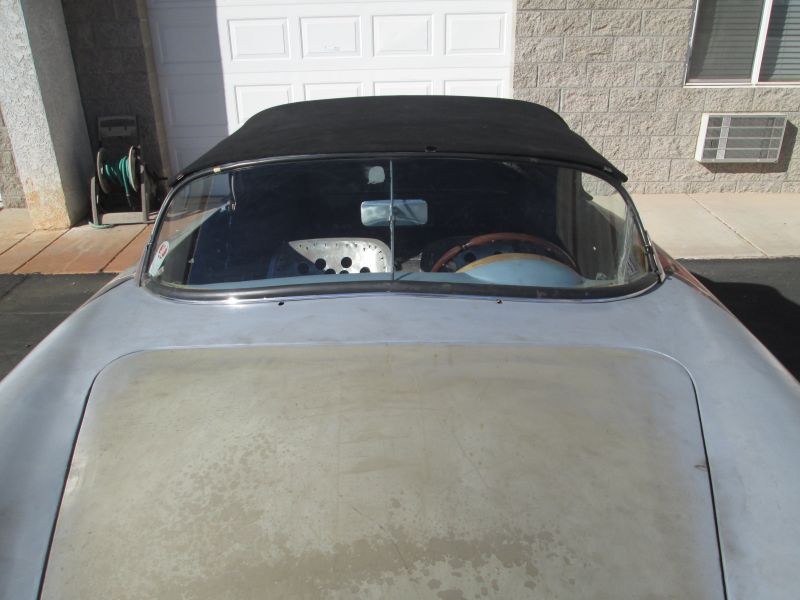

                          Click image for larger version

Name:	IMG_6576.JPG
Views:	83
Size:	58.2 KB
ID:	96402
                          Justin Rio

                          Comment


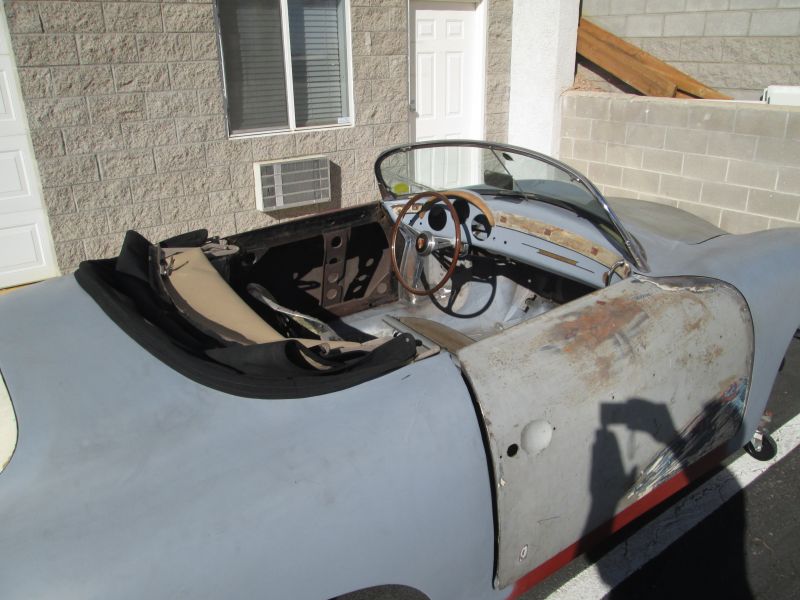

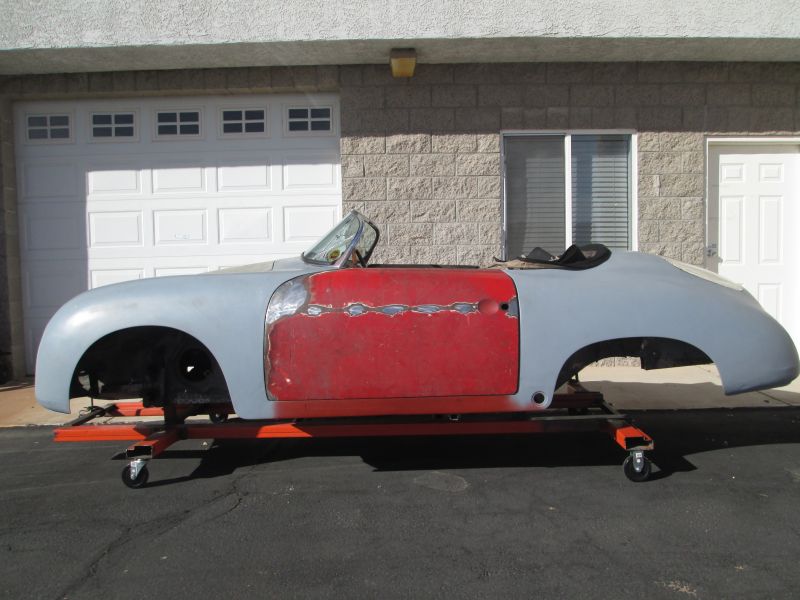

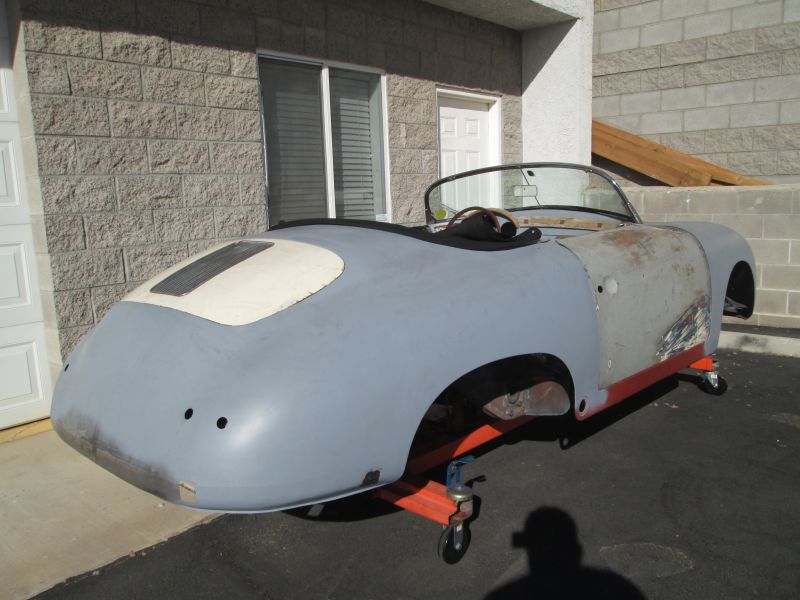

                          • Topless
                            Click image for larger version

Name:	IMG_6577.JPG
Views:	81
Size:	66.0 KB
ID:	96404

                            Click image for larger version

Name:	IMG_6578.JPG
Views:	83
Size:	73.8 KB
ID:	96405

                            Click image for larger version

Name:	IMG_6579.JPG
Views:	83
Size:	70.0 KB
ID:	96406

                            Click image for larger version

Name:	IMG_6580.JPG
Views:	81
Size:	64.4 KB
ID:	96407

                            Click image for larger version

Name:	IMG_6581.JPG
Views:	81
Size:	54.4 KB
ID:	96408

                            Click image for larger version

Name:	IMG_6582.JPG
Views:	87
Size:	71.1 KB
ID:	96409

                            Click image for larger version

Name:	IMG_6583.JPG
Views:	82
Size:	68.7 KB
ID:	96410

                            Click image for larger version

Name:	IMG_6584.JPG
Views:	84
Size:	68.4 KB
ID:	96411

                            Click image for larger version

Name:	IMG_6585.JPG
Views:	83
Size:	67.9 KB
ID:	96412

                            Click image for larger version

Name:	IMG_6586.JPG
Views:	82
Size:	67.3 KB
ID:	96413

                            Click image for larger version

Name:	IMG_6587.JPG
Views:	88
Size:	83.5 KB
ID:	96414

                            Click image for larger version

Name:	IMG_6588.JPG
Views:	83
Size:	56.8 KB
ID:	96415

                            Click image for larger version

Name:	IMG_6589.JPG
Views:	84
Size:	66.5 KB
ID:	96416

                            Click image for larger version

Name:	IMG_6590.JPG
Views:	84
Size:	52.0 KB
ID:	96417

                            Click image for larger version

Name:	IMG_6597.JPG
Views:	79
Size:	73.7 KB
ID:	96424

                            Click image for larger version

Name:	IMG_6598.JPG
Views:	83
Size:	50.8 KB
ID:	96425

                            Click image for larger version

Name:	IMG_6599.JPG
Views:	84
Size:	65.6 KB
ID:	96426

                            Click image for larger version

Name:	IMG_6591.JPG
Views:	85
Size:	59.7 KB
ID:	96418

                            Click image for larger version

Name:	IMG_6592.JPG
Views:	82
Size:	53.8 KB
ID:	96419

                            Click image for larger version

Name:	IMG_6593.JPG
Views:	86
Size:	56.7 KB
ID:	96420

                            Click image for larger version

Name:	IMG_6595.JPG
Views:	83
Size:	65.8 KB
ID:	96422

                            Click image for larger version

Name:	IMG_6596.JPG
Views:	82
Size:	71.2 KB
ID:	96423

                            Click image for larger version

Name:	IMG_6606.JPG
Views:	83
Size:	51.6 KB
ID:	96421

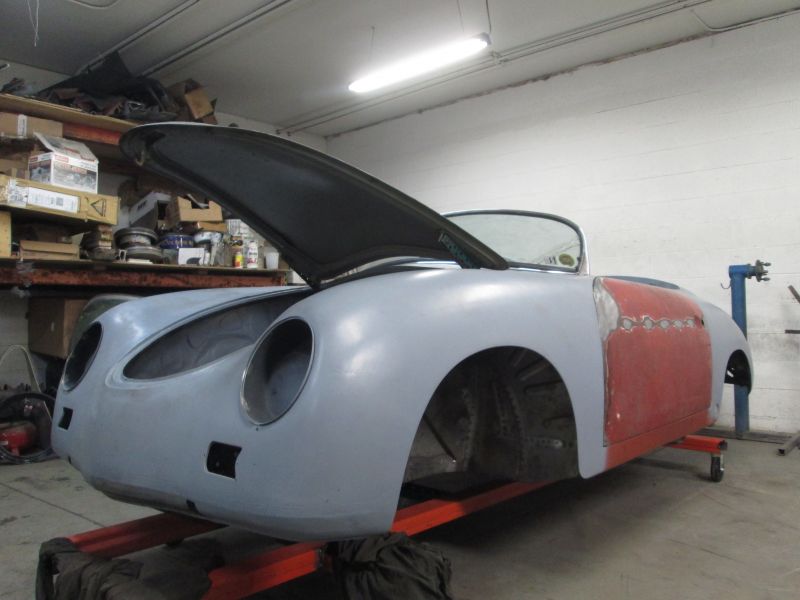

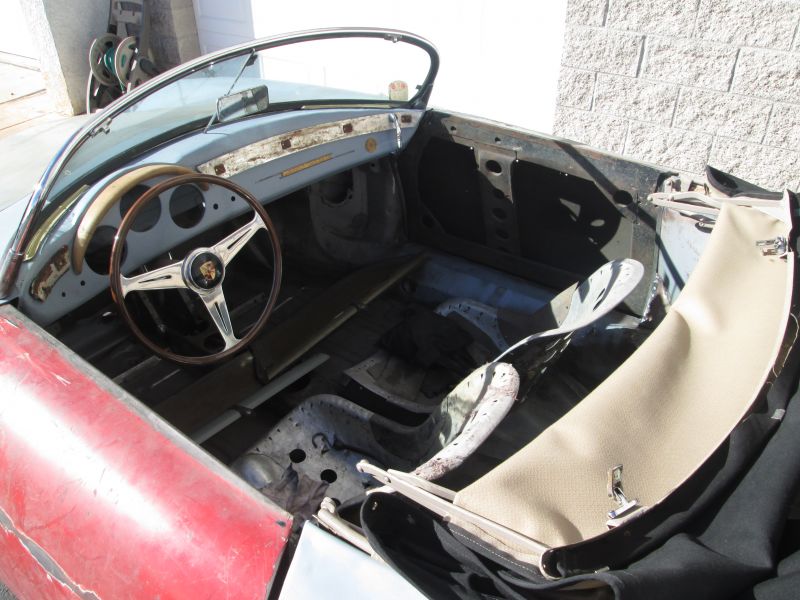

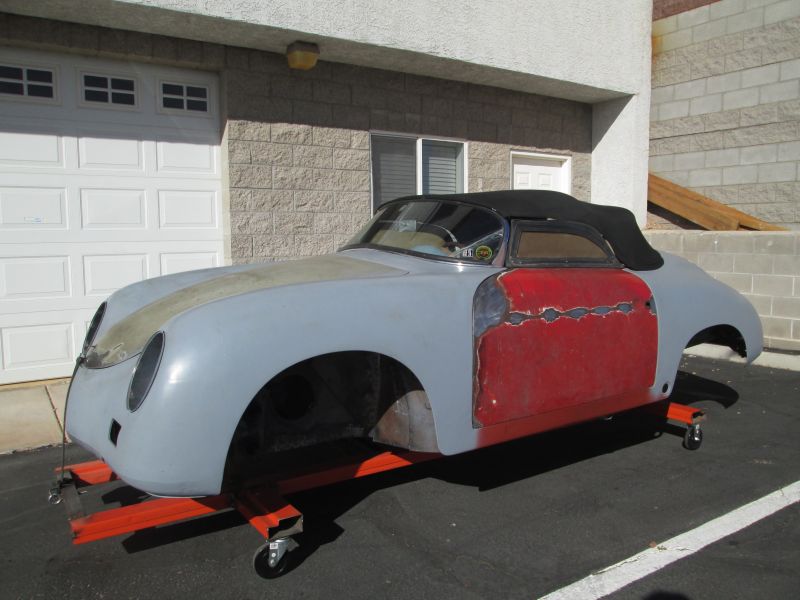

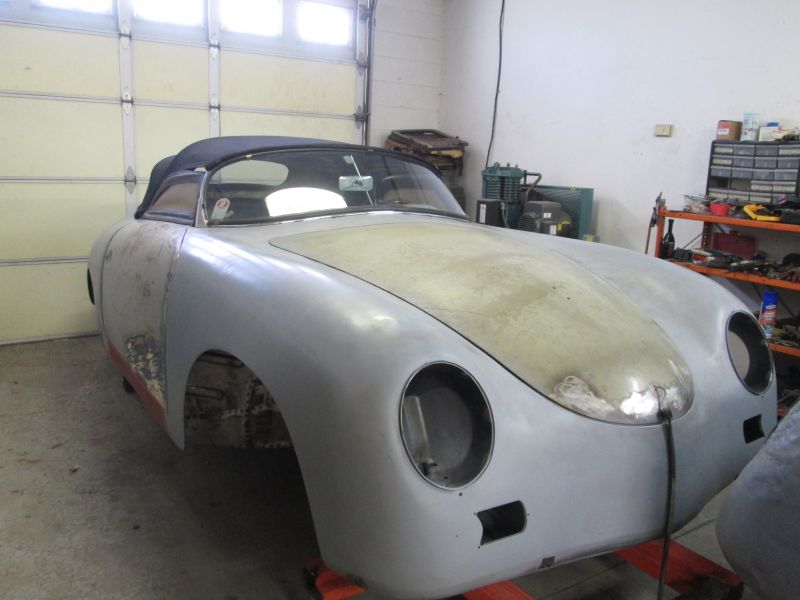

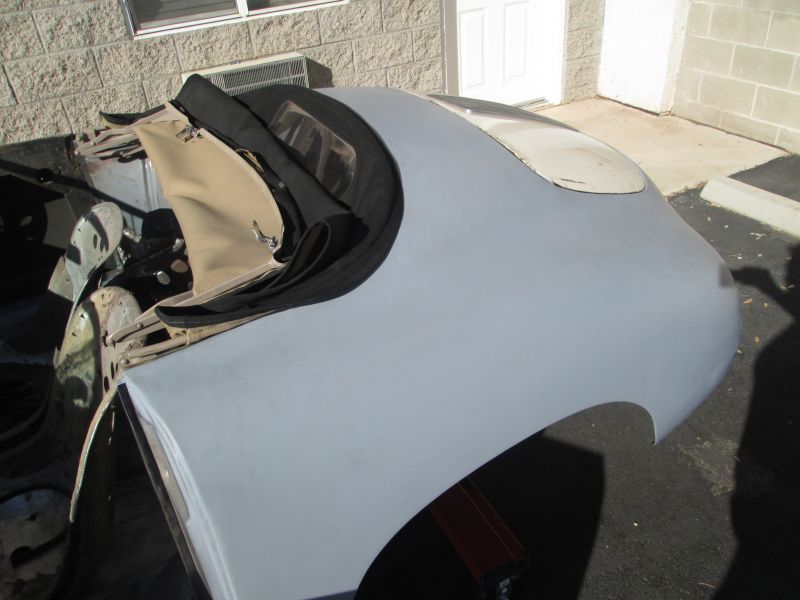

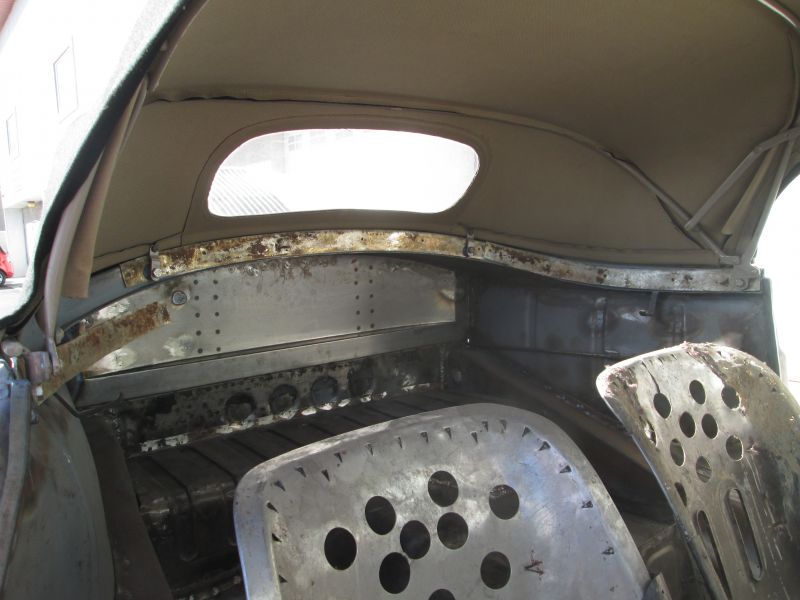

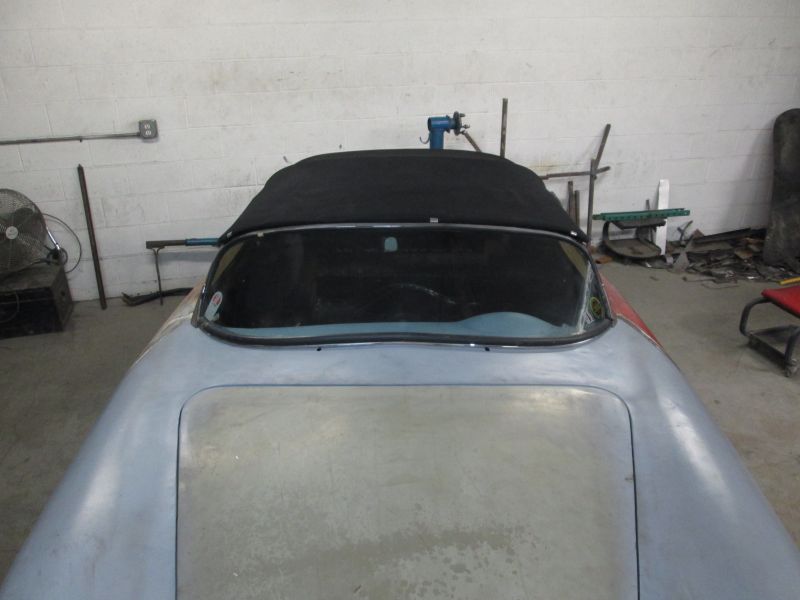

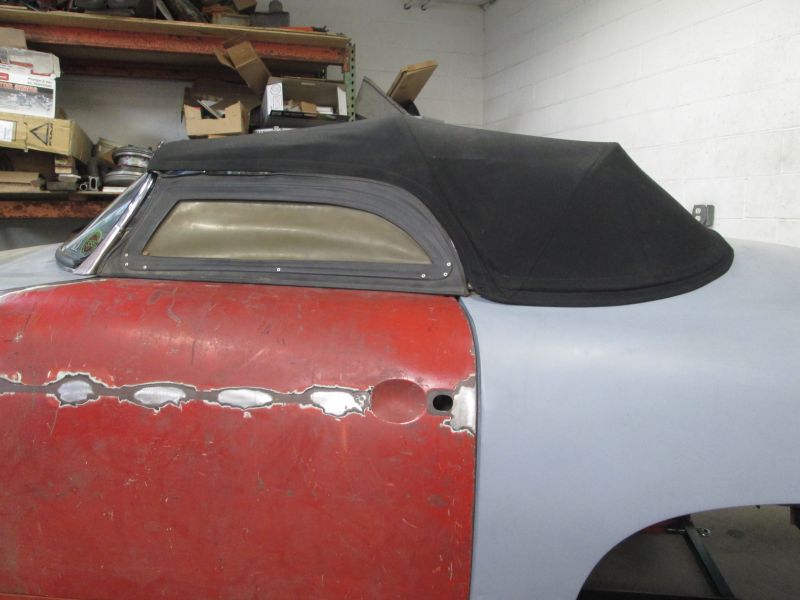

                            Breaking it down next and getting it ready for its trip up North to an old school body man/painter in Wisconsin. If I get any updates I will of course share them but this build and story is over...for me.
                            Thanks for reading this!

                            Justin
                            Justin Rio

                            Comment


                            • Click image for larger version

Name:	B659D1D4-0BAB-4EC0-9705-1CBBC7883D52.jpeg
Views:	80
Size:	59.4 KB
ID:	96428
                              JOP

                              Comment


                              • Justin
                                What can I say...
                                You've been an inspiration over the years and I for one will be forever in your debt for documenting such a special build and answering every one of my dumb questions.
                                If my project gets half way close to yours I'll be a happy man.
                                Thank you.
                                Drew

                                Comment

                                Working...
                                X
