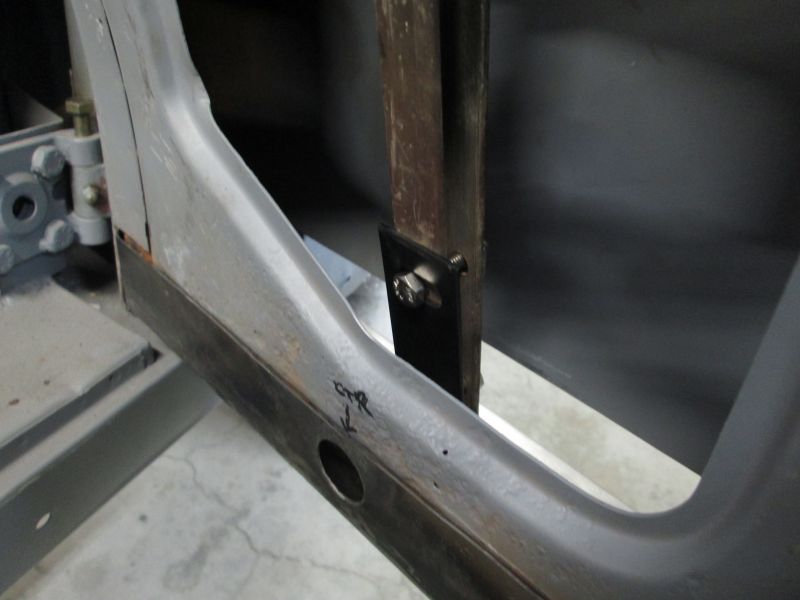

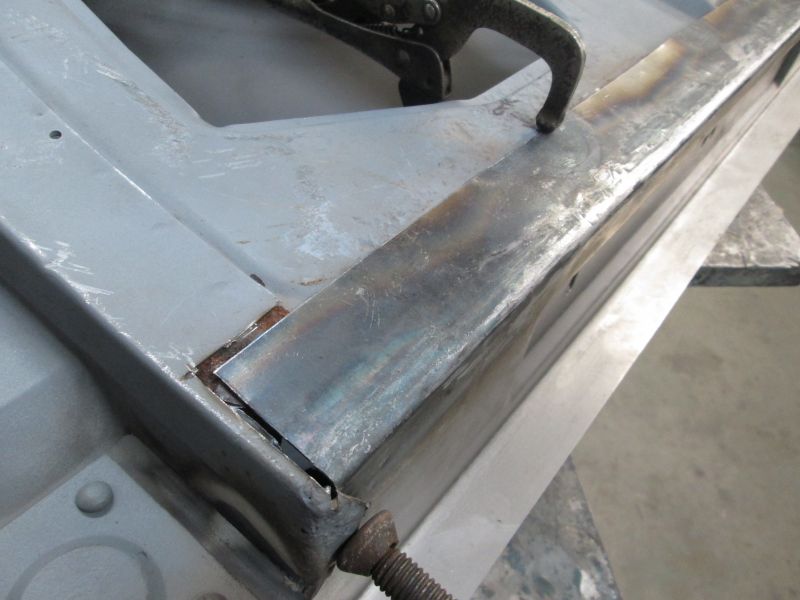

    Back to new door bottom fitment.
    Click image for larger version

Name:	IMG_6020.JPG
Views:	449
Size:	76.5 KB
ID:	94116

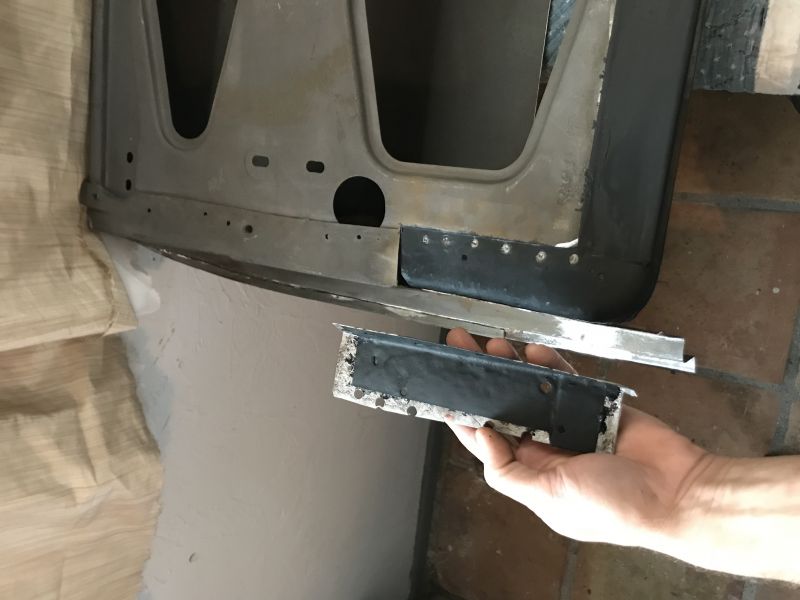

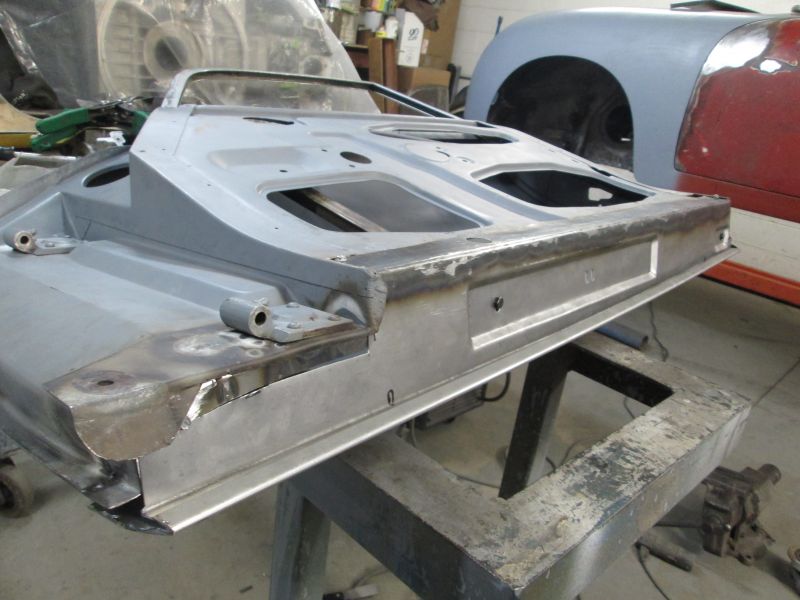

    Before that had the replacement inner wall flange into basic shapes.
    Click image for larger version

Name:	IMG_6022.JPG
Views:	461
Size:	67.6 KB
ID:	94117
    Then onto test fits and repeated trimmings to get the new bottom into final position.
    Click image for larger version

Name:	IMG_6021.JPG
Views:	448
Size:	63.9 KB
ID:	94118
    Once I get the bottom set this previously installed flange section will be butt-welded onto it. Should be one piece but due to the tight work space this was the only option. The weld joint will be concealed and lap supported by the eventual door stop housing flange that was so rusty.
    Click image for larger version

Name:	IMG_6023.JPG
Views:	429
Size:	47.7 KB
ID:	94119

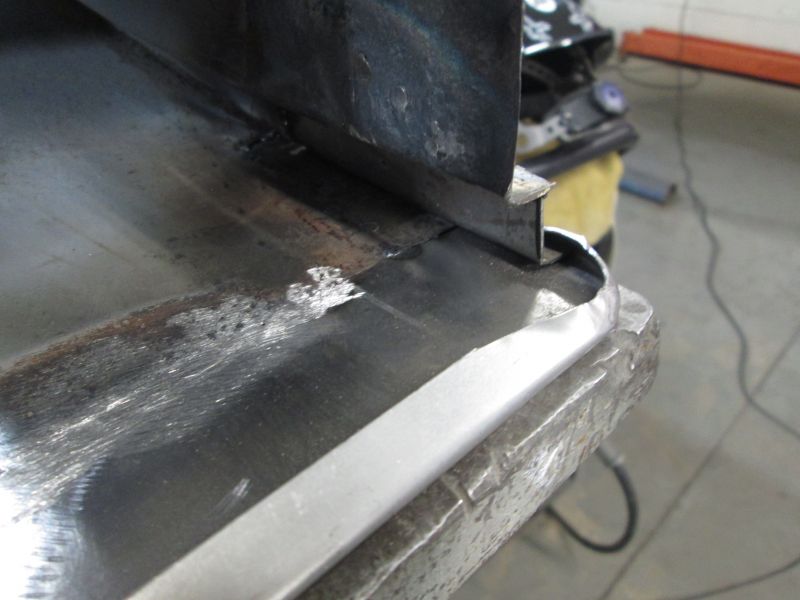

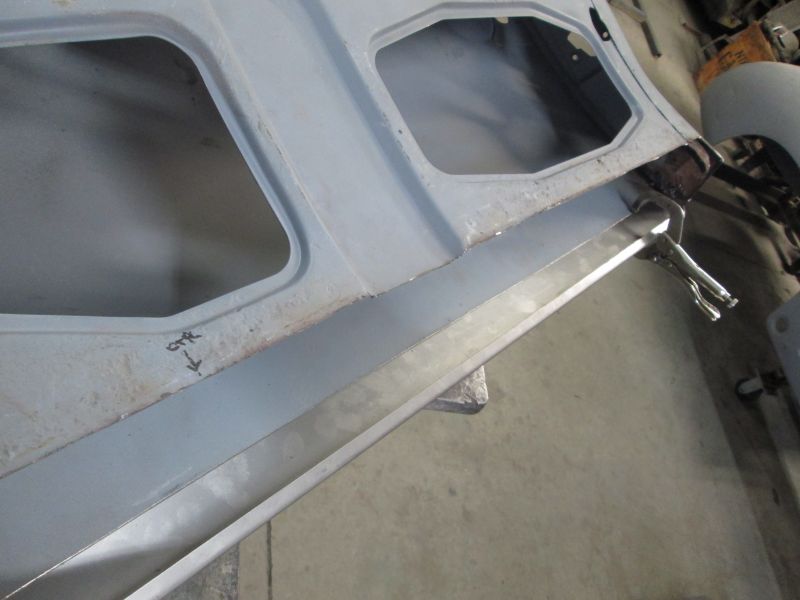

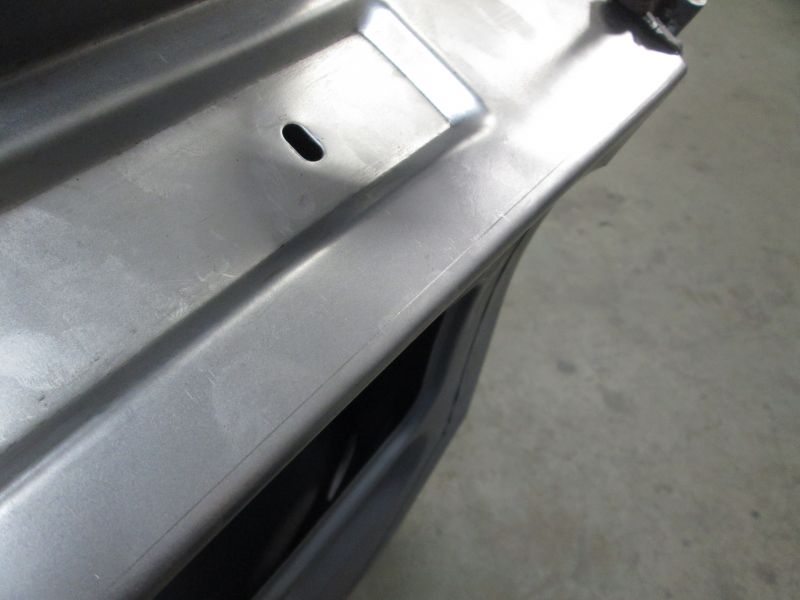

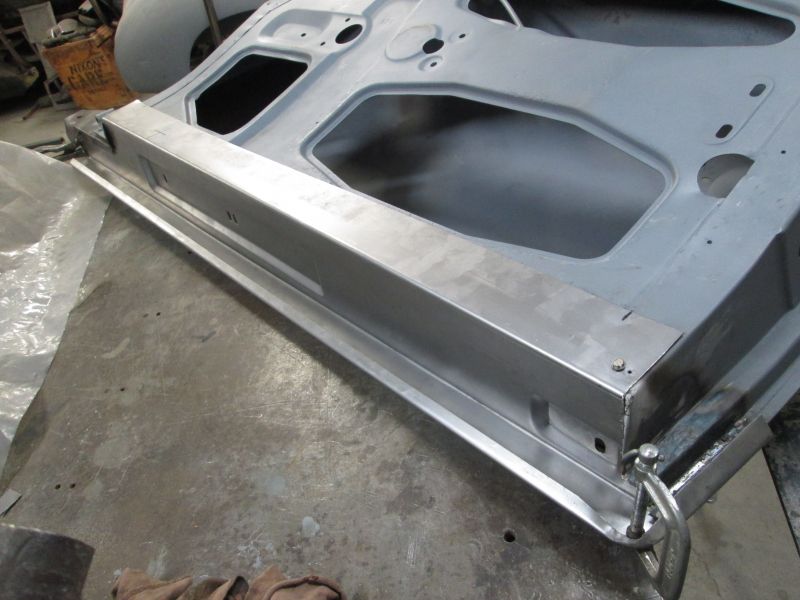

    Setting the outer flange on the door skin side at a depth that supports the skin and continues the line represented by this ruler. Also making sure there is ample clearance so I don't have any bulging issues like I had on the other door.
    Click image for larger version

Name:	IMG_6024.JPG
Views:	432
Size:	53.0 KB
ID:	94120
    The outer flange is not fully set as a test fit on the car is needed to confirm it 100% but I'm already having an issue with the inner flange overshooting the door on the inside. Same problem as before; at the very least its consistent.
    Click image for larger version

Name:	IMG_6025.JPG
Views:	431
Size:	50.8 KB
ID:	94121

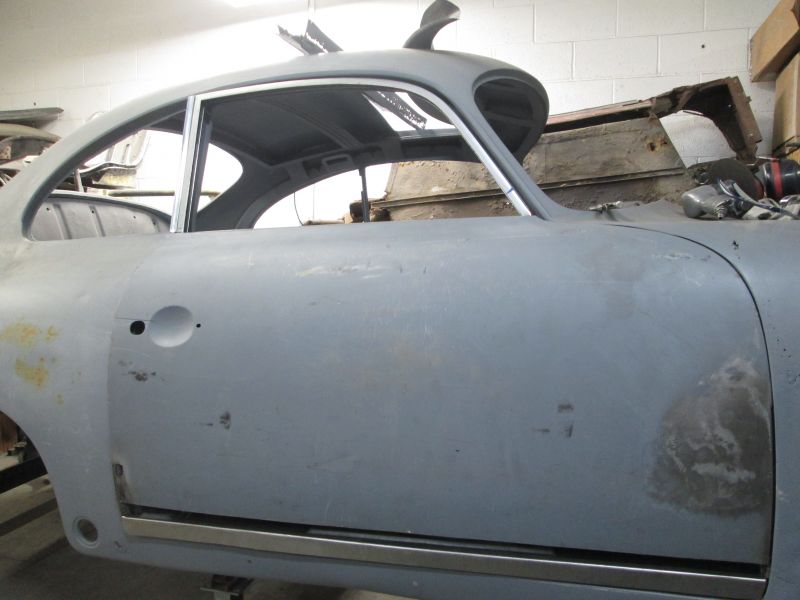

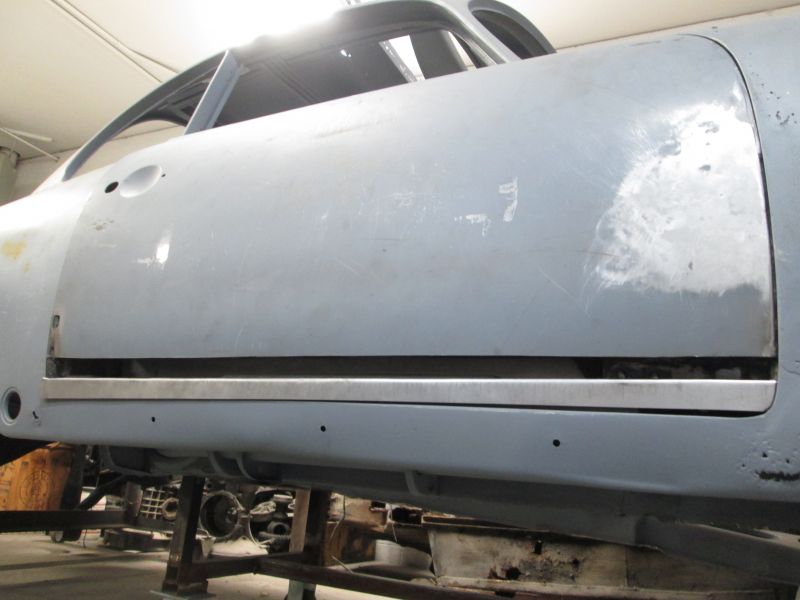

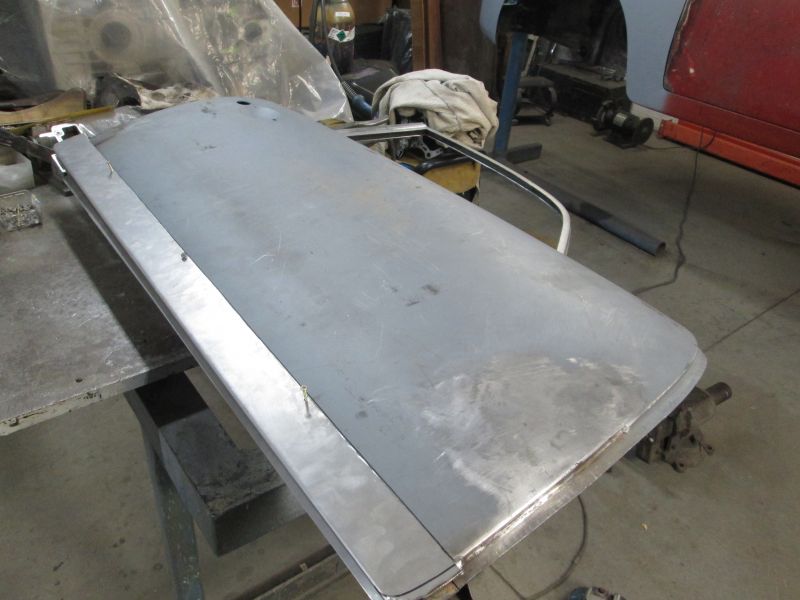

    Mounted on the car for the first time. The outer flange seems to sit pretty close but some trimming is needed so I can get the door to close fully.
    That up next.
    Thanks for stopping by!
    Justin
    Justin Rio

    Comment


    • #92
      11/28/17
      Click image for larger version

Name:	IMG_6030.JPG
Views:	435
Size:	39.9 KB
ID:	94149
      After some additional trimming the door finally seated fully.
      Click image for larger version

Name:	IMG_6029.JPG
Views:	435
Size:	42.2 KB
ID:	94148

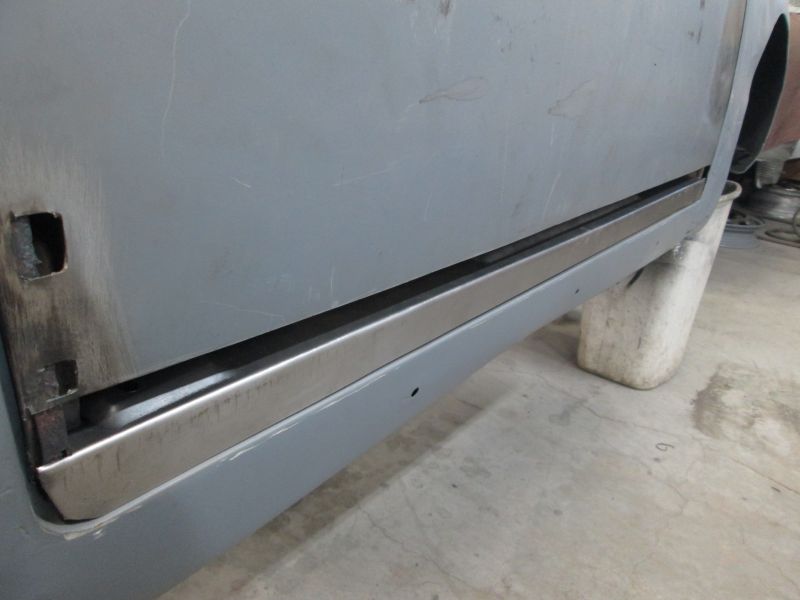

      Flange aligns pretty close with the edge of the rocker. This new bottom is just about all but dialed in.
      Click image for larger version

Name:	IMG_6031.JPG
Views:	420
Size:	50.6 KB
ID:	94147

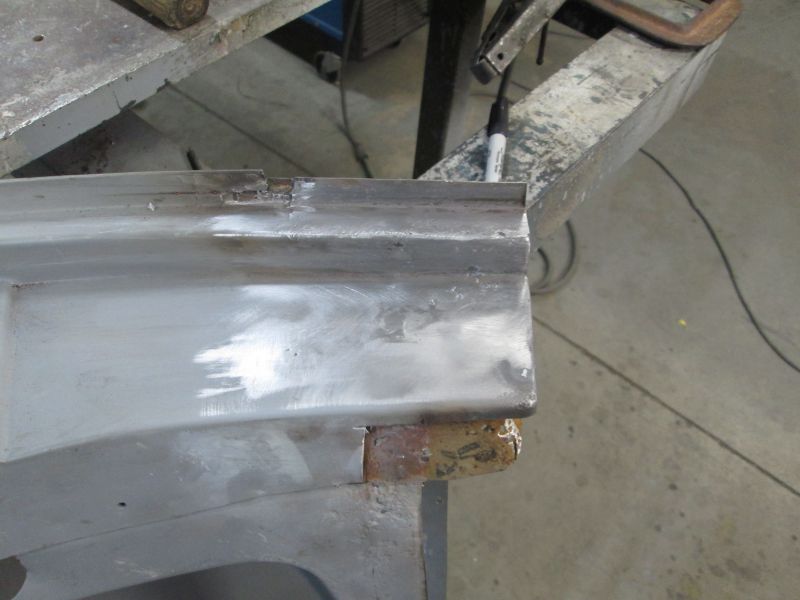

      With the outer flange set I now know how much this side has to be taken in.
      Click image for larger version

Name:	IMG_6032.JPG
Views:	420
Size:	56.4 KB
ID:	94146
      About 5MM's. This flange actually needs to tuck under the vertical runs so it needs to be a little tighter still.
      Click image for larger version

Name:	IMG_6033.JPG
Views:	427
Size:	41.7 KB
ID:	94150

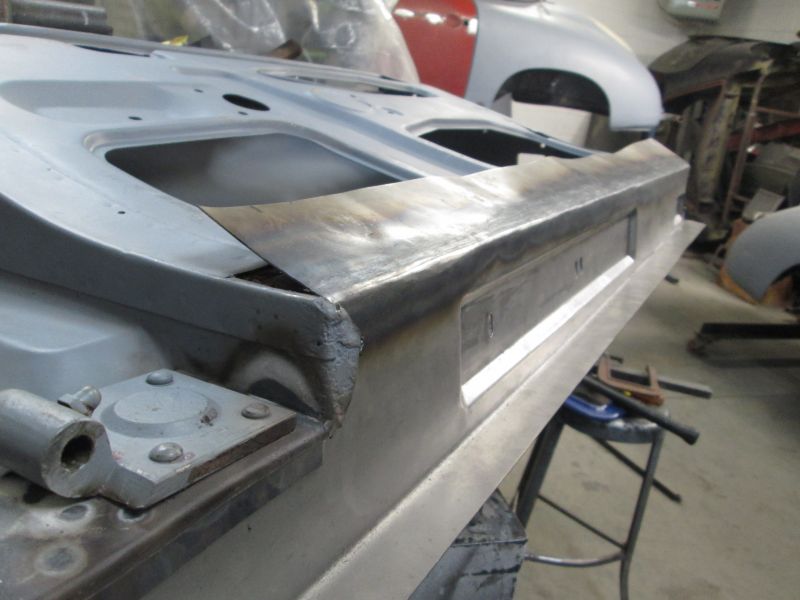

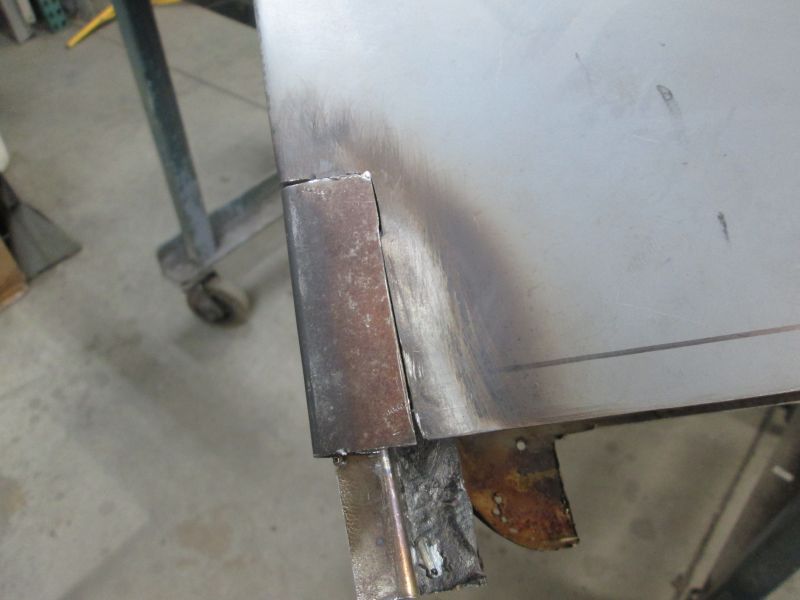

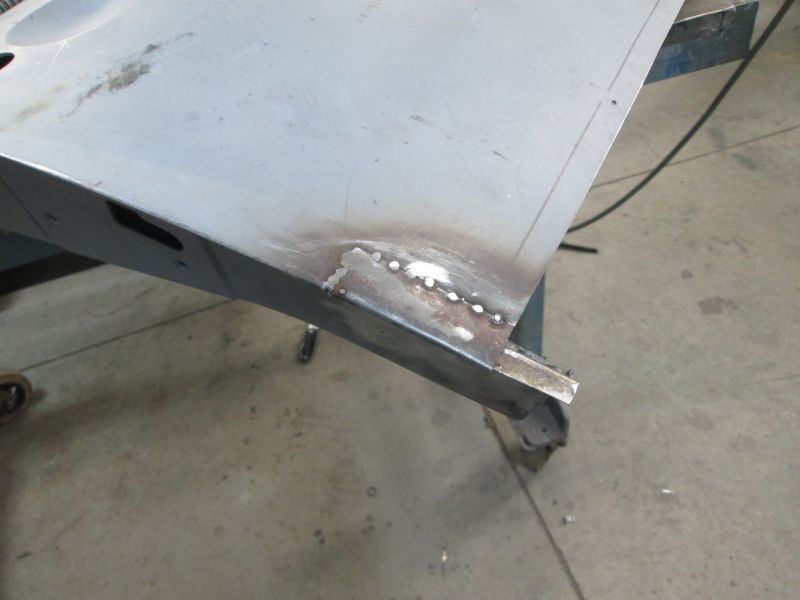

      New bend line etched. The rear corner of this flange also stands a touch too proud so I need to reset the entire run on this one.
      Click image for larger version

Name:	IMG_6034.JPG
Views:	423
Size:	51.4 KB
ID:	94151
      About that much. 5mm+ at the widest up front and then tapering down to 1MM+ at the back. Had to whip up a Jig on my work table next. The raised relief shapes on the bottom threw an additional curve in making this happen; Never straight forward.
      Click image for larger version

Name:	IMG_6035.JPG
Views:	410
Size:	57.3 KB
ID:	94152

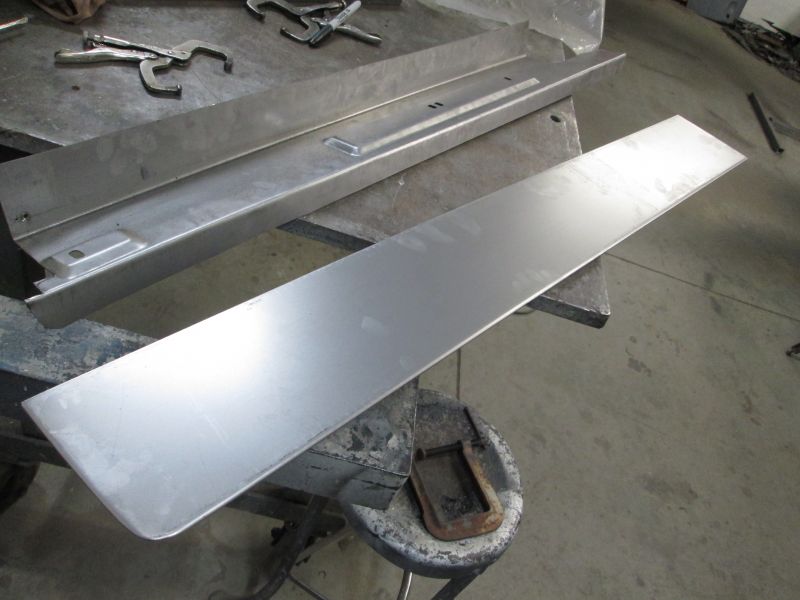

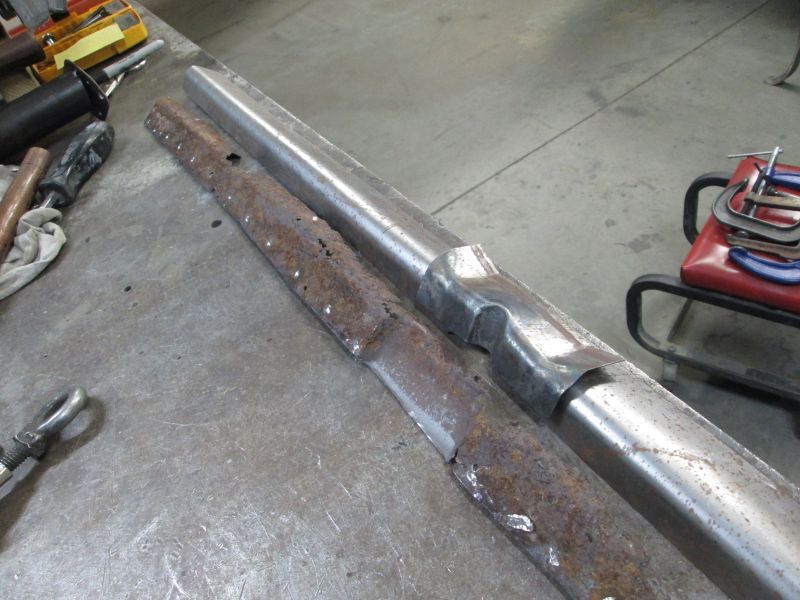

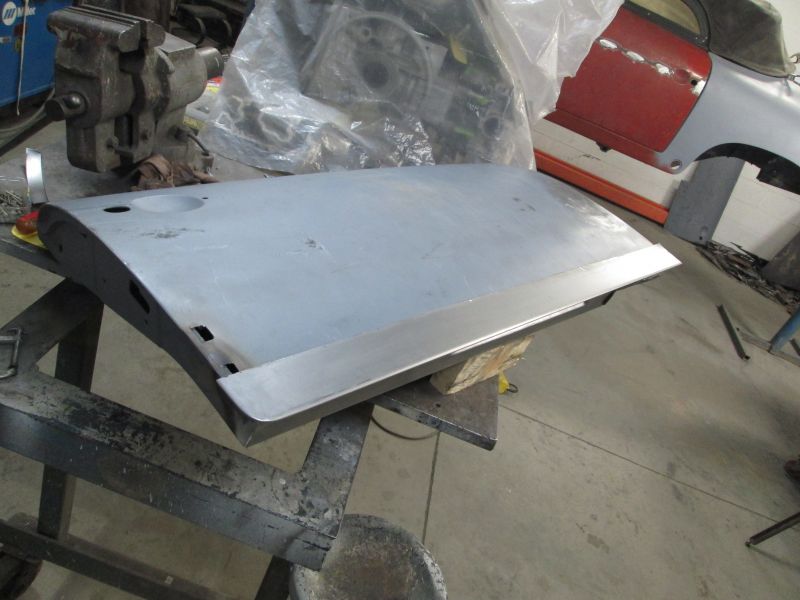

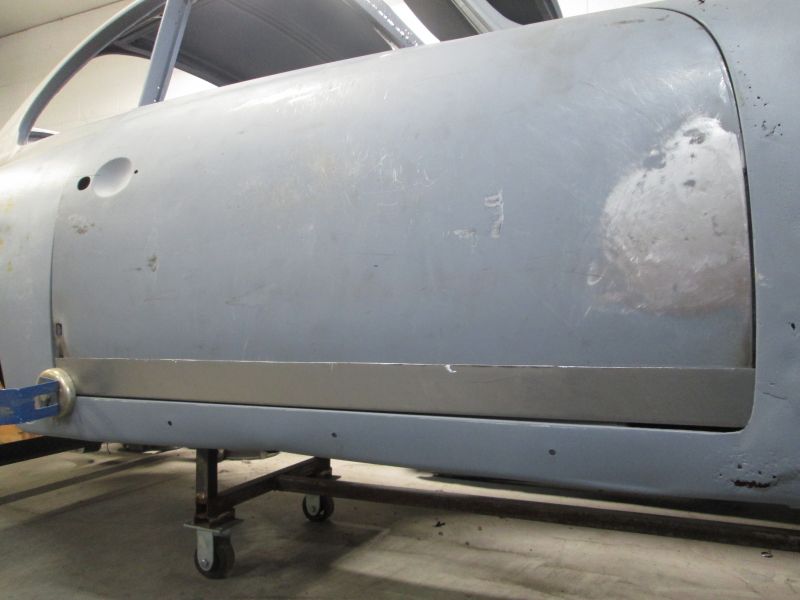

      The new lower skin repair section showed up.
      Click image for larger version

Name:	IMG_6037.JPG
Views:	403
Size:	43.1 KB
ID:	94153

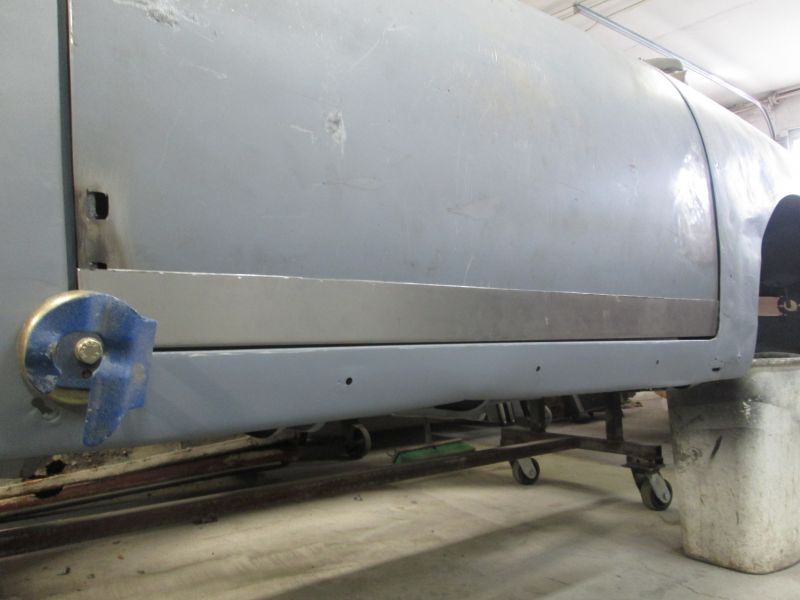

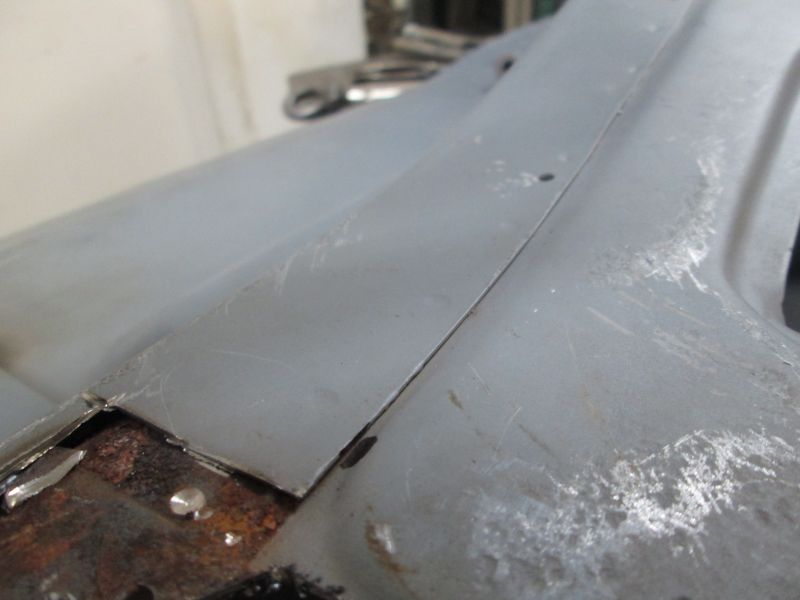

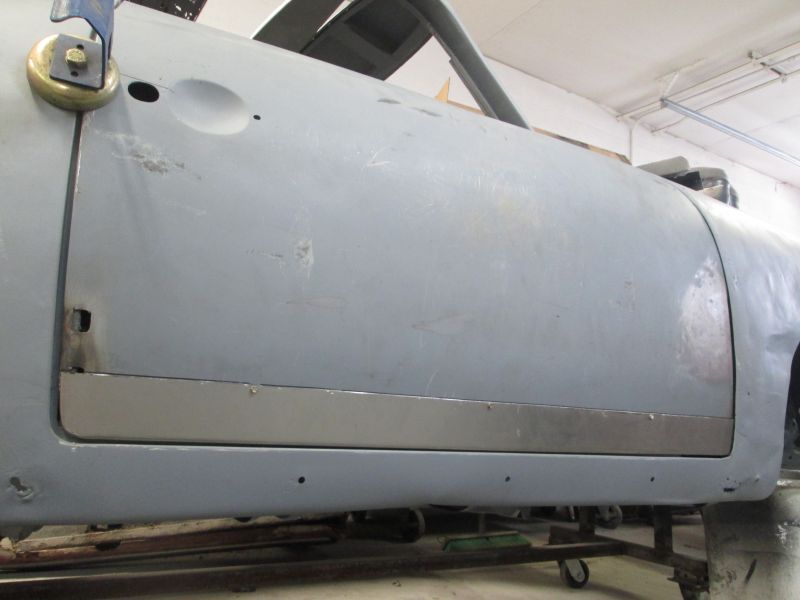

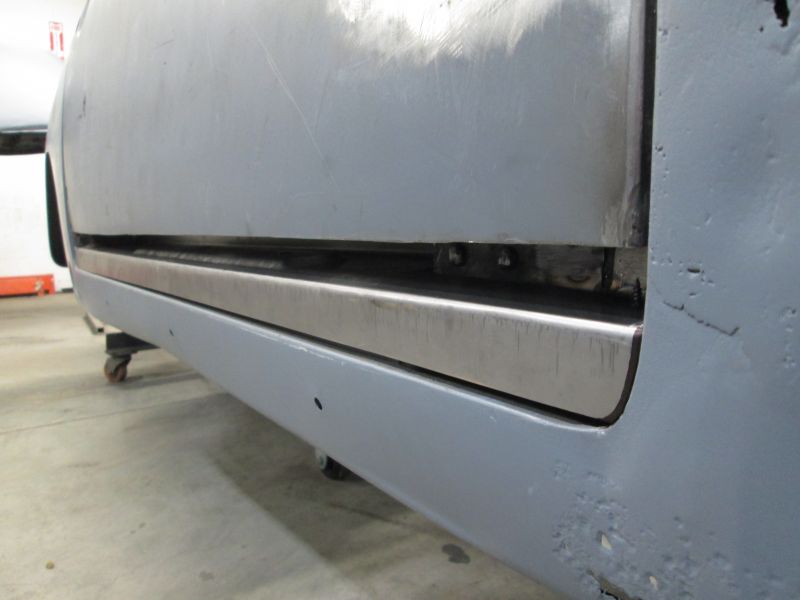

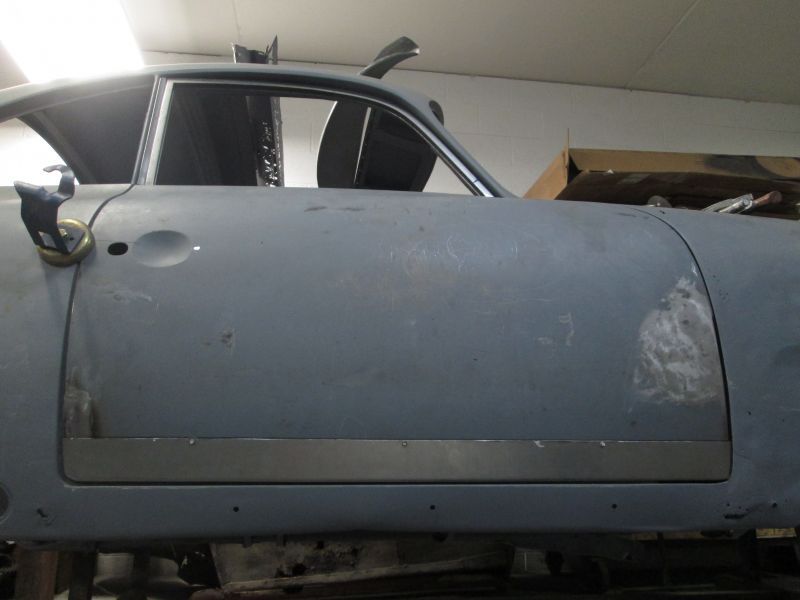

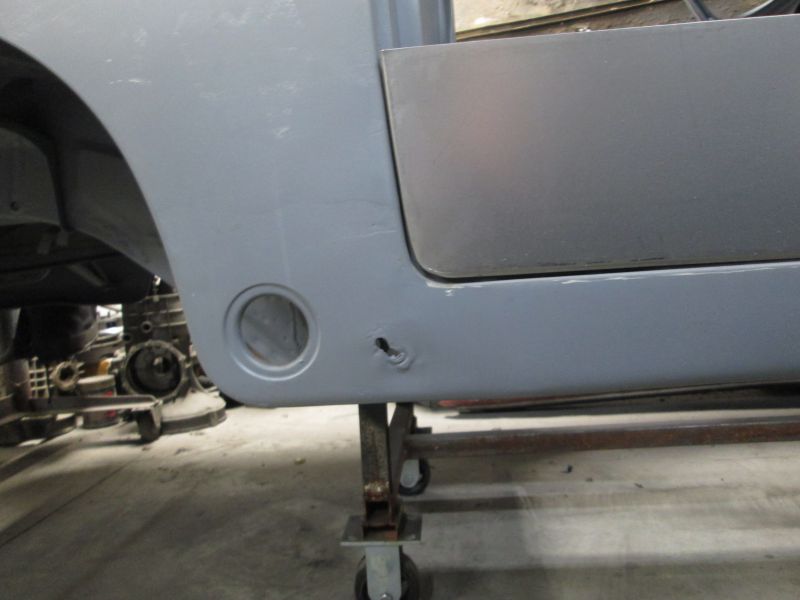

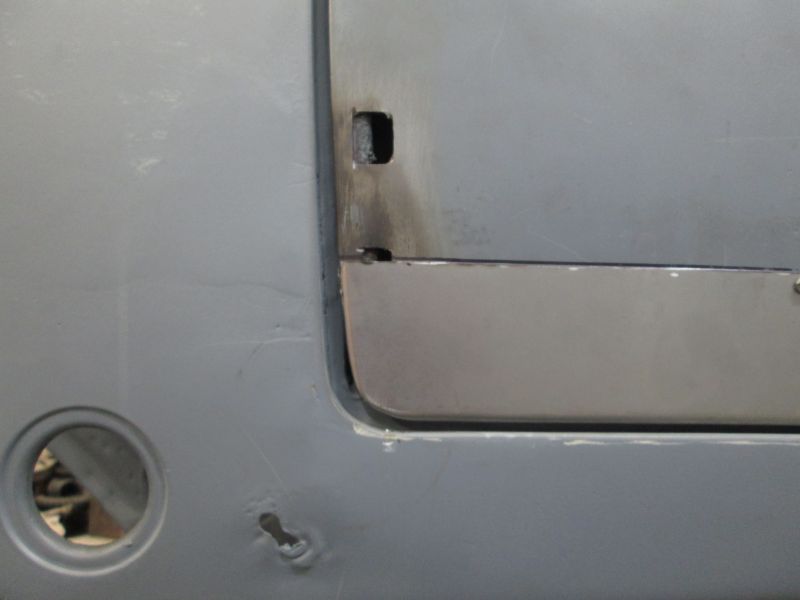

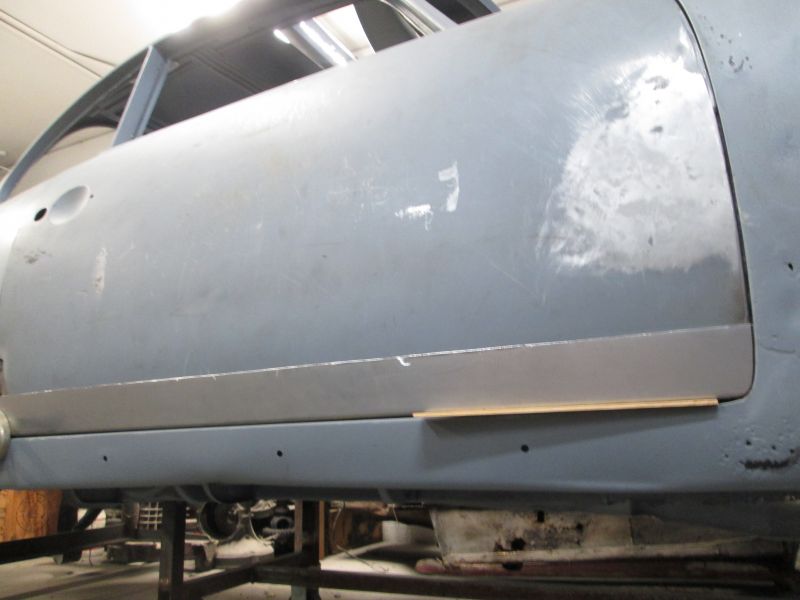

      Quick test fit with the car to see how nice of a gap the edges would make. Pretty nice for starters. I can remember the ones from 20 years ago always having a badly set vertical run but not the case here.
      Click image for larger version

Name:	IMG_6038.JPG
Views:	391
Size:	55.2 KB
ID:	94154
      I think this one originates from Trevor's hammer works. It seems like his work and its coated with the same anti-rust goop found on everything else I have ever received from him.
      Click image for larger version

Name:	IMG_6039.JPG
Views:	376
Size:	65.4 KB
ID:	94155
      A ways yet to go before I can close this up but these fresh pieces are nice to look at.
      Click image for larger version

Name:	IMG_6040.JPG
Views:	367
Size:	55.6 KB
ID:	94156
      Resetting that flange run next.

      Thanks for looking!
      Justin
      Justin Rio

      Comment


      • #93
        Man I hope my door bottoms fit better than these do. Fingers crossed.
        Mark Erbesfield
        57 356A
        65 911
        68 912
        73 911S
        66 Toyota Land Cruiser FJ45LV
        79 450SL Dad's old car

        Comment


        • #94
          Hope springs eternal

          11/29/17

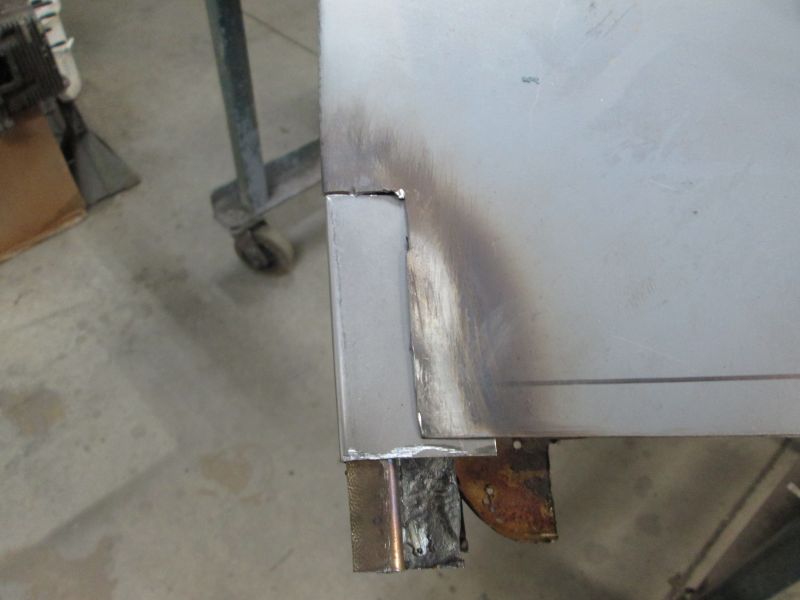

          initial lower skin trim
          Click image for larger version

Name:	IMG_6041.JPG
Views:	348
Size:	44.7 KB
ID:	94191
          Not exactly sure just yet where the new bottom edge of this panel needs to be for a nice gap with the rocker but left myself with a nice margin for error.
          Click image for larger version

Name:	IMG_6042.JPG
Views:	332
Size:	61.4 KB
ID:	94192
          Good for starters
          Click image for larger version

Name:	IMG_6043.JPG
Views:	316
Size:	63.6 KB
ID:	94193
          Now have all the pieces needed to complete this door repair. Back to making them all fit.

          Click image for larger version

Name:	IMG_6055.JPG
Views:	306
Size:	56.7 KB
ID:	94194

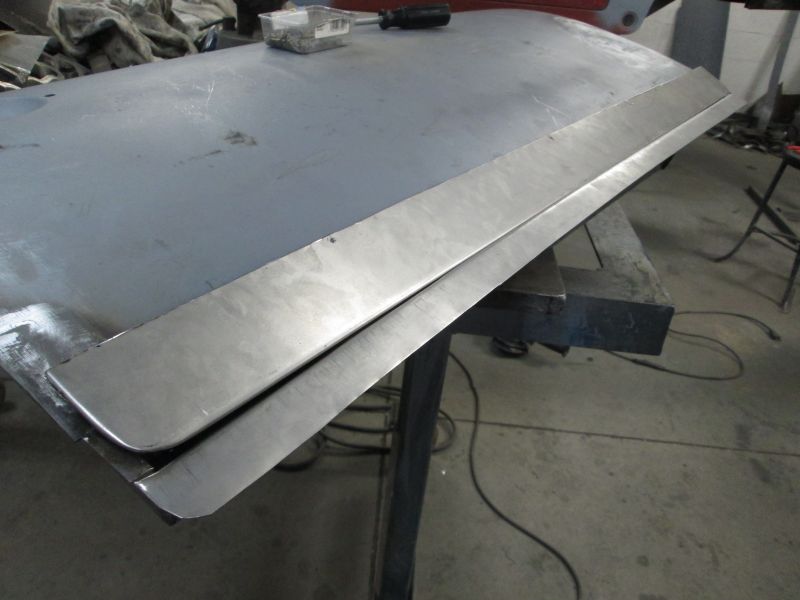

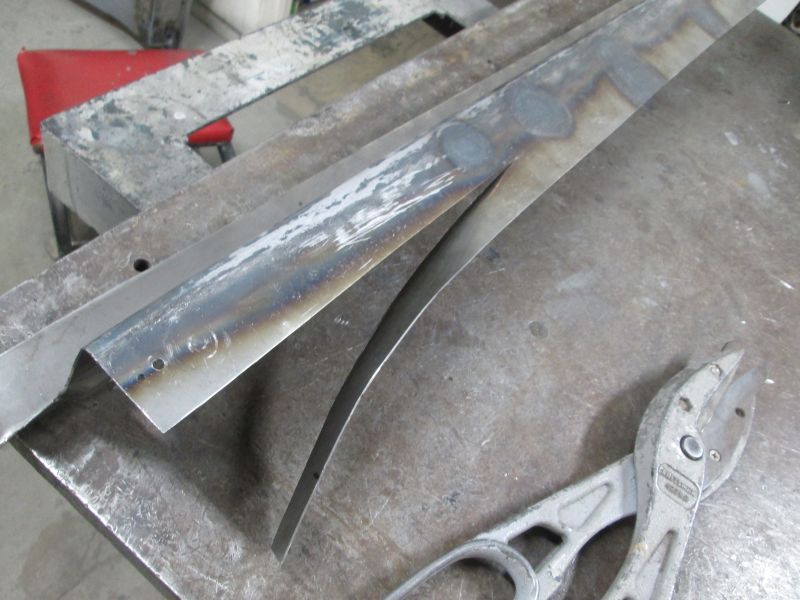

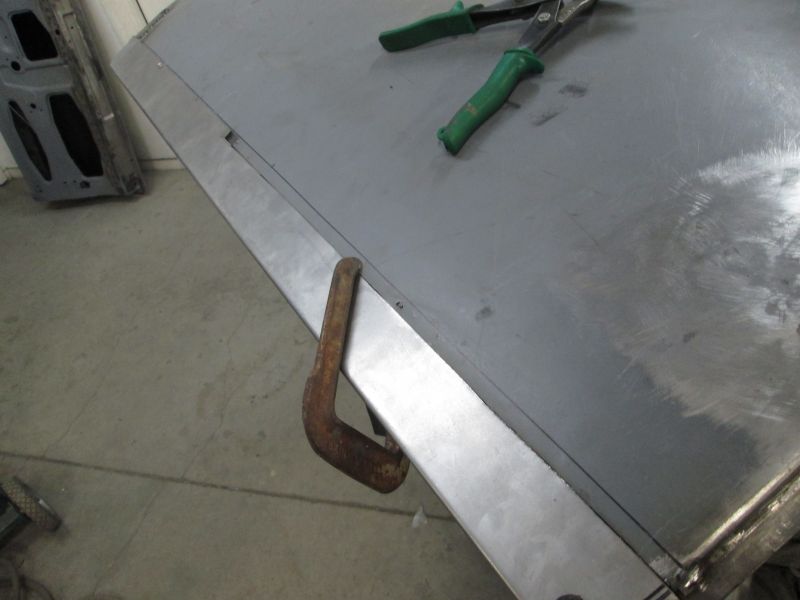

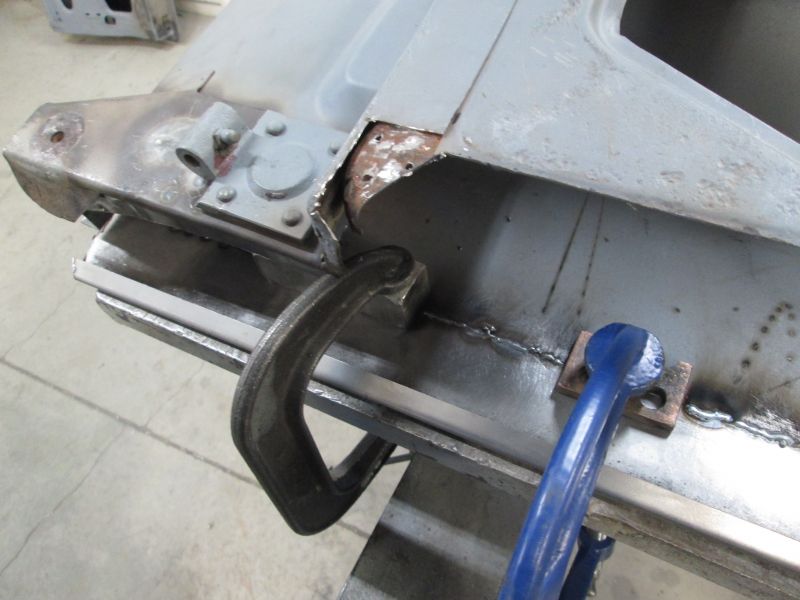

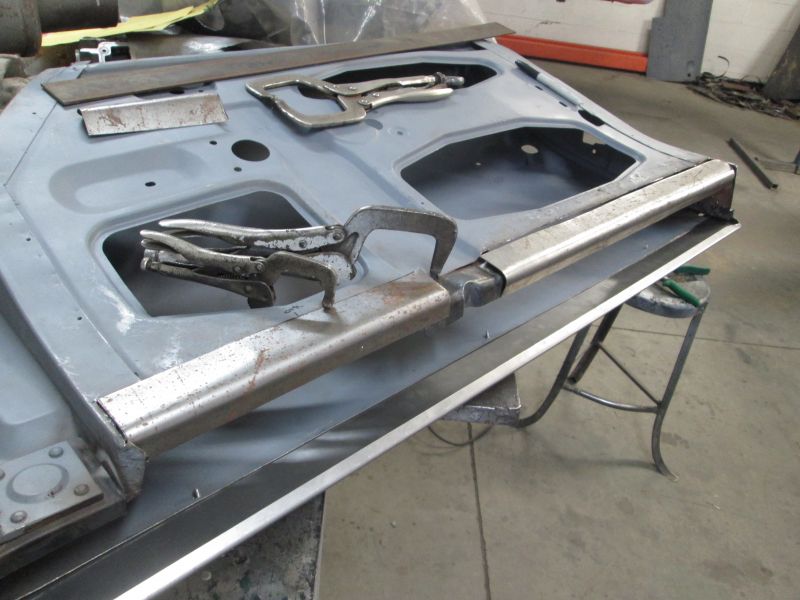

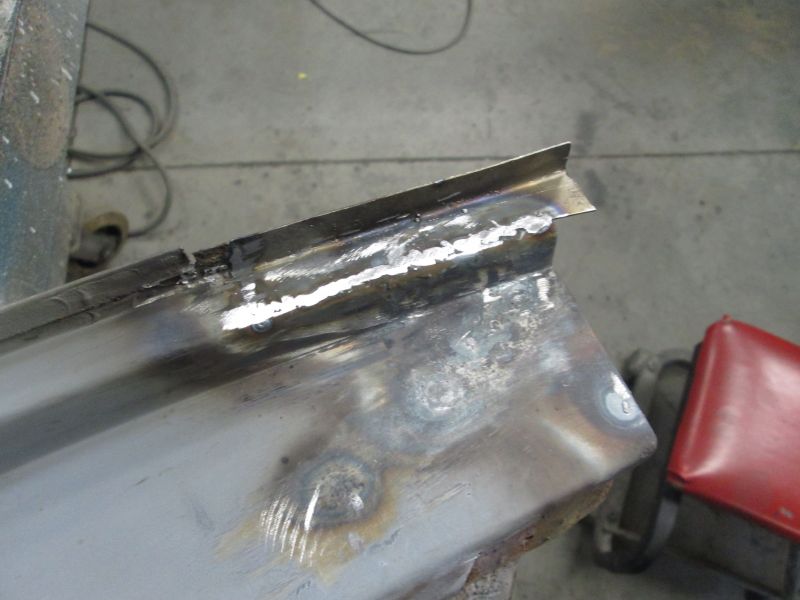

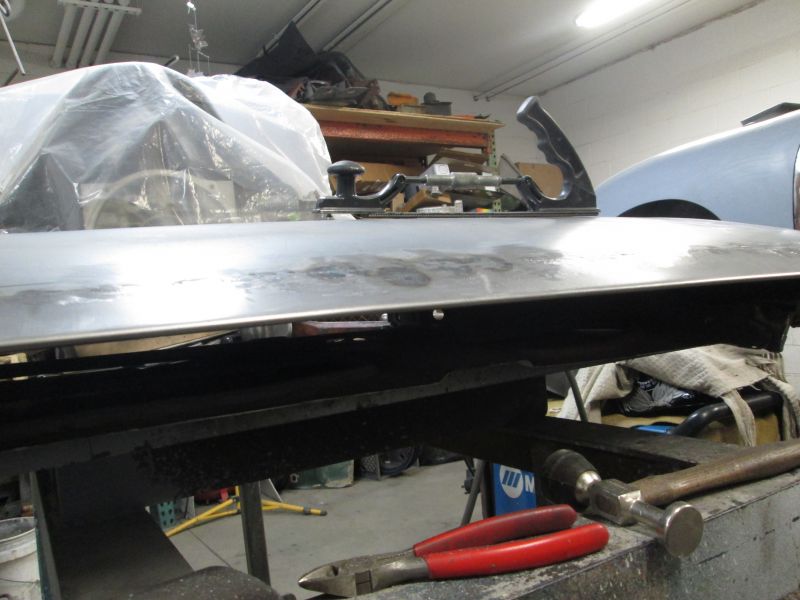

          Back to resetting the bottom flange. Took some time figure out a steady holding jig that would clear the shape relief and turn a soft enough corner profile as it originally had. Ready to go here.
          Click image for larger version

Name:	IMG_6056.JPG
Views:	302
Size:	76.9 KB
ID:	94195

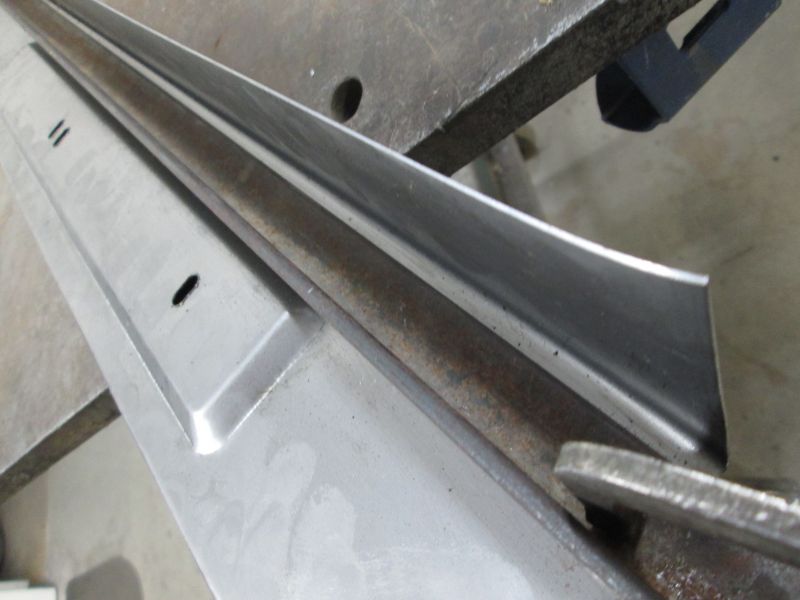

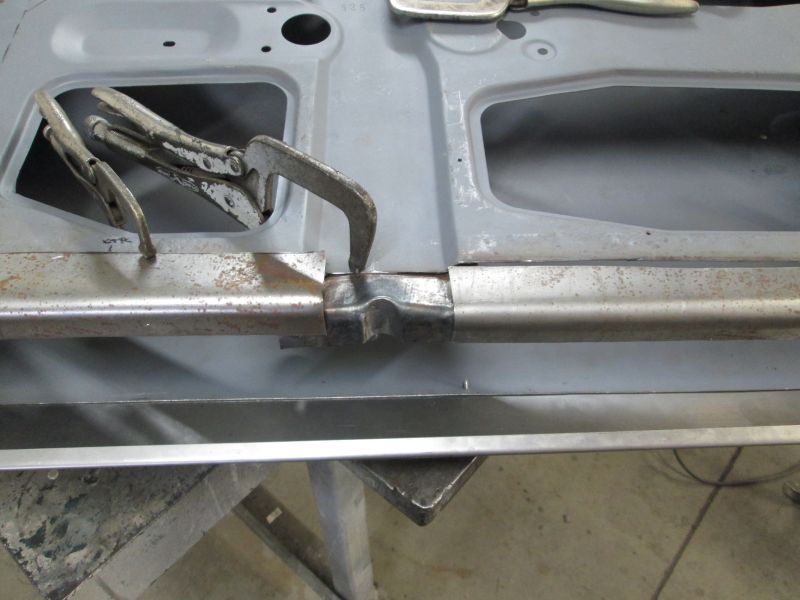

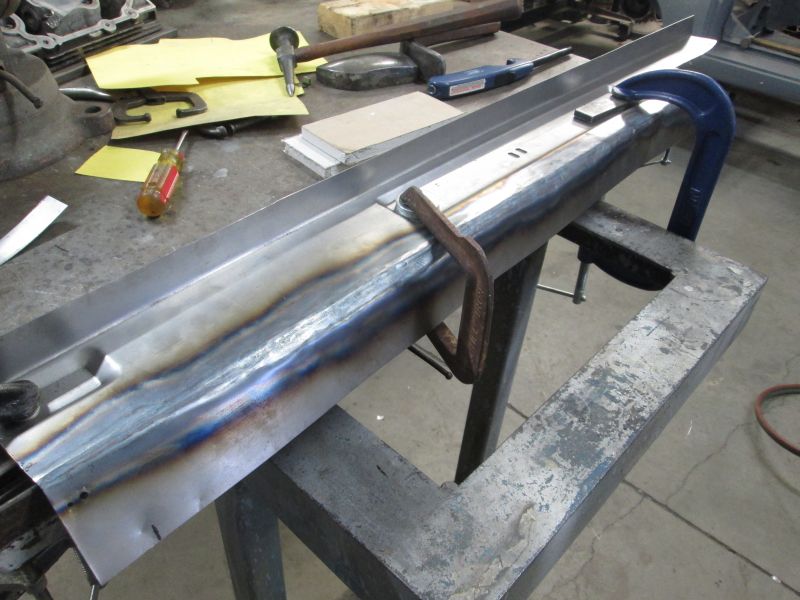

          Heated and gradually worked the run down in stages.
          Click image for larger version

Name:	IMG_6057.JPG
Views:	302
Size:	65.8 KB
ID:	94196

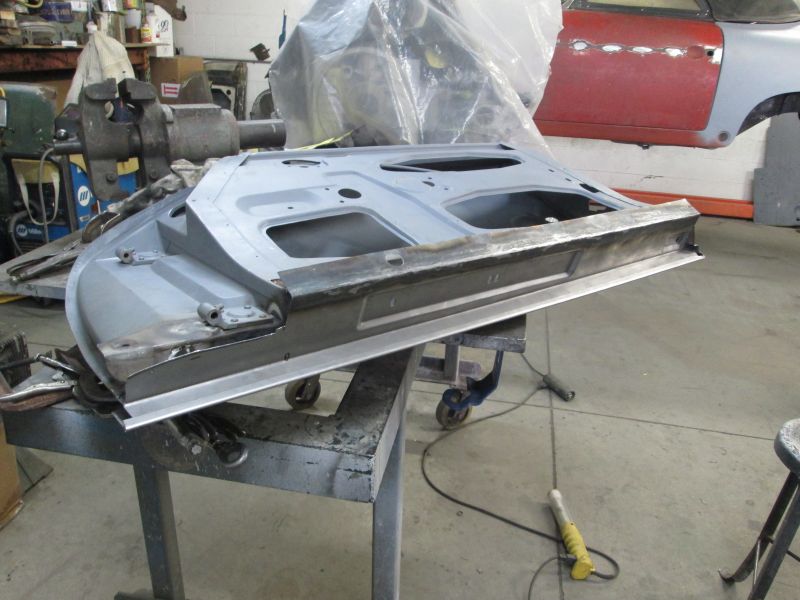

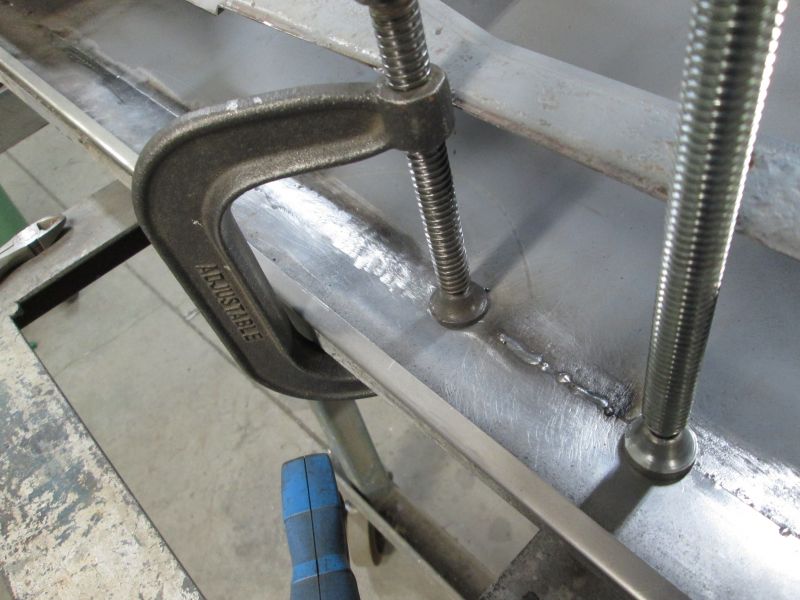

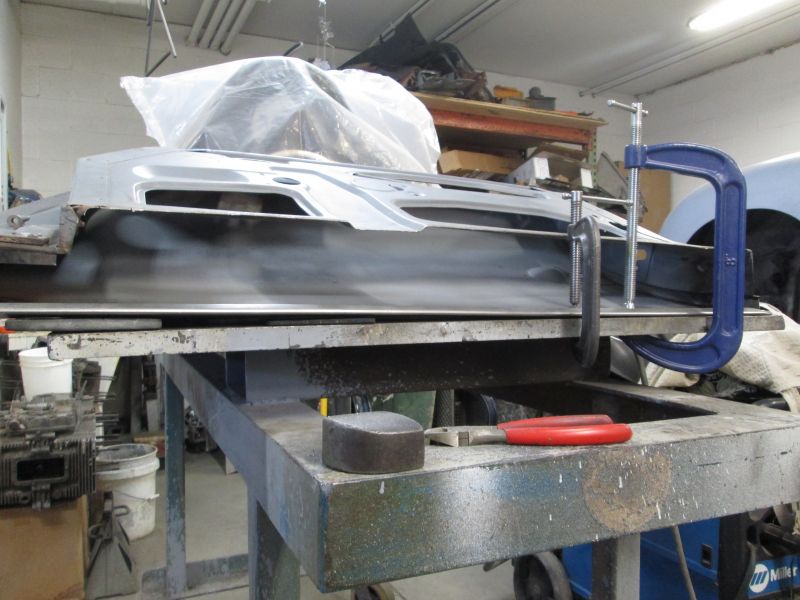

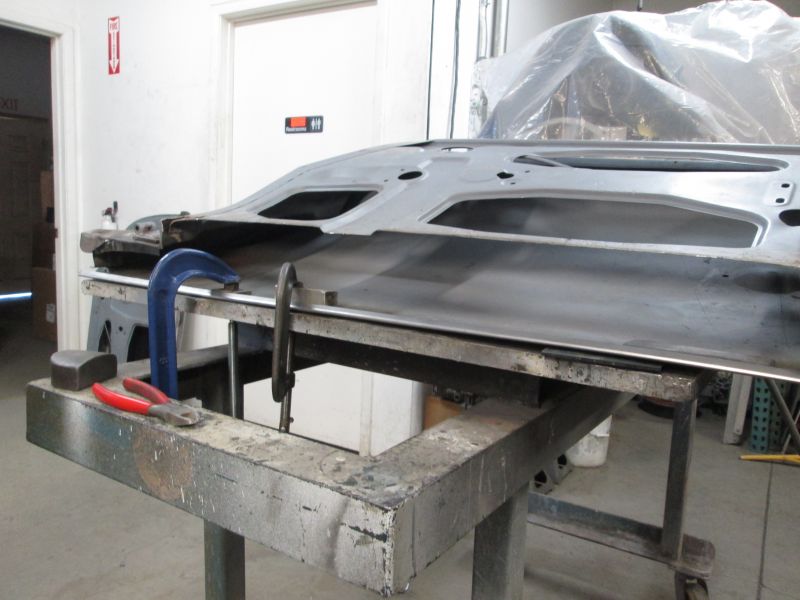

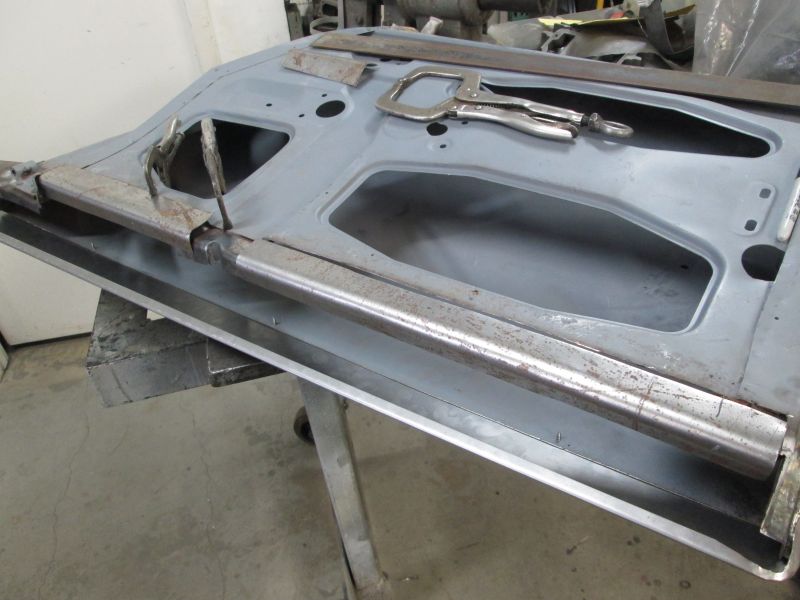

          Once I had the new turn established I mounted it directly to the table so I could really go to town on it by not worrying about that jig shifting or coming loose. At this point it was very rough and wavy and a fear slowly crept in of "did I just ruin this part" Thankfully as the hammering continued it began to true up.
          Click image for larger version

Name:	IMG_6058.JPG
Views:	277
Size:	56.6 KB
ID:	94197

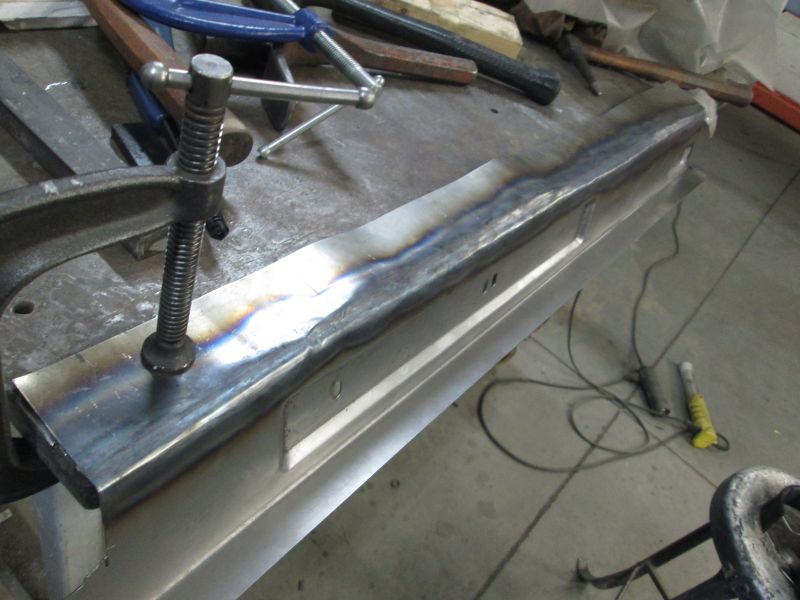

          Initial test on the door. The flange itself is still very wavy but it was at least going in the right direction. Though it needed more work, new bend was at least in the spot.
          Click image for larger version

Name:	IMG_6059.JPG
Views:	269
Size:	71.4 KB
ID:	94198

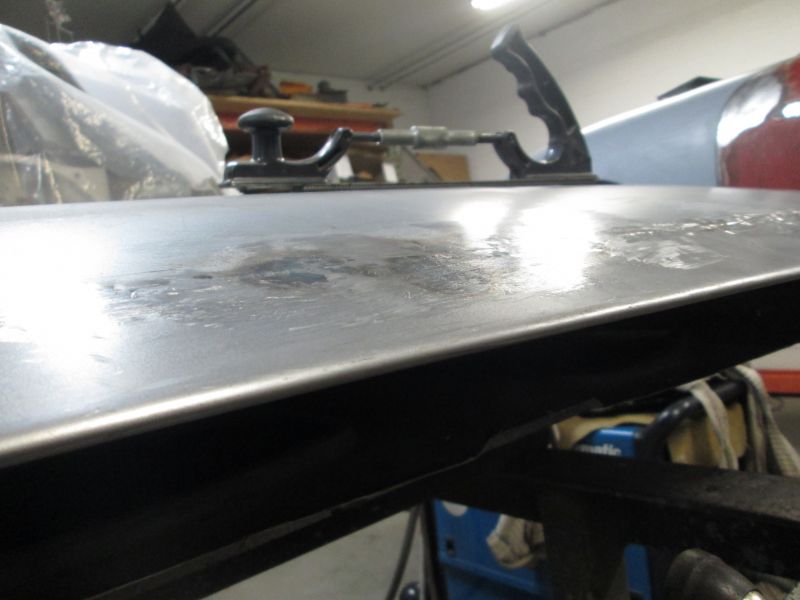

          After more hammering and a little heat shrinking in spots I had the flange tamed down enough to trim away the excess making it more manageable in the process.
          Click image for larger version

Name:	IMG_6060.JPG
Views:	257
Size:	55.7 KB
ID:	94199

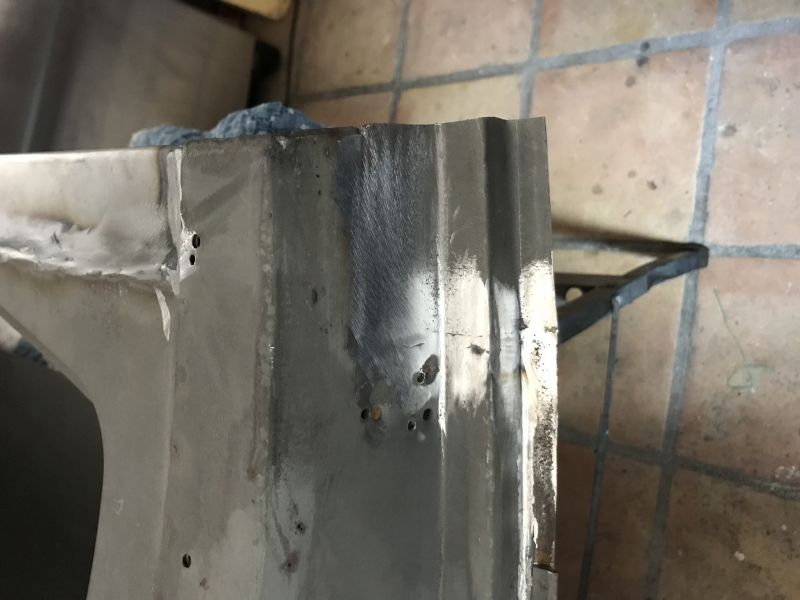

          Fitting pretty well by this point. The vertical flange section I trimmed back will eventually lay over top of this one so its just about where I need it.
          Click image for larger version

Name:	IMG_6061.JPG
Views:	256
Size:	66.8 KB
ID:	94200
          Just about done torturing this piece.
          Click image for larger version

Name:	IMG_6065.JPG
Views:	239
Size:	53.1 KB
ID:	94201

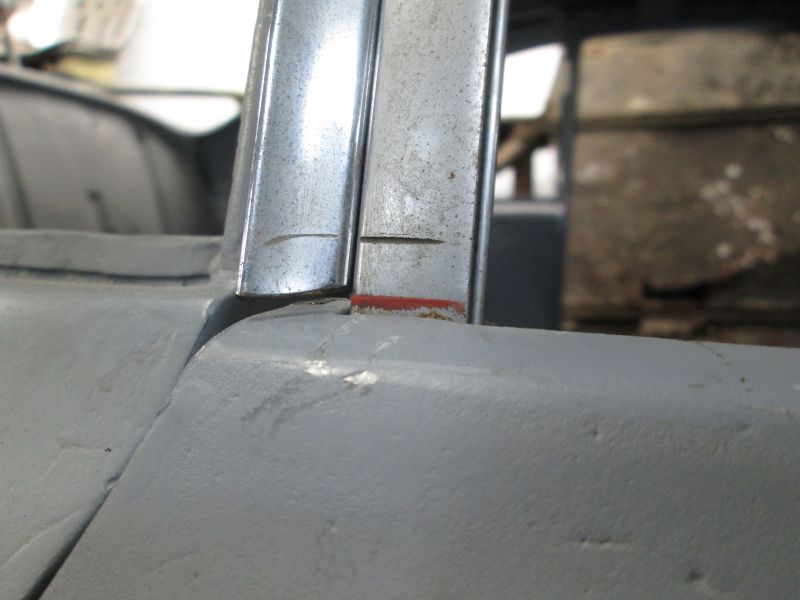

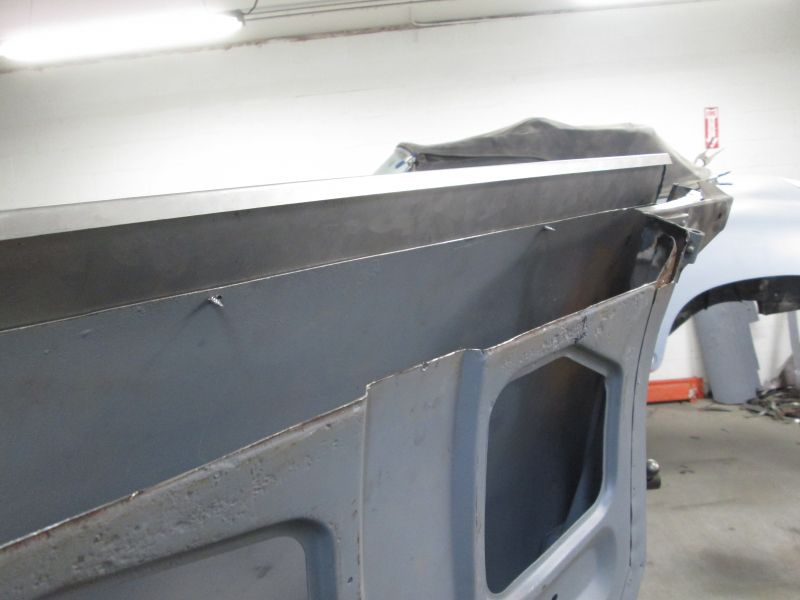

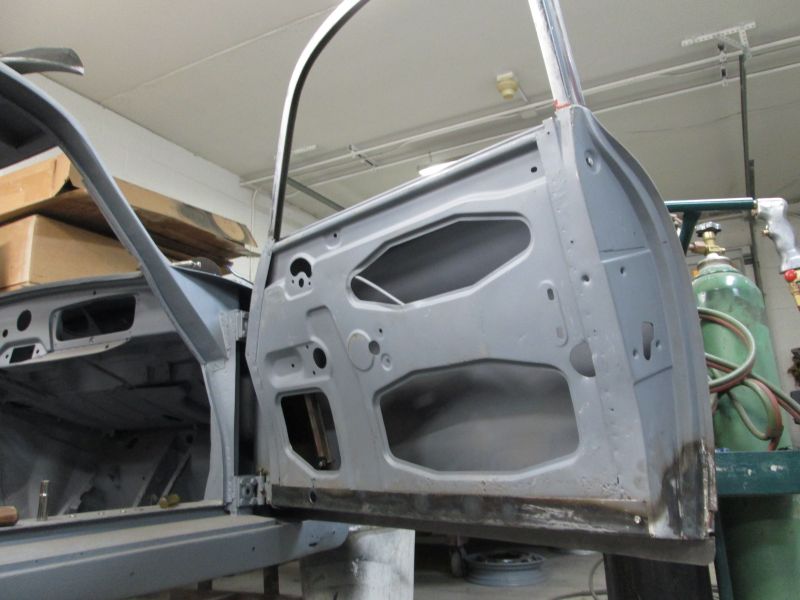

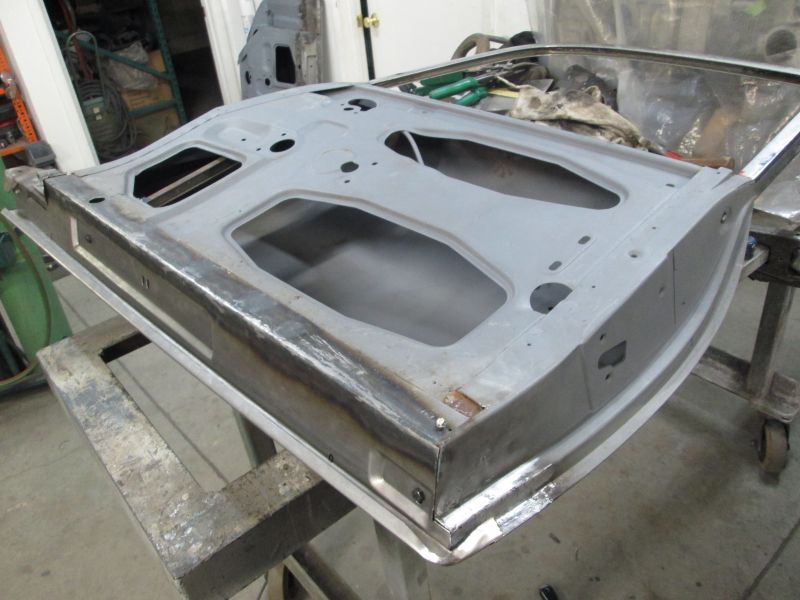

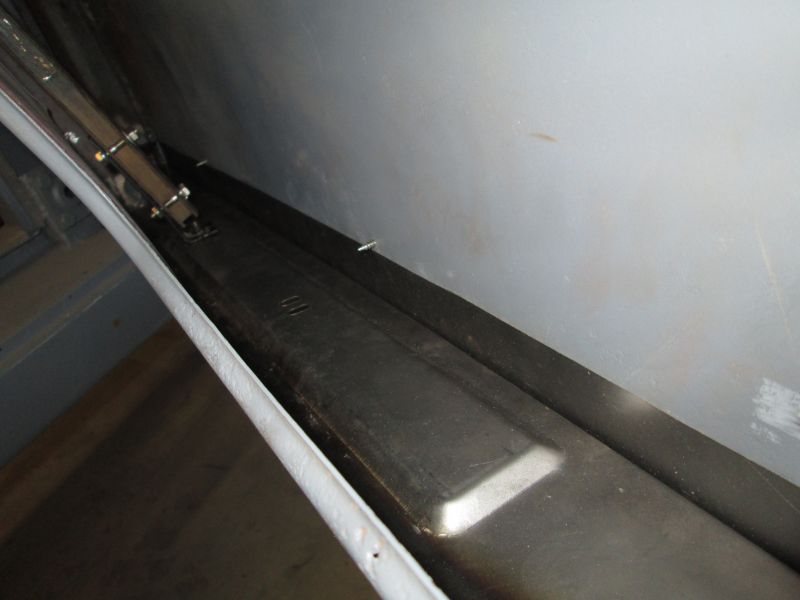

          Remounted with window frame to recheck this new bottom for correct placement.
          Click image for larger version

Name:	IMG_6063.JPG
Views:	244
Size:	43.5 KB
ID:	94202
          Access hole detail added.
          Click image for larger version

Name:	IMG_6064.JPG
Views:	252
Size:	49.3 KB
ID:	94203
          With the frame all bolted down to the bottom the rear sits a few MM's to high. There really is no up or down adjustment in the footings so this where getting the bottom in at just the right spot before welding runs critical.
          Click image for larger version

Name:	IMG_6062.JPG
Views:	226
Size:	58.8 KB
ID:	94204
          I've gone about as far as I can for the moment here so I switched gears and began fitting the new lower skin section.

          Click image for larger version

Name:	IMG_6066.JPG
Views:	232
Size:	47.9 KB
ID:	94205
          Door bottom removed to begin dialing the skin section in. With the weld joint down here I'll have ample room to weld and work it from both sides. This part of the assembly plan is holding for this very reason. The skin will go on first and be fully welded and dressed as the other two pieces block this direct access.
          Click image for larger version

Name:	IMG_6067.JPG
Views:	218
Size:	44.7 KB
ID:	94206

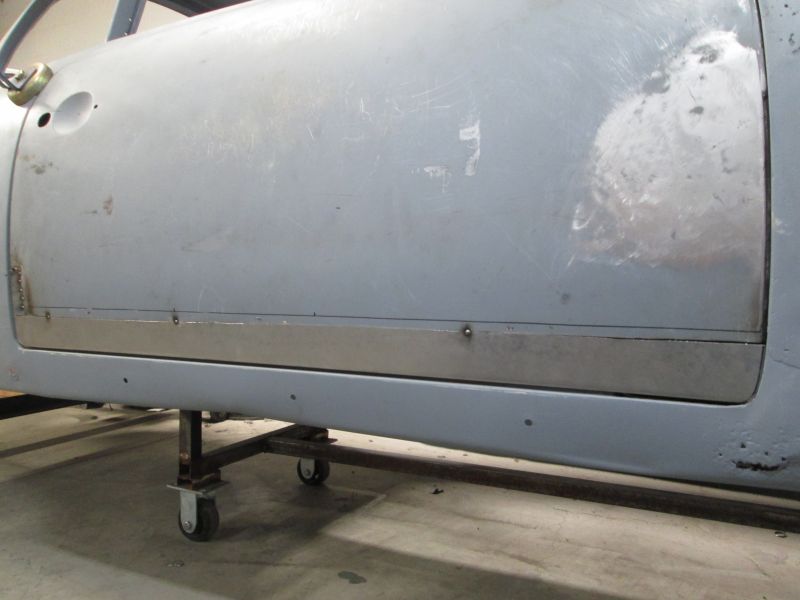

          Remounted with only this skin section so its free to adjust and move where needed.
          Click image for larger version

Name:	IMG_6068.JPG
Views:	216
Size:	46.3 KB
ID:	94207

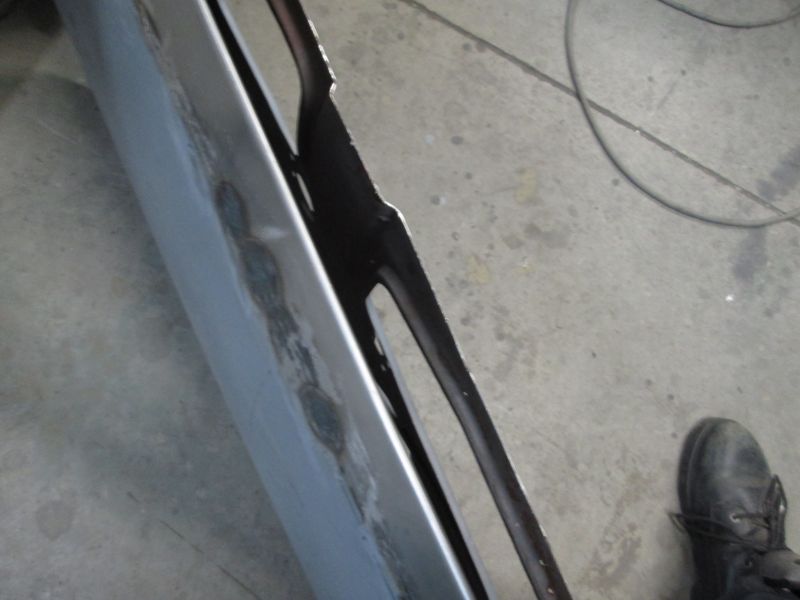

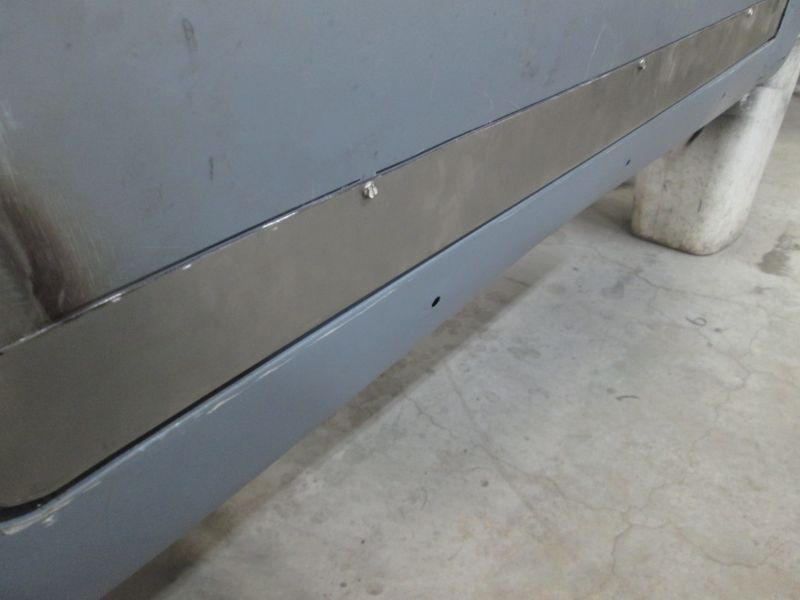

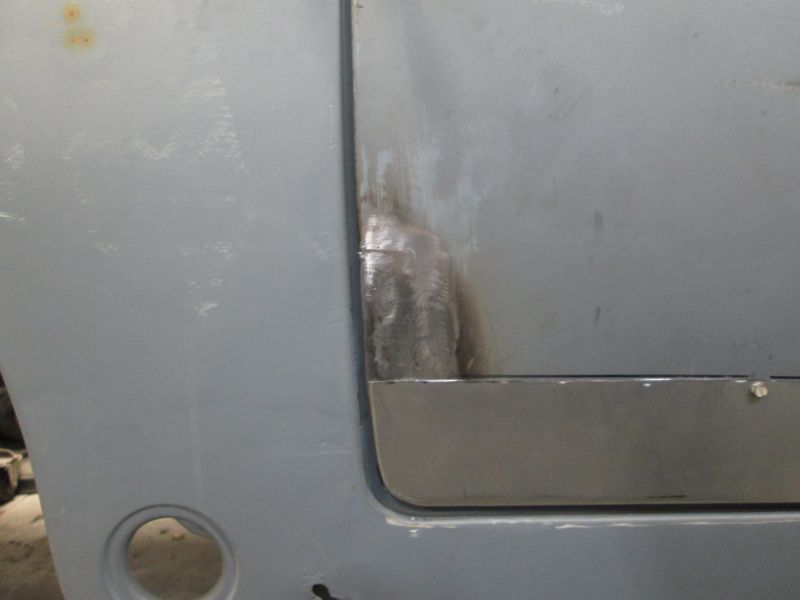

          Noticed it runs tight at the center as I tried for a uniform gap.
          Click image for larger version

Name:	IMG_6069.JPG
Views:	213
Size:	41.0 KB
ID:	94208

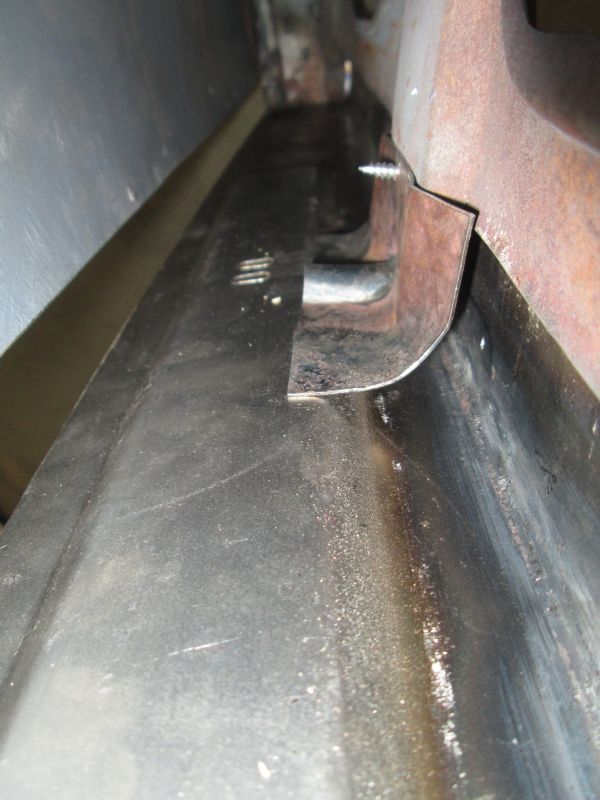

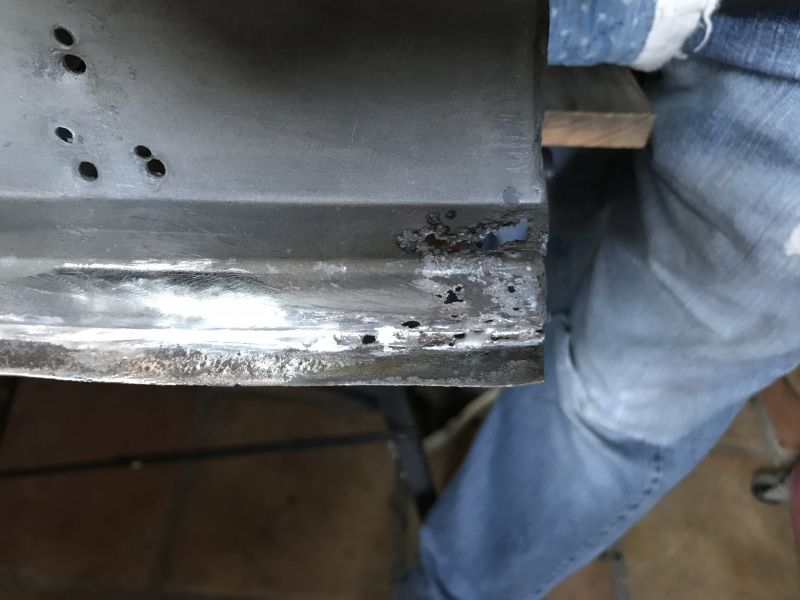

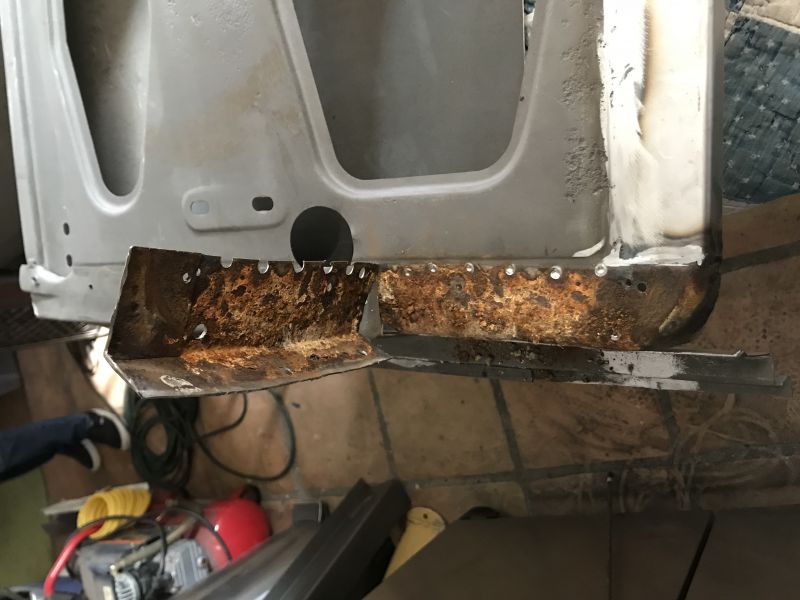

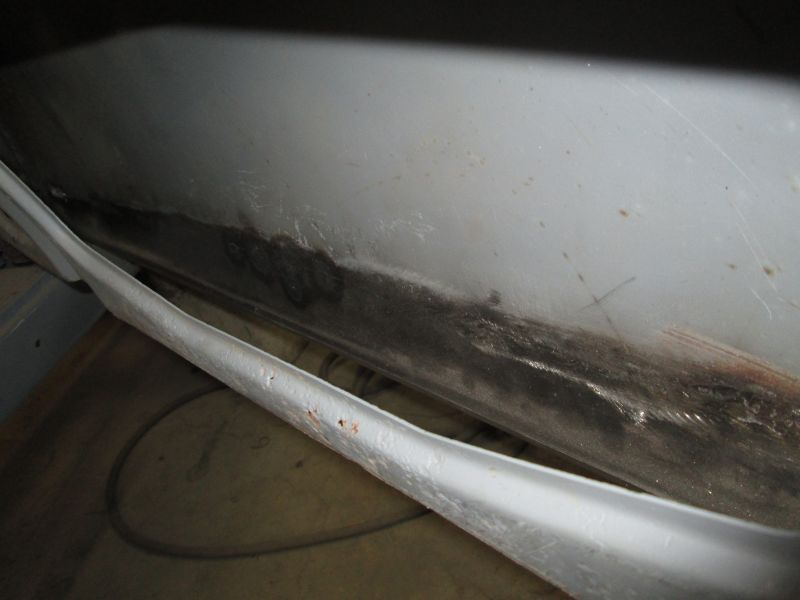

          The cause is old rocker damage where it seems it was jacked up by the leading edge causing the thresh hold to bow upward a touch. We are going to preserve the original rockers so I'll relax that back out some time down the road.
          Click image for larger version

Name:	IMG_6070.JPG
Views:	215
Size:	45.5 KB
ID:	94209
          My preliminary gap will be a touch wider than a paint stick at the front and back. I learned from the other door that once that flange is crimped tight its going to grow slightly closing this distance. Just trying to compensate for that but either way it will be reset to this finished doors edge when I reinstall the rocker. Its just some place to start. More later...
          Thanks for stopping by!
          Justin
          Justin Rio

          Comment


          • #95
            Justin,

            Excellent photos and methods you are so well at describing. Its no wonder I nearly went mad just doing the repair of one door and only a six inch outer skin panel. I never had occasion to replace the bottom of the door itself as the rust was only 17 years old or so.

            Great to see your effort, its not easy doing doors!

            Roy

            Comment


            • #96
              Originally posted by JTR70" post=40763

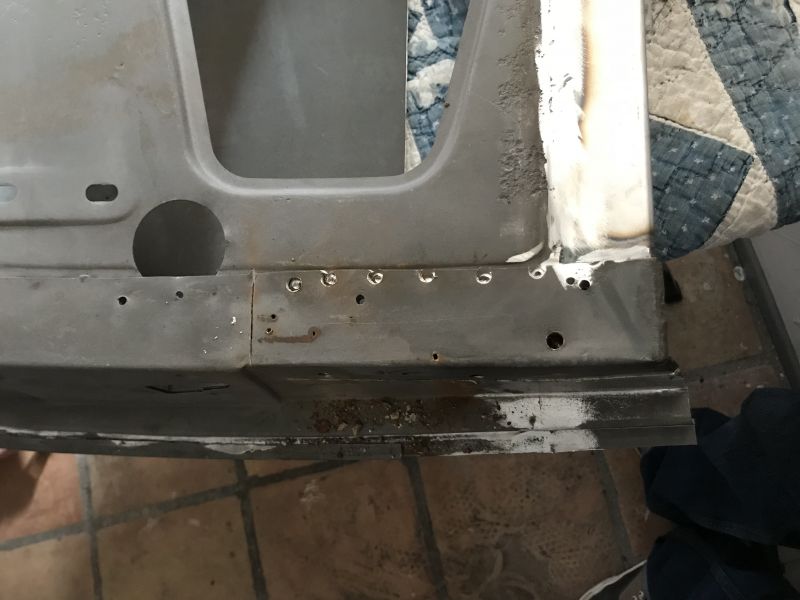

              Click image for larger version

Name:	3EB674D1-9A78-457A-B0F1-5CA78D5EF914.jpeg
Views:	230
Size:	53.5 KB
ID:	94216

              Click image for larger version

Name:	04D668F9-8BA3-4A48-9209-485978A3DE2B.jpeg
Views:	234
Size:	48.0 KB
ID:	94217

              Click image for larger version

Name:	58D7F632-E5AB-4C17-B863-7B4438368289.jpeg
Views:	227
Size:	51.8 KB
ID:	94218

              Click image for larger version

Name:	135AE4D3-1719-4B49-80BF-EFA5853E99EA.jpeg
Views:	231
Size:	53.8 KB
ID:	94219

              Click image for larger version

Name:	26B1480D-C58A-4A46-8C49-3A54DBC4D693.jpeg
Views:	219
Size:	62.4 KB
ID:	94220

              Click image for larger version

Name:	A6C79297-00A9-4F4D-85E3-55A6476B3946.jpeg
Views:	242
Size:	48.0 KB
ID:	94221
              trevorcgates@gmail.com
              Engine # P66909... are you out there
              Fun 356 events in SoCal = http://356club.org/

              Comment


              • #97
                Thank you Roy!

                Thanks Trevor, Unfortunately the reality is that every single lap joint on our doors, not to mention the entire car for that matter has rust growing in between these factory joints. In your example photo you could have kept going right up past your cut line and would certainly find a continuation of the same thing to varying degrees. If its swollen, broken through or the integrity is compromised in a specific area then sure, you're going to want to open that up and remove it. I'd love to clean or at least treat all of that sleeping rust but far too impractical and really unecessary to open every lap joint completely; just the nature of the beast . On a positive note I find that most of the factory spot welds still hold up very well even between some of the more rustier panels.
                Click image for larger version

Name:	IMG_6079.JPG
Views:	193
Size:	41.1 KB
ID:	94244
                We both know what lies beyond under there but its not swollen or breached so I am going to let continue to sleep. Well, I guess that's not exactly true as Bruce says "rust never sleep" but with the life this car will now lead it won't be of any concern. Sort of like being diagnosed with prostate cancer at age 85; you'll be dead long before it takes you so its more prudent to just leave it alone. Same with this, if and when that old rust ever becomes and issue we'll all be long gone. BTW: what is the coating your're using there?


                21/1/17

                Click image for larger version

Name:	IMG_6074.JPG
Views:	212
Size:	44.4 KB
ID:	94245
                Repair section set screwed initial position.
                Click image for larger version

Name:	IMG_6073.JPG
Views:	187
Size:	29.5 KB
ID:	94246
                After more study I noticed with the edges lined up at the joint the corner profile shape tapers away just a little too quick so some slight adjustments in position will have to made before I can commit with a tack weld. Trying to stay conservative with the size of my repair patches I initially opened up those two small windows where it had gone through. I'm soaking this area in acid next so we'll see if I have to go deeper after its cleaned.
                Click image for larger version

Name:	IMG_6071.JPG
Views:	178
Size:	66.8 KB
ID:	94247
                A step closer but its bottle necking where I can only go so far before I have to catch another repair section up.
                Click image for larger version

Name:	IMG_6072.JPG
Views:	181
Size:	72.8 KB
ID:	94248
                before the skin is welded up I have to make sure I can slide this bottom on and off so I don't lock myself out during the final assembly process.
                Click image for larger version

Name:	IMG_6075.JPG
Views:	173
Size:	70.0 KB
ID:	94249

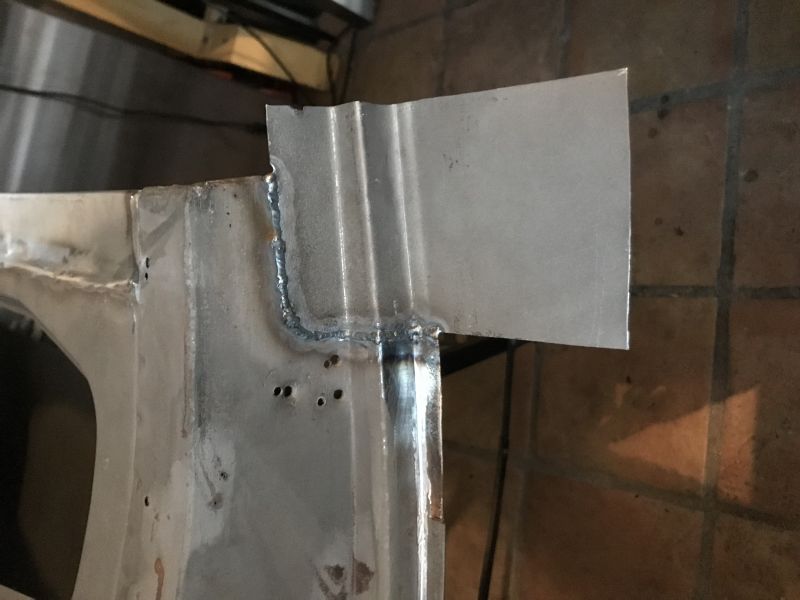

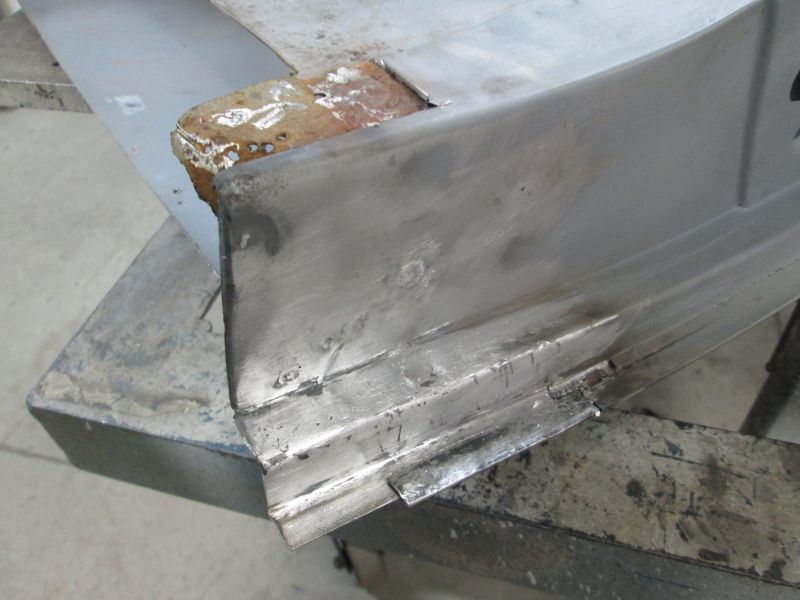

                But before I'll know sure if I can do that I have to get this new inner flange section shaped and staged.
                Click image for larger version

Name:	IMG_6076.JPG
Views:	174
Size:	64.1 KB
ID:	94250
                I have to get this caught up now. Can't weld this on ahead of the skin as it will hang too low and be in the way.
                Click image for larger version

Name:	IMG_6077.JPG
Views:	188
Size:	58.2 KB
ID:	94251
                Will work from the center section outward.
                Click image for larger version

Name:	IMG_6078.JPG
Views:	164
Size:	65.2 KB
ID:	94252
                Mocked up with the bottom here so I can start trimming and bending it to seat down in there snug like it should. No access to do this after the fact.
                Thanks for looking!
                Justin
                Justin Rio

                Comment


                • #98
                  I like to use POR15, usually glossy, but in this case flat.
                  trevorcgates@gmail.com
                  Engine # P66909... are you out there
                  Fun 356 events in SoCal = http://356club.org/

                  Comment


                  • #99
                    12/1/17

                    Didn't catch a break
                    Click image for larger version

Name:	IMG_5975.JPG
Views:	161
Size:	39.7 KB
ID:	94255

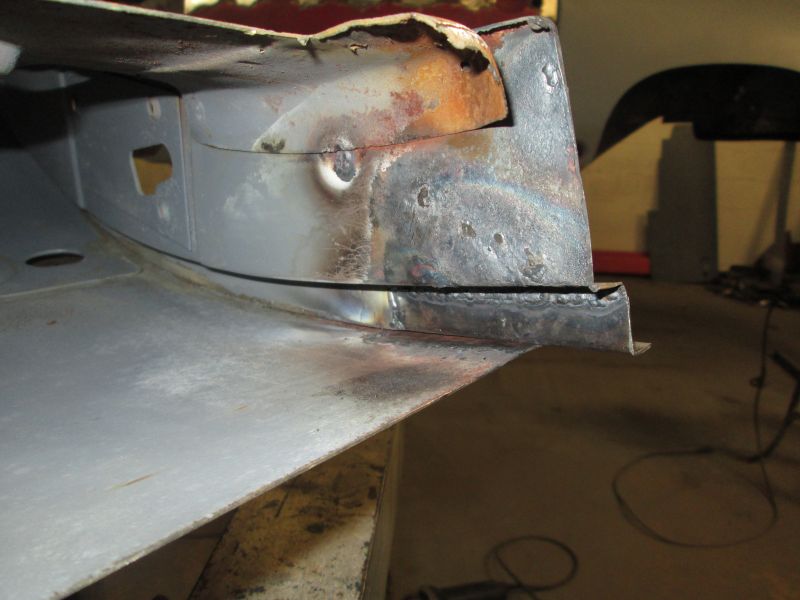

                    I was hoping to keep this troubled area to a minimum but after the acid bath the mating flange section next to the skin as too far gone.
                    Click image for larger version

Name:	IMG_6083.JPG
Views:	159
Size:	52.8 KB
ID:	94256

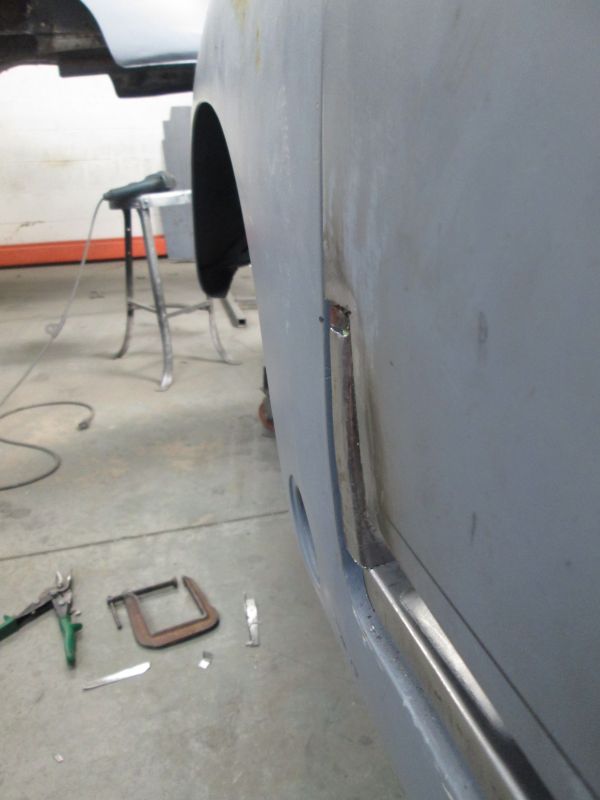

                    Which meant I had to cut the skin back to get at this flange to install a new section.
                    Click image for larger version

Name:	IMG_6085.JPG
Views:	164
Size:	51.4 KB
ID:	94257
                    Now I'm officially past it.
                    Click image for larger version

Name:	IMG_6086.JPG
Views:	161
Size:	39.0 KB
ID:	94258

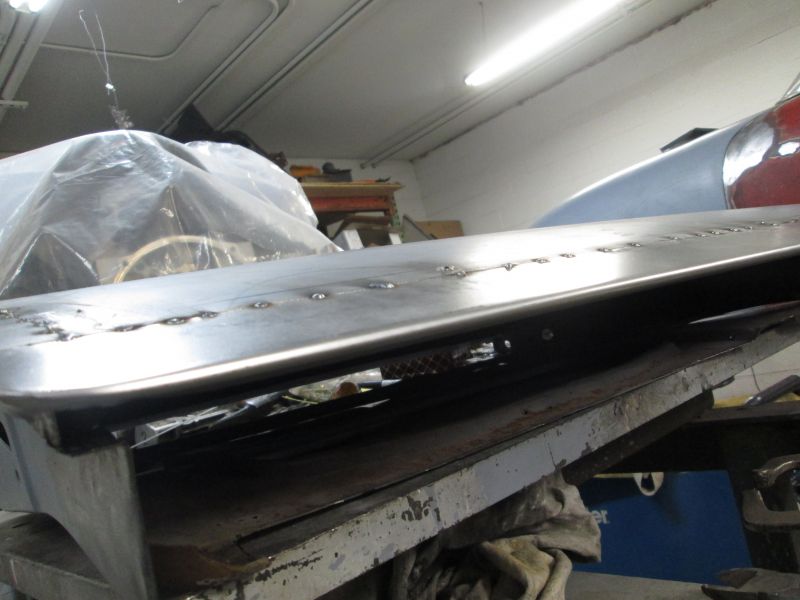

                    I was going to use this remnant section from the repair panel I just got.
                    Click image for larger version

Name:	IMG_6087.JPG
Views:	163
Size:	43.2 KB
ID:	94259
                    but as I fitted it the skin profile was too flat. The skin has a slight crown so I started a new piece with a mild domed shape.
                    Click image for larger version

Name:	IMG_6088.JPG
Views:	156
Size:	41.8 KB
ID:	94260
                    They differ only slightly but the second try fit so much better and reduces the need for filler in the end.
                    Click image for larger version

Name:	IMG_6090.JPG
Views:	152
Size:	42.7 KB
ID:	94261

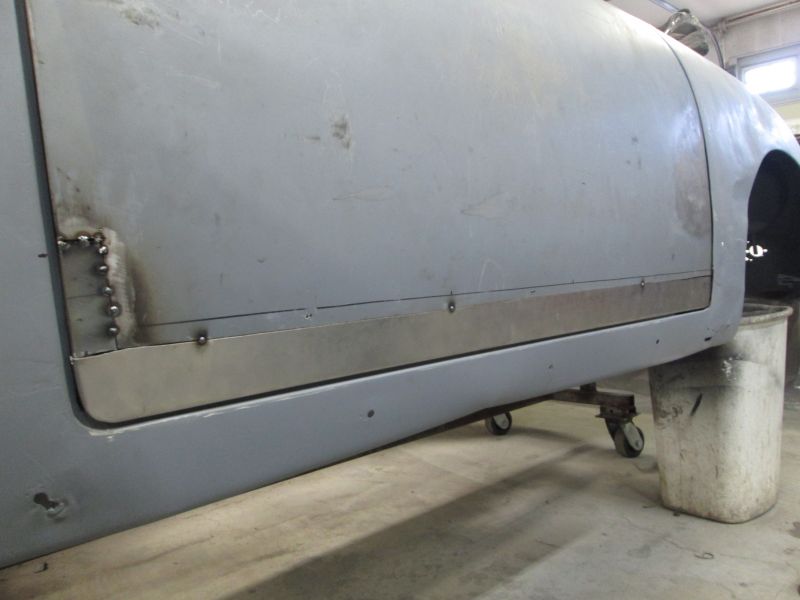

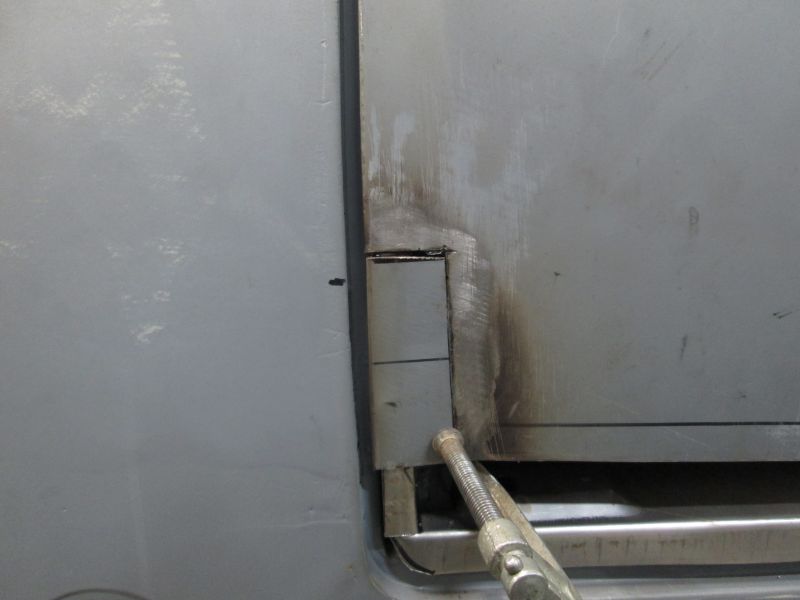

                    Ready to tack.
                    Click image for larger version

Name:	IMG_6091.JPG
Views:	194
Size:	42.7 KB
ID:	94262
                    So far so good.
                    Click image for larger version

Name:	IMG_6092.JPG
Views:	147
Size:	56.5 KB
ID:	94263

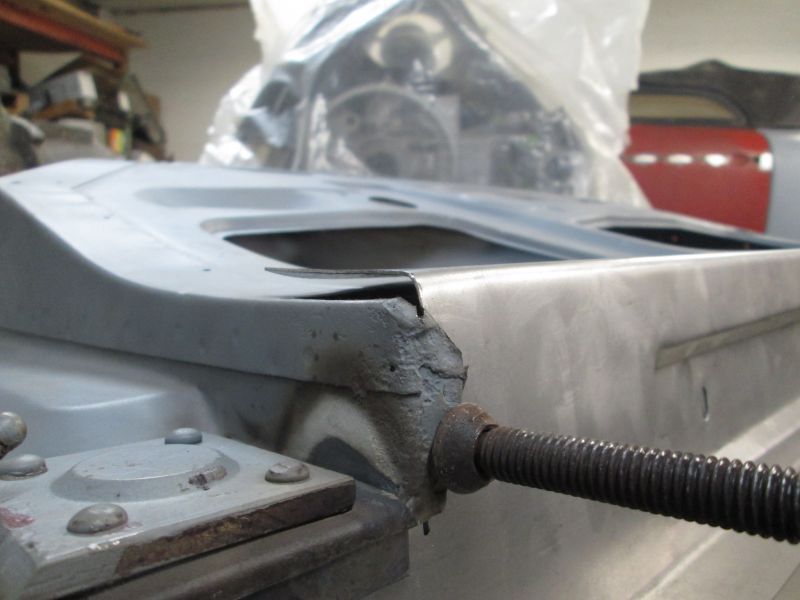

                    Pinch flange heeled over tight
                    Click image for larger version

Name:	IMG_6093.JPG
Views:	144
Size:	55.0 KB
ID:	94264

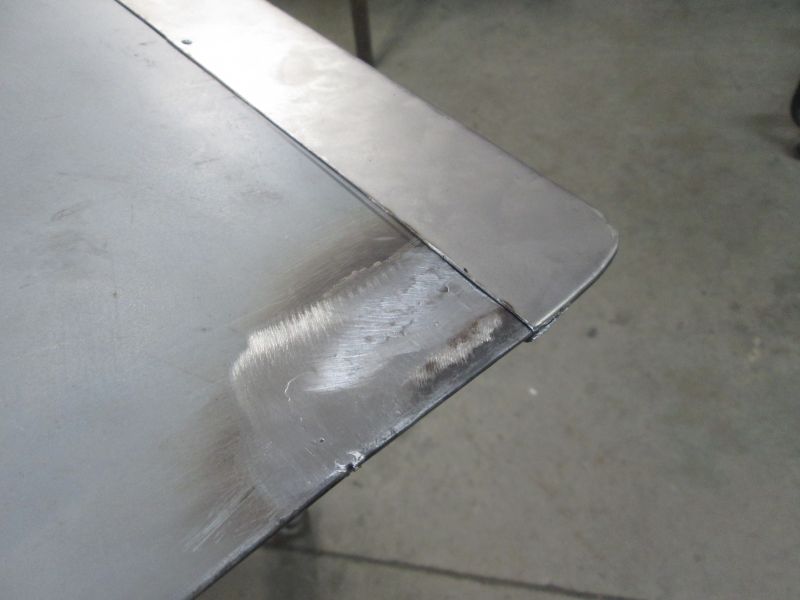

                    Always more trouble than you think but its done back here.
                    Click image for larger version

Name:	IMG_6094.JPG
Views:	144
Size:	38.5 KB
ID:	94265
                    More picking and filing yet but I'll wait until I have the next section all welded in to finish it out completely.
                    Thanks for looking!
                    Justin
                    Justin Rio

                    Comment


                    • 12/2/17
                      Getting the flange ready for the repair skin run
                      Click image for larger version

Name:	IMG_6099.JPG
Views:	155
Size:	49.3 KB
ID:	94288

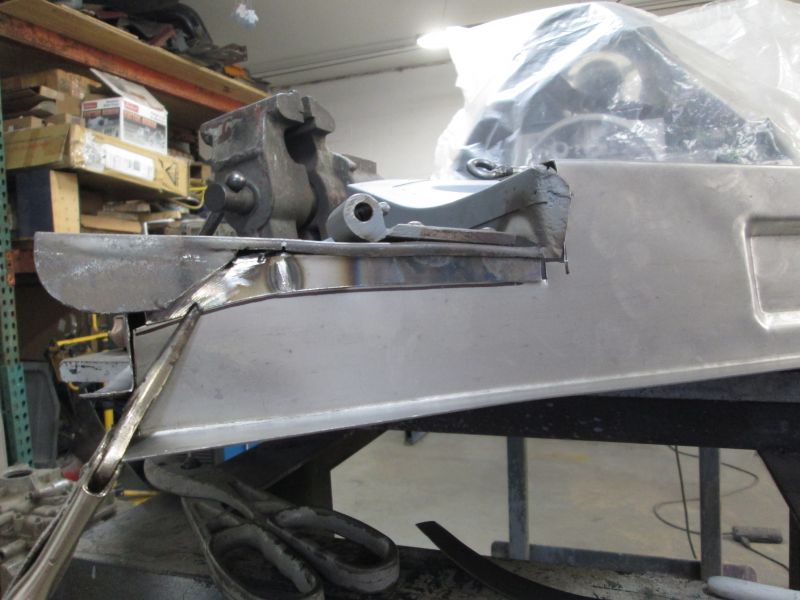

                      Trimming away the excess on this outer flange is just about the last thing to be done on this piece.
                      Click image for larger version

Name:	IMG_6102.JPG
Views:	149
Size:	58.0 KB
ID:	94289
                      There is some flex/wiggle room on this bottoms outer edge so I had to mock up the window frame once again to firm up its correct position for an accurate final trim line.
                      Click image for larger version

Name:	IMG_6104.JPG
Views:	147
Size:	68.1 KB
ID:	94290

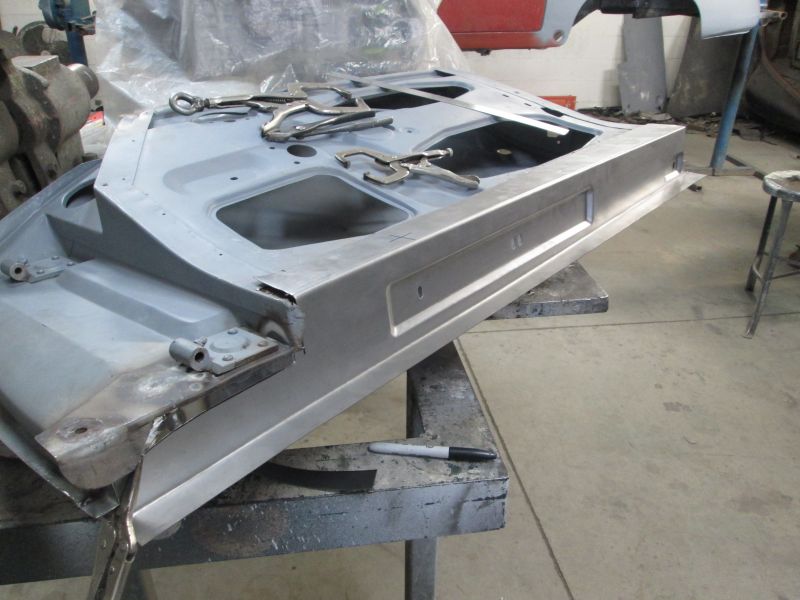

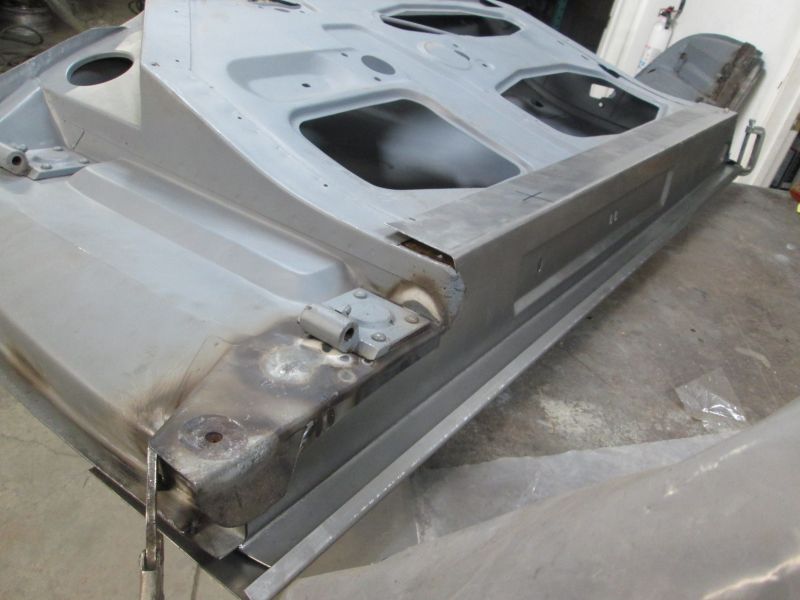

                      Flange trimmed and now both pieces installed together for the first time.
                      Click image for larger version

Name:	IMG_6103.JPG
Views:	143
Size:	68.9 KB
ID:	94291
                      Everything is getting really close. Now time to remount it on the car as unit to see what I ended up with.
                      Click image for larger version

Name:	IMG_6106.JPG
Views:	143
Size:	38.8 KB
ID:	94292

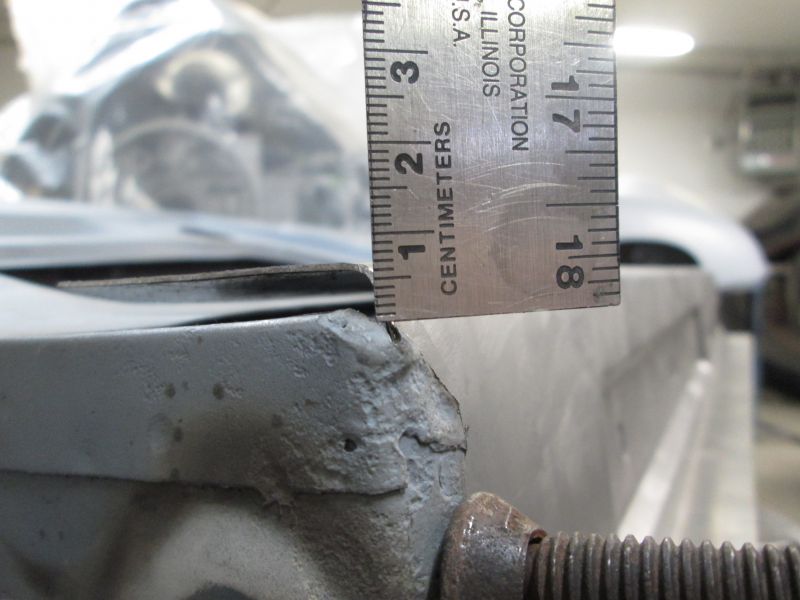

                      Ample space away from the skin so there is some room for error and adjustment if needed.
                      Click image for larger version

Name:	IMG_6107.JPG
Views:	144
Size:	42.7 KB
ID:	94293

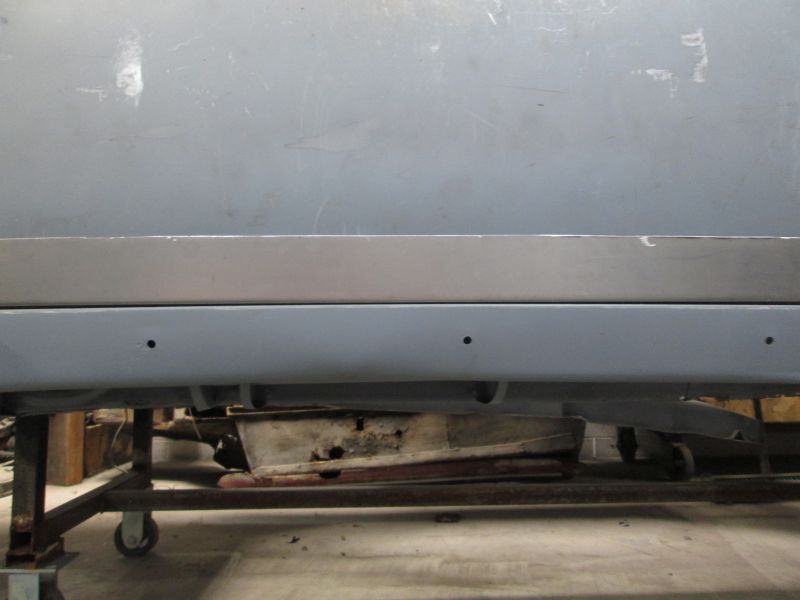

                      First install as a unit. Bottom gap looks close.
                      Click image for larger version

Name:	IMG_6101.JPG
Views:	144
Size:	65.5 KB
ID:	94294

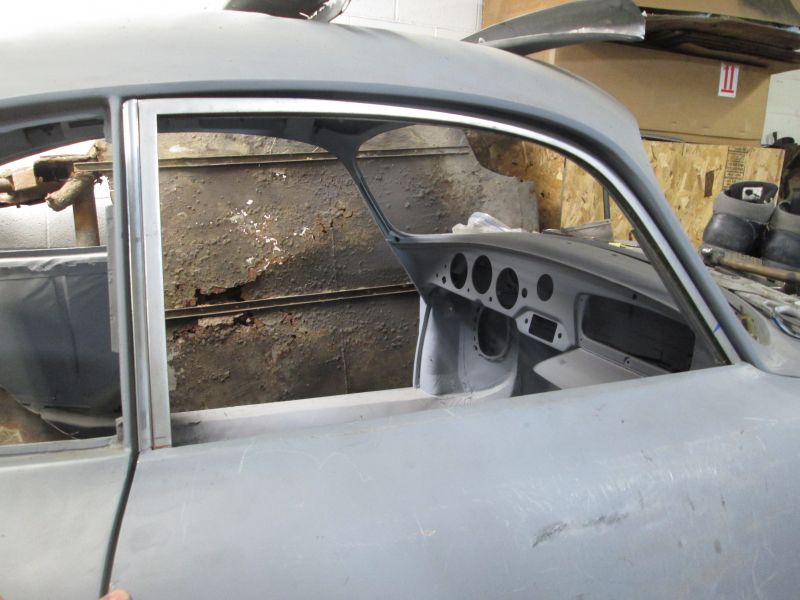

                      Door frame still sits nice in there.
                      Click image for larger version

Name:	IMG_6111.JPG
Views:	143
Size:	37.4 KB
ID:	94295
                      Levelness off the edge of the rocker within striking distance.
                      Click image for larger version

Name:	IMG_6109.JPG
Views:	142
Size:	30.8 KB
ID:	94296

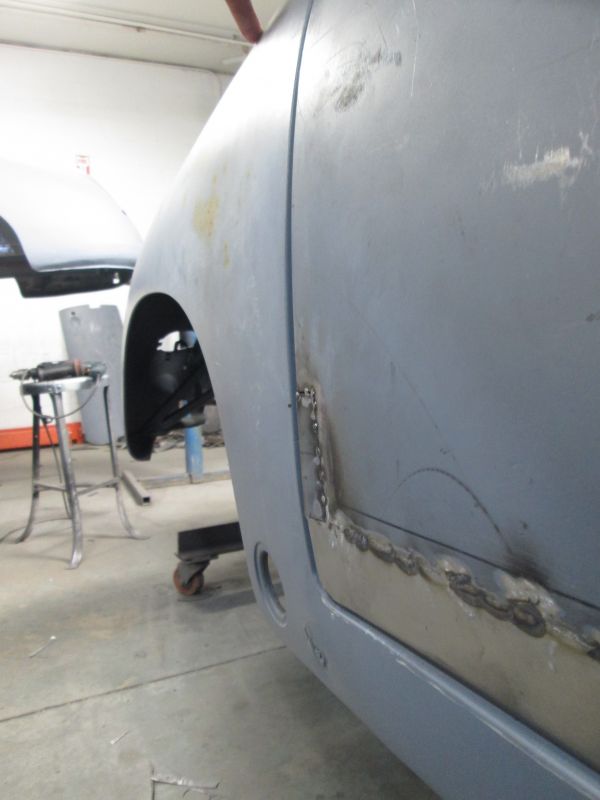

                      Not without issues of course; still have shift this panel back slightly to close the corner then work the edge.
                      Click image for larger version

Name:	IMG_6110.JPG
Views:	141
Size:	34.4 KB
ID:	94297

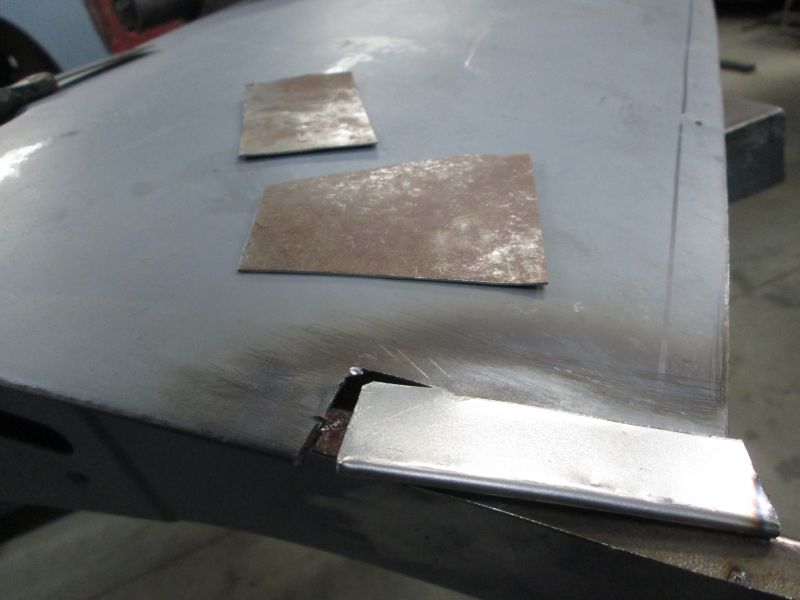

                      I also lost the body line through that small repair patch I did previously. Its too flat so I'll have to relief cut it and bring it up. This is exactly why I wanted to disturb as little as possible. I knew that my new flange contour might be out and sure enough it is. This why I have to keep checking with the car as it goes.
                      A little closer to buttoning this though..
                      Thanks for looking!
                      Justin
                      Justin Rio

                      Comment


                      • 12/5/17

                        A mistake and a redo
                        Click image for larger version

Name:	IMG_6092_2017-12-05.JPG
Views:	143
Size:	56.5 KB
ID:	94452

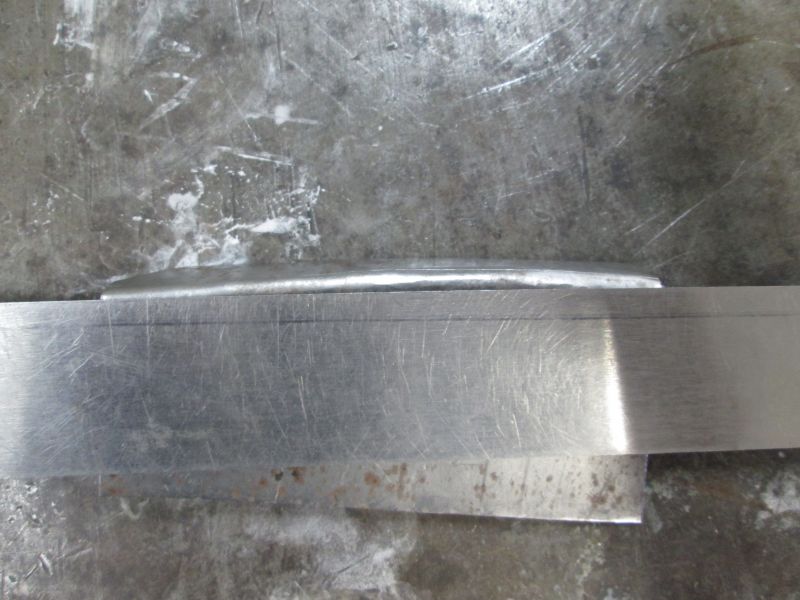

                        I tried correcting this patch contour after the fact and it just turned even uglier so I cut it all back out to start fresh. I know better so this is my responsibility and of course the time to redo it is on me.

                        Click image for larger version

Name:	IMG_6113A.JPG
Views:	151
Size:	43.2 KB
ID:	94455

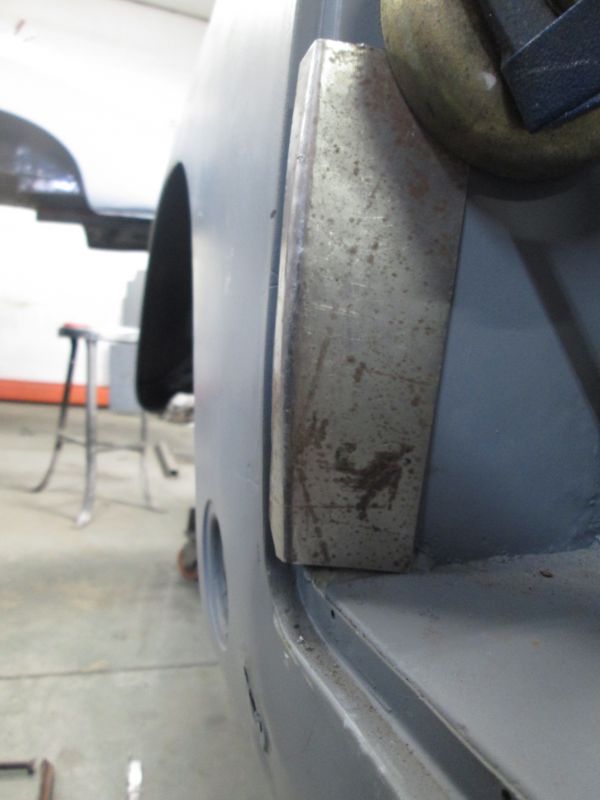

                        Next flange was shaped and contoured against the body profile this time. The way I should have done it in the first place.
                        Click image for larger version

Name:	IMG_6114.JPG
Views:	163
Size:	69.1 KB
ID:	94454
                        Curved ever so subtly but enough to cause me trouble.
                        Click image for larger version

Name:	IMG_6116.JPG
Views:	140
Size:	41.5 KB
ID:	94453
                        Trimmed, positioned and tack welded in relation to the car. Just like I should have done it in the first place. I learned on the coupster that I just can't free-style this stuff on the workbench and expect it all to line up and fit in the end. This is why I say I should have known better...I'm not that lucky..ever.
                        Click image for larger version

Name:	IMG_6117.JPG
Views:	138
Size:	48.8 KB
ID:	94456

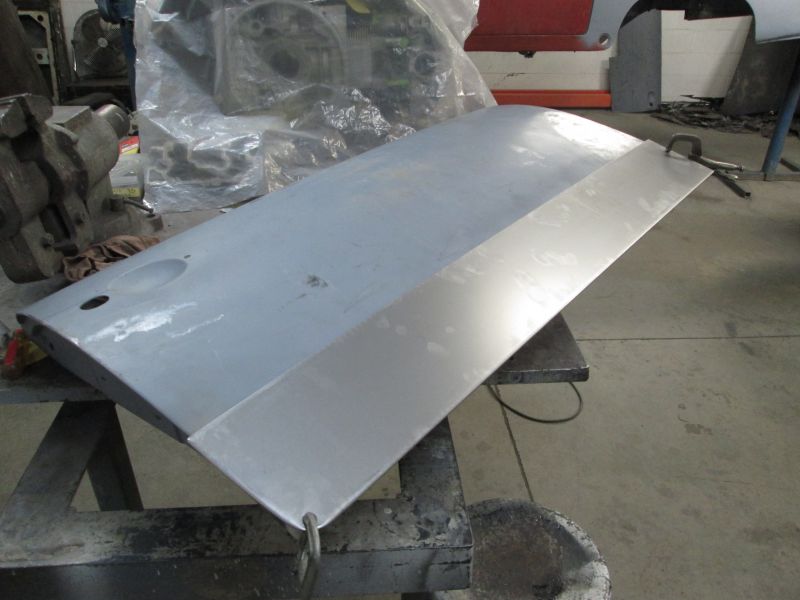

                        New skin patch will harvested from the old original skin with flange already to go. Something I also should have done in the first place but it worked out as I would have burned that piece because of the flange issue.
                        Click image for larger version

Name:	IMG_6118.JPG
Views:	141
Size:	43.6 KB
ID:	94457
                        section harvested and ready for a final trim and fit. Everything was heading in the right direction.
                        Click image for larger version

Name:	IMG_6119.JPG
Views:	148
Size:	35.6 KB
ID:	94458
                        Skin trimmed and also oriented to the car body. No fooling around this time. Ready to be tacked. Almost back to even.
                        Thanks for looking!
                        Justin
                        Justin Rio

                        Comment


                        • 12/5/17 part 2

                          Lower skin repair install
                          Click image for larger version

Name:	IMG_6122.JPG
Views:	138
Size:	41.9 KB
ID:	94462

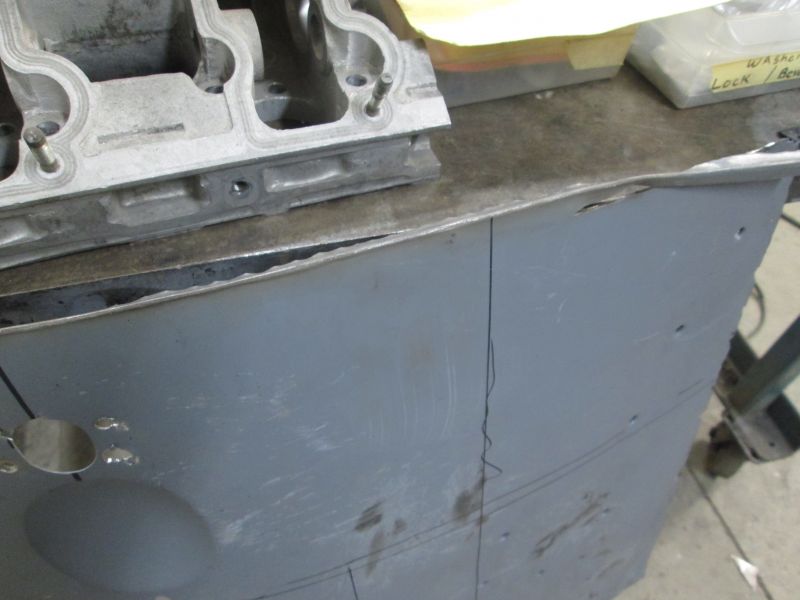

                          Etched in my line for the final cut.
                          Click image for larger version

Name:	IMG_6124.JPG
Views:	141
Size:	44.0 KB
ID:	94463

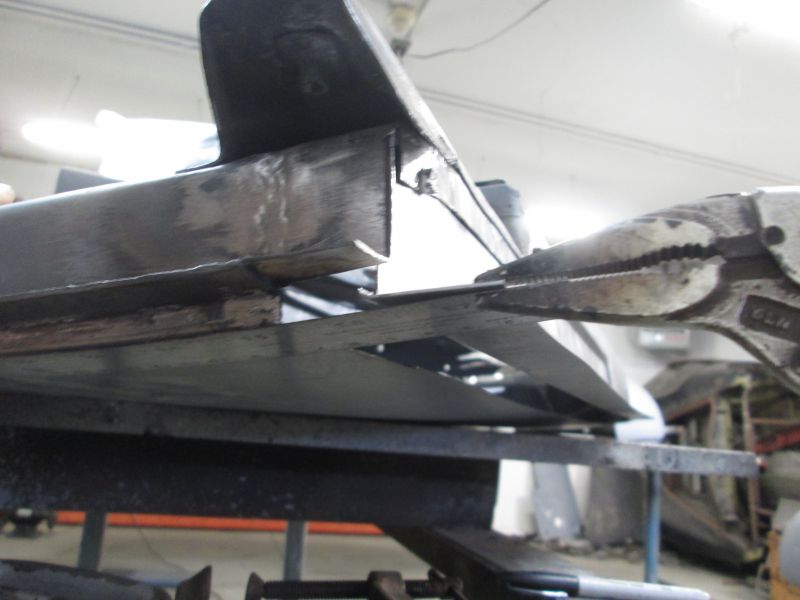

                          Excess slowly peeled away and checking the new joint as it went.
                          Click image for larger version

Name:	IMG_6125.JPG
Views:	144
Size:	43.2 KB
ID:	94464
                          Initially tacked and remounted on the car for another confirmation fit.
                          Click image for larger version

Name:	IMG_6126.JPG
Views:	146
Size:	46.0 KB
ID:	94465
                          Lower gap got slightly wider but more uniform in the process Its close enough as again I'll get another stab at setting this gap when I reinstall the rocker.
                          Click image for larger version

Name:	IMG_6127.JPG
Views:	138
Size:	59.0 KB
ID:	94466

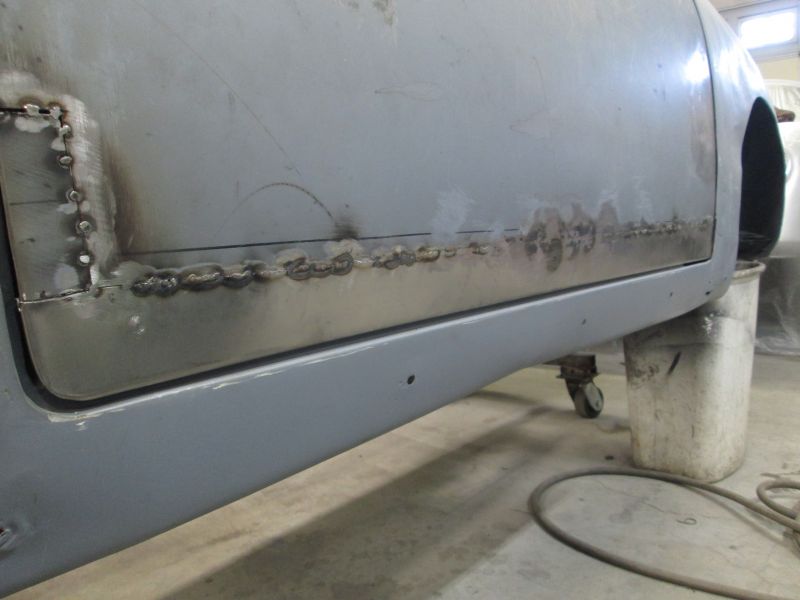

                          With that more tack welds were added.
                          Click image for larger version

Name:	IMG_6128.JPG
Views:	144
Size:	55.4 KB
ID:	94467

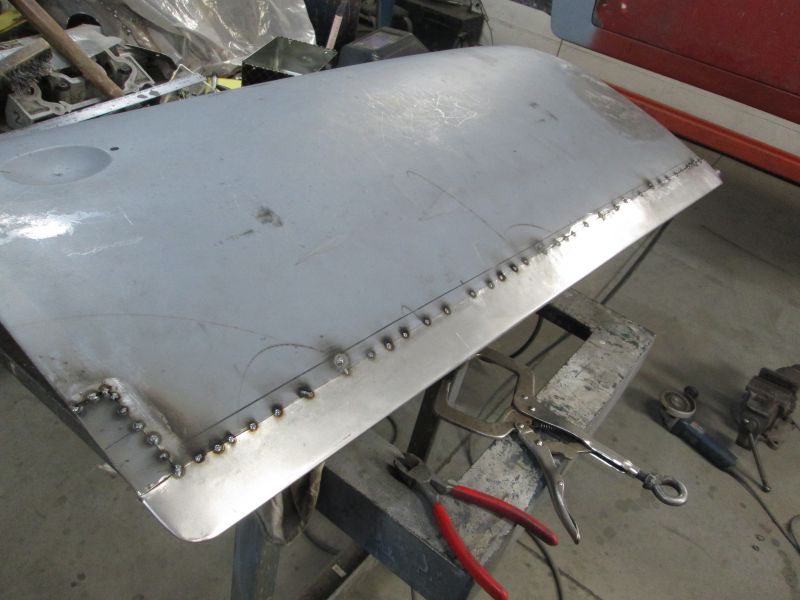

                          Aligns and contours out pretty well for starters. Tack weld heads would be ground smooth next so I could flip it over clamp it to my table and really lay down some beads.
                          Click image for larger version

Name:	IMG_6129.JPG
Views:	147
Size:	54.6 KB
ID:	94468

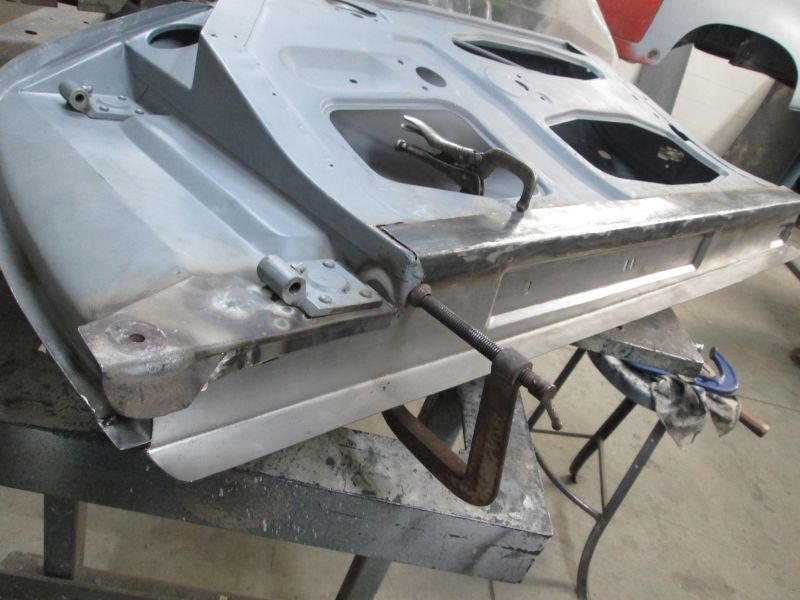

                          Clamped at the center to my table/heat sink.
                          Click image for larger version

Name:	IMG_6130.JPG
Views:	155
Size:	70.7 KB
ID:	94469
                          With the table as a back up I turned up the amps to get a more thorough penetration. Did a section at a time dressed it down and repeated.
                          Click image for larger version

Name:	IMG_6132.JPG
Views:	139
Size:	64.3 KB
ID:	94470
                          There is a slight bow to this doors shape but my table is flat. To preserve this shape the center was clamped and welded first with no tension. As I move out to the sides I'll chalk the door up on a natural angle opposite side I'm welding then clamp it in. Before I called it I began some picking and filing; heat shrink too. The table helped but some heat warp of course did develop.
                          Click image for larger version

Name:	IMG_6131.JPG
Views:	137
Size:	47.1 KB
ID:	94471
                          Quite a luxury to have such clear access to both sides for this repair.
                          Click image for larger version

Name:	IMG_6134.JPG
Views:	140
Size:	46.8 KB
ID:	94472
                          More welding and shaping to come but a good start today.
                          Click image for larger version

Name:	IMG_6133.JPG
Views:	147
Size:	62.4 KB
ID:	94473
                          I'll have it all stitched up by next session.
                          Thanks for looking!
                          Justin
                          Justin Rio

                          Comment


                          • Justin,

                            That last session of welding really looks like it worked out really well. Great bit of work! Excellent photos and description of your work in these door repair pages.

                            Roy

                            Comment


                            • Retaining that mild crown is tough. Great job.

                              JP
                              jjgpierce@yahoo.com

                              Comment


                              • Thanks Roy! Glad you don't find too detailed and strenuous to look through.

                                Appreciate it John!

                                12/7/17

                                Stitching continued.
                                Click image for larger version

Name:	IMG_6135.JPG
Views:	146
Size:	73.8 KB
ID:	94606

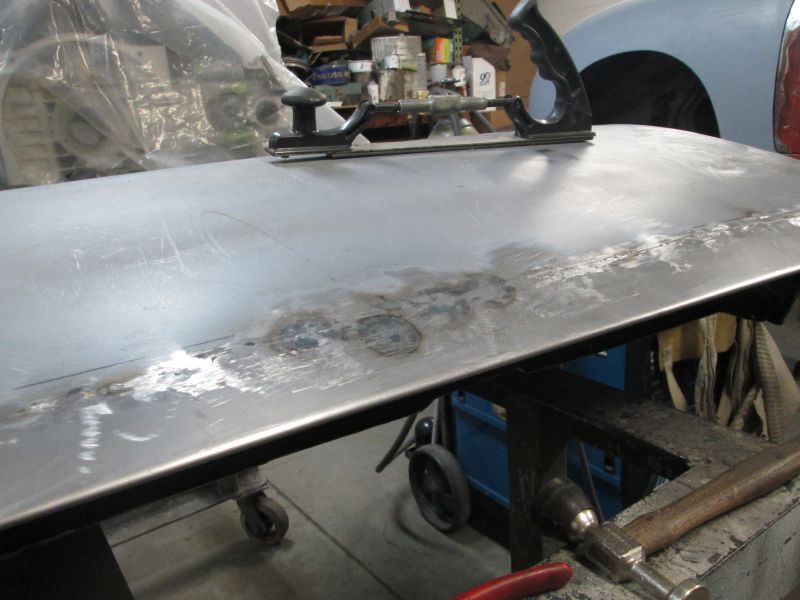

                                Trying to preserve that bow that John mentioned. Nothing scientific, just allowed the skin hold it shape with the rear corner clamped tight then propped the high side up front and back to support it while I welded.
                                Click image for larger version

Name:	IMG_6137.JPG
Views:	149
Size:	61.9 KB
ID:	94607
                                Moved onto the front and repeated the process.
                                Click image for larger version

Name:	IMG_6138.JPG
Views:	141
Size:	59.3 KB
ID:	94608
                                Gone about as far as I can up here as it runs under the hinges so the rest of the welding would have to be done from the outside.

                                Click image for larger version

Name:	IMG_6147.JPG
Views:	143
Size:	53.5 KB
ID:	94610
                                The rest of this back corner would also be easier to welded from outside.

                                Click image for larger version

Name:	IMG_6142.JPG
Views:	139
Size:	41.5 KB
ID:	94611
                                Though I couldn't weld it all from inside it was really nice getting most of this joint out of the way.
                                Click image for larger version

Name:	IMG_6140.JPG
Views:	135
Size:	46.2 KB
ID:	94609

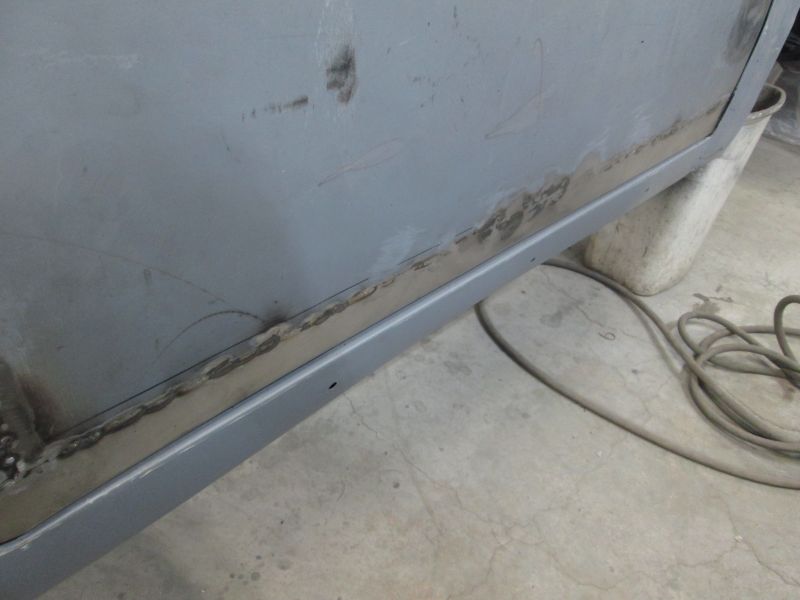

                                A quick test fit before I finished up the ends to see if all that tilting nonsense on my table messed it up.

                                Click image for larger version

Name:	IMG_6141.JPG
Views:	136
Size:	43.6 KB
ID:	94612

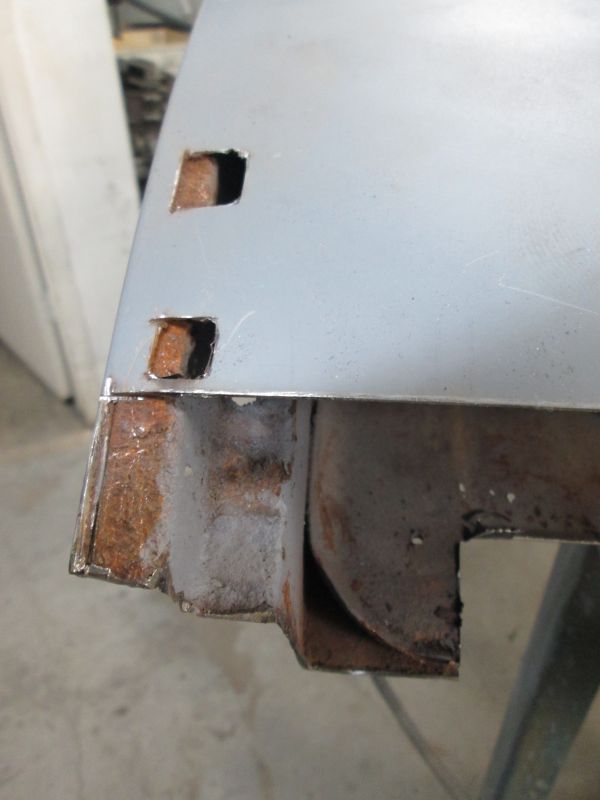

                                Other than being curled in a little tight it ran along the rocker closely enough. The door bottom isn't on here, so this new lip section is hanging in space. Once its secured to the flange it should move back out where I needed.
                                Click image for larger version

Name:	IMG_6139.JPG
Views:	134
Size:	41.6 KB
ID:	94613
                                Rear edge profile was within range too.
                                More tomorrow...
                                Thanks for looking!
                                Justin
                                Justin Rio

                                Comment

                                Working...
                                X
