  • Justin, I got one of my doors rough prepped today so I decided to review your door rebuild posts for a quick refresher. I see you have a tool for crimping the door skin edges. Do you think this tool is critical or can I use a hammer and dolly? I like having the correct tools for the job, but it's not like I will be doing door skins very often so not sure if needed. Thx, Mark
    Mark Erbesfield
    57 356A
    65 911
    68 912
    73 911S
    66 Toyota Land Cruiser FJ45LV
    79 450SL Dad's old car

    Comment


    • Hi Mark,

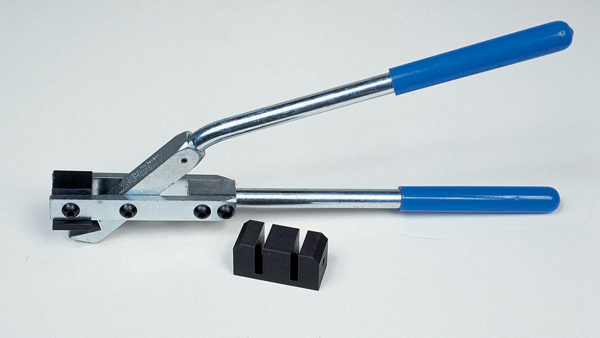

      You could certainly heel it over with a hammer and dolly but the skin pliers just make starting the 90 degree flange over so much easier.

      Click image for larger version

Name:	sykes-pickavant-door-skin-crimping-tool.jpg
Views:	581
Size:	140.8 KB
ID:	95859
      They're only 30 bucks from Eastwood and it was money well spent.
      BTW these pliers squeeze down only so far so I do sometimes follow it up with hammer and dolly work. Best of luck with your repairs!
      Justin
      Justin Rio

      Comment


      • Mark Erbesfield
        57 356A
        65 911
        68 912
        73 911S
        66 Toyota Land Cruiser FJ45LV
        79 450SL Dad's old car

        Comment

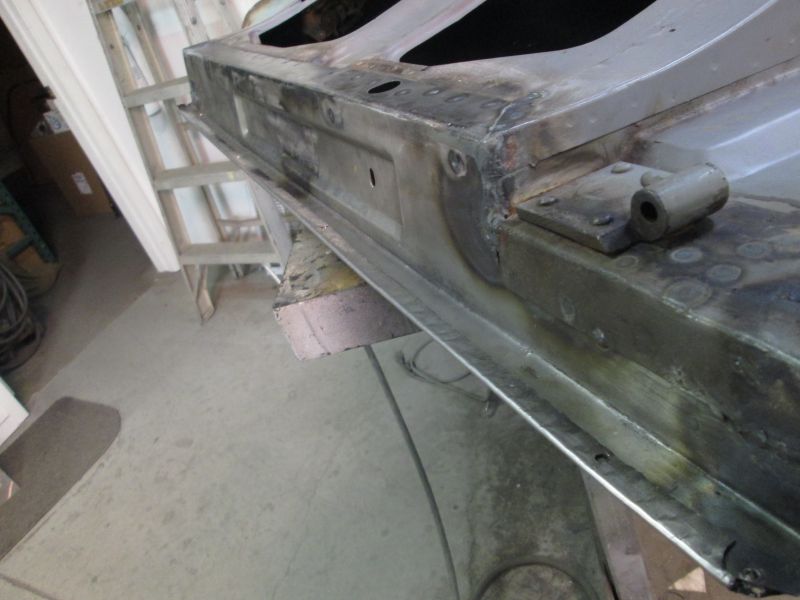

        • I found several widely spaced spot welds along the crimped edge
          Click image for larger version

Name:	IMG_5865_2018-01-23.JPG
Views:	525
Size:	56.5 KB
ID:	95912
          Plug weld holes punched where I found those 4 spot welds.
          Justin Rio

          Comment


          • Hi Justin
            I was wondering if you might know the differences between a 59 T2 inner doorframe and a B frame.
            Just finalized the work on the right frame of my 59,but the left is even further gone and the work was massive.
            Thinking of buying the new inner frame of Dansk wich look the same as the 59 T2,ad says B/C tough.


            Click image for larger version

Name:	image_2018-01-24.jpeg
Views:	544
Size:	78.0 KB
ID:	95964

            Comment


            • Hi Dave,

              For all intense purposes a Low striker door from AT2 onto B/C is pretty much the same. There might well have been very slight structural detail changes as production went but nothing major. For instance the only difference from B to C that I remember where the addition of some loop tangs to mount the later arm rests to. Since you're looking at repro stampings from Dansk I'd worry about it even less as with any repro part there are always subtle differences from the factory stuff and what you are purchasing from Dansk is their interpretation of a 356 low striker door. For instance I've used their headlight buckets and while very nice in overall shape they where stamped about a half inch shallower than the original buckets which meant other adjustments had to be made to compensate. Hope I answered your question somehow. Glad to hear your making progress on your car. Think about starting progress thread... Love to see what you're up to.

              Justin
              Justin Rio

              Comment


              • Thanks Justin
                I will use the Dansk inner frame.
                For sure i will start a thread soon,must say that not much stayed after we went to bare chassis.
                I really thought about getting rid of the whole project for a few months.
                Maybe 25 % of the chassis is salvable,the rest is crust so a big project.

                Comment


                • Hi Dave

                  Which vendor is selling the inner frame? I talked to Dansk a couple of months ago about this panel but they wouldn't sell direct to individuals.
                  Please post pictures of the panel when you receive it.
                  Regards
                  Drew

                  Comment


                  • Drew,

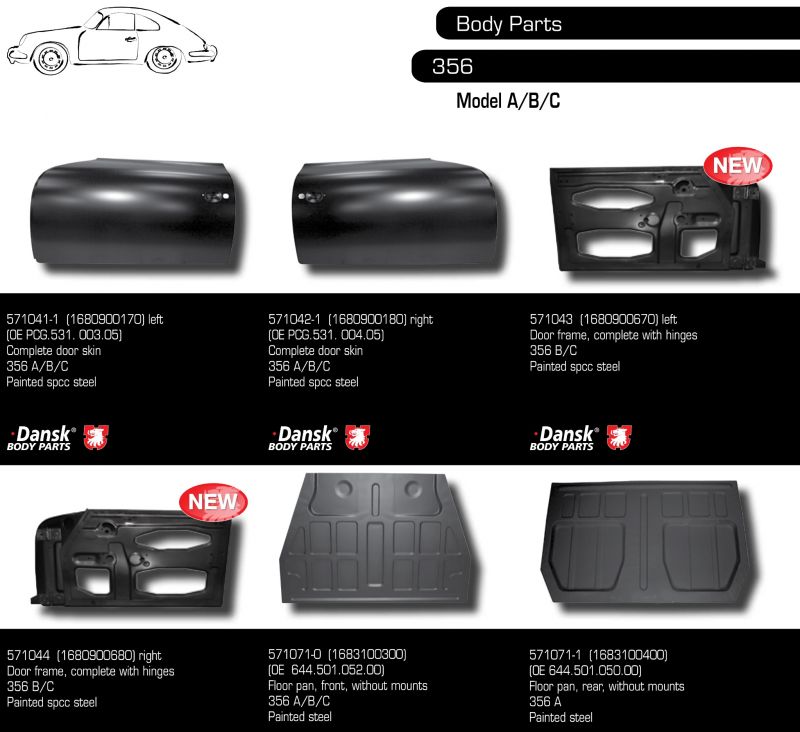

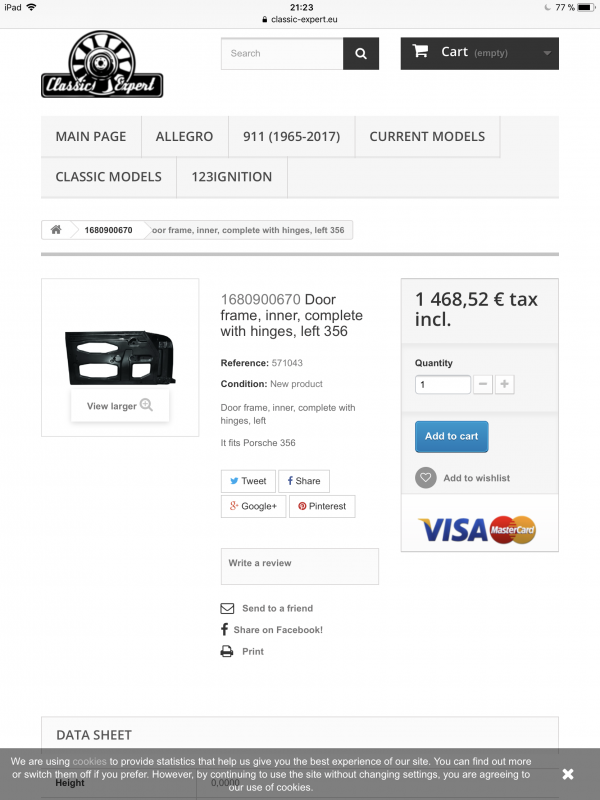

                    This one was the cheapest one I found when looking quickly to the web.
                    From Poland so good for you on ya litle island

                    Click image for larger version

Name:	4275C2DC-0C39-4D99-AA90-0489C23B448D.png
Views:	523
Size:	194.4 KB
ID:	96020
                    JOP

                    Comment


                    • Dansk parts are an enigma...about 50/50 in my experience. I just returned Dansk 911 door skins because after trial fitting, I noticed that there was almost as much work to make the skins fit as it would to fix the original.

                      They looked nice at first blush, but putting them on the original inner frame showed too many areas needing work plus the depressed handle areas and the front upper compound curve juncture got a thumbs-down...so I fixed the door the old pre-replacement way.

                      Conversely, a 356 skin from Dansk was close enough to make it into a Cabriolet door for a high-striker car when it was supposed to be for a low-striker Coupe.

                      At least they tried. With the door innards found to be worse and worse, the new panel would be a godsend....if they fit.

                      -Bruce

                      Comment


                      • 1/31/18
                        Sun roof slider prep.
                        Now that I have my head around how it all goes together and works I needed to get the hardware prepped for an accurate adjusted lid fitment against the body.
                        Click image for larger version

Name:	IMG_6626.JPG
Views:	499
Size:	80.8 KB
ID:	96320

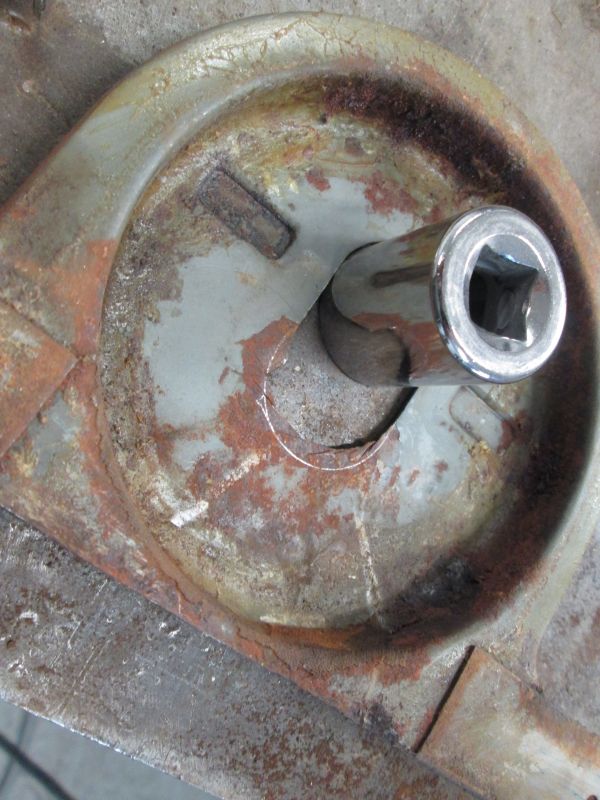

                        Began with a closer inspection of the footings. A felt liner shores up the contact with the rail but all these where bent open and slightly twisted. I would never be able to get a final adjusted fit with all this slop at the point of contact. BTW: these seem to be painted the same shade of grey that I had mixed up to match the steering column and wheel in my coupe.
                        Click image for larger version

Name:	IMG_6628.JPG
Views:	494
Size:	62.6 KB
ID:	96321
                        Pretty damn close..
                        Click image for larger version

Name:	IMG_6627.JPG
Views:	489
Size:	42.5 KB
ID:	96322

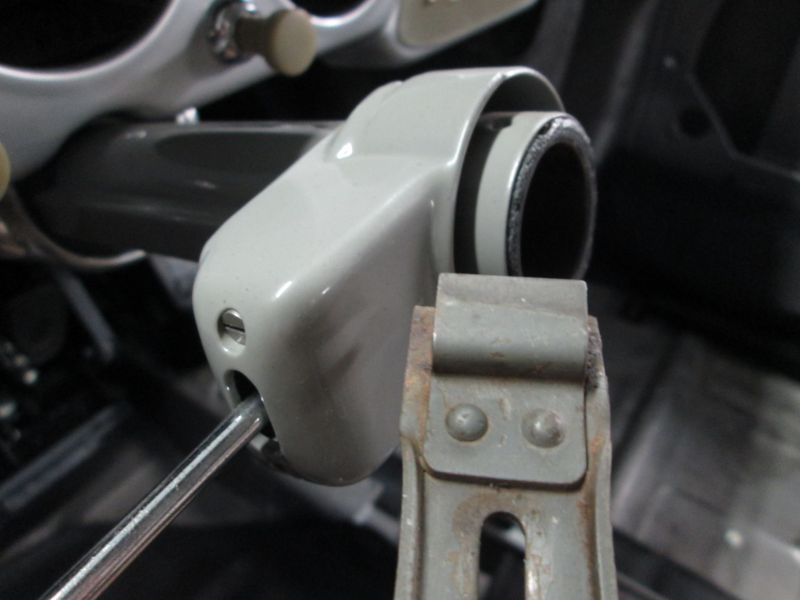

                        Column
                        Click image for larger version

Name:	IMG_6621.JPG
Views:	482
Size:	53.3 KB
ID:	96323

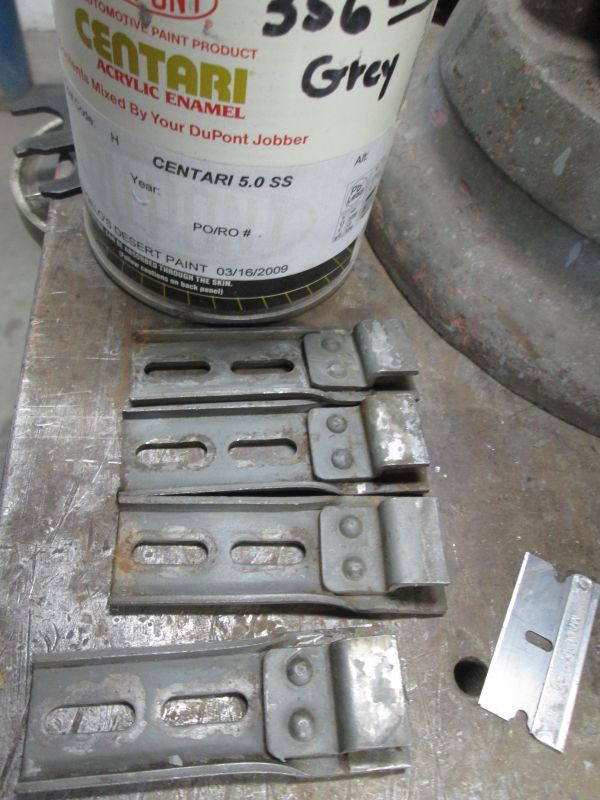

                        Supplied diagram shows the felt liner and parallel flanges.
                        Click image for larger version

Name:	IMG_6624.JPG
Views:	477
Size:	54.7 KB
ID:	96324
                        These where all opened way too wide and again slightly twisted from man handling over the years.
                        Click image for larger version

Name:	IMG_6625.JPG
Views:	463
Size:	62.1 KB
ID:	96325

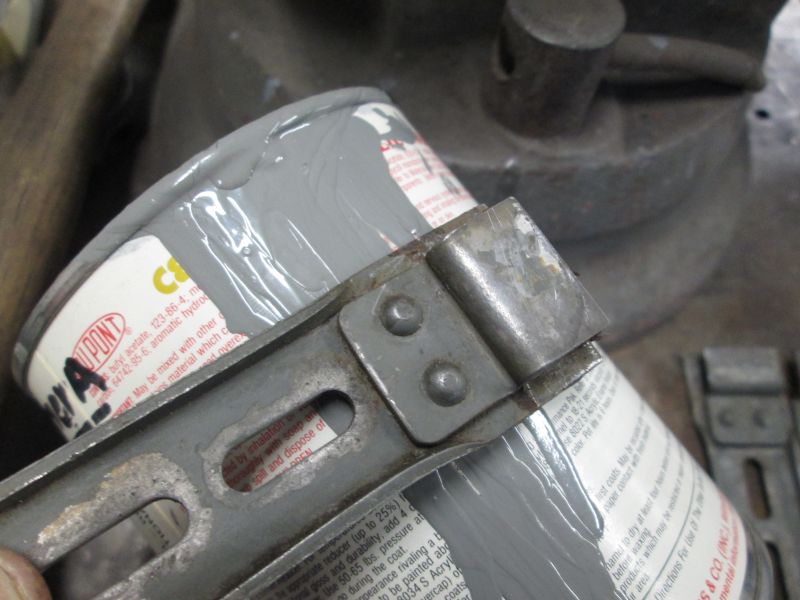

                        Pair of spanners where the right width for squeeze back to even and to reverse the twist without collapsing the tongs.
                        Click image for larger version

Name:	IMG_6622.JPG
Views:	451
Size:	58.0 KB
ID:	96326
                        Some free style squeezing was needed to get that last little bit.
                        Click image for larger version

Name:	IMG_6620.JPG
Views:	433
Size:	62.0 KB
ID:	96327

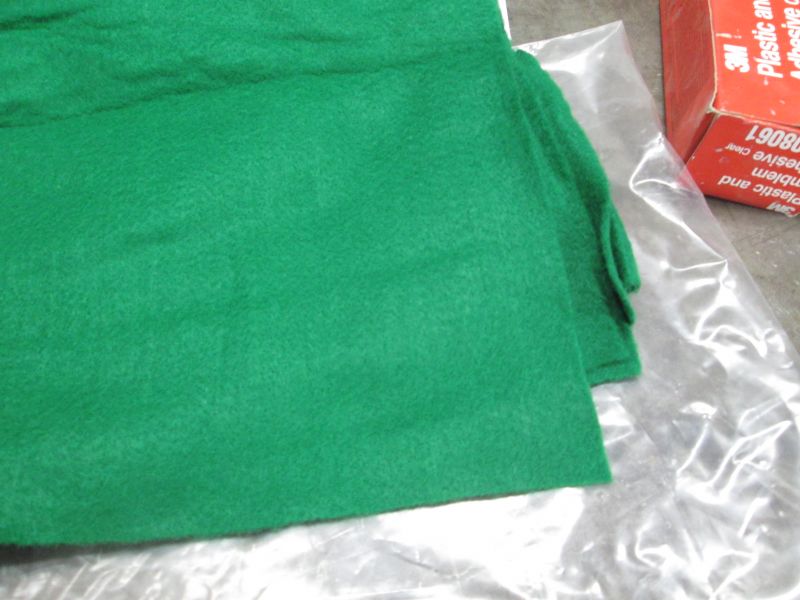

                        Looked at this felt I had on hand first but it seemed a touch too thin.
                        Click image for larger version

Name:	IMG_6631.JPG
Views:	430
Size:	60.8 KB
ID:	96328

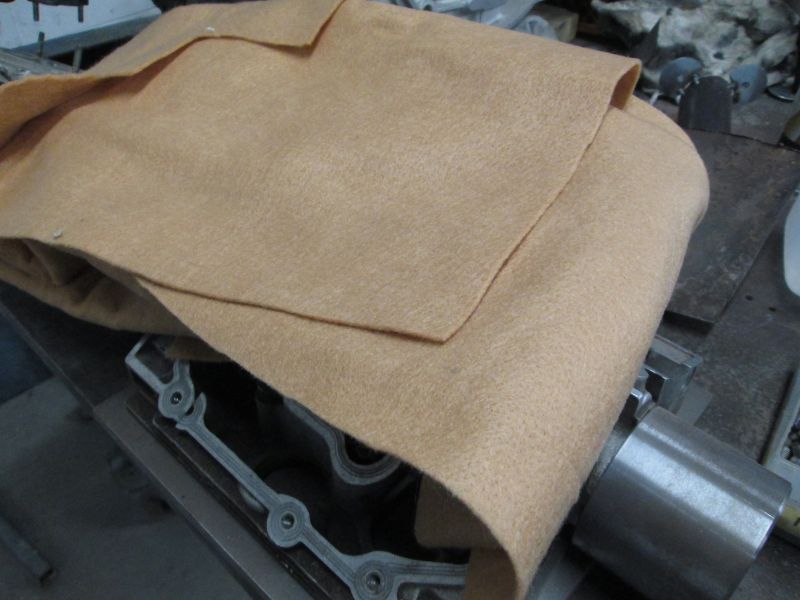

                        This other muslin type felt that I used for my headliner install seemed to be just the right thickness.
                        Click image for larger version

Name:	IMG_6629.JPG
Views:	417
Size:	89.9 KB
ID:	96329

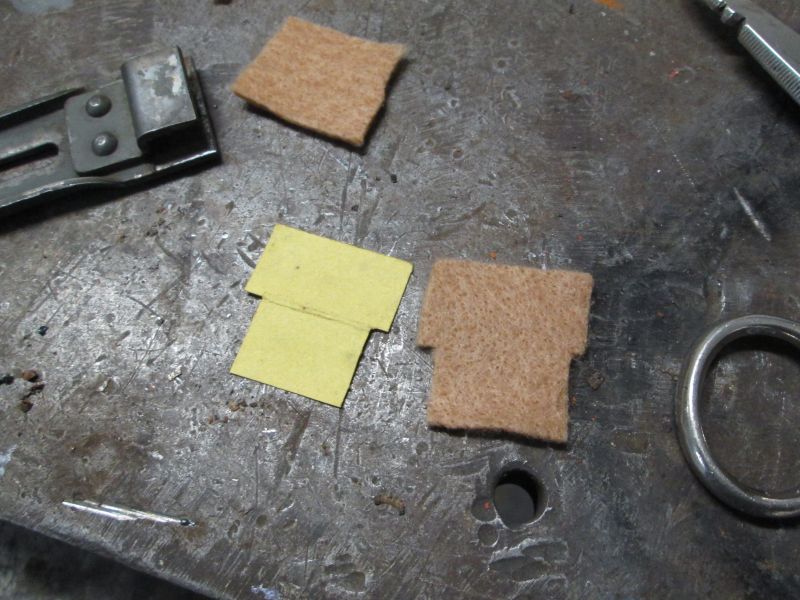

                        Quick temple for cleaner install.
                        Click image for larger version

Name:	IMG_6630.JPG
Views:	406
Size:	70.0 KB
ID:	96330
                        Glued
                        Click image for larger version

Name:	IMG_6632.JPG
Views:	397
Size:	51.1 KB
ID:	96331

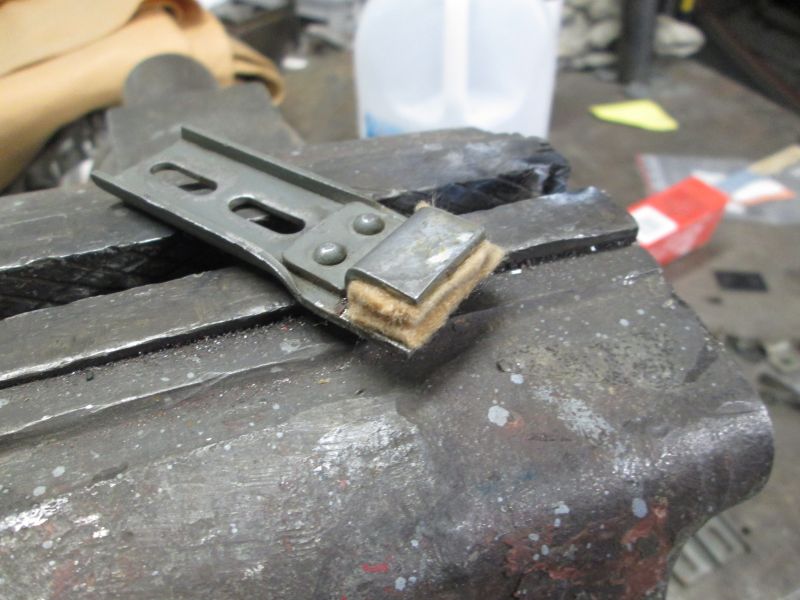

                        Not too firm, but a positive and smooth fit on the rail. Even holds itself there. So glad I looked into straightened these and not just added the felt. Repeat three more times...
                        Click image for larger version

Name:	IMG_6633.JPG
Views:	373
Size:	63.6 KB
ID:	96332

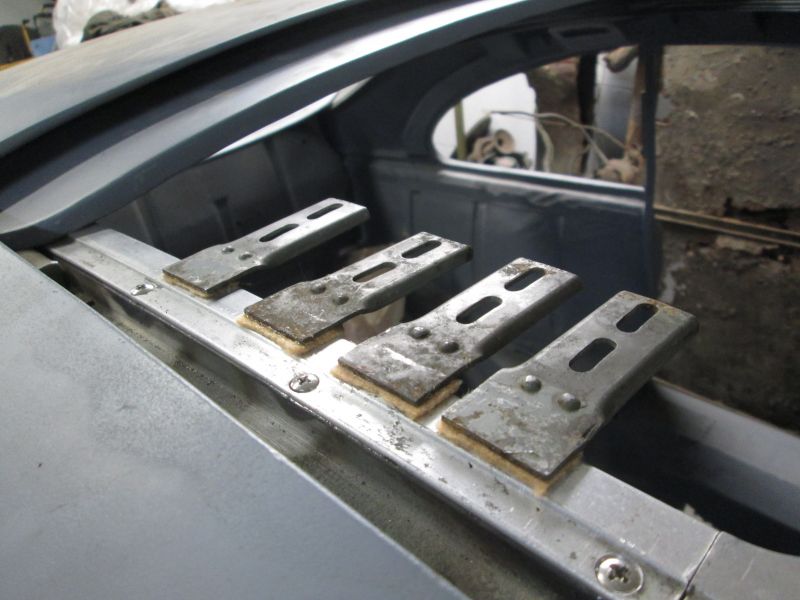

                        All set. Back to dialing in the lid.

                        Thanks for looking!
                        Justin
                        Justin Rio

                        Comment


                        • 2/1/18

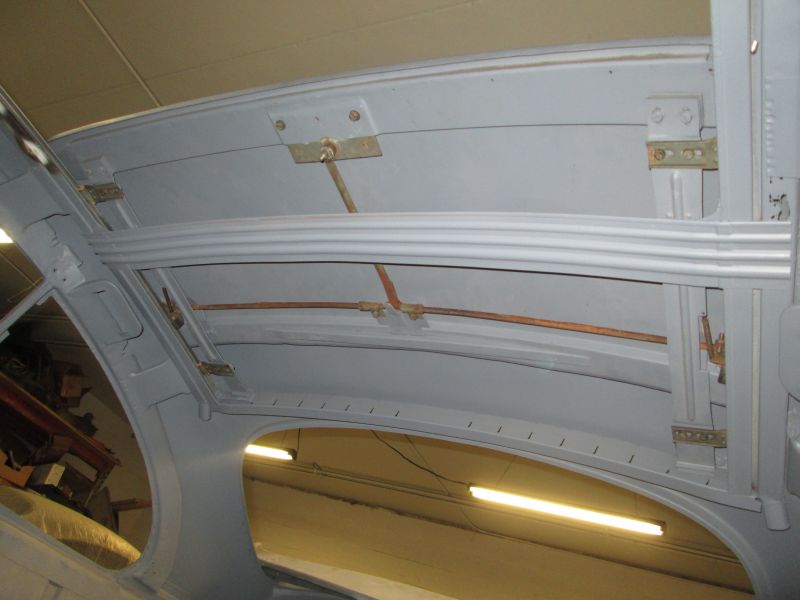

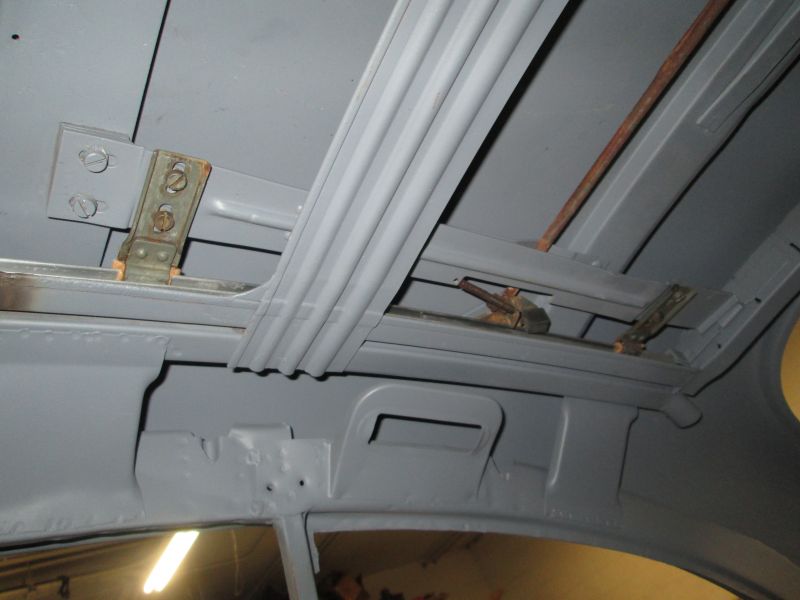

                          Initial mechanical mock up of S/R.
                          Click image for larger version

Name:	IMG_6636.JPG
Views:	364
Size:	45.9 KB
ID:	96351

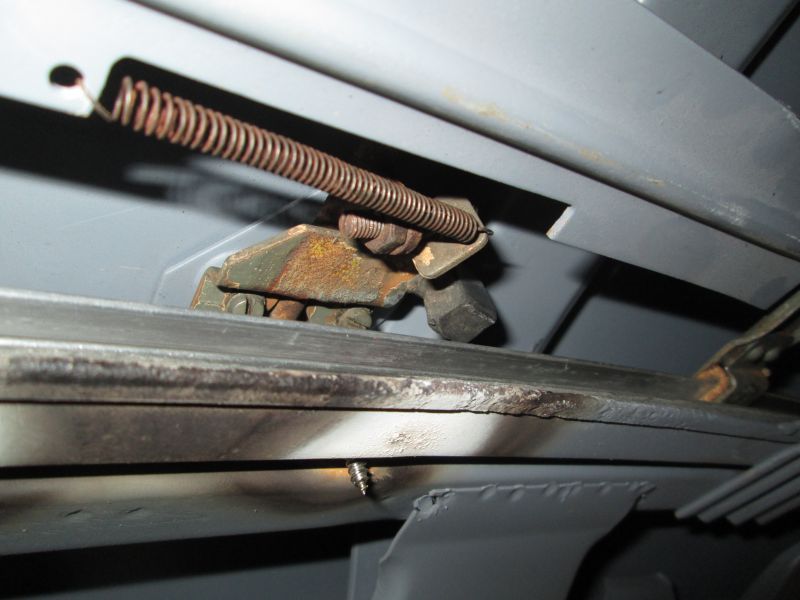

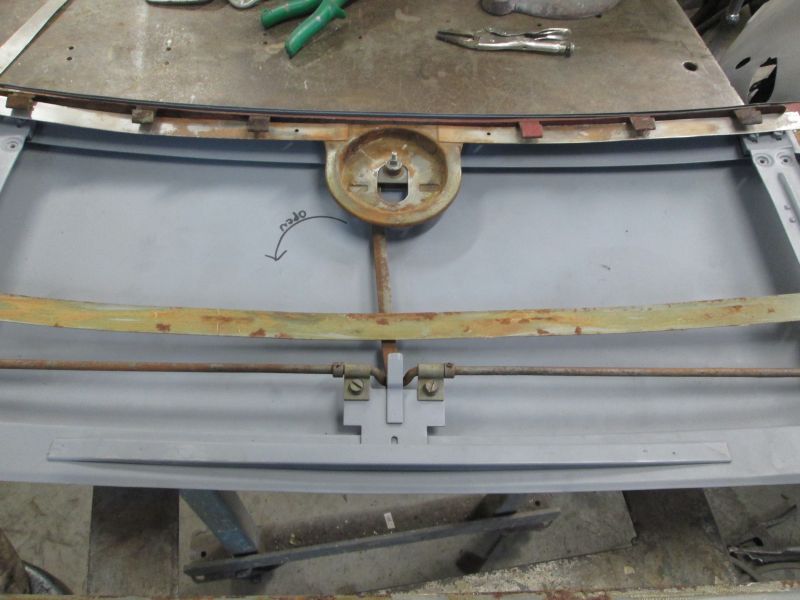

                          Reassembly of the actual mechanism is simple once you've done it once but since I didn't take this unit apart I had to rely on a photo and diagram to get me though. These corners can be the most confusing until you see one assembled.
                          Click image for larger version

Name:	IMG_6639.JPG
Views:	352
Size:	47.3 KB
ID:	96352

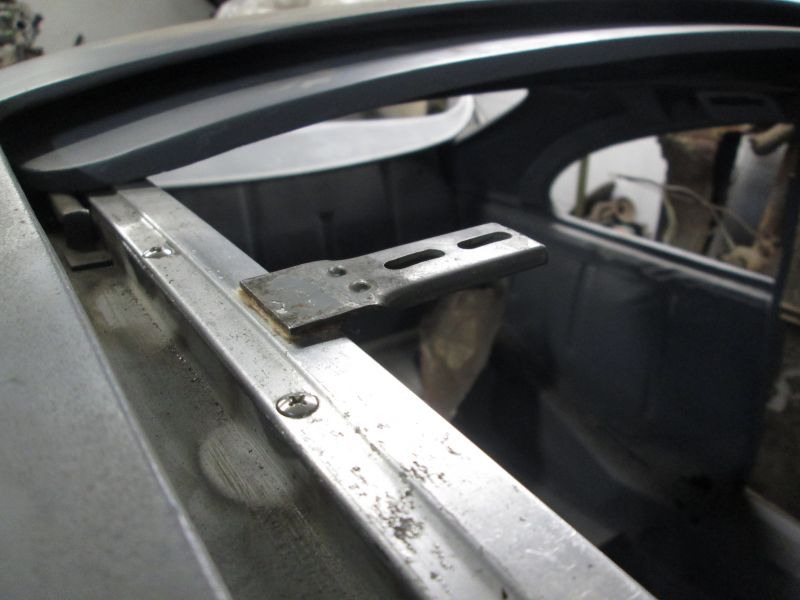

                          Lid now fully installed with its repaired sliders. These were adjusted in stages to center the lid laterally in the opening and also for a positive friction fit with the track.
                          Click image for larger version

Name:	IMG_6638.JPG
Views:	341
Size:	48.9 KB
ID:	96353
                          The actual sliding was a bit stiff and crude but I have to believe this is pretty much the characteristic of this style.
                          Click image for larger version

Name:	IMG_6642.JPG
Views:	332
Size:	47.4 KB
ID:	96354

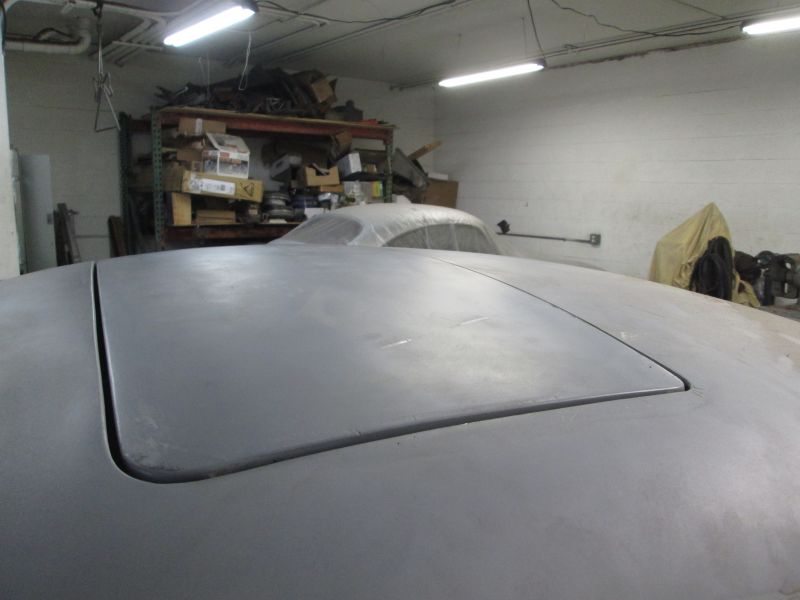

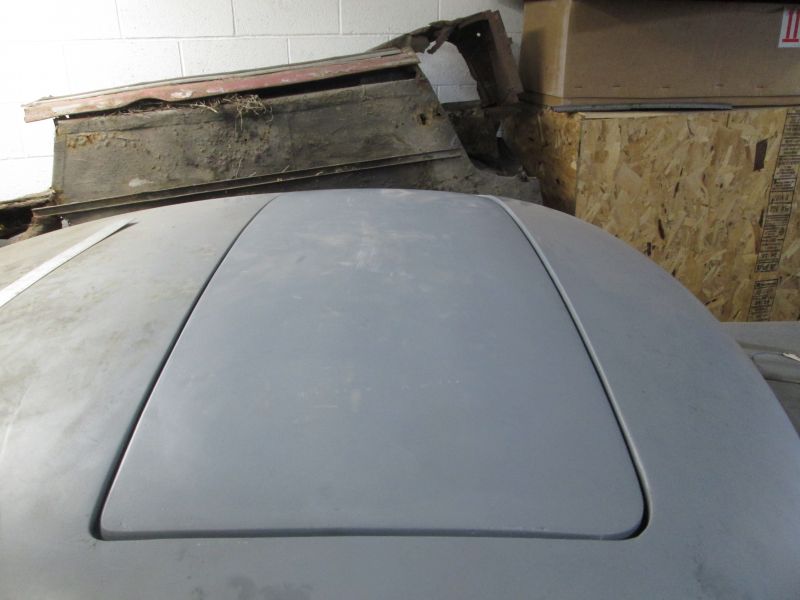

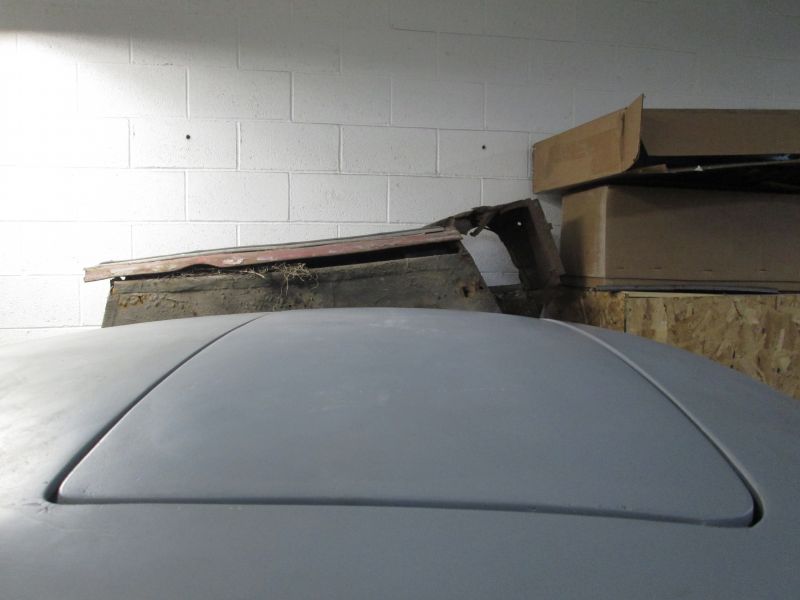

                          Initial fit with the lid fully engaged. To my relief it sat pretty close with a nice uniform gap all the way around. Its still factory so no real surprise there.
                          Click image for larger version

Name:	IMG_6646.JPG
Views:	315
Size:	31.1 KB
ID:	96355
                          Nice and even at both this right
                          Click image for larger version

Name:	IMG_6645.JPG
Views:	316
Size:	37.0 KB
ID:	96356
                          and left rear corner.
                          Click image for larger version

Name:	IMG_6641.JPG
Views:	295
Size:	35.6 KB
ID:	96357

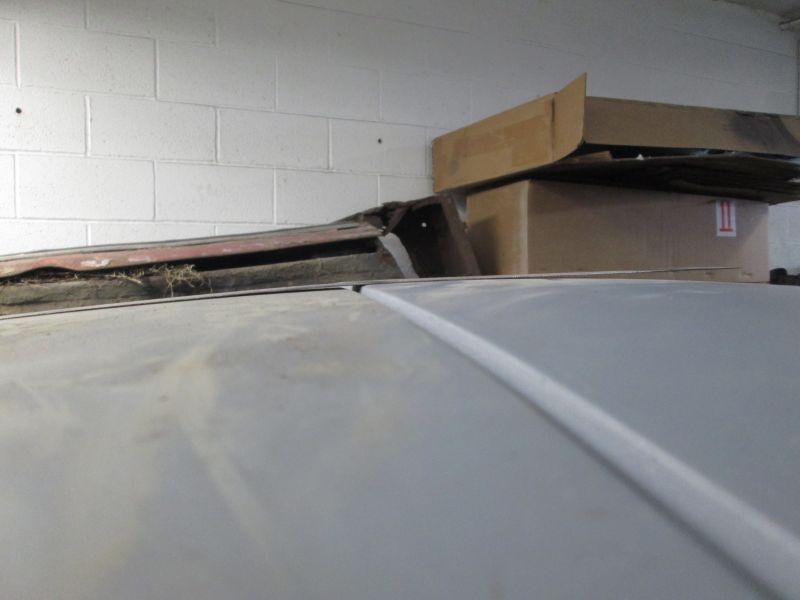

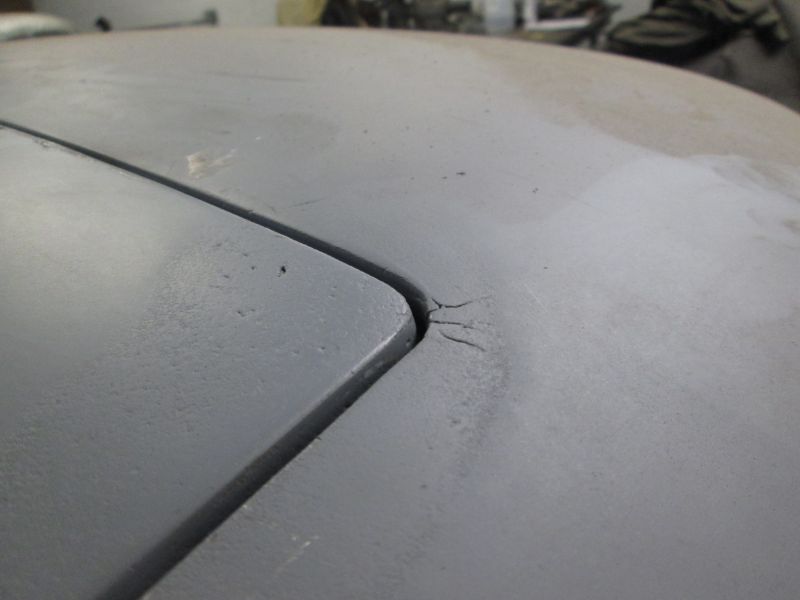

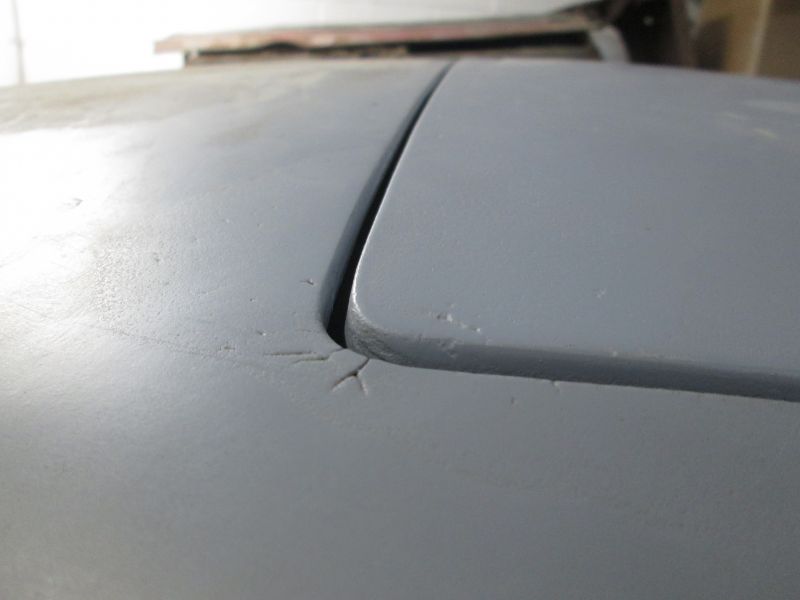

                          But slightly high at the center on the lid side.
                          Click image for larger version

Name:	IMG_6644.JPG
Views:	289
Size:	55.8 KB
ID:	96358
                          I was looking for shims at the rear for maybe a quick adjustment but soon realized the mechanism itself dictates the final height. Again the corners were good so the center will require some bodywork to level that out.
                          Click image for larger version

Name:	IMG_6648.JPG
Views:	291
Size:	39.7 KB
ID:	96359
                          Forward corners started out low so with the extra shims provided I added one to this right side and it all fell into place.
                          Click image for larger version

Name:	IMG_6649.JPG
Views:	285
Size:	42.7 KB
ID:	96360
                          The left side required two more but the lid is now a little high at the center laterally there. Have to play around with it a little. Anyway this is how the initial mock up went today. Working on the headliner frame next.
                          Thanks for looking!
                          Justin
                          Justin Rio

                          Comment


                          • The lid looks very nice Justin. I've spent hours playing around with my lid to get it to fit nicely.....a little shim here.....a little shim there. The repetitiveness will drive you crazy.

                            I ended up switching out the oval head screws that hold down the rails for oval head #6-32 x 1/2" machine screws as I didn't like how the weakly the screws held. They machine screws are indistinguishable from OEM and you can lock the nut down tight without having to worry about them pulling loose. Even with rewelding the holes. I mention this as your screws appear a bit long.

                            Cheers,

                            John
                            jjgpierce@yahoo.com

                            Comment


                            • Thanks for the tip on that John, Yeah, I don't like those screws at all.

                              2/5/18

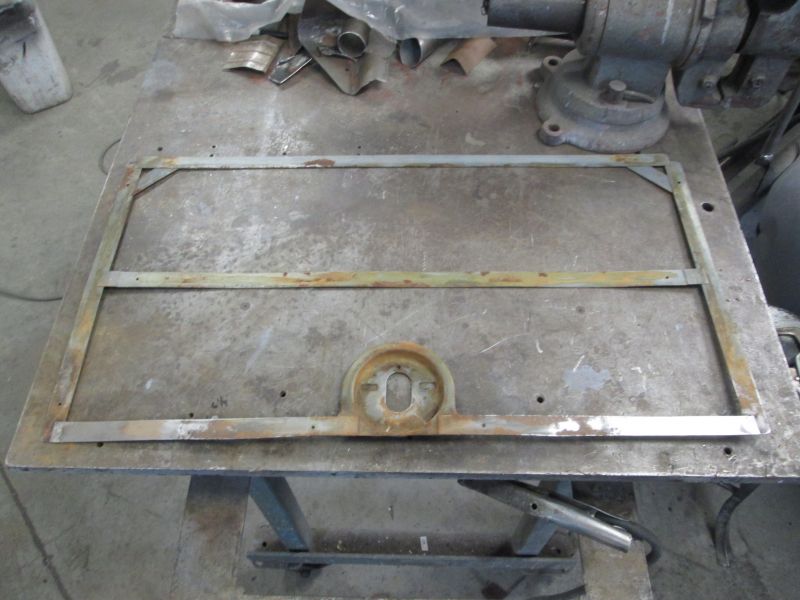

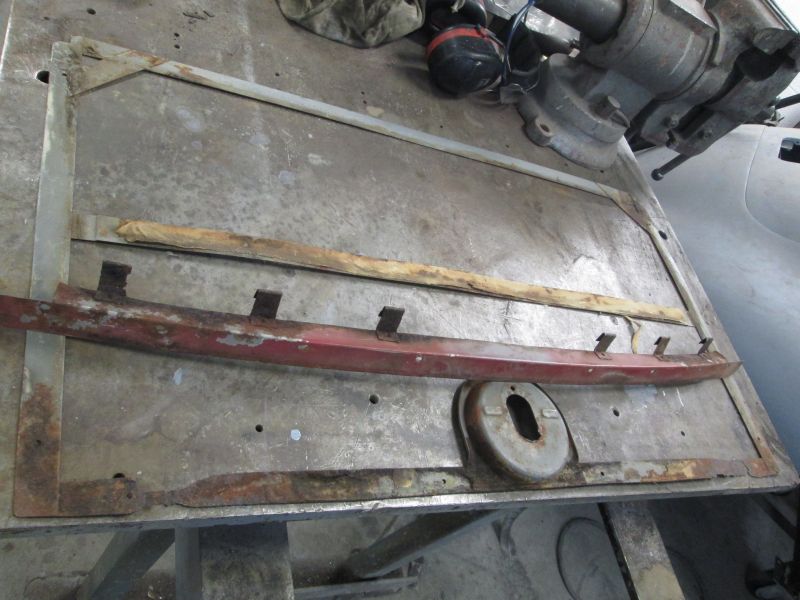

                              Headliner frame repair.
                              Click image for larger version

Name:	IMG_6653.JPG
Views:	270
Size:	76.8 KB
ID:	96575

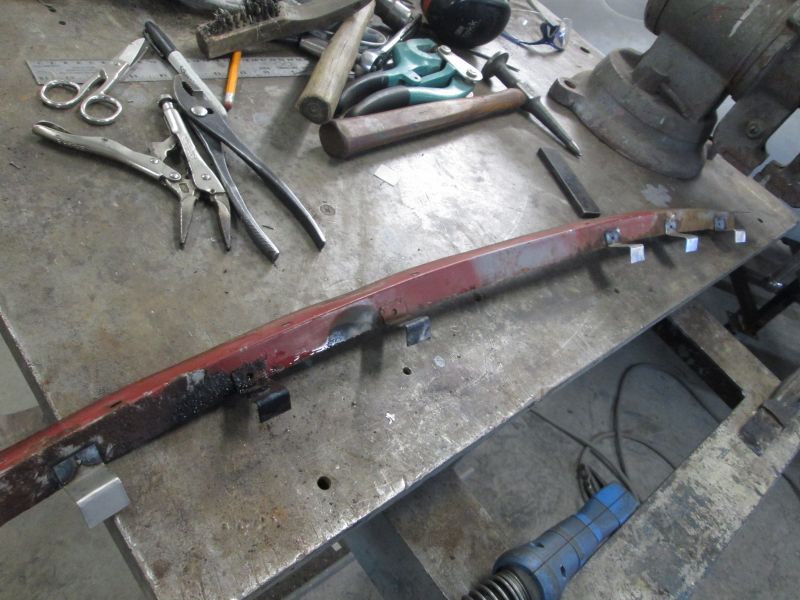

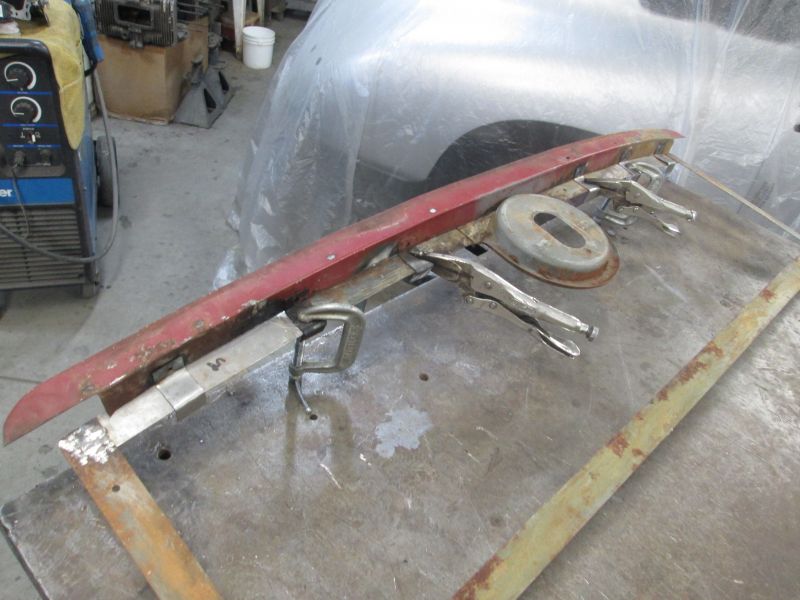

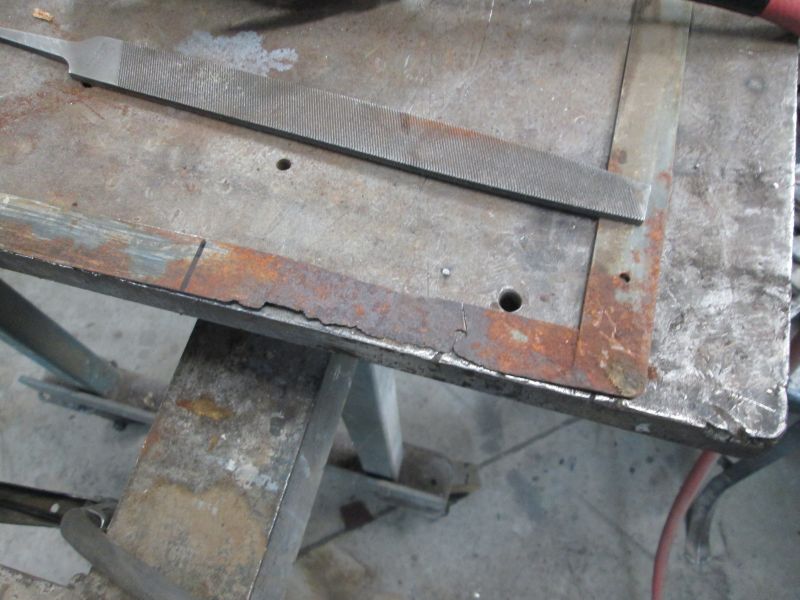

                              A repop frame was supplied but the cancer is so localized that it would be a crime not to fix and use this original. Only the forward lateral sections and four of the attachment clips need help.
                              Click image for larger version

Name:	IMG_6654.JPG
Views:	258
Size:	76.9 KB
ID:	96578

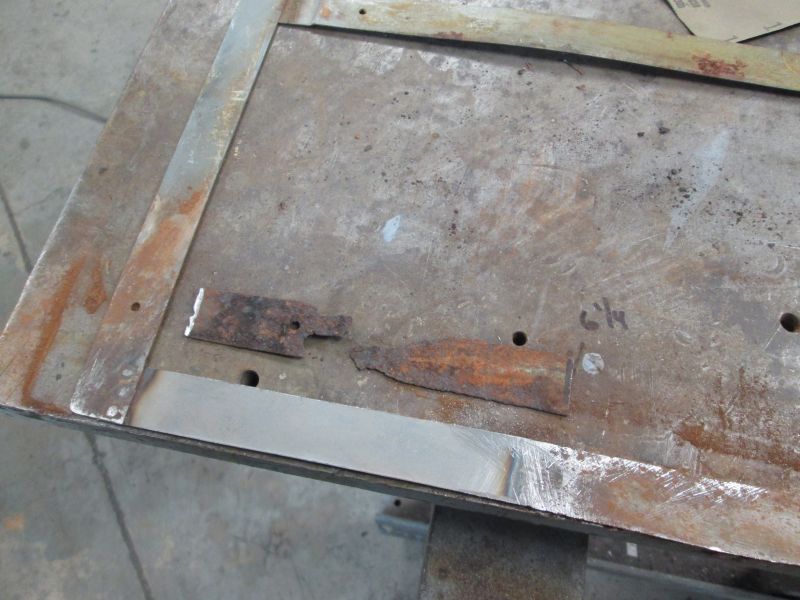

                              Want to get past the rust and weakness all the while saving as much of the original metal as possible. Decided on making the cut just center of the holding clip to both conceal it and to support the weld joint.
                              Click image for larger version

Name:	IMG_6655.JPG
Views:	253
Size:	77.7 KB
ID:	96576

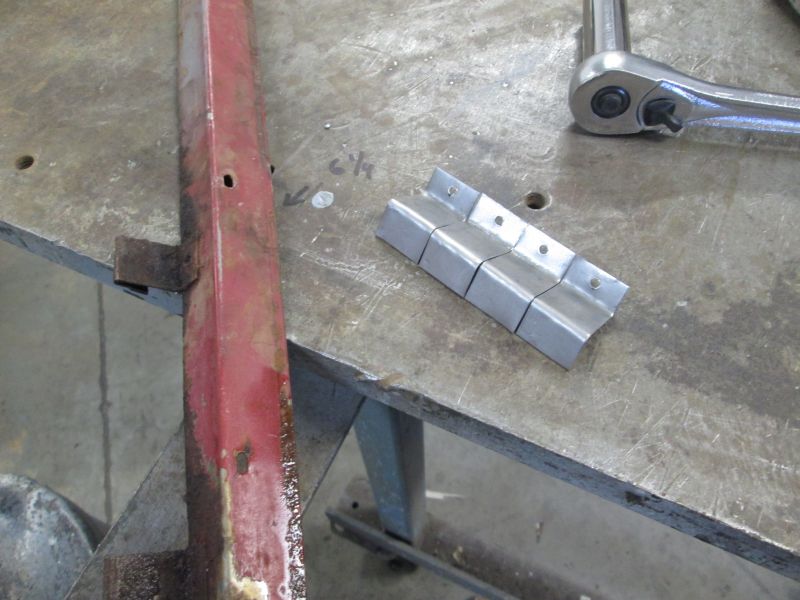

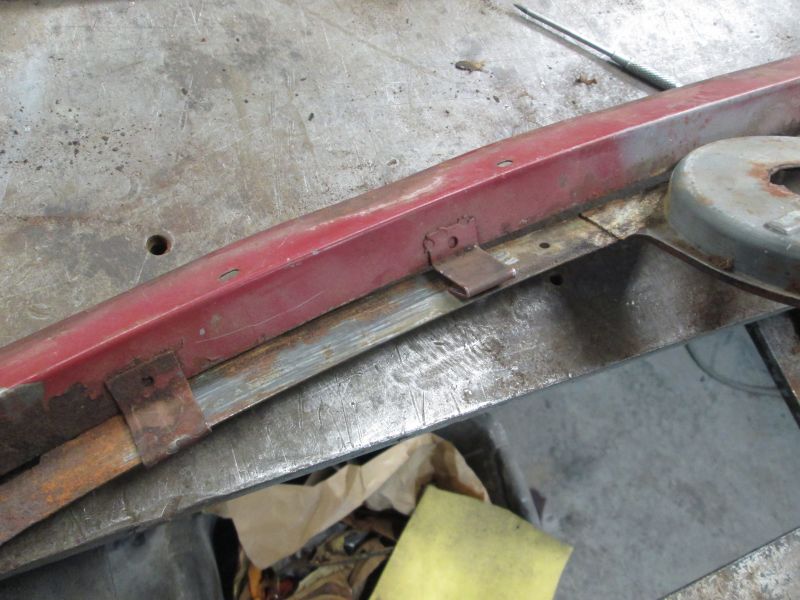

                              4 of the 6 clips need replacing but they could not be easier to replicate.
                              Click image for larger version

Name:	IMG_6657.JPG
Views:	255
Size:	72.5 KB
ID:	96577

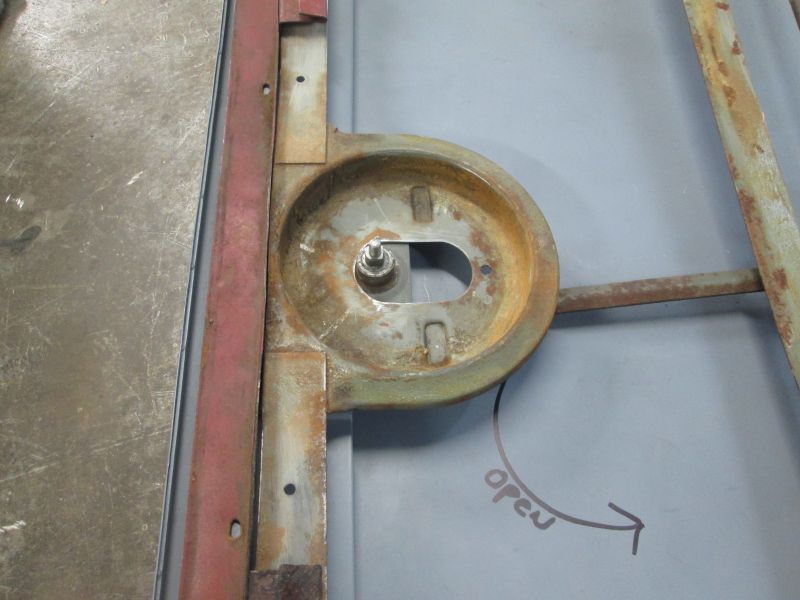

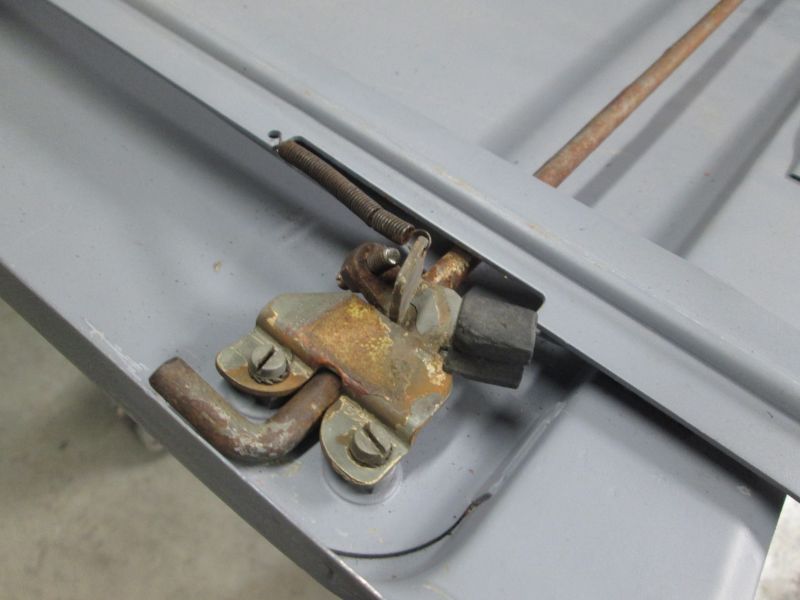

                              Left side provided me with placement and center for the release housing.
                              Click image for larger version

Name:	IMG_6656.JPG
Views:	253
Size:	73.0 KB
ID:	96579

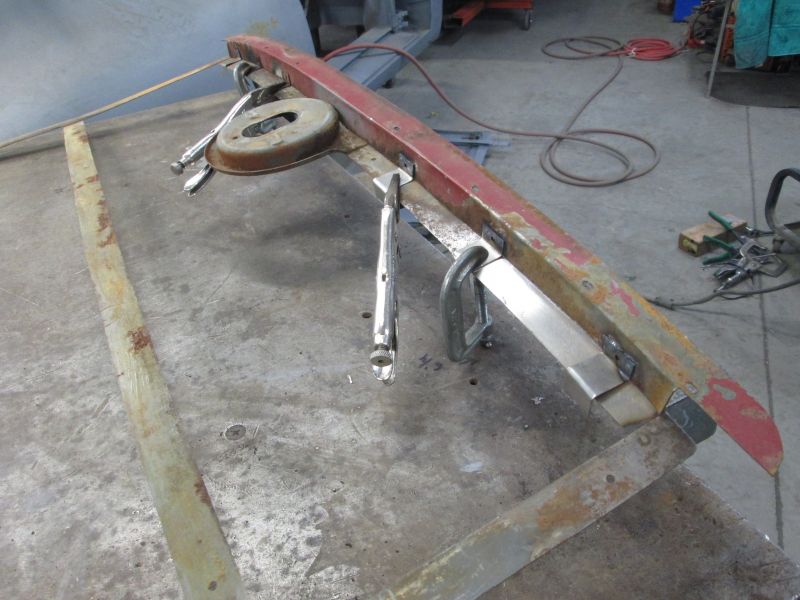

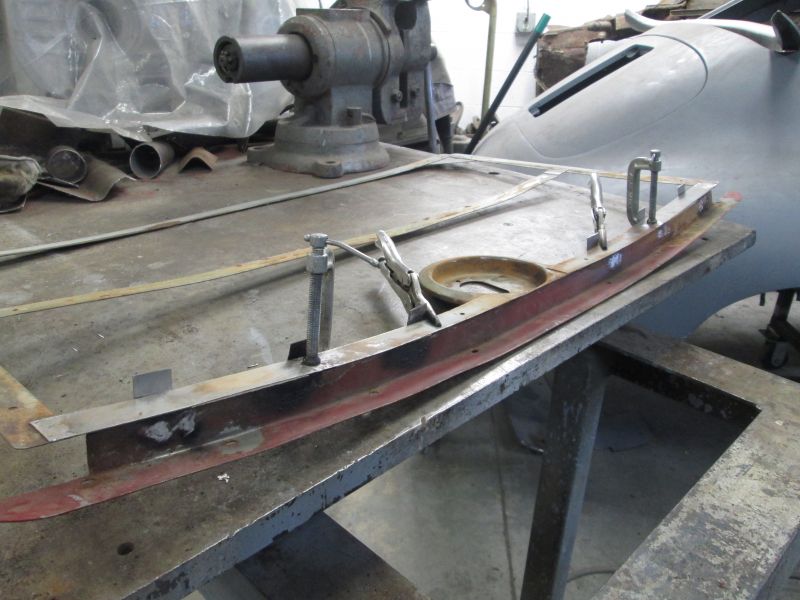

                              So the right side went first. New section all grafted in here. Repeat other side.
                              Thanks for looking!
                              Justin
                              Justin Rio

                              Comment


                              • 2/6/18

                                Headliner frame repairs nearly complete.
                                Click image for larger version

Name:	IMG_6660.JPG
Views:	243
Size:	74.6 KB
ID:	96596

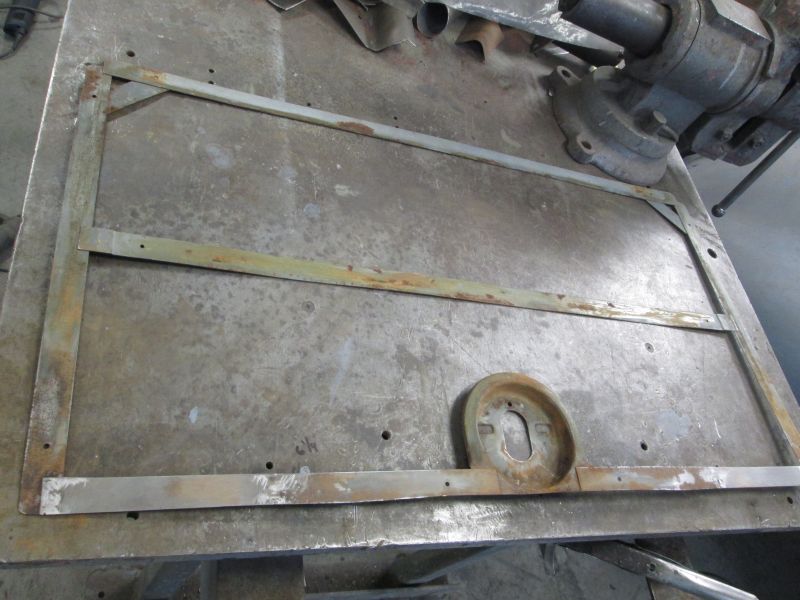

                                Lateral repair sections complete and this thing is one piece again.
                                Click image for larger version

Name:	IMG_6659.JPG
Views:	225
Size:	86.7 KB
ID:	96597
                                More clearance was needed a very long time ago in this slot opening and it was crudely tin snipped way back when. Decided to clean up the shoulder and file shape past the damage. Socket was the right OD to etch around
                                Click image for larger version

Name:	IMG_6661.JPG
Views:	221
Size:	67.3 KB
ID:	96598
                                All set.
                                Click image for larger version

Name:	IMG_6662.JPG
Views:	205
Size:	58.2 KB
ID:	96599

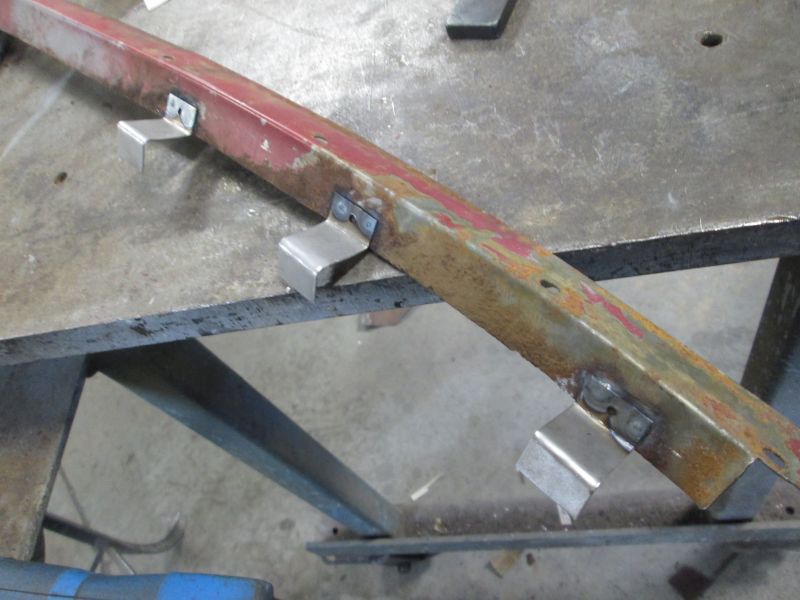

                                Last repair was to replace the clips on the header.

                                Click image for larger version

Name:	IMG_6663.JPG
Views:	217
Size:	62.8 KB
ID:	96600

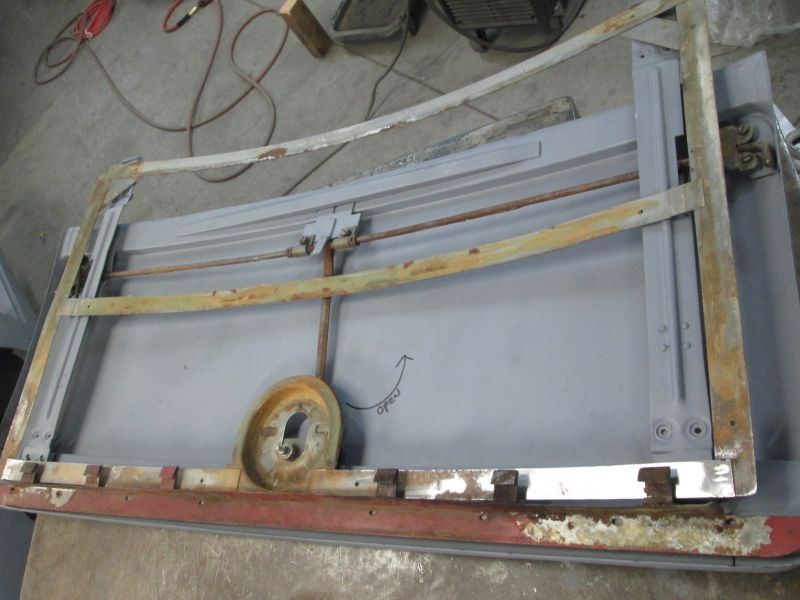

                                Quick mock up on the lid.
                                Click image for larger version

Name:	IMG_6664.JPG
Views:	211
Size:	57.4 KB
ID:	96601
                                Extra clearance in that slot will come in handy.
                                Click image for larger version

Name:	IMG_6665.JPG
Views:	206
Size:	59.3 KB
ID:	96602
                                Its nice to see the parts pile getting smaller.
                                Click image for larger version

Name:	IMG_6666.JPG
Views:	193
Size:	71.0 KB
ID:	96603

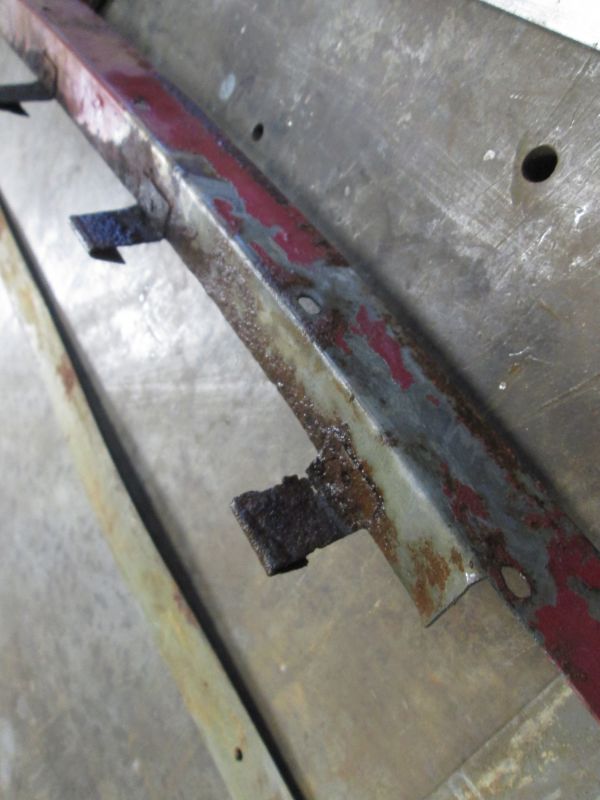

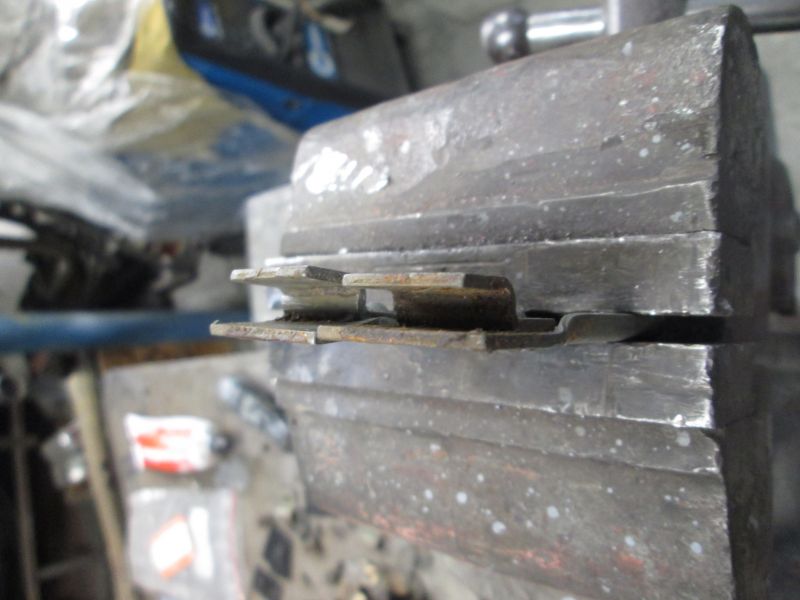

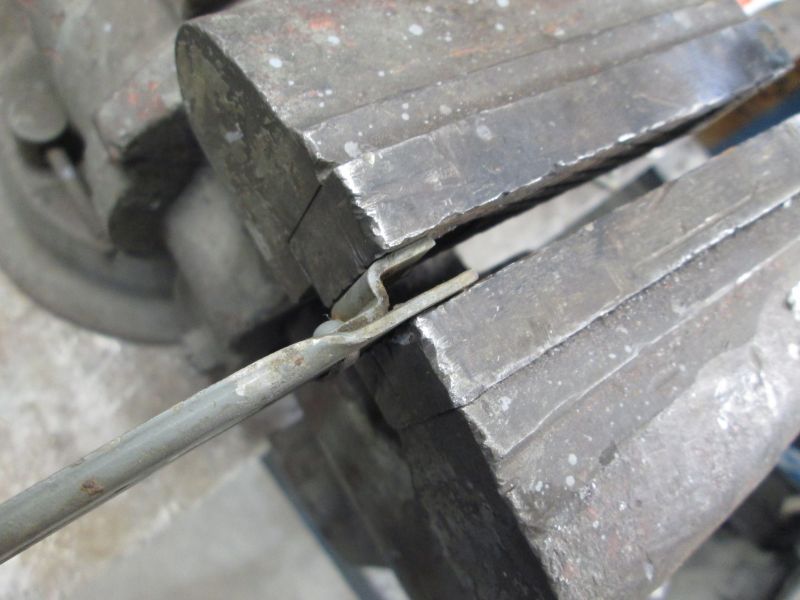

                                New clips folded and ready. The OG clips had a small hole which I'm thinking was just a marker to ensure the clips where not installed backwards.
                                Click image for larger version

Name:	IMG_6668.JPG
Views:	189
Size:	63.2 KB
ID:	96604
                                all the clips on the right side where cooked
                                Click image for larger version

Name:	IMG_6667.JPG
Views:	194
Size:	82.1 KB
ID:	96605
                                But the left only needed one replaced.
                                Click image for larger version

Name:	IMG_6669.JPG
Views:	182
Size:	75.1 KB
ID:	96606
                                First test fitment after repairs.
                                Click image for larger version

Name:	IMG_6671.JPG
Views:	171
Size:	70.0 KB
ID:	96607
                                Its all seating together fine.
                                Click image for larger version

Name:	IMG_6670.JPG
Views:	170
Size:	78.4 KB
ID:	96608
                                About ready to commit and fold those tabs down to mate these two once again for good.
                                Click image for larger version

Name:	IMG_6672.JPG
Views:	165
Size:	74.0 KB
ID:	96609
                                After that I test fit it all with the car.

                                That next. Thanks for looking!
                                Justin
                                Justin Rio

                                Comment
