1959 356A S/R coupe project chassis # 108625

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • JTR70
    commented on 's reply
    Thank you Roy, that is always appreciated! The relief cut was just a work around as I didn't have a set of jaws deep enough to reach that area. Hammering and heating had become ineffective with this panel unsupported at the other end so most of the striking energy dissipated. Crude but this was the quickest way forward. My buddy has been very patient but is chomping at the bit to get it over to his paint shop. As a seasoned 356 owner who has had many cars pass through his hands he knows exactly what goes into the rebuilding phase and yes he is watching this thread like a hawk. Thanks again!
    Justin

  • roy mawbey
    replied
    Justin, from the start with the block of wood to the relief cuts you get ten out of ten for the careful thought and that just super result. That effort had taught me so much. Its the way you approach work that is so impressive. What a great exercise this car is proving to be. It started out you would do all the bodywork and then ther owner would get it painted. That goes back 4 or 5 years is he still following your every move?

    Roy

    Leave a comment:


  • JTR70
    replied

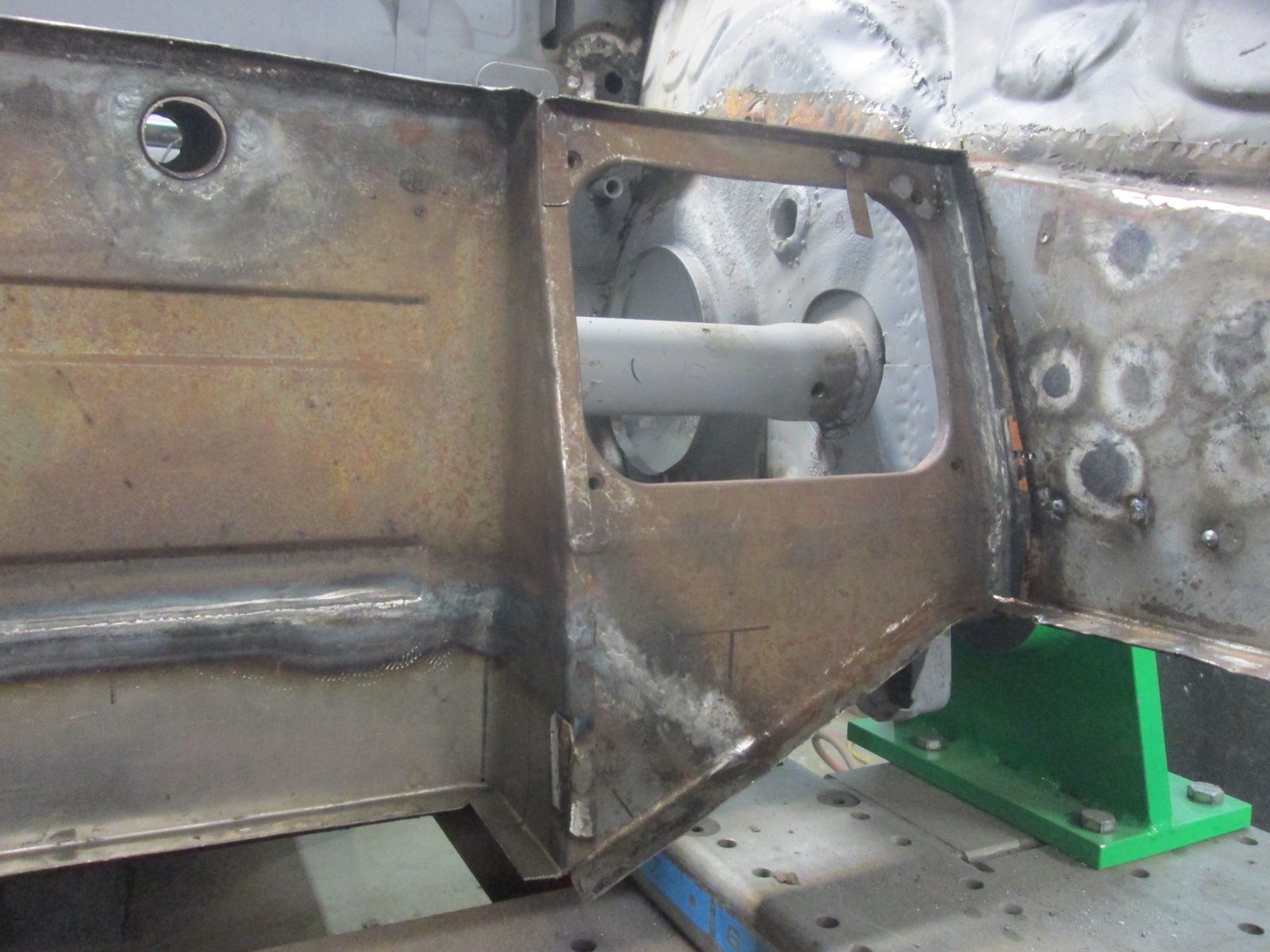

    Almost there

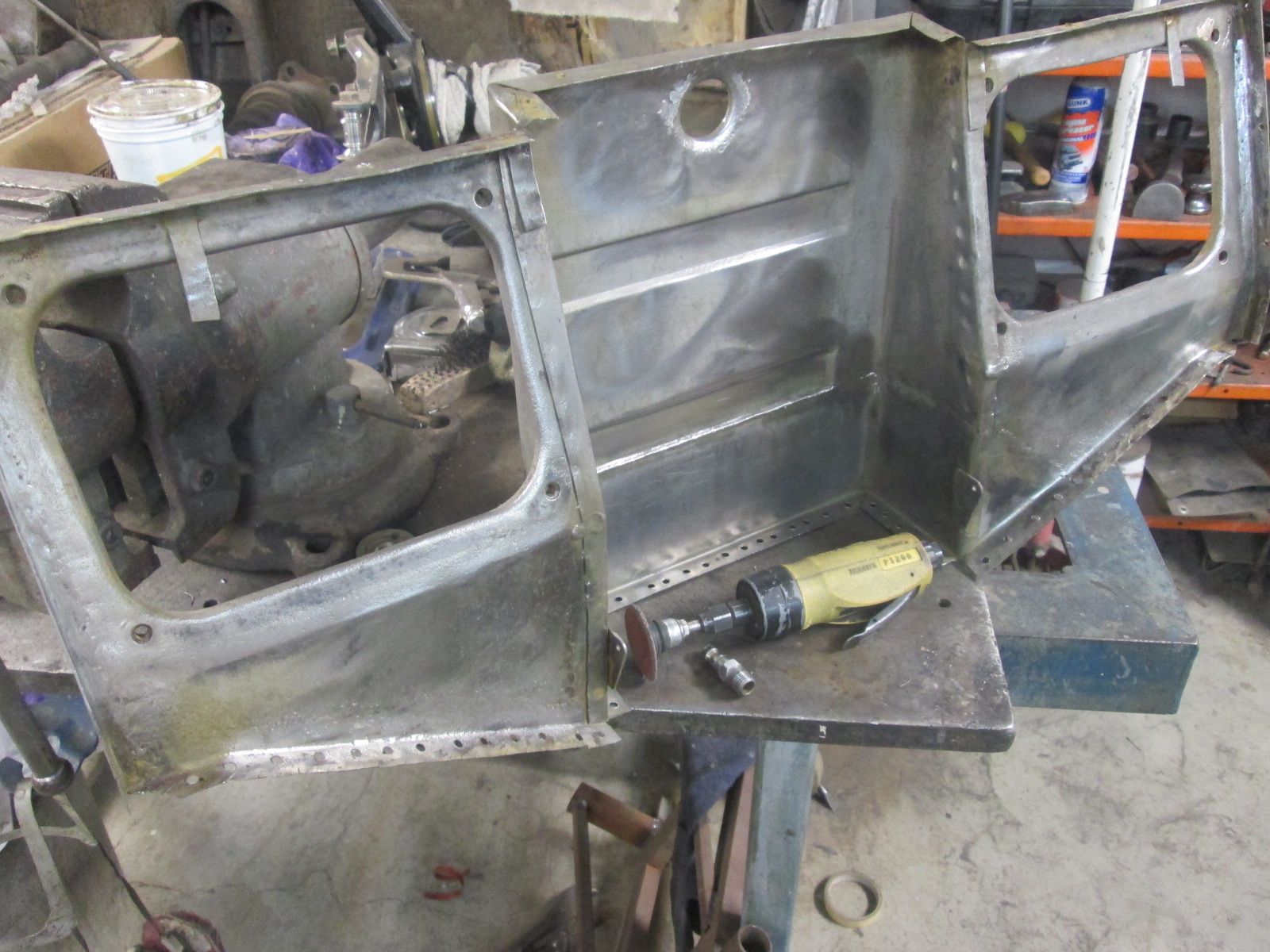

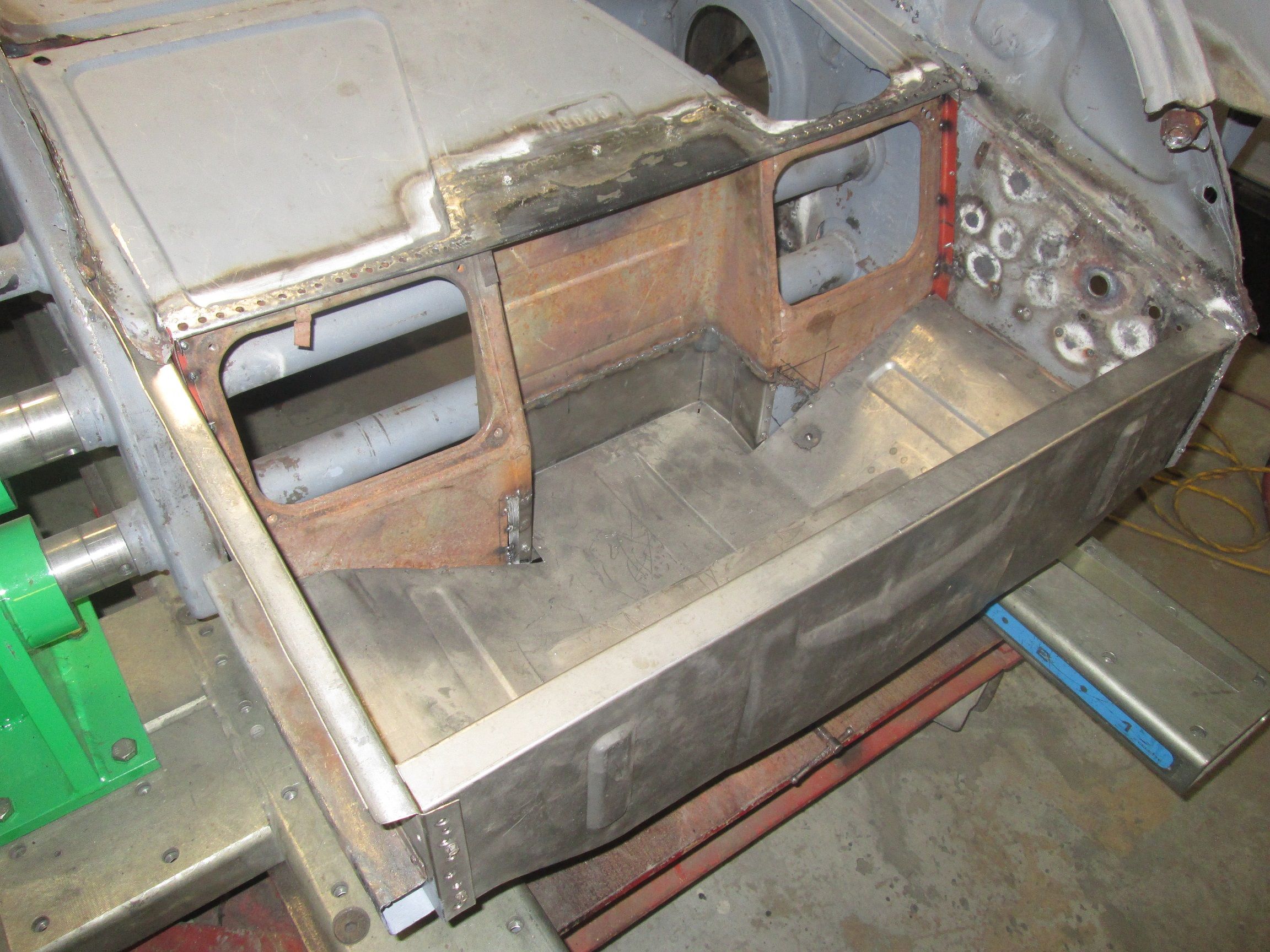

    Click image for larger version  Name:	IMG_0007.jpg Views:	0 Size:	209.0 KB ID:	113803 Straightening , shrinking and welding the lower flange were needed.

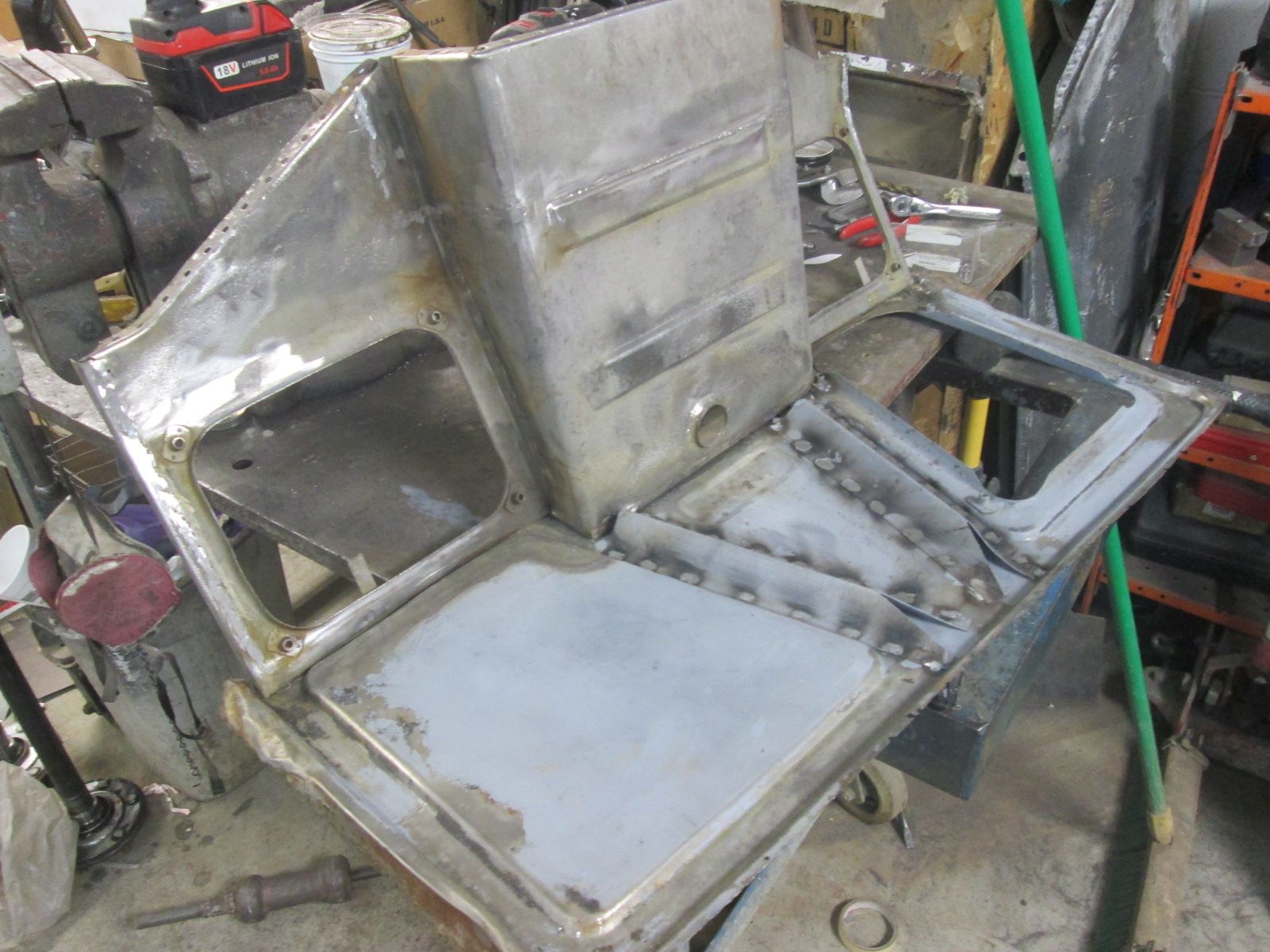

    Click image for larger version  Name:	IMG_0008.jpg Views:	0 Size:	229.2 KB ID:	113804 Flanges reset

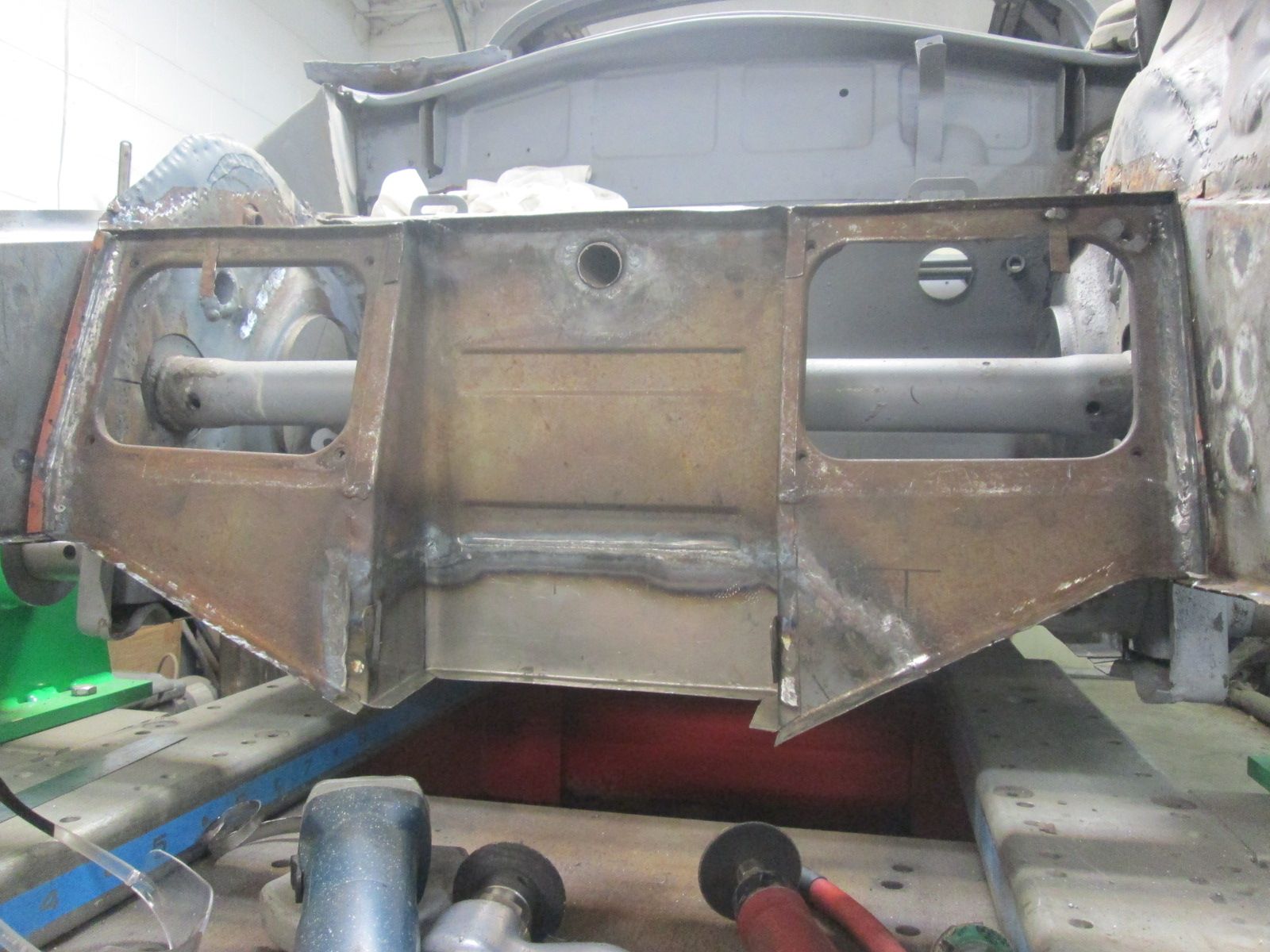

    Click image for larger version  Name:	IMG_0009.jpg Views:	0 Size:	216.3 KB ID:	113806 Several looses ends yet to tie up but this wall is 90% there.
    Click image for larger version  Name:	IMG_0010.jpg Views:	0 Size:	241.2 KB ID:	113805 Bracket mounted to highlight were we started. Pounding this back out flat for remounting shortly.

    Thanks for looking.
    Justin
    Last edited by JTR70; 03-19-2023, 10:10 PM.

    Leave a comment:


  • JTR70
    replied
    Wall straightening continued:
    Click image for larger version  Name:	IMG_9999.jpg Views:	0 Size:	218.7 KB ID:	113797 Began leveling out the obvious kinks and high spots with a little heat. That upper flange run would prove to be the most trouble.
    Click image for larger version  Name:	IMG_0002.jpg Views:	0 Size:	225.5 KB ID:	113798 More heat shrinking to continue "gathering up" the stretch. Thought I'd save the original conduit shouldered opening but more trouble than its worth. I'll punch the damage out, backfill and reopen it.
    Click image for larger version  Name:	IMG_0003.jpg Views:	3 Size:	200.1 KB ID:	113799 Last hurdle was this bowed profile left in flange.
    Click image for larger version  Name:	IMG_0001.jpg Views:	3 Size:	194.2 KB ID:	113800 Repeated heat and strikes would only get me so far. This wall hangs out it space so a sold hit was tough to generate without building a makeshift holding jig.

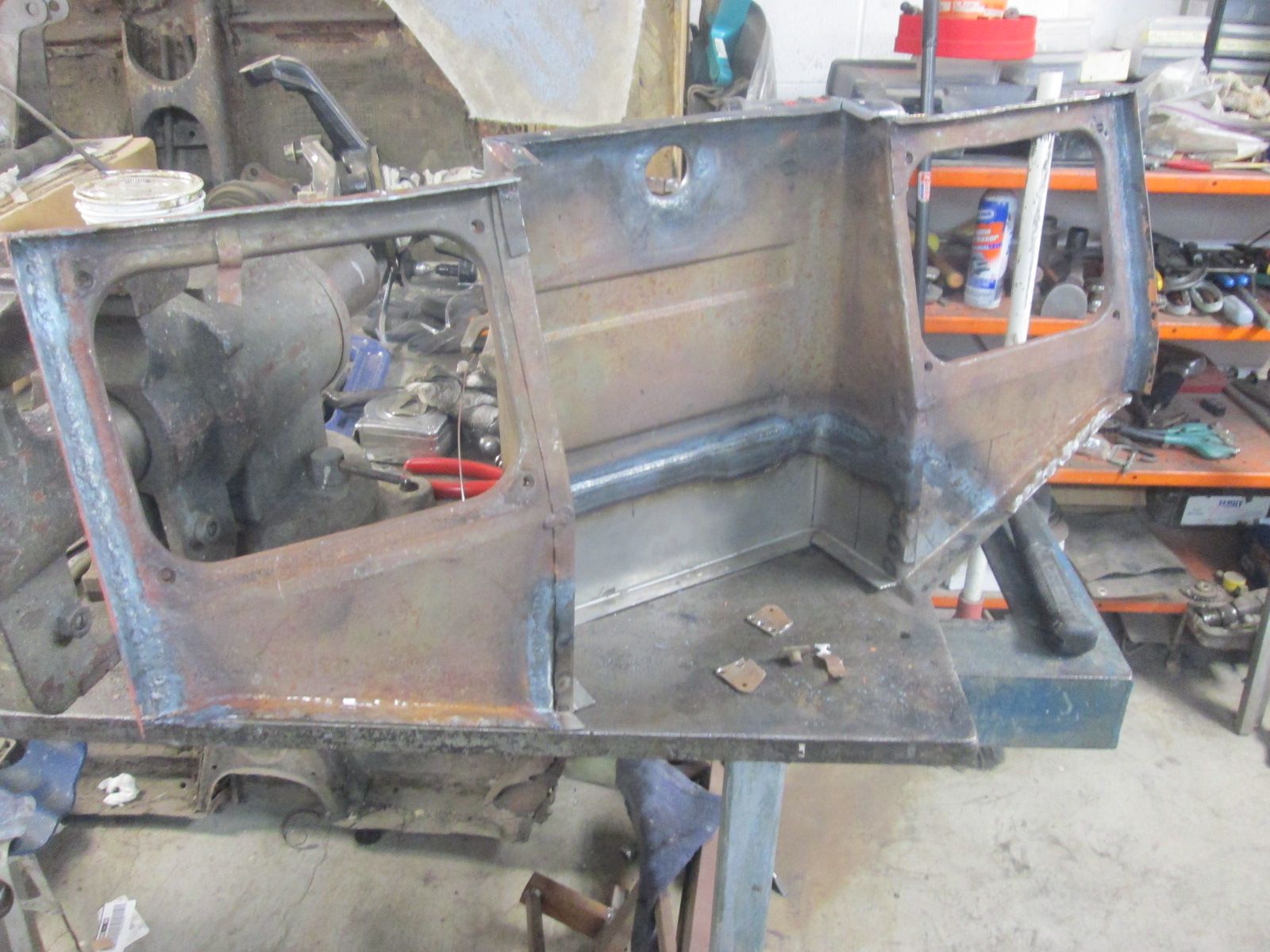

    Click image for larger version  Name:	IMG_0004.jpg Views:	3 Size:	222.1 KB ID:	113801 I ended up relief cutting it along the deformation to beak its back giving me the cooperation I was looking for. Section stitched back together and running straight. Dressing the weld top and bottom next. Conduit hole punched clean and back filling next.
    Last edited by JTR70; 03-19-2023, 09:56 PM.

    Leave a comment:


  • JTR70
    replied
    prep work for panel straightening continued:

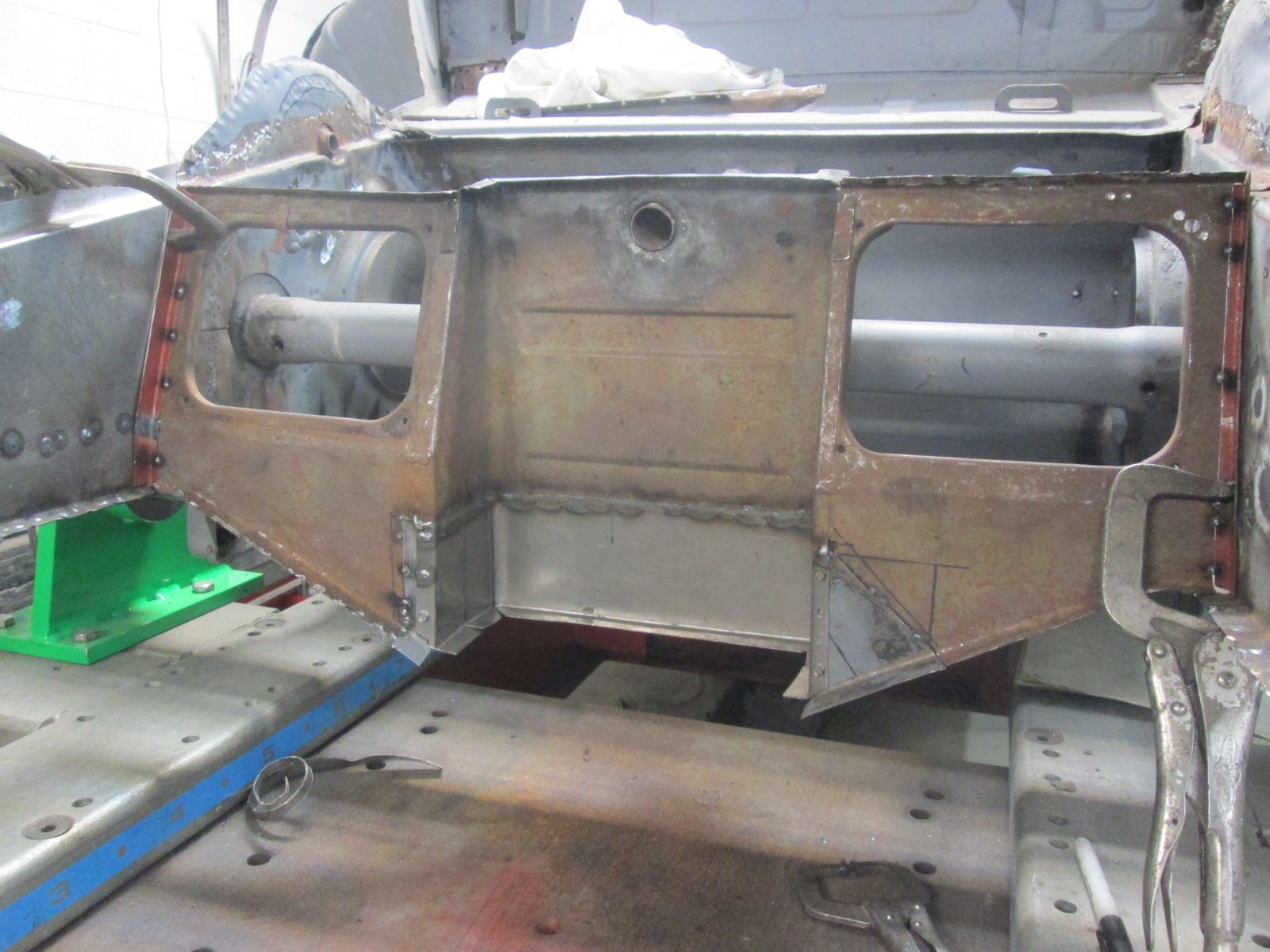

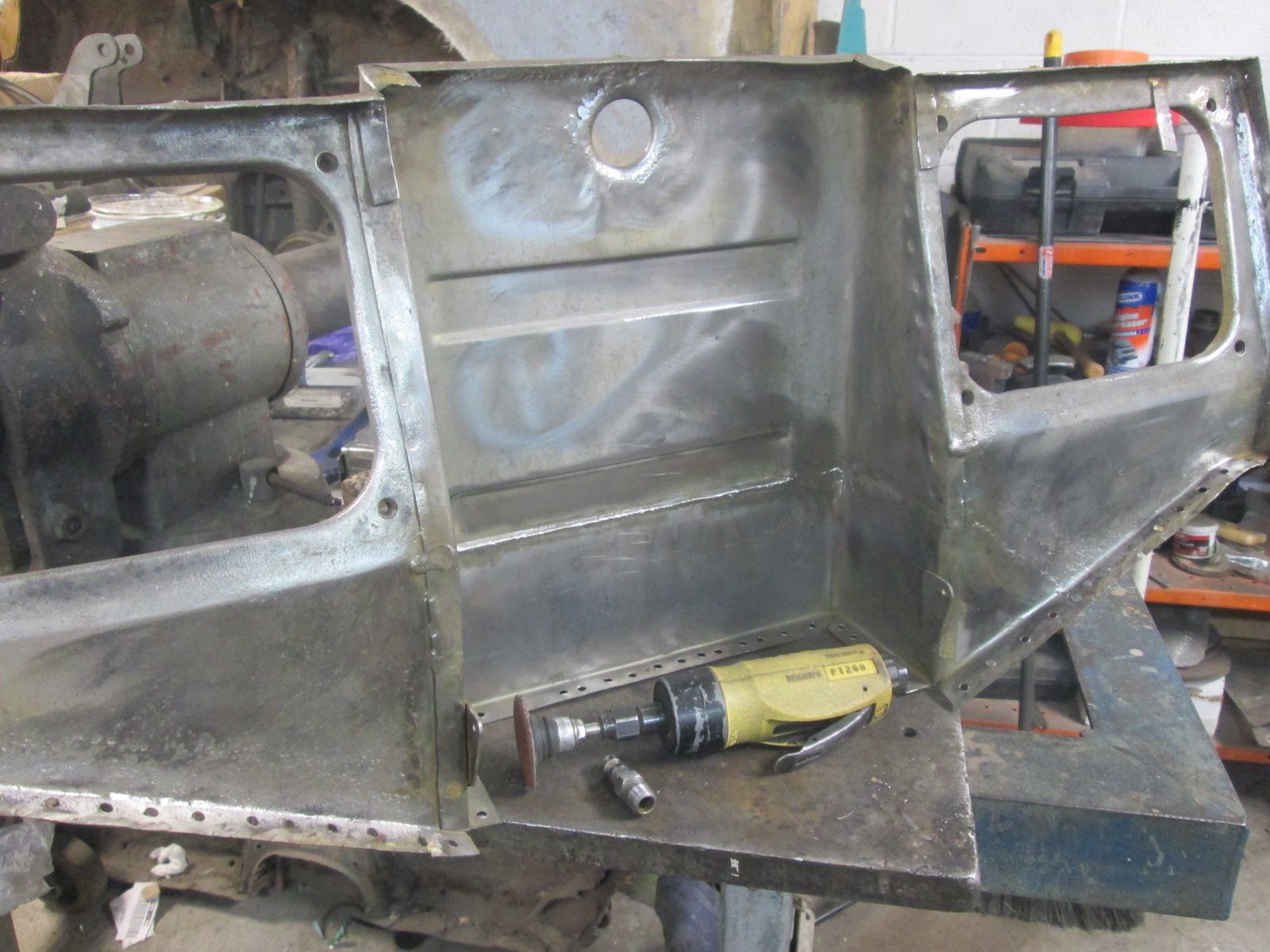

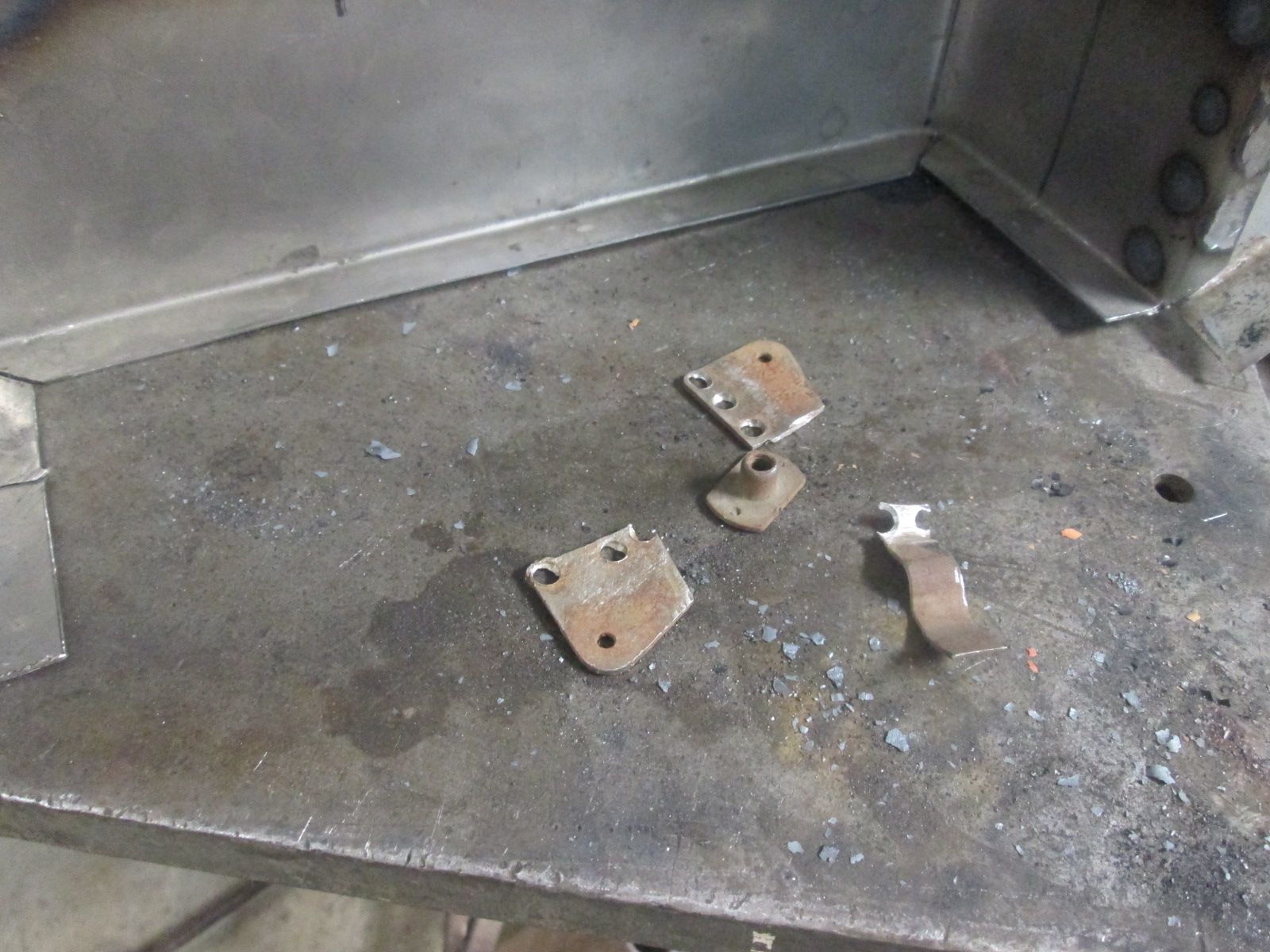

    Click image for larger version  Name:	IMG_9992.jpg Views:	0 Size:	203.6 KB ID:	113791 All accessory parts removed save for the bumper bracket mount but its spot welds are marked for drilling here. Mounting flanges have been ground clean of the remains of the original floor and front closing wall. Started peeling the upper closing walls double spotted lap joint but will get back to that a bit later.
    Click image for larger version  Name:	IMG_9993.jpg Views:	0 Size:	210.7 KB ID:	113792 Bumper bracket mount finally freed. Toughest part was locating and drilling the bottom flange runs with the cellette bench in the way. Missing my rotisserie more and more.

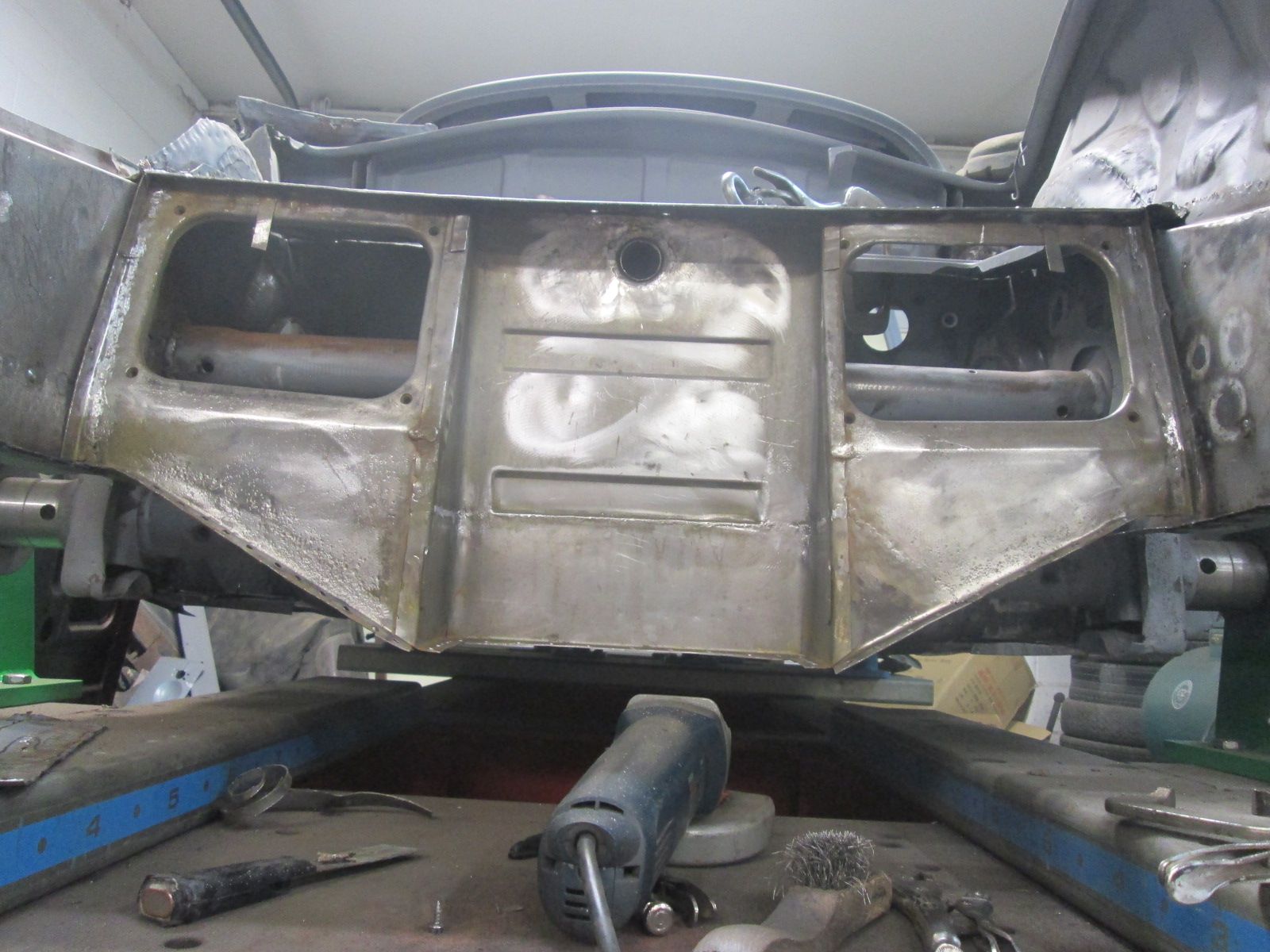

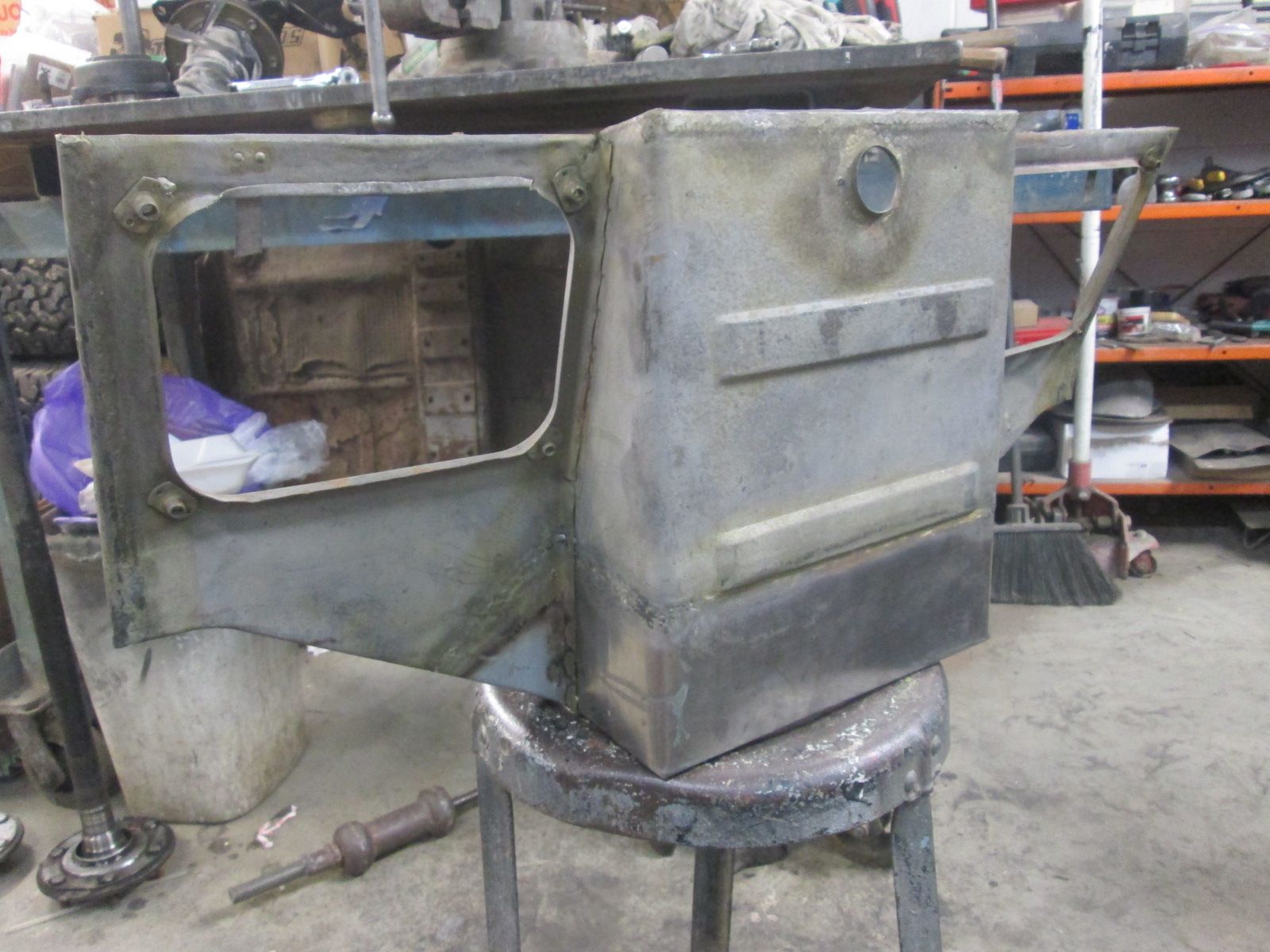

    Click image for larger version  Name:	IMG_9994.jpg Views:	0 Size:	226.4 KB ID:	113793 Wall now is now ready for straightening. The metal is both stretched and kinked from the initial wreck and the secondary body shop damaged as it appears to have been both hastily bashed out and used as the push off point to work the other side wall.

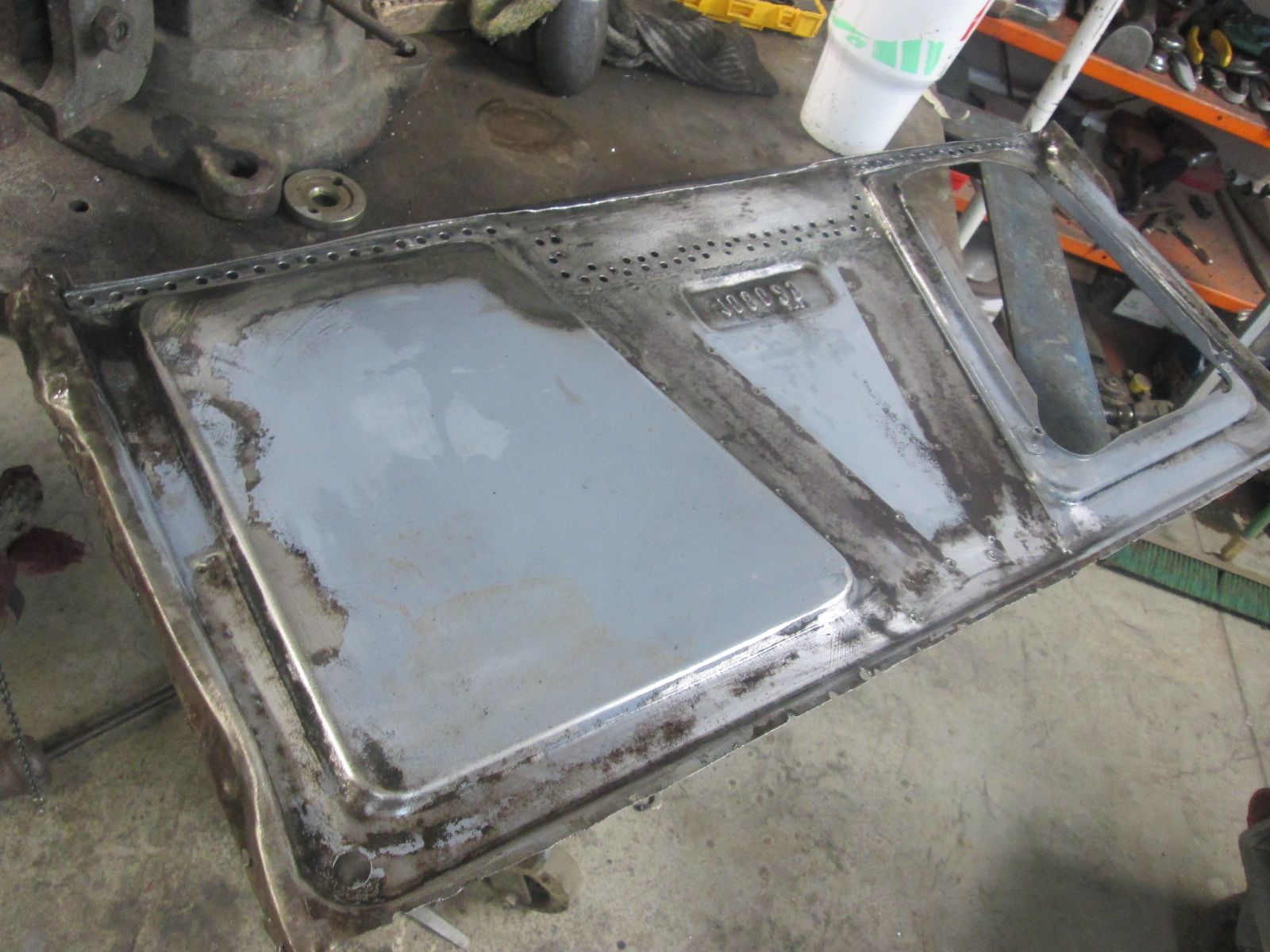

    Click image for larger version  Name:	IMG_9995.jpg Views:	3 Size:	214.5 KB ID:	113794 First instinct of course is just to take a big hammer and start bashing back the other way but its been abused enough at this point. The epicenter seems to be at the headlight conduit hole so a simple board section with a big bolt was set up to begin drawing it back along with a few light hammer hits under the tension of this makeshift clamp.
    Click image for larger version  Name:	IMG_9998.jpg Views:	3 Size:	213.0 KB ID:	113795 Headed in the right direction but again the area is stretched and kinked so this was about as far as it was going to draw back in.
    Last edited by JTR70; 03-19-2023, 09:31 PM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Thank you Sir!

  • roy mawbey
    replied
    Well done Justin , keepm up the good work!
    Roy

    Leave a comment:


  • JTR70
    replied

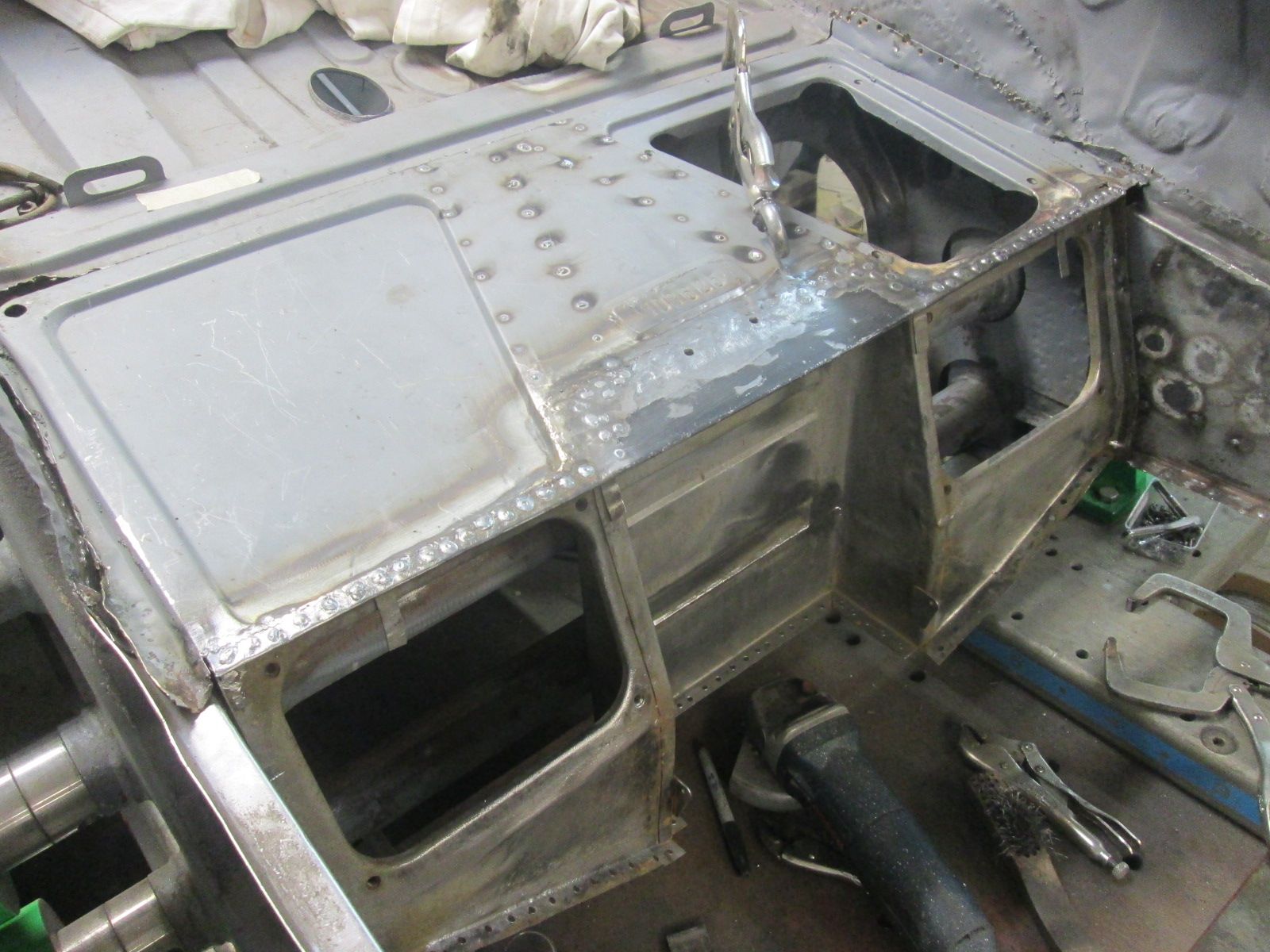

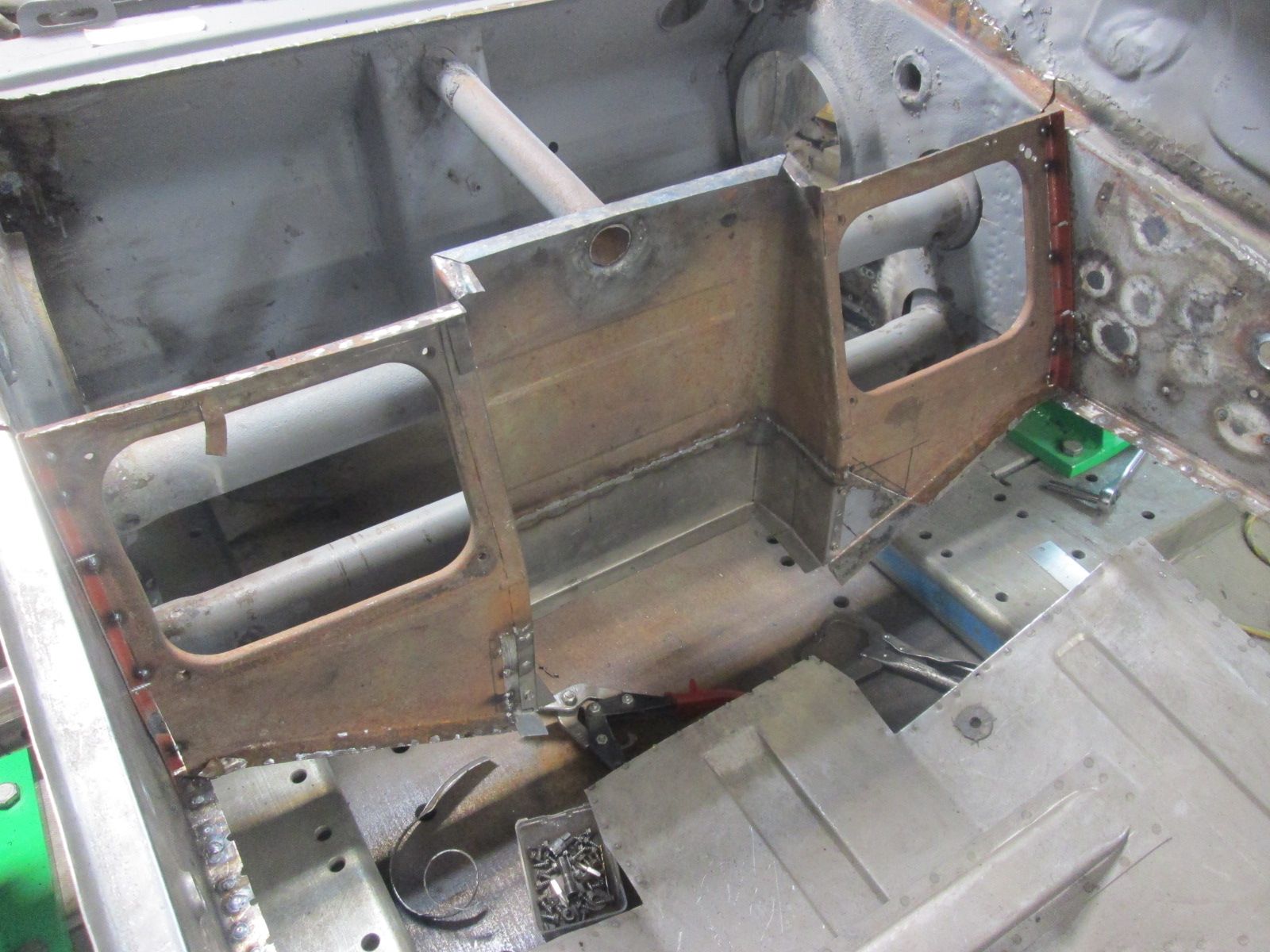

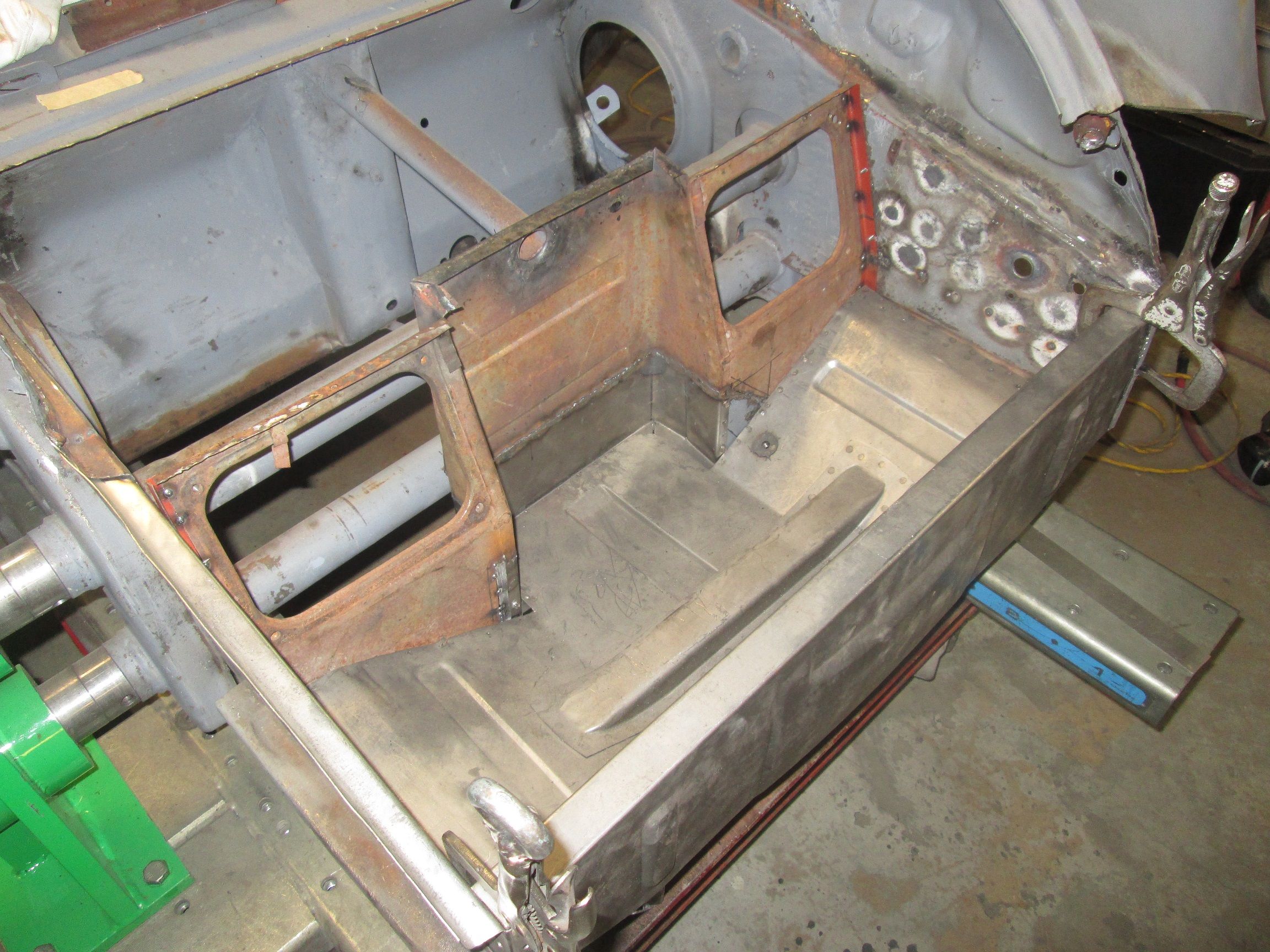

    Tops side gusset installation complete.

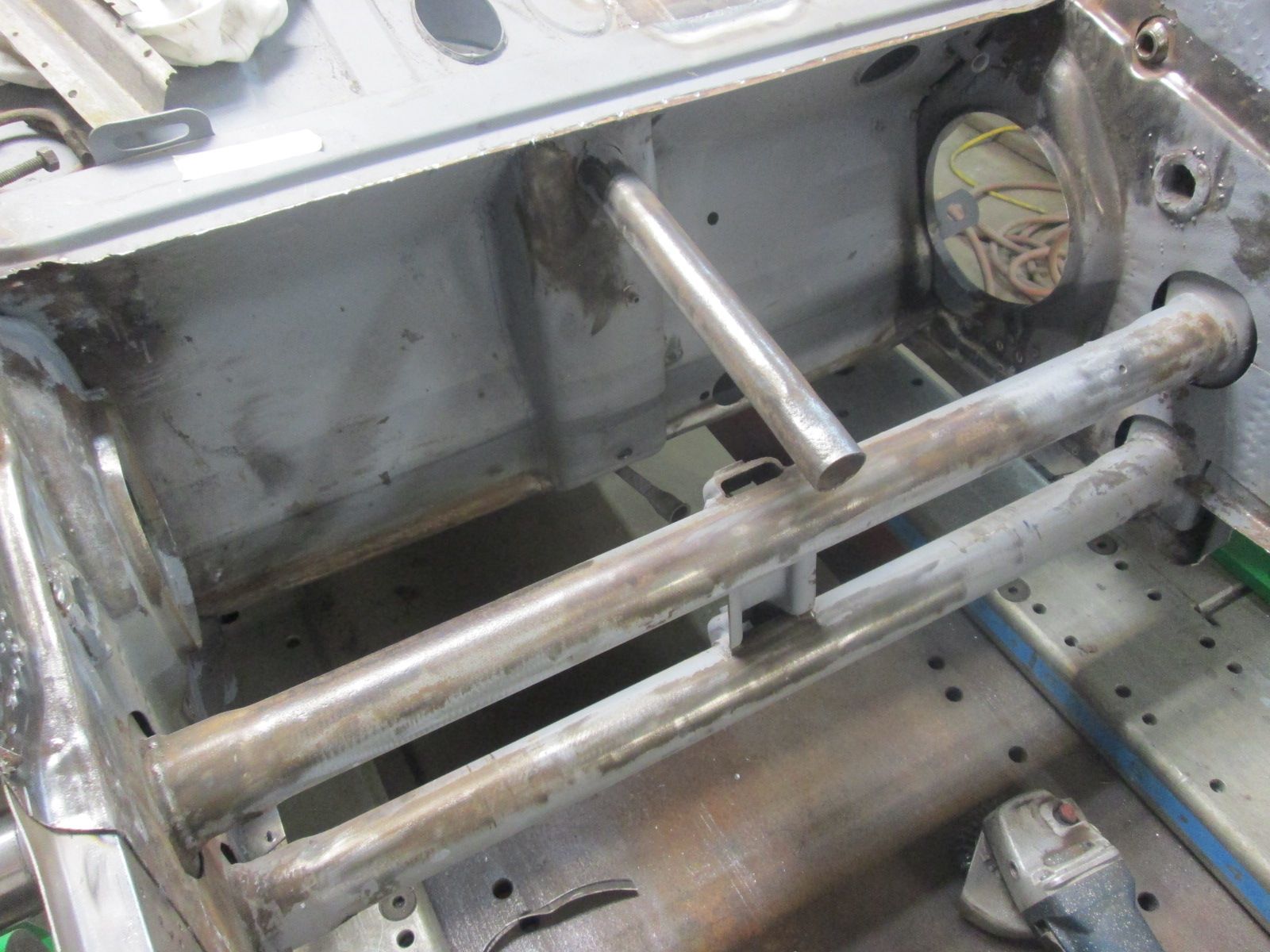

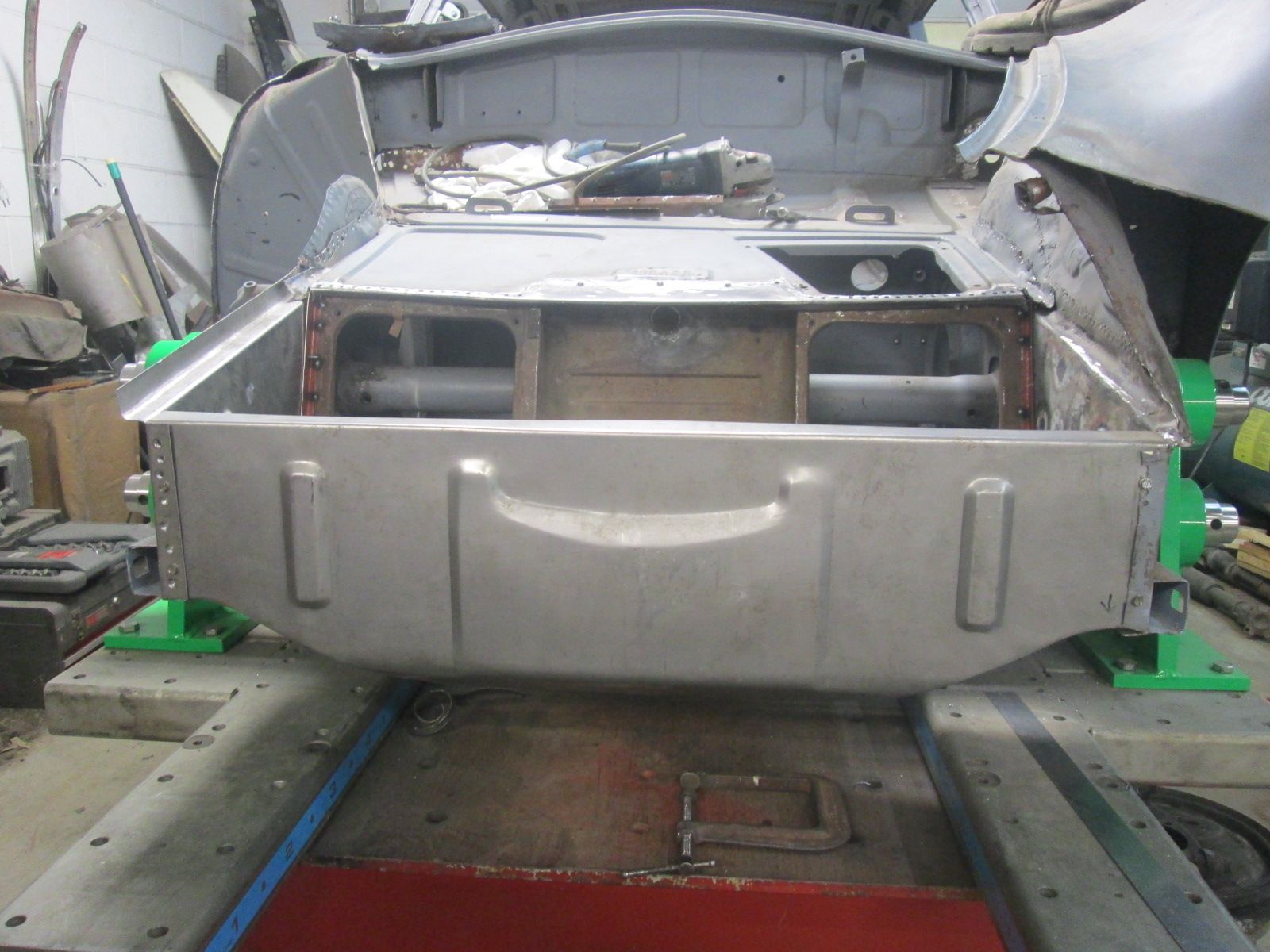

    Click image for larger version  Name:	IMG_9987.jpg Views:	0 Size:	225.6 KB ID:	113785 All welding duties behind the front beam have gone as far as I can for now. Again, I can't get at the bottom of the flanges or fit and install the diagonal brace with the bench in my way. Even if I could I would not be interested in welding and fitting that new peice on my back; it has to go back on the rotisserie.

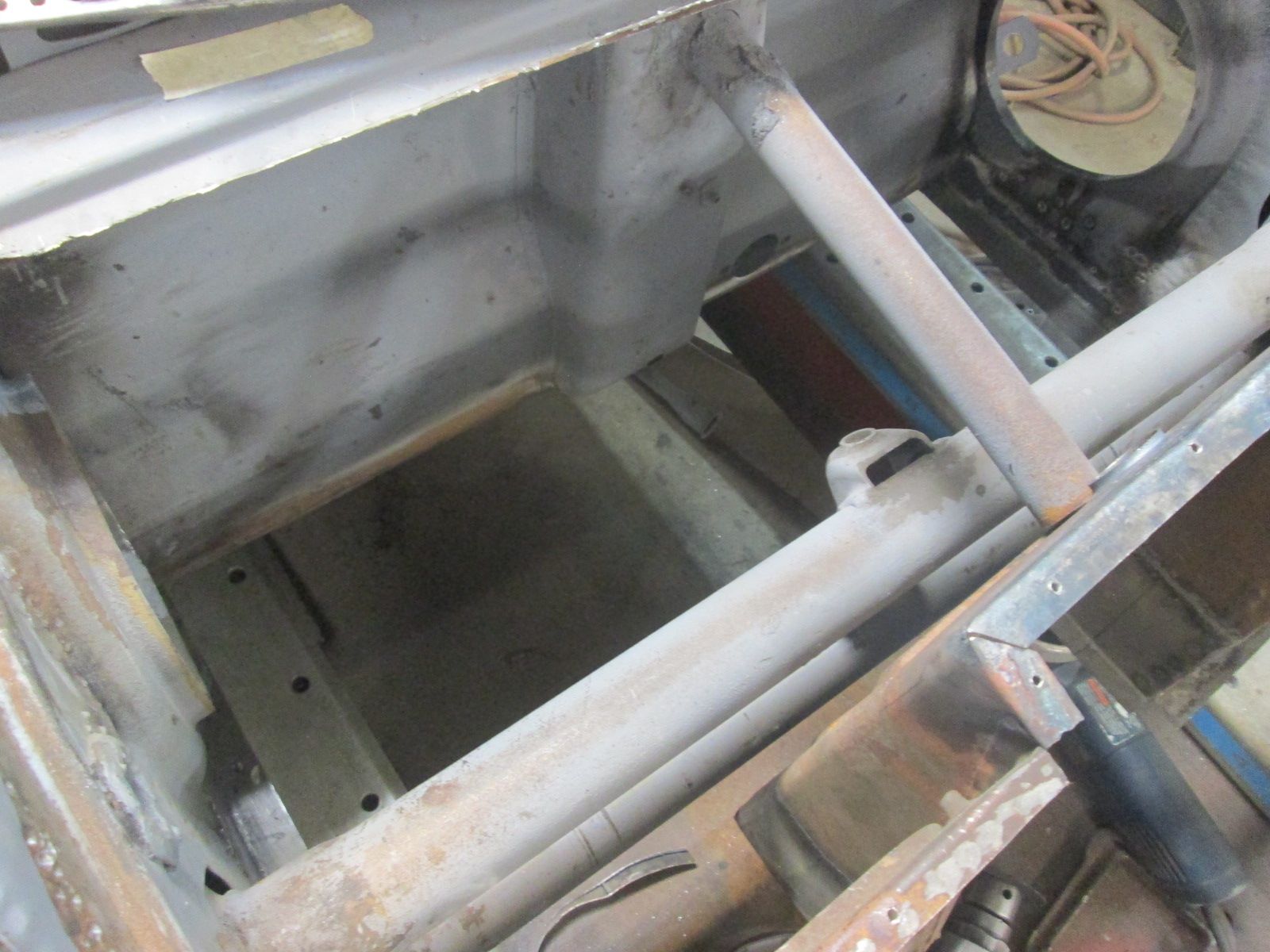

    Click image for larger version  Name:	IMG_9989.jpg Views:	5 Size:	203.9 KB ID:	113786 Onto the repairs ahead of the beam. Going straighten and save this side of the battery box wall. While it will be a lot of work, removing it and prepping this area to accept a new wall would be just as much if not more work. All those spot welds along its perimeter and the frame panel overlap makes my head swim.
    Click image for larger version  Name:	IMG_9990.jpg Views:	5 Size:	206.6 KB ID:	113787 Before I begin hammering it back out all tabs, flange remains and bumper bracket mount will have to be removed first. In process of this now.

    Thanks for looking!

    Justin
    Last edited by JTR70; 03-16-2023, 09:09 PM.

    Leave a comment:


  • JTR70
    replied

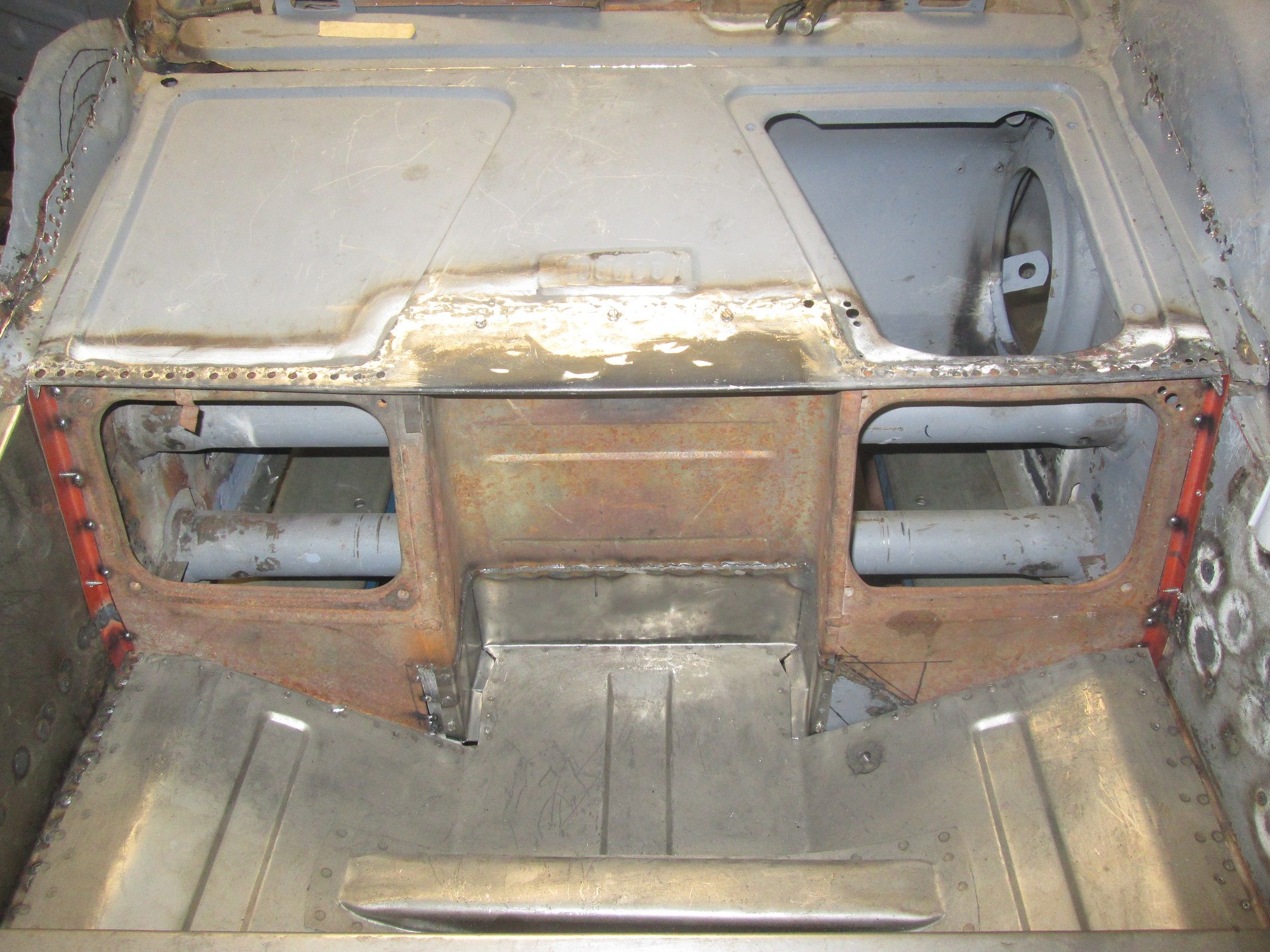

    Left gusset repair and installation.
    Click image for larger version  Name:	IMG_9981.jpg Views:	0 Size:	233.1 KB ID:	113779 New bottom into basic shape.

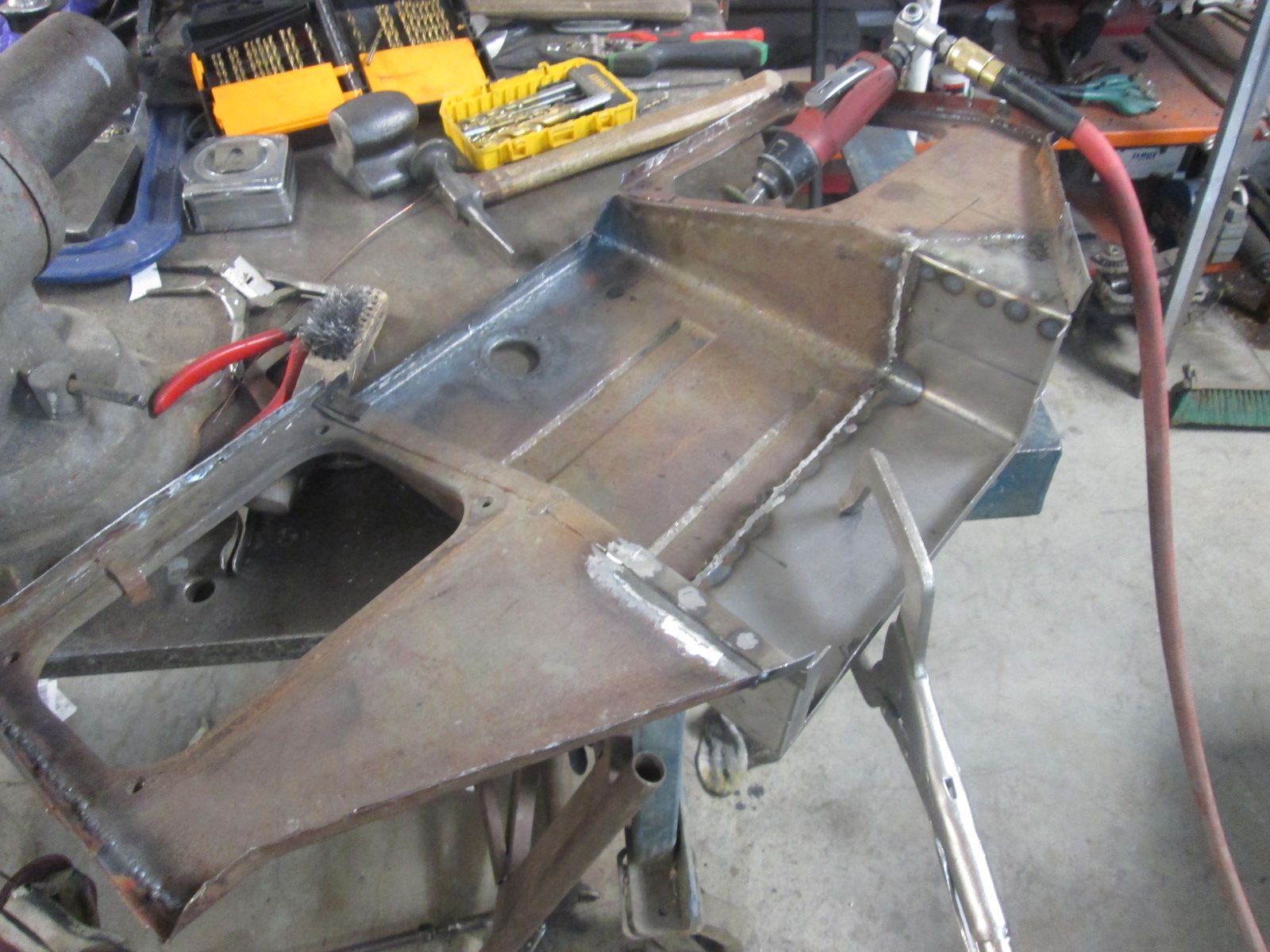

    Click image for larger version  Name:	IMG_9982.jpg Views:	0 Size:	217.1 KB ID:	113780 New section tacked in and remounted for another of many test fits. My last piece of perimeter repair section was about an inch short so I'd have to add that tail on as it went.
    Click image for larger version  Name:	IMG_9983.jpg Views:	0 Size:	207.9 KB ID:	113781 Gusset repairs complete and ready to install for good but a quick coat of epoxy to the inner surface first.

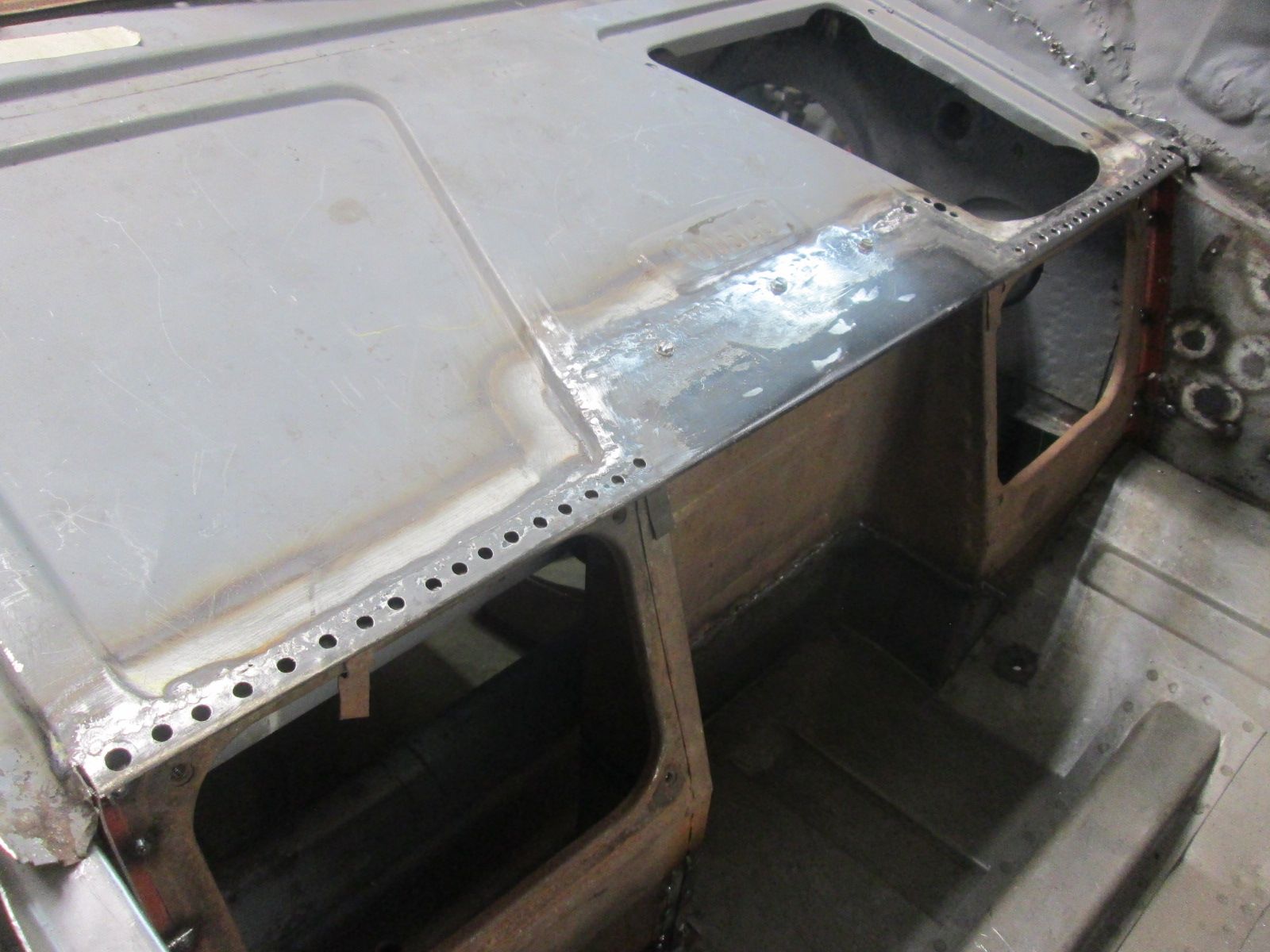

    Click image for larger version  Name:	IMG_9985.jpg Views:	0 Size:	225.1 KB ID:	113782 Top side welding complete.
    Click image for larger version  Name:	IMG_9986.jpg Views:	0 Size:	264.6 KB ID:	113783 Brake line bracket soaked in acid to clean the contact surface of rust and now ready to plug weld back into its original position.
    Last edited by JTR70; 03-16-2023, 09:06 PM.

    Leave a comment:


  • JTR70
    replied
    Lower gusset repairs continued:

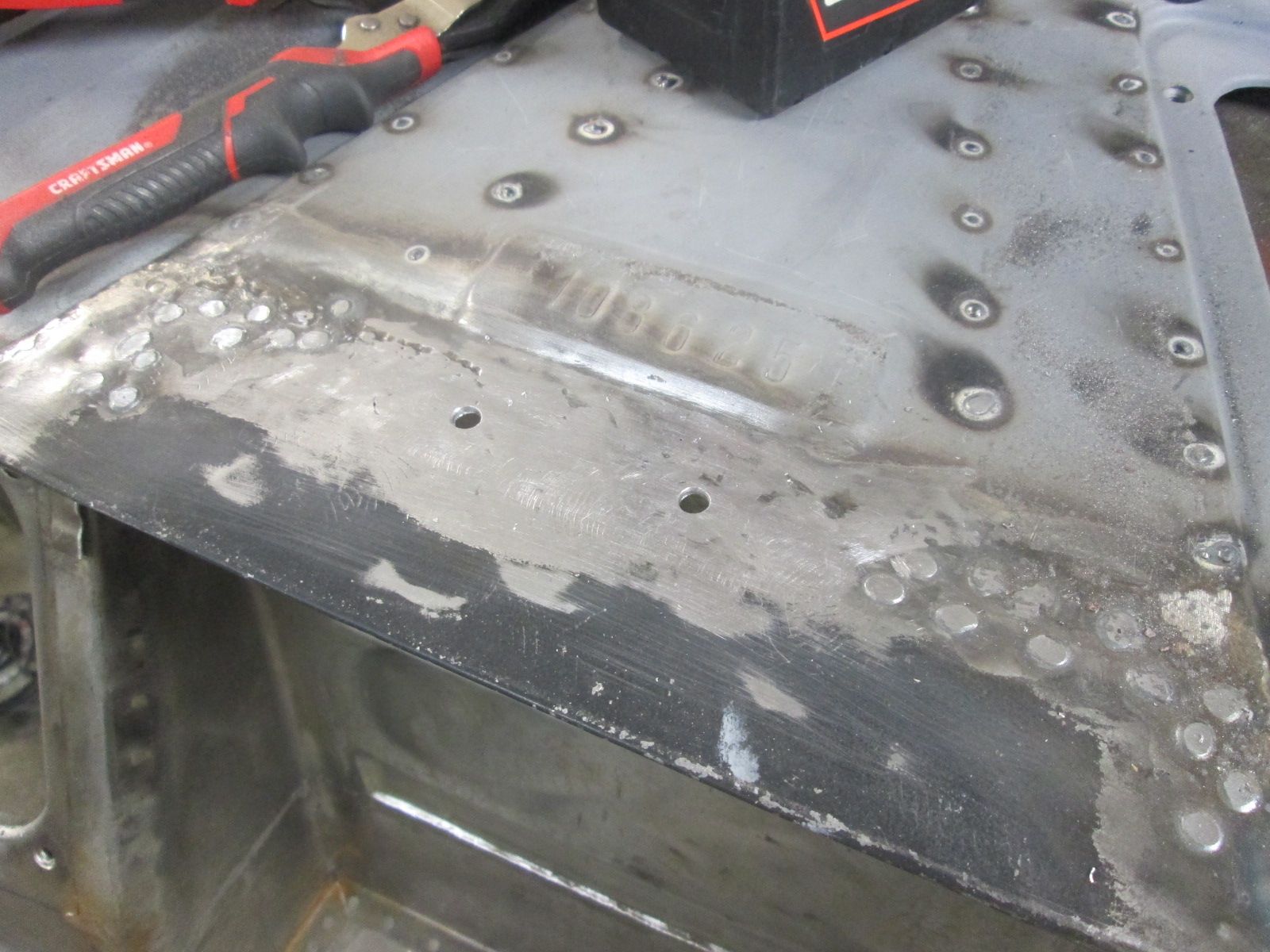

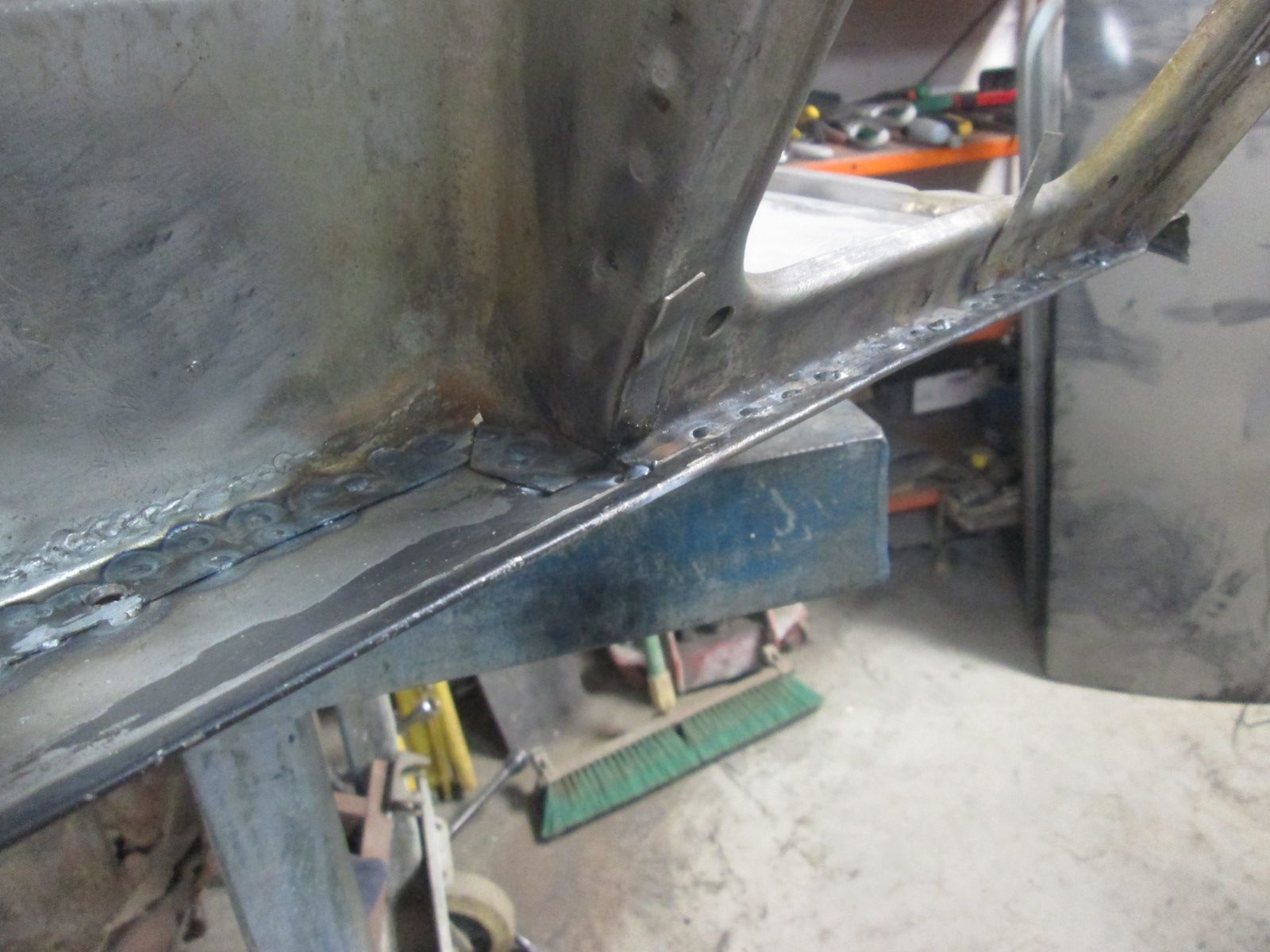

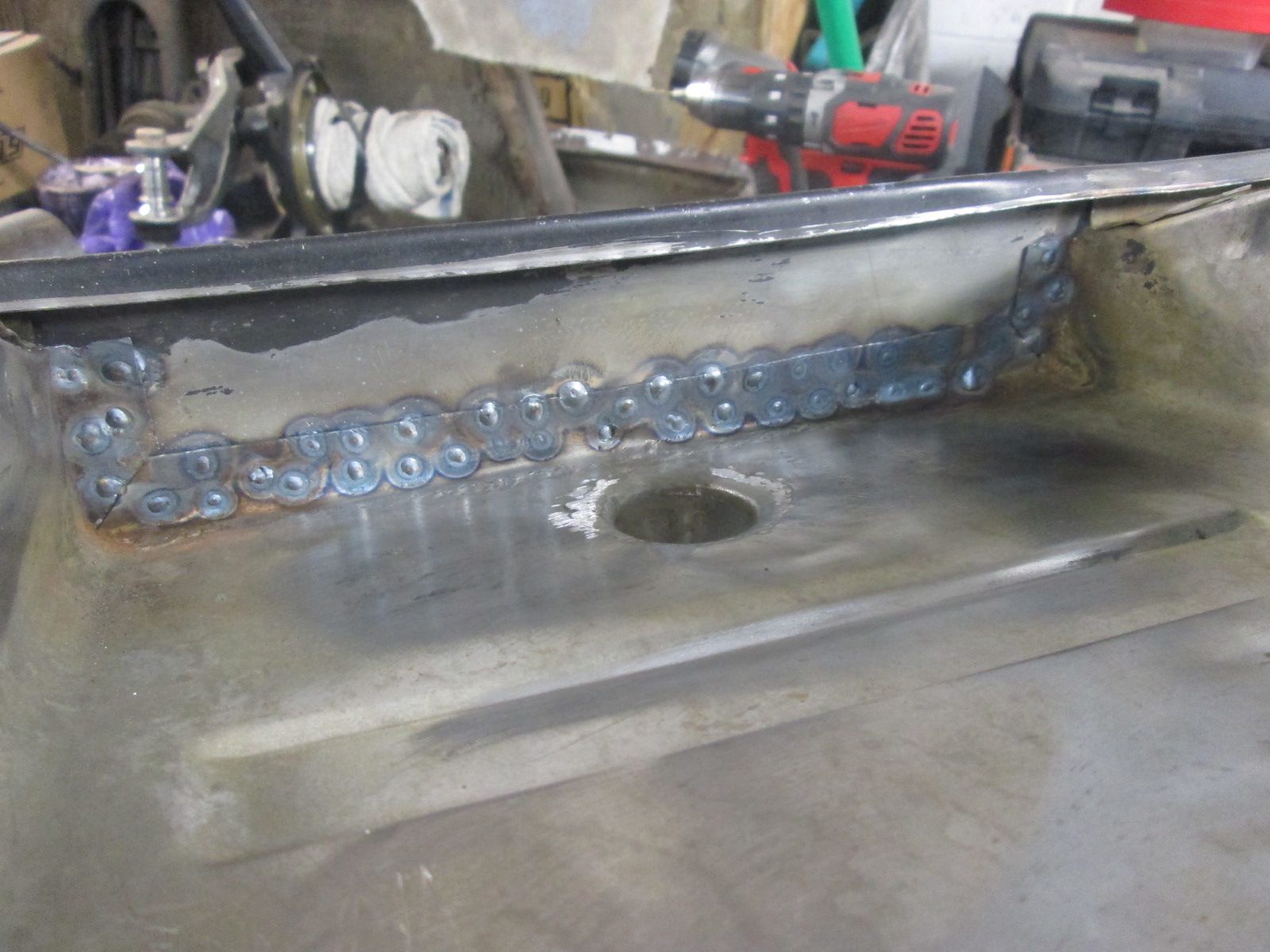

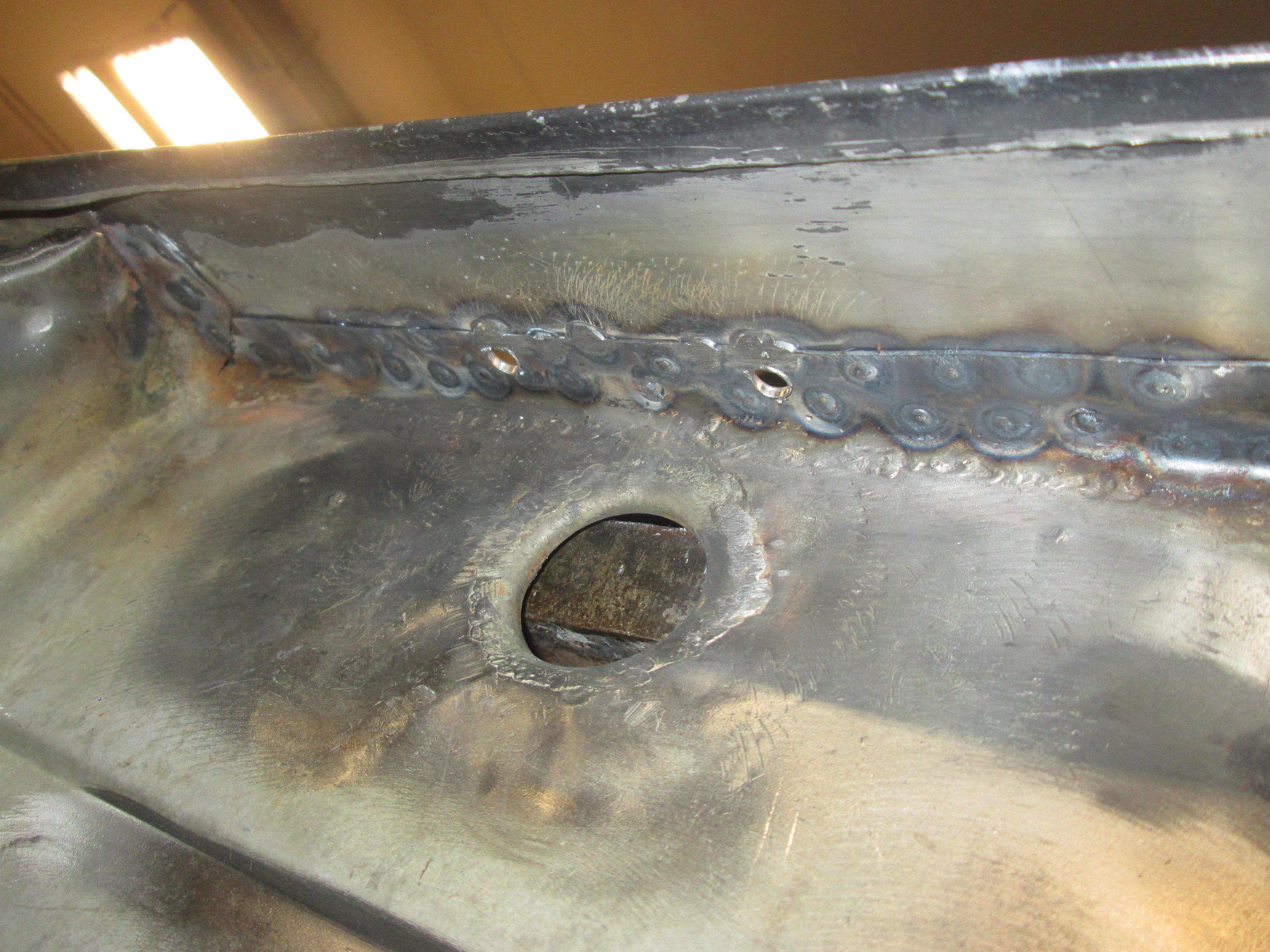

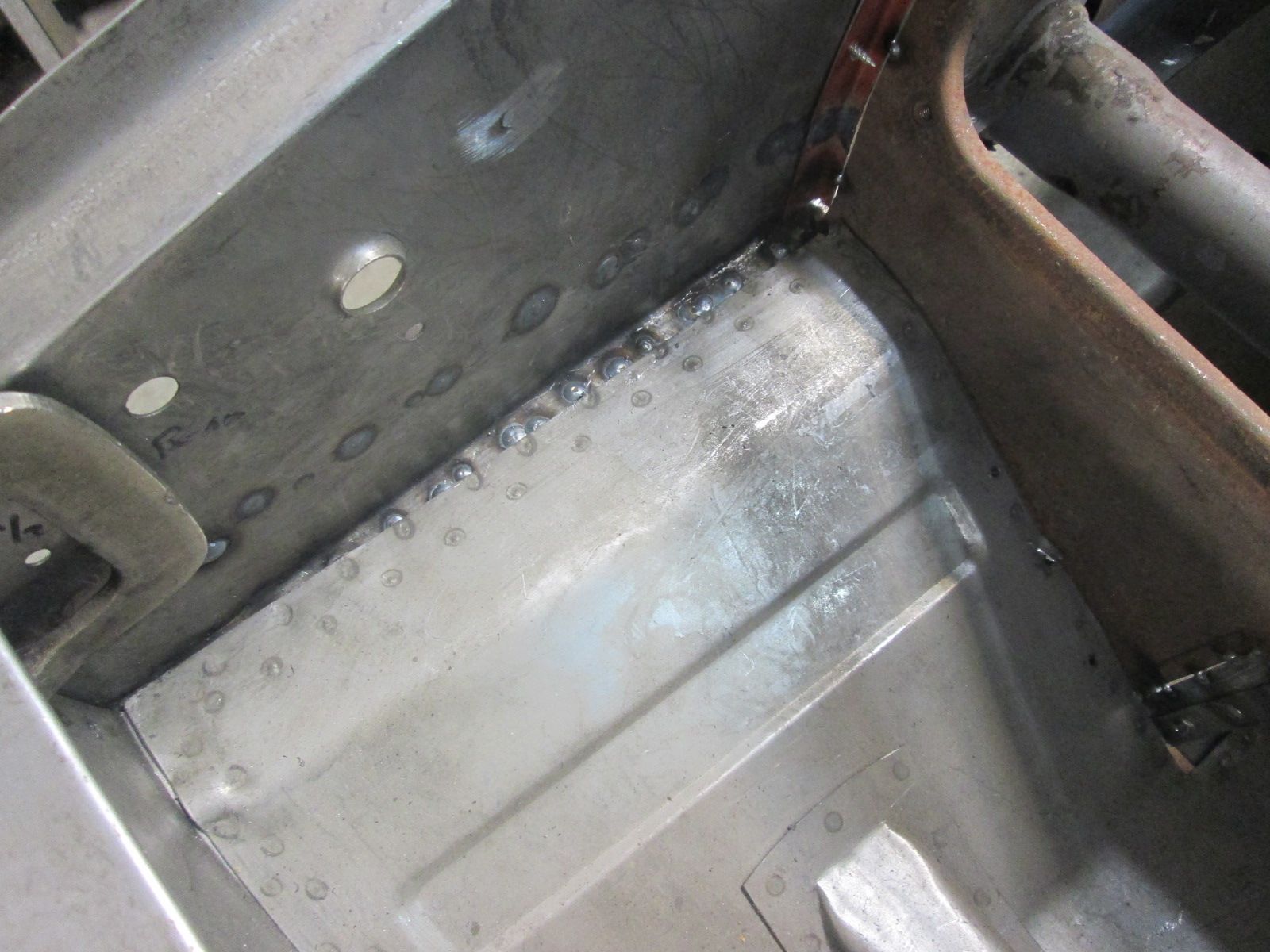

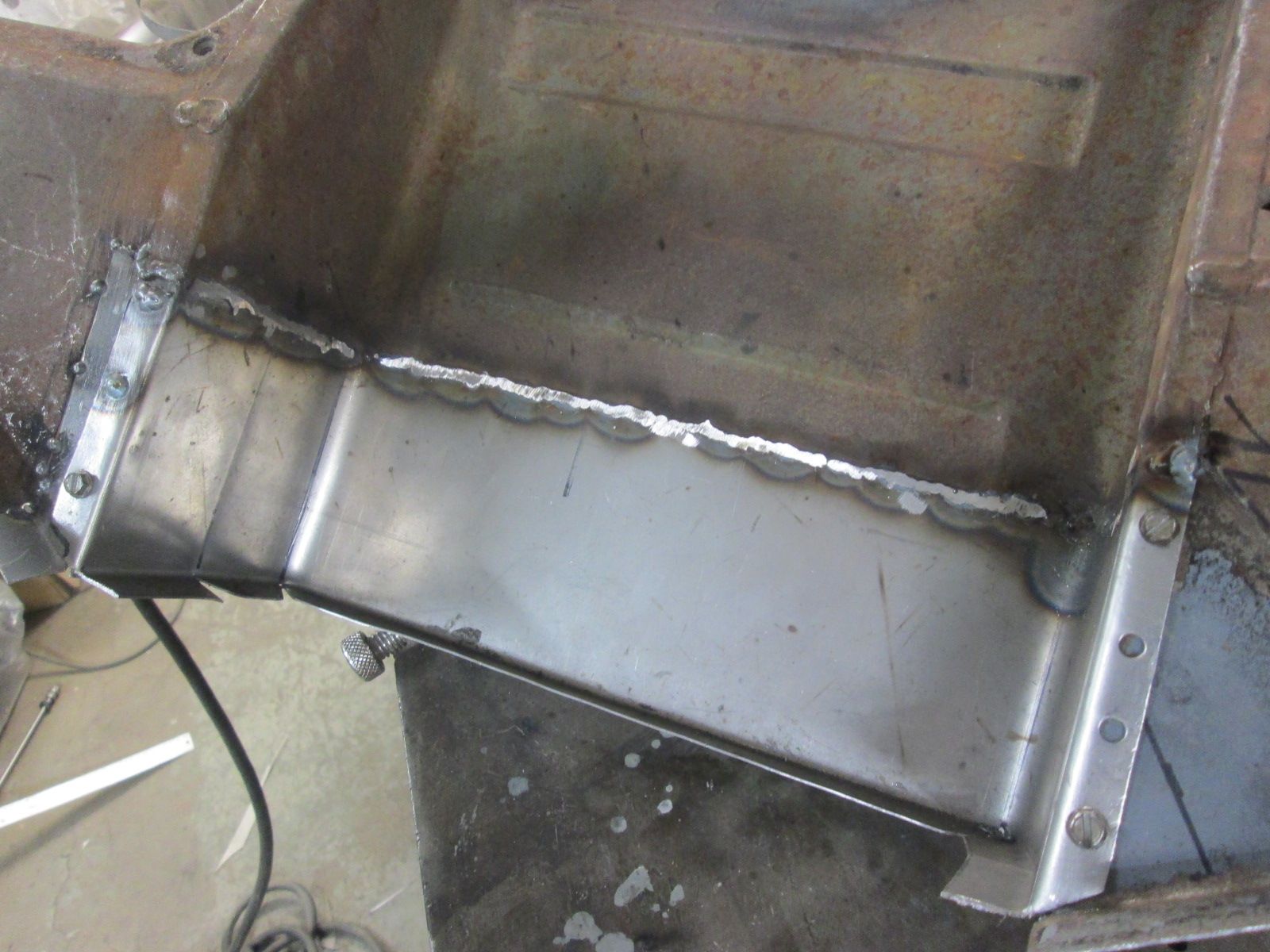

    Click image for larger version  Name:	IMG_9975.jpg Views:	0 Size:	239.2 KB ID:	113773 Plug welds along the top completed and dressed. Seam welded along the suspension flange as originally done.

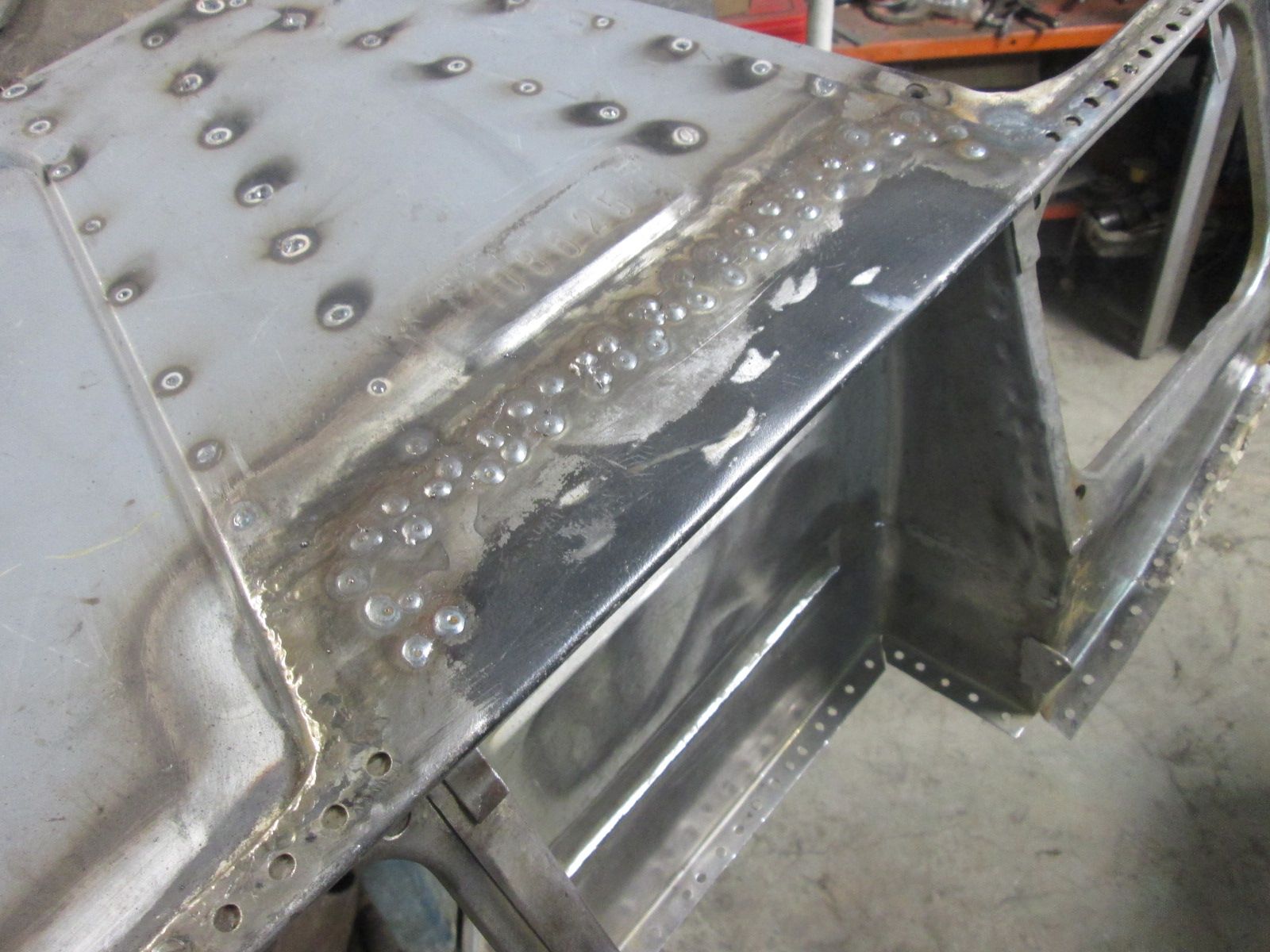

    Click image for larger version  Name:	IMG_9976.jpg Views:	0 Size:	221.7 KB ID:	113774 Followed up with my panel spotter to replicate spot detail as close as I can. Seam weld along the gusset still needs some grounding to even it out further. Gone as far as I can on this side for now. Can't get to the bottom of it or install the diagonal brace while mounted on this bench. It will have to go back onto the rotisserie to get at that.
    Click image for larger version

Name:	IMG_9978.jpg
Views:	438
Size:	212.5 KB
ID:	113775 Repeat left side.
    Click image for larger version

Name:	IMG_9979.jpg
Views:	457
Size:	210.5 KB
ID:	113776 Reinforcement plate ready to install.
    Click image for larger version

Name:	IMG_9980.jpg
Views:	436
Size:	215.4 KB
ID:	113777 Plate installed and now onto the gusset repair.
    Last edited by JTR70; 03-16-2023, 08:34 PM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Thank you Roy! It was a bit taxing to rehash it all and put it down into text; especially the trial and error phase but I wanted to show exactly what has gone into this car at all stages. You definitely have to be thankful that your car has never been hit hard in the front or severally rusty. Thanks again. Justin

  • roy mawbey
    replied
    Justin what asn exercise in patience! That repair is so good I recon when finally painted it will look as original. Really well done on that and the photos and the repair text. I bet you went through a lot of head scratching trying to resolve all that and a long time to put down in writing to make sense for us to read.

    A great result . I am so lucky to have those area's still original on mine !!
    Roy

    Leave a comment:


  • JTR70
    replied

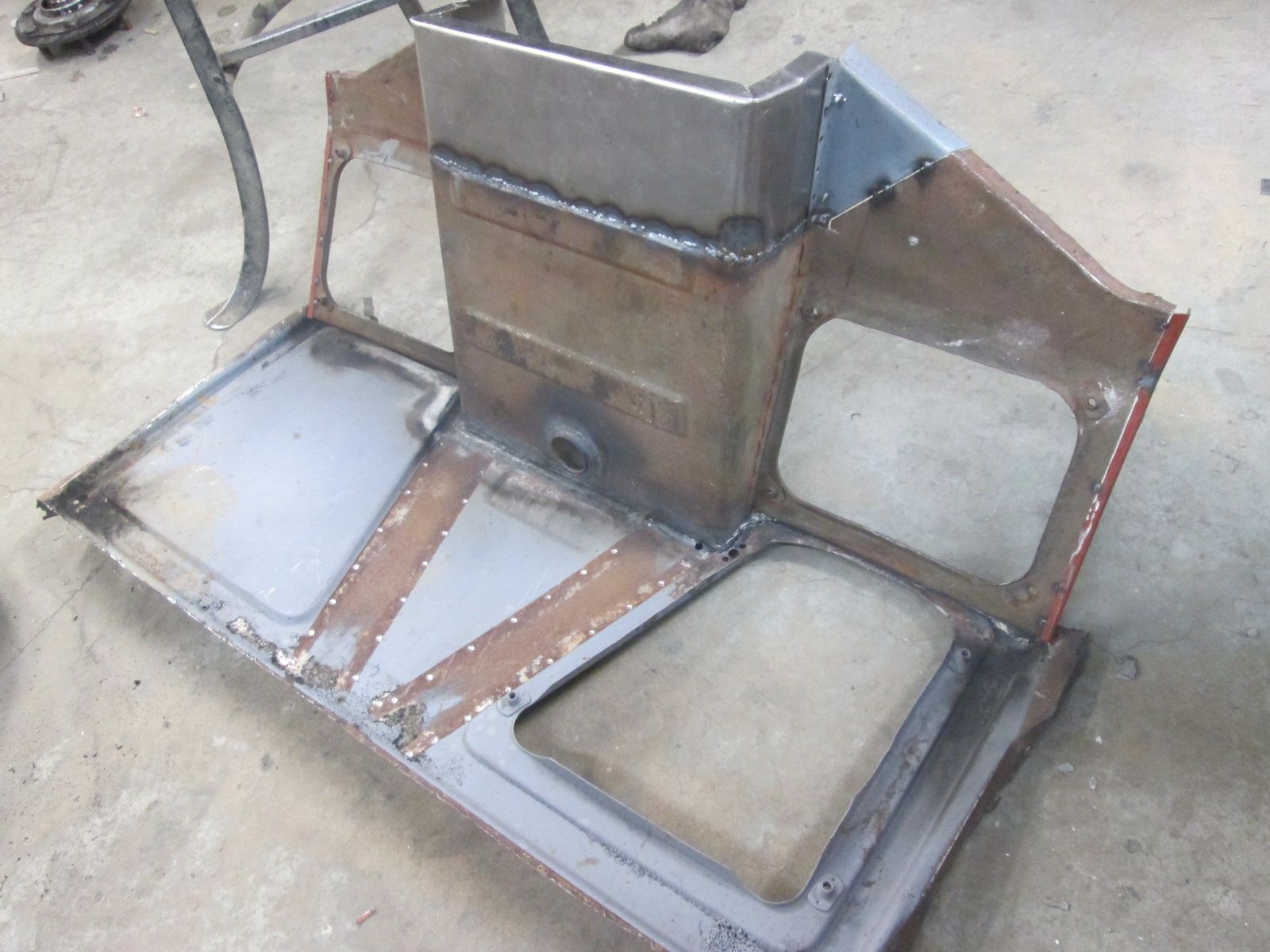

    Gusset install:

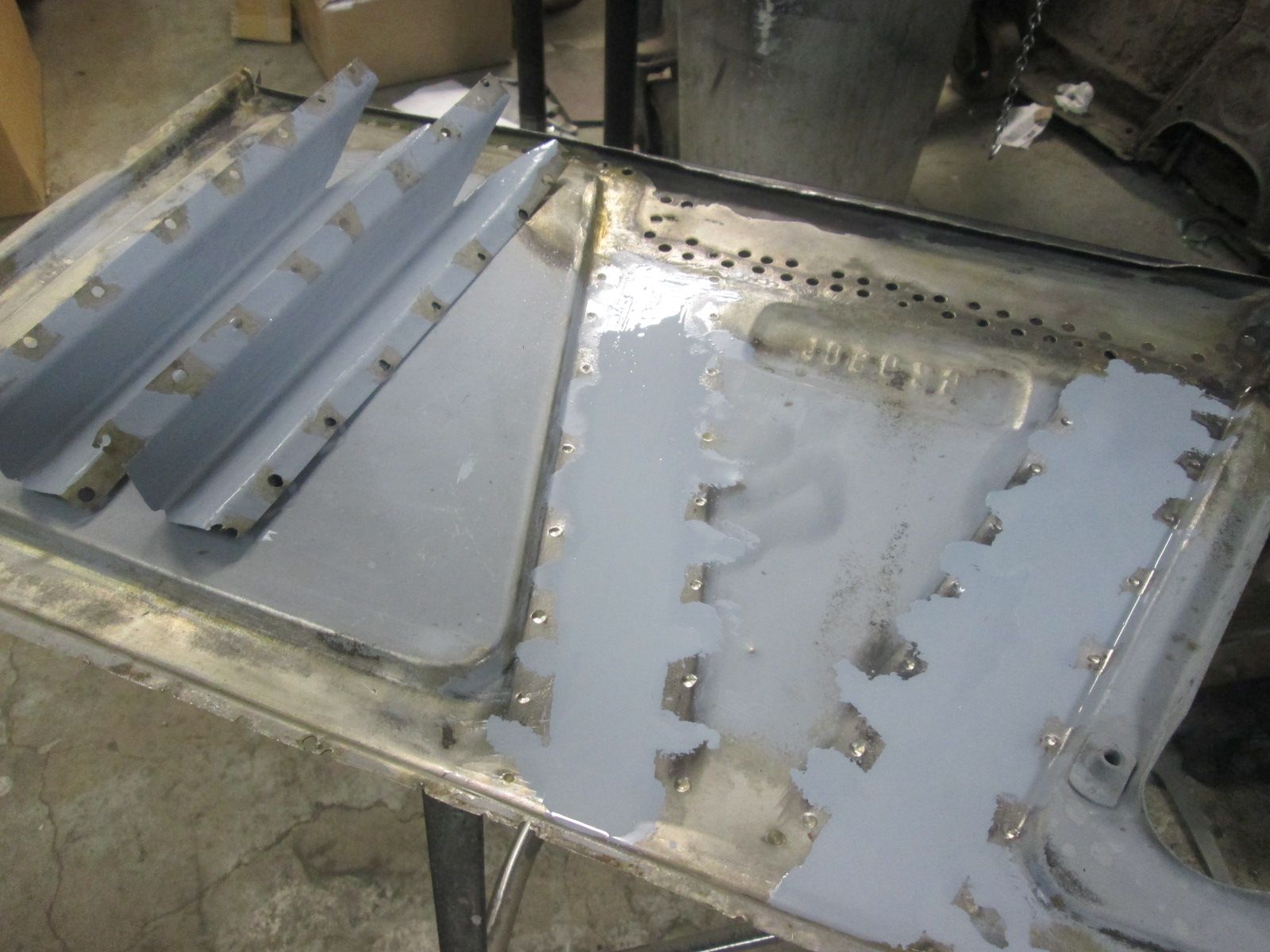

    Click image for larger version  Name:	IMG_9963.jpg Views:	0 Size:	216.5 KB ID:	113765 Dismount one more time for final surface prep.
    Click image for larger version  Name:	IMG_9964.jpg Views:	0 Size:	229.2 KB ID:	113766 Inner surfaces slathered in epoxy. Most of it should survive after welding.
    Click image for larger version  Name:	IMG_9966.jpg Views:	0 Size:	238.8 KB ID:	113767 Mounted on for good and ready to begin the plug welds.

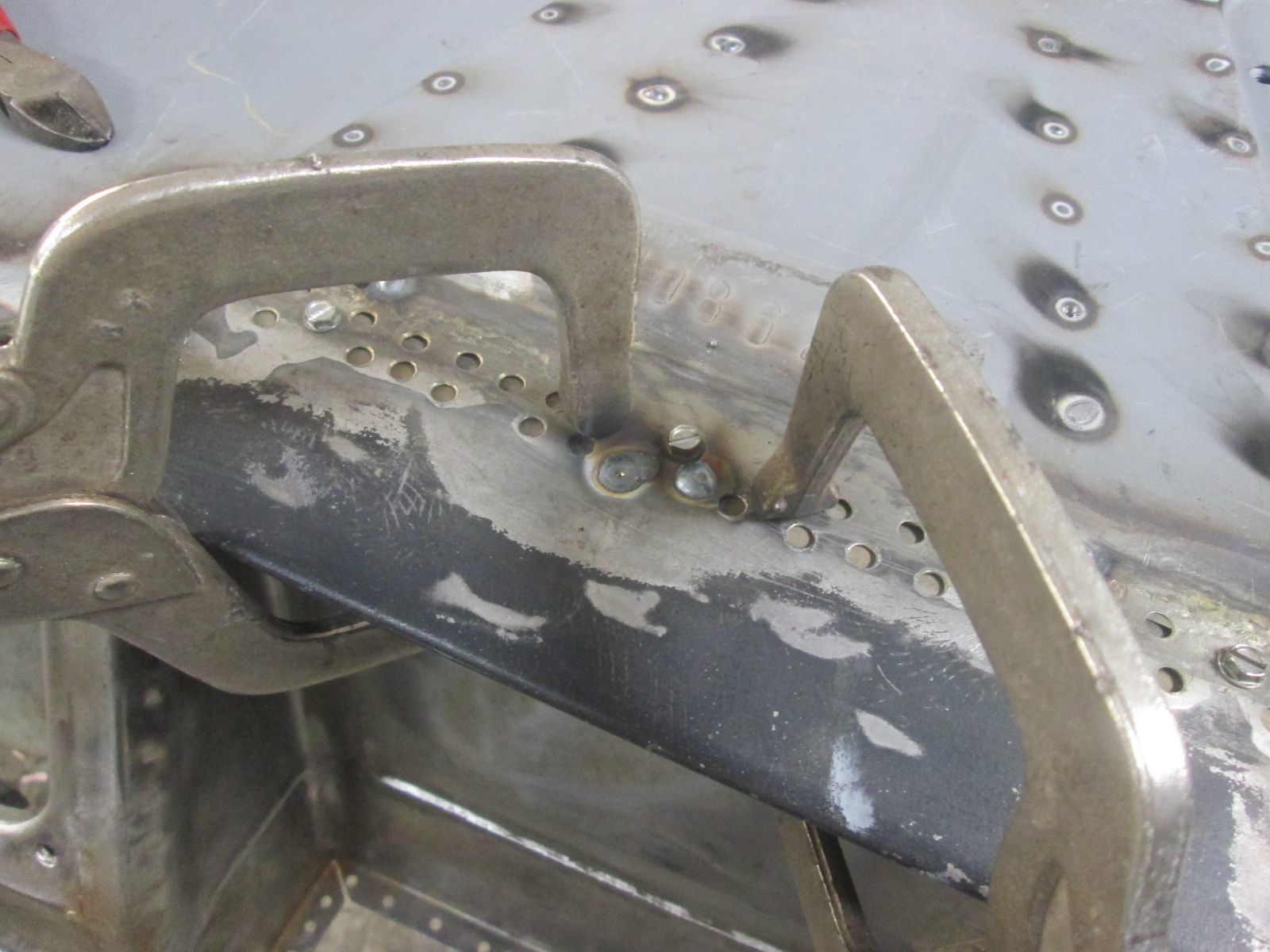

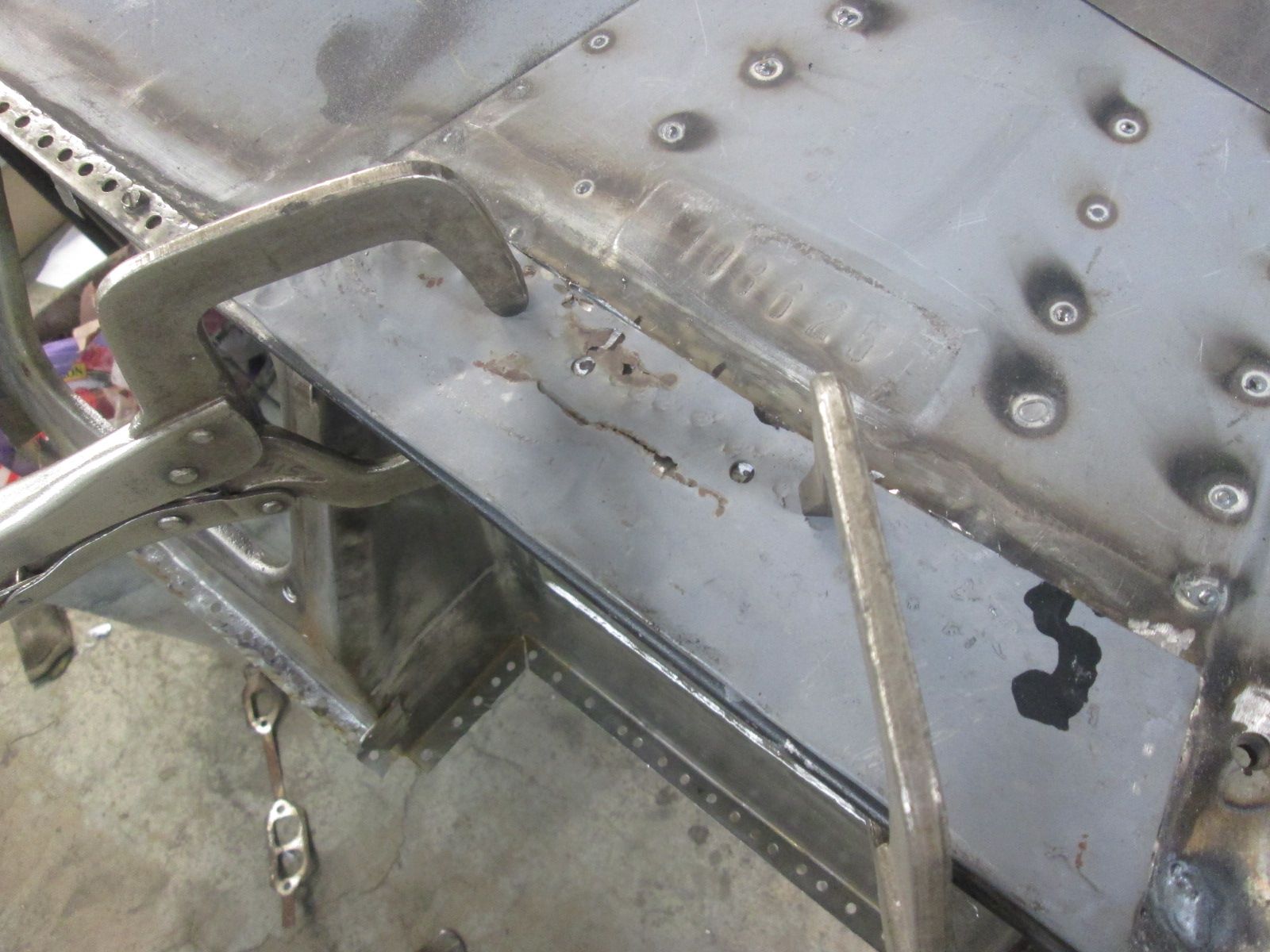

    Click image for larger version  Name:	IMG_9965.jpg Views:	0 Size:	210.7 KB ID:	113768 I have very limited access to the bottom with the car mounted to the bench. These plugs will have to wait until its mounted back on the rotisserie . I also can't install the new cross brace either.
    Click image for larger version  Name:	IMG_9970.jpg Views:	0 Size:	248.3 KB ID:	113769 Begin plugs working from the center outward.

    Thanks for looking!

    Justin
    Last edited by JTR70; 03-12-2023, 09:02 PM.

    Leave a comment:


  • JTR70
    replied

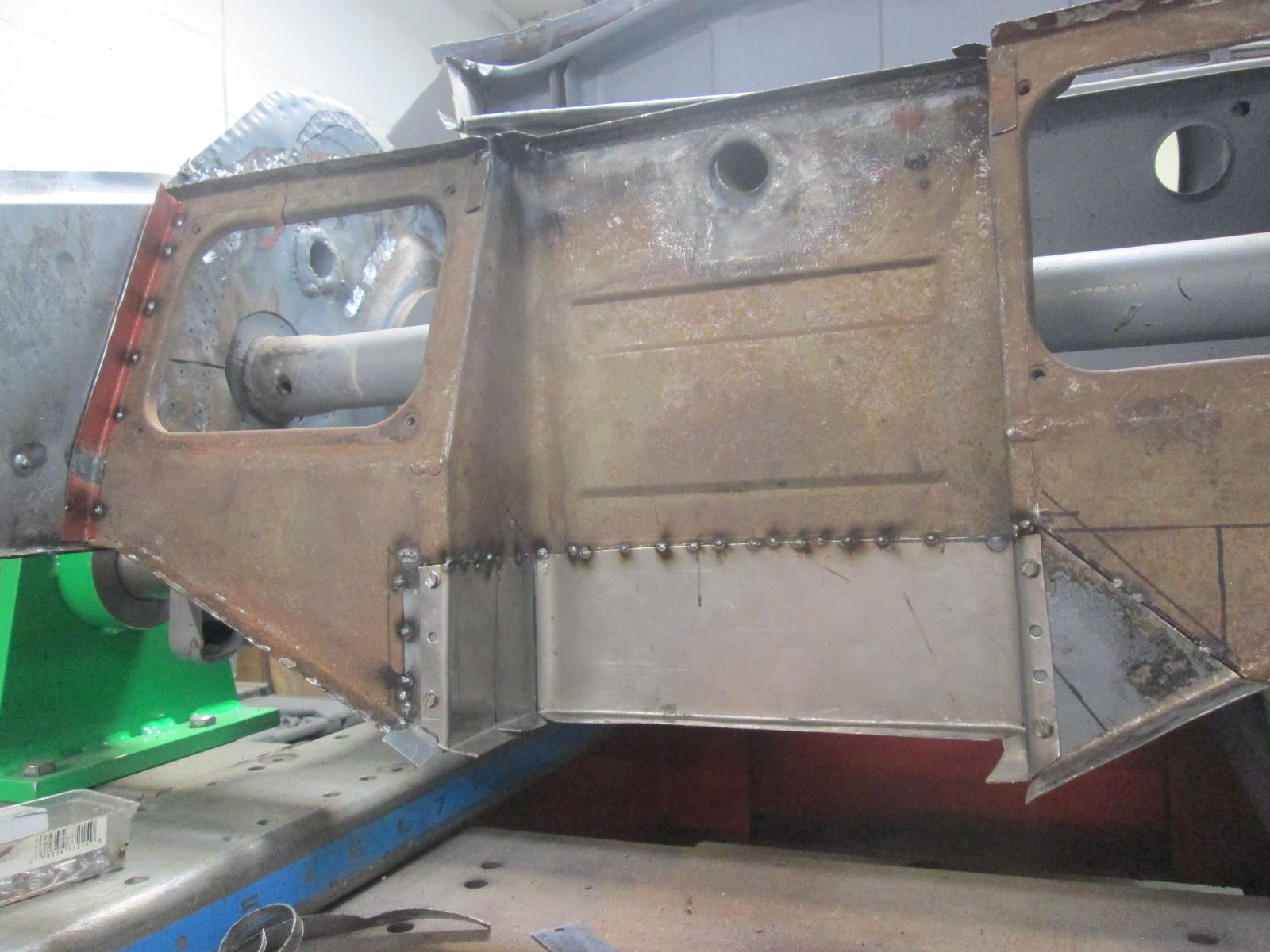

    Gusset repair:
    Click image for larger version  Name:	IMG_9955.jpg Views:	0 Size:	213.3 KB ID:	113759 Swoopy shaped section traced, cut out and ready to stitch it back together here.
    Click image for larger version

Name:	IMG_9956.jpg
Views:	114
Size:	241.1 KB
ID:	113760 One more flange adjustment to go back here but the opposite as it needs to be stretched to make the turn.
    Click image for larger version

Name:	IMG_9959.jpg
Views:	118
Size:	204.6 KB
ID:	113761 Begin paper templates to establish the final trim line on the new gusset floor. I was missing the luxury of rotisserie during this process.
    Click image for larger version

Name:	IMG_9960.jpg
Views:	123
Size:	214.5 KB
ID:	113762 Excess trimmed to final shape with the frame flange allowing the first full test fit of this new section.
    Click image for larger version

Name:	IMG_9961.jpg
Views:	112
Size:	224.2 KB
ID:	113763 Gusset and repair section all stitched together.
    Last edited by JTR70; 03-12-2023, 08:27 PM.

    Leave a comment:


  • JTR70
    replied

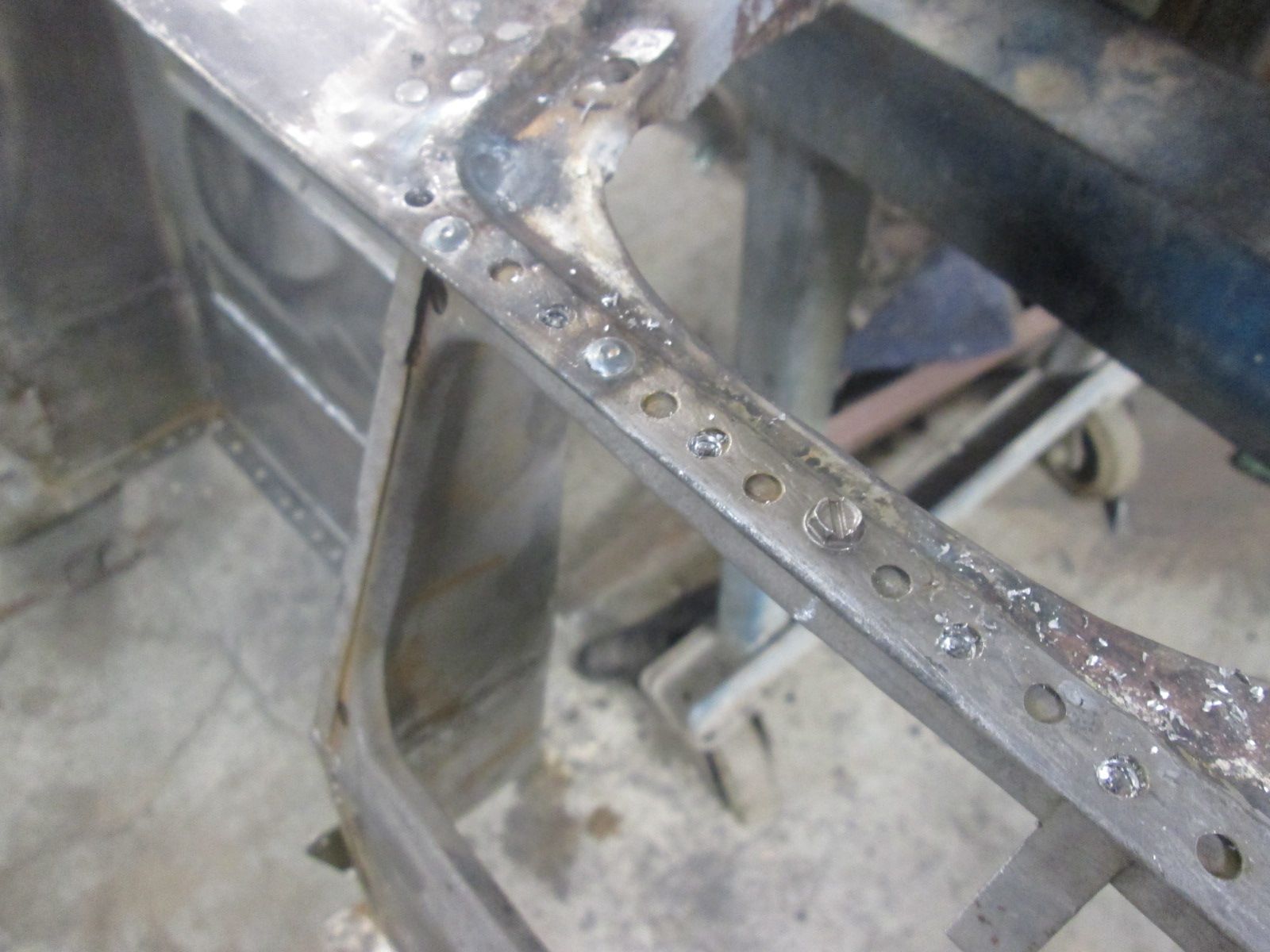

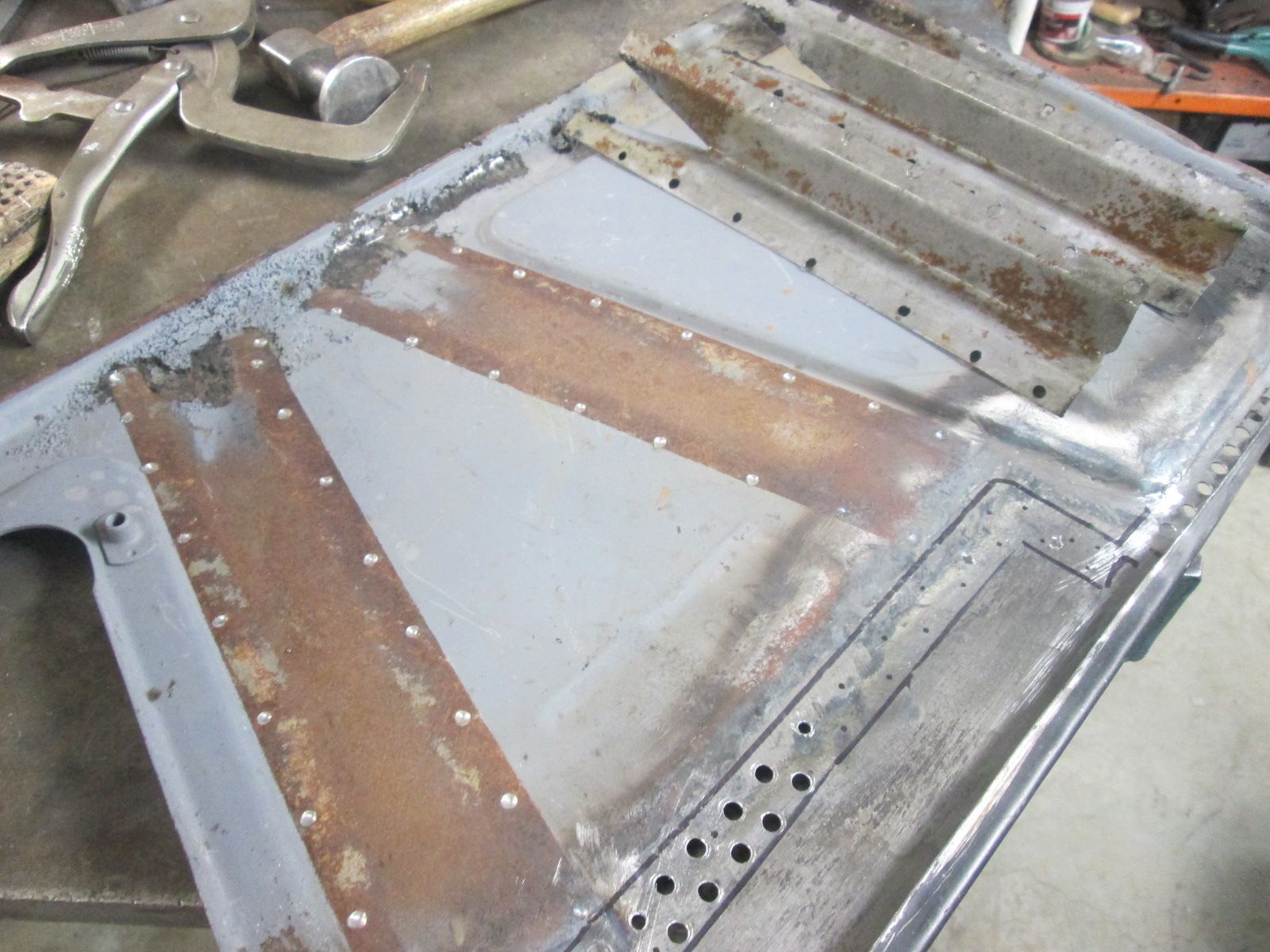

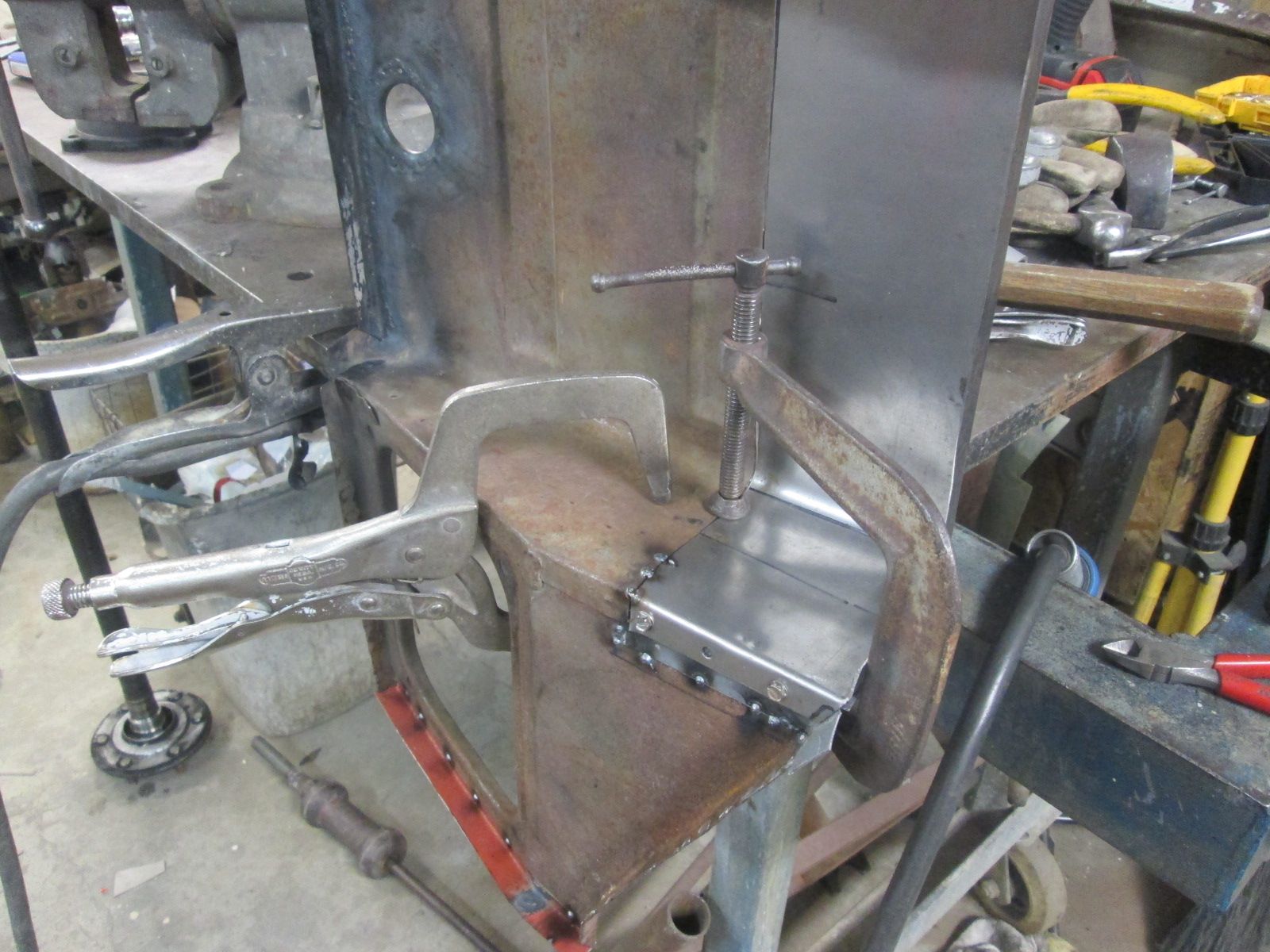

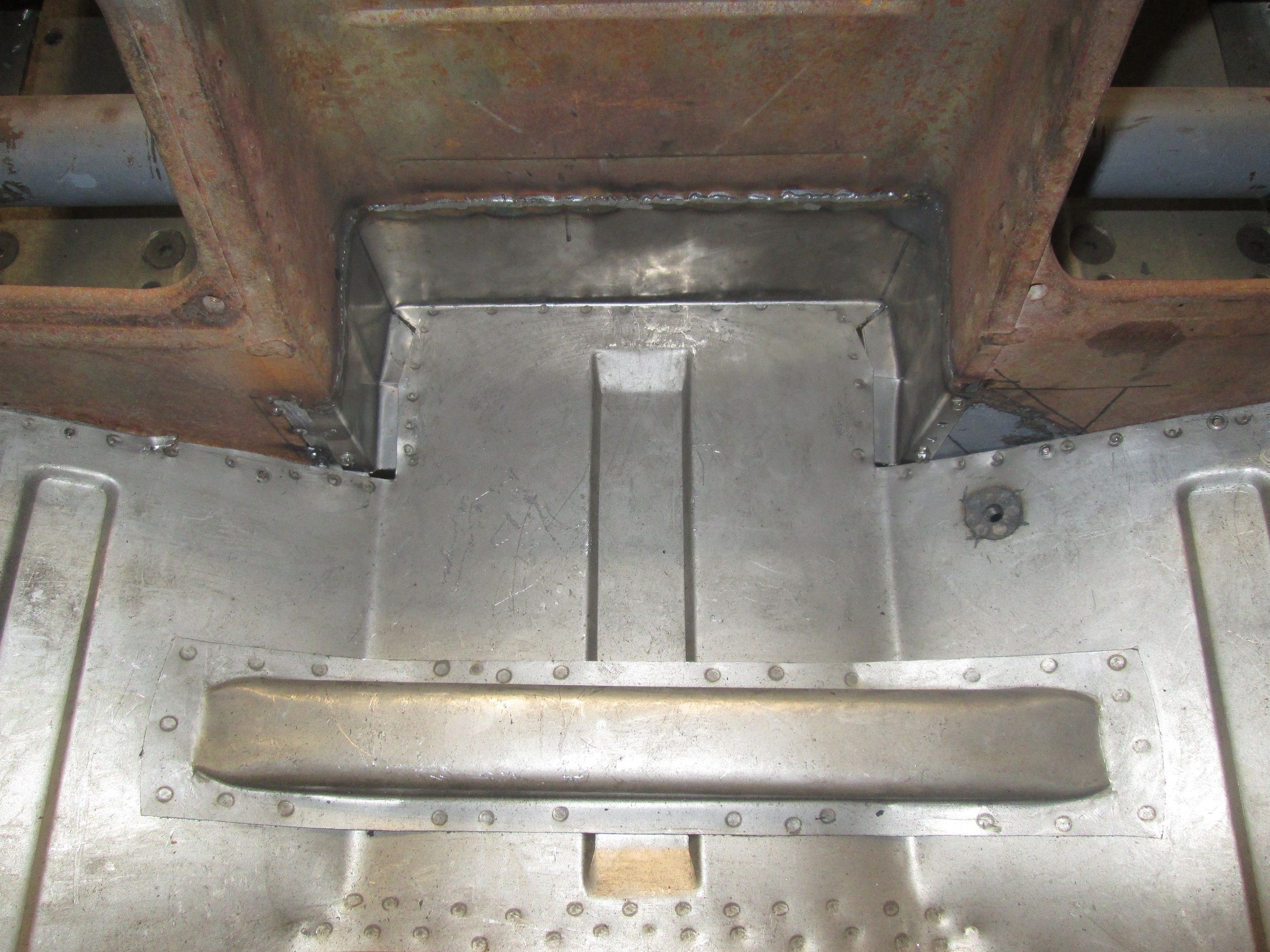

    Click image for larger version  Name:	IMG_9952.jpg Views:	0 Size:	212.9 KB ID:	113754 Not a fan of that lap joint especially up there in that tight corner and just in front of that strong diagonal step shape that the edge of the toe board lays against. It just invites collapse as it did in the last wreck but maybe that's by their design?? Anyway, my job is to make it look as factory correct in the end as I can but like below I'll add some muscle in where I can when its not detectable.

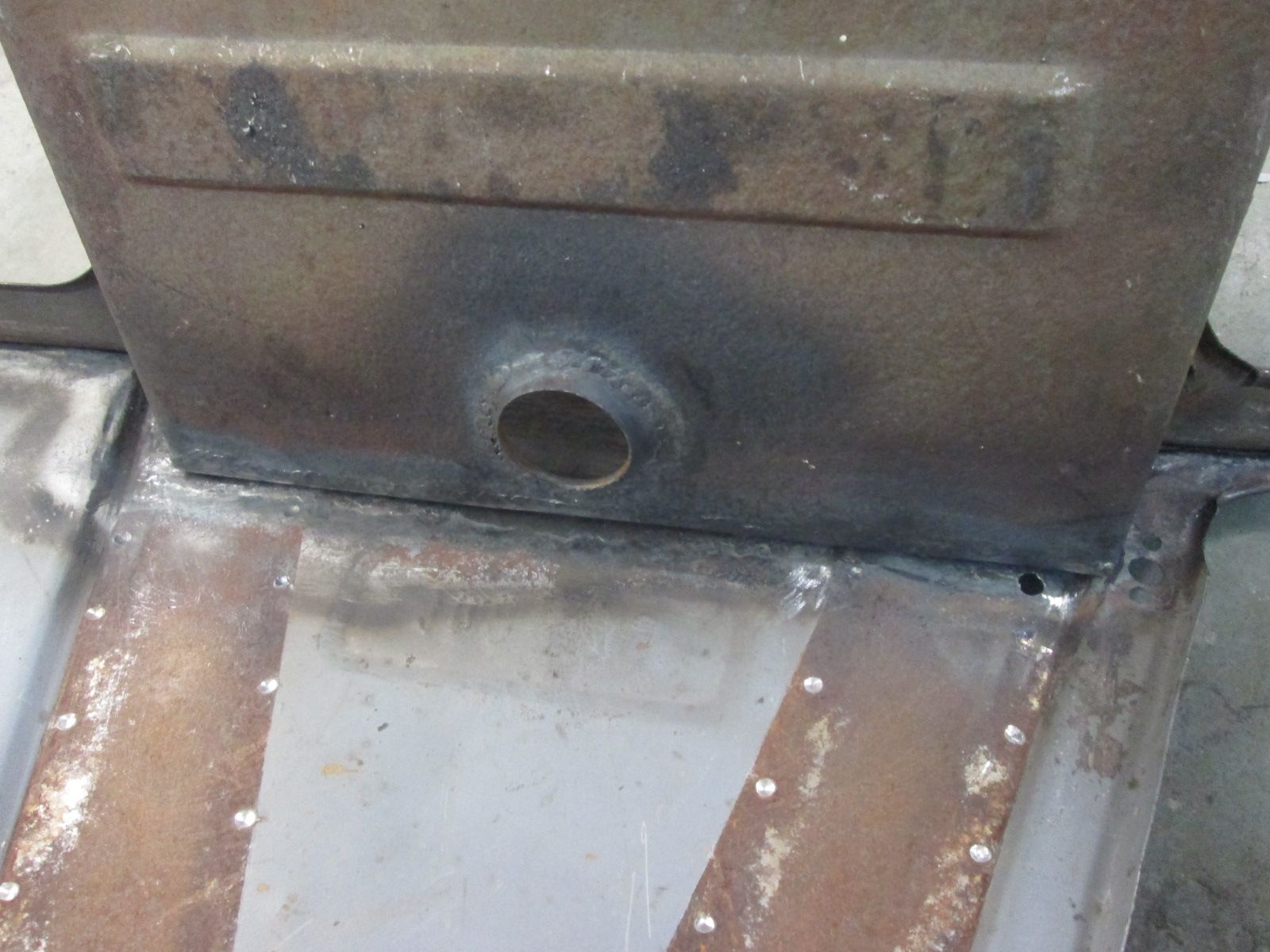

    Click image for larger version  Name:	IMG_9887.jpg Views:	2 Size:	205.7 KB ID:	113755 The original lap overlayed by only a few MM's. In the first photo you can see I increased the overlap by well over a quarter inch. This adds a little more strength and contact area over what was there before but will look 100% correct once the new upper wall flange gets mounted and wrapped over top of this area.

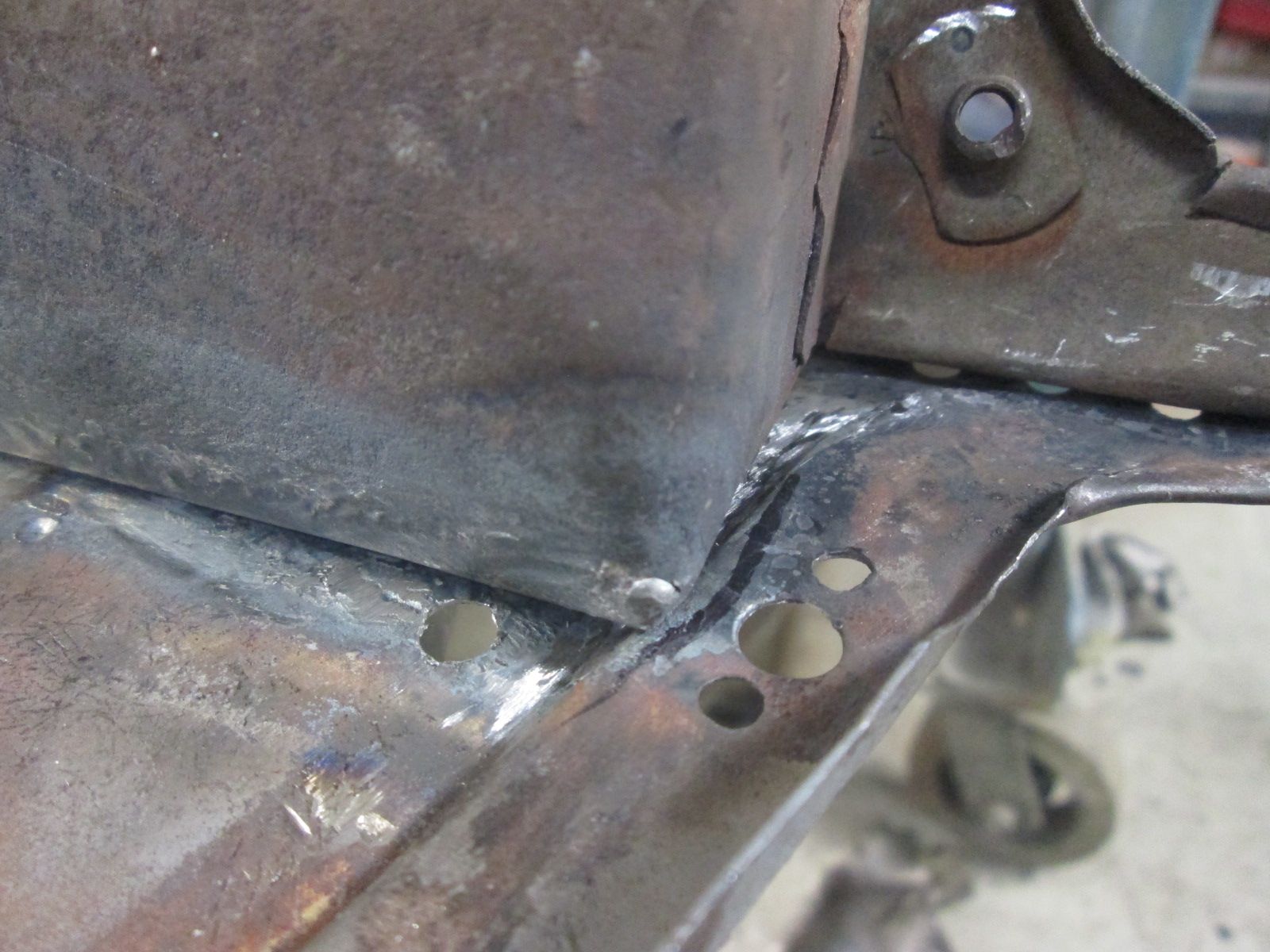

    Click image for larger version  Name:	IMG_9958.jpg Views:	0 Size:	219.3 KB ID:	113756 Reinstalling the brake line tab after a quick soak in acid to get the last bits of rust that was down in the contact surface. Set screwed back into its original footprint.
    Click image for larger version

Name:	IMG_9953.jpg
Views:	139
Size:	220.7 KB
ID:	113757 Building the new floor for the original gusset next.

    Thanks for looking!

    Justin
    Last edited by JTR70; 03-11-2023, 08:07 AM.

    Leave a comment:
