1959 356A S/R coupe project chassis # 108625

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Rear longitudinal corner repair just about complete.

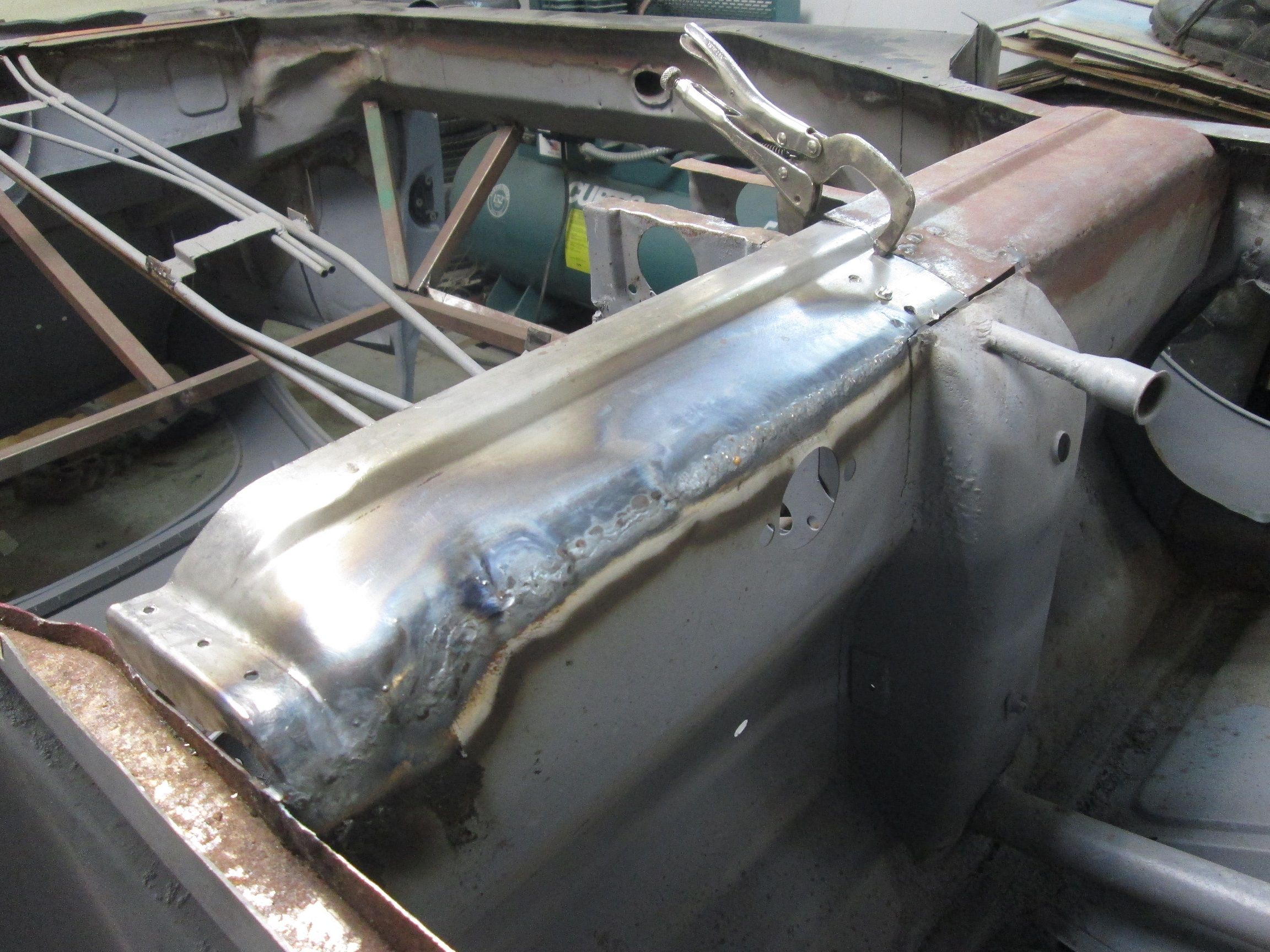

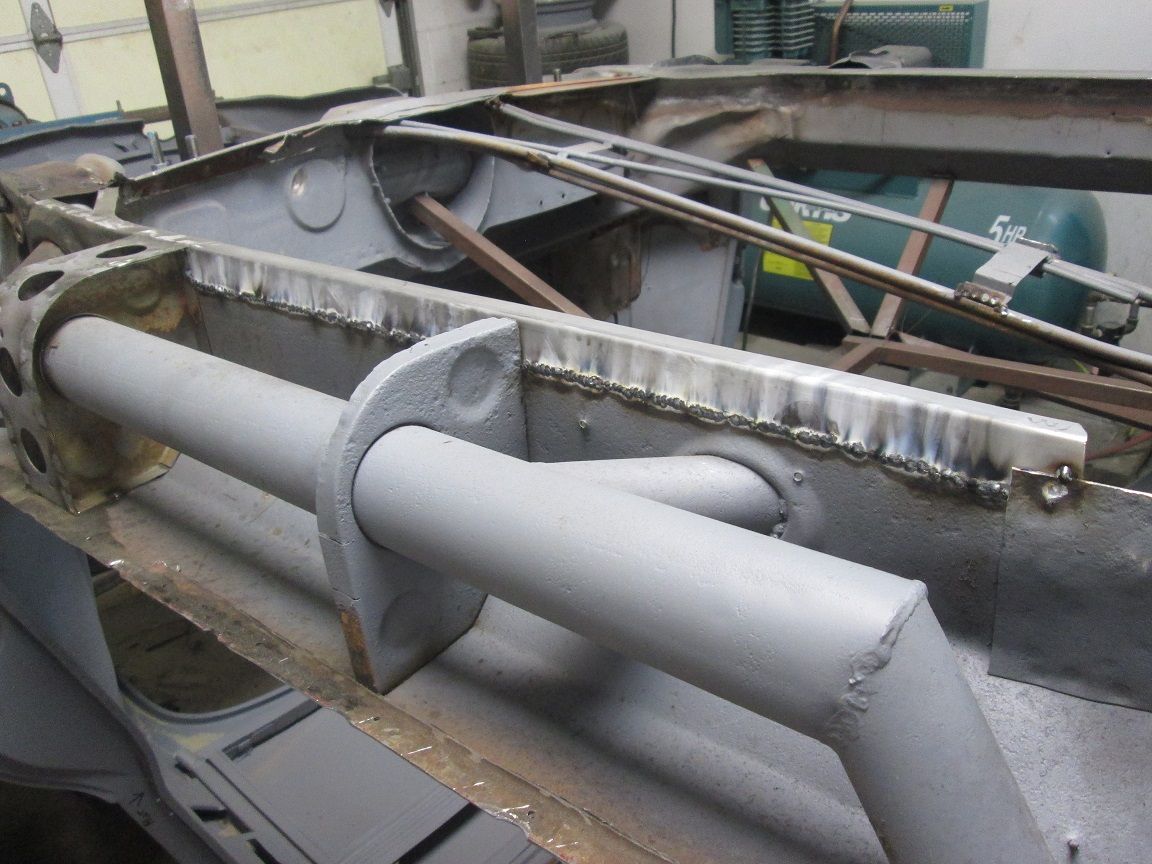

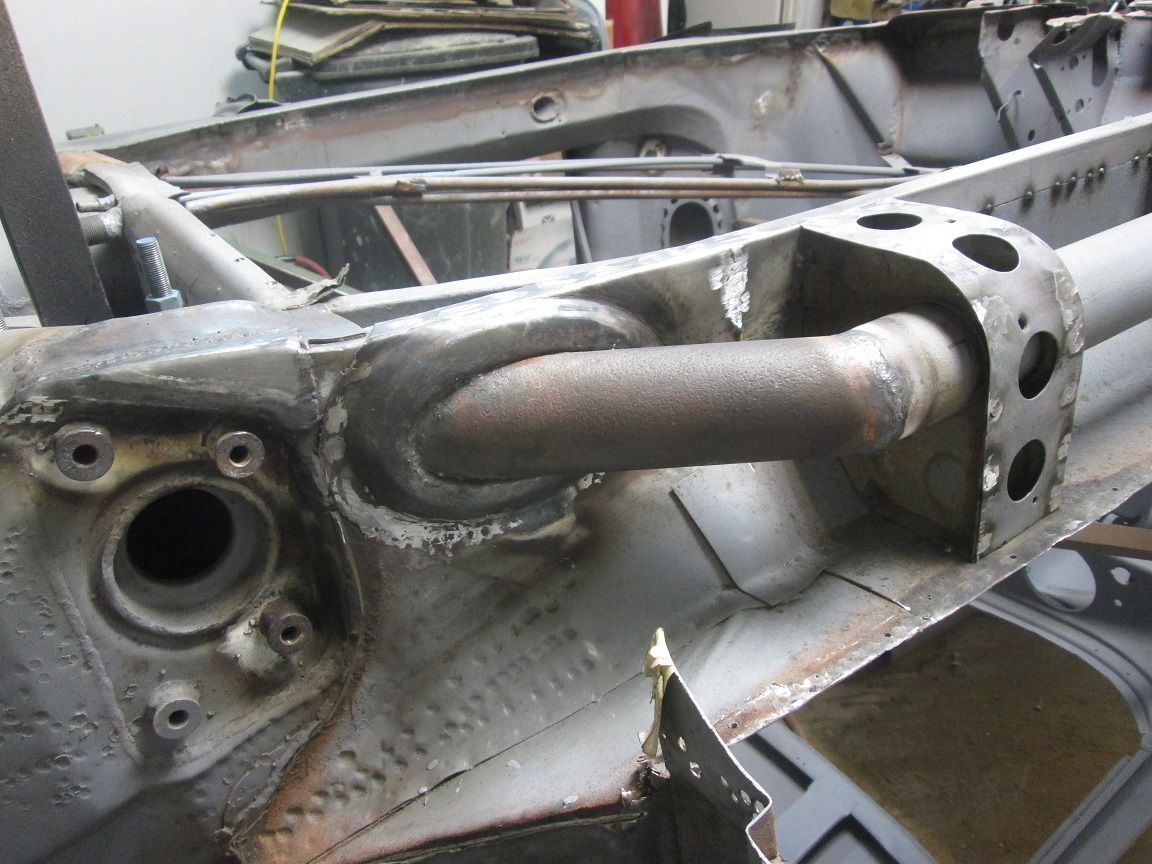

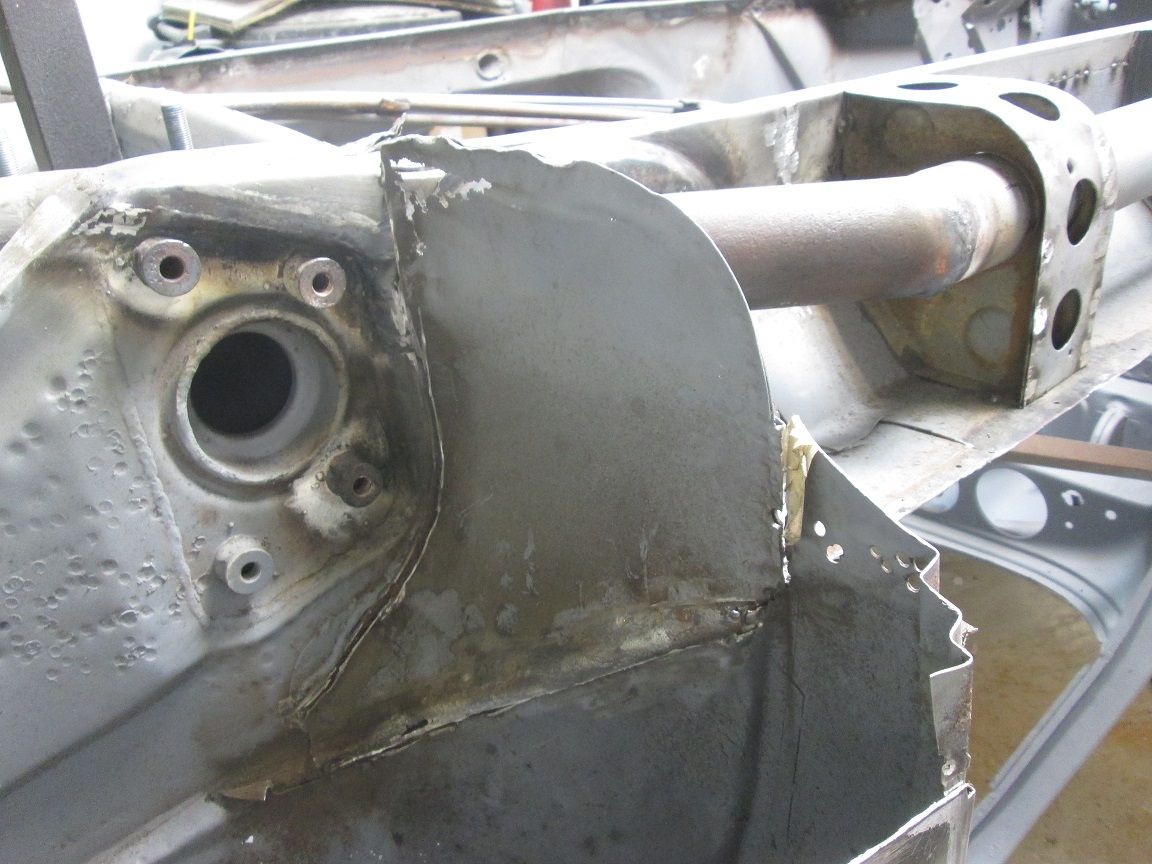

    Click image for larger version  Name:	IMG_7589.JPG Views:	0 Size:	145.8 KB ID:	111359 Finished and dressed all the remaining welds on this back corner rebuild. Also a miracle of miracles; the welding supply finally received their shipment so I was finally able to get a fresh bottle of oxygen. Finished out the gas weld detail along the heater tube joint here. Reaching inner most portion of this joint was tricky.

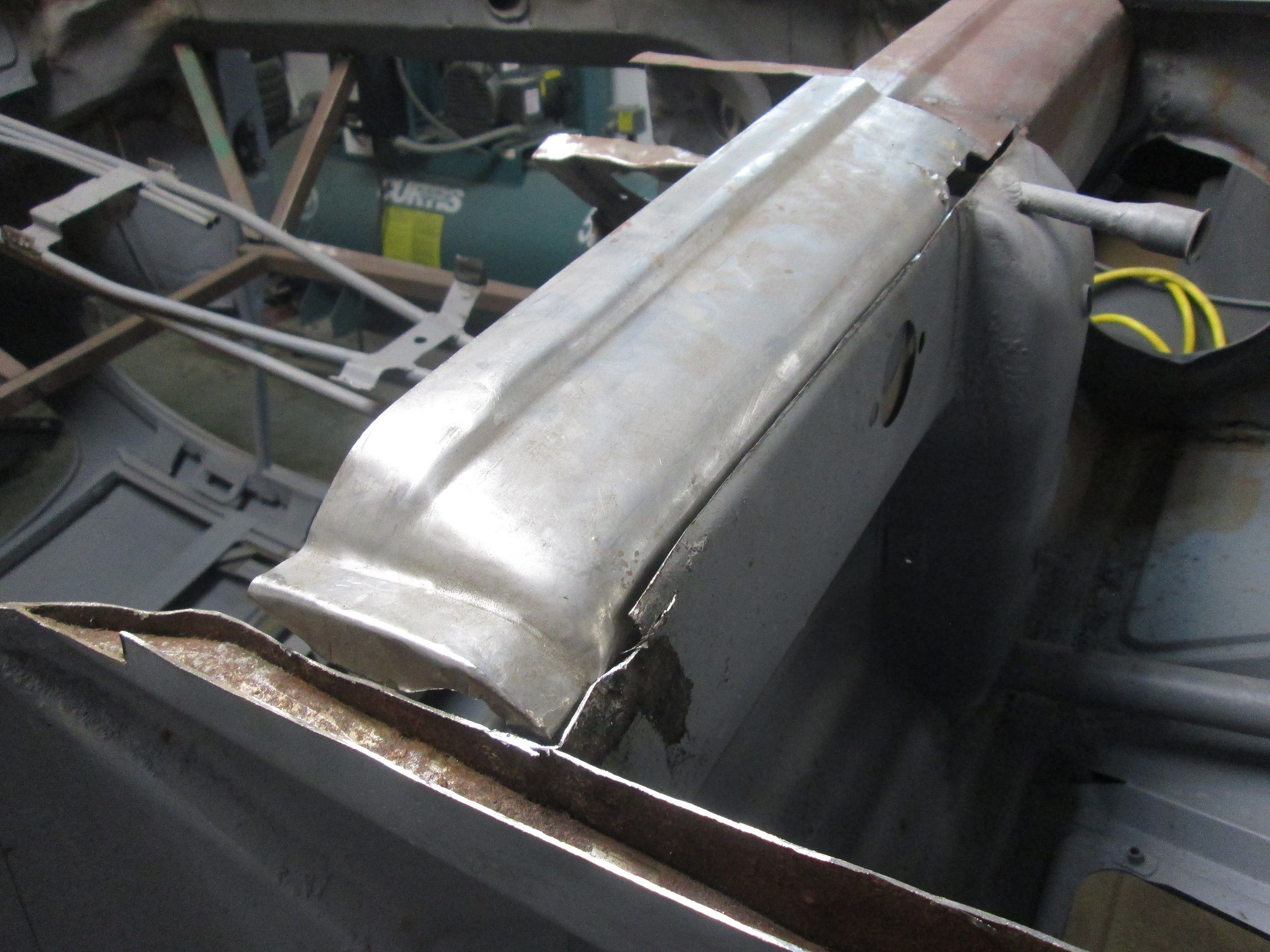

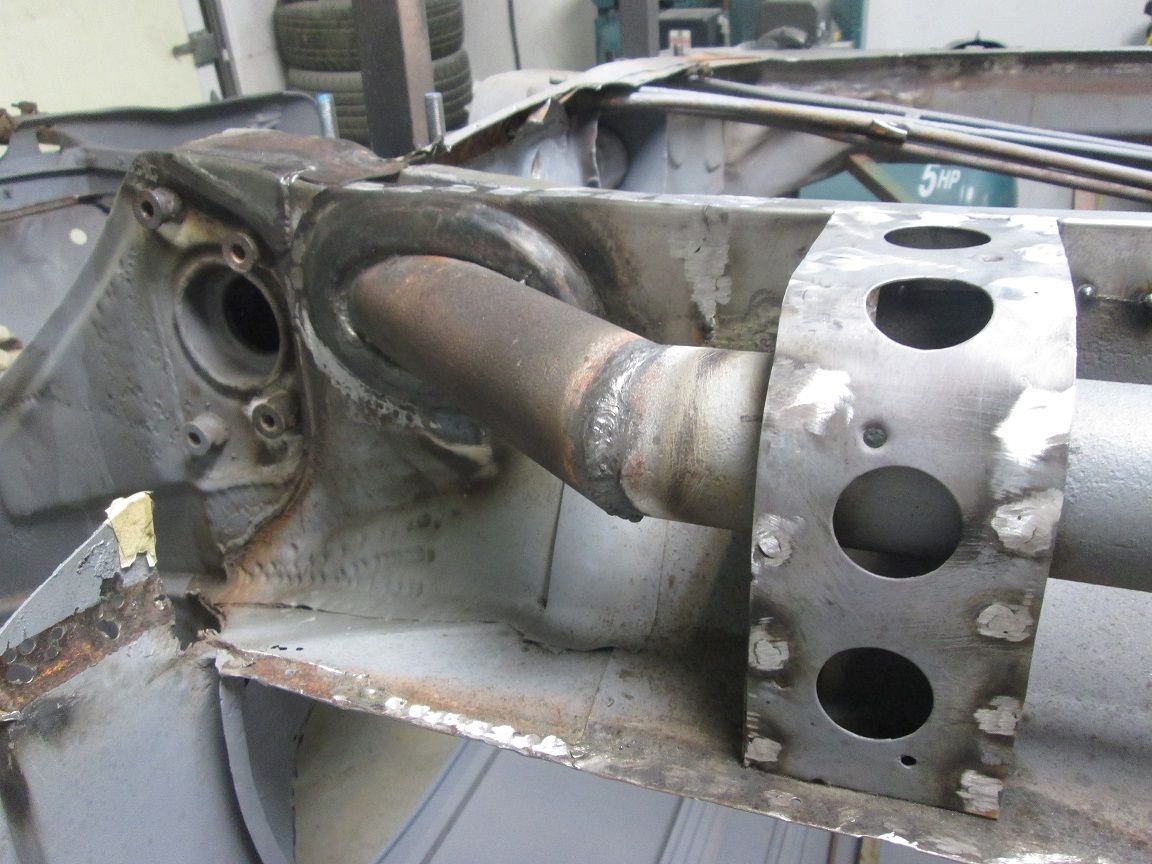

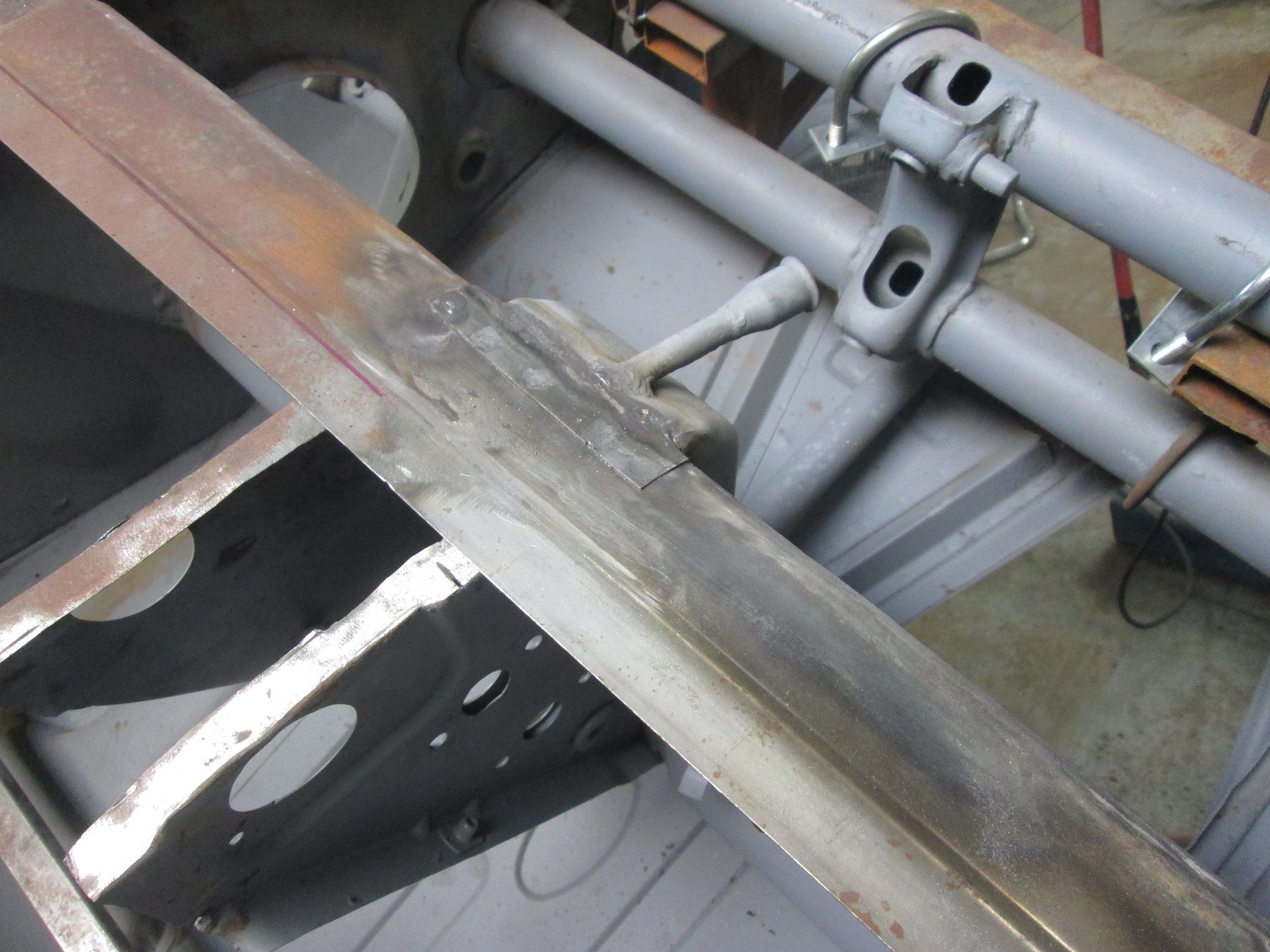

    Click image for larger version  Name:	IMG_7588.JPG Views:	0 Size:	163.2 KB ID:	111360 Glad to have this complex area in the done column. Not quite ready to close this up just yet but the remaining repairs won't be quite so involved.

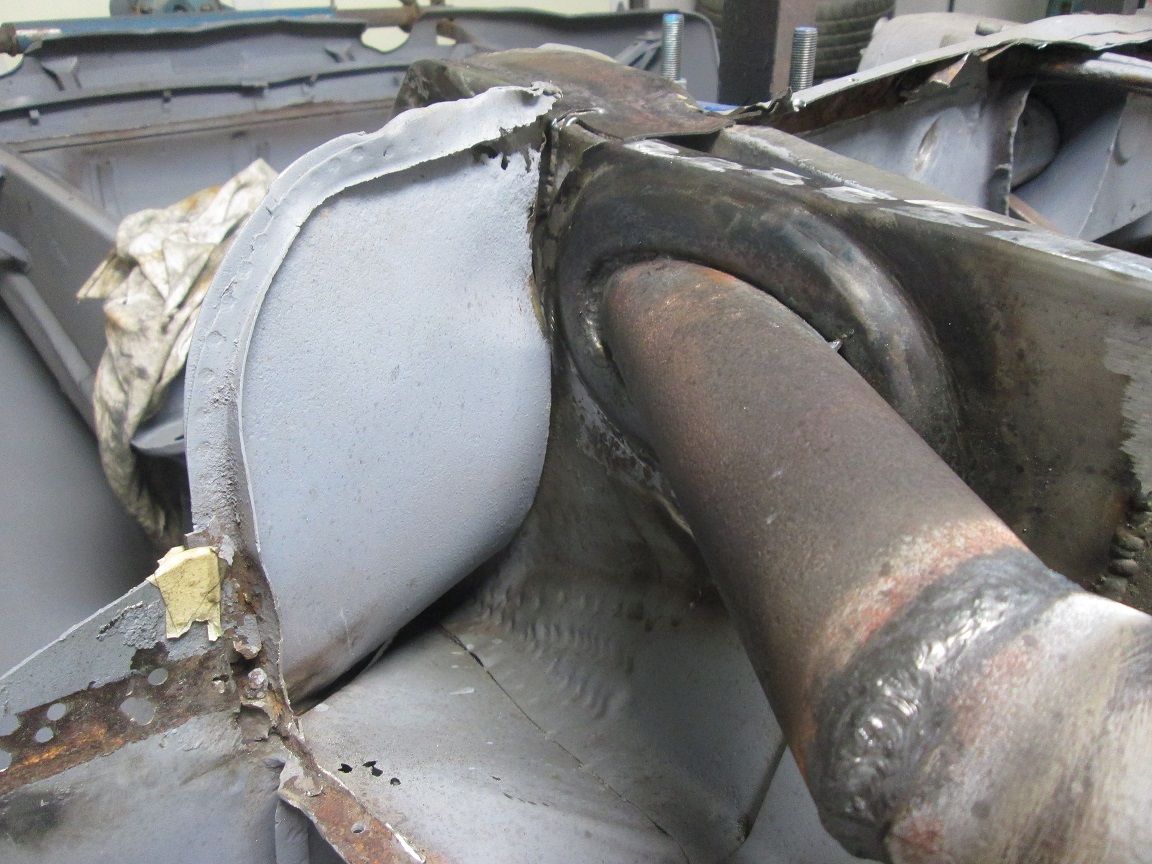

    Click image for larger version

Name:	image_64444.jpg
Views:	716
Size:	157.8 KB

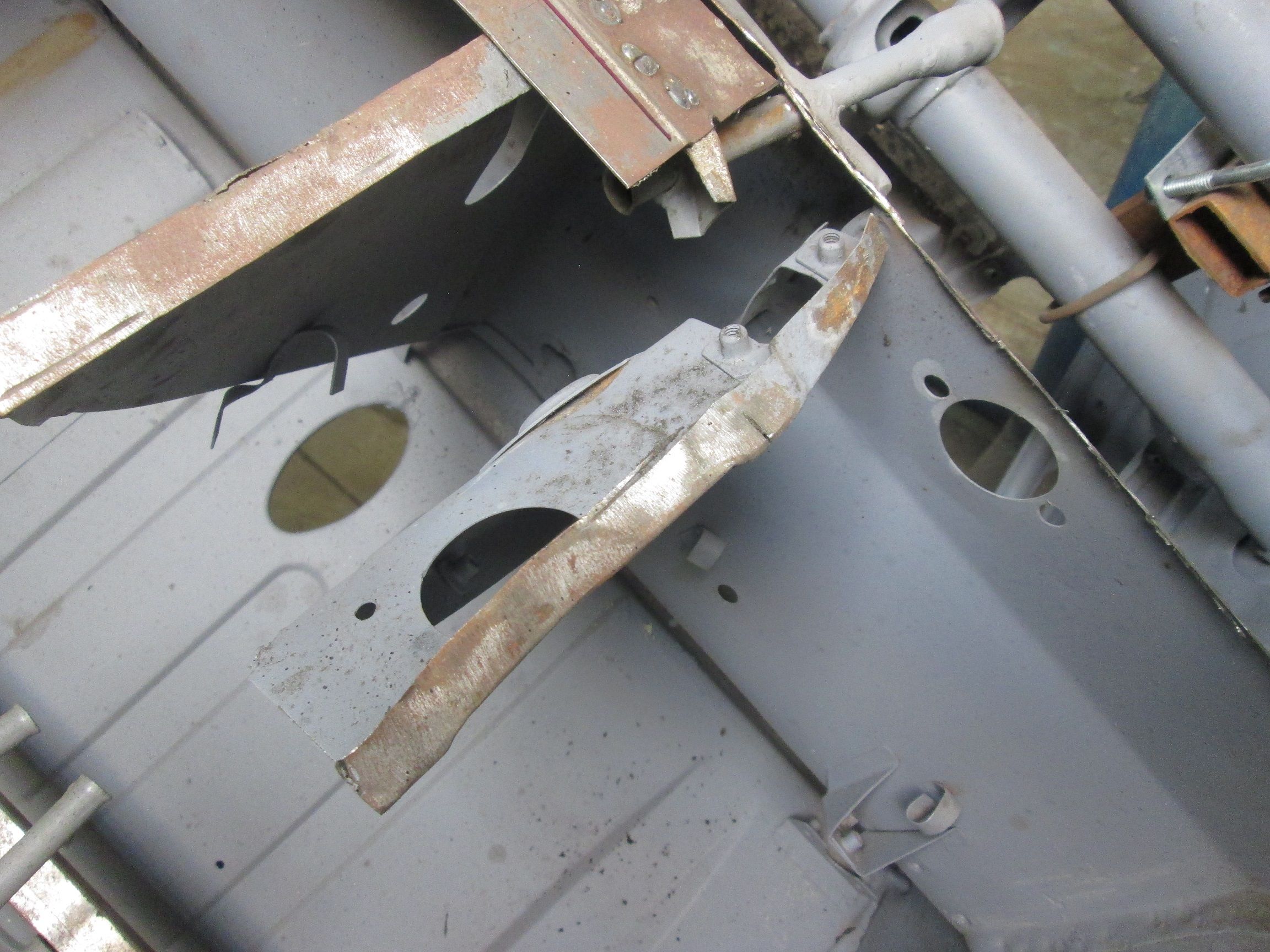

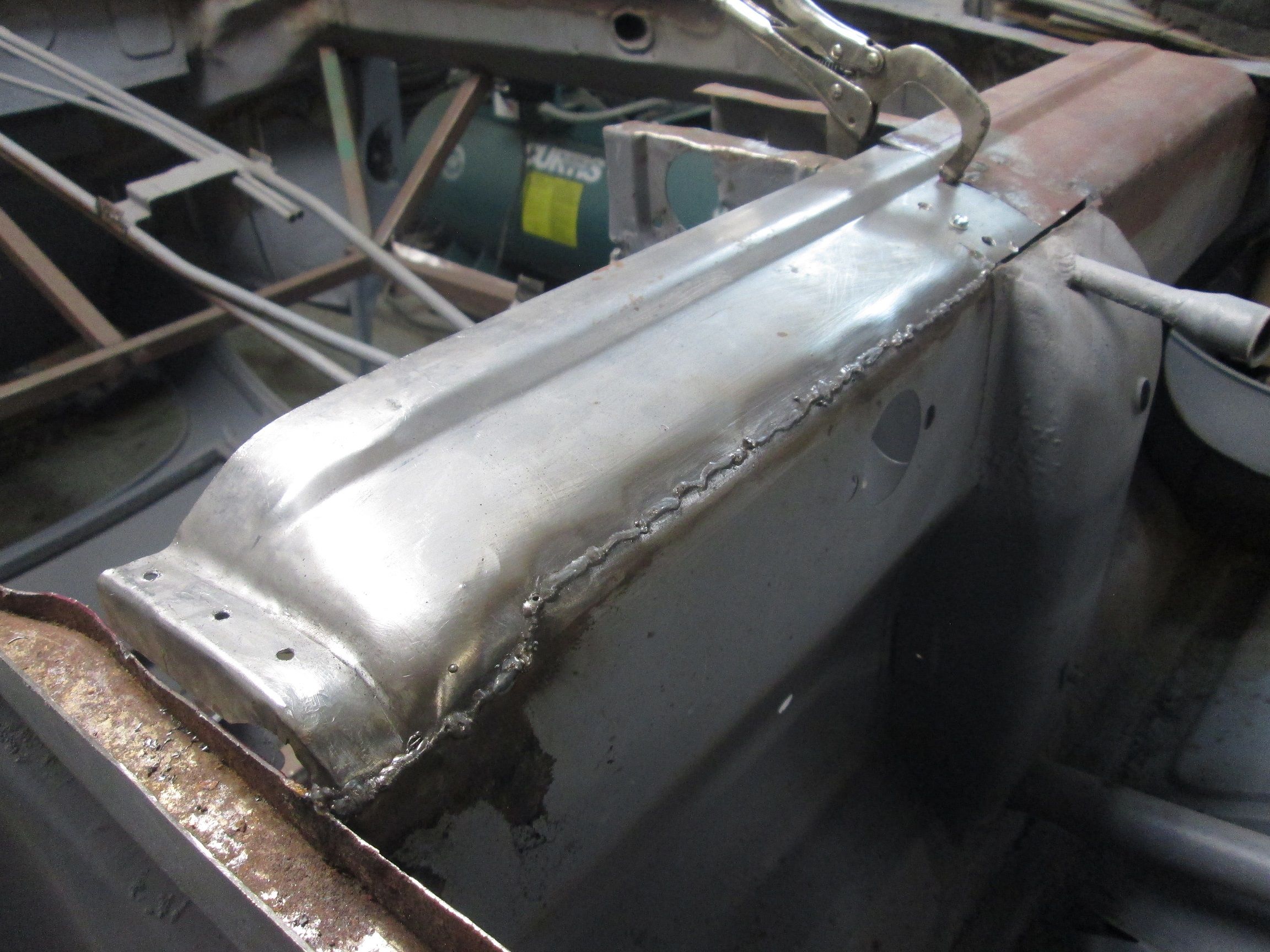

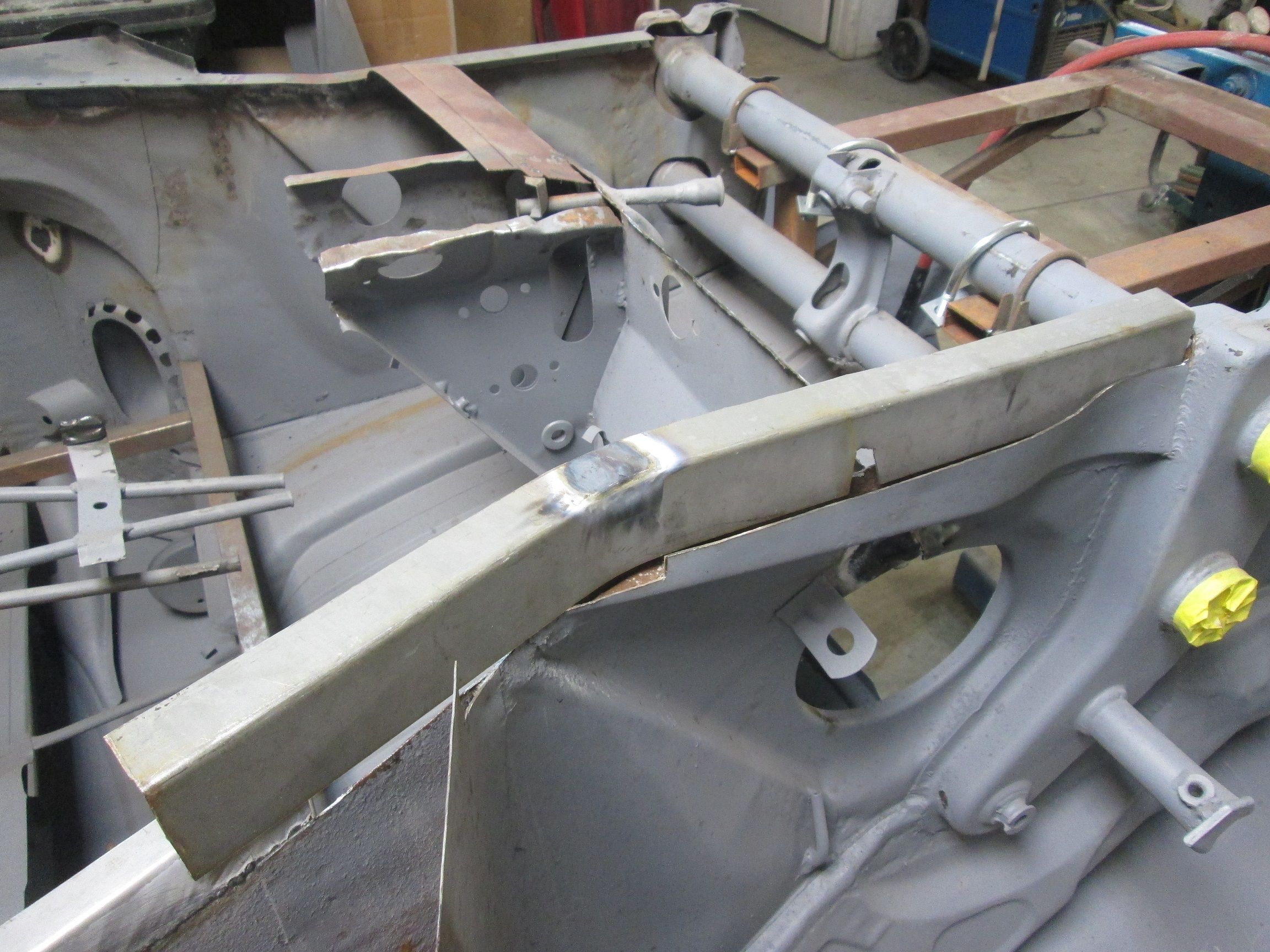

ID:	111361 With all the heavy lifting back here completed I can now think about reinstalling this bulkhead closing wall.

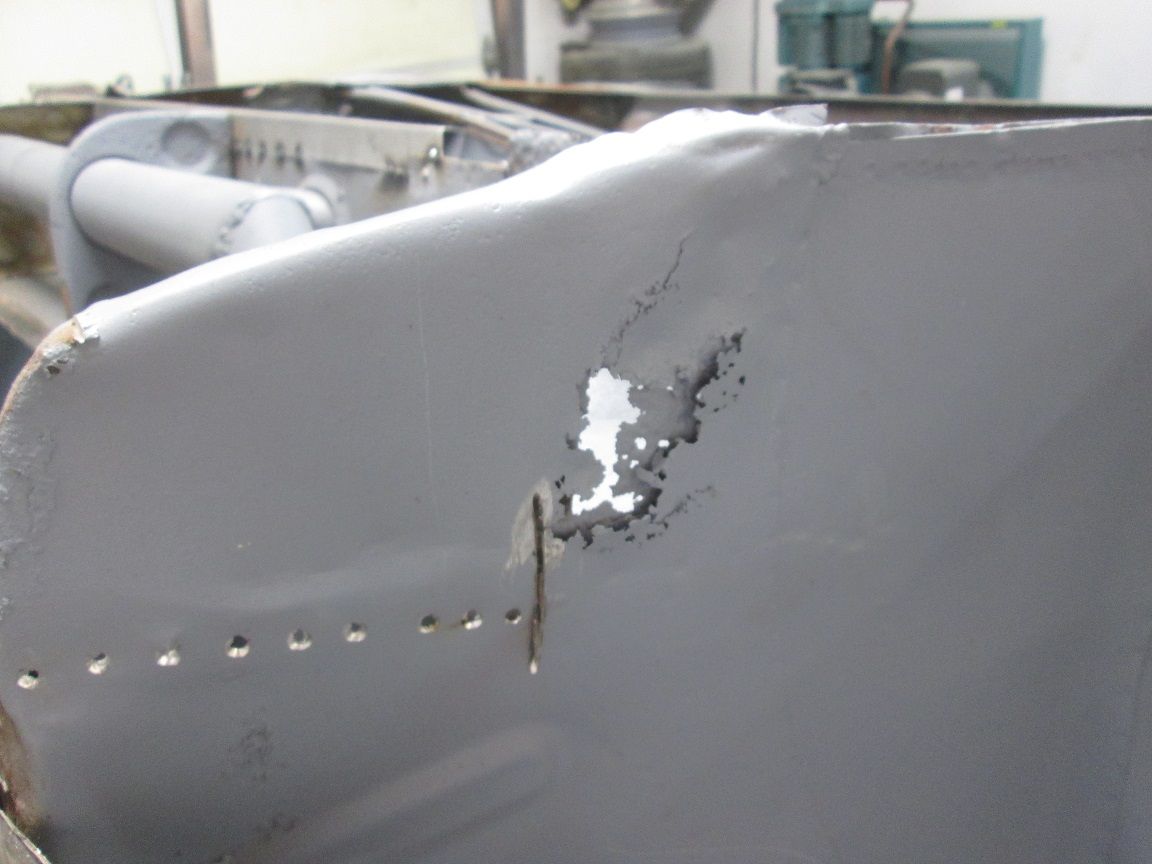

    Click image for larger version

Name:	image_64445.jpg
Views:	710
Size:	137.6 KB

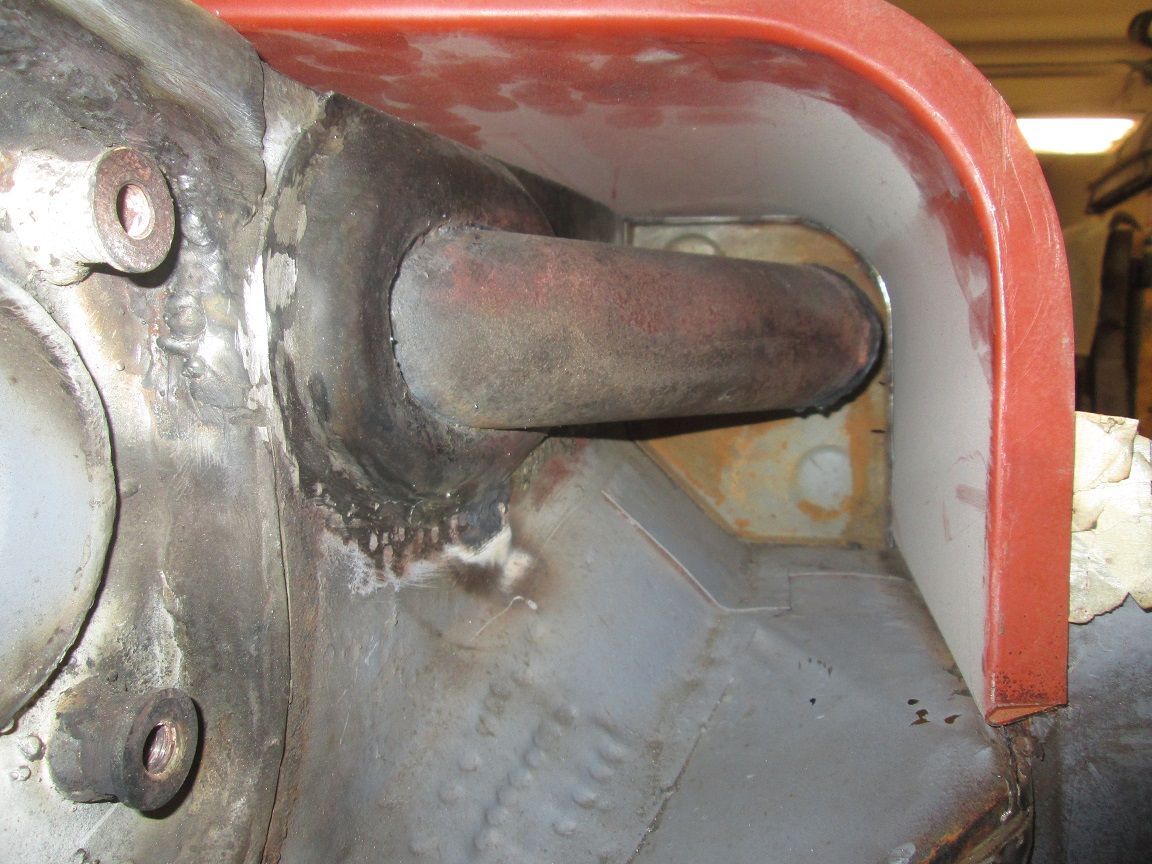

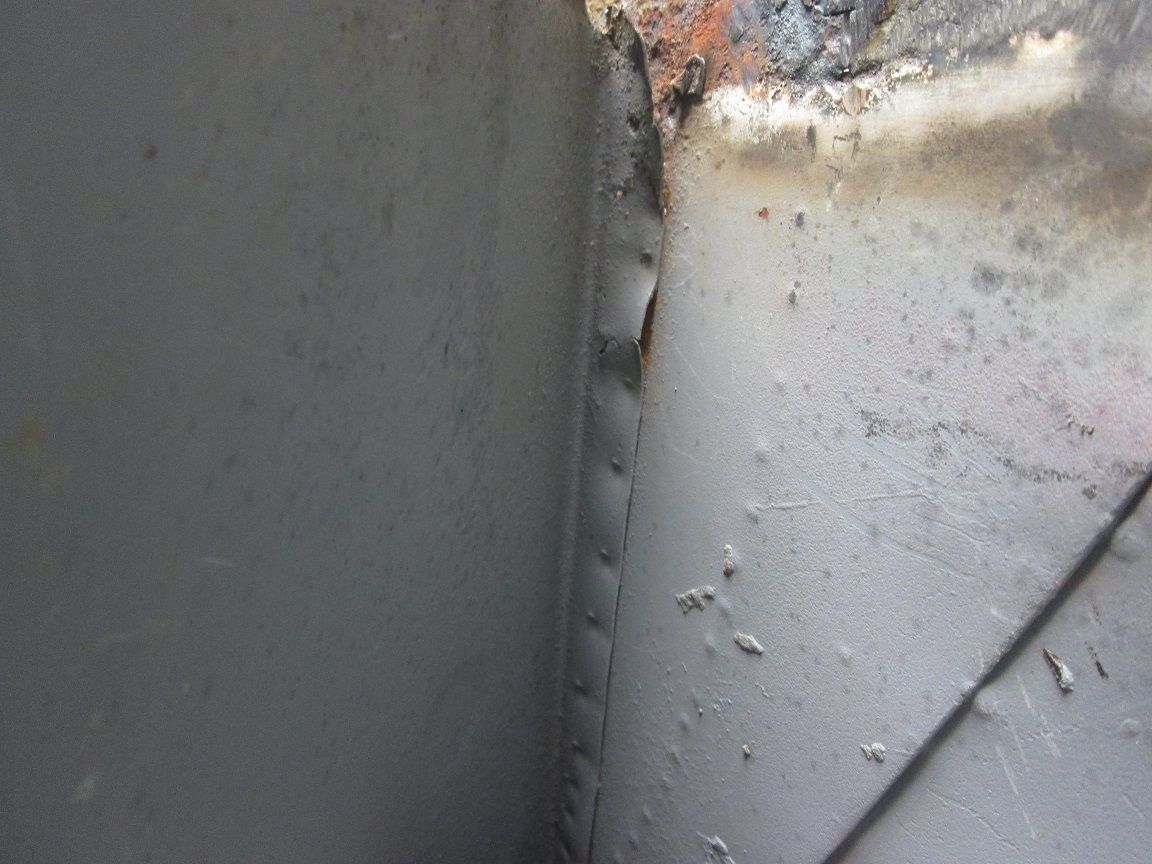

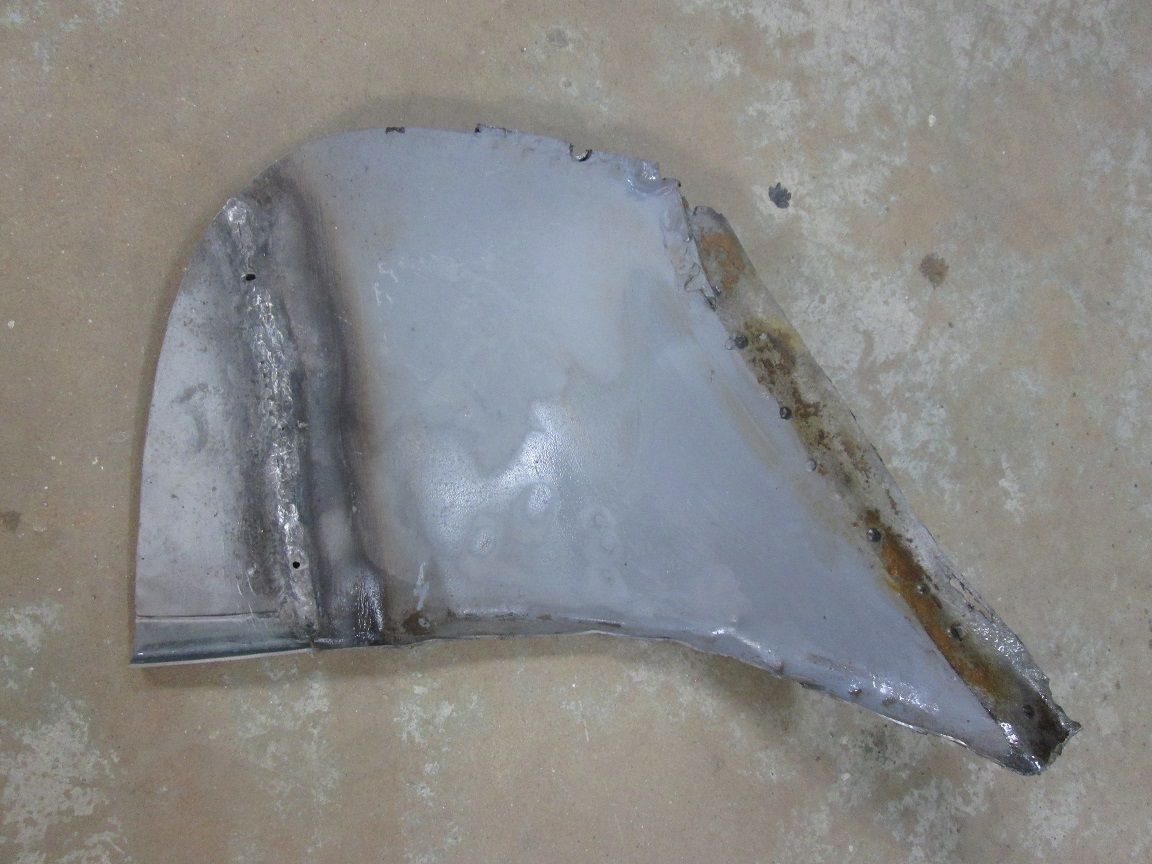

ID:	111362 Though the bottom inner corner is rusted, the rest of it is still solid. Repairing and prepping this piece for reinstallation next.

    Thanks for looking!
    Justin
    Last edited by JTR70; 05-14-2021, 08:27 AM.
    Justin Rio

    Comment


    • Tieing the bulkheads together is such a great idea. Really wished I had know this when I was doing mine. Brilliant way to add strength. Nice improvement on Germany engineering Justin.
      1960 356B T5 - under major resurrection.
      356 Registry main thread;
      http://forum.porsche356registry.org/viewtopic.php?f=4&t=35854
      1968 912 - running like a scalded cat.

      Comment


      • JTR70
        JTR70 commented
        Editing a comment
        Thanks a lot Scott. After opening several original longitudinals this car included I always find these two bulkheads bent away from each other or deformed from the jack spur working off this area through the years. Tying them together seemed like the natural thing to do.

    • Repairs moving toward the front.

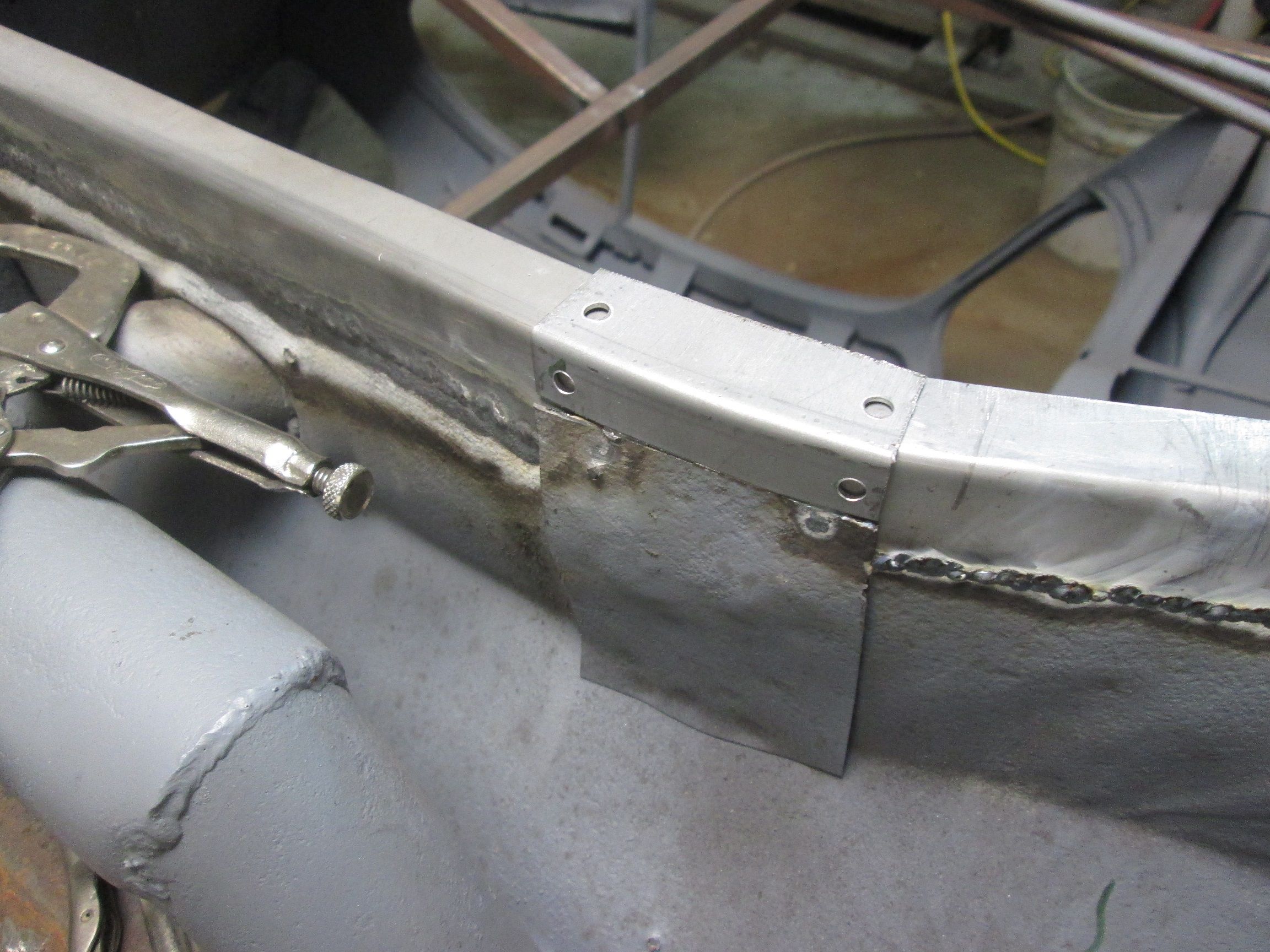

      Click image for larger version  Name:	IMG_7607.JPG Views:	0 Size:	128.2 KB ID:	111366 Repair section added onto the rear closing wall with a just a couple of small holes to back fill. Soaking it in acid to clean up the rust along the edges.

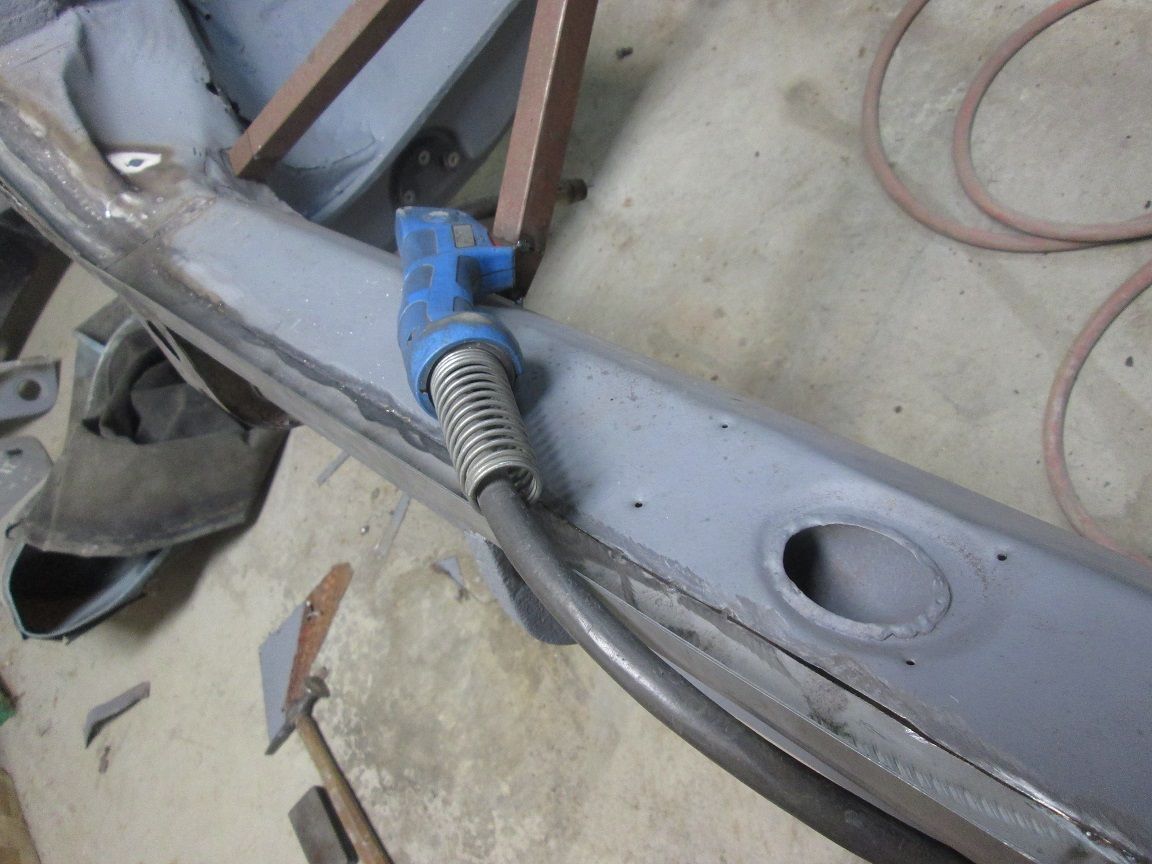

      Click image for larger version  Name:	IMG_7613.JPG Views:	0 Size:	126.4 KB ID:	111367 Moving towards the front while that soaks by stitching up this long flange run.

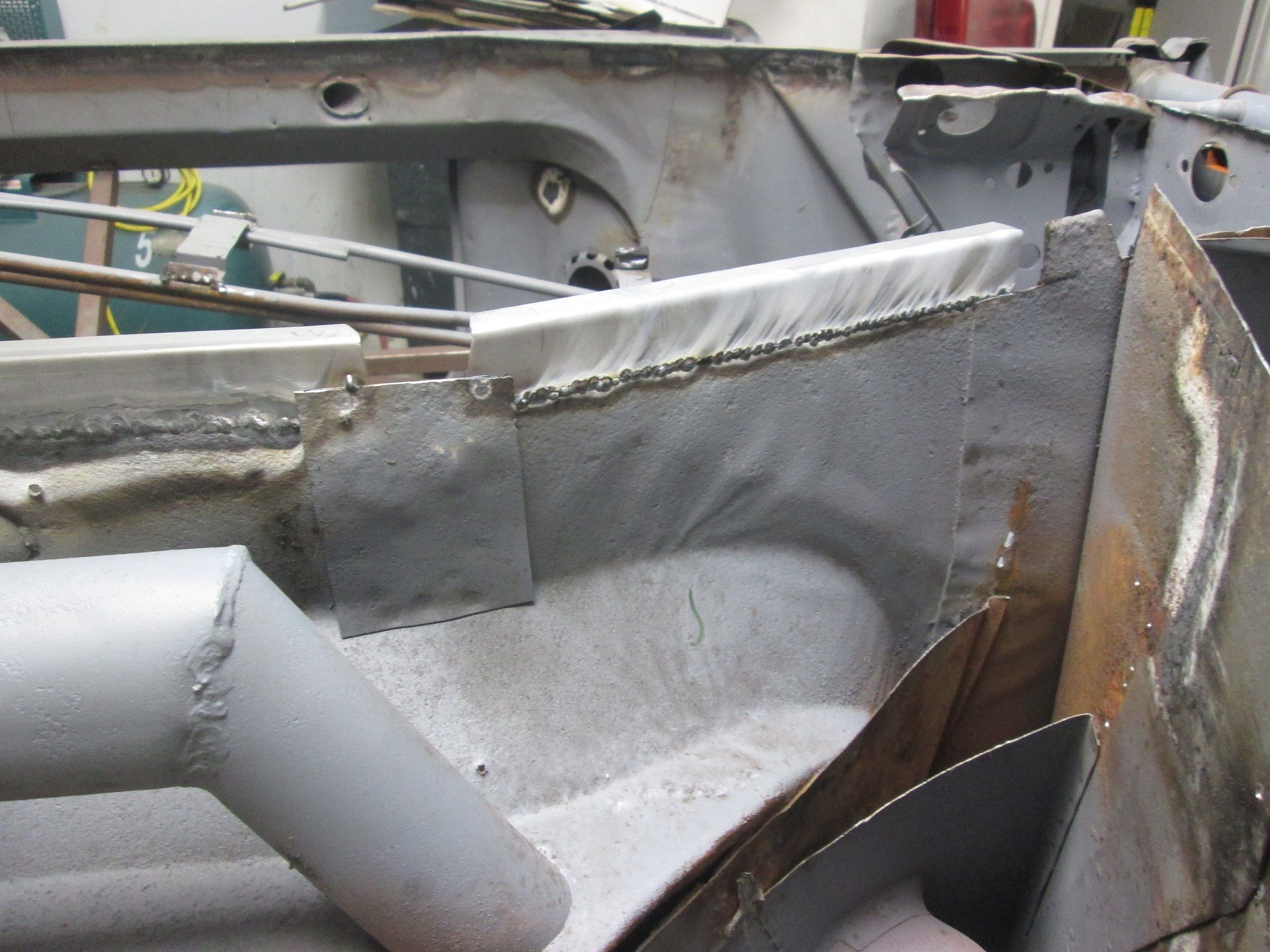

      Click image for larger version  Name:	IMG_7614.JPG Views:	0 Size:	148.3 KB ID:	111368 The run all stitched together at last with only some weld clean up remaining.

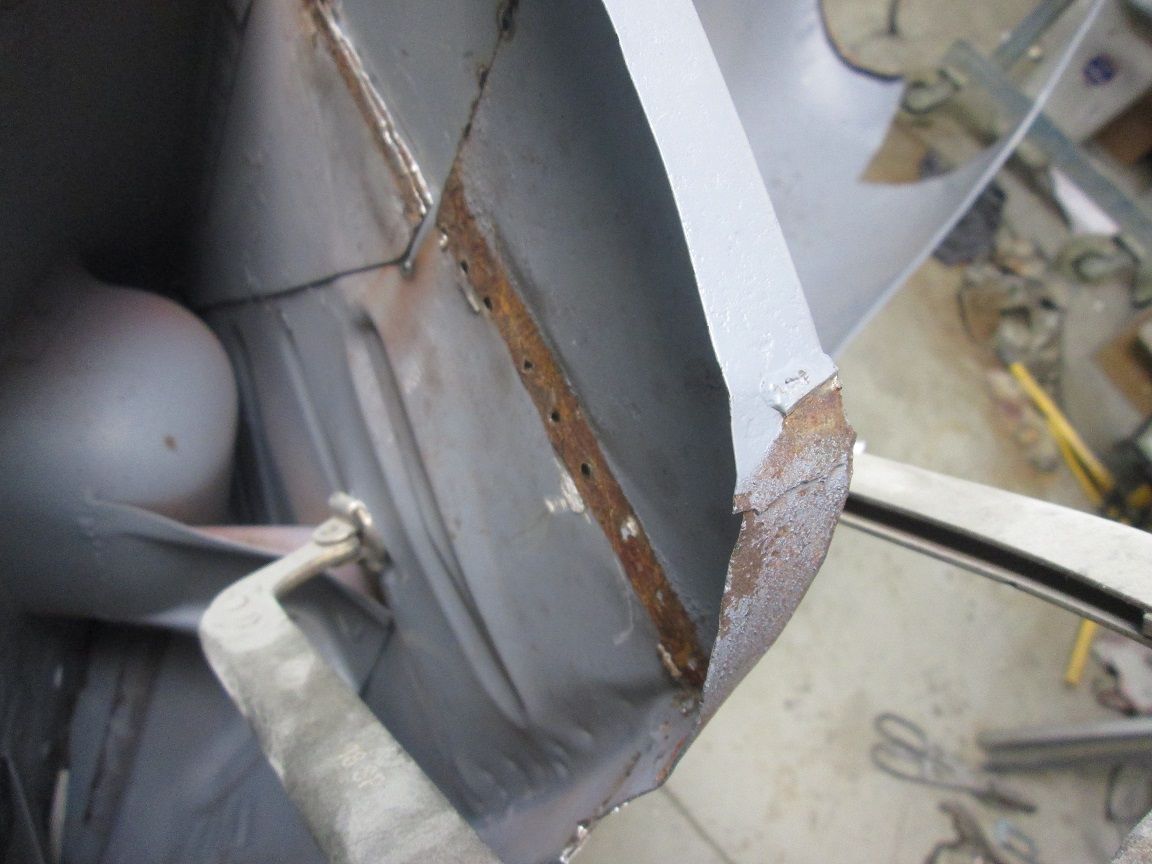

      Click image for larger version

Name:	image_64449.jpg
Views:	648
Size:	137.2 KB

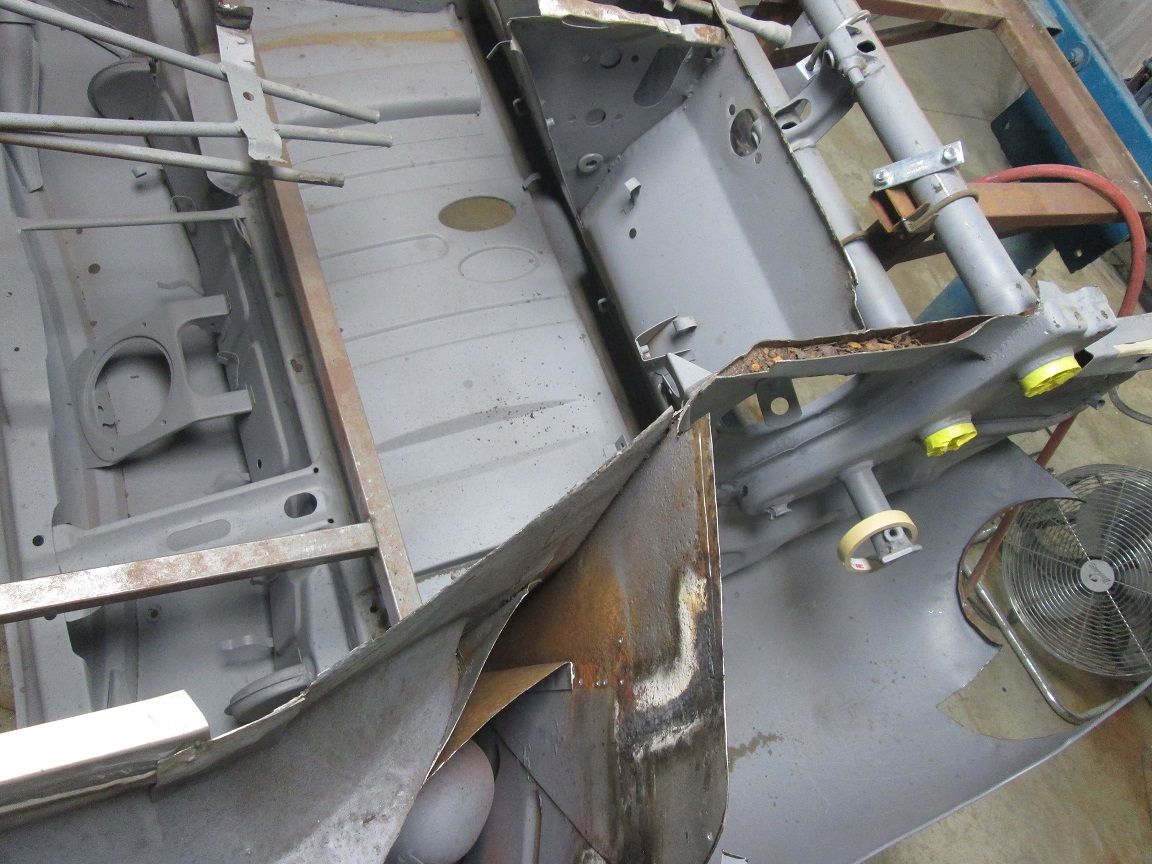

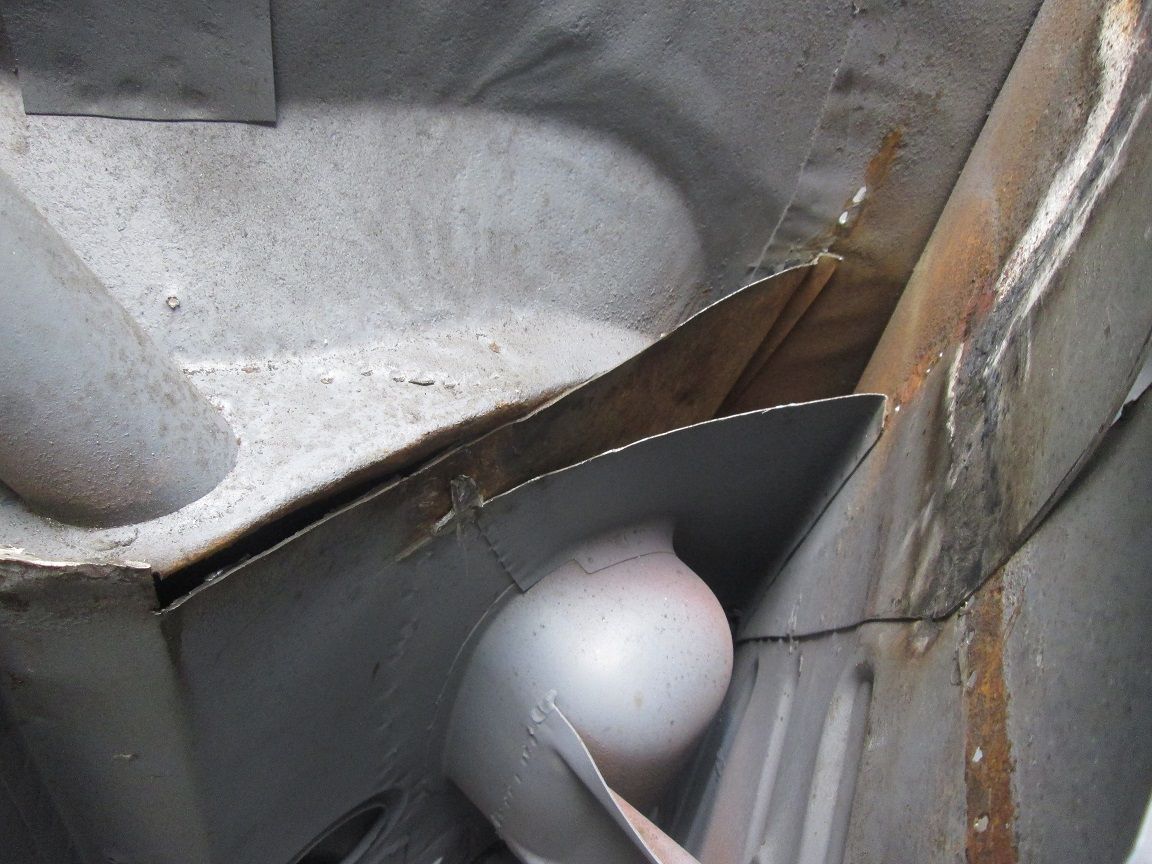

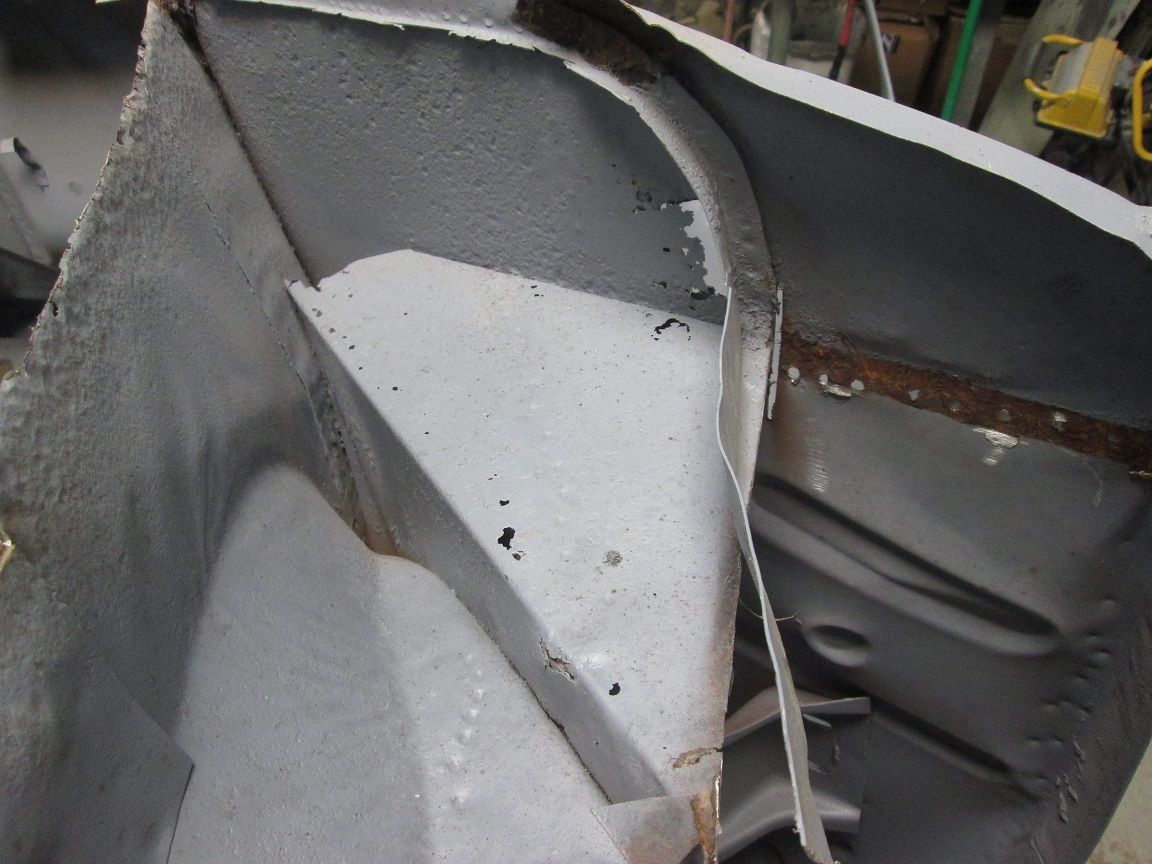

ID:	111369 Begin cutting away the door well pan area next.
      Click image for larger version

Name:	image_64450.jpg
Views:	652
Size:	85.7 KB

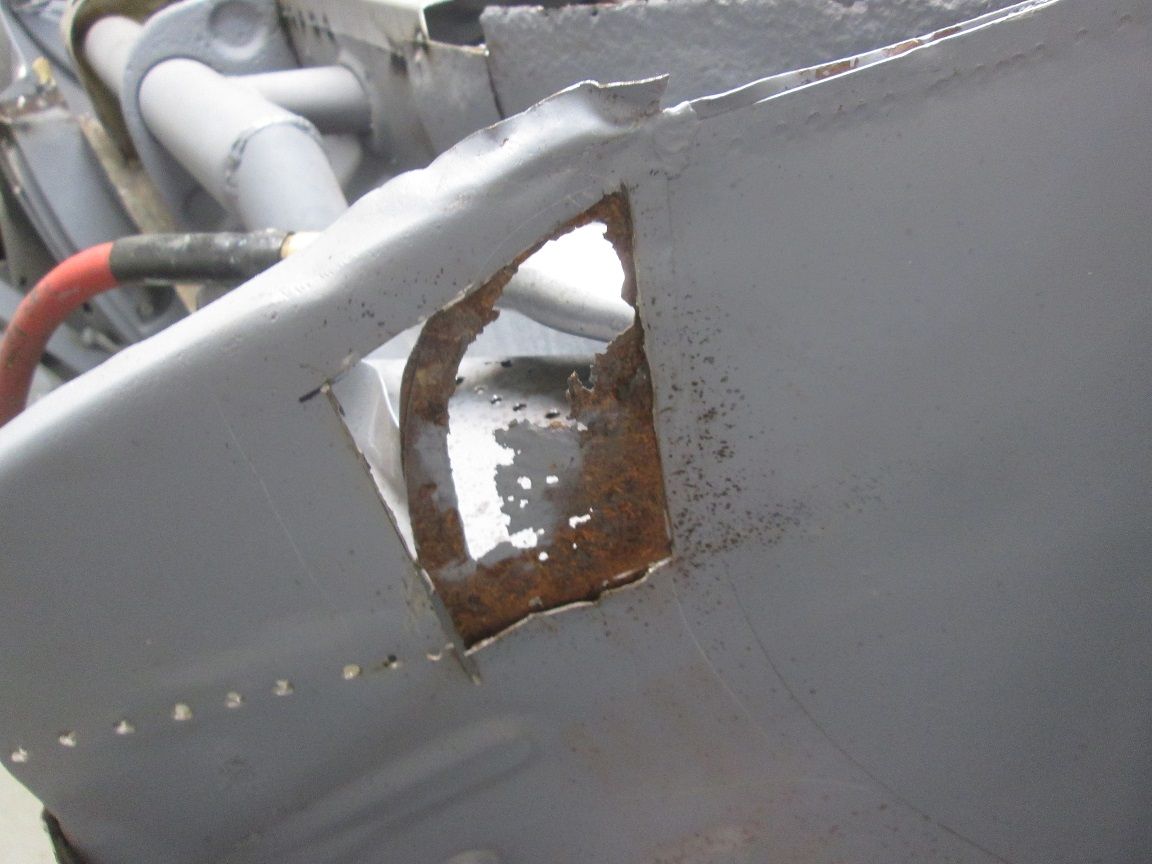

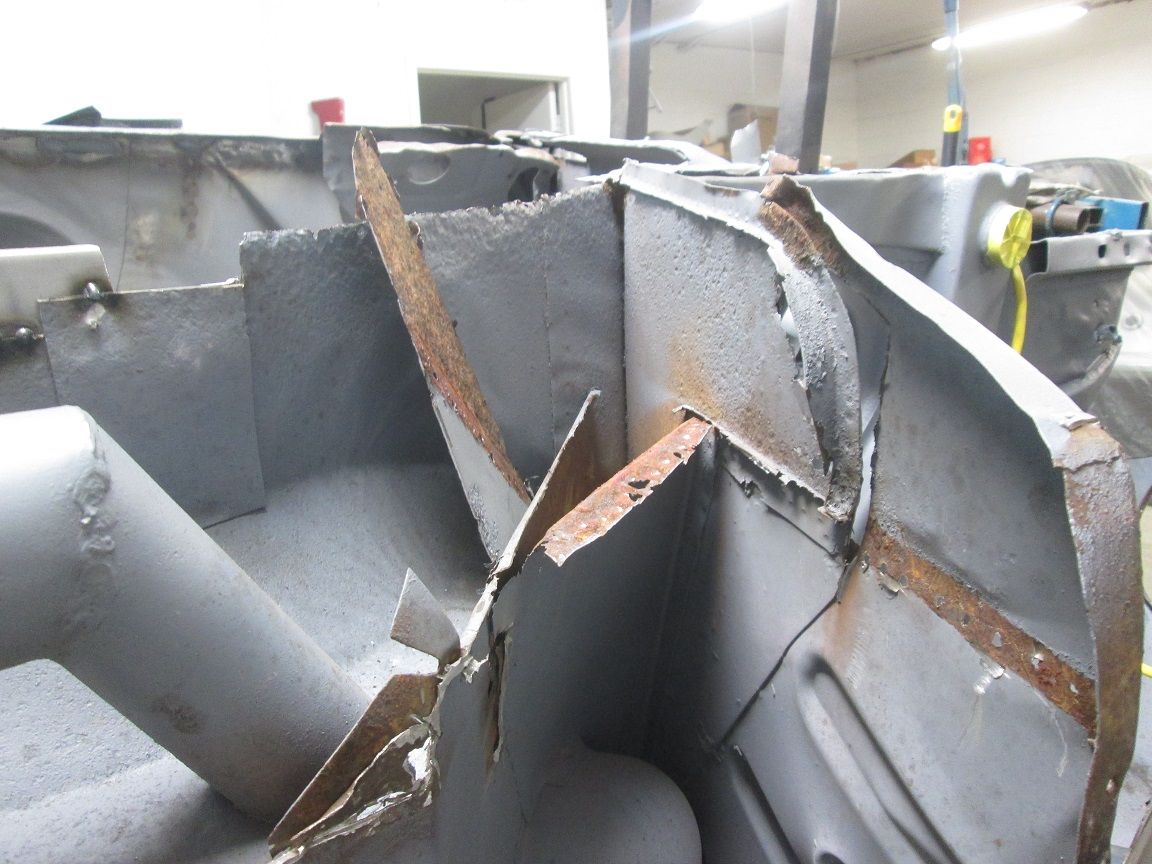

ID:	111370 Looking to save as much original metal as possible so I'm peeling the rot away in stages.
      Last edited by JTR70; 05-17-2021, 06:19 PM.
      Justin Rio

      Comment

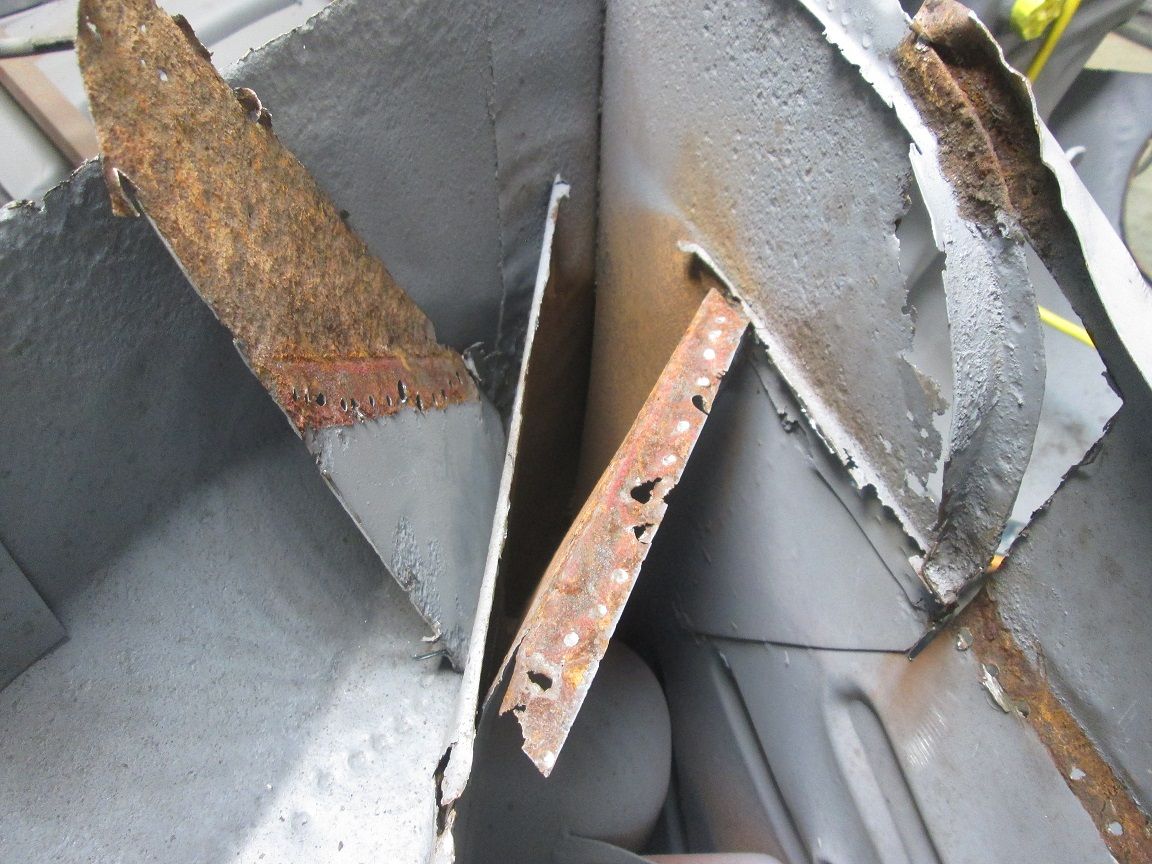

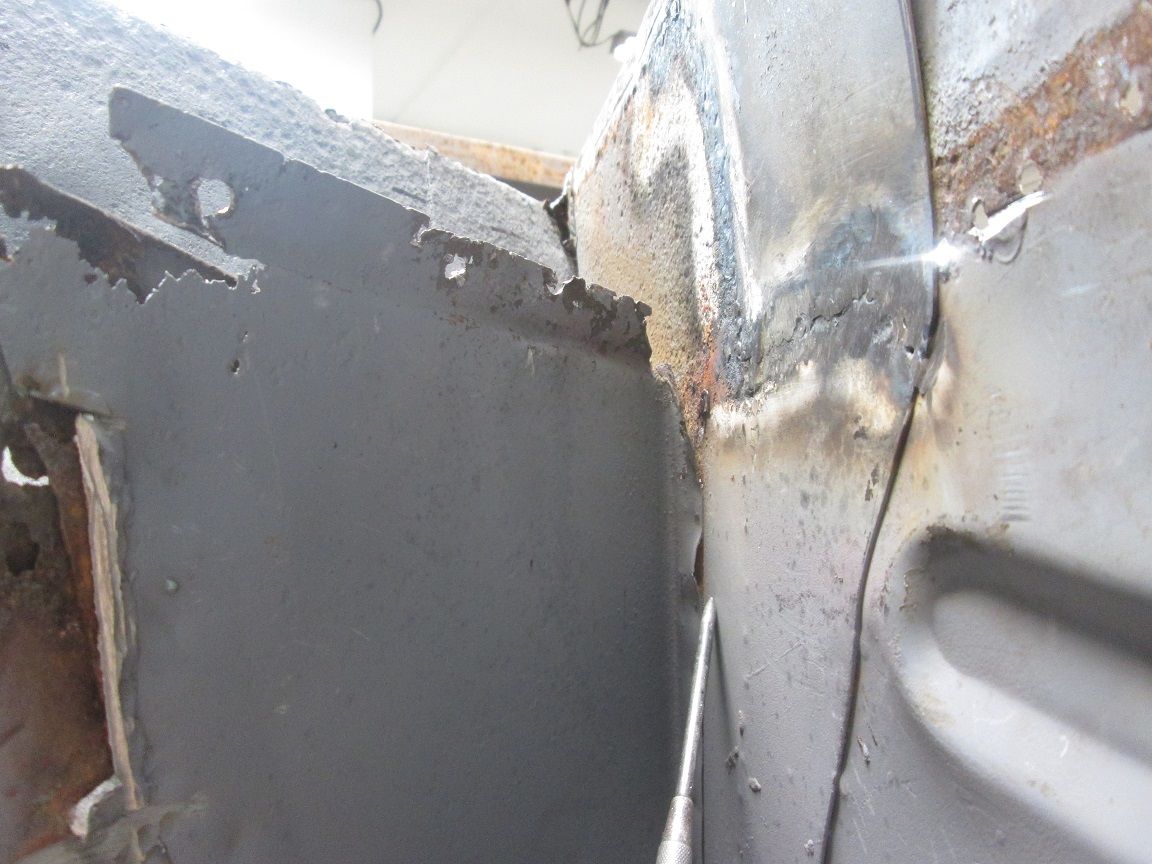

      • Click image for larger version  Name:	IMG_7602.JPG Views:	0 Size:	100.0 KB ID:	111426 First cut exposing the remains of the inner most closing wall.
        Click image for larger version  Name:	IMG_7606.JPG Views:	0 Size:	141.6 KB ID:	111427 remains of the door well tray's floor removed.
        Click image for larger version

Name:	image_64489.jpg
Views:	592
Size:	176.2 KB

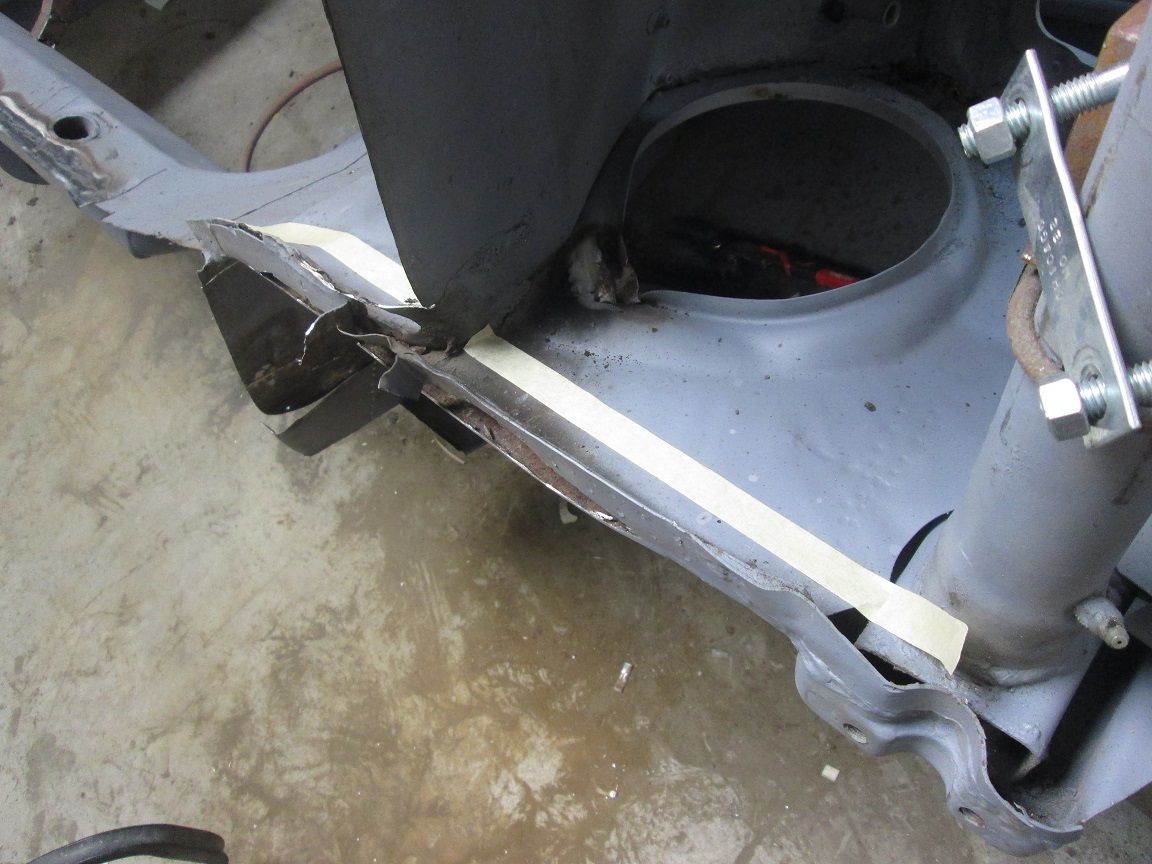

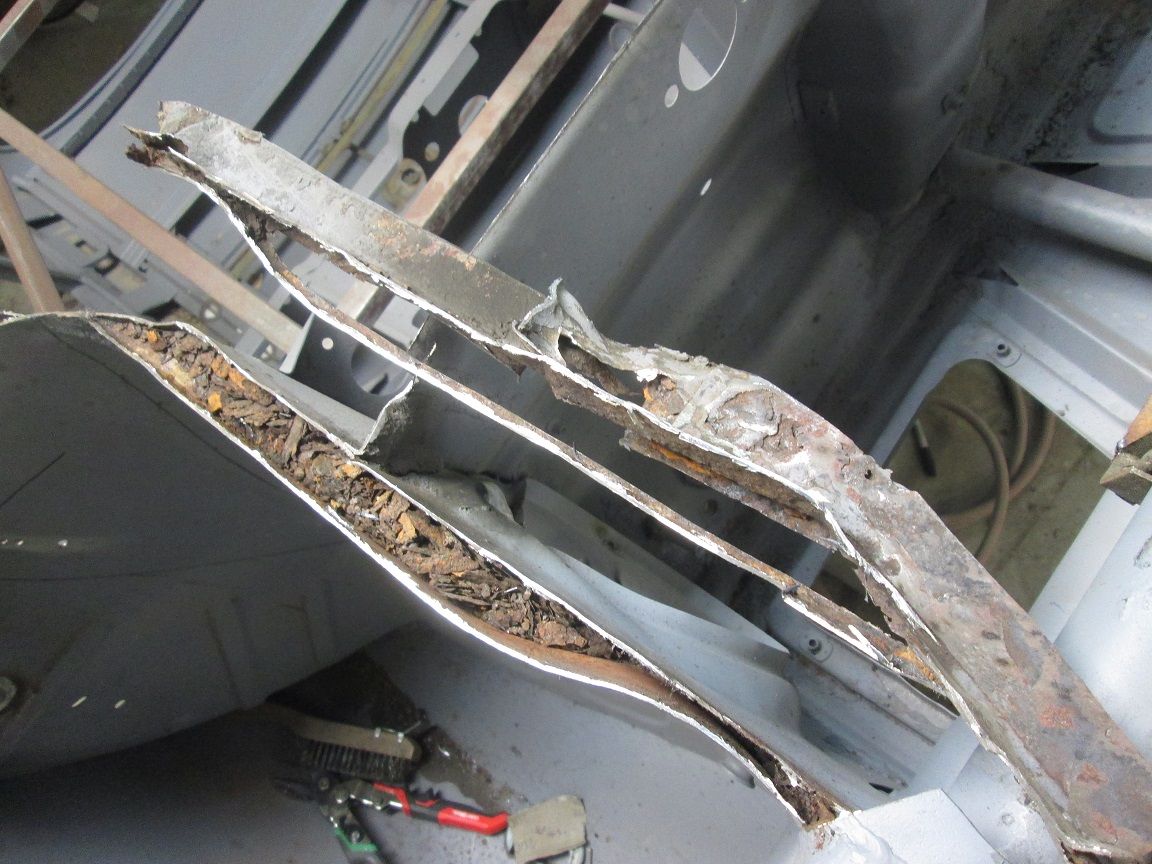

ID:	111428 The outer most closing walls lower flange survived for the most part and I wanted to keep the option to save as much as possible for now.

        Click image for larger version  Name:	IMG_7634.JPG Views:	0 Size:	106.9 KB ID:	111429 Lateral portion of the splash pan was damaged and bent in some time in the distant past so I'm pulling that out as best as I can but the relief shapes make it tricky.
        Click image for larger version

Name:	image_64491.jpg
Views:	565
Size:	97.8 KB

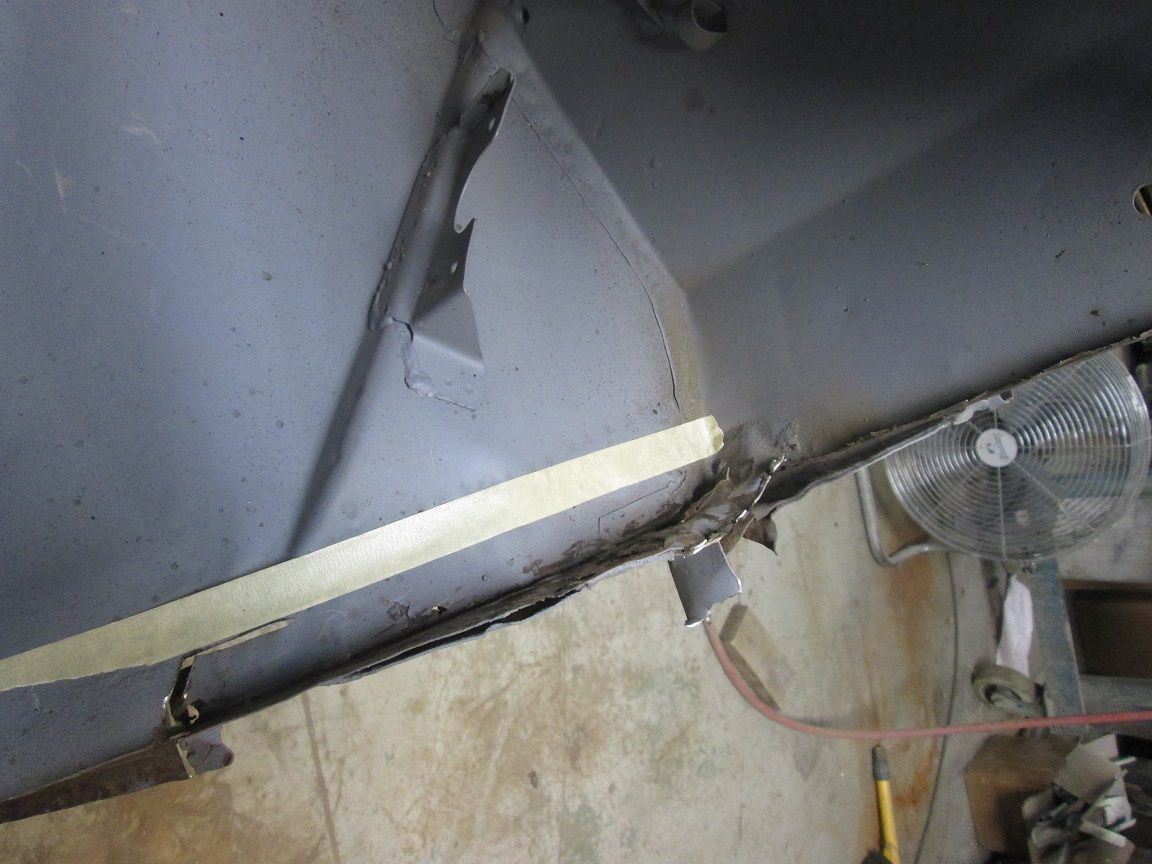

ID:	111430 I'm going to save a good portion of the inner vertical wall right down to the edge but both corners of it will need repair.
        Last edited by JTR70; 05-31-2021, 08:34 PM.
        Justin Rio

        Comment


        • begin repairs

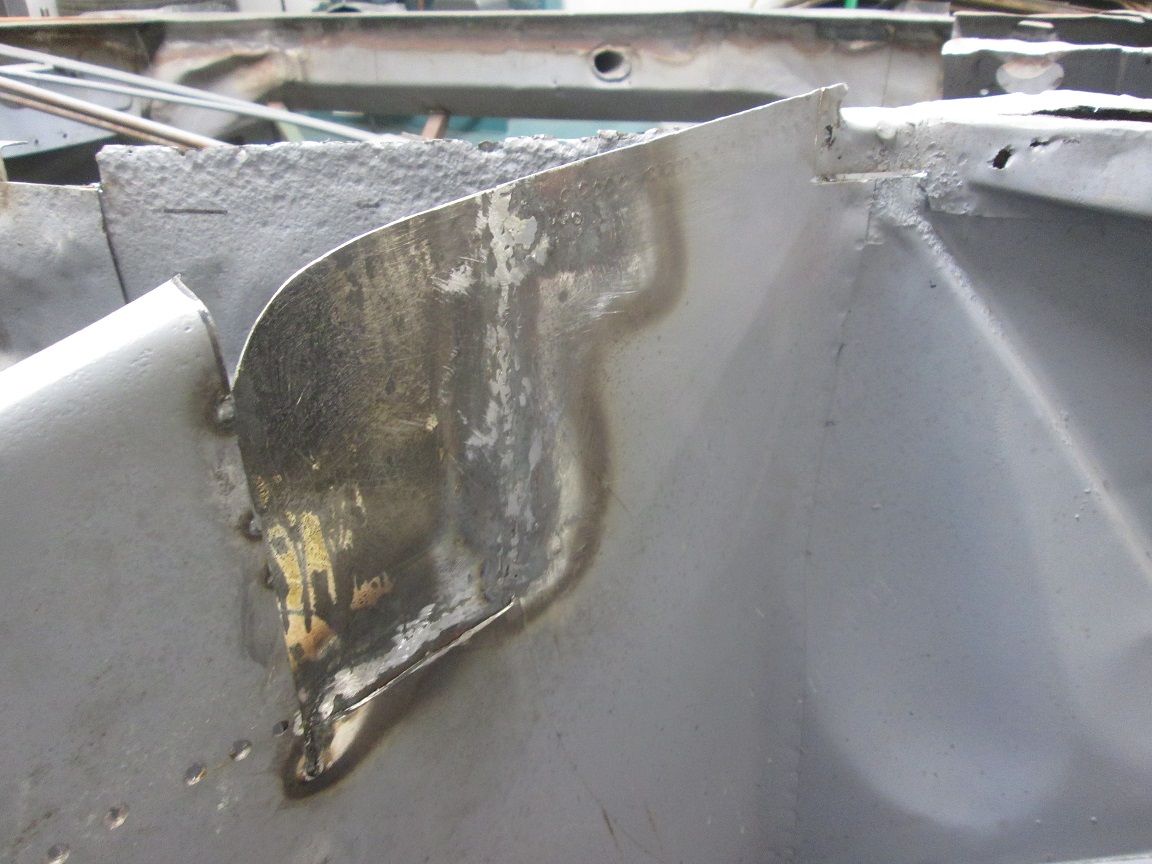

          Click image for larger version  Name:	IMG_7645.JPG Views:	0 Size:	125.0 KB ID:	111432 Outer corner repair completed.
          Click image for larger version  Name:	IMG_7647.JPG Views:	0 Size:	115.7 KB ID:	111433 Repairs to the inner corner will be done after the lower flange run repairs to the chassis it attaches to are complete. The final lateral outer closing wall with flange that laps over this repair won't be installed until after the new longitudinal panel is fully welded in. This leaves me more access to weld and dress this flanged attachment point.
          Click image for larger version  Name:	IMG_7649.JPG Views:	0 Size:	134.3 KB ID:	111434 I initially wanted to save as much of this closing wall as possible but there are pockets of rot at its flange that put an end to that plan.
          Click image for larger version  Name:	IMG_7650.JPG Views:	0 Size:	133.6 KB ID:	111435
          I'll cut just above that lifted section.
          Click image for larger version  Name:	IMG_7652.JPG Views:	0 Size:	132.5 KB ID:	111436 That portion now removed leaving me only one more cut along the trays vertical wall to get past the remaining rot. Just about touched the bottom in here.

          Thanks for looking!
          Justin
          Last edited by JTR70; 05-31-2021, 09:07 PM.
          Justin Rio

          Comment


          • I never cease to be amazed just how thin the rusted areas can get Justin when rusted. Its these difficult areas to work on without a spit apart from stripping more and more out to resolve it stopped many a home restoration I reckon. Its the work involved with templates and then forming all the parts that takes time too. I think the current availability of MIG these past years ,must have helped you as the thought of doing all that with my then oxy /acetelene gear I used ,would have stopped me in my tracks I think!

            As said many times you make it look easy and its not!

            Roy

            Comment


            • JTR70
              JTR70 commented
              Editing a comment
              You are spot on Roy, without the availability of a MIG I'd be sunk for sure. If you only have Oxy/acetylene which was all you had at the time of your repairs you just can't attach raw lap joints cleanly or securely without a wire welder at least I can't. I experimented with trying to back fill and attach a plug weld with gas and the pieces literally turned into a hot mess before I could get it even close. Again I'm certain there are talented guys that could execute that but I'm not that guy. Thanks again for all the words of encouragement along the way. Its always appreciated. Justin

          • So true Roy. Great work and persistence Justin. Nothing you can’t tackle with your skills and determination.
            1960 356B T5 - under major resurrection.
            356 Registry main thread;
            http://forum.porsche356registry.org/viewtopic.php?f=4&t=35854
            1968 912 - running like a scalded cat.

            Comment


            • JTR70
              JTR70 commented
              Editing a comment
              Thanks for saying so and for the vote of confidence Scott!

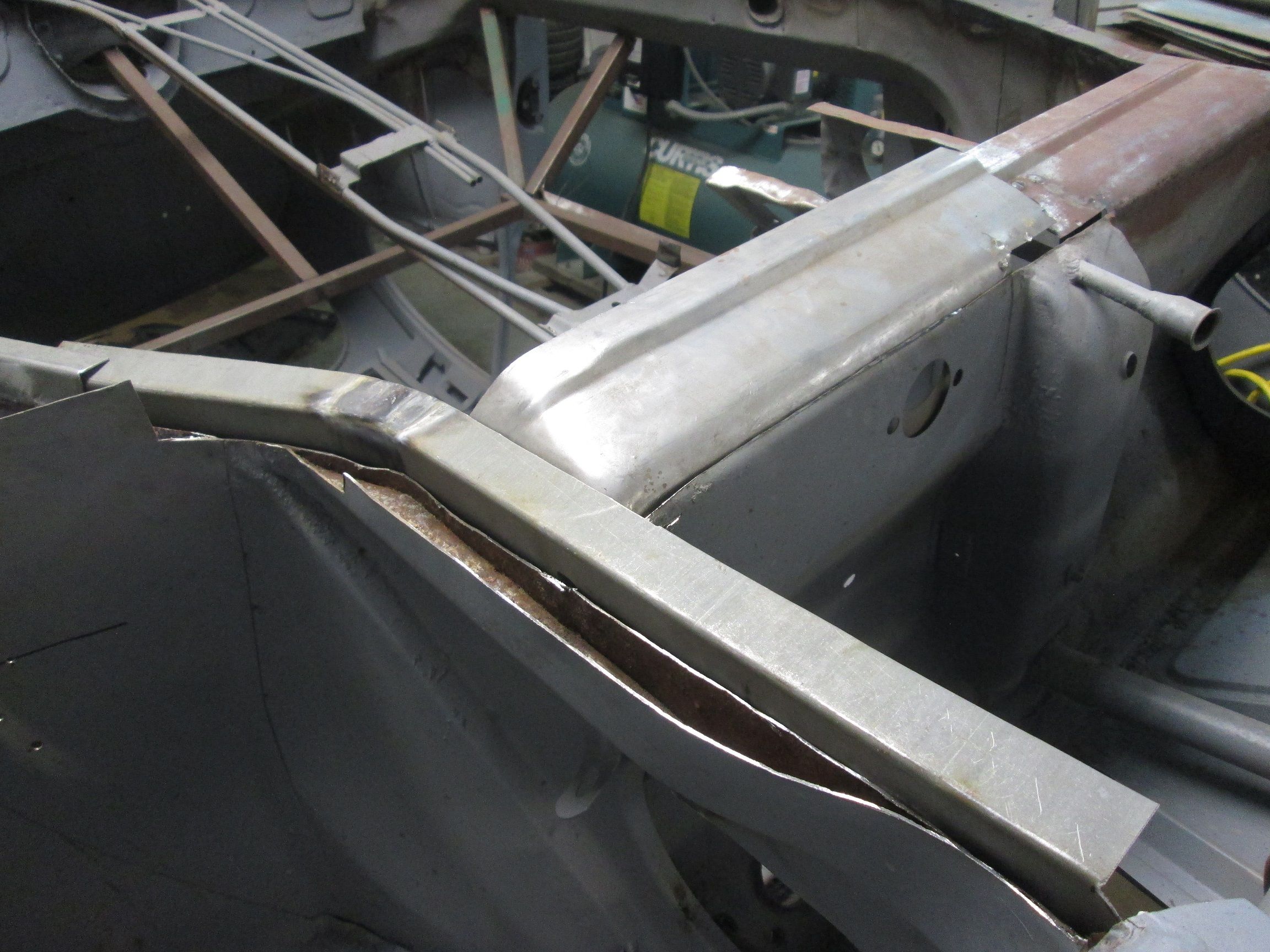

          • Click image for larger version

Name:	IMG_7656.JPG
Views:	431
Size:	160.4 KB

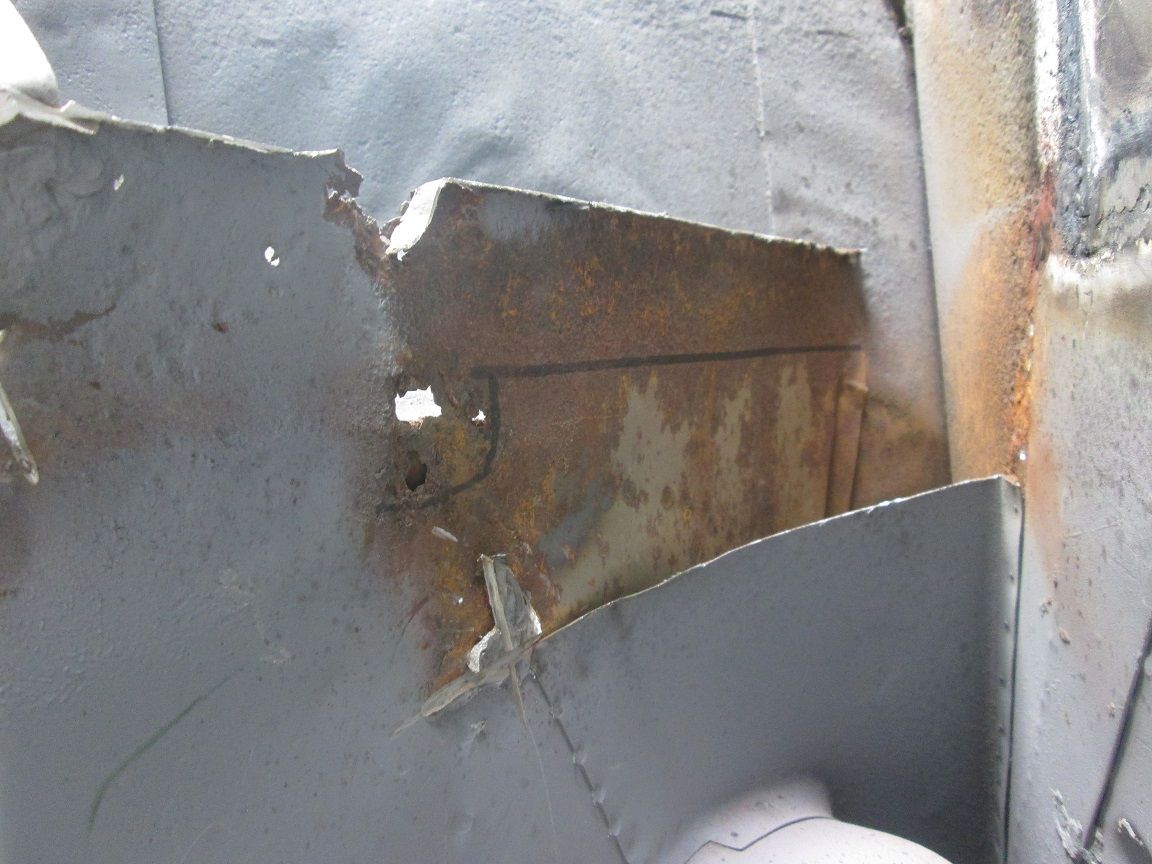

ID:	111476 Touched bottom down in here. I had to cut just a touch higher for a clean simple joint but building up from here.

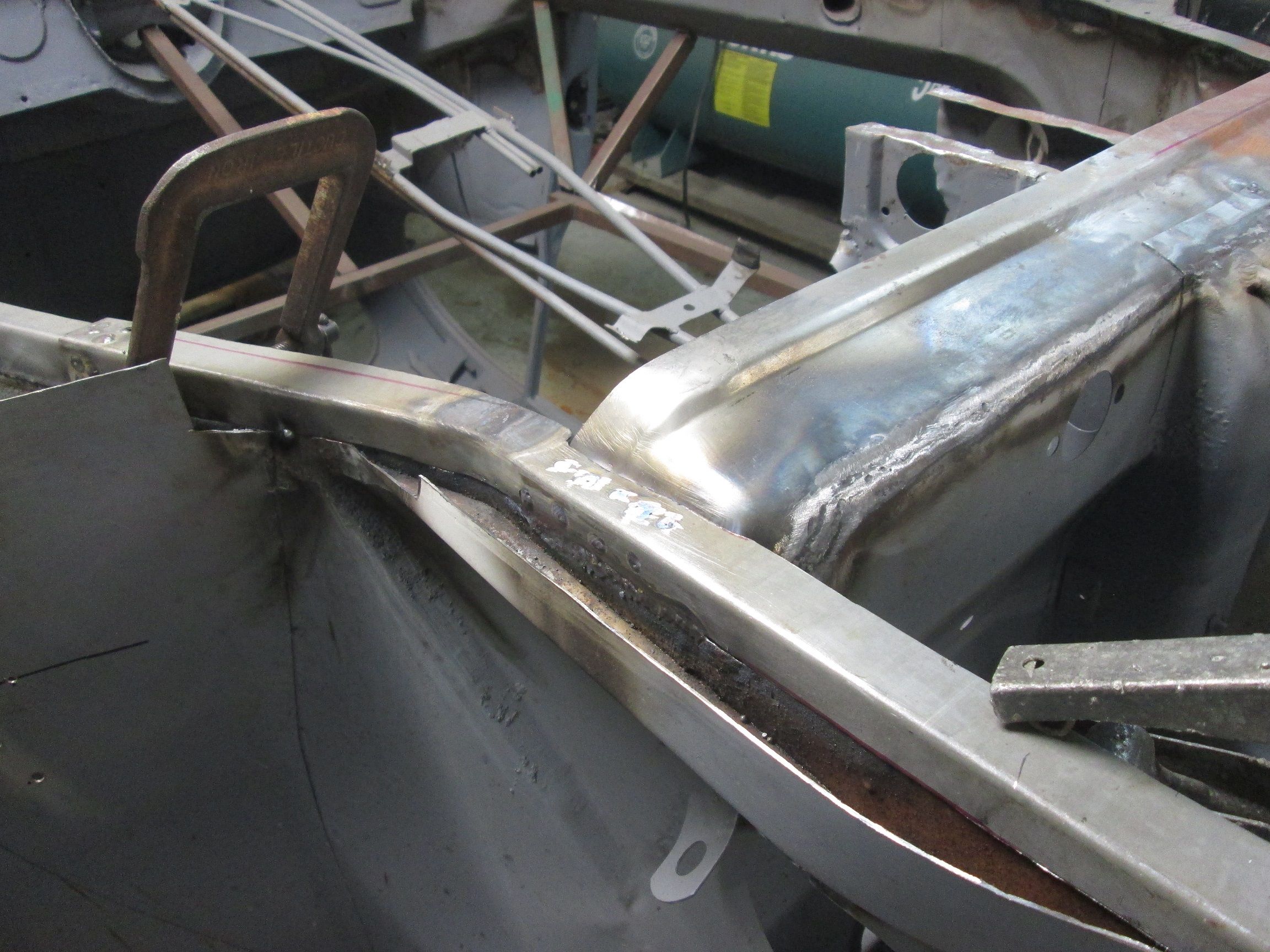

            Click image for larger version

Name:	IMG_7663.JPG
Views:	414
Size:	148.1 KB

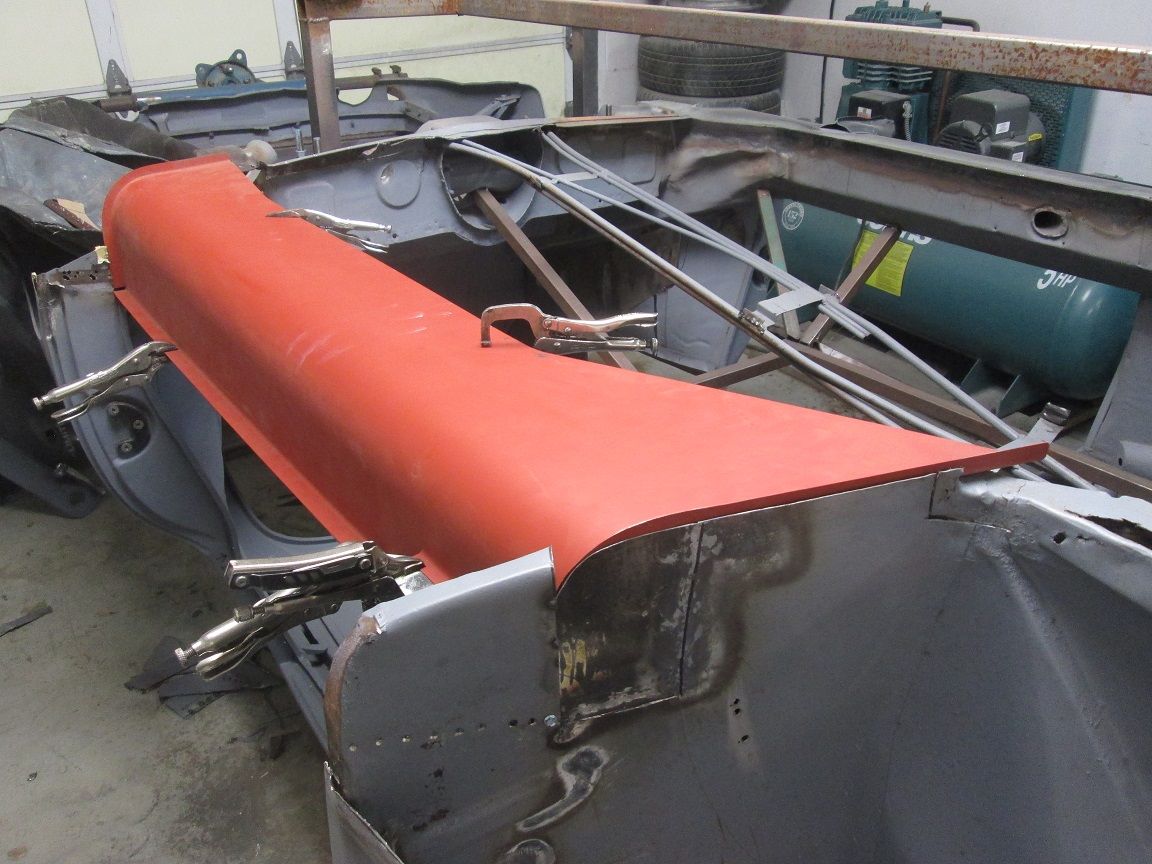

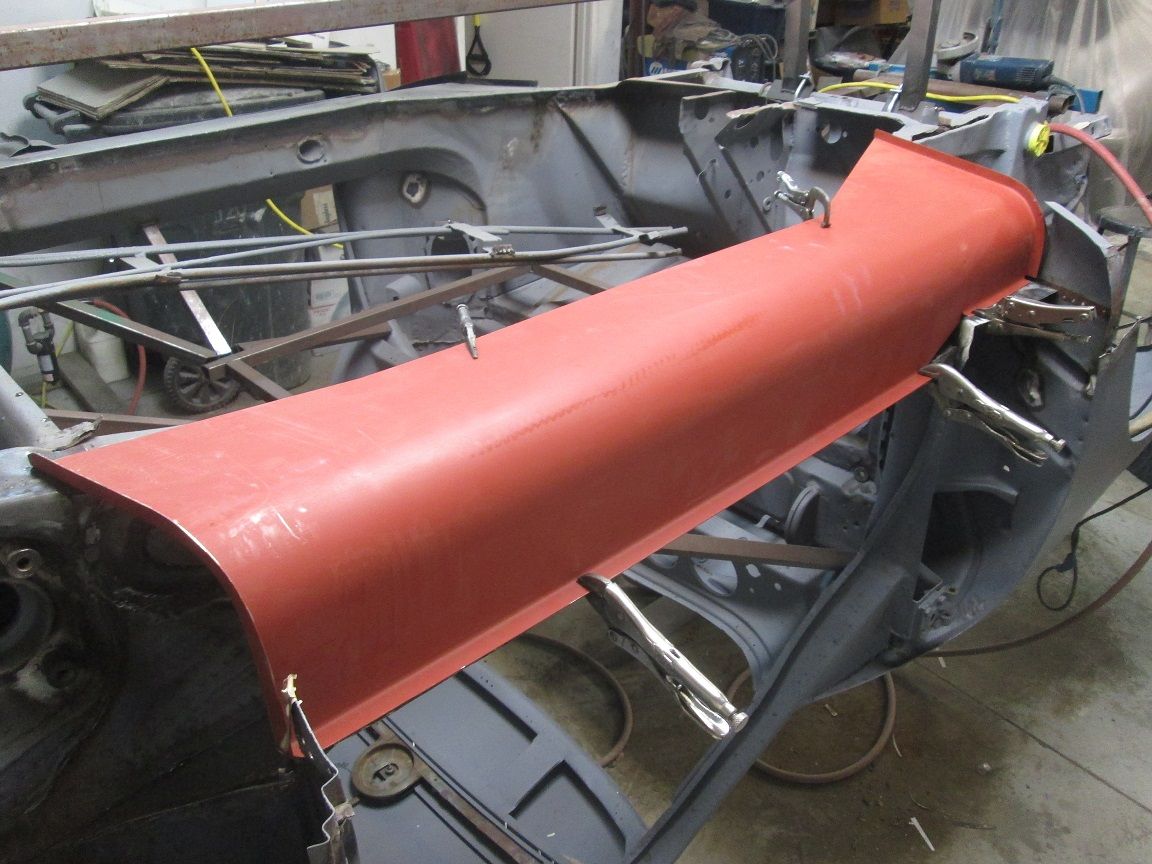

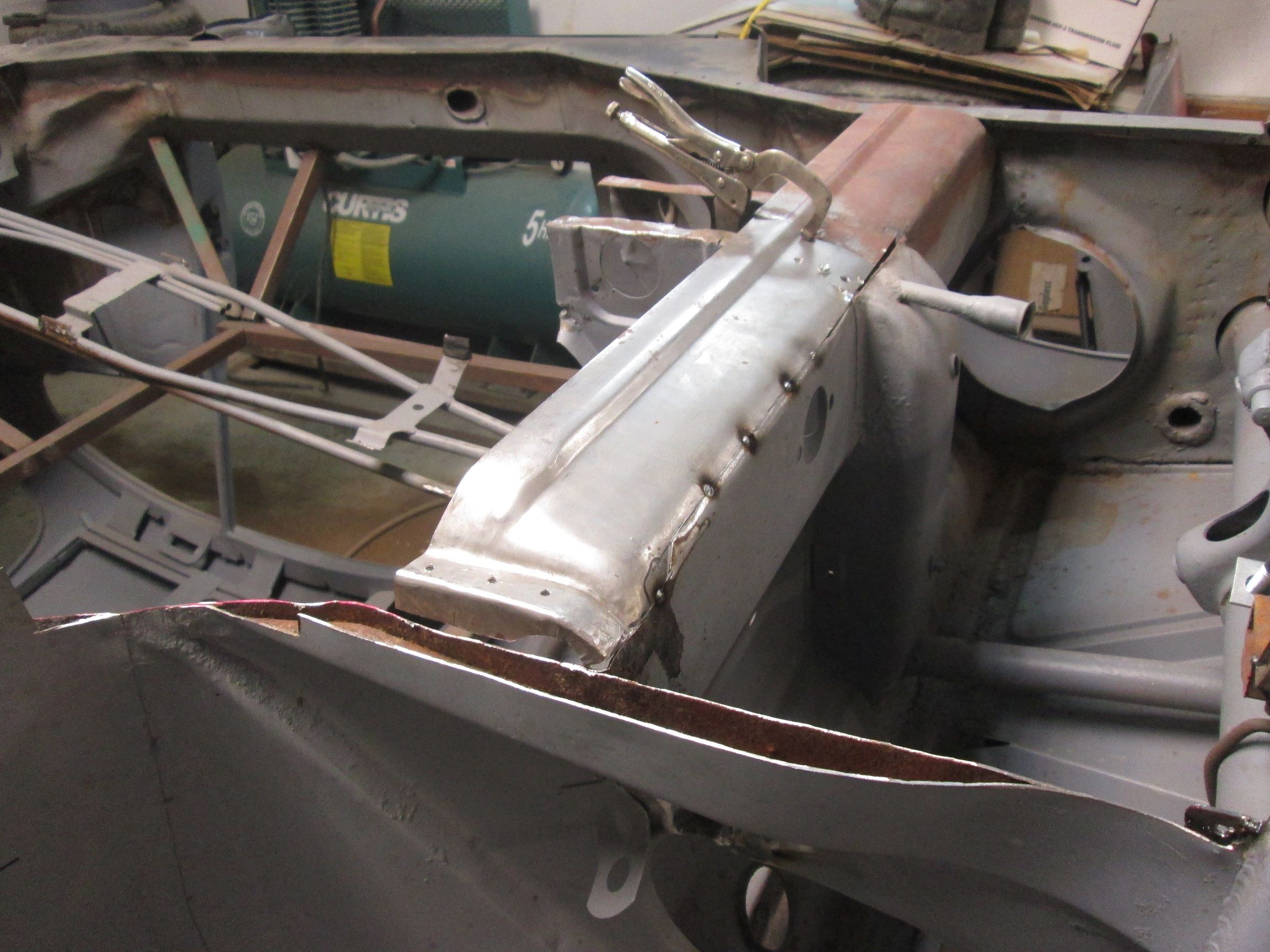

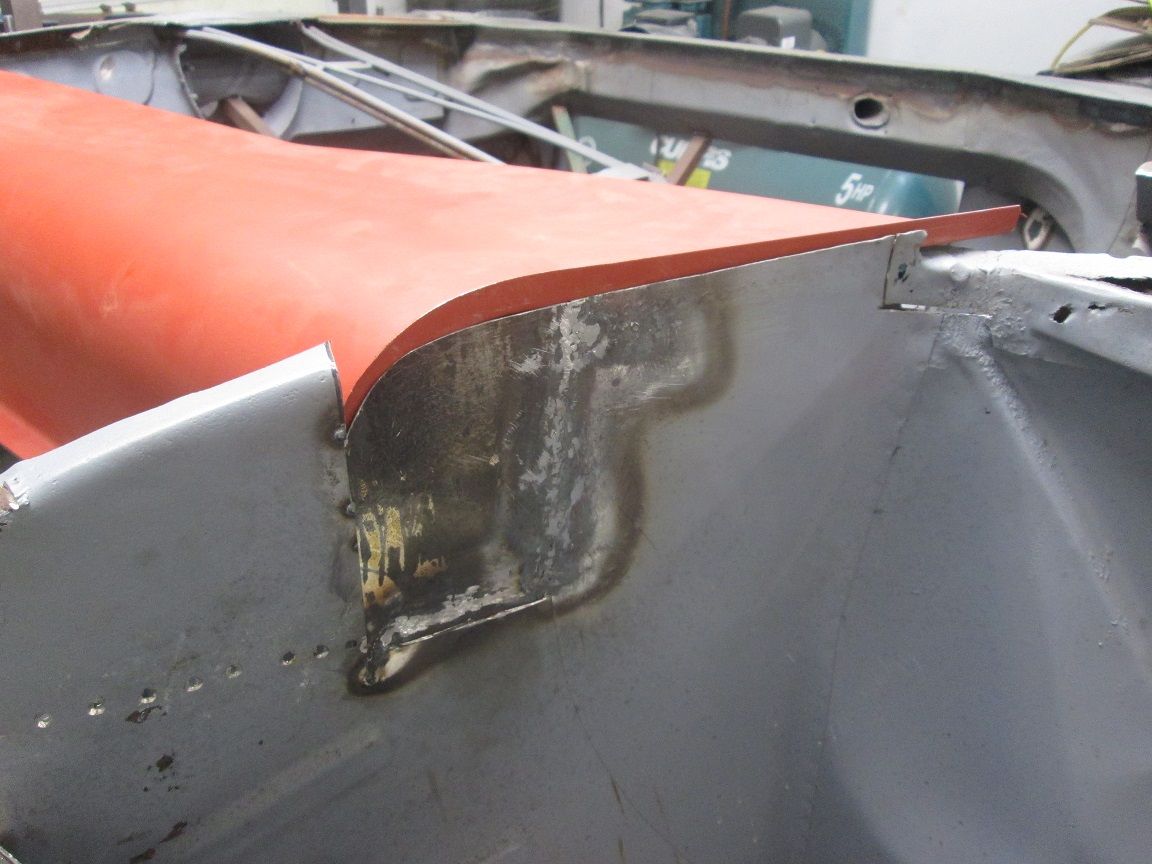

ID:	111477 Not exactly ready to close this up yet but trial fitments of the outer panel are beginning.

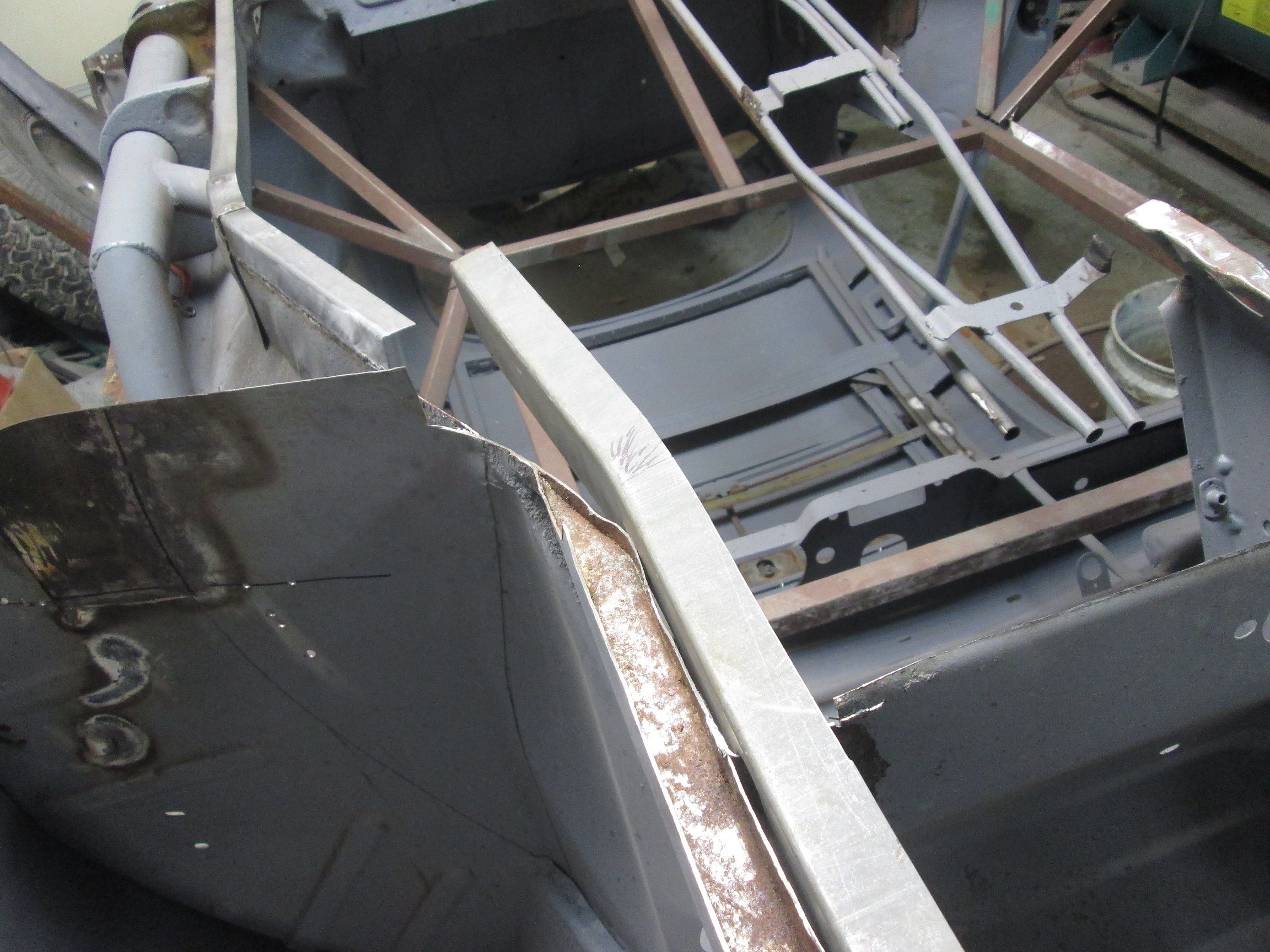

            Click image for larger version

Name:	IMG_7662.JPG
Views:	403
Size:	159.8 KB

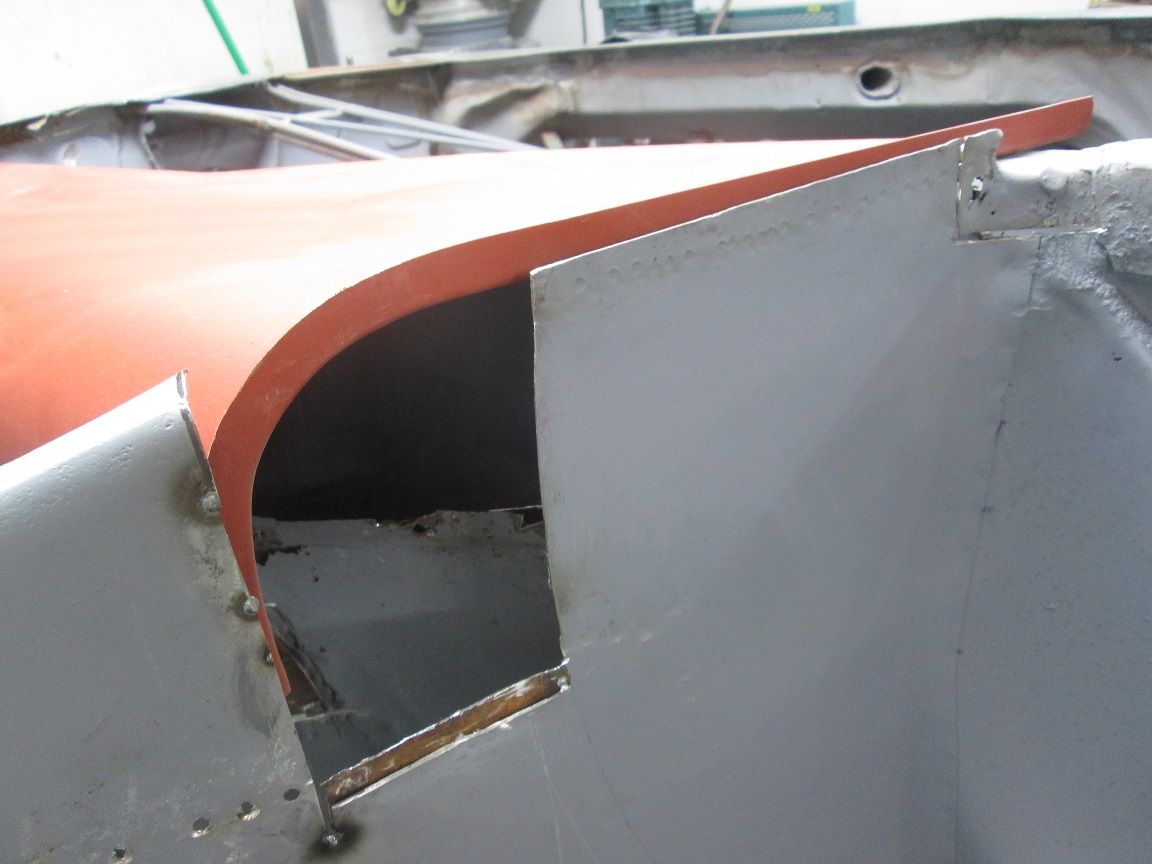

ID:	111478 So far so good with a tight fit against the bulkheads all the while not crowding out the upper mounting flange of this new piece.
            Click image for larger version

Name:	IMG_7664.JPG
Views:	410
Size:	149.2 KB
ID:	111479 Some flange adjustment as it goes for sure but pretty close for the first try.

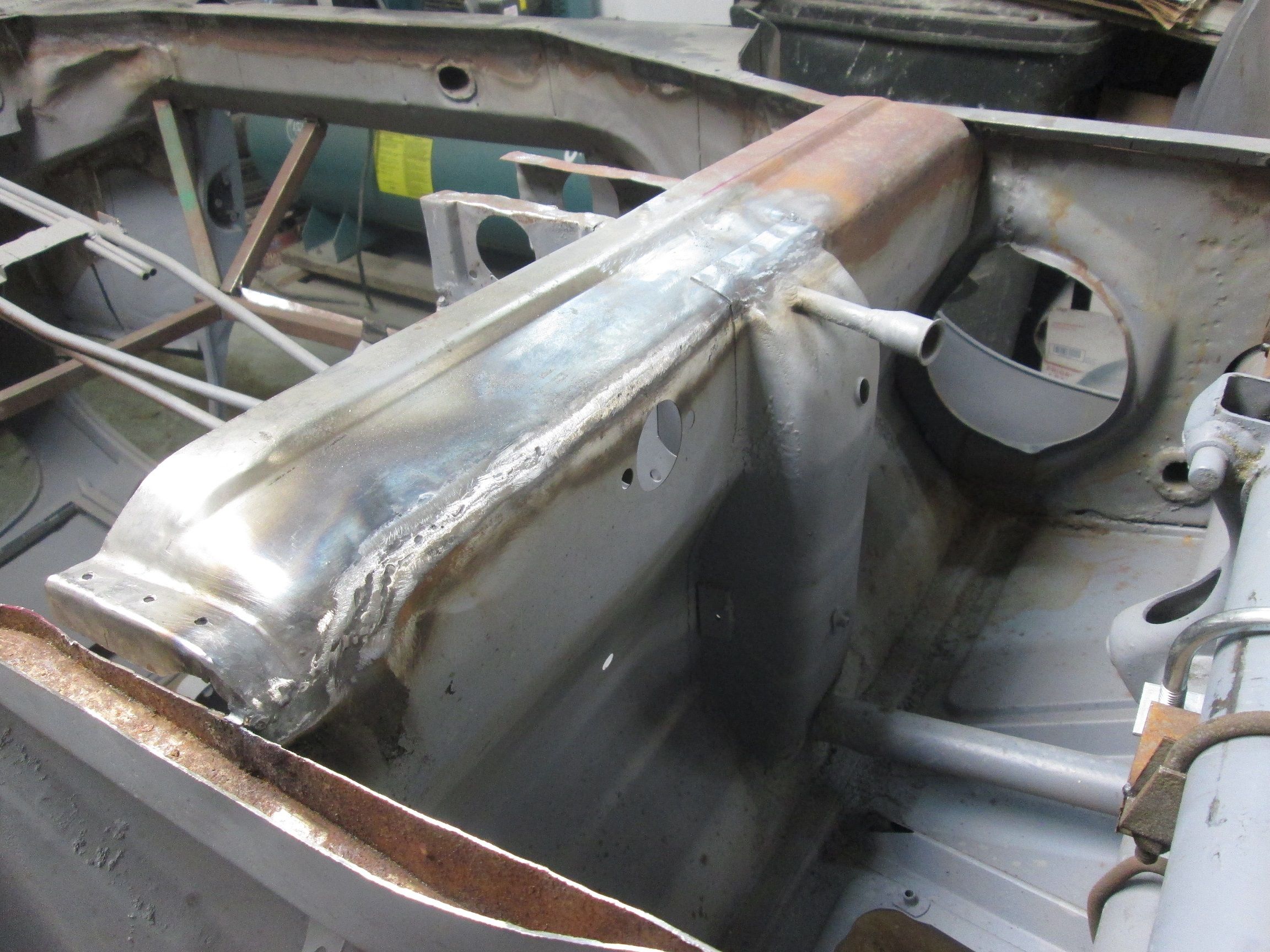

            Click image for larger version

Name:	IMG_7674.JPG
Views:	382
Size:	135.0 KB

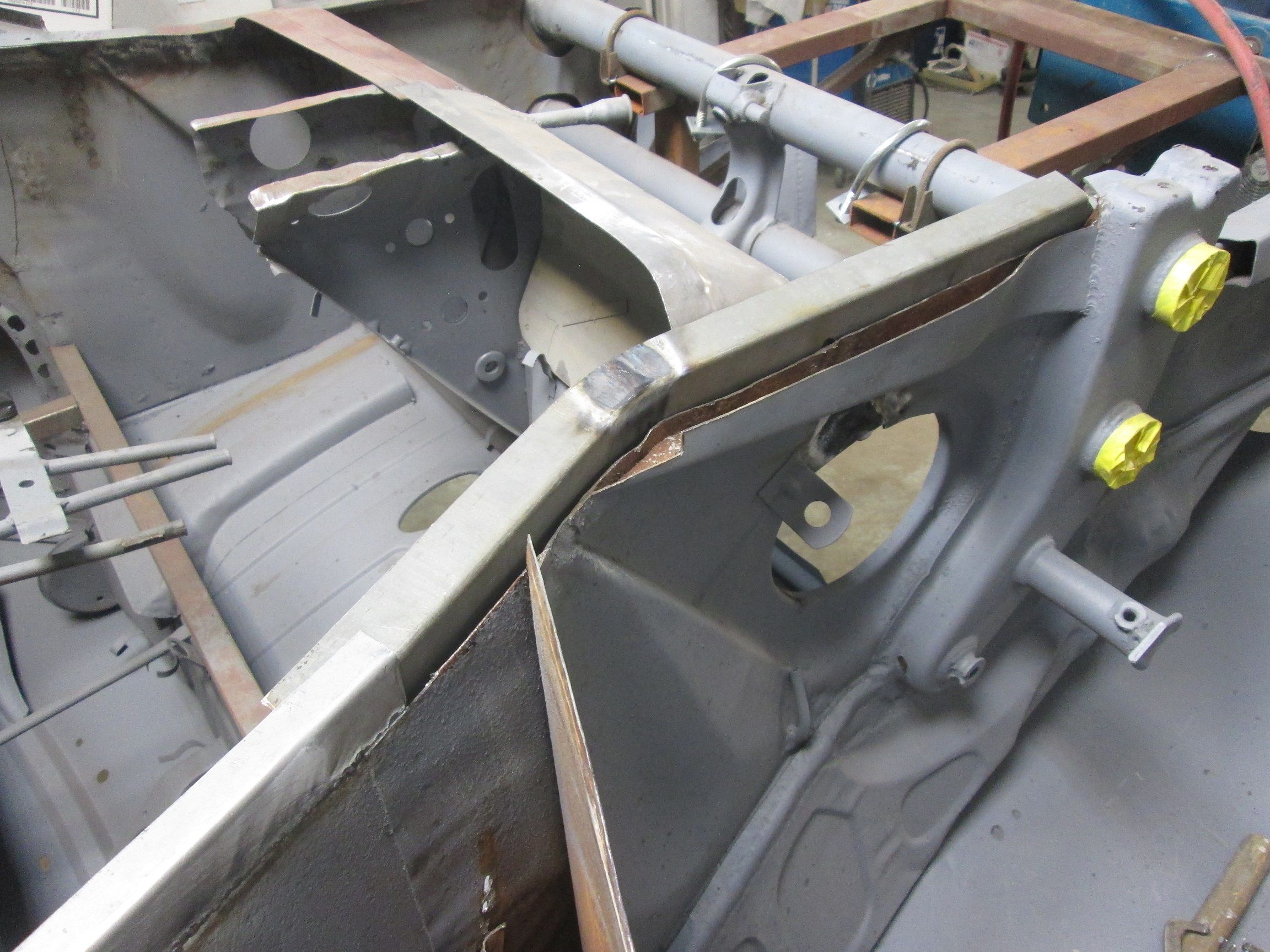

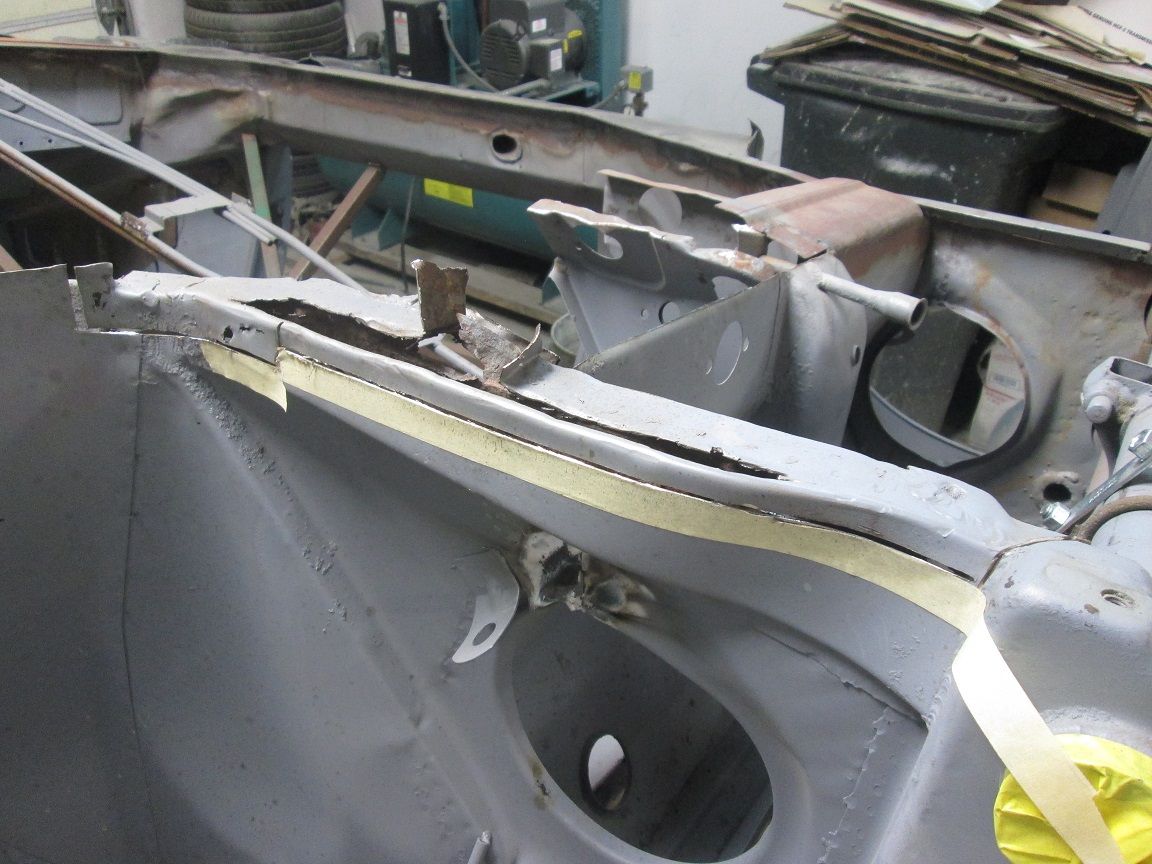

ID:	111480 Before I finish up the door well area I'm heading up front to cut out and clean up the remaining flange run of the chassis.
            Thanks for looking!
            Justin
            Justin Rio

            Comment


            • Getting past the last of the rot on this front left corner of the frame.

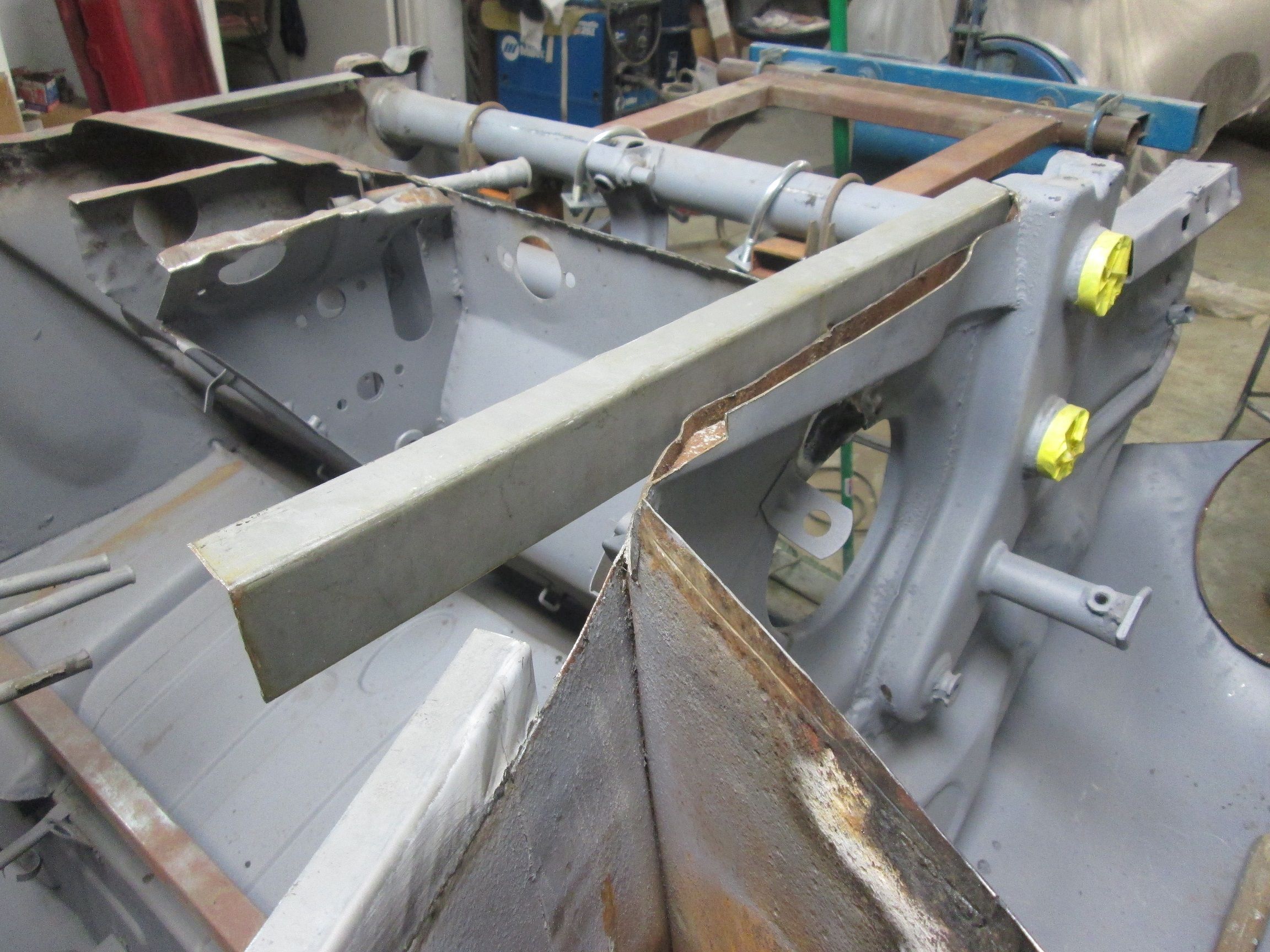

              Click image for larger version  Name:	IMG_7675.JPG Views:	0 Size:	122.6 KB ID:	111487Trying to stay as low with the cut as I can.
              Click image for larger version  Name:	IMG_7676.JPG Views:	0 Size:	144.6 KB ID:	111488 Going to save as much of this original lateral reinforcement as I can; just like the other side.
              Click image for larger version  Name:	IMG_7677.JPG Views:	0 Size:	156.3 KB ID:	111489 Last of the deep advanced rot up here exposed and removed.
              Click image for larger version  Name:	IMG_7678.JPG Views:	0 Size:	158.1 KB ID:	111490 No more cutting back on this forward corner of the chassis. Building up from here.
              Click image for larger version  Name:	IMG_7680.JPG Views:	0 Size:	537.6 KB ID:	111491 Now back to the inner flange repair sections.

              Thanks for looking!
              Justin
              Justin Rio

              Comment


              • Looking good Justin !

                Roy

                Comment


                • JTR70
                  JTR70 commented
                  Editing a comment
                  Thanks Roy!

              • More forward frame flange:

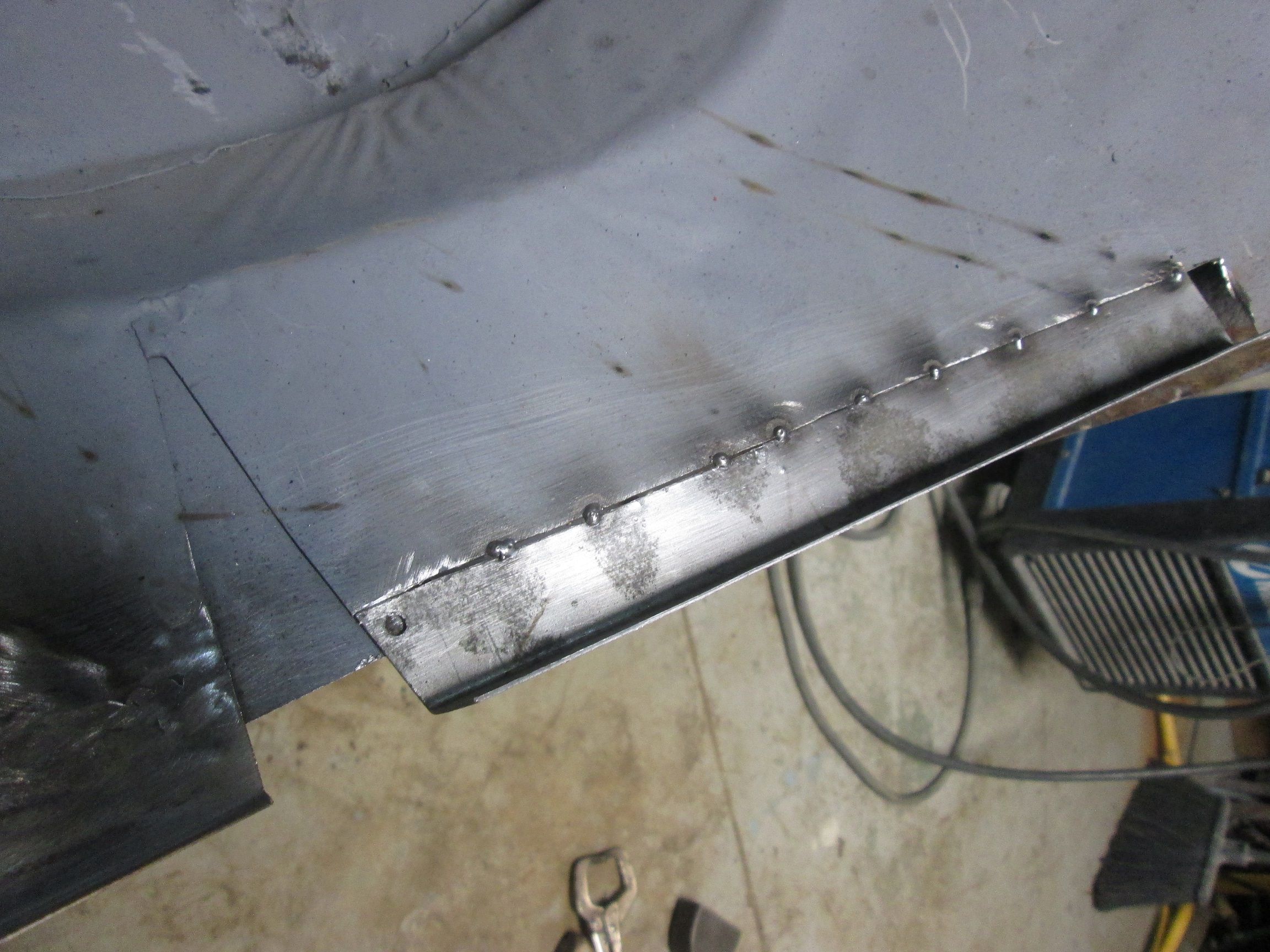

                Click image for larger version

Name:	IMG_7682.JPG
Views:	281
Size:	591.5 KB
ID:	111510 Next section stitched and now ready to cap that delta relief.
                Click image for larger version

Name:	IMG_7684.JPG
Views:	266
Size:	537.1 KB
ID:	111511 New cap ready to be welded in. Now onto the final most forward flange section.
                Click image for larger version

Name:	IMG_7685.JPG
Views:	270
Size:	595.8 KB

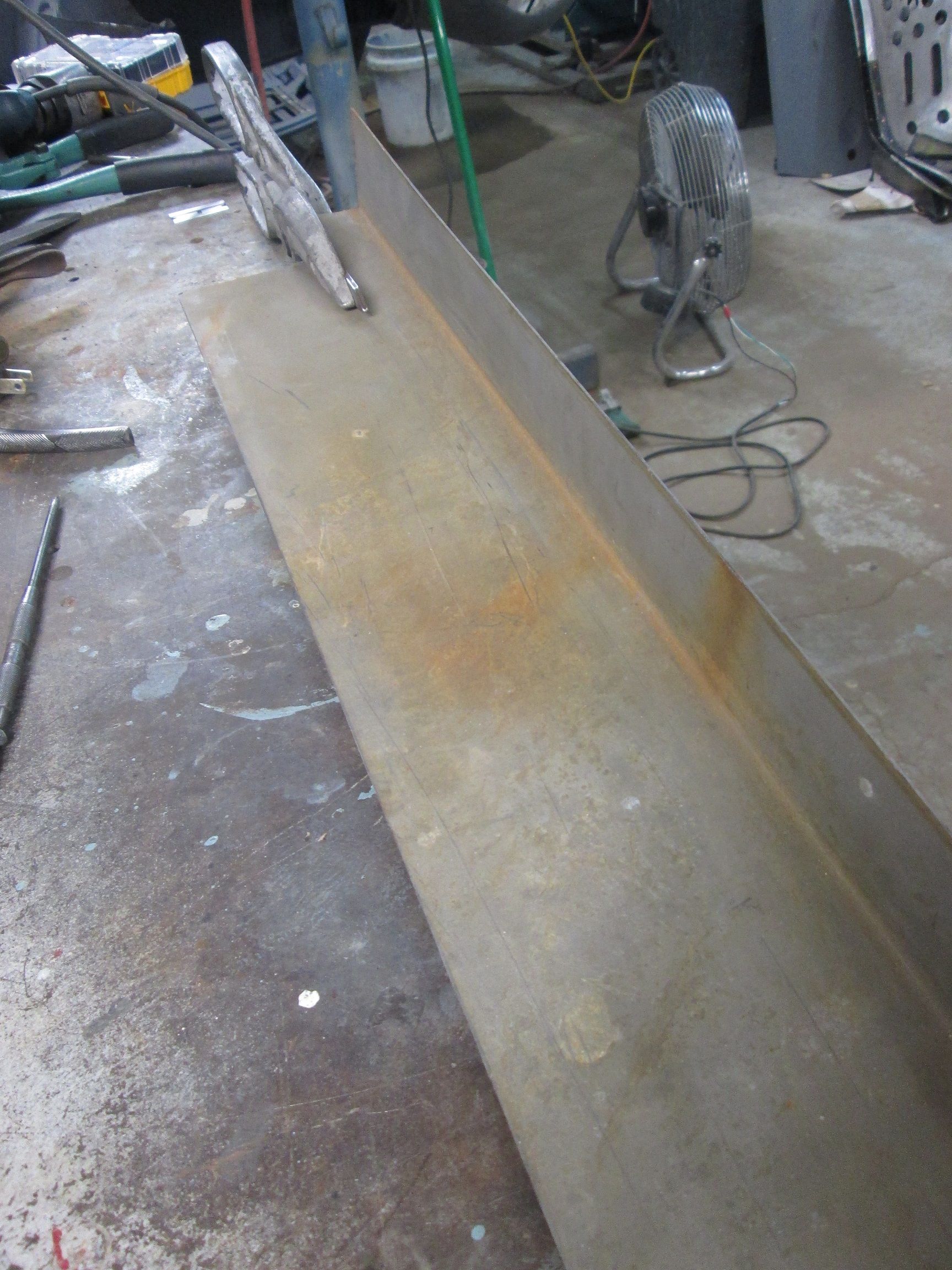

ID:	111512 This last section runs slightly wider than the rest of the perimeter so its being cut from this wider stock.
                Click image for larger version

Name:	IMG_7686.JPG
Views:	268
Size:	564.7 KB
ID:	111513 Just under a quarter inch wider than the rest of the flange run.
                Click image for larger version

Name:	IMG_7688.JPG
Views:	254
Size:	584.5 KB

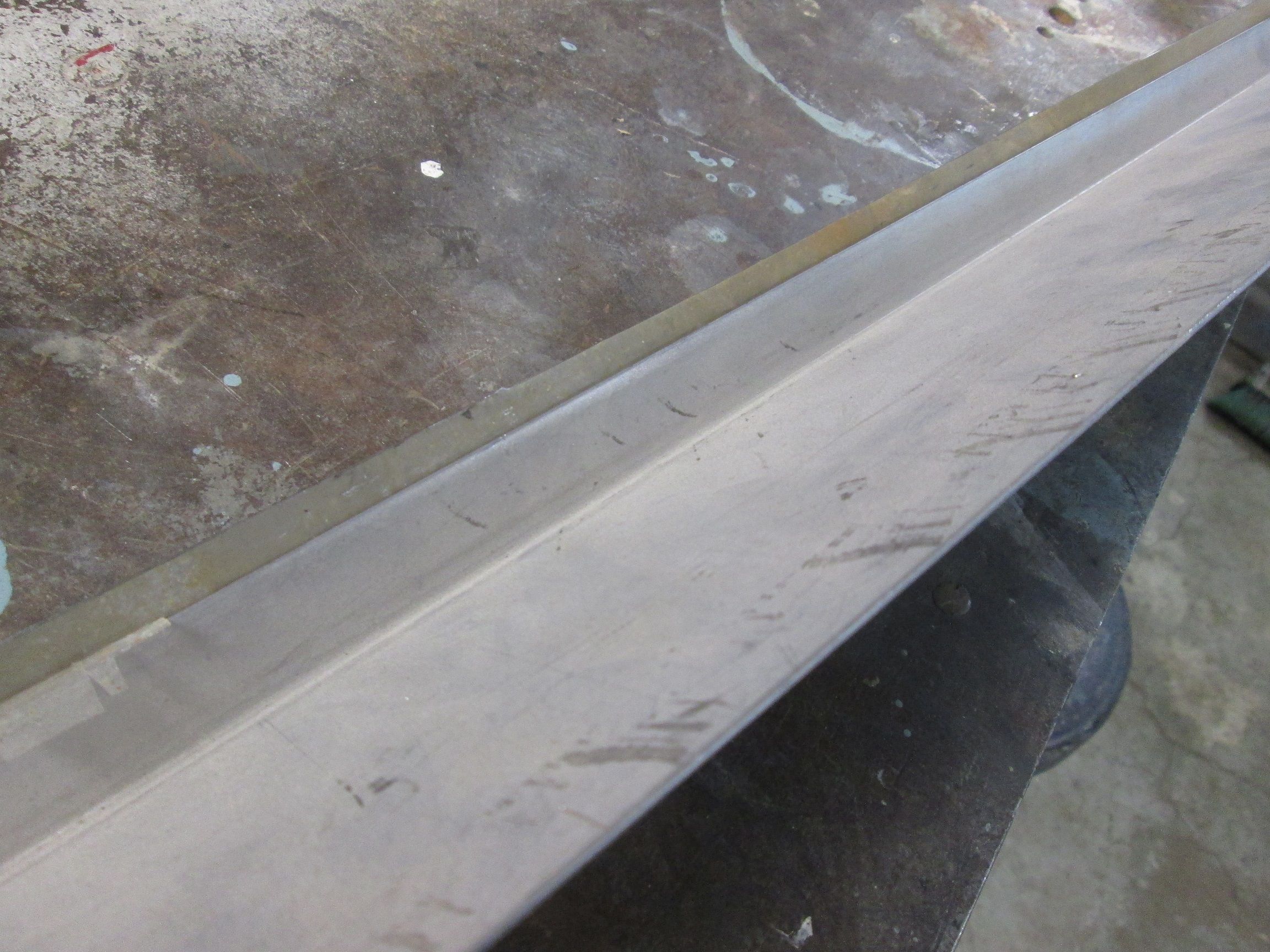

ID:	111514 New section cut to basic shape and width now onto adding the curved contour.

                Thanks for looking!
                Justin
                Justin Rio

                Comment


                • Forward frame repairs continued:
                  Click image for larger version  Name:	IMG_7689.JPG Views:	0 Size:	565.5 KB ID:	111516 Started making the turn with a stretcher die.
                  Click image for larger version  Name:	IMG_7690.JPG Views:	0 Size:	566.1 KB ID:	111517 But the flange is wider and the metal is 18 gauge so I could only get so much. Some torch heat was needed to take it the rest of the way.
                  Click image for larger version  Name:	IMG_7691.JPG Views:	0 Size:	512.4 KB ID:	111518 Before the lateral flange goes on its much easier and cleaner to weld in and complete the forward bulkhead wall repair first.
                  Click image for larger version  Name:	IMG_7693.JPG Views:	0 Size:	515.2 KB ID:	111519 Initial rough fitments begin to get it all to eventually fit together and with the chassis itself. The flange really limits access to the outer corner of the bulkhead wall which is why it will go on after the repairs are complete.
                  Click image for larger version  Name:	IMG_7694.JPG Views:	0 Size:	561.6 KB ID:	111520 Lots of fine trimming and repeated test fits to come.
                  Last edited by JTR70; 06-27-2021, 08:13 PM.
                  Justin Rio

                  Comment


                  • Forward bulkhead wall repair.
                    Click image for larger version  Name:	IMG_7697.JPG Views:	0 Size:	537.3 KB ID:	111522 Before the new bulkhead flange could be installed I had to straighten out the toe board bracket which much like the other side was all curled over and bent to shit.
                    Click image for larger version  Name:	IMG_7702.JPG Views:	0 Size:	564.0 KB ID:	111523 Staged trimming and improved fitment of both new pieces continued. Ready to commit and make the final cut to bulkhead flange.
                    Click image for larger version  Name:	IMG_7703.JPG Views:	0 Size:	524.7 KB ID:	111524 New flange tacked in.
                    Click image for larger version  Name:	IMG_7705.JPG Views:	0 Size:	527.9 KB ID:	111525 Joint all stitched up
                    Click image for larger version  Name:	IMG_7706.JPG Views:	0 Size:	568.5 KB ID:	111526 Dressed and gone over one more time with some torch heat to ensure a thorough meld. I find lots of small sections where the joint wasn't completely bonded. This ensures a thorough meld. Welding up the center of it next and adding in a new flange overlap detail for that factory extension cover.

                    Thanks for looking!
                    Justin
                    Last edited by JTR70; 06-27-2021, 08:27 PM.
                    Justin Rio

                    Comment


                    • Forward bulkhead wall repairs complete. Adding the final lateral flange sections
                      Click image for larger version

Name:	IMG_7707.JPG
Views:	277
Size:	546.5 KB
ID:	111528 Center welded back up with overlap flange detail added.
                      Click image for larger version

Name:	IMG_7709.JPG
Views:	261
Size:	584.7 KB
ID:	111529 Forward bulk wall repairs completed. Now the remaining flange section can be installed.
                      Click image for larger version

Name:	IMG_7712.JPG
Views:	258
Size:	567.6 KB

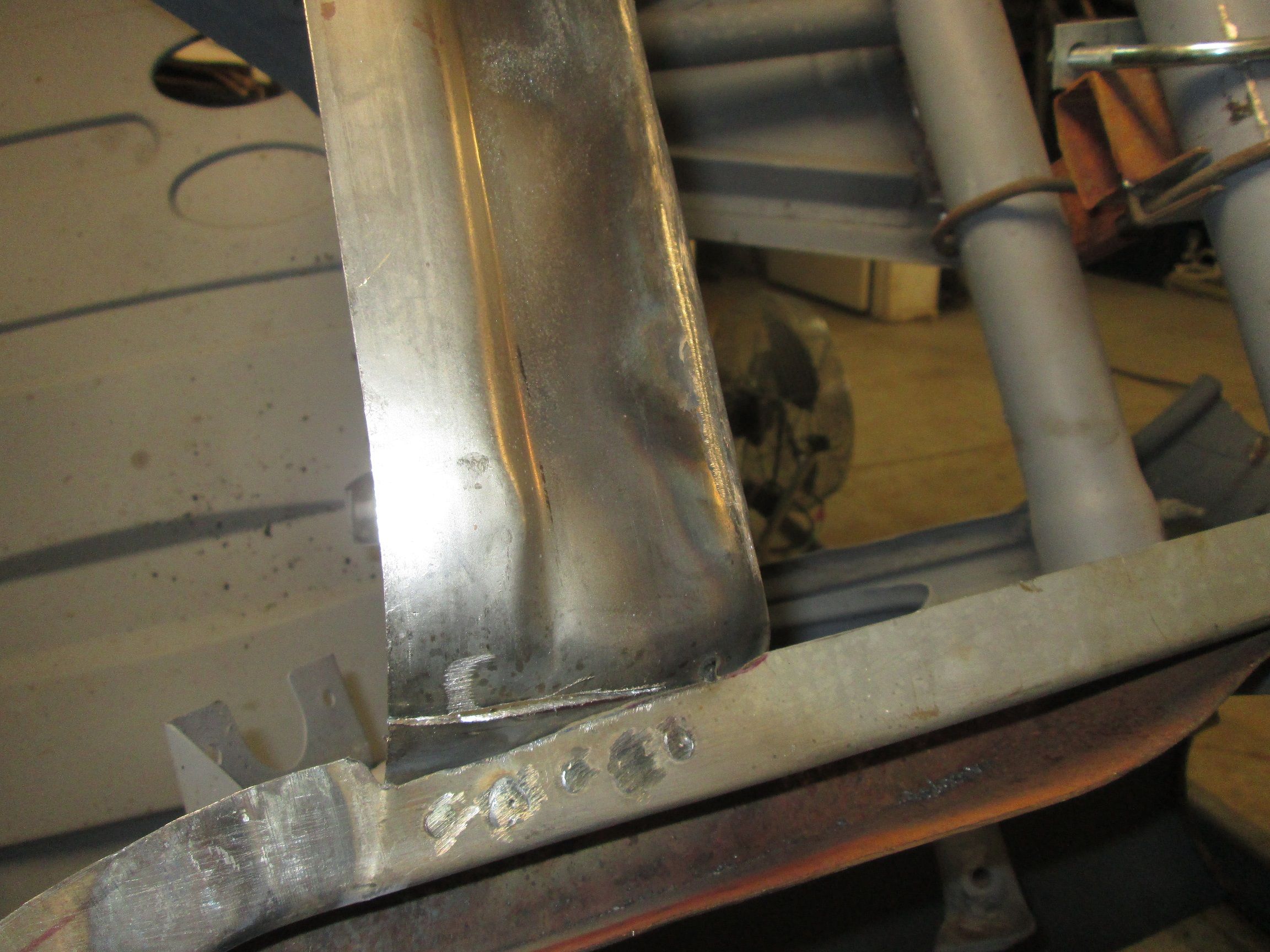

ID:	111530 plug welding and stitching it in. Same as with the other side the stitching will stop for now right at the bulkhead until I have the front beam pulled out and reset.
                      Click image for larger version

Name:	IMG_7715.JPG
Views:	244
Size:	508.9 KB
ID:	111531 Bulkhead flange relief cut to bring it down a few MM's to more closely match the height of the original. Same was done to the other side.
                      Click image for larger version

Name:	IMG_7716.JPG
Views:	256
Size:	608.7 KB

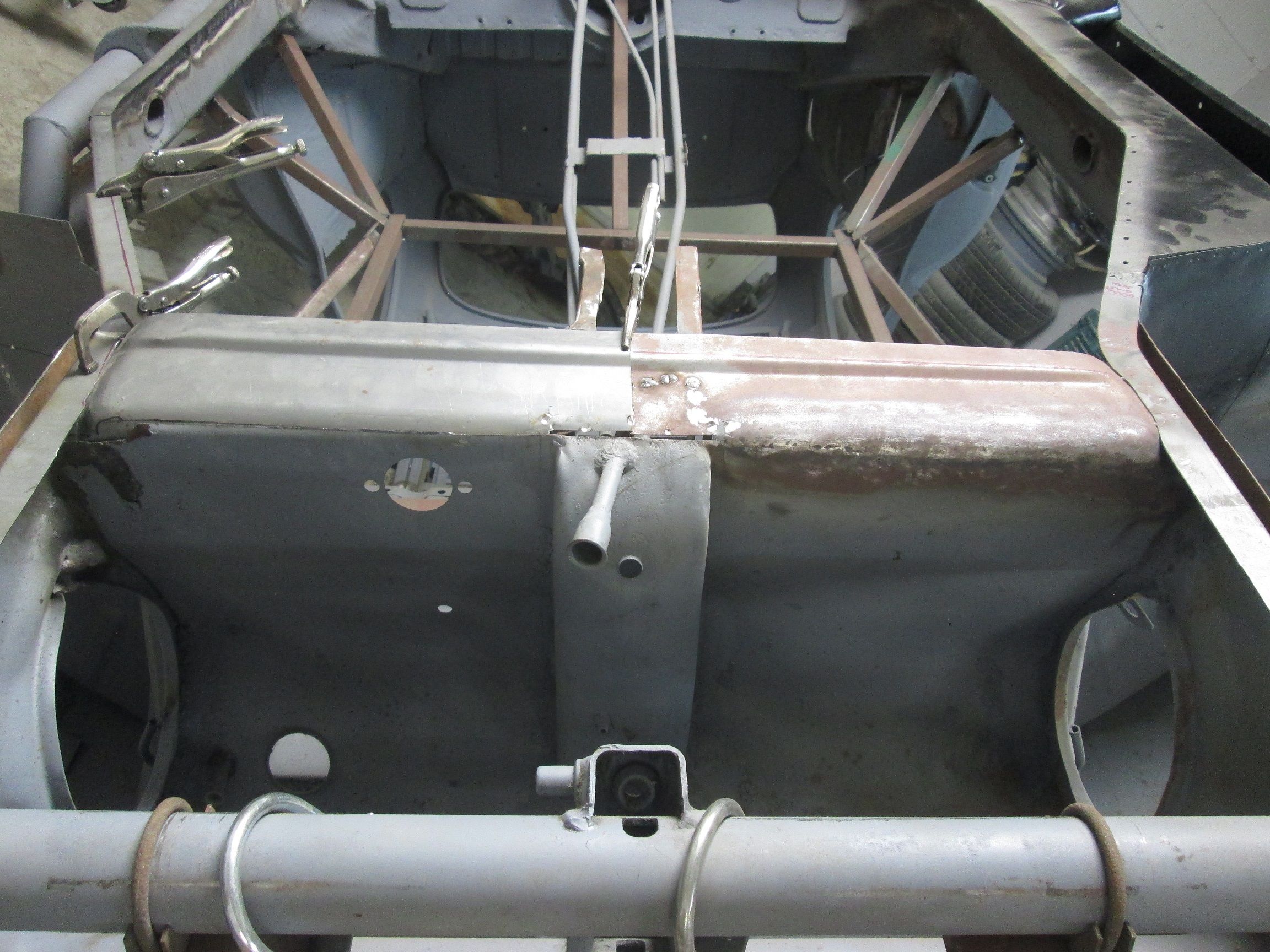

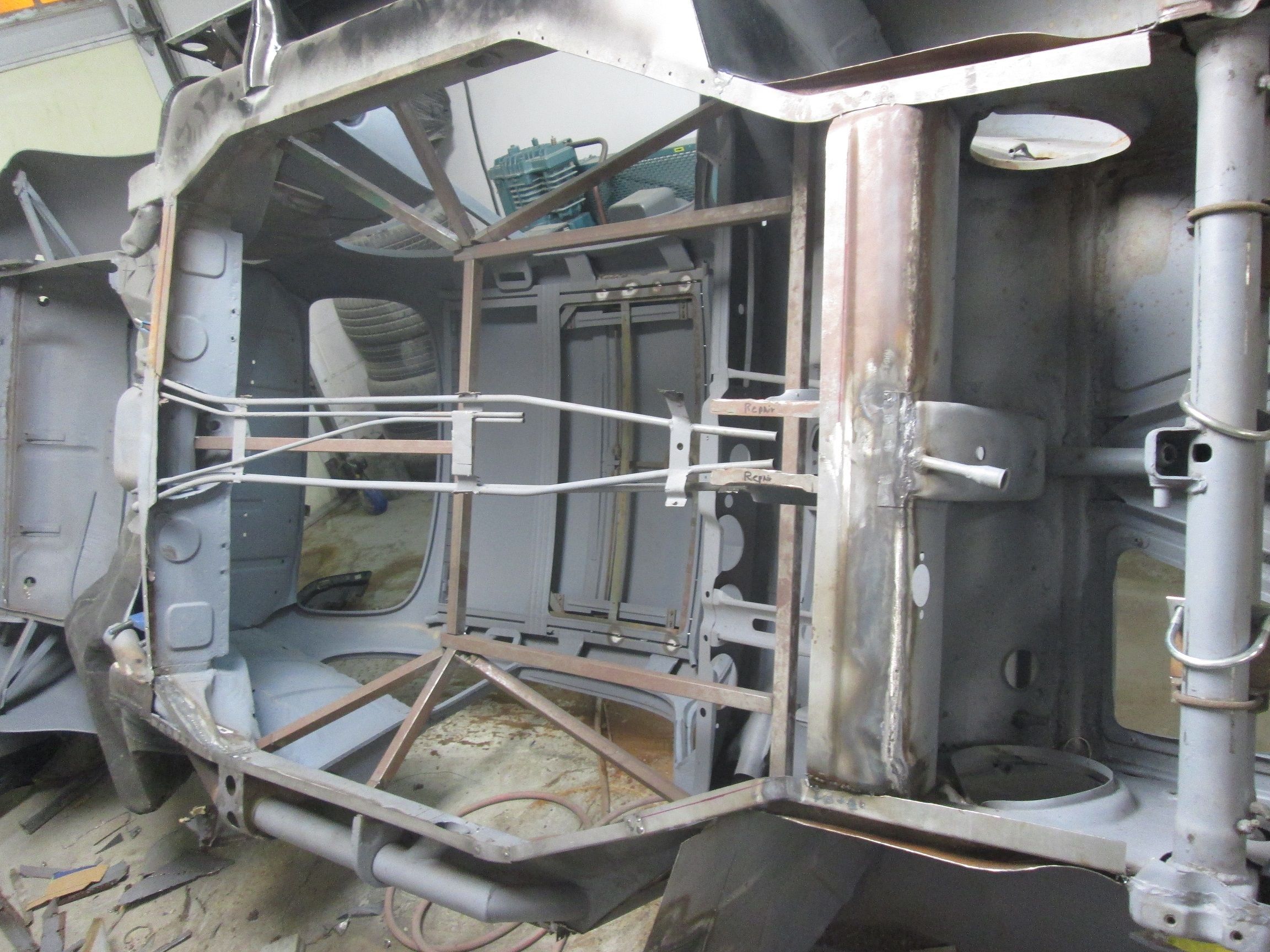

ID:	111532 Perimeter repairs to accept a new floor is all but complete save for a small section on the left side of the rear seat pan. A step closer to getting this longitudinal section closed up.

                      Thanks for looking!
                      Justin
                      Justin Rio

                      Comment


                      • That area looks really good Justin

                        Roy

                        Comment


                        • JTR70
                          JTR70 commented
                          Editing a comment
                          Thanks Roy, its getting there.
