  • repair panel #4 continued.
    Click image for larger version

Name:	IMG_7466.JPG
Views:	683
Size:	155.8 KB

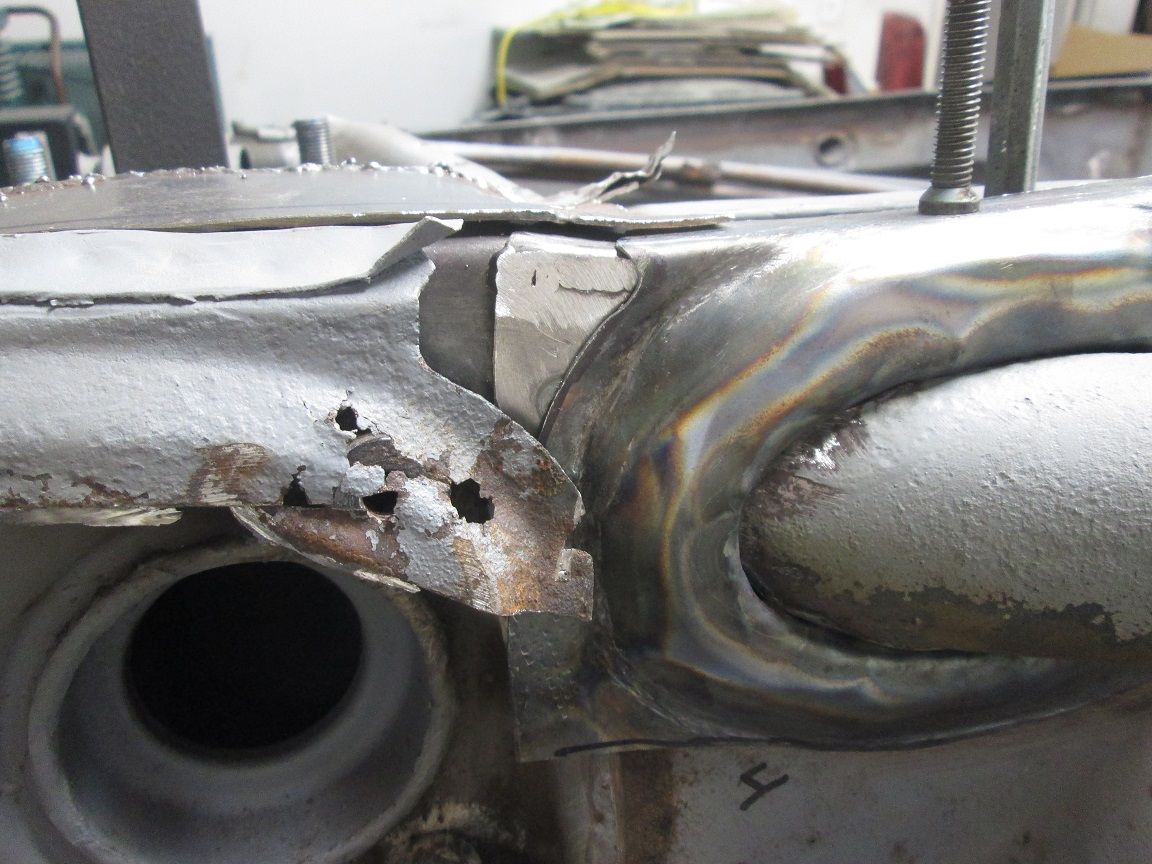

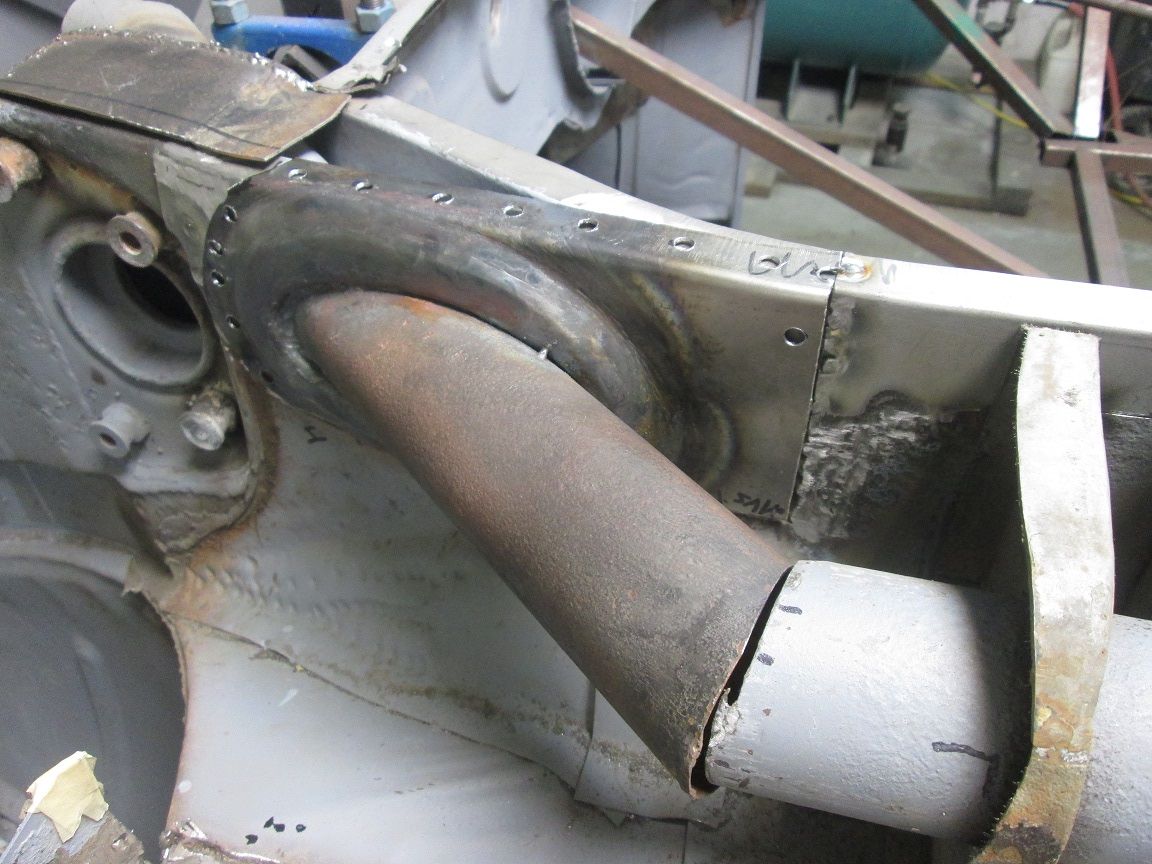

ID:	111229 Committed and initial opening cut it.
    Click image for larger version

Name:	IMG_7467.JPG
Views:	663
Size:	143.9 KB

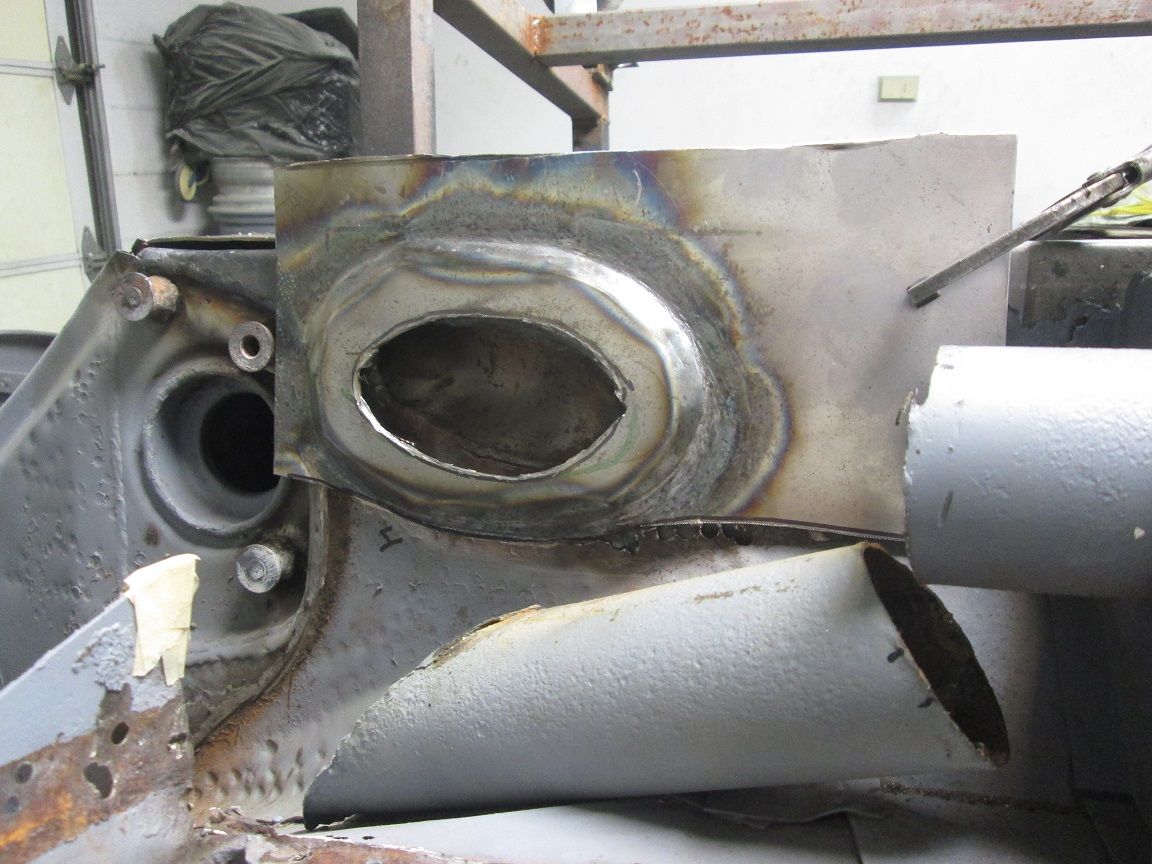

ID:	111230 Gradually opening it by rolling the lip inward so the end of this tube will actually fit in there. The rolled lip will eventually be seam welded to the end of the tube as originally.
    Click image for larger version

Name:	IMG_7468.JPG
Views:	646
Size:	143.7 KB

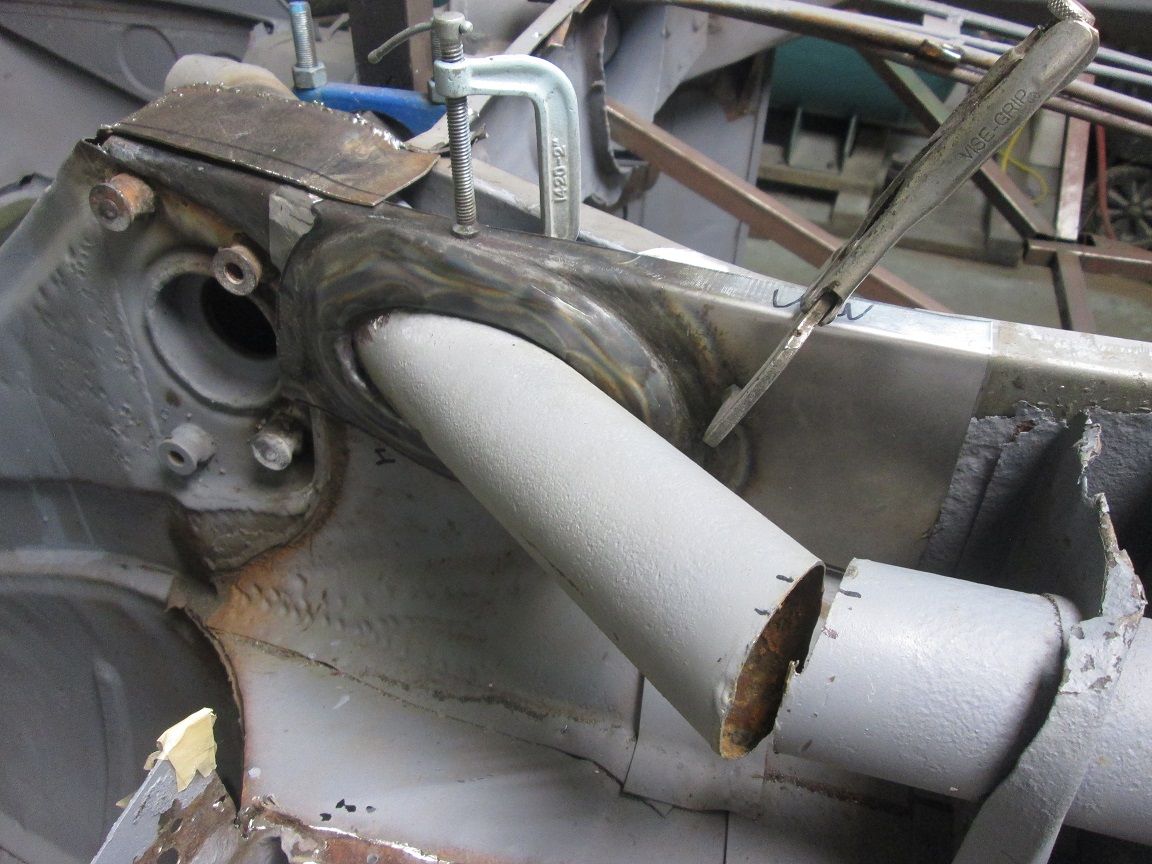

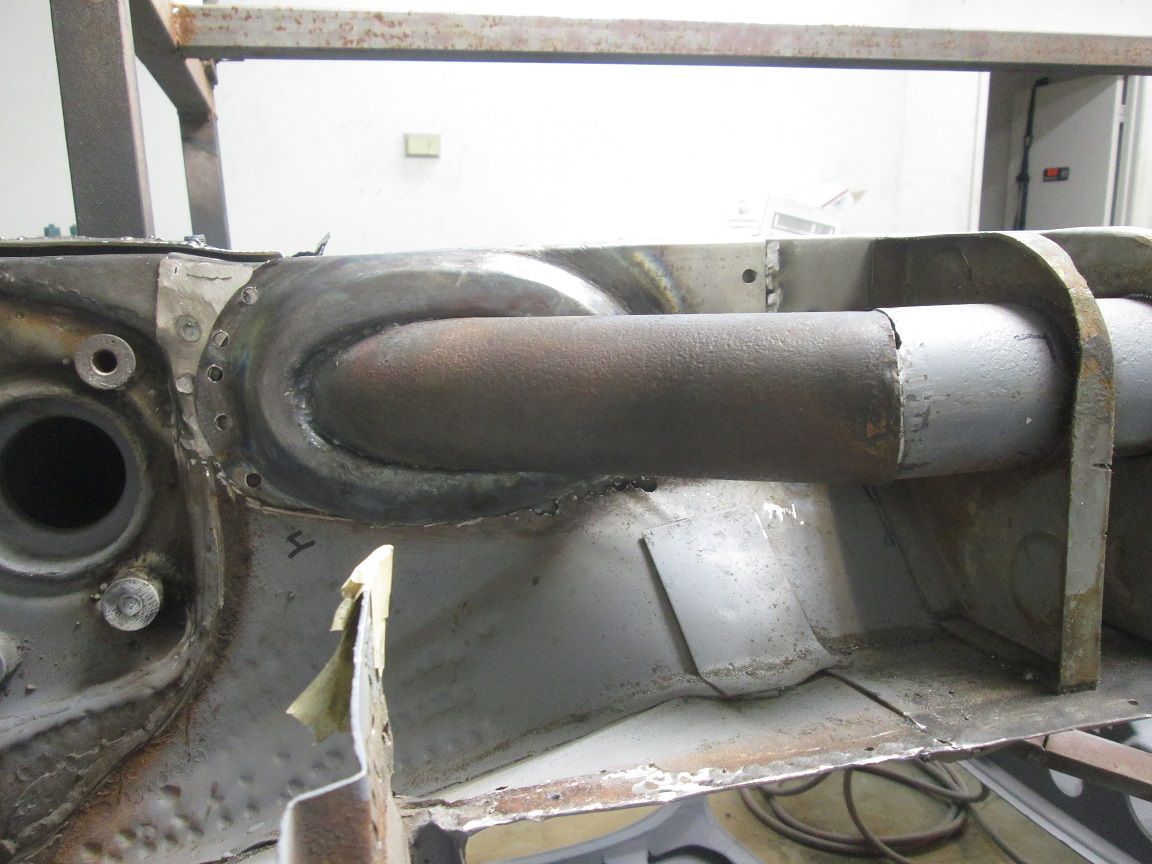

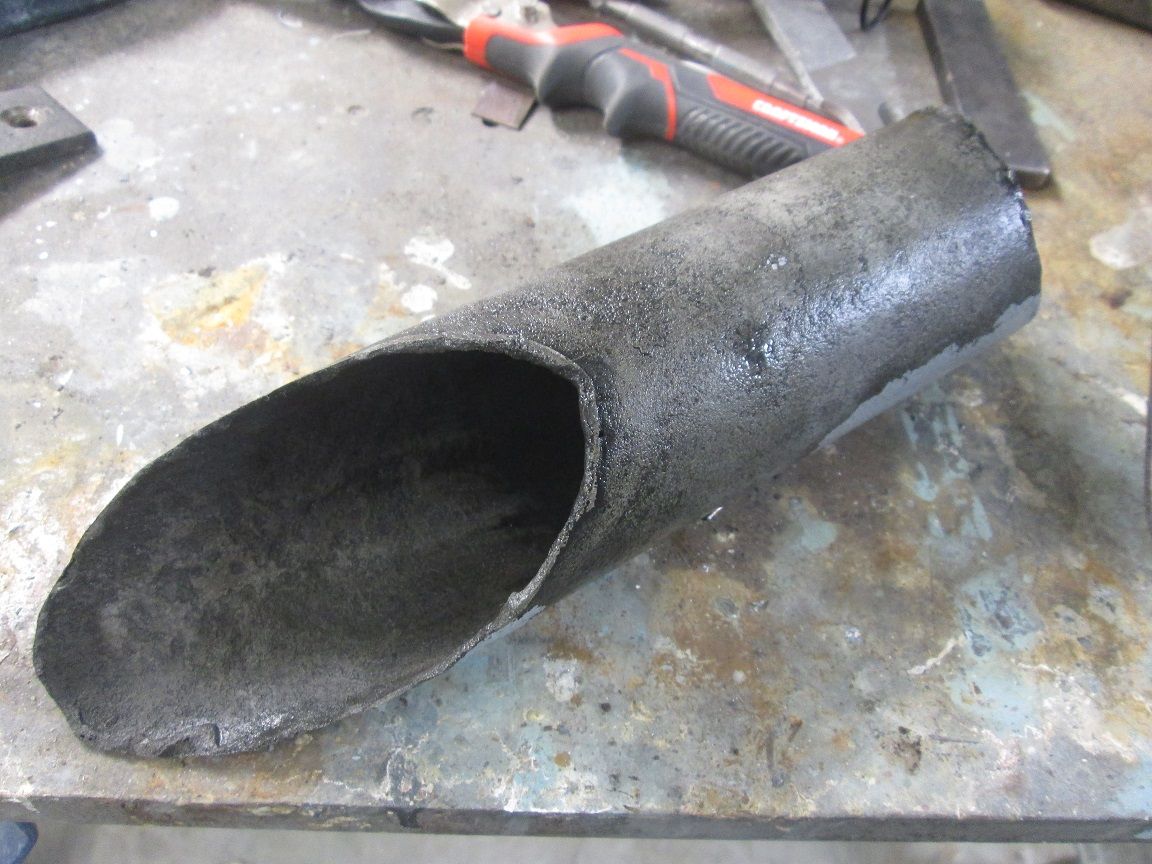

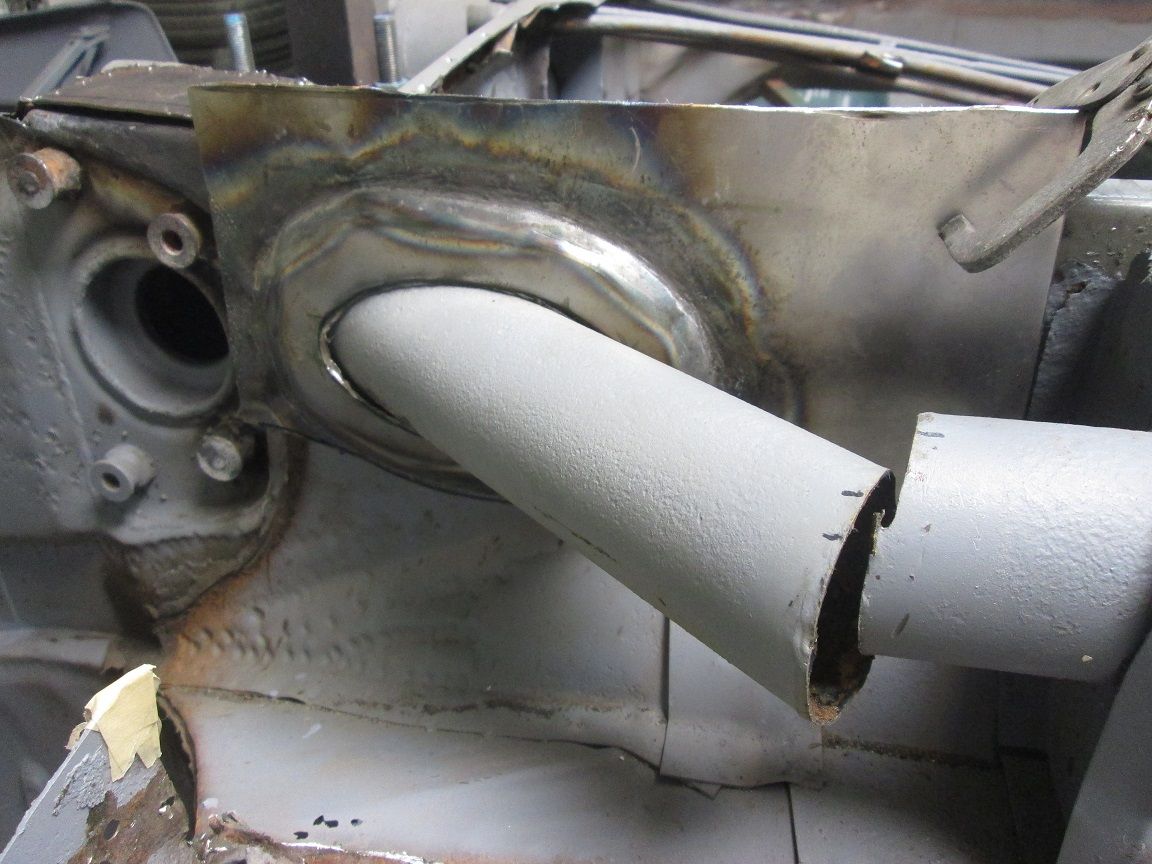

ID:	111231 After several tries the end of the tube finally slipped in.
    Click image for larger version

Name:	IMG_7469.JPG
Views:	657
Size:	137.2 KB

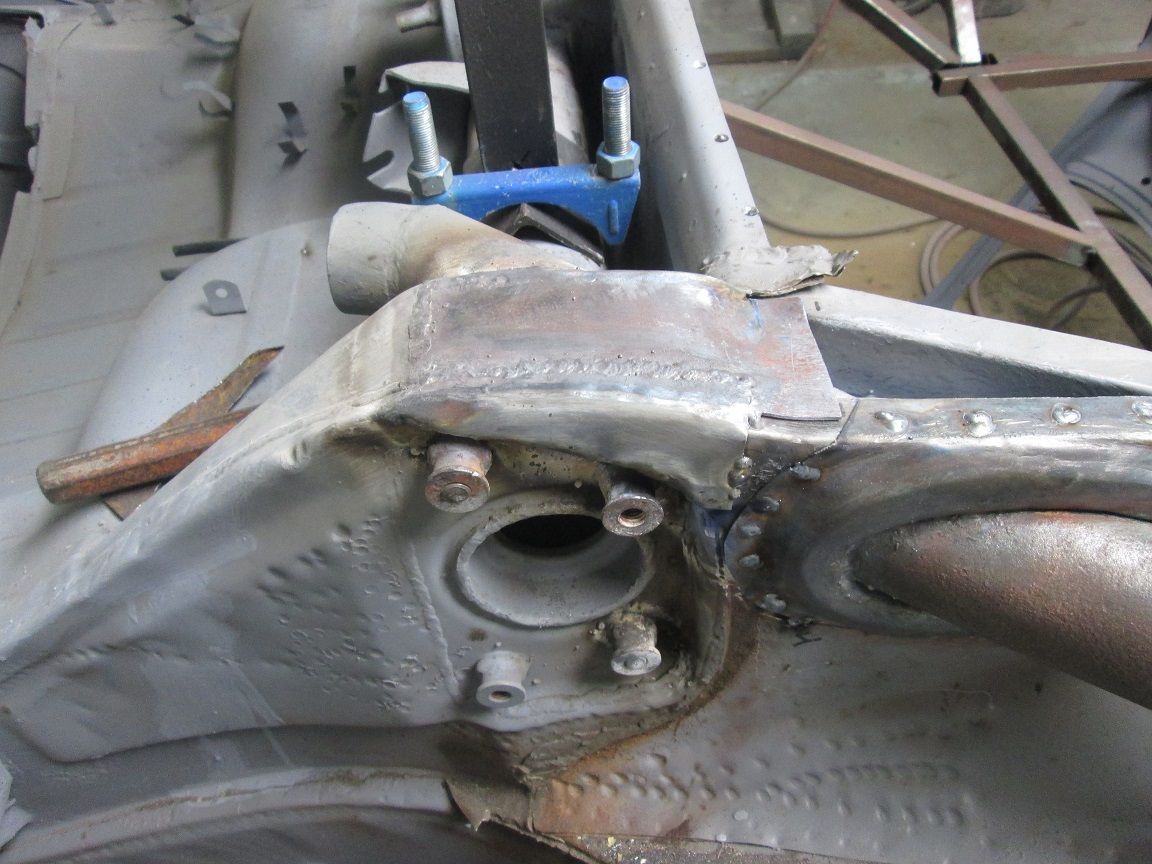

ID:	111232 Good preliminary fitment but there is still some tweaking needed to allow the tube end to swing in into alignment. Close enough to leave for now.
    Click image for larger version

Name:	IMG_7470.JPG
Views:	647
Size:	153.4 KB
ID:	111233 I can now commit to the lower flange placement. Adding that in next.
    Justin Rio

    Comment


    • Wall #4 Continued:
      Click image for larger version  Name:	IMG_7471.JPG Views:	0 Size:	150.0 KB ID:	111235 New lower flange heeled over.
      Click image for larger version  Name:	IMG_7472.JPG Views:	0 Size:	149.1 KB ID:	111236 Once again, thank god for reference parts. I would have never thought to add in this cutout shape to the back of the flange. Still needs more trimming but good for right now.
      Click image for larger version  Name:	IMG_7473.JPG Views:	0 Size:	150.4 KB ID:	111237 New flange clamped flush locking in this sections final position. The tube end still lines up like it did before.
      Click image for larger version  Name:	IMG_7474.JPG Views:	0 Size:	143.6 KB ID:	111238 More fine trimming and tube end alignment and welding are about all that remains. Dangerously close to installing this on for good....but.
      Click image for larger version  Name:	IMG_7461.JPG Views:	0 Size:	145.3 KB ID:	111239 before I weld the end of the tube section back on I want the ability to remove and reinstall these bulkheads for repair. That coming up next....another little detour.

      Thanks for looking!

      Justin
      Last edited by JTR70; 04-18-2021, 09:42 PM.
      Justin Rio

      Comment


      • Your detours Justin make me smile! That's a lot of work you have done there I am so pleased I caught mine very early before rust had set in. None of this work is easy and even harder if you have no chance to look at a good example to copy.

        Well done

        Roy

        Comment


        • JTR70
          JTR70 commented
          Editing a comment
          Thanks! they have the exact opposite effect on me Roy. LOL Yes, absolutely sunk without a reference car or section.

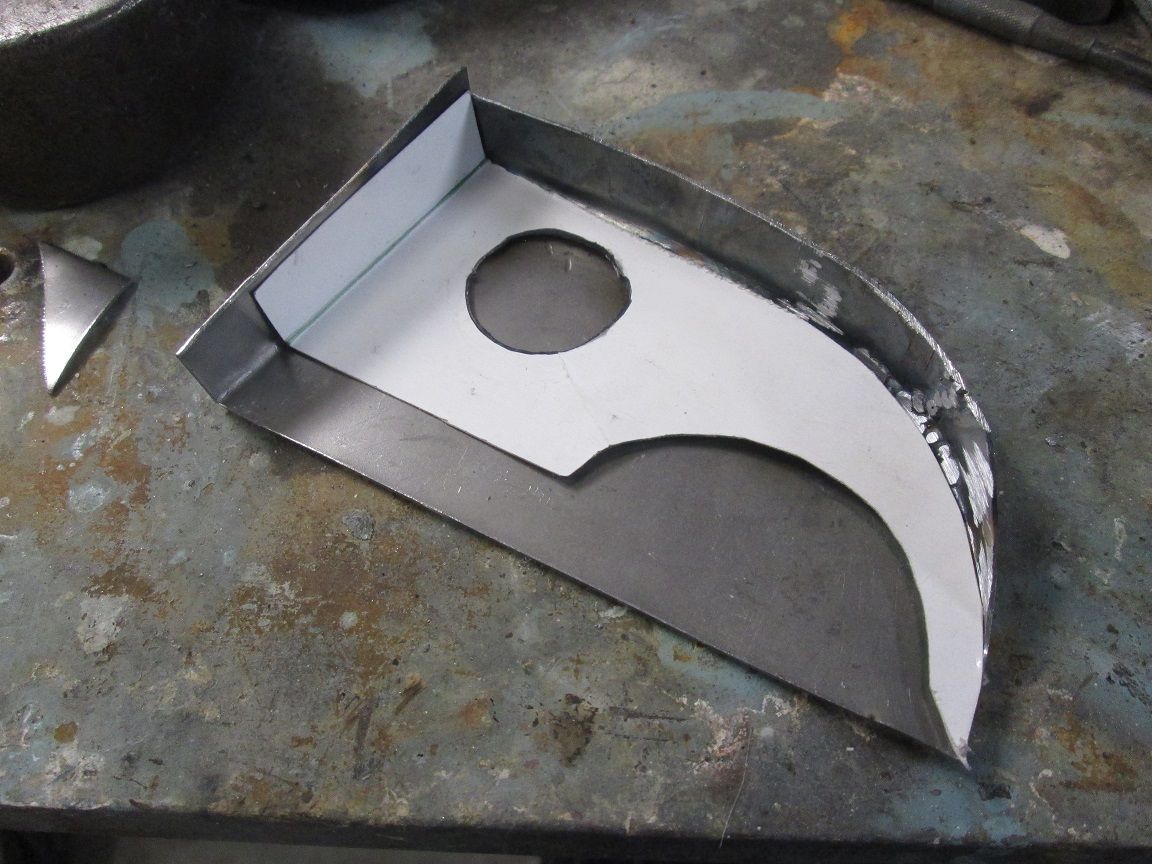

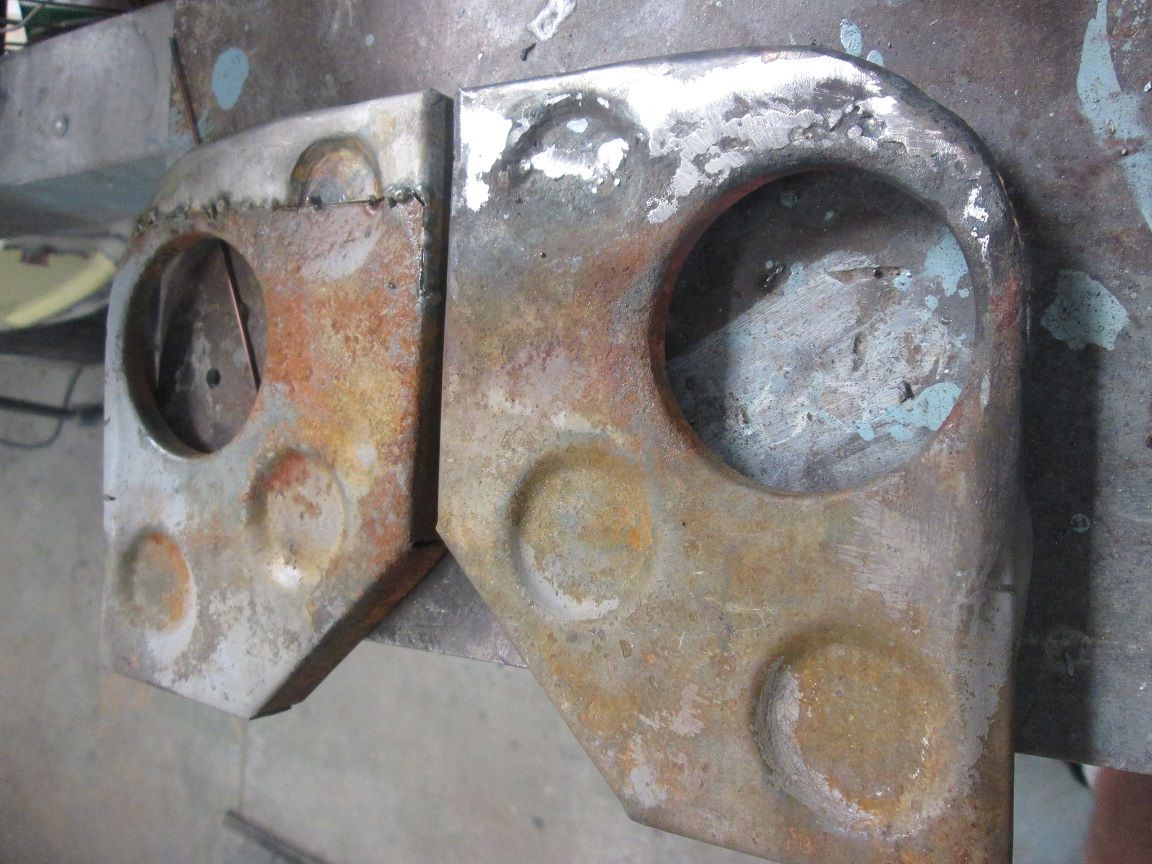

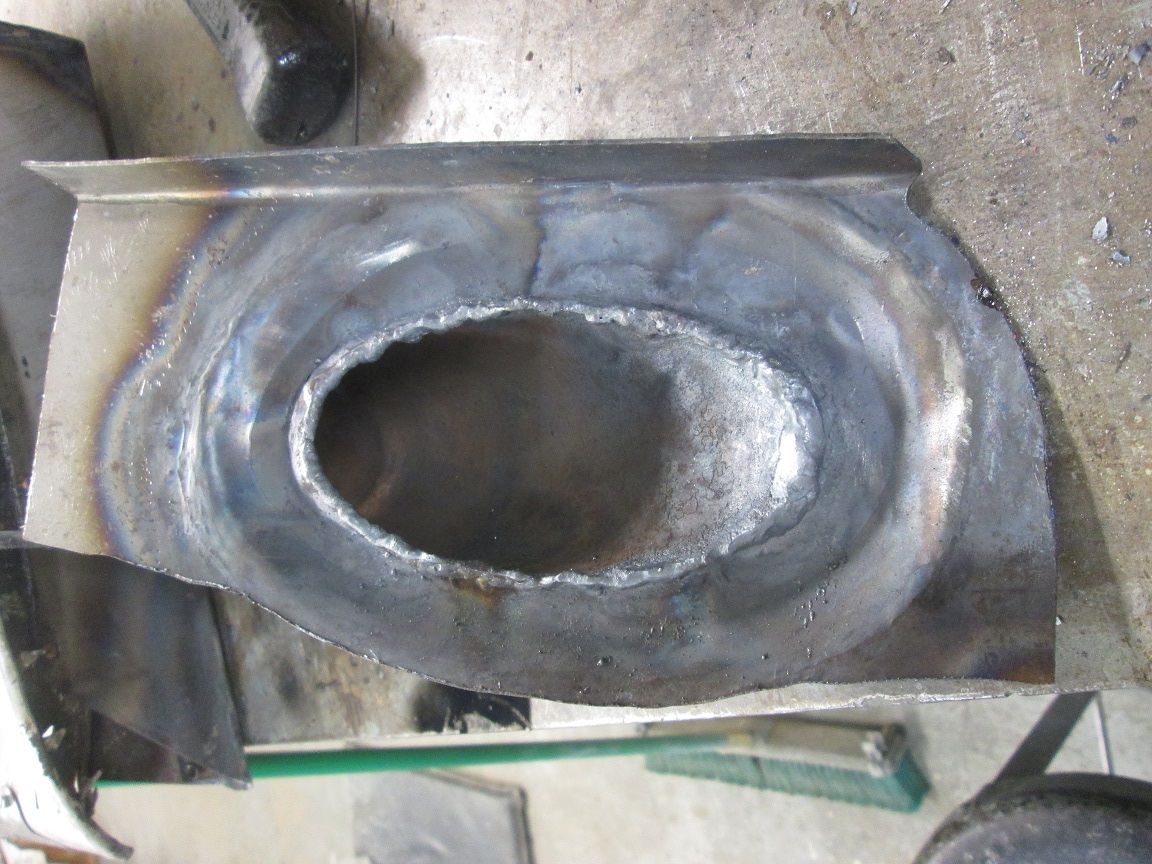

      • Lower bulkhead repair sections.
        Click image for larger version

Name:	IMG_7483.JPG
Views:	594
Size:	144.9 KB

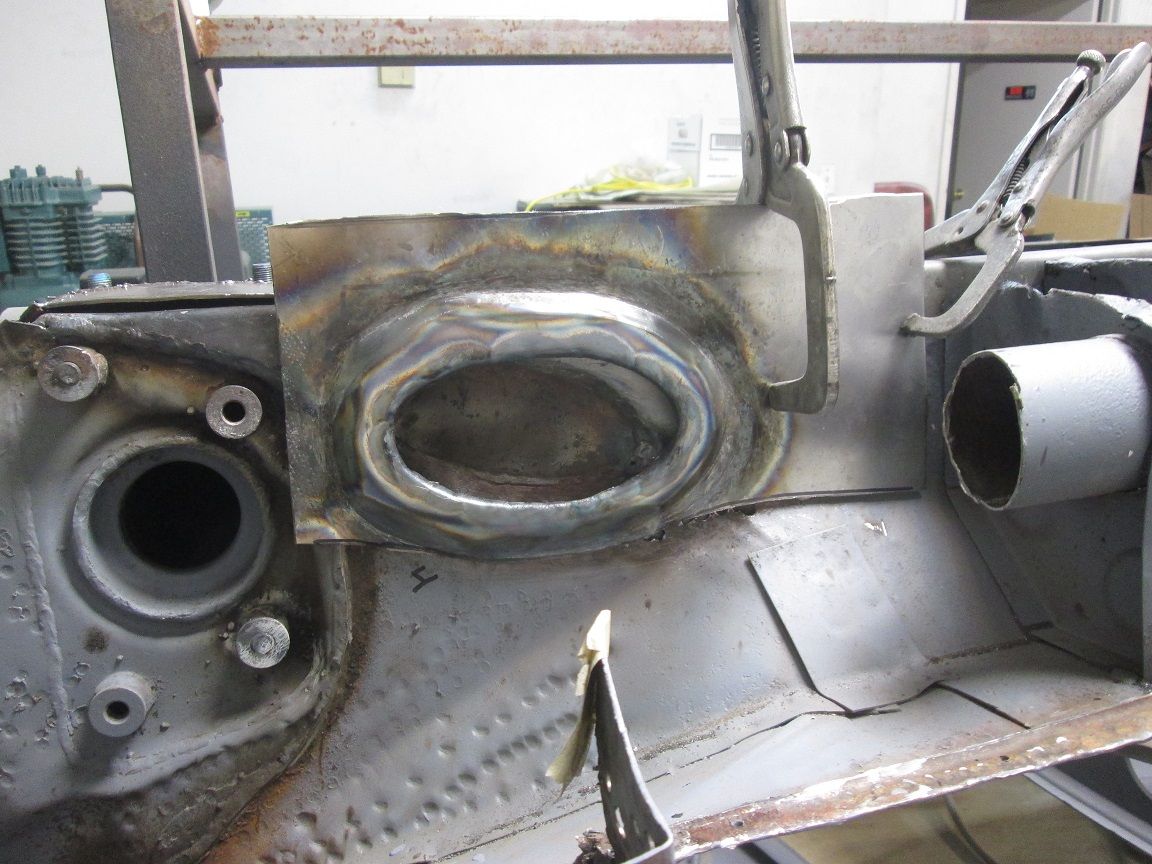

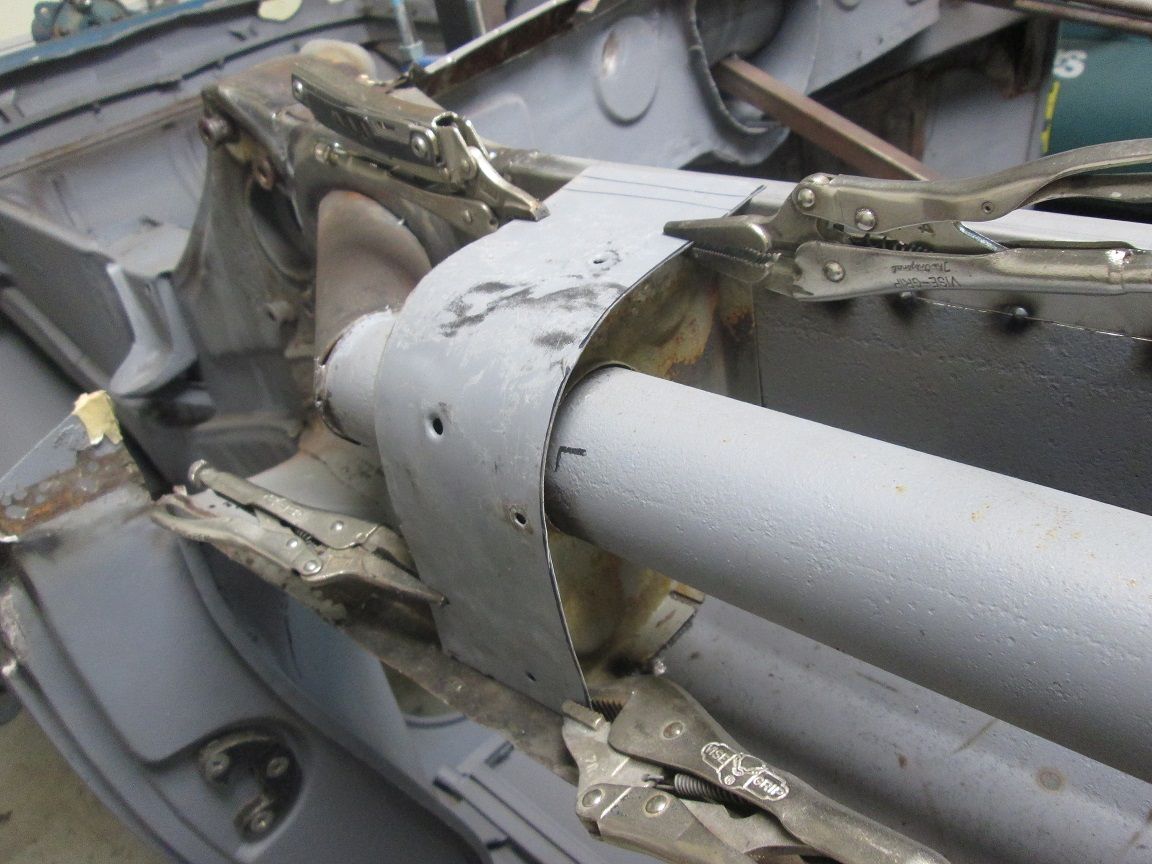

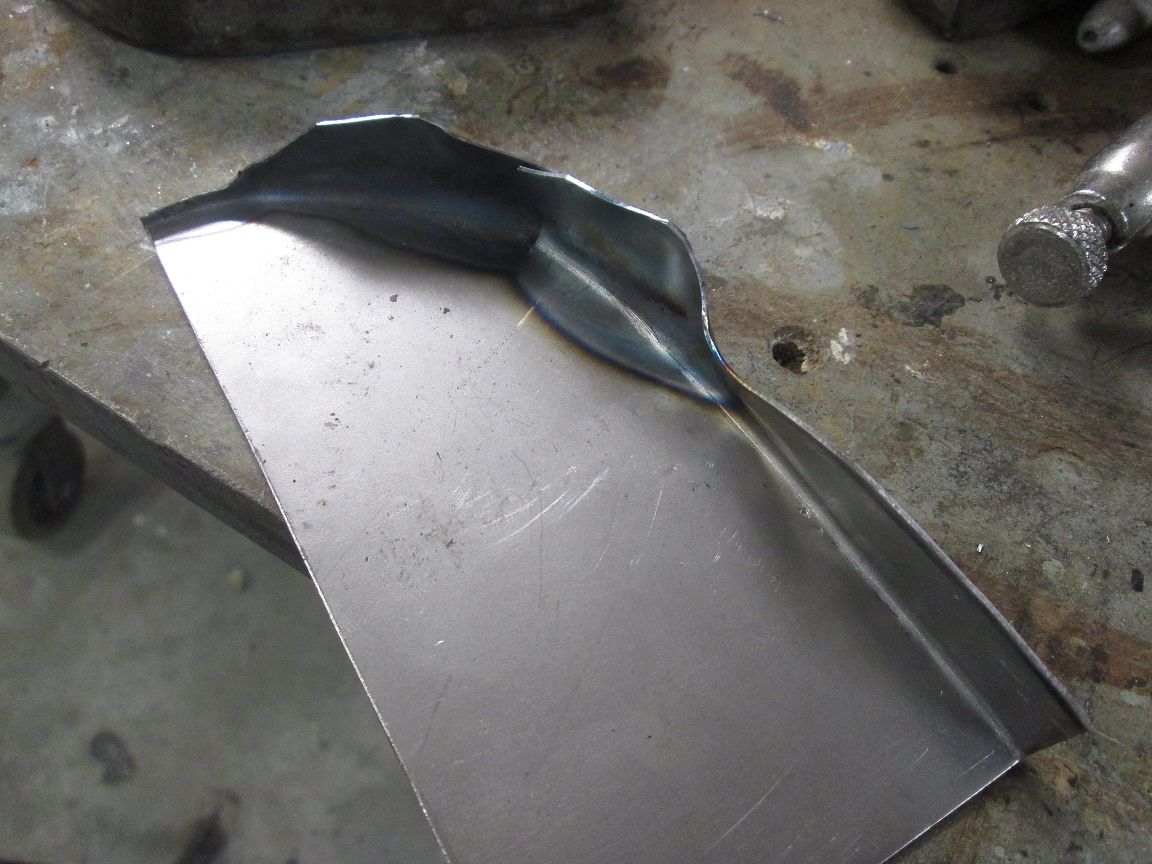

ID:	111261 Replicating the sweep of the lower flange profile with some heat and a relief cut at the apex of curve.
        Click image for larger version

Name:	IMG_7480.JPG
Views:	572
Size:	150.9 KB

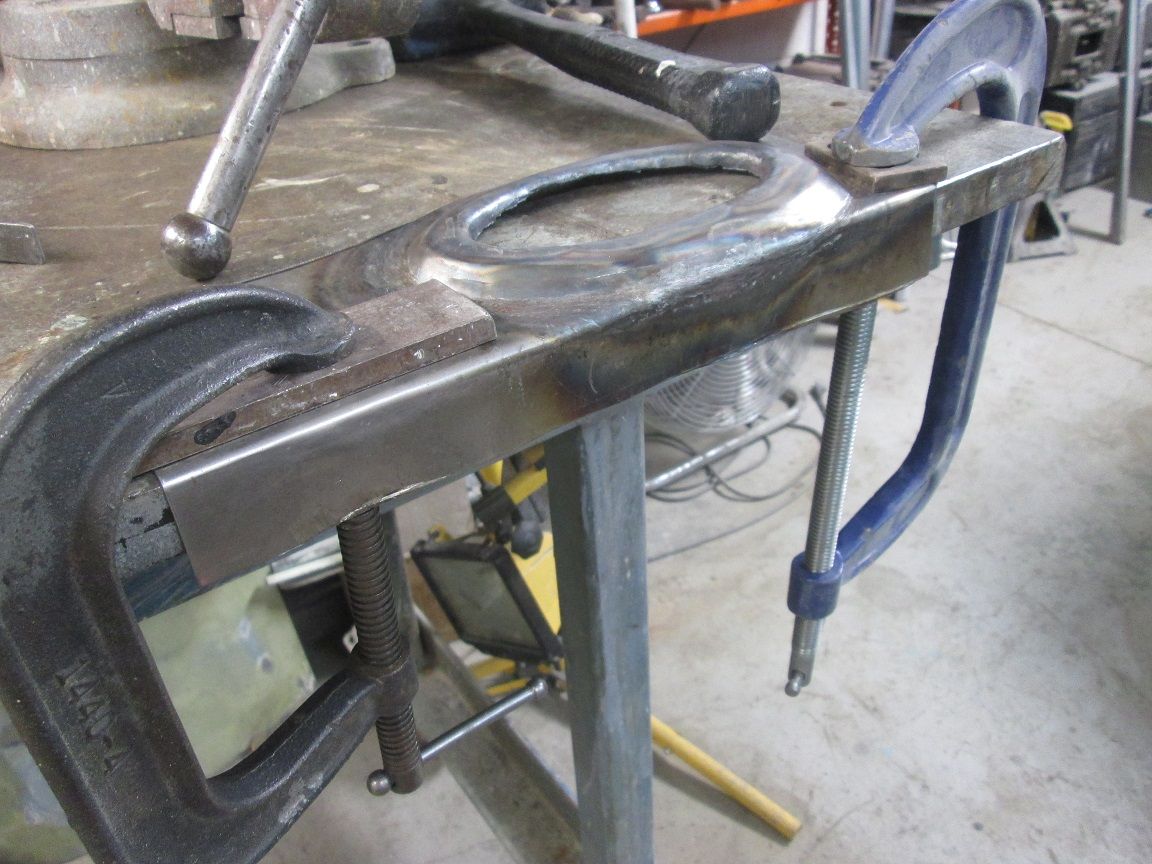

ID:	111262 Flange follows my template profiles closely enough. Adding the dimple detail next.
        Click image for larger version

Name:	IMG_7476.JPG
Views:	554
Size:	163.6 KB

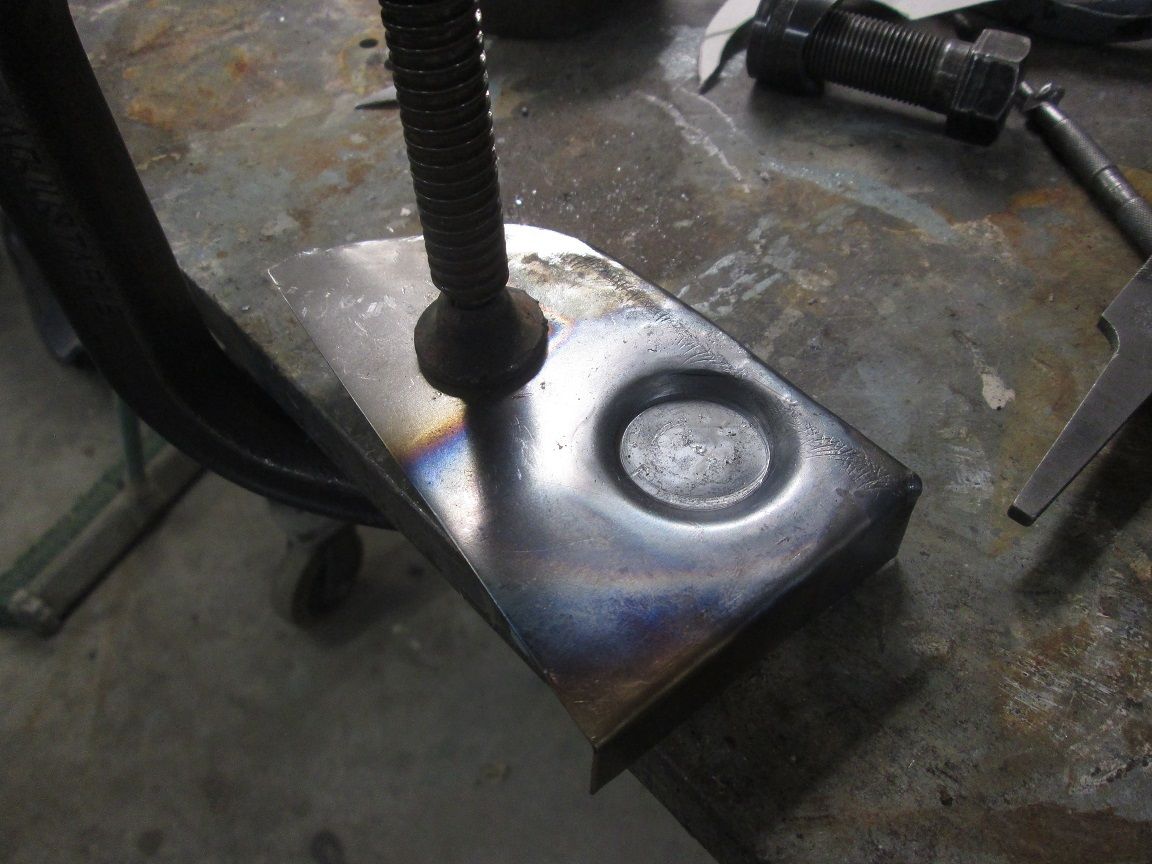

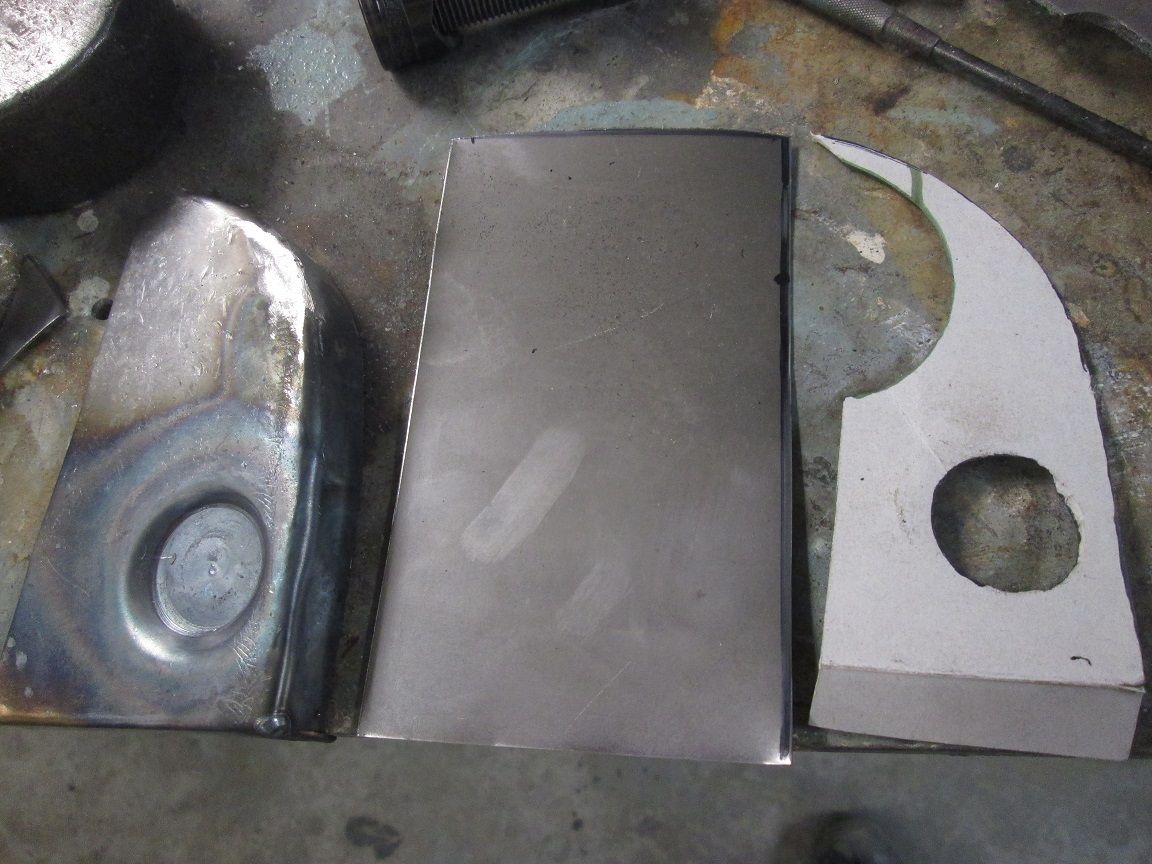

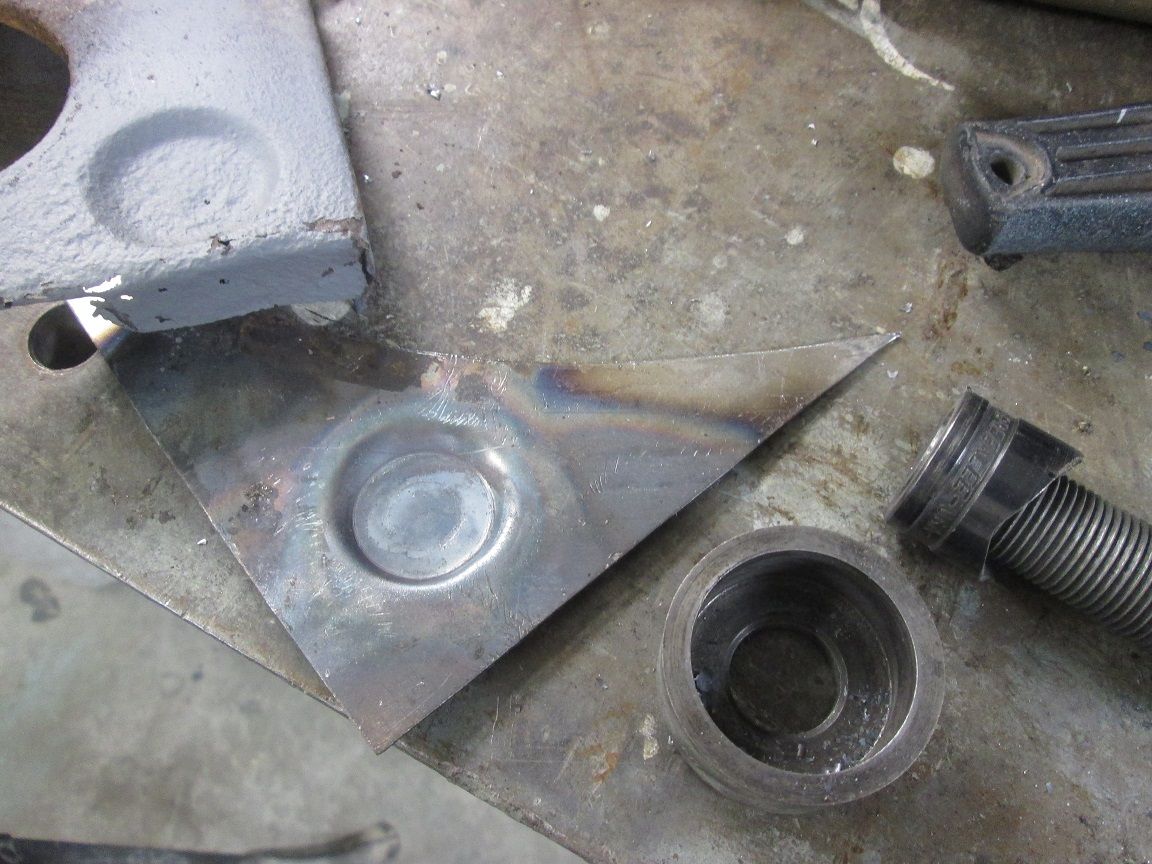

ID:	111263 My punch an die set provided the needed shoulder size to replicate this detail as close as I can.
        Click image for larger version

Name:	IMG_7481.JPG
Views:	559
Size:	131.1 KB

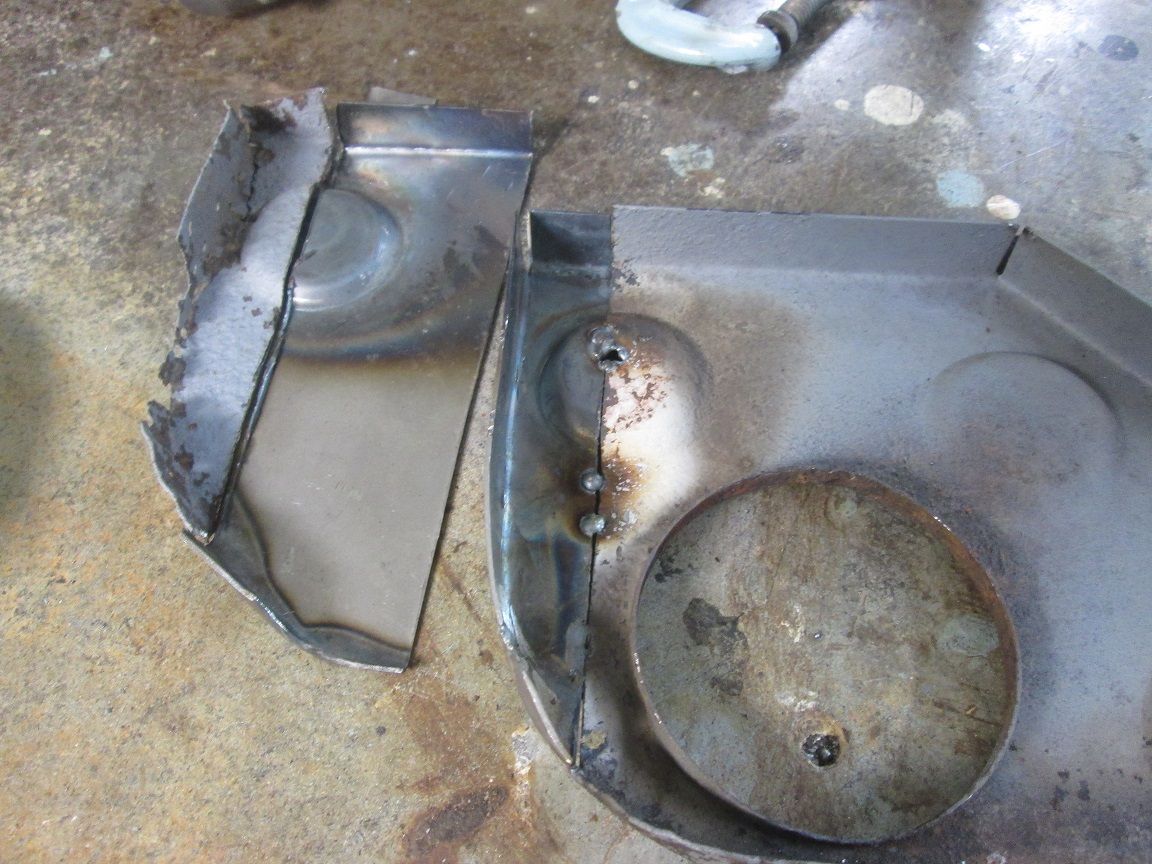

ID:	111264 Relief shape added completing this repair section.
        Click image for larger version

Name:	IMG_7482.JPG
Views:	532
Size:	146.2 KB
ID:	111265 One down with one more to go but its mirror image this time.

        Thanks for looking!
        Justin
        Justin Rio

        Comment


        • A very handy punch and die there Justin!

          Roy

          Comment


          • JTR70
            JTR70 commented
            Editing a comment
            They have gotten me out of a lot of jambs Roy, even when I use them as not exactly as intended at times.

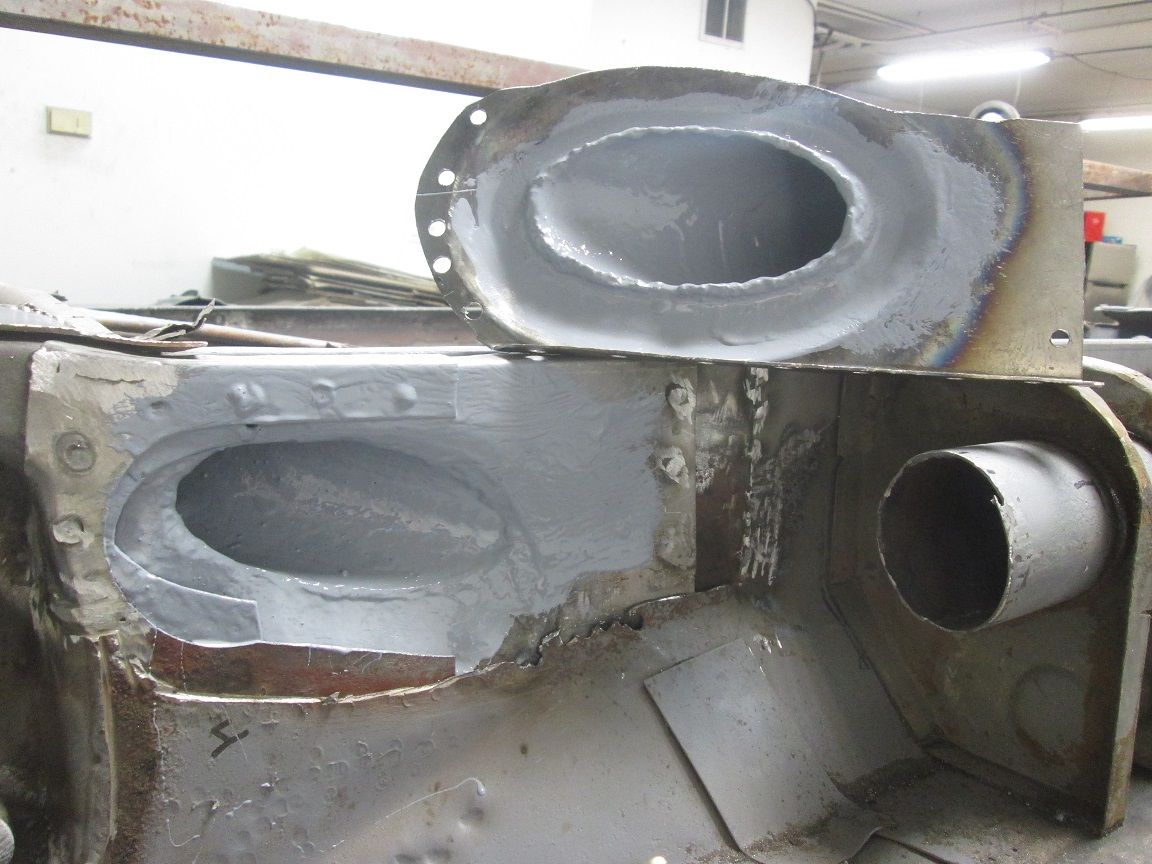

        • Finishing up bulkhead repairs and prepping for their reinstallation:
          Click image for larger version

Name:	IMG_7493.JPG
Views:	515
Size:	167.3 KB
ID:	111296 In the end only a thin strip of my repair section was ultimately used.
          Click image for larger version

Name:	IMG_7498.JPG
Views:	474
Size:	170.1 KB
ID:	111300 one more to finish stitching together completing this repair.
          Click image for larger version

Name:	IMG_7502.JPG
Views:	469
Size:	118.2 KB
ID:	111297
          Simultaneously prepping the area for their reinstallation. Threshold run marked out for its cut and weld joint line.
          Click image for larger version

Name:	IMG_7504.JPG
Views:	441
Size:	151.2 KB
ID:	111298 Amazing how quickly things begin to look up once the damaged and rusted portions are removed.
          Click image for larger version

Name:	IMG_7506.JPG
Views:	429
Size:	143.9 KB
ID:	111299 Begin trial fitments for the new flange repair run.

          Justin Rio

          Comment

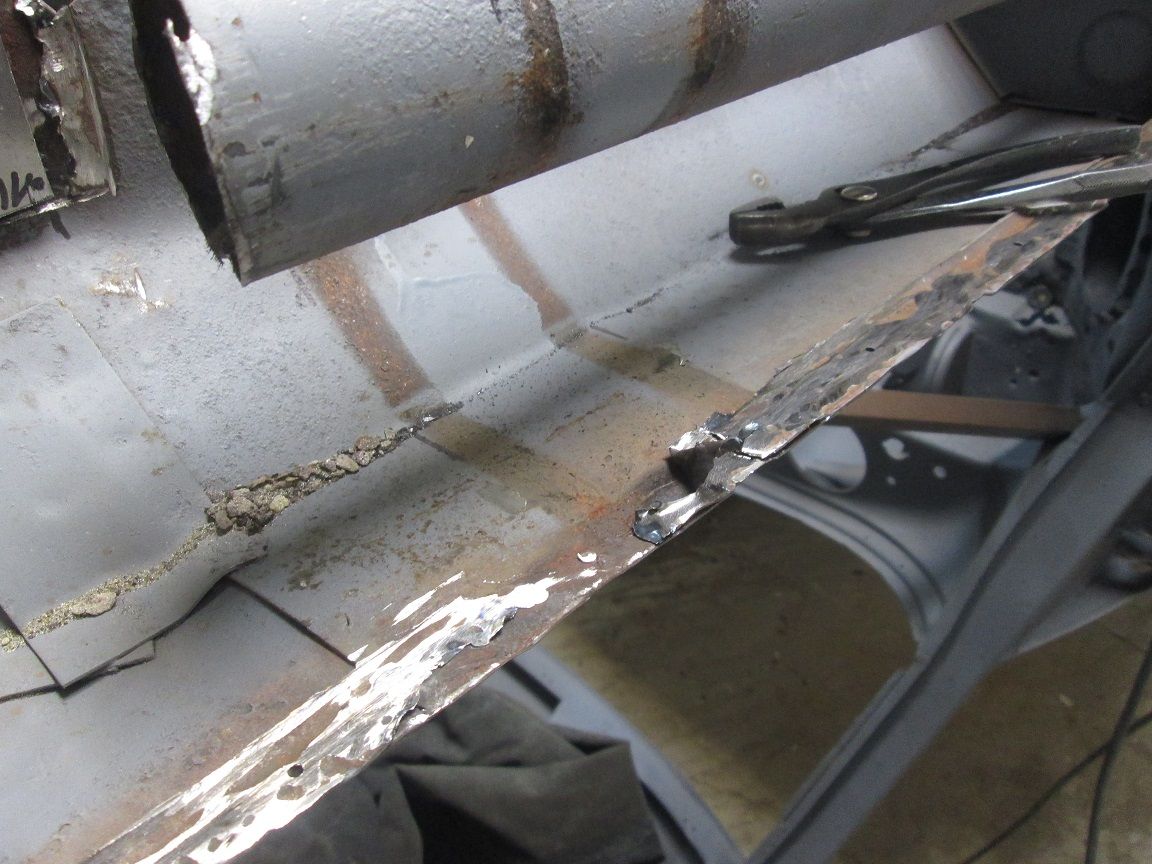

          • Click image for larger version  Name:	IMG_7507.JPG Views:	0 Size:	135.4 KB ID:	111302
            Final cut line will be very low saving as much of the OG as possible.
            Click image for larger version  Name:	IMG_7508.JPG Views:	0 Size:	125.6 KB ID:	111303
            Had to angle up a bit towards the end as the rust got a little more advanced at this lap joint.
            Click image for larger version  Name:	IMG_7509.JPG Views:	0 Size:	151.2 KB ID:	111304 Starting to trim back the excess here. Repaired rear bulkheads in for test fit.
            Click image for larger version  Name:	IMG_7484.JPG Views:	0 Size:	157.5 KB ID:	111305 Original rear tube section cleaned of all remaining rust and scale. Wished I could have treated the entire run of it this way but I can only do what I can.
            Click image for larger version  Name:	IMG_7510.JPG Views:	0 Size:	168.6 KB ID:	111306 All the new and old repaired pieces slowly fitting together.

            Thanks for looking!
            Justin
            Last edited by JTR70; 04-29-2021, 07:41 AM.
            Justin Rio

            Comment

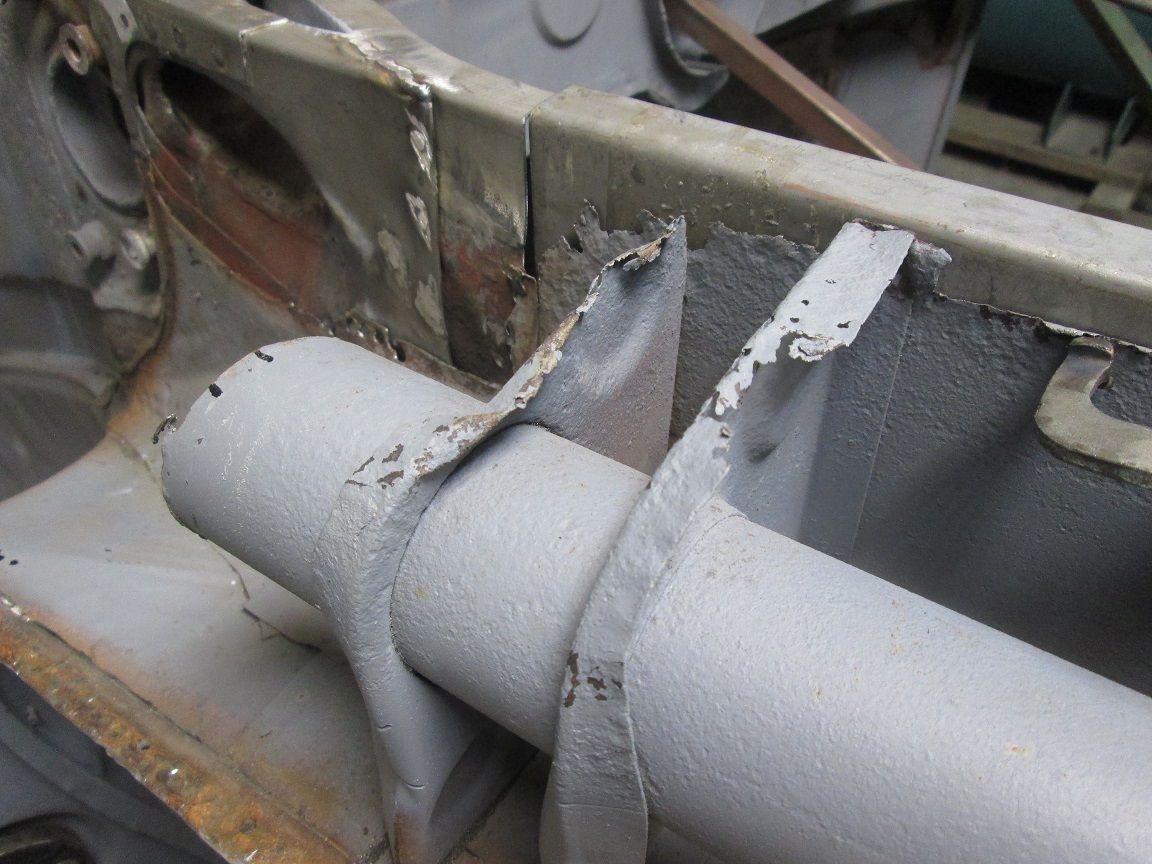

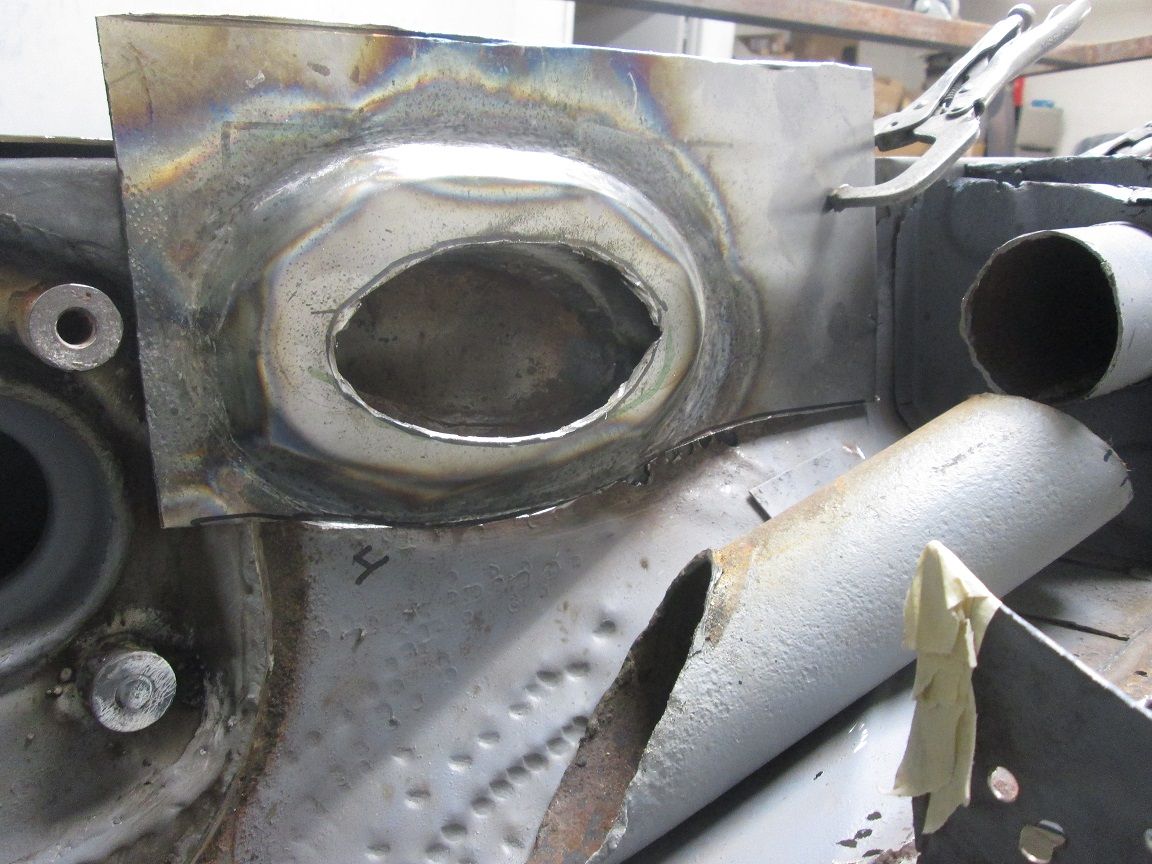

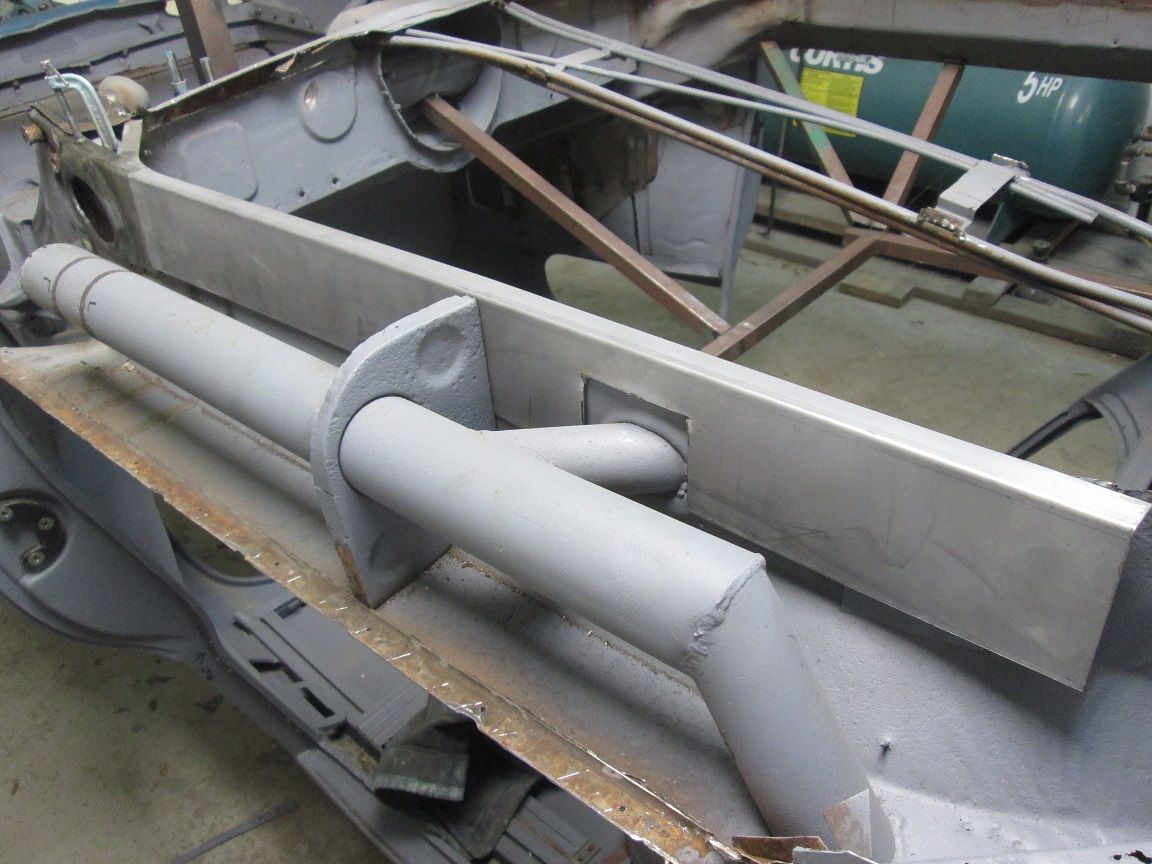

            • Begin reassembly on wall layer #4
              Click image for larger version

Name:	IMG_7535.JPG
Views:	341
Size:	148.9 KB

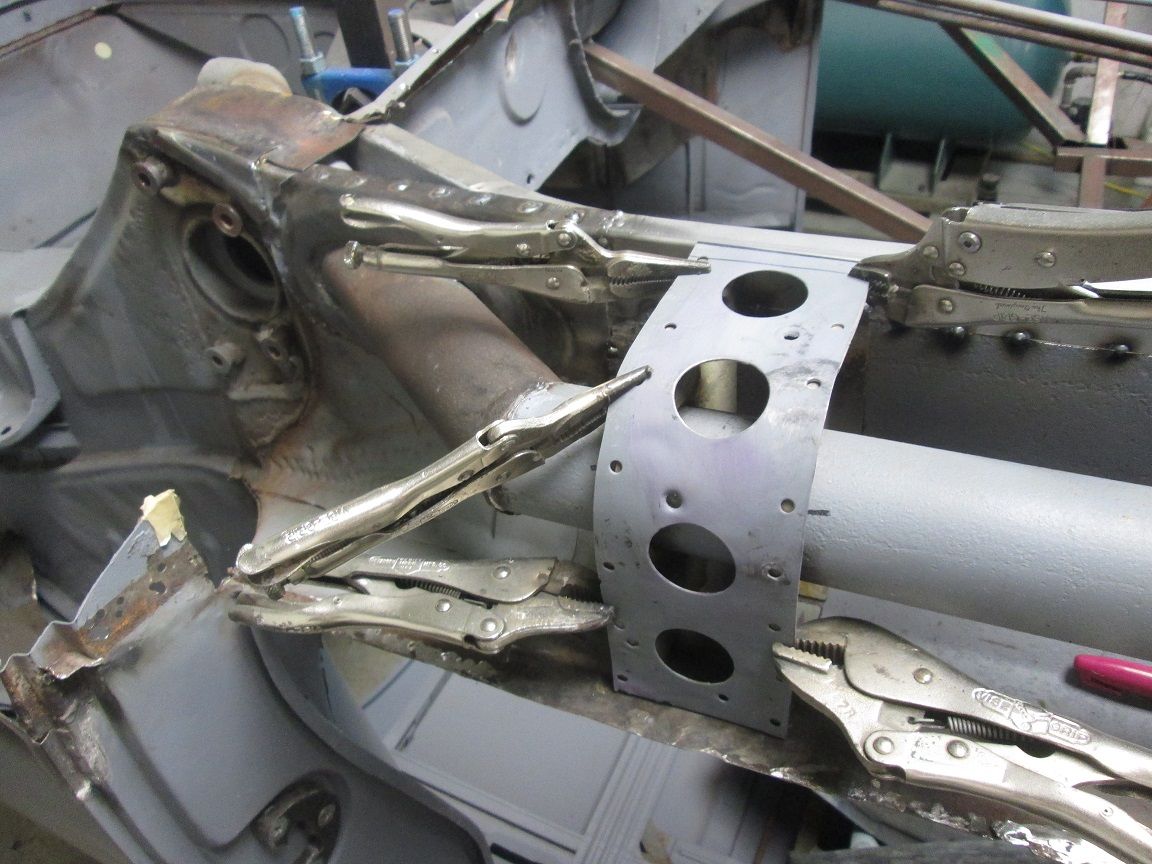

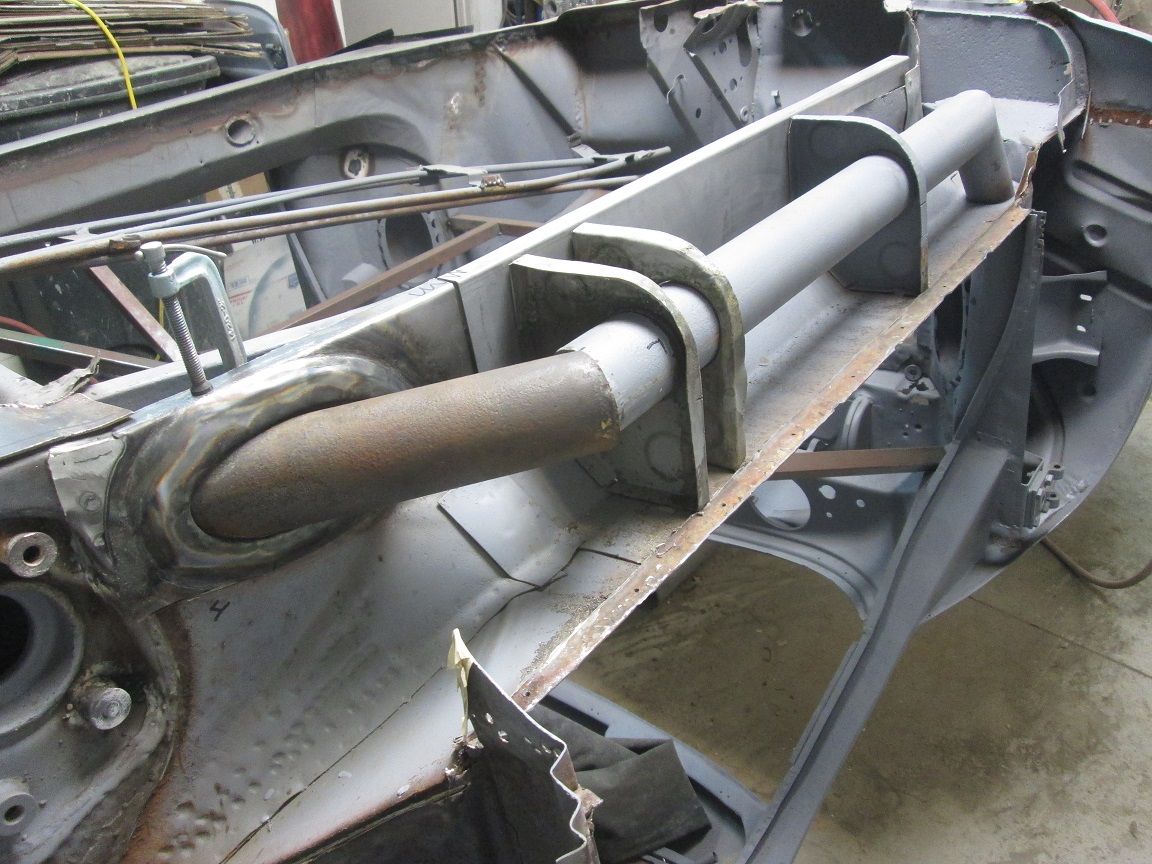

ID:	111316 All the new and repaired pieces all teed up and ready to be tacked into final position.
              Click image for larger version

Name:	IMG_7536.JPG
Views:	318
Size:	146.4 KB
ID:	111317 Broke it all down one last time to clean the remains of the outer longitudinal flange around the bulkhead area before I tack them back in for the final time.
              Click image for larger version

Name:	IMG_7543.JPG
Views:	316
Size:	153.5 KB

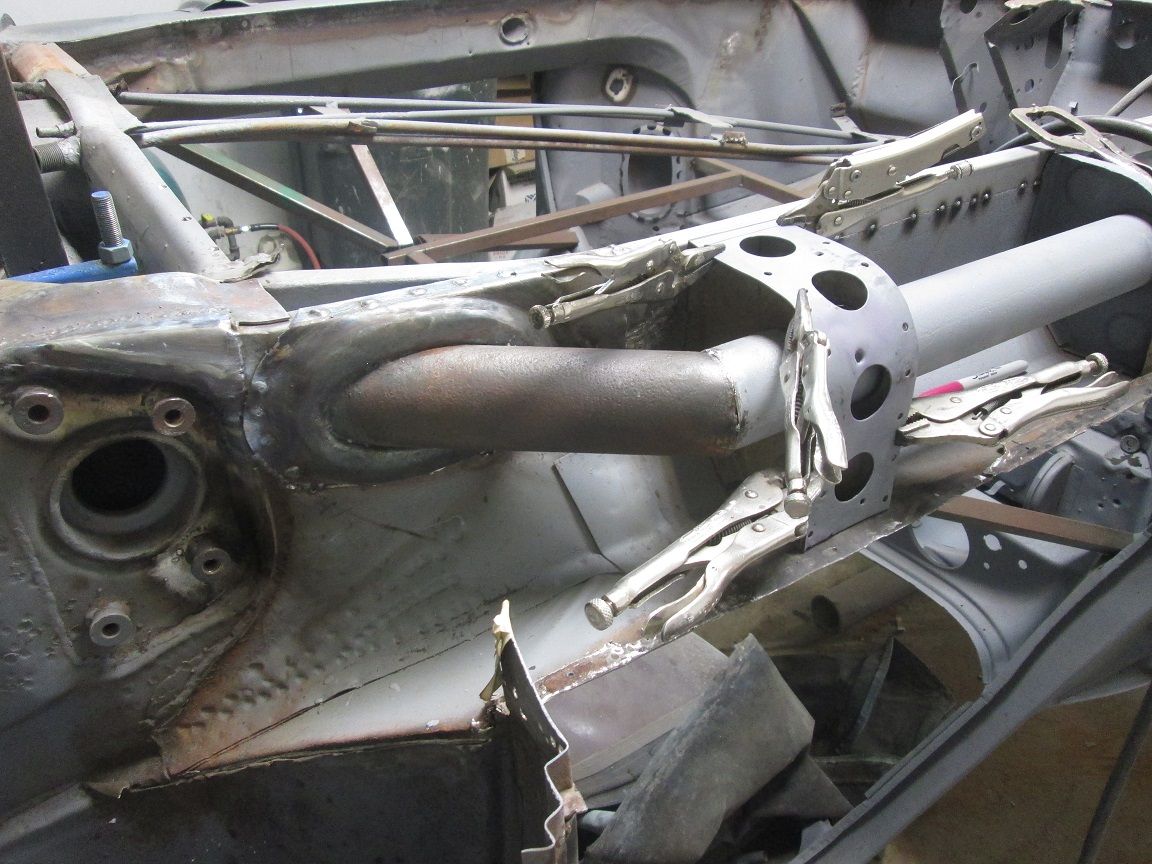

ID:	111318 Bulkheads tacked in and beginning to tack weld the new lower flange run.
              Click image for larger version

Name:	IMG_7545.JPG
Views:	309
Size:	165.2 KB

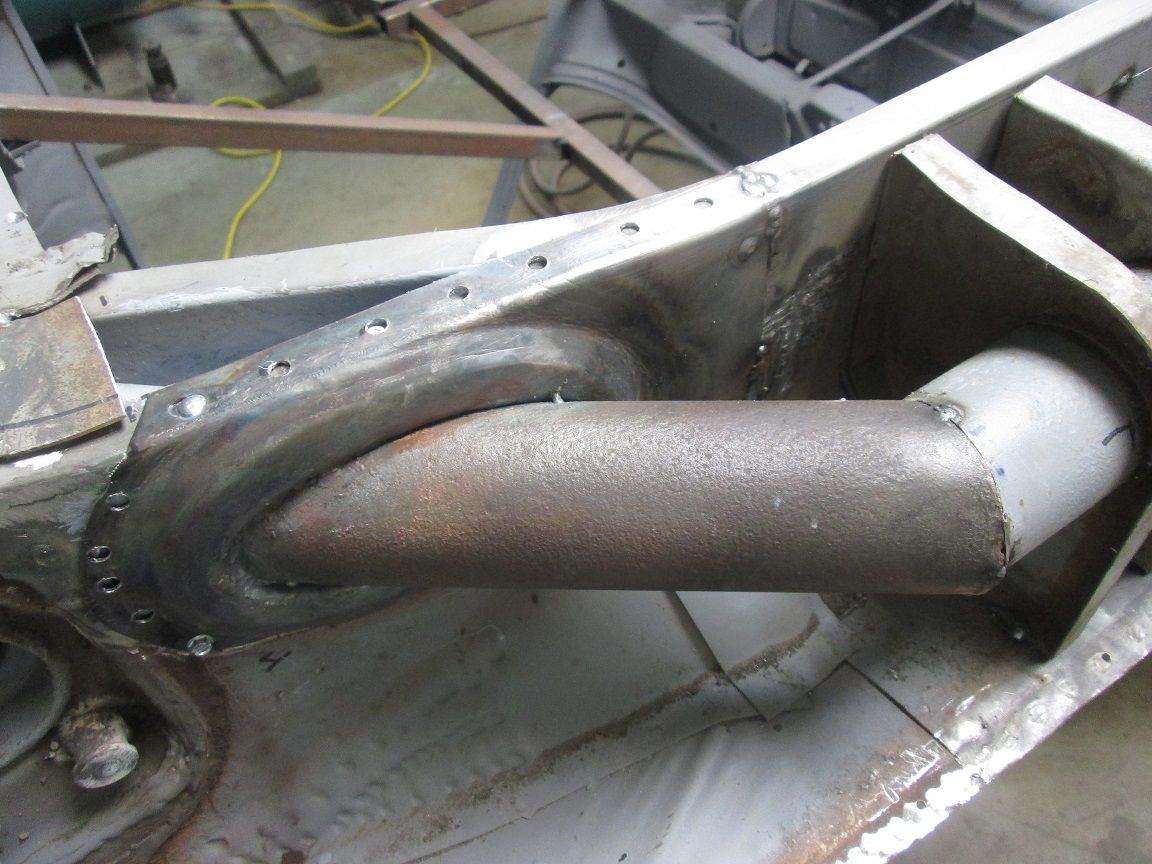

ID:	111319Shortly after the old tube section was positioned was seam welded along the inner lip as it was originally.
              Click image for larger version

Name:	IMG_7544.JPG
Views:	315
Size:	158.9 KB
ID:	111320 Other than some additional trimming and plug weld holes this piece is ready to mount.
              Justin Rio

              Comment

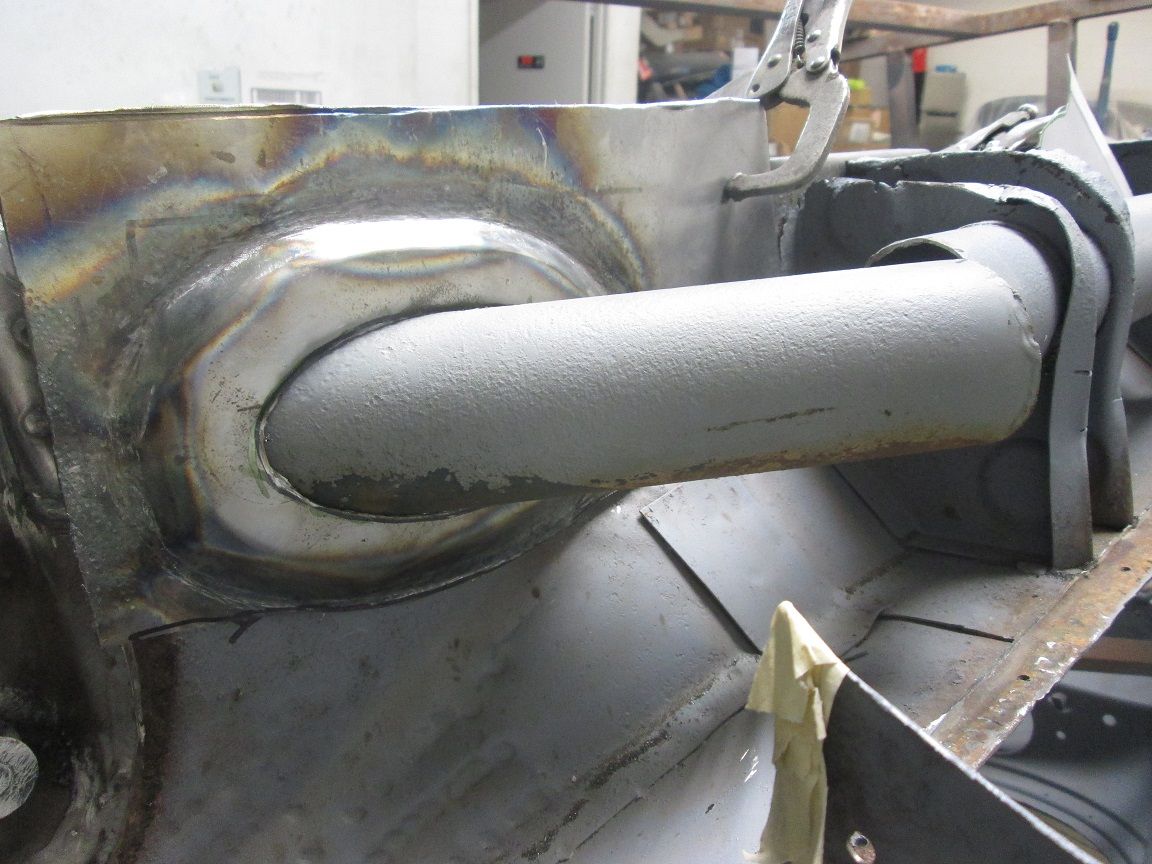

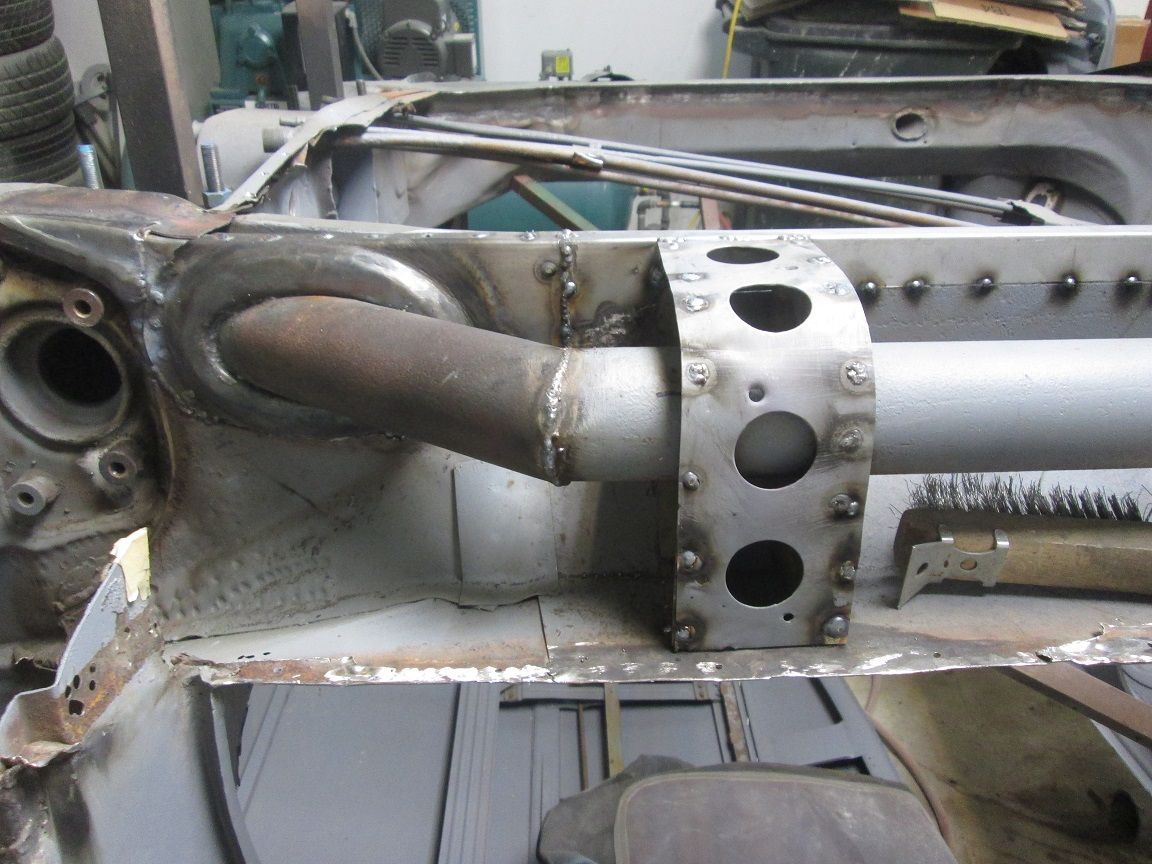

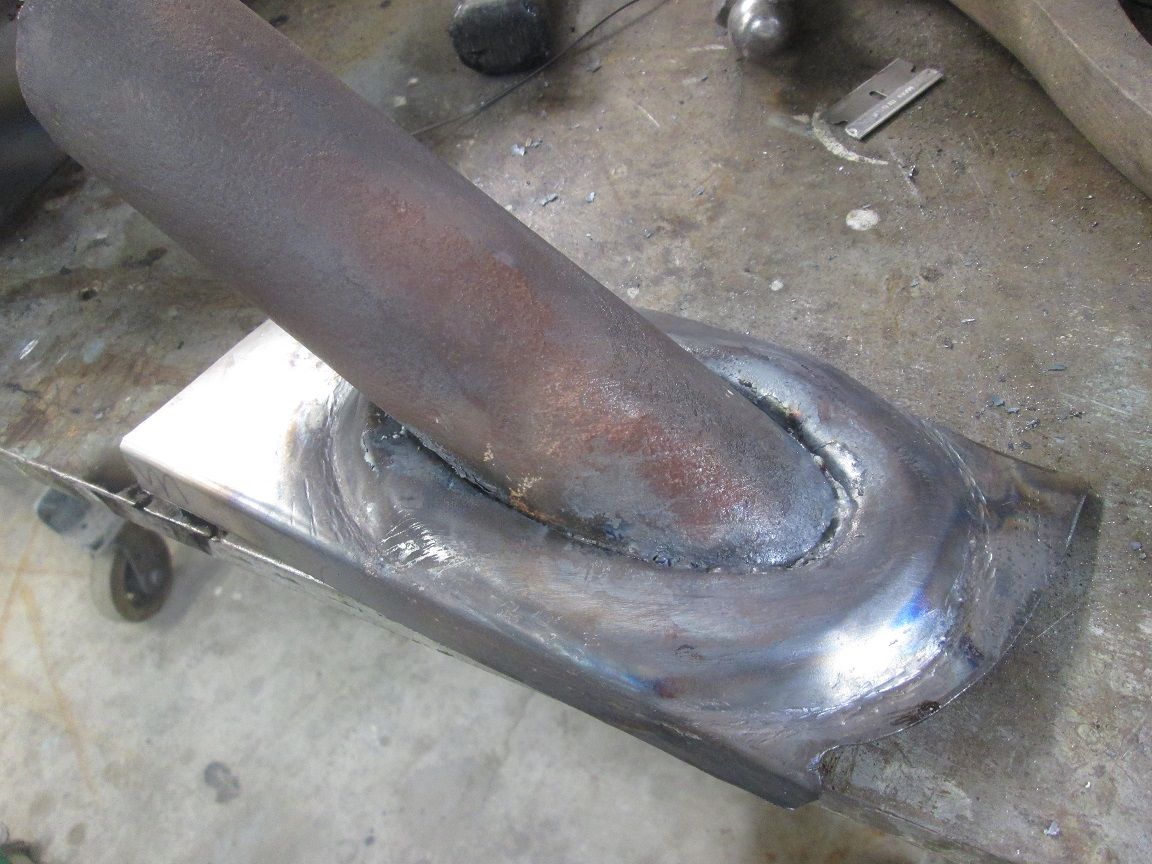

              • Rear heater tube section finally tacked in for good.
                Click image for larger version

Name:	IMG_7548.JPG
Views:	317
Size:	135.4 KB
ID:	111322 Final trimming and hole punching complete.
                Click image for larger version

Name:	IMG_7547.JPG
Views:	303
Size:	148.4 KB
ID:	111323 One more thing to do before welding.
                Click image for larger version

Name:	IMG_7550.JPG
Views:	305
Size:	133.6 KB

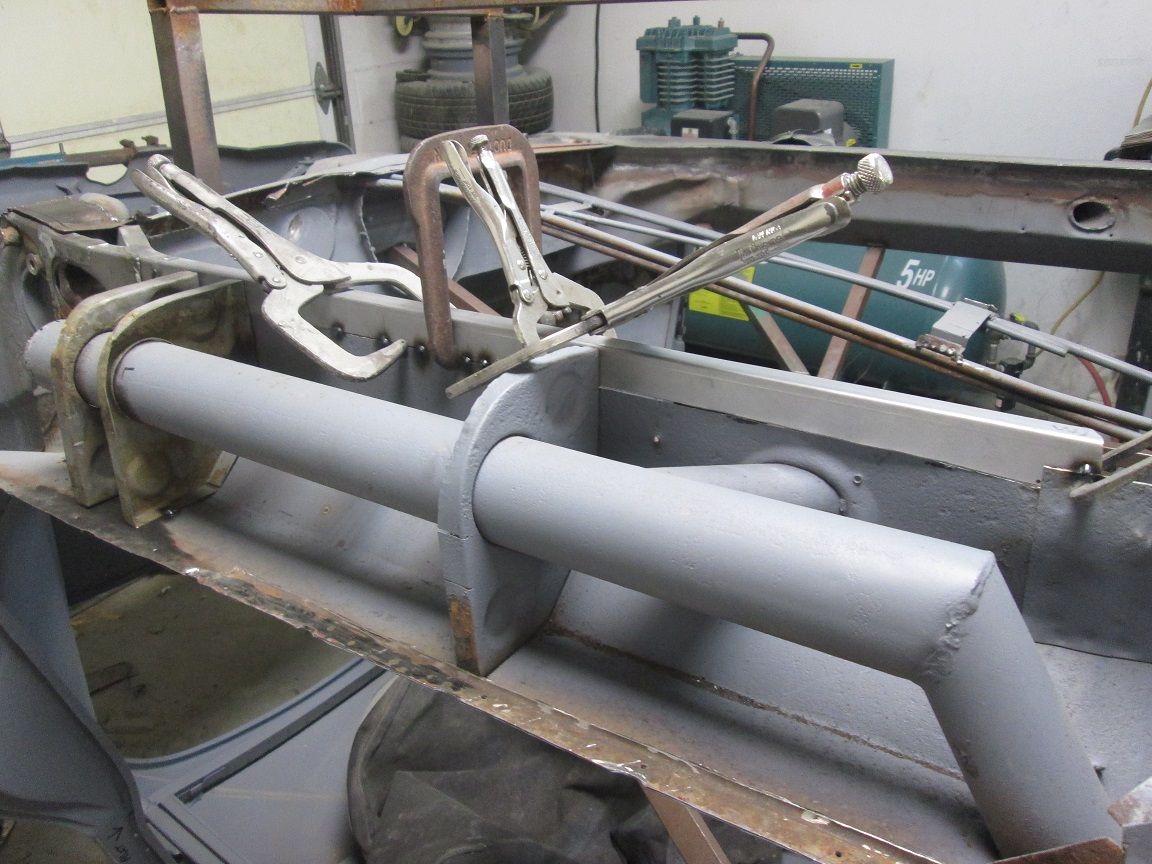

ID:	111324 Inner surfaces slathered in sealer before it goes in. Again I don't know how much of it will survive after welding but I tried.
                Click image for larger version

Name:	IMG_7551.JPG
Views:	308
Size:	145.0 KB

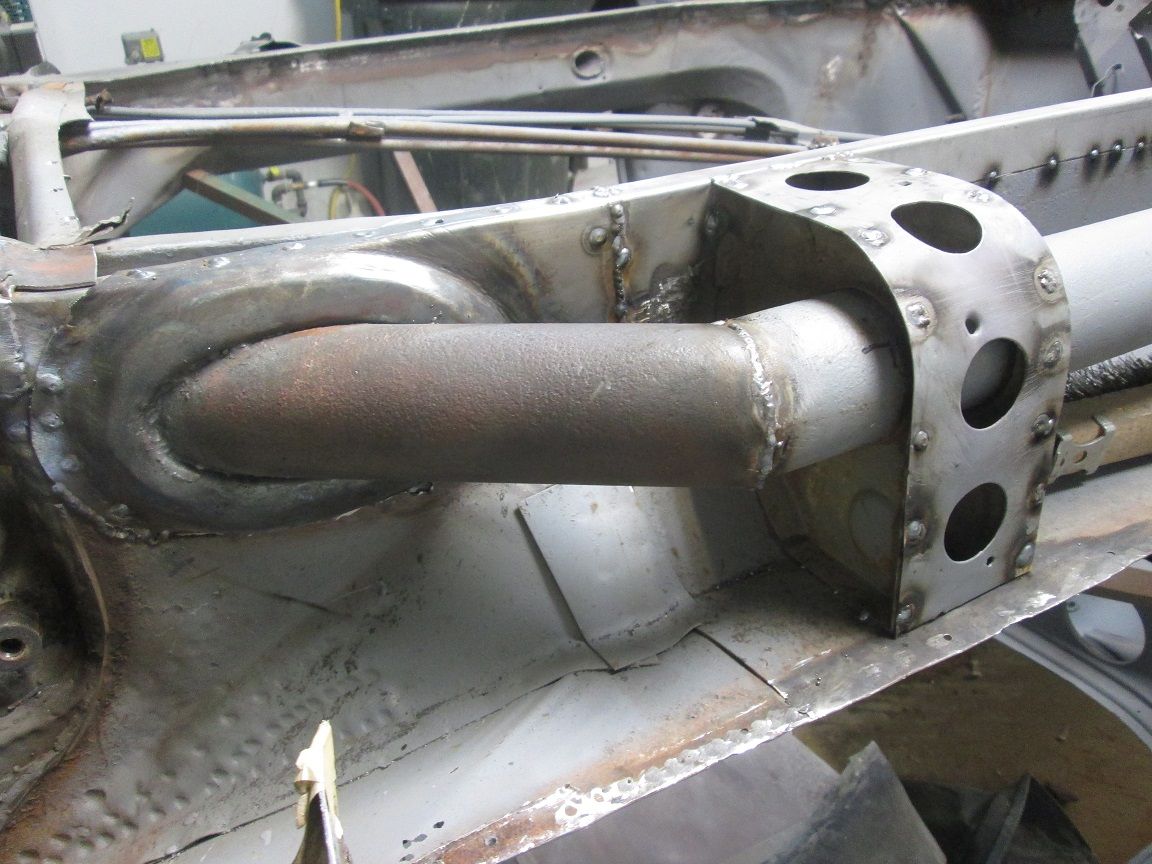

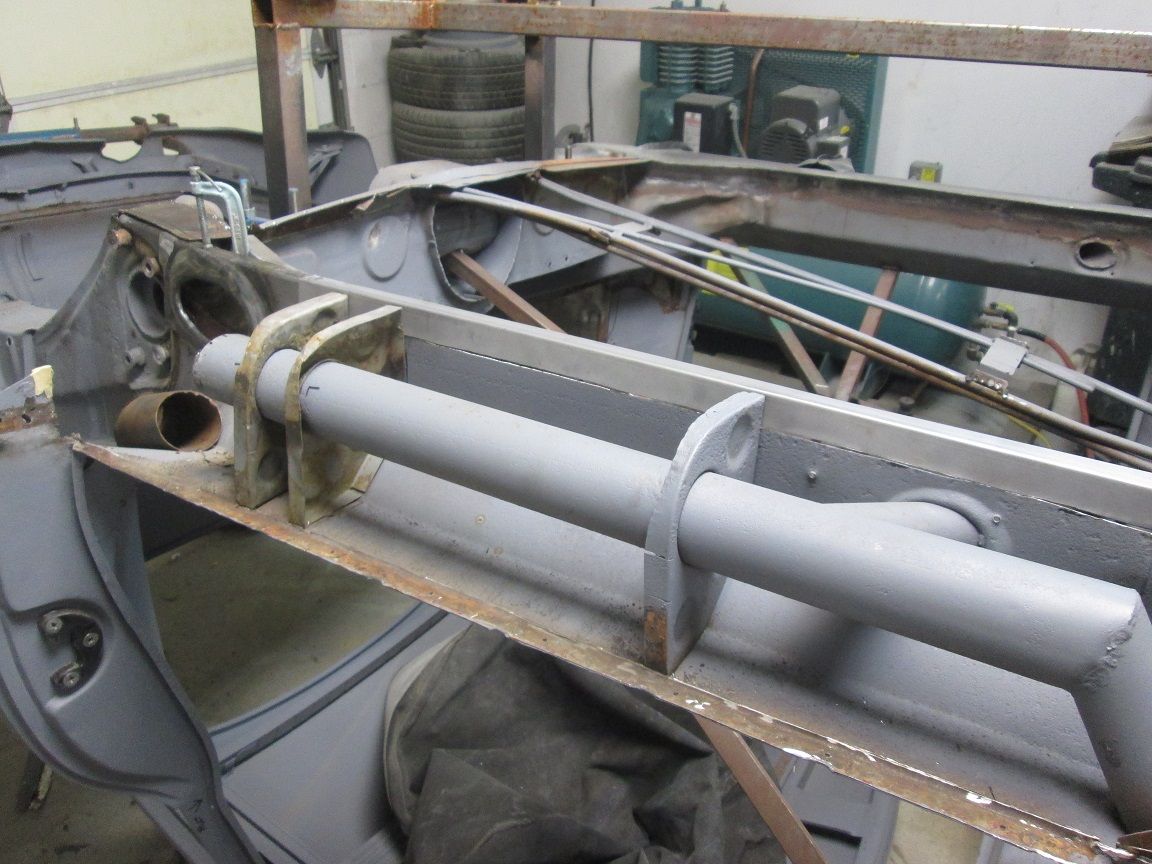

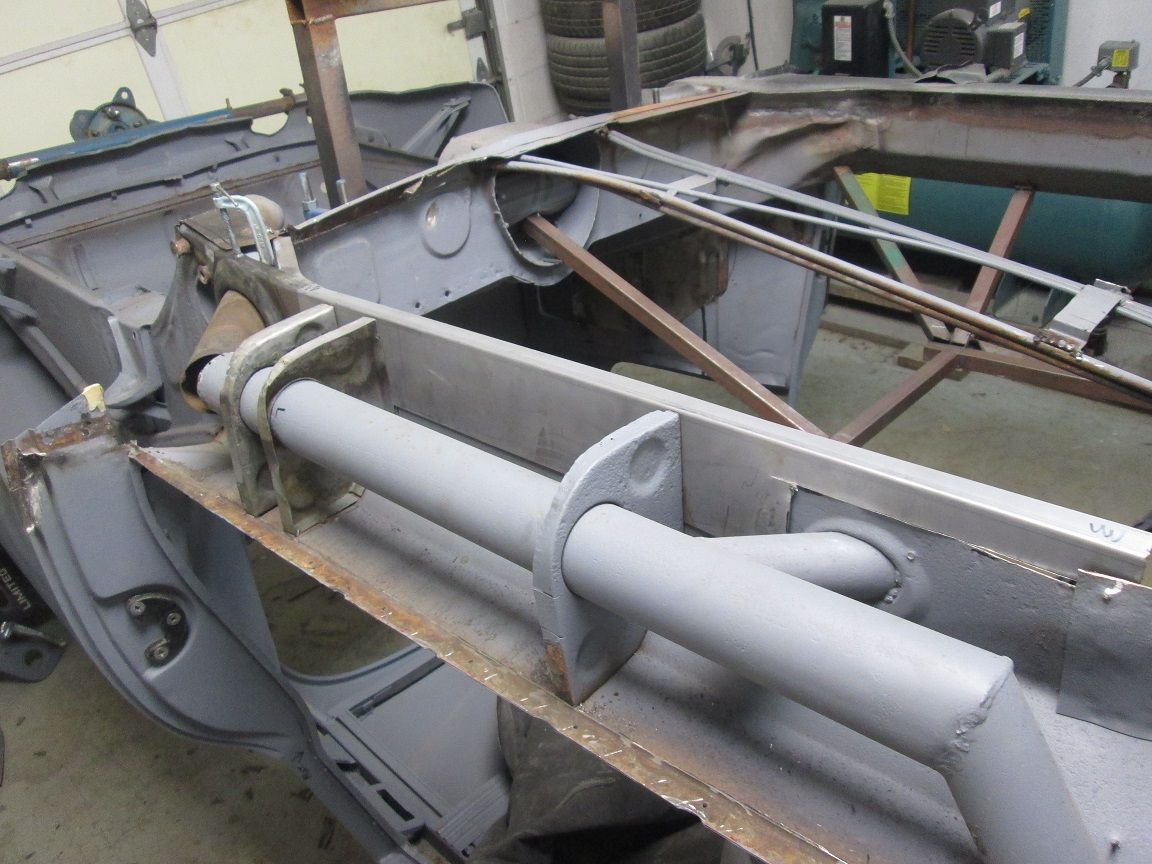

ID:	111325 Begin welding it in. A long road to get just here but its a nice mile marker for sure. Finishing this up next.

                Thanks for looking!
                Justin
                Justin Rio

                Comment


                • Well done Justin, very neat job even though the repair will never be looked at when its all together. Says a lot for restoration photos and being proud enough to show them. This sort of effort sells restored cars. What you can see and what you can't see by eye is so important !!

                  Roy

                  Comment


                  • JTR70
                    JTR70 commented
                    Editing a comment
                    Thank you so much Roy. I agree the devil is in the details and what you can't see is where the true test is. In the beginning I found myself more caught up in the final presentation but after a while it became clear that what's more imperative is that the final product has actual structural integrity. This why I make all the chassis related components out of 18 gauge. Its harder to work with but the final repair is far stronger than if I had made it out of 20 gauge and the thickness of 18G replicates more closely what was used originally. The final repair is structurally sound...and also looks as close to original as I can get it.

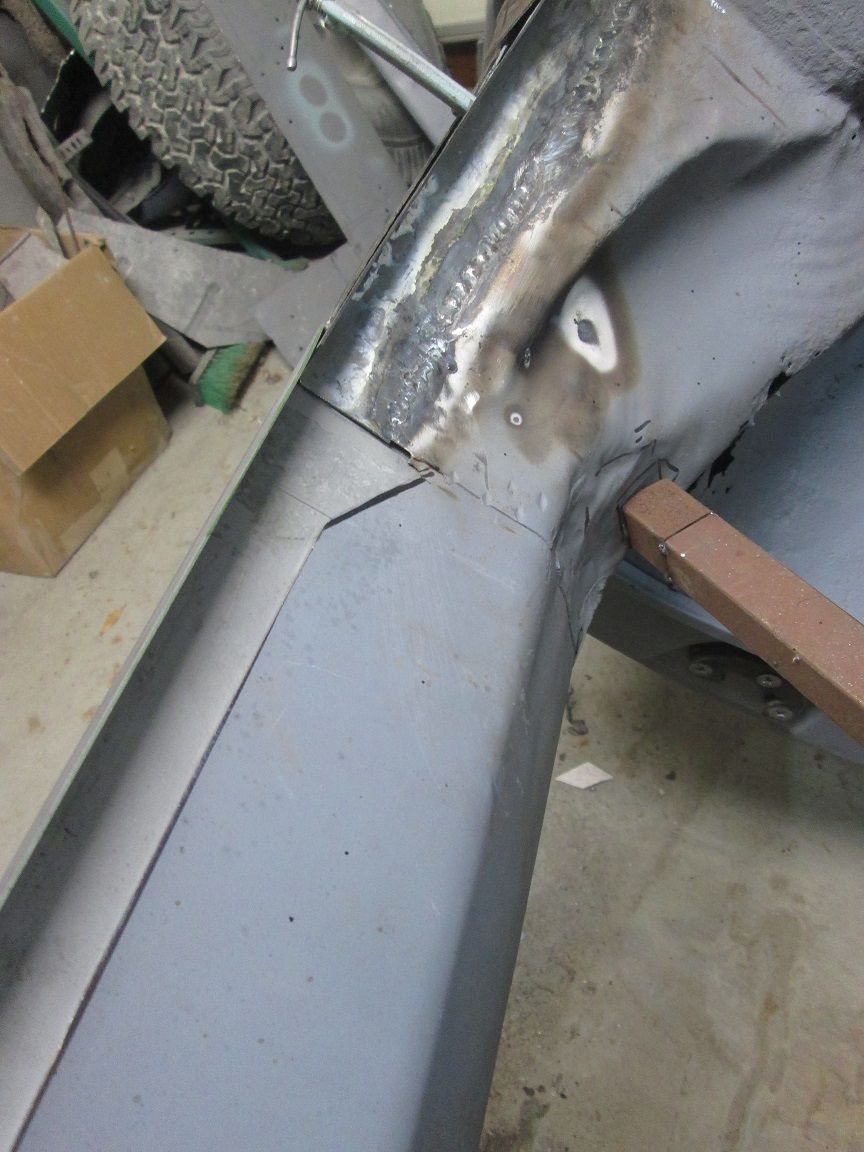

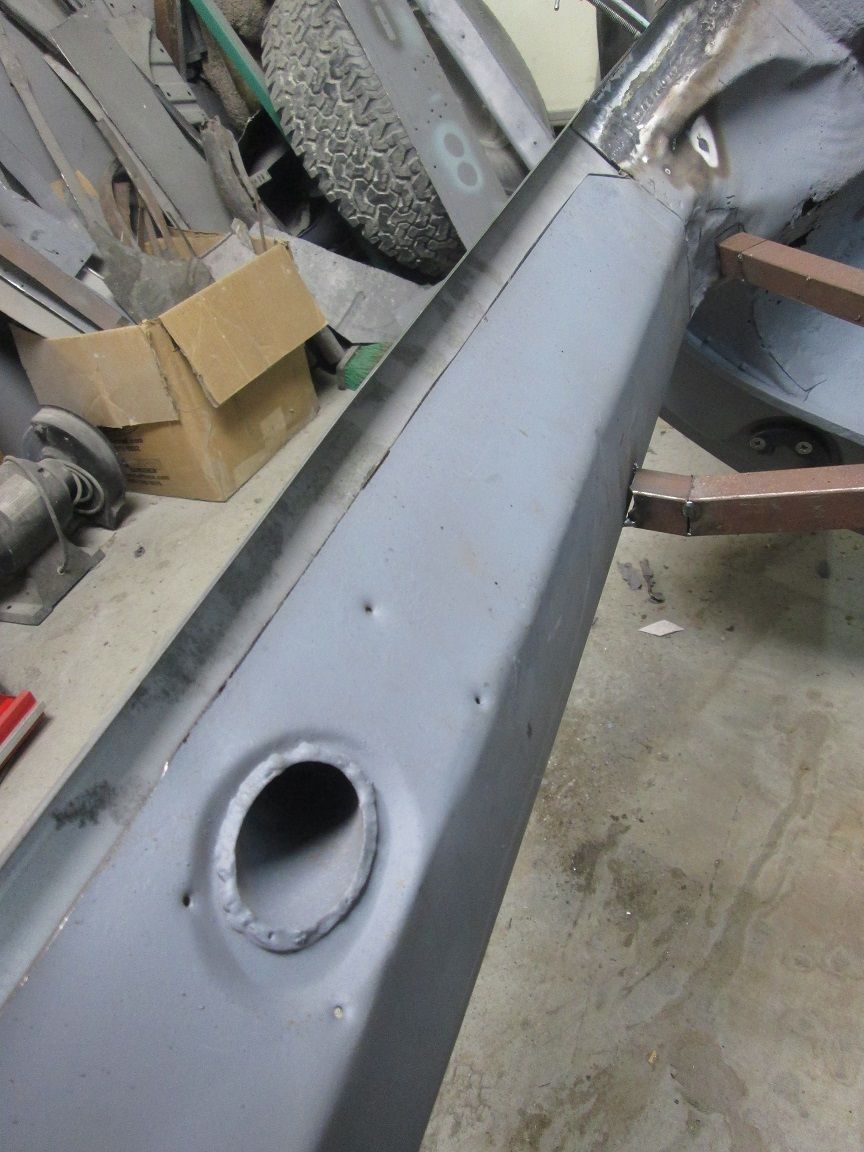

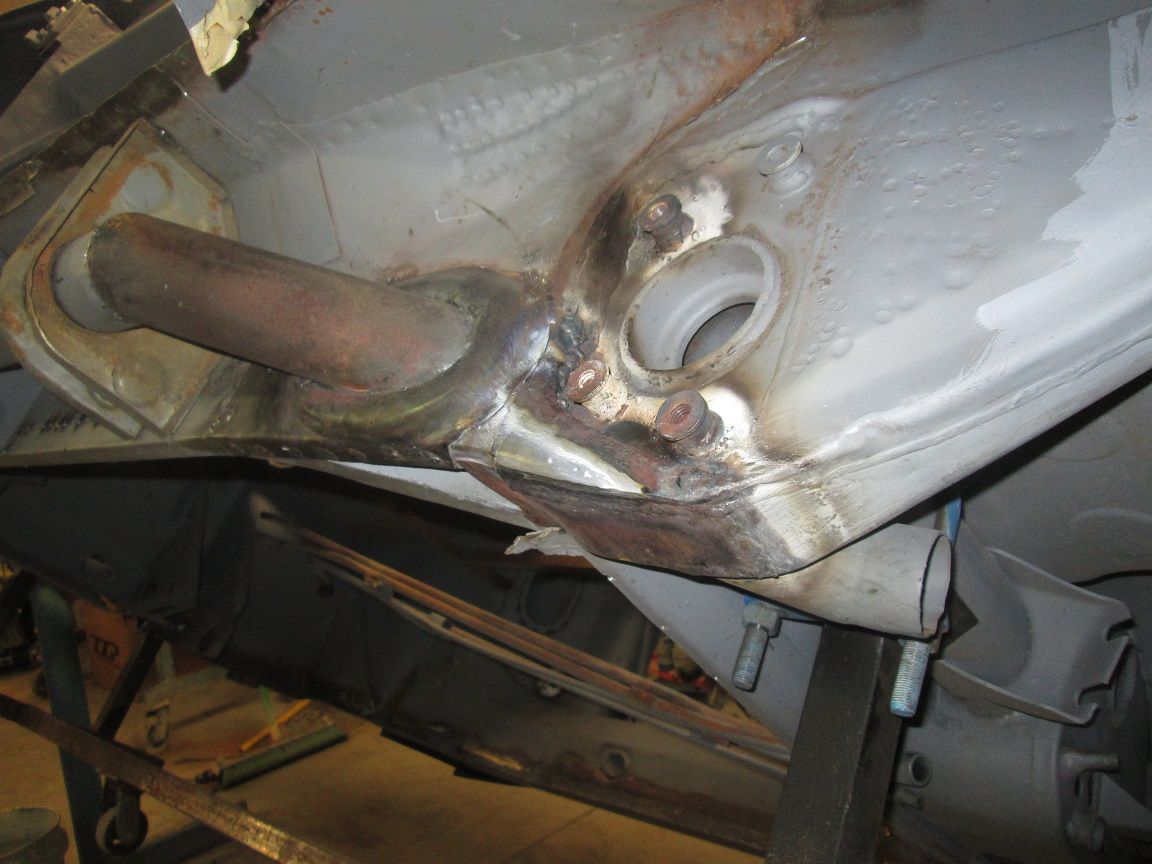

                • Lower torsion housing cap install:
                  Click image for larger version

Name:	IMG_7555.JPG
Views:	283
Size:	135.5 KB

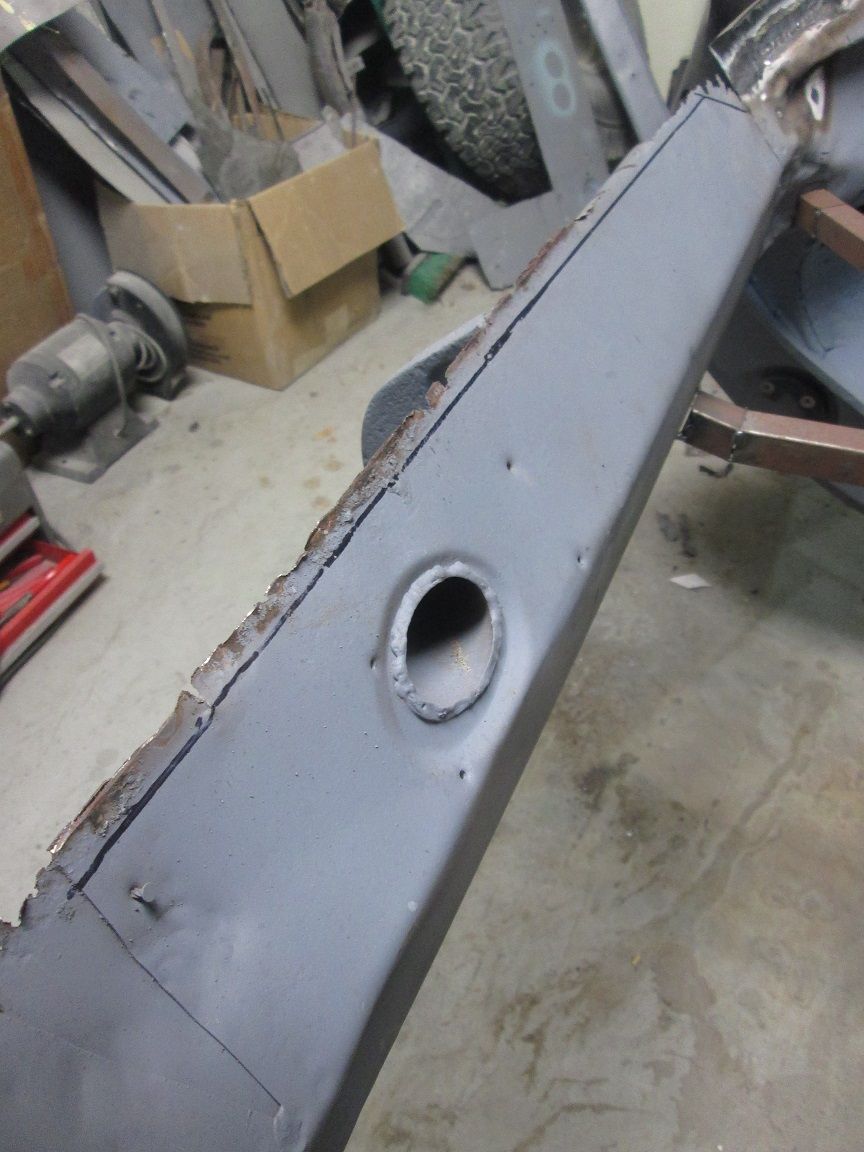

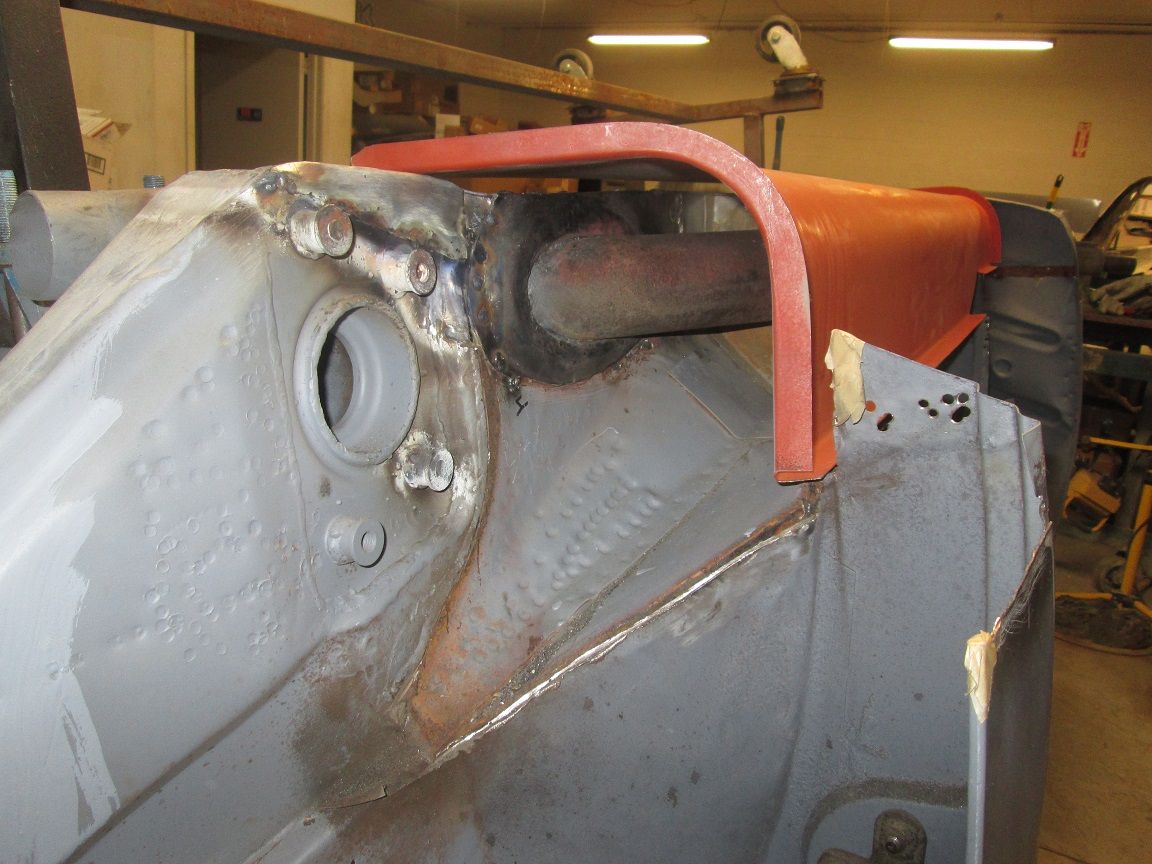

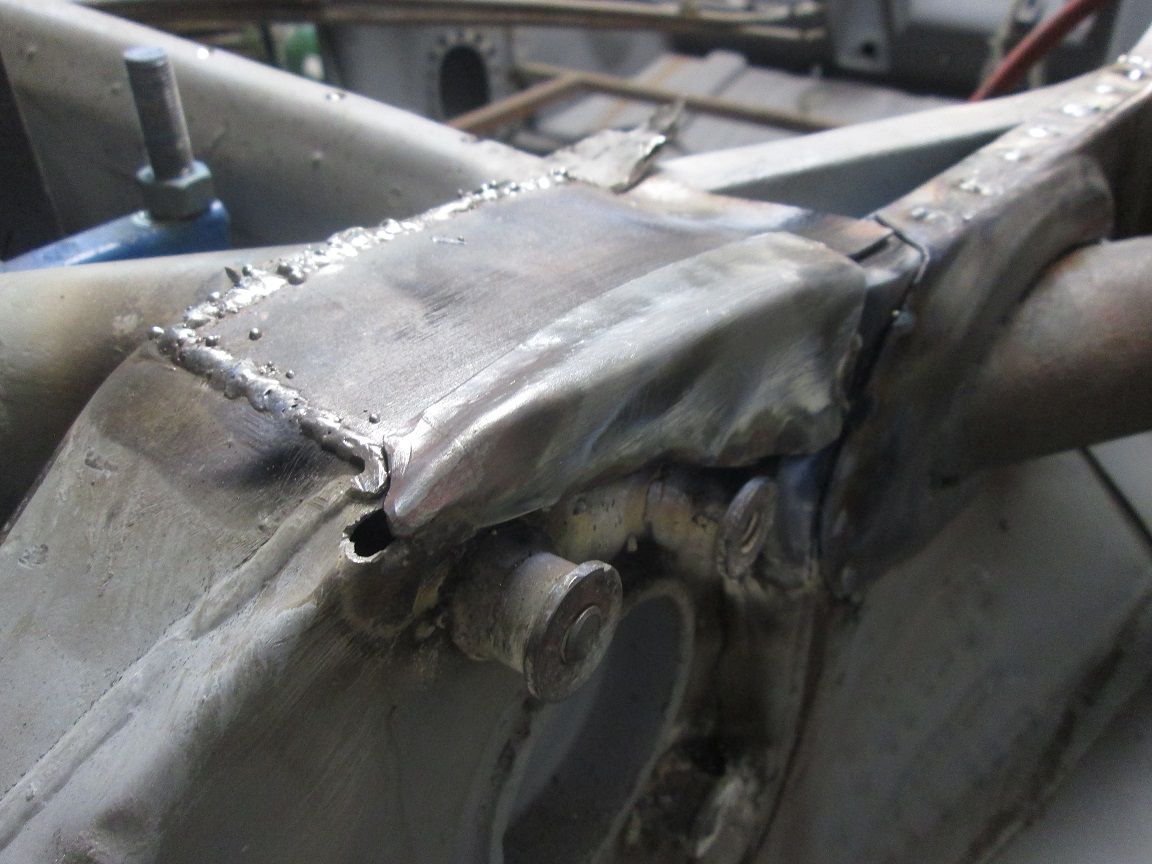

ID:	111337 New cap from 18G in basic shape the remains of the original/pattern lying next to it.
                  Click image for larger version

Name:	IMG_7557.JPG
Views:	271
Size:	123.2 KB
ID:	111338 Tightened up the shape and the corners and now ready to weld on for good.
                  Click image for larger version

Name:	IMG_7561.JPG
Views:	268
Size:	141.6 KB

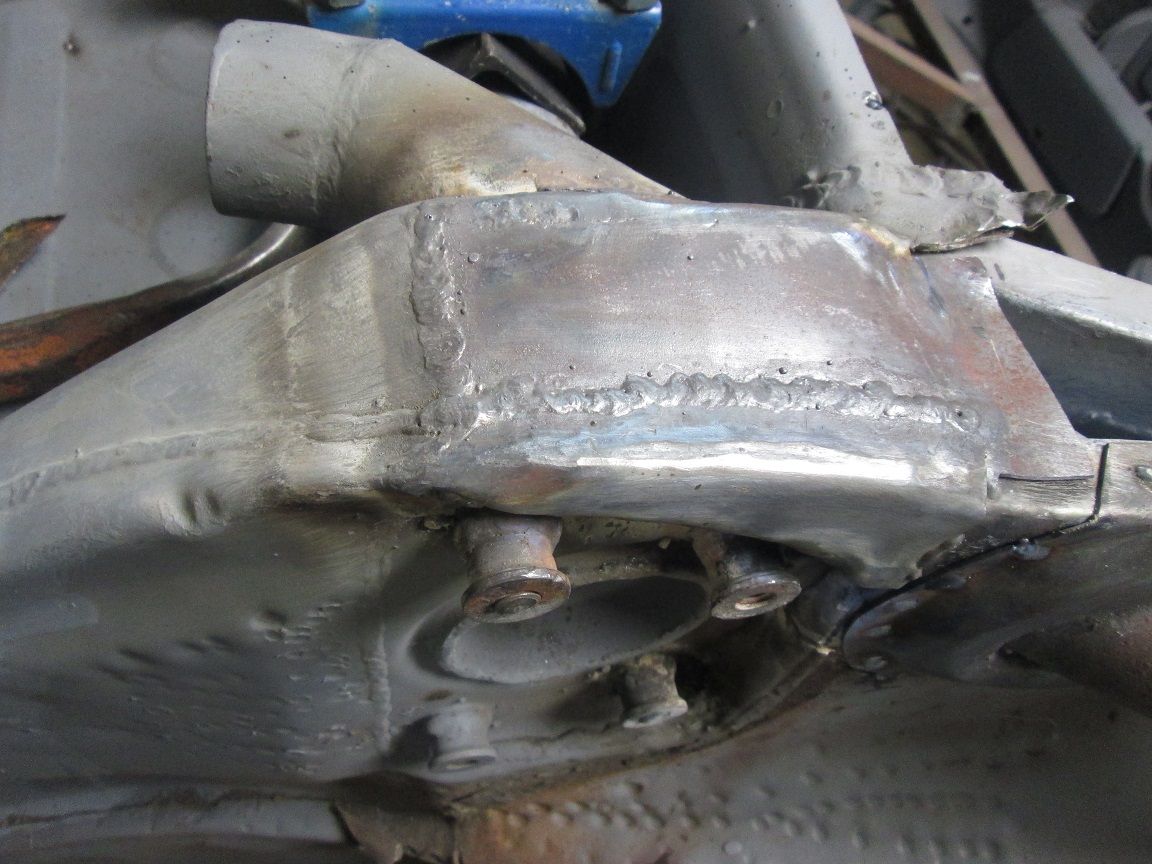

ID:	111339 Lap joint detail replicated and gas seam weld continues on from the original section.
                  Click image for larger version

Name:	IMG_7560.JPG
Views:	276
Size:	142.2 KB
ID:	111340 Its half way in, I'll have to run another seam across the top just under the spring plate studs.
                  Click image for larger version

Name:	IMG_7562.JPG
Views:	268
Size:	139.9 KB
ID:	111341 A ways yet still to go before this closing panel goes on but I wanted to do some checking as its going.

                  Justin Rio

                  Comment

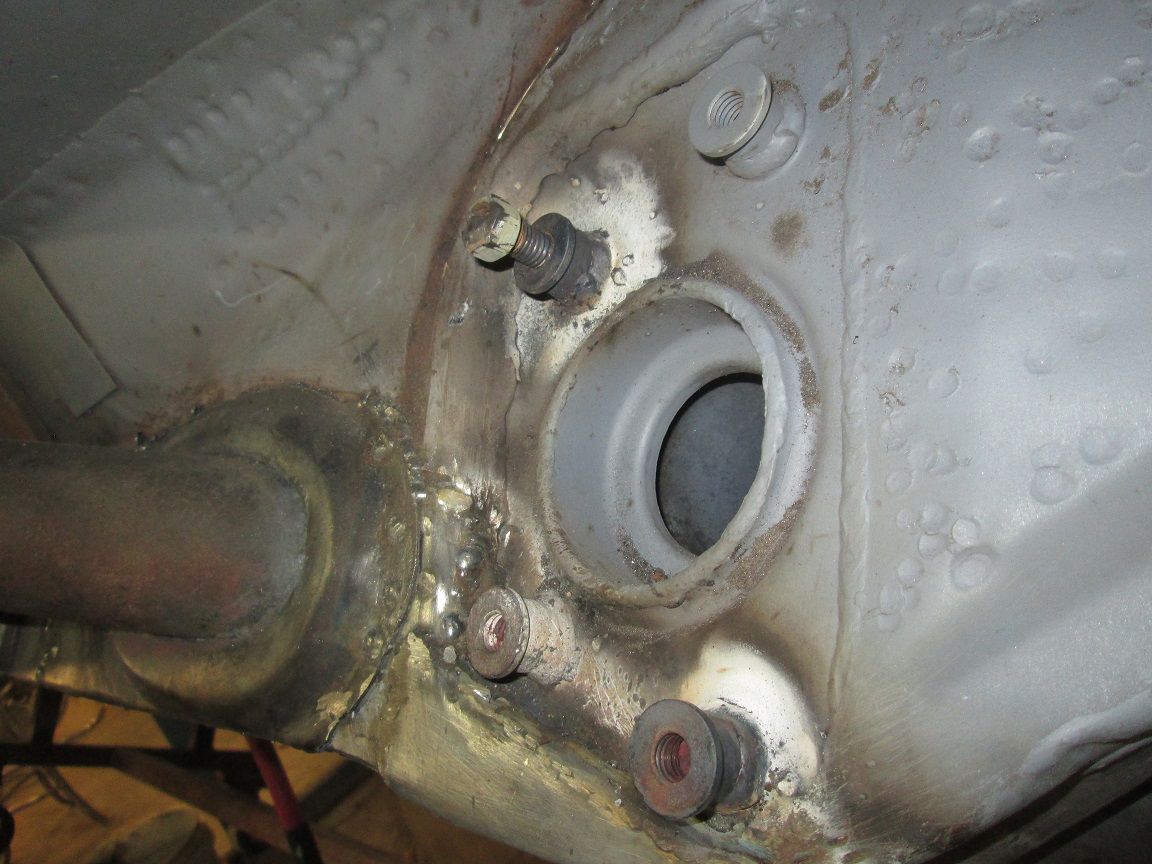

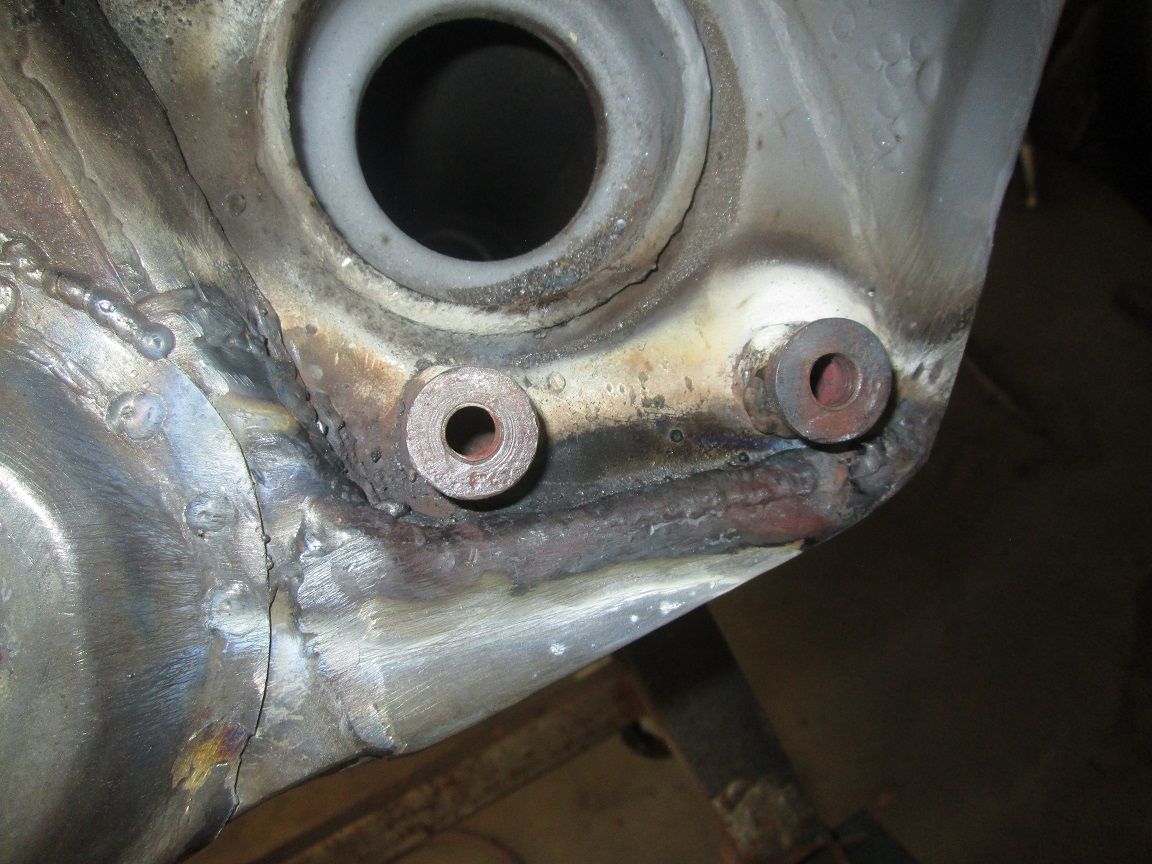

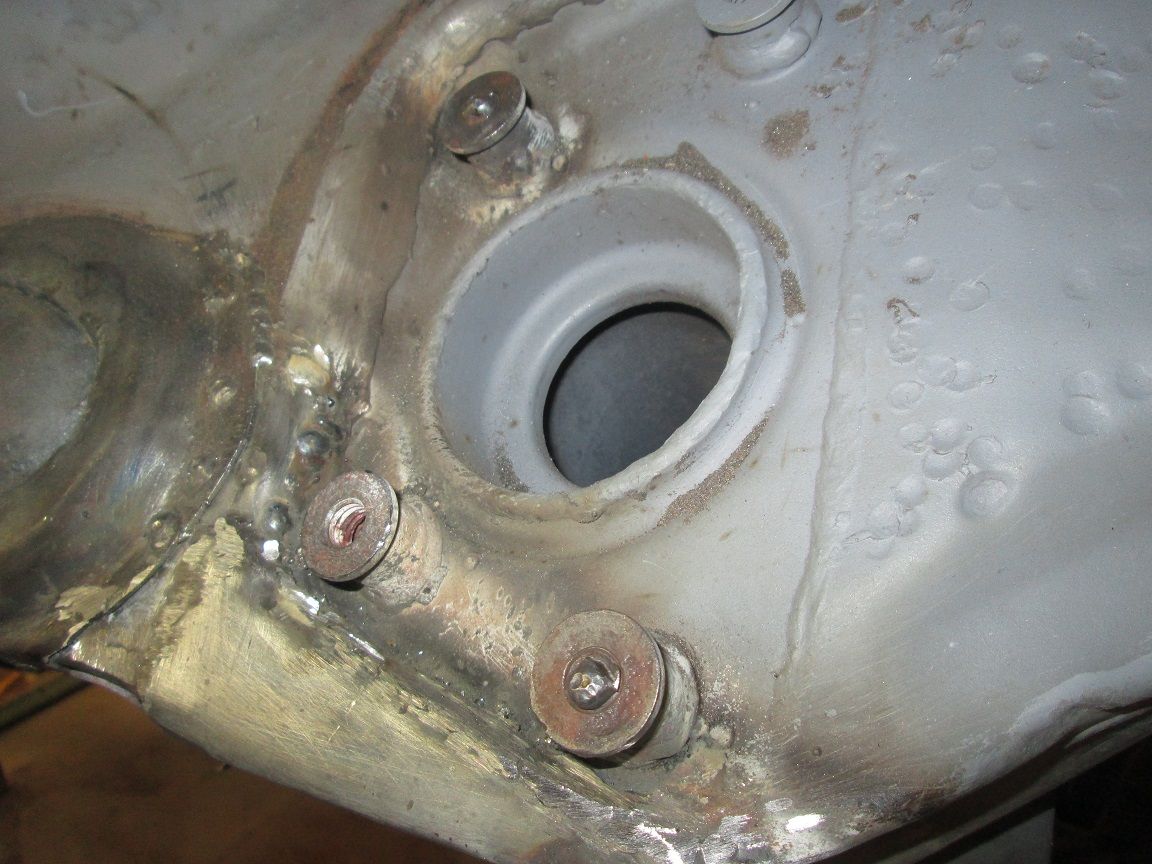

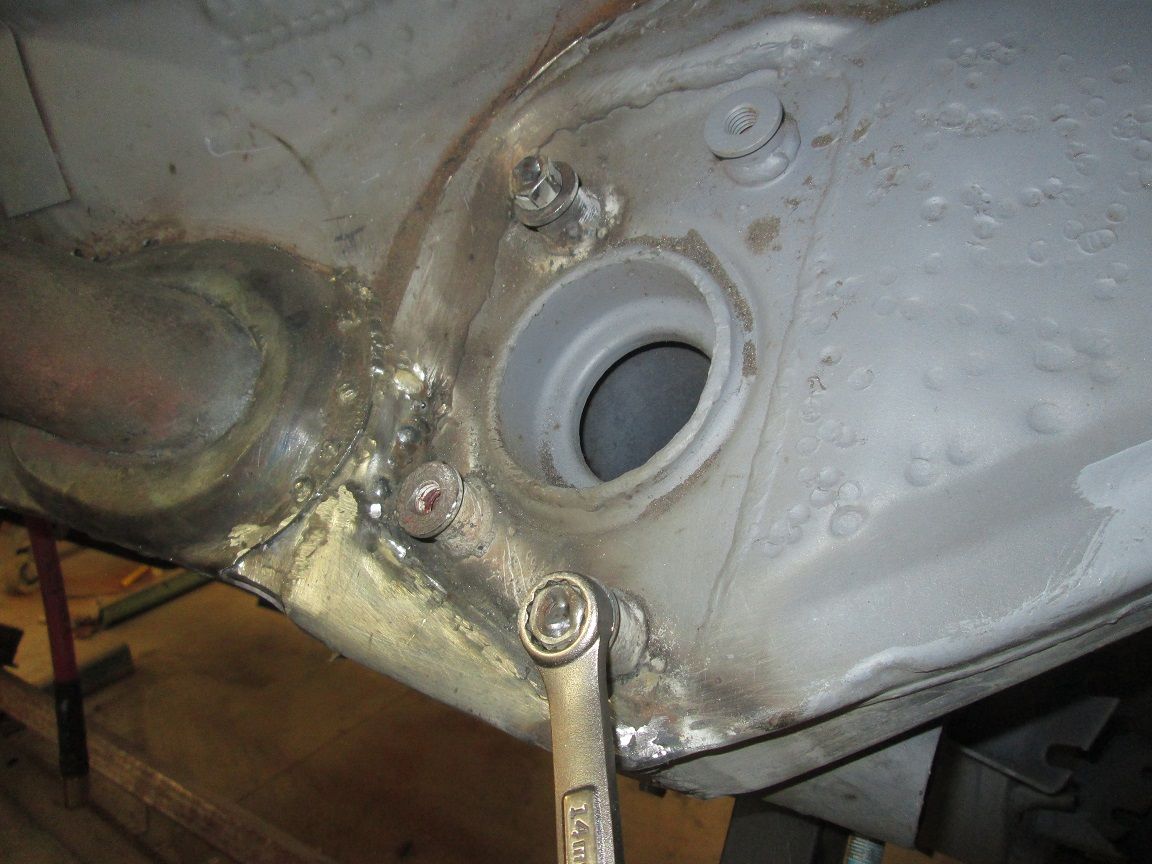

                  • Twisted off spring plate bolt removal:
                    Click image for larger version  Name:	IMG_7563.JPG Views:	0 Size:	148.5 KB ID:	111343 Nipple of weld carefully added to the heads to ensure a good bond before I plug weld on the nuts.
                    Click image for larger version  Name:	IMG_7564.JPG Views:	0 Size:	136.1 KB ID:	111344 Nuts welded on and now ready to add in some torch heat and see if these things will come out.
                    Click image for larger version  Name:	IMG_7565.JPG Views:	0 Size:	138.4 KB ID:	111345 Successfully extracted without destroying the mounts. These where fused in there tighter than a bulls ass, the original bolts had no chance of coming out cold and in one piece. It took several rounds of heat and yielded just a partial turn as it went. They groaned and squeaked with each move but the nuts held on allowing for a successful removal.
                    Click image for larger version  Name:	image_64435.jpg Views:	5 Size:	155.9 KB ID:	111346 Began running the final gas welded seam along the top of the new cap and of course before I could finish I ran out of oxygen.
                    Click image for larger version  Name:	image_64436.jpg Views:	5 Size:	124.7 KB ID:	111347 Continuing on with this after I get back from the welding supply.


                    Thanks for looking!
                    Justin
                    Last edited by JTR70; 05-07-2021, 08:31 PM.
                    Justin Rio

                    Comment


                    • Great progress Justin. Great trick with welding nuts on to remove bolts!!!!
