1959 356A S/R coupe project chassis # 108625

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Lots of work summarized there, Justin. I know exactly what you're going through with all that rust. Good idea opening up the cavities treating them as they will always show rust.

    Cheers,

    John
    jjgpierce@yahoo.com

    Comment


    • Justin wrote: "The chassis work of course would be no different than working with any other pressed steel unibody type but the body work of 356 is really where your patience will be put to the test."

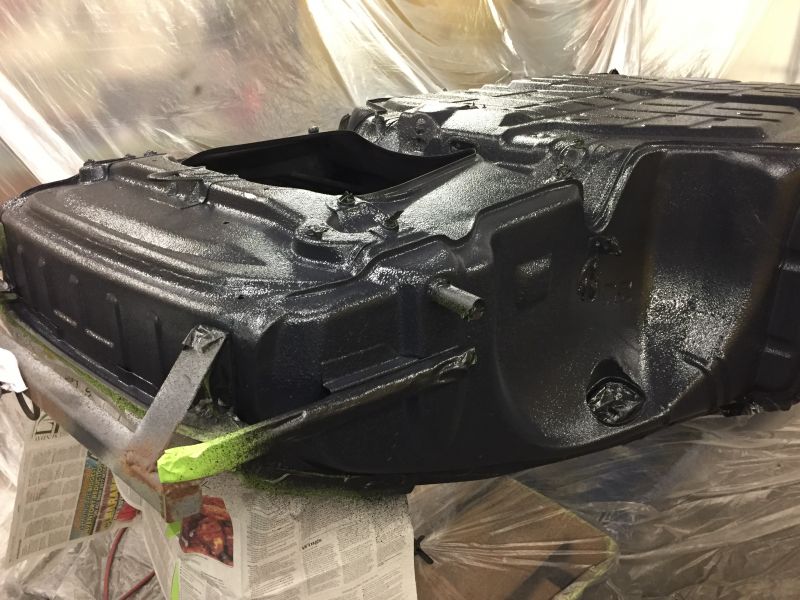

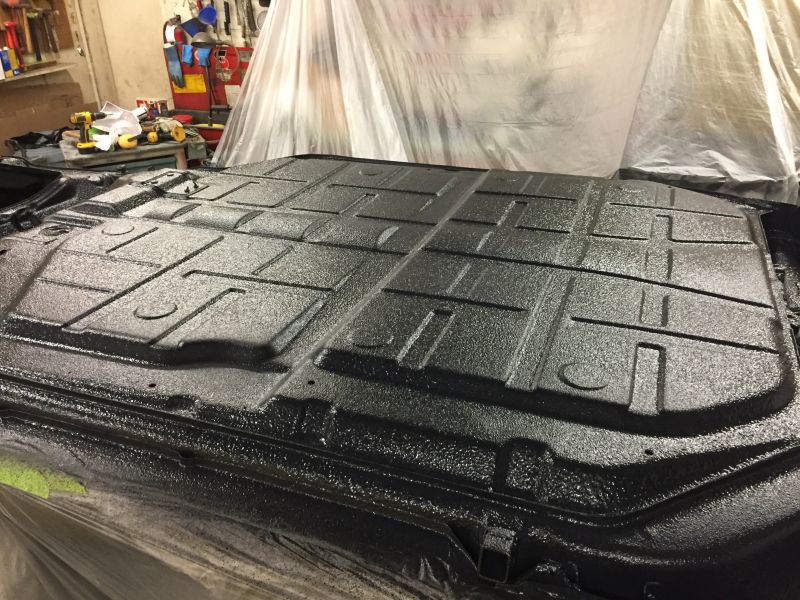

      You do this more easily on a 911:
      Click image for larger version

Name:	052.JPG
Views:	270
Size:	124.9 KB
ID:	102161

      Click image for larger version

Name:	053.JPG
Views:	267
Size:	91.6 KB
ID:	102162

      Click image for larger version

Name:	051.JPG
Views:	275
Size:	103.1 KB
ID:	102163

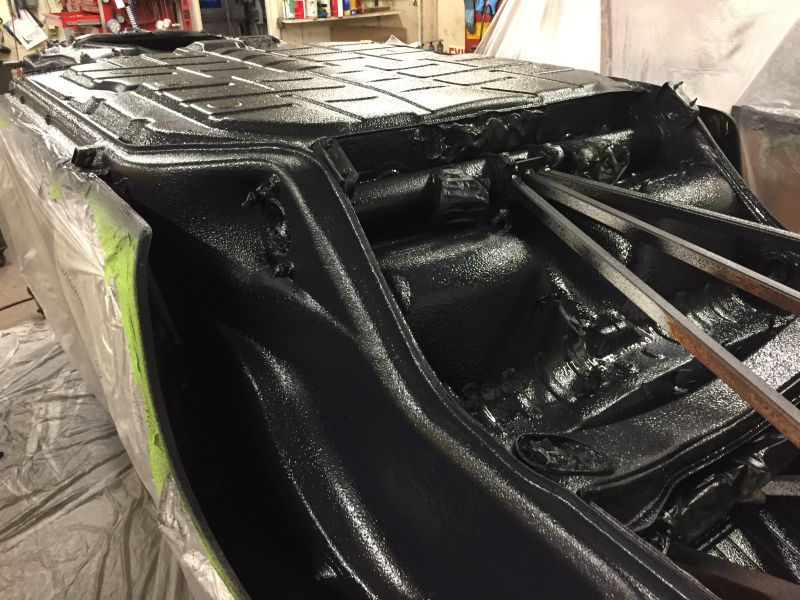

      But then there is always this:

      Click image for larger version

Name:	458.JPG
Views:	269
Size:	90.3 KB
ID:	102164

      Click image for larger version

Name:	459.JPG
Views:	273
Size:	77.0 KB
ID:	102165

      Click image for larger version

Name:	495.JPG
Views:	294
Size:	80.6 KB
ID:	102166

      Comment


      • Thanks John!

        Got it Bruce, so just easier to build all around versus a 356 then? That underside looks amazing BTW!
        Justin

        7/7/18

        Splash pan repair.

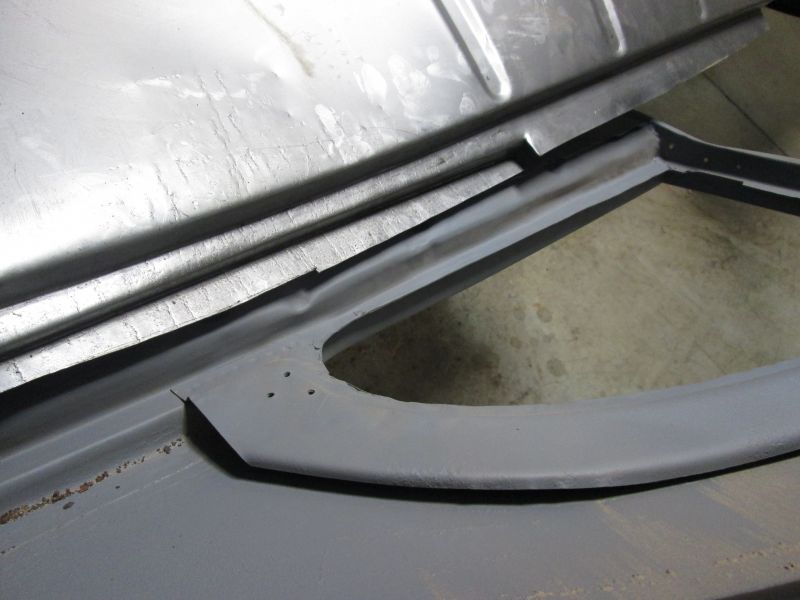

        Working outward from the "new" longitudinal.
        Click image for larger version

Name:	IMG_0239.JPG
Views:	266
Size:	40.1 KB
ID:	102172

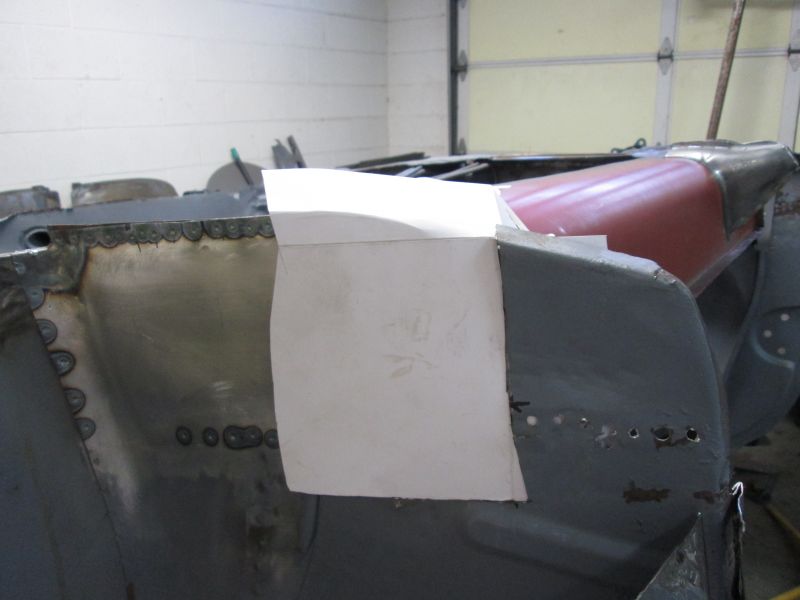

        Begin paper templates for the splash pan section.
        Click image for larger version

Name:	IMG_0240.JPG
Views:	267
Size:	63.1 KB
ID:	102173
        Onto metal. Backing it down to 20 gauge on this peripheral stuff.
        Click image for larger version

Name:	IMG_0241.JPG
Views:	261
Size:	56.9 KB
ID:	102174
        Ready to tack but first a quick coat of epoxy on the mating surfaces for some added protection. Not sure how much will survive after welding but its worth the try.
        Click image for larger version

Name:	IMG_0242.JPG
Views:	260
Size:	54.8 KB
ID:	102175
        Tacked with plug-welding up next.

        Thanks for looking!
        Justin
        Justin Rio

        Comment


        • 7/9/18

          Right splash pan repair patch in.

          Click image for larger version

Name:	IMG_0254.JPG
Views:	264
Size:	51.2 KB
ID:	102251

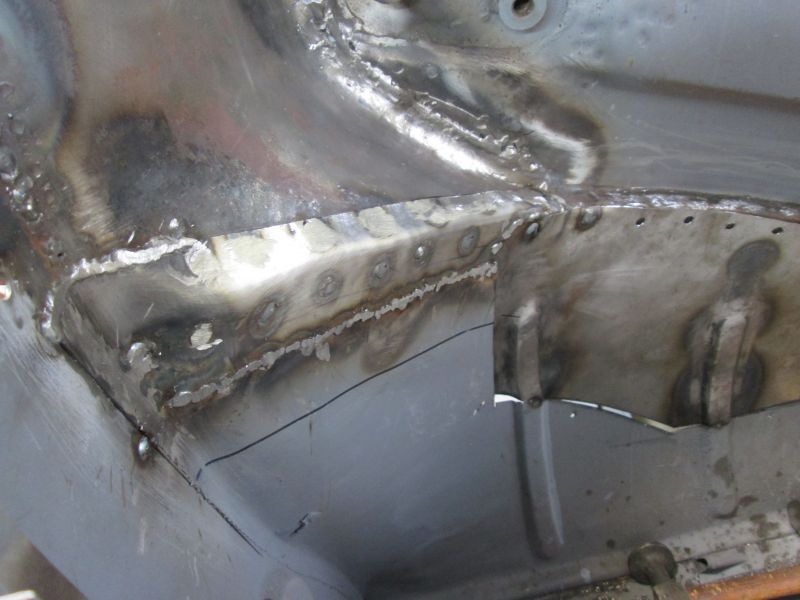

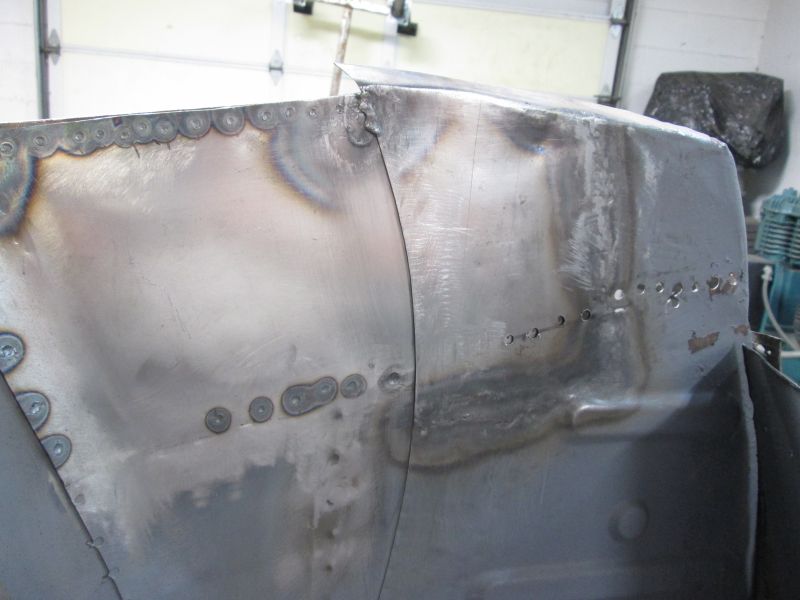

          Seam and plug welds all dressed. Gas weld detail at the base of the inner lap jont replicated.
          Click image for larger version

Name:	IMG_0257.JPG
Views:	252
Size:	51.1 KB
ID:	102252
          Left the middle run of the plug welds loose for now
          Click image for larger version

Name:	IMG_0256.JPG
Views:	251
Size:	66.6 KB
ID:	102253

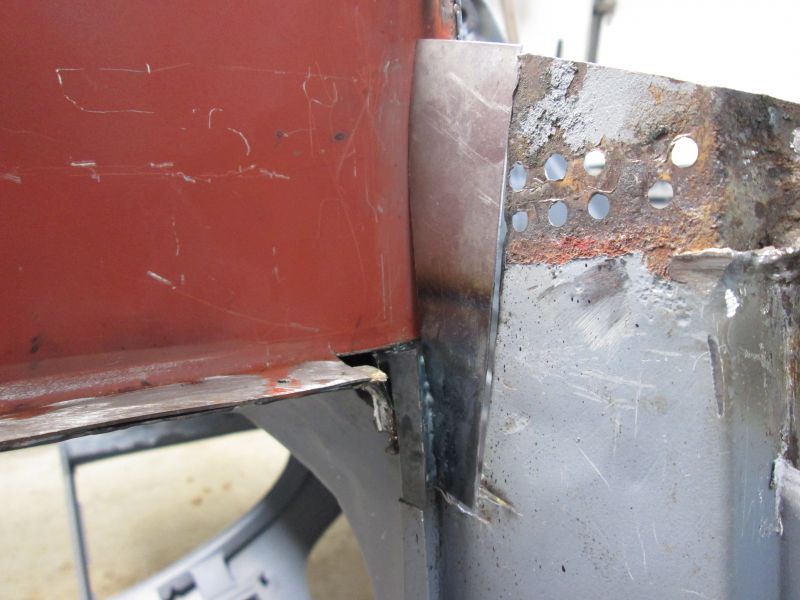

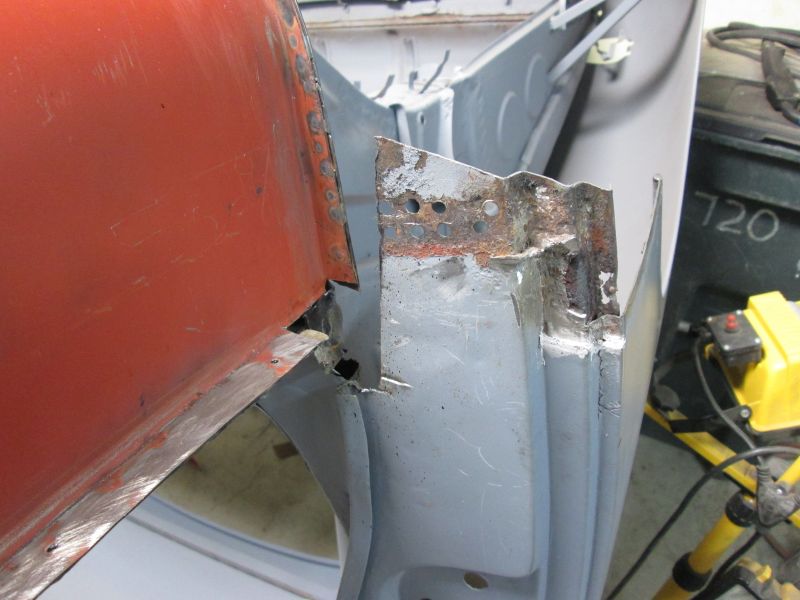

          As the forward rocker floor needs to slip in between there.
          Click image for larger version

Name:	IMG_0259.JPG
Views:	236
Size:	53.8 KB
ID:	102254
          I'll add the spot weld details once the rocker is in and the rest of the plug weld holes are filled.
          Click image for larger version

Name:	IMG_0260.JPG
Views:	244
Size:	61.4 KB
ID:	102255
          Moving to the rear next to repair the bottom of the striker post.
          Thanks for looking!
          Justin
          Justin Rio

          Comment


          • 7/13/18

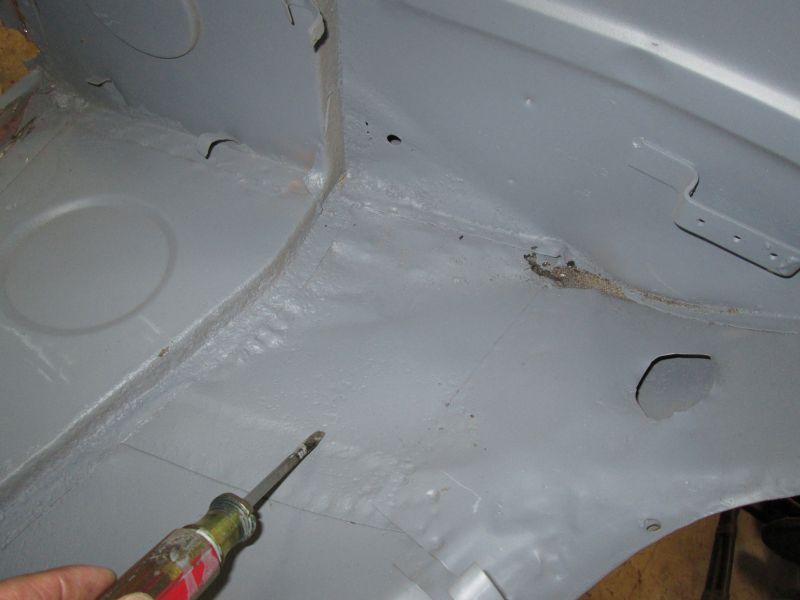

            Prepping for new inner wheel house panel.


            Click image for larger version

Name:	IMG_0274.JPG
Views:	240
Size:	61.8 KB
ID:	102379
            As this patch panel progressed
            Click image for larger version

Name:	IMG_0282.JPG
Views:	236
Size:	58.2 KB
ID:	102380

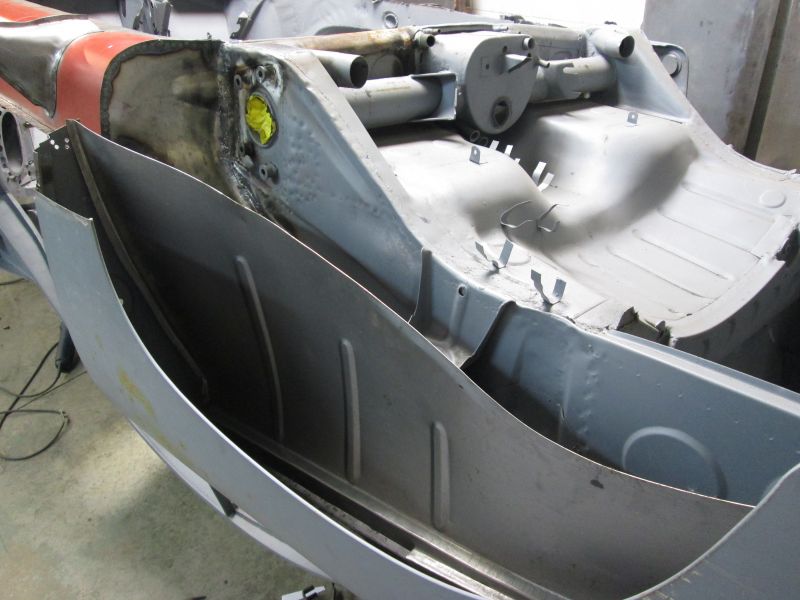

            It was becoming clear that the time was now to replace the inner wheel house wall as the corner of it intersects here and along with part of the inner gusset. I had ground into this intersection during removal so it all needs to addressed. Besides my original plan was to put the rocker in next but I have clearer shot at this panel with the corner of the rocker not there.
            Click image for larger version

Name:	IMG_0279.JPG
Views:	238
Size:	66.2 KB
ID:	102381
            So the time is ripe. My original thought was I'd do these after the floor but it all has to be done eventually.
            Click image for larger version

Name:	IMG_0280.JPG
Views:	232
Size:	46.6 KB
ID:	102382

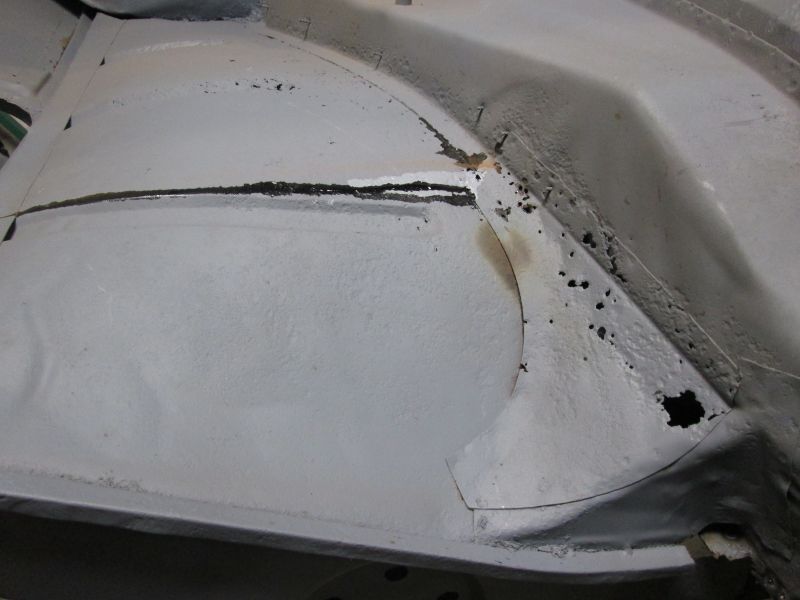

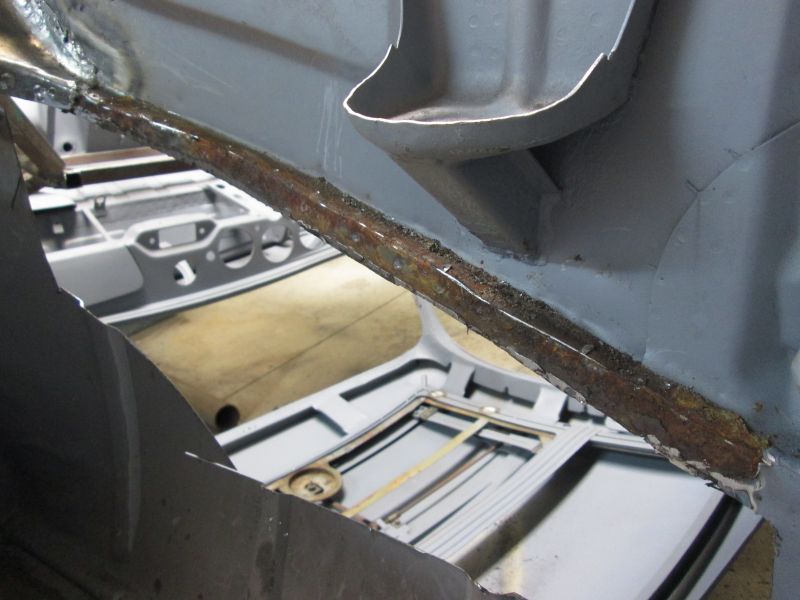

            The original is breached and pretty thin throughout.
            Click image for larger version

Name:	IMG_0281.JPG
Views:	214
Size:	40.9 KB
ID:	102383
            Its even gone through in the far flung corners.
            Click image for larger version

Name:	IMG_0285.JPG
Views:	217
Size:	53.4 KB
ID:	102384
            Its a big interwoven piece and a repair patch would have been easier but it requires several patches anyway so one nice piece will make a much cleaner job of it and its provided so why not use it.
            Click image for larger version

Name:	IMG_0283.JPG
Views:	220
Size:	53.6 KB
ID:	102385
            Entire lower quarter window sill will come out.
            Click image for larger version

Name:	IMG_0284.JPG
Views:	203
Size:	38.7 KB
ID:	102386
            Tail end of this panel is here and is overlapped. Its going to take some digging and prep before its all over for sure.
            Click image for larger version

Name:	IMG_0286.JPG
Views:	201
Size:	48.7 KB
ID:	102387
            This will be my first full replacement on a coupe so it should be fun. Note the paint run off from flooding those inner chassis cavities earlier. Removing this gusset first.
            Thanks for looking!
            Justin
            Justin Rio

            Comment


            • Justin,

              Rust never ceases to amaze me. Now if this car had originated in NV then it might well have been a different case. I wonder how many 356 cars came to Nevada and have stayed there? Or Arizona I guess?

              Watching with interest!

              Roy

              Comment


              • Hi Roy, It would have certainly faired better living in the high desert area but with that hole in the roof the original floors probably still would not have made it. I got a little surprised where the rust was not as you'll see below. Justin


                7/14/18


                Some rethink on the inner closing wall repair.


                Click image for larger version

Name:	IMG_0290.JPG
Views:	187
Size:	64.4 KB
ID:	102397
                After removing that rusted out lid of the gusset I was expecting to find thick heavy scale running up the wall especially considering how far gone this wall was along the mounting flange section I removed earlier. Instead I find a pristine run which still had not even oxidized completely. Hell the front wall of the gusset is still just fine so I'll just be building a new cap for it.
                Click image for larger version

Name:	IMG_0291.JPG
Views:	182
Size:	48.9 KB
ID:	102398

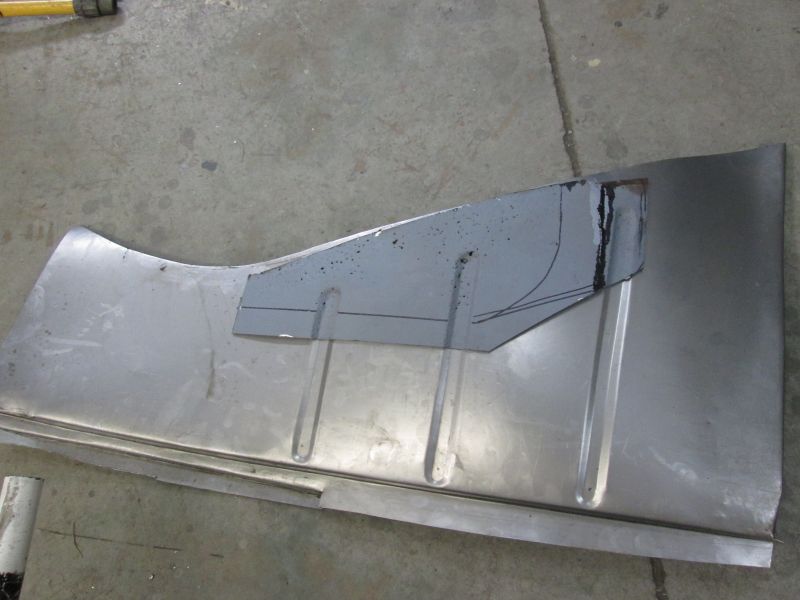

                After some reconsideration of just how solid this panel still is along the vertical and upper edges and just how much time and work it would take to replace it as whole it became clear the smart move was to just patch it. Initial cut lines here.
                Click image for larger version

Name:	IMG_0298.JPG
Views:	184
Size:	54.2 KB
ID:	102399
                Weakest section removed and planning the new patch. Trevor got the ribs in the right spots but a real shame and a waste to burn this entire piece for such small portion of it.
                Click image for larger version

Name:	IMG_0299.JPG
Views:	180
Size:	47.9 KB
ID:	102400

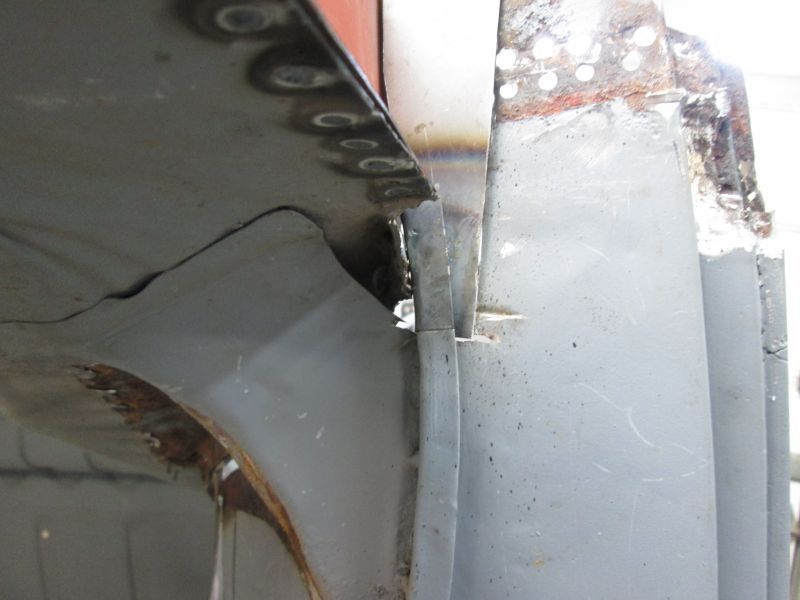

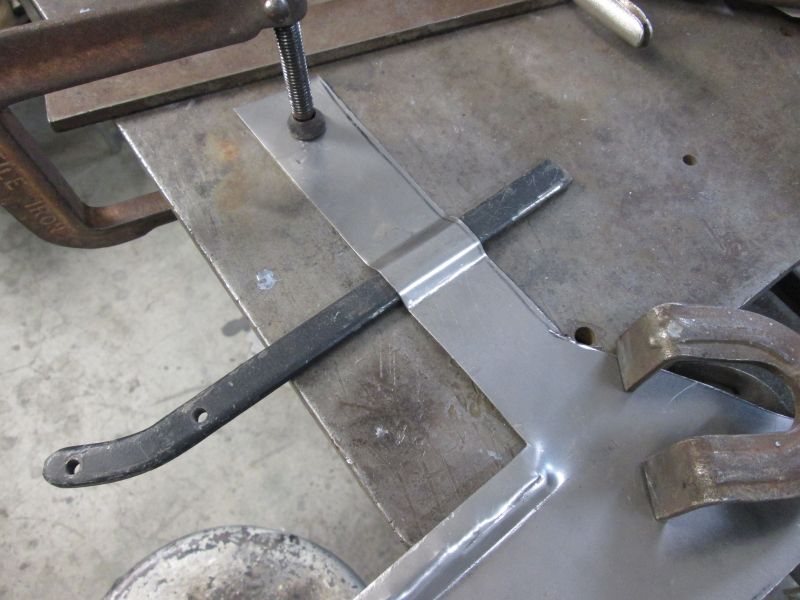

                Another concern is that the rib details are weaker and not nearly as pronounced as the OG making the transition across these details from old to new easy to detect when looking up inside the wheel well.
                Click image for larger version

Name:	IMG_0292.JPG
Views:	171
Size:	66.2 KB
ID:	102401
                Rummaged through my scrap steel for a possible hammer form to try and recreate this a little closer in detail. Found this section of repro speedster top frame and was just the right width and thickness. A quick experiment on a scrap section of 20 gauge to see how close.
                Click image for larger version

Name:	IMG_0293.JPG
Views:	169
Size:	49.3 KB
ID:	102402
                Close enough for Gov't work.
                Click image for larger version

Name:	IMG_0295.JPG
Views:	172
Size:	66.4 KB
ID:	102403
                Another quick practice run to see how close I could get the end to look.
                Click image for larger version

Name:	IMG_0297.JPG
Views:	160
Size:	62.4 KB
ID:	102404
                Again I literally spanked this relief in, in a matter of few minutes; and it shows. But if I take some time and care I think a nice relief patch can be had this way. No heat required either, all done cold much to my surprise. Anyway, new patch coming up next, hopefully.

                Thanks for looking!
                Justin
                Justin Rio

                Comment


                • 7/16/18

                  New wheel house patch panel.
                  Click image for larger version

Name:	IMG_0305.JPG
Views:	170
Size:	69.7 KB
ID:	102458

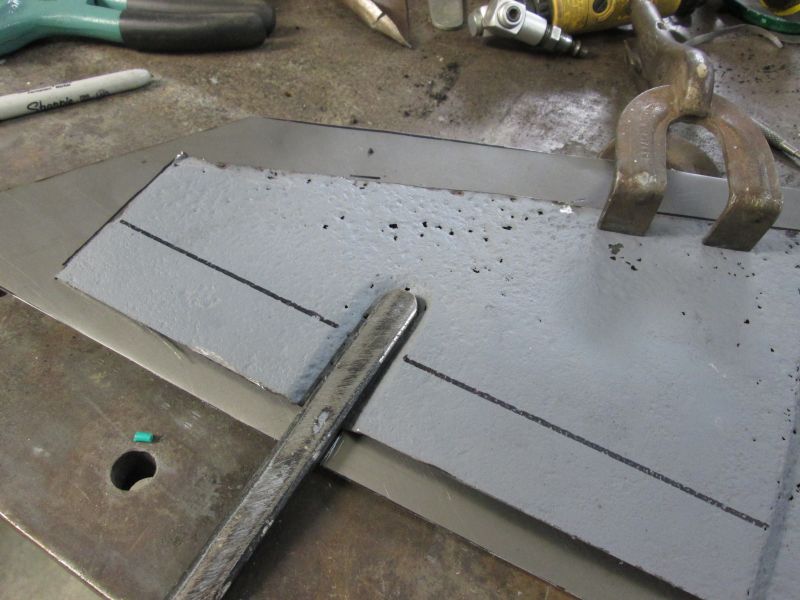

                  New 20 gauge patch section with OG panel overlaid to locate and orient the first rib.
                  Click image for larger version

Name:	IMG_0304.JPG
Views:	164
Size:	68.1 KB
ID:	102459

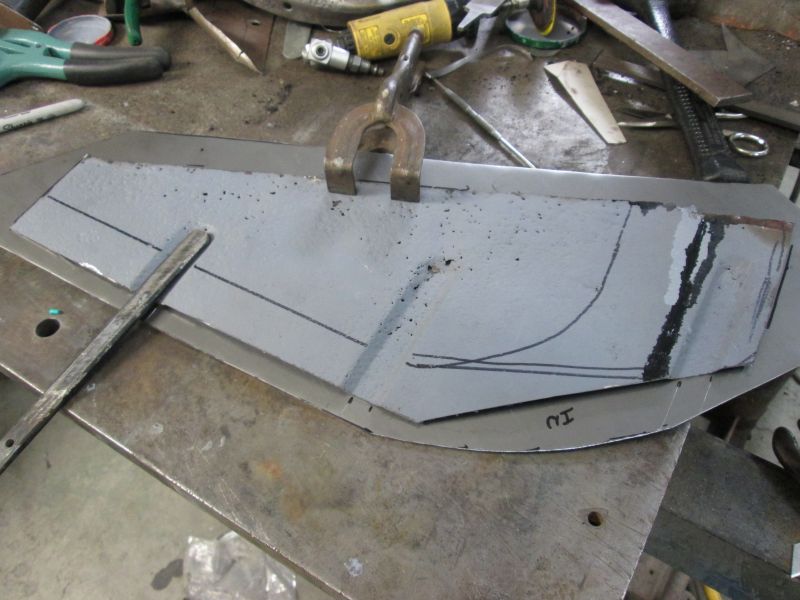

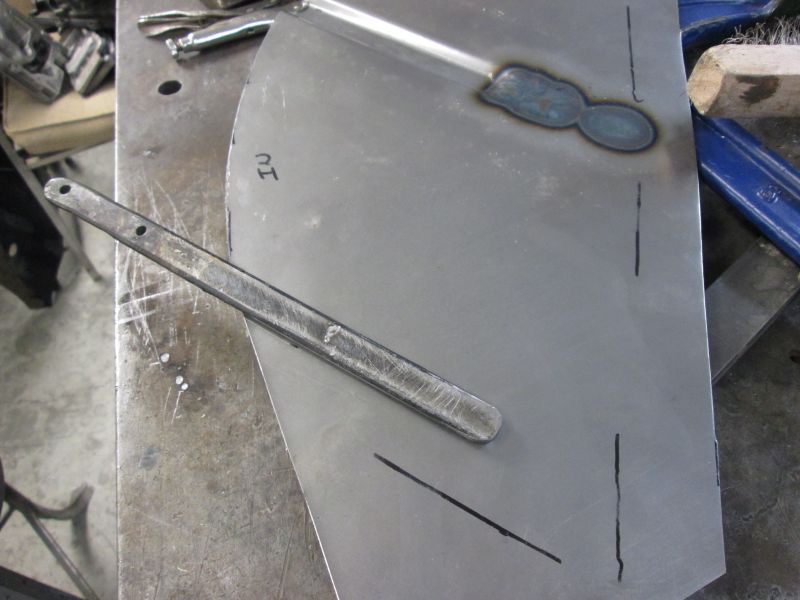

                  Hammer form will be tacked at the top so I can slip the old panel out and flip it over.
                  Click image for larger version

Name:	IMG_0306.JPG
Views:	170
Size:	52.6 KB
ID:	102460
                  Tacking it ensured it didn't move as it was flipped and worked in blind. Basic relief spanked in here. Wasn't expecting the stretch to go so far past the end of the form but a little heat shrinking will fix it.
                  Click image for larger version

Name:	IMG_0308.JPG
Views:	158
Size:	51.1 KB
ID:	102461

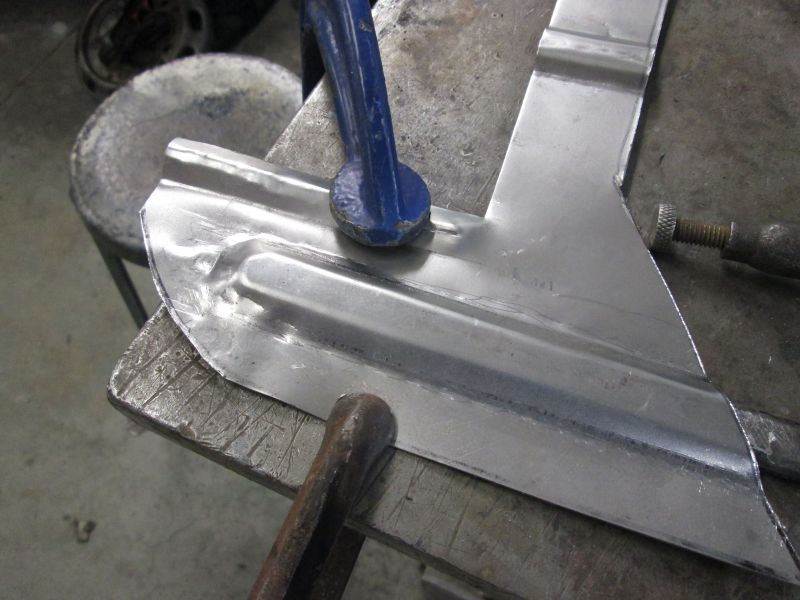

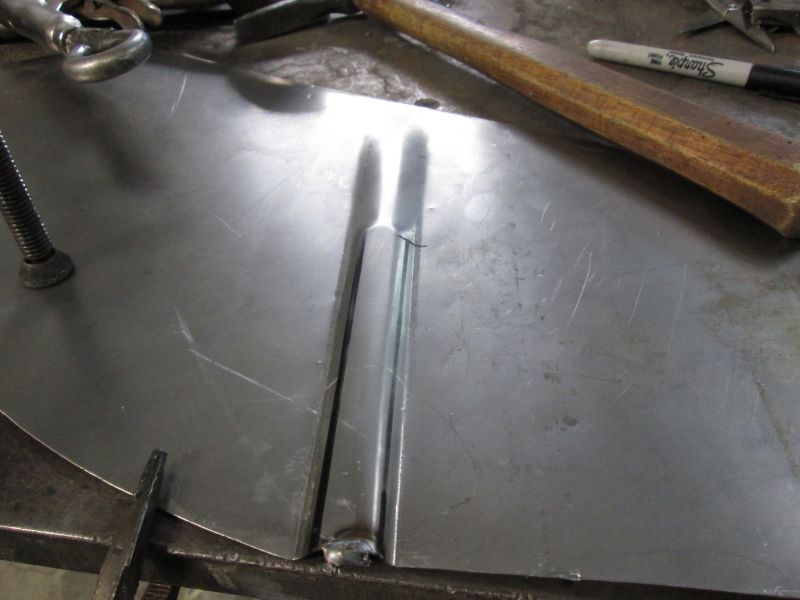

                  Drawn back up here. New Rib in only basic form.
                  Click image for larger version

Name:	IMG_0309_2018-07-17.JPG
Views:	159
Size:	43.8 KB
ID:	102462

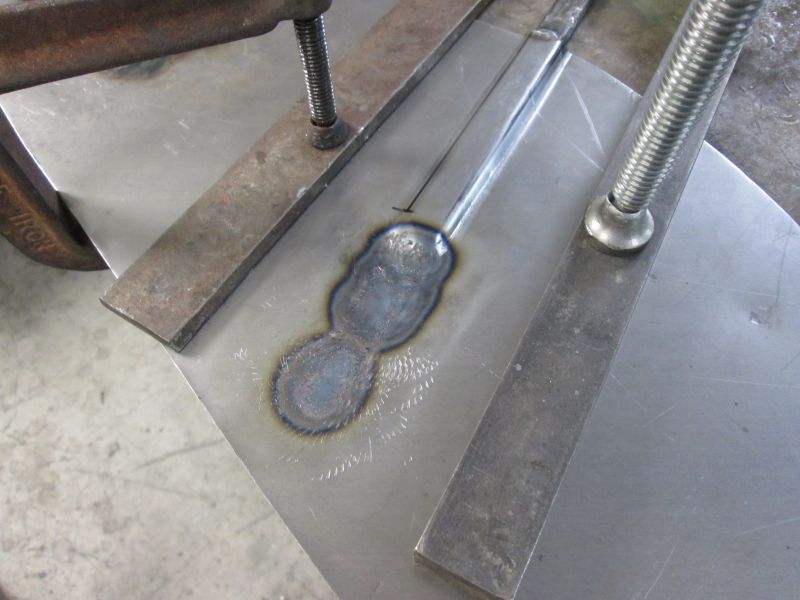

                  Close enough to work. What I like most is how deep the draw is and replicates what's there.
                  Click image for larger version

Name:	IMG_0310_2018-07-17.JPG
Views:	156
Size:	51.7 KB
ID:	102463
                  Second rib in.
                  Click image for larger version

Name:	IMG_0311_2018-07-17.JPG
Views:	157
Size:	57.4 KB
ID:	102464
                  Shrink the end as before.
                  Click image for larger version

Name:	IMG_0312_2018-07-17.JPG
Views:	147
Size:	51.4 KB
ID:	102465
                  So far so good. Any misalignment or spacing discrepancy between these ribs and its back to square one.
                  Click image for larger version

Name:	IMG_0313.JPG
Views:	155
Size:	78.2 KB
ID:	102466

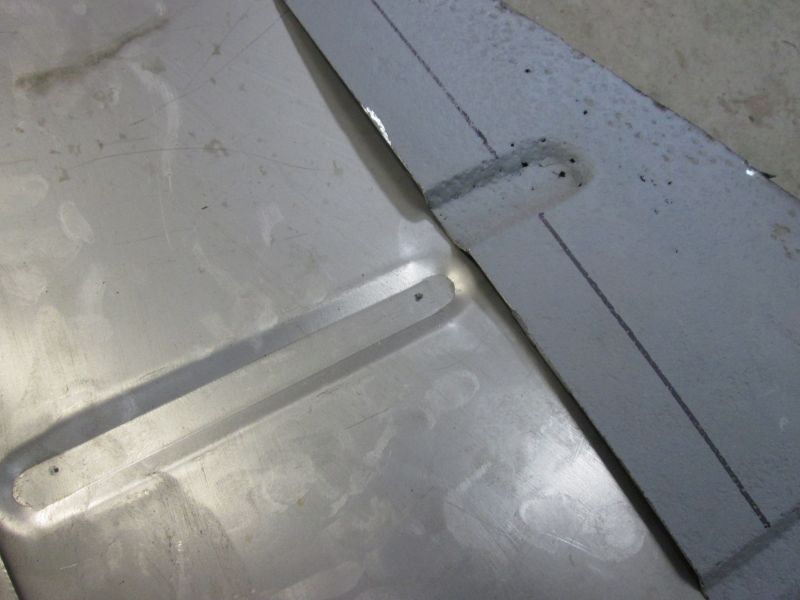

                  Using the OG panel for the set up has been the key.
                  Click image for larger version

Name:	IMG_0314_2018-07-17.JPG
Views:	142
Size:	52.5 KB
ID:	102467
                  Last one and tack welded into position.
                  Click image for larger version

Name:	IMG_0315.JPG
Views:	146
Size:	58.4 KB
ID:	102468
                  Repeat one more time.
                  Click image for larger version

Name:	IMG_0316.JPG
Views:	145
Size:	53.9 KB
ID:	102469

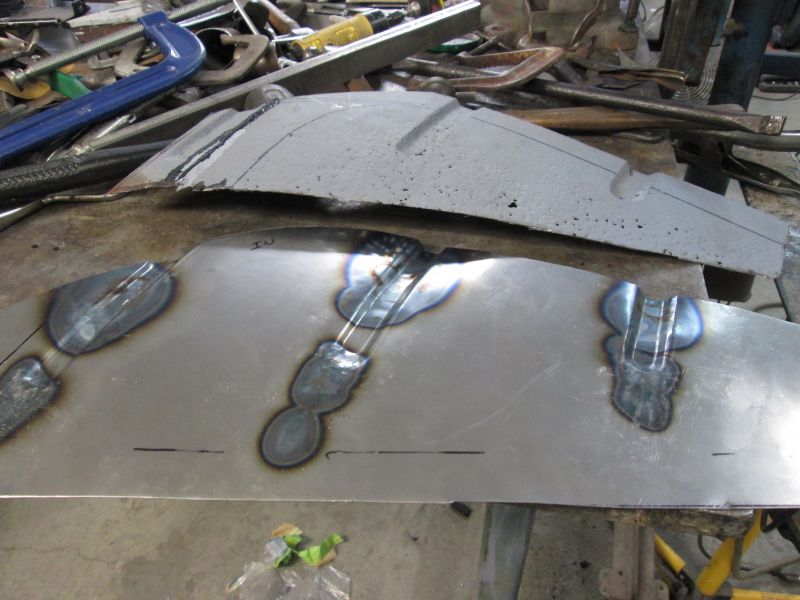

                  A usable patch.
                  Click image for larger version

Name:	IMG_0318.JPG
Views:	141
Size:	74.9 KB
ID:	102470
                  OG panel shows an overall curved shape. The new rib features won't allow that so each one was heated where the sweep is need so they won't kink as I pried each one up.
                  Click image for larger version

Name:	IMG_0319.JPG
Views:	139
Size:	71.5 KB
ID:	102471
                  Just a basic rudimentary part for today but I can at least use it.
                  Click image for larger version

Name:	IMG_0320.JPG
Views:	135
Size:	65.9 KB
ID:	102472
                  More fine tuning tomorrow.

                  Thanks for looking!
                  Justin
                  Justin Rio

                  Comment


                  • Nice work. I always learn something here....in this case, how heat mitigates kinking as you bend the formed metal. Thanks! John

                    Comment


                    • Thank you John! Rigidity is what those corrugation shapes do so I had to soften them to get them to cooperate. Thanks again! Justin


                      7/20/18


                      Wheel house patch set.
                      Click image for larger version

Name:	IMG_0333.JPG
Views:	134
Size:	46.3 KB
ID:	102558

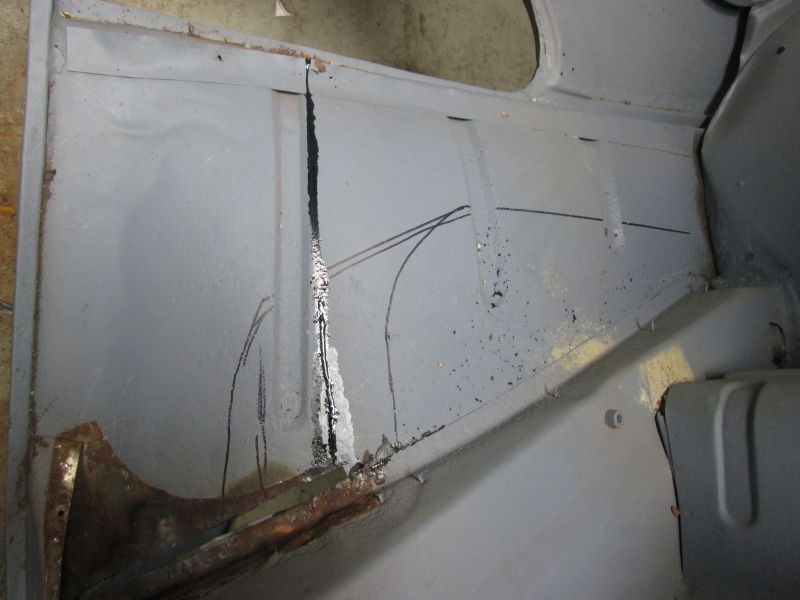

                      Time to remove the remains of the old flange.
                      Click image for larger version

Name:	IMG_0334.JPG
Views:	150
Size:	56.8 KB
ID:	102559
                      Alot of spot welds along the side so it was easier to split it then peel.
                      Click image for larger version

Name:	IMG_0335.JPG
Views:	131
Size:	61.0 KB
ID:	102560

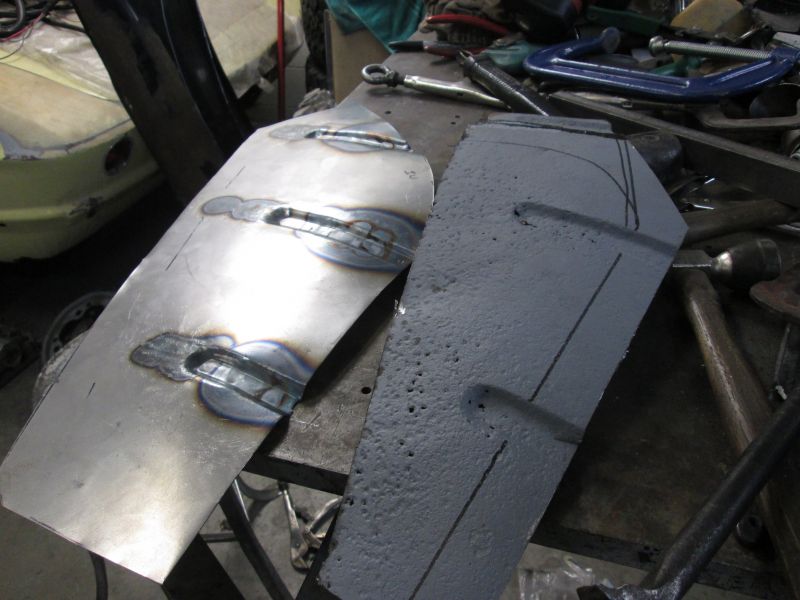

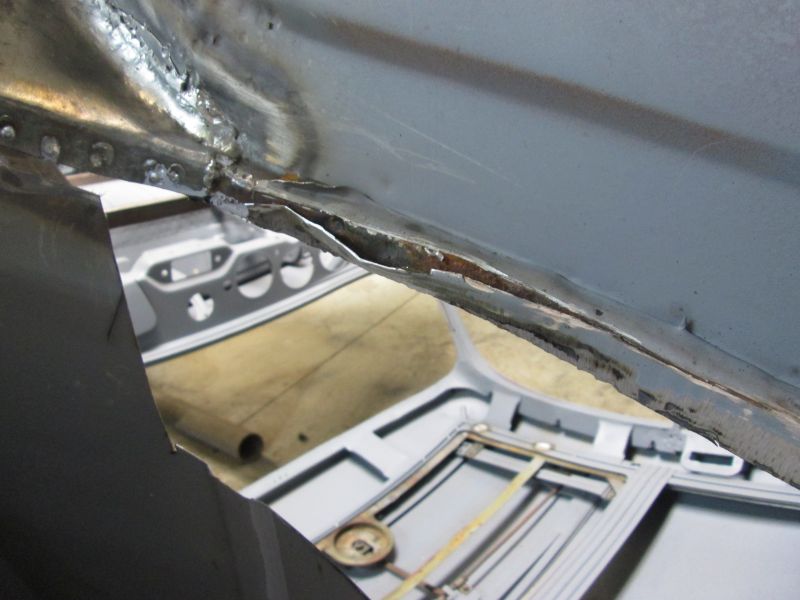

                      Usual rust lurking but nothing serious. A good cleaning is all it needs.

                      Click image for larger version

Name:	IMG_0348.JPG
Views:	130
Size:	54.5 KB
ID:	102561
                      Missed it by that much. I thought I had the width dialed in but they were just a touch too narrow.
                      Click image for larger version

Name:	IMG_0351.JPG
Views:	127
Size:	84.7 KB
ID:	102562
                      Made the width adjustment to the short side on each rib. PIA!
                      Click image for larger version

Name:	IMG_0352_2018-07-20.JPG
Views:	131
Size:	64.4 KB
ID:	102563

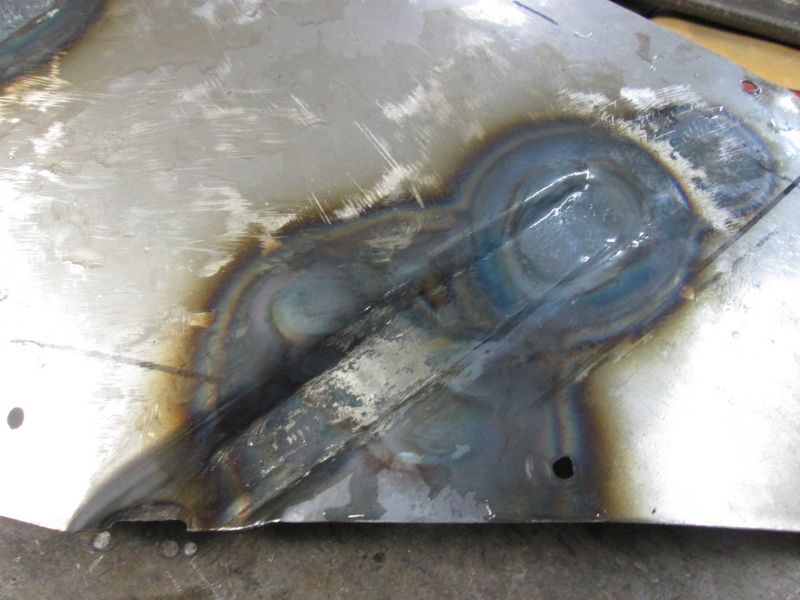

                      They've been worked but I at least got the shape I was after in the end.

                      Click image for larger version

Name:	IMG_0356.JPG
Views:	157
Size:	52.6 KB
ID:	102564
                      Well within striking distance at last. Patch is beginning to look like a tropical fish.
                      Click image for larger version

Name:	IMG_0359_2018-07-20.JPG
Views:	126
Size:	43.9 KB
ID:	102565

                      Final trimming and tack welding next.

                      Thanks for looking!

                      Justin
                      Justin Rio

                      Comment


                      • 7/21/18

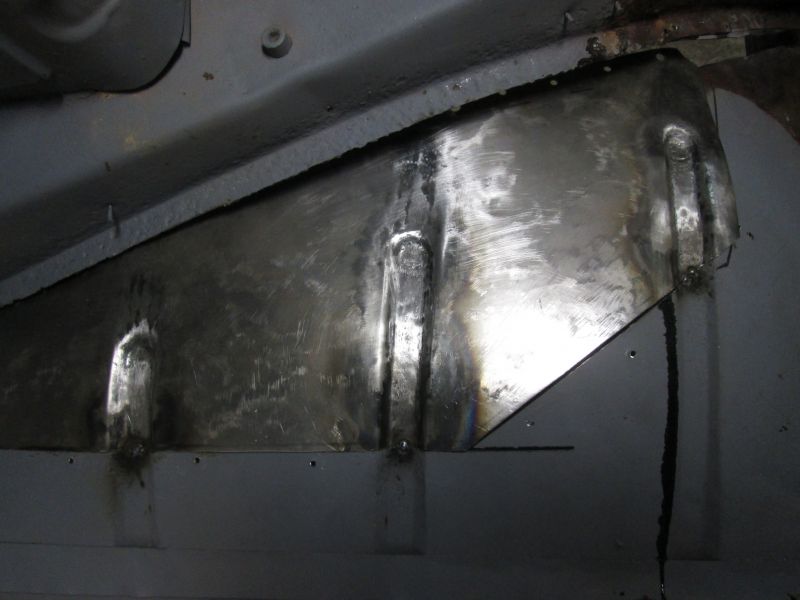

                        New patch panel tacked in.
                        Click image for larger version

Name:	IMG_0368.JPG
Views:	129
Size:	59.7 KB
ID:	102621

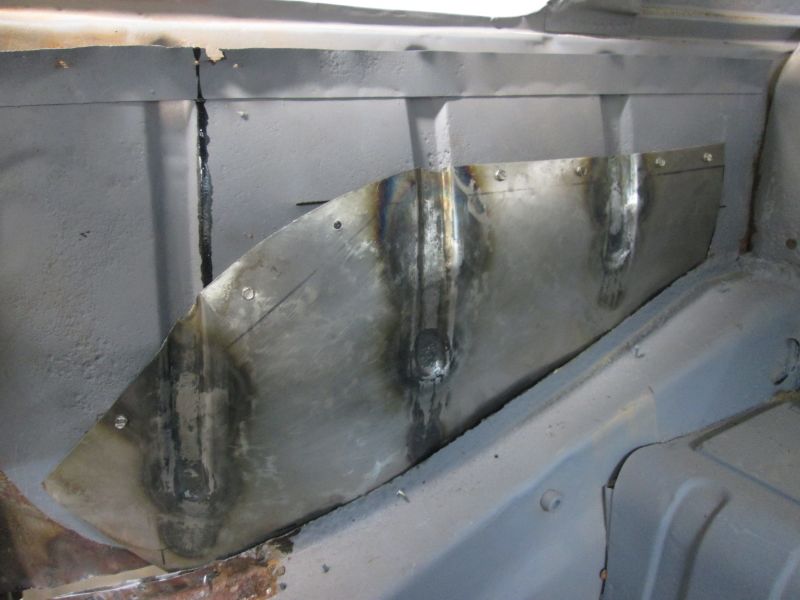

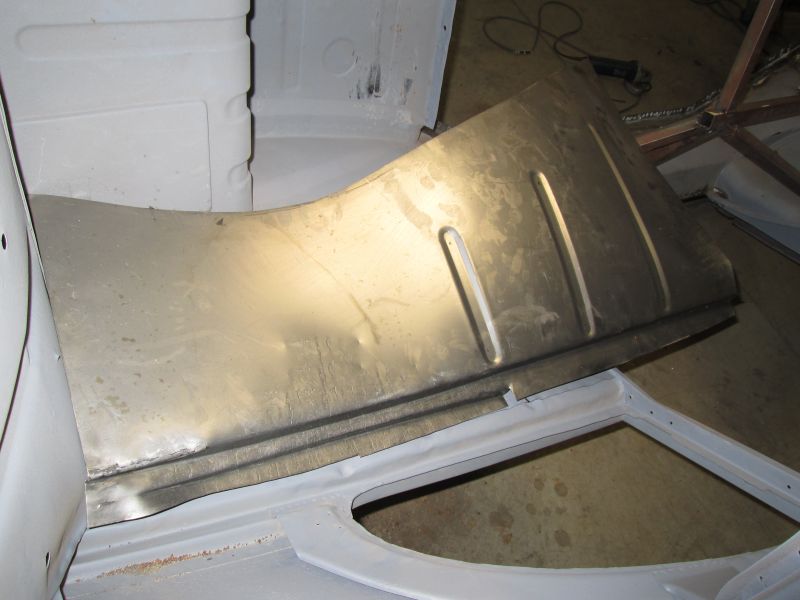

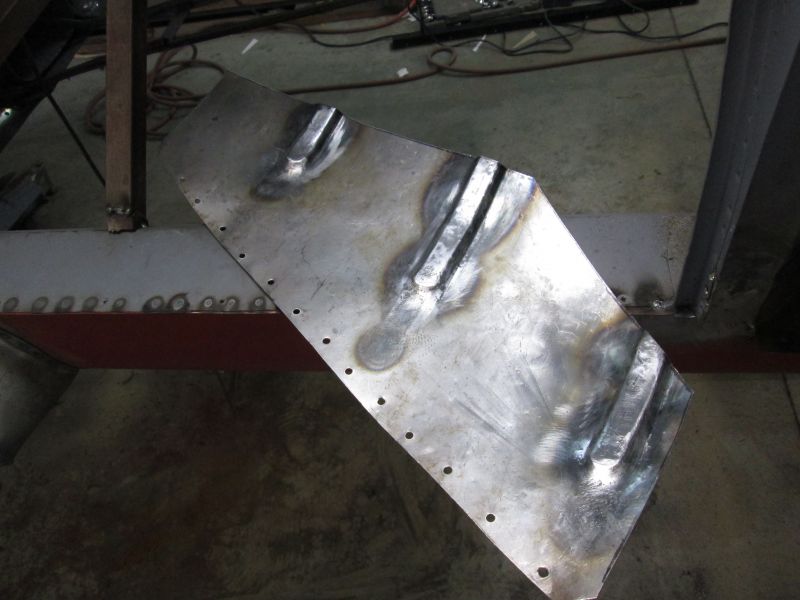

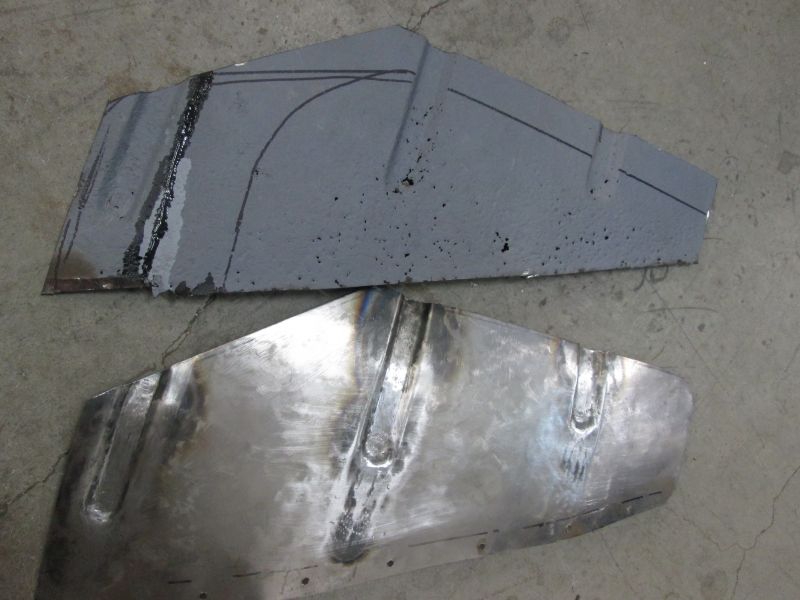

                        Took some doing but finally have a replacement copy good enough to install.
                        Click image for larger version

Name:	IMG_0367.JPG
Views:	123
Size:	61.2 KB
ID:	102622

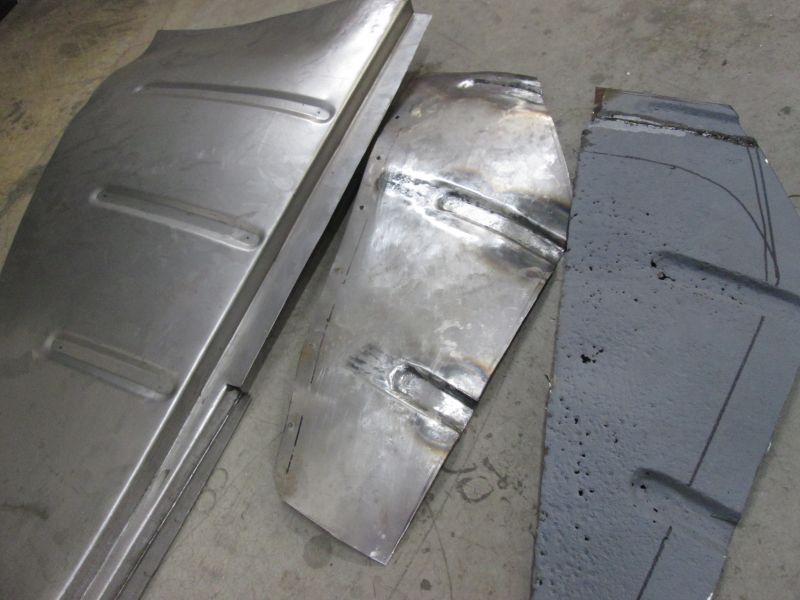

                        Making a patch out Trevor's panel was tempting but the draw in the ribs just isn't deep enough to carry on the lines from the original features.
                        Click image for larger version

Name:	IMG_0369.JPG
Views:	129
Size:	56.8 KB
ID:	102623

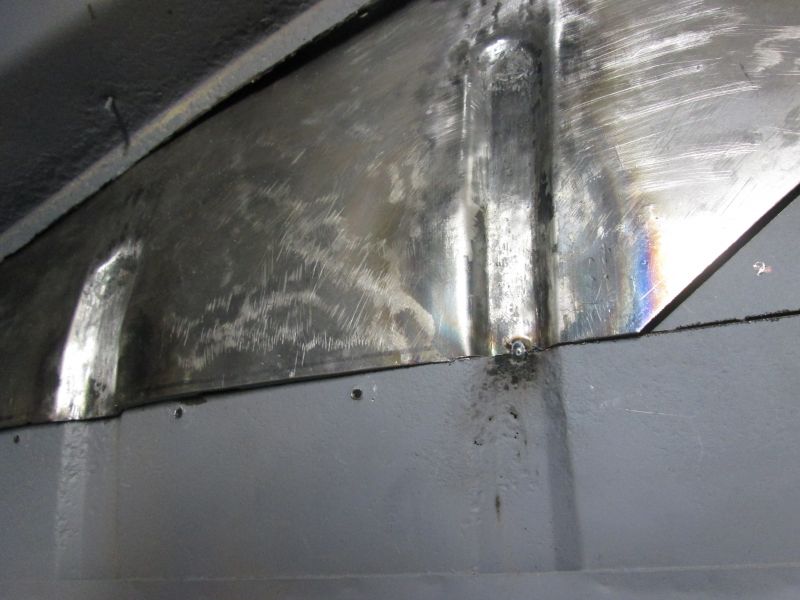

                        These details should pass the smell test just fine after a coat of rocker shootz.
                        Click image for larger version

Name:	IMG_0370.JPG
Views:	131
Size:	60.8 KB
ID:	102624

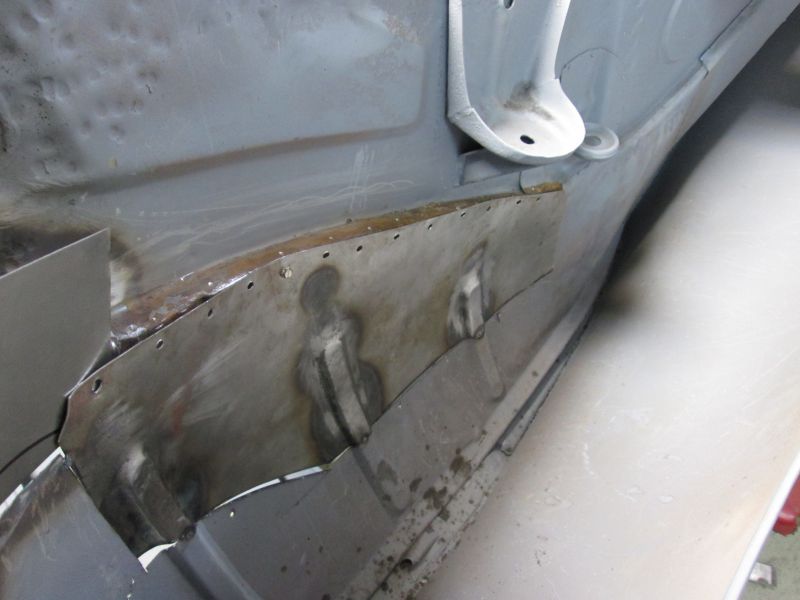

                        Began installation by aligning (as close as possible) and establishing the center rib first. Tacked and moved outward from here.
                        Click image for larger version

Name:	IMG_0371.JPG
Views:	124
Size:	47.7 KB
ID:	102625

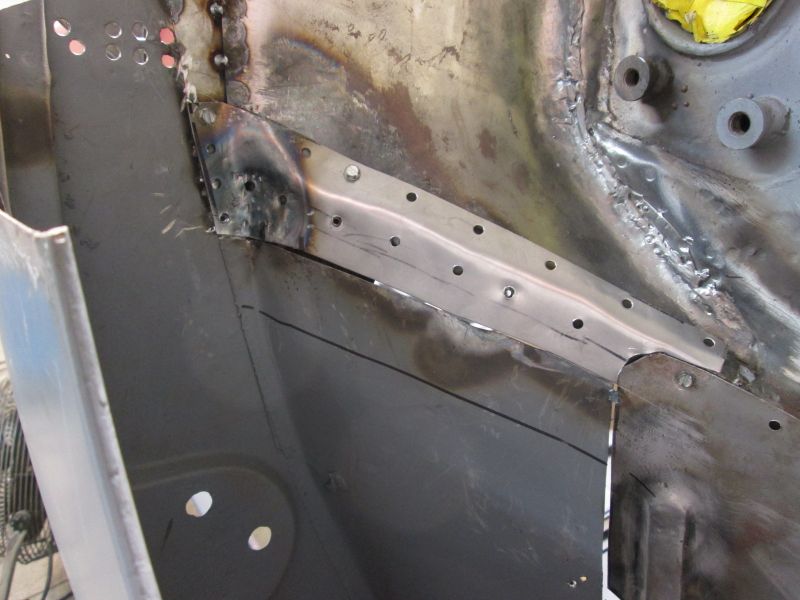

                        Aligned the outer two ribs as close as possible next and tacked them. Everything else is completely secondary and adjustable. However this patch would be screwed if a huge misalignment occurred across any of these features. They don't match perfectly off the bat of course but they are well within range.
                        Click image for larger version

Name:	IMG_0372.JPG

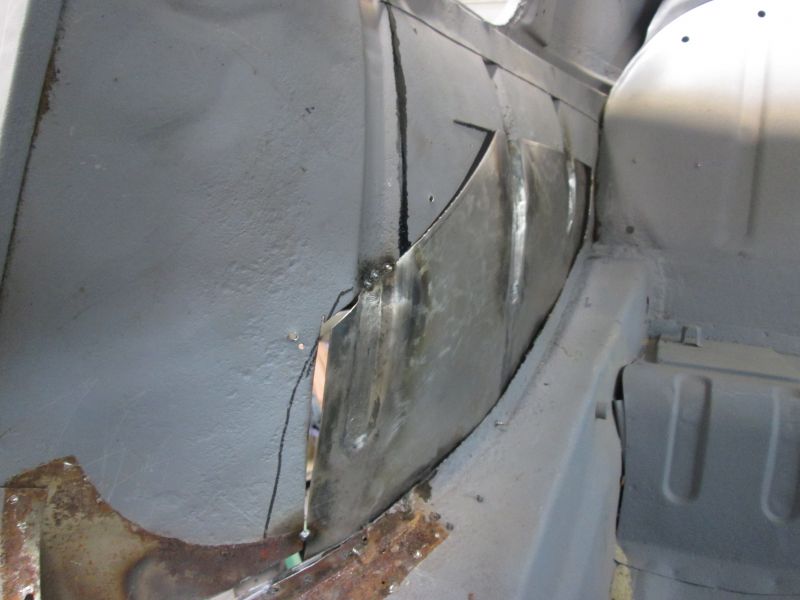

Views:	118
Size:	49.3 KB
ID:	102626
                        Since the panel has an overall curve it will contract slightly as the welding and pressure fit/alignment continues. If I'd have started at one end and worked back I'd most certainly have alignment issues across the ribs.
                        Already learned that one the hard way. Continue gluing this in.
                        Thanks for looking!
                        Justin
                        Justin Rio

                        Comment

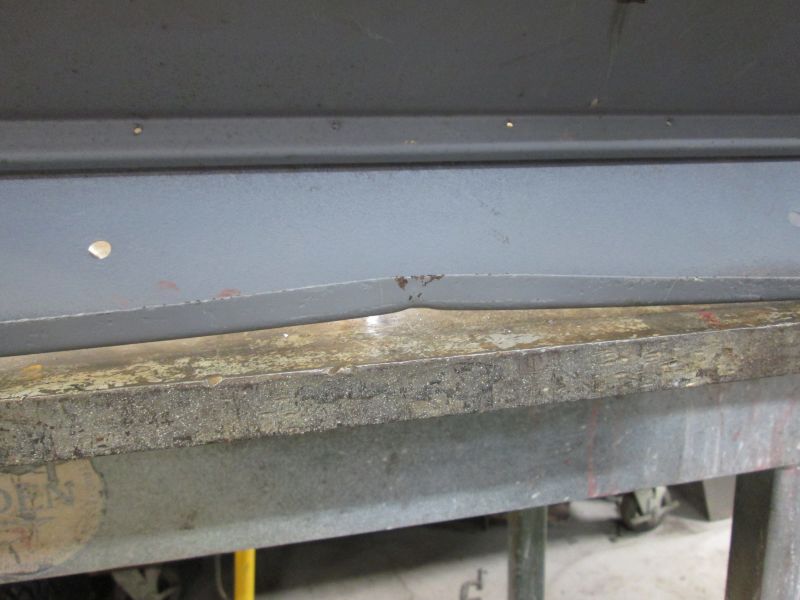

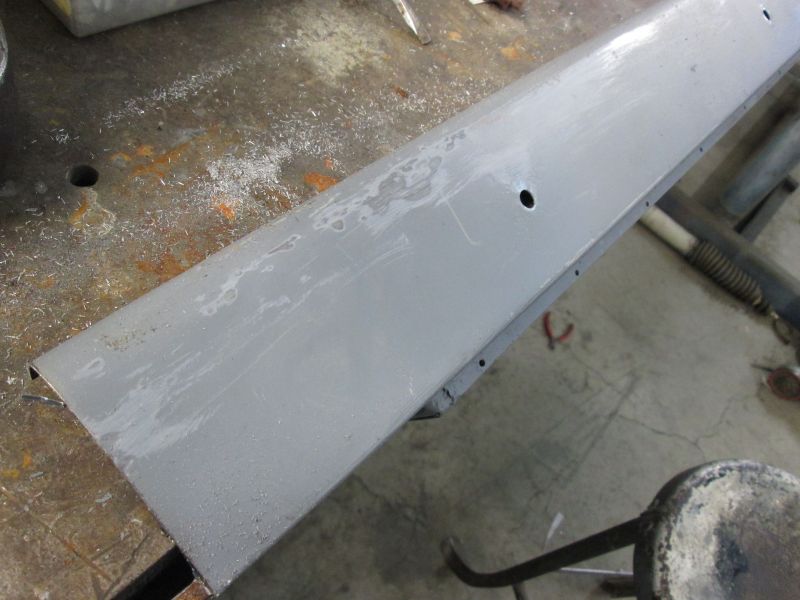

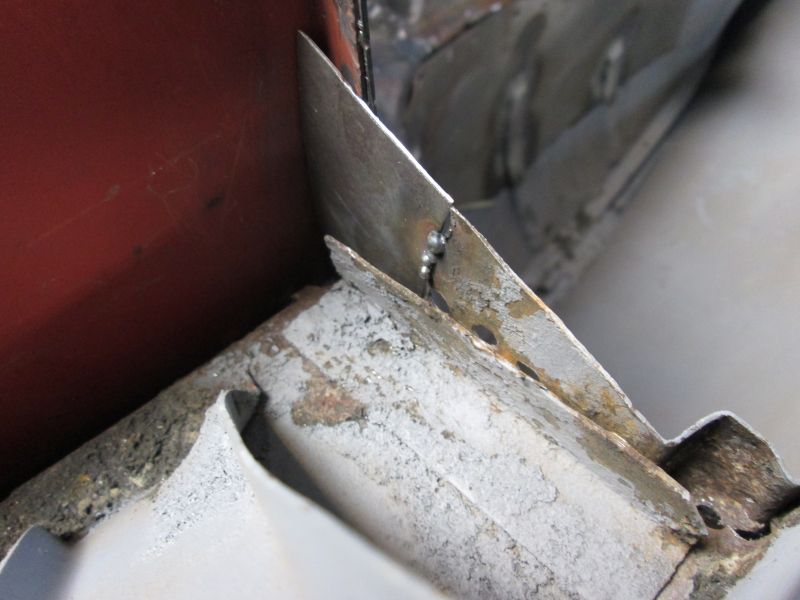

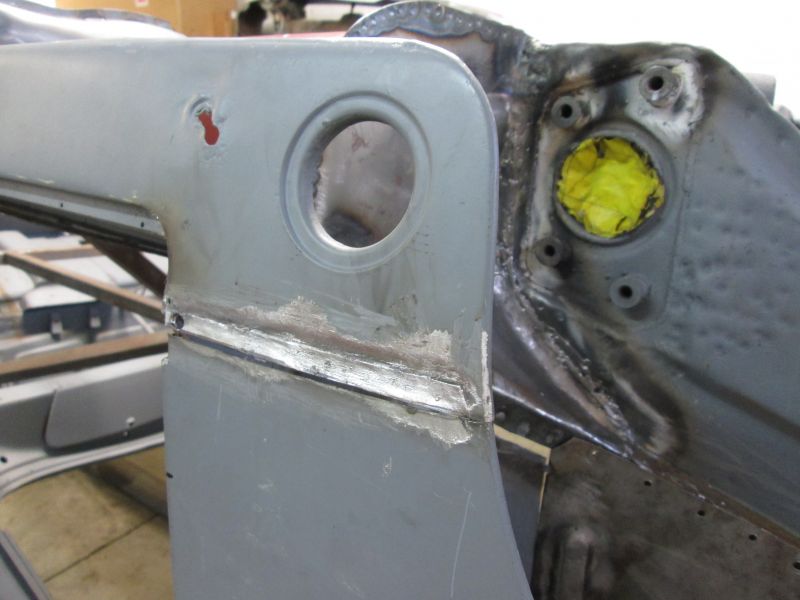

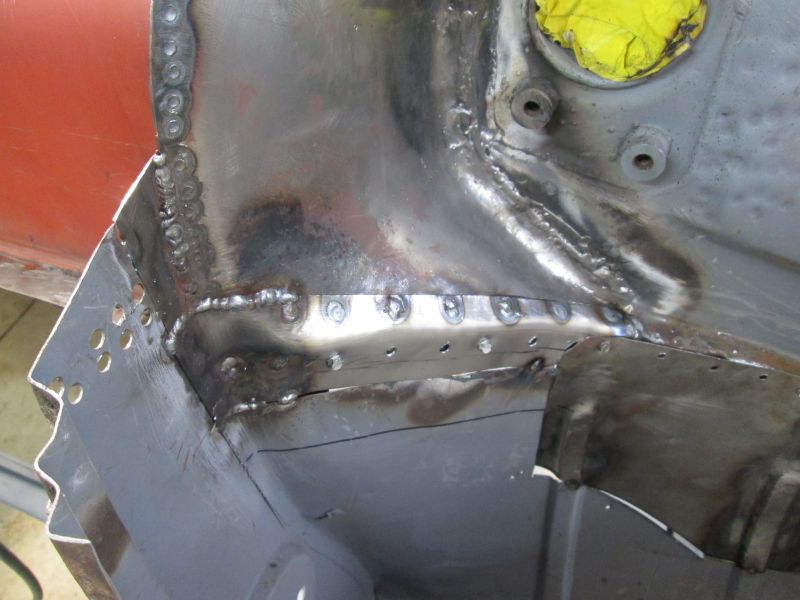

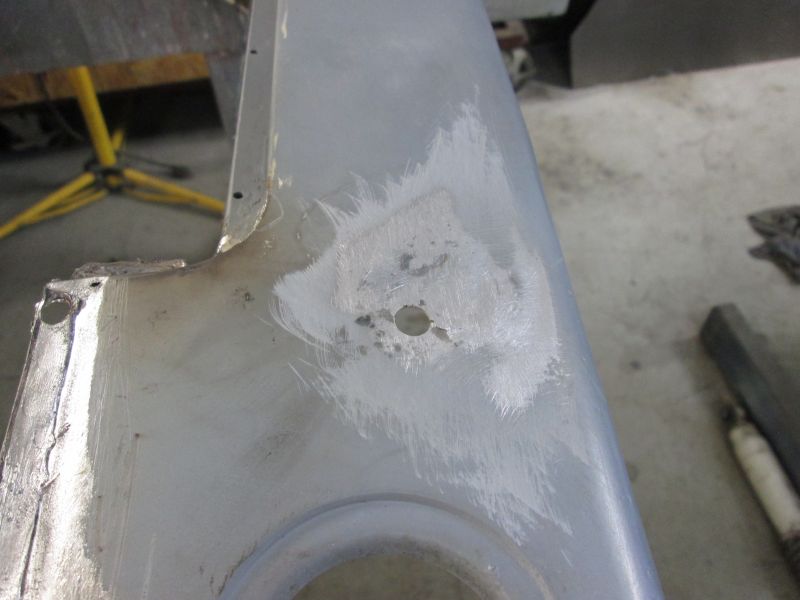

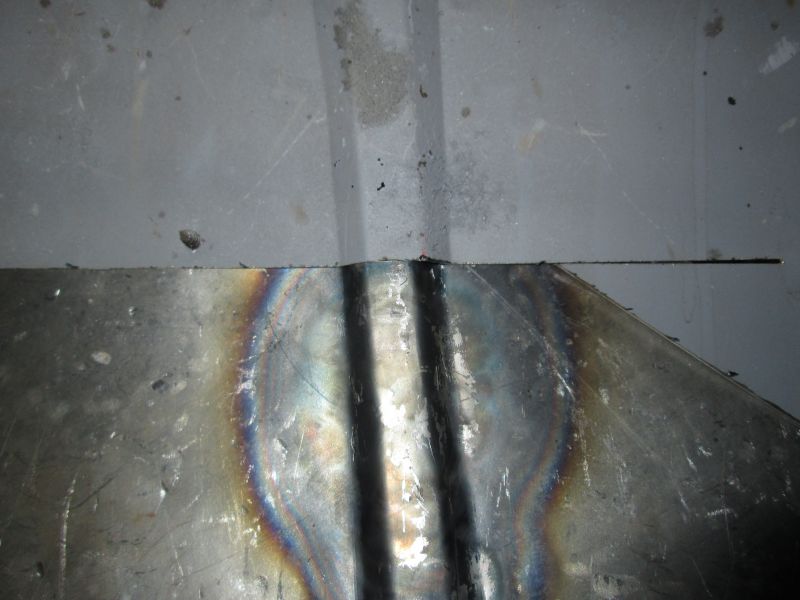

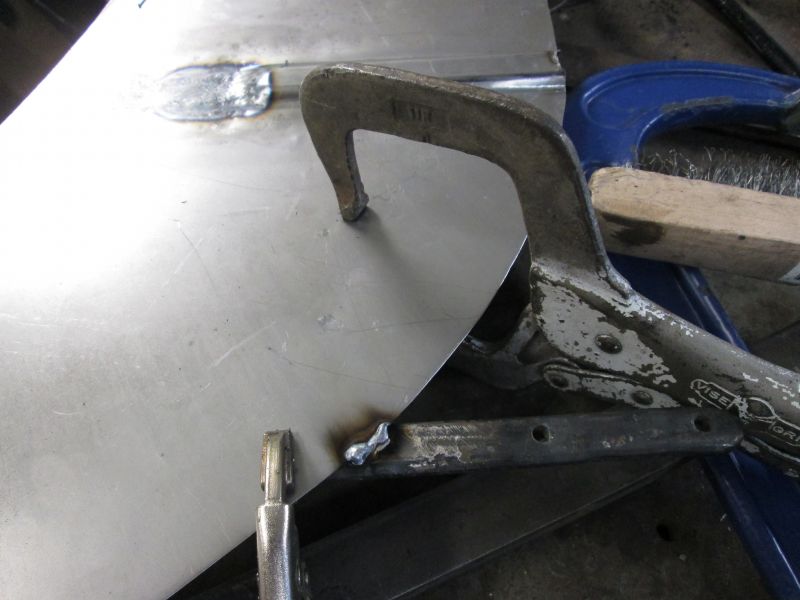

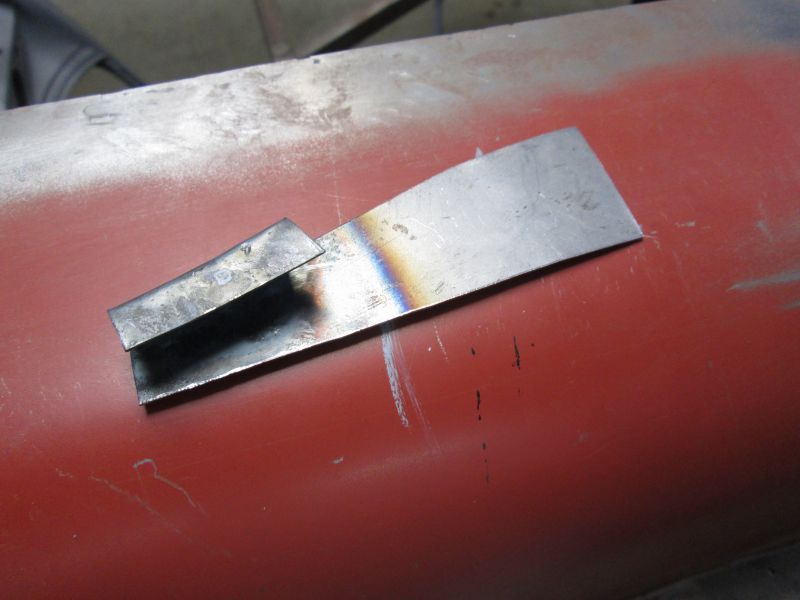

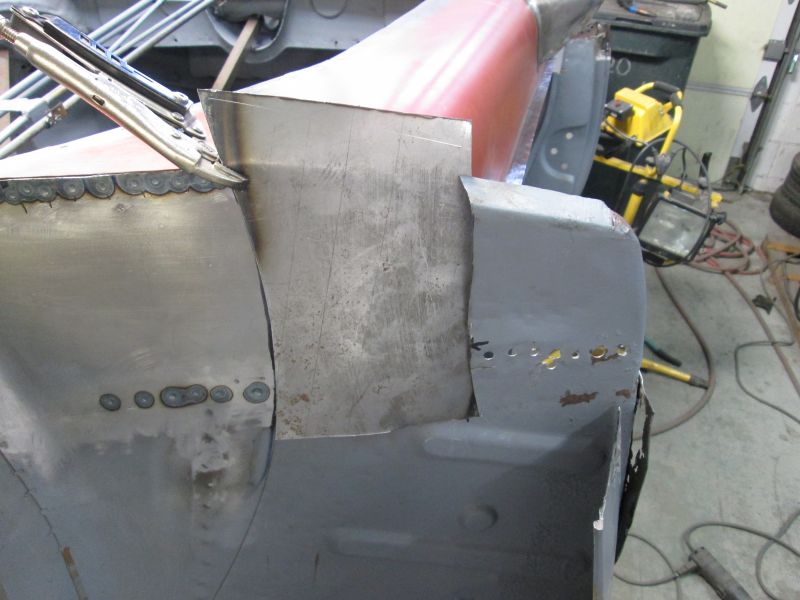

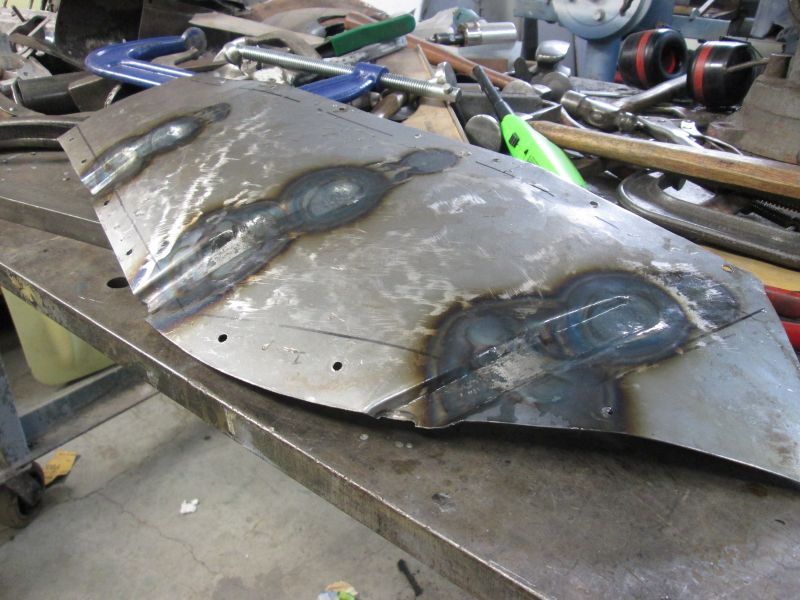

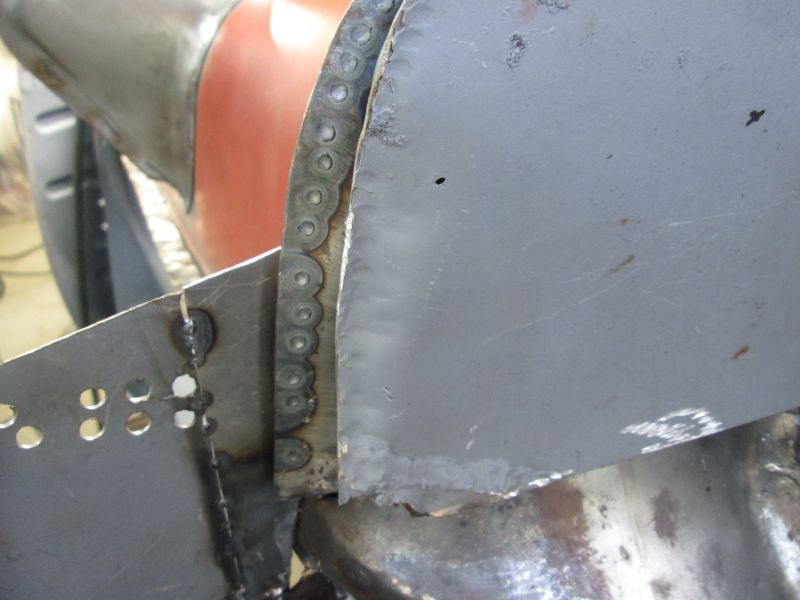

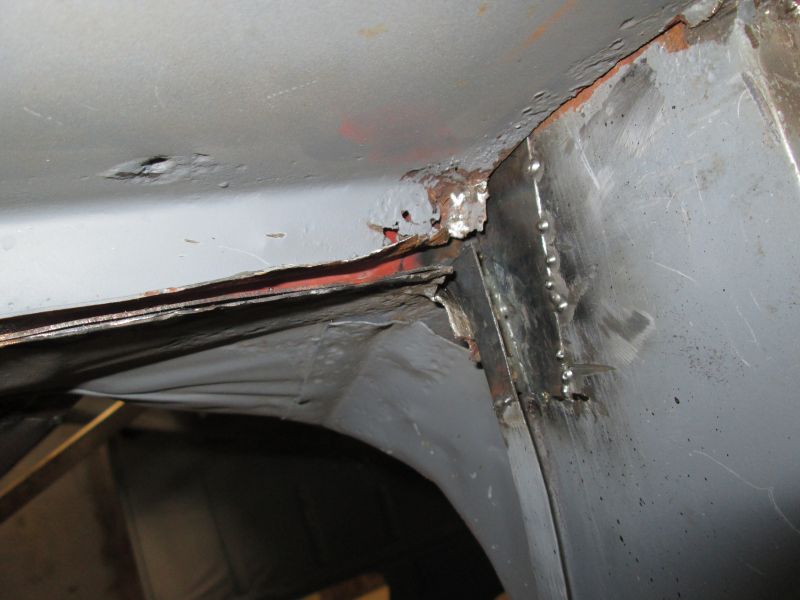

                        • 7/27/18

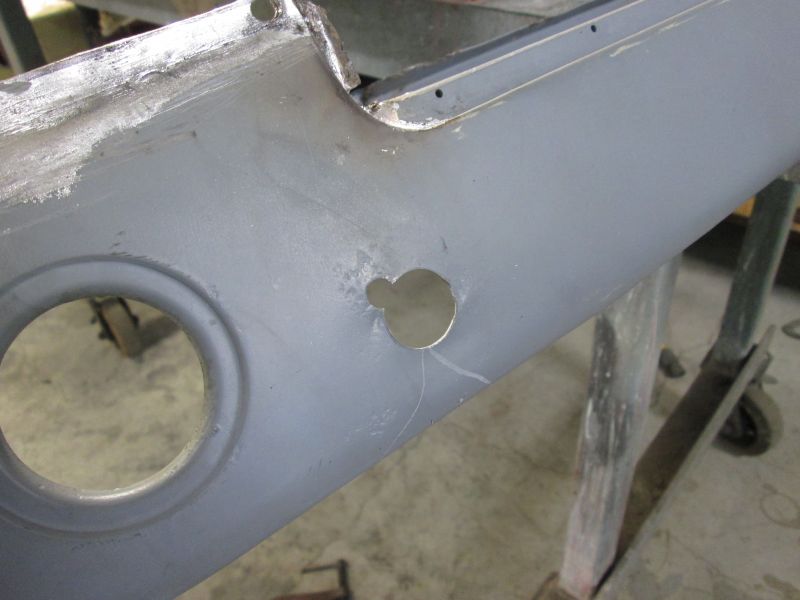

                          Not a whole lot of time to spend on it this week so I just got a pesky corner repair section made. Hoping to get some better progress on it this weekend.

                          Click image for larger version

Name:	IMG_0425.JPG
Views:	120
Size:	63.2 KB
ID:	102717

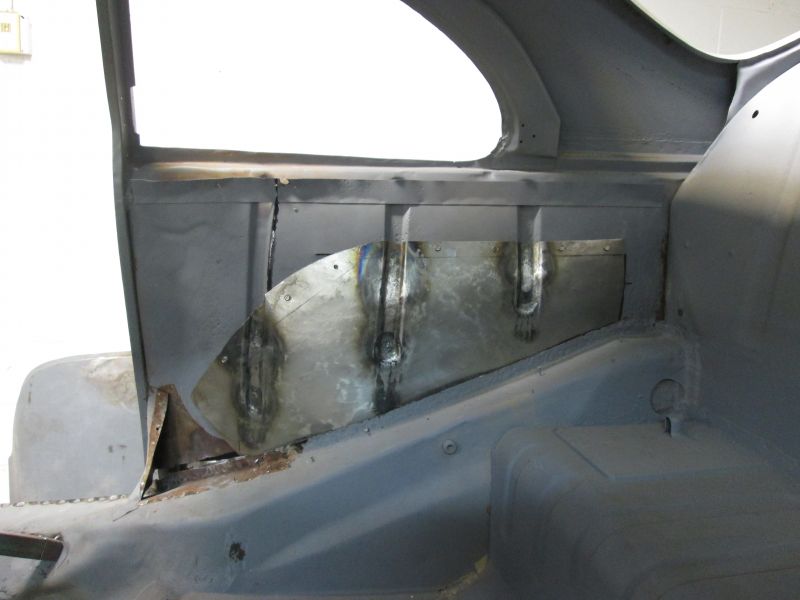

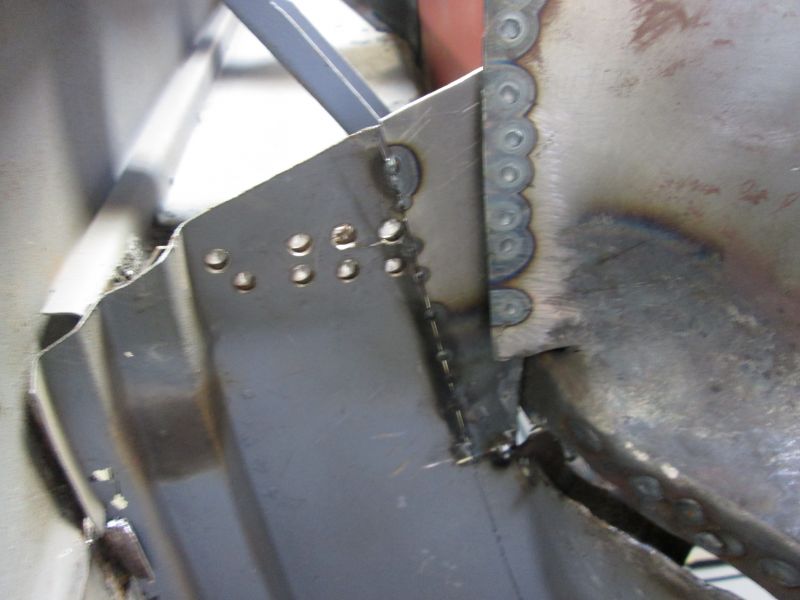

                          Inner striker repair section. Got a little ahead of myself and Had to get this done first as the inner wheel house wall is flange welded to this section.
                          Click image for larger version

Name:	IMG_0426.JPG
Views:	118
Size:	45.4 KB
ID:	102718
                          Trickiest part was the gentle sweep in the trough to carry the line seamlessly.
                          Click image for larger version

Name:	IMG_0427.JPG
Views:	120
Size:	47.2 KB
ID:	102719
                          Just about ready to weld in.

                          Click image for larger version

Name:	IMG_0429.JPG
Views:	121
Size:	50.1 KB
ID:	102720

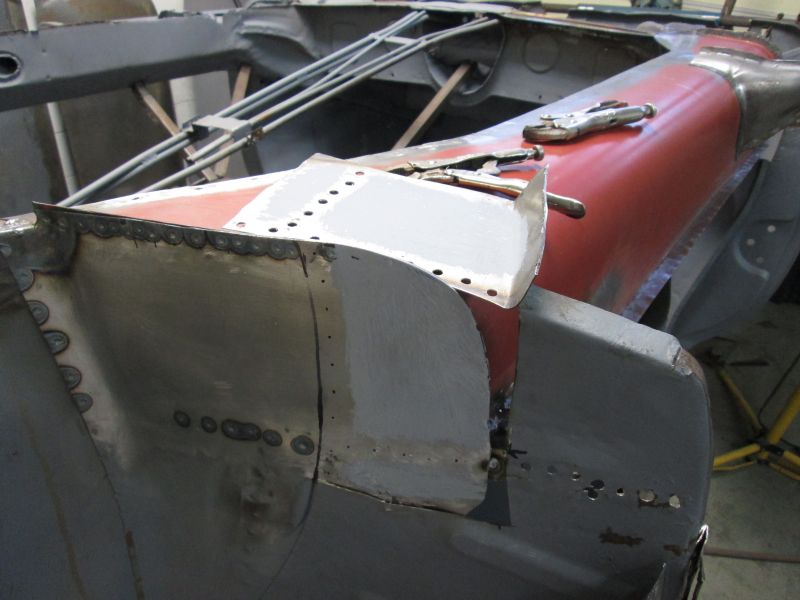

                          New sections tacked and old rocker installed to make sure its all in the right position
                          Click image for larger version

Name:	IMG_0430.JPG
Views:	117
Size:	53.8 KB
ID:	102721
                          A few more pieces to make that comprise this corner but its closer.
                          Click image for larger version

Name:	IMG_0428.JPG
Views:	116
Size:	55.7 KB
ID:	102722

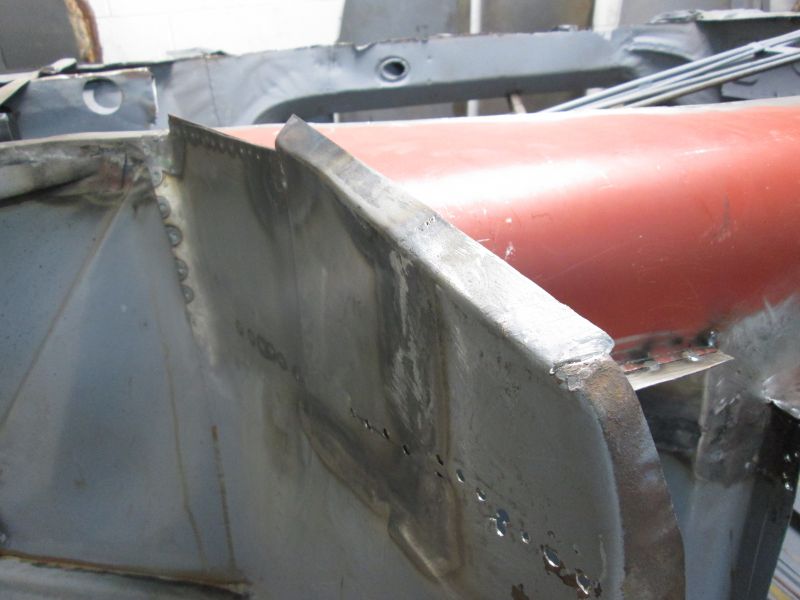

                          Striker mounted flush with its old flange. Leading edge is bent from me prying it but the drilled spot-welded section is sitting flush.
                          Click image for larger version

Name:	IMG_0434.JPG
Views:	116
Size:	53.6 KB
ID:	102723
                          and rocker aligned
                          Click image for larger version

Name:	IMG_0431.JPG
Views:	114
Size:	49.5 KB
ID:	102724

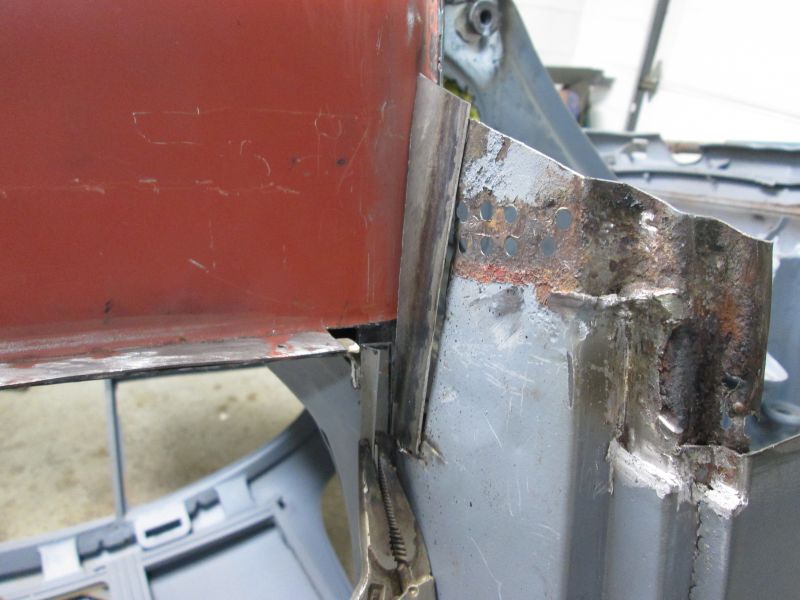

                          I have this air gap between the striker and flange. This is a problem as they are gas welded together.
                          Click image for larger version

Name:	IMG_0432.JPG
Views:	116
Size:	49.7 KB
ID:	102725
                          The OG wall clearly shows hammer strikes where it was bashed forward through here so it could be seam welded. So its "legal" to bash this flange flush.
                          Indispensability of OG reference parts otherwise you're just guessing.
                          Click image for larger version

Name:	IMG_0435.JPG
Views:	119
Size:	50.1 KB
ID:	102726
                          Heeled over and ready for a tack weld.
                          Thanks for looking!
                          Justin
                          Justin Rio

                          Comment


                          • 8/6/18

                            Gotta get this thread caught back up.

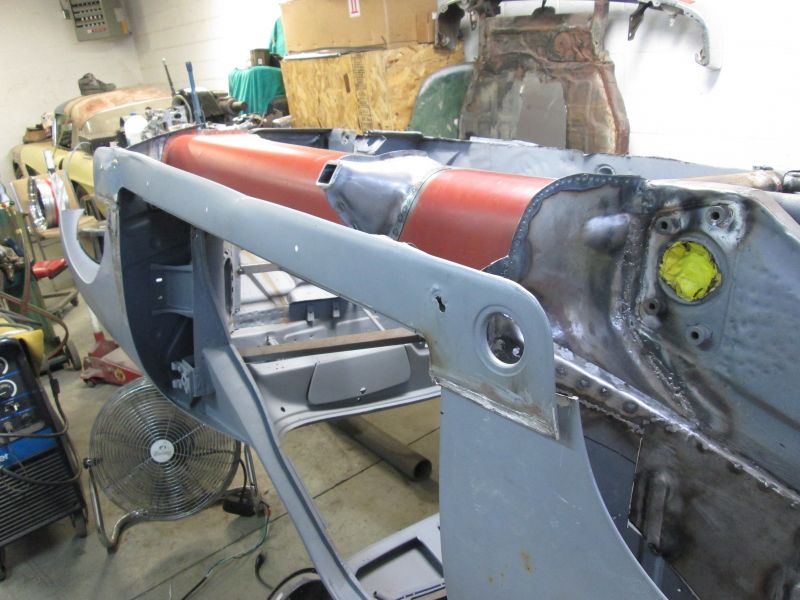

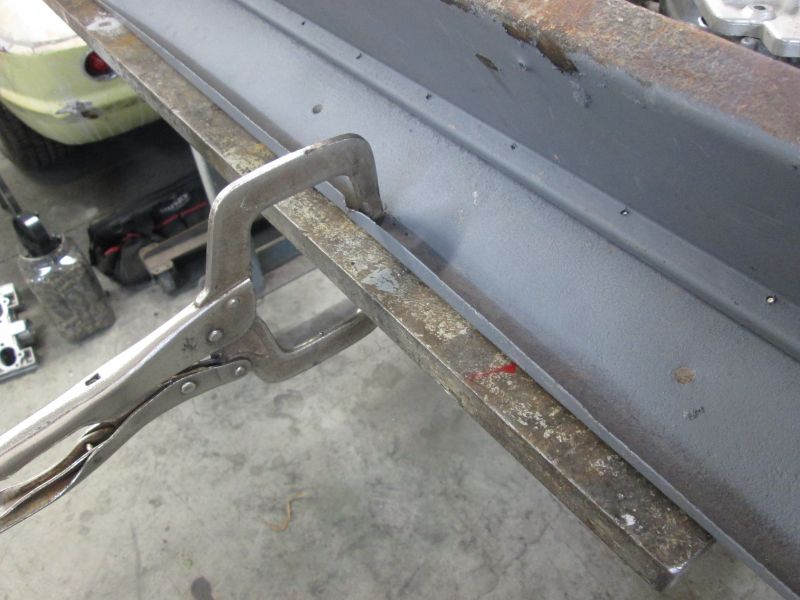

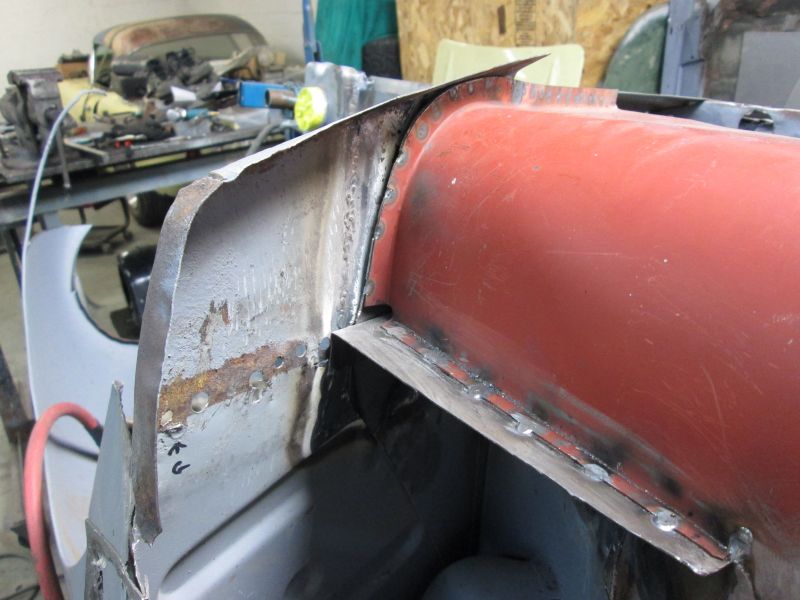

                            Flange run for wheel house closing panel.

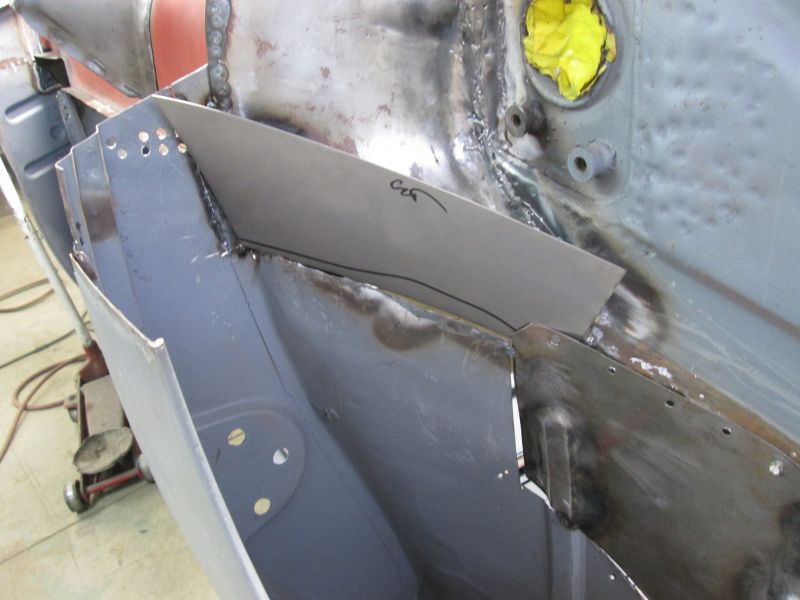

                            Click image for larger version

Name:	IMG_0464.JPG
Views:	118
Size:	57.8 KB
ID:	102933

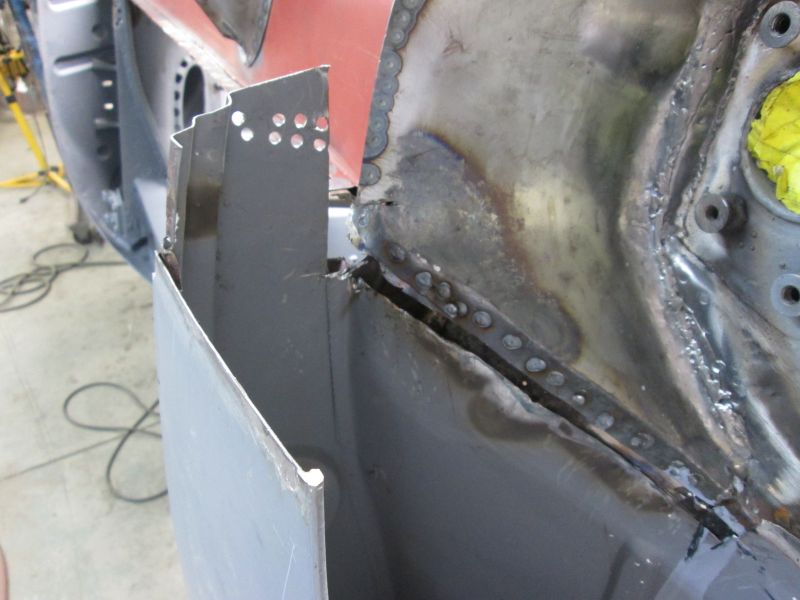

                            Begin replacement patch for the OG forward wall section first.
                            Click image for larger version

Name:	IMG_0465.JPG
Views:	121
Size:	48.0 KB
ID:	102934

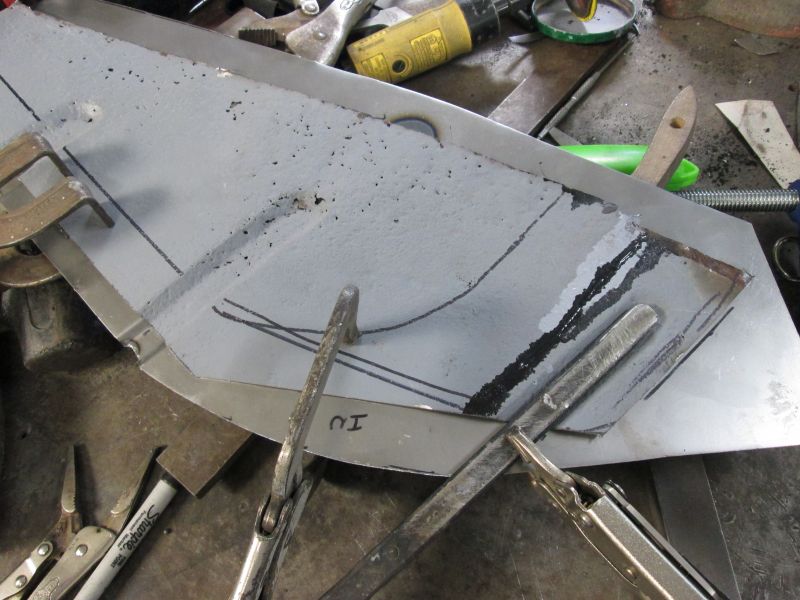

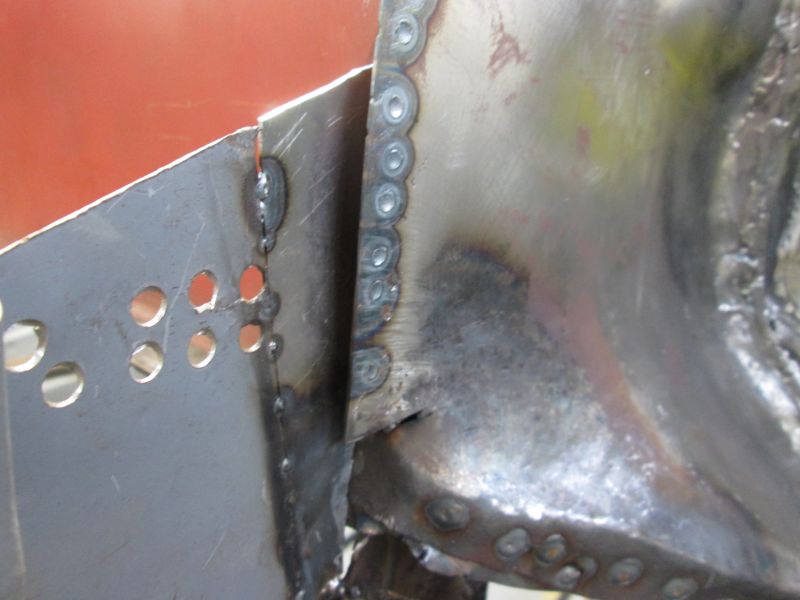

                            Miscalculated somehow on my final trimming and cut the new panel section a touch short. Certainly not going to toss it and begin again so I'll back fill it.
                            Click image for larger version

Name:	IMG_0468.JPG
Views:	114
Size:	63.4 KB
ID:	102935

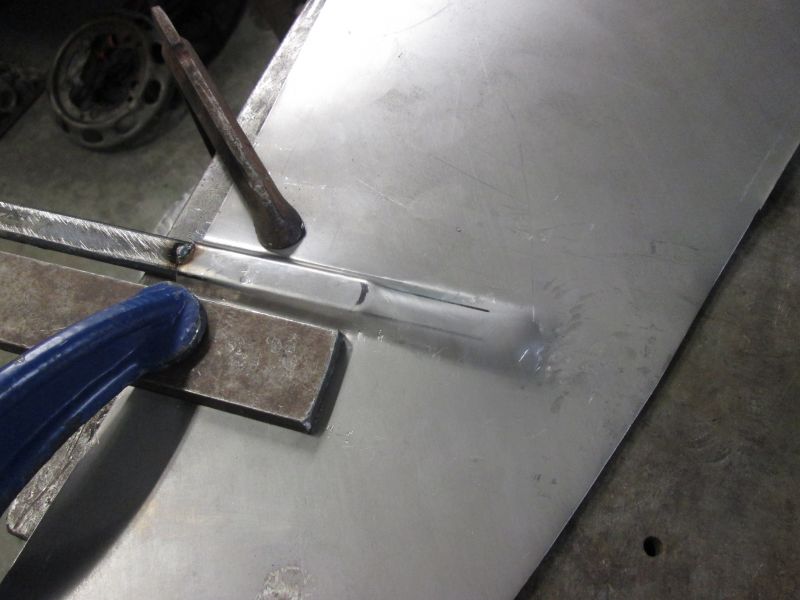

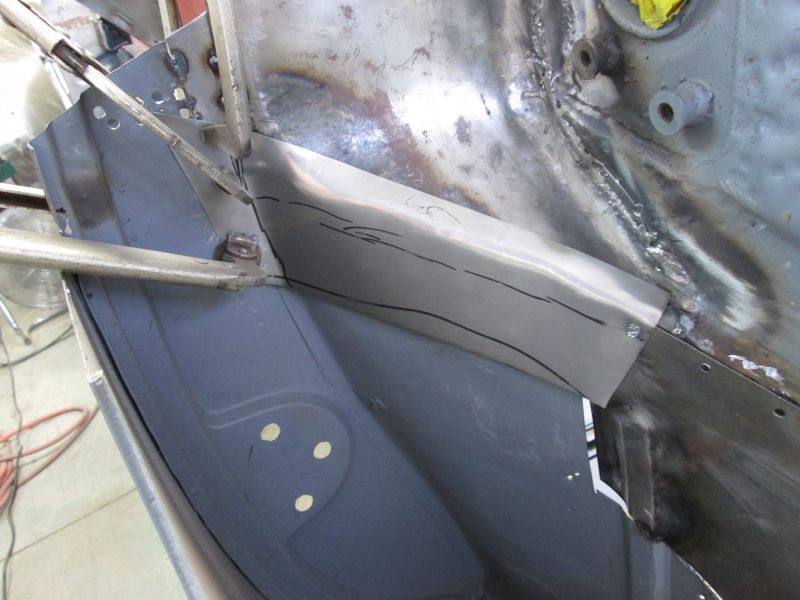

                            Using the chassis itself as the hammer form then locking it in place with a set screws as it went.
                            Click image for larger version

Name:	IMG_0470.JPG
Views:	118
Size:	66.1 KB
ID:	102936
                            Almost trimmed and fit to final shape.
                            Click image for larger version

Name:	IMG_0474.JPG
Views:	116
Size:	62.4 KB
ID:	102937

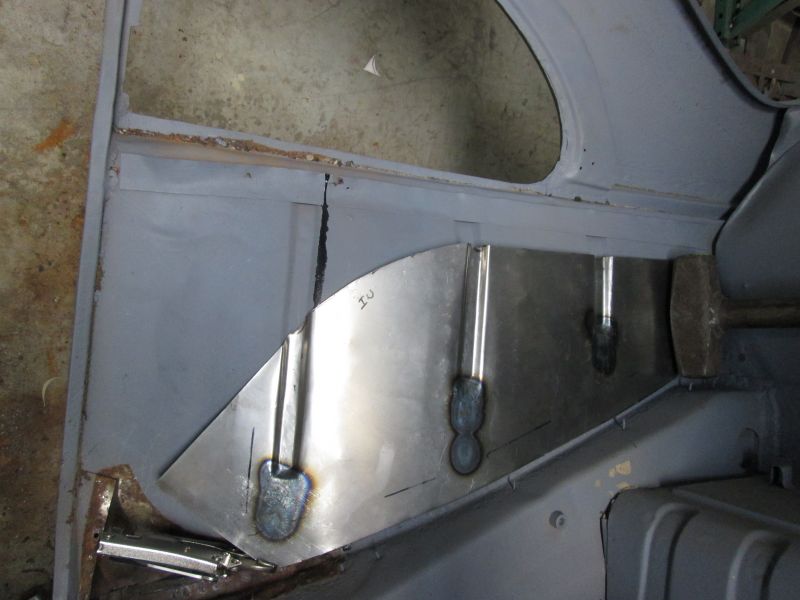

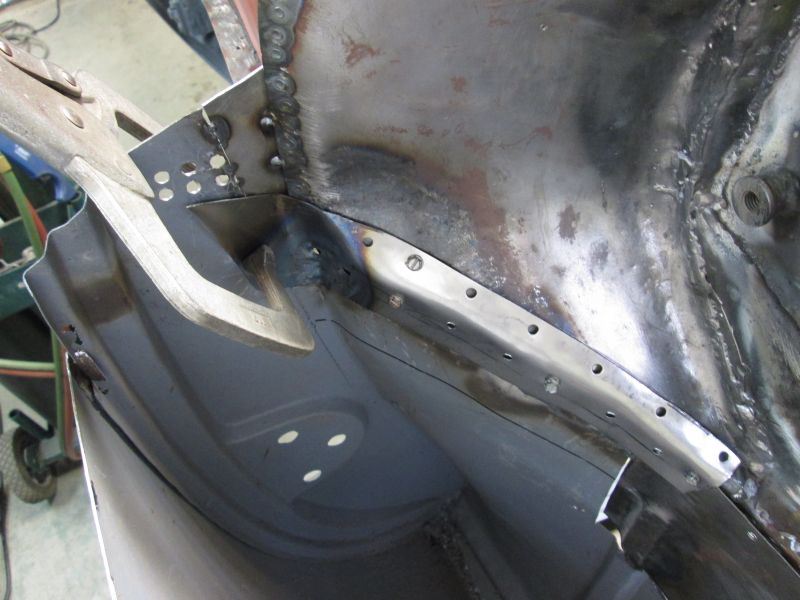

                            Ready to weld in.
                            Click image for larger version

Name:	IMG_0478.JPG
Views:	116
Size:	60.2 KB
ID:	102938

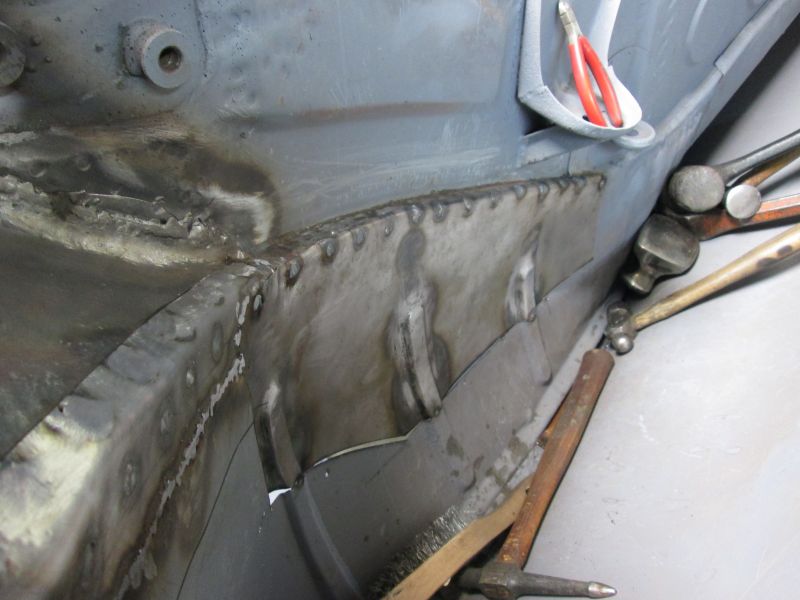

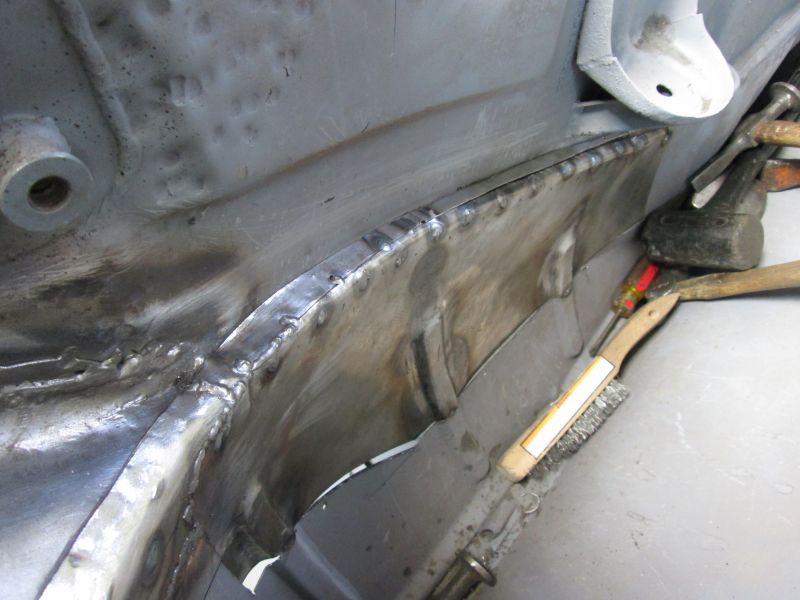

                            Just about welded in. The leading lap joint edges where seam welded so I sewed them up too.

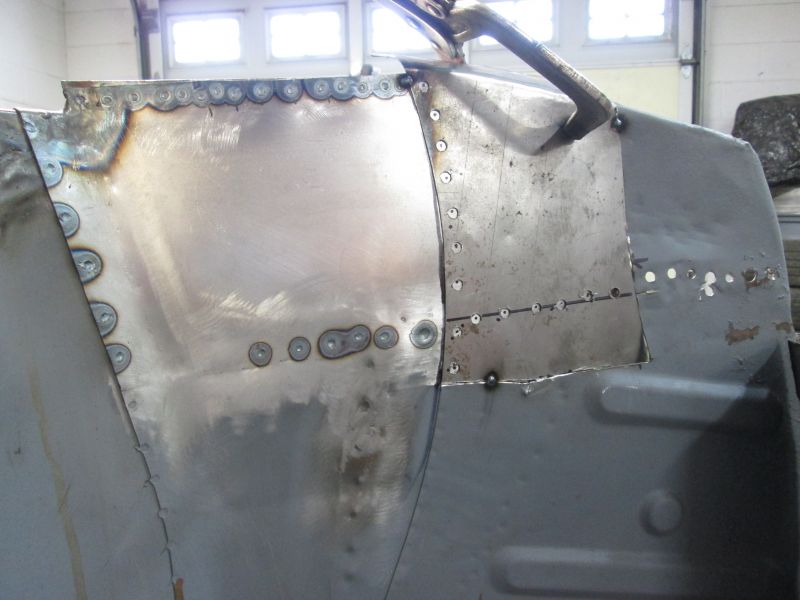

                            Click image for larger version

Name:	IMG_0505.JPG
Views:	114
Size:	58.4 KB
ID:	102939
                            Cleaning up the welds. I'll go over those seams with my torch for the final presentation later on.
                            Click image for larger version

Name:	IMG_0507.JPG
Views:	120
Size:	58.8 KB
ID:	102940

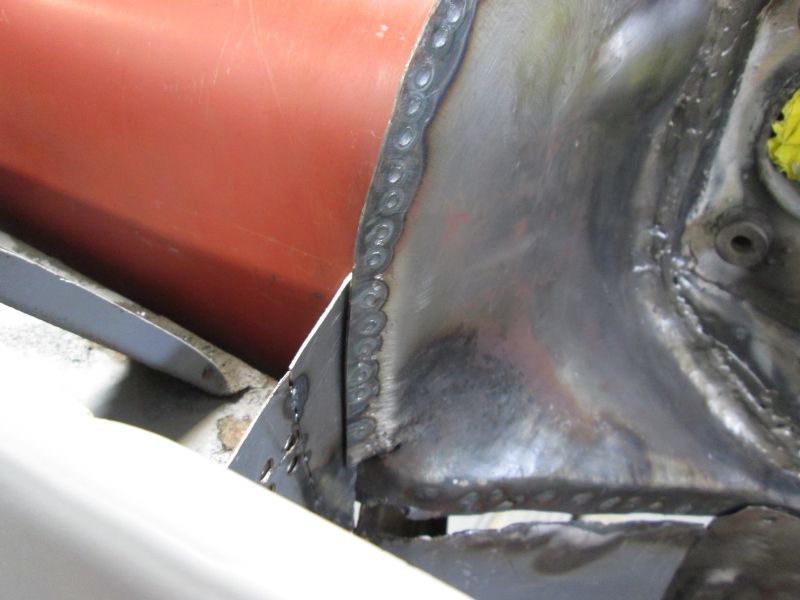

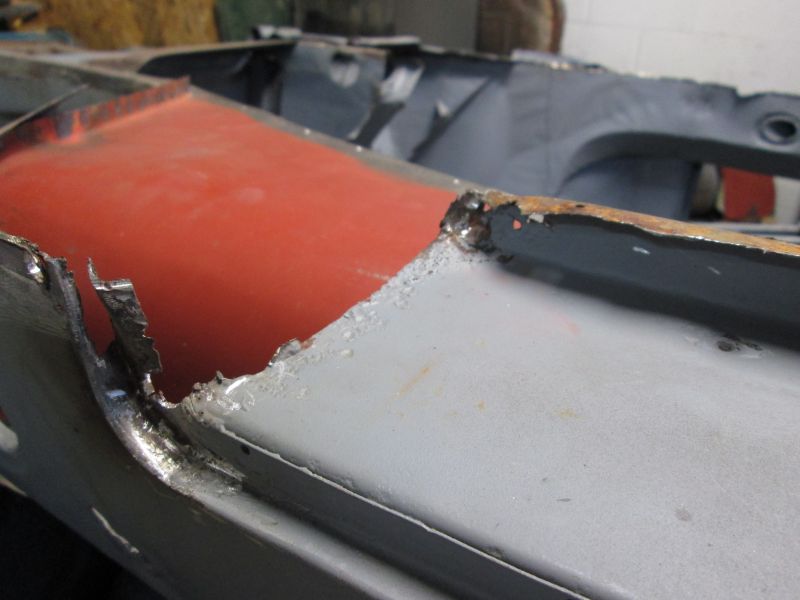

                            After wire wheeling the rust off the edge of the frame what was left of my new flange was heeled over tight and plug welded.
                            Click image for larger version

Name:	IMG_0508.JPG
Views:	112
Size:	61.3 KB
ID:	102941

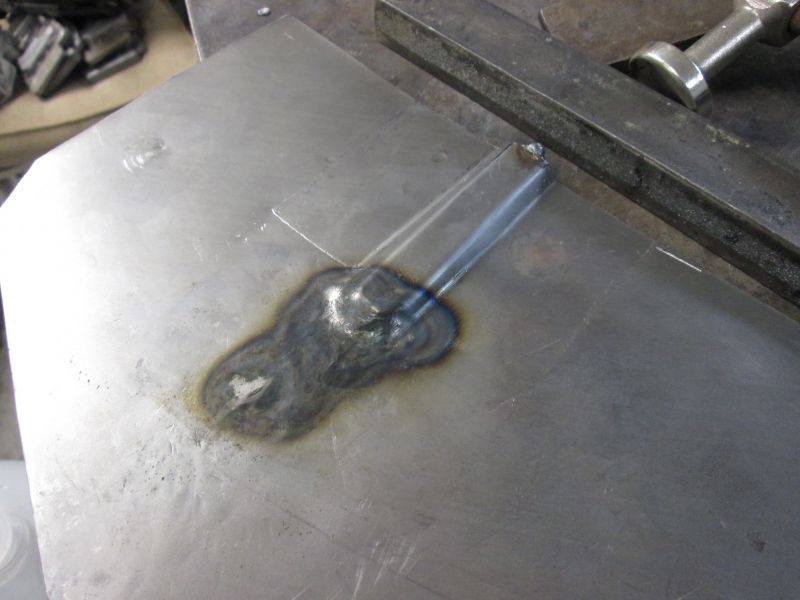

                            Shaped a filler strip and adding it on here; tedious.
                            Click image for larger version

Name:	IMG_0510.JPG
Views:	119
Size:	77.2 KB
ID:	102942
                            Needed a change so I'm jumping back to rocker panel prep next.

                            Thanks for looking!
                            Justin
                            Justin Rio

                            Comment


                            • 8/7/18

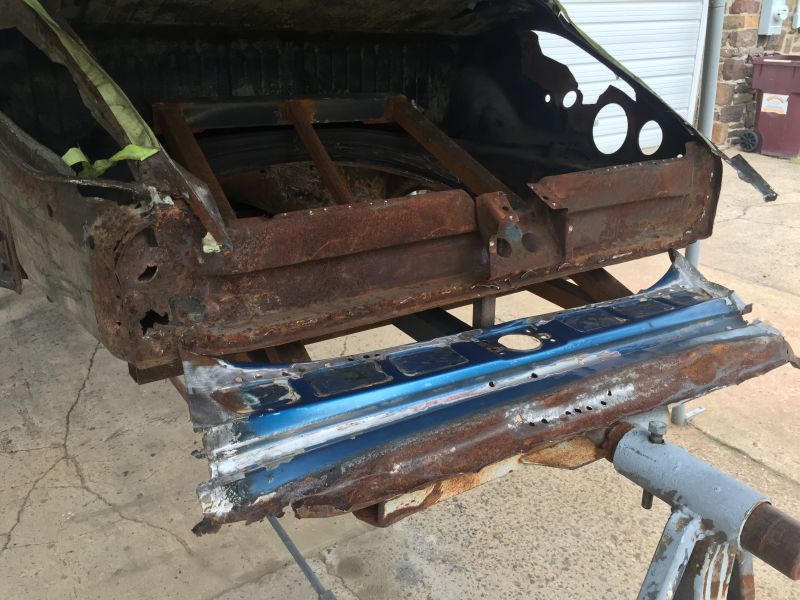

                              Rocker repair and reinstall prep.

                              Click image for larger version

Name:	IMG_0511.JPG
Views:	112
Size:	47.5 KB
ID:	102954

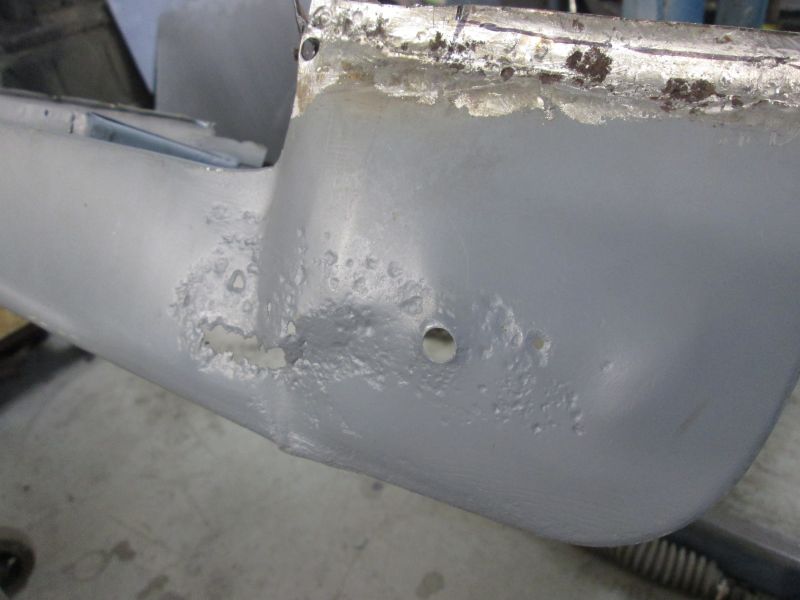

                              A lot of small detail repairs to make from both rust and removal damage. Normally you'd just buy new but these are both overall fundamentally solid and most importantly they are the originals so they're worth the extra effort.
                              Click image for larger version

Name:	IMG_0513.JPG
Views:	115
Size:	54.0 KB
ID:	102955

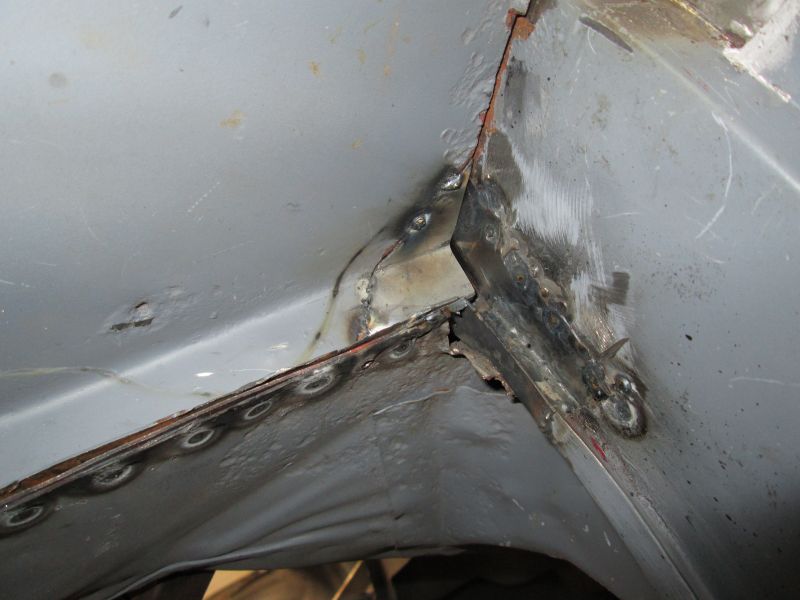

                              New inner threshold corner shaped and tacked. One more piece that comprises this corner down.
                              Click image for larger version

Name:	IMG_0514.JPG
Views:	111
Size:	29.9 KB
ID:	102956
                              Repair rip in the rear deco mount.
                              Click image for larger version

Name:	IMG_0516.JPG
Views:	115
Size:	48.2 KB
ID:	102957
                              Small knockout punch got all the damage and gave me the shortest patch to weld...one without corners.
                              Click image for larger version

Name:	IMG_0517.JPG
Views:	119
Size:	47.4 KB
ID:	102958

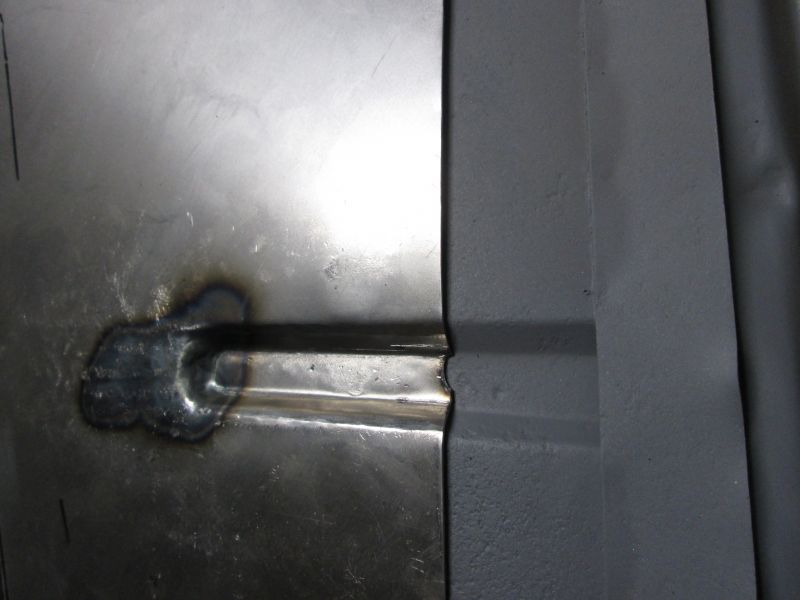

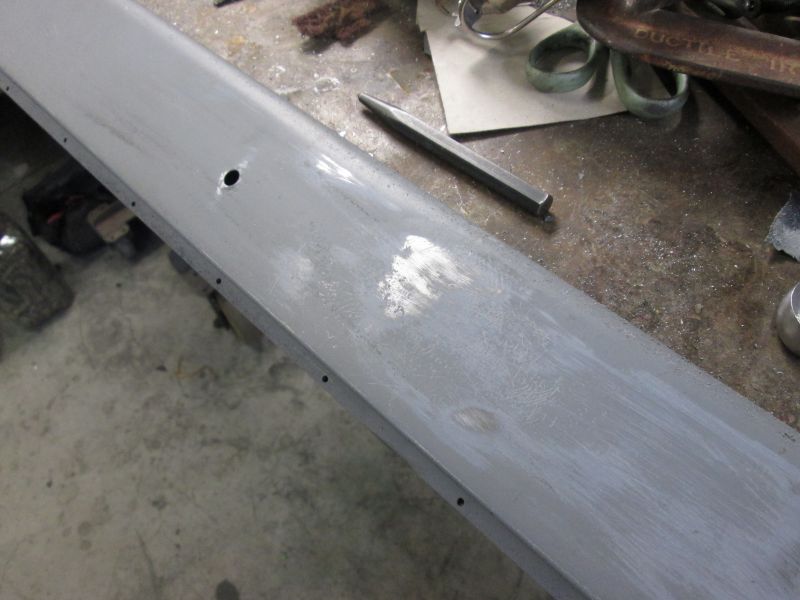

                              New patch welded and dressed. The shoulder of the patch was reamed saving the original mount hole for accuracy.
                              Click image for larger version

Name:	IMG_0520.JPG
Views:	113
Size:	55.7 KB
ID:	102959

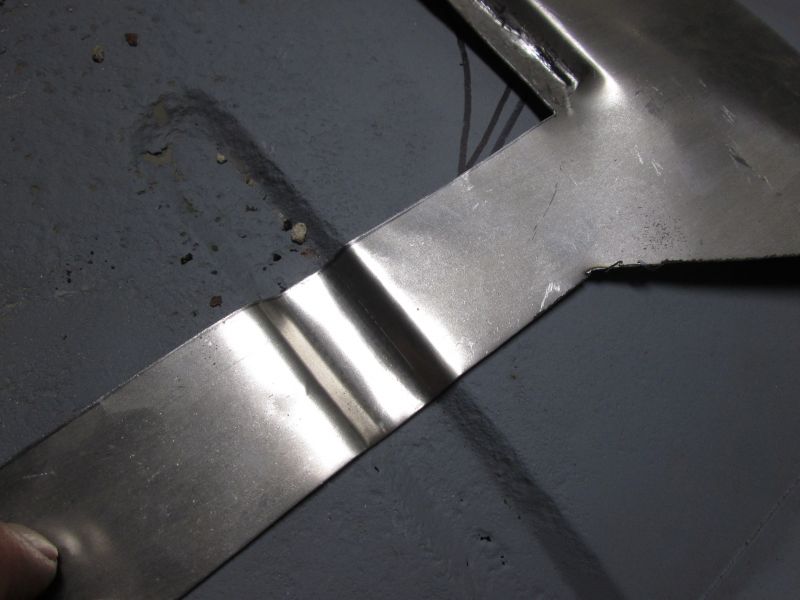

                              Its not all rust damage. Leading edge of the rocker was kinked upward right smack in the center.
                              Click image for larger version

Name:	IMG_0521.JPG
Views:	108
Size:	66.5 KB
ID:	102960
                              One quick squeeze against my table brought it back most of the way. You can see the inner lip has bent outward now. The metal has been stretched a bit.
                              Click image for larger version

Name:	IMG_0522.JPG
Views:	112
Size:	56.9 KB
ID:	102961
                              Though most of it came out it still relaxed into a curve once released against the table. The skin was bulged through the center creating the trigger point. Some picking and filing got most of it ironed out.
                              Click image for larger version

Name:	IMG_0523.JPG
Views:	111
Size:	57.1 KB
ID:	102962

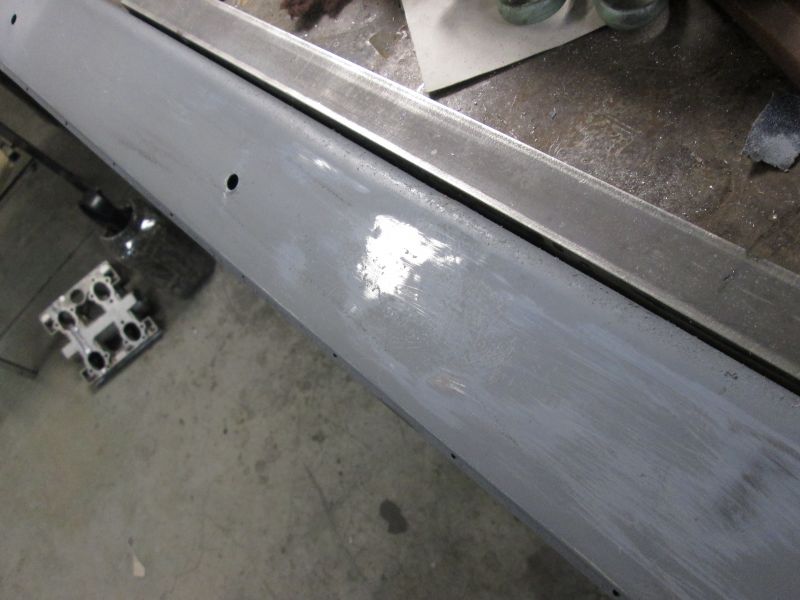

                              A mild high spot remains for now but most importantly the bottom edge of the rocker runs straight again.


                              Click image for larger version

Name:	IMG_0519.JPG
Views:	120
Size:	47.0 KB
ID:	102963

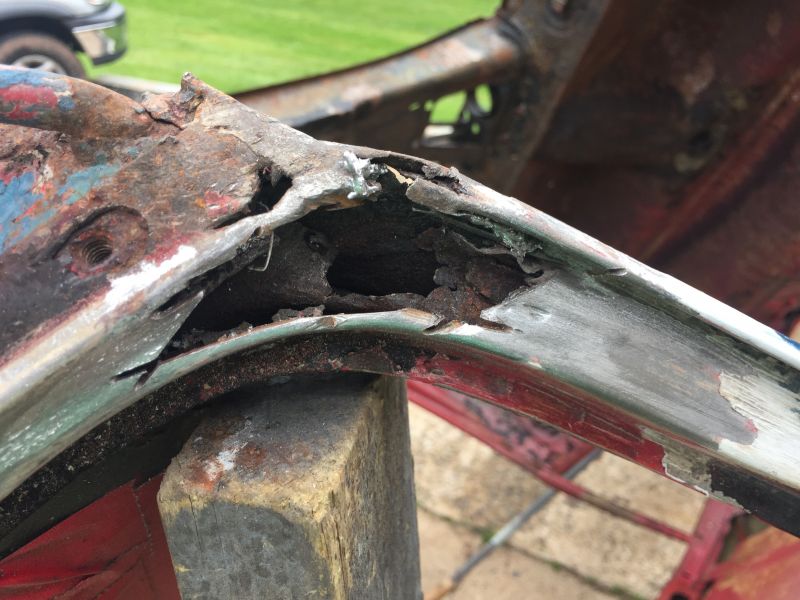

                              Forward end cap is hanging on by thread through this cancered out section.

                              Click image for larger version

Name:	IMG_0525.JPG
Views:	117
Size:	60.2 KB
ID:	102964

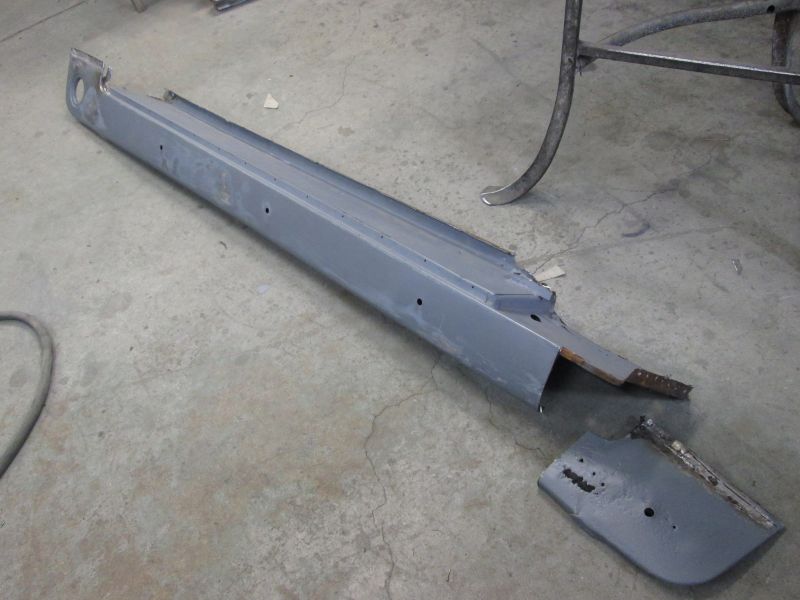

                              Easiest thing to do was to cut it free for now. Rocker got even better looking with that jack lantern hole gone.
                              Click image for larger version

Name:	IMG_0524.JPG
Views:	110
Size:	63.5 KB
ID:	102965

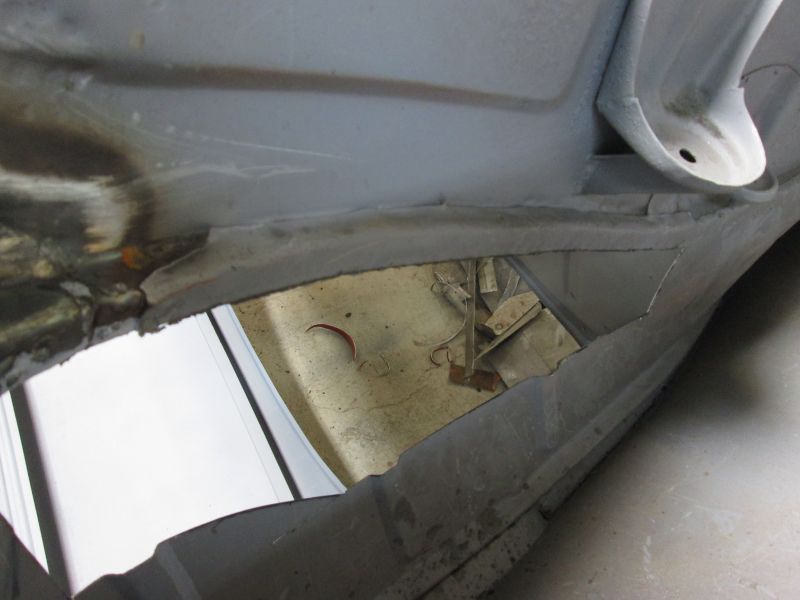

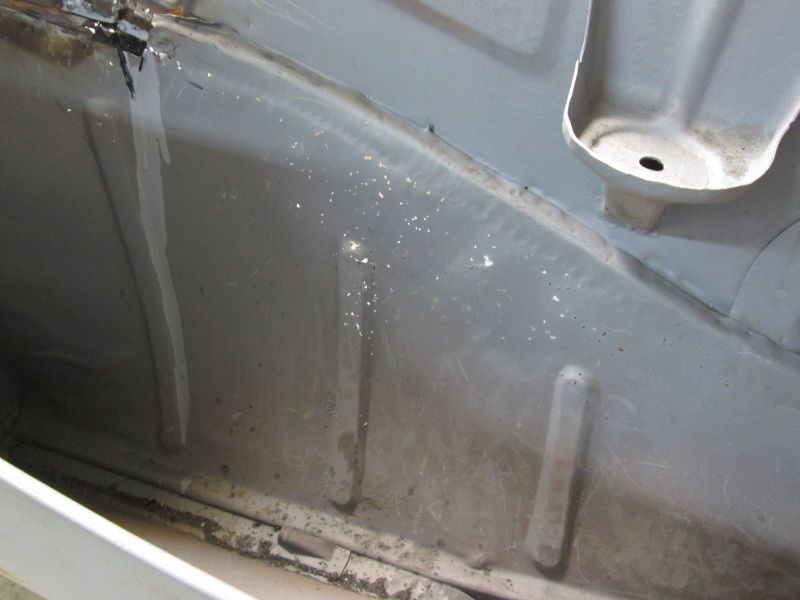

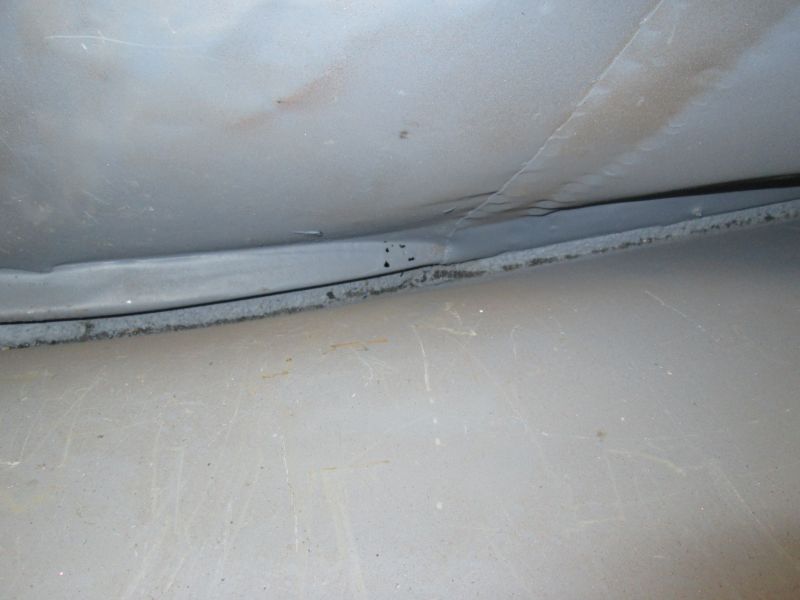

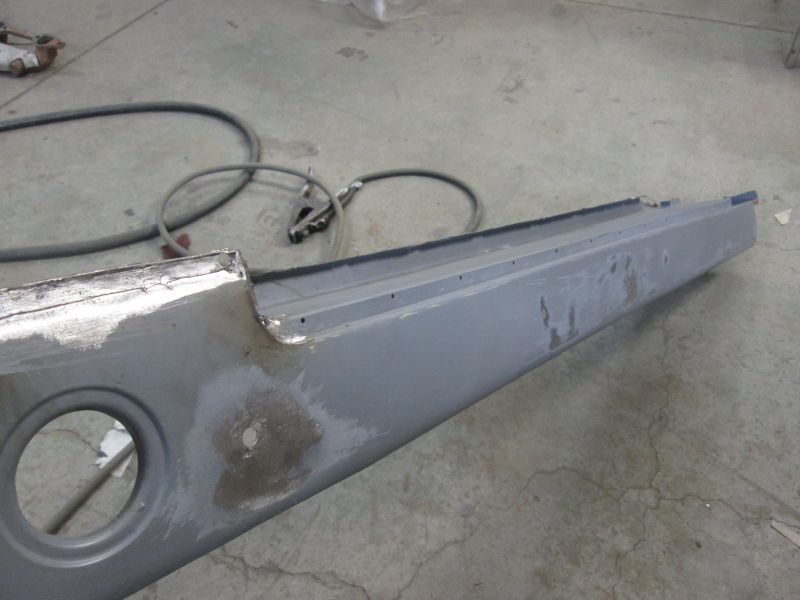

                              More old damage just behind the recently removed section. A small crease from rubbing against something way back when.
                              Click image for larger version

Name:	IMG_0526.JPG
Views:	107
Size:	52.2 KB
ID:	102966
                              Small repair and prep continues...

                              Thanks for looking!
                              Justin
                              Justin Rio

                              Comment


                              • Details, details......admirable work, given that there are decent new repros available.

                                I have a few good repro rockers with the front part cut off that I can't bring myself to scrap. Yep. Like Justin's example all too often. Cheaper than making that part and it's still not "original" either way.

                                It's fun to do what Justin is showing when in a situation where neither too much or too little money has a say.....professionally, where a customer wants parts "original (to the 356)" repaired (or NOS).....or, like most restorers working on their own 356s, don't want to spend the money on either repros (or especially) pricey NOS.

                                Then again, "The shoemaker's children always need shoes" and "Time is money." For all of this, "Ya pick yer poison."

                                Bruce

                                Comment

                                Working...
                                X
