  • Drew is correct I only have the RHD original version to look at. Justin I have never removed my wiring only replaced flasher units etc so I don't have many clear photos. I will attach some which might help but I have no idea on the LHD routing of the loom. I do know the headlight area has holes and rubber gromets to accept the wiring through the side bulkheads. I found this registry link which might help a bit.
    http://forum.porsche356registry.org/viewtopic.php?p=17903
    Below some of my photos All 6v of course!!

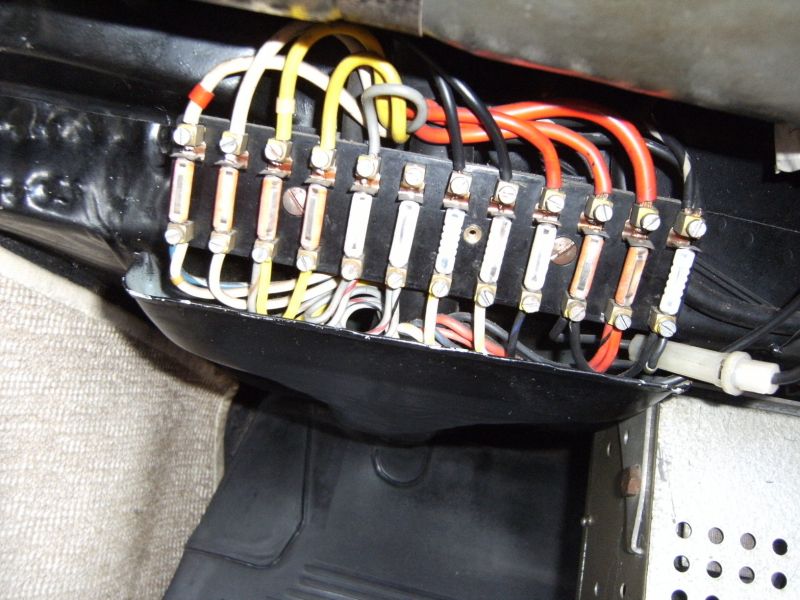

    Fuse block

    Click image for larger version

Name:	rsz_2014_1116_flasher_internalsenginelock_entry_014_2018-04-22.jpg
Views:	139
Size:	87.4 KB
ID:	100045

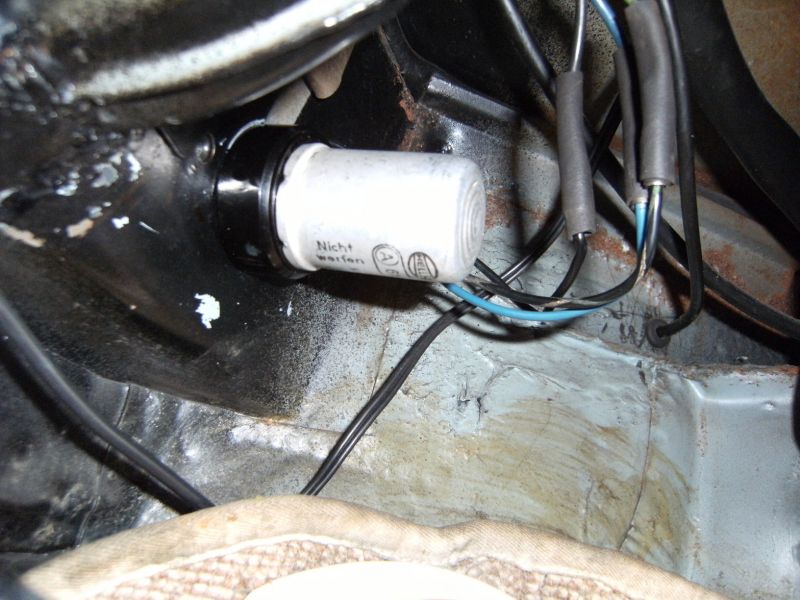

    Flasher

    Click image for larger version

Name:	rsz_2014_1116_flasher_internalsenginelock_entry_013_2018-04-22.jpg
Views:	133
Size:	82.8 KB
ID:	100046

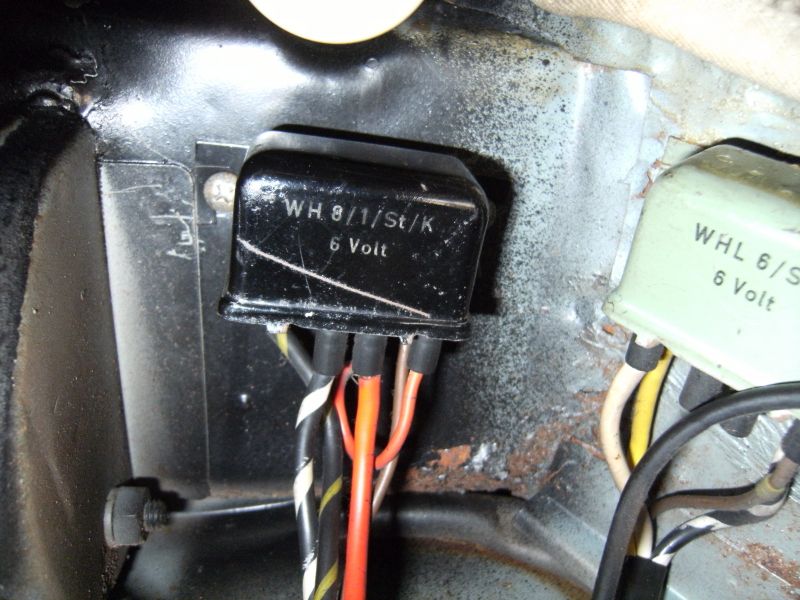

    relay


    Click image for larger version

Name:	2015_1115356relaywiring-backtoschooldance010.jpg
Views:	139
Size:	87.3 KB
ID:	100047

    Not much use I think?

    Roy

    Comment

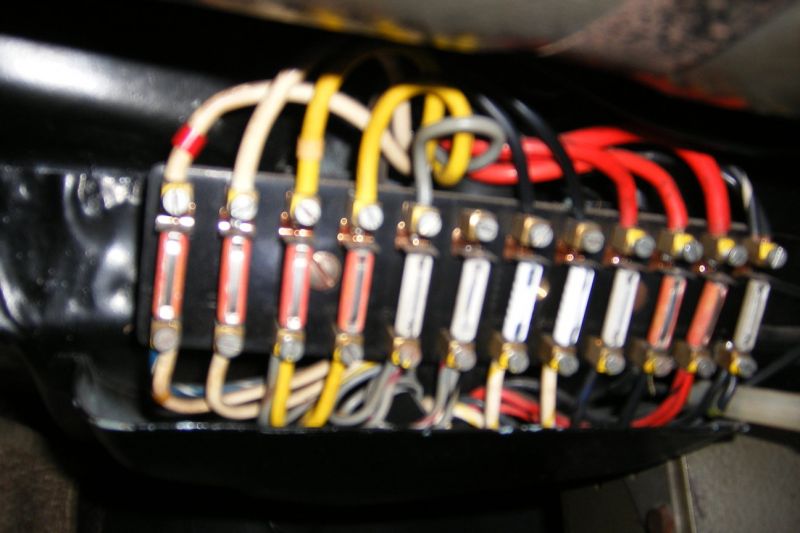

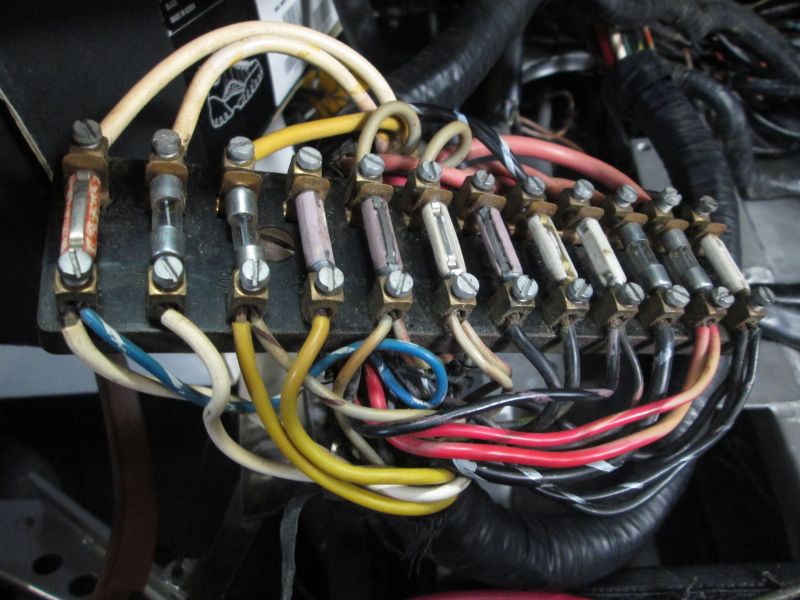

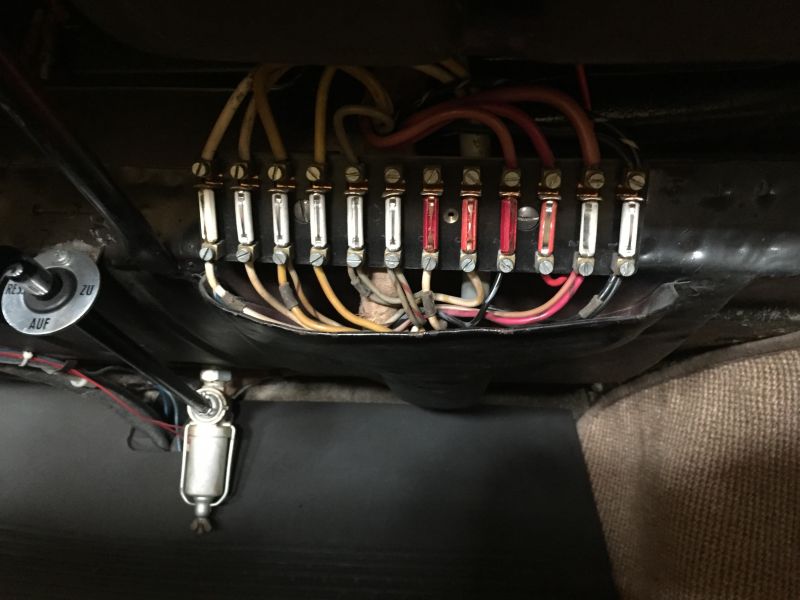

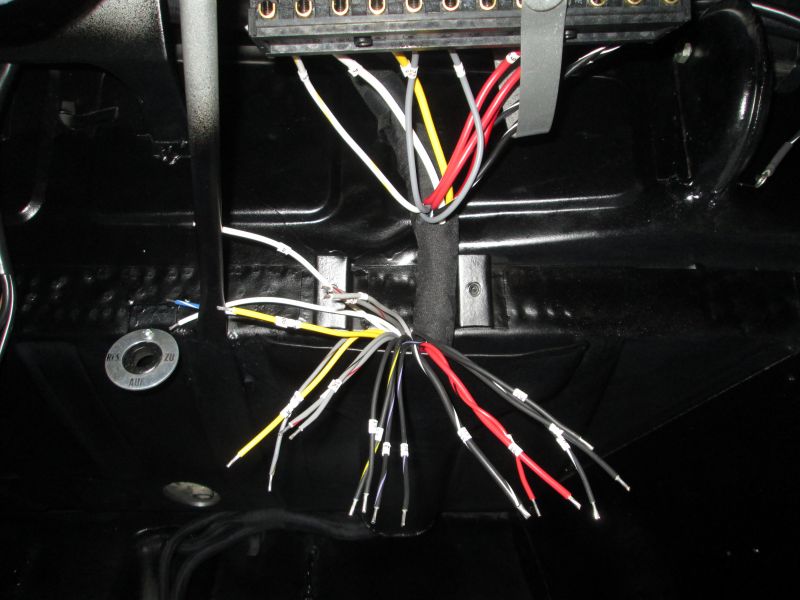

    • A clearer view of the fuse ratings in colour !! not faded

      Click image for larger version

Name:	rsz_12009_0418porsche16kids0009.jpg
Views:	129
Size:	54.3 KB
ID:	100049

      Roy

      Comment


      • Thank you Drew, that photo does shed a bit of light. I realize everything would be flipped on Roy's car but I was just interested in seeing shots of any forward tunnel area just to gain more knowledge on how the factory laid in the lines which I could hopefully interpret for my purposes.
        Click image for larger version

Name:	IMG_7164_2018-04-22.JPG
Views:	129
Size:	75.9 KB
ID:	100051
        Roy, thanks for the photos and sorry for the confusion but I'm interested in detailed shots of the forward bulkhead/ tunnel area under the floorboards. I realize that's sort of a pain to get at in a dressed car so if its too much please don't trouble yourself. I'll eventually get it dialed in.
        Thanks again for the photos and help you guys!
        Justin
        Justin Rio

        Comment


        • Justin,

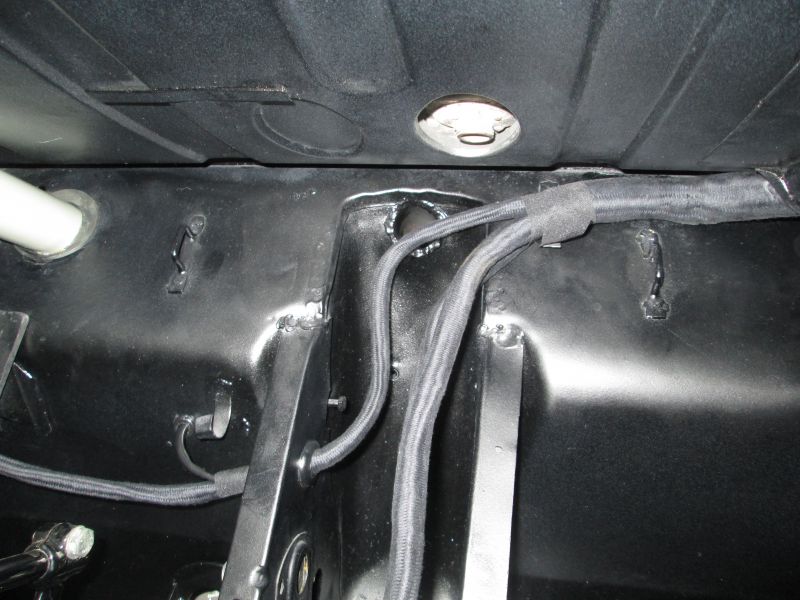

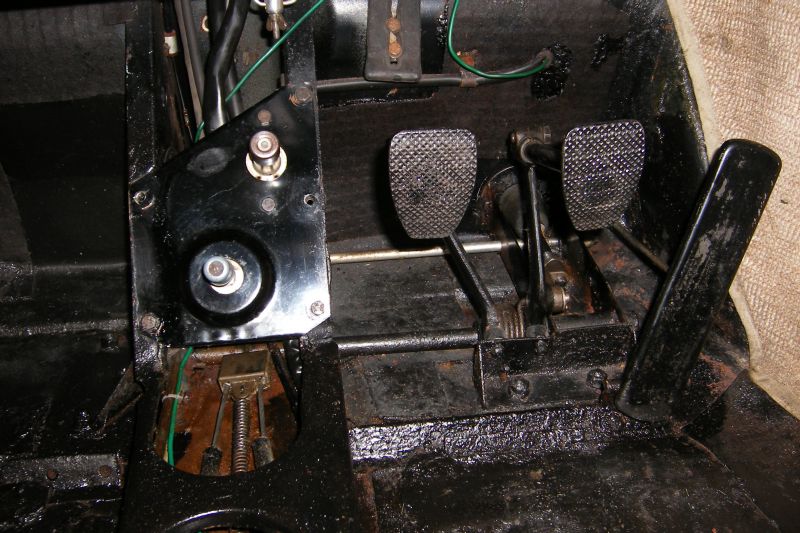

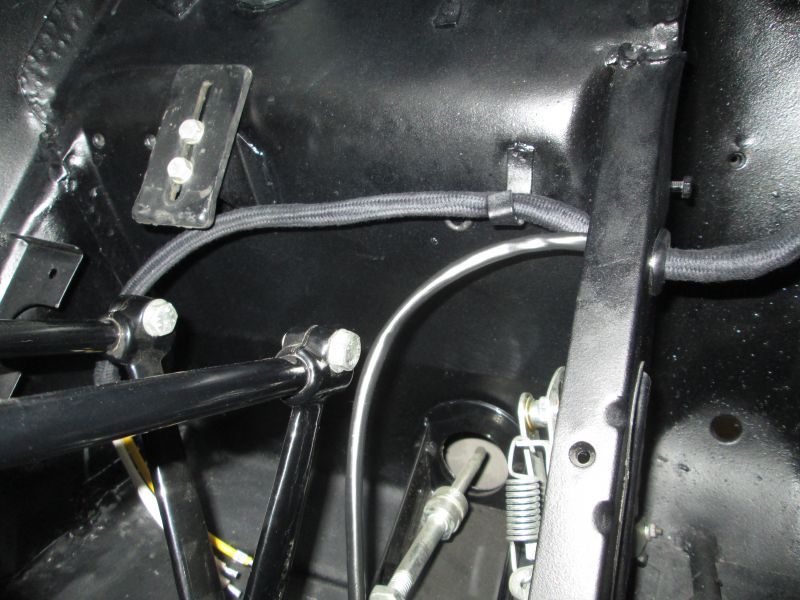

          I found some 10 year old photos on my PC when I rebuilt the petcock.
          The photo shows the loom going through a grommet under the front floorboard. A green wire I was using then for a lighting modification is also going through the grommet. ( Thats no longer used )

          The loom is held in place by a clamp I think it might help.

          Click image for larger version

Name:	2008_1102petcockfueltap0002_2018-04-22.JPG
Views:	136
Size:	97.5 KB
ID:	100053

          Roy

          Comment

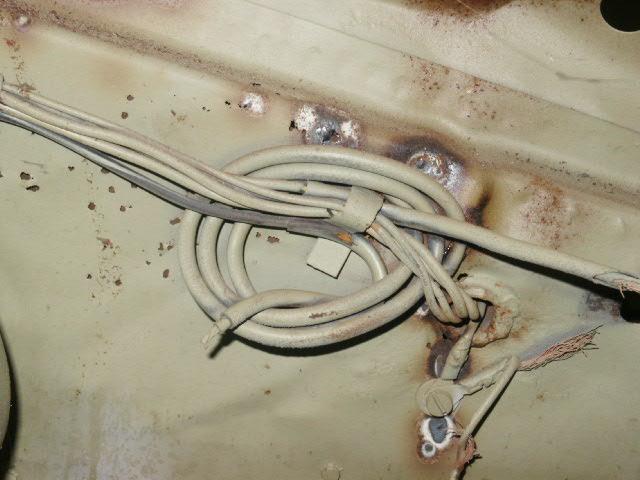

          • Justin, that bolt you questioned holds the end of the sheath for the hand throttle, with a "P" clamp.
            Jack (analog man from the stone age)

            Comment


            • Thanks Roy!

              Ah, that makes perfect sense now, Thank you Jack!

              4/22/18

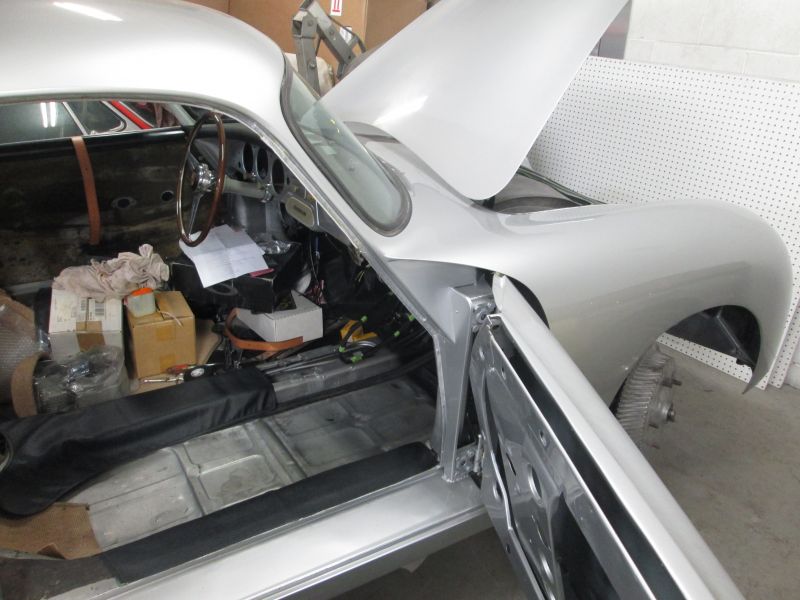

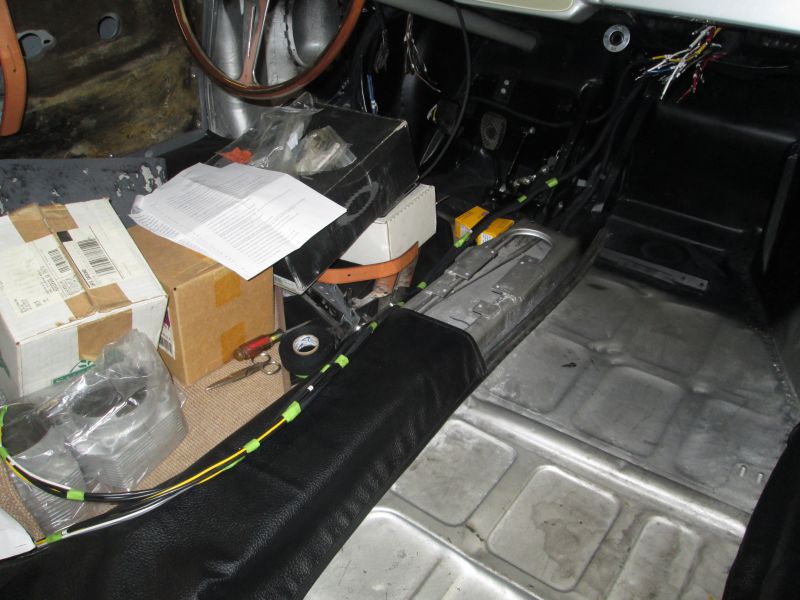

              Feeding more wire


              Click image for larger version

Name:	IMG_7143r.JPG
Views:	139
Size:	58.4 KB
ID:	100061

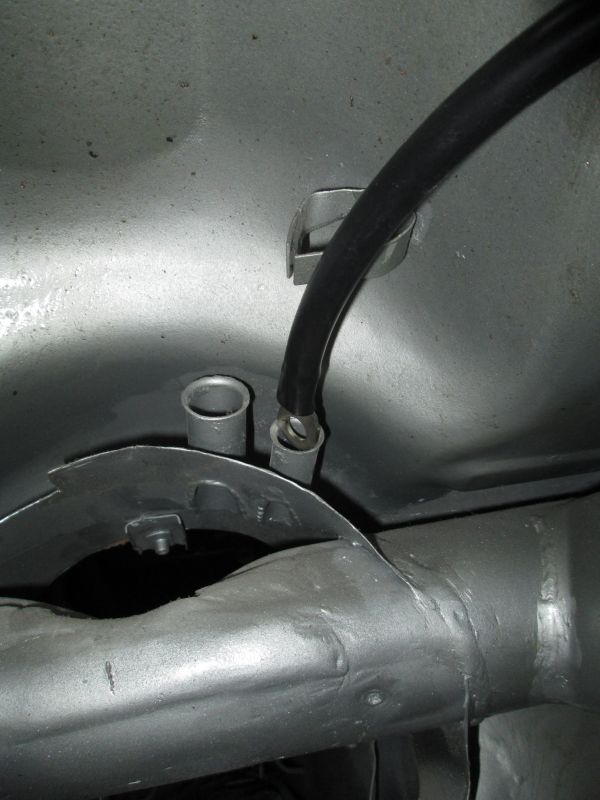

              Learned the hard way years ago that the spade end of the battery cable will not clear the exit conduit.
              Click image for larger version

Name:	IMG_7144.JPG
Views:	136
Size:	51.7 KB
ID:	100060

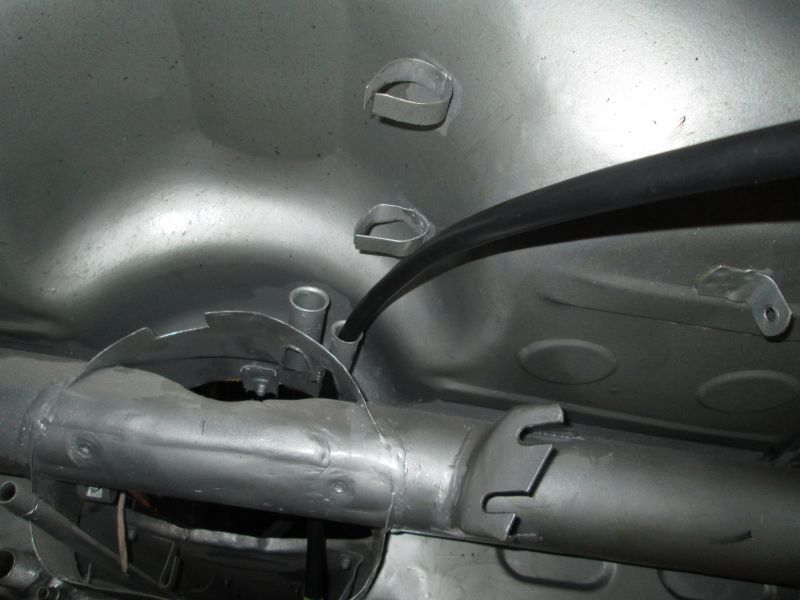

              Has to be fed in rear to front... unless you want to put a new end on it.
              Click image for larger version

Name:	IMG_7165r.JPG
Views:	141
Size:	63.8 KB
ID:	100059

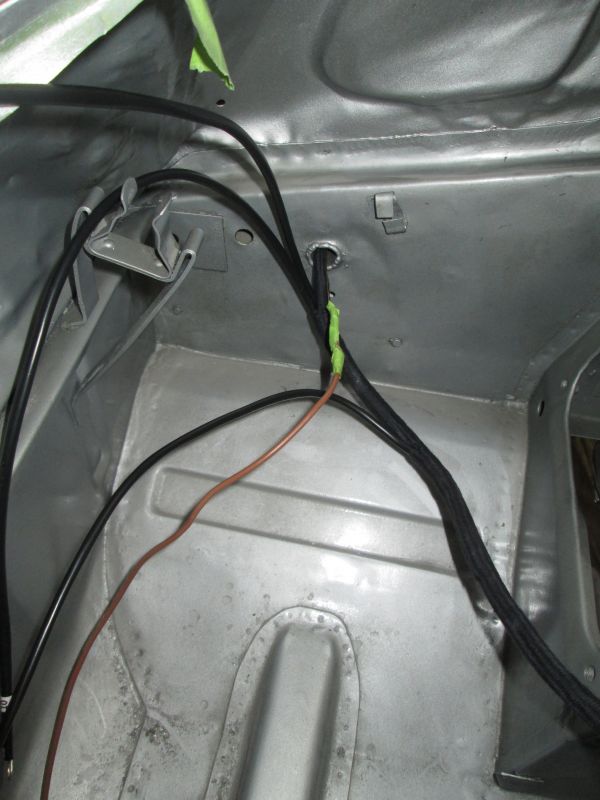

              It took some doing and was touch and go but I finally got the loom through the tunnel conduit. It really got tight when the power leads to the starter entered the conduit. I was down to small fractions of movement at a time but I remember feeling extremely thankful each time it gave way ever so slightly. There was a soft rubber jacket that went over this section of loom as it exited the tunnel. I'll have to try and find something comparable. If anyone has any recommendations I'd appreciate a tip otherwise I'll let everyone know what I eventually find.

              Click image for larger version

Name:	IMG_7166.JPG
Views:	119
Size:	74.1 KB
ID:	100062

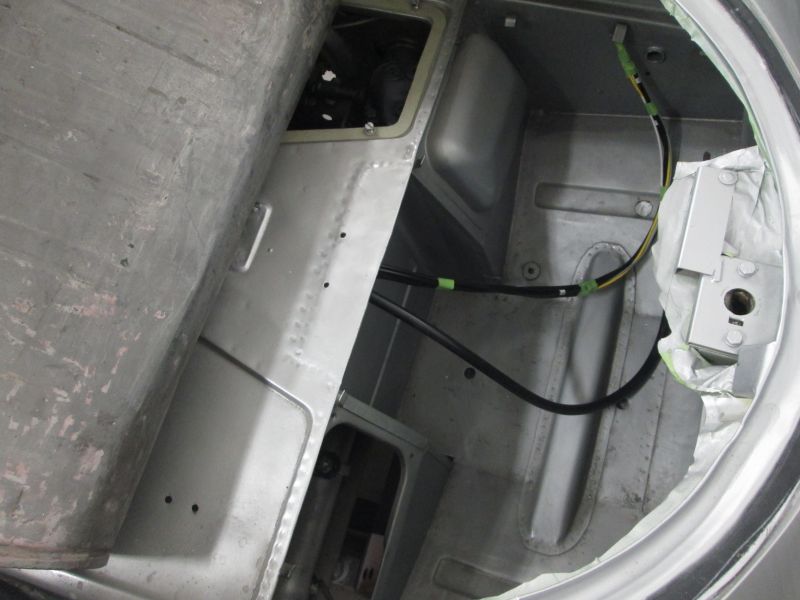

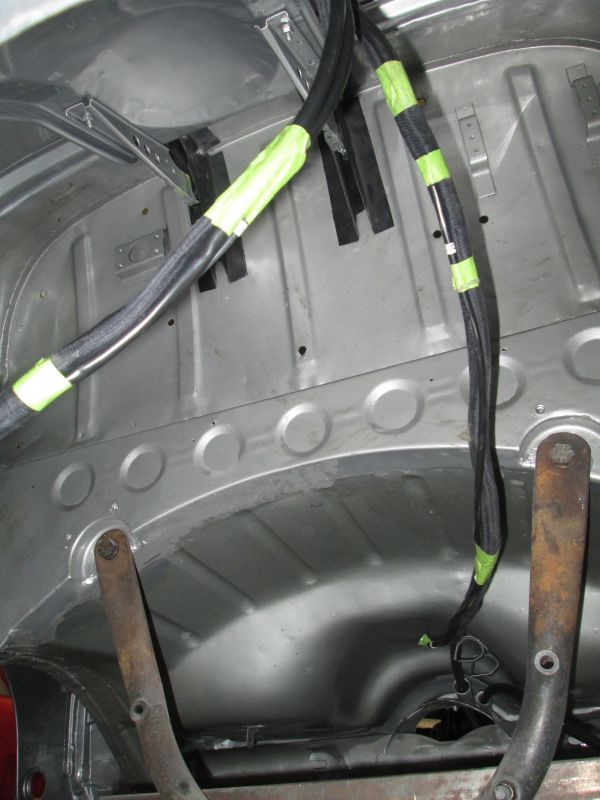

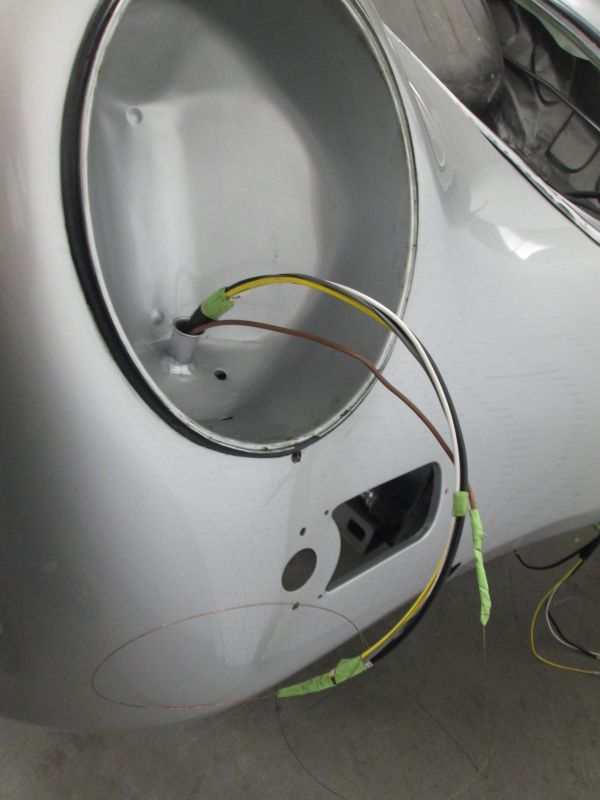

              Time to feed the headlight leads into the trunk.
              Click image for larger version

Name:	IMG_7169.JPG
Views:	120
Size:	57.2 KB
ID:	100063
              Piece of cake compared to the first two legs of this journey. Only thing I really had to watch was that each particular lead exited and was oriented to its correct side.
              Click image for larger version

Name:	IMG_7170.JPG
Views:	124
Size:	69.9 KB
ID:	100064
              Just little more of the trunk lead left to go but its almost there.

              Click image for larger version

Name:	IMG_7171.JPG
Views:	121
Size:	67.8 KB
ID:	100067

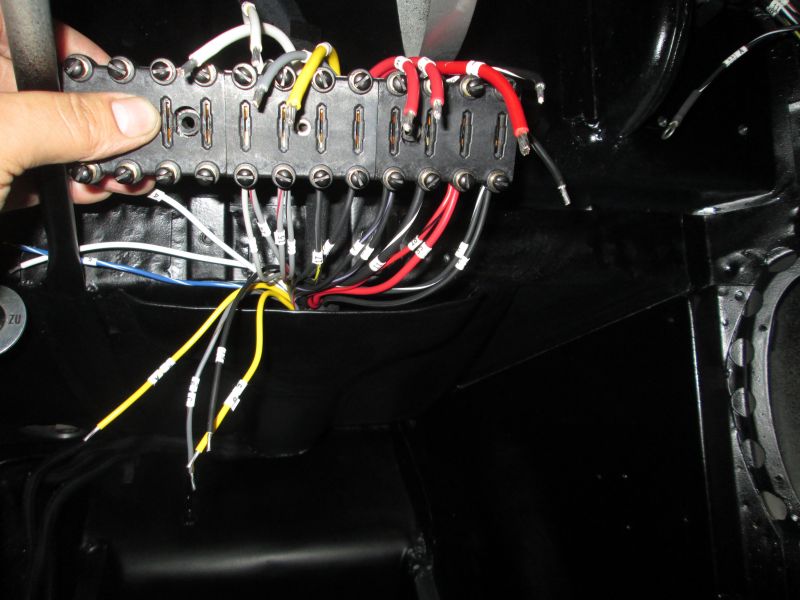

              A very preliminary mock up based on both Drew and Roy's photos (thanks again guys!) I may tuck the dimmer switch lead under for a more natural fit... Again its all a rough mock up. I'm not committing to anything, not even the tab clamps to secure it until I'm sure the entire loom reaches everything and is exactly where it needs to be.

              Click image for larger version

Name:	IMG_7172.JPG
Views:	130
Size:	80.2 KB
ID:	100065
              Dimmer loom only gets one tab clamp on this T1. Drew's T2 shows two. evolutionary thing...
              Click image for larger version

Name:	IMG_7173.JPG
Views:	119
Size:	59.1 KB
ID:	100066
              Trunk leads pulled in fully and now ready to continue on to the final conduits up into the headlight buckets. Have to say I am really enjoying this stage of the build. Its clean work, relaxing, and instantly gratifying. Its like building a big model Savoring it while I can.

              Thanks for looking!
              Justin
              Justin Rio

              Comment


              • A piece of skinny tire bicycle inner tube will work well on the rear of the loom to the starter. Any bike shop will have used ones they are throwing away.
                Jack (analog man from the stone age)

                Comment


                • Perfect Jack, thank you for the tip!!!!

                  4/23/18

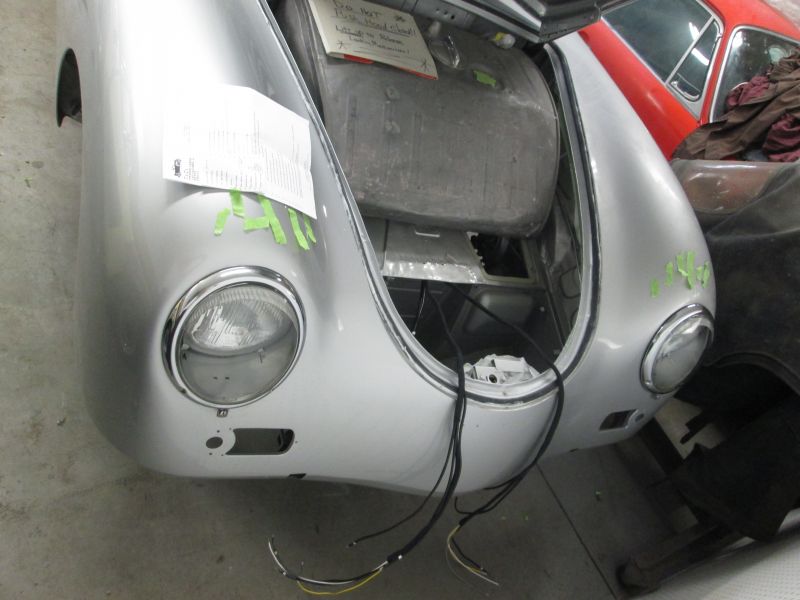

                  Headlight leads pulled through right conduit
                  Click image for larger version

Name:	IMG_7176.JPG
Views:	128
Size:	60.9 KB
ID:	100079
                  New fuse block mounted after recieving my new mounting stand-off spacers. Fits and looks great. Lacing it up here shortly.
                  Click image for larger version

Name:	IMG_7178.JPG
Views:	119
Size:	37.0 KB
ID:	100080

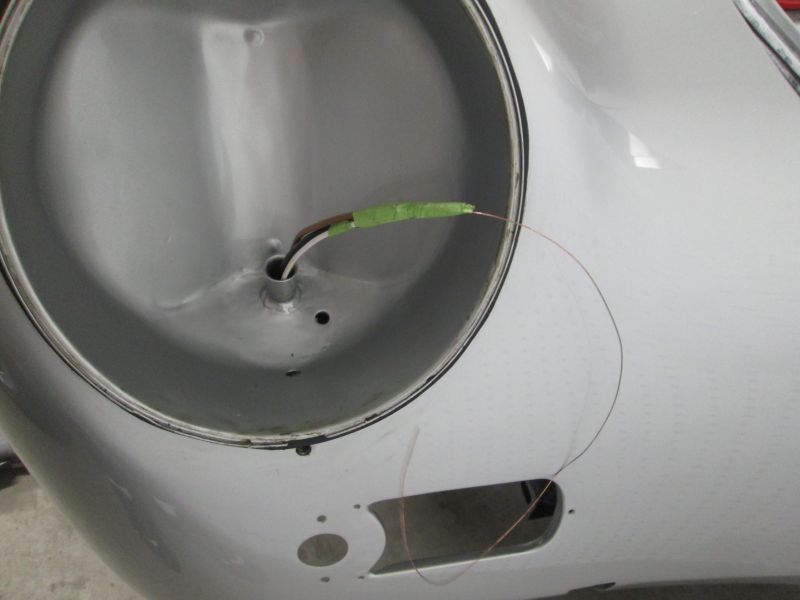

                  Headlight and signal leads pulled through. Had to use a lead wire to blaze the trail to allow me to pull it as it refused to let me push it through.
                  Click image for larger version

Name:	IMG_7179.JPG
Views:	131
Size:	61.6 KB
ID:	100081
                  Easier to pull the ground wire through on its own after the rest of the loom was in.
                  Click image for larger version

Name:	IMG_7180.JPG
Views:	128
Size:	46.4 KB
ID:	100082

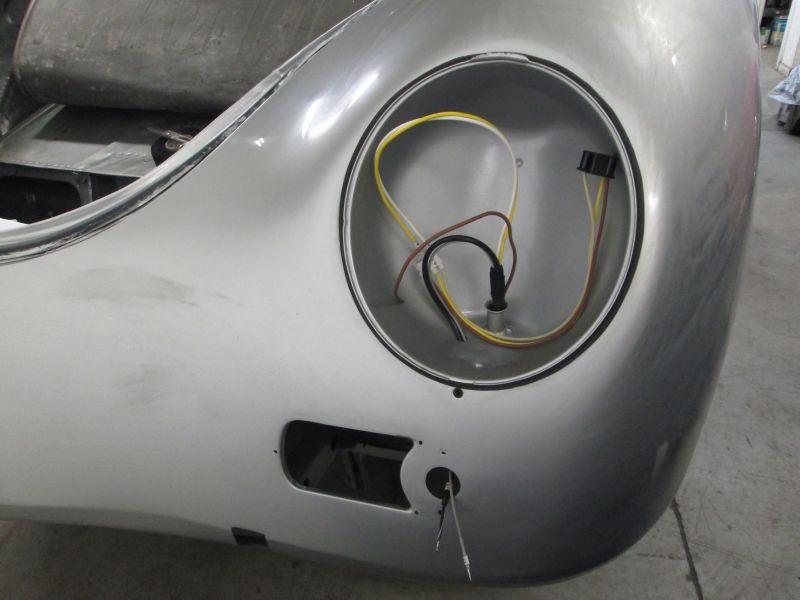

                  All the leads in on this side.
                  Click image for larger version

Name:	IMG_7181.JPG
Views:	128
Size:	46.7 KB
ID:	100083

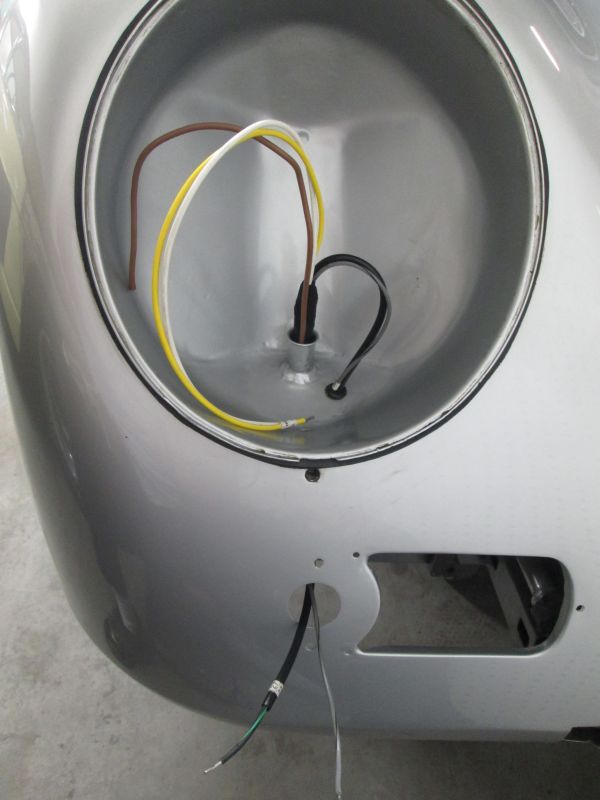

                  Rubber grommet added to the bucket then the signal leads where pulled through the bottom. Repeat left side next.
                  Thanks for looking!
                  Justin
                  Justin Rio

                  Comment

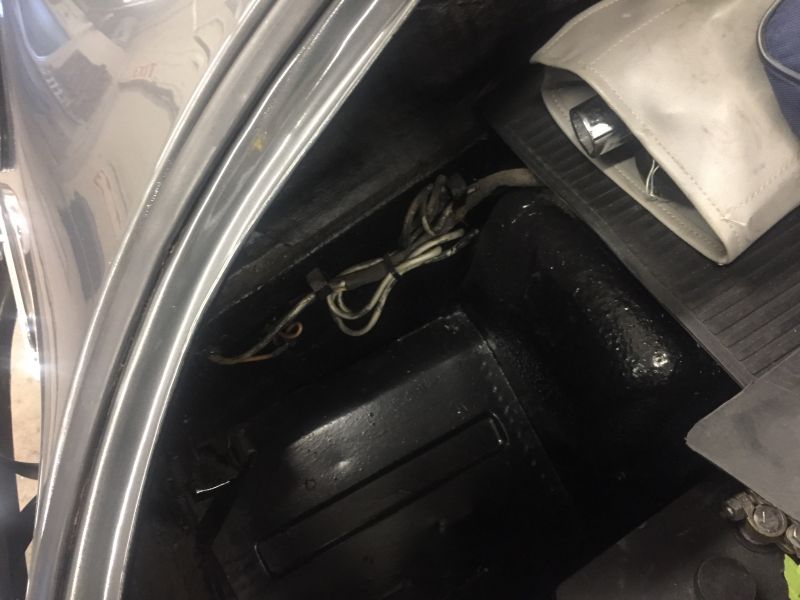

                  • Sorry to be late for the wiring party. Away for 2 days at the big Hershey meet and back for Sunday's big baseball tournament with a nephew's 14 year old son in a travel league, so timing was tight right through yesterday.

                    I have a service job now that is a VERY original T-1 Coupe but ready to go home, so I dare not go backwards by removing much to reveal wiring in the tunnel or trunk....but here is the fuse panel with cover removed:
                    Click image for larger version

Name:	IMG_02921.JPG
Views:	121
Size:	55.2 KB
ID:	100085
                    The loom's woven cover can be seen as tan, from fading. You can see a dark wrap on twin wires in a fuse terminal, one to denote it's route/direction which is different from the other same color, same sized wire sharing the fuse.
                    Otherwise, the topic seems to be covered and executed well, Justin. Superlative work as usual.
                    -Bruce

                    Comment


                    • Thanks Justin
                      I hope to be going thru part of this process this summer on Foam Car. Dash and front end wiring. I took lots of pics under dash before removal, hopefully enough.
                      Your doing a great job both with your hands and camera.
                      Phil

                      Comment


                      • Thanks just the same Bruce! Absolutely that timing issue is everything.

                        Thank you Phil. That's the way to do it alright. I sure wish I would have taken more pictures before I started tearing it apart. That's the big mistake I made as a young teenager enthusiast. I was so caught up in the fun of breaking it down that I failed to note the placement of things as well as bag and mark all the original hardware carefully. All those stray bolts and screws you just don't care about until its time to put the car back together. Live and learn...hopefully. Best of luck reinstalling your harness. It can be trying at times.
                        Thanks again guys!
                        Justin

                        4/25/18
                        Click image for larger version

Name:	IMG_7182.JPG
Views:	116
Size:	48.4 KB
ID:	100162
                        Left side now fed through the conduit. This officially completes this stage. Now its onto hooking up the fuse block and final adjusting of the loom and lock tabbing it in place.
                        Justin Rio

                        Comment


                        • "I sure wish I would have taken more pictures before I started tearing it apart. That's the big mistake I made as a young teenager enthusiast. I was so caught up in the fun of breaking it down that I failed to note the placement of things as well as bag and mark all the original hardware carefully. All those stray bolts and screws you just don't care about until its time to put the car back together."

                          We ALL have done that. I have read the "restoration how-to DIY" books and don't even know if those have "Before you do ANYTHING....." comments in there, because I always ignored the beginning and went right to the part on which I was stuck.

                          Most of us have long adhered to the "....when in doubt, (then) read the instructions" slogan.

                          We have now been blessed by technology advancements that allow us to use a camera that is also a phone (remember when they were amazing phones that also allowed picture taking?) There is no reason now to not take copious pictures of the "before" IF that is how we began the restoration. I pity those who do not have a nearby similar model of the car being assembled for reference if they disassembled the car without records and over time OR inherited the car disassembled.

                          My biggest frustration with wiring on a 356 is the finish of the "extra" wires at the sides of the battery box if foglights are not involved. There was a way the original assemblers coiled them and each time I see an original unmolested 356, I forget to take a picture(s) so I can reproduce that "roll and tuck" appearance.

                          Here is that area of the VERY original T-1 A that is waiting for it's owner to get a sunny day to drive it home. I missed that part of the originality, as someone has been there before...drat!
                          Click image for larger version

Name:	IMG_02941.JPG
Views:	115
Size:	54.2 KB
ID:	100186
                          -Bruce

                          Comment


                          • If you take a look at the 356 Registry Magazine Vol. 28-6. There is a short Story about the unmolested T1 Carrera #58836. Page 10 has a small Picture from that area.


                            Click image for larger version

Name:	Unbenannt.JPG
Views:	131
Size:	20.1 KB
ID:	100252


                            -Lutz

                            Comment


                            • Thank you very much, Lutz, great illustration. It looks so..."fresh." Almost too nice for being 60~ years old.

                              I wonder how that textured coating on the restraining strap stayed that unmolested when bent over the wires. That's hard to get such perfection, special 4-cam car attention or not.

                              Still, it looks proper to me even though I have trouble getting new wire to behave, flat in a coil, even with a heat gun.

                              Thanks again for the reference and the picture,
                              -Bruce

                              Comment


                              • Thank you for that additional confirmation photo Lutz. Even though my car has been thoroughly molested I do remember its leads looking like that before I removed them for the first time in about 1988.
                                Click image for larger version

Name:	thumbnail23.jpg
Views:	125
Size:	42.3 KB
ID:	100396
                                When this speedster project came to me several years ago I was at least developing some forethought in taking documentary photos. So glad I did. I at least know how the washers on the ground leads go.

                                Justin

                                4/29/18

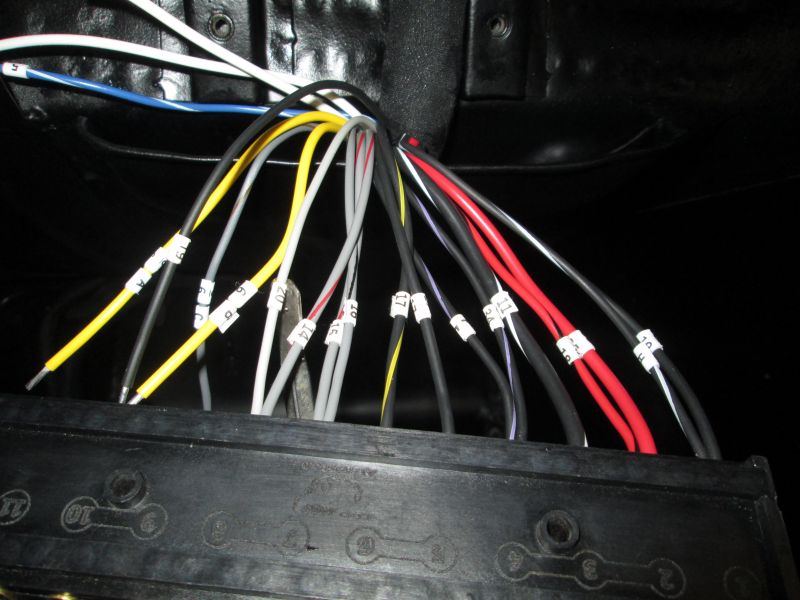

                                Begin wiring up the fuse block

                                Click image for larger version

Name:	IMG_7216.JPG
Views:	118
Size:	68.1 KB
ID:	100397

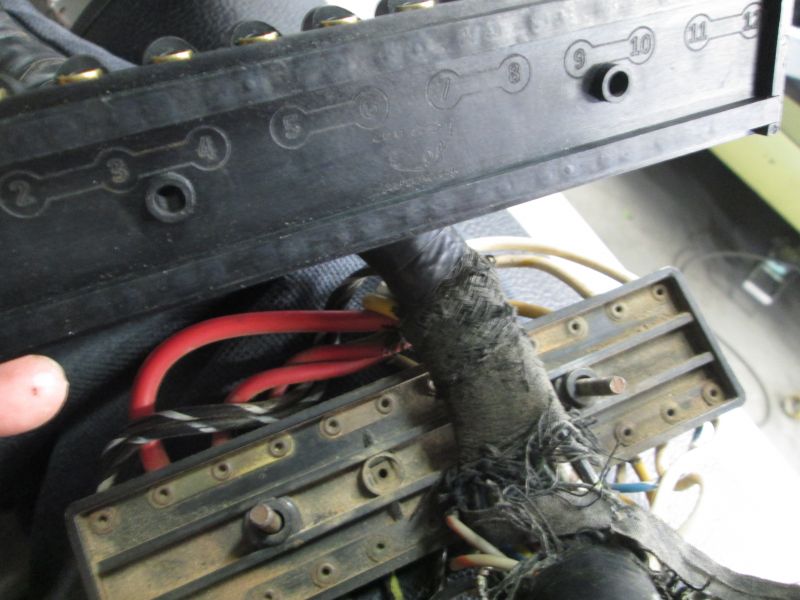

                                Making sure the block is oriented correctly per instruction. The top of the OG block has terminals which are linked. New block shows corresponding linked together terminals.
                                Click image for larger version

Name:	IMG_7217.JPG
Views:	118
Size:	64.8 KB
ID:	100398

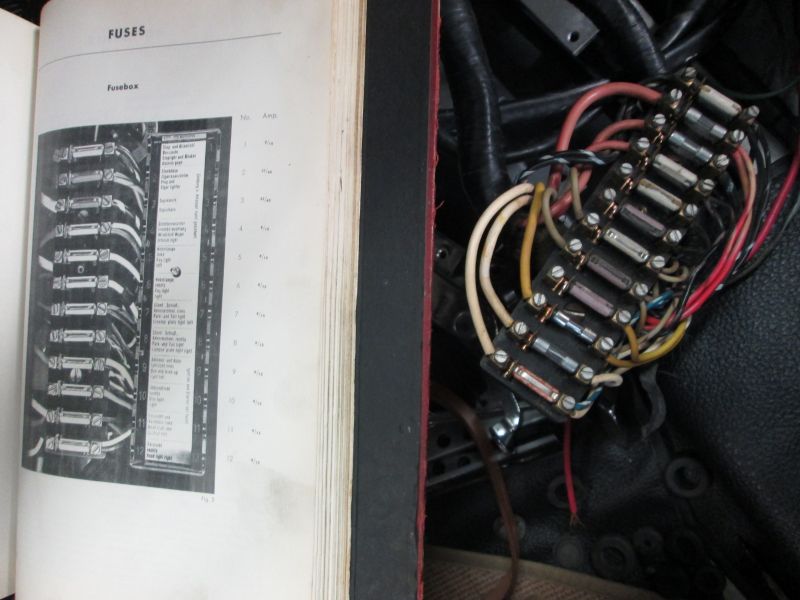

                                As for reference through all of this I am fortunate to have a factory shop manual and the original fuse block to this car which has never been unplugged.
                                Click image for larger version

Name:	IMG_7218.JPG
Views:	114
Size:	58.2 KB
ID:	100399

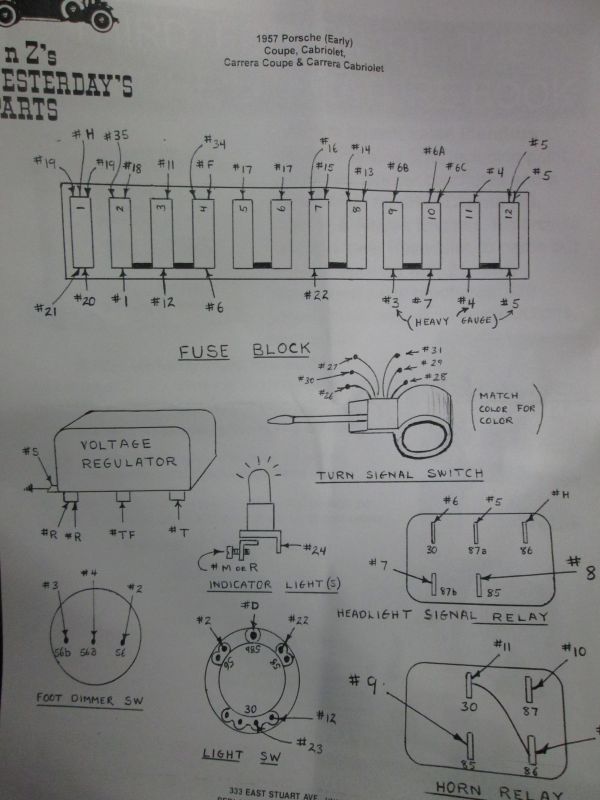

                                And last but not least a detailed diagram of all components with wire codes provided by Y-n-Z's.
                                Click image for larger version

Name:	IMG_7220.JPG
Views:	111
Size:	62.2 KB
ID:	100400
                                Started out with a mock up arrangement of the upper leads.
                                Click image for larger version

Name:	IMG_7221.JPG
Views:	113
Size:	62.3 KB
ID:	100401
                                Then began arranging and separating the bottom leads.
                                Click image for larger version

Name:	IMG_7234.JPG
Views:	129
Size:	65.1 KB
ID:	100402

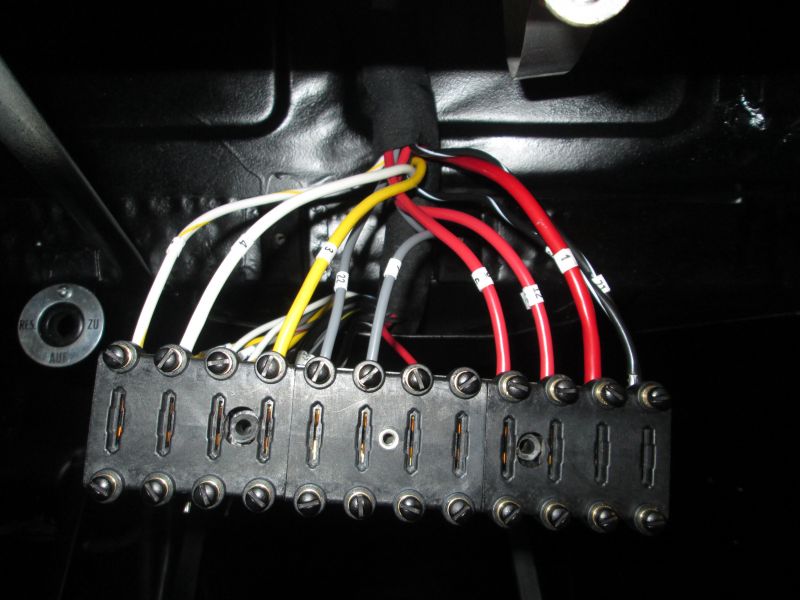

                                Then it dawned on me that the bottom leads need to be set first before the block can even be mounted. The shoulder of the sheathing will be directly in my way if I try to feed them in after the fact. I'm learning...its my first one.
                                Click image for larger version

Name:	IMG_7233.JPG
Views:	114
Size:	70.3 KB
ID:	100403

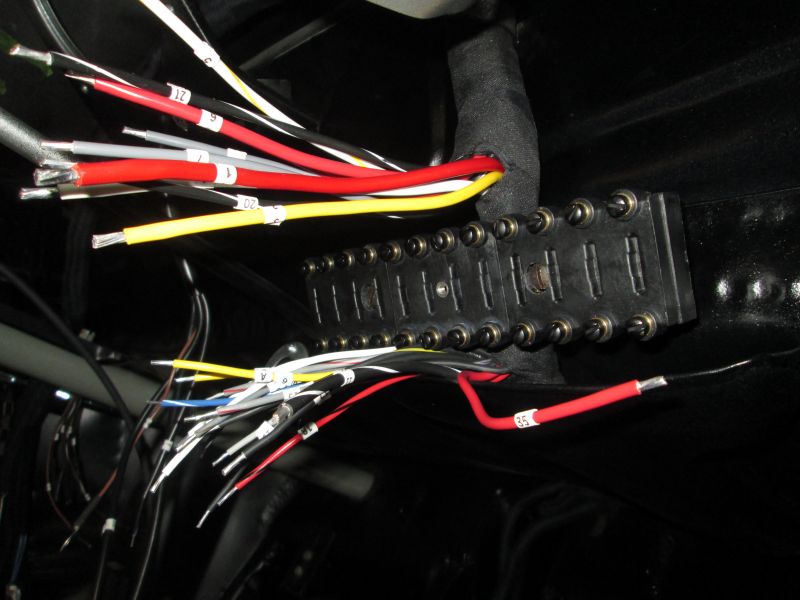

                                Almost there...
                                Click image for larger version

Name:	IMG_7236.JPG
Views:	111
Size:	79.8 KB
ID:	100404
                                The instruction sheet and manual is nice but there is no substitute having the original example right next to me as this goes. So glad I never broke this down.

                                Thanks for looking!
                                Justin
