  • Thanks guys! I think it's done correctly now.


    Click image for larger version

Name:	IMG_4260.jpg
Views:	91
Size:	61.6 KB
ID:	69416
    Welds ground down. The front end is looking so much better.


    Click image for larger version

Name:	IMG_4262.jpg
Views:	86
Size:	48.3 KB
ID:	69417
    Flanges cut and bent over.


    Click image for larger version

Name:	IMG_4264.jpg
Views:	83
Size:	66.5 KB
ID:	69418
    All welded up. Less chance of dirt and water getting in. I've seen some cars with a drainage hole in the bottom of the longitudinal side reinforcement piece. Is this a Karmann thing? OEM?

    Now onto the rear closing panel. My car is a B T-6 so the rear portion of the longitudinal has a flange like the front. Did Porsche finish this rear area off in any particular way?

    Thanks.

    John
    jjgpierce@yahoo.com

    Comment


    • John
      All I have of original:

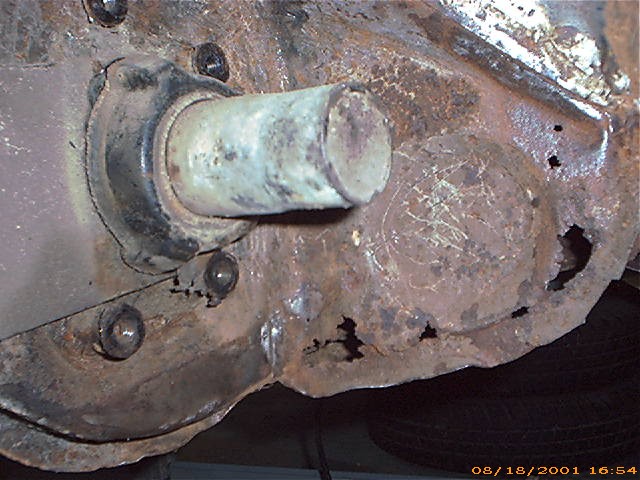

      Click image for larger version

Name:	Rearviewofclosingpanel.JPG
Views:	86
Size:	85.7 KB
ID:	69420

      Click image for larger version

Name:	ReferenceT6ClosingPanel.JPG
Views:	86
Size:	82.8 KB
ID:	69421
      Phil

      Comment


      • Onto the longitudinal rear closing panel.


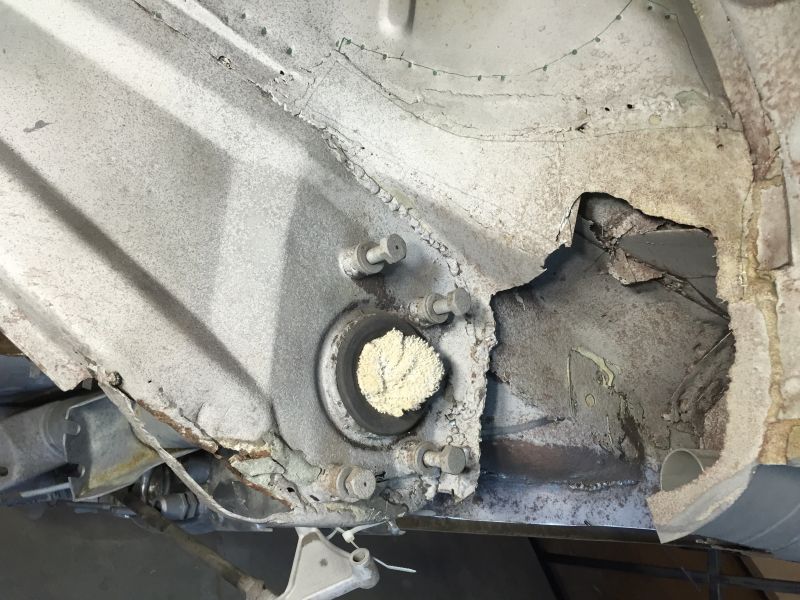

        Click image for larger version

Name:	_MG_3438copy.JPG
Views:	83
Size:	49.5 KB
ID:	69496
        This area was quite a mess. Lots of patches over patches.


        Click image for larger version

Name:	IMG_2718copy.JPG
Views:	84
Size:	99.2 KB
ID:	69491
        And let us not forget Bubba's favorite....Bondo. Used to fill any hole up to 3-4"!!


        Click image for larger version

Name:	IMG_2790copy.JPG
Views:	91
Size:	84.1 KB
ID:	69492
        This was what was left after cutting out the badness. The whole inner structure had either rusted away or had been previously removed/modified.


        Click image for larger version

Name:	IMG_4266copy.jpg
Views:	84
Size:	69.7 KB
ID:	69493

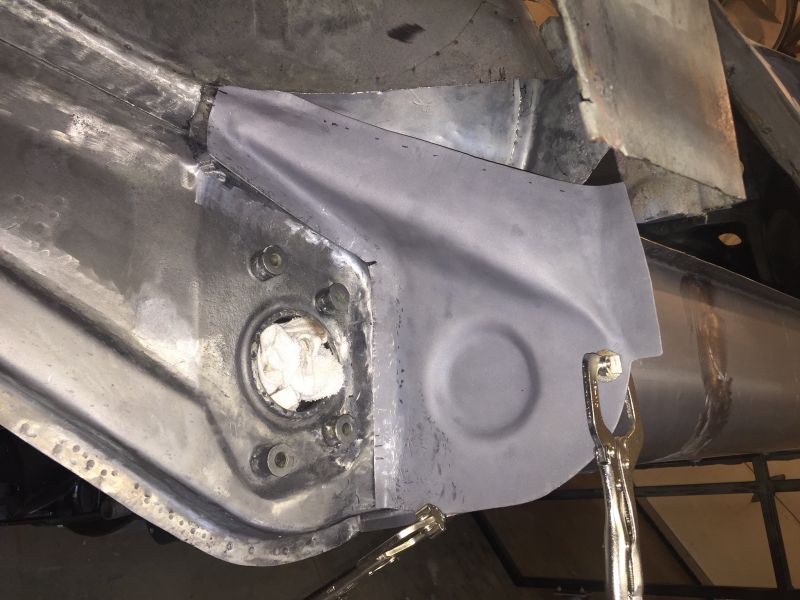

        The longitudinal rear closing panel is well made, especially with all the compound bends and curves. Getting to fit any particular car takes a lot of small bending in many areas to get it to sit nice and flat. Not only around the longitudinal flange, but also against the upper cavity floor flange behind the lock post.


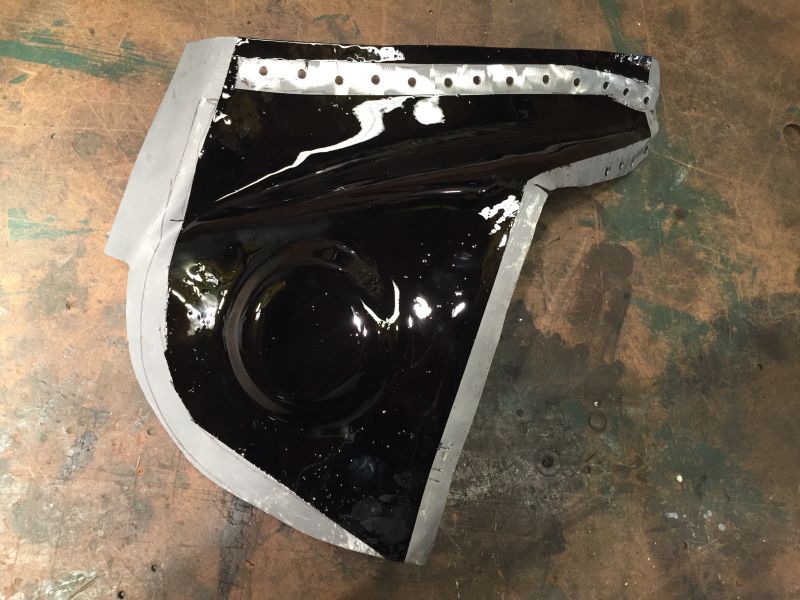

        Click image for larger version

Name:	IMG_4279copy.jpg
Views:	80
Size:	81.5 KB
ID:	69494
        The closing panel and outer frame were primered and top coated lest the rust starts right away.


        Click image for larger version

Name:	IMG_4306copy.jpg
Views:	80
Size:	73.2 KB
ID:	69495

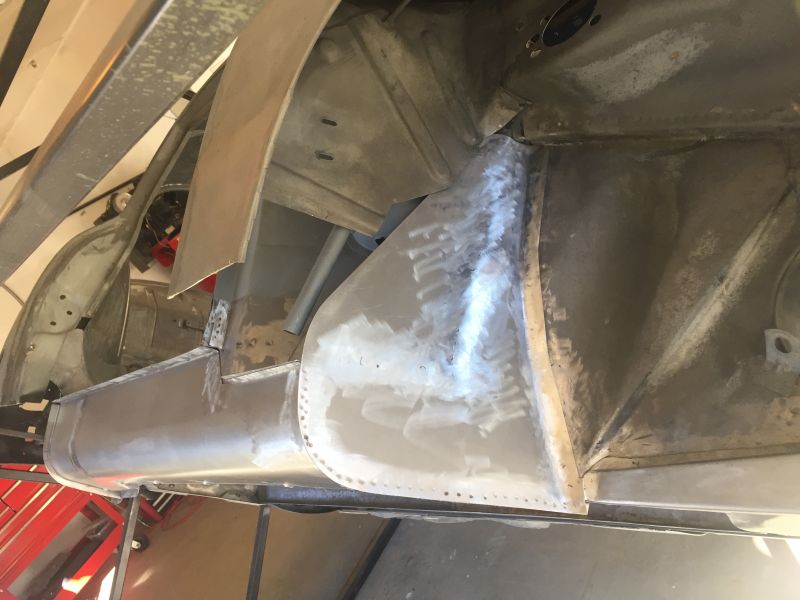

        Nice snug fit with spot welds around the longitudinal flange, rosette welds up high and a continuous weld around the edge to mimic the factory weld. I've left the lower portion of the longitudinal flange unfinished for now as it needs an additional piece welded on.

        Thanks for following.

        John
        Attached Files
        jjgpierce@yahoo.com

        Comment


        • Got some car time this weekend.

          Click image for larger version

Name:	IMG_4273copy.jpg
Views:	78
Size:	41.6 KB
ID:	69569
          Initial fitment of the jack spur. The center point is 335 mm from the lower rear torsion plate bolt. The rocker panel and door need to be set in place so the jack spur doesn't sit too low.


          Click image for larger version

Name:	IMG_4275copy.jpg
Views:	92
Size:	42.2 KB
ID:	69570
          As bought the jack spur is about 20 mm too low. The top flange hits the rocker panel and needs to be cut and beveled. The side flanges also need to be bent to fit the curve of the rocker.


          Click image for larger version

Name:	IMG_4276copy.jpg
Views:	86
Size:	46.6 KB
ID:	69571
          The top jack spur is in it's rough state and the lower is after cutting the top shorter and beveling all the flanges. Thanks Justin for your great tutorial!


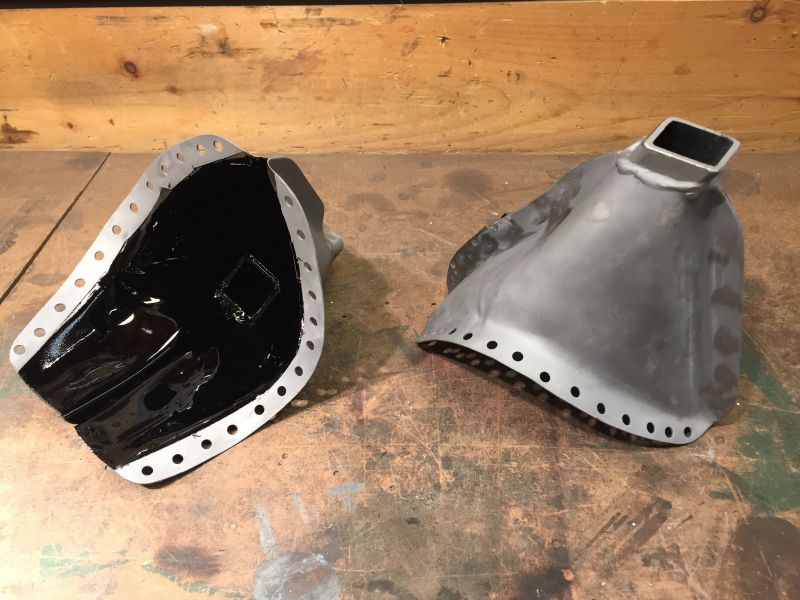

          Click image for larger version

Name:	IMG_4281copy.jpg
Views:	79
Size:	80.0 KB
ID:	69572
          The insides were primered and top coated as these areas won't be reached after welding in place.


          Click image for larger version

Name:	IMG_4296copy.jpg
Views:	85
Size:	47.7 KB
ID:	69573

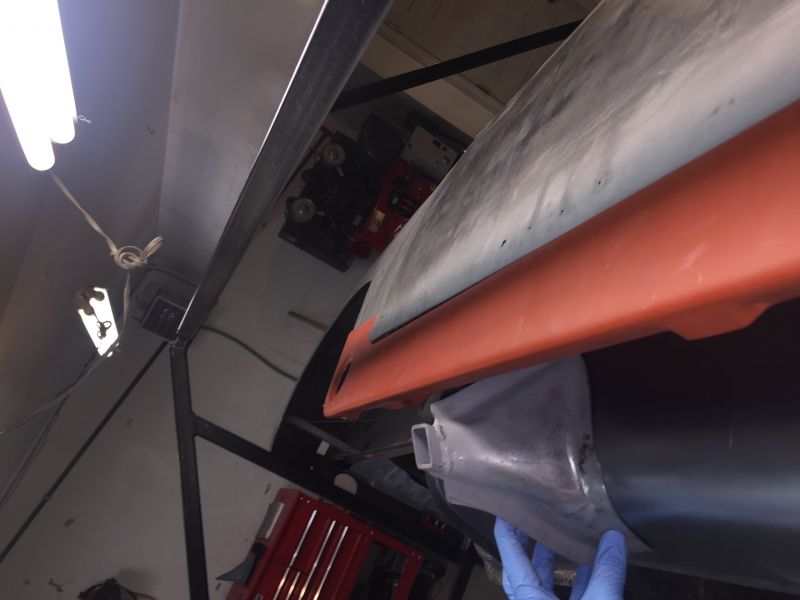

          The rocker area was masked off and also primered and top coated.


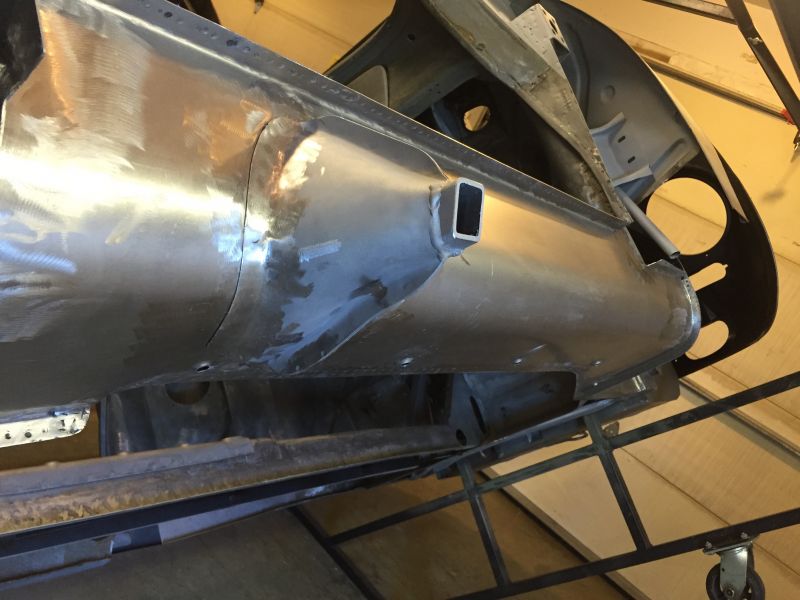

          Click image for larger version

Name:	IMG_4305.jpg
Views:	85
Size:	67.8 KB
ID:	69574
          Plug welded and ground.


          Click image for larger version

Name:	IMG_4306.JPG
Views:	81
Size:	71.9 KB
ID:	69575
          It's nice to step back and see where things started. This was what was left of the original metal after removing all the patch panels.


          Click image for larger version

Name:	IMG_4311.jpg
Views:	84
Size:	76.8 KB
ID:	69576
          Damn, it's nice to see clean solid metal!

          Thanks for following.


          JP
          jjgpierce@yahoo.com

          Comment


          • Yeah, I've had to deal with ill fitting jack spurs nearly every time a replacement is needed. I generally fit them after the rocker is installed to assure proper placement, and flex (as though anyone would use them!?). It's easy to get a mig welder under there to attach them, but you seem to have a handle on it. I gotta hand it to you guys, with what you are willing to go through to have a 356. Well done.
            Jack (analog man from the stone age)

            Comment


            • Originally posted by Jack Staggs" post=31002
              Yeah, I've had to deal with ill fitting jack spurs nearly every time a replacement is needed. I generally fit them after the rocker is installed to assure proper placement, and flex (as though anyone would use them!?). It's easy to get a mig welder under there to attach them, but you seem to have a handle on it. I gotta hand it to you guys, with what you are willing to go through to have a 356. Well done.
              Just for s&g, I looked into the parts books again and see a number for A&B jack spurs of 644-501-150-00 with no change of number noted in the T-6 supplement book or the C supplement book, yet (in my experience with a few original examples) there seems to be a change in construction sometime in the T-6 B change before disc brakes.

              Ron Roland put the flatter overlapped version in the C time frame ONLY and the Stoddard catalog shows the Factory A and B parts book number of 644-501-150-00 just for the C cars and 644/(NLA)-501-045-00 as 356, 356A and B, which can't be. Confusing? Nah, just more wiggle-room for what's "original."

              So yes, I'll echo Jack's remark about how how refreshing it is to see hobbyists forge ahead on such small but daunting challenges such as jack spurs...which almost never fit as bought repros...without some 'massaging.' John, you must have read Ron's book. In less detail, Jim Kellogg expresses the same admonitions.

              I'm just glad there are only two on each 356.

              Good work!

              -Bruce

              Comment


              • You guys are too funny. I also researched these little details about jack spurs. Somewhere in the middle of the B T-6 run, Porsche switched from the flange type to the non-flange type jack spurs. Unlike what Ron has in his book. I looked at a few examples around when my car was built (1962, so early) and they had flanges, so I went with that style. What's even better: I had bought a set of jack spurs with no flanges and actually sent them back to get the ones with flanges..... embarrassing or anal... you choose

                One question for the experts: how does the inside edge of the jack spur lie against the outer longitudinal? Is is left open as I've done or is it bent down and welded?

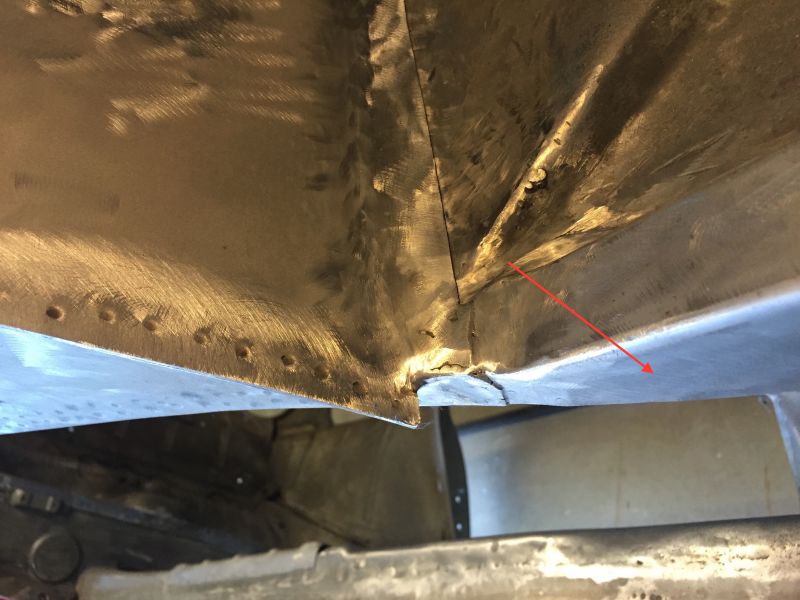

                Click image for larger version

Name:	IMG_4350.jpg
Views:	90
Size:	43.4 KB
ID:	69598


                Cheers,

                John
                jjgpierce@yahoo.com

                Comment


                • Originally posted by John Pierce" post=31008
                  One question for the experts: how does the inside edge of the jack spur lie against the outer longitudinal? Is is left open as I've done or is it bent down and welded?
                  You, good sir, have it right as you show. As our kids say to their kids.."GOOD Jo-b-b-b-b!" Drainage, you know. You put those beautiful Karmann drains in, so to make it look totally "original" you must fill the holes with flakes of rust and crush, twist and otherwise mangle the jack receiver.

                  Seriously, many of the original 'spurs' had a hole drilled up from the bottom on one side of the slanted-ended square tube, usually about 6mm-1/4". Let's see if Jack or anyone else concurs.

                  Bruce
                  PS, I looked in Brett's original "Authenticity" book later and he even has serial numbers for the change in the T-6 spurs....sorta.

                  Comment


                  • You had me worried so I had to check Brett's book. My VIN is 211023, which is well before the 213720/215050 change from flanged to overlap welds!

                    All is right in the world! Or we're just a little crazy worrying about this minutia
                    jjgpierce@yahoo.com

                    Comment


                    • Hi John ...Don't want to hi jack - could you check out my picture on my resto blog..i am confused (again) page 9 - getting to the same point as you just were.. my door pocket shelf structure has me flummoxed !
                      Thanks for all the support.
                      Steve
                      (& Tips and Advice always welcome)

                      Comment


                      • Nice work John, it has come such a long way!
                        Justin Rio

                        Comment


                        • Click image for larger version

Name:	IMG_20731.JPG
Views:	92
Size:	56.7 KB
ID:	69738

                          Click image for larger version

Name:	IMG_20741.JPG
Views:	82
Size:	60.5 KB
ID:	69739

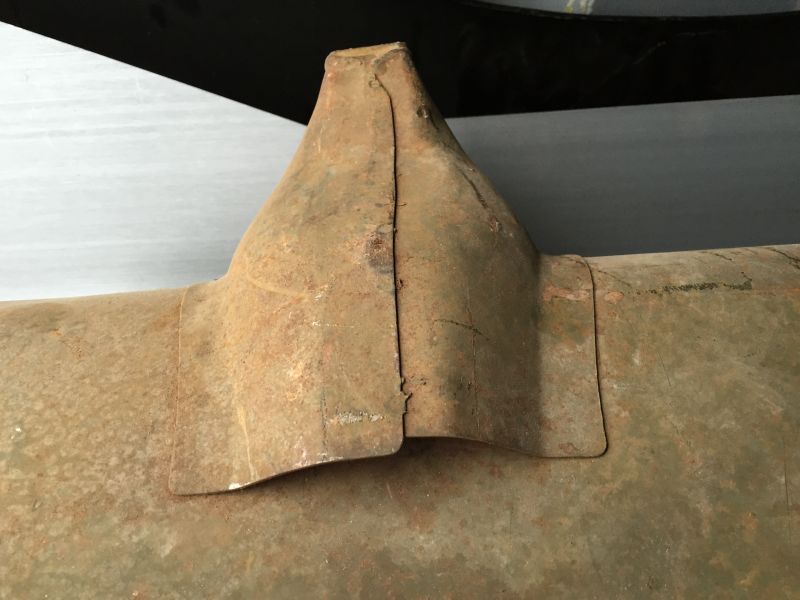

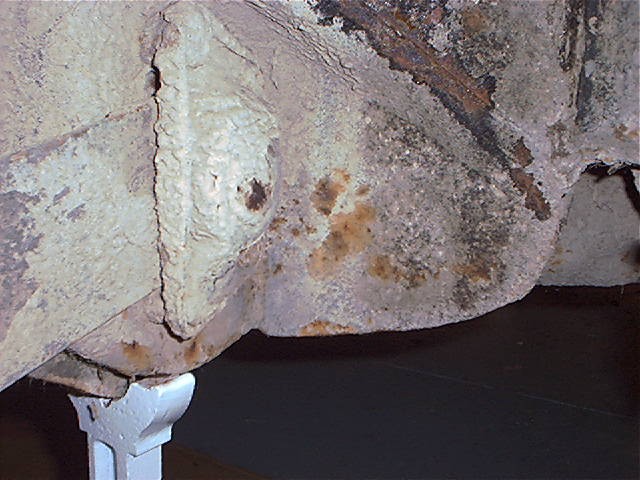

                          Just for the sake of continuity, I tripped over a NOS outer longitudinal and thought I'd take a couple of pictures of the jack receiver. This could, I'd guess, belong on the 'green parts' thread too.

                          Good work guys, keep it up!

                          -Bruce

                          Comment

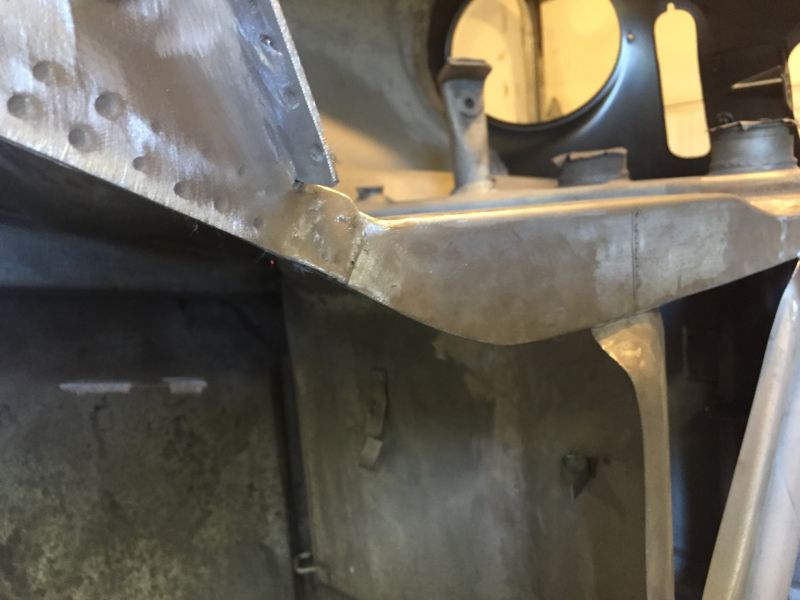

                          • I've been dreading this next part....jumping over to the left side, which has much worse rust and of course, more patch panels than the right. I thought I'd start with the "easier" right side then with the experience built up, go to the left. Time to dig in....


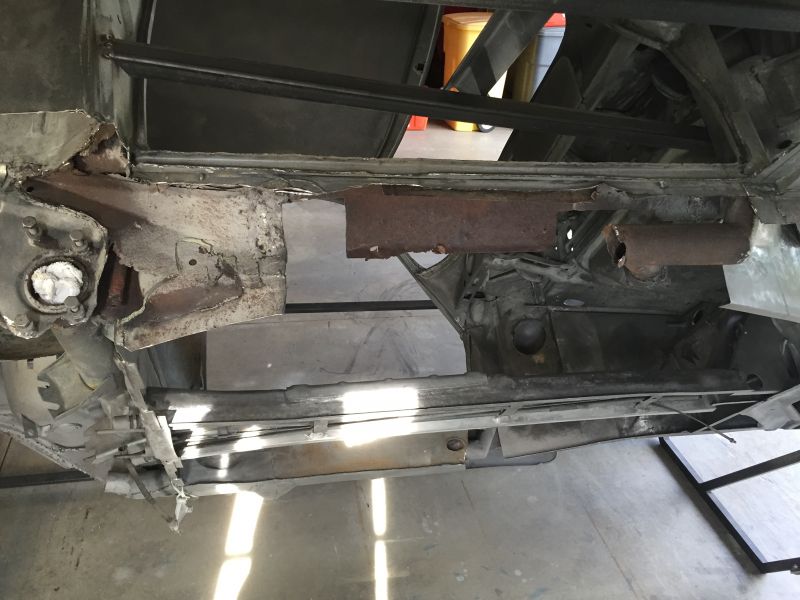

                            Click image for larger version

Name:	1_2015-11-21.jpg
Views:	85
Size:	61.2 KB
ID:	69833

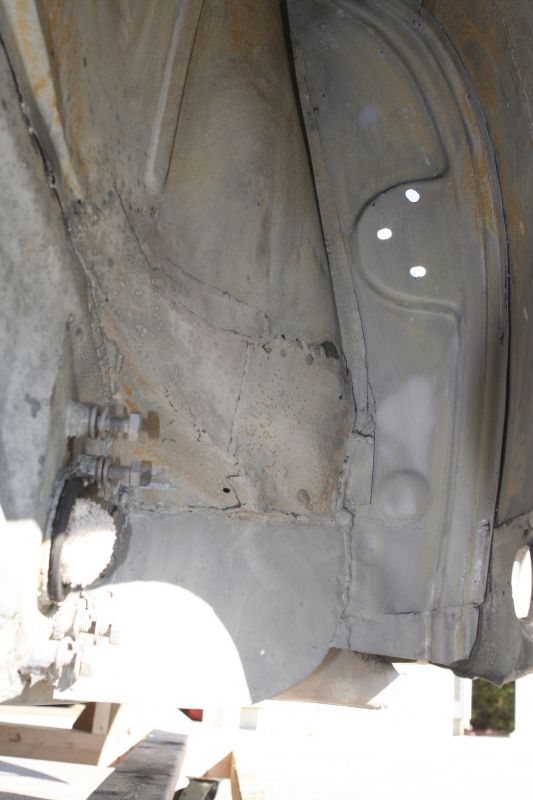

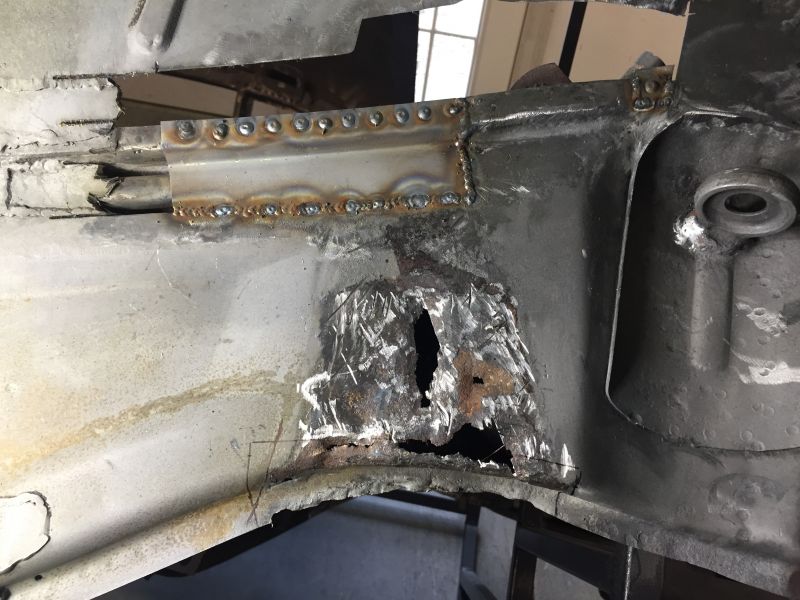

                            This is the mess that I'm dealing with. My previous repairs were from the rear up to the shock mount. Everything forward to this is quite a mess with lots of patches.


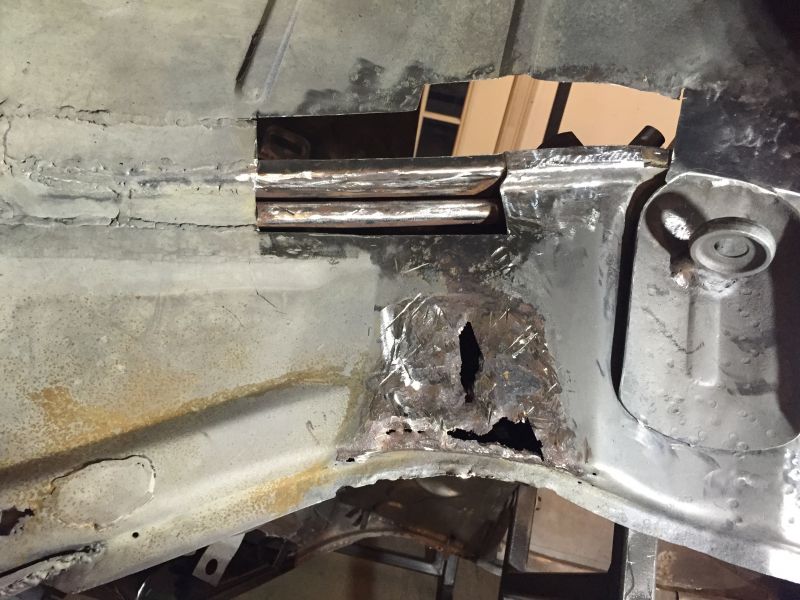

                            Click image for larger version

Name:	3_2015-11-21.jpg
Views:	88
Size:	82.1 KB
ID:	69834

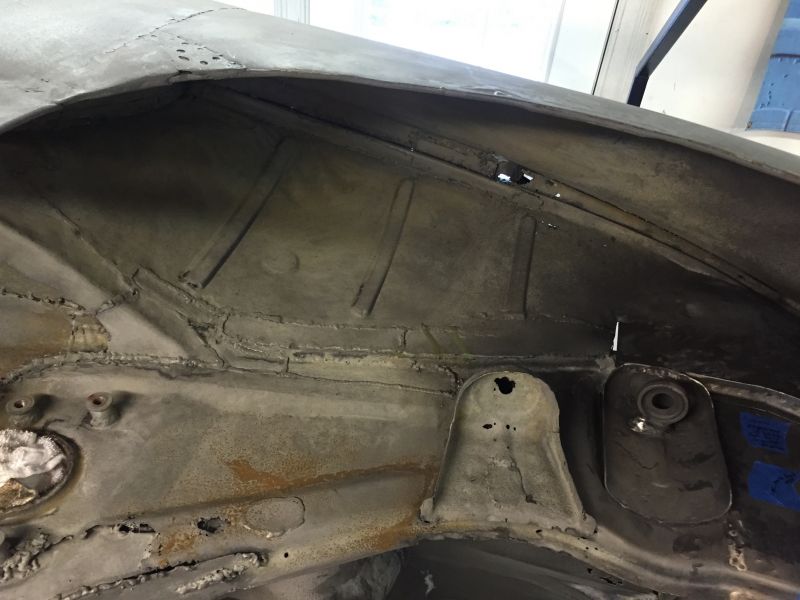

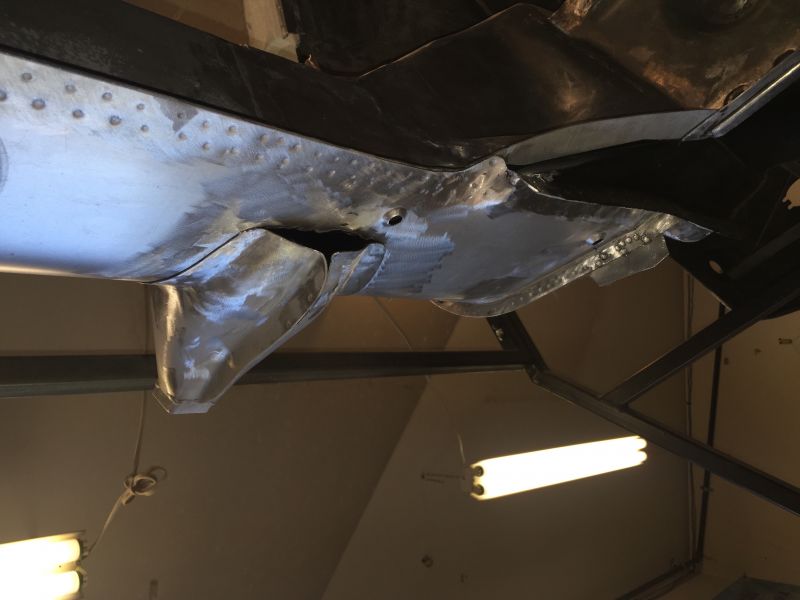

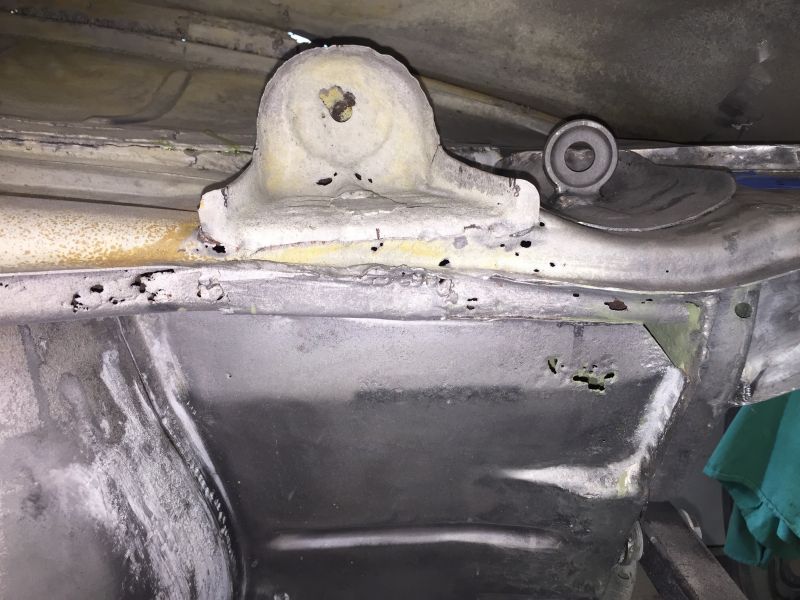

                            Both the inner and outer frames are eaten through, pretty much from top to bottom. The left side of the transmission panel is also thinned and holey. The suspension stop is a goner and I can't wait to see what's underneath it.


                            Click image for larger version

Name:	4_2015-11-21.jpg
Views:	92
Size:	84.3 KB
ID:	69835

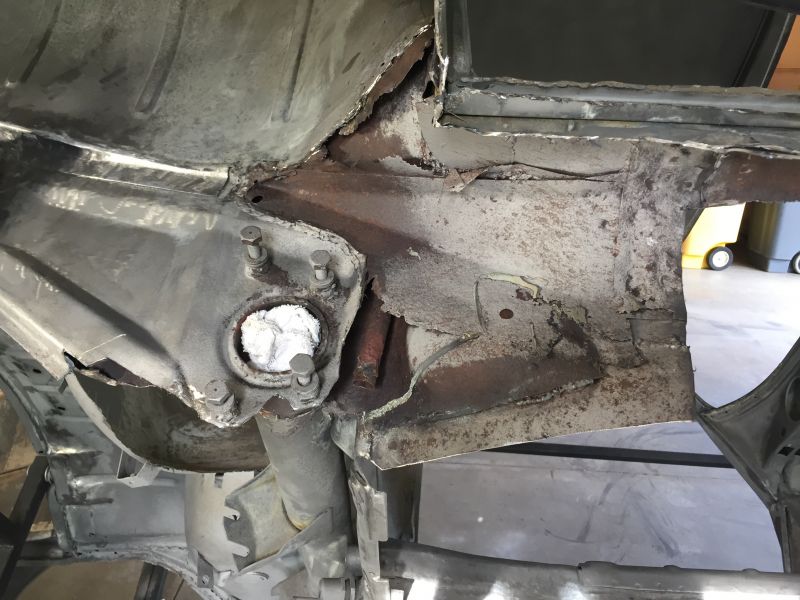

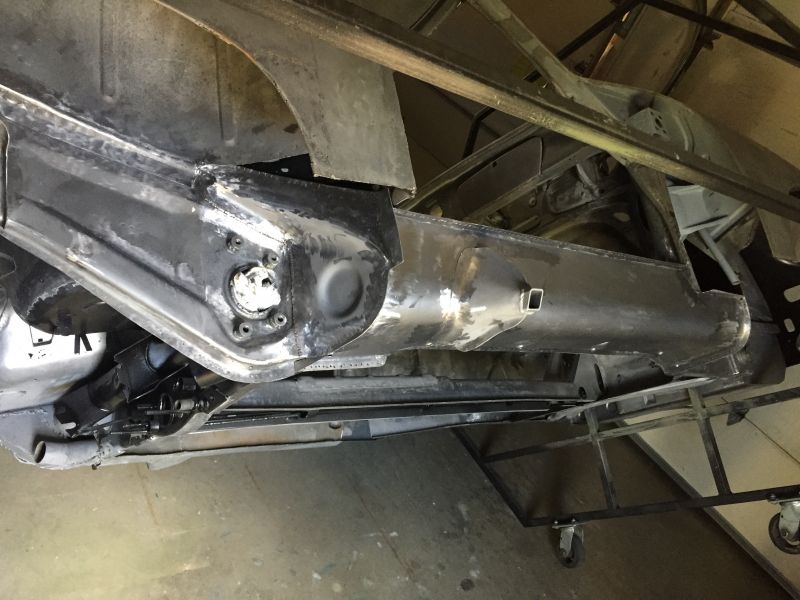

                            To be expected. The suspension stop was a total mess and with water collecting behind over time ate through the metal in a large area. The patches along the inner fender are pretty amazing.


                            Click image for larger version

Name:	5_2015-11-21.jpg
Views:	81
Size:	87.2 KB
ID:	69836

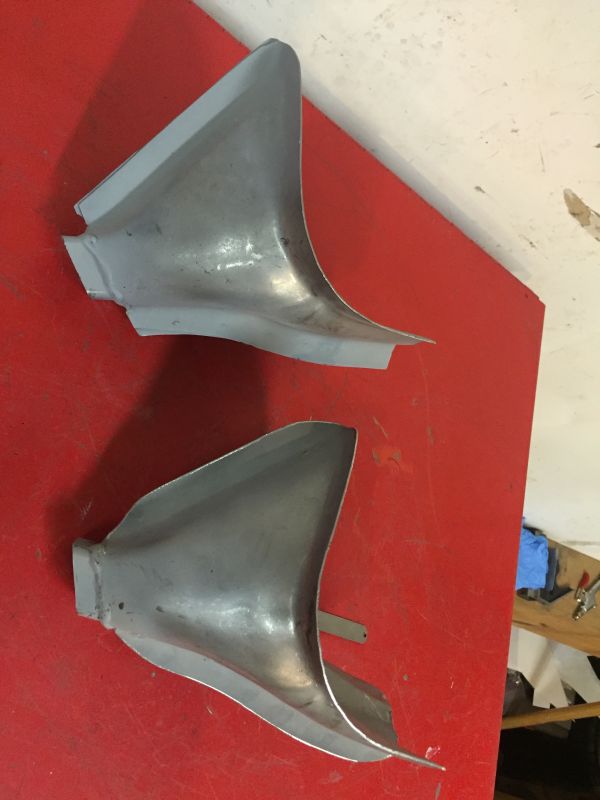

                            Starting to dig in. Removing the patched up areas of the inner fender and frame. I plan to restore it in sections so not to lose any remaining landmarks.


                            Click image for larger version

Name:	6_2015-11-21.jpg
Views:	84
Size:	83.8 KB
ID:	69837

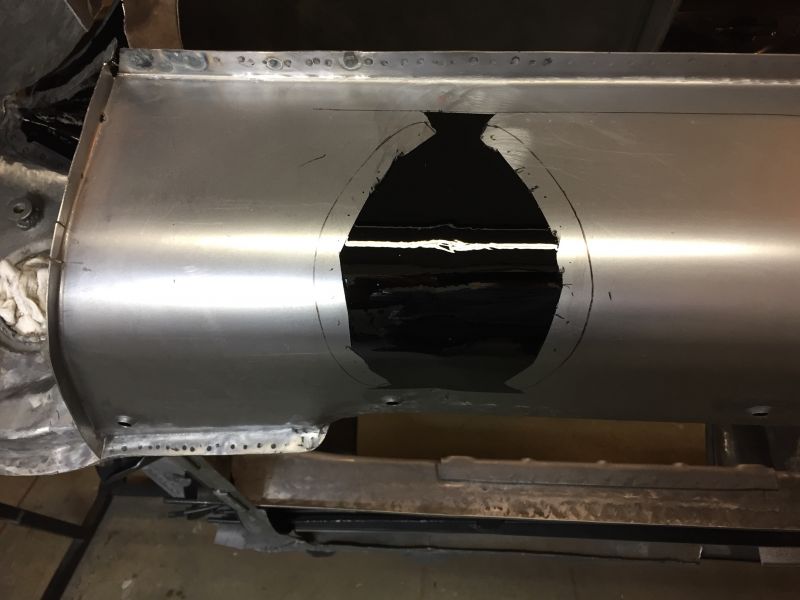

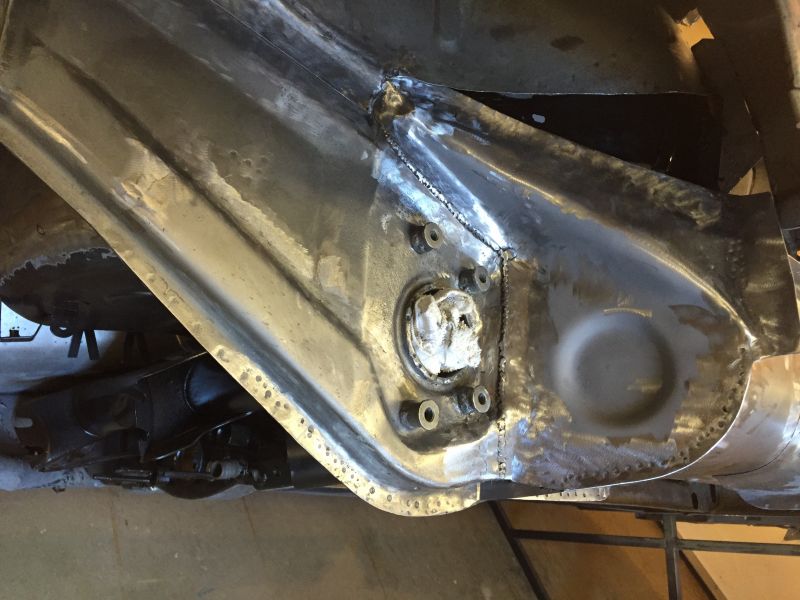

                            First repairs are to the rotted out portions of the outer frame. Bending 16 gauge metal is lots of fun.

                            Next will be the bottom of the inner and outer frames. Pretty complex curves here.

                            Thanks for following.

                            John
                            jjgpierce@yahoo.com

                            Comment


                            • John, nice work mate, you've a bit to keep you busy there. The patches on your inner guard look like what is on mine, the sad thing being that they are what I have done when I started a year or so go. Not up to standard, so will need to be redone. My current plan is to make and replace the entire inner guard. Have just bought an English Wheel to help eith that task.

                              Luckily (for me) my frame rails seem to be in better nick than yours. Where did your car come from again? Hell?

                              Keep up the great work , John, thanks for sharing,

                              Jonesy

                              Comment
