  • Damn, your flying now. The alignments look great: it took lots of work to get there. These details are great and your are not creating any boredom.
    jjgpierce@yahoo.com

    Comment


    • Thanks again John Appreciate that confirmation! I don't know about "flying along" but am crawling at a constant pace.

      11/5/14

      Click image for larger version

Name:	Achassis2463.JPG
Views:	66
Size:	59.4 KB
ID:	51894

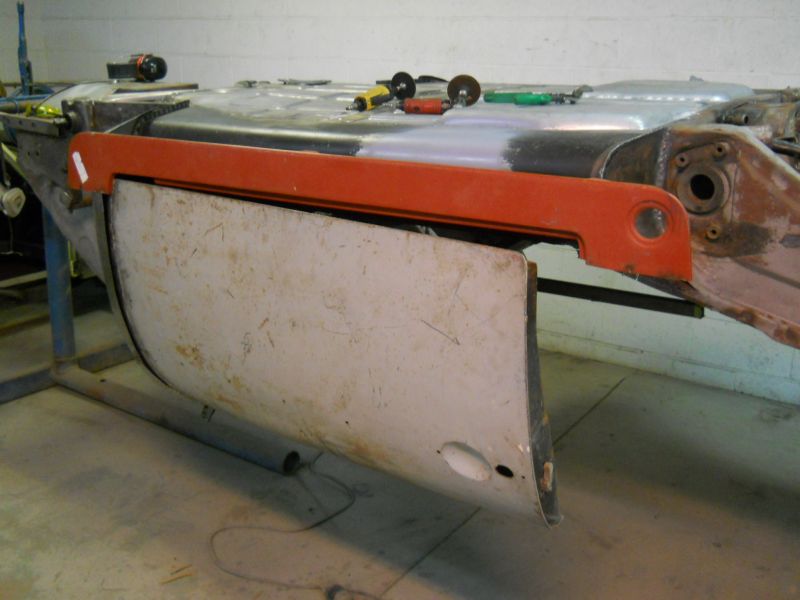

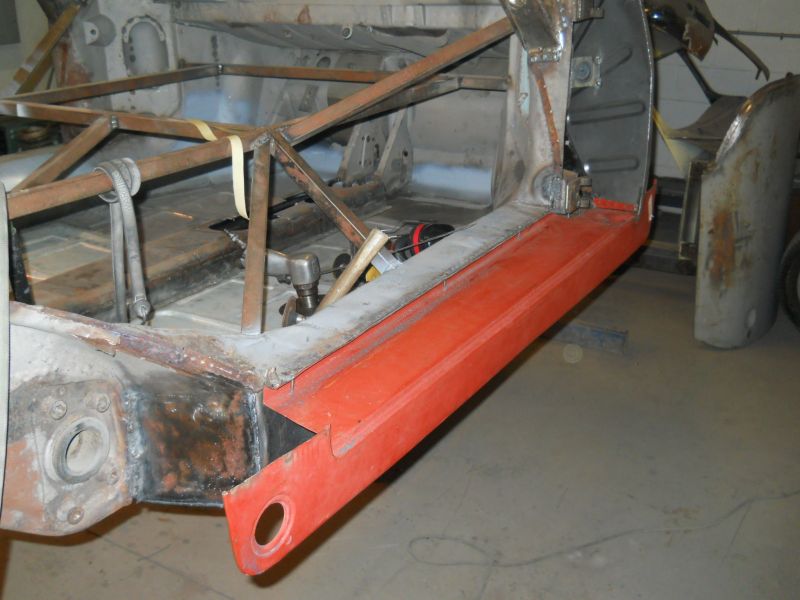

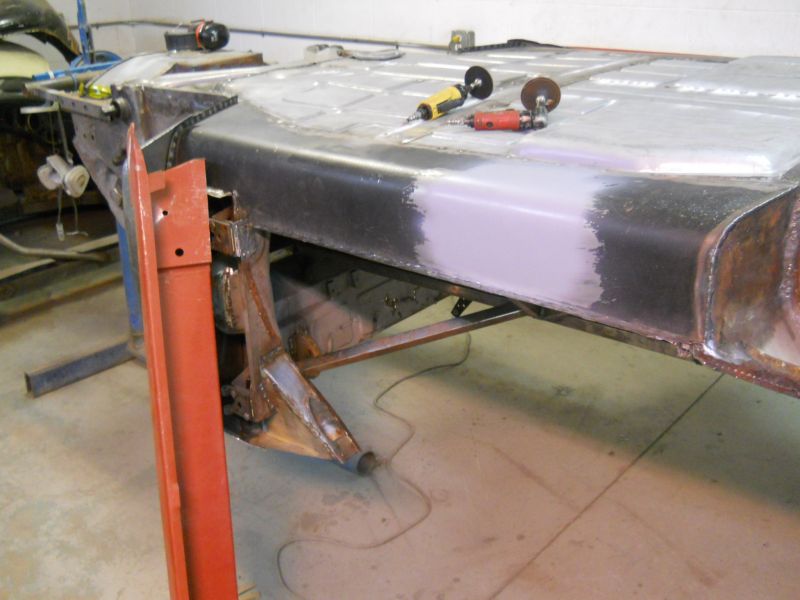

      Right side rocker fitment begins
      Click image for larger version

Name:	Achassis2464.JPG
Views:	73
Size:	52.6 KB
ID:	51895

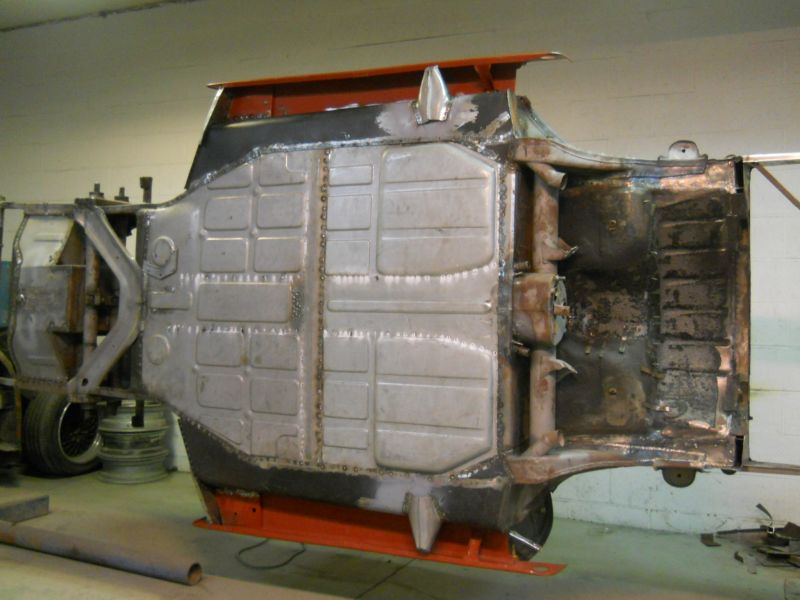

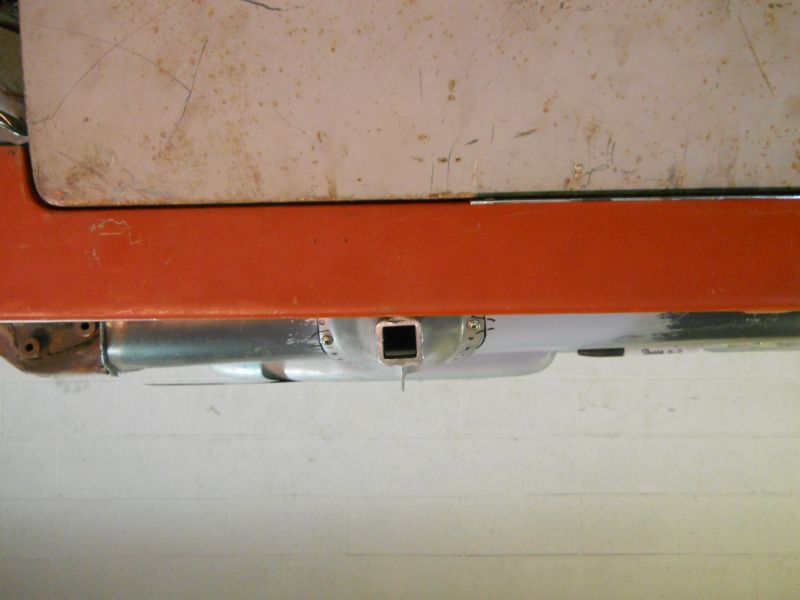

      Doing the rough and basic fitment upside down because I have more room to work here than right side up against the wall. I'll do all the fine tuning upright where it belongs.

      Rusty tubs sent me a quick preview of the new speedster dash he is now stocking.
      Click image for larger version

Name:	IMG_1887.JPG
Views:	78
Size:	109.1 KB
ID:	51896

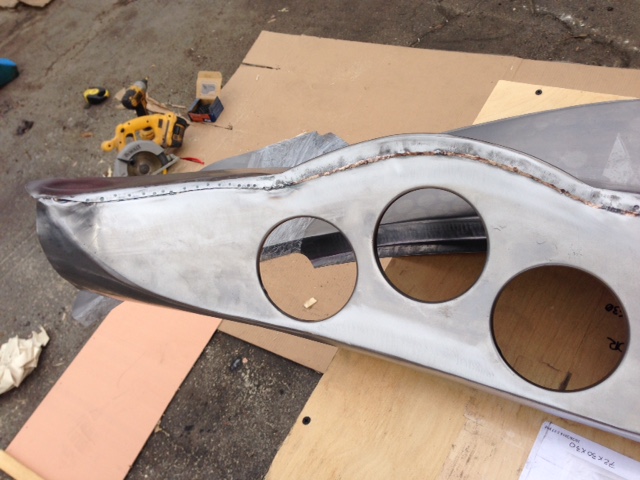

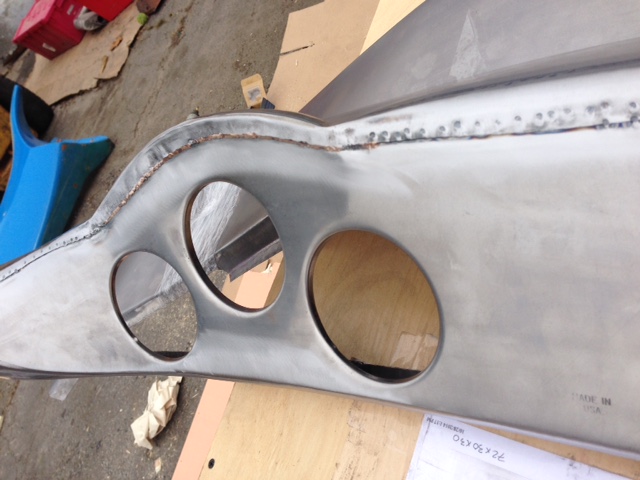

      gauge cluster and corners look pretty good.
      Click image for larger version

Name:	IMG_1888.JPG
Views:	68
Size:	96.7 KB
ID:	51897

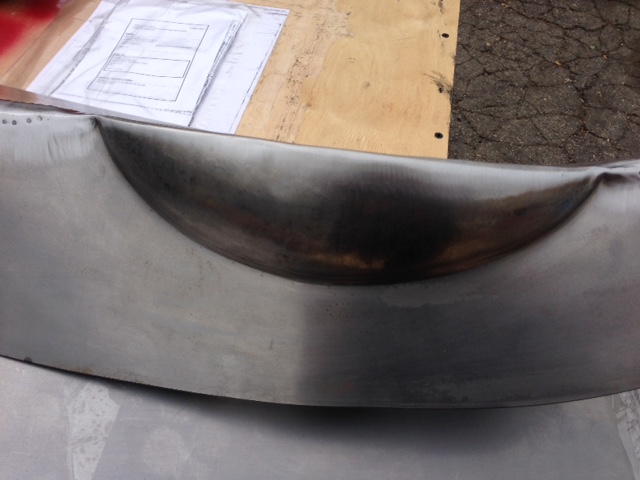

      Correct overlapping dash top flange to face.
      Click image for larger version

Name:	IMG_1889.JPG
Views:	71
Size:	82.0 KB
ID:	51898
      Again corners look good but will have a better idea once ours gets here.
      Click image for larger version

Name:	IMG_1890.JPG
Views:	76
Size:	79.5 KB
ID:	51899
      Dash assembly is the correct three piece unit with separate front cowl unlike the roadster or Convertible D dash assemblies which went to one piece construction.
      Click image for larger version

Name:	IMG_1891.JPG
Views:	67
Size:	86.0 KB
ID:	51900
      Wider and larger gauge relief also correct versus the narrower and smaller Roadster version. Just a quick peek at what's coming up next; can't wait until it gets here. Thanks for stopping by! Justin
      Justin Rio

      Comment


      • 11/6/14
        Right rocker fitment continued.

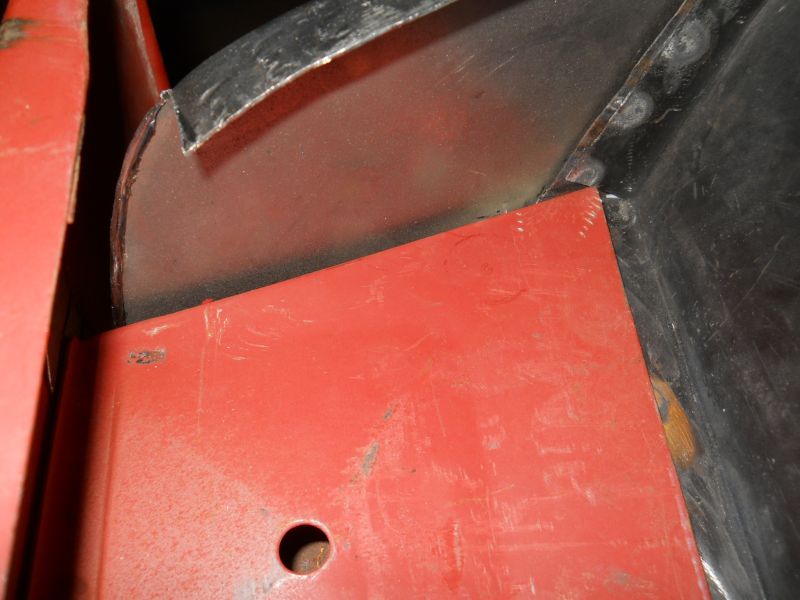

        Click image for larger version

Name:	Achassis2466.JPG
Views:	72
Size:	60.0 KB
ID:	51995
        Unlike the left side I'm have the opposite problem with this drain pan. To align with the door the rocker needs to slide forward a few MM's more. As you can see the inner corner is touching the forward longitudinal flange. The approach angle of the bend is also off creating a gap.
        Click image for larger version

Name:	Achassis2468.JPG
Views:	71
Size:	40.4 KB
ID:	51996

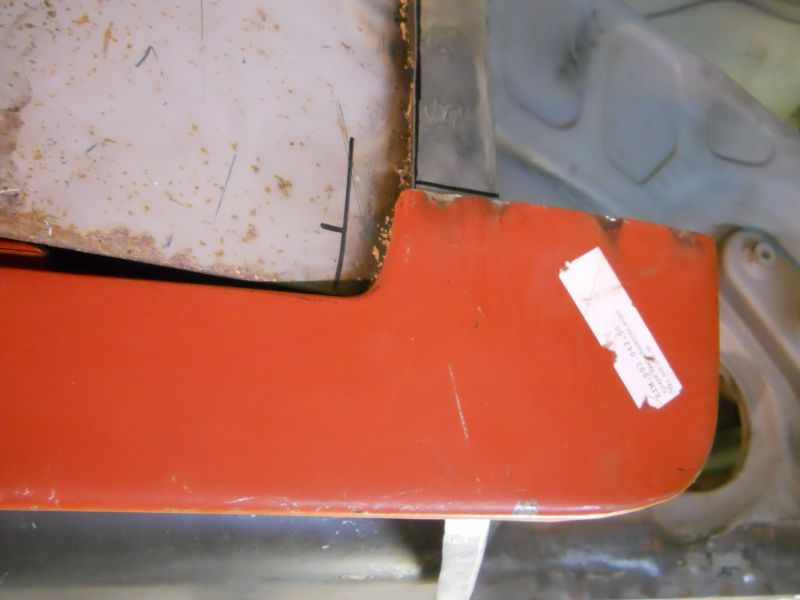

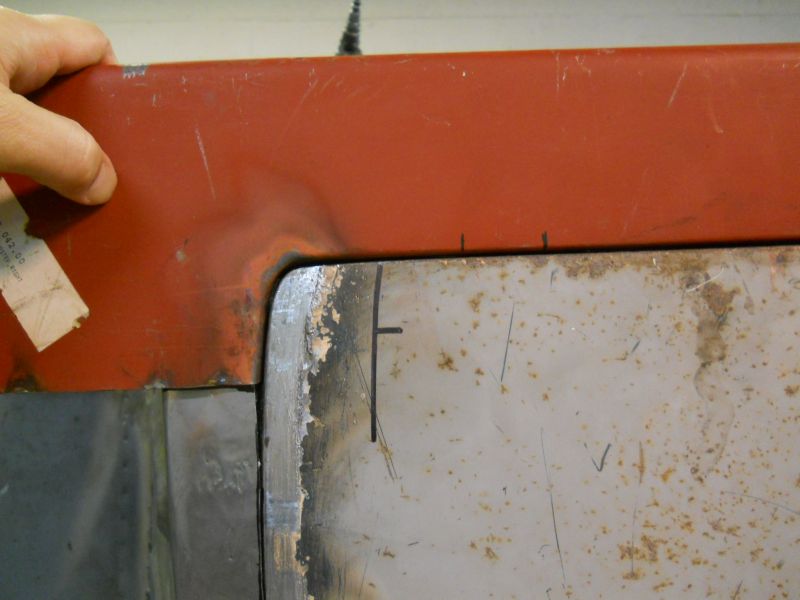

        With that forward drain pan bottomed out here is where rocker is sitting in relation to the door.
        Click image for larger version

Name:	Achassis2469.JPG
Views:	72
Size:	43.7 KB
ID:	51997
        New bend line will take up the excess length allowing it to come forward and change the approach angle for a flush fit.
        Click image for larger version

Name:	Achassis2470.JPG
Views:	63
Size:	74.3 KB
ID:	51998
        Rebent here.

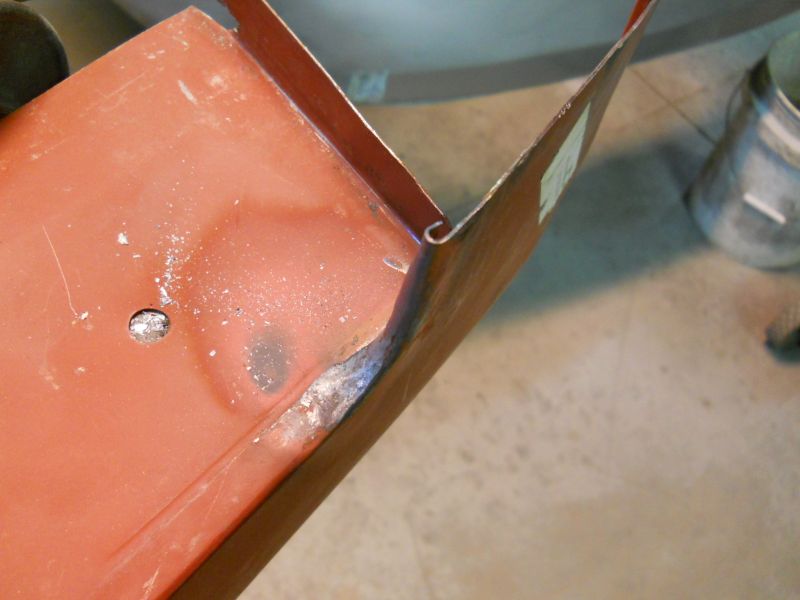

        Click image for larger version

Name:	Achassis2471.JPG
Views:	64
Size:	58.8 KB
ID:	51999

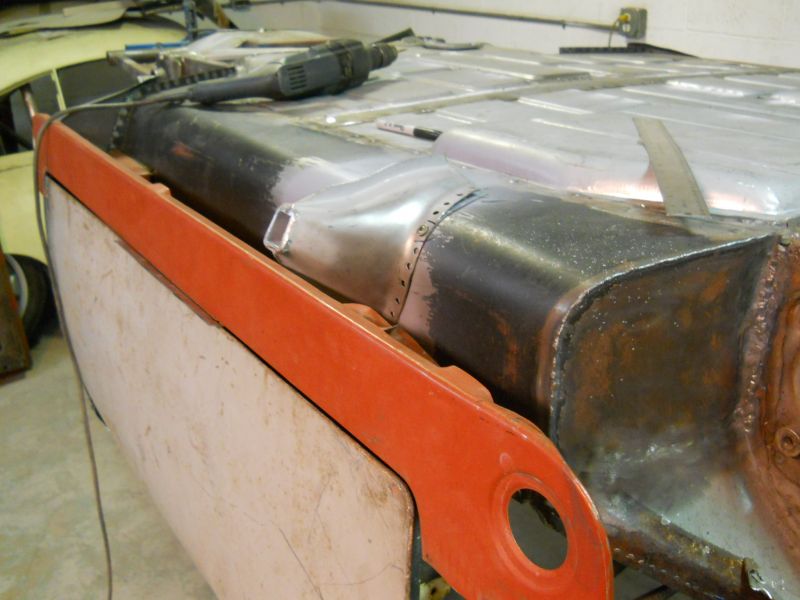

        Much better fit against the back of the splash pan while also allowing further forward rocker placement.
        Click image for larger version

Name:	Achassis2475.JPG
Views:	65
Size:	51.1 KB
ID:	52000
        Splash will again need a bit of adding and recontouring once I get the rocker into final position.
        Click image for larger version

Name:	Achassis2476.JPG
Views:	63
Size:	45.1 KB
ID:	52001

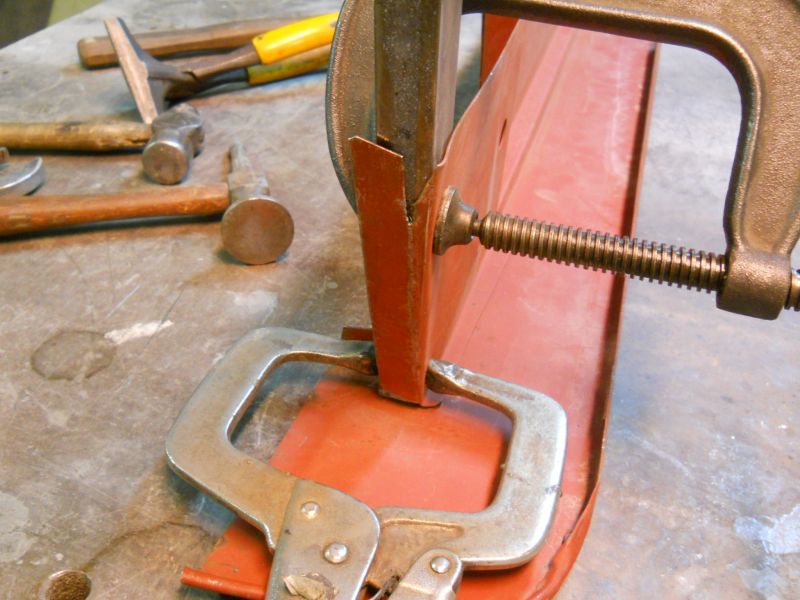

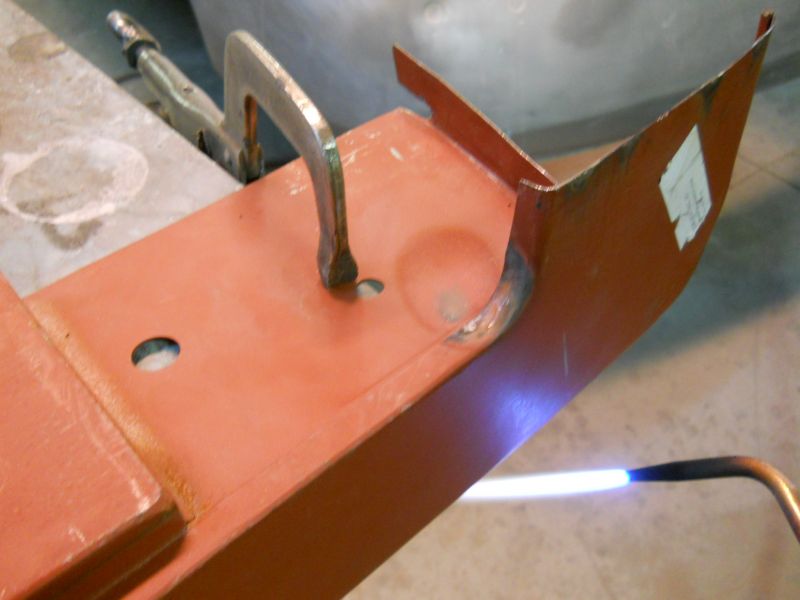

        Still needed more corner clearance so I began heating and tightening up the flange.
        Click image for larger version

Name:	Achassis2477.JPG
Views:	60
Size:	49.4 KB
ID:	52002
        Its better but I still need more.
        Click image for larger version

Name:	Achassis2478.JPG
Views:	73
Size:	47.4 KB
ID:	52003

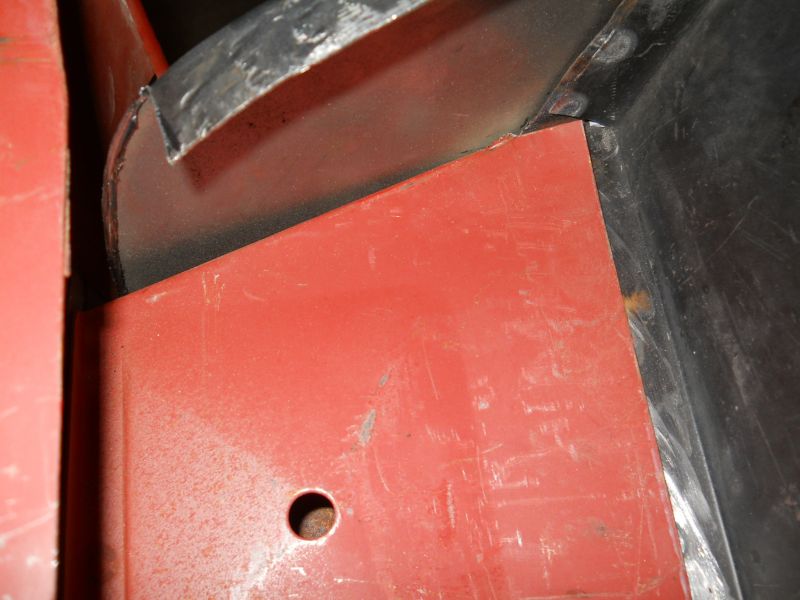

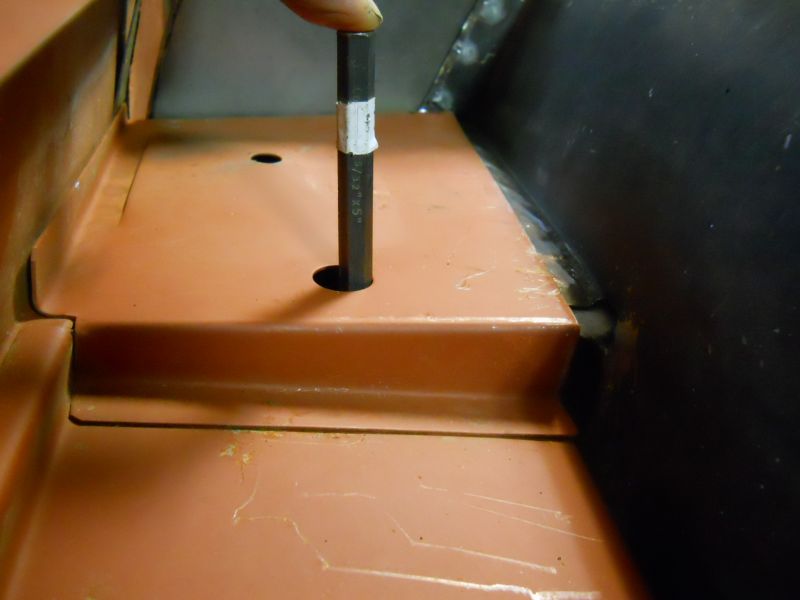

        Moving the rocker further forward was the first thought but after checking the alignment of the rest of it I think its in the sweet spot now. Torsion hole lines up nice.
        Click image for larger version

Name:	Achassis2480.JPG
Views:	68
Size:	35.9 KB
ID:	52004

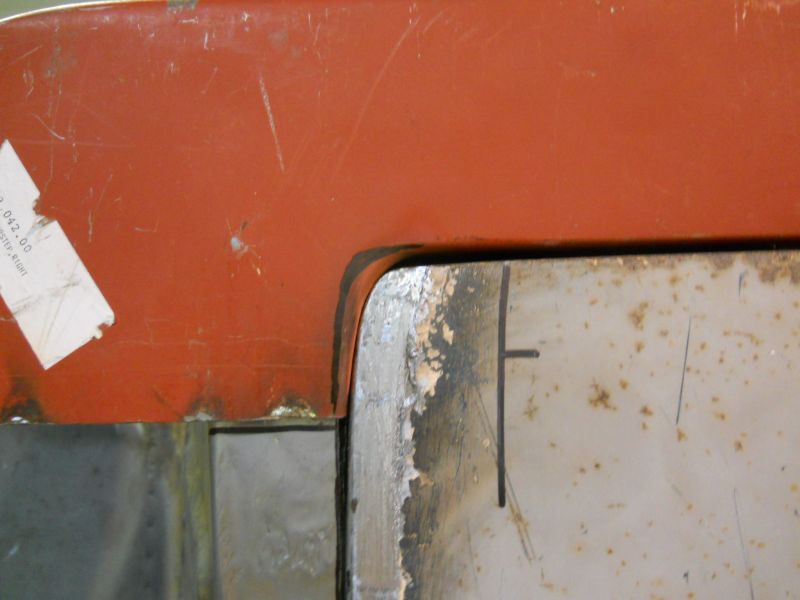

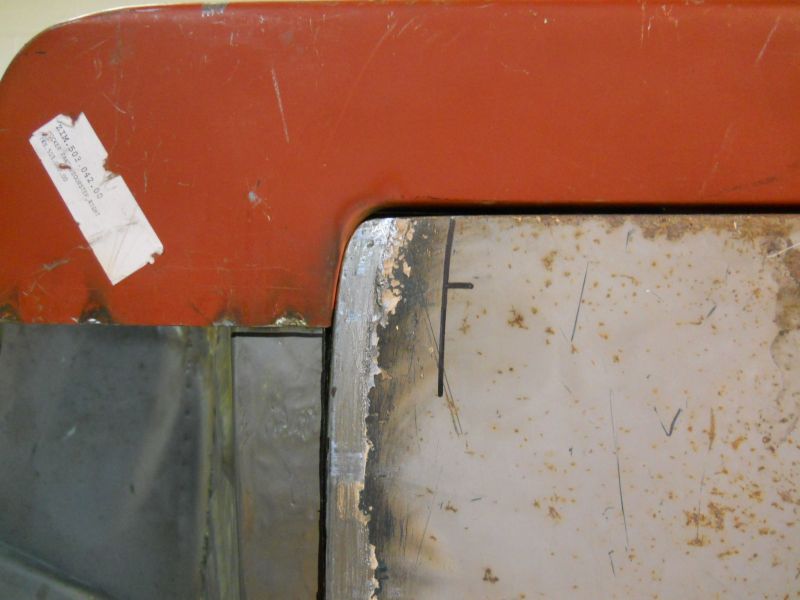

        hinge pin access hole now fits about as well as the left side.
        Click image for larger version

Name:	Achassis2481.JPG
Views:	67
Size:	44.6 KB
ID:	52005
        With all of that considered this panel is pretty much set. I'll have to recontour the corner to fit the door. I think I can heat and spoon it over without cutting but we'll see. Working on that next. Thanks for looking! Justin
        Justin Rio

        Comment


        • 11/8/14
          Finishing up Right Rocker fitment and prepping jack spur
          Click image for larger version

Name:	Achassis2484.JPG
Views:	67
Size:	41.5 KB
ID:	52064

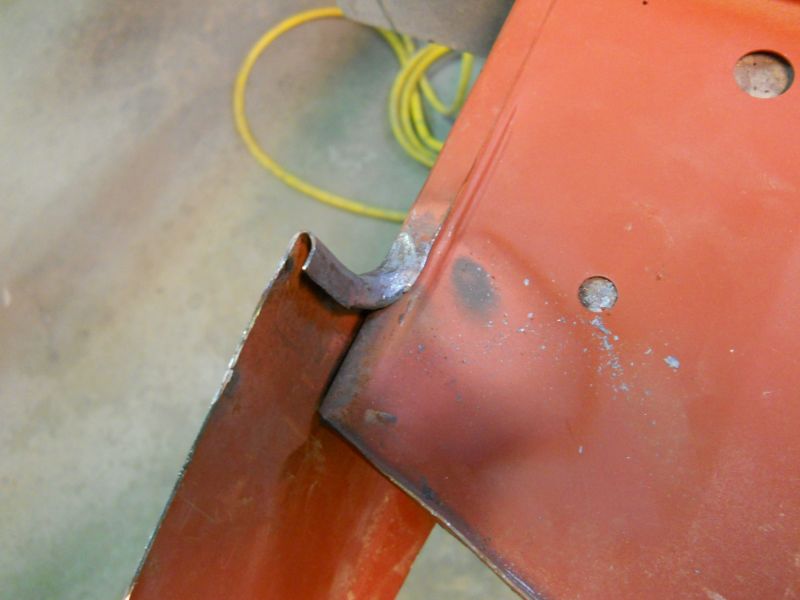

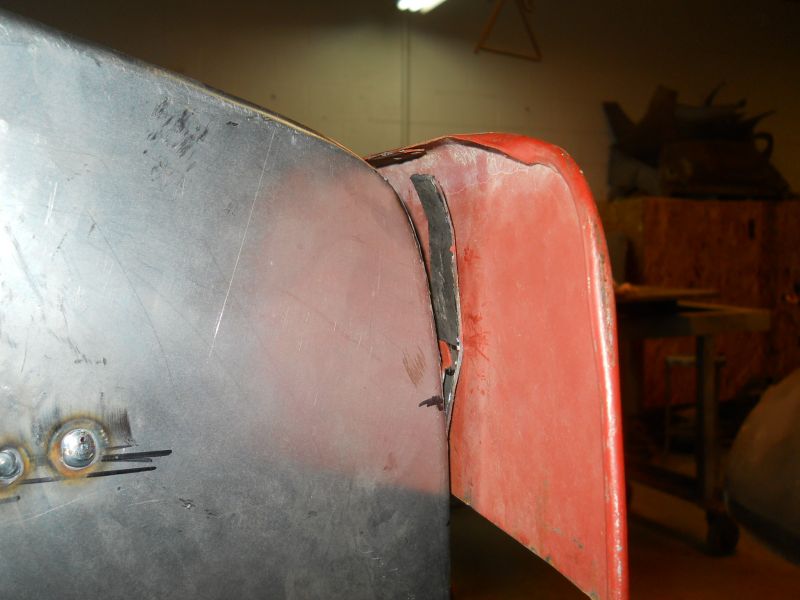

          Front corner now shaped for door clearance after several rounds of heat and hammering.
          Click image for larger version

Name:	Achassis2486.JPG
Views:	63
Size:	47.1 KB
ID:	52065
          Ready for another test fit. Glad it didn't require cutting and welding to get here.
          Click image for larger version

Name:	Achassis2482.JPG
Views:	65
Size:	49.1 KB
ID:	52066
          Its about there. Some fine tuning of course but I at least have some door clearance now.
          Click image for larger version

Name:	Achassis2483.JPG
Views:	69
Size:	56.9 KB
ID:	52067

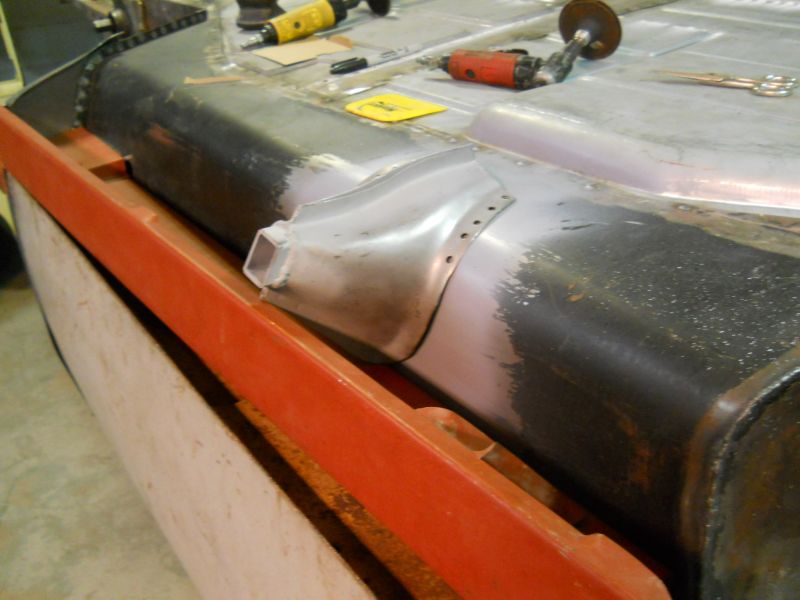

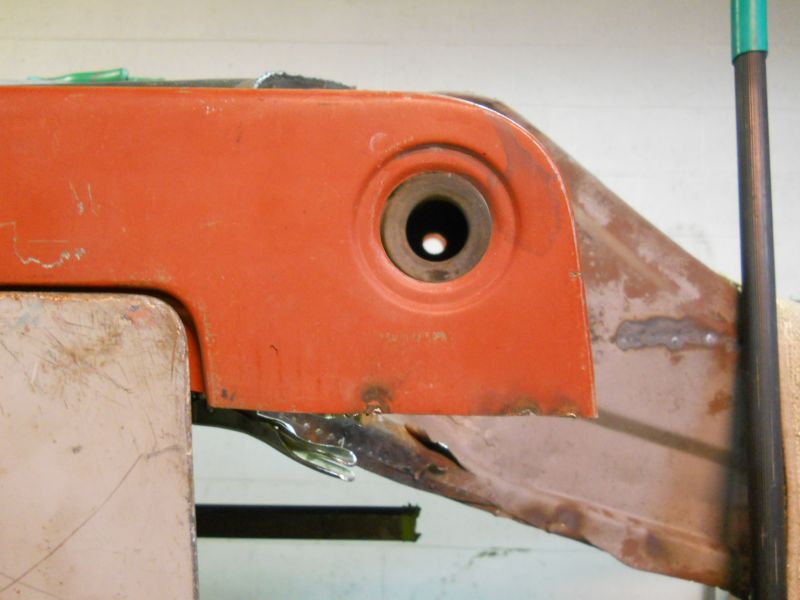

          With the rocker just about ready to install prepping and mounting the spur was next.
          Click image for larger version

Name:	Achassis2487.JPG
Views:	74
Size:	61.4 KB
ID:	52068

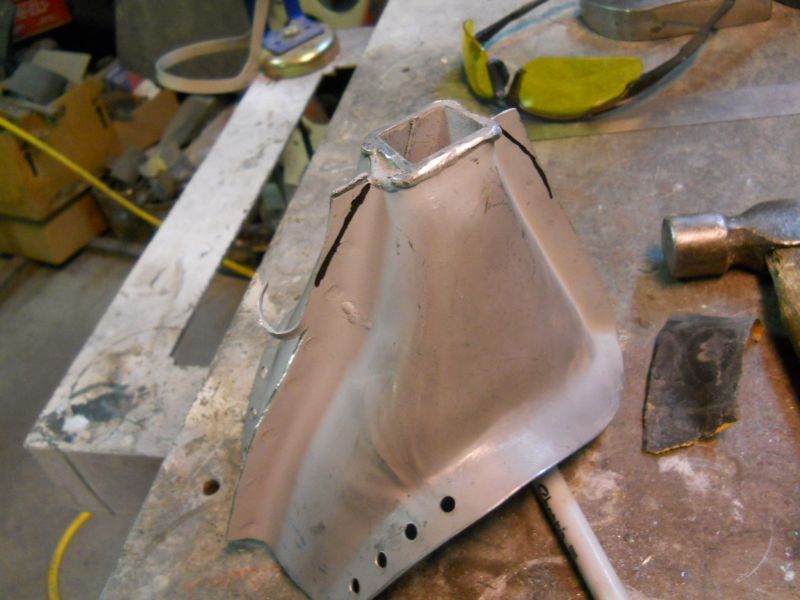

          Same treatment as with the left side: Snout trimmed back to the seam weld and both top and bottom flanges tapered and profiled.
          Click image for larger version

Name:	Achassis2489.JPG
Views:	67
Size:	62.0 KB
ID:	52069

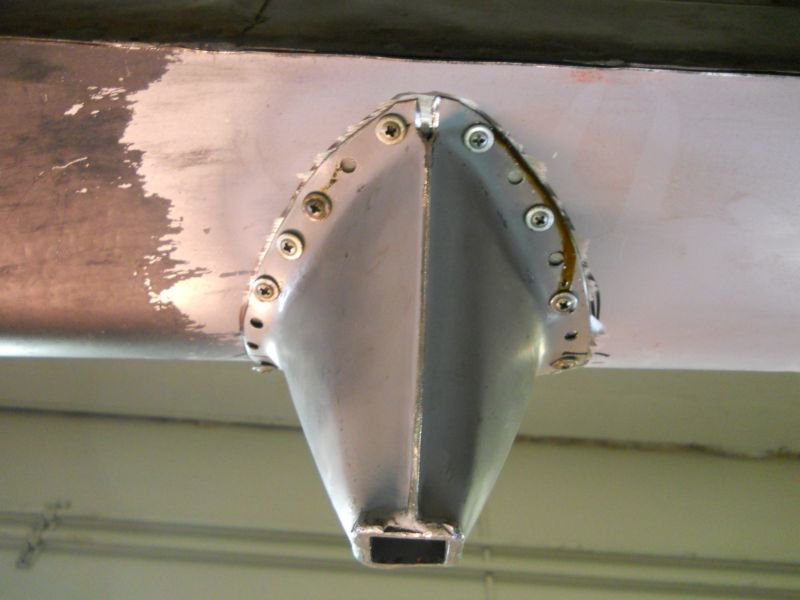

          Fine shaping complete and now mounted into position with the first pair of set screws.
          Click image for larger version

Name:	Achassis2488.JPG
Views:	60
Size:	40.6 KB
ID:	52070
          All three components gapped and set in relation to one another. They're ready to go.

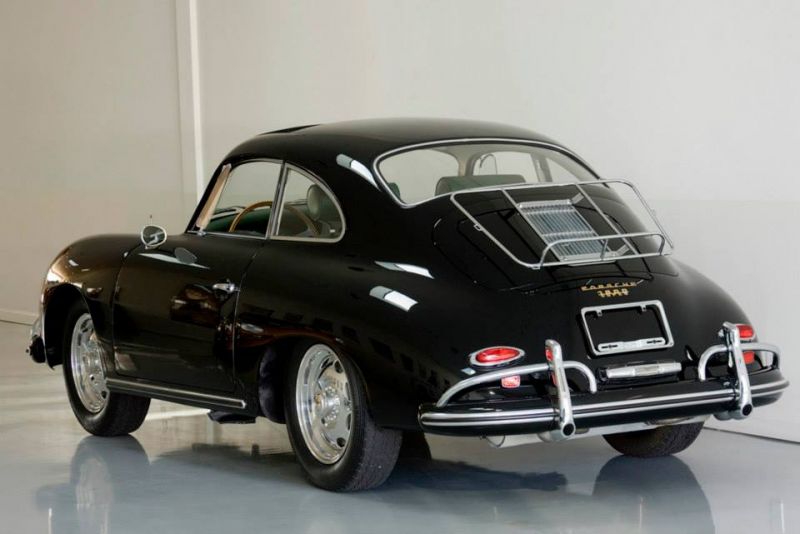

          Click image for larger version

Name:	aaaaaaaaa1157.jpg
Views:	70
Size:	47.2 KB
ID:	52072

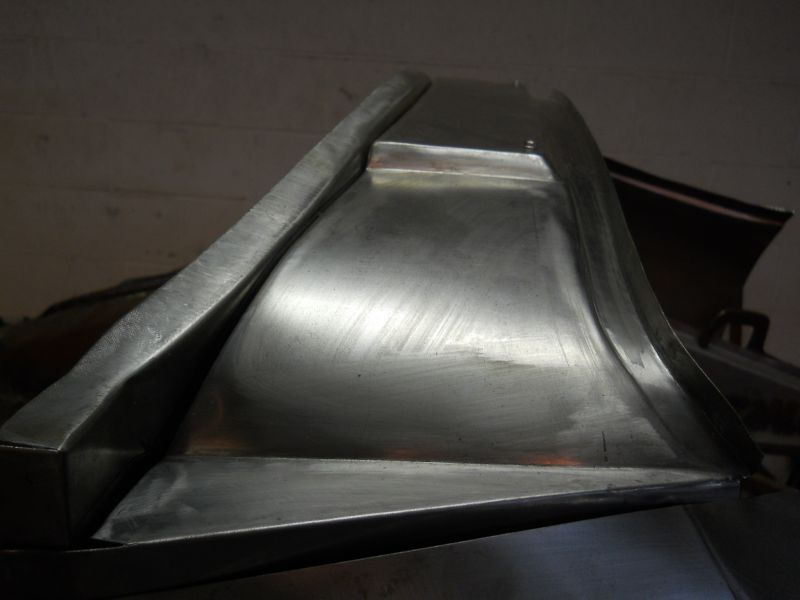

          Some guys might think I'm overdoing it by going the extra mile shaping and carefully positioning the new spurs; who cares its on the bottom it just has to be close. I saw this restored coupe with its new (raw) unrefined spurs hanging just a touch low. They stick out like sore thumbs drawing attention away from the lines of the car. At least in my eyes.
          Click image for larger version

Name:	Achassis2490.JPG
Views:	60
Size:	44.2 KB
ID:	52071
          Ready to begin plug-welding tomorrow. Thanks for stopping by! Justin
          Justin Rio

          Comment


          • Great job on the spurs. If not done correctly they do look out of place. The thing I hate the most is when you can see sanding marks in the rain gutter on the roof drives me crazy....
            52 split window
            62 T-6 cab

            Comment


            • Thanks Tony! Agree, that is an area that is often overlooked. I've seen several nicely restored cars in which that small run was not finished thoroughly.

              11/15/14

              Rockers in!
              Wasn't really able to update this thread for the last couple of days while prepping this right rocker as it just would have been a repeat of the left side install.

              Click image for larger version

Name:	Achassis2520.JPG
Views:	65
Size:	47.2 KB
ID:	52421

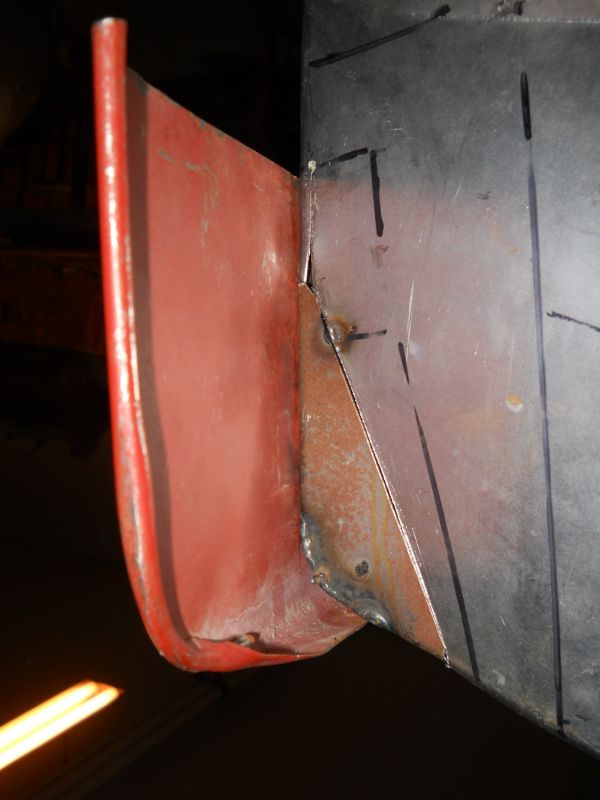

              Corner of the splash-pan was redone like the other side.

              Click image for larger version

Name:	Achassis2532.JPG
Views:	54
Size:	49.7 KB
ID:	52417

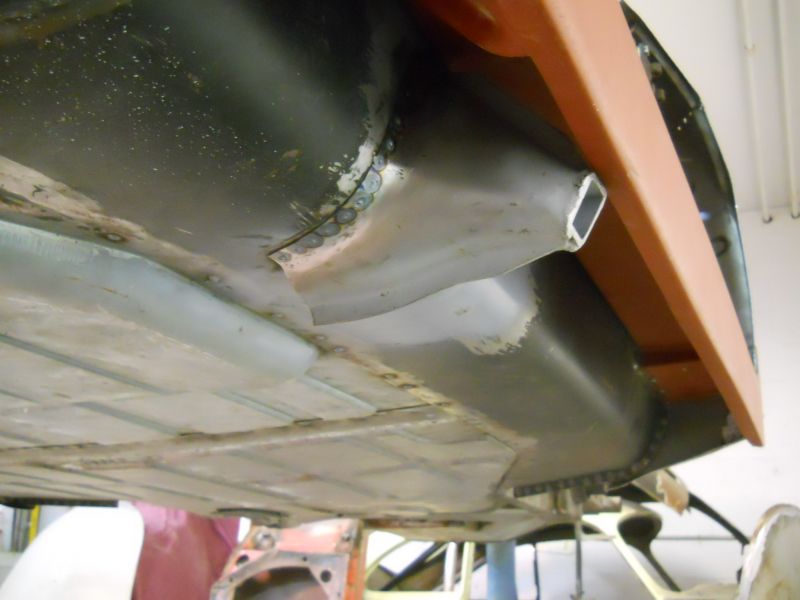

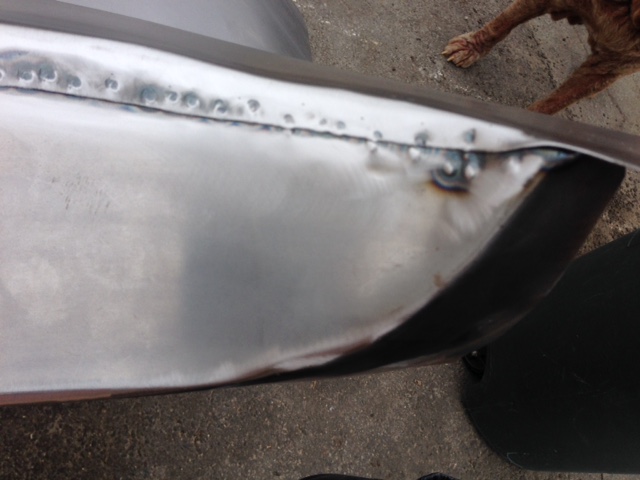

              Spur finished here with spot-weld detail.
              Click image for larger version

Name:	Achassis2530.JPG
Views:	61
Size:	65.2 KB
ID:	52418
              At long last all the prep-work was complete and the rocker was installed for a final time and ready to weld.
              Click image for larger version

Name:	Achassis2526.JPG
Views:	57
Size:	67.1 KB
ID:	52419

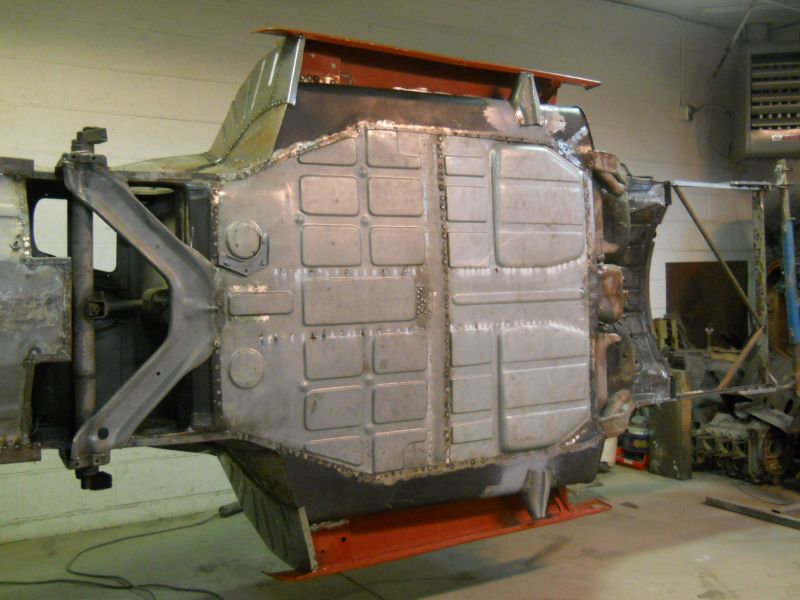

              Rockers and spurs finally complete.
              Click image for larger version

Name:	Achassis2527.JPG
Views:	65
Size:	63.0 KB
ID:	52420
              I am now waiting on the new dash and the rear substructure to get here. In the mean time I'll finish up a few mount details on the floor.
              Thanks for looking! Justin
              Justin Rio

              Comment


              • Wow Justin,
                Allmost a whole Porsche from this angle
                I really like your "KIT-CAR" thread and looking forward to the shinny glossy 360 degress picture coming year 201X
                JOP

                Comment

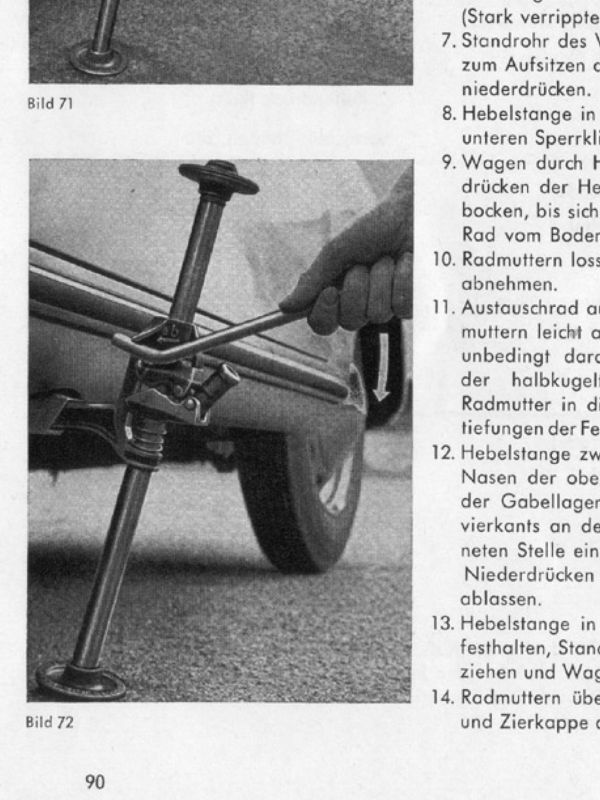

                • Hmm, I never look at spurs before it got a HOT topic in your tread..... I was just looking in a B model drivers instruction book and saw this photo..... That the spur was so nicely "cut" around.
                  It sure is a OLD picture to have in a new B series book..... I looked again and saw my mistake...it a earlier 356
                  Click image for larger version

Name:	image_2014-11-16-3.jpg
Views:	61
Size:	83.7 KB
ID:	52456
                  JOP

                  Comment


                  • Thanks Per, Yes, you caught it that's a Pre-A car/rocker in the example photo.
                    Justin Rio

                    Comment


                    • 11/19/14

                      Install Pedal mounts/brackets

                      While I wait on the new rear speedster substructer and the dash I am keeping myself busy tying up more loose ends on the frame.
                      Click image for larger version

Name:	Achassis2533.JPG
Views:	61
Size:	46.2 KB
ID:	52603

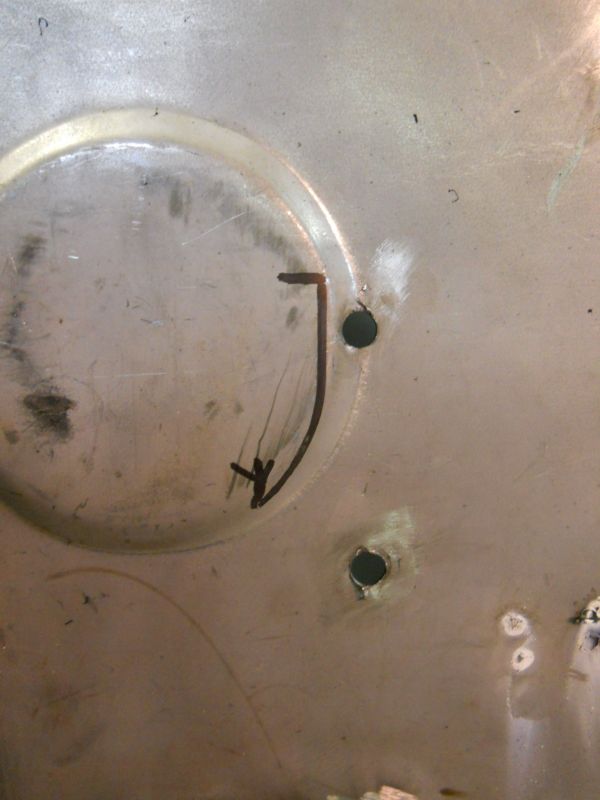

                      To mount the pedal bracket flush required the rear portion of this embossment to be hammered flat.
                      Click image for larger version

Name:	Achassis2534.JPG
Views:	59
Size:	47.6 KB
ID:	52604

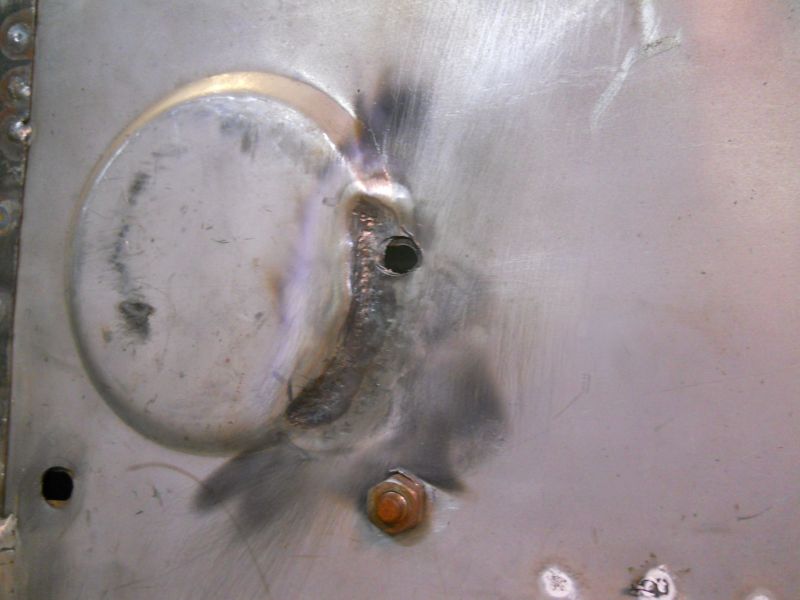

                      Several rounds of heat and hammering eventually gave me the clearance I needed. Trickiest part mounting a heavy back up anvil dolly to the other side so I could work this area; too far to get my arms around.
                      Click image for larger version

Name:	Achassis2536.JPG
Views:	62
Size:	60.1 KB
ID:	52605

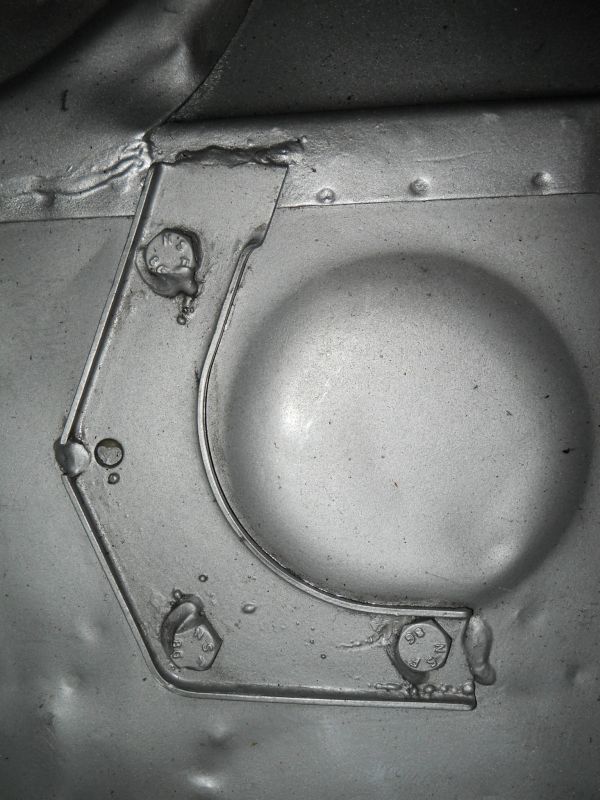

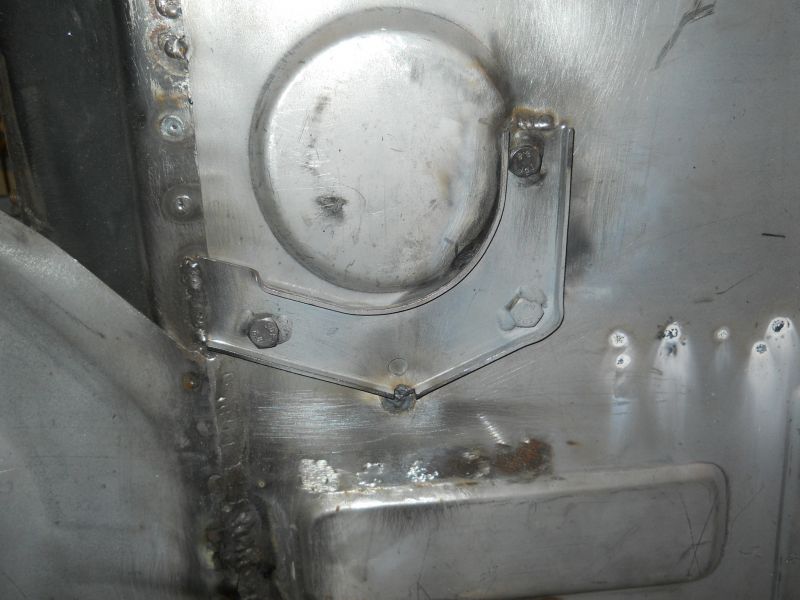

                      New bracket installed and welded in as it was done originally. You can see at the cups edge I peeled it back a bit too far.
                      Click image for larger version

Name:	Achassis2543.JPG
Views:	58
Size:	57.9 KB
ID:	52606

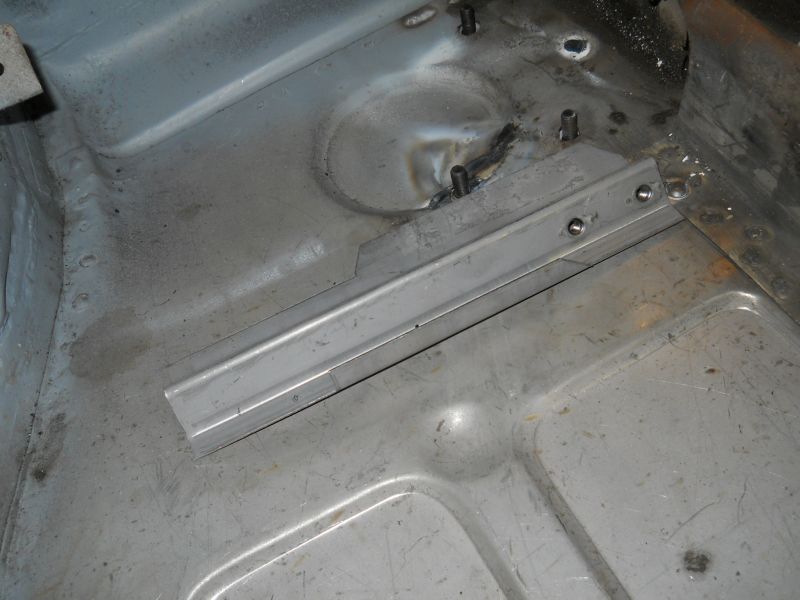

                      Once it was in I reheated the other side and hammered the edge back out to follow the brackets contour more closely. The brackets shoulder became the hammer form.
                      Click image for larger version

Name:	Achassis983.JPG
Views:	57
Size:	79.3 KB
ID:	52607

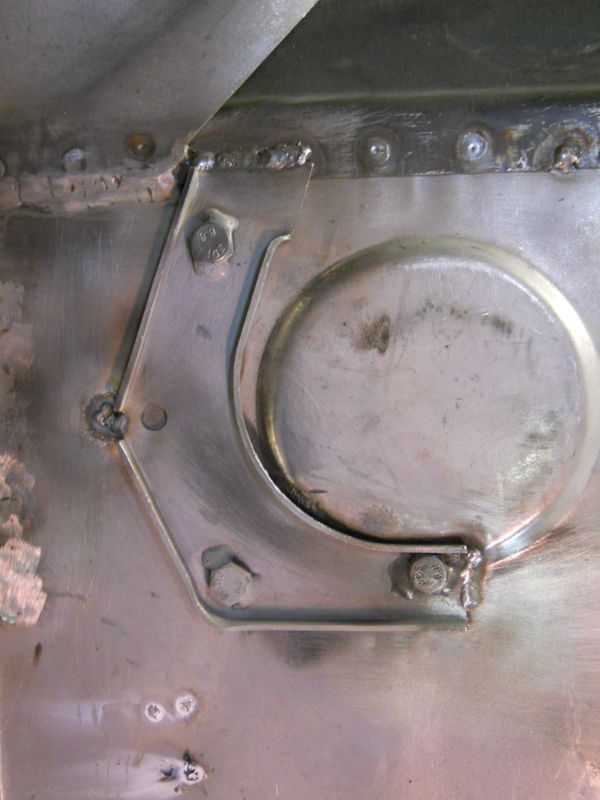

                      The original under my coupe. Close enough for gov't work.
                      Click image for larger version

Name:	Achassis2538.JPG
Views:	54
Size:	58.5 KB
ID:	52608
                      Next piece was the toe-board/gas pedal base mount. The back flange encompasses the mount studs so this base had to be "located" correctly so the holes could be drilled.
                      Click image for larger version

Name:	Achassis2539.JPG
Views:	56
Size:	59.2 KB
ID:	52609
                      Paper template of the new base was measured off with my coupes original and now in position.
                      Click image for larger version

Name:	Achassis2540.JPG
Views:	56
Size:	53.4 KB
ID:	52610

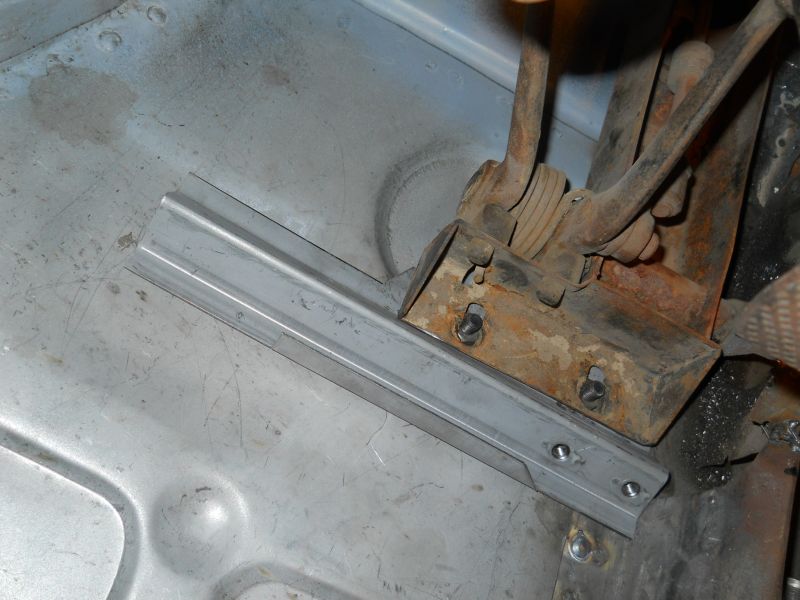

                      Holes drilled and in for its first test fit.

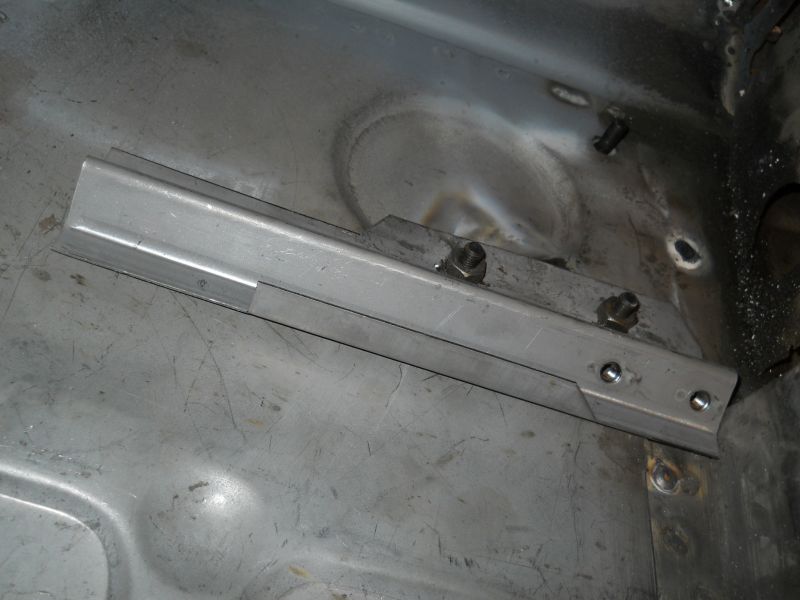

                      Click image for larger version

Name:	Achassis2542.JPG
Views:	55
Size:	68.2 KB
ID:	52611
                      Pretty close but some slight squaring and adjusting yet to do. Should have it welded in tomorrow though. Thanks for looking! Justin
                      Justin Rio

                      Comment


                      • 12/1/14
                        First box of new Speedster rear substructure arrives.
                        Click image for larger version

Name:	Achassis2596.JPG
Views:	52
Size:	74.0 KB
ID:	53097

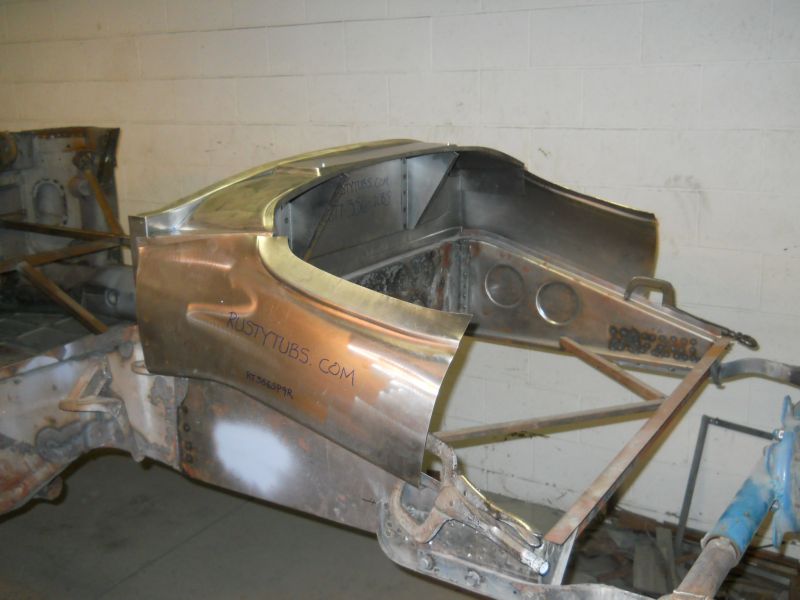

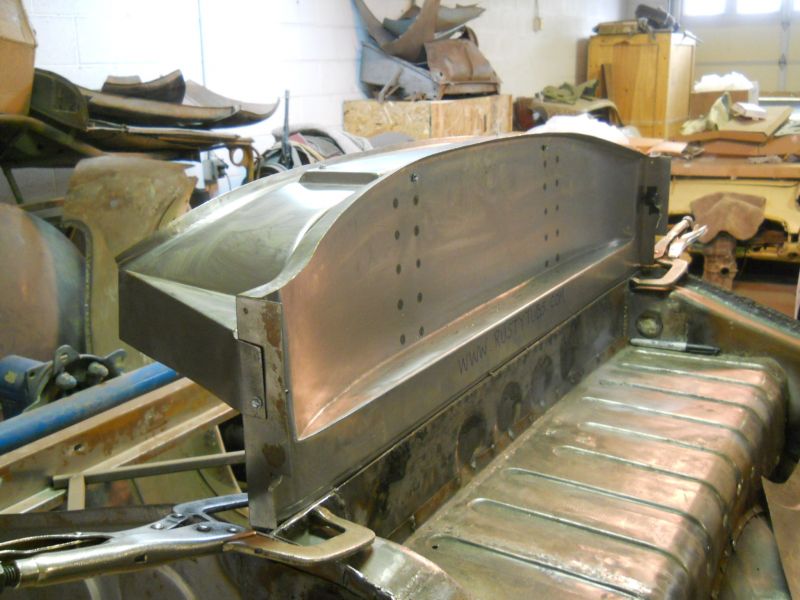

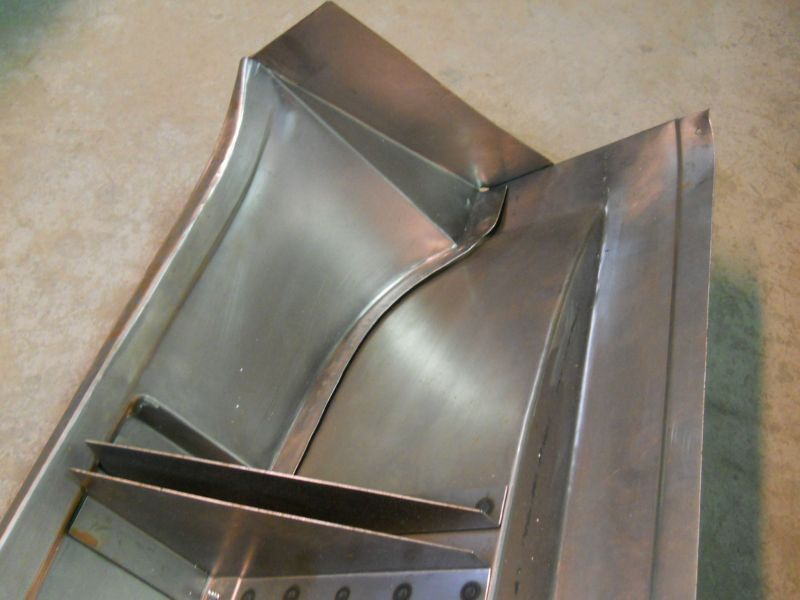

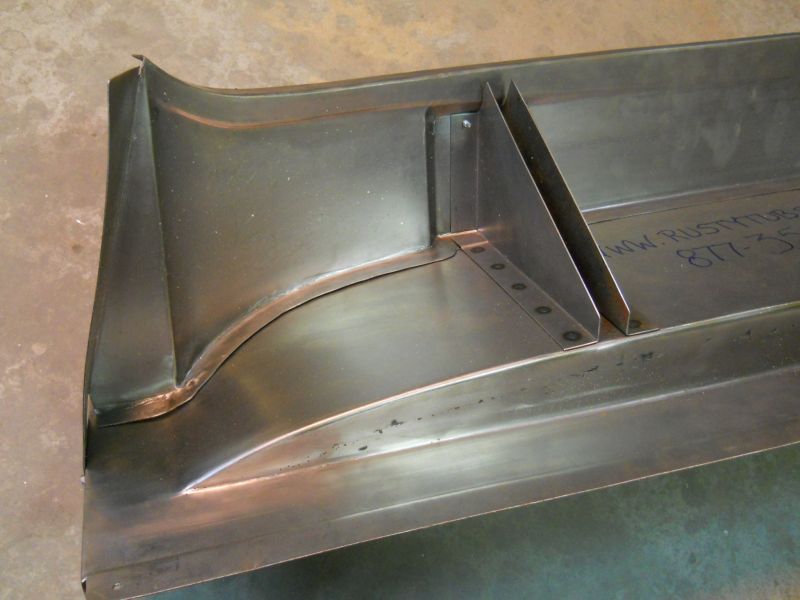

                        Convertible/speedster specific firewall and upper substructure in for its first test fit.
                        Click image for larger version

Name:	Achassis2594.JPG
Views:	53
Size:	49.6 KB
ID:	53100
                        The basic shape an embossments in these parts comprising this piece are pretty nice.
                        Click image for larger version

Name:	Achassis2597.JPG
Views:	54
Size:	56.9 KB
ID:	53098

                        Click image for larger version

Name:	Achassis2615.JPG
Views:	60
Size:	37.3 KB
ID:	53099
                        a few detailed shots of the intricacies.
                        Click image for larger version

Name:	Achassis2616.JPG
Views:	63
Size:	50.2 KB
ID:	53101

                        Click image for larger version

Name:	Achassis2617.JPG
Views:	56
Size:	53.5 KB
ID:	53102
                        by the neatly dressed weld seam on the lower flange, this vertical wall is not formed from one piece..
                        Click image for larger version

Name:	Achassis2602.JPG
Views:	53
Size:	61.7 KB
ID:	53103

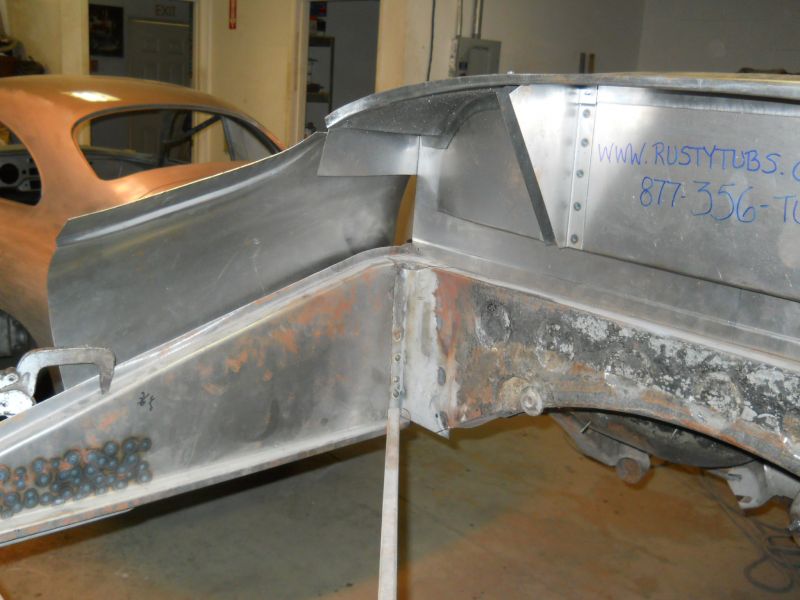

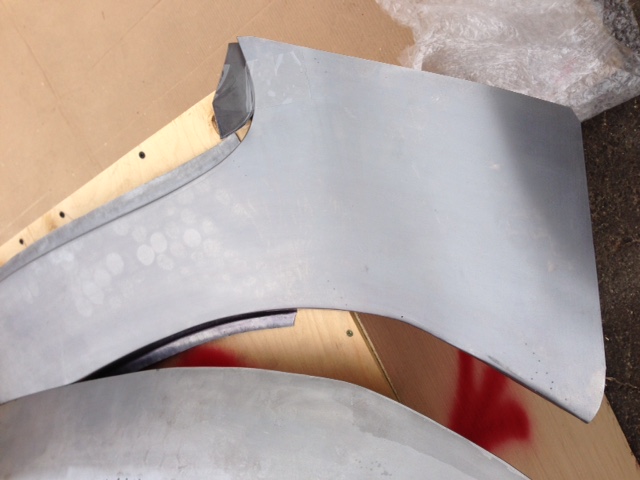

                        Also included were the right an left forward engine compartment closing panels.
                        Click image for larger version

Name:	Achassis2601.JPG
Views:	59
Size:	61.4 KB
ID:	53104

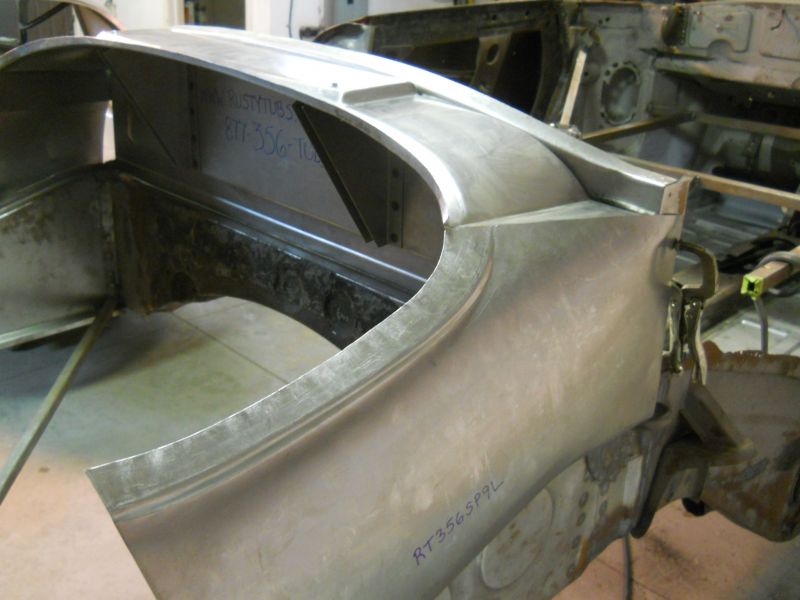

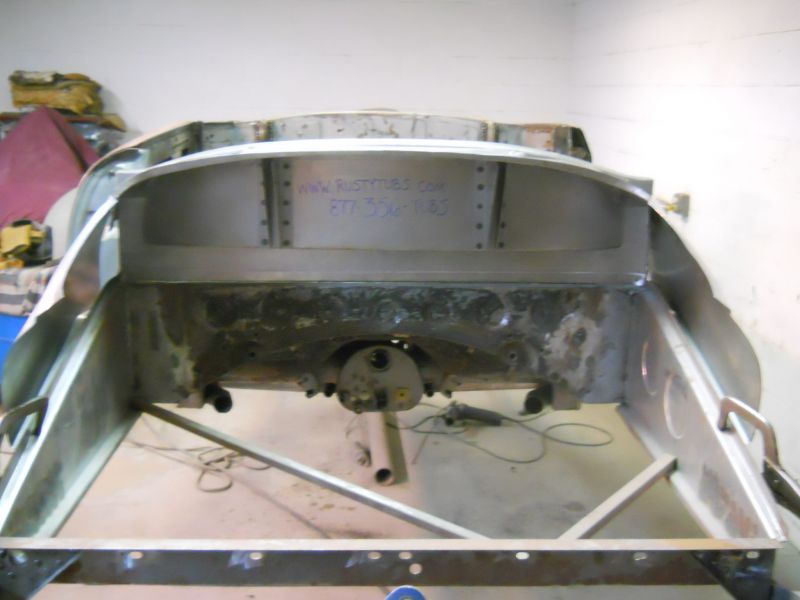

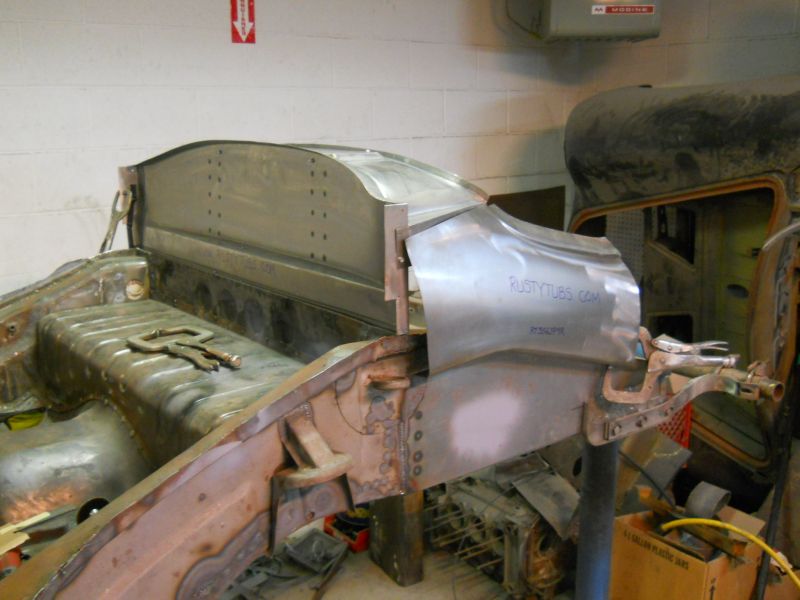

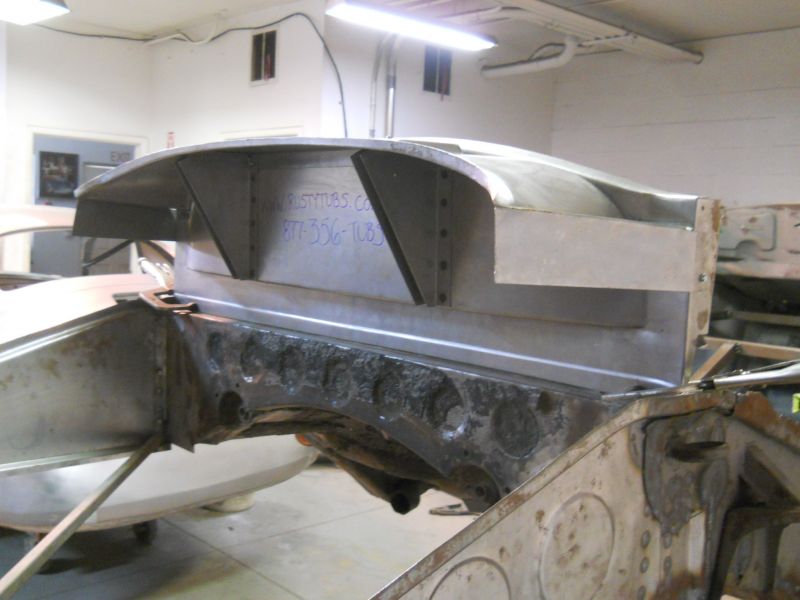

                        Very rough and initial mock-up.
                        Click image for larger version

Name:	Achassis2599.JPG
Views:	51
Size:	57.2 KB
ID:	53105

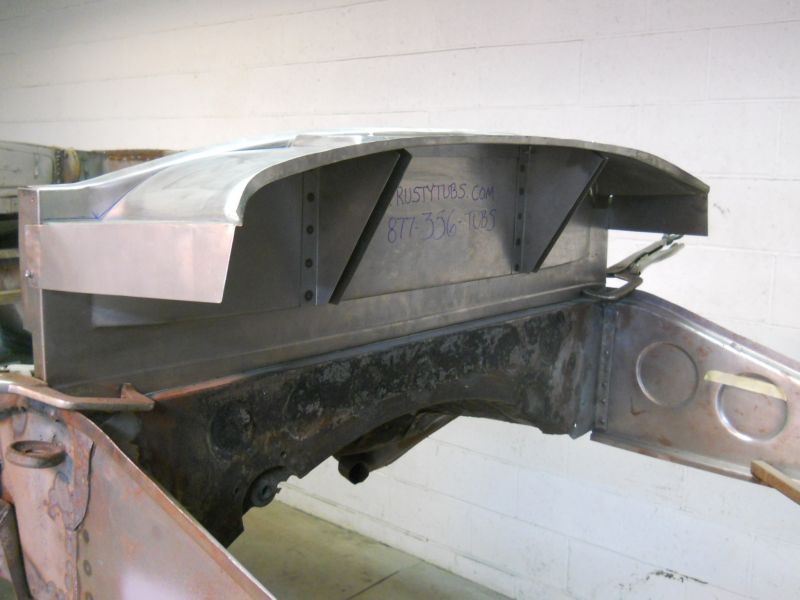

                        Lots of time will be required to tweak, nip and tuck these panels before it all works and fits like it should.
                        Click image for larger version

Name:	Achassis2604.JPG
Views:	60
Size:	58.6 KB
ID:	53106

                        Click image for larger version

Name:	Achassis2603.JPG
Views:	52
Size:	53.0 KB
ID:	53107

                        Click image for larger version

Name:	Achassis2607.JPG
Views:	53
Size:	50.7 KB
ID:	53108

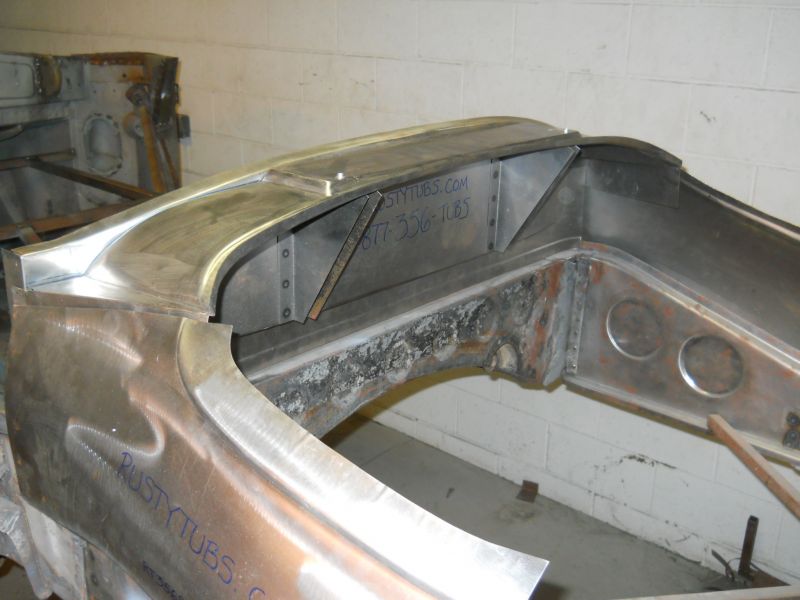

                        Looking more like a speedster with each new piece.
                        Thanks for looking! Justin
                        Justin Rio

                        Comment


                        • wow - pretty amazing !
                          Thanks for all the support.
                          Steve
                          (& Tips and Advice always welcome)

                          Comment


                          • Justin, are you starting a new business venture?

                            The pieces look very well formed with nice curves. Can you give us some details on how they were manufactured? Stamped, buck formed, etc.

                            Great job!

                            John
                            jjgpierce@yahoo.com

                            Comment


                            • Originally posted by JTR70" post=23320
                              11/19/14

                              Install Pedal mounts/brackets

                              While I wait on the new rear speedster substructer and the dash I am keeping myself busy tying up more loose ends on the frame.

                              Justin
                              Justin, this is exactly where I am right now w my pan. Can you give me some insight how you located the exact spot where the pedal cluster backing support goes? I have my original on my old pan just trying to work out in my mind the best way to transfer it to the new pan and be assured it is in the same spot as original. Also, in case my old backing plate is not salvageable, where did you source yours from? Thanks Mark
                              Attached Files
                              Mark Erbesfield
                              57 356A
                              65 911
                              68 912
                              73 911S
                              66 Toyota Land Cruiser FJ45LV
                              79 450SL Dad's old car

                              Comment


                              • Originally posted by John Pierce" post=23570
                                Justin, are you starting a new business venture?

                                The pieces look very well formed with nice curves. Can you give us some details on how they were manufactured? Stamped, buck formed, etc.

                                Great job!

                                John
                                Wow...the first thing I thought was to call that (rather obvious) phone number. The second thing that came to mind was how nice that work is....then the third thing was.....'how many of THOSE can be sold?' (A 'normal' supply and demand reaction from being 'in the business'). Heck, I'm having trouble finishing my own A Coupe as a Coupe, let alone as a Speedster!
