Chassis 85517 Number 17 356 Convertible D

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Further lock post changes:
    Click image for larger version

Name:	IMG_4453.JPG
Views:	339
Size:	138.1 KB

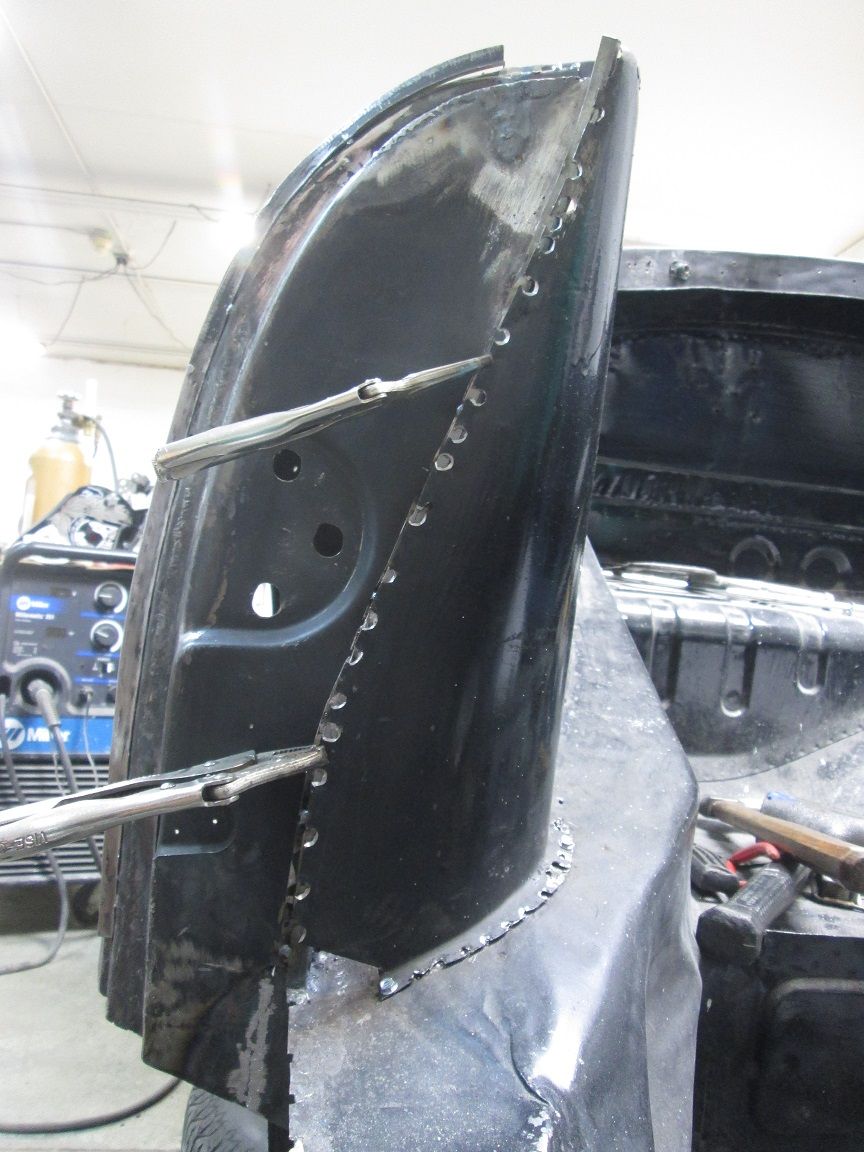

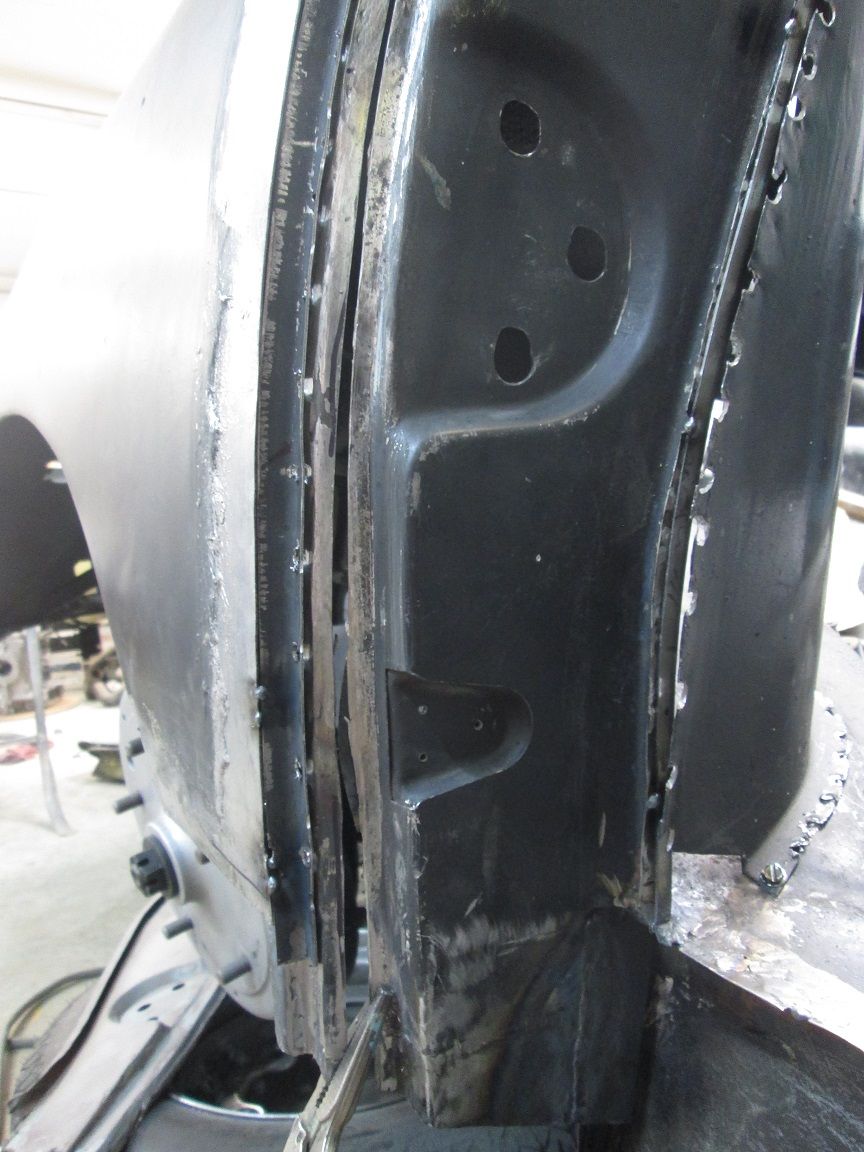

ID:	107566 Begin tack welding the skin with its new flange but before I could I had spoon this upper corner level then tack below it. Its rolled over tight and if I just tacked below it in its sucked down position it would eventually cause all sorts of tension and levelness issues as it went. When I lifted this up I could see the these two panels shift laterally ever so slightly. Over the years I've figured out that you'll want the panel preloaded and set were you want it before you lock it into position with a tack weld.
    Click image for larger version

Name:	IMG_4454.JPG
Views:	352
Size:	143.7 KB

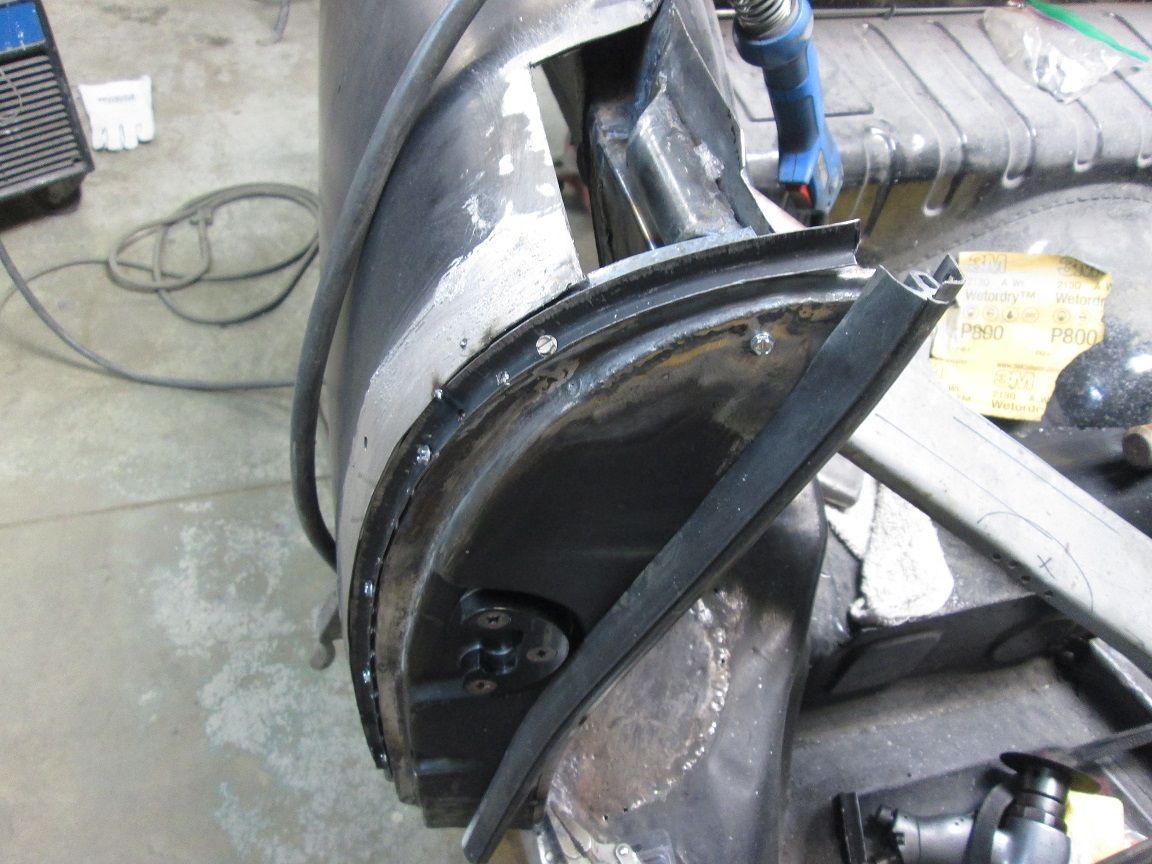

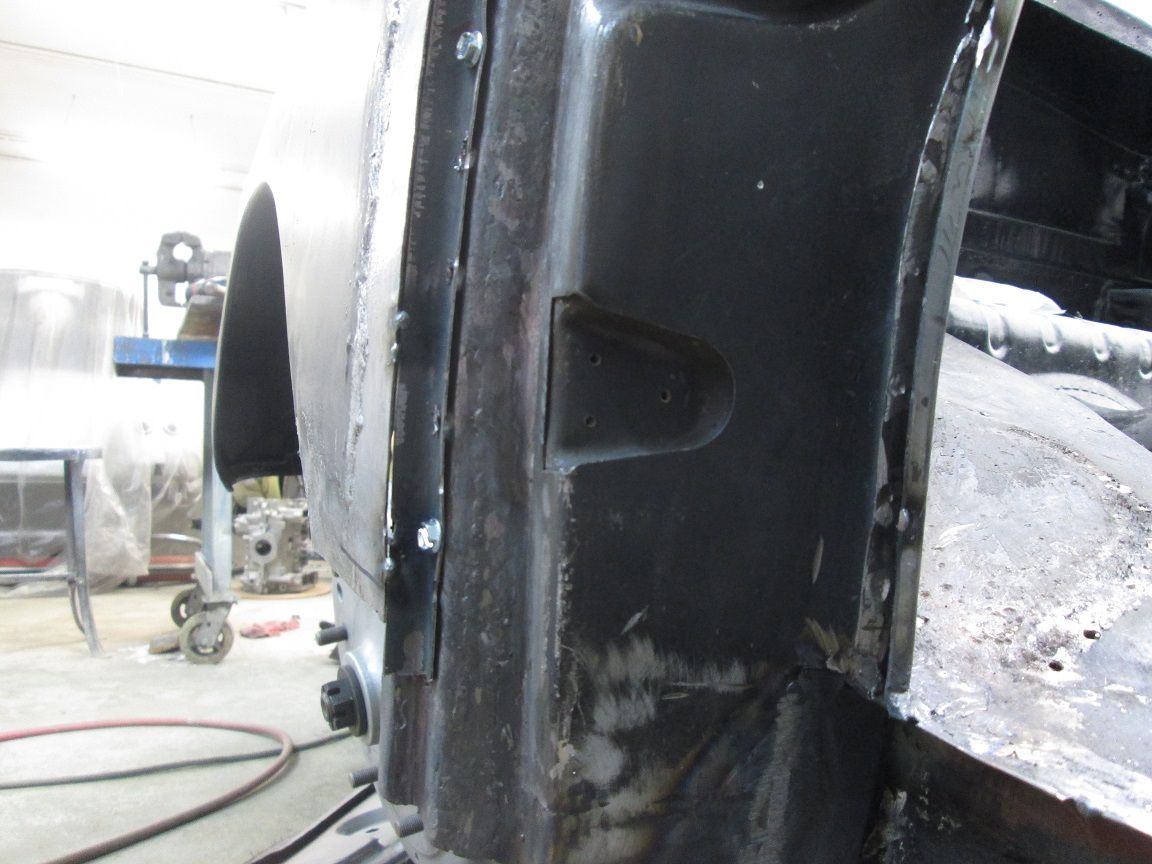

ID:	107567 Tacked and beginning to introduce a seal to complicate things further.
    Click image for larger version

Name:	IMG_4449.JPG
Views:	324
Size:	124.9 KB

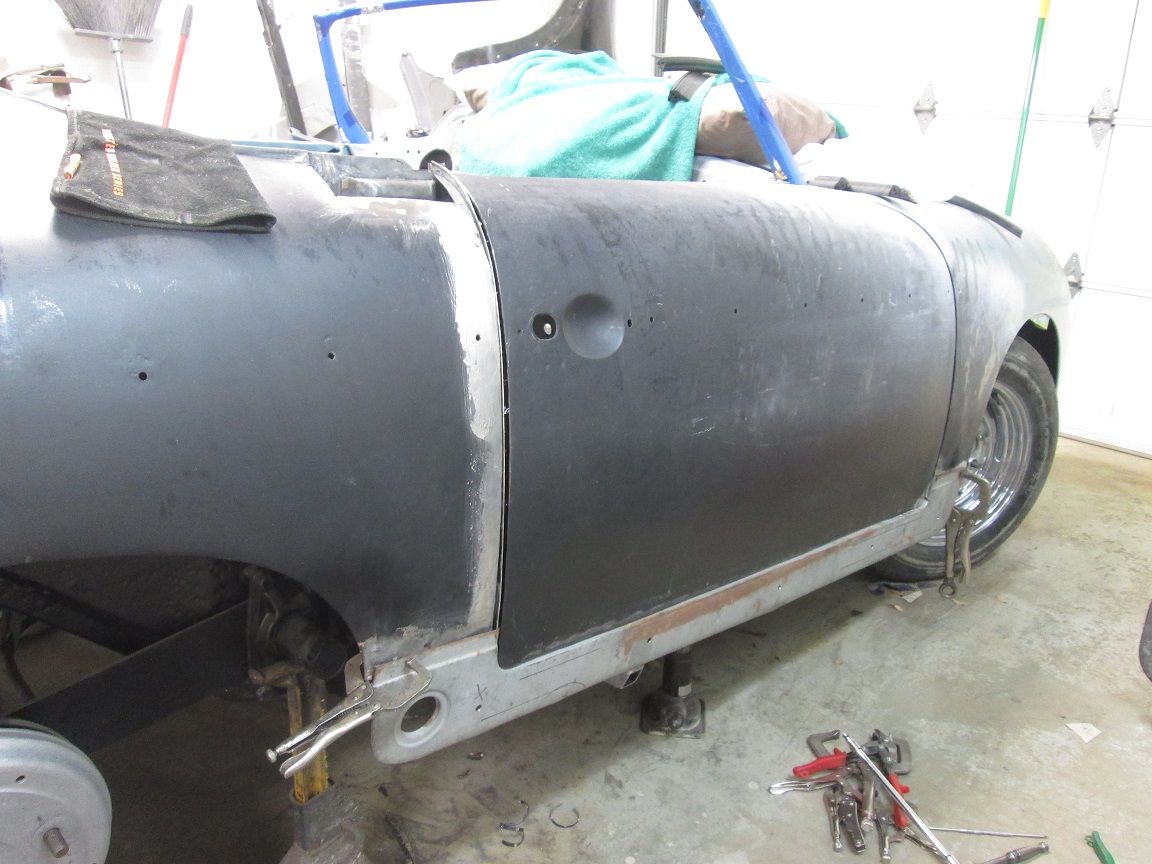

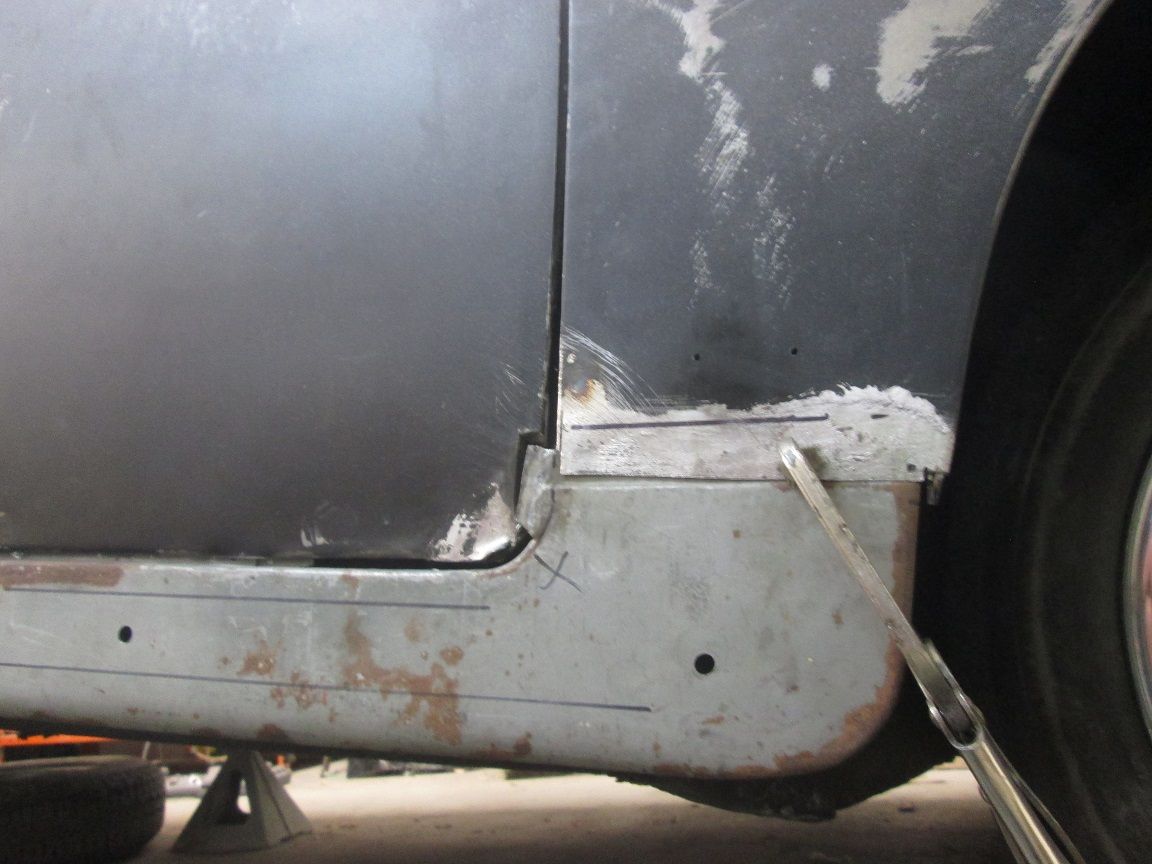

ID:	107568 Door latched and now mocking up the rocker skin to dial in the general contour. I have the gap pretty much set, now I'm after levelness and transition off of the edge of the door to the quarter panel. Running into an issue from about the door handle on down. The fenders edge is too low.
    Click image for larger version

Name:	IMG_4459.JPG
Views:	343
Size:	112.0 KB
ID:	107569

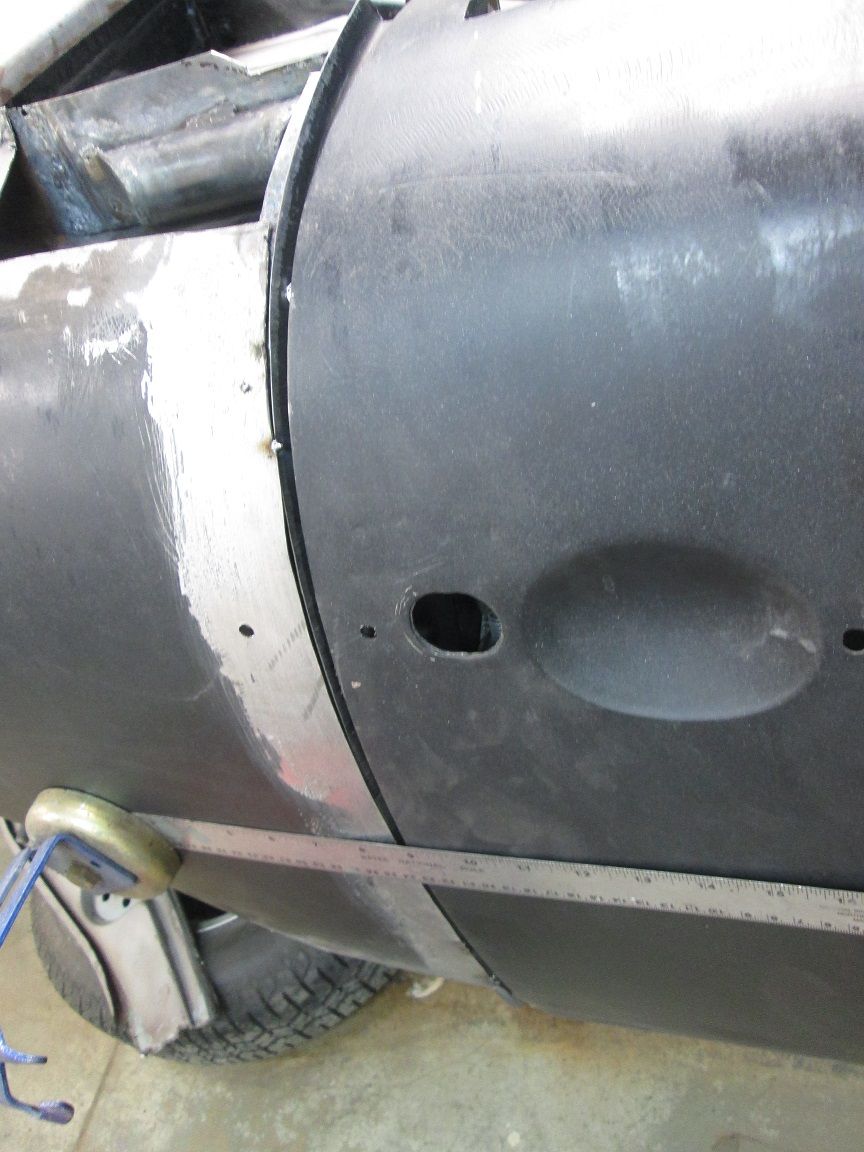

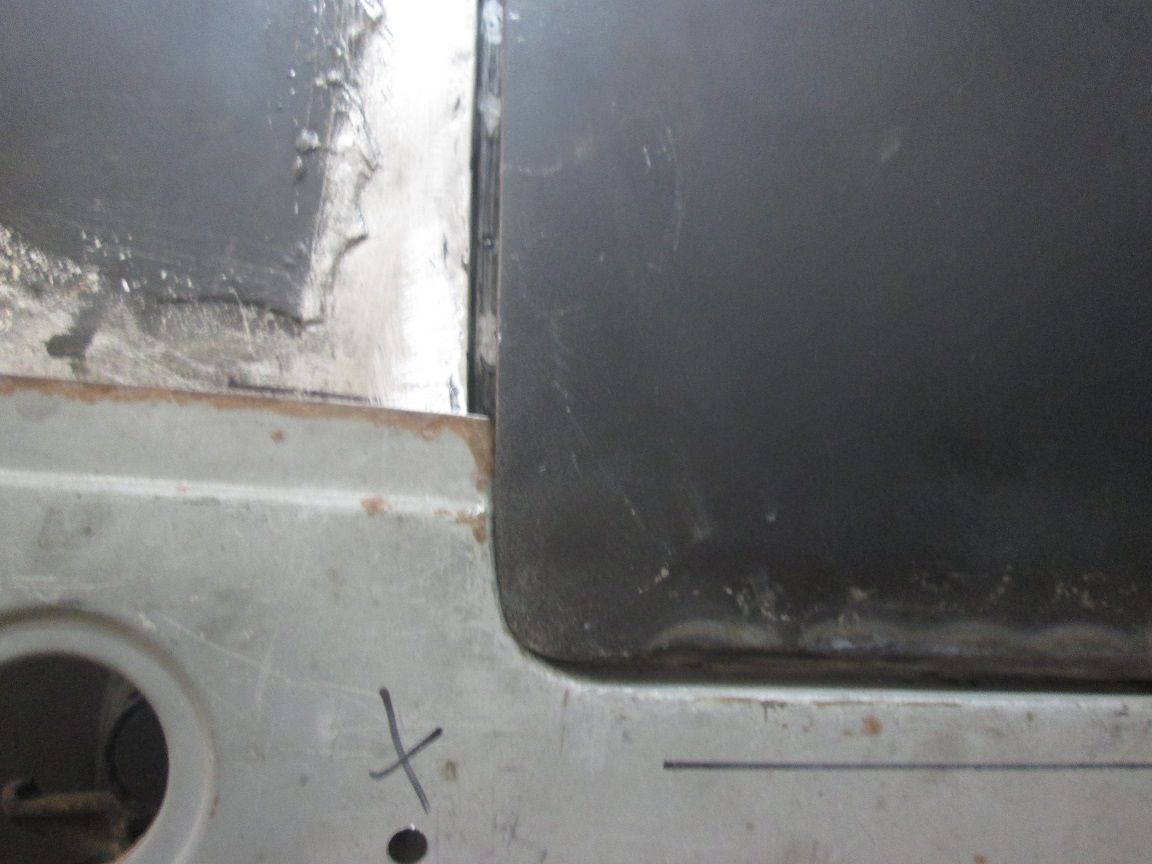

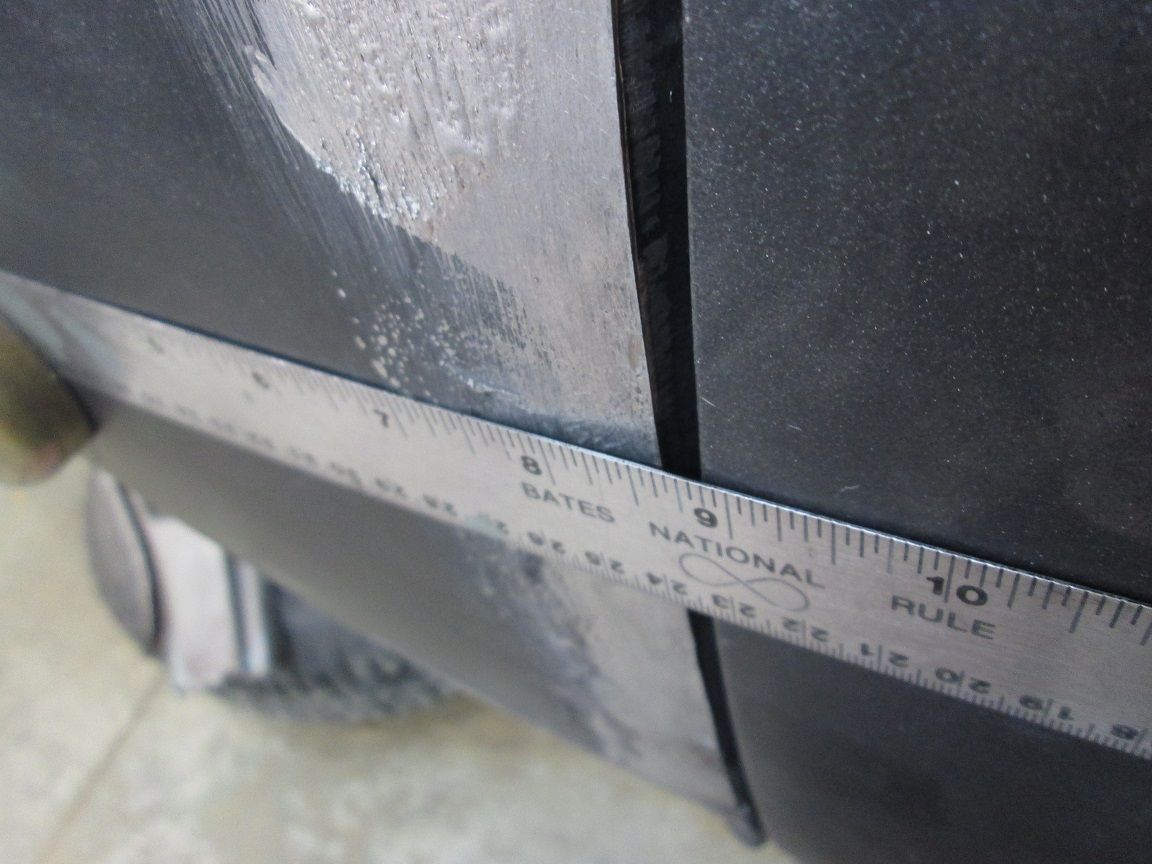

    If I pull the fender skin away from the lock post mating surface about this much...
    Click image for larger version

Name:	IMG_4458.JPG
Views:	328
Size:	102.7 KB
ID:	107570

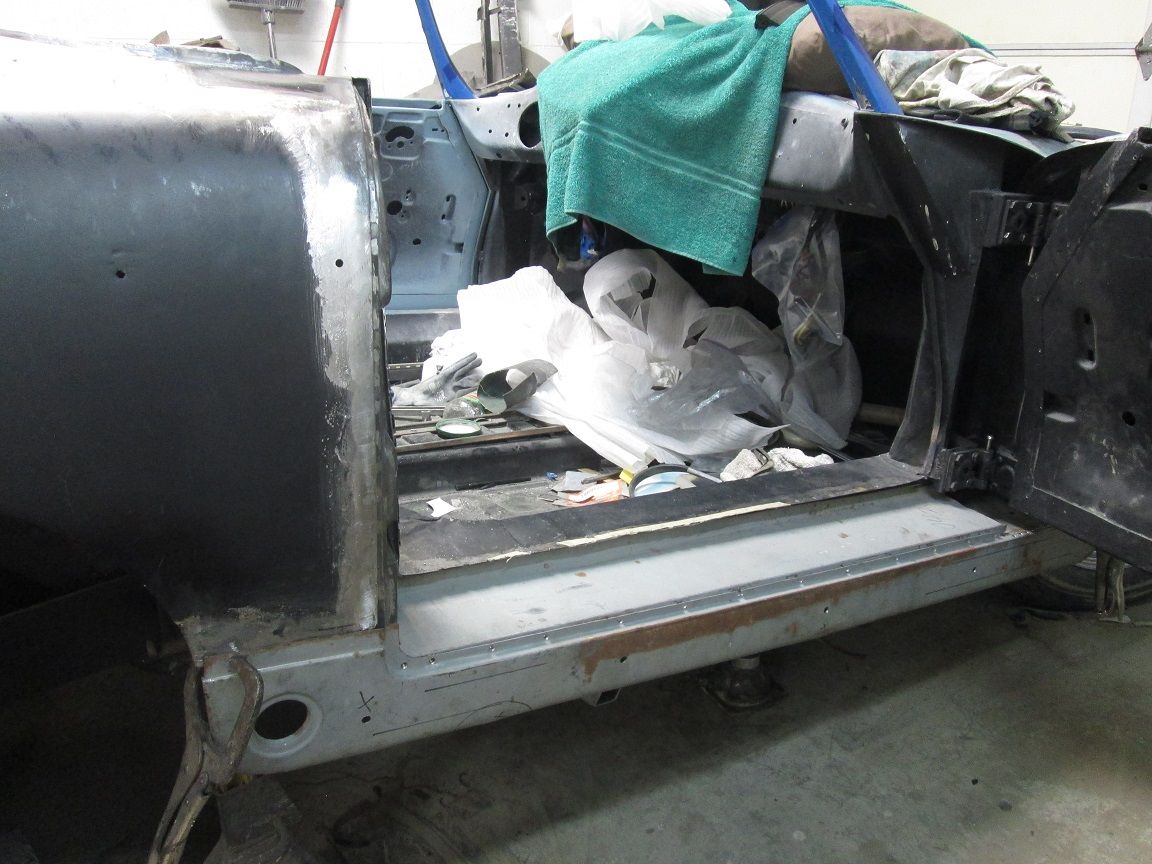

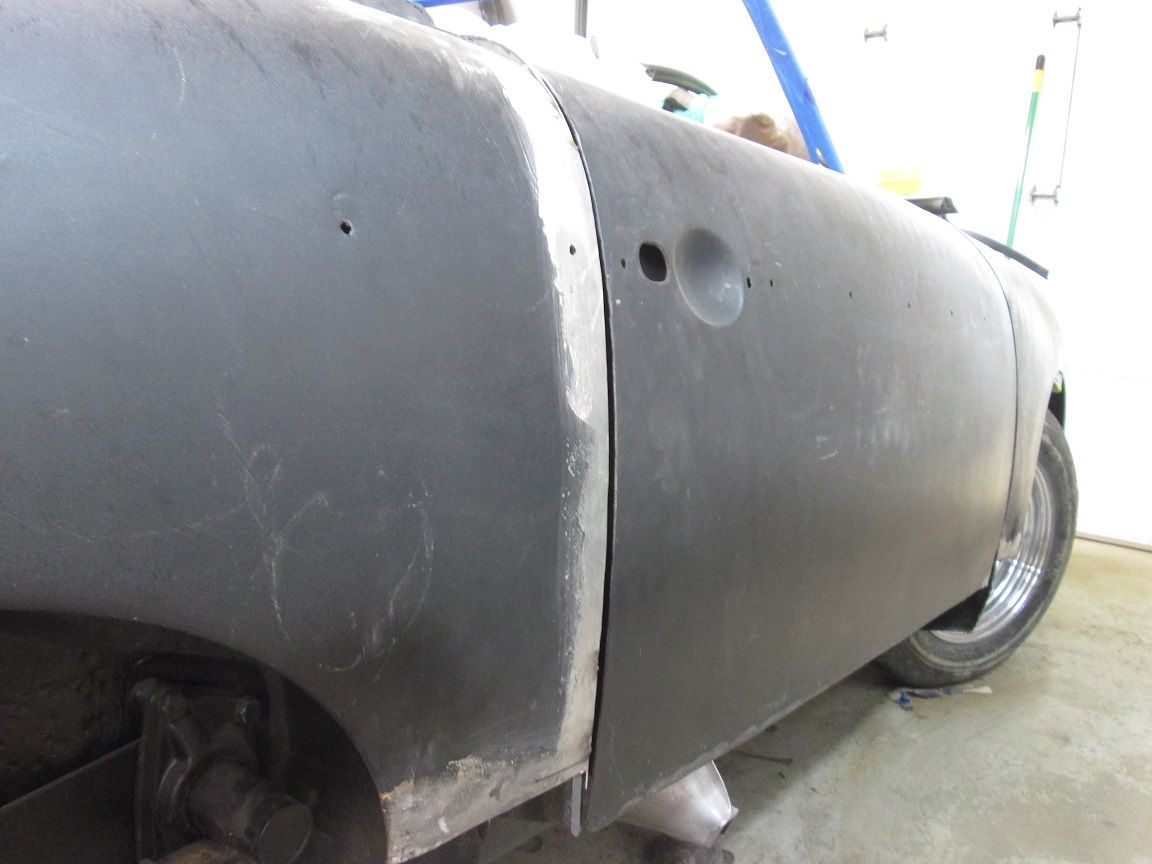

    I have this transition off the latched door. Much closer to even. I don't want to make this difference up in lead so as much as I hate to, the lock post is going to have to suffer through yet another relief cut. That next...
    Thanks for looking!
    Justin
    Justin Rio

    Comment


    • One more lock post modification:
      Click image for larger version  Name:	IMG_4460.JPG Views:	0 Size:	132.5 KB ID:	107572

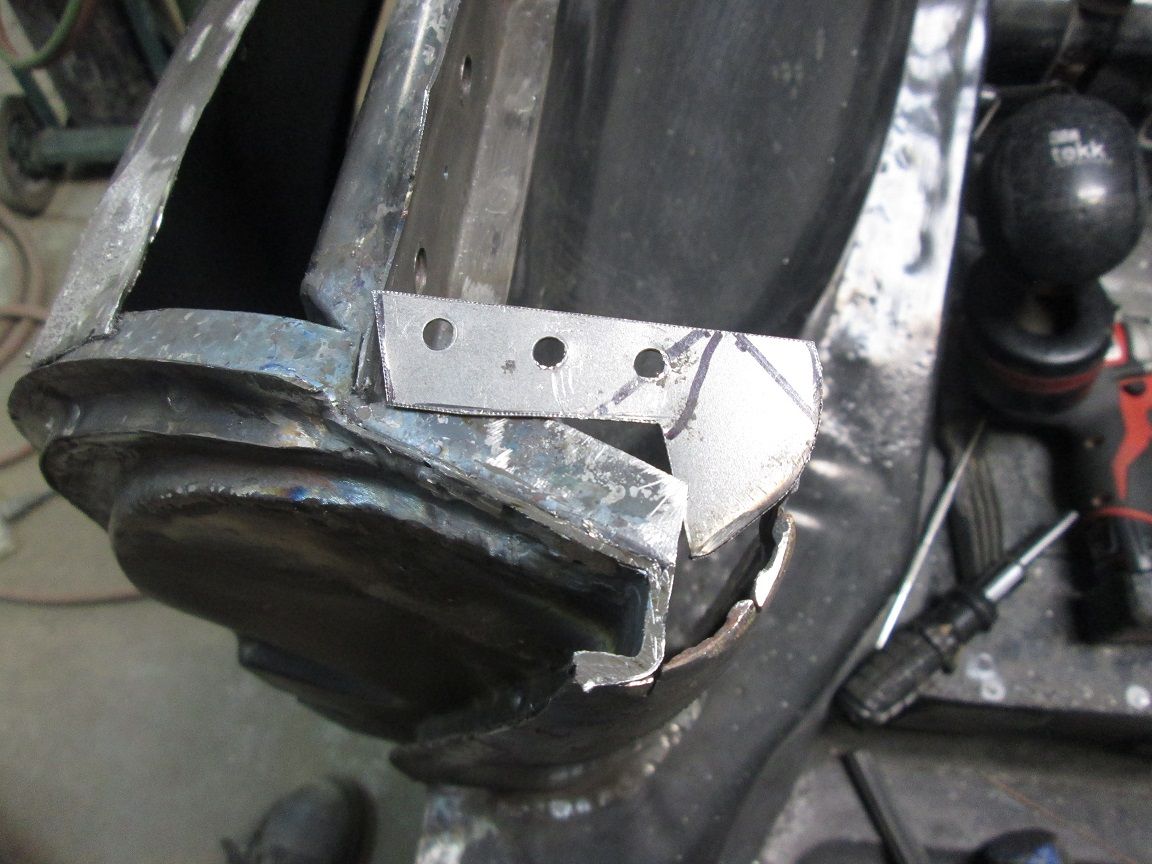

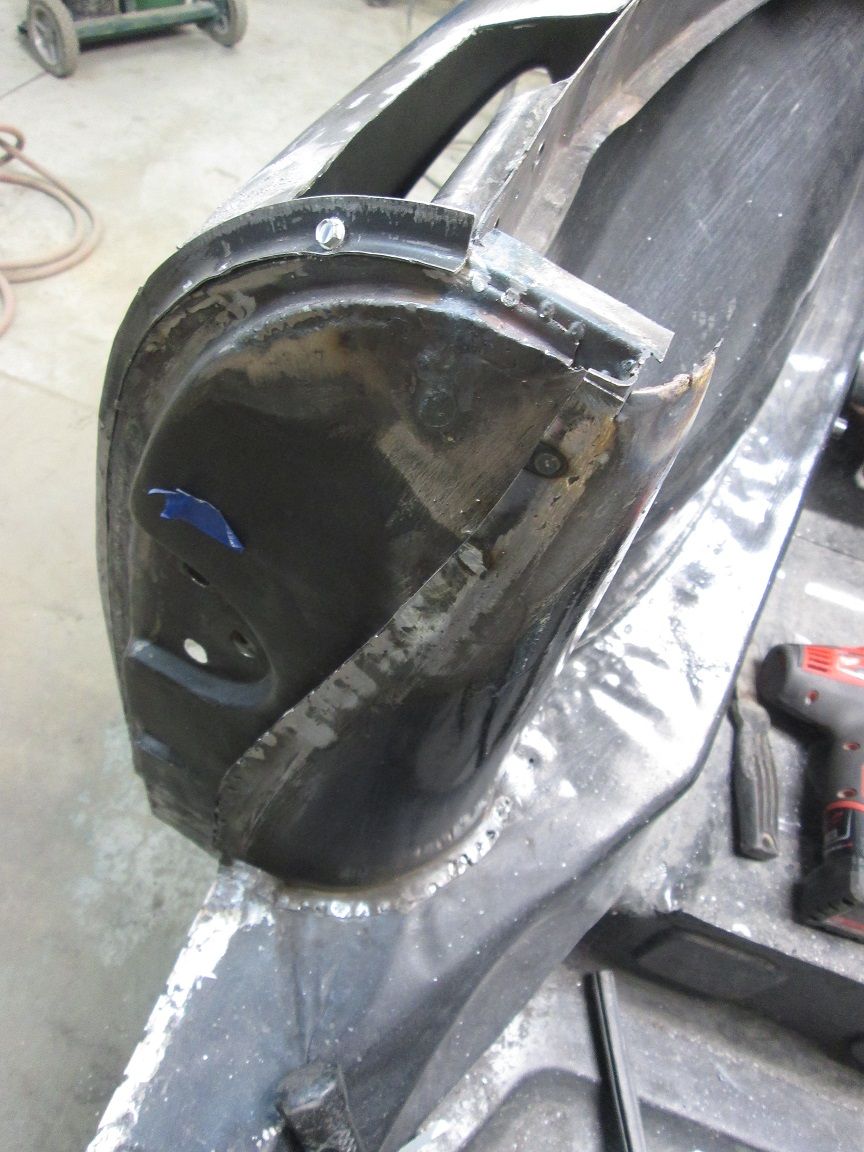

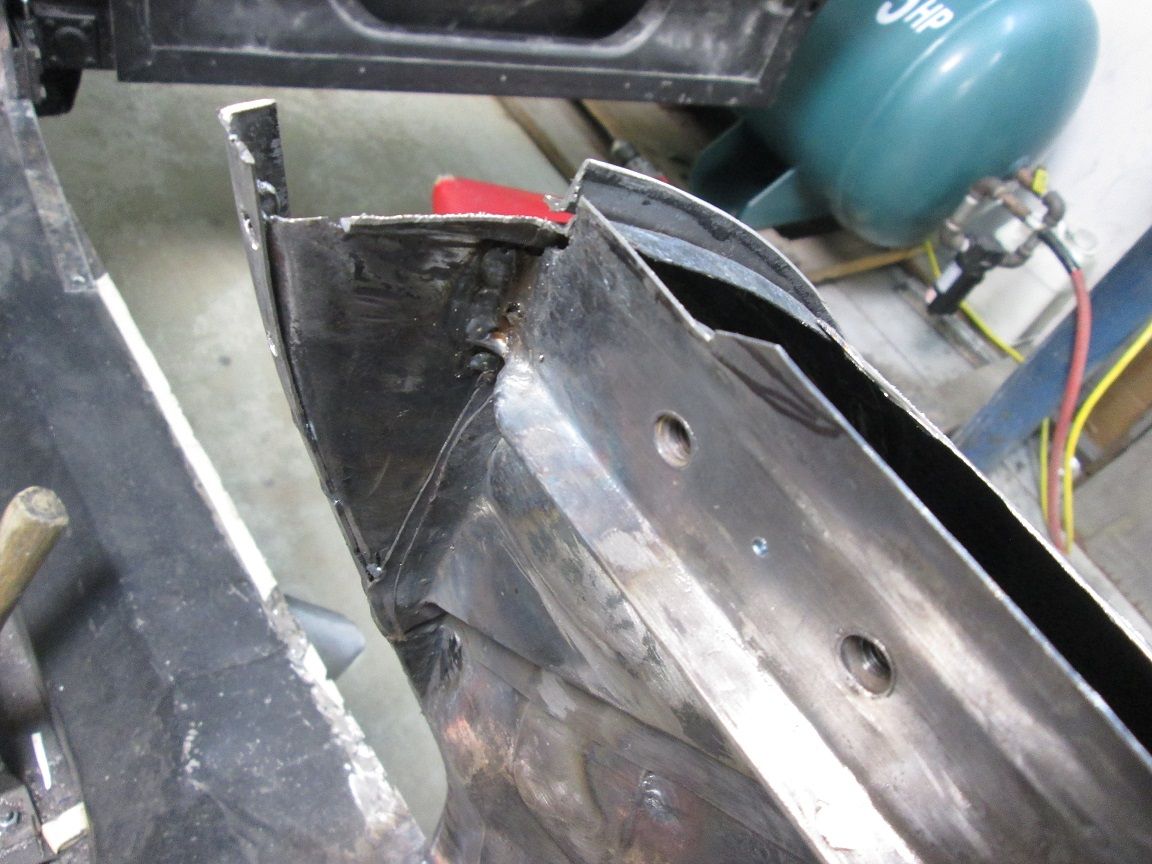

      Relief cut down the center to allow the panel mating surface and its new flange to swing out in one piece.

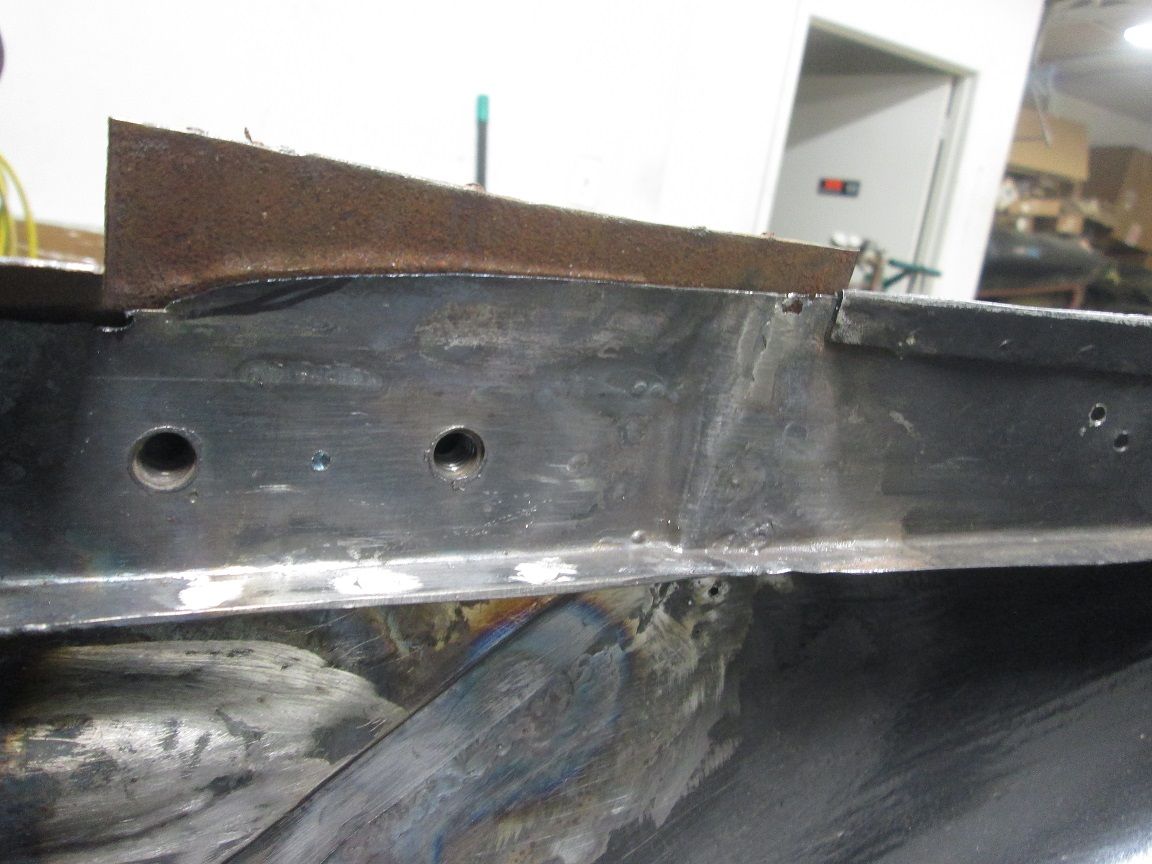

      Click image for larger version  Name:	IMG_4462.JPG Views:	0 Size:	202.0 KB ID:	107573 Figured just better than a 1/4 inch of additional width at its widest point should give me what I'm looking for. Adding in the filler strip here. Theoretically this represents the amount of lead solder I'm eliminating had I not questioned where this part was holding the edge of the quarter panel in relation to the door.
      Click image for larger version  Name:	image_62030.jpg Views:	4 Size:	130.7 KB ID:	107574 Before I commit to fully to stitching it up it was back on for another test fit to see what I ended up with.

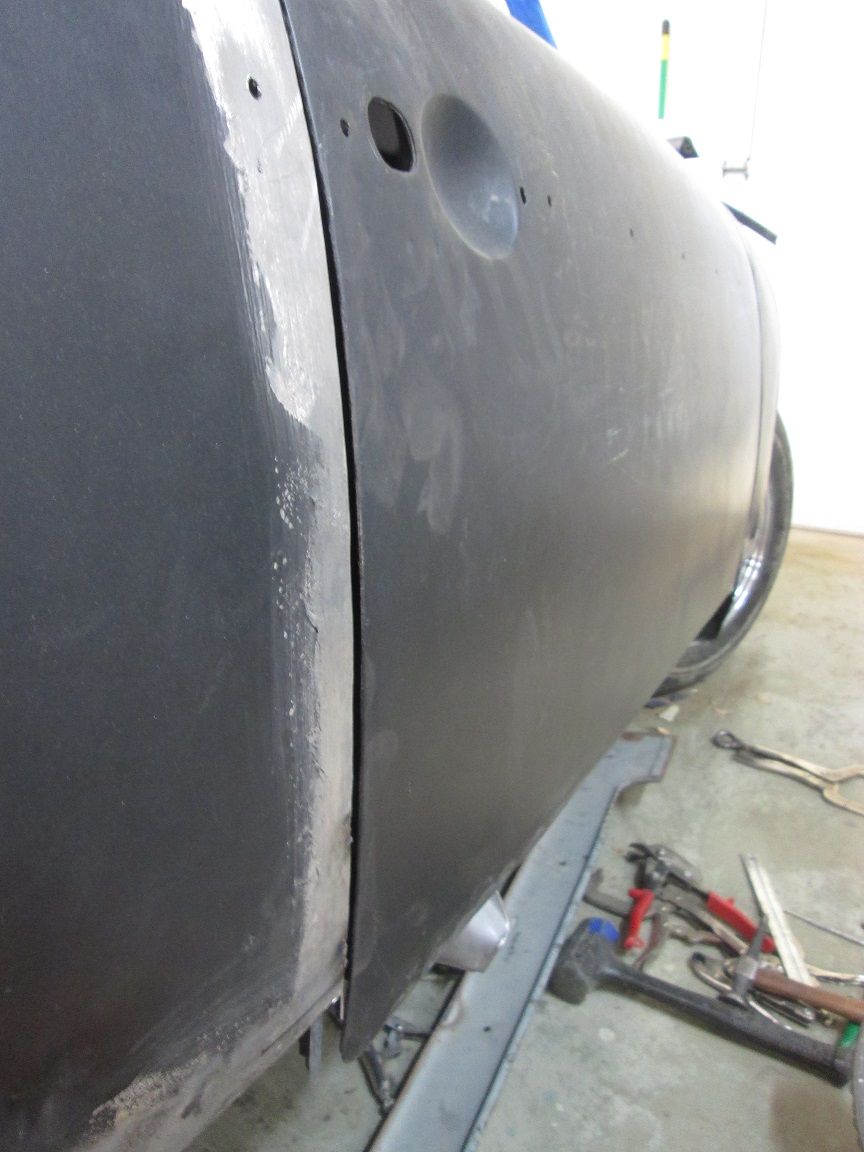

      Click image for larger version  Name:	image_62031.jpg Views:	4 Size:	116.5 KB ID:	107575 Edge of the fender with the latched door is well within striking distance and will only require a skim coat of solder to be perfect in the end.
      Click image for larger version  Name:	image_62032.jpg Views:	4 Size:	125.9 KB ID:	107576

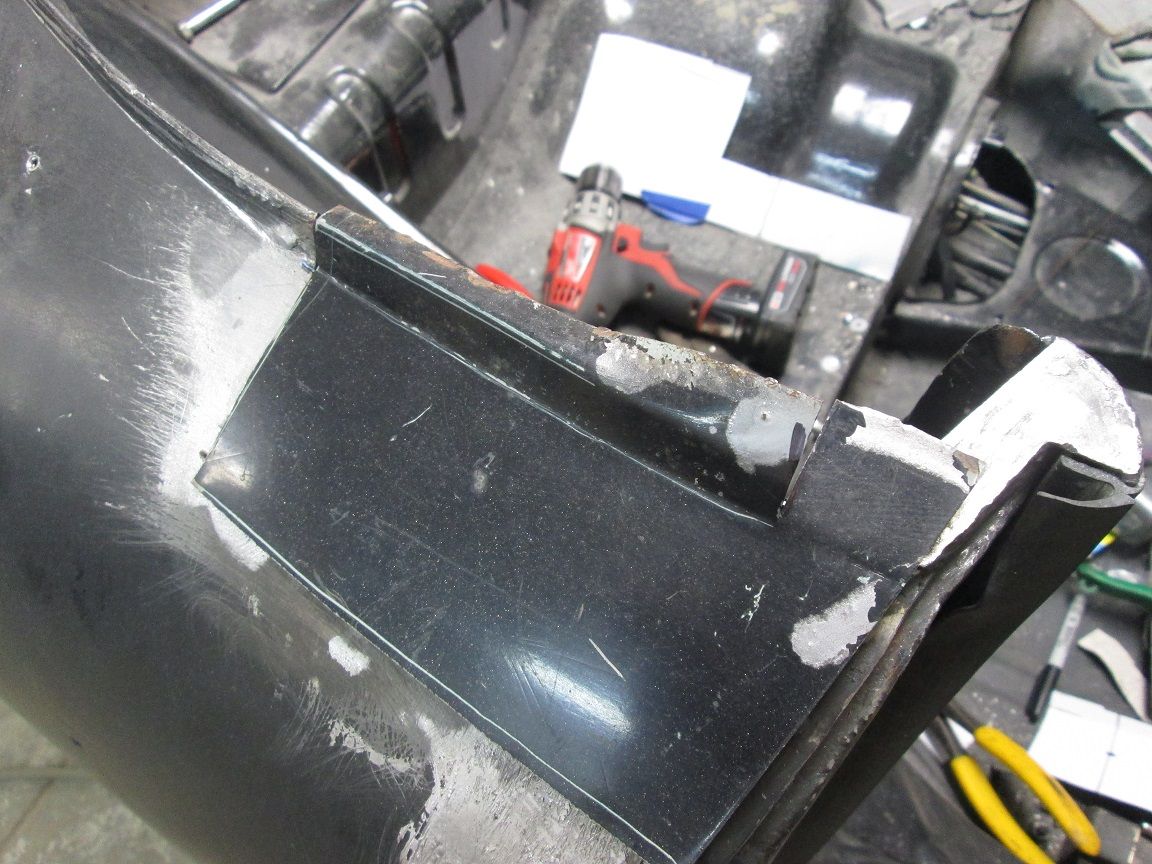

      General body contour across the gaps is taking shape. Now to stitch up long weld joint on that lock post.
      Last edited by JTR70; 11-30-2019, 07:48 AM.
      Justin Rio

      Comment

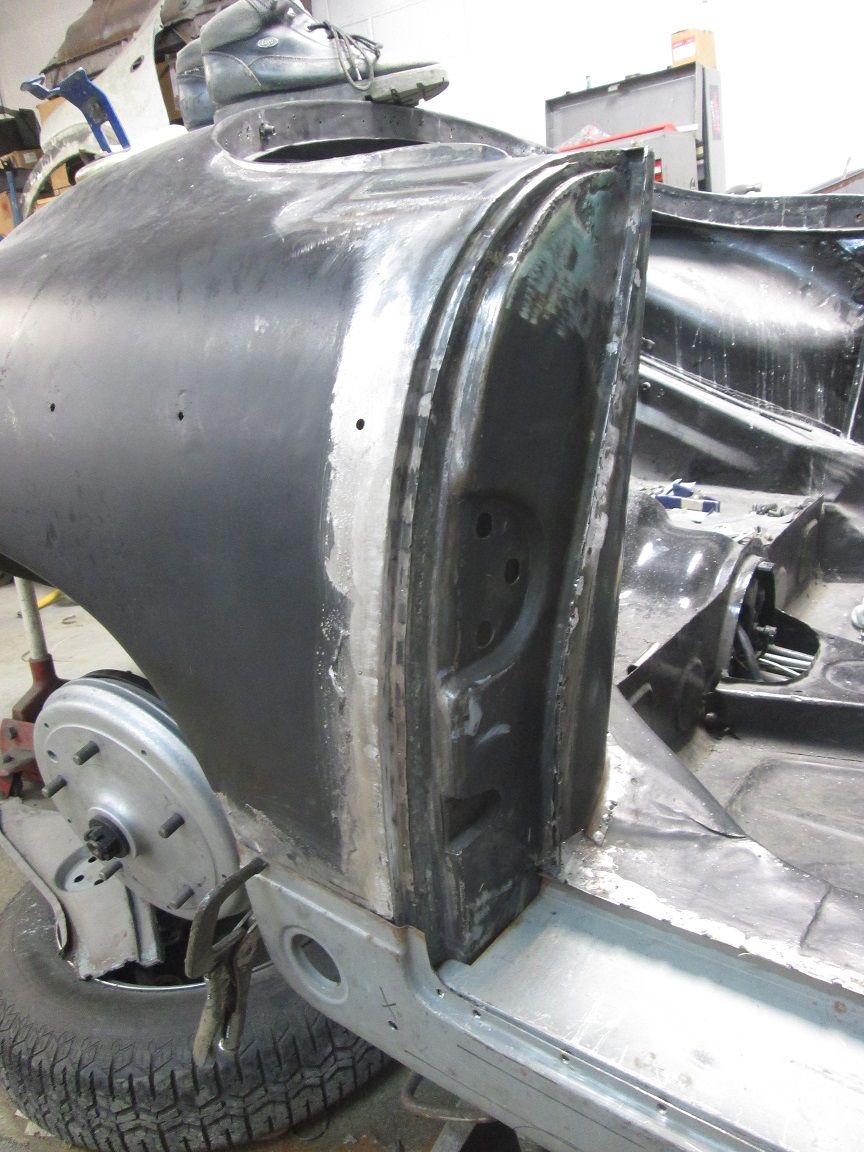

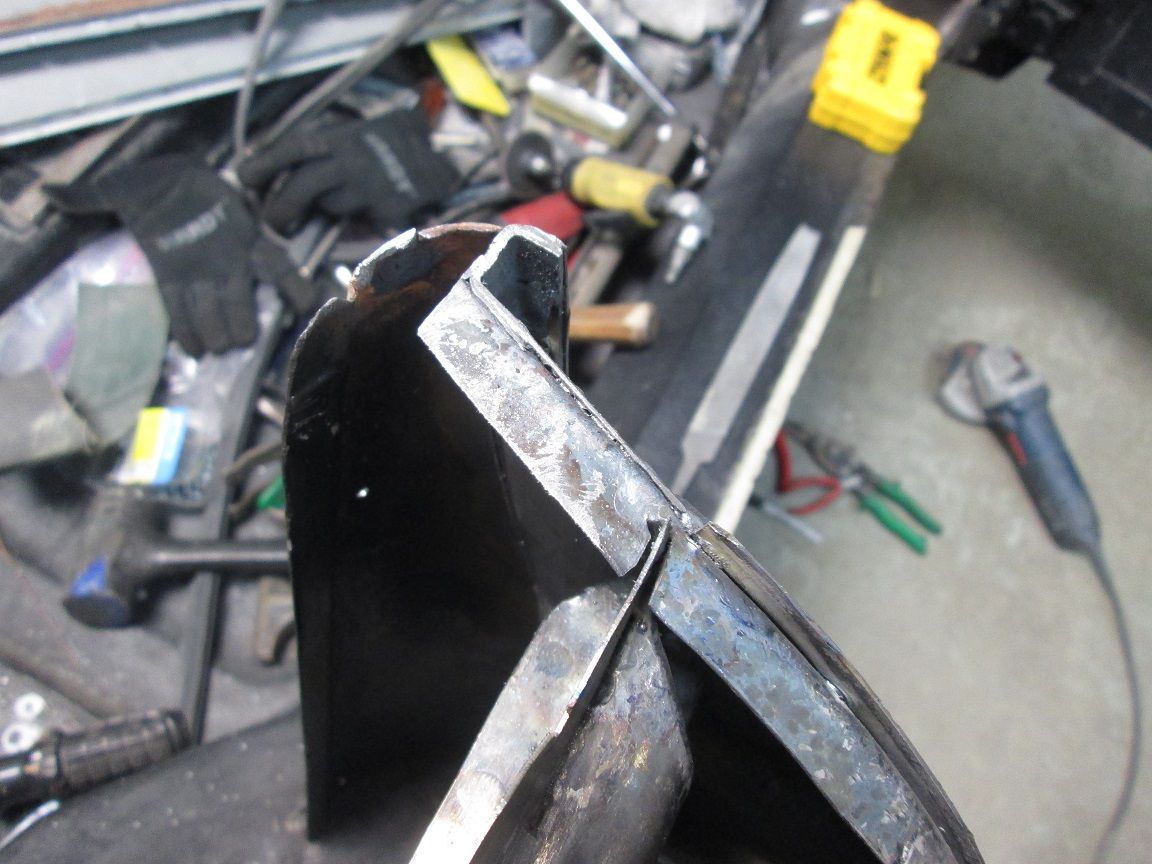

      • Lock post finished:

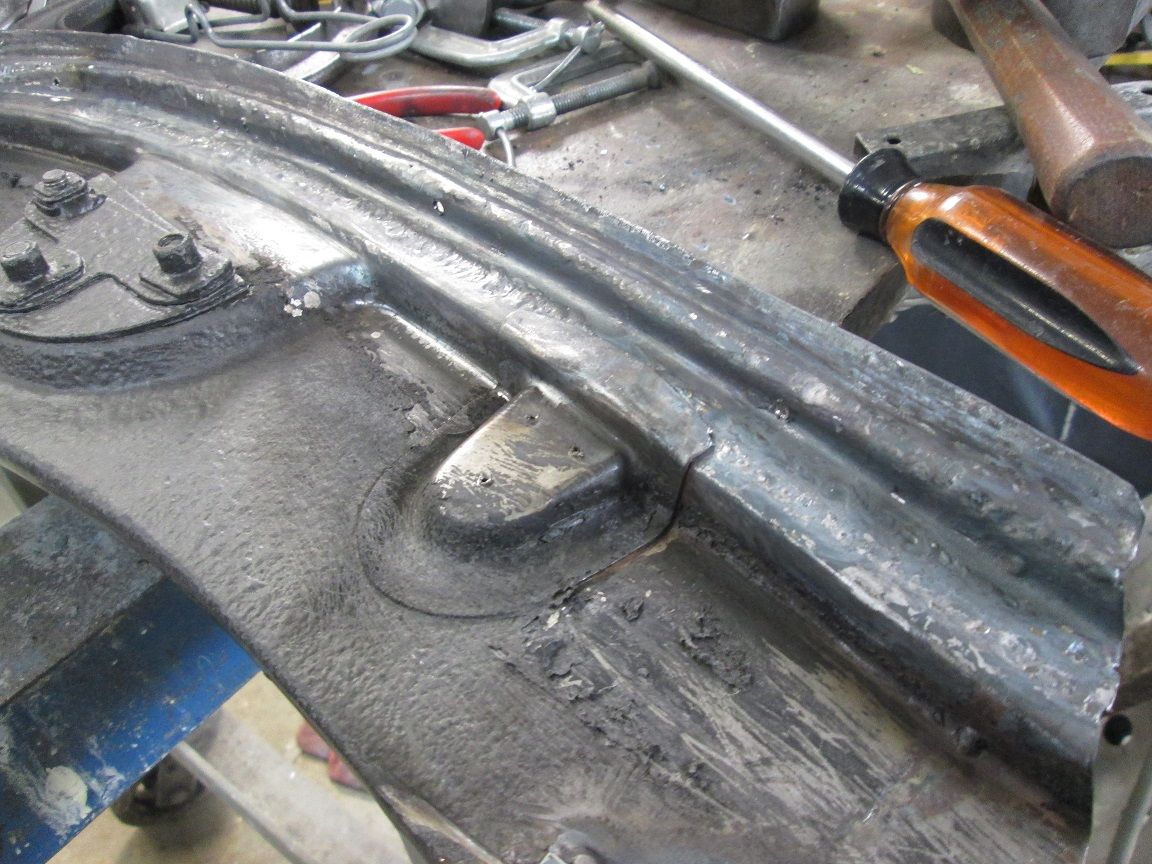

        Click image for larger version  Name:	IMG_4469.JPG Views:	0 Size:	181.7 KB ID:	107578 Glad to get this one behind me.

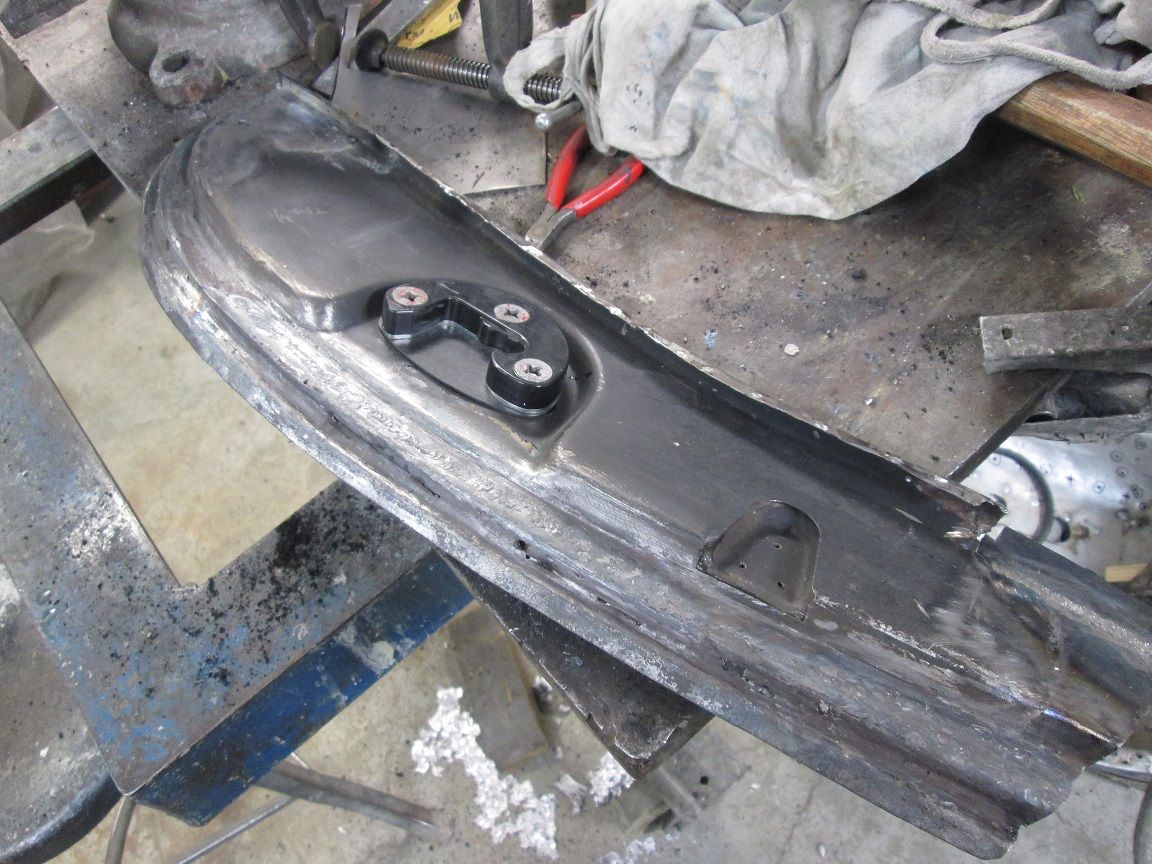

        Click image for larger version  Name:	IMG_4470.JPG Views:	0 Size:	186.0 KB ID:	107579 One tortured piece of metal but I've finally got a panel that gives me the fit I need.
        Click image for larger version  Name:	IMG_4467.JPG Views:	0 Size:	124.9 KB ID:	107580 Lock post mounted back on the car for the final time.
        Click image for larger version  Name:	IMG_4466.JPG Views:	0 Size:	139.3 KB ID:	107581 This modification has changed the skin to new flange just a touch so I'm going to cut the tacks free and try again.
        Click image for larger version  Name:	IMG_4468.JPG Views:	0 Size:	98.0 KB ID:	107582 General contour/profile shape of the fender matches the door and continues nearly level off the edge; all without filler just yet. Eventual Lead solder will be minimal. I'll get one more crack at getting it all adjusted just a little bit better tomorrow.
        Thanks for looking!
        Justin
        Last edited by JTR70; 11-30-2019, 08:20 AM.
        Justin Rio

        Comment

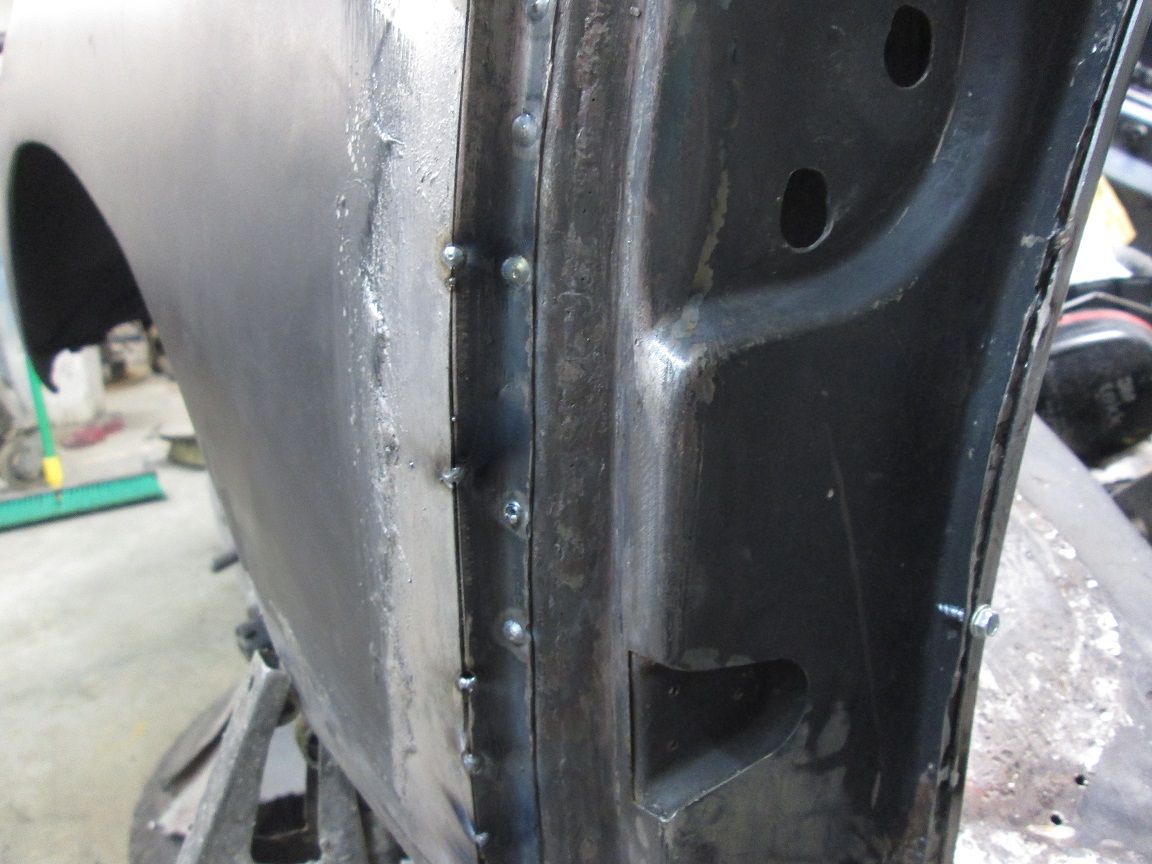

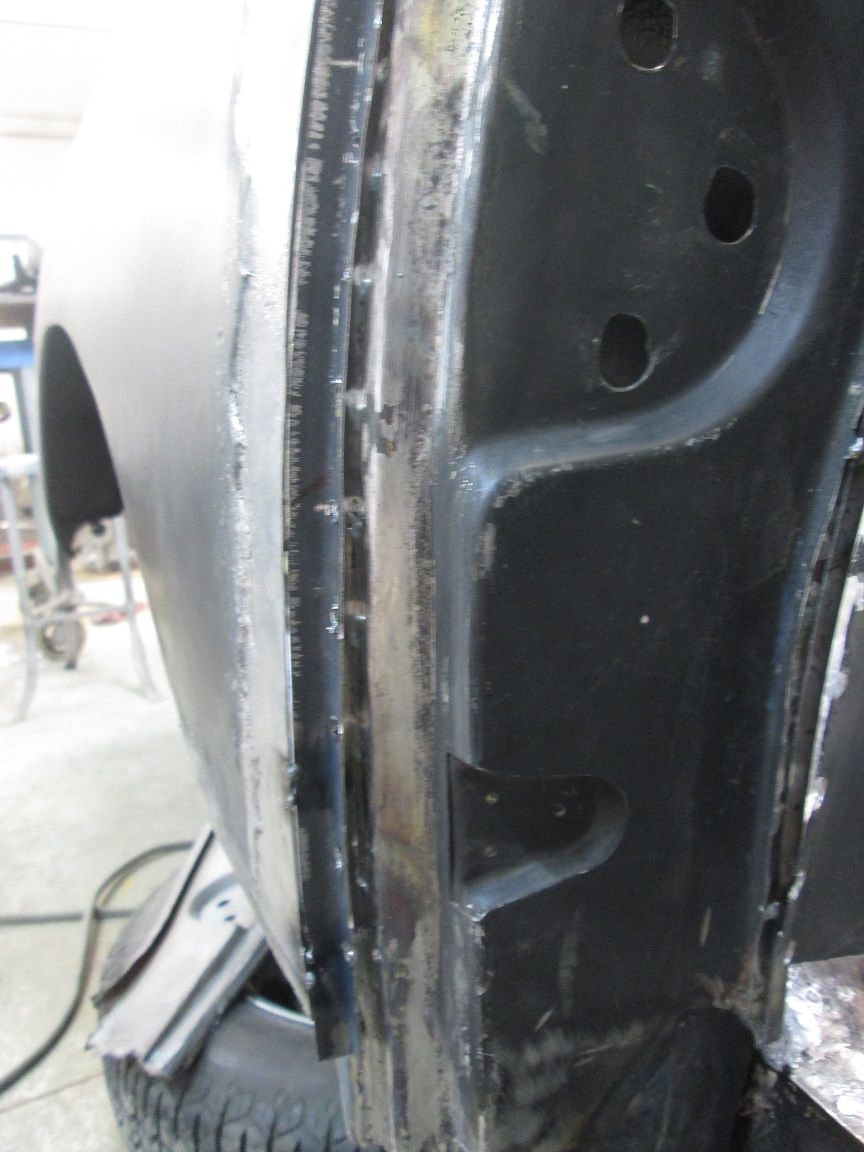

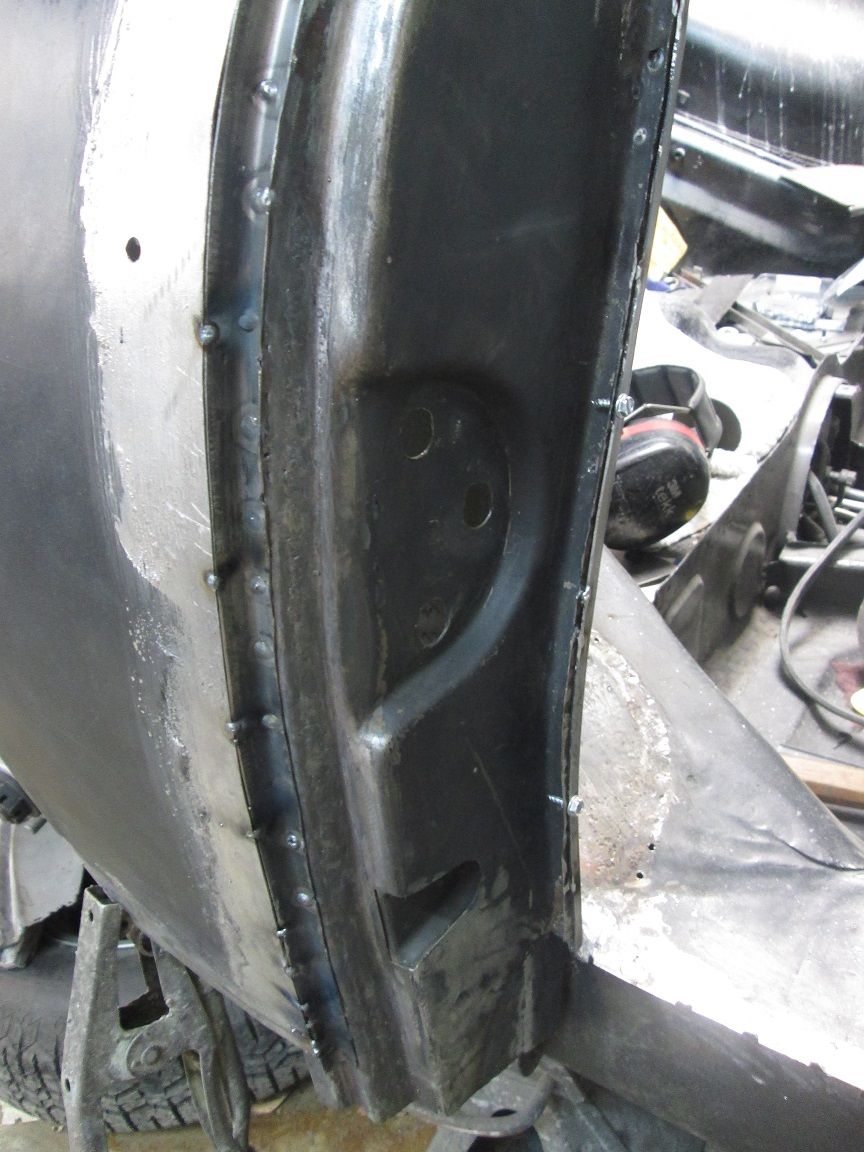

        • Stitching the skin to the lock post:
          Click image for larger version  Name:	IMG_4473.JPG Views:	0 Size:	139.1 KB ID:	107595

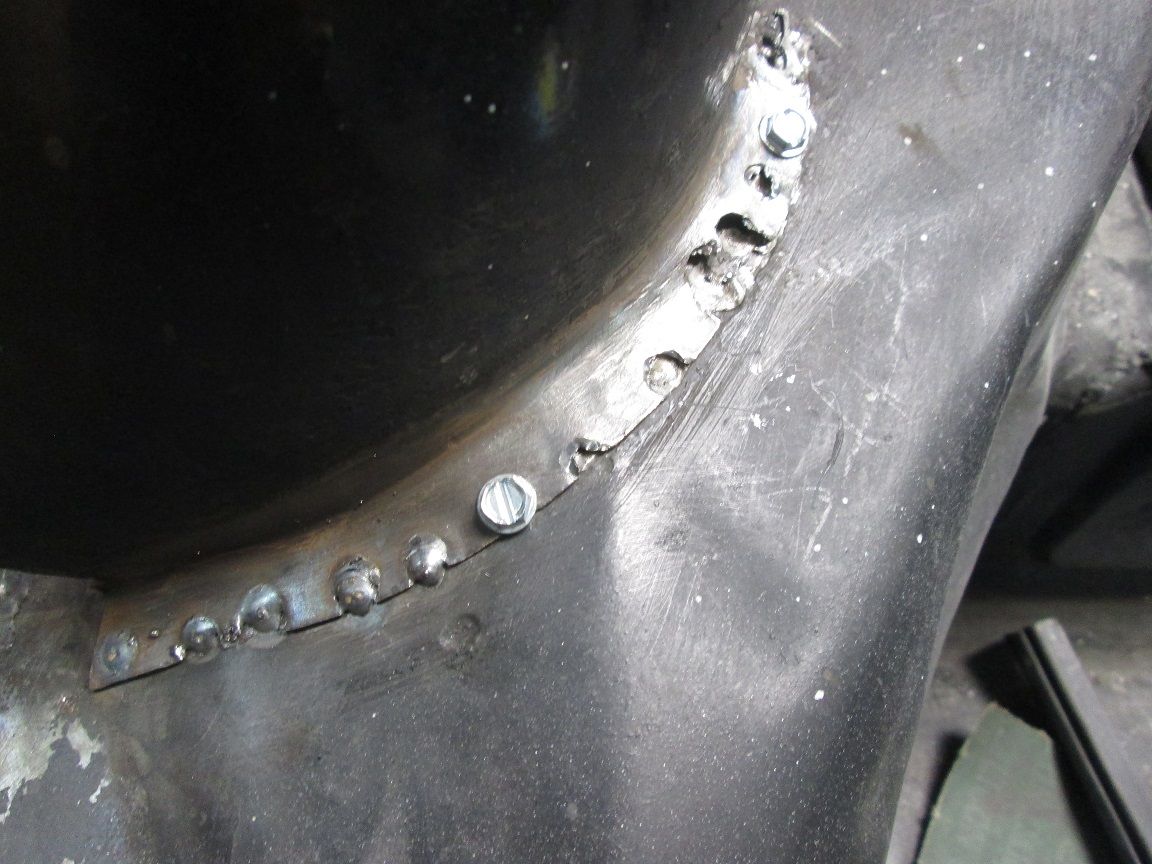

          Skin retacked in its best adjusted position to its new flange which is now fully plug welded to the lock post.
          Click image for larger version  Name:	IMG_4475.JPG Views:	0 Size:	120.9 KB ID:	107596 A foot or two of seam welding to get all this to fit right with the latched door. One more seam weld to go...
          Click image for larger version  Name:	IMG_4485.JPG Views:	0 Size:	119.7 KB ID:	107597

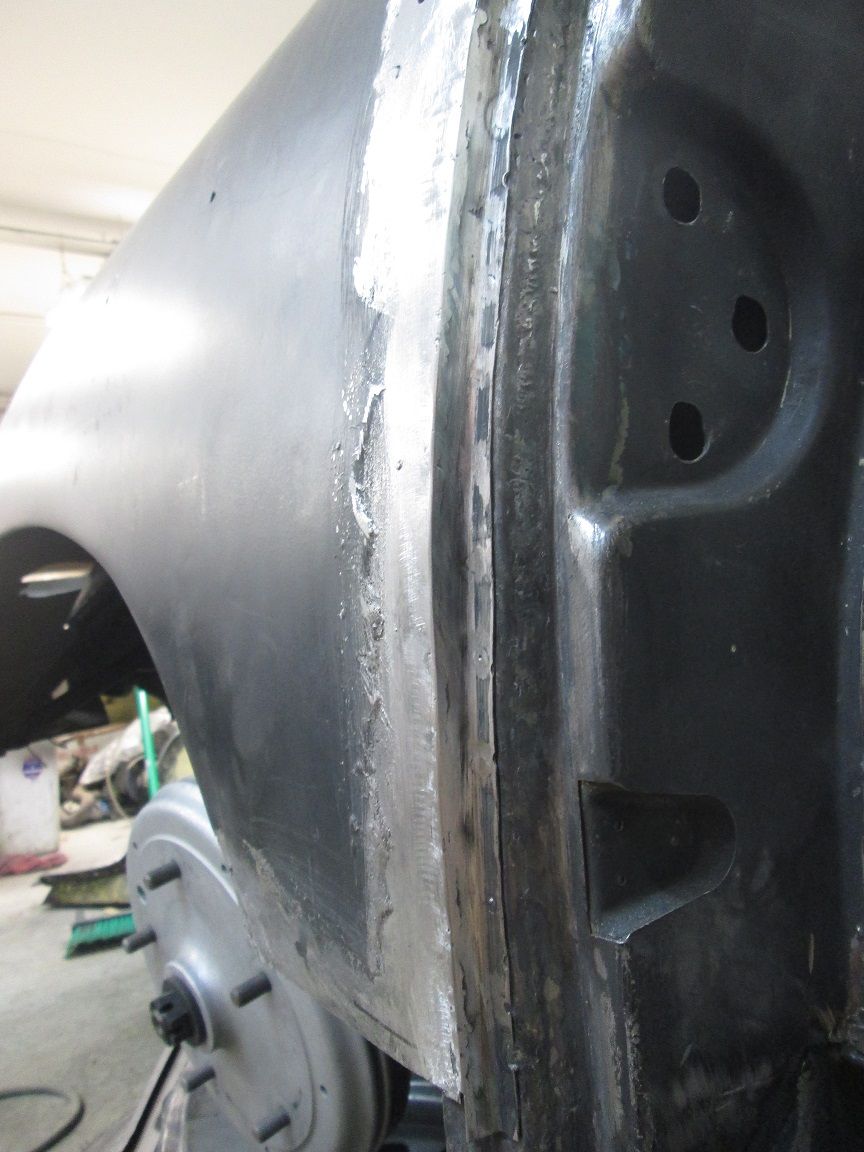

          Leading edge all stitched up and dressed.
          Click image for larger version  Name:	IMG_4486.JPG Views:	0 Size:	131.5 KB ID:	107598 At least up to the door handle area anyway.
          Click image for larger version  Name:	IMG_4487.JPG Views:	0 Size:	98.5 KB ID:	107599 Close initial raw gap maintained.
          Last edited by JTR70; 12-03-2019, 08:20 AM.
          Justin Rio

          Comment


          • More rear gap:
            Click image for larger version

Name:	IMG_4490.JPG
Views:	301
Size:	135.1 KB

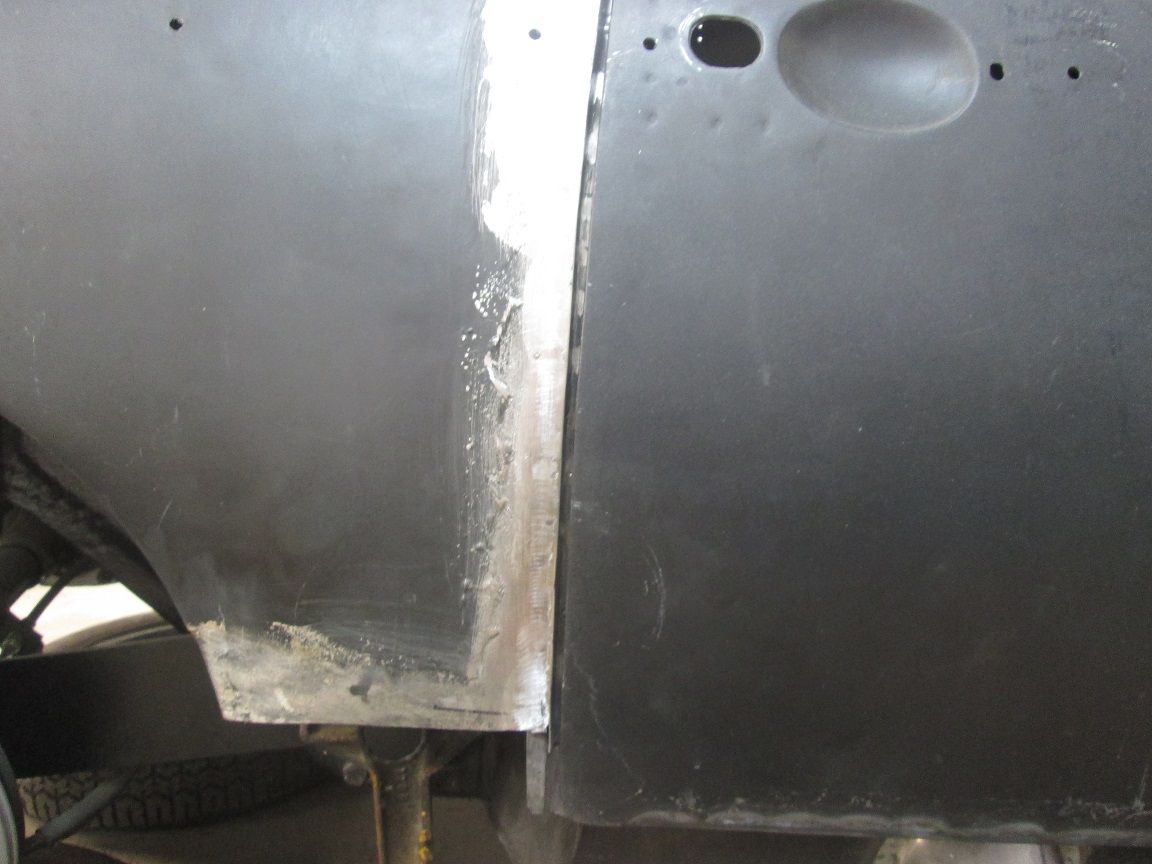

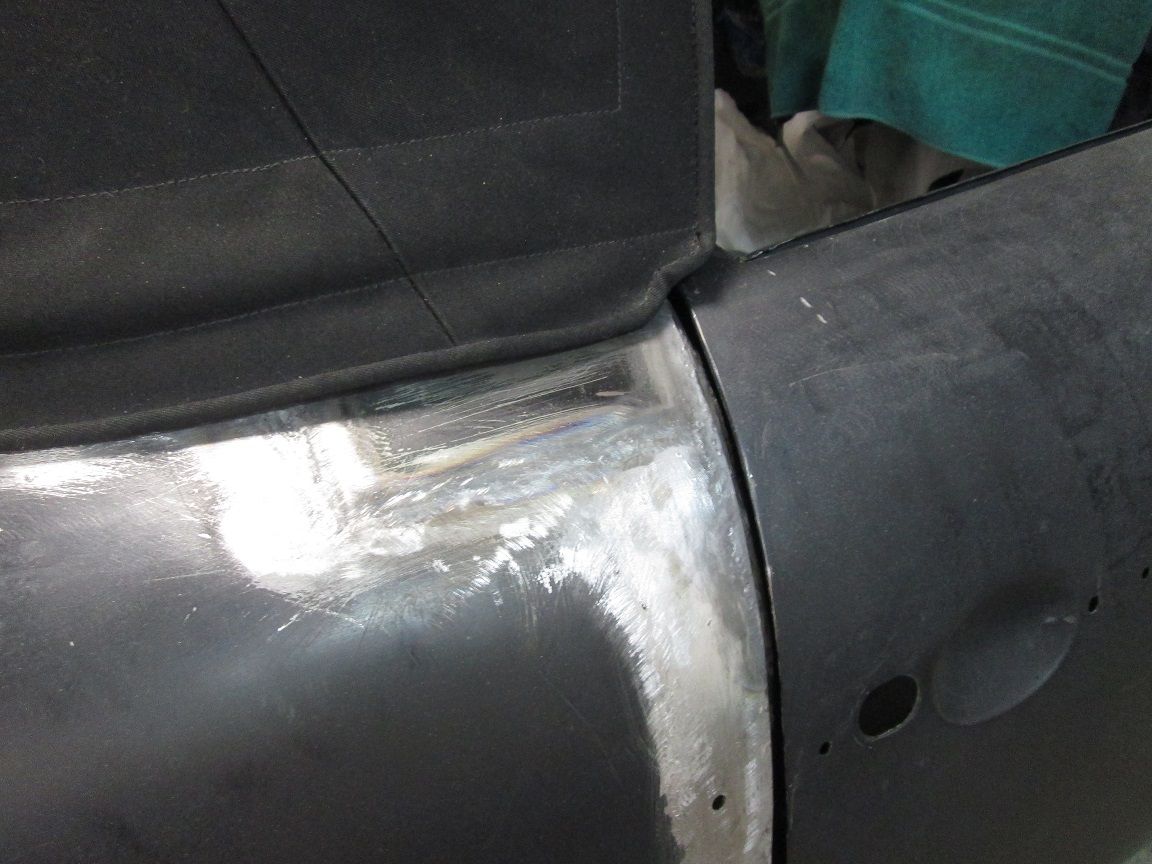

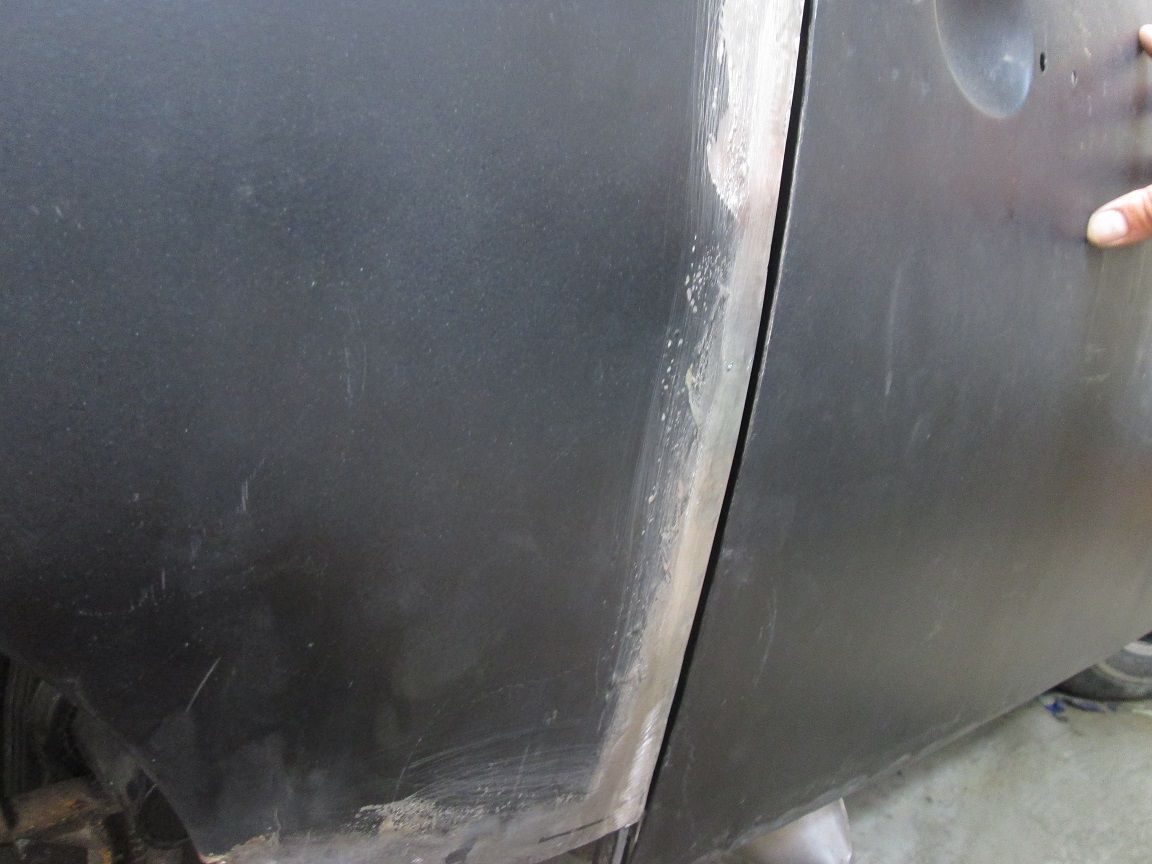

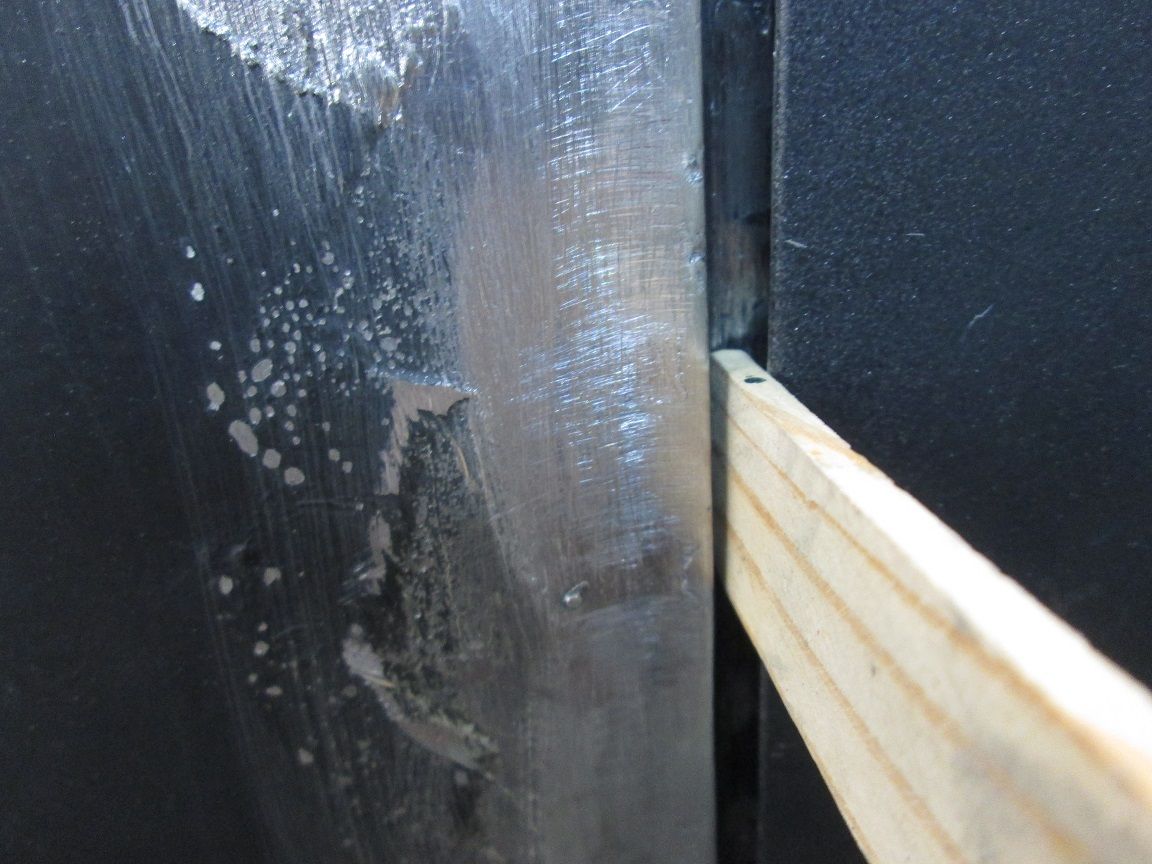

ID:	107601 Will only require a swatch of solder to tighten this gap to 3mm represented by this paint stick.
            Click image for larger version

Name:	IMG_4488.JPG
Views:	276
Size:	107.7 KB

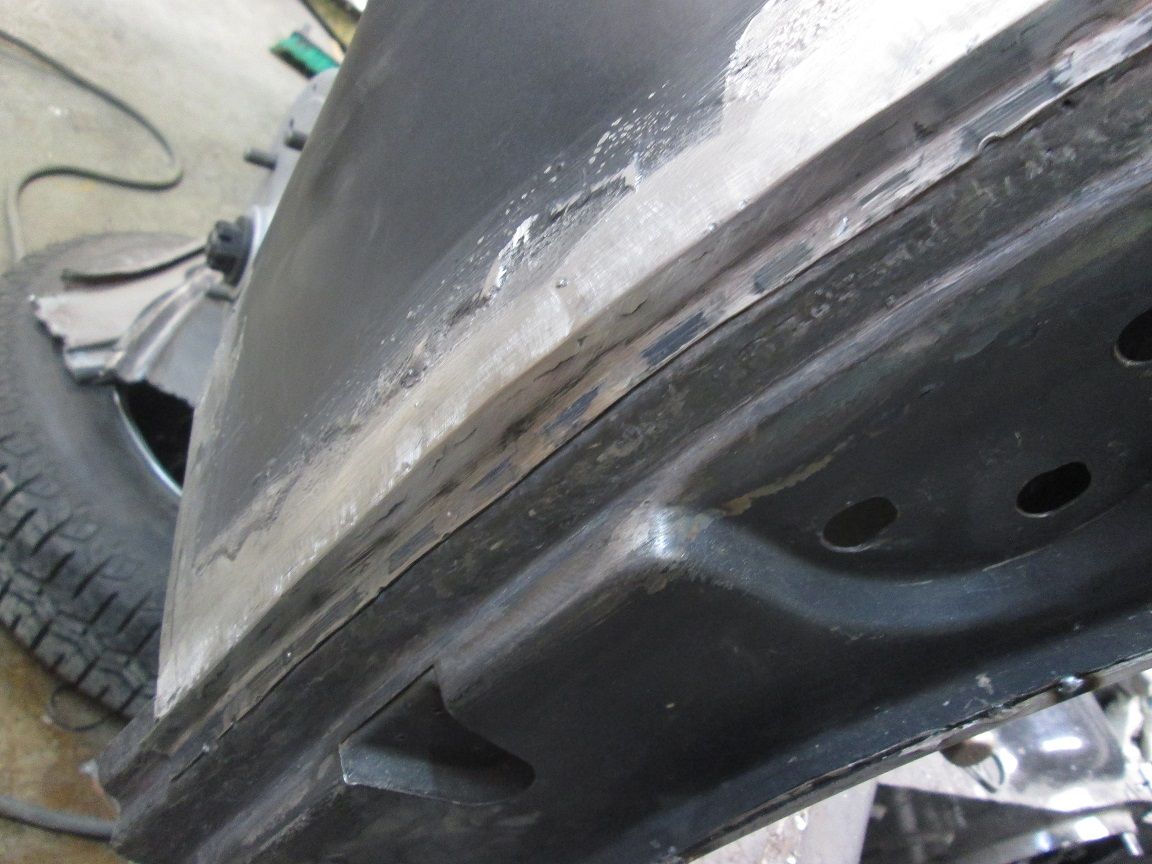

ID:	107602 And the other half of this door gap "coin" is the general body contour match with the profile of the door. Again only a swatch solder to dial it in the rest of the way.
            Click image for larger version

Name:	IMG_4476.JPG
Views:	246
Size:	137.6 KB

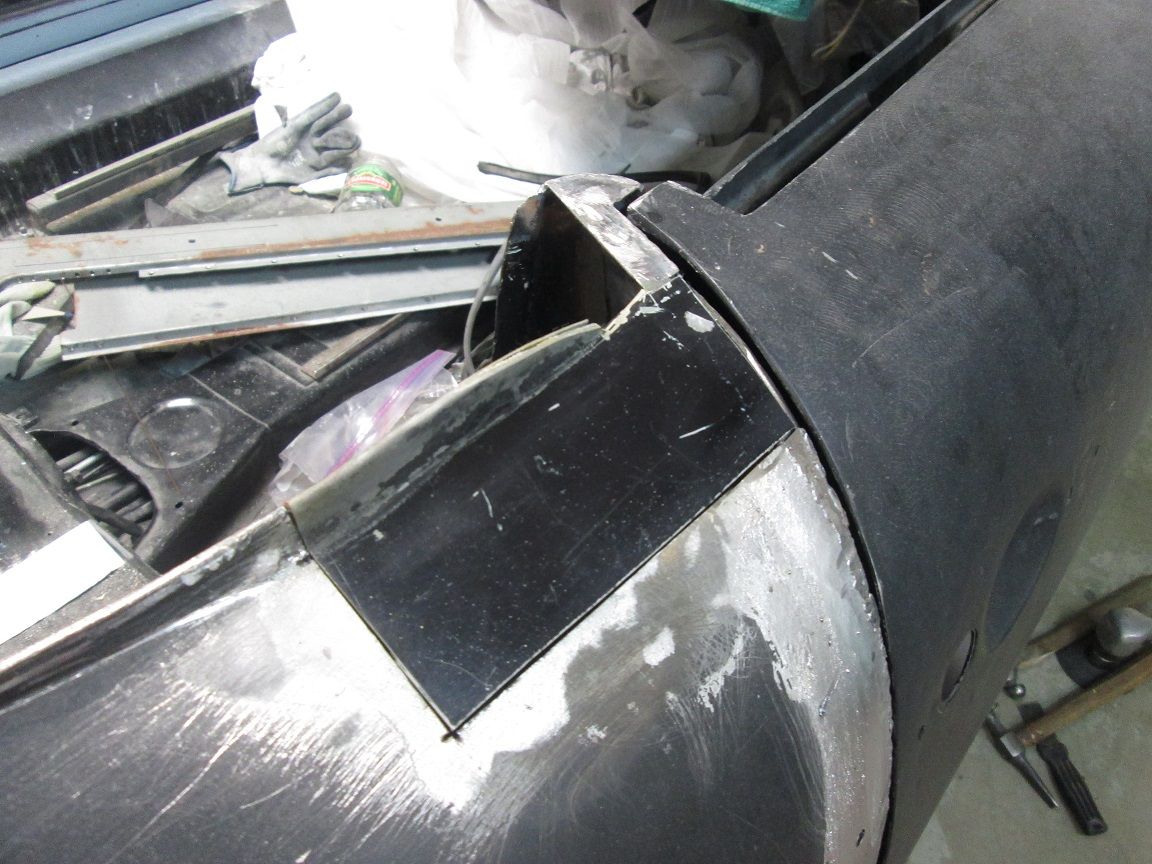

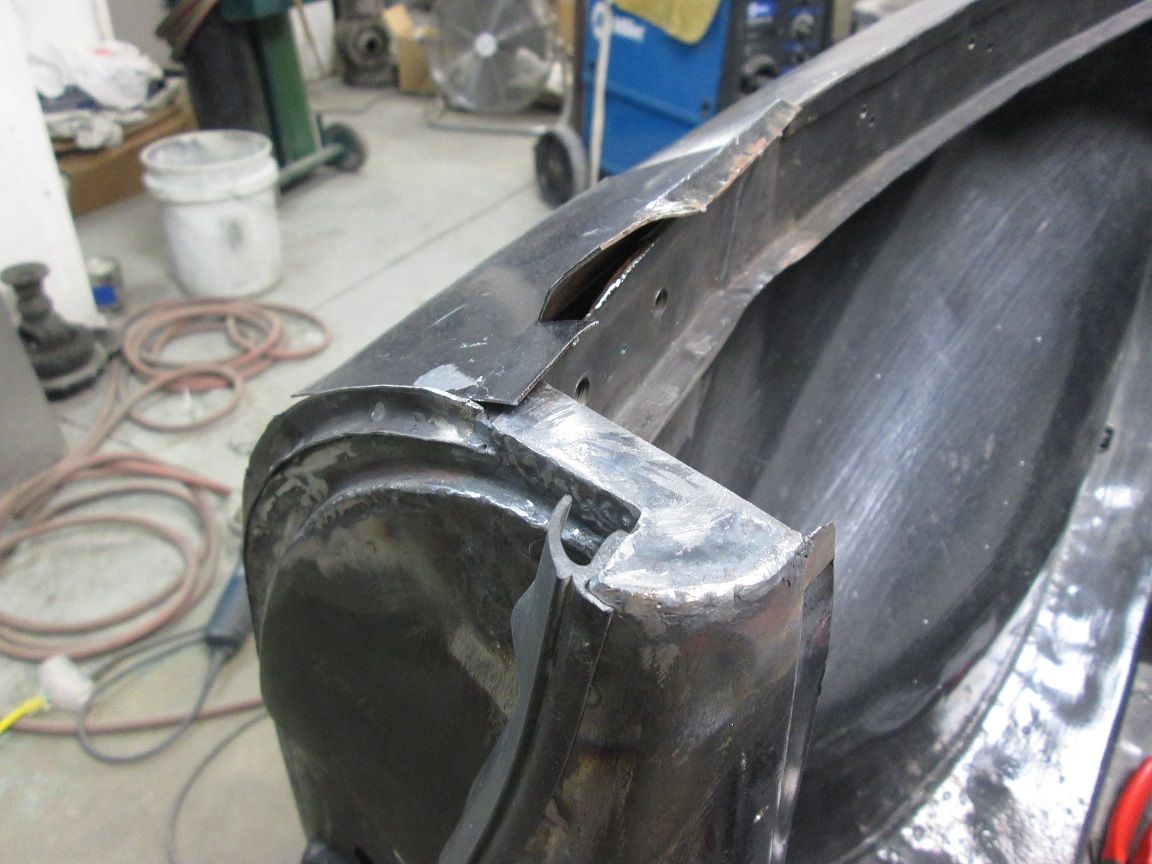

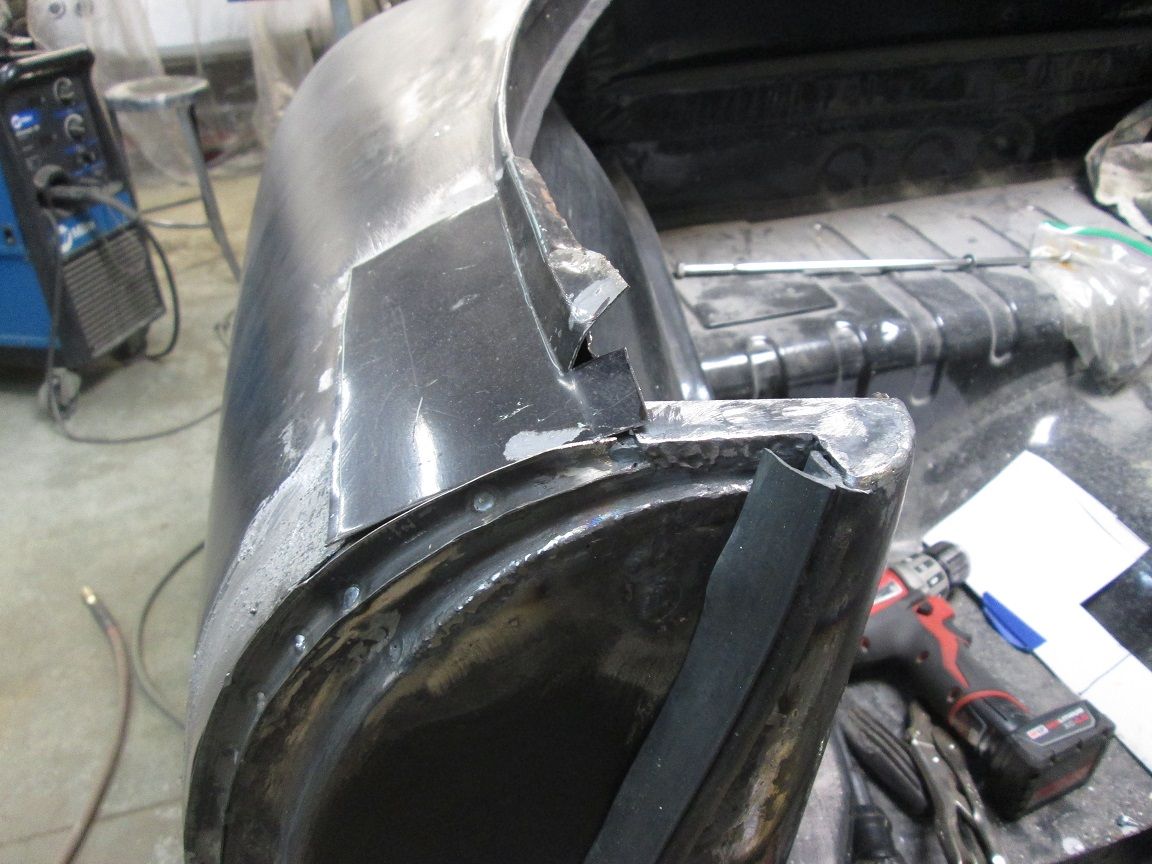

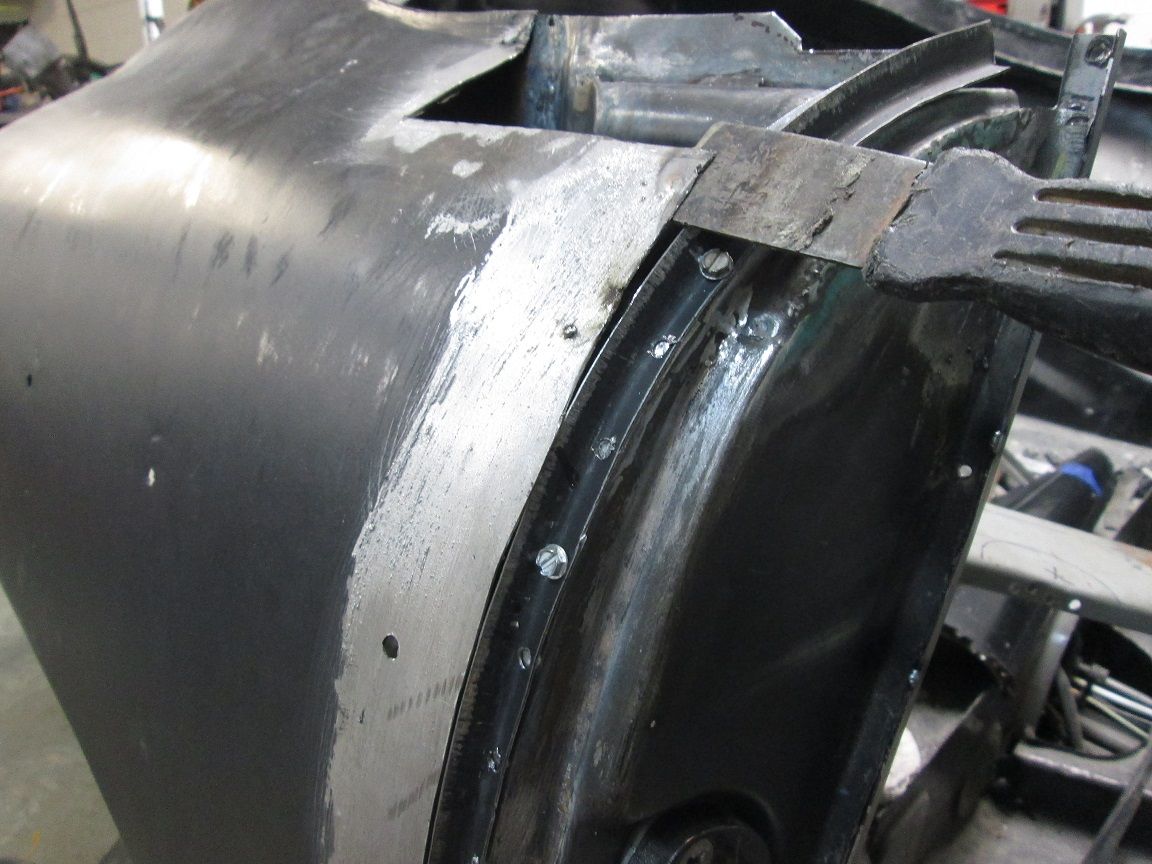

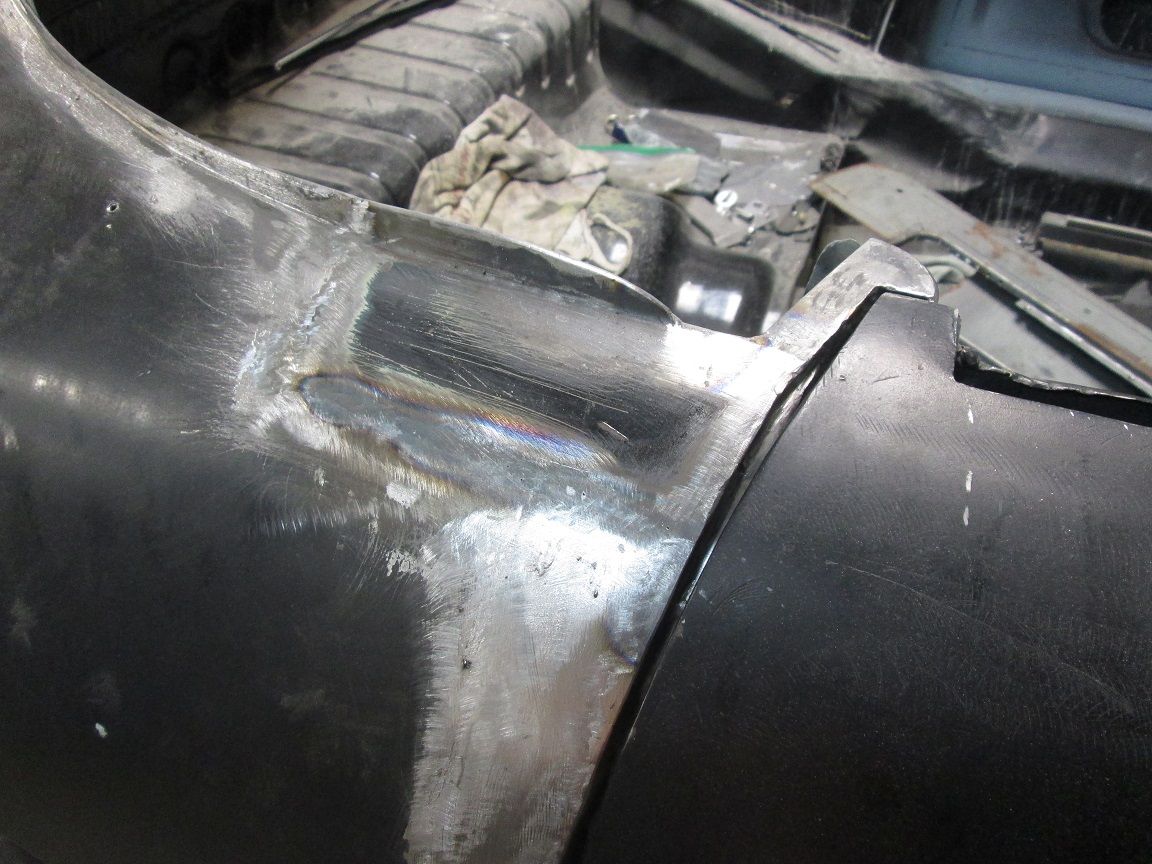

ID:	107603 Now it was back to finishing out this upper corner. Laying down some beads to attach and seal out the corner where it meets the lock post.
            Click image for larger version

Name:	IMG_4477.JPG
Views:	239
Size:	124.0 KB

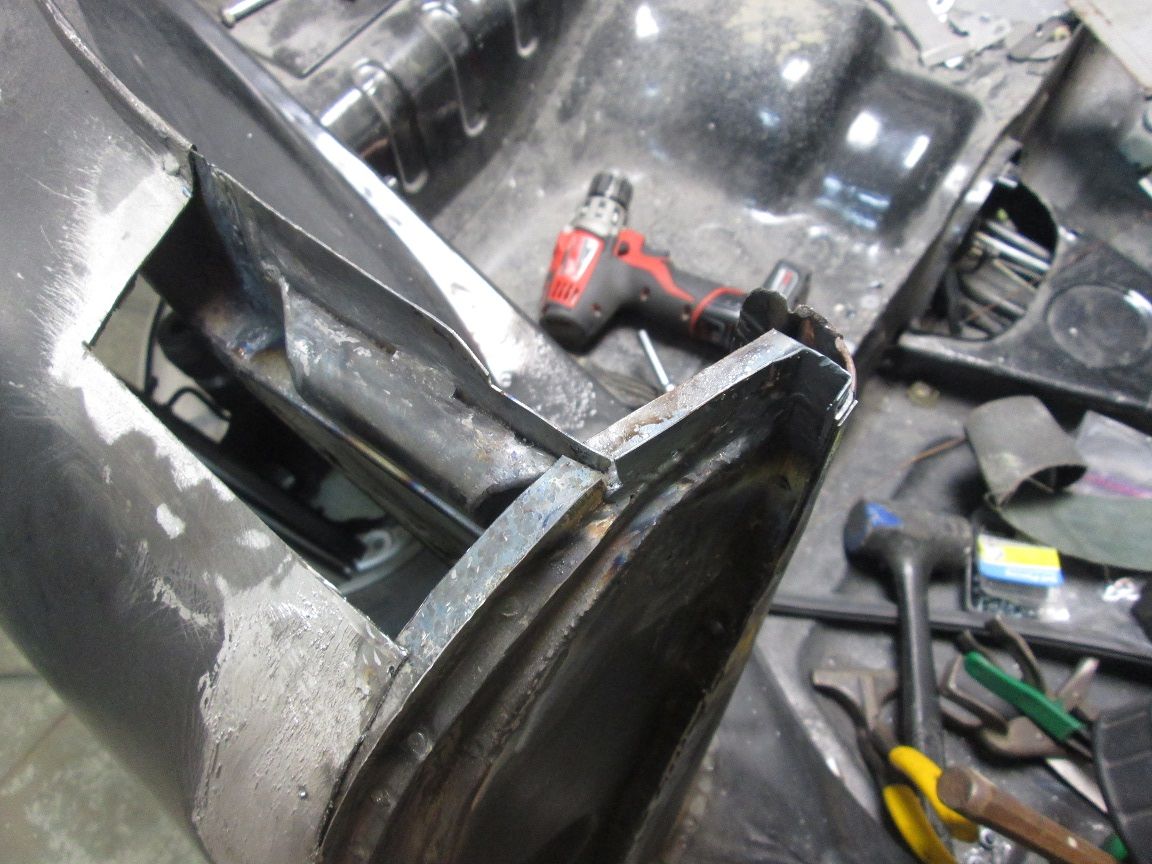

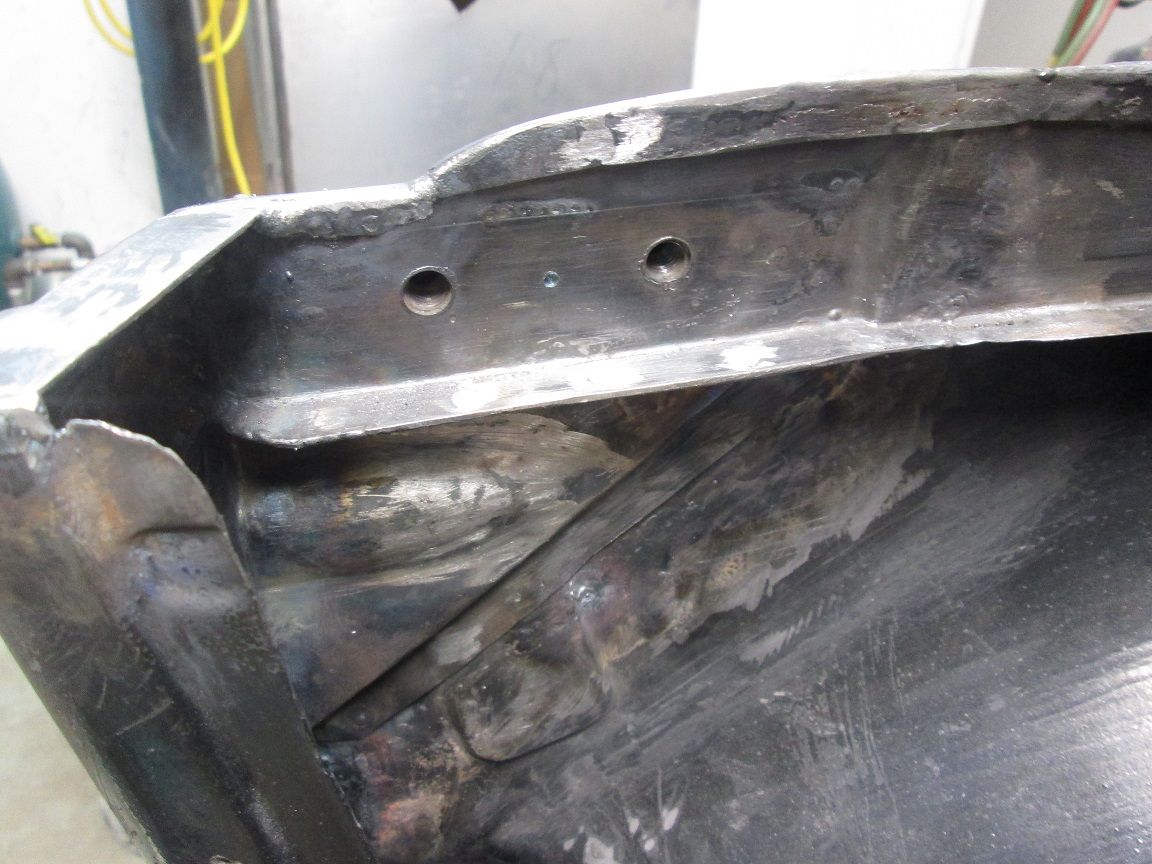

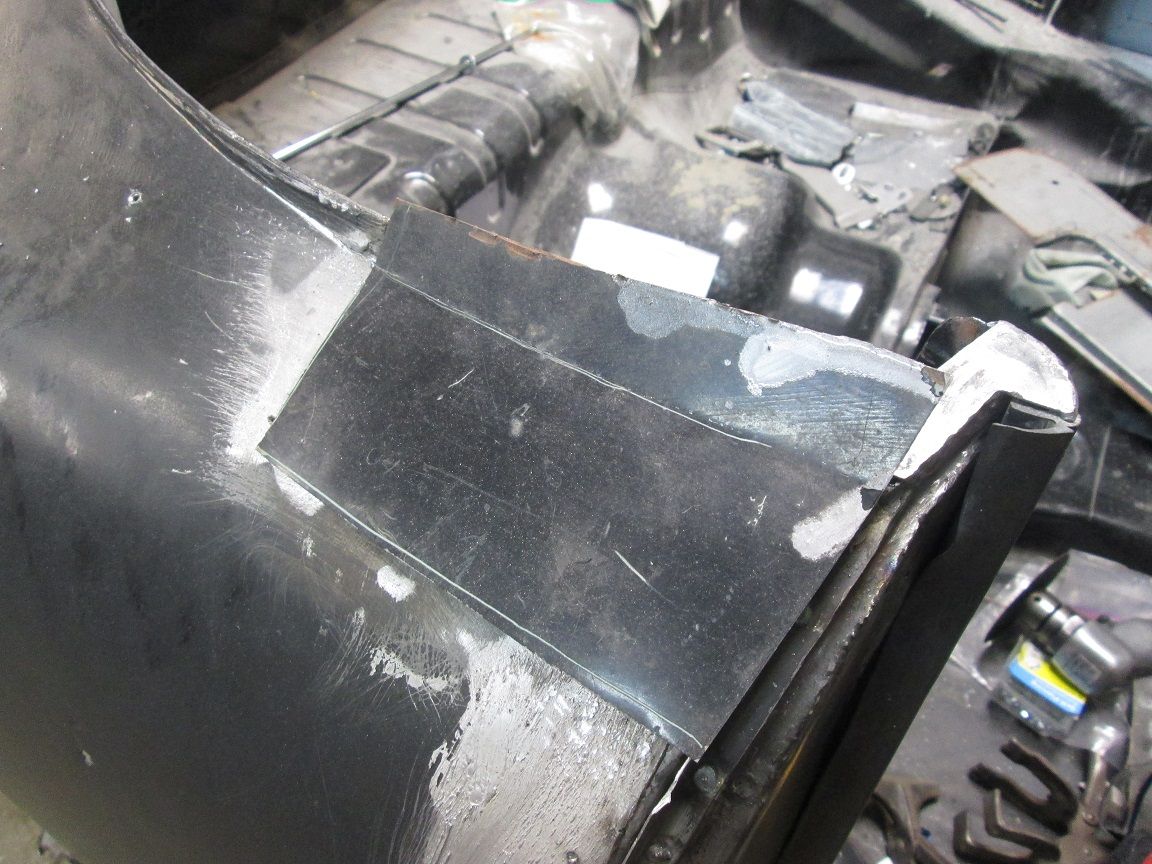

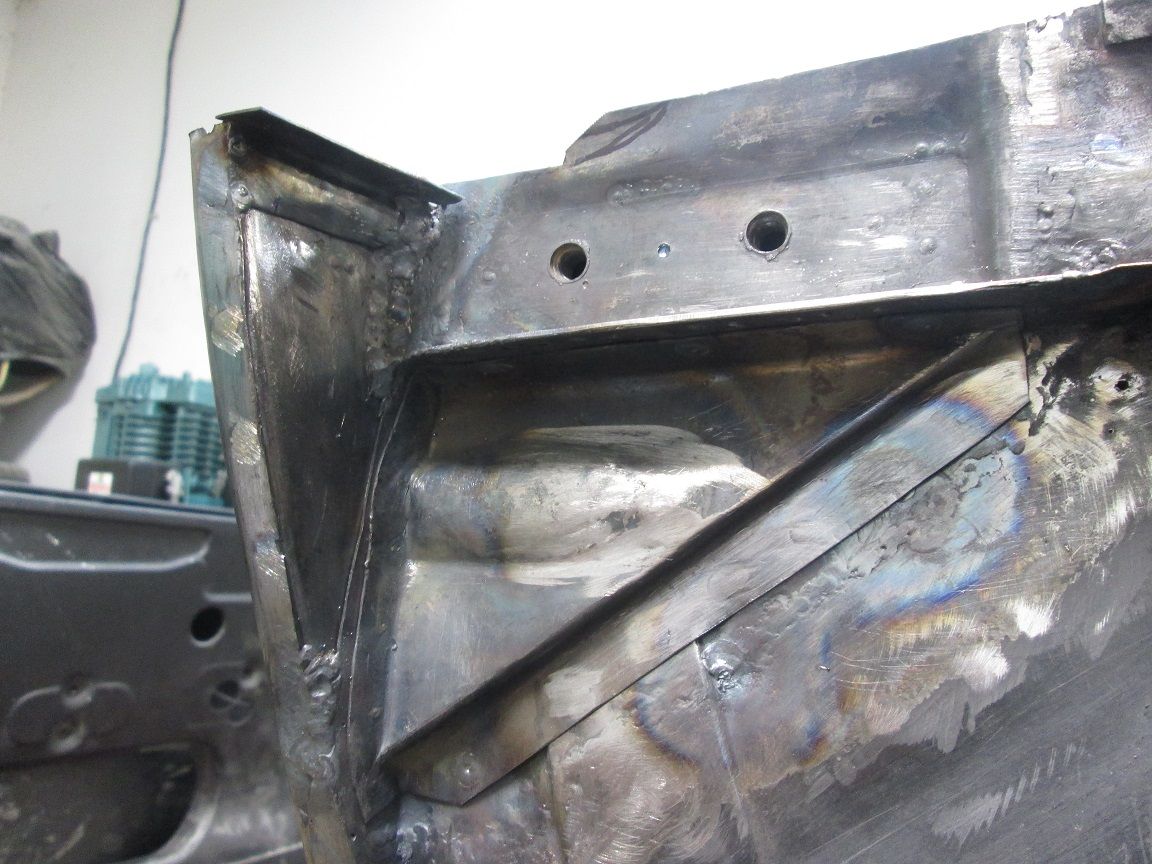

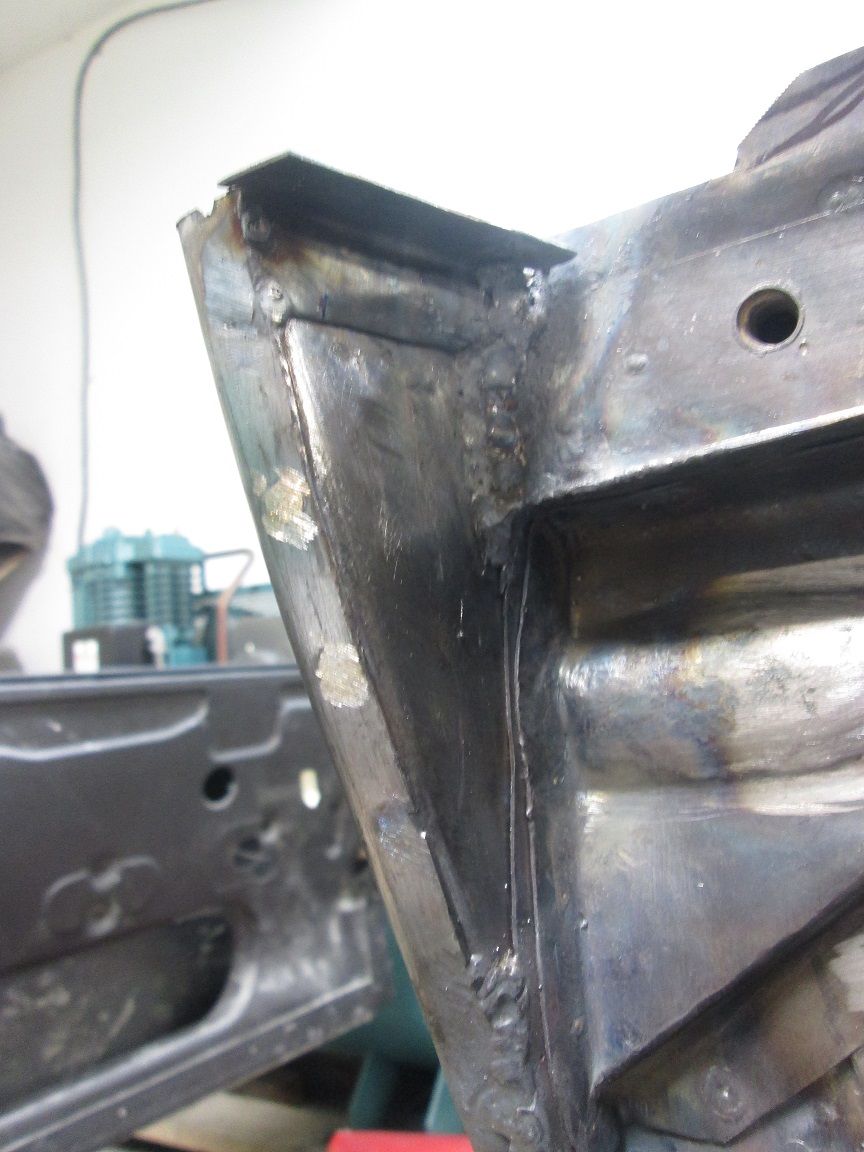

ID:	107604 There is a small substructer Piece that runs across the top here and will reinforce the eventual cap. Copying and reverse engineering as best as I can from the left side.
            Click image for larger version

Name:	IMG_4483.JPG
Views:	228
Size:	113.0 KB
ID:	107605

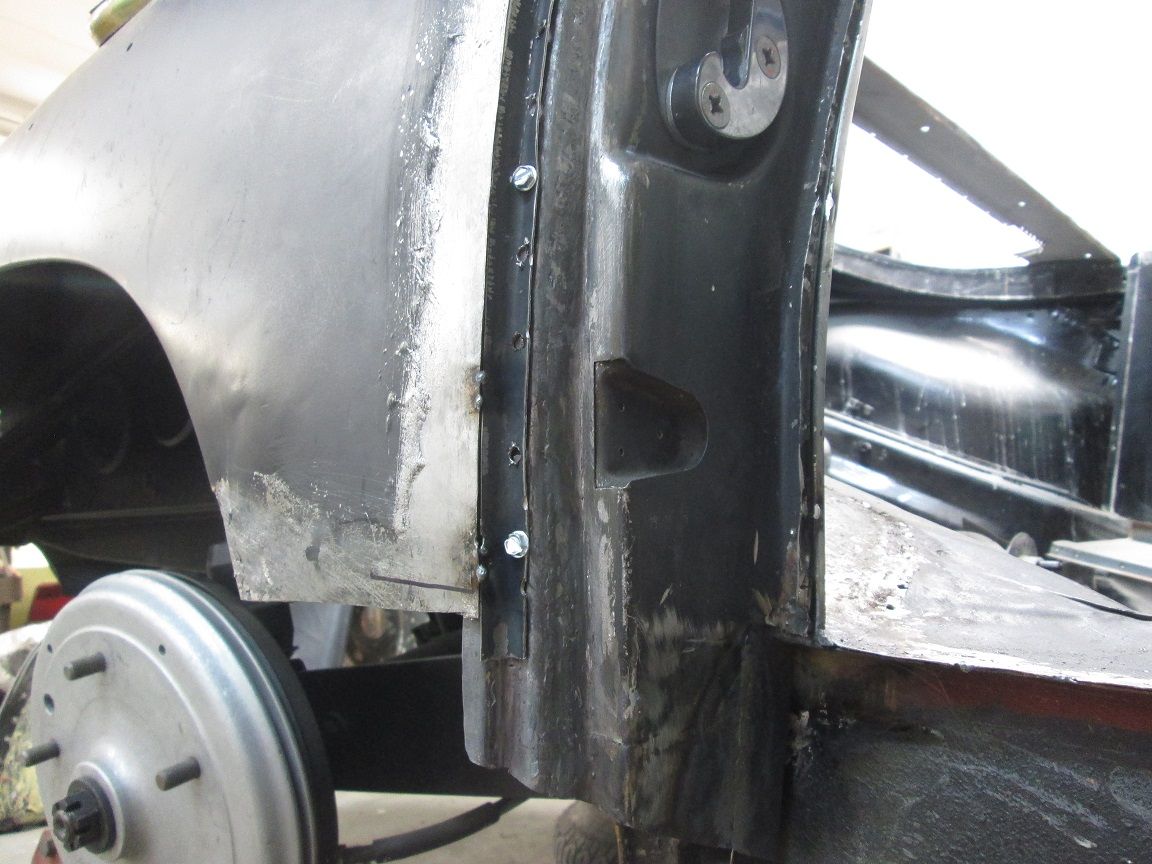

            New piece in with bottom edge left raw as I'm seeing it on the left side. All gas weld details replicated at the base of the "V" and along the upper corners.

            Justin Rio

            Comment


            • Click image for larger version  Name:	IMG_4482.JPG Views:	0 Size:	153.5 KB ID:	107607 Unbelievably long and windy road with all of this but I'm finally all done in here. Everything else is external capping work.
              Click image for larger version  Name:	IMG_4489.JPG Views:	0 Size:	135.6 KB ID:	107608

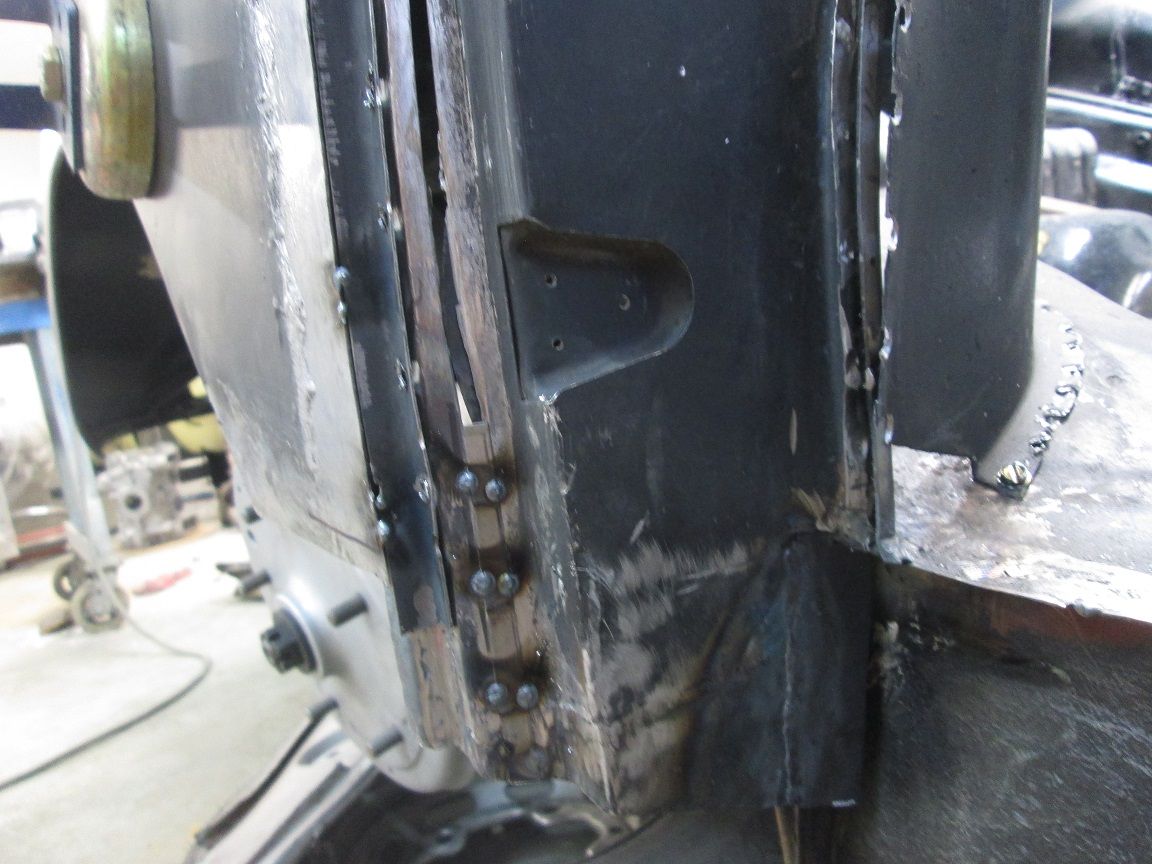

              Now adding the OG closing sheath back in.
              Click image for larger version  Name:	IMG_4494.JPG Views:	0 Size:	151.6 KB ID:	107609 Some small repair to do on the upper outer flange first.

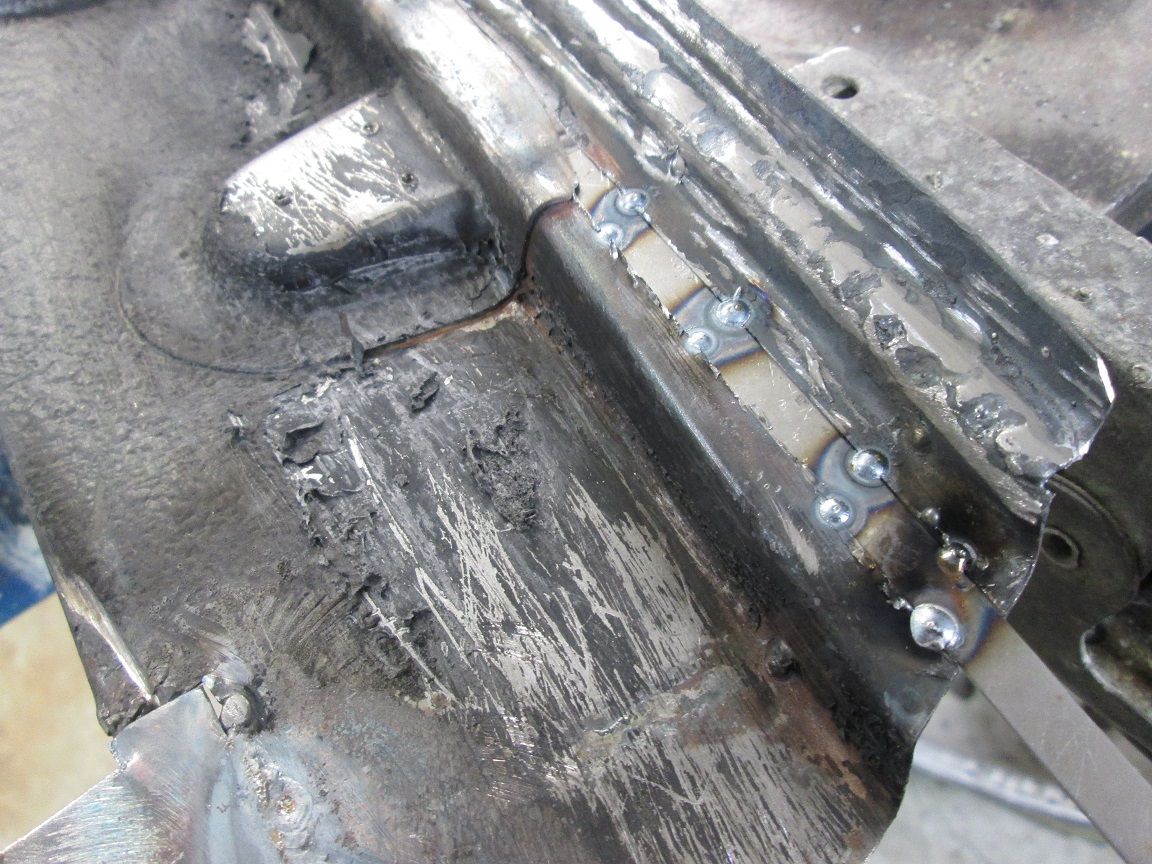

              Click image for larger version  Name:	IMG_4495.JPG Views:	0 Size:	139.4 KB ID:	107610 Set screwed and beginning to plug weld it back into position. Got all the drilled out spot welds to relalign so I'm 99% sure its back where it was originally.
              Click image for larger version  Name:	IMG_4496.JPG Views:	0 Size:	139.9 KB ID:	107611
              Plug welding continues. Capping the upper corner after this.

              Thanks for looking!
              Justin
              Last edited by JTR70; 12-03-2019, 08:56 AM.
              Justin Rio

              Comment

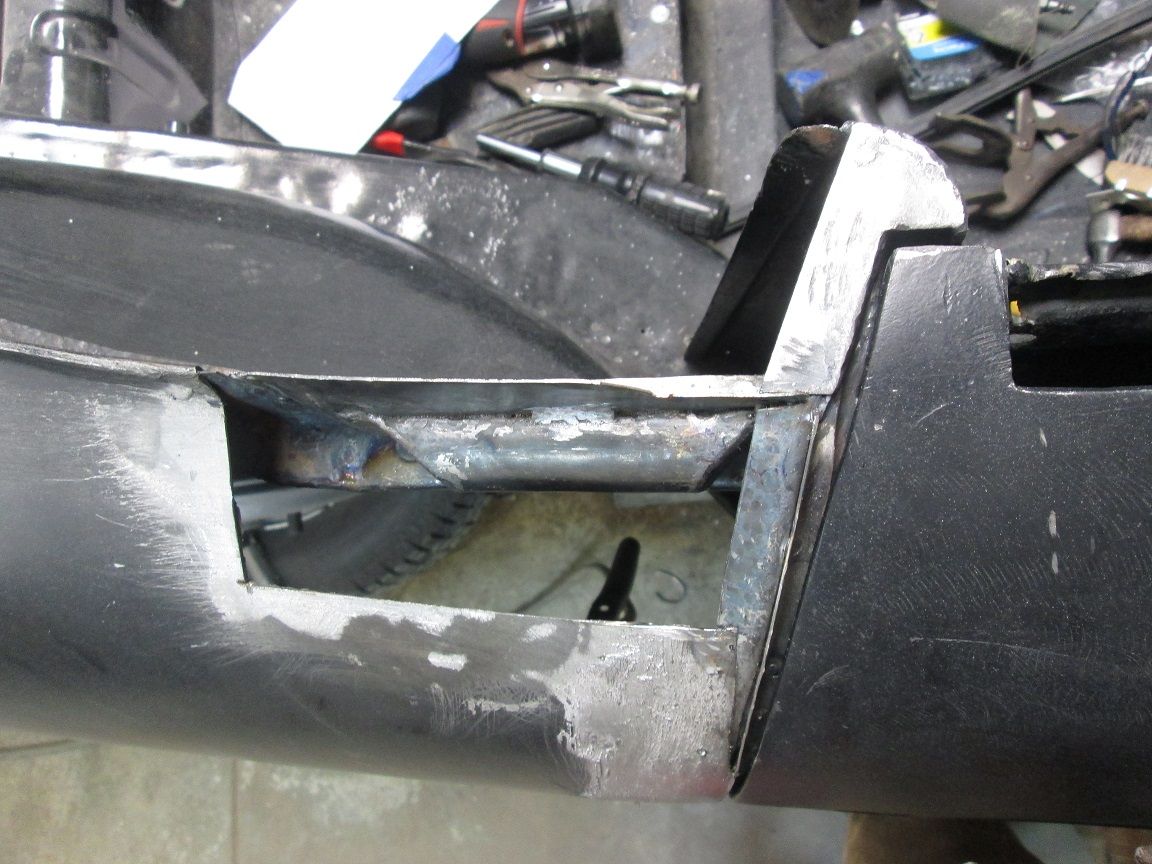

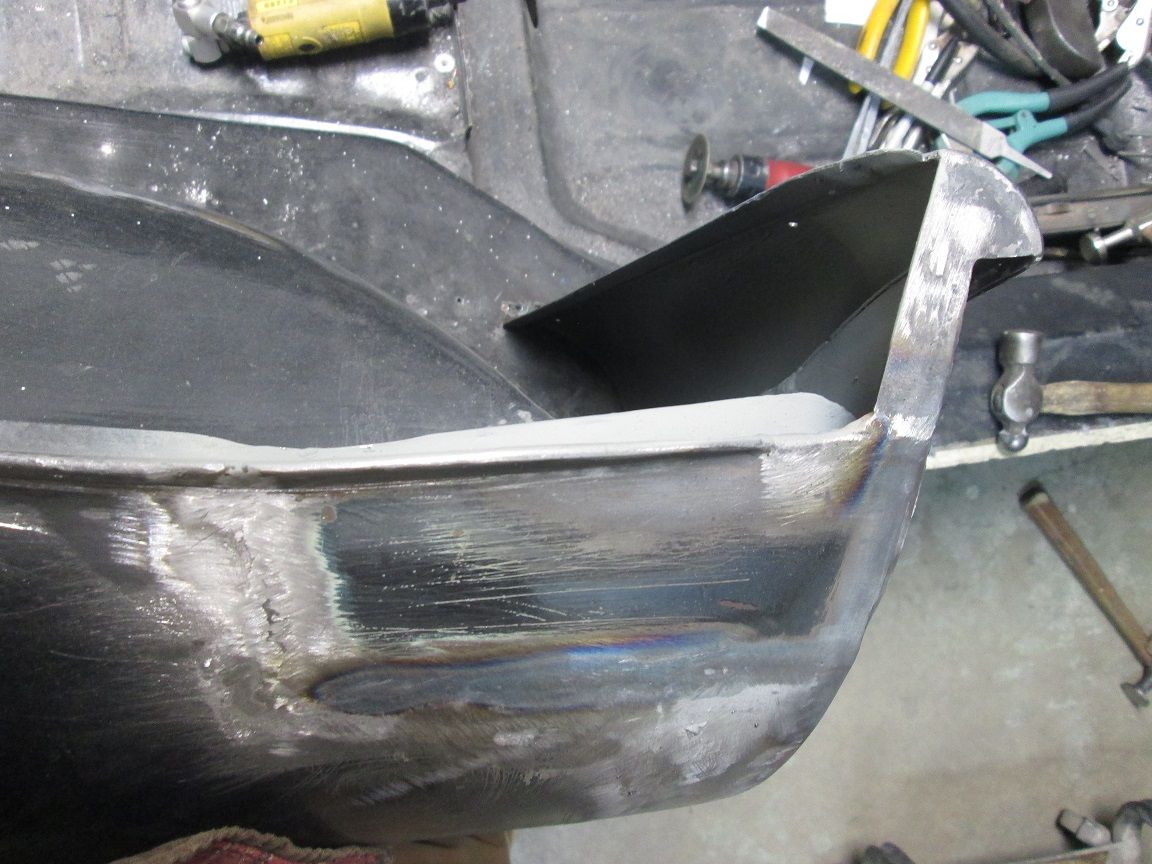

              • Finally putting a lid on it:
                Click image for larger version  Name:	IMG_4497.JPG Views:	0 Size:	127.2 KB ID:	107613 paper templating the new cap.

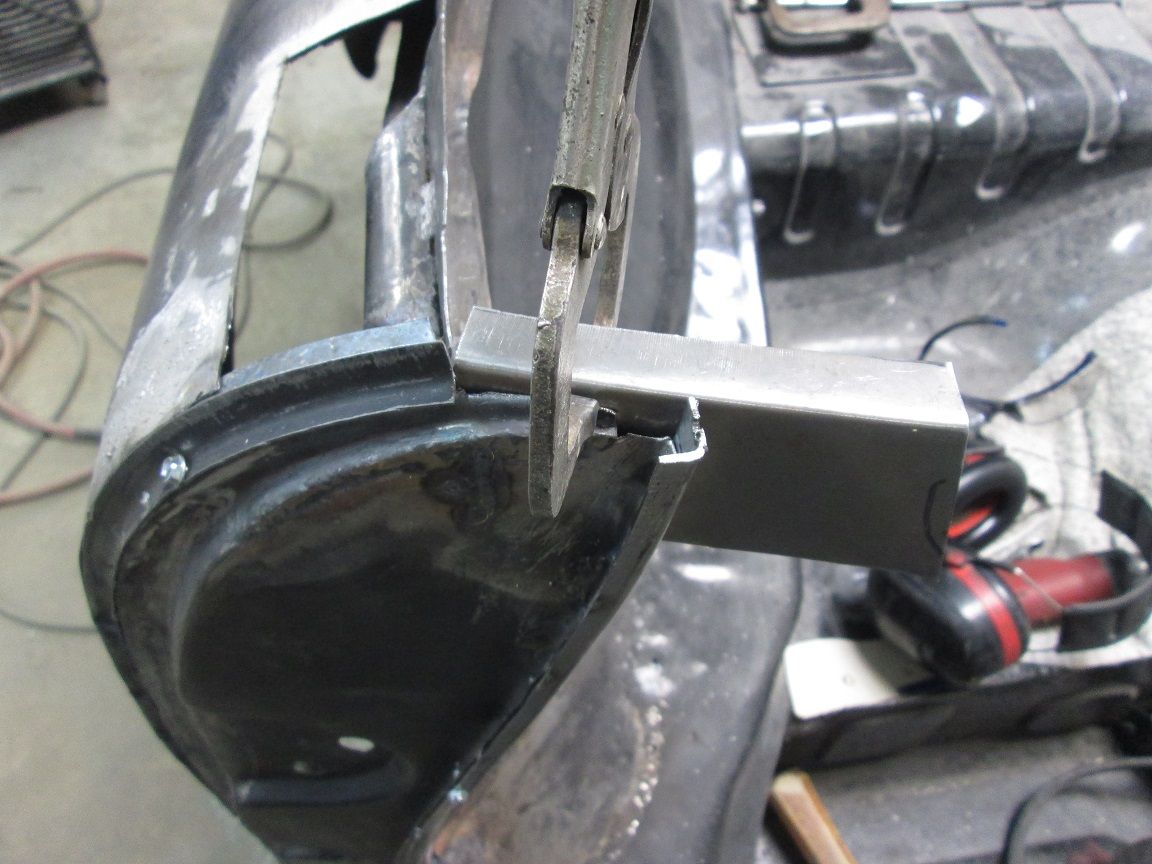

                Click image for larger version  Name:	IMG_4500.JPG Views:	0 Size:	152.1 KB ID:	107614 Before I could add the cap I had a small filler strip to add to the top of the lock post to finish it and the door seal channel all out smoothly.
                Click image for larger version  Name:	IMG_4501.JPG Views:	0 Size:	131.1 KB ID:	107615 Excess ground back even making this area now ready for the cap.
                Click image for larger version  Name:	IMG_4503.JPG Views:	0 Size:	133.0 KB ID:	107616 New cap trimmed to shape with plug weld holes and ready to go. Went with 18 gauge for additional dent and damage resistance.
                Click image for larger version  Name:	IMG_4506.JPG Views:	0 Size:	153.8 KB ID:	107617 Fully welded in and dressed. As with the rest of this leading edge the basic gap with the door will only need a swatch of solder to be perfect. Now its onto closing up this last hole up here.
                Last edited by JTR70; 12-04-2019, 07:08 AM.
                Justin Rio

                Comment


                • New quarter panel patch:
                  Click image for larger version

Name:	IMG_4509.JPG
Views:	205
Size:	111.6 KB

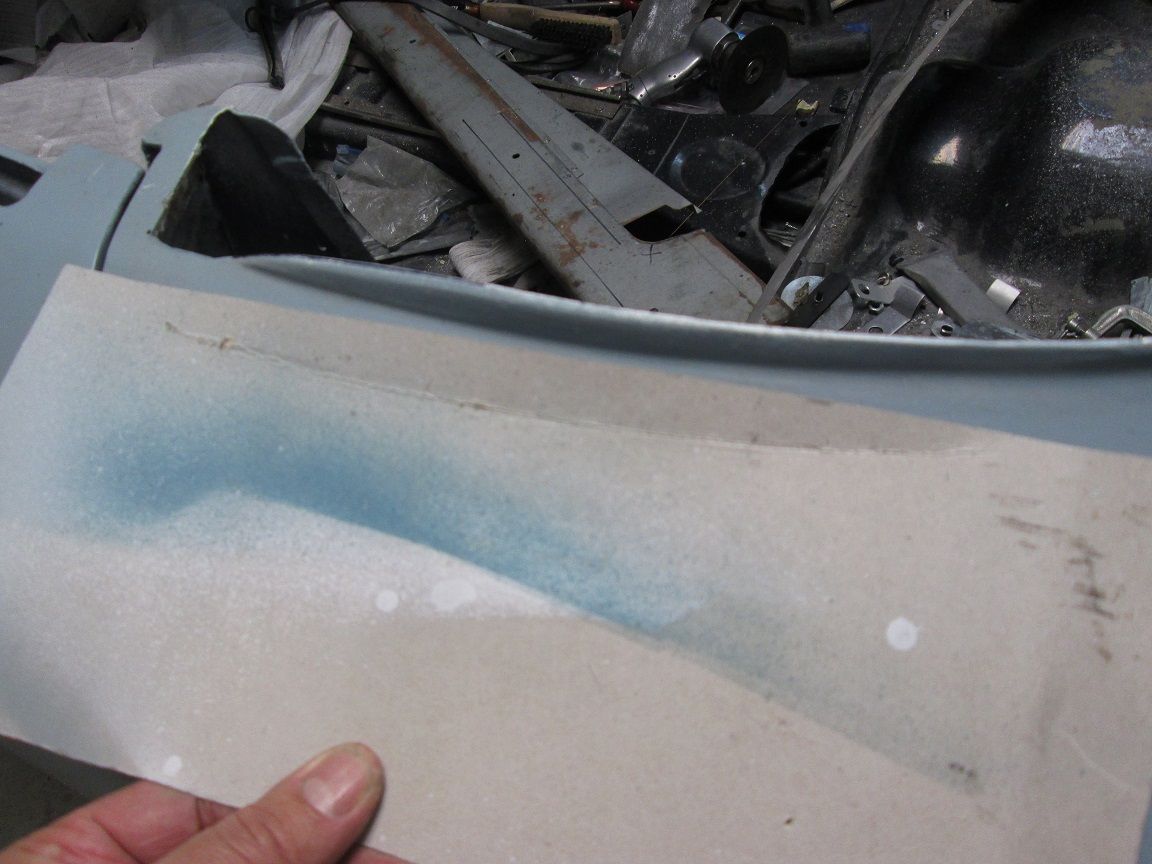

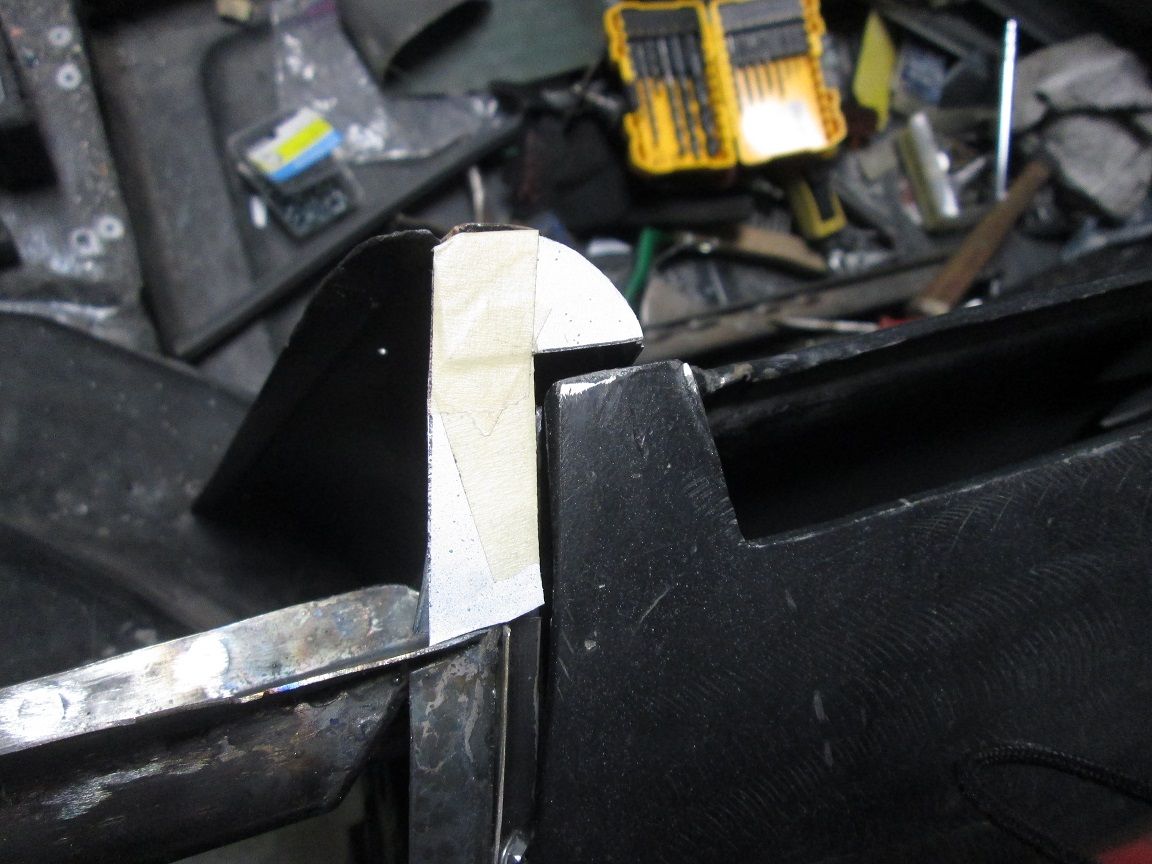

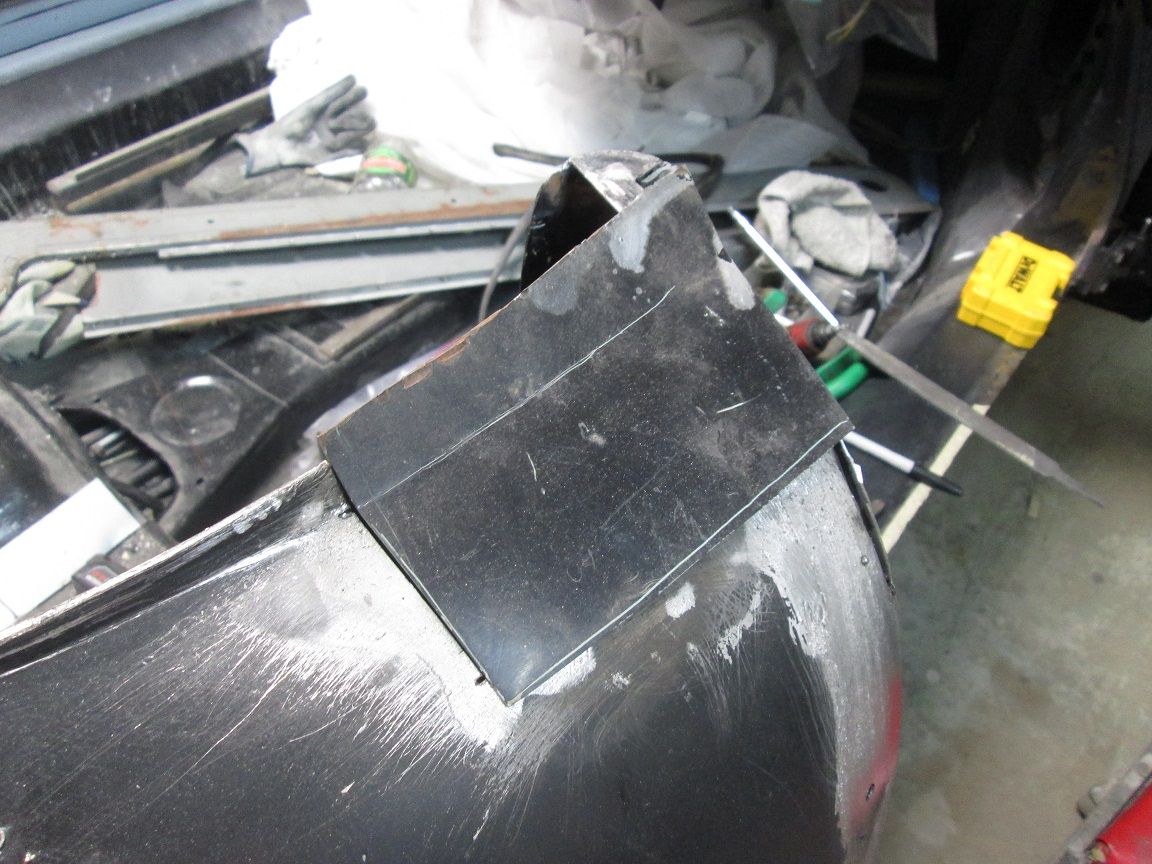

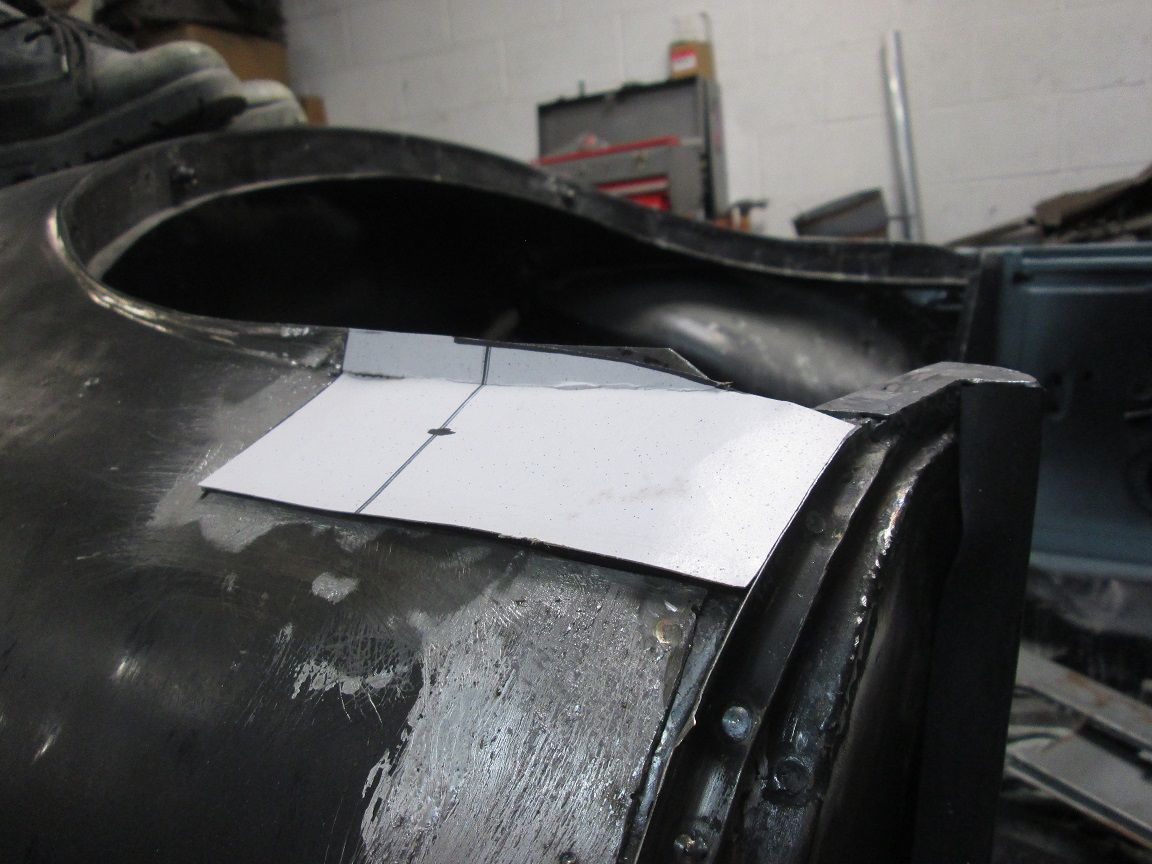

ID:	107619 Templating the profile sweep of the OG left side. Its gentle curve and I wanted to make sure that captured that.
                  Click image for larger version

Name:	IMG_4510.JPG
Views:	179
Size:	122.7 KB
ID:	107620 Flipped over to give me everything I need; Onto metal.
                  Click image for larger version

Name:	IMG_4511.JPG
Views:	194
Size:	160.1 KB

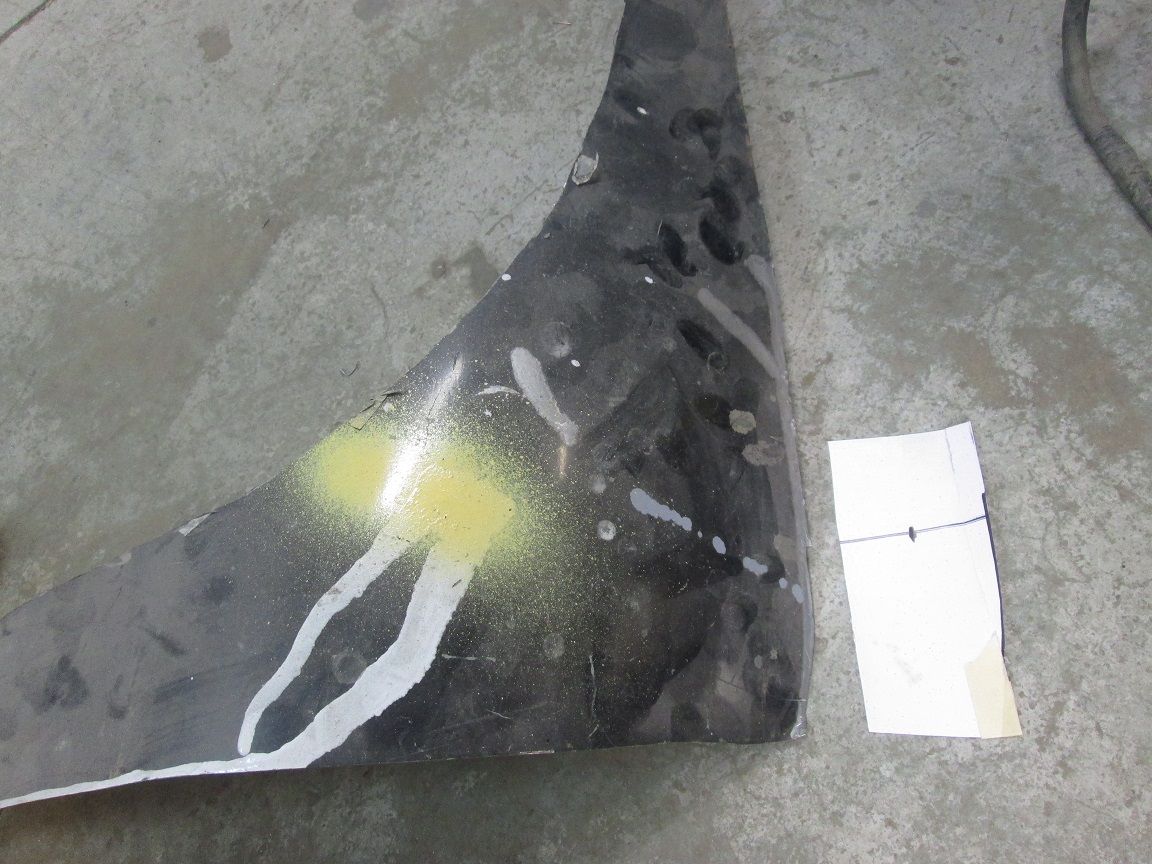

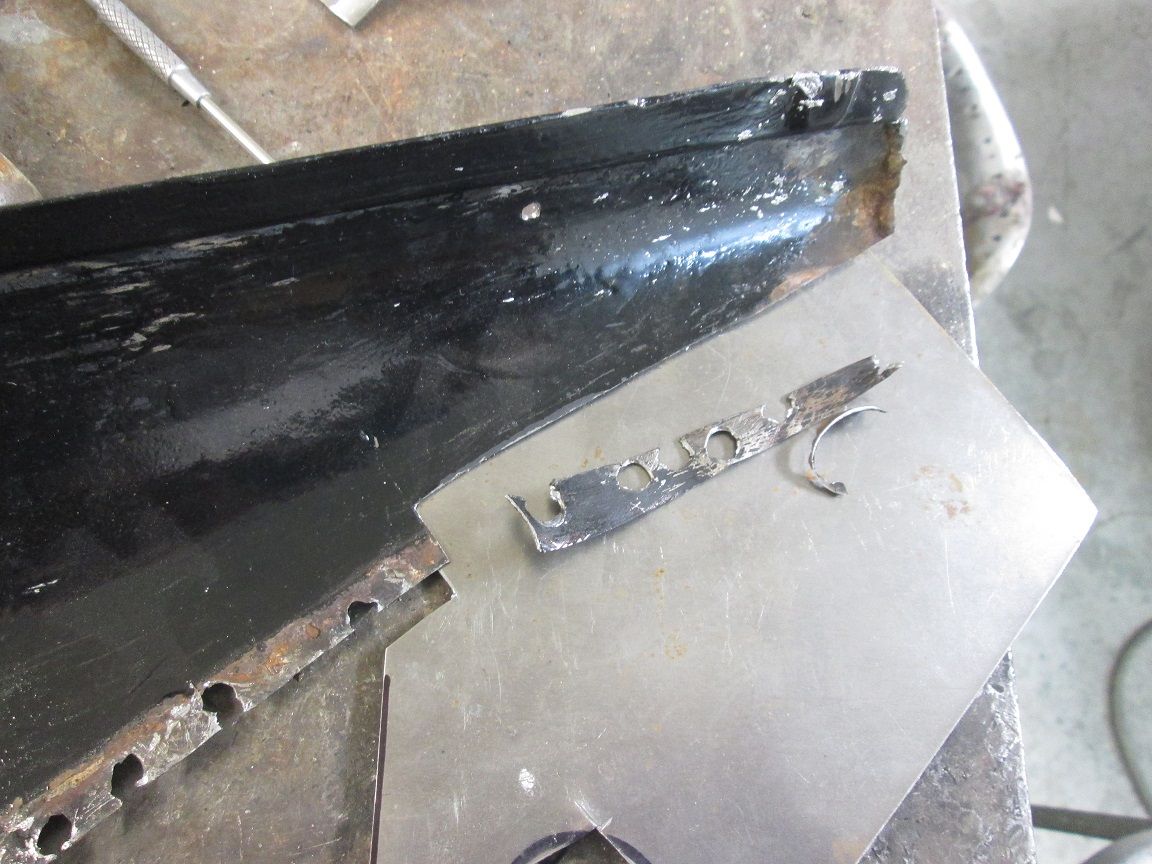

ID:	107621 Decided to make the new patch from this OG quarter panel remnant from my old project. What I was mainly after was the curved profile shape already in the metal. I also like giving old Original sections a new purpose other than taking up space in my shop.
                  Click image for larger version

Name:	IMG_4512.JPG
Views:	183
Size:	173.9 KB

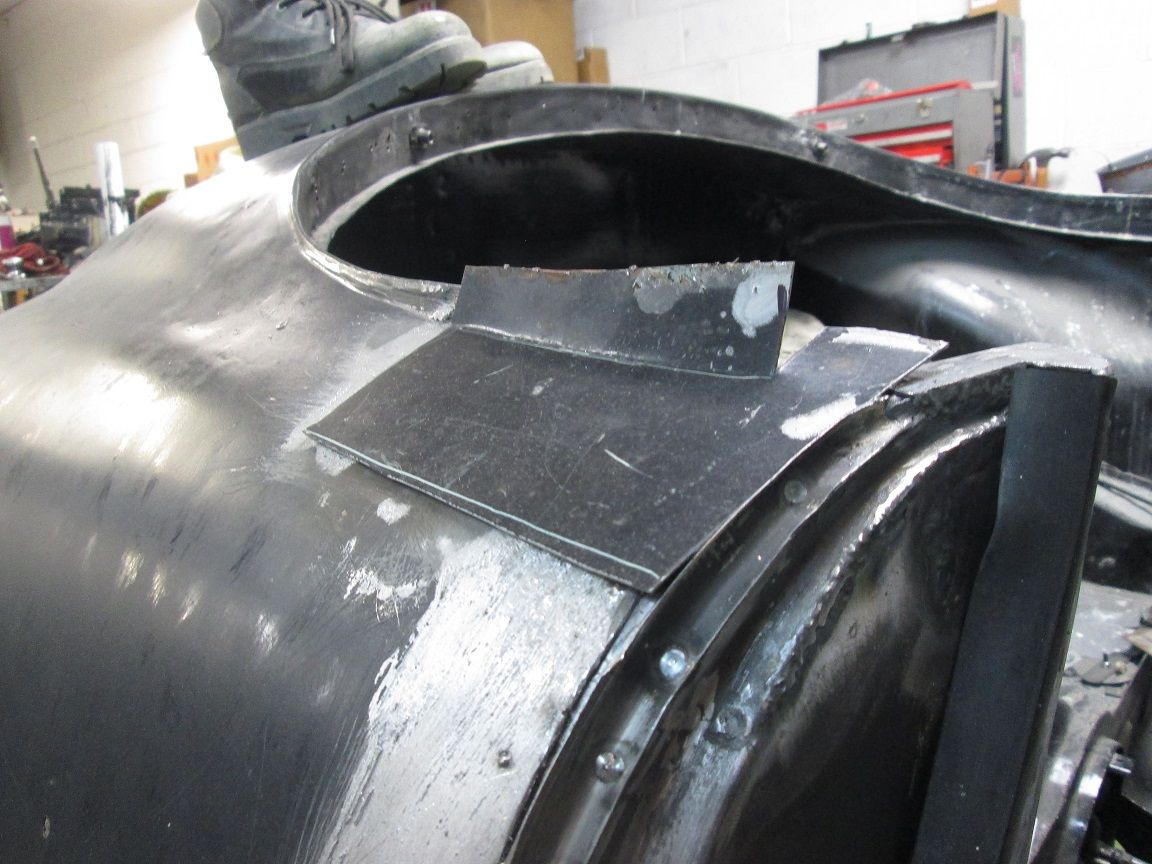

ID:	107622 New patch section cut to basic shape with lip profile etched in. Again it has a gentle sweep to it so the bend will have to be done in two stages.
                  Click image for larger version

Name:	IMG_4513.JPG
Views:	179
Size:	162.3 KB
ID:	107623 Slowly working in the bend. Have to tighten it more but I'm slowly getting what I'm after.

                  Justin Rio

                  Comment


                  • More patch development:
                    Click image for larger version  Name:	IMG_4514.JPG Views:	0 Size:	139.0 KB ID:	107625 Just about there on the first bend.
                    Click image for larger version  Name:	IMG_4515.JPG Views:	0 Size:	122.5 KB ID:	107626 Now marking and planning out the next bend to create the folded flange. That tapered profile keeps it from being too simple.
                    Click image for larger version  Name:	IMG_4519.JPG Views:	0 Size:	137.8 KB ID:	107628 Slowly adding in the next fold.
                    Click image for larger version

Name:	image_62074.jpg
Views:	185
Size:	171.5 KB
ID:	107627 Everything's lining up pretty well so I don't want to screw this up now.
                    Click image for larger version

Name:	image_62076.jpg
Views:	187
Size:	130.6 KB
ID:	107629 Adding the last bit of this flange in next.

                    Thanks for stopping by!
                    Justin
                    Last edited by JTR70; 12-04-2019, 07:48 AM.
                    Justin Rio

                    Comment

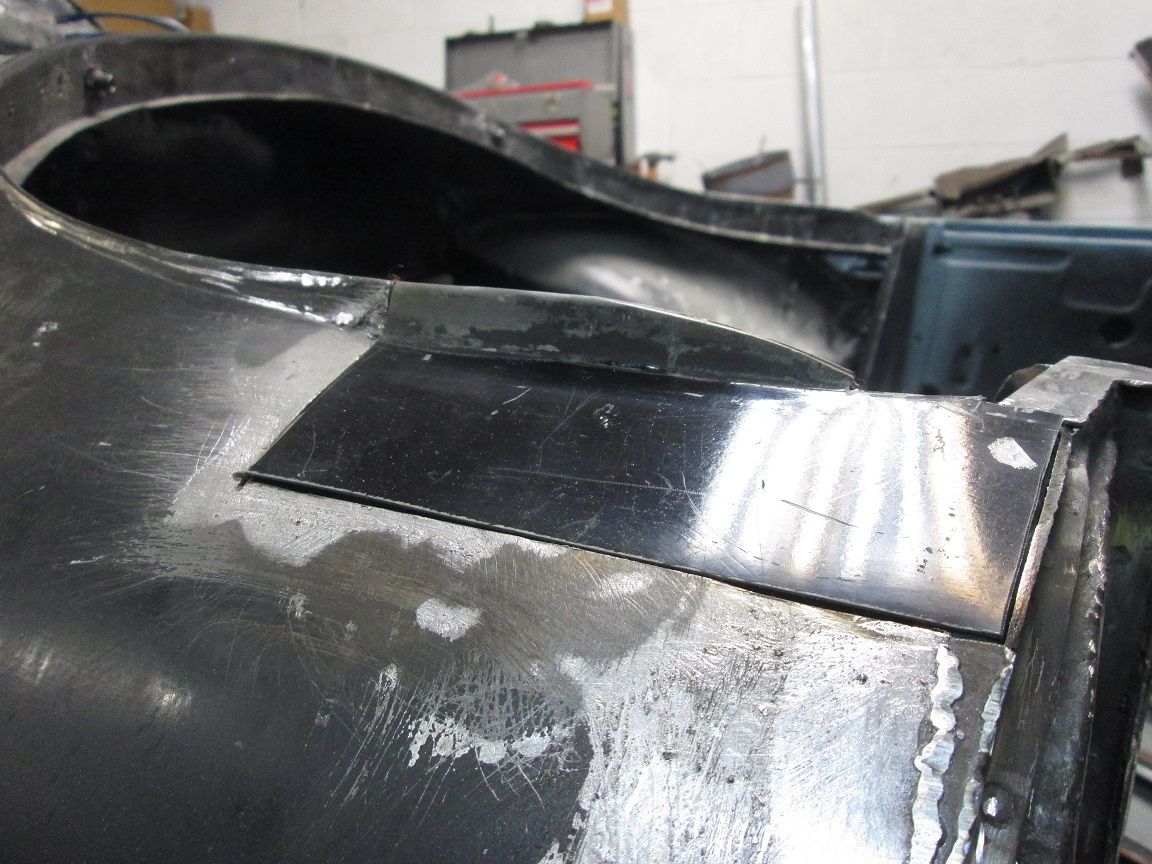

                    • New patch complete and ready to install:
                      Click image for larger version

Name:	IMG_4527.JPG
Views:	179
Size:	185.0 KB

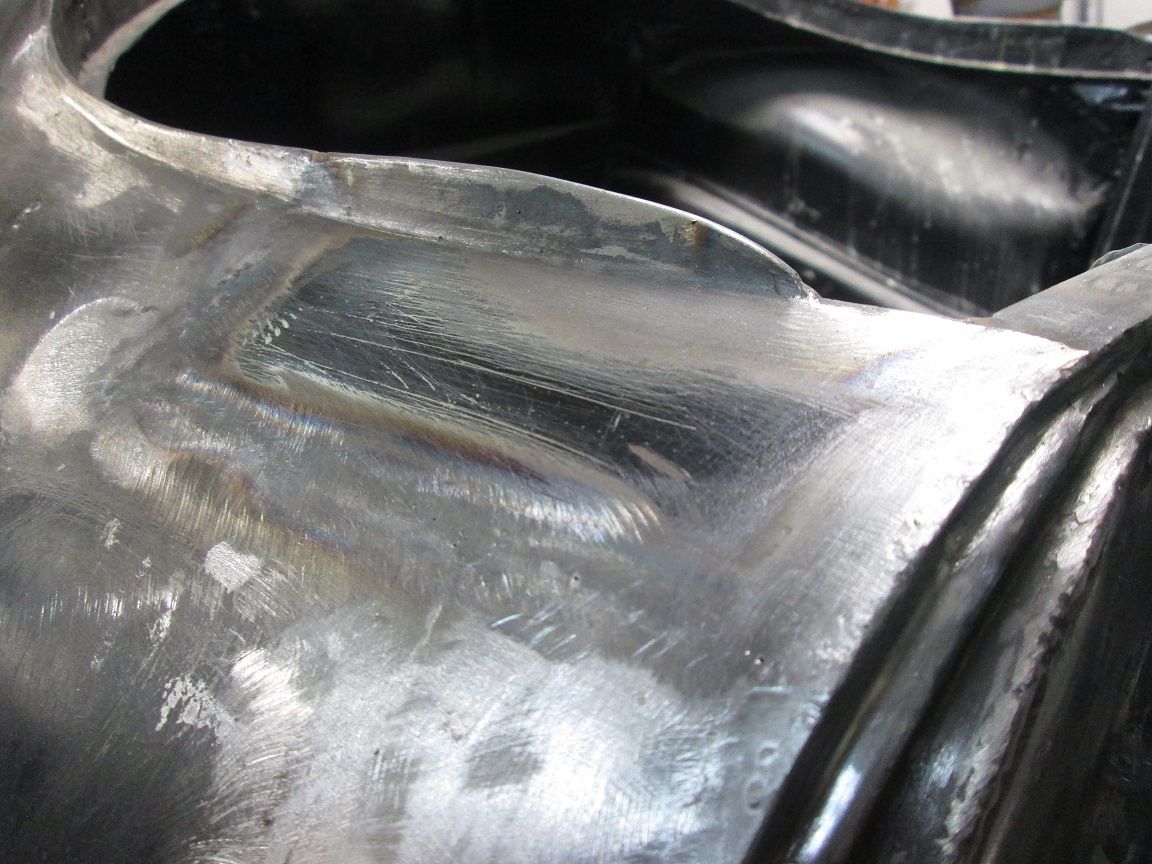

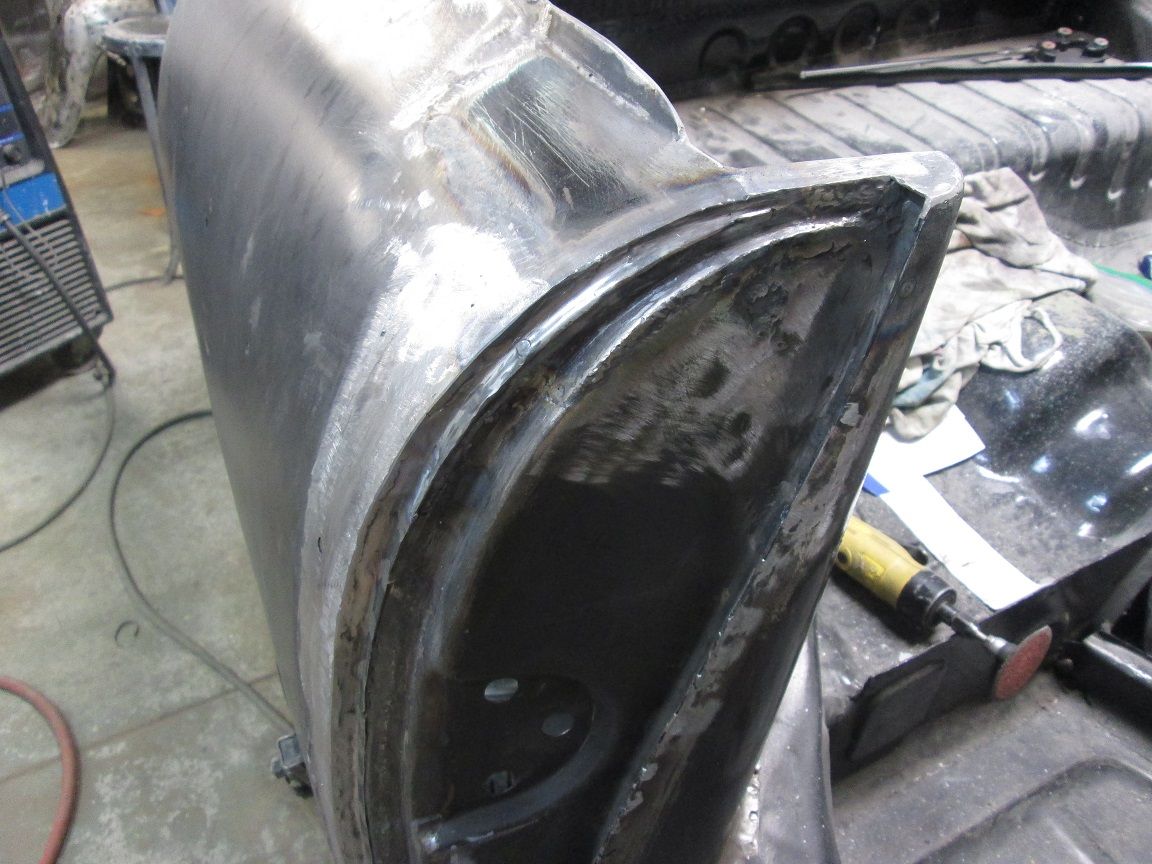

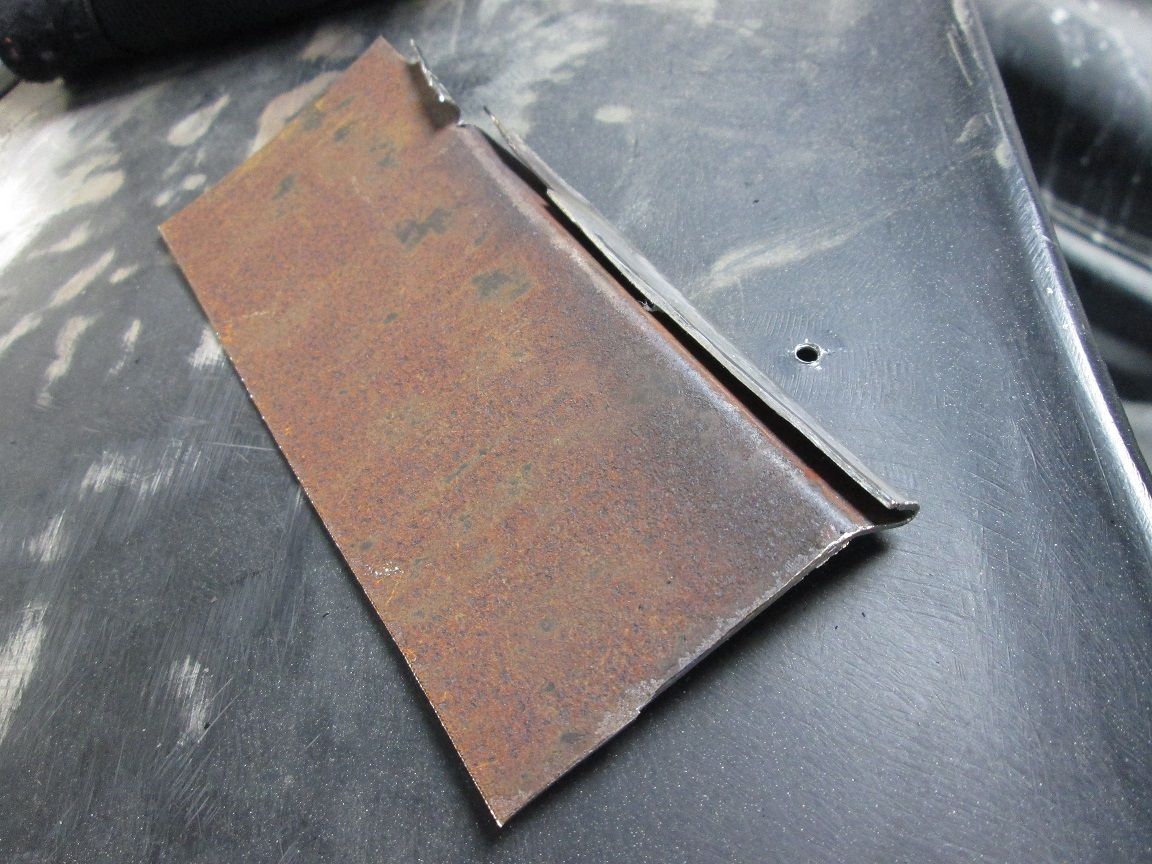

ID:	107631 Building this little section from one piece proved just as tricky as all the rest of the parts that have gone into this corner reconstruction. Adding that flange with a slight curve all the while not messing up the slight curve in the panel section took some planning to get around but its finally trimmed and shape to suite and ready to go. soaking it in acid to remove rust now.
                      Click image for larger version

Name:	IMG_4528.JPG
Views:	161
Size:	96.2 KB

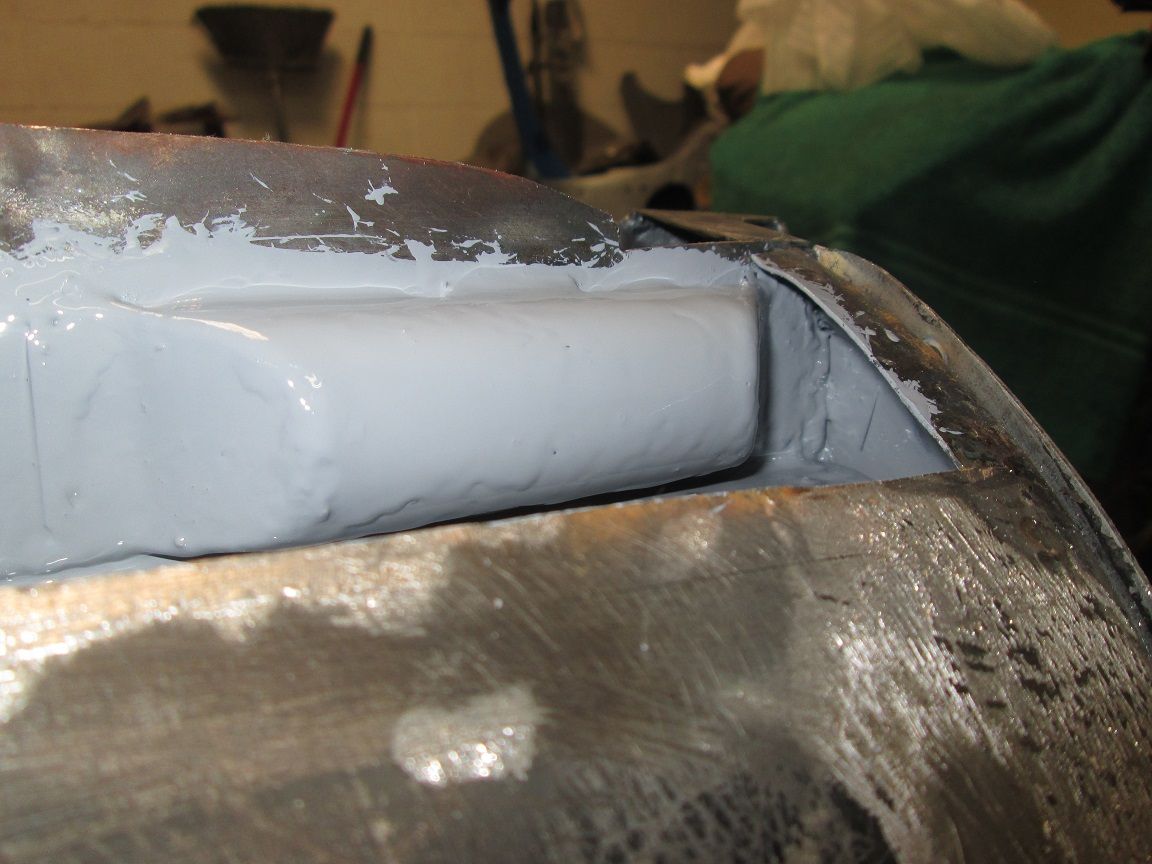

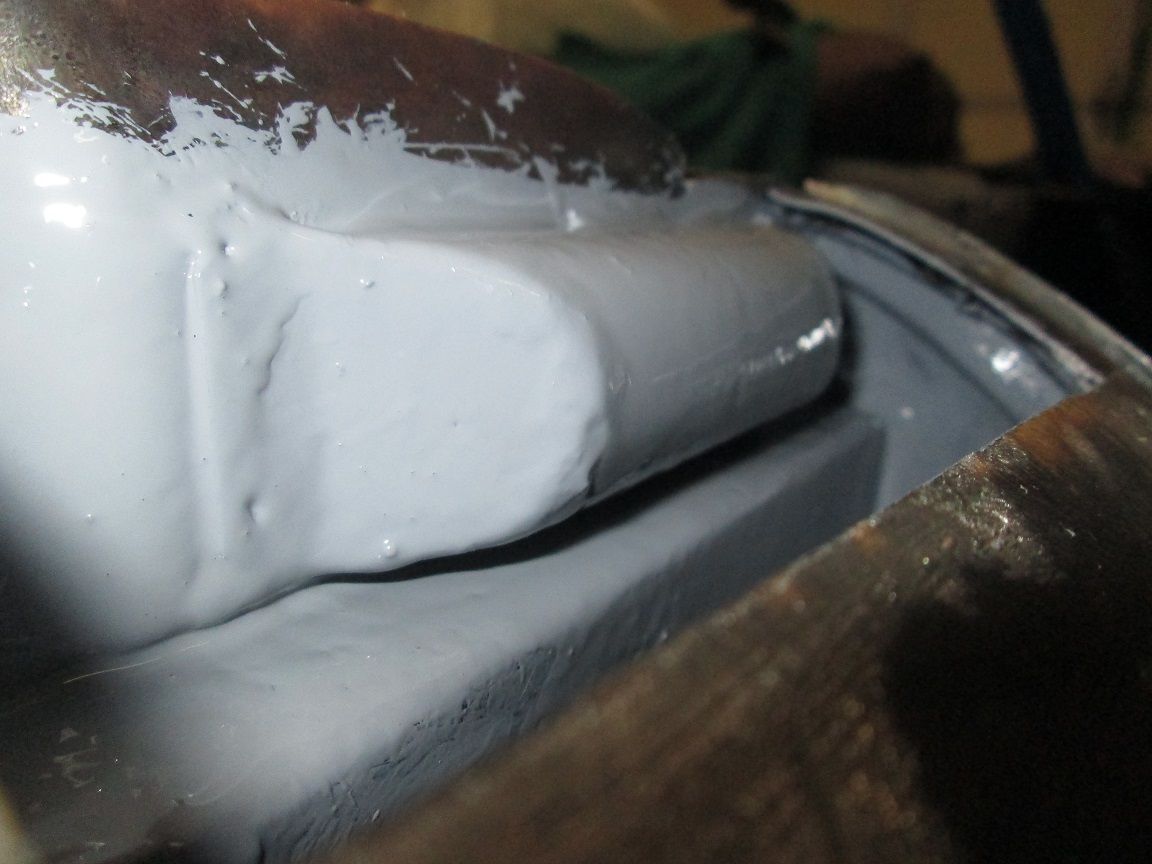

ID:	107632 Sealing out the inner crevices before it goes on.
                      Click image for larger version

Name:	IMG_4529.JPG
Views:	169
Size:	114.9 KB
ID:	107633 Slathered it heavy in sealer. Don't know how much of it will survive after all the welding and eventual tin soldering but its the best I can do.
                      Click image for larger version

Name:	IMG_4531.JPG
Views:	178
Size:	168.1 KB
ID:	107634 Begin tacking it in next.
                      Click image for larger version

Name:	IMG_4533.JPG
Views:	159
Size:	157.7 KB
ID:	107635 Just glad to have another one behind me.
                      Thanks for looking!
                      Justin
                      Justin Rio

                      Comment


                      • Right side lock post and upper corner repair complete...AT LAST!
                        Click image for larger version  Name:	IMG_4552.JPG Views:	0 Size:	154.6 KB ID:	107640 new patch panel fully welded and dressed.
                        Click image for larger version  Name:	IMG_4550.JPG Views:	0 Size:	146.4 KB ID:	107641 Not a big area but complexity of this repair pushed me to my limit.
                        Click image for larger version  Name:	IMG_4547.JPG Views:	0 Size:	147.5 KB ID:	107642 Lock post and jamb modifications which was my initial mission before I slid down this slope are now metal finished. Will take it the rest of the way in body solder.
                        Click image for larger version  Name:	IMG_4543.JPG Views:	0 Size:	138.5 KB ID:	107643 Gas weld seam details put the finishing touches on this top mount repair. At last all done in here too!

                        Click image for larger version  Name:	image_62088.jpg Views:	3 Size:	159.9 KB ID:	107644 Good general gap but the upper mid area gets wide. The OG left side shows a slight kick in this area which this reskinned door lacks. Will add this detail a bit later which will close up that shortfall pictured here.
                        Last edited by JTR70; 12-07-2019, 08:20 AM.
                        Justin Rio

                        Comment


                        • Top frame mock up:
                          Click image for larger version

Name:	IMG_4553.JPG
Views:	195
Size:	129.4 KB
ID:	107646 Quick top frame test fit after all of that welding.
                          Click image for larger version

Name:	IMG_4554.JPG
Views:	152
Size:	116.2 KB
ID:	107647 No issues or surprises.
                          Click image for larger version

Name:	IMG_4556.JPG
Views:	151
Size:	117.3 KB

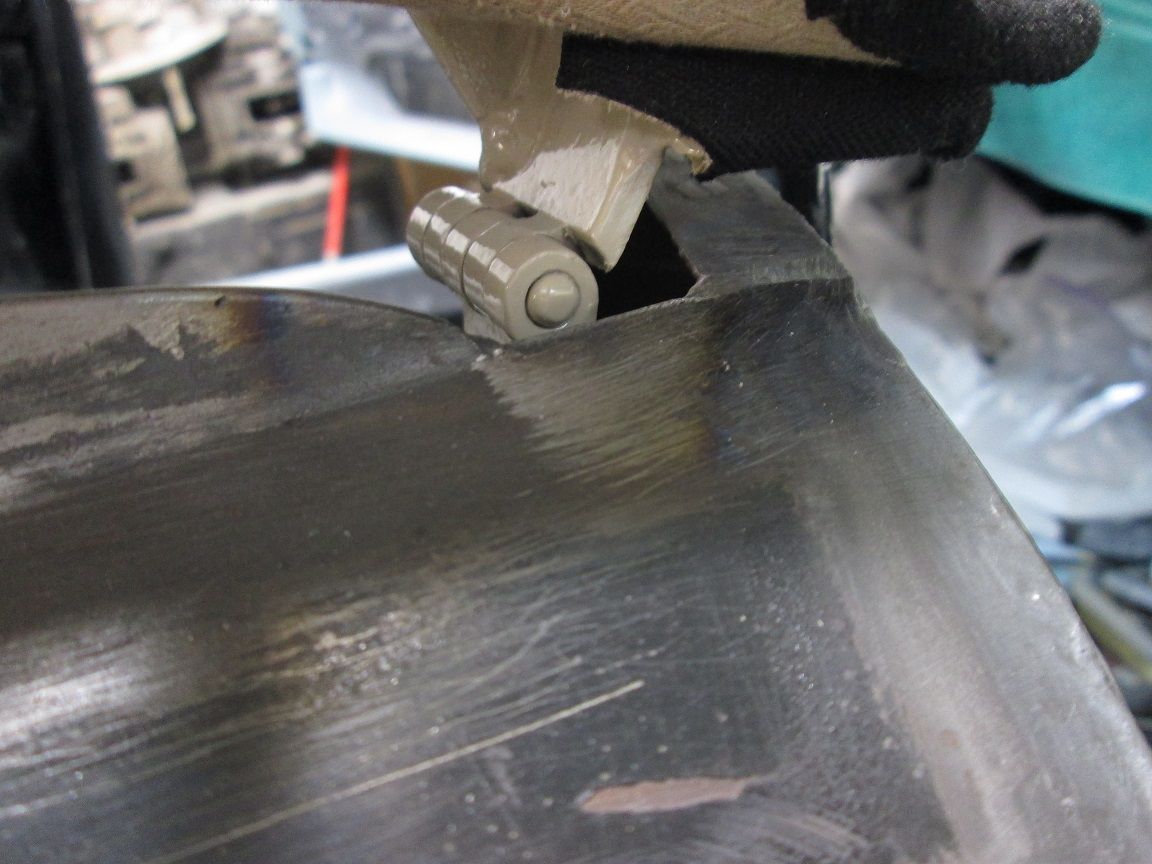

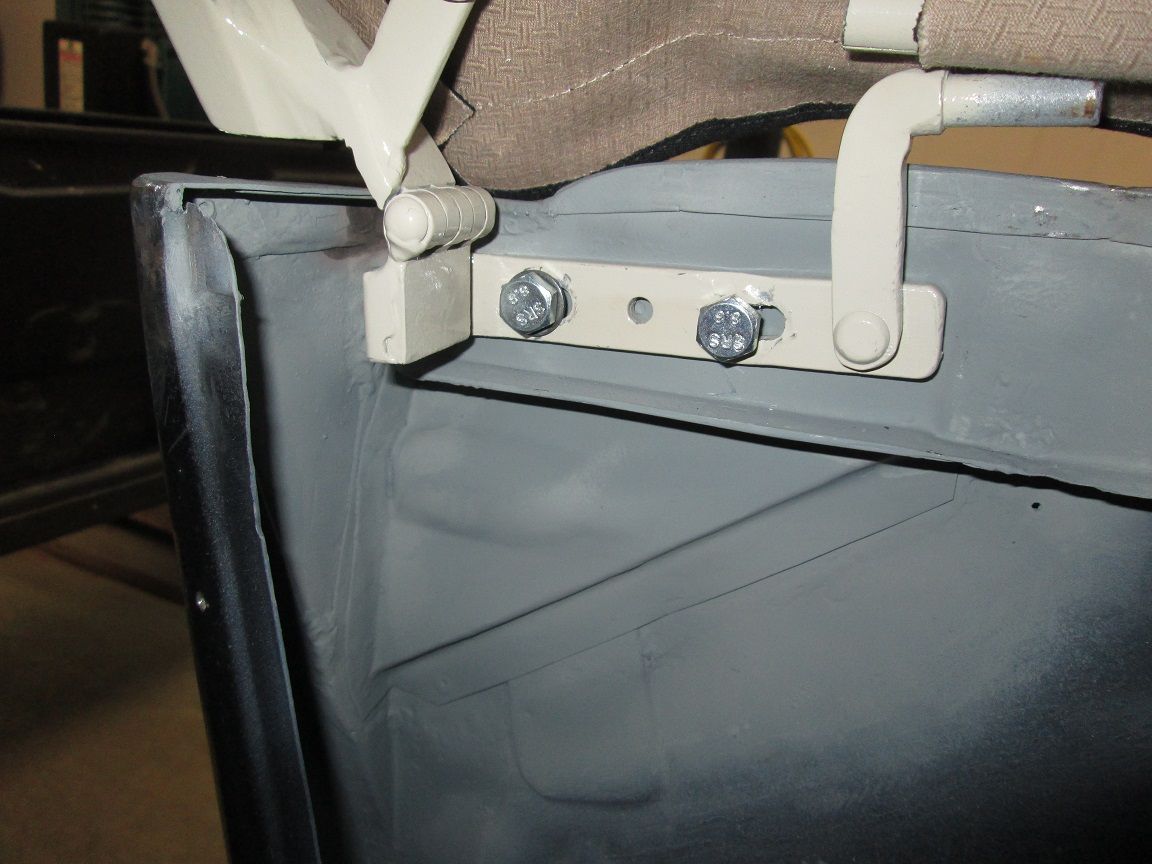

ID:	107648 One of the things I really wanted to confirm was clearance between the top frame and that new closing ledge. No issues.
                          Click image for larger version

Name:	IMG_4557.JPG
Views:	172
Size:	147.5 KB
ID:	107649 Back to fitting the new rocker and threshold.
                          Click image for larger version

Name:	IMG_4558.JPG
Views:	176
Size:	155.7 KB
ID:	107650
                          Thanks for looking!
                          Justin
                          Justin Rio

                          Comment


                          • Justin, fantastic work there to end up with so little lead work to do. I am amazed at what a great looking repair this has turned out to be. A real lesson there not to accept the result till you are happy. I hope the owner appreciates the real effort to have the job done correctly.

                            Roy

                            Comment


                            • JTR70
                              JTR70 commented
                              Editing a comment
                              Thanks a lot Roy, my buddy does appreciate all the work and effort that has gone into this so far but to be honest he became a little weary over this last round of redo's. He's a well versed 356 hobbyist so he knows exactly what it takes to rebuild these cars but his frustration is stemming from the need to redo steel work he just got finished paying for. The previous work has put us both in a tight spot as he needs the car to be right and I want to do the best job that I can but at the same time the entire investment of this project including the car itself has reached critical mass. However, if we don't fix it, its going to kill him when the day comes to sell no matter how shiny the body is. If a hack like me is able to pick these mistakes off you can imagine the scrutiny it would have suffered during a PPI with an expert. They would have told him that its very shiny but we've got to have Bruce Baker go in and correct all those chassis and substructure mistakes. This would have been an easy 40-50K right off the top of their negotiation. So really no choice but to plow ahead. The saving grace is that this the last of the major metal corrections that I'll have to do. Thanks again Roy!
                              Justin

                          • I agree with Roy.

                            Comment


                            • JTR70
                              JTR70 commented
                              Editing a comment
                              Thank you Phil!

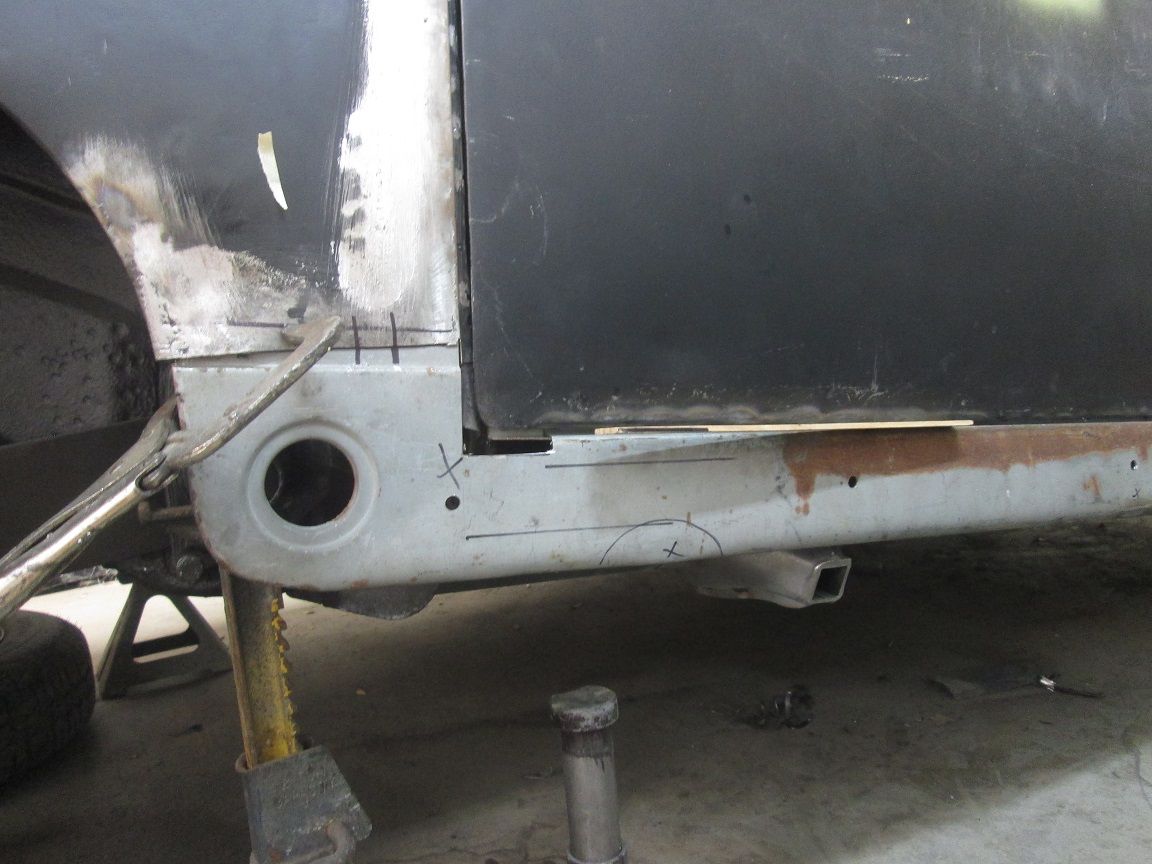

                          • dialing in the new rocker skin for best adjusted fitment:
                            Click image for larger version  Name:	IMG_4560s.JPG Views:	0 Size:	94.9 KB ID:	107687The skin is pretty much in my best adjusted fit here and with that came this overlap at the rear corner. If I tried opening this up the rest of the rockers fitment suffered badly. No choice but to cut this corner shaped relief out and move it back.

                            Click image for larger version  Name:	IMG_4575.JPG Views:	0 Size:	118.4 KB ID:	107683
                            Corner relief shape cut free and moving onto dialing in the lower gap and a smooth and even transition off of the fenders. rear wired edge will have to be relief cut and moved back to match the fender. The usual stuff....
                            Click image for larger version  Name:	IMG_4577.JPG Views:	0 Size:	110.0 KB ID:	107684 Forward corner flange was relaxed so I can readjust the approach angle of the edge later on. Leading wire edge will have to be relief cut and angled outward like the rear.

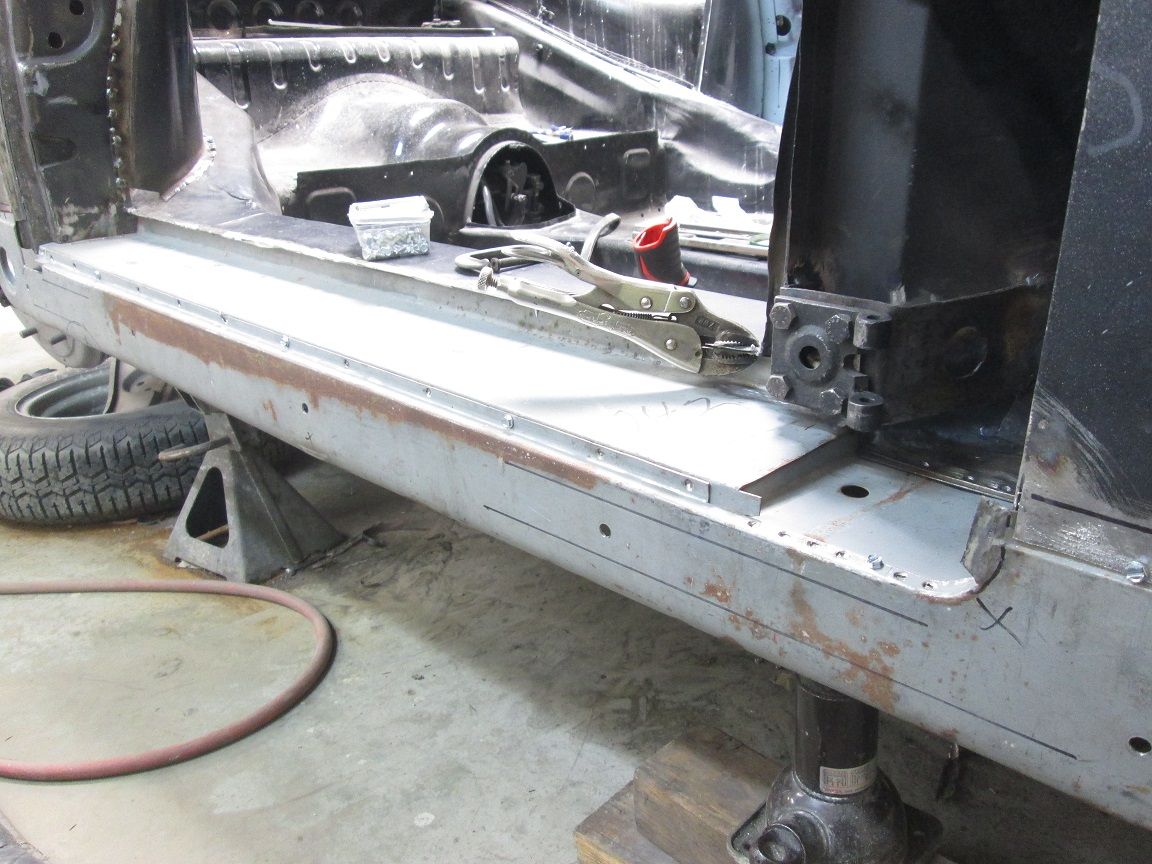

                            Click image for larger version  Name:	IMG_4578.JPG Views:	0 Size:	110.5 KB ID:	107685 Main mission for now was to get the skin located and established so I could get the threshold mounted and set. Pretty much there...
                            Click image for larger version  Name:	IMG_4585.JPG Views:	0 Size:	159.5 KB ID:	107686 Fitting and dialing in the threshold now. Thanks for looking!
                            Justin
