    Justin, this last episode of work is amazing to read let alone wonder how on earth you proceded to attempt it all. This is not just some panel work repair its well beyond that, with so much to consider all the time you are working on just one aspect of it. To see that 'gap' clearance coming into place after that gutter removal , has confirmed to me there is so much involved in bodywork repair you have to have in-built confidence in yourself to even attempt it, let alone with people like me also watching your effort.

    I wonder if other's looking on feel the same as me? I really think you are doing so well to correct all this Justin.

    Roy

    Leave a comment:


  • JTR70
    replied

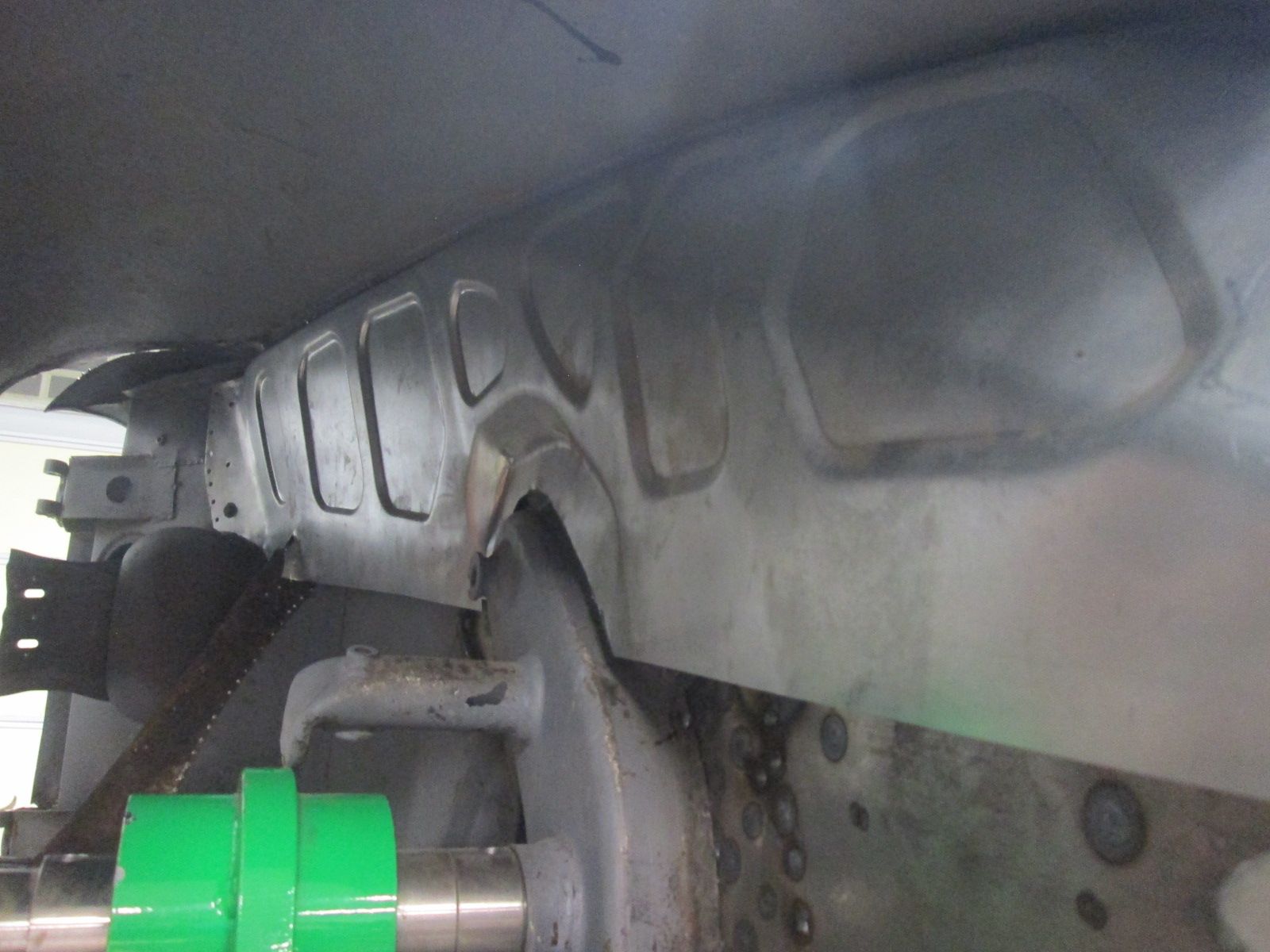

    Drain tube install:
    Click image for larger version  Name:	IMG_1209.jpg Views:	0 Size:	208.4 KB ID:	114651 Tube hole punched in the wall and onto getting the top end aligned into the trough.
    Click image for larger version  Name:	IMG_1211.jpg Views:	0 Size:	208.9 KB ID:	114652 Quick shot of the profile shape of the front wall; a lot of manipulation to get that to lay in there where it was needed.
    Click image for larger version  Name:	IMG_1210.jpg Views:	0 Size:	202.7 KB ID:	114653 One more piece of the puzzle and the nose is a little closer to going on for good.
    Click image for larger version  Name:	IMG_1214.jpg Views:	0 Size:	195.0 KB ID:	114654 Back to work on the trough again. Just another shot of the going's on under a 356 nose panel.
    Click image for larger version  Name:	IMG_1215.jpg Views:	0 Size:	221.6 KB ID:	114655 More welding and shape clean up to come but the pieces are fitting better with each session.
    Last edited by JTR70; 01-06-2024, 12:44 AM.

    Leave a comment:


  • JTR70
    replied

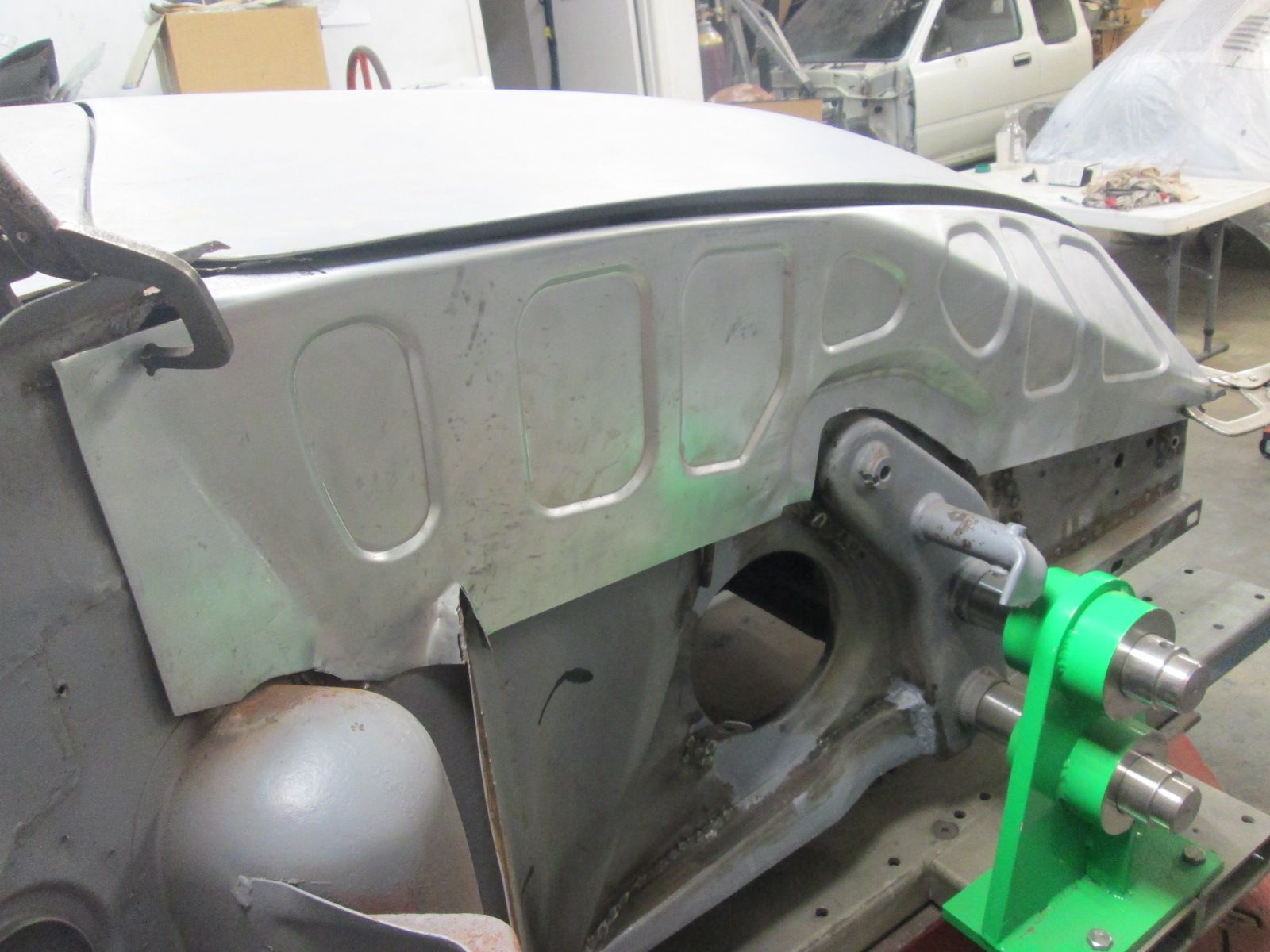

    Forward wall work continued:

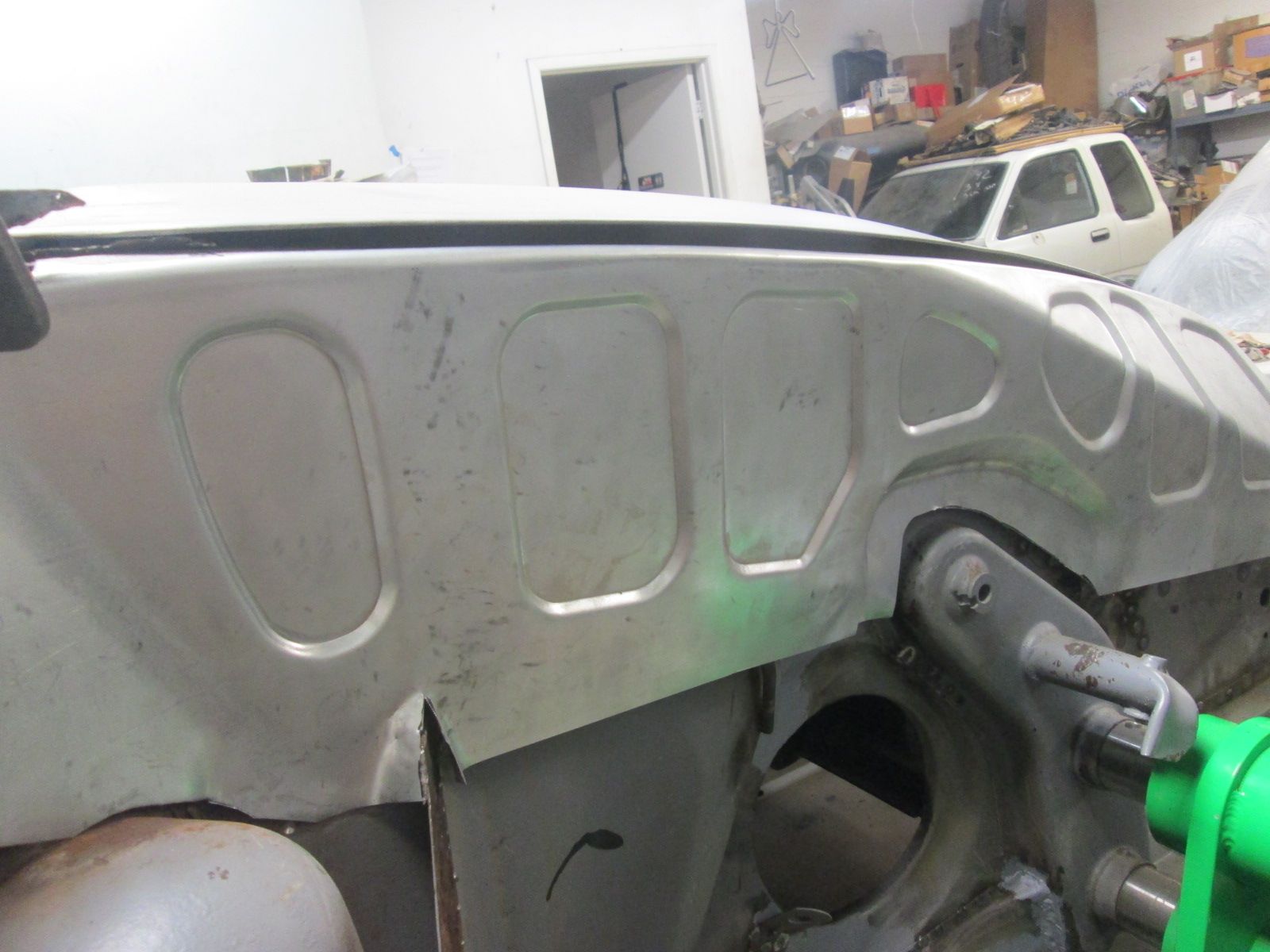

    Click image for larger version  Name:	IMG_1187.jpg Views:	0 Size:	209.1 KB ID:	114645 A lot of loose ends to tie up yet but the heavy lifting for a trough foundation is finished.
    Click image for larger version  Name:	IMG_1189.jpg Views:	0 Size:	236.0 KB ID:	114646 Began tack welding the relief cuts to lock in the needed arched profile shape.
    Click image for larger version  Name:	IMG_1193.jpg Views:	0 Size:	207.0 KB ID:	114647 After all the reshaping and positioning to both the trough and wall my initial cutout was now too deep.

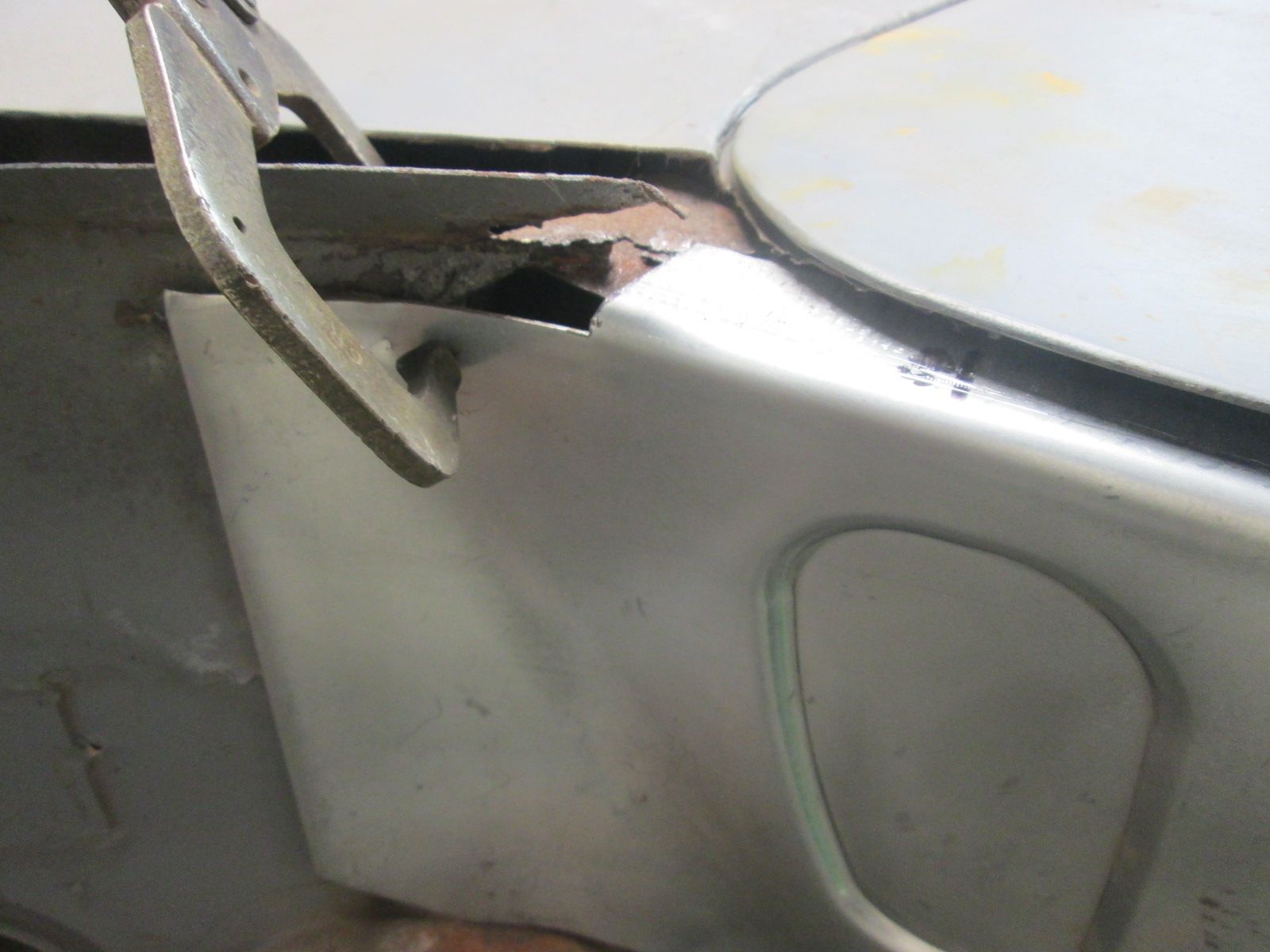

    Click image for larger version  Name:	IMG_1194.jpg Views:	0 Size:	218.7 KB ID:	114648 Adding in a back filler strip for the simple correction.
    Click image for larger version  Name:	IMG_1208.jpg Views:	0 Size:	176.5 KB ID:	114649 Next: Harvesting the original forward drain tube next.

    Thanks for looking.

    Justin
    Last edited by JTR70; 01-05-2024, 06:13 PM.

    Leave a comment:


  • JTR70
    replied

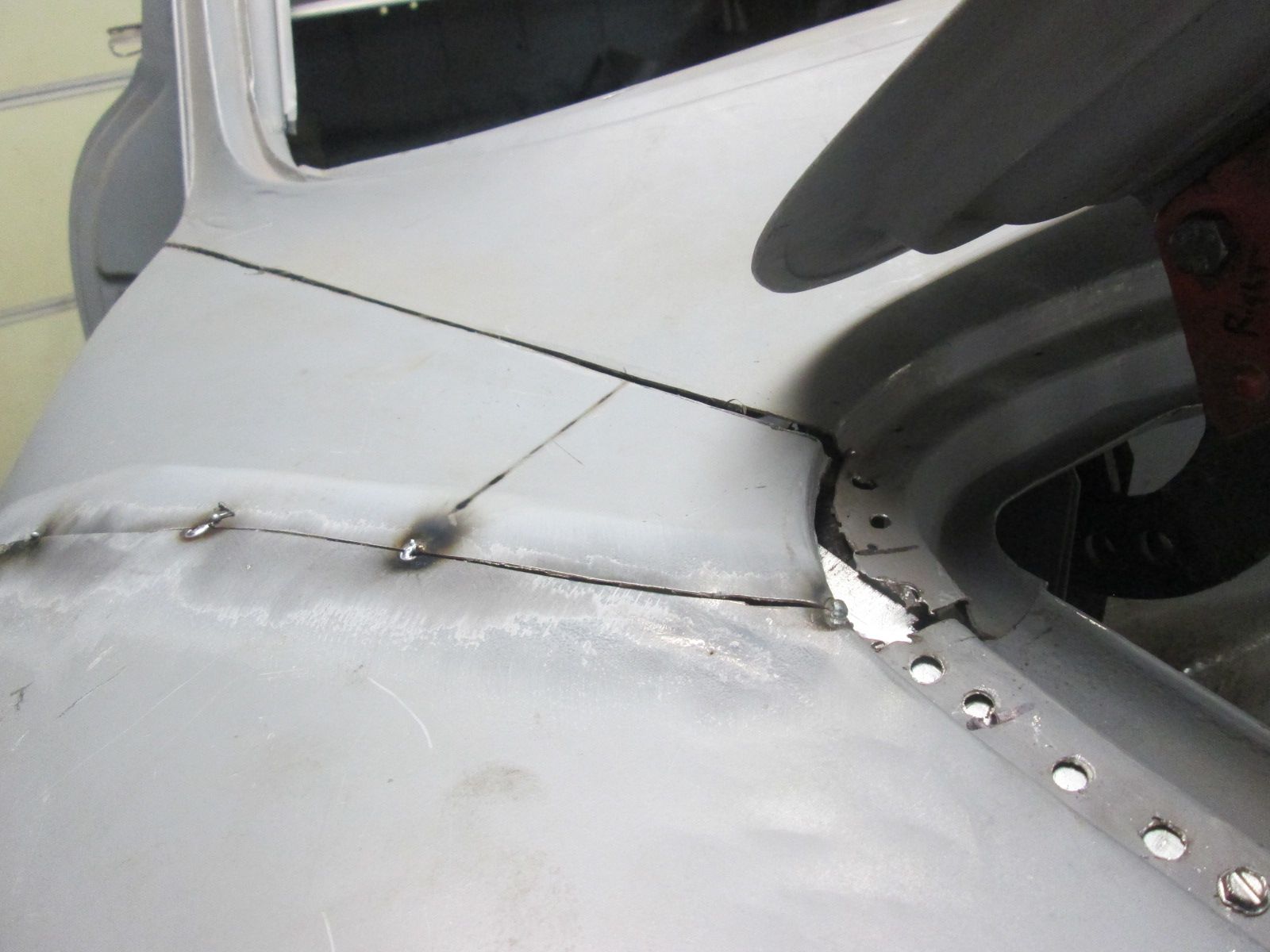

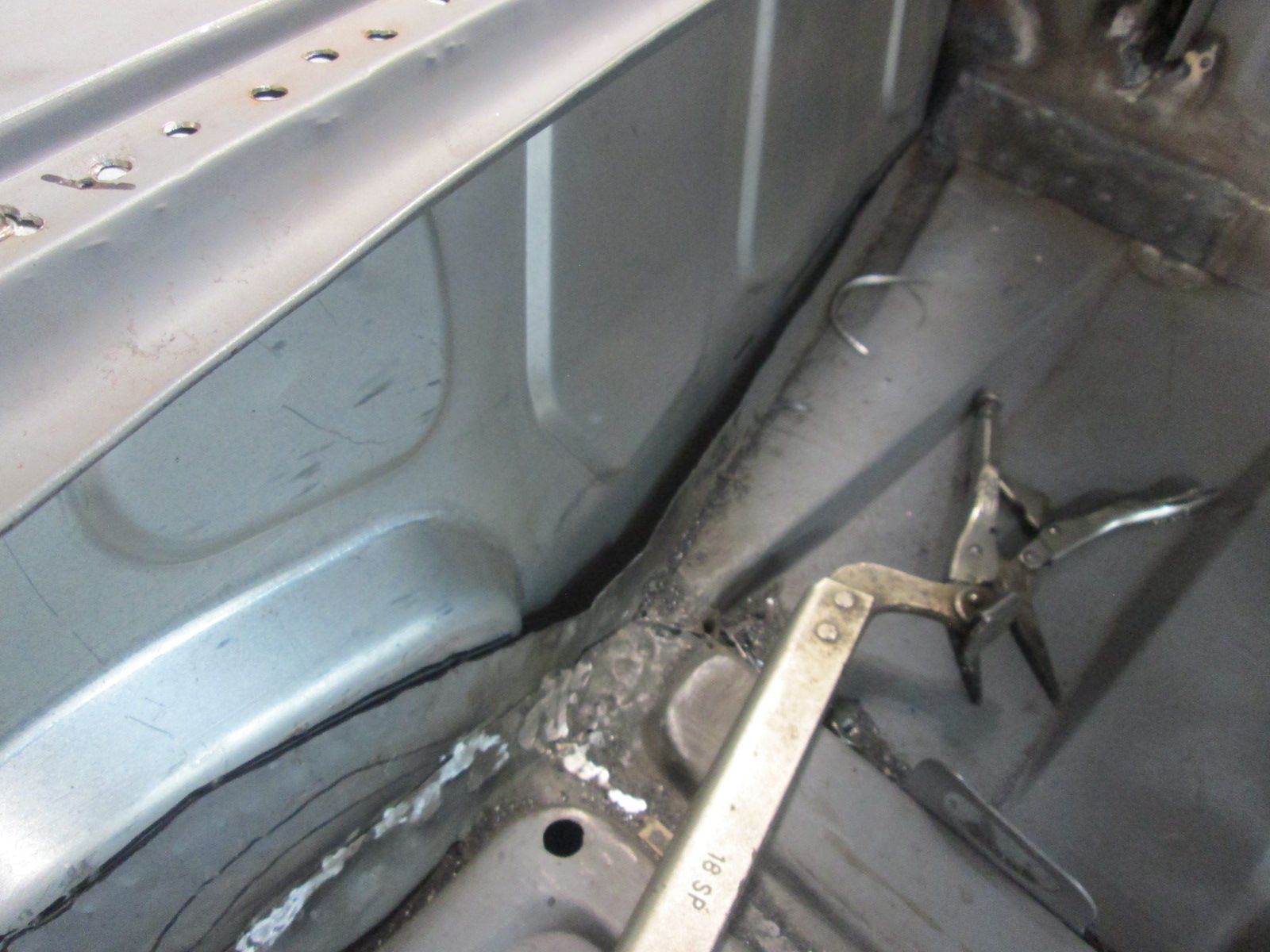

    Click image for larger version  Name:	IMG_1182.jpg Views:	0 Size:	165.0 KB ID:	114639 Upper flange and profile shaping carried over to the right side. The corner needs a bit more curling over. Again several attempts at dialing in this lap joint.
    Click image for larger version  Name:	IMG_1183.jpg Views:	0 Size:	177.2 KB ID:	114640 Lap joint now finally dialed in by this point. The trough edge is stuck under the lip of the hood.
    Click image for larger version  Name:	IMG_1184.jpg Views:	0 Size:	195.6 KB ID:	114641 The leading edges of these two closing panels needed thinning to allow the trough's shoulder to clear so it could swing out wider from under the hood in the mounted position on these upper flanges. Just a constant chipping away at improving the fitment.
    Click image for larger version  Name:	IMG_1185.jpg Views:	3 Size:	184.5 KB ID:	114642 ready to accept the right side of the trough.
    Click image for larger version  Name:	IMG_1186.jpg Views:	0 Size:	185.8 KB ID:	114643 Entire trough screw mounted to the flange with a decent gap and height relation to the edge of the latched hood. No where near perfect but well within striking distance.

    Thanks for looking!

    Justin
    Last edited by JTR70; 01-05-2024, 01:09 AM.

    Leave a comment:


  • JTR70
    replied
    Forward closing wall shaping and mount locating

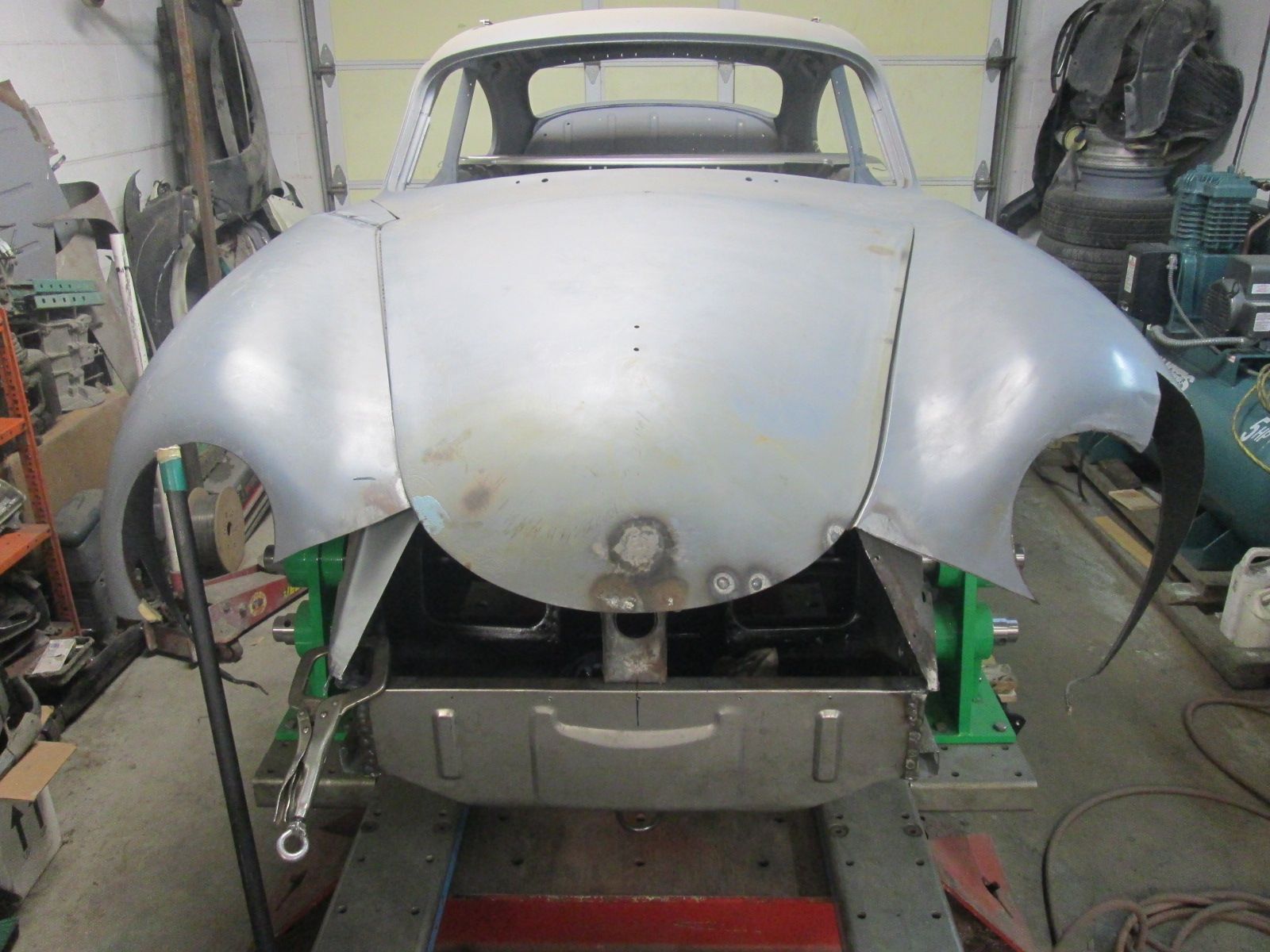

    Click image for larger version  Name:	IMG_1177.jpg Views:	0 Size:	202.0 KB ID:	114633 Several stabs at establishing the correct forward upper wall flange height as those drilled holes by the lateral wall lap joint highlight. A lot of adjustment options at these lap joints
    Click image for larger version  Name:	IMG_1178.jpg Views:	0 Size:	202.2 KB ID:	114634 Reshaping began along the left side with several rounds of heat and hammering along the upper edge.
    Click image for larger version  Name:	IMG_1179.jpg Views:	0 Size:	194.2 KB ID:	114635 Mounted trough now slowly seating into the needed position with close uniform gap with the edge of the hood. My initial center screw hole mounts have slid way down out of range after more metal was needed to make the needed shape. They were just a jumping off point and a needed step among many in this fitment process.
    Click image for larger version  Name:	IMG_1180.jpg Views:	3 Size:	214.6 KB ID:	114636 Left side of the trough is all but set. After the relief cuts there was just a wisp of metal holding these two halves making life much simpler to fit individually.
    Click image for larger version  Name:	IMG_1181.jpg Views:	3 Size:	204.2 KB ID:	114637 Quick nose mock up. Slowly getting what I'm after...
    Last edited by JTR70; 01-05-2024, 12:44 AM.

    Leave a comment:


  • JTR70
    replied

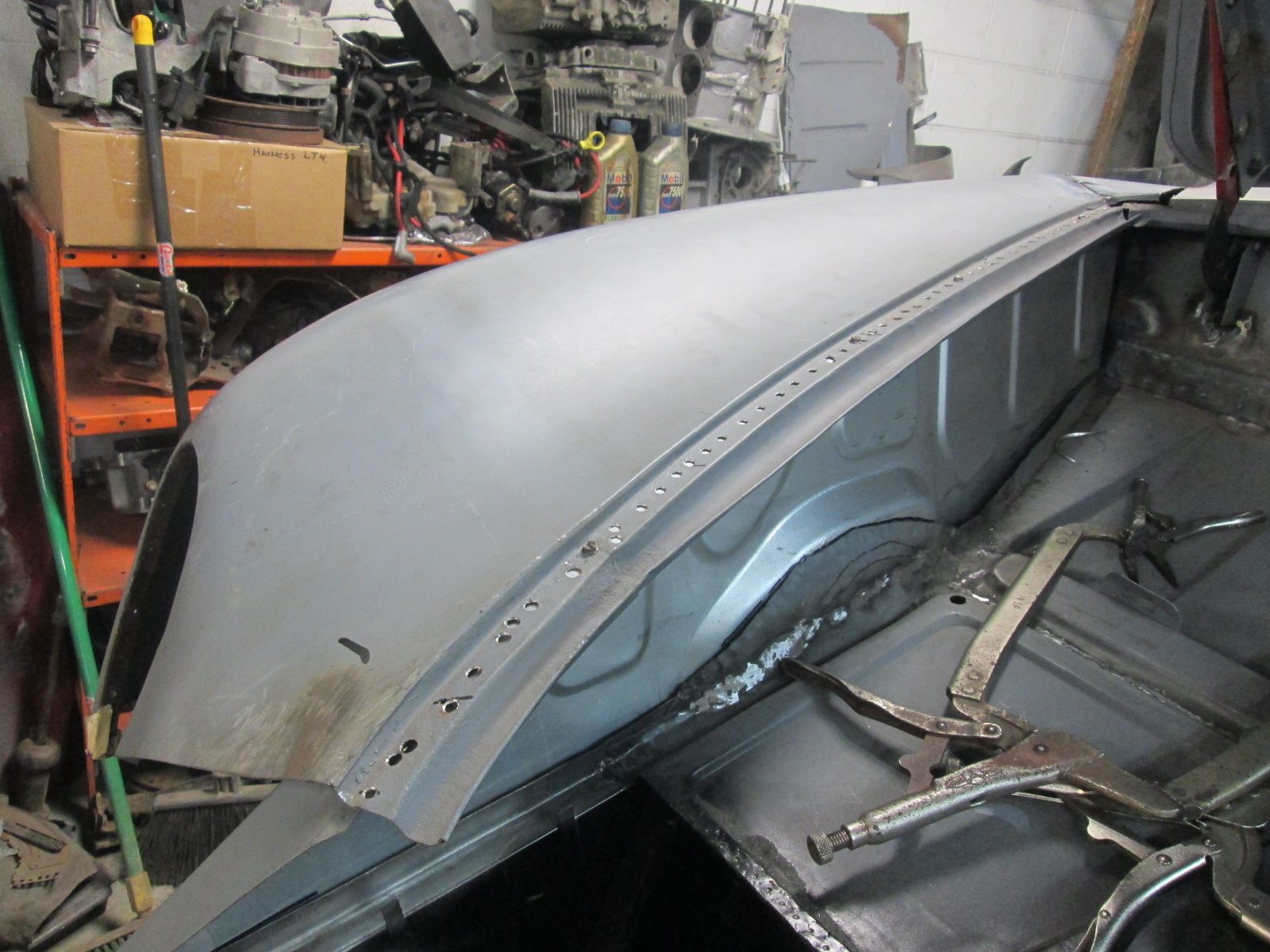

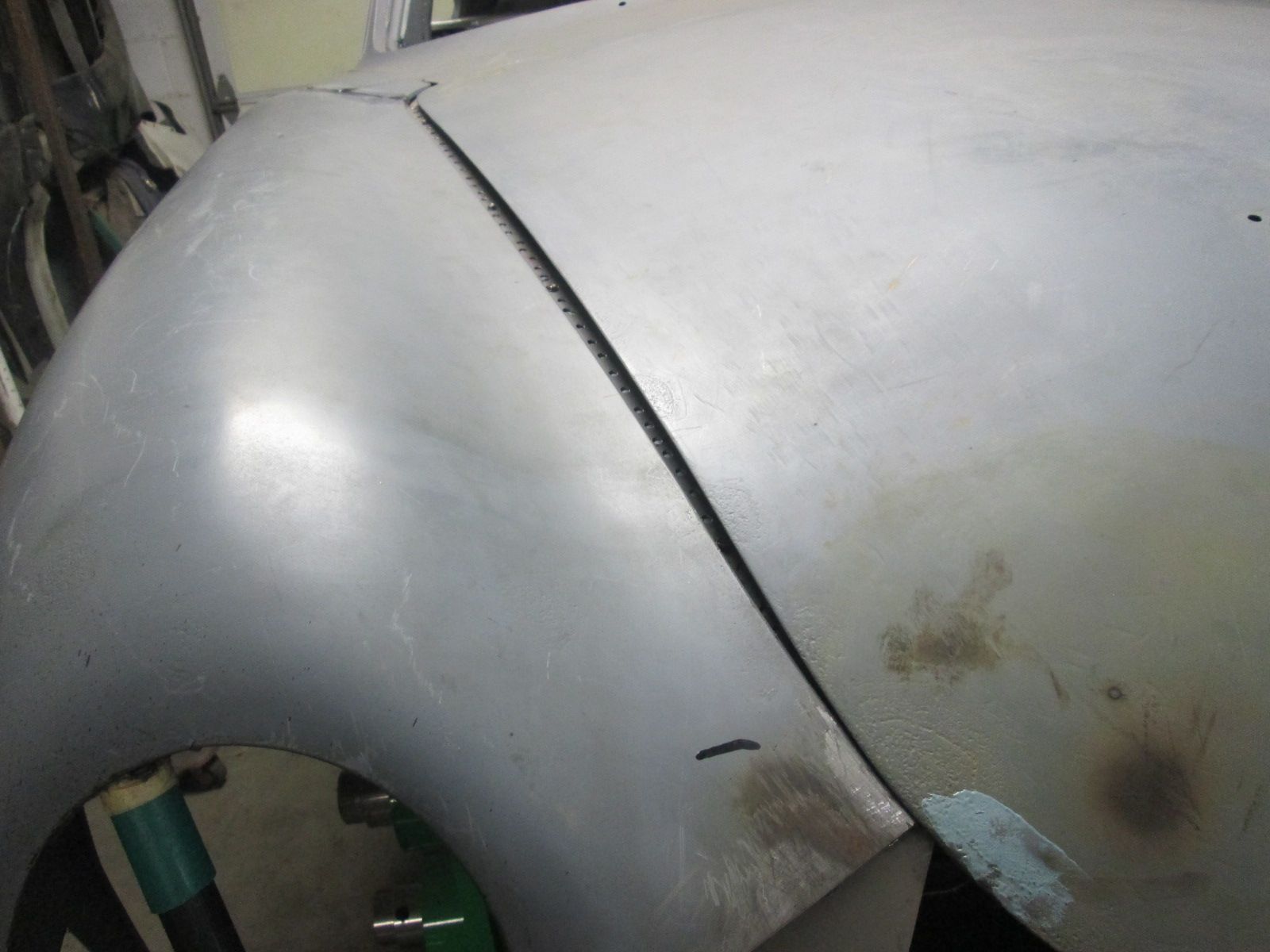

    Trough recontouring: Click image for larger version  Name:	IMG_1165.jpg Views:	0 Size:	225.0 KB ID:	114625 First cut to relax the curve open were it began to close down on the edge of the hood.
    Click image for larger version  Name:	IMG_1167.jpg Views:	0 Size:	177.9 KB ID:	114626 More cuts added as it went to achieve a uniform gap/shape with the edge of the hood.
    Click image for larger version  Name:	IMG_1168.jpg Views:	0 Size:	174.5 KB ID:	114627 Shape relaxing working from the center outward. Steadily getting a uniform gap along the edge. As it makes the turn upward a relief cut or two will be needed for tightening.
    Click image for larger version  Name:	IMG_1175.jpg Views:	0 Size:	182.8 KB ID:	114629 As the troughs shaping to the hoods edge got closer I now needed to get the mating surface for it at the top of this closing panel finalized in shape and height.
    Click image for larger version

Name:	IMG_1174s.jpg
Views:	467
Size:	165.4 KB
ID:	114631
    Final shaping of the upper flange next. Also lots of adjustment variation within the three closing wall relationship which had to be finalized simultaneously.

    Thanks for looking.

    Justin
    Last edited by JTR70; 01-03-2024, 06:35 PM.

    Leave a comment:


  • JTR70
    replied
    Filler strip:

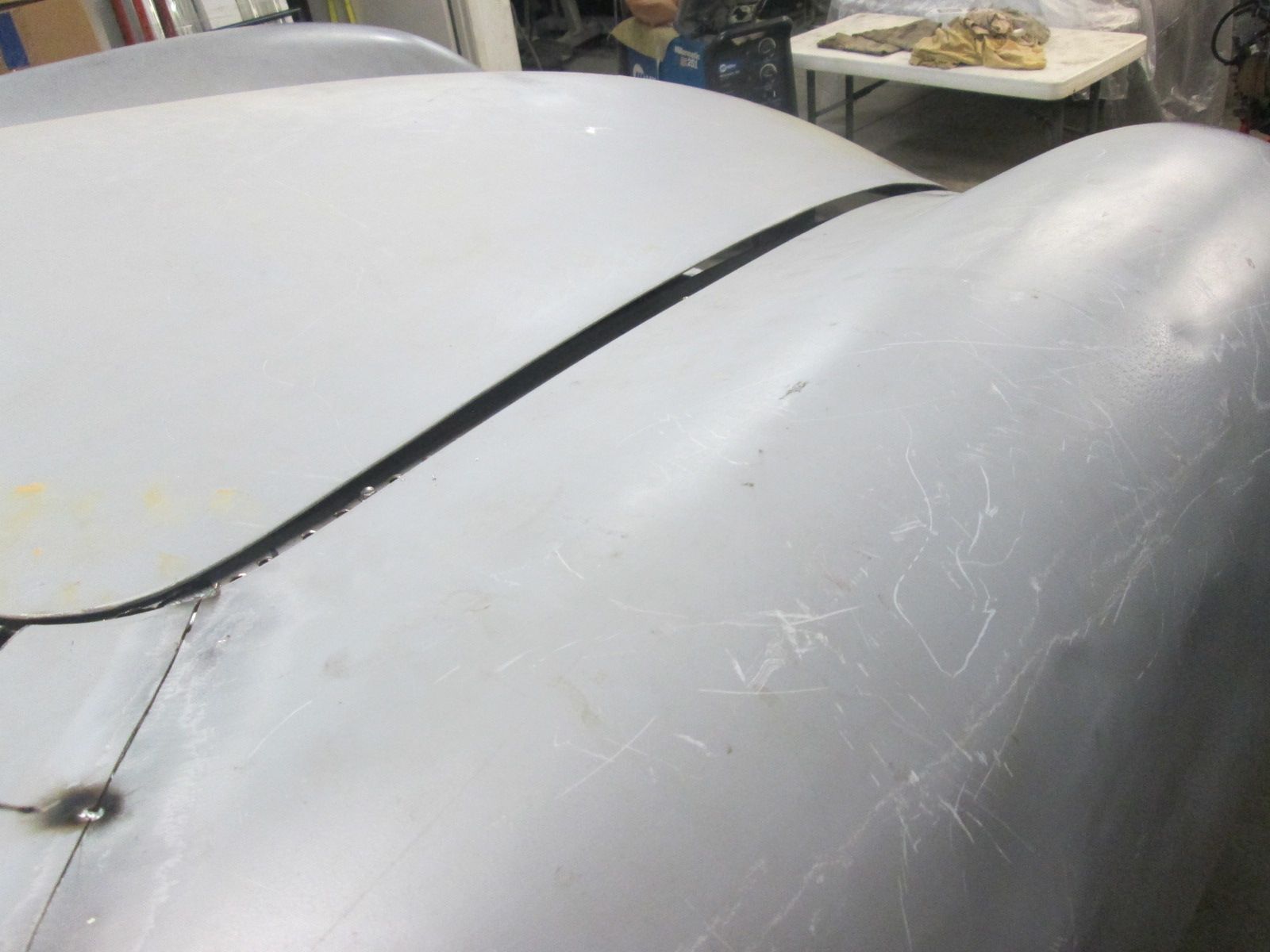

    Click image for larger version  Name:	IMG_1085.jpg Views:	0 Size:	193.0 KB ID:	114619 Nose now in its best adjusted position. The edges of it around the hood are wavy and manhandled but that will all be reset when the trough goes back in.
    Click image for larger version  Name:	IMG_1129.jpg Views:	0 Size:	180.8 KB ID:	114620 Moving onto paper templates for the backfill strip.
    Click image for larger version  Name:	IMG_1130.jpg Views:	0 Size:	238.8 KB ID:	114621 About this much short.
    Click image for larger version  Name:	IMG_1146.jpg Views:	0 Size:	212.2 KB ID:	114622 New strip just tacked in for now.
    Click image for larger version  Name:	IMG_1151.jpg Views:	0 Size:	210.8 KB ID:	114623 Once the trough was added back in it was clear that its arch would need to be reshaped to the edge of the hood before it could go any further.
    That next...

    Thanks for looking.

    Justin
    Last edited by JTR70; 01-02-2024, 12:54 AM.

    Leave a comment:


  • JTR70
    replied
    re-establishing the nose position after trough removal.
    Click image for larger version  Name:	IMG_1084.jpg Views:	0 Size:	213.0 KB ID:	114613 Nose recentered with the hood and with the battery box within a few MM's. Dialing the best average placement with these two.
    Click image for larger version  Name:	IMG_1086.jpg Views:	0 Size:	181.7 KB ID:	114614 With this newly established placement the last bit of the left shoulder closes up and is actually ending up under the lip of the hood. If I hadn't separated the trough it would have never allowed the needed movement to true center.
    Click image for larger version  Name:	IMG_1089.jpg Views:	0 Size:	200.8 KB ID:	114615 Re-establishing the overall angle of the nose at the headlight openings.
    Click image for larger version  Name:	IMG_1093.jpg Views:	0 Size:	211.1 KB ID:	114616 Contour line carried off the end of the hood was improving as well. A filler strip of steel will have to be added when the trough goes back in.
    Click image for larger version  Name:	IMG_1087.jpg Views:	0 Size:	205.6 KB ID:	114617 That pesky right corner at the hood still wants to lay lower but its a much more cooperative with the rigidity of the trough out of the way.
    Last edited by JTR70; 01-02-2024, 12:39 AM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Hapy new Year Roy! Yes, this process was making my old brain hurt as well which is why it was tough to get motivated to rehash all of this online until recently. Absolutely, dedicated jigs and fixtures makes life a whole lot simpler. Thanks again! Justin

  • roy mawbey
    replied
    Justin I can understand now why you are completing this most difficult assembly of parts instruction in installments !! This is enlightning as you are correct in saying the factory had apart from the Cellette bench but also fixtures and jigs produced for all the reasons above. I remember some of my toolmaking life apart from press and die work being involved with jig and fixture work !!

    There is never enough time spent in explaining the need of these items in so many restoration manuals. So much harder without them and your explanations hightlight this and should be noted by those not really aware of what can happen trying to do this type of work.

    Well done in establishing things so leading would be a minimum !!

    This element of the work is taxing my old brain just hope it all works out Justin . Its very interesting to watch all this going on !

    Roy

    Leave a comment:


  • JTR70
    replied
    A couple more fitment and location issues:
    Click image for larger version  Name:	IMG_1054.jpg Views:	0 Size:	213.3 KB ID:	114605 As I was getting the upper portion of the nose set around the hood a new problem cropped up. The lower skirt height was too high. As I was planning ahead to the eventual cutouts for the bumper irons The bottom of the eventual needed hole would have ended up right at the 90 degree turn. Way too deep and leaving only a razor thin strip of metal at the edge. After referencing an original, the above photo highlighted by the paint stick shows where this hole should be cut at its lowest. Nose was unscrewed from where I had it to allow this movement downward.
    Click image for larger version  Name:	IMG_1055.jpg Views:	4 Size:	233.3 KB ID:	114606 Cross measured from the bottom of the grill opening to the top of the bumper bracket against my original once again for further confirmation that this was correct. It was, the nose was mounted a touch too high.
    Click image for larger version  Name:	IMG_1052.jpg Views:	4 Size:	191.9 KB ID:	114607 A slight exaggeration here but that initial gap I had been chasing was obliterated. The edge and trough were just installed a touch too low for my purposes. I'm not going to compensate with lead so more cutting and correction was in store.
    Click image for larger version  Name:	IMG_1045.jpg Views:	4 Size:	217.4 KB ID:	114608 If that wasn't enough the trough also pushes the nose over to the right with the hood sitting in it. Measurements from the battery box to the grill openings confirmed that the nose was sitting slighty to the right of the frame and not perfectly centered with it.
    Click image for larger version  Name:	IMG_1057.jpg Views:	4 Size:	179.6 KB ID:	114609
    Once all this was weighed the decision to cut the trough out entirely and begin again in a sense was a no brainer. Center of the hood highlighted in tape and in process here of centering the nose with it. More to come..

    Thanks for looking!

    Justin
    Last edited by JTR70; 12-26-2023, 07:32 PM.

    Leave a comment:


  • JTR70
    replied
    More adjustments:
    Click image for larger version  Name:	IMG_1048.jpg Views:	0 Size:	172.0 KB ID:	114600
    Cut the left corner free from the trough to allow the needed movement without distortion to the right side fitment.
    Click image for larger version  Name:	IMG_1039.jpg Views:	3 Size:	200.2 KB ID:	114601 Continuation off of the edge of the hood improved immediately and without force.
    Click image for larger version  Name:	IMG_1036.jpg Views:	3 Size:	204.2 KB ID:	114602 Also making sure the angle of the nose matches my Original reference as closely as possible. Not too angled back or too vertical. This is where dedicated locating and holding jigs like the factory used would make life much simpler.
    Click image for larger version  Name:	IMG_1056.jpg Views:	3 Size:	224.4 KB ID:	114603 Not only the angle of the nose but bucket opening in relation to one another. Bruce Baker educated me last time that level across the openings is what you're shooting for but a little "wall-eyed" angle is okay but never cross eyed. This initial check shows it slightly walled eyed with inner edges of the openings in contact with about an 8th inch gap at the outer edges. Another detail you have to as it goes.
    Last edited by JTR70; 12-26-2023, 06:51 PM.

    Leave a comment:


  • JTR70
    commented on 's reply
    Hi Roy, Yes, a lot going on at once. Interesting, I thought for sure just a super late transitional change.

  • roy mawbey
    replied
    Justin, this is so interesting your attempts to get this right. Its a complex problem indeed. When I bought my car in the 60's those original factory front indicator lights were already showing a few marks under the chrome and a friends 56 car were different. I checked it out years ago and yes, its a 356A T2 change they made in 58/59. The 356B version is different to the T2 version. Mine have the correct K numbers embossed on them and now they are rare items if you need them.

    Roy

    Leave a comment:


  • JTR70
    replied
    Right side brace and further nose setting.
    Click image for larger version  Name:	IMG_1050.jpg Views:	0 Size:	230.9 KB ID:	114592 Repeat right side. All just initial placement but I needed some lateral anchoring at this point to continue on dialing in the new noses final position.
    Click image for larger version  Name:	IMG_1032.jpg Views:	0 Size:	202.6 KB ID:	114593 Left side was laying in there nicely against the hood but that was pretty much the case from the start.
    Click image for larger version  Name:	IMG_1033.jpg Views:	0 Size:	186.4 KB ID:	114594 By contrast the right profile against the hood continued to drop out. I'd have to really crank on it to get it to come out but that in turn distorted the way the rest of the nose was fitting.
    Click image for larger version  Name:	IMG_1023.jpg Views:	0 Size:	200.1 KB ID:	114595 Using my original undamaged reference car the distance from the bump stop to the outer edge of the horn grill was 21 and an 8th inches. Not an absolute, just a measurement to shoot for. Very close to that here.
    Click image for larger version  Name:	IMG_1034.jpg Views:	0 Size:	176.7 KB ID:	114596 Right side by contrast was easily a half inch back. This explained part of the issues out at the edge of the hood on this side. Again it would not just come out without a fight. It began to dawn on me that the trigger point was in the trough and I'd be relief cutting eventually. This was not the only issue... that up next.

    Thanks for looking.

    Justin
    Last edited by JTR70; 12-23-2023, 01:54 AM.
