  • Corner work begins:
    Click image for larger version  Name:	IMG_3171.JPG Views:	0 Size:	213.0 KB ID:	106632 Easier and cleaner to cut the troubled areas out and begin again. Reseting the level of the skin here to reduce the amount of filler needed to carry on the line of the quarter panel.
    Click image for larger version  Name:	IMG_3173.JPG Views:	0 Size:	144.0 KB ID:	106633 The pinch seam was already split so I just finished it off. Will rebuild the reliefs of the upper jamb to suit.

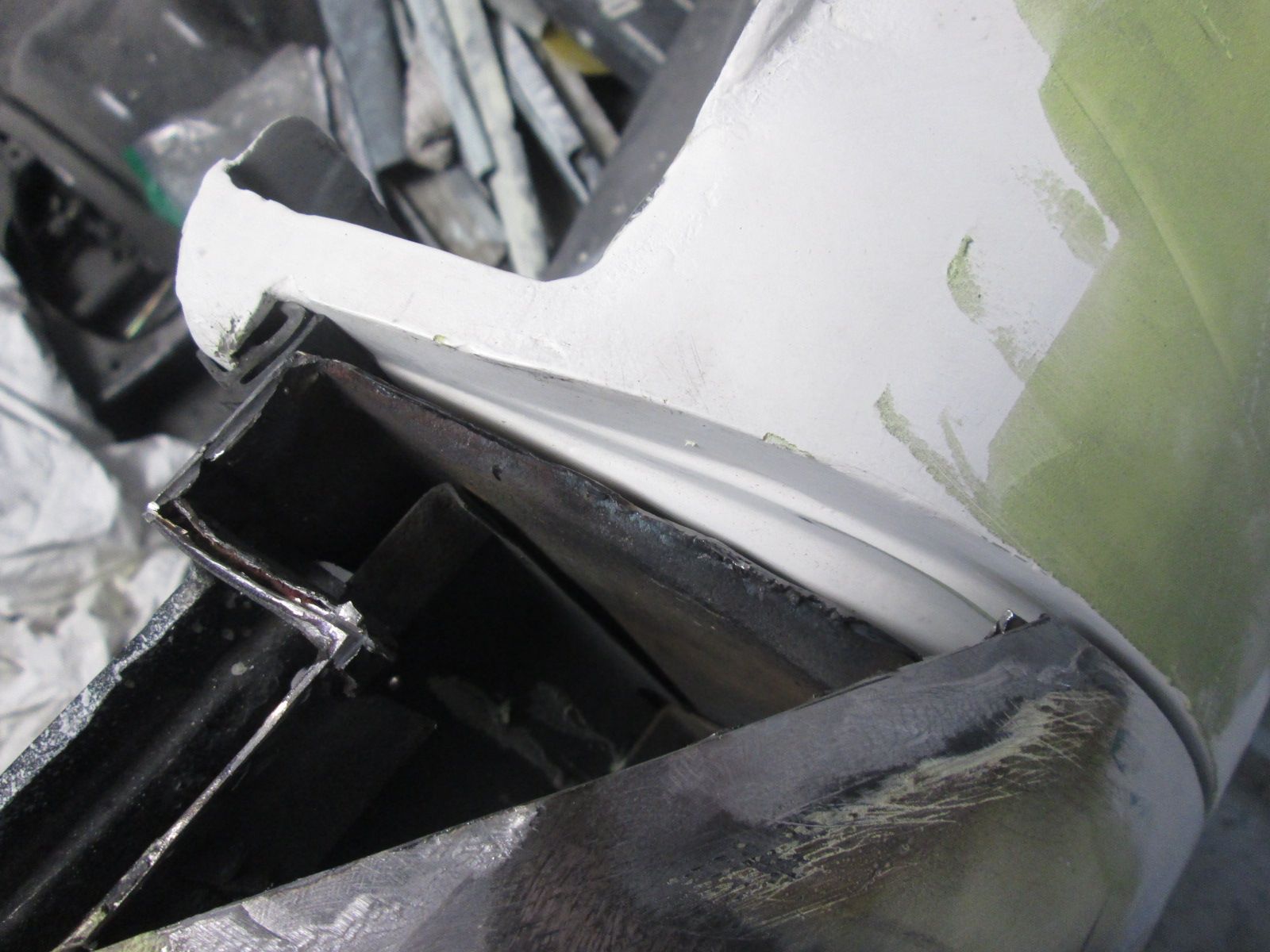

    Click image for larger version  Name:	IMG_3178.JPG Views:	0 Size:	213.2 KB ID:	106634 As it progressed I settled on removing the rest of the trouble areas in one sweeping triangular replacement panel.
    Click image for larger version  Name:	IMG_3179.JPG Views:	0 Size:	209.3 KB ID:	106635 Now I've touched bottom.

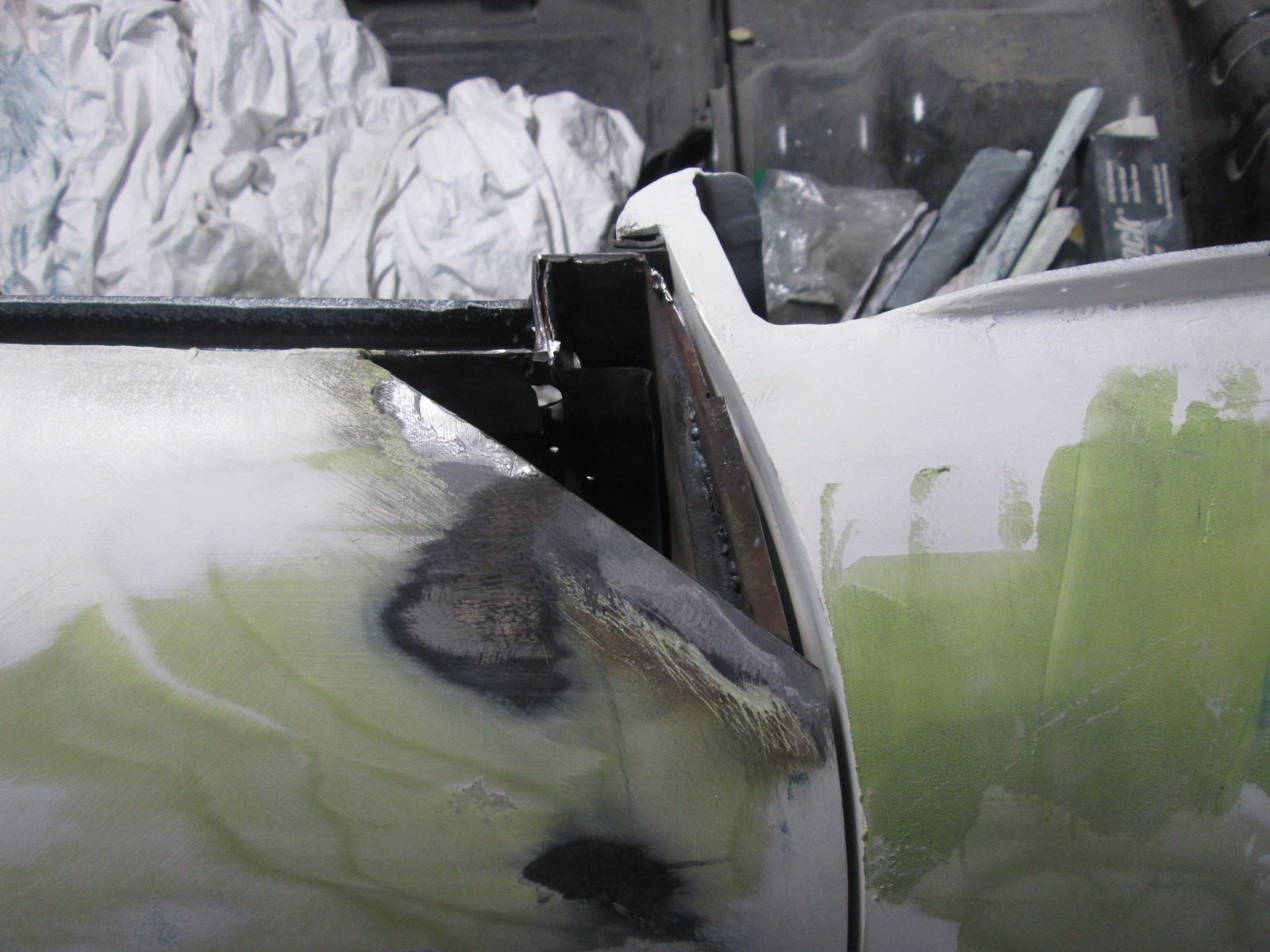

    Click image for larger version  Name:	IMG_3180.JPG Views:	0 Size:	177.1 KB ID:	106636 Building the corner back up next start with that jamb relief section.

    Thanks for looking!

    Justin
    Justin Rio

    Comment


    • The only way Justin. I will be interested in seeing how you produce the repair patch.

      Roy

      Comment


      • JTR70
        JTR70 commented
        Editing a comment
        Thanks Roy! Coming up shortly...
        Justin

    • Upper jamb corner: Click image for larger version  Name:	IMG_3184.JPG Views:	0 Size:	197.2 KB ID:	106720 Had to get the jamb substructure in much closer profile to the edge of the quarter panel to have any shot at reducing the needed filler in the end. I began relief cutting it but in the end it was simpler to remove and begin again.

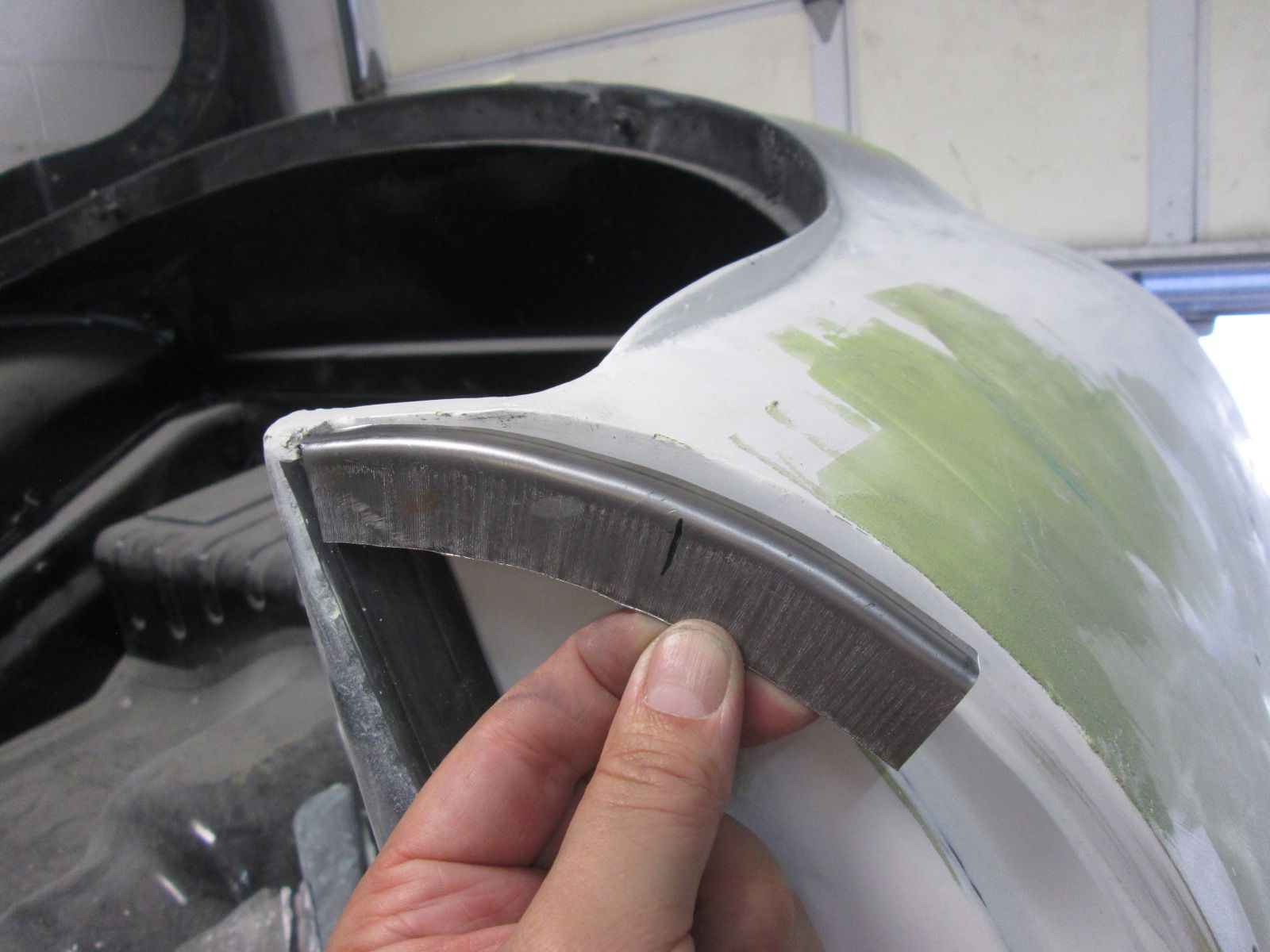

      Click image for larger version  Name:	IMG_3185.JPG Views:	0 Size:	174.4 KB ID:	106721 Shrinking a new profile section to match the body profile. A ways yet to go here as the turn needs more tightening.

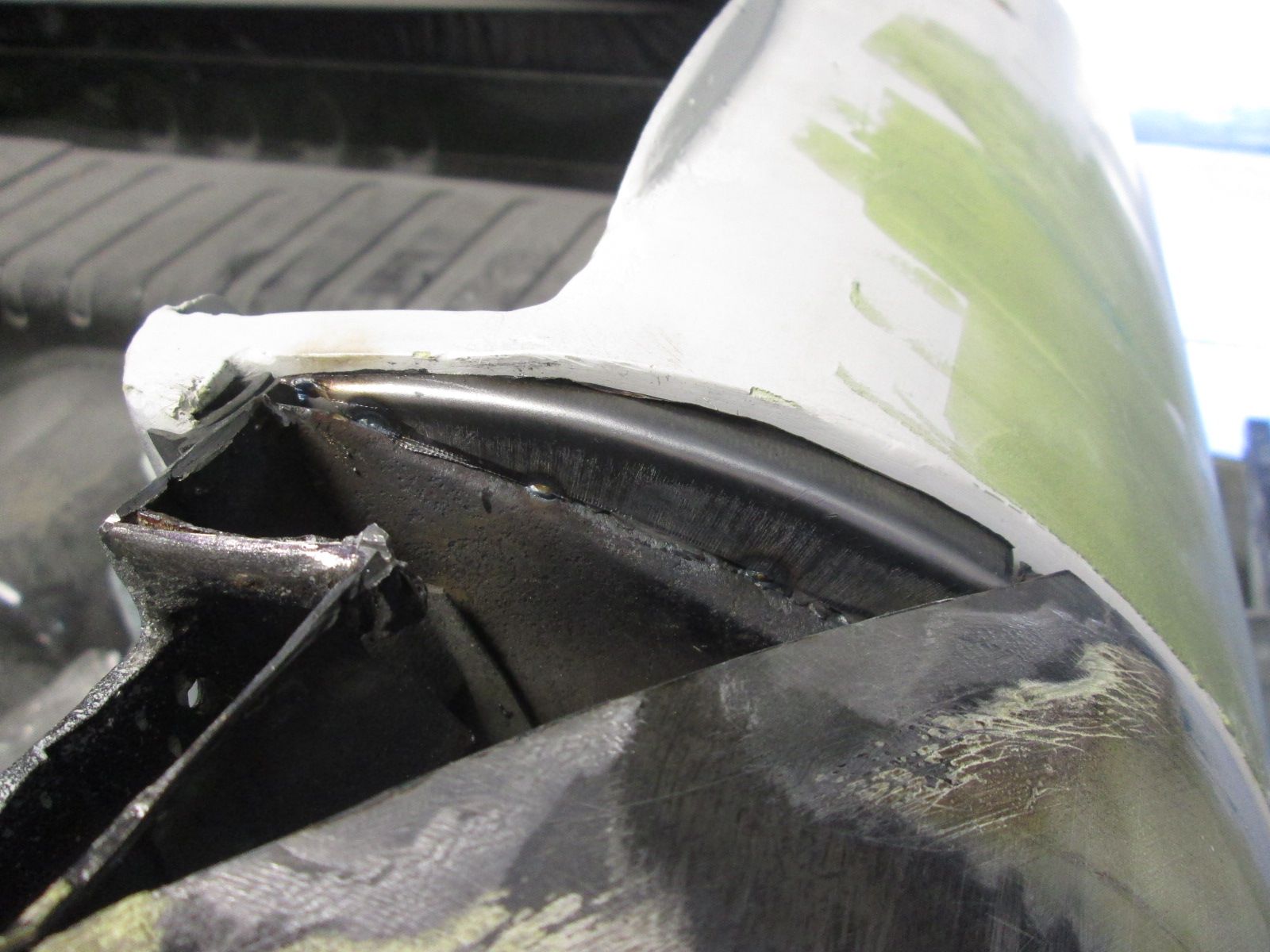

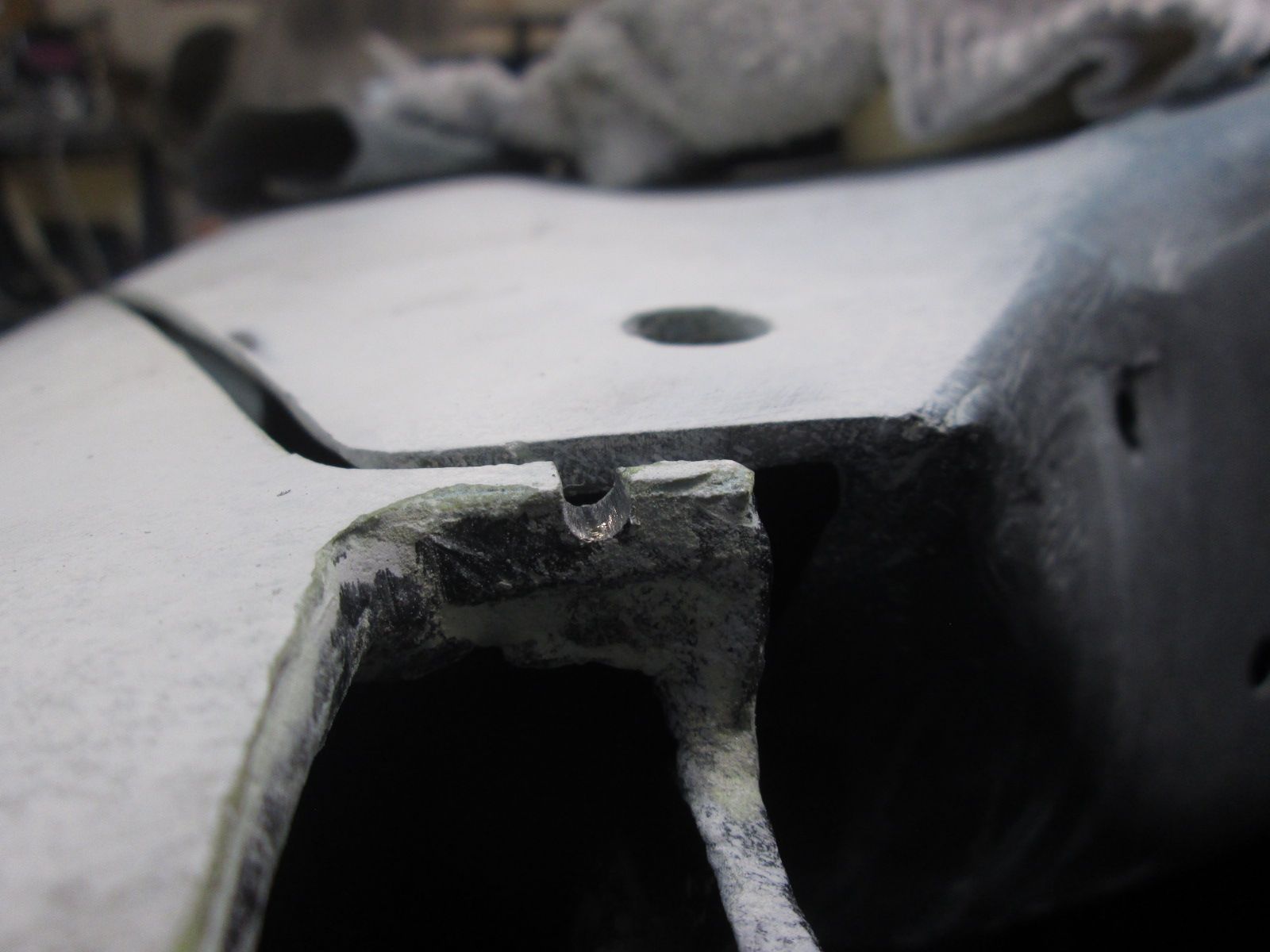

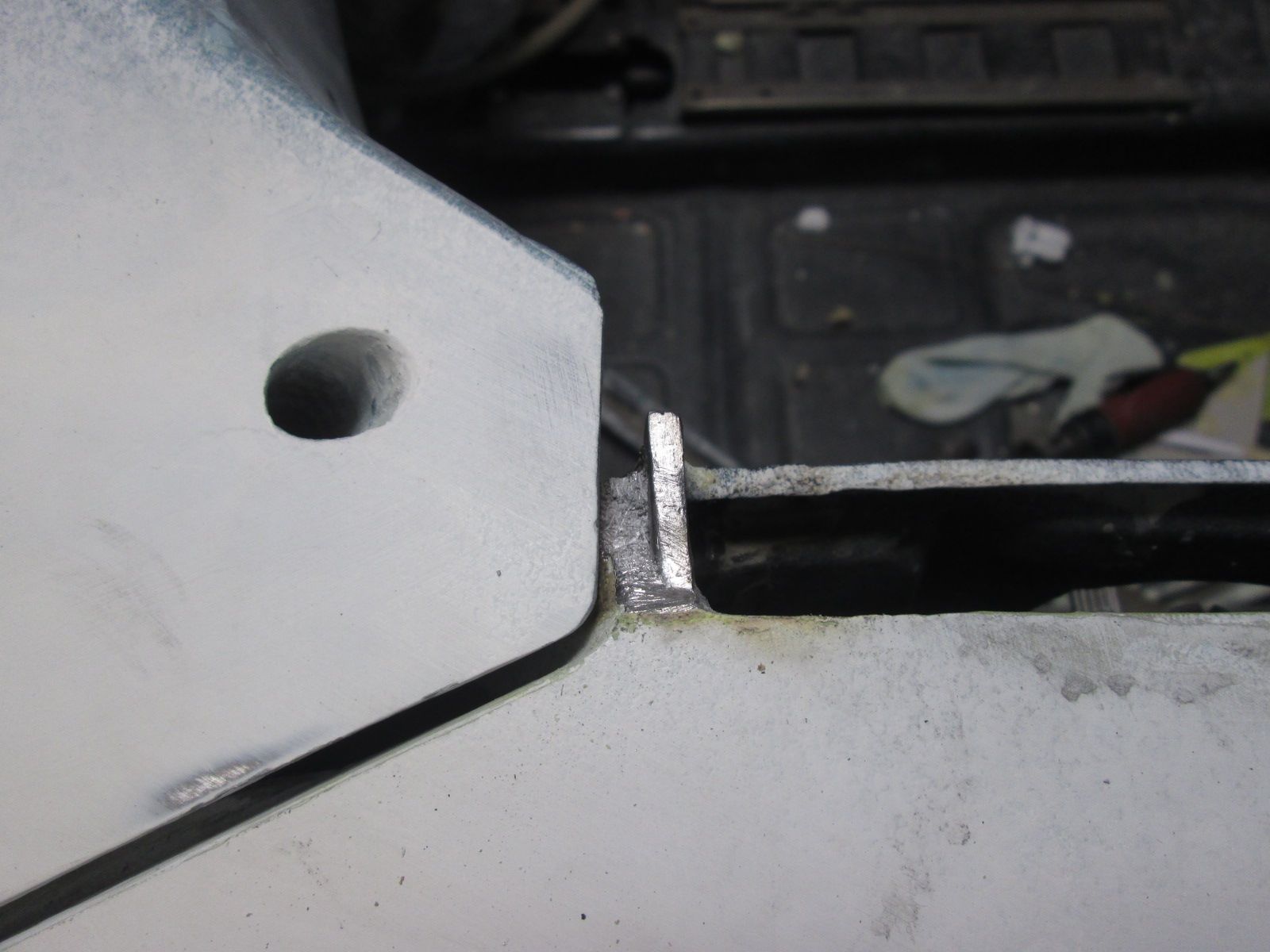

      Click image for larger version  Name:	IMG_3190.JPG Views:	0 Size:	200.2 KB ID:	106722 New section trimmed and tacked into position just shy of the body skin surface in compensation of the eventual skin thickness that will lay over top of this flange.

      Click image for larger version  Name:	IMG_3191.JPG Views:	0 Size:	216.9 KB ID:	106723 Also trimming back this flange for final gap clearance.

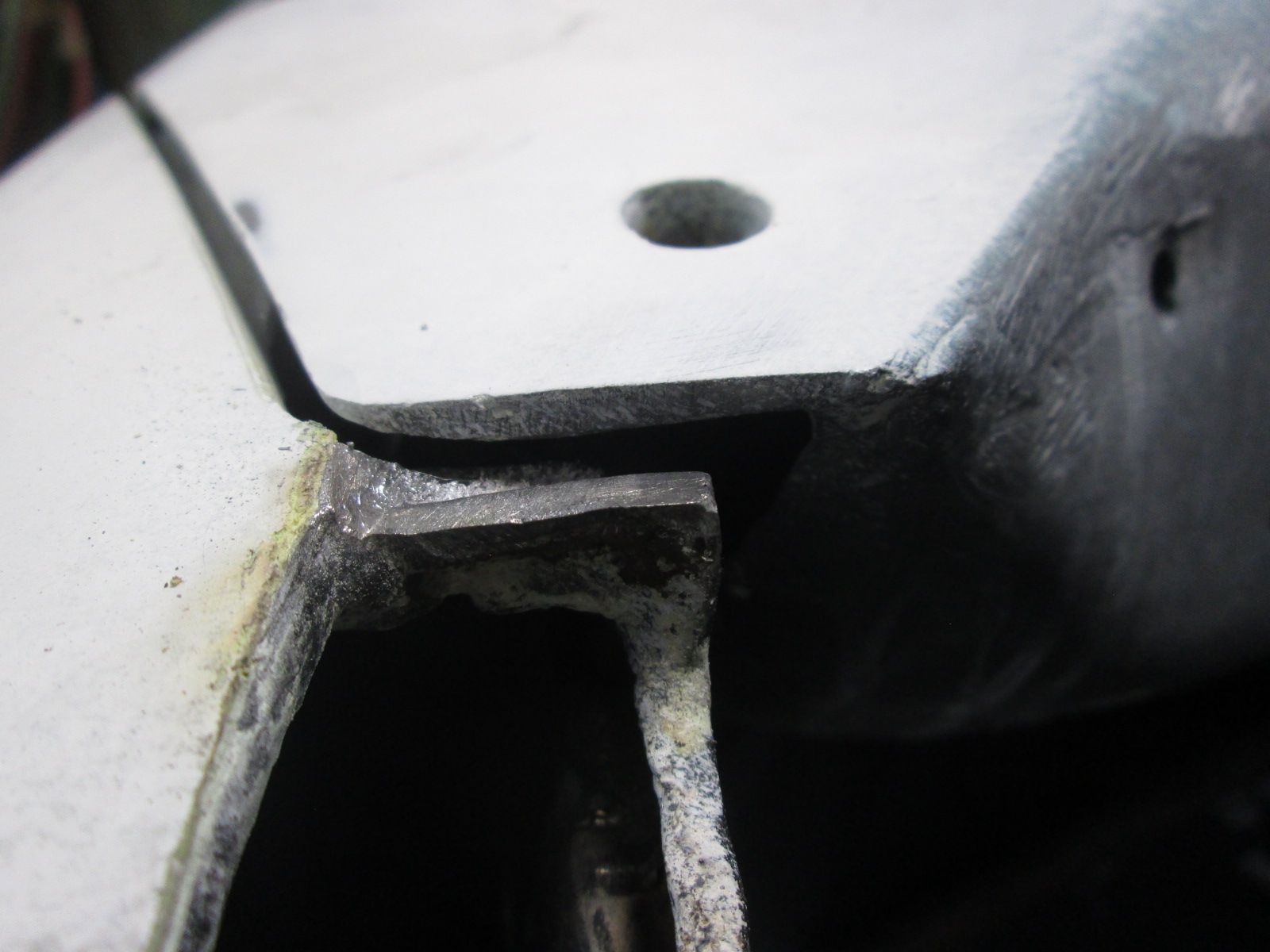

      Click image for larger version  Name:	IMG_3192.JPG Views:	0 Size:	183.9 KB ID:	106724 Dialed in as best as I can and ready to stitch it in the rest of the way. Note too that the rest the jamb flange below has been tucked back under tight and tacked in to keep it from slipping back out. Still have to stitch up that split along the leading edge. Always a ton of tiny jobs to do as it goes.
      Adding the new repair patch on next.

      thanks for looking!
      Justin
      Last edited by JTR70; 08-22-2019, 01:54 AM.
      Justin Rio

      Comment


      • New upper Corner skin section.
        Click image for larger version

Name:	IMG_3193.JPG
Views:	336
Size:	209.2 KB

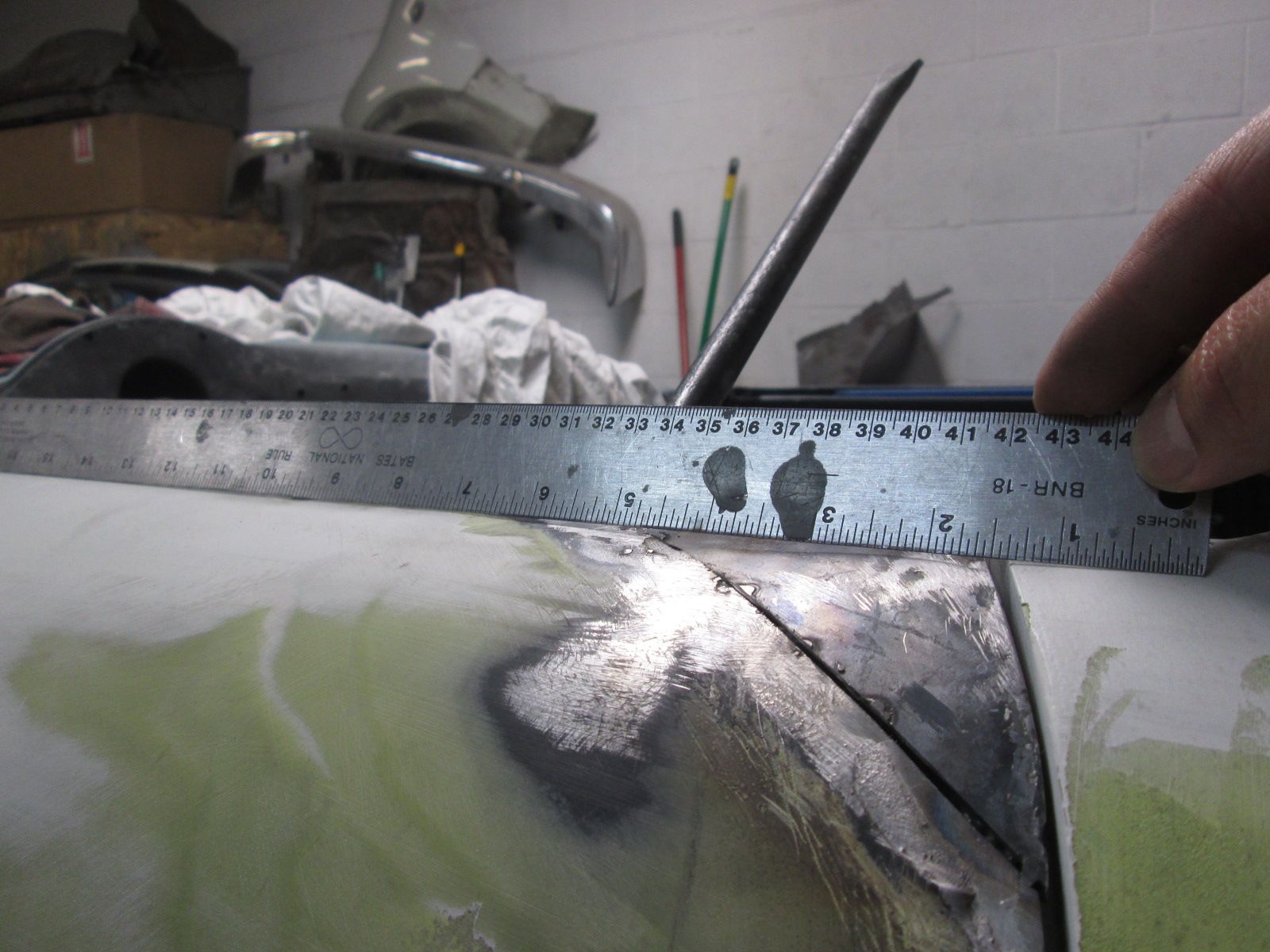

ID:	106726 New section just about ready. Top of the door has a very soft contour line which carries off of the quarter panel. Taking care to line all that up too as it goes.

        Click image for larger version

Name:	IMG_3194.JPG
Views:	342
Size:	217.5 KB

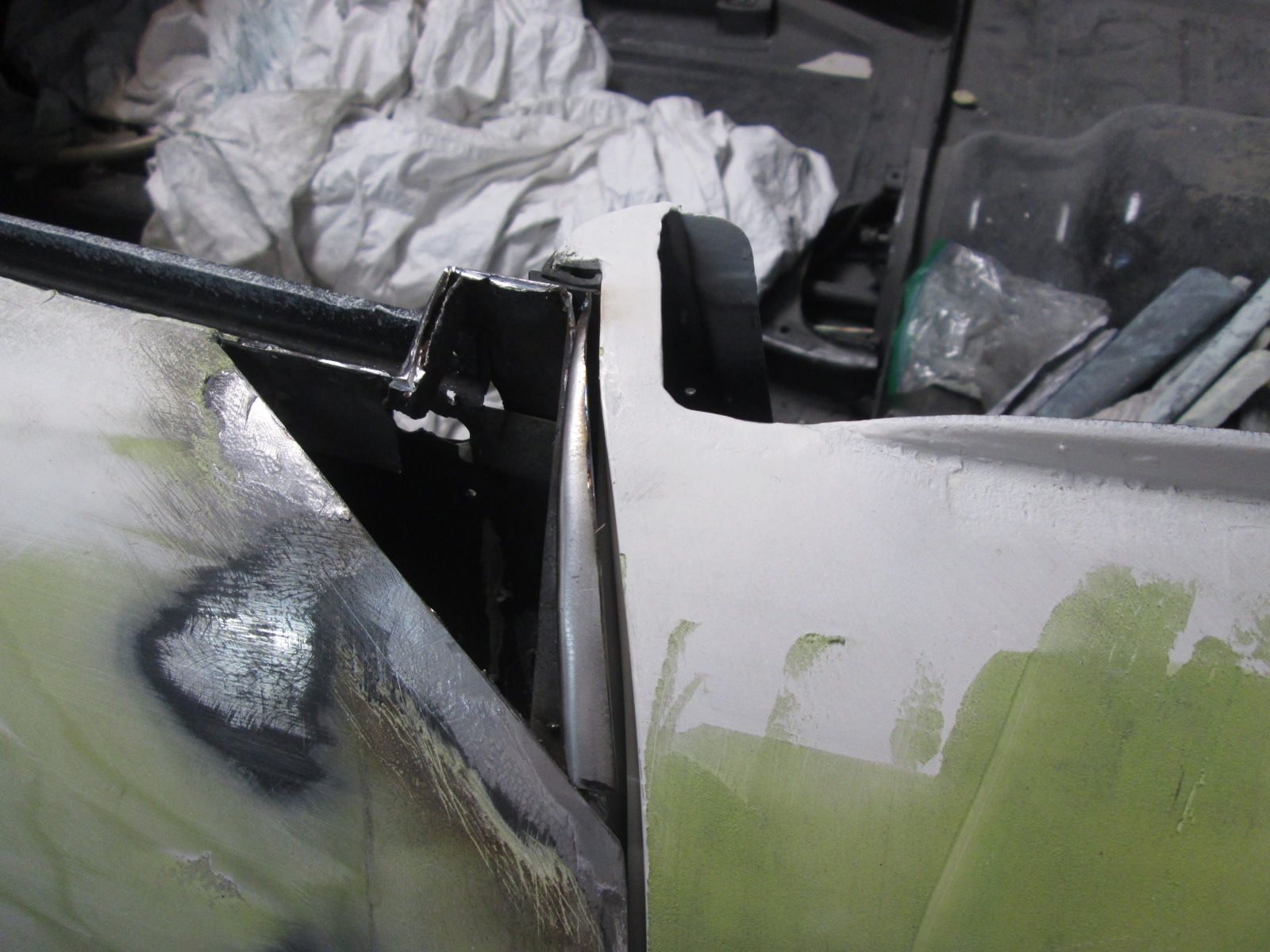

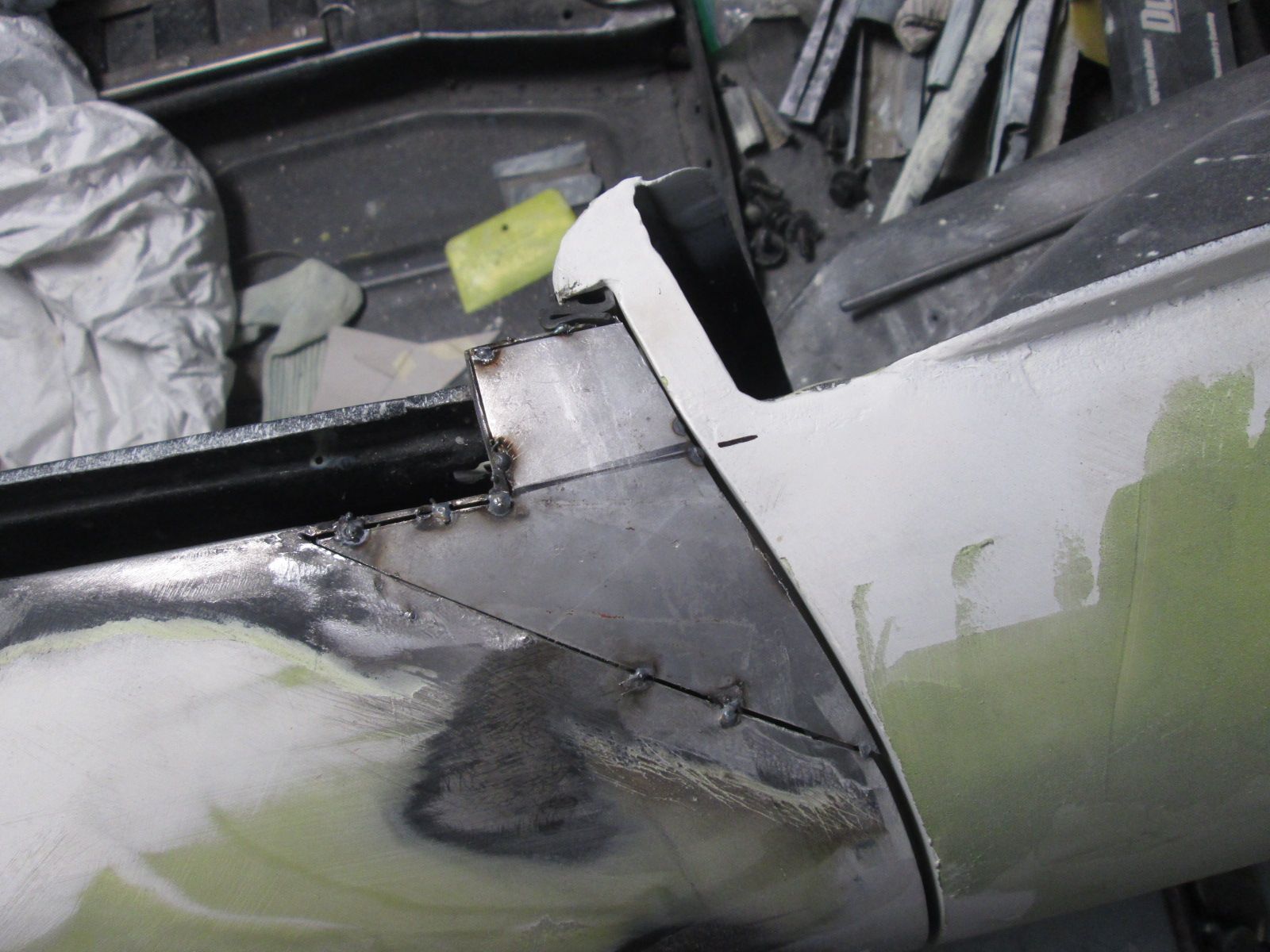

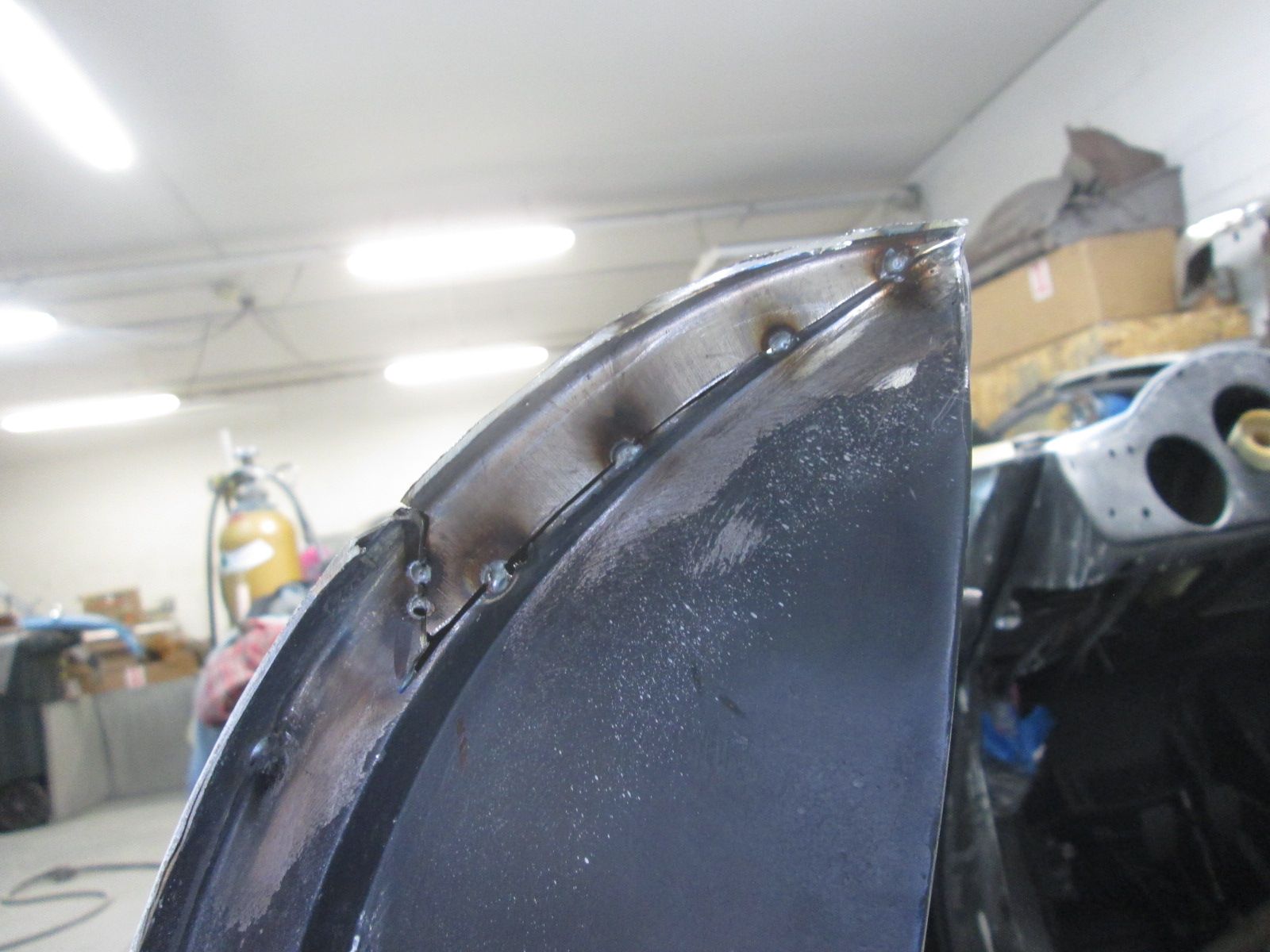

ID:	106727 Tacked in my best adjusted position.
        Click image for larger version

Name:	IMG_3199.JPG
Views:	305
Size:	208.3 KB

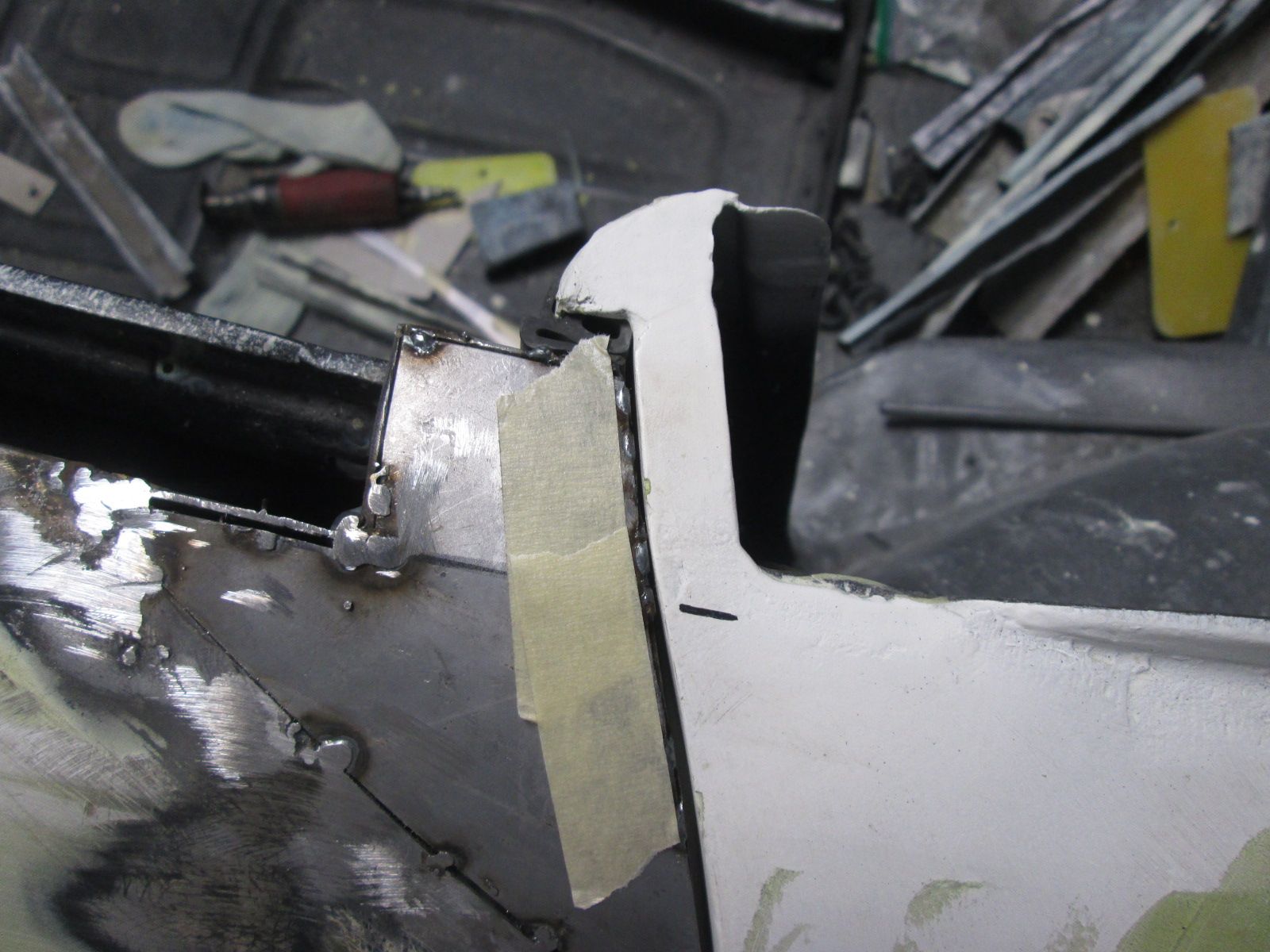

ID:	106728 Leading edge has been welded up and am taping back my best my best 3mm gap for grinding.

        Click image for larger version

Name:	IMG_3202.JPG
Views:	305
Size:	212.4 KB

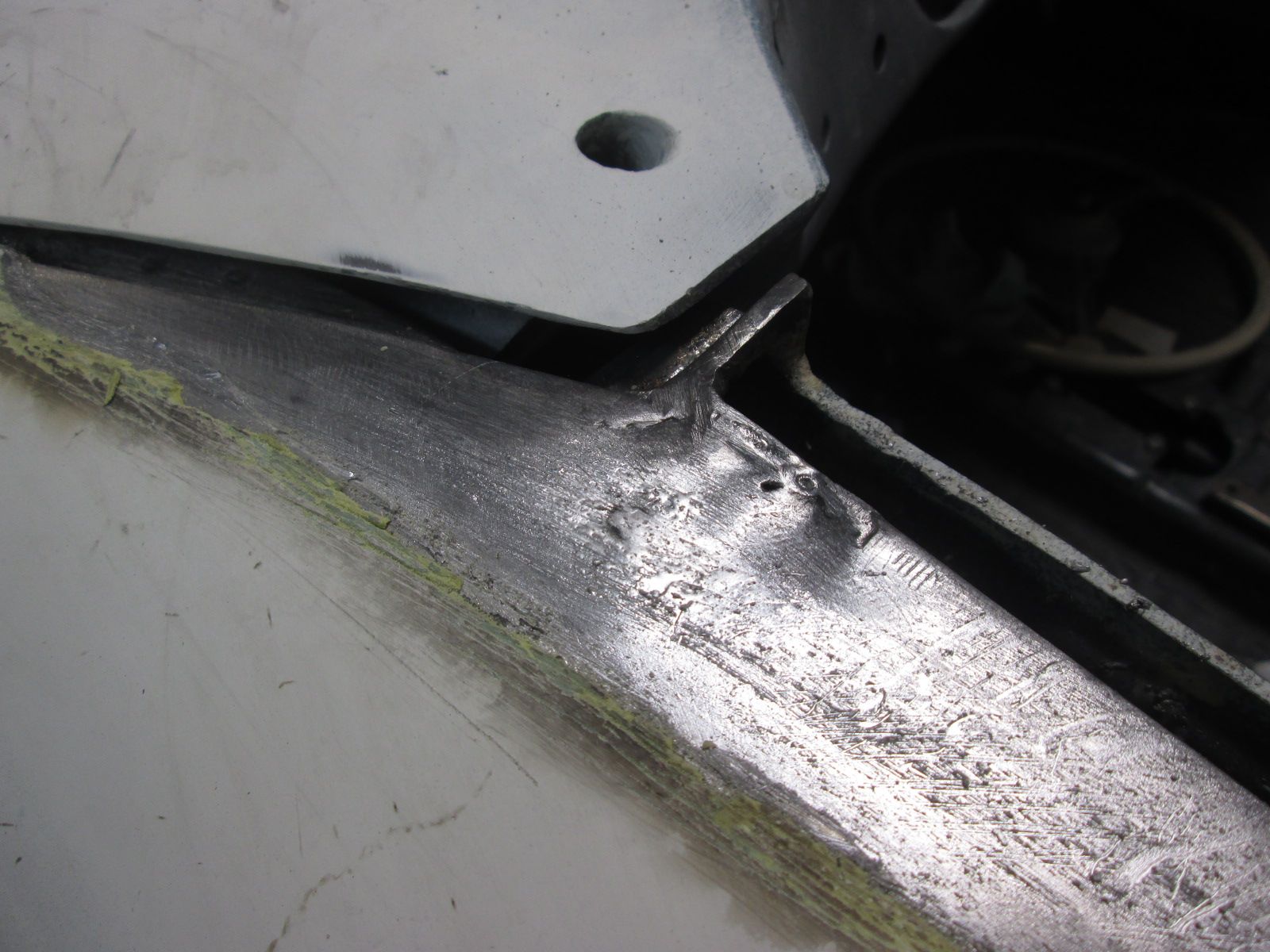

ID:	106729 A slight oversight on my part. This corner was repaired previously and the inner flange down in the window channel was patched at the corner. While it was free the overall upper edge profile of the door was allowed to relax downward creating this saddled profile.
        Click image for larger version

Name:	IMG_3201.JPG
Views:	287
Size:	218.3 KB
ID:	106730

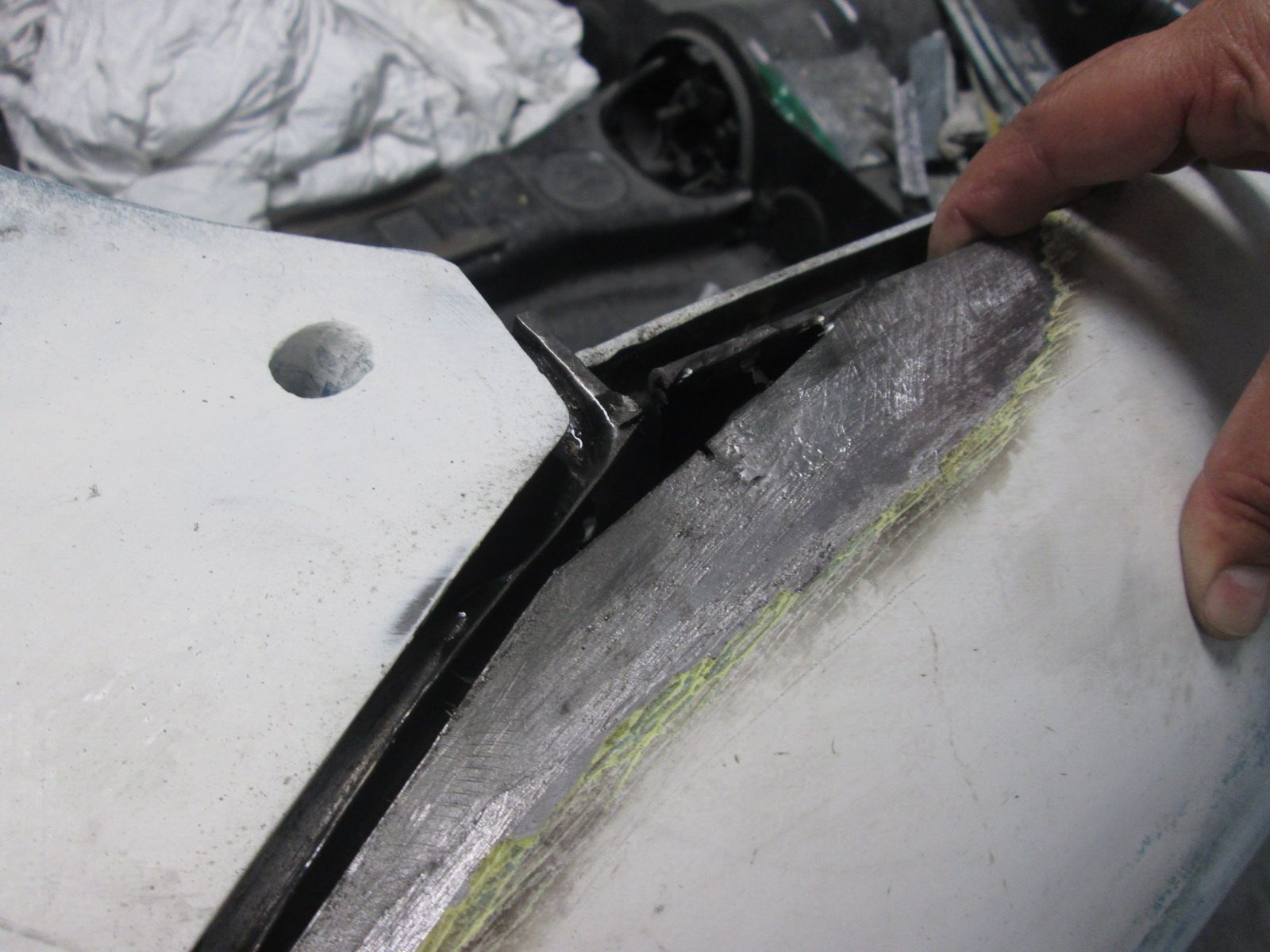

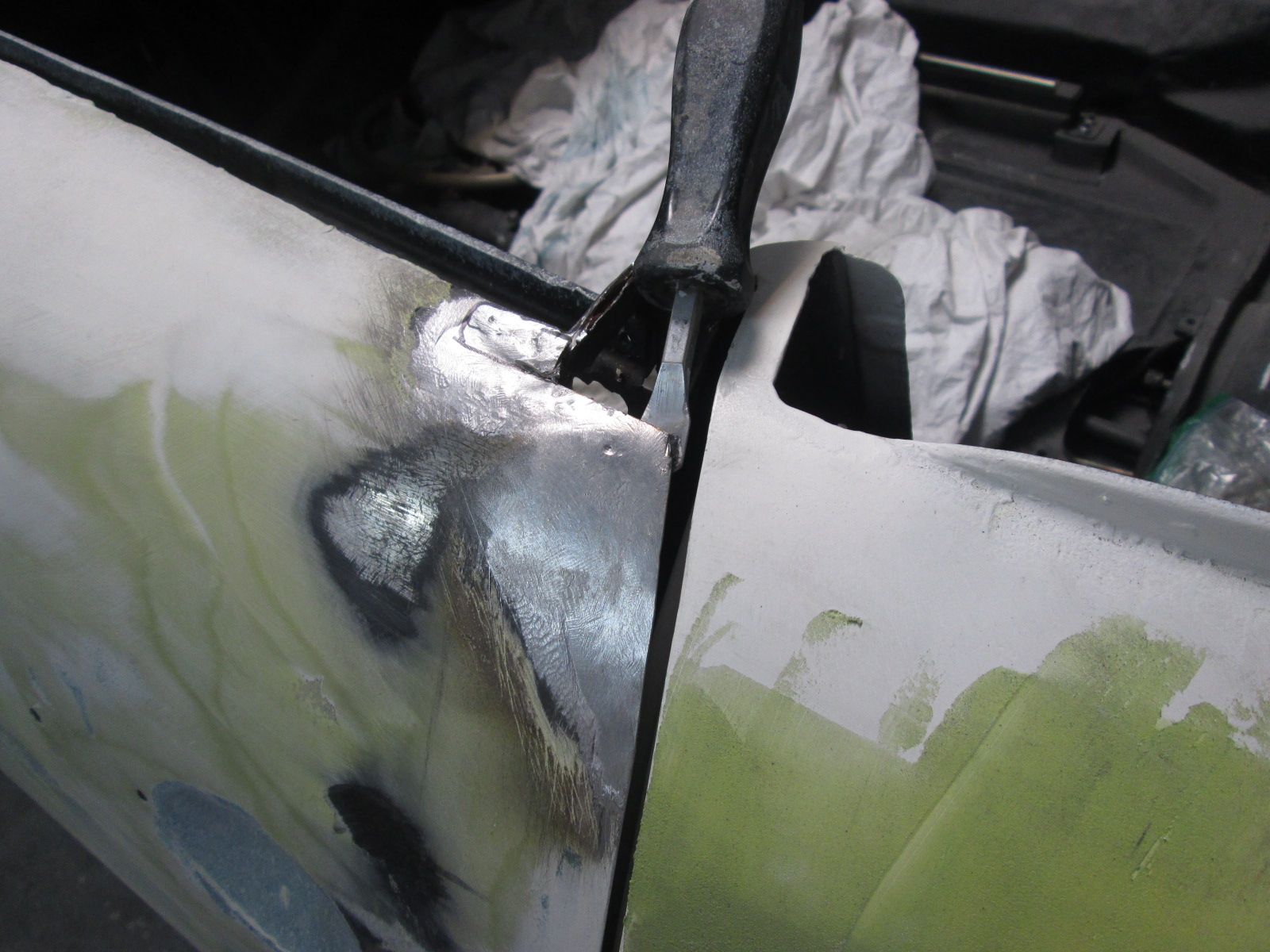

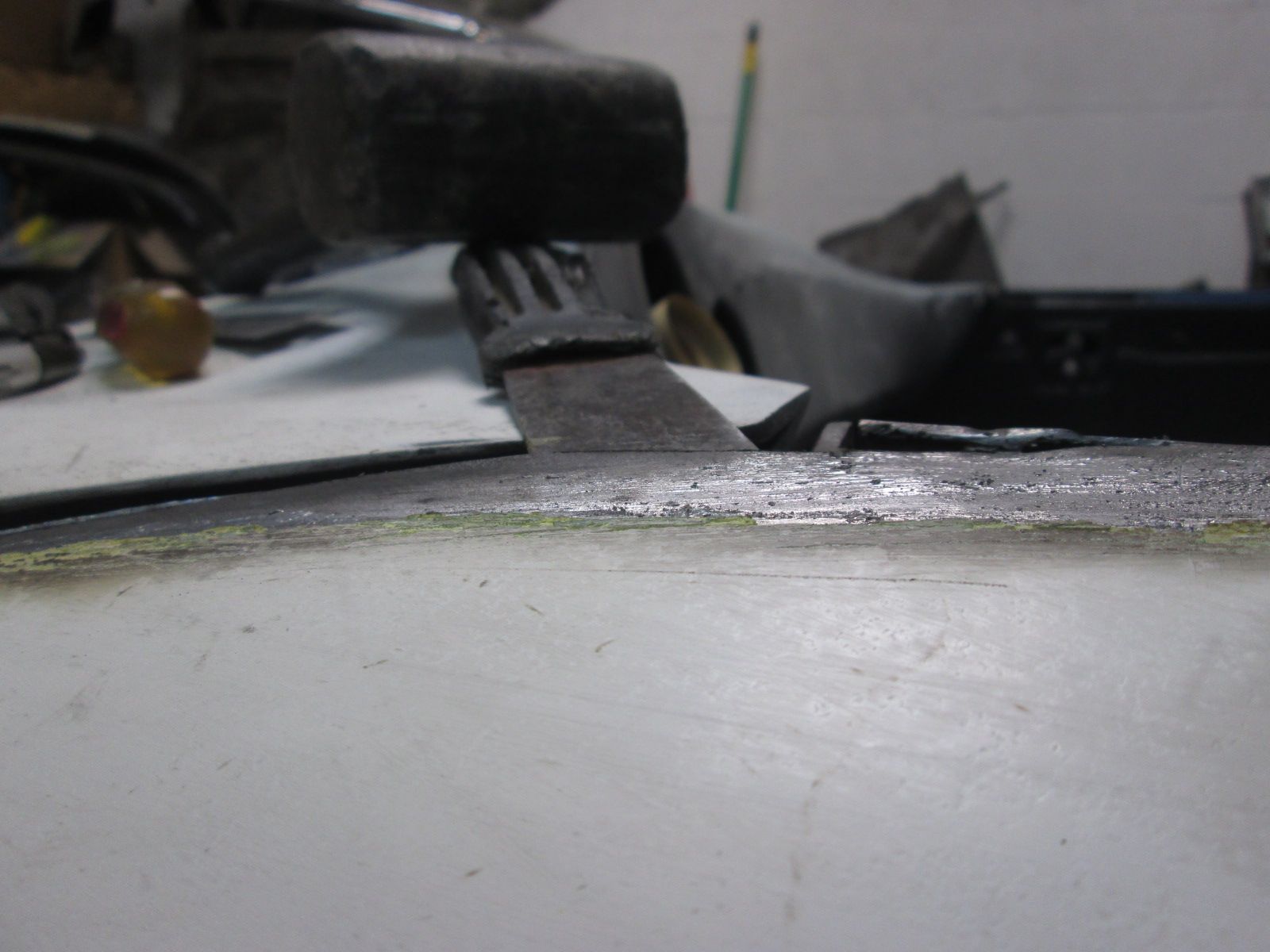

        Didn't want to correct that profile in solder so I cut my tack welds and the end of the previously repaired flange. Once that was severed I had all sorts of adjustment options on that upper door contour. Prying it up into needed alignment here to carry the line smoothly onto the quarter panel.
        Justin Rio

        Comment


        • Hey Justin, no wonder I wondered, how you would get over this job. You do this so well! I think explaining this repair to the forum is also challenging. You also manage this so well. Its these small areas that must take the time to get over. No wonder the previous repair that you uncovered was not the best !

          Roy

          Comment


          • JTR70
            JTR70 commented
            Editing a comment
            Hey Roy, Thank you!! Just trying to figure out ways to get the filler as thin as I can in the spots I'm addressing. Also, glad to hear these entries are making sense along the way. Justin

        • Upper corner repair complete:
          Click image for larger version  Name:	IMG_3208.JPG Views:	0 Size:	218.5 KB ID:	106735 New patch all stitched in and dressed.
          Click image for larger version  Name:	IMG_3209.JPG Views:	0 Size:	208.8 KB ID:	106736 Body line now carries on through the quarter panel and only a skim coat of solder required to finish it off.

          Click image for larger version  Name:	IMG_3205.JPG Views:	0 Size:	210.0 KB ID:	106737 Inner jamb section also now ready for a final coat of solder.

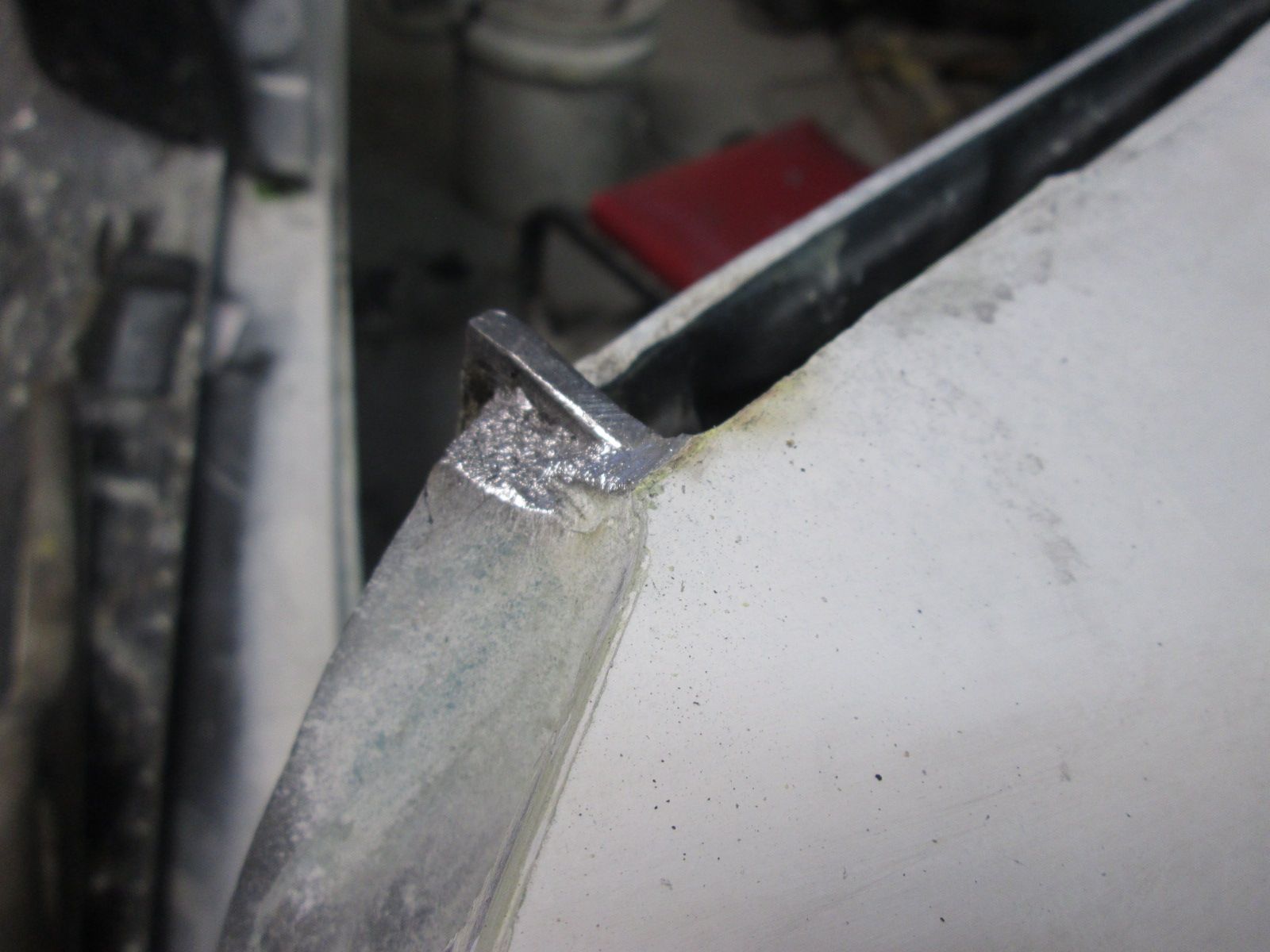

          Click image for larger version  Name:	IMG_3210.JPG Views:	0 Size:	201.7 KB ID:	106738 Corner now ready for some lead...

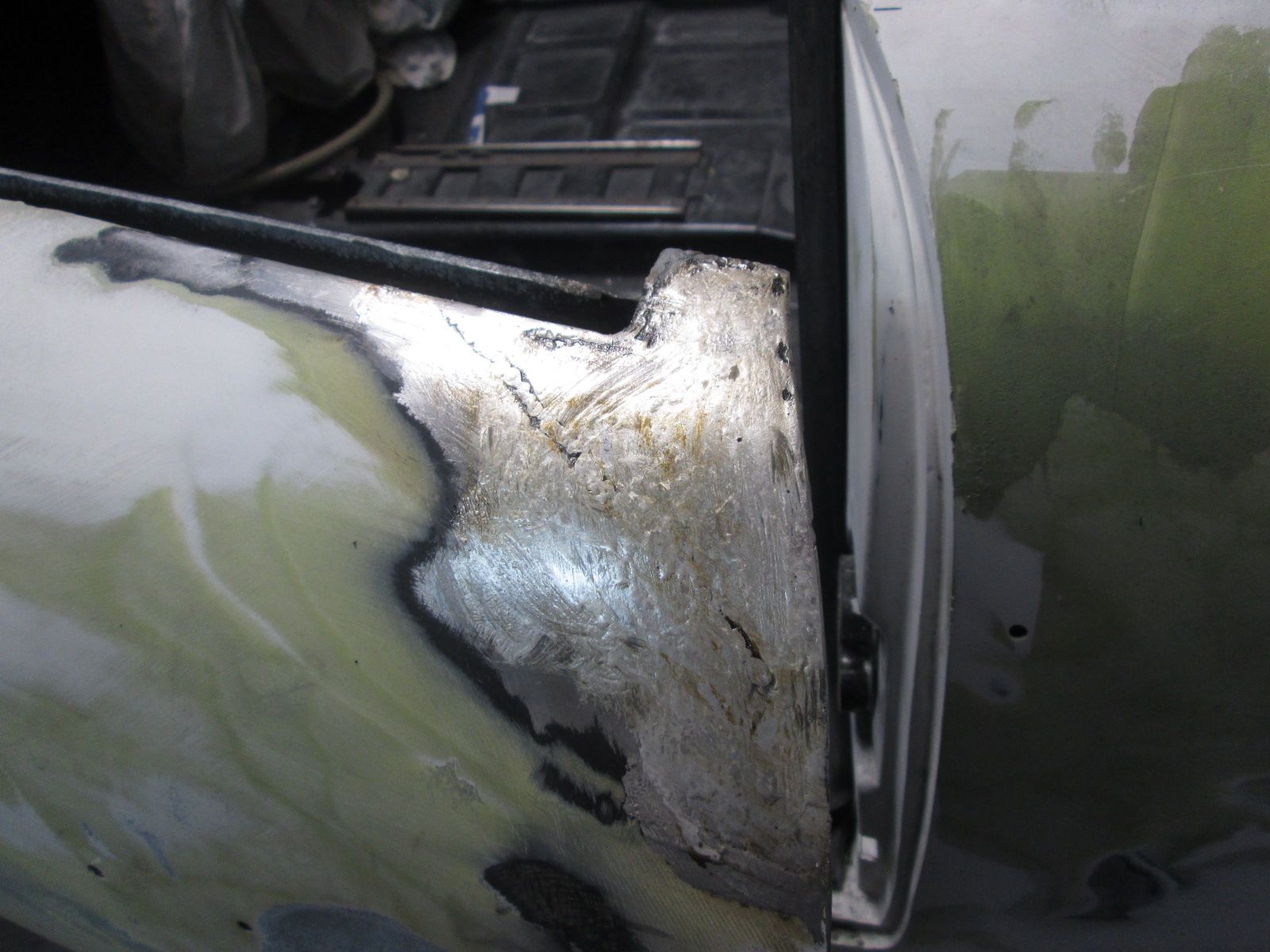

          Click image for larger version  Name:	IMG_3217.JPG Views:	0 Size:	196.2 KB ID:	106739 Area lead wiped and heated in solder paste.
          Last edited by JTR70; 08-22-2019, 06:02 PM.
          Justin Rio

          Comment

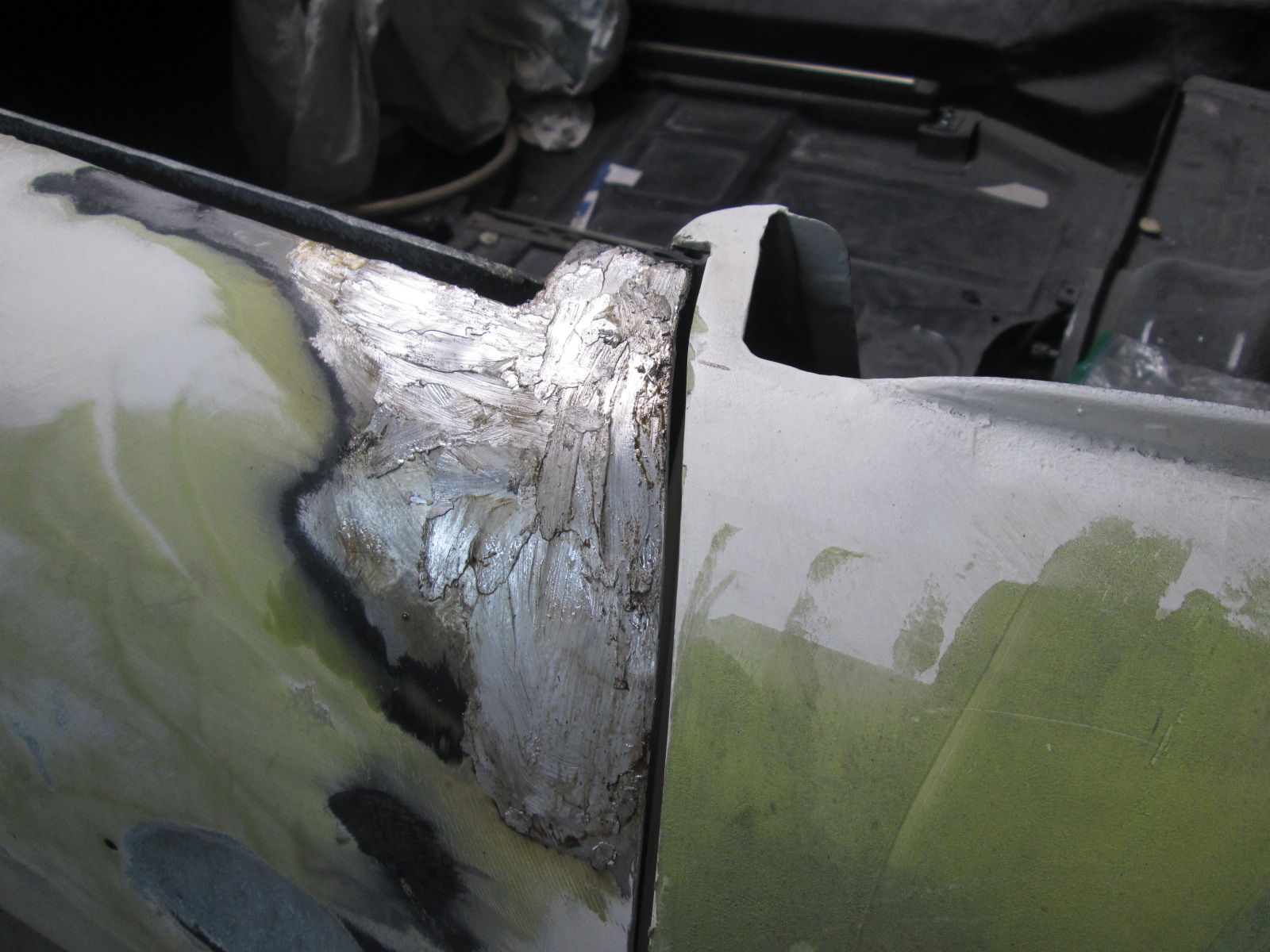

          • Body solder:
            Click image for larger version  Name:	IMG_3218.JPG Views:	0 Size:	220.4 KB ID:	106746 Jamb applied with tinning acid.

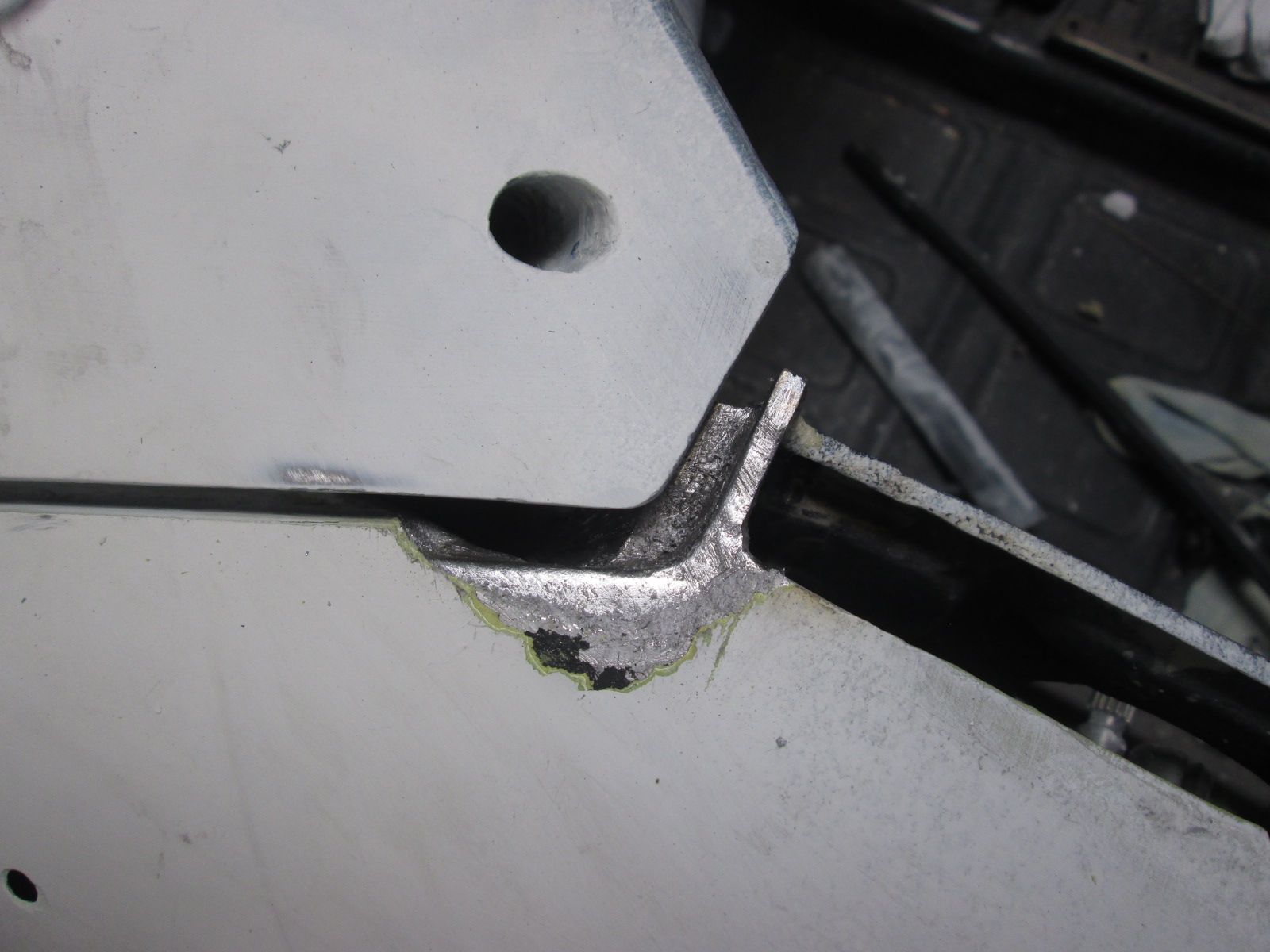

            Click image for larger version  Name:	IMG_3219.JPG Views:	0 Size:	219.0 KB ID:	106747 Adding and shaping the solder as best as I can.

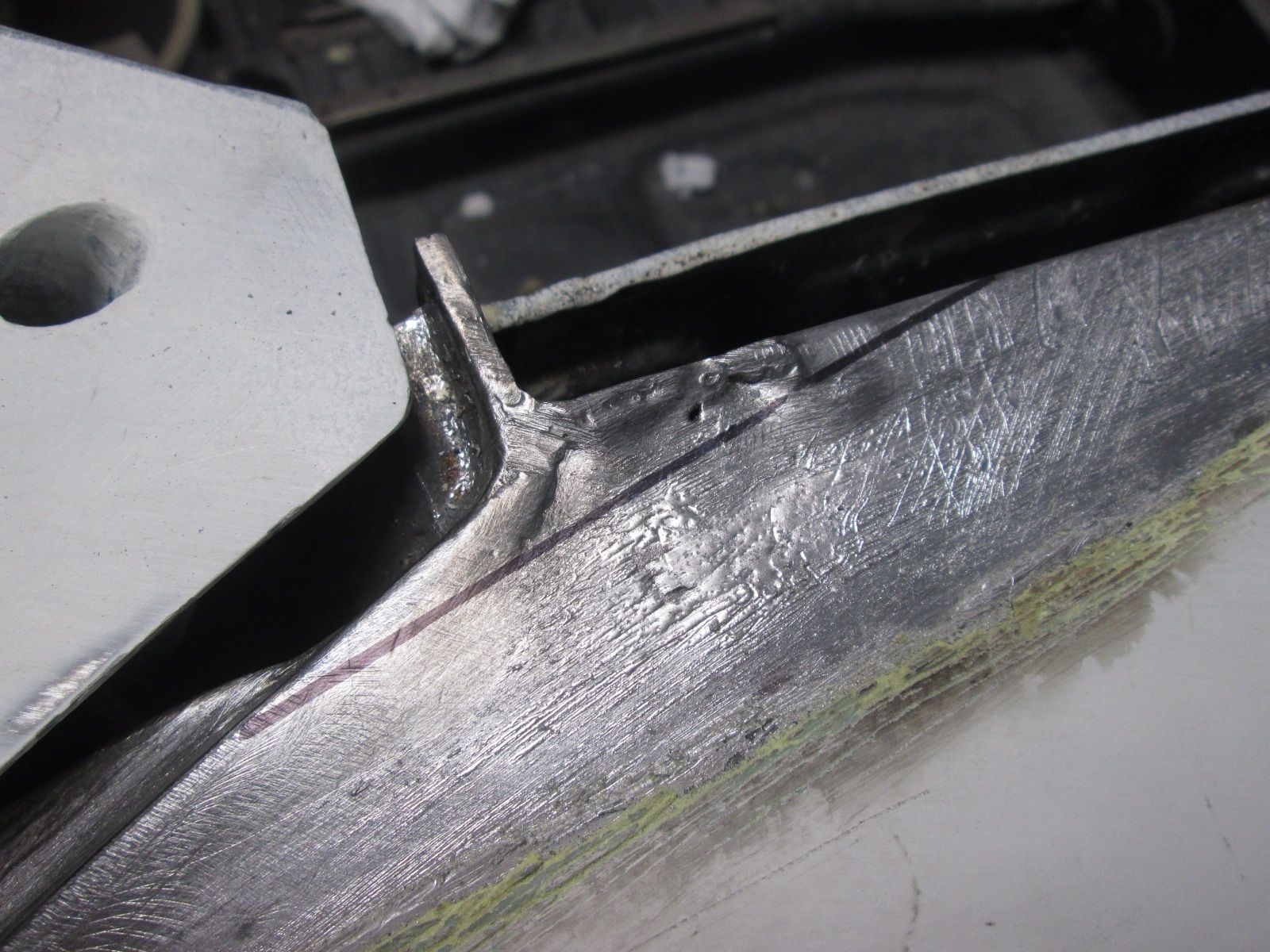

            Click image for larger version  Name:	IMG_3227.JPG Views:	0 Size:	173.4 KB ID:	106750 Filed and finished solder. Small divots and imperfections remain but as before those will be smoothed over in putty and sealer. I still have the rest of this run to solder all the way to the bottom but I wanted to get the repair area coated first while I was at it on the skin side. What's most important to me is that the leading edge is steel and that it remains a believable thickness when ever the door is opened.

            Click image for larger version  Name:	IMG_3221.JPG Views:	0 Size:	222.6 KB ID:	106748 Applying the solder to the skin side now. Scariest part was not heating up the area too much as to ruin what I had just finished in the jamb but it also had to be hot enough to apply and smooth here BUT not too hot. A real balancing act...

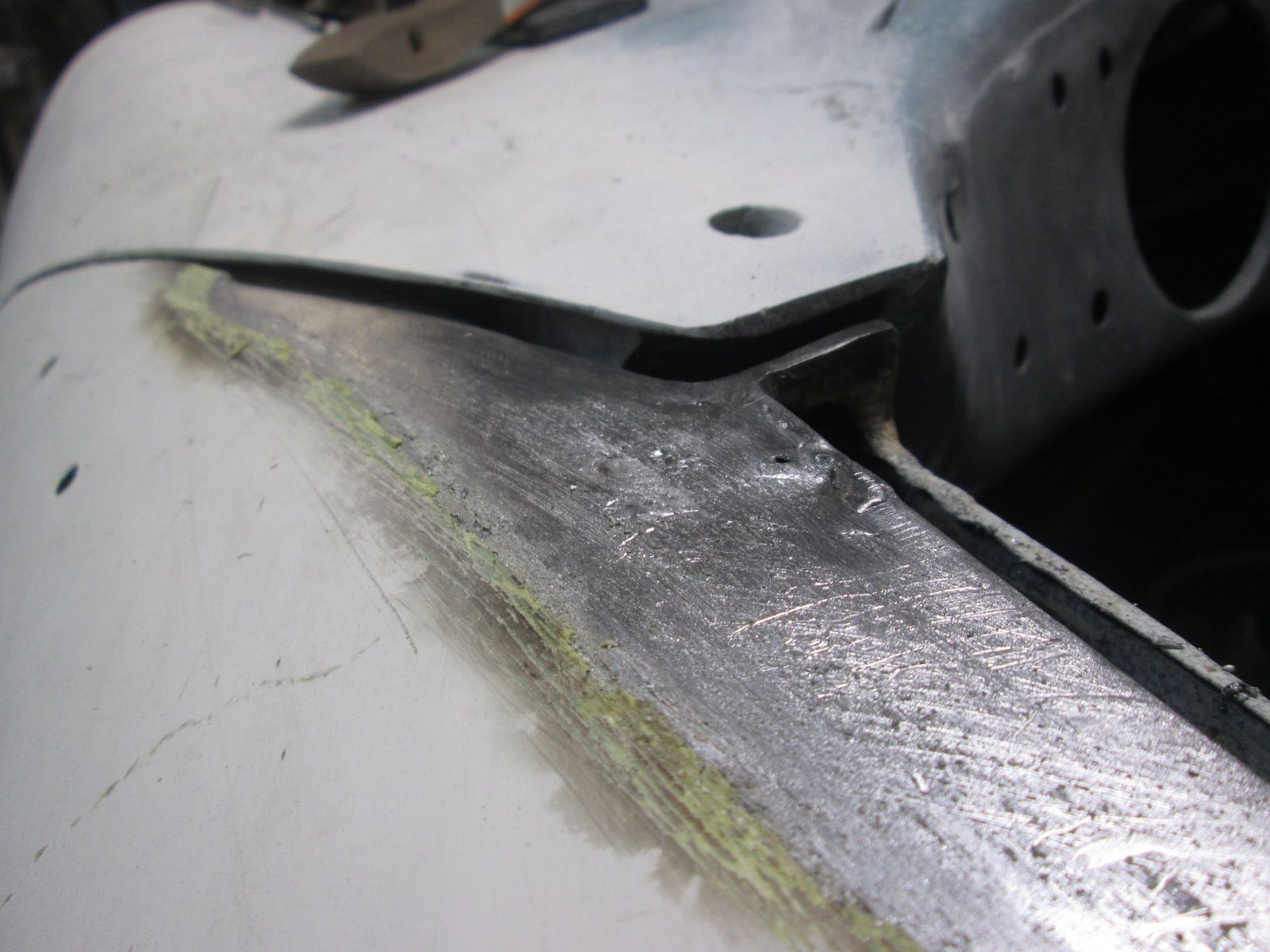

            Click image for larger version  Name:	IMG_3223.JPG Views:	0 Size:	217.8 KB ID:	106749 Solder now filed down as far as I could chase it. Again remaining imperfections I'll chase out with putty.
            Last edited by JTR70; 08-23-2019, 04:29 PM.
            Justin Rio

            Comment


            • Back to closing panel edge thickness:

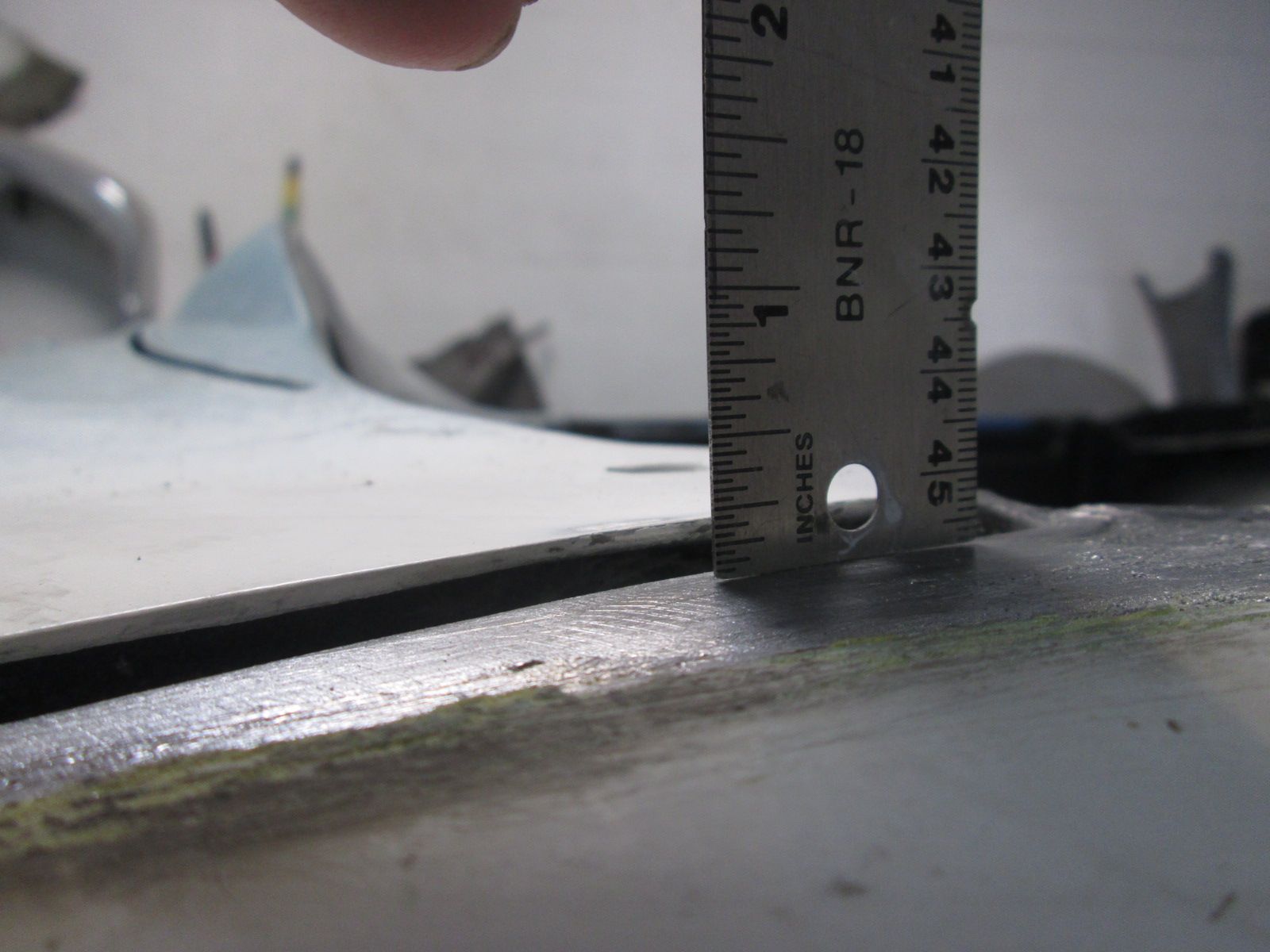

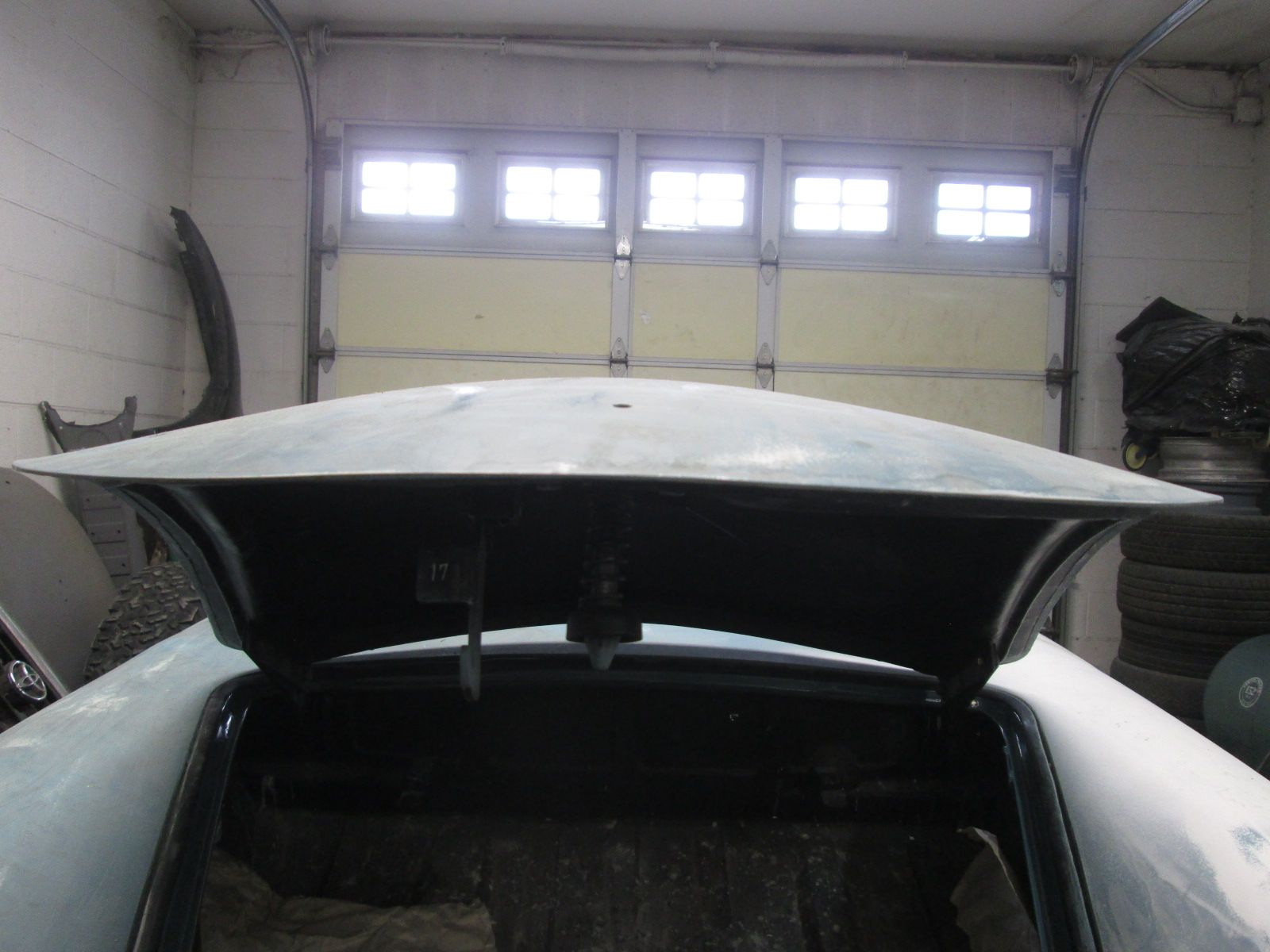

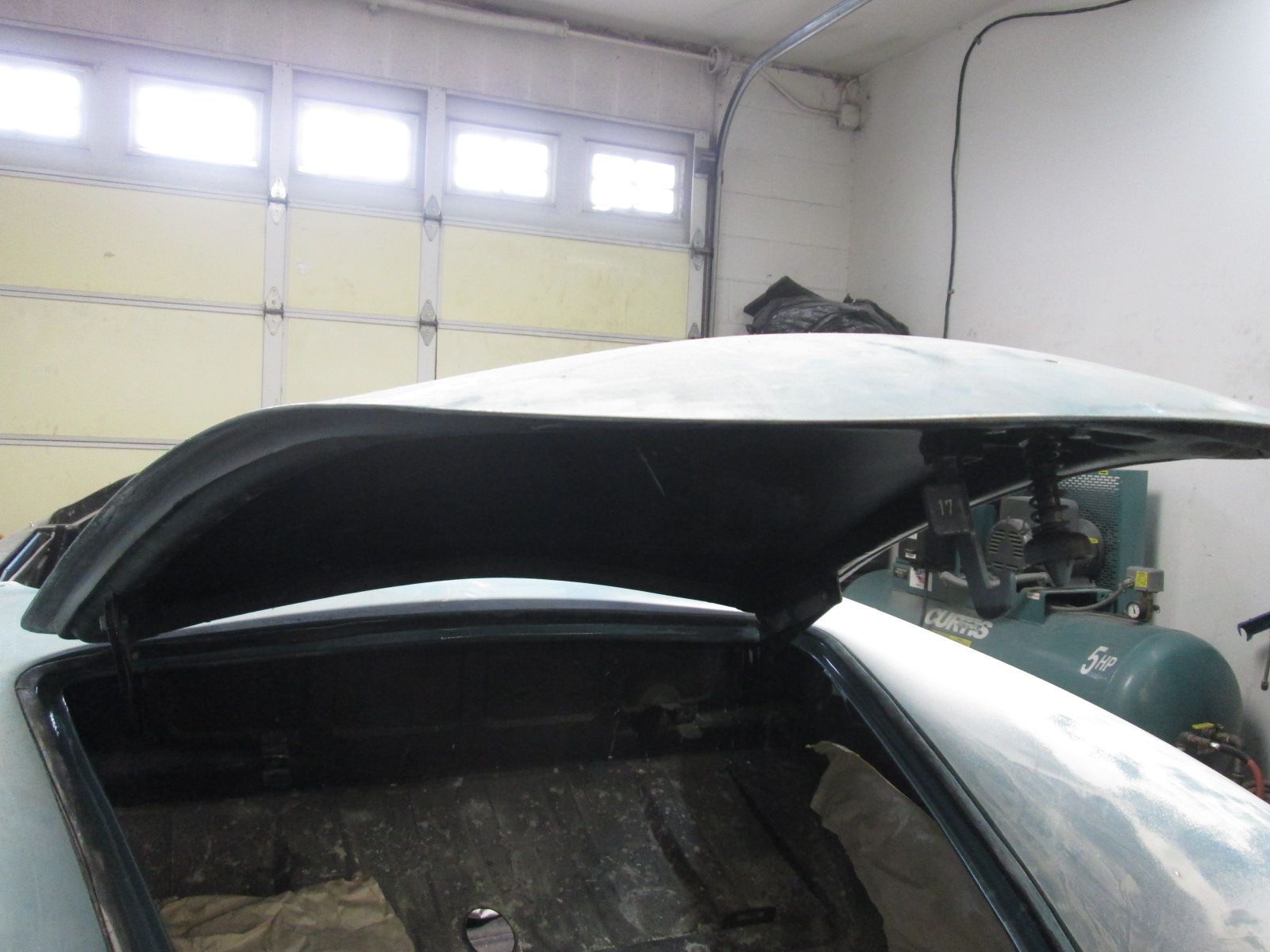

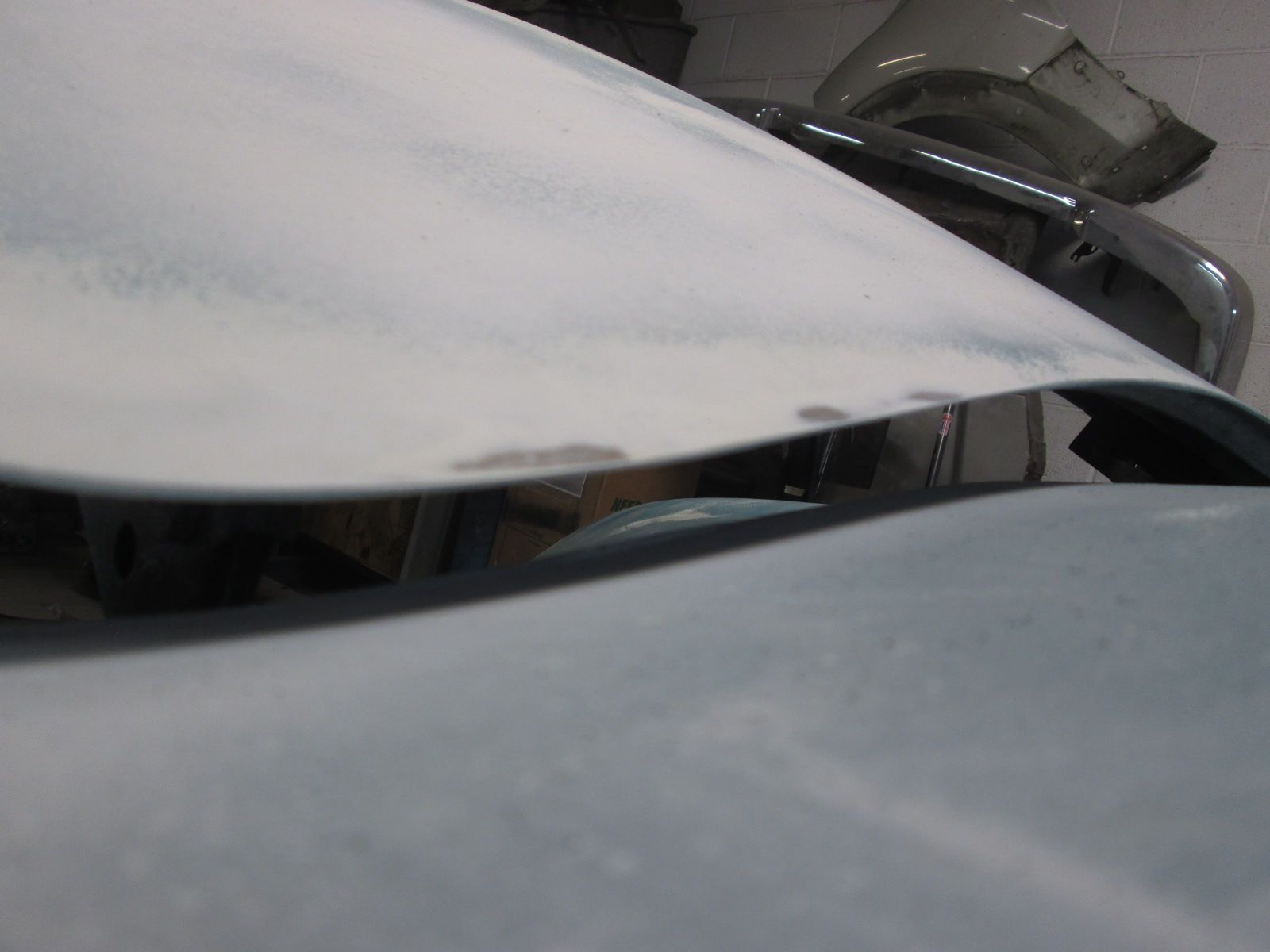

              Click image for larger version  Name:	IMG_3176.JPG Views:	0 Size:	164.2 KB ID:	106752 Earlier I went though the same exercise and obsession with the edge of the hood.
              Click image for larger version  Name:	IMG_3174.JPG Views:	0 Size:	106.5 KB ID:	106753 A lot of edge adjustments and other tweaking to get the skin surface even with the body when fully latched and seated

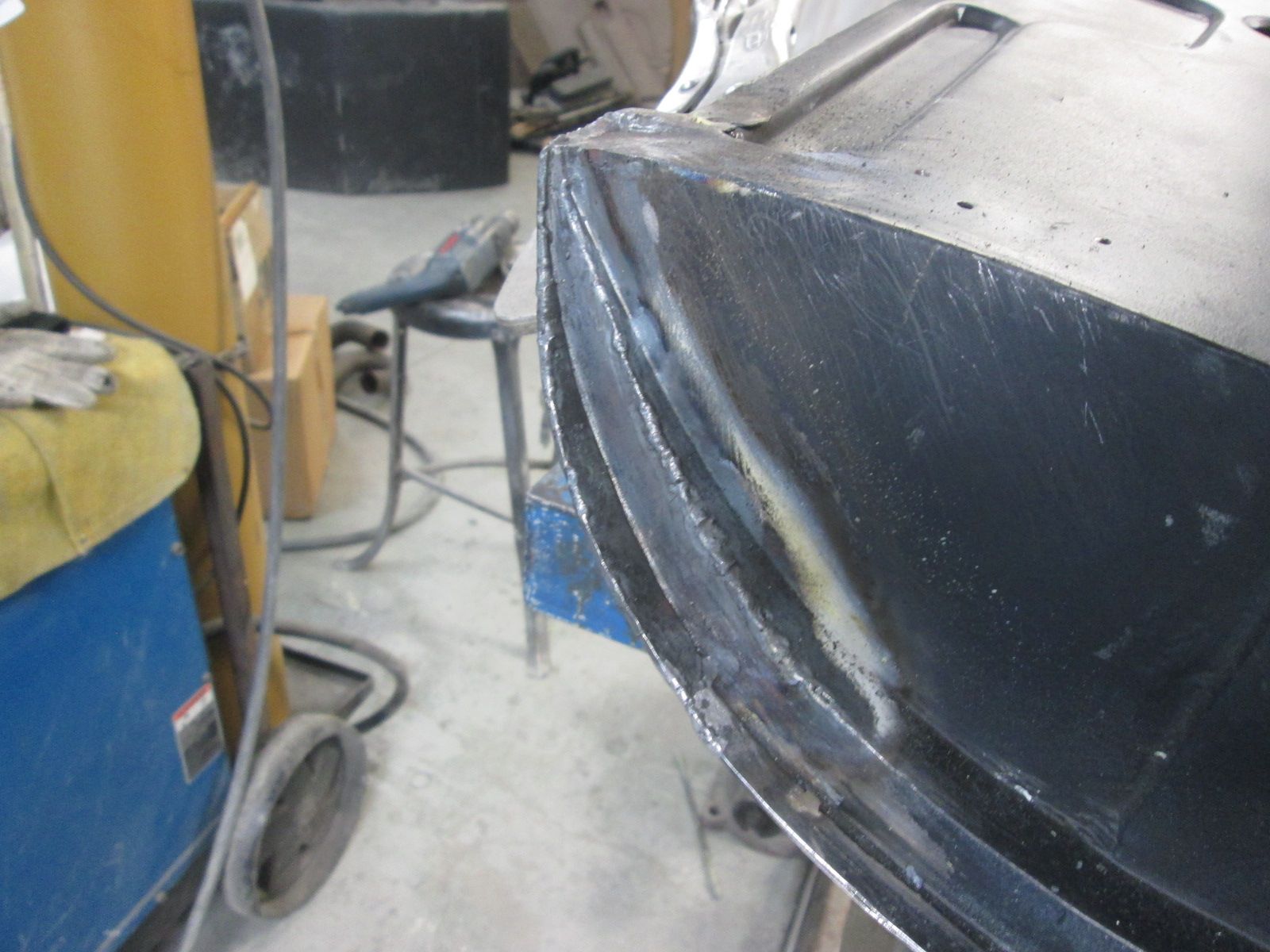

              Click image for larger version  Name:	IMG_3177.JPG Views:	0 Size:	173.6 KB ID:	106754 While at the same time ensuring the edge of the hood all the way around stays a believable thickness. Every time this car stops for gas or is at a show this detail will either shame or make someone proud. Same rule applies for me with all the closing panels.

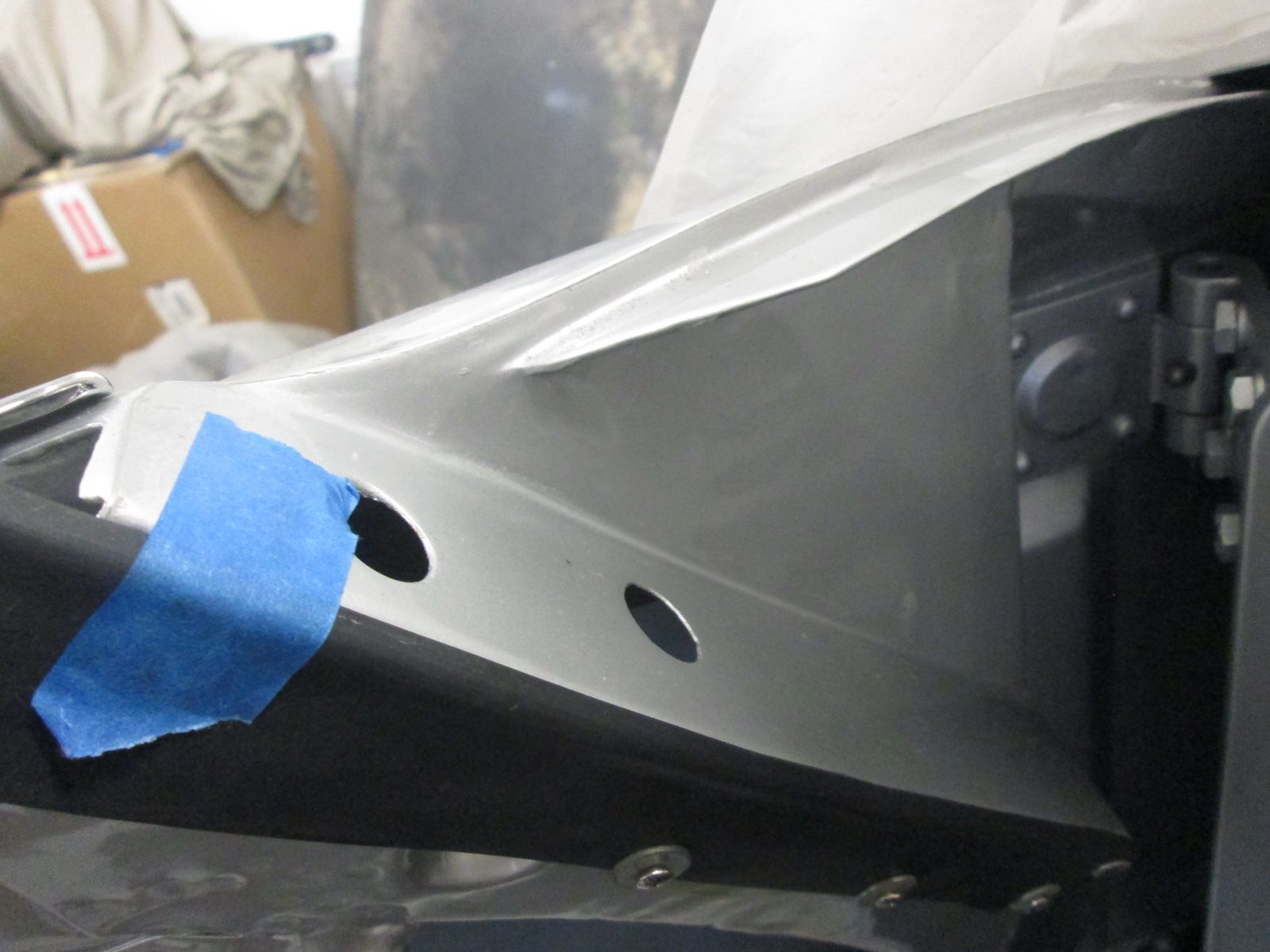

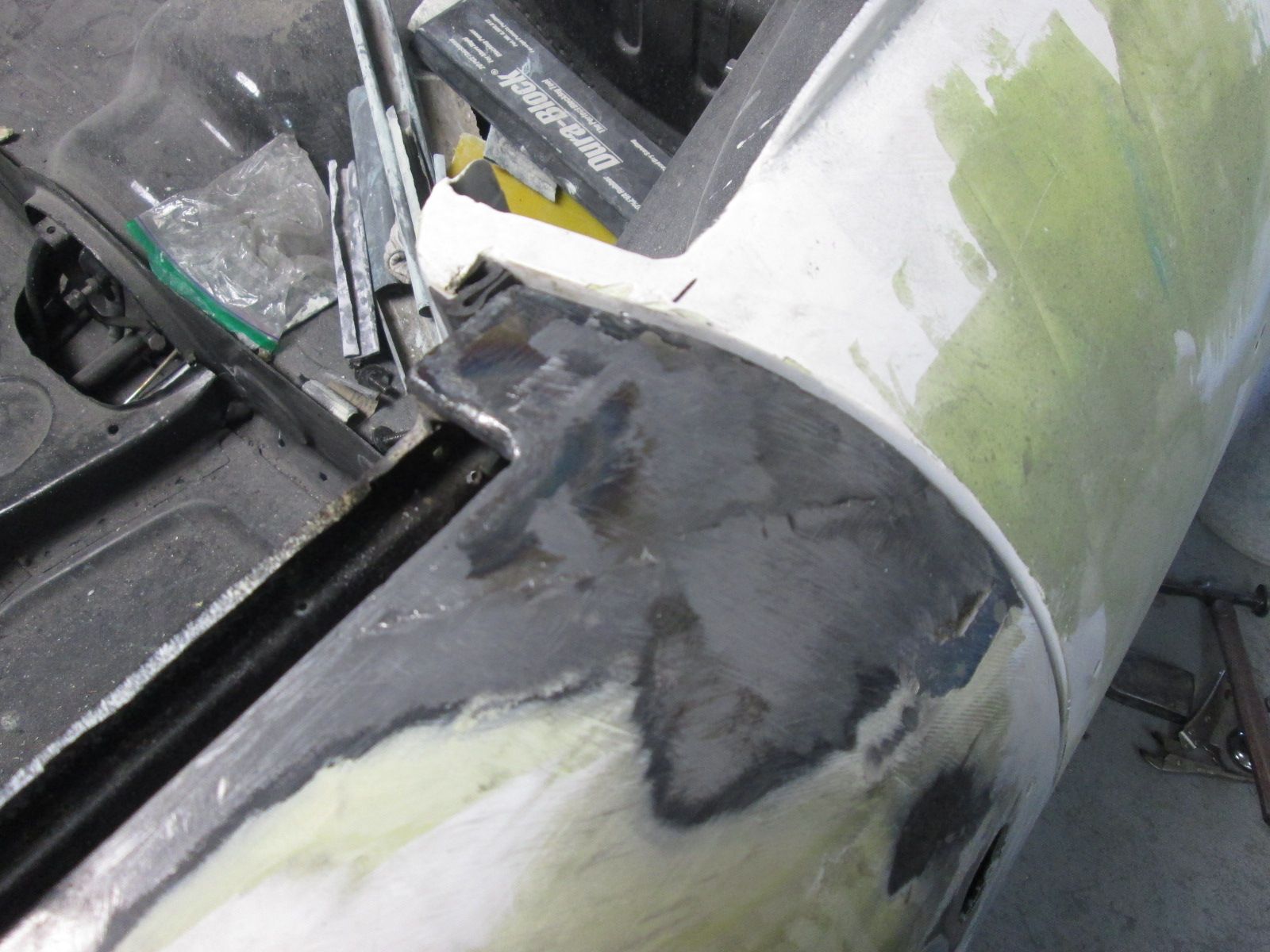

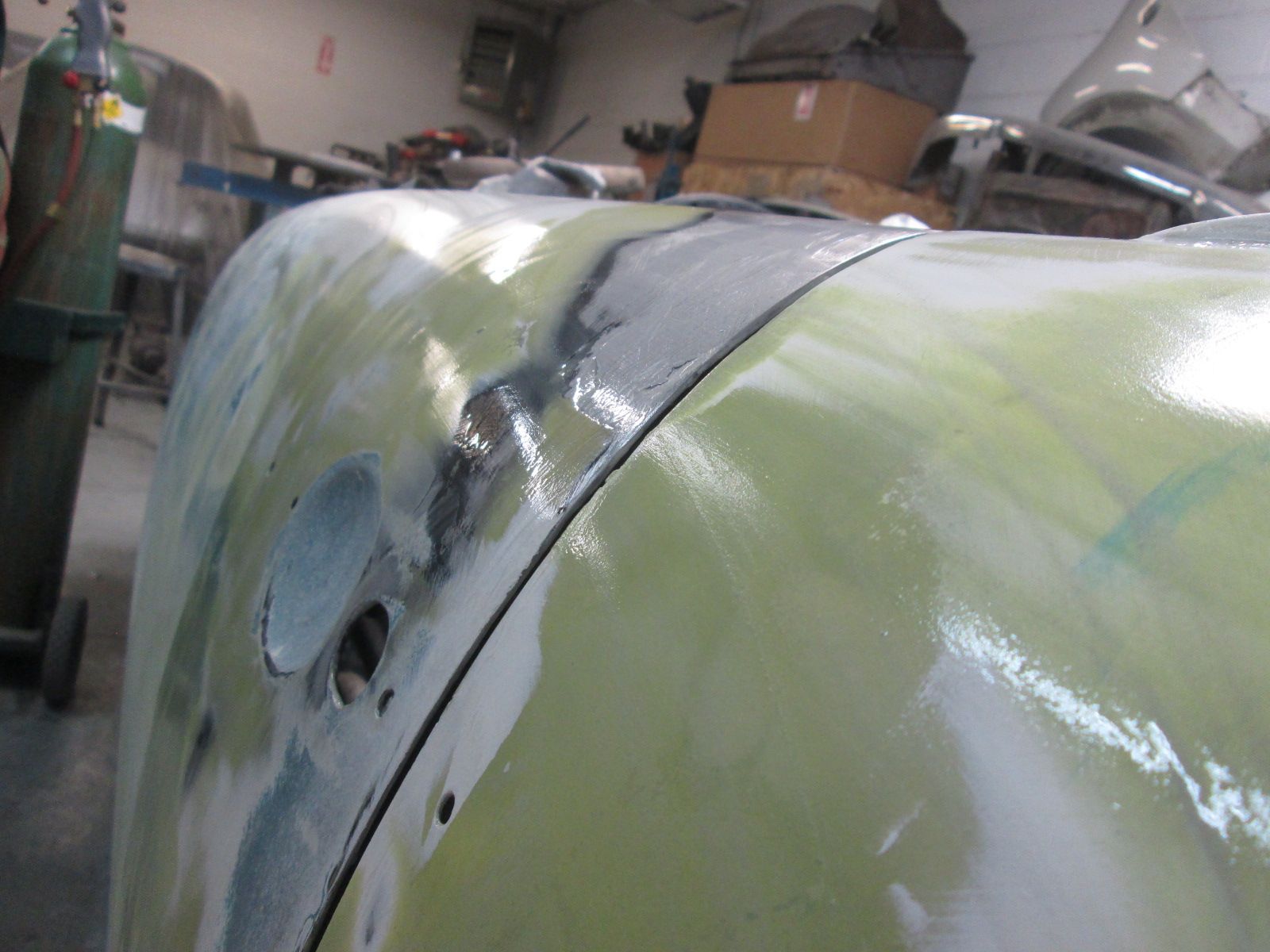

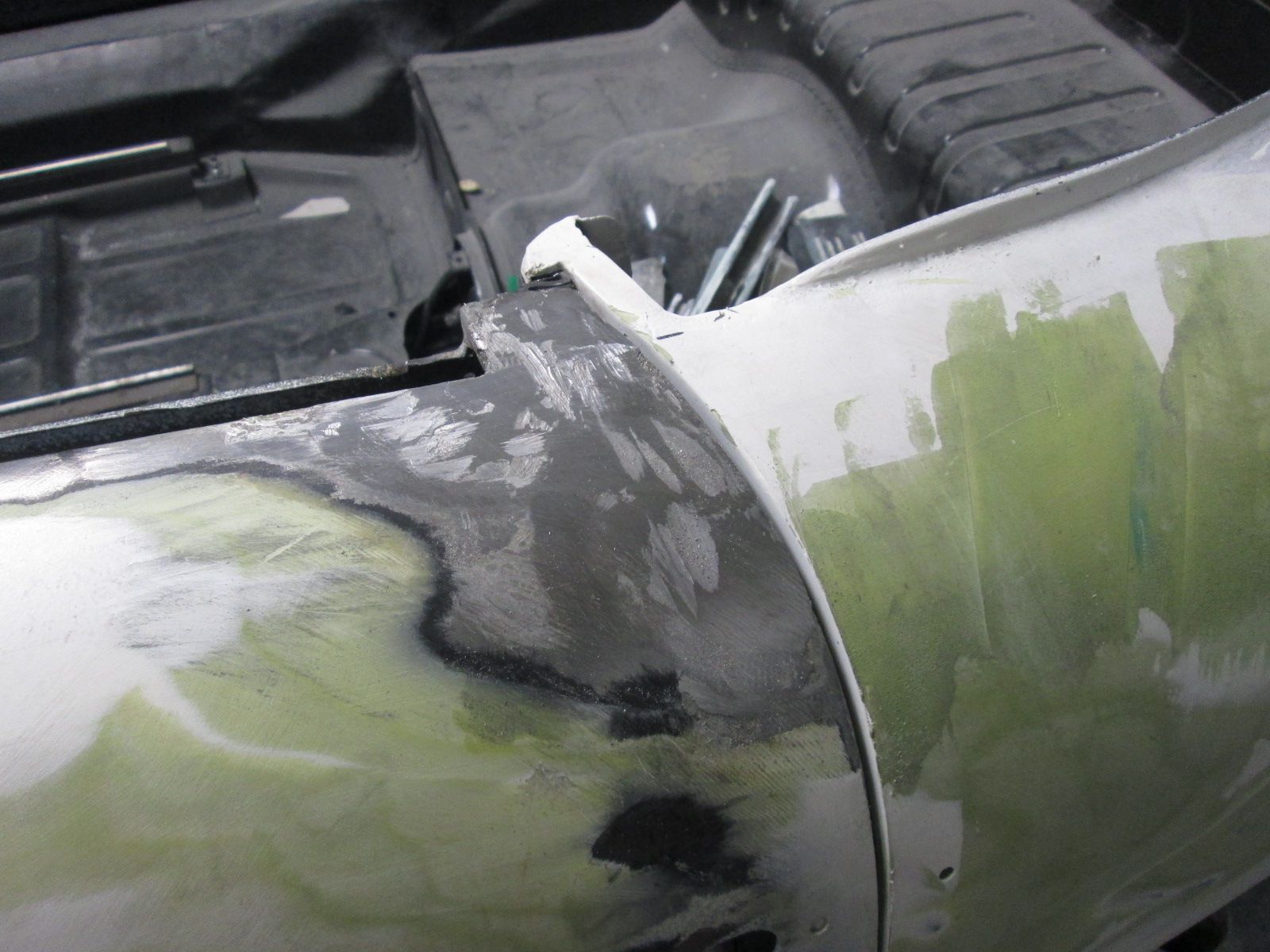

              Click image for larger version  Name:	IMG_3243.JPG Views:	0 Size:	188.9 KB ID:	106756 Washing and prepping this newly soldered corner for its first coat of sealer. Promising transition to the quarter panel; won't need much more.

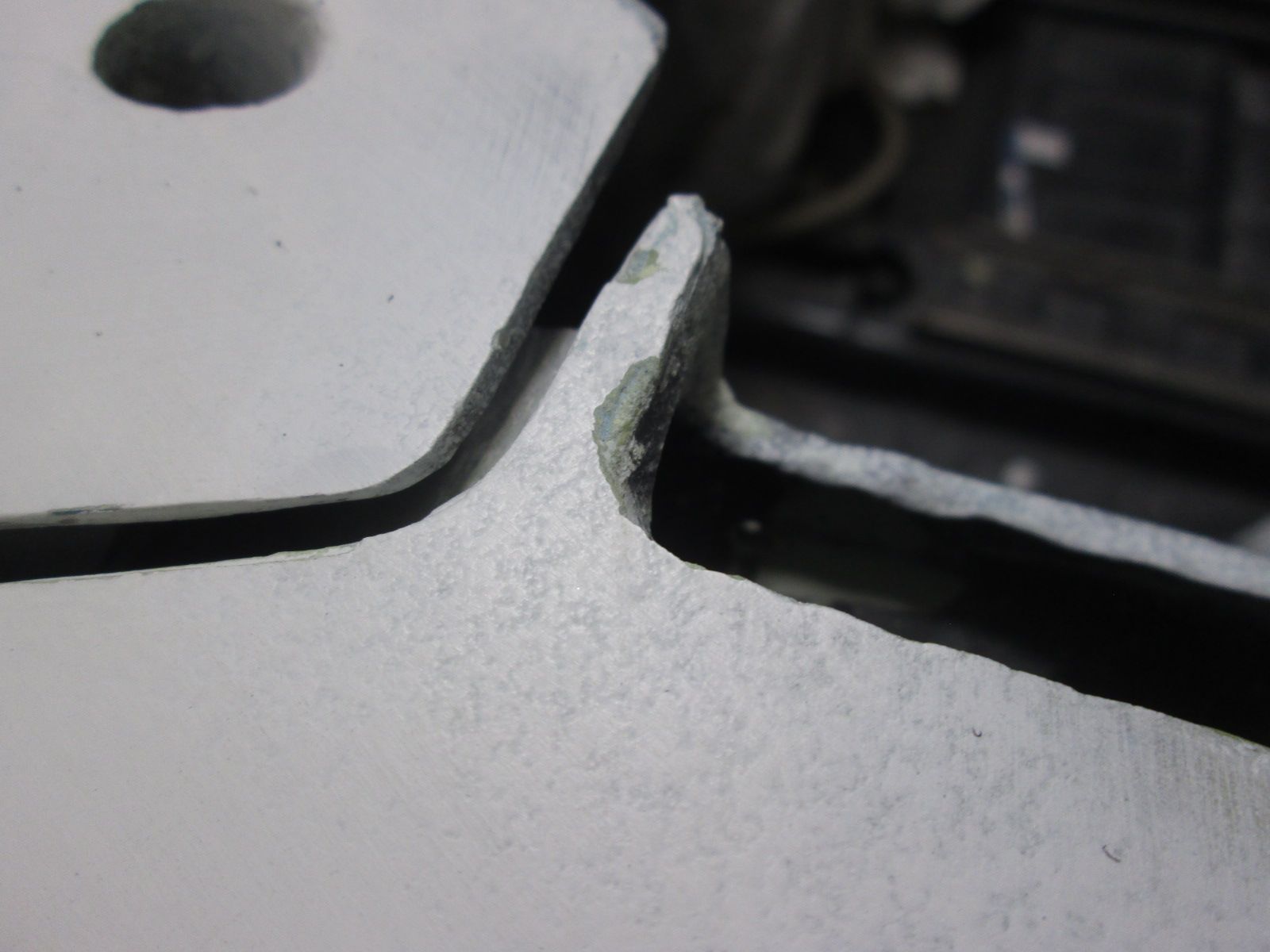

              Click image for larger version  Name:	IMG_3203.JPG Views:	0 Size:	124.3 KB ID:	106755 At this point I thought I was pretty much finished with my adjustment work on this left door and surrounding area. However, this chipping that was already happening with this forward detail feature was really concerning me. Its too narrow , tall and built up with filler (to get it body level) to ever be comfortably stable. I could already envision it in final paint and just crumbling (like its showing already) as the glass, seals and chrome where added in. I know this forward area has a lot of lead in it as well. Then there was my skim coat of putty to take it the rest of the way BUT just how much solder comprises this area. I'd be investing that next...

              Thanks for stopping by!
              Justin
              Last edited by JTR70; 08-23-2019, 05:03 PM.
              Justin Rio

              Comment


              • Investigating the filler thickness on the front upper corner of the left door:

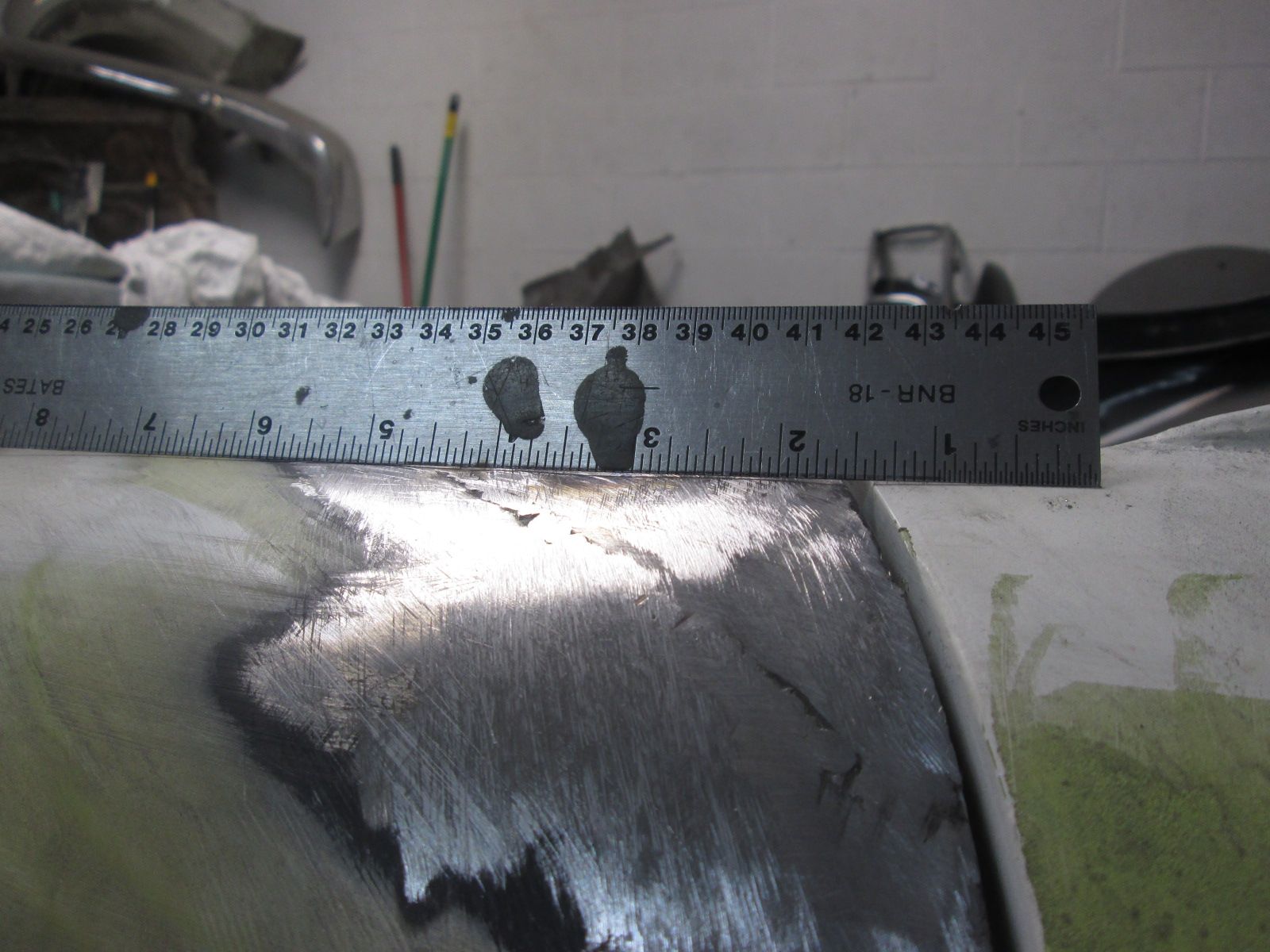

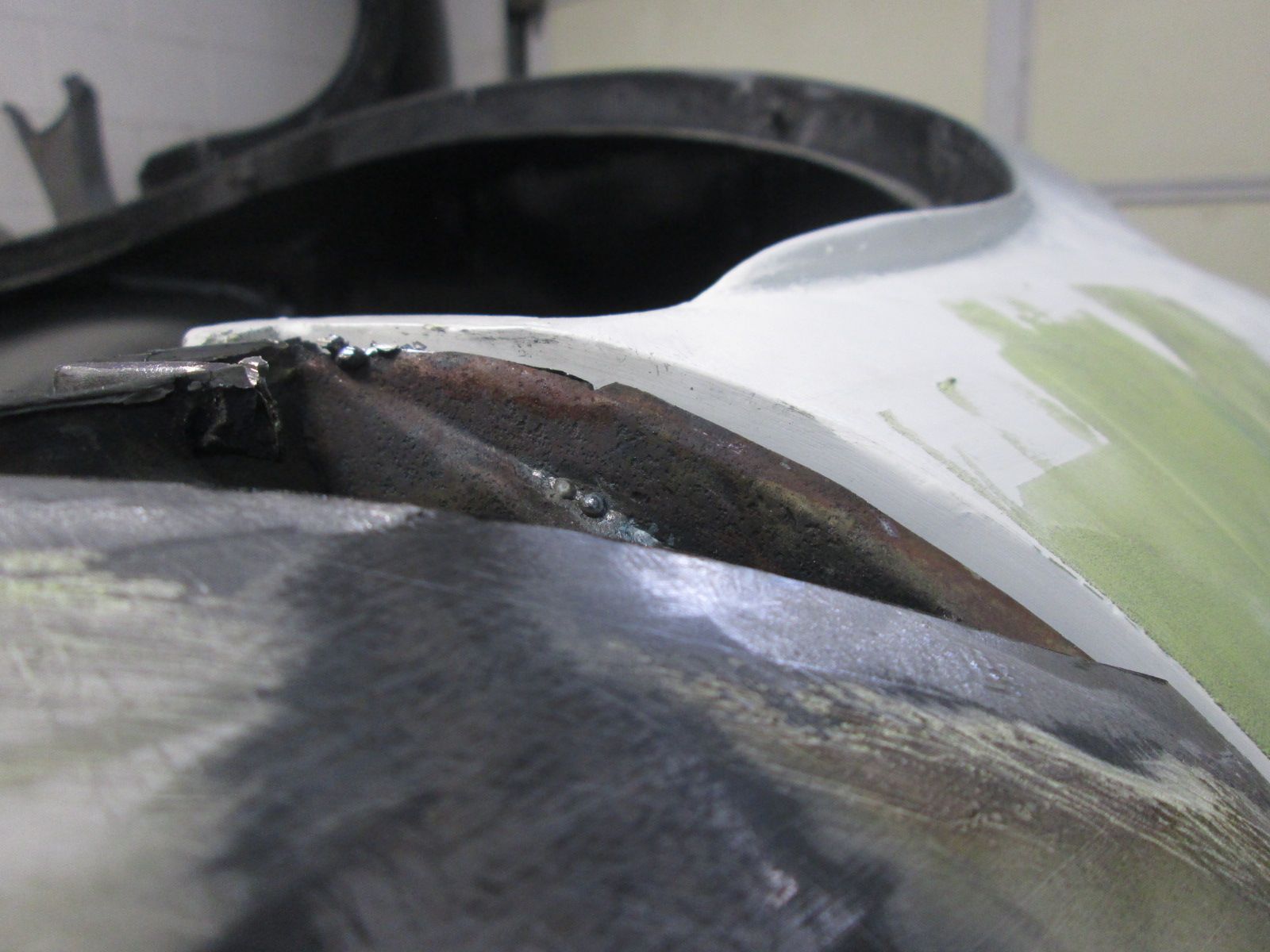

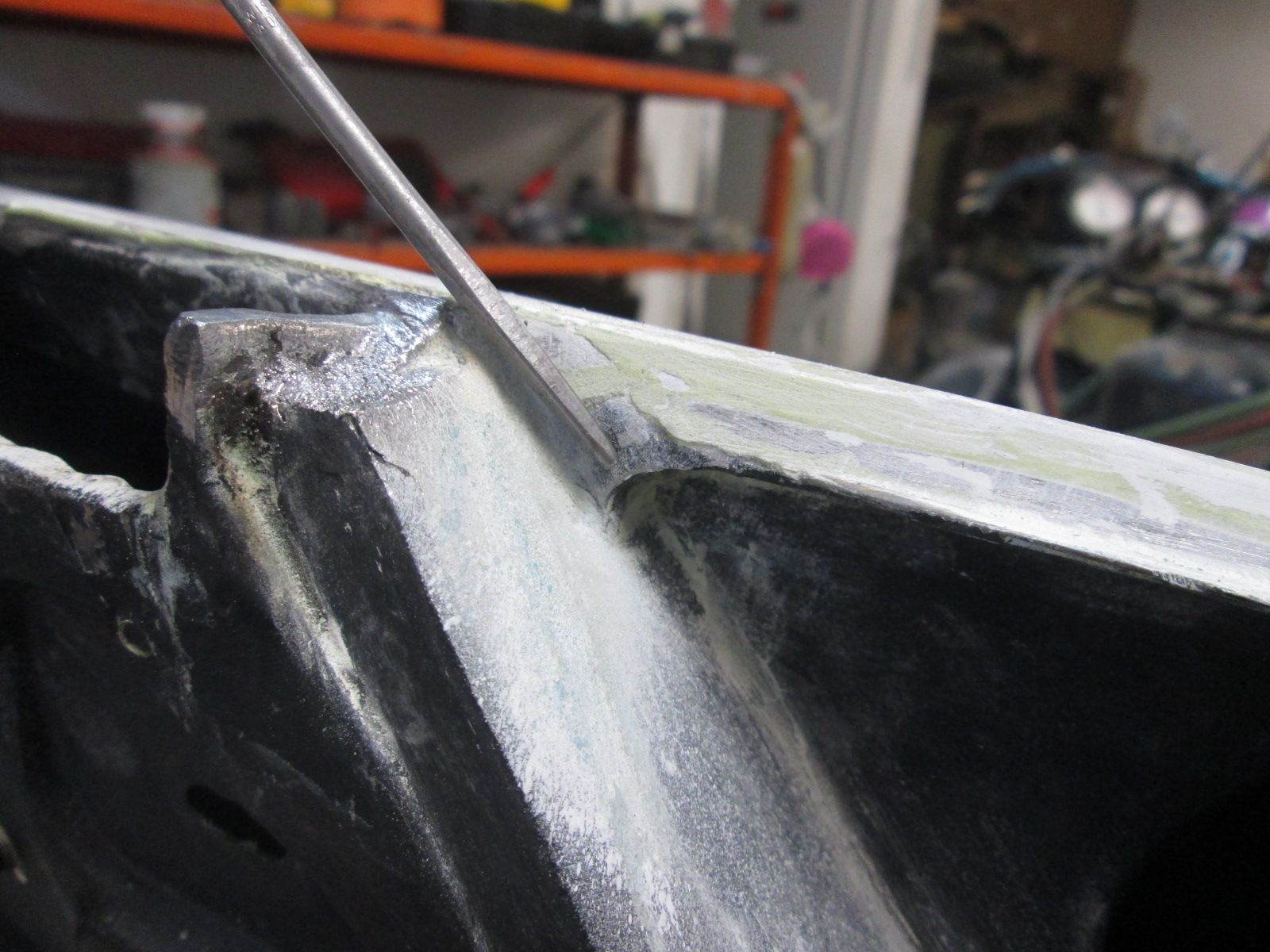

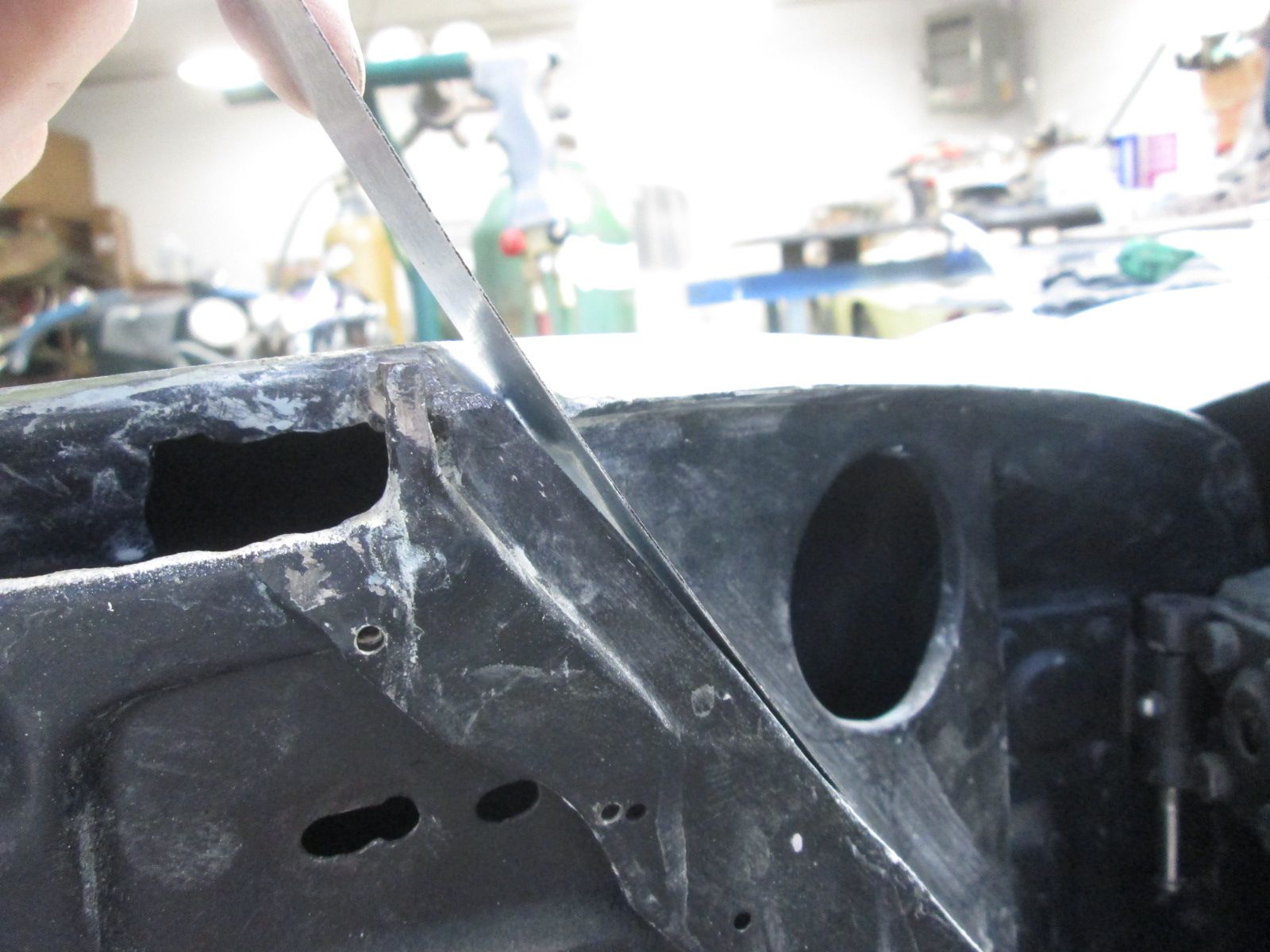

                Click image for larger version  Name:	IMG_3229.JPG Views:	0 Size:	126.4 KB ID:	106759 I knew there was lead here but I wanted to know just how much solder comprised this feature and the area in general. I started with a rat tail file to see how far I could go before I hit steel. Much to my amazement quite a ways.

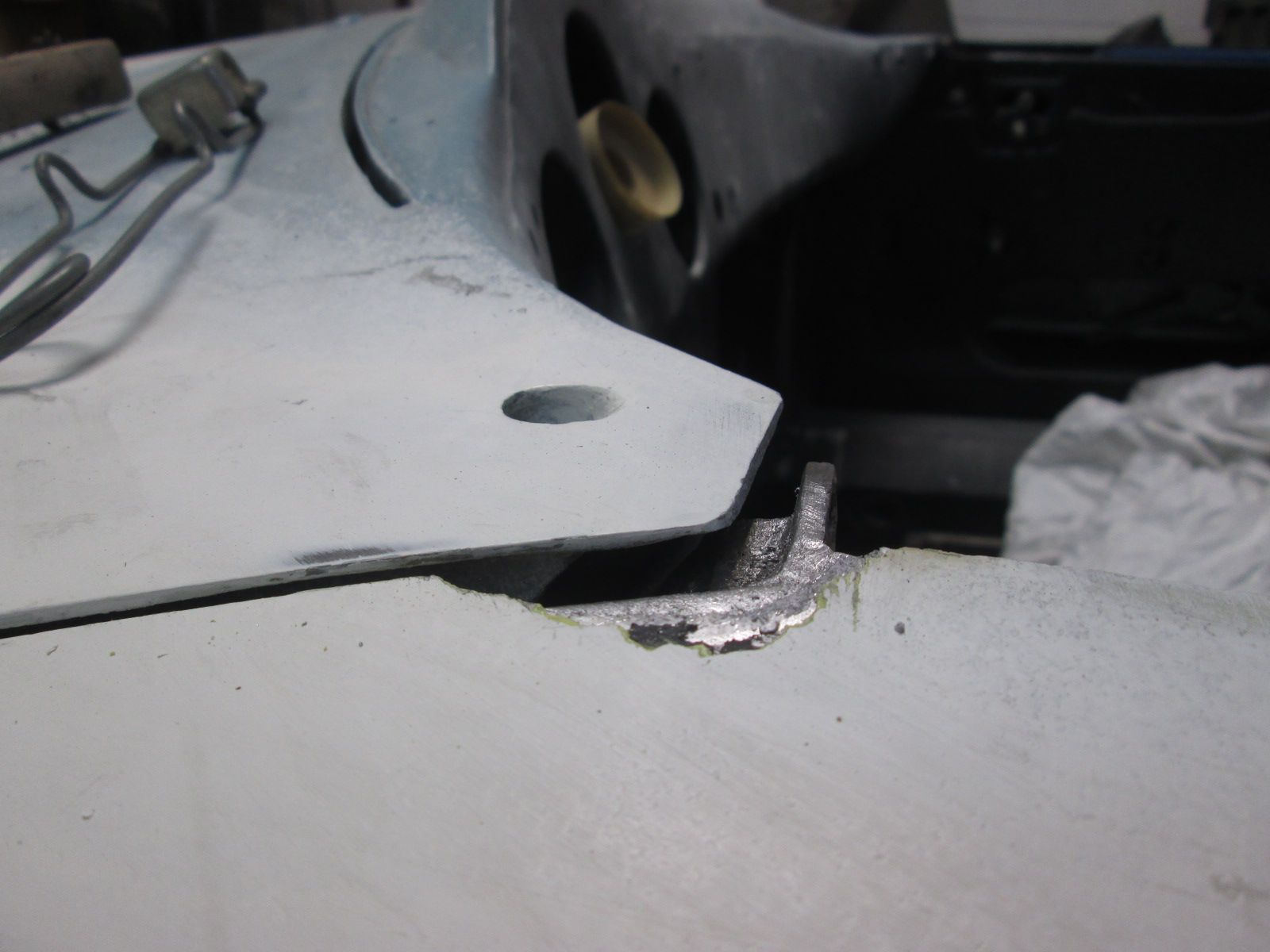

                Click image for larger version  Name:	IMG_3231.JPG Views:	0 Size:	154.5 KB ID:	106760 I figured I could rebuild this ridge in steel without too much trouble so I wire wheeled the inner shoulder down to get a better idea still of what was going on under here.

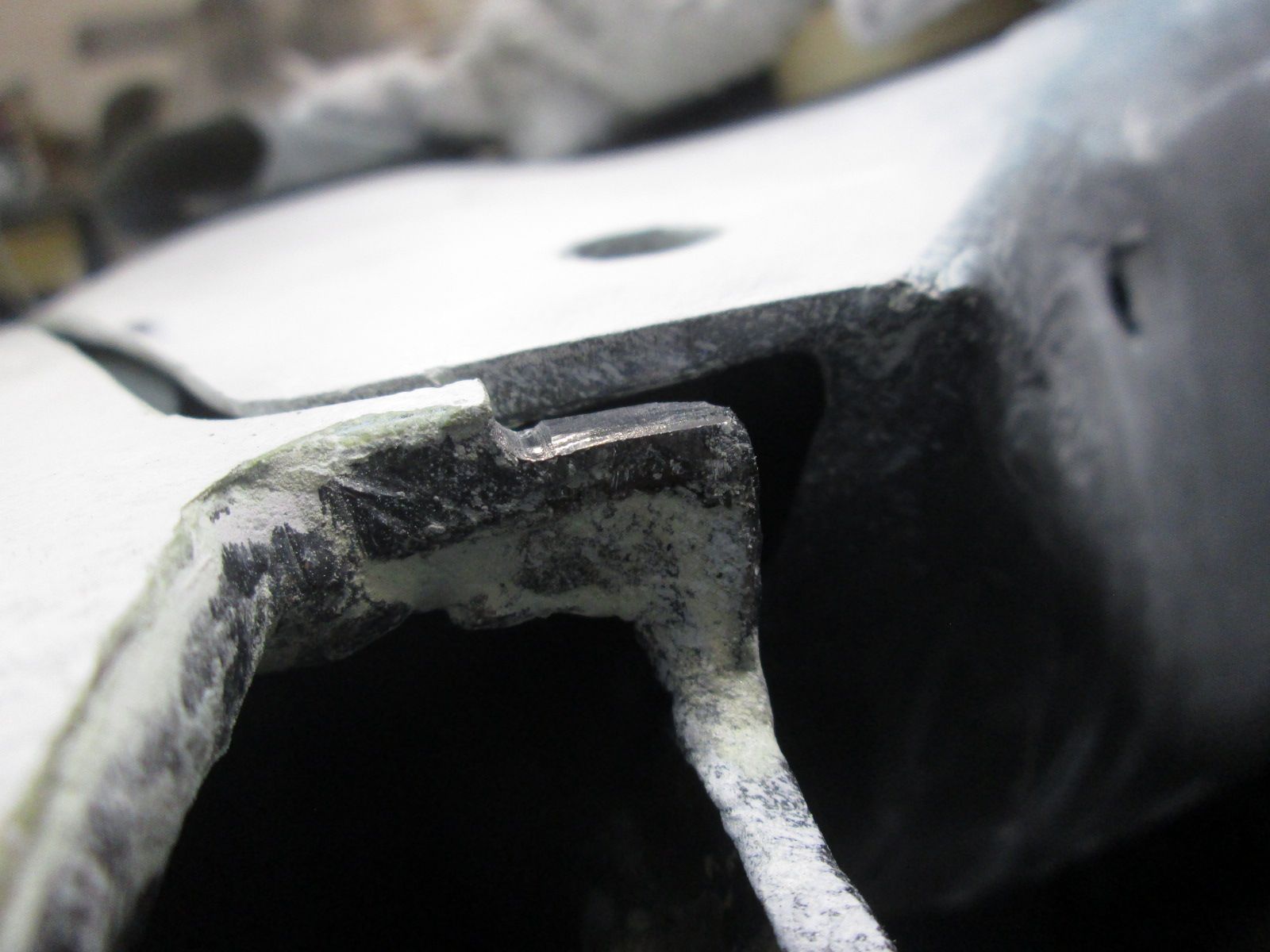

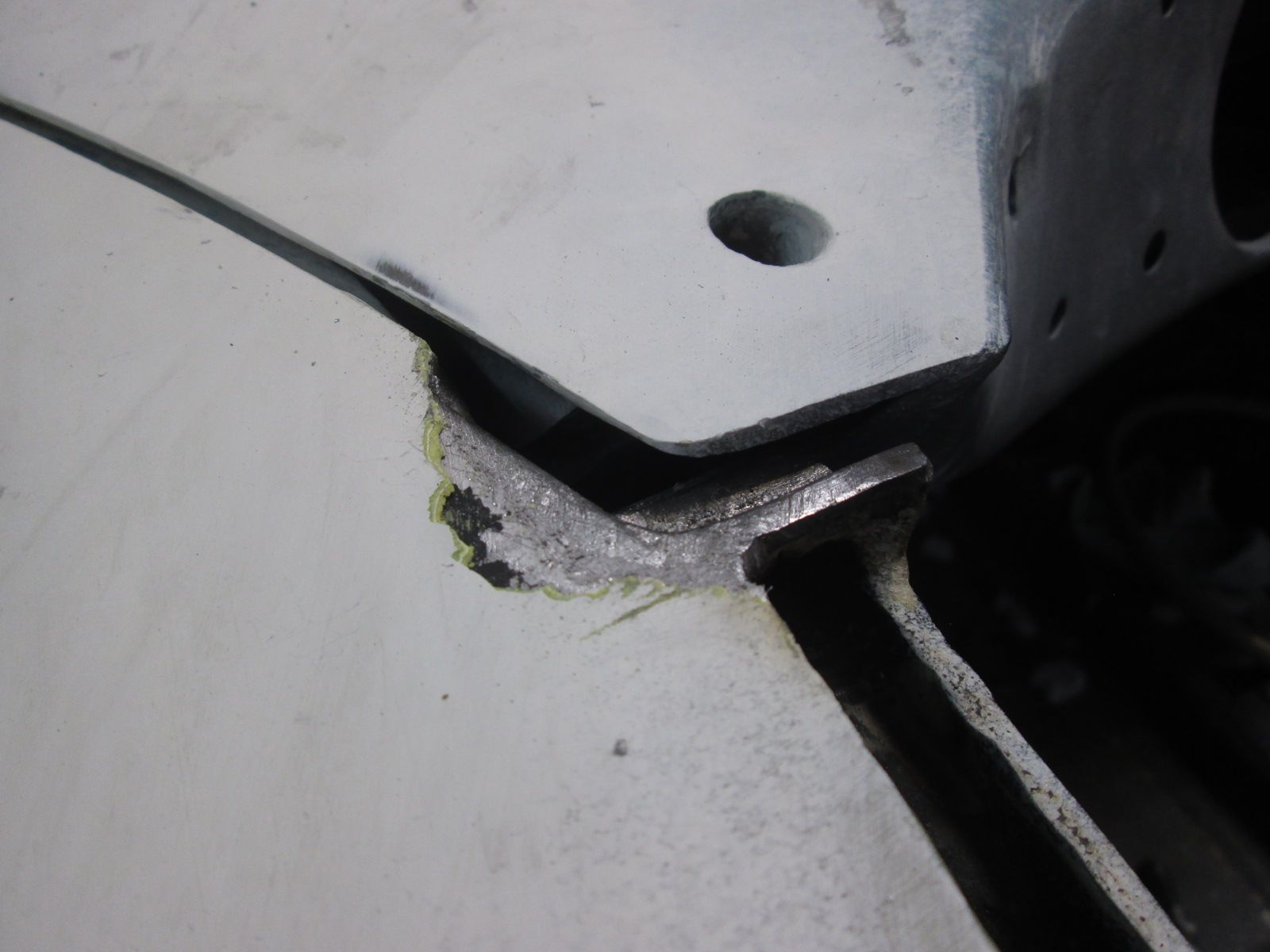

                Click image for larger version  Name:	IMG_3232.JPG Views:	0 Size:	130.4 KB ID:	106761 It was practically all solder with only a root of steel deep in it.

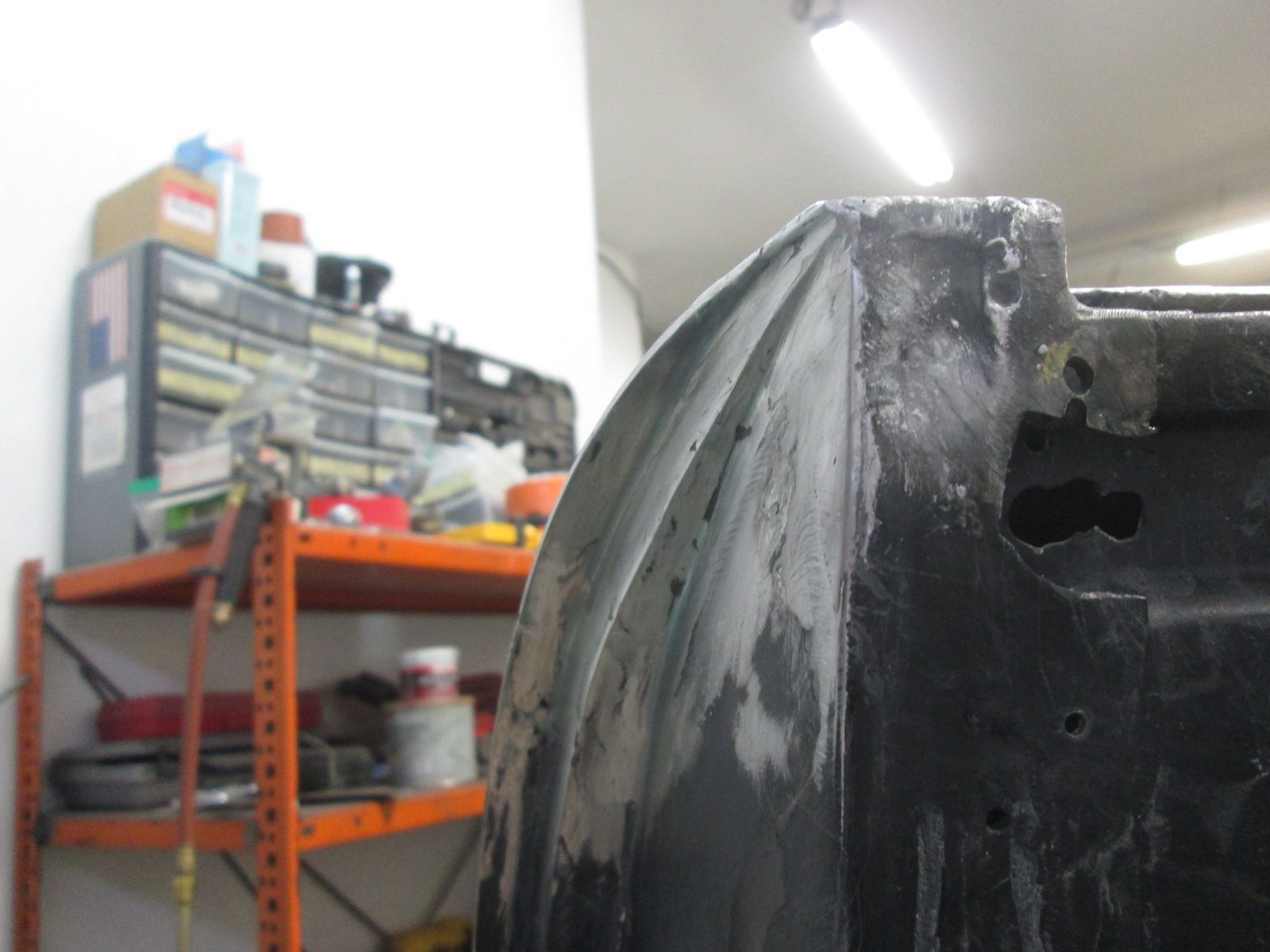

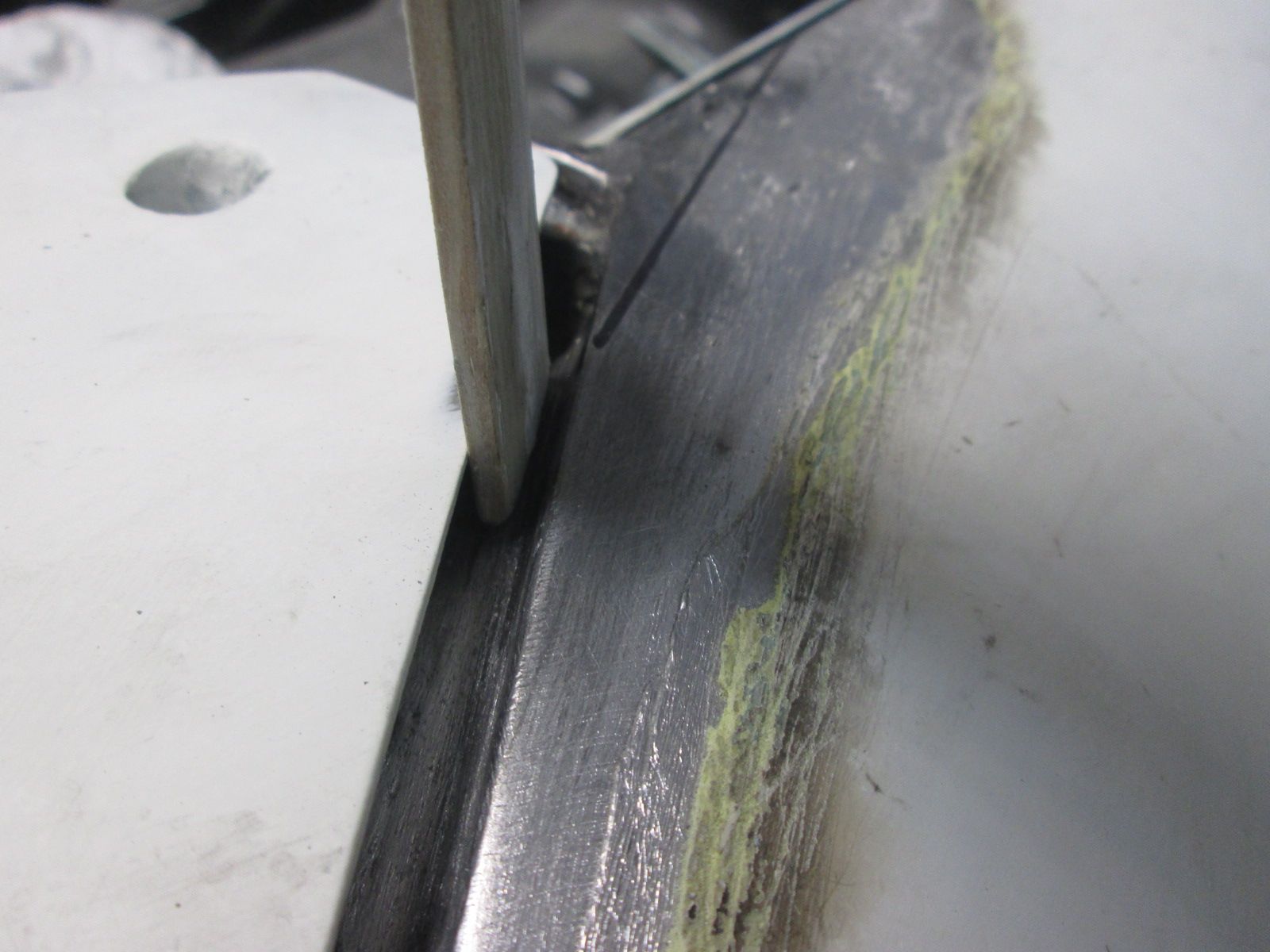

                Click image for larger version  Name:	IMG_3233.JPG Views:	0 Size:	147.7 KB ID:	106762 Not only was the build height an issue but the door gap itself was comprised of almost a quarter inch of solder as this shot highlights.
                Click image for larger version  Name:	IMG_3234.JPG Views:	0 Size:	150.9 KB ID:	106763 I wouldn't rebury it if it was my car so I was in contact with my buddy that evening with the same question: Fix or just refill? the standard response: Fix.

                That coming up next.
                Justin
                Last edited by JTR70; 08-24-2019, 03:14 AM.
                Justin Rio

                Comment


                • Initial planning phase:

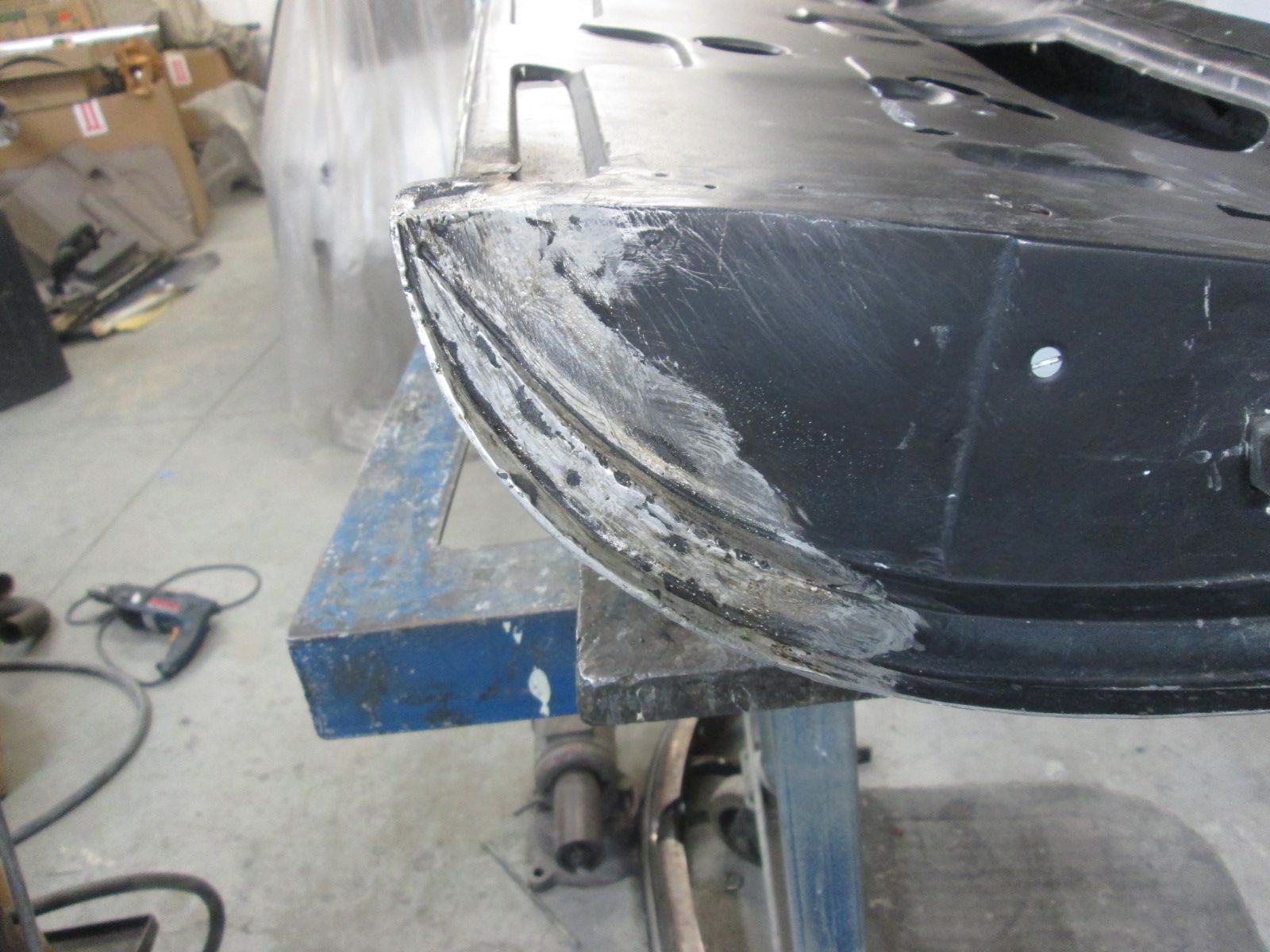

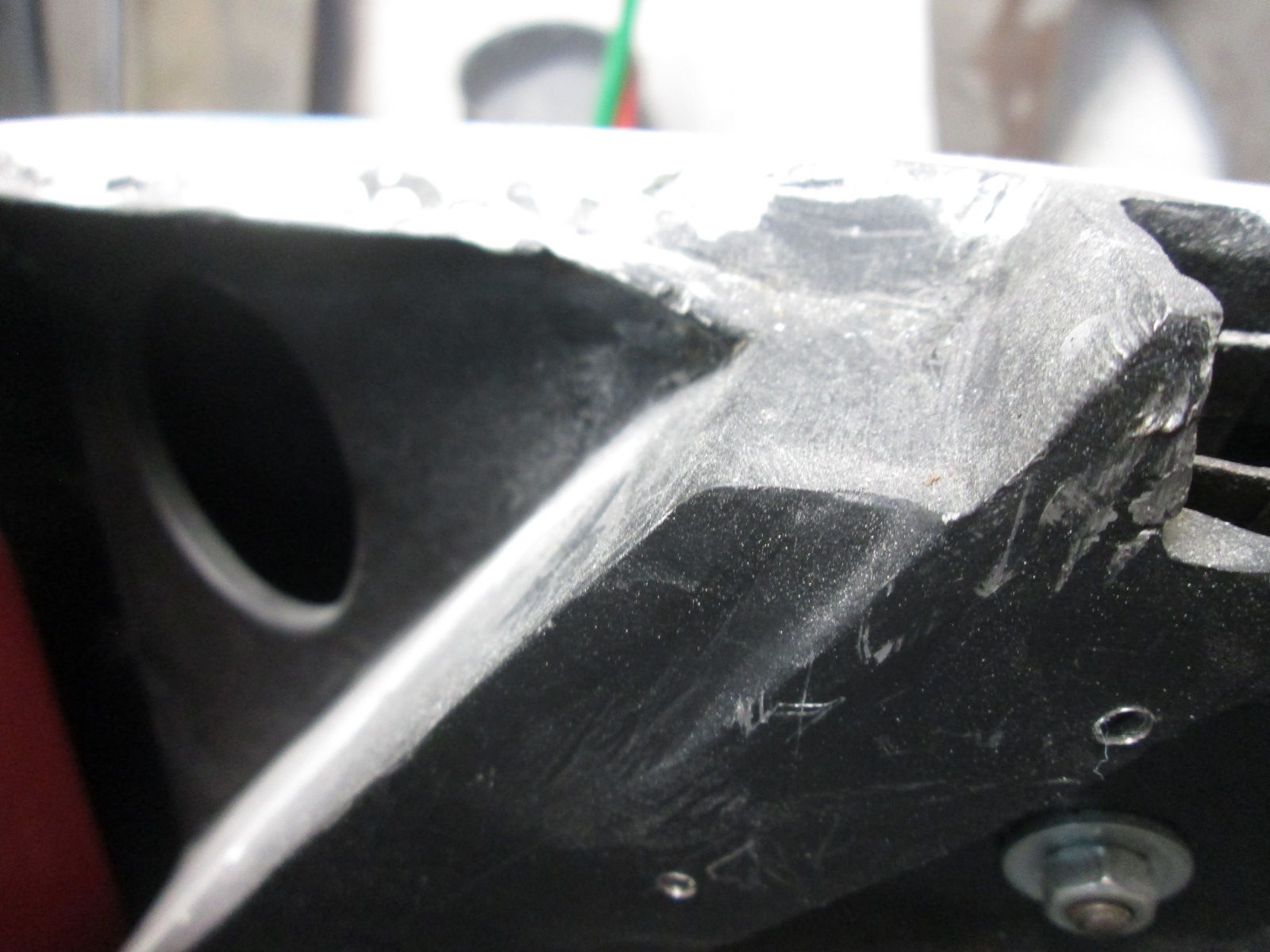

                  Click image for larger version  Name:	IMG_3235.JPG Views:	0 Size:	227.5 KB ID:	106765 I always suspected there was an excessive amount of solder in through here. This sculpted feature was always the give away.

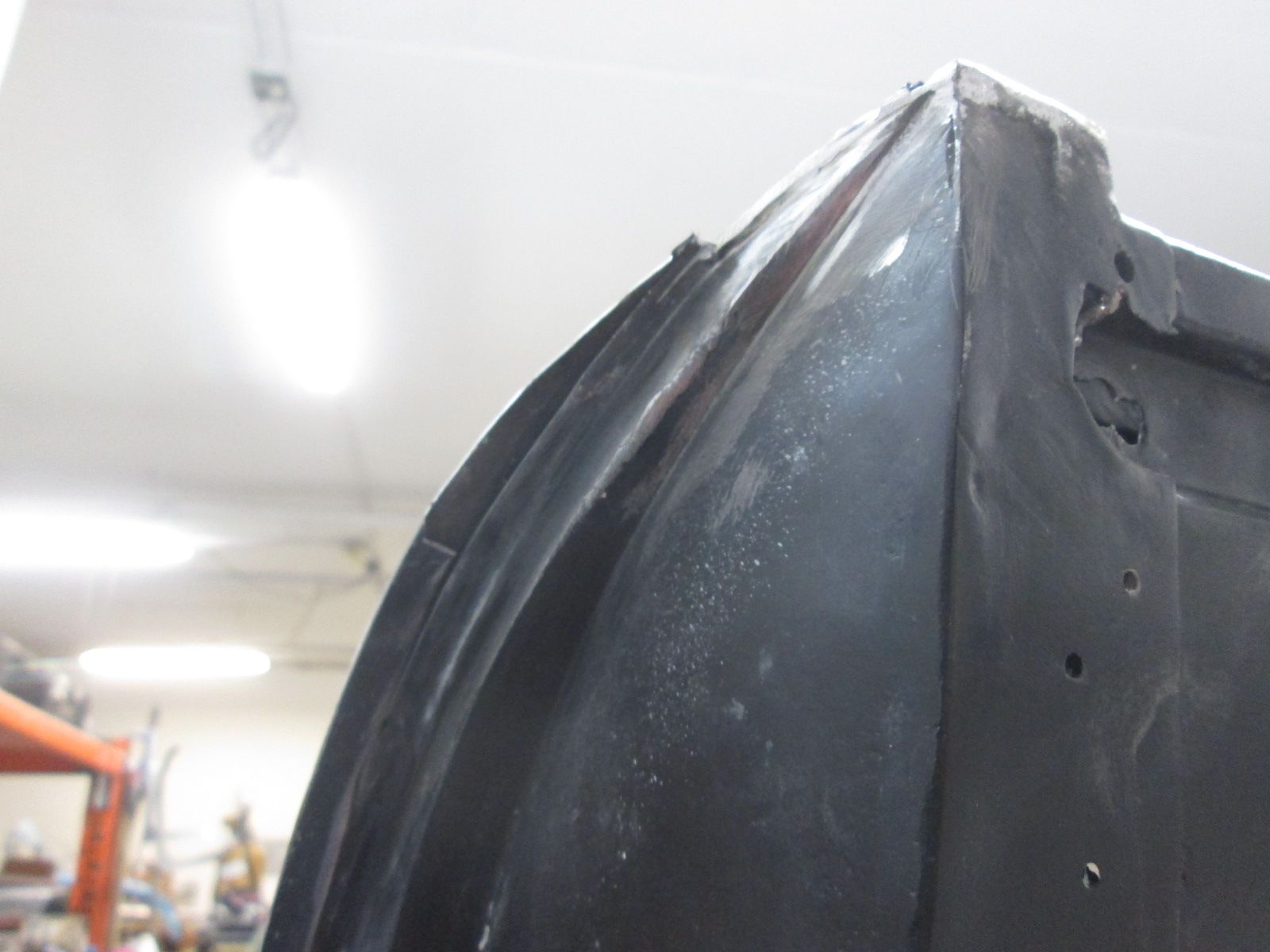

                  Click image for larger version  Name:	IMG_3239.JPG Views:	0 Size:	169.2 KB ID:	106766 My coupe doors by contrast lack that feature though there is plenty of solder through here.

                  Click image for larger version  Name:	IMG_3240.JPG Views:	0 Size:	171.6 KB ID:	106767 Not even its mate shows that transitional issue..

                  Click image for larger version  Name:	IMG_3237.JPG Views:	0 Size:	193.8 KB ID:	106768 My initial plan was to raise the angle of this slope which will close up that transition and eliminate A LOT of filler. The secondary "step down" area at the top of this slope immediately jumped out at John Chately as being too narrow. So by making this change I increase that area more to John's liking and again I eliminate the need for excessive filler. Another Win/Win.
                  Click image for larger version  Name:	IMG_3238.JPG Views:	0 Size:	302.6 KB ID:	106769 I have plenty of clearance with the jamb to make this change. Actually it tapers away from the jamb as it goes up so again by steepening the angle it will more closely match the jamb. Everything now points to this being the right move.
                  Last edited by JTR70; 08-24-2019, 05:45 PM.
                  Justin Rio

                  Comment


                  • Oh Justin, of course its the right move but I have to smile at the way you treat these hidden from sight previous repairs. I appreciate now after so many years of your forum the fact that my car is still so original body work wise. These jobs you are doing at the moment will make you feel good when final paint comes along. Can you imagine though even five years ago finding these previous repairs and sorting them it seems so easily? Even the leading is a skill that takes time to perfect. Great photo's by the way!

                    Roy

                    Comment


                    • JTR70
                      JTR70 commented
                      Editing a comment
                      Thanks again Roy! You are very lucky indeed to have such an original unmolested example that's lead a pampered life. All due to your custodianship of course. As with other things in life ignorance can be blissful but once you begin removing fillers, seam sealer and rocker shootz you may not like what you find under it. I'm still waiting to be pleasantly surprised. LOL! Justin
                      Last edited by JTR70; 08-25-2019, 03:36 AM.

                  • Headed down the next rabbit hole:

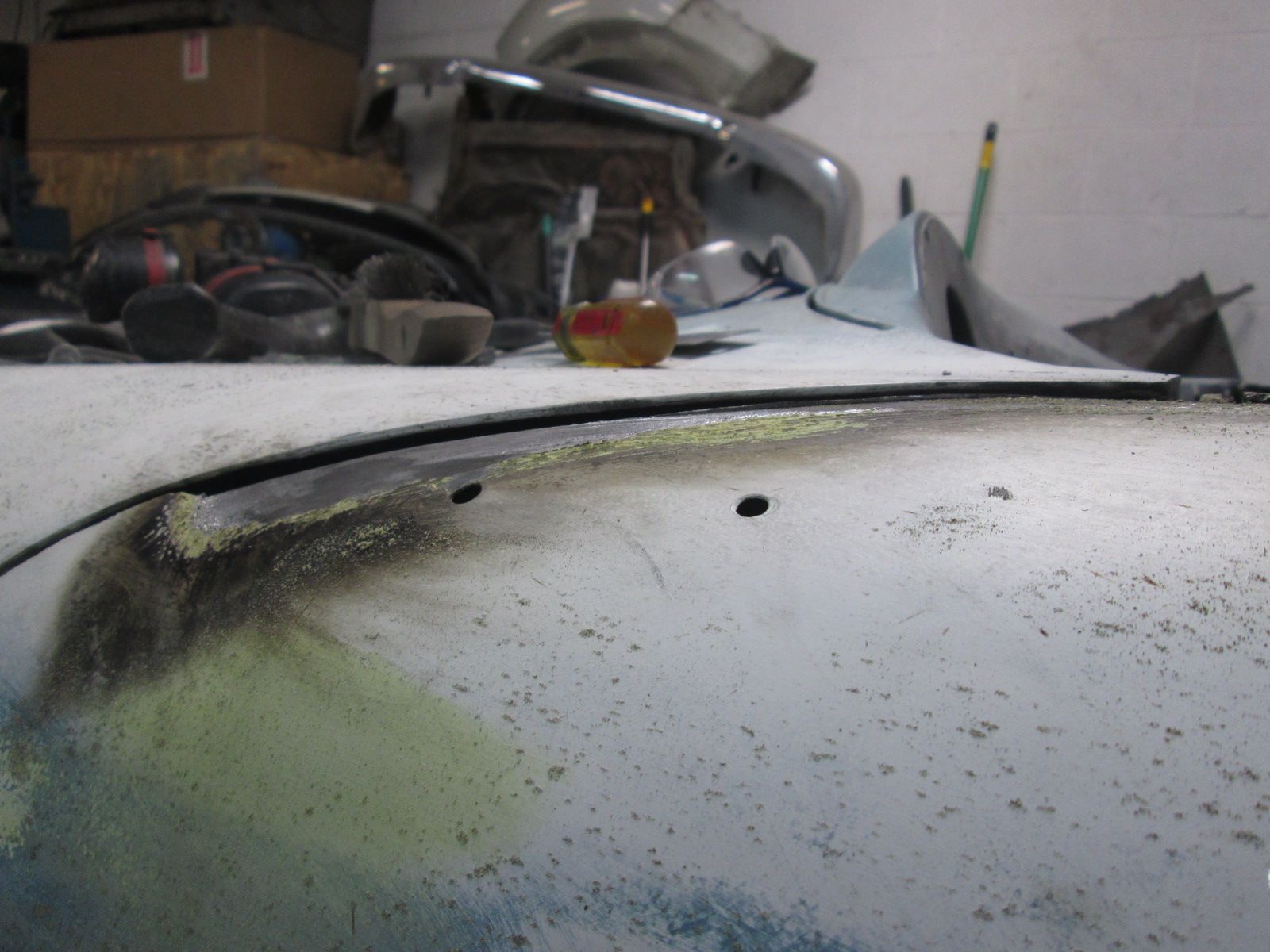

                    Click image for larger version  Name:	IMG_3248.JPG Views:	0 Size:	125.4 KB ID:	106781 Wire wheeled the leading edge a little further. I knew there was a lot but it still can astonish just how much the body line was comprised of it once removed. The height discrepancy from door to cowl is really troubling and mind you this is after I raised the entire door several MM's as it sat too low when it arrived here.

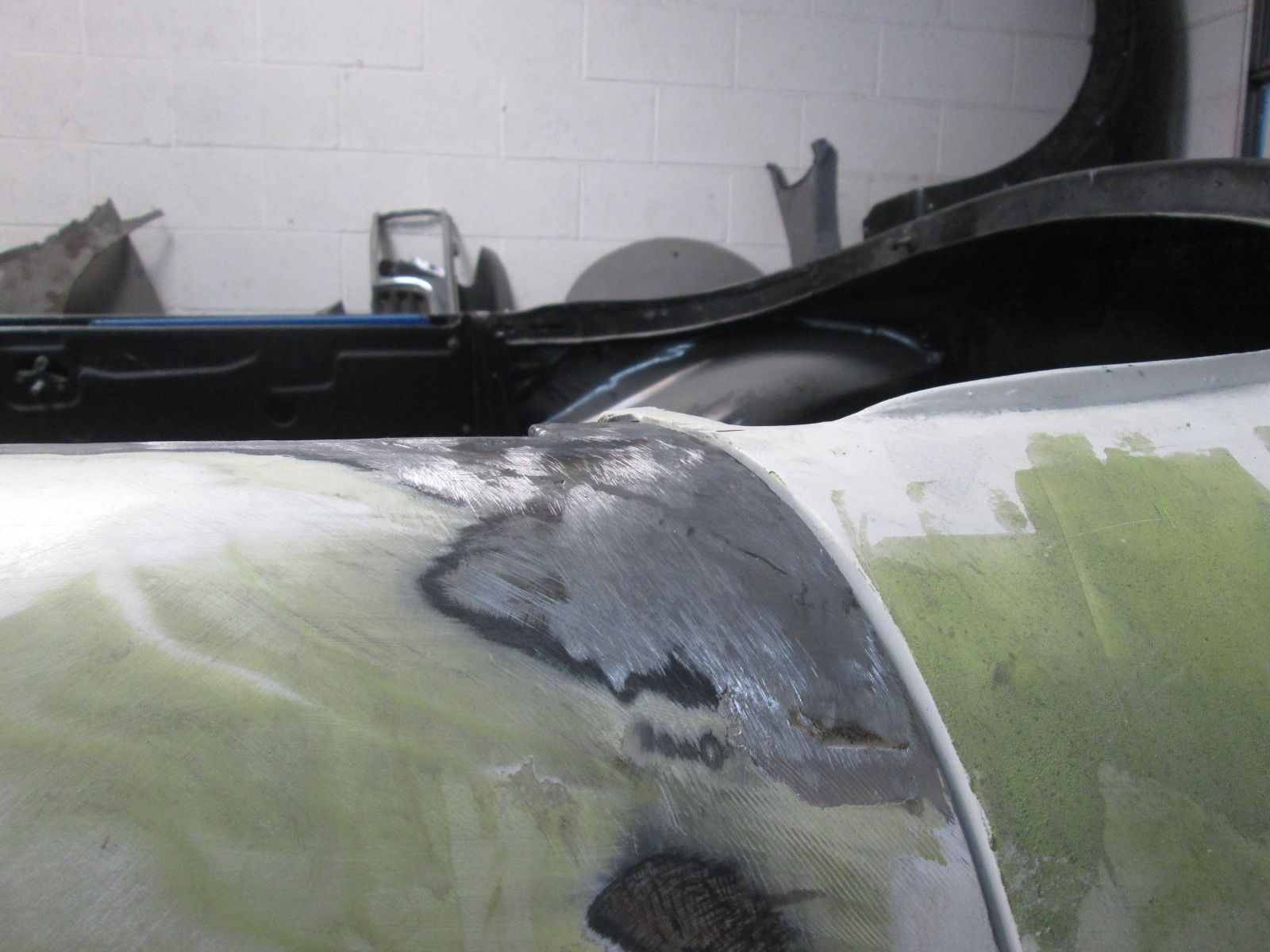

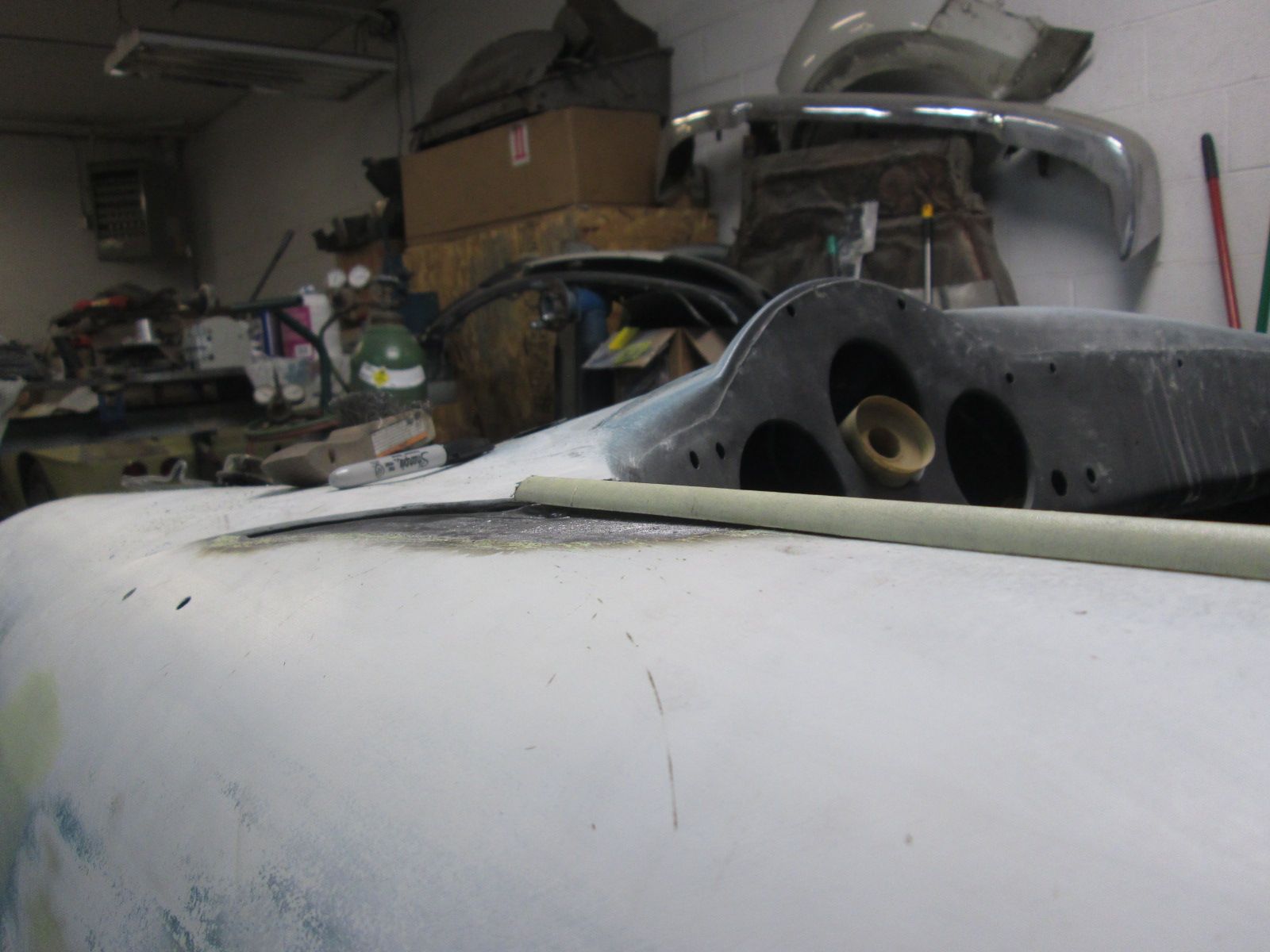

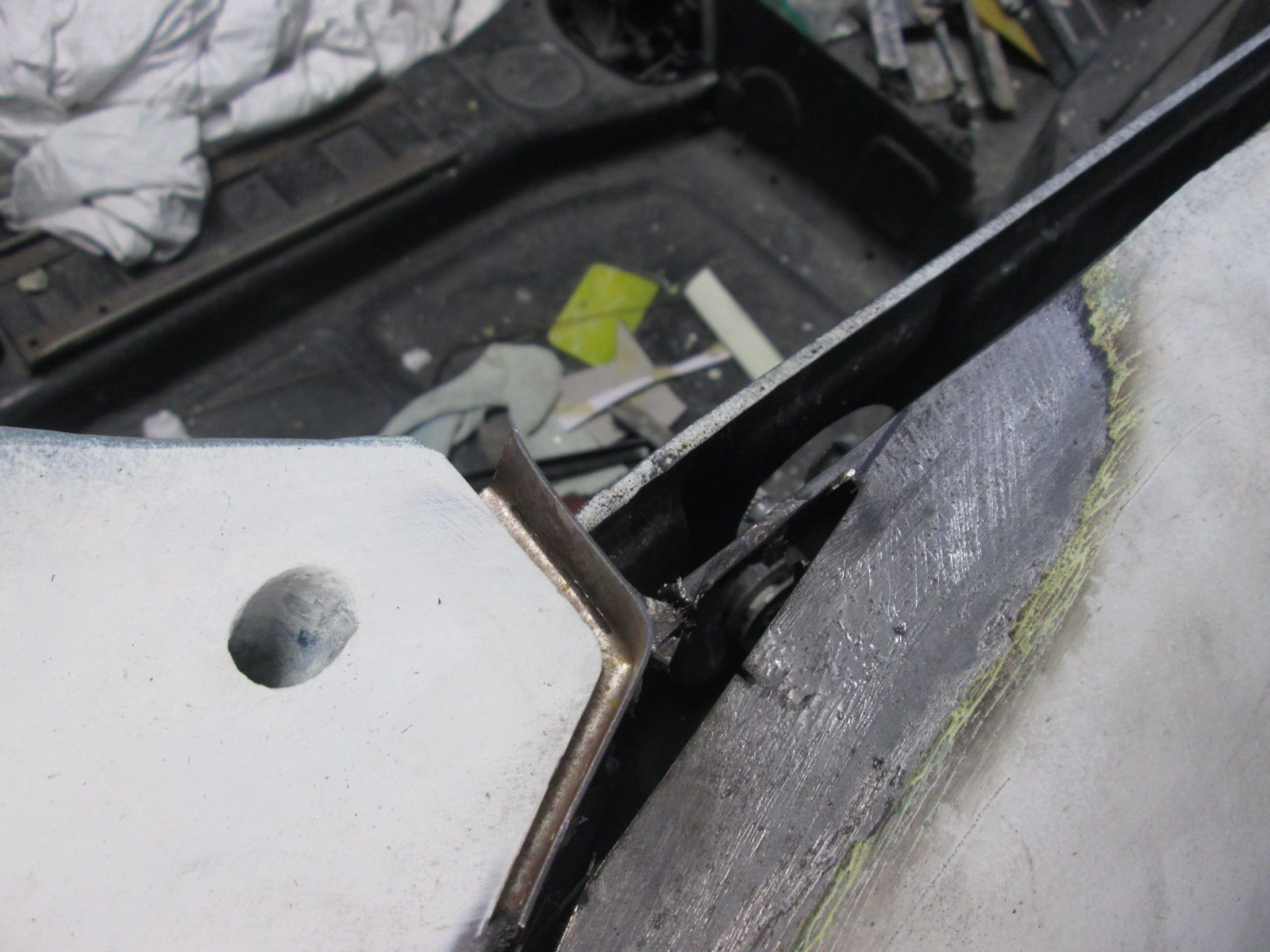

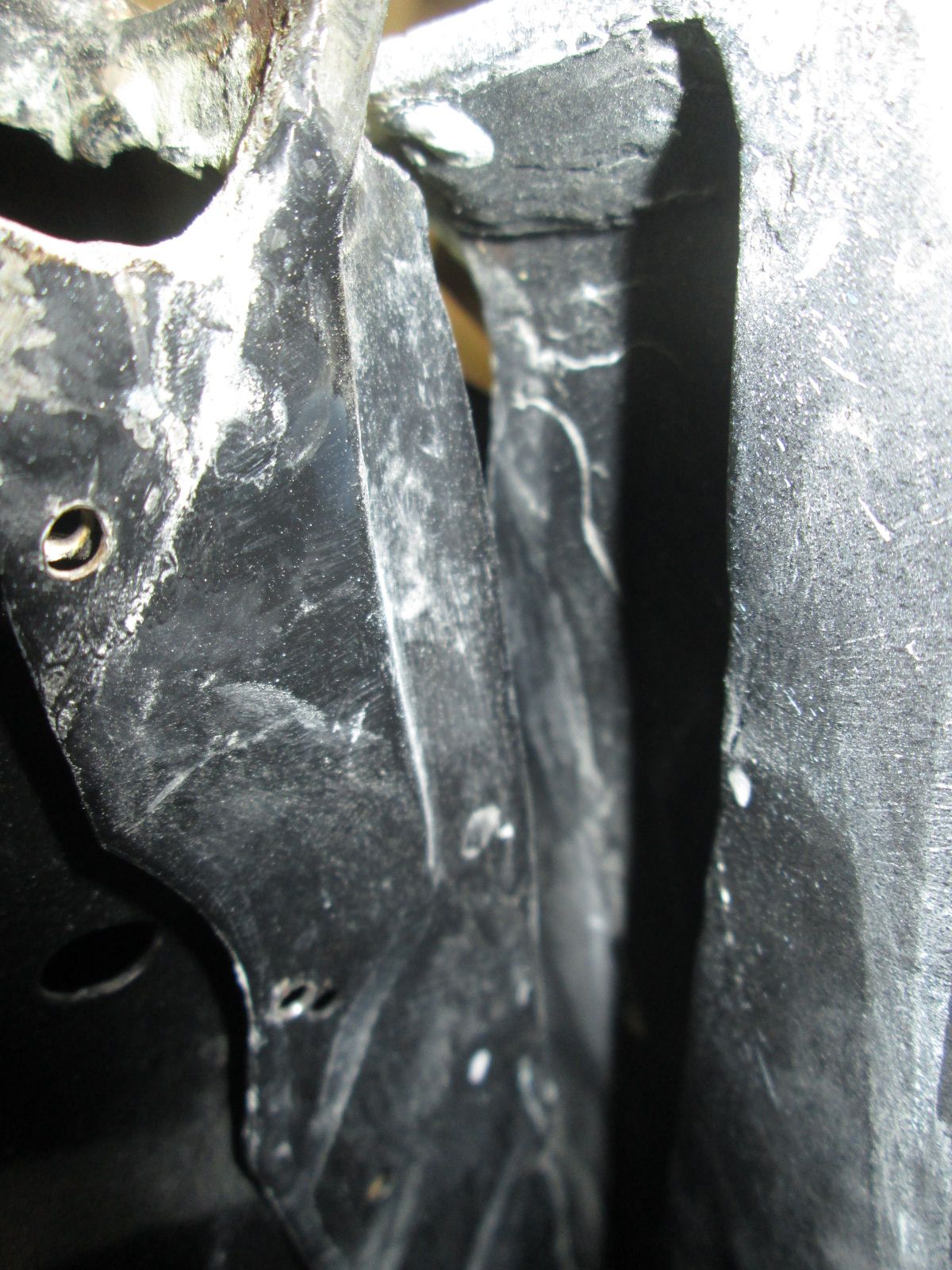

                    Click image for larger version  Name:	IMG_3247.JPG Views:	0 Size:	151.0 KB ID:	106782 Not only the height but the raw gap is huge. That cavernous hole is where that sculpted feature was.

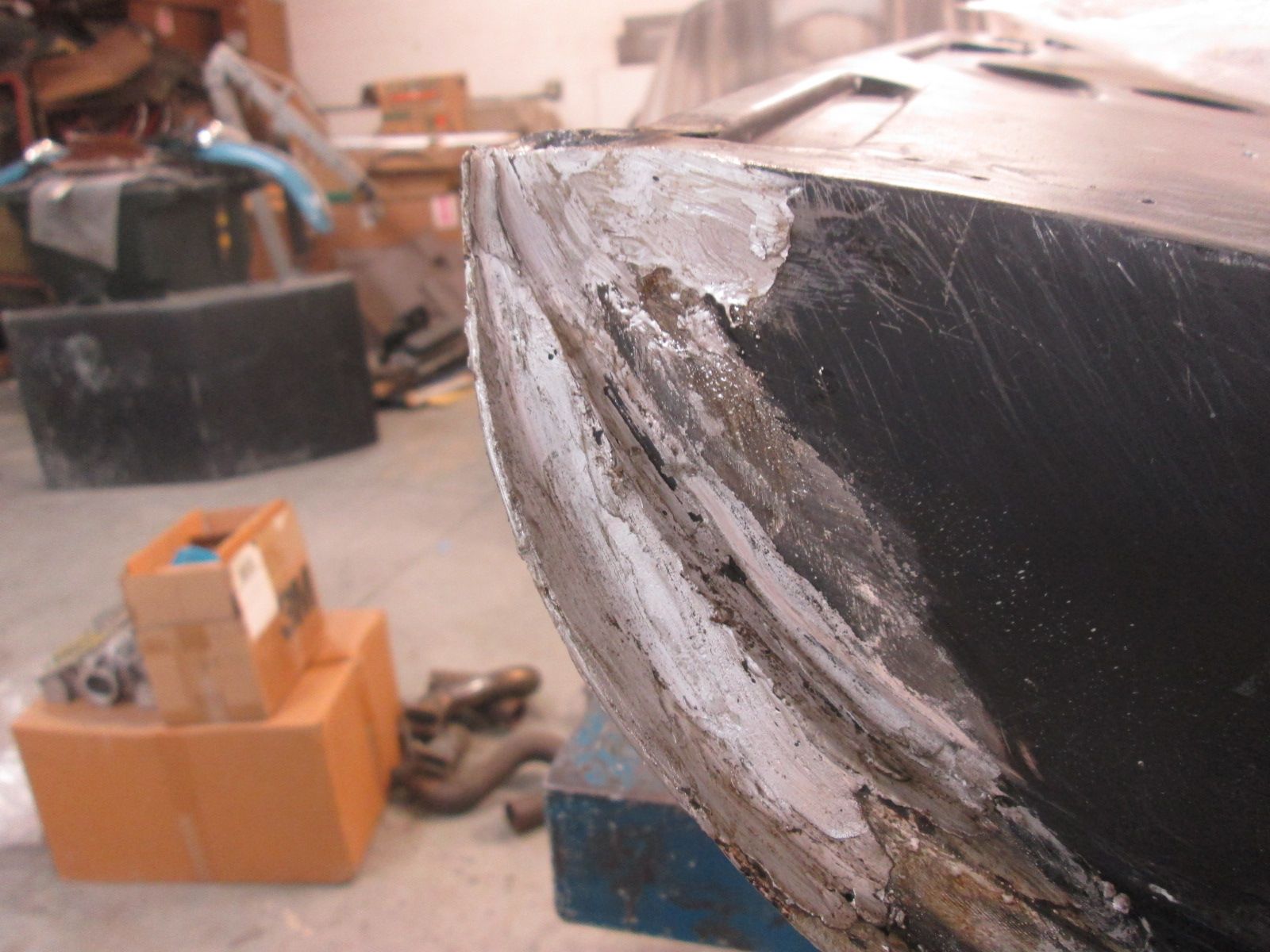

                    Click image for larger version  Name:	IMG_3249.JPG Views:	0 Size:	125.3 KB ID:	106783 This angle really puts the amount of solder use into perspective.
                    Click image for larger version  Name:	IMG_3251.JPG Views:	0 Size:	224.5 KB ID:	106784 Began stripping back away from the edge to reveal another quick repair just at the window opening. I'm sure the chrome strip trapping moisture was the culprit.
                    Click image for larger version  Name:	IMG_3254.JPG Views:	0 Size:	200.8 KB ID:	106785
                    While I'm here I made the decision to raise the surface of the skin as well the initial gap tightening. Just had to decide how far down the forward edge of the door I was going to go.
                    Last edited by JTR70; 08-25-2019, 03:54 AM.
                    Justin Rio

                    Comment


                    • Click image for larger version  Name:	IMG_3255.JPG Views:	0 Size:	152.6 KB ID:	106787 I just can't rebury this in nearly a quarter inch of filler to bring it back to level with the fender again.

                      Click image for larger version  Name:	IMG_3259.JPG Views:	0 Size:	150.8 KB ID:	106788 Chrome strip high lights how much filler is needed if left alone.

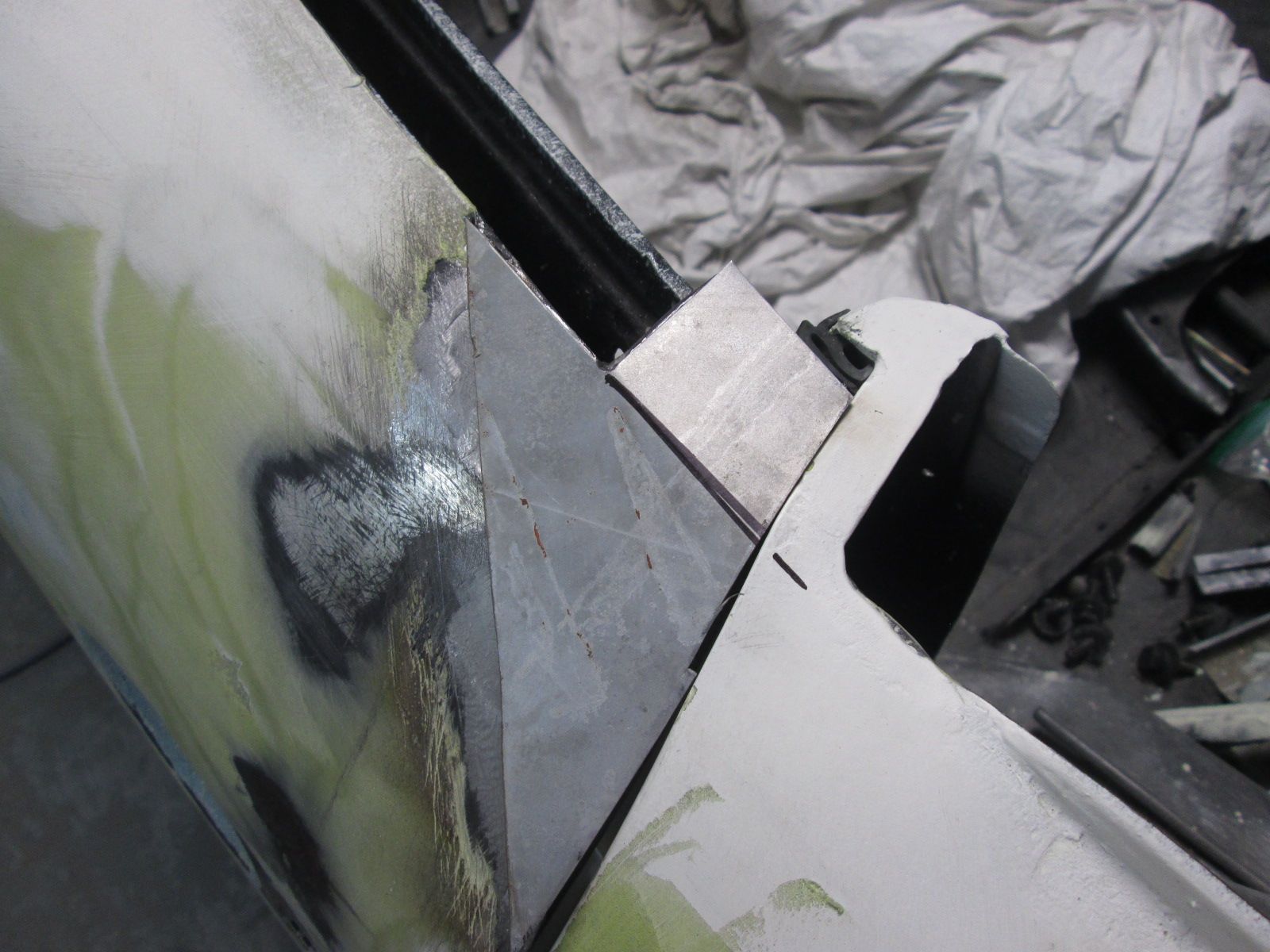

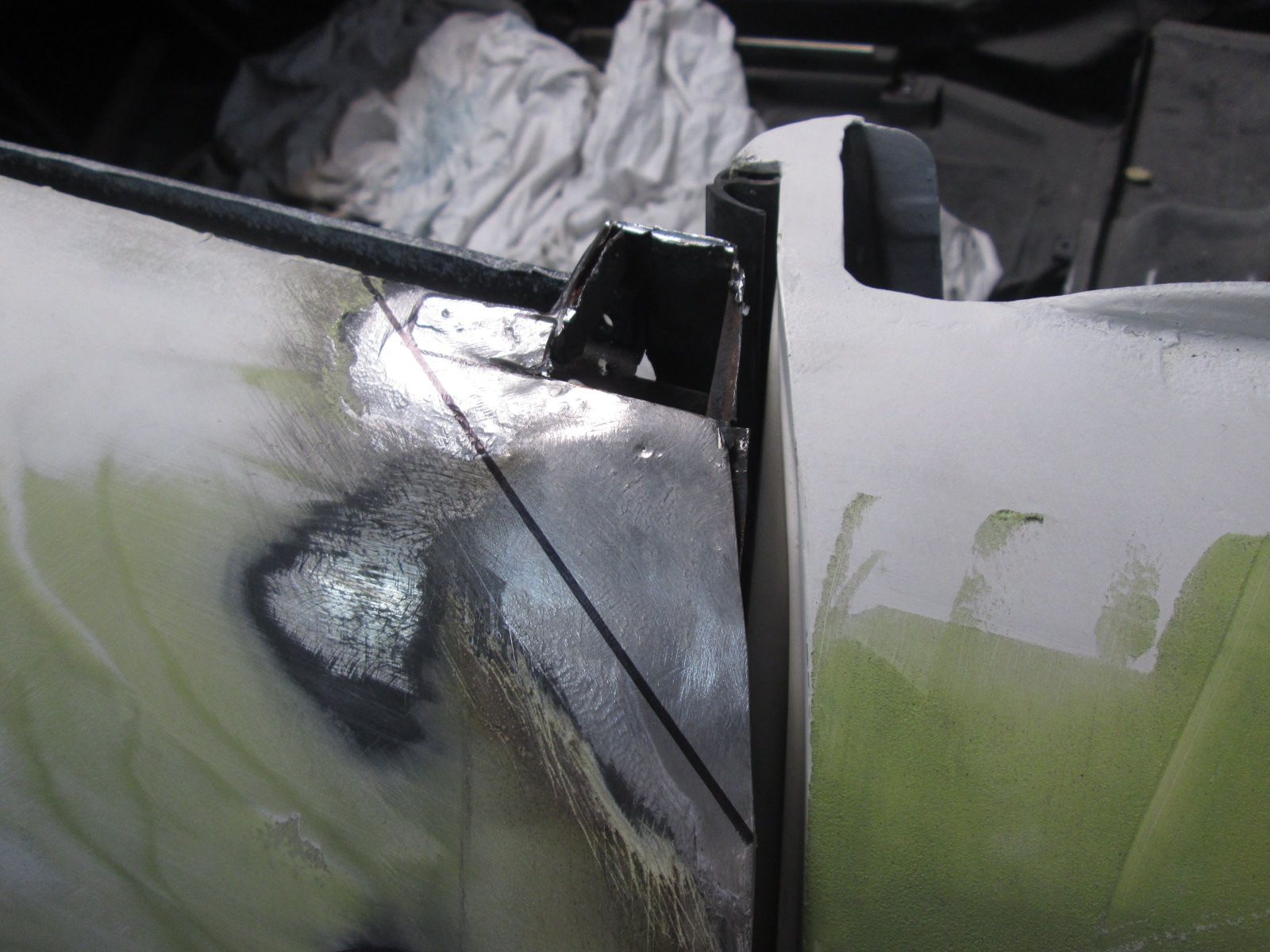

                      Click image for larger version  Name:	IMG_3260.JPG Views:	0 Size:	295.9 KB ID:	106789 Outlining my initial cut to get rid of that previous repair.

                      Click image for larger version  Name:	IMG_3261.JPG Views:	0 Size:	160.3 KB ID:	106790 Then I'll take the relief cut all the way down through here to bring the raw gap in closer to the width of a paint stick.(3mm) Now this door is original to the car and is still pretty much factory through here however the front fender and the closing panel it mounts to has all been changed. Way to much unecessary trouble to unwind all of that so this OG section is going to have to modified to fit closer with the new change. It of course should always be the other way around; New parts modified to work with factory parts but the die has been set so I'm playing the hand I'm dealt.
                      Click image for larger version  Name:	IMG_3262.JPG Views:	0 Size:	242.8 KB ID:	106791 Cutting begins.
                      Last edited by JTR70; 08-25-2019, 04:57 AM.
                      Justin Rio

                      Comment


                      • Justin, my goodness what lead can hide. Best of luck with the cutting, and as you have said many times now it just has to be correct at these points. Getting the fixing of repro parts to existing body work is not always straight forward but whoever did that knew I think its not right. It makes me wonder about many restored 356 cars. Just not easy to see these errors just by eye.

                        Roy

                        Comment


                        • JTR70
                          JTR70 commented
                          Editing a comment
                          Hi Roy, Murphy's law runs particularly strong in these cars as you well know. Once I was down to my last relief cut the integrity of this door was badly compromised. Nothing you'd want to attempt fixing without it fully adjusted and mounted to the car. A hundred ways for it to go bad as rewelding progressed. Agree, fillers can hide all sorts of sin and there is a million ways for a body shop to cut corners and "bury the buckwheat" without the owner getting wise if ever; choose wisely...
                          Last edited by JTR70; 08-25-2019, 08:52 PM.

                      • Relief cutting:

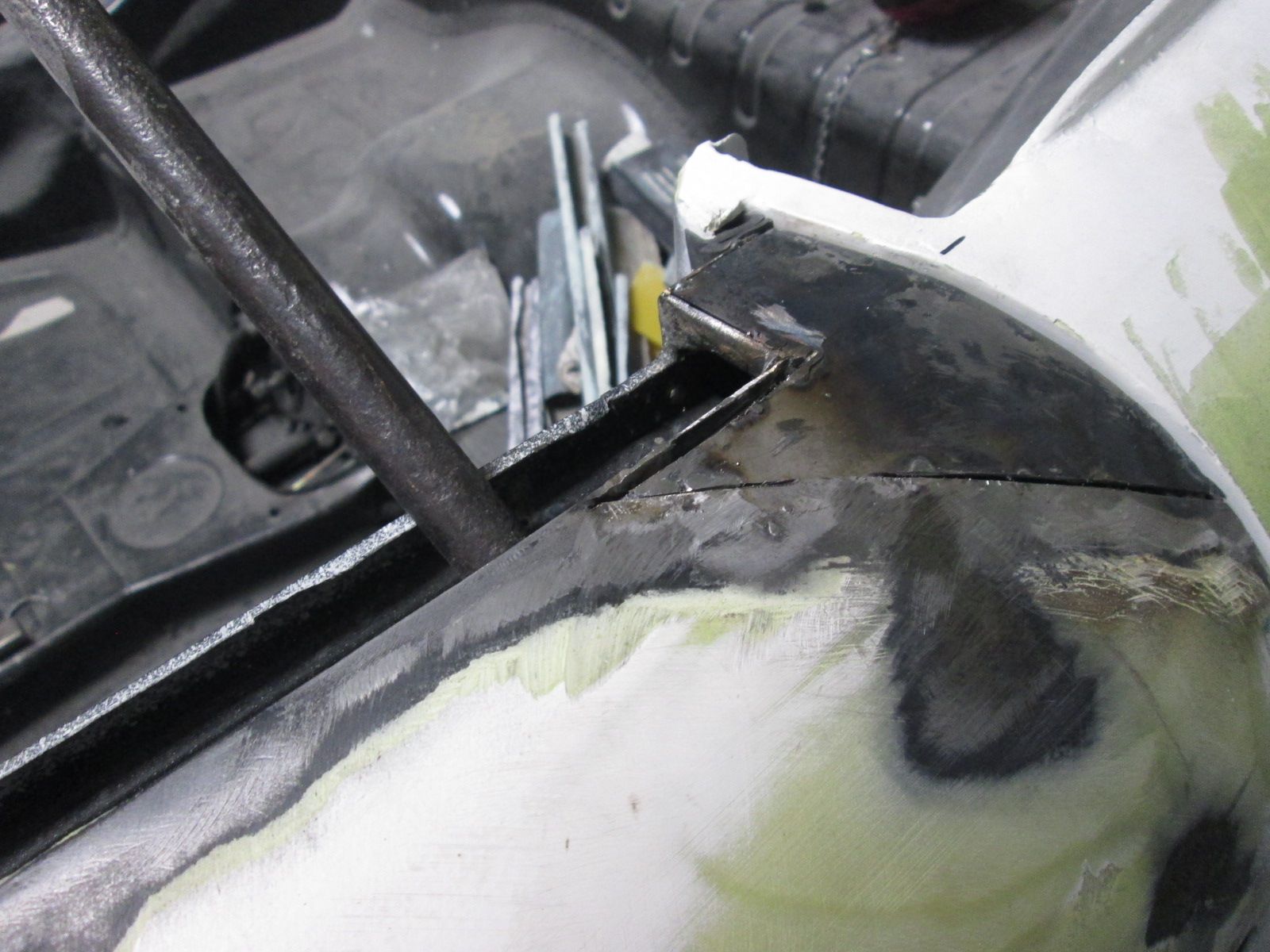

                        Click image for larger version  Name:	IMG_3265.JPG Views:	0 Size:	151.2 KB ID:	106795 After the initial cut along the edge of the skin a bit of upward prying was already giving me what I was after.

                        Click image for larger version  Name:	IMG_3266.JPG Views:	0 Size:	195.3 KB ID:	106796 As with the rear corner before once I severed the inner channel of the window opening I could pretty much set the skin height where I wanted it with relative ease. Also began pounding the vertical wall of the skin over closer to the cowl to tighten up that gap.

                        Click image for larger version  Name:	IMG_3269.JPG Views:	0 Size:	205.9 KB ID:	106797 still a little low but the deck height is much improved.

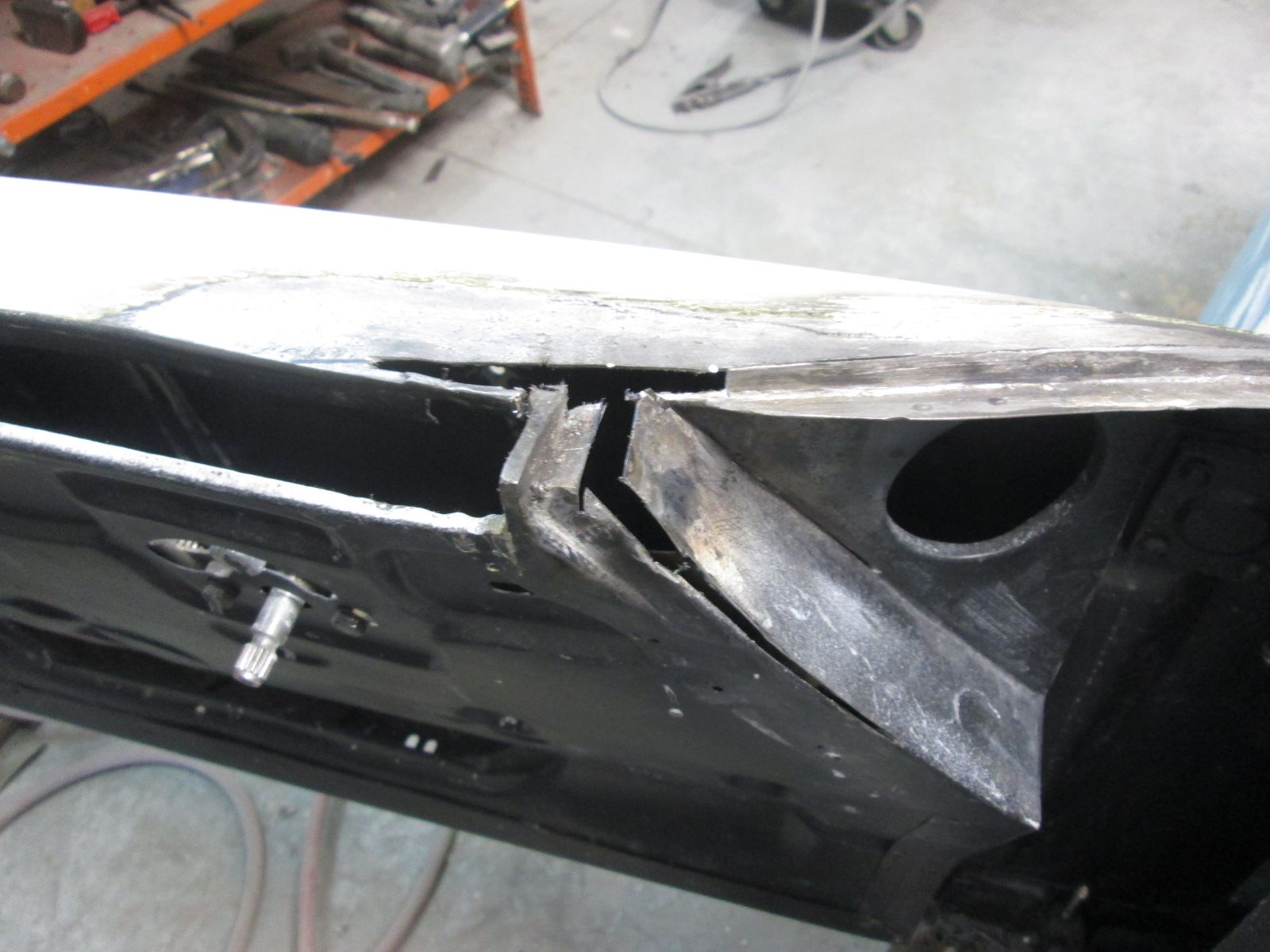

                        Click image for larger version  Name:	IMG_3271.JPG Views:	0 Size:	179.6 KB ID:	106798 Last of the needed relief cuts where in the upper jamb section. Pulling the sloped section forward to increase the angle as I described earlier in the planning phase. Roy, its here where the door really got flimsy and that I needed it mounted to the car to both keep me and this door on track.

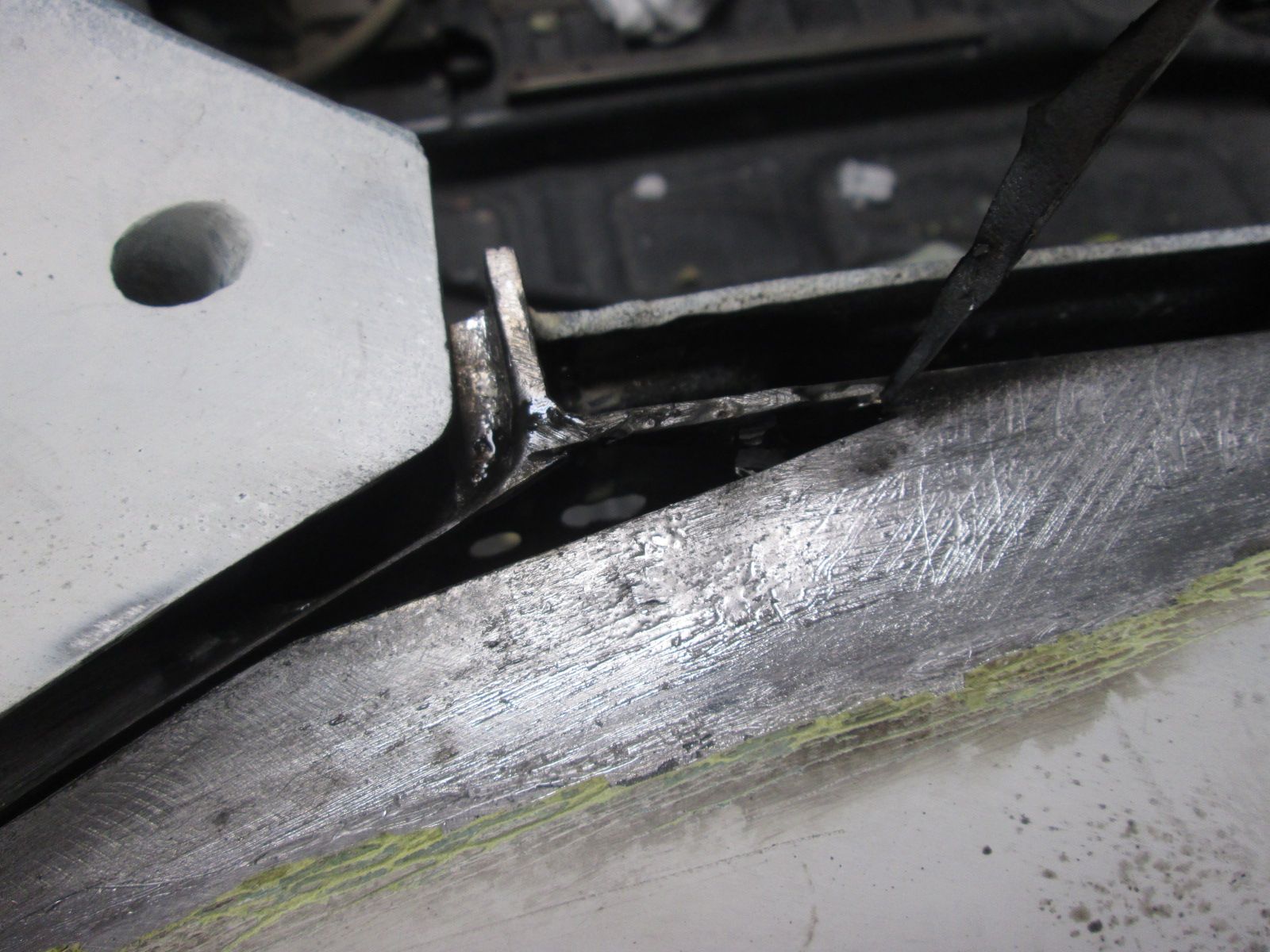

                        Click image for larger version  Name:	IMG_3273.JPG Views:	0 Size:	204.4 KB ID:	106799 New flanged corner section being developed. This will give me both the gap and deck height I'm looking for...in steel this time.

                        More later...
                        Justin
                        Last edited by JTR70; 08-25-2019, 08:56 PM.
