  • #46
    Hey Justin,

    Sorry I missed your question about the carpet tabs back one page (I just went to look again at your photos). I checked my car and I don't have the carpet tabs.
    trevorcgates@gmail.com
    Engine # P66909... are you out there
    Fun 356 events in SoCal = http://356club.org/

    Comment


    • #47
      It says that your speedster is a later '57 and was beginning to be outfitted with several T-2 style components like trevors coupe.

      Thanks trevor, so it sounds like the carpet flap was more of a 58 and 59 change. Justin
      Justin Rio

      Comment


      • #48
        Guys,

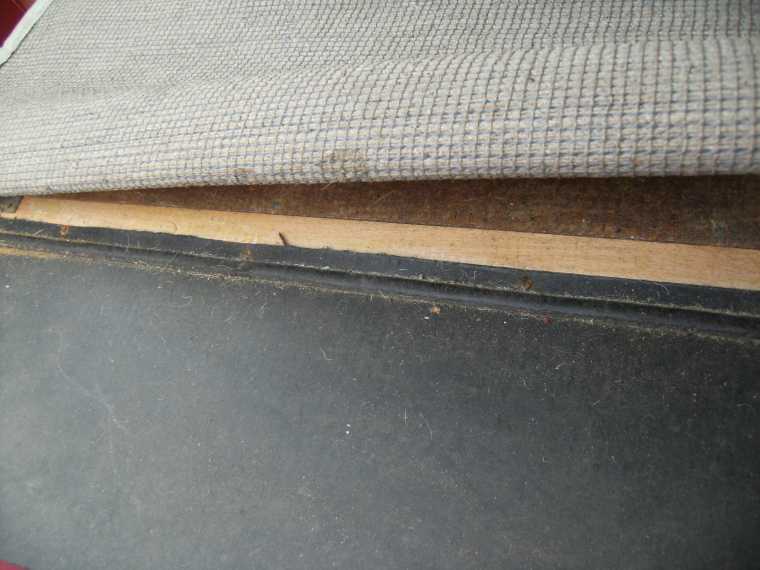

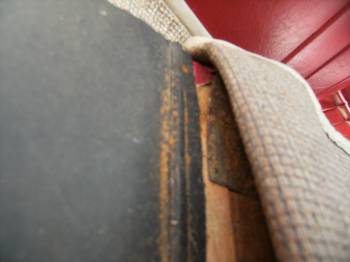

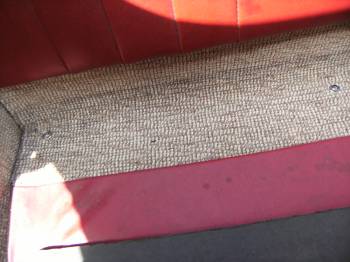

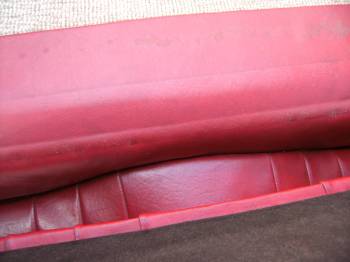

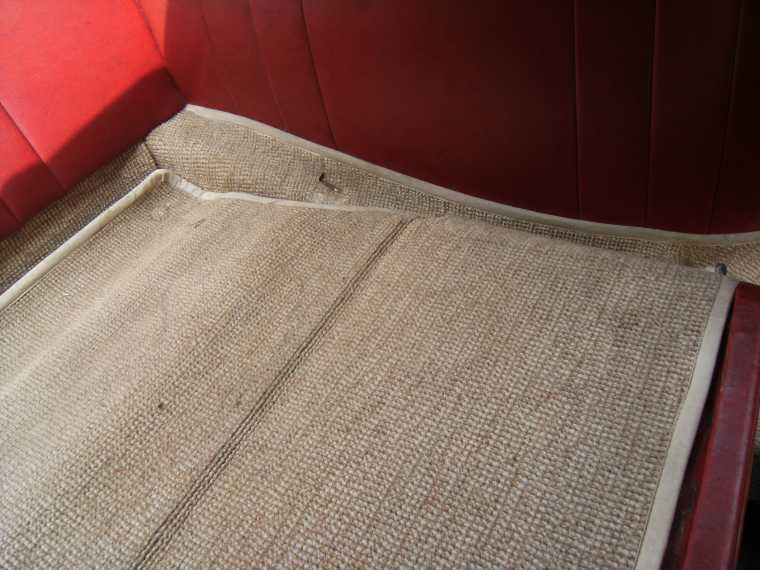

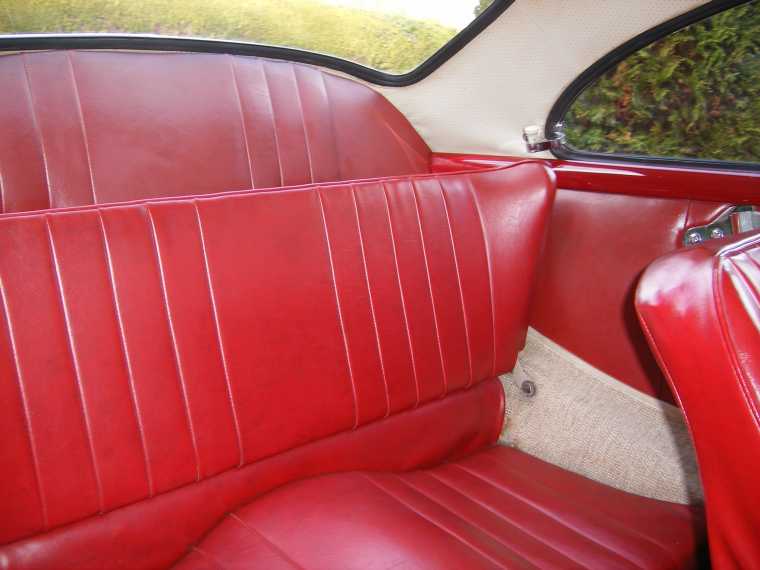

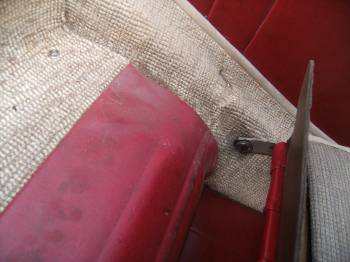

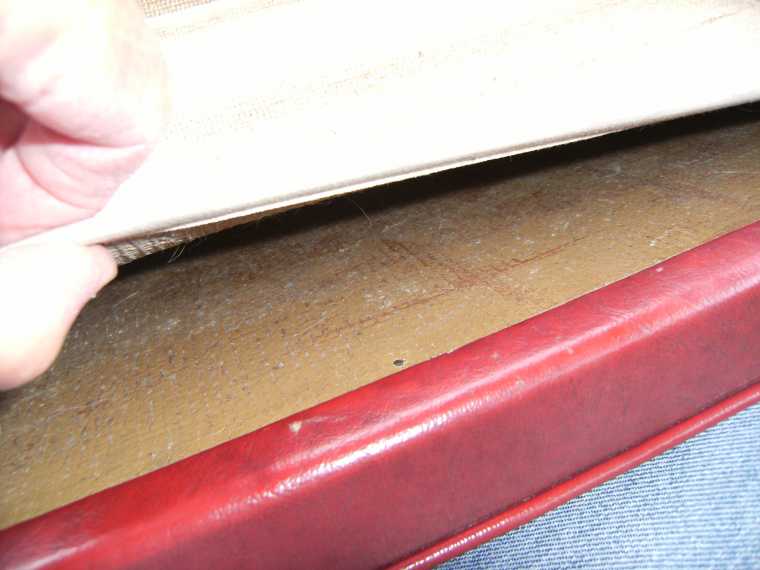

        A while ago I had my Dutch friend ask me how exactly the rear seat upholstery fitted on a 59 T2. The covering of the gap when the seat is raised and lowered is quite confusing. also the fixing of the vinyl without a copy to look at is difficult. My seats are original so I sent him a number of photos for him to study. The hard board flap is a nice design feature. The fitting of the octopus to hold the seat in the upright position is also interesting You can just see my original one in one of the photos.

        If at any time you are not sure about how it all goes together then you can ask me. Just remember many T2 cars have been upholstered it seems incorrectly in one position. The gap between the sitting pad and the rear seat upright is vinyl not carpet. Now, this might only apply to T2 cars not T1 so check.

        Click image for larger version

Name:	resizebackseats.jpg
Views:	99
Size:	47.5 KB
ID:	14832


        Click image for larger version

Name:	resizebackseat1.jpg
Views:	100
Size:	65.2 KB
ID:	14833

        Click image for larger version

Name:	resizebackseat2.jpg
Views:	102
Size:	80.3 KB
ID:	14834

        Click image for larger version

Name:	resizebackseat3.jpg
Views:	131
Size:	73.3 KB
ID:	14835

        Click image for larger version

Name:	resizebackseat4.jpg
Views:	99
Size:	41.9 KB
ID:	14836

        Click image for larger version

Name:	resizebackseat5.jpg
Views:	106
Size:	45.8 KB
ID:	14837

        Click image for larger version

Name:	resizebackseat7.jpg
Views:	97
Size:	46.4 KB
ID:	14838

        Click image for larger version

Name:	resizebackseat8.jpg
Views:	102
Size:	41.6 KB
ID:	14839

        Comment


        • #49
          Guys,

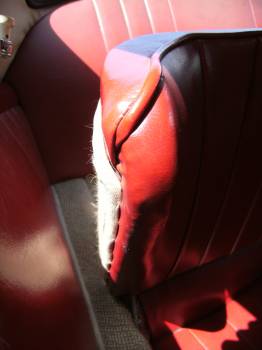

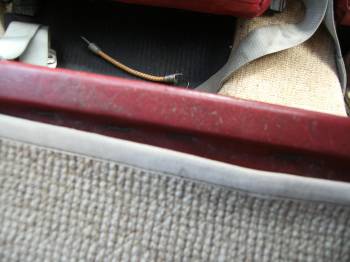

          Final 2 photos of the rear seat upholstery.

          Roy

          Click image for larger version

Name:	resizebackseat9.jpg
Views:	95
Size:	46.0 KB
ID:	14841

          Click image for larger version

Name:	resizebackseat10.jpg
Views:	105
Size:	16.3 KB
ID:	14842

          Comment


          • #50
            Thank you Roy! These are very helpful detailed shots that are valuable to anyone putting together a Later T2 and wants it authentic. I did not realize there is a "filler" strip of paneling for that gap. I thought it was just covered by the carpet. You know it turns out my rear upholstry was all original when I carelessly tore it all out in '87. For the life of me I cannot remember if it was carpet all the way down behind the seat cushion or if there was a vinyl panel like yours shows? I also noticed that the later jump seat is wrapped around with vinyl on the leading edge creating a lip of sorts. The early t1's are carpeted closer to the edge on the back. Thanks again Roy! great shots of an original! Justin

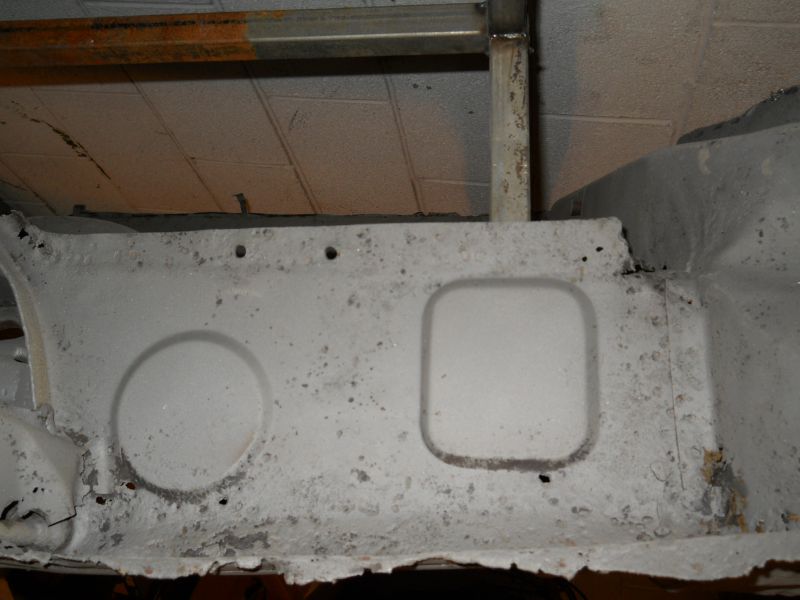

            Another slight change was to the rear seat pans lower verticle closing wall was to the inner embossment.
            Click image for larger version

Name:	3562278.JPG
Views:	120
Size:	56.8 KB
ID:	14907
            The inner was changed to this lower rounded embossment. At least for 1959 T2.
            Click image for larger version

Name:	3562279.JPG
Views:	128
Size:	60.2 KB
ID:	14908
            Early T1 and even up to 1958 T2 had this matched pair on both sides.

            The flang joint at the back of the longitudinal at the verticle closing wall or cap went from being seam welded on the T1's to being spot welded only on this 1959 T2 chassis.
            Click image for larger version

Name:	3562281.JPG
Views:	122
Size:	62.3 KB
ID:	14909

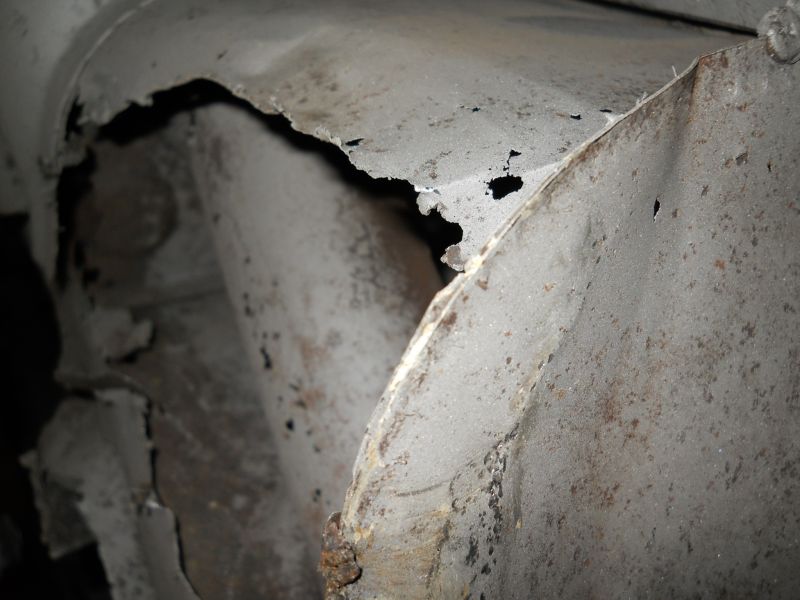

            whats left of the original 1959 seam joint.
            Click image for larger version

Name:	3562280.JPG
Views:	100
Size:	72.1 KB
ID:	14910

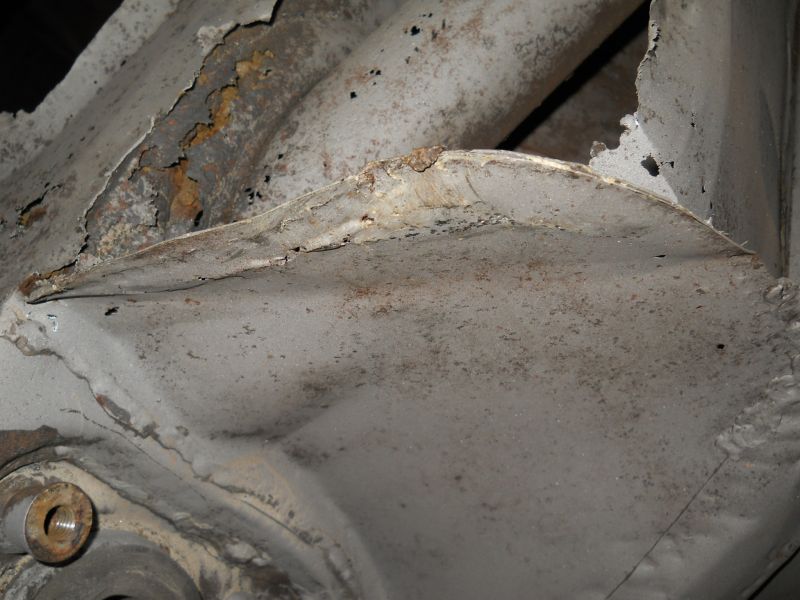

            Spot-welded together only with leading edge left raw.
            Click image for larger version

Name:	3562282.JPG
Views:	114
Size:	52.4 KB
ID:	14911

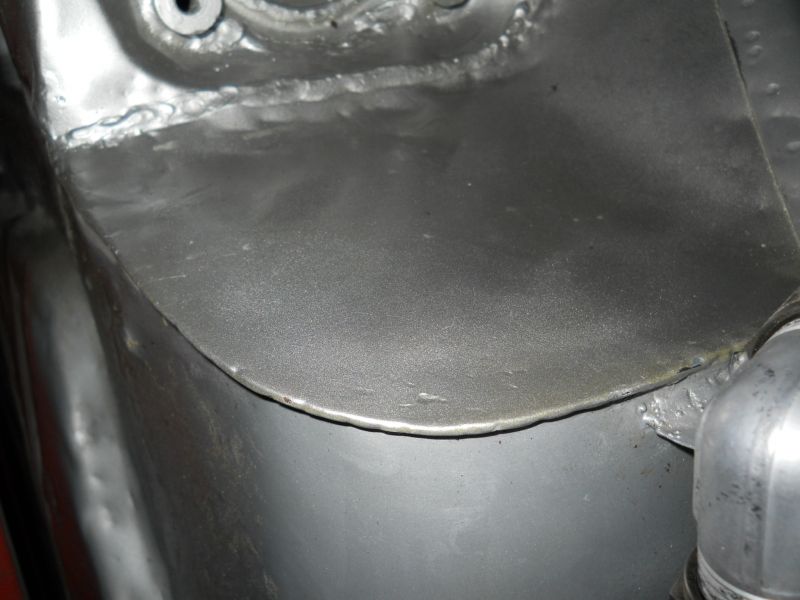

            T1's were not spot-welded along this seam but gas-welded all along the leading edge. The Longitudinal was replaced here but the seam weld was replicated. Thanks for reading this! Justin
            Justin Rio

            Comment


            • #51
              Decklid cable release tube was moved lower from T1 to T2.
              Click image for larger version

Name:	3562283.JPG
Views:	113
Size:	56.8 KB
ID:	15045

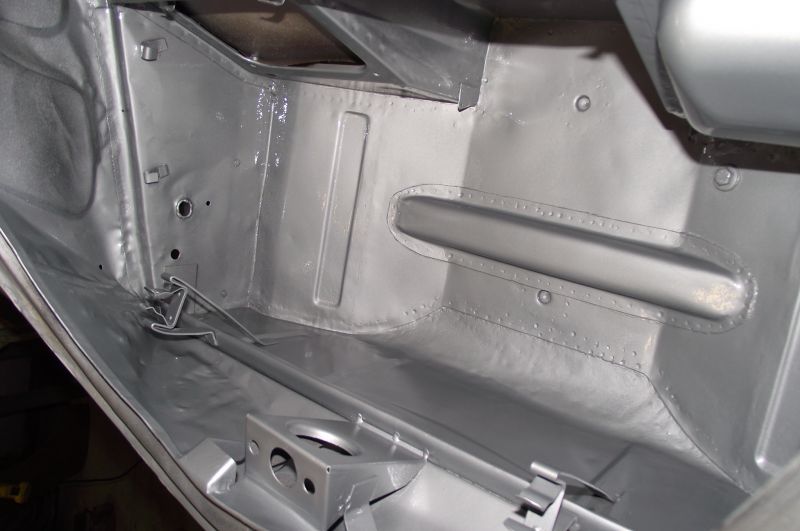

              Early T1 coupe with release tube mounted high along the closing panel.
              Click image for larger version

Name:	5401432.jpg
Views:	101
Size:	62.8 KB
ID:	15046
              T1 Speedster (83142) with tube mounted higher as well.
              Click image for larger version

Name:	3562285.JPG
Views:	103
Size:	63.5 KB
ID:	15047

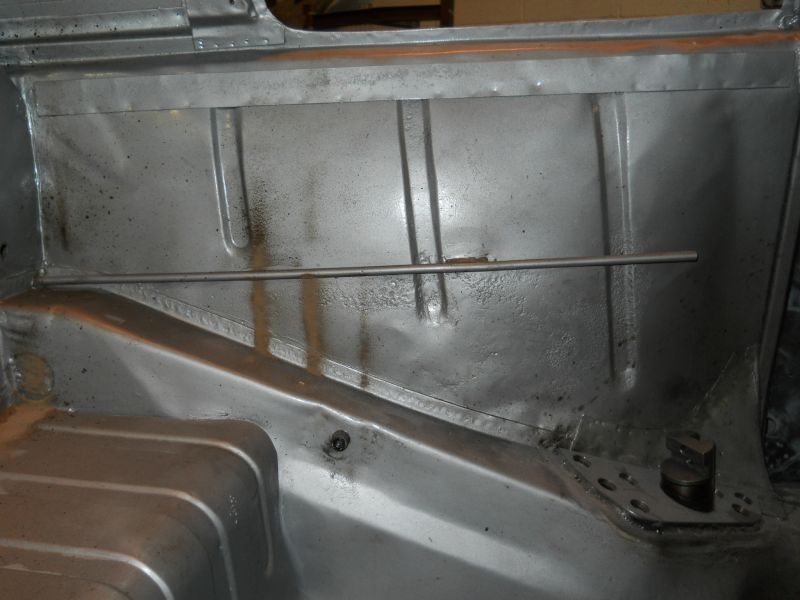

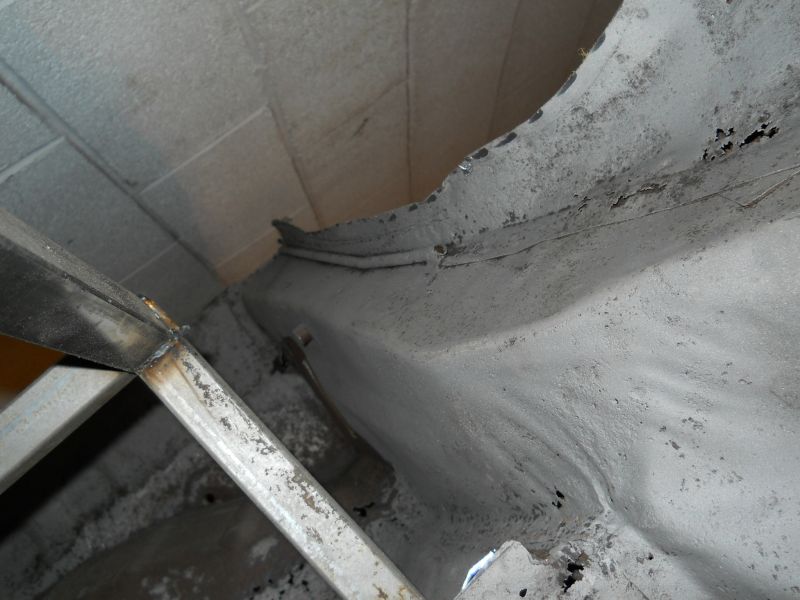

              1959 T2 chassis showing tube mounted lower along the frame runner.
              Click image for larger version

Name:	deans58017.jpg
Views:	112
Size:	85.2 KB
ID:	15048

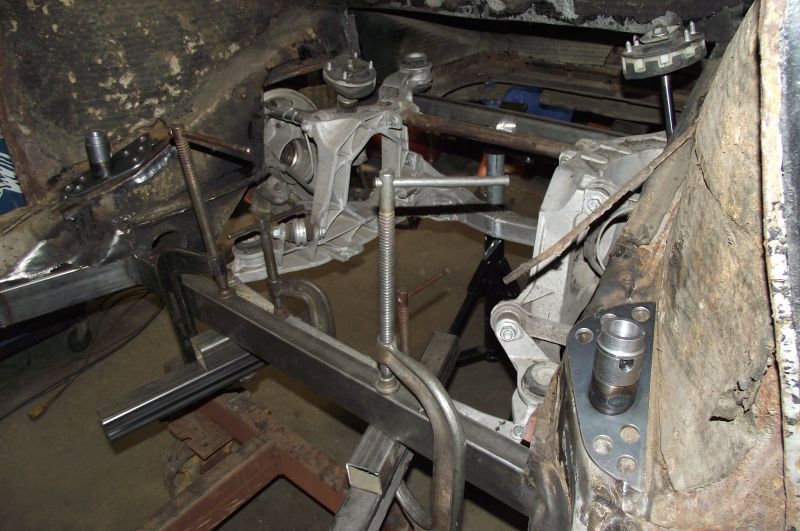

              1958 T2 chassis showing tube in the same position down low along this corner. Was moved here so I could mock up my roll-bar mounts. So a definite change for T2. Trevor is yours low or high? More later. Thanks for reading this! Justin
              Justin Rio

              Comment


              • #52

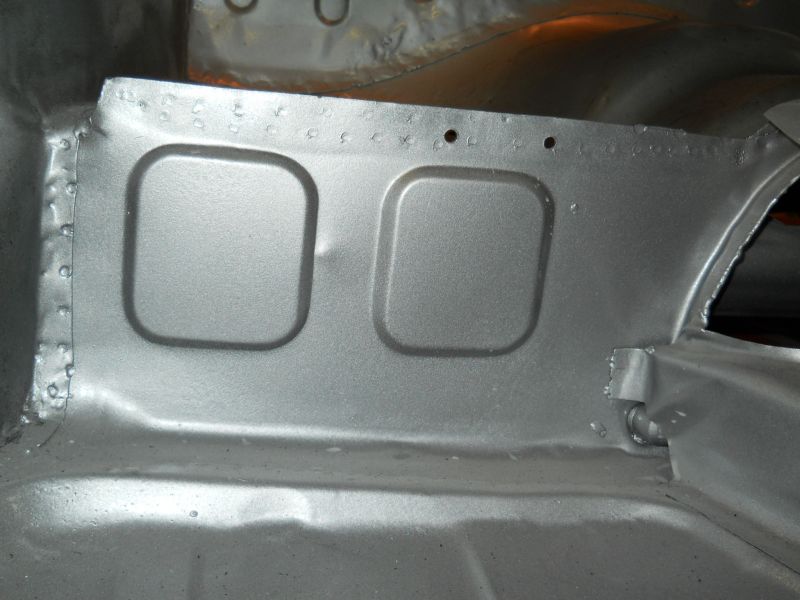

                Another slight structural change from T1 to T2 was to the rear battery box bulkhead wall. Though practically identicle in construction and appearance there was one obvious change and another not so obvious.
                Click image for larger version

Name:	Achassis158.JPG
Views:	102
Size:	68.5 KB
ID:	15636

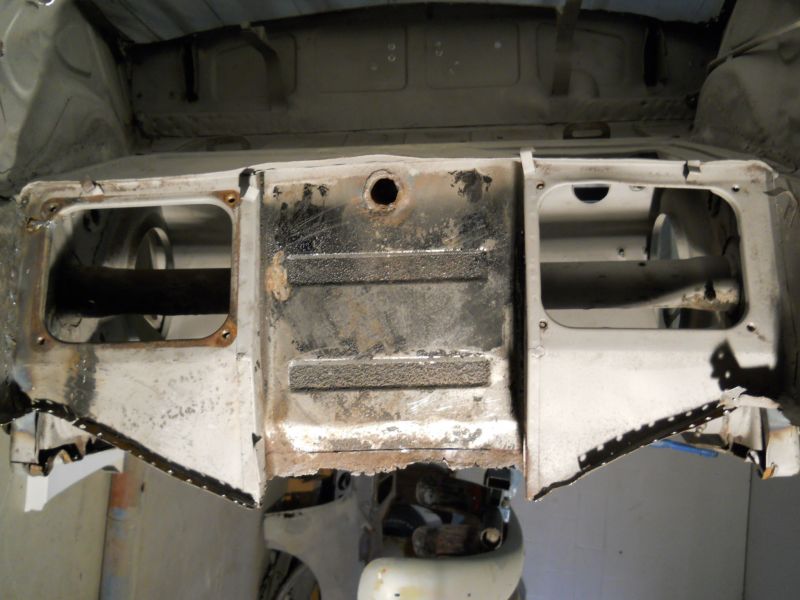

                Early T1 wall with left access cover spot-welded in permanent. RHD Early T1's would most likely have the right cover welded on.
                Click image for larger version

Name:	Achassis159.JPG
Views:	108
Size:	64.5 KB
ID:	15637

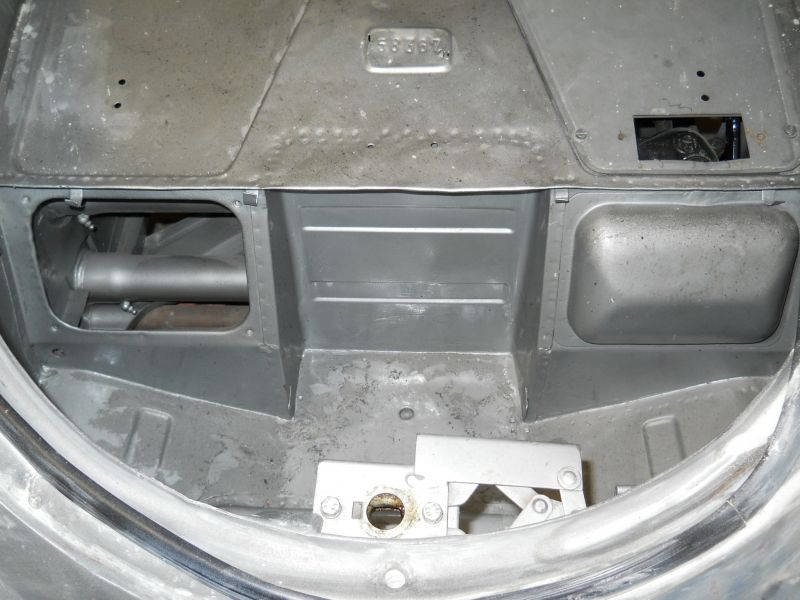

                T2 bulkhead wall. Both access covers are now removable. This change was here by '58 and perhaps coincided with the introduction of the ZF steering box. Maybe late '57 T1's had this obvious change.
                Click image for larger version

Name:	Achassis161.JPG
Views:	111
Size:	62.2 KB
ID:	15638
                Here is the not so obvious difference. The recess for the battery was widened by a 1/2 inch along with the cover change. Early T1 example above showing just better than 9.5 inches across.
                Click image for larger version

Name:	Achassis162.JPG
Views:	94
Size:	95.3 KB
ID:	15639

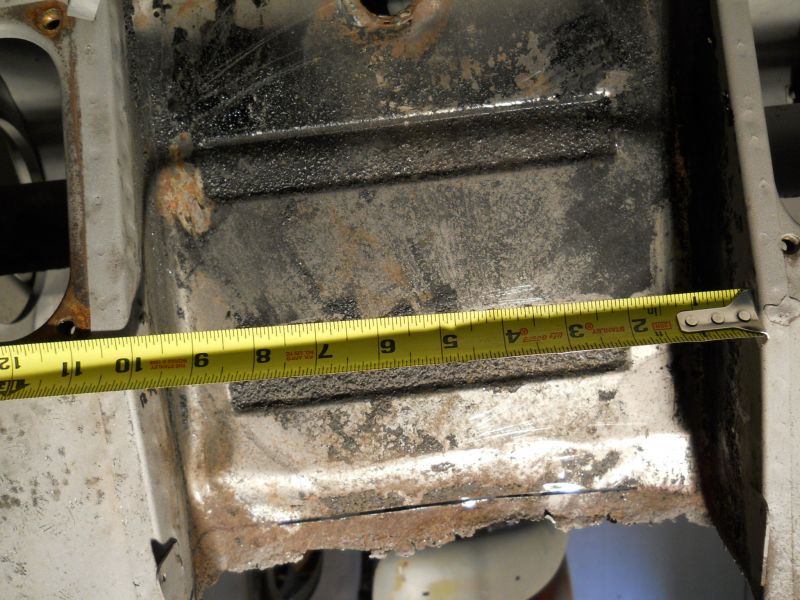

                T2 version measuring just better than 10 inches.

                Click image for larger version

Name:	SDC11040_2013-03-31.jpg
Views:	101
Size:	51.1 KB
ID:	15640

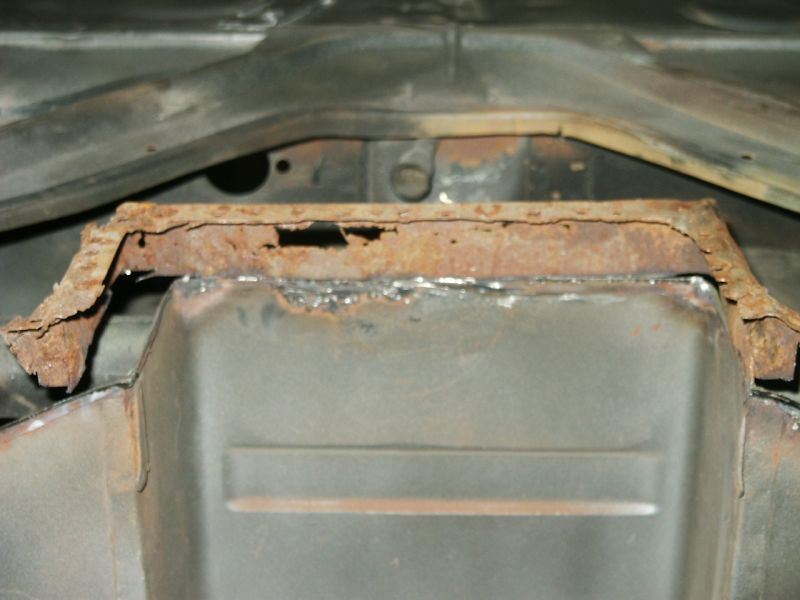

                Here is a direct comparison with an original T2 lower flange section and a T1 Bulkhead wall. Reutter widened this area a full half inch.
                Click image for larger version

Name:	540092.jpg
Views:	109
Size:	151.4 KB
ID:	15641

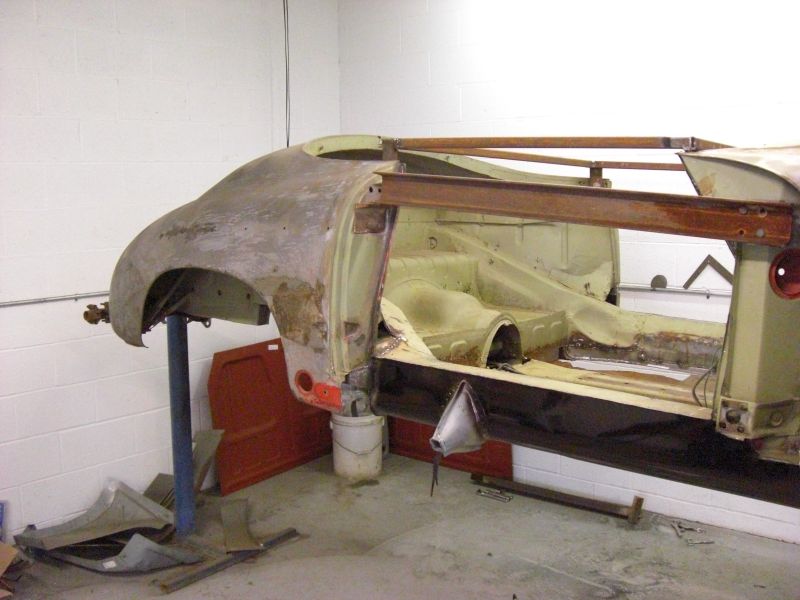

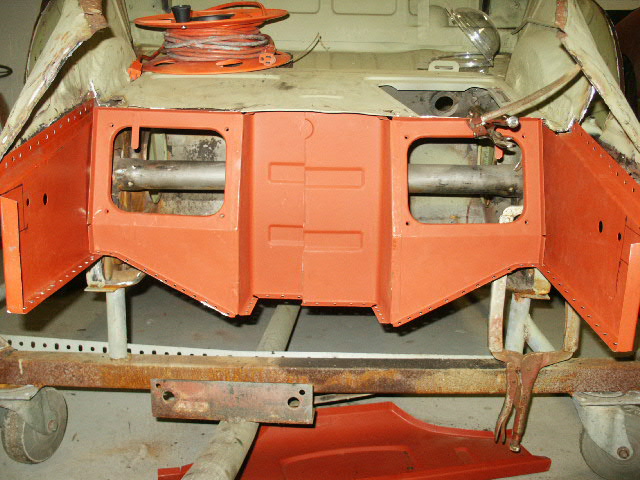

                Going back to T1 speedster 83142 and my earlier statement that all the new replacement panels are T2 style. I could not get this wall to fit between the "frame rails". I had to cut it in half and remove a half inch out of the center. Note the T2 style twin removable access covers. I at first thought this was a mistake in the stamping until the '58 coupe arrived. Its lower flange provided the example above this photo and the confirmation that these were in fact different.
                Click image for larger version

Name:	540094.jpg
Views:	107
Size:	122.3 KB
ID:	15642

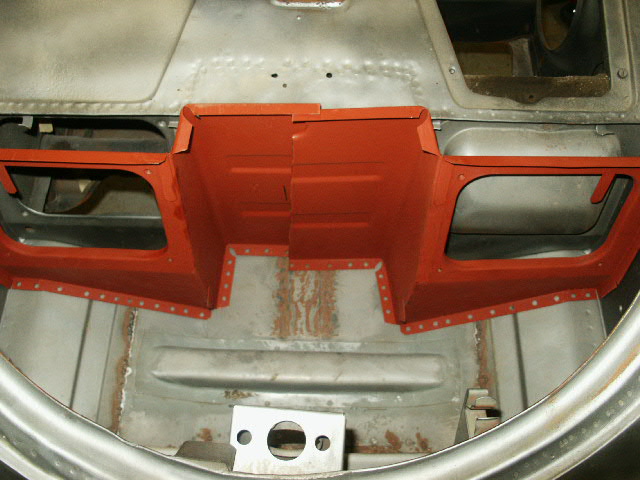

                New wall cut and sitting in my T1 coupe for fitment confirmation. Fit like a glove now. note the 1/2 inch of overlap that had to be removed.
                More to come. Thanks for reading this! Justin
                Justin Rio

                Comment


                • #53

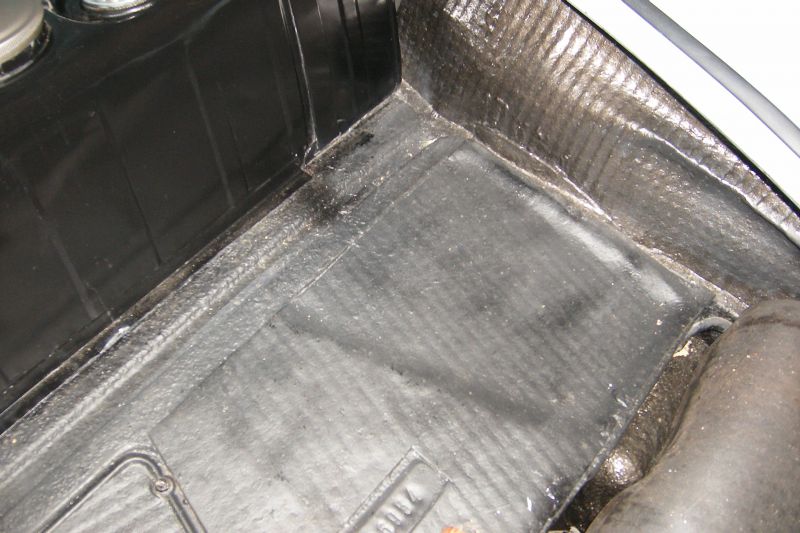

                  Interesting Justin the differences between T1 and T2 under the front hood. As far as I can tell the access cover to the ZF steering box for my RHD is only the 4 screw version on the right side. I have never taken off any insulation to see if the left side is screwed. It appears in the photo attached not to have screws. It looks dead flat under the insulation. Notice how poor the cutting around the stamped chassis number is! I nearly tried to correct that some time ago but stopped. The thickness of the sprayed on sealer is again not a neat job how I would have prefered your really nice painted finish.

                  I don't think both of my pods down by the battery can be removed but I will check. Again 35 years ago I put some paint on the sealant applied by the factory I have contemplated doing it again with a semi matt black. Gloss just makes it look really messy but it is I guess, quite unusual to see an untouched battery box area on a RHD drive 'A'. There is no rust thats why its been left alone.

                  I guess some people could not live with this but its too much for me now and where would I stop? I remember the weeks removing the stuff from the under floors and longitudinals

                  The gap for the battery is also interesting my new one just purchased fits in but with not that much to spare. I will check the size and width of battery.

                  Roy

                  Click image for larger version

Name:	2008_1222steeringboxcvr0006.JPG
Views:	92
Size:	73.7 KB
ID:	15650

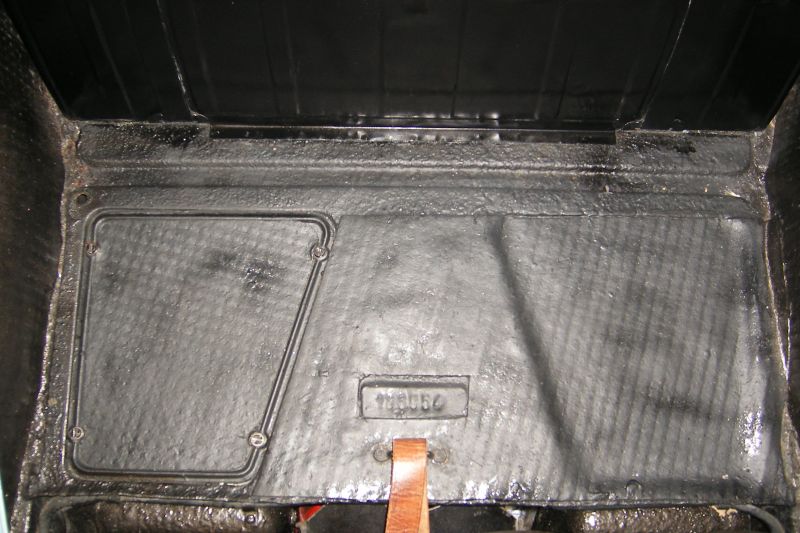

                  Click image for larger version

Name:	2008_1222steeringboxcvr0004.JPG
Views:	98
Size:	78.1 KB
ID:	15651

                  Click image for larger version

Name:	2010_0823capeljackbootinside0030_2013-03-31.JPG
Views:	103
Size:	97.8 KB
ID:	15652

                  Comment


                  • #54
                    Hey Roy,

                    Strange I would have bet the farm that both your covers would be free. Maybe an RHD thing? Don't feel bad about your trunks appearance; its not horrible plus its all original which more than makes up for a little goo here and there. I think your very wise not to mess with it; absolutely right,"where to stop"? It all snow balls very quickly and before you know it you're staring at a bare shell. Let us know how your battery recess measure out. Thanks! Justin
                    Justin Rio

                    Comment


                    • #55
                      Justin,

                      I checked out my battery box area yesterday. Well the width measurement where the battery fits in is the same as your T2 its ten inches or there abouts. The battery has more room width wise than I thought around two inches of clearance width wise so the battery would have fitted the earlier T1 as well with its smaller gap.

                      Also the 2 inspection pods on my car are removable I thought they were welded on one side. But its odd the right side ( looking from the fornt of the car has the 4 bolt heads to secure that pod but so well covered by the horrible black sealant I had to really look hard.
                      The left side has three bolt heads? The bottom right of the pod has no bolt but a bolt of the same size exists half way up the on this right side??
                      Never noticed all this really, It would have been a messy job when the car was new to get those pods off with all that goo around them.

                      So many things to find out about the 356

                      Roy

                      Comment


                      • #56
                        Thanks for the confirmation Roy! Hey, if its no trouble could you post a clear detailed shot of the upper and lower battery box floor of your car? I don't have a nice T2 example and want to high light the center rib change and the addition of the tow hook. You're so right always something new to learn about these cars. Thanks again! Justin
                        Justin Rio

                        Comment


                        • #57
                          Will take a photo soon of that area.

                          Roy

                          Comment


                          • #58
                            Justin,

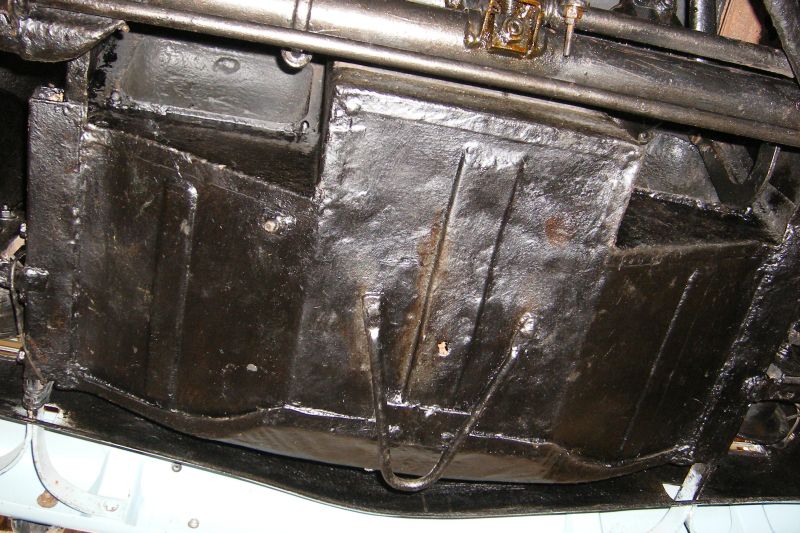

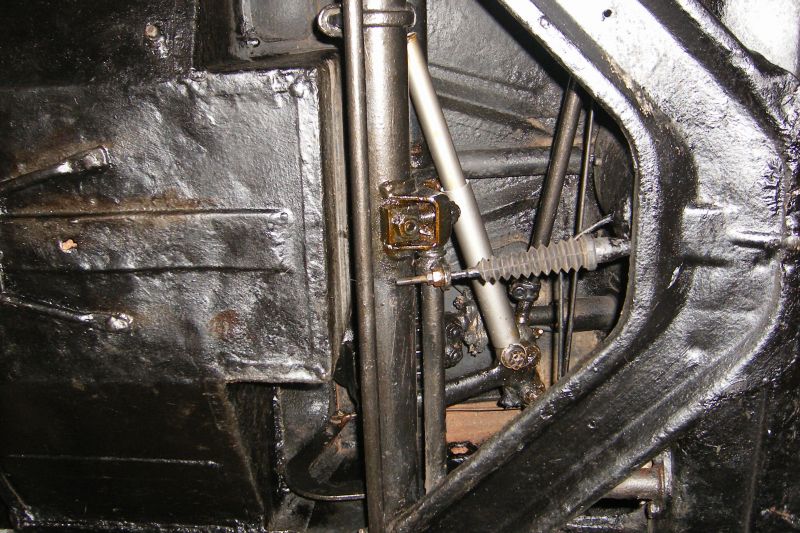

                            First 2 photos takenn from underneath the car a few years ago when I had access to a lift.

                            Click image for larger version

Name:	2009_0612porscheunderside0007.JPG
Views:	99
Size:	106.1 KB
ID:	15874

                            Click image for larger version

Name:	2009_0612porscheunderside0006.JPG
Views:	95
Size:	118.3 KB
ID:	15875

                            The next post shows the view from under the hood.

                            Roy

                            Comment


                            • #59
                              Justin,

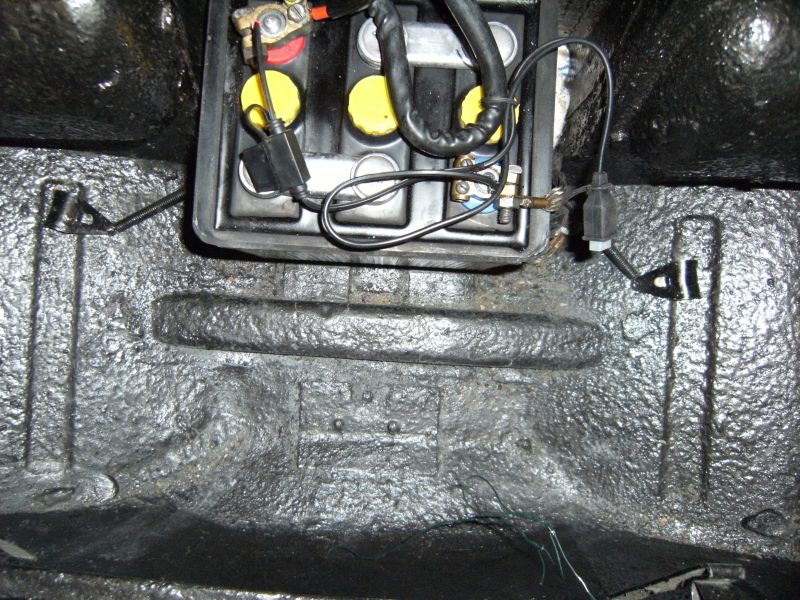

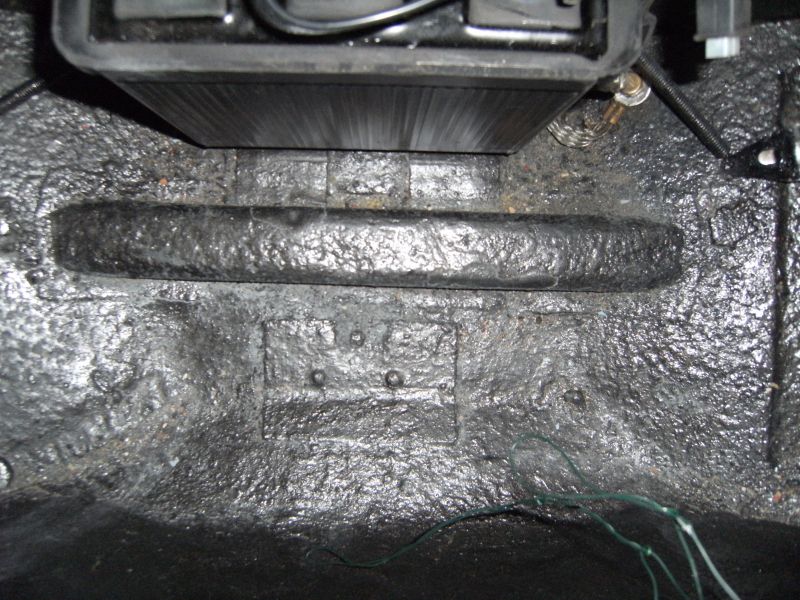

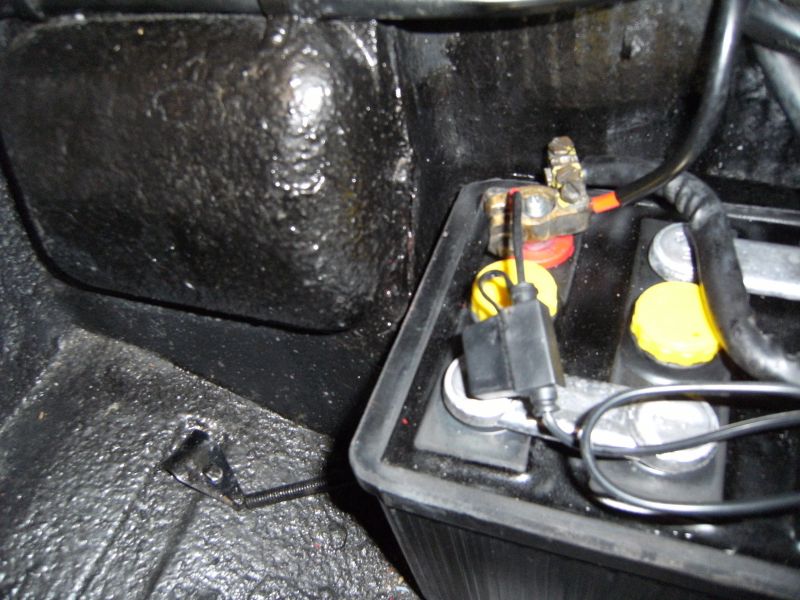

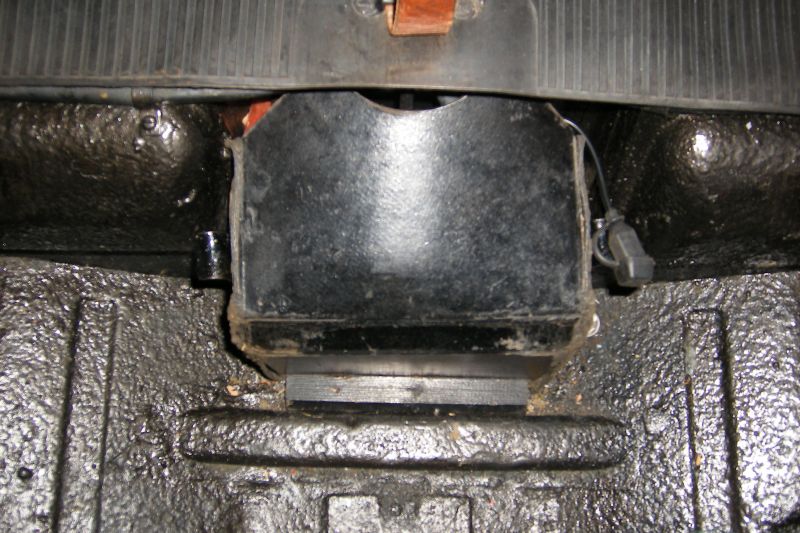

                              Attached some pics fromm under the hood. You can see the fixing of the towing hook support plate and the position of the central rib which you can compare to the view from underneath I sent.
                              I didn't remove the battery it was so cold out today I needed a heavy coat on outside in the garage.

                              One picture attached shows the bolt holding the right side pod I mentined yesterday. Look for the positive terminal on the battery and then directly to your left you will just see it.

                              Hope these help if you actually need measurement values ask.

                              Roy

                              Click image for larger version

Name:	2013_1074tangmerejetsbatterybox007.jpg
Views:	102
Size:	120.0 KB
ID:	15877

                              Click image for larger version

Name:	2013_1074tangmerejetsbatterybox008.jpg
Views:	94
Size:	135.3 KB
ID:	15878

                              Click image for larger version

Name:	2013_1074tangmerejetsbatterybox009.jpg
Views:	91
Size:	88.3 KB
ID:	15879

                              Comment


                              • #60
                                Excellent detailed shots of a correct T2 battery box floor! Thank you for helping on such a cold day Roy!

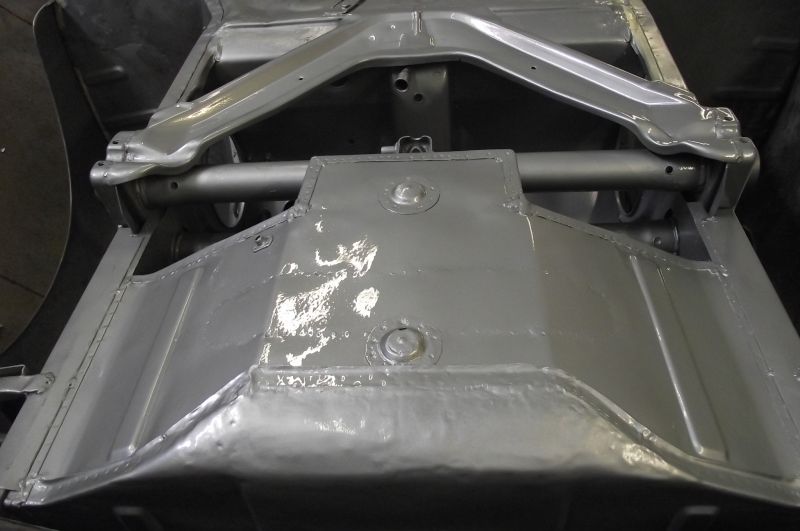

                                As you can see in Roy's detailed photos above the 356AT2's floor incorporated a center strengthening rib with the addition of a tow hook. Also no drain holes in the floor.
                                Click image for larger version

Name:	547377.jpg
Views:	106
Size:	49.4 KB
ID:	15912
                                By contrast this early 356AT1 floor is flat with no center rib or tow hook originally fitted. This early version also had a drain hole with metal caps over them.
                                Click image for larger version

Name:	547576.jpg
Views:	115
Size:	49.8 KB
ID:	15913
                                Lateral pressed in ribs and reinforcment brace were all identicle through T1 and T2. I can only speculate that the other changes to the floor coincided with the rear bulkhead wall change described previously. Agian all vendor replacement floors are T2 style with the center rib and are incorrect for 1956 and early 1957 356AT1. Thanks for reading this! Justin

                                Thanks again Roy!
                                Justin Rio
