  • #31
    Thank you Craig. I agree completely

    Comment


    • #32

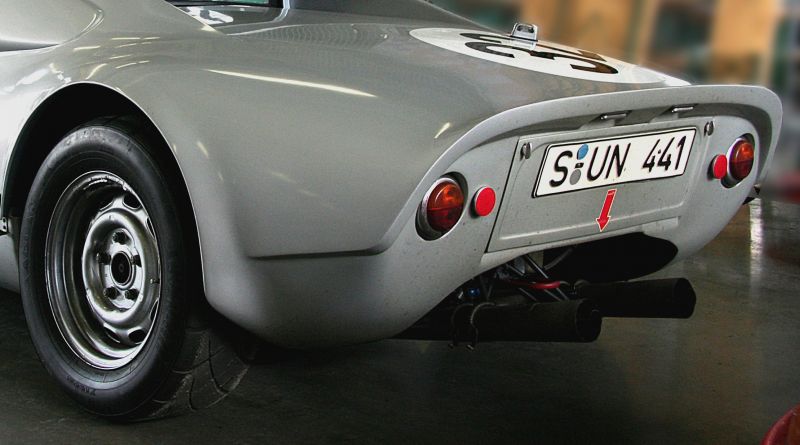

      Hi, does anyone have a detailed picture of the bracket used to secure the 1965 spec 904 megaphone exhausts to the gearbox? I have scoured the internet and can't find one! Any help gratefully received!

      Thanks, Philip

      Comment


      • #33
        Hello Philip and Welcome! I know I have seen a photo of exactly what you're after. I'll look and see if I can find it. Justin
        Justin Rio

        Comment


        • #34
          Closest photo I found so far.
          Click image for larger version

Name:	904gts3335679-9.jpg
Views:	44
Size:	53.1 KB
ID:	45098

          Comment


          • #35

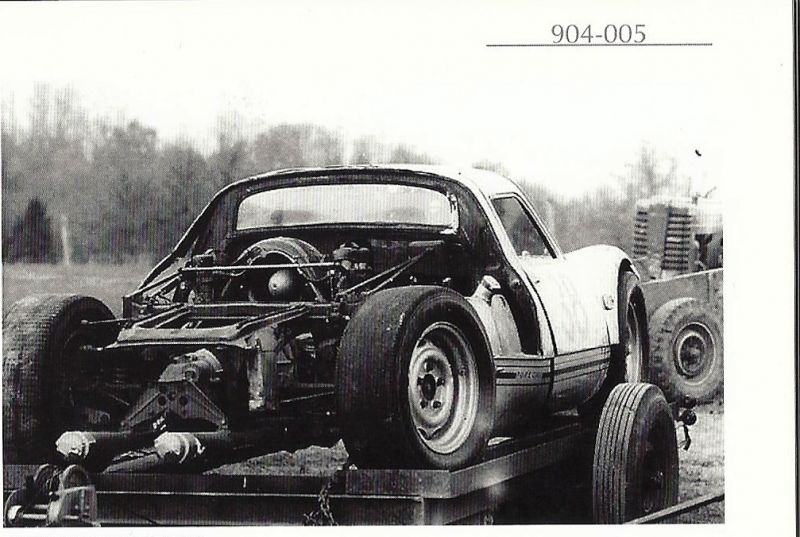

            This is the best picture I've found so far. Taken in 1969 so am not sure the bracket is definitely factory spec.

            Click image for larger version

Name:	904005ExhaustResized.jpg
Views:	51
Size:	80.3 KB
ID:	45146

            Second attempt!

            Comment


            • #36
              Anyone have any opinion as to whether this ^^^^ is a factory exhaust bracket or not?

              Comment


              • #37
                Hey Philip,

                Glad we got the photo problem dialed in. Great shot BTW!

                That bracket looks factory to me being that its a pressed piece. The rolled strengthening beads is another detail that gives that away. Most privateers during this era would not have gone through the trouble of making this intricate of a bracket. More than likely it would have been a flat base-plate with a tubular arm out to each stinger. This bracket puts me in mind of an early 356 pre-A windshield wiper motor "bat-wing" bracket. I'd say its original.
                Justin
                Justin Rio

                Comment


                • #38

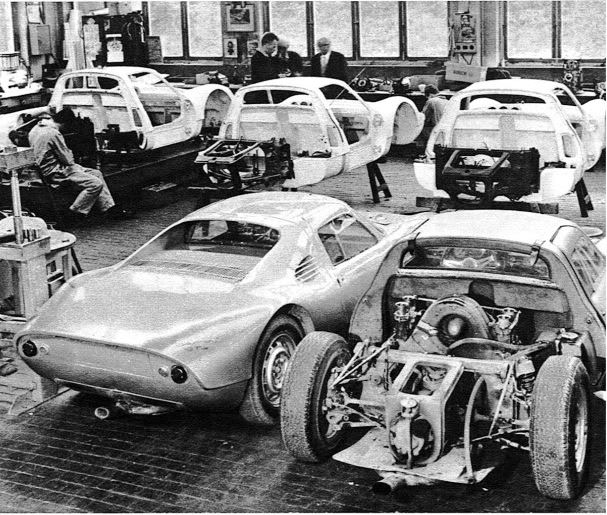

                  Click image for larger version

Name:	904g34.jpg
Views:	43
Size:	58.2 KB
ID:	45212

                  Click image for larger version

Name:	904g35.jpg
Views:	45
Size:	79.2 KB
ID:	45213

                  Comment


                  • #39
                    Click image for larger version

Name:	vtg422_2014-07-16.jpg
Views:	44
Size:	167.5 KB
ID:	45731

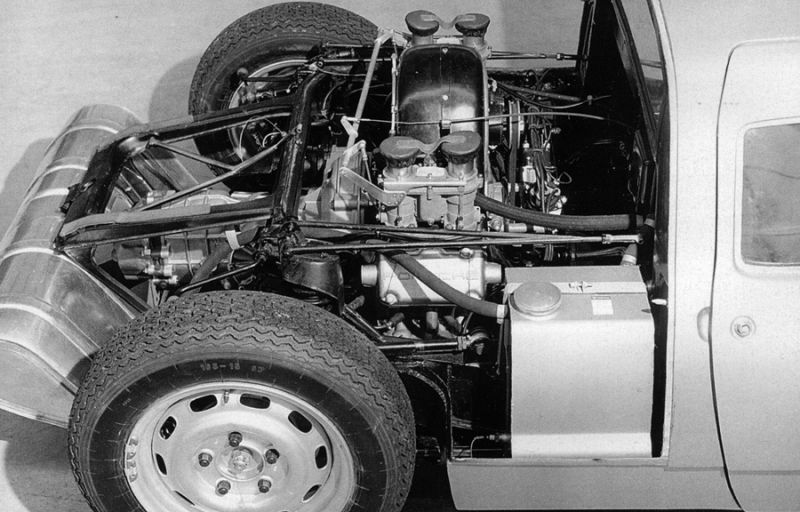

                    Click image for larger version

Name:	904g48.jpg
Views:	46
Size:	56.9 KB
ID:	45732

                    Comment


                    • #40
                      Click image for larger version

Name:	904g36.jpg
Views:	42
Size:	40.1 KB
ID:	47706

                      Comment


                      • #41
                        Click image for larger version

Name:	904gts.jpg
Views:	44
Size:	83.9 KB
ID:	48374

                        Comment


                        • #42
                          Click image for larger version

Name:	904_2014-09-08.JPG
Views:	44
Size:	103.3 KB
ID:	49105

                          Comment


                          • #43
                            Click image for larger version

Name:	90402_4980778_.jpg
Views:	44
Size:	36.3 KB
ID:	50520

                            Comment


                            • #44
                              Education wanted:

                              What gearbox was used/adapted for IRS?

                              Was this box based on the RSK box?

                              Was it/were both based on the 714?

                              Was the "ramp&beans" LSD still used in the 904? RSK?

                              Thanks
                              ----------
                              Keep 'em flying...

                              S.J.Szabo

                              Comment


                              • #45
                                Hi
                                the first IRS box was the 690 it was a 5 spd based on the 519 vw case. it used the jelly bean dff and the the fulcrum plates were pined to short axles the the inner part looked like a swing axle and the outer part was splined like a driveshaft. this box was the 550A box. the 718 for the RSK/RS60/RS61 etc. had a Mag case that was similar to the 644 case. The jelly bean diff ran on bigger brgs that allowed axial movement in the diff and the outer part was a conventional u joint. By Porsche design nos the next evolution was the 822 this box uses 901 gear sets there may have been 6 speeds but i have never seen any. the shift shaft attached at the bell housing and it used a clutch plate diff and Nadella axles. basically the 822 for the 8 cylinder engines and the 904/906/901/914 are based on the same internals.
                                j

                                Comment
