  • #16
    Hi Joris
    Capricon offered me one and I had the choice of the 80 or 82. Capricon can do just about anything they want to do and they don't seem to care about the ROI. Unlike some items rebuilding a roller crank does not restore it to new they were meant to be serviceable to extend the life. I believe that rather than bandaid the few existing cranks we produce a new 1 piece crank that is a throw away at end of life since the cost of a new crank could be comparable to the cost of servicing the present ones and much less expensive than remaking them when they won't ever need servicing anyway.
    j

    Comment


    • #17

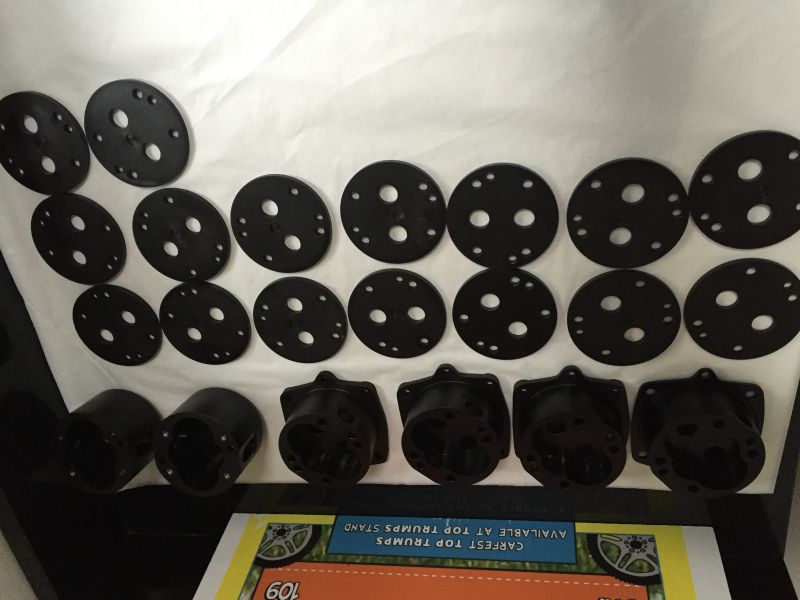

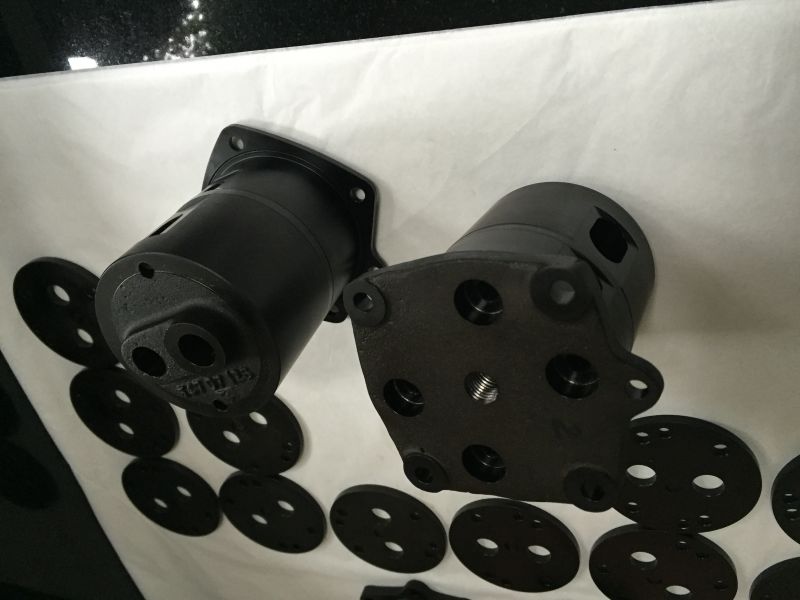

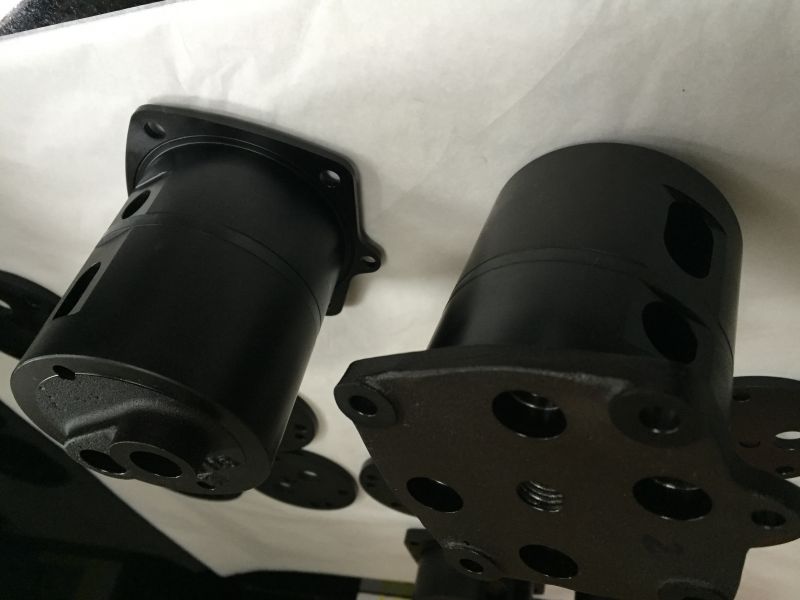

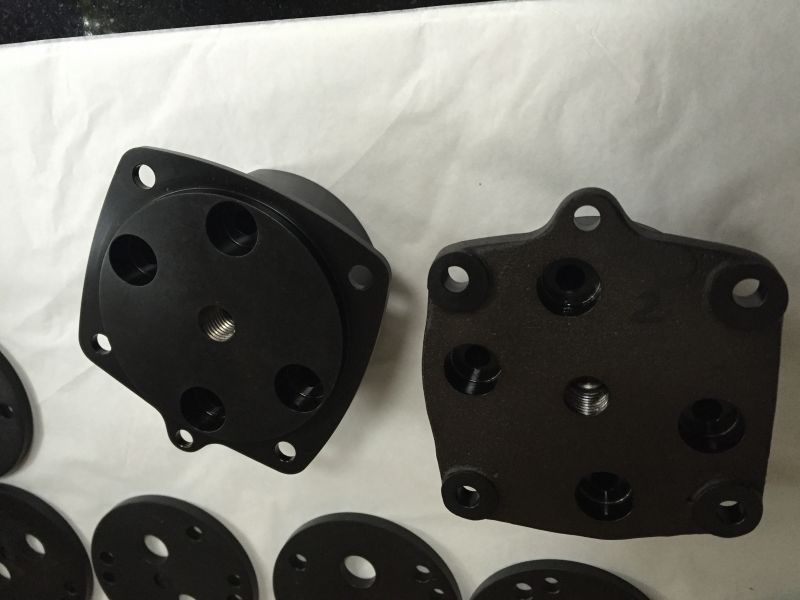

      Pumps close to being done now. All housings have been computer measured and gears will now be ground to each housing to ensure perfect clearances and thus pressure.
      Click image for larger version

Name:	IMG_3760.JPG
Views:	41
Size:	39.2 KB
ID:	75181

      Click image for larger version

Name:	IMG_3759.JPG
Views:	42
Size:	47.9 KB
ID:	75182

      Click image for larger version

Name:	IMG_3758.JPG
Views:	42
Size:	42.8 KB
ID:	75183

      Click image for larger version

Name:	IMG_3756.JPG
Views:	43
Size:	59.2 KB
ID:	75184

      And one sneak peak of a project a friend is working on


      Click image for larger version

Name:	IMG_3480.JPG
Views:	47
Size:	49.5 KB
ID:	75185

      Comment


      • #18
        Thanks Joris, That is impressive! Looking forward to the updates!
        Justin
        Justin Rio

        Comment


        • #19

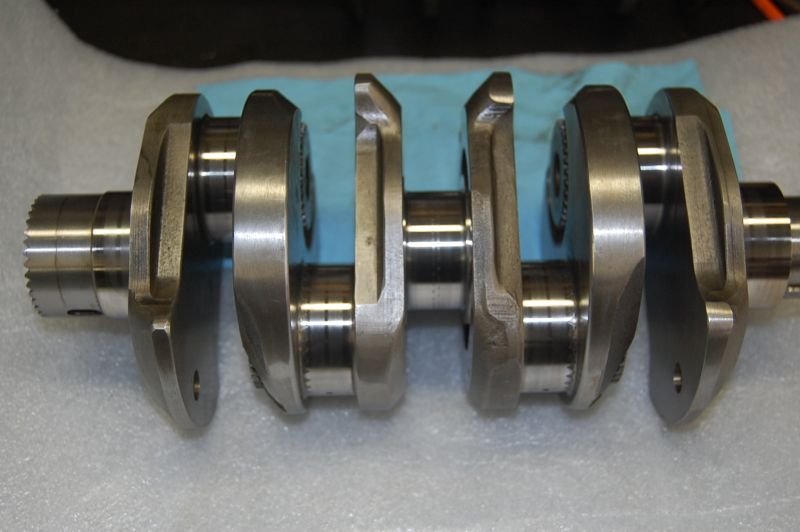

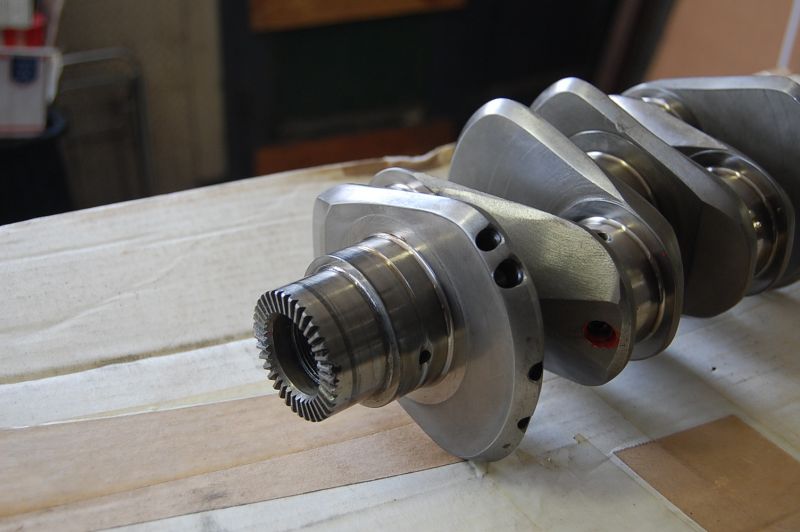

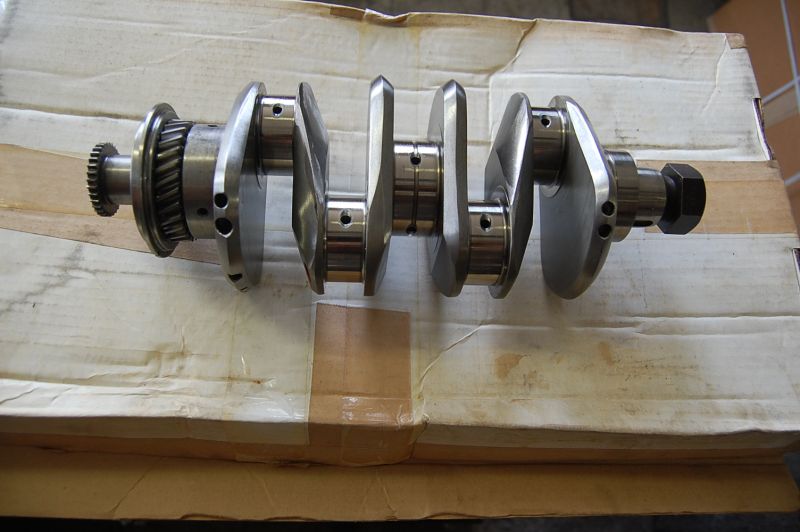

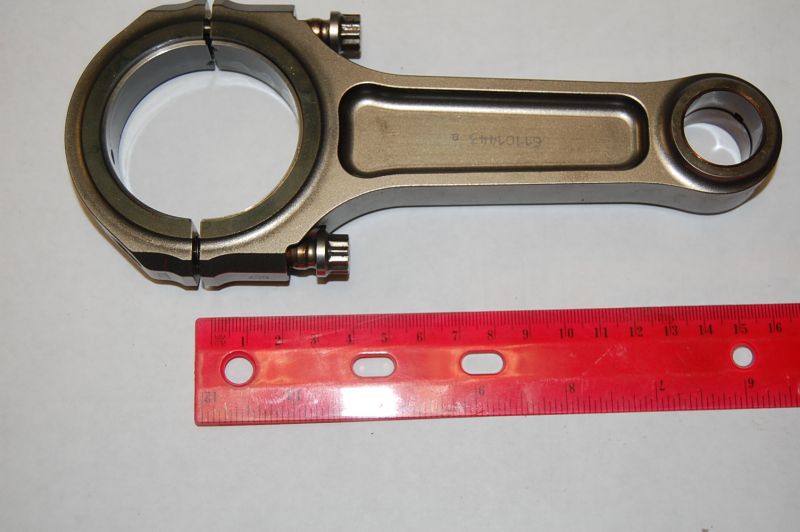

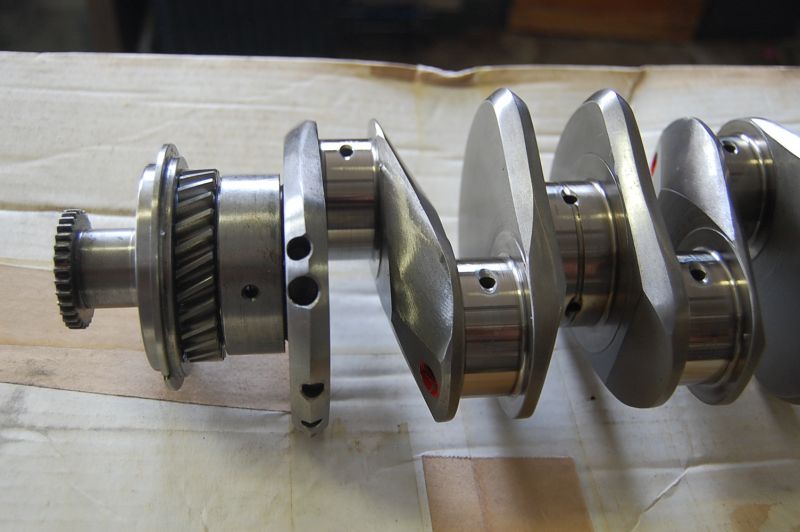

          Hi a hybrid crank that Al Cadrobbi did 15 years ago just got into a motor that used it and it will go back together so i thought i would share.
          Click image for larger version

Name:	DSC_0072.JPG
Views:	46
Size:	51.9 KB
ID:	75317

          Click image for larger version

Name:	DSC_0073.JPG
Views:	43
Size:	58.2 KB
ID:	75318

          Click image for larger version

Name:	DSC_0074.JPG
Views:	42
Size:	56.7 KB
ID:	75319

          Click image for larger version

Name:	DSC_0075.JPG
Views:	37
Size:	47.8 KB
ID:	75320

          Comment


          • #20
            Hybrid? So a roller/plain bearing combo for a 547? Interesting, thanks for sharing Jacques.
            Justin Rio

            Comment


            • #21
              actually this crank is 587 74mm stroke the 587 engine case was only modified for the roller thrust brg

              Comment


              • #22

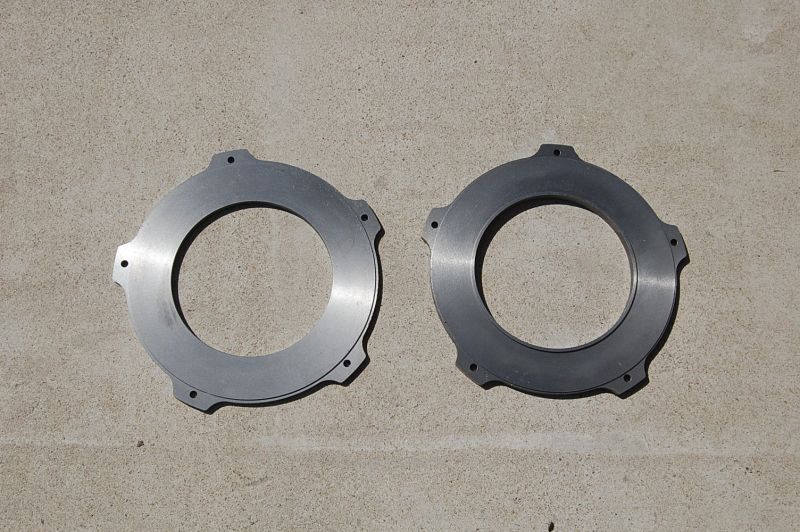

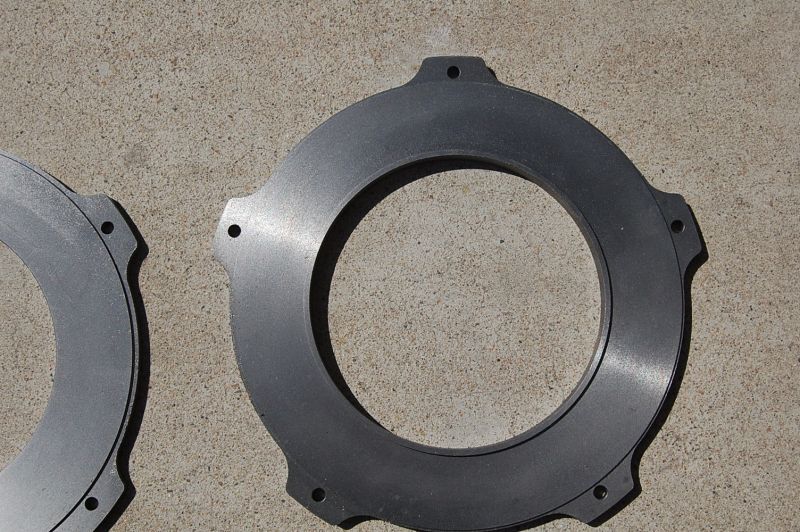

                Click image for larger version

Name:	DSC_0080.JPG
Views:	45
Size:	111.0 KB
ID:	75561

                Click image for larger version

Name:	DSC_0079.JPG
Views:	39
Size:	94.3 KB
ID:	75560

                Click image for larger version

Name:	DSC_0078.JPG
Views:	43
Size:	47.2 KB
ID:	75559

                Comment


                • #23
                  Click image for larger version

Name:	DSC_0087.JPG
Views:	40
Size:	89.5 KB
ID:	75650

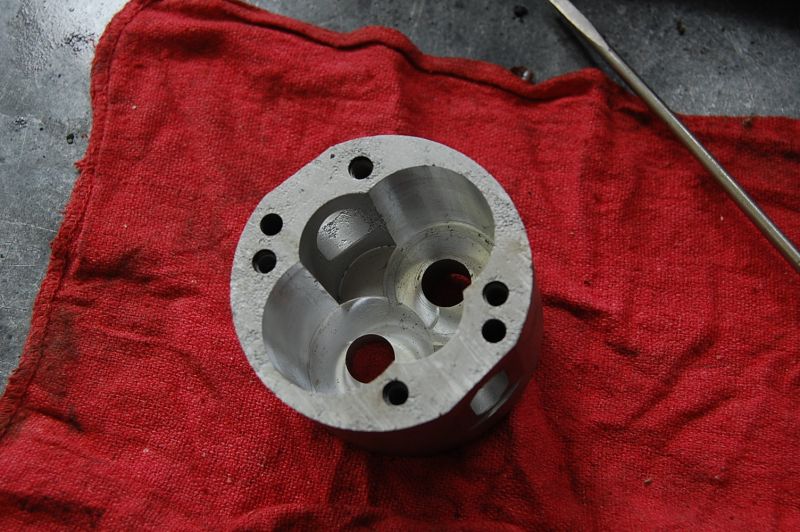

                  547 pumps can be bored out for the 692/587 dia gears they share that dia with the 912 and the 911 also. you purists can go with the smaller gears.

                  Comment


                  • #24
                    That is a nice offering Jacques! As valuable as these motors are I think I'd opted for the larger pump gears.
                    Justin Rio

                    Comment


                    • #25
                      Click image for larger version

Name:	DSC_0093.JPG
Views:	40
Size:	55.6 KB
ID:	75731

                      Click image for larger version

Name:	DSC_0092.JPG
Views:	40
Size:	46.4 KB
ID:	75730

                      Click image for larger version

Name:	DSC_0091.JPG
Views:	43
Size:	38.7 KB
ID:	75729

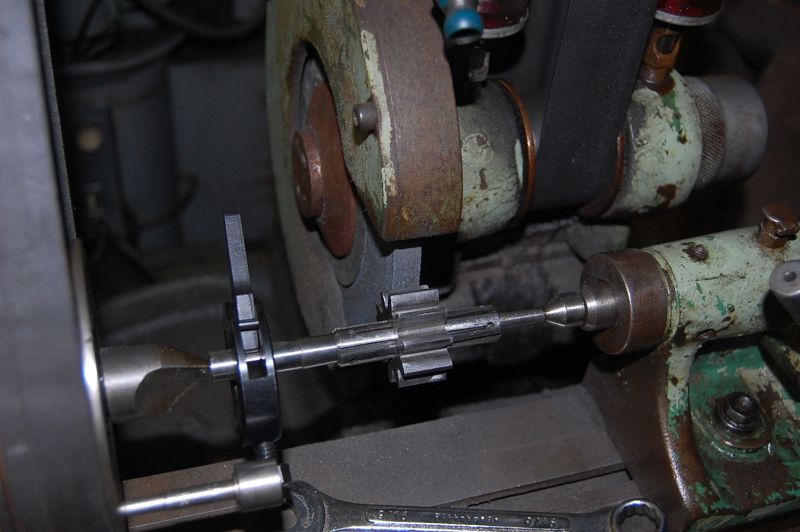

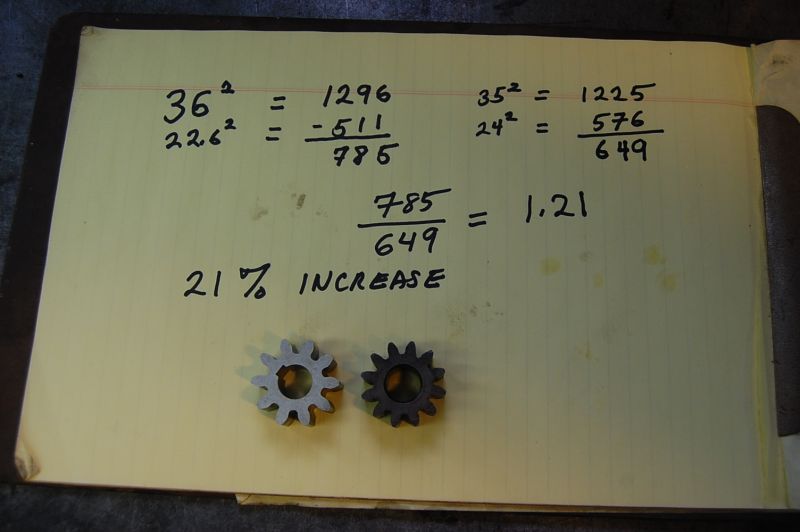

                      i had gears made as blanks 50 and 36mm long the 36 works for the 356 third piece there is a little overside on the od but not a lot to regear the 547 pump was fairly straight forward it took 3 50mm gears to make the 4 gear set. by my calculations not counting the repair of the housing we should increse the volume by 21% since the OD is bigger and the root dia is smaller.we could have also bore the pressur housing deaper but salvaging the pump was all that was needed.

                      Comment


                      • #26
                        Cool stuff Jacques, see you tomorrow

                        Comment


                        • #27
                          Click image for larger version

Name:	DSC_0139.JPG
Views:	41
Size:	69.9 KB
ID:	82135

                          Click image for larger version

Name:	DSC_0138.JPG
Views:	42
Size:	49.0 KB
ID:	82134

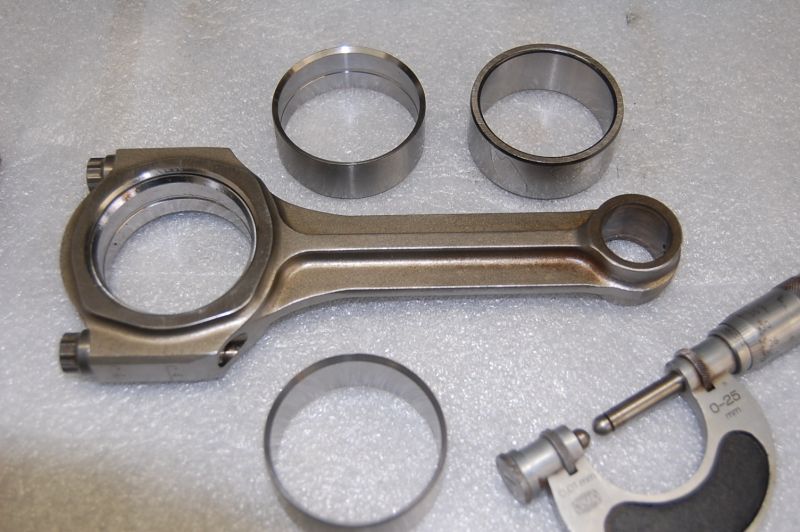

                          repairing damaged races on roller cranks should be satifactory for occasional use.

                          Comment


                          • #28
                            Jacques, Earlier you posted a shot of your new annular disc brake rotors, do you by chance have a photo of an original annular disc brake front spindle? Thanks! Justin
                            Justin Rio

                            Comment


                            • #29
                              Click image for larger version

Name:	case.jpg
Views:	46
Size:	62.6 KB
ID:	82416

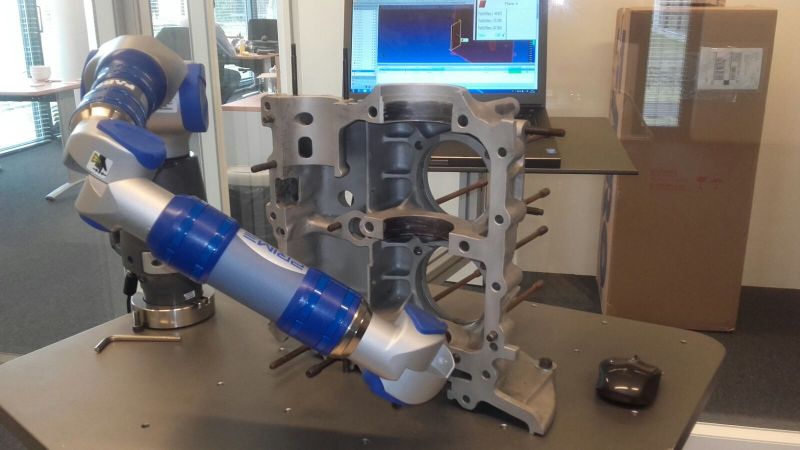

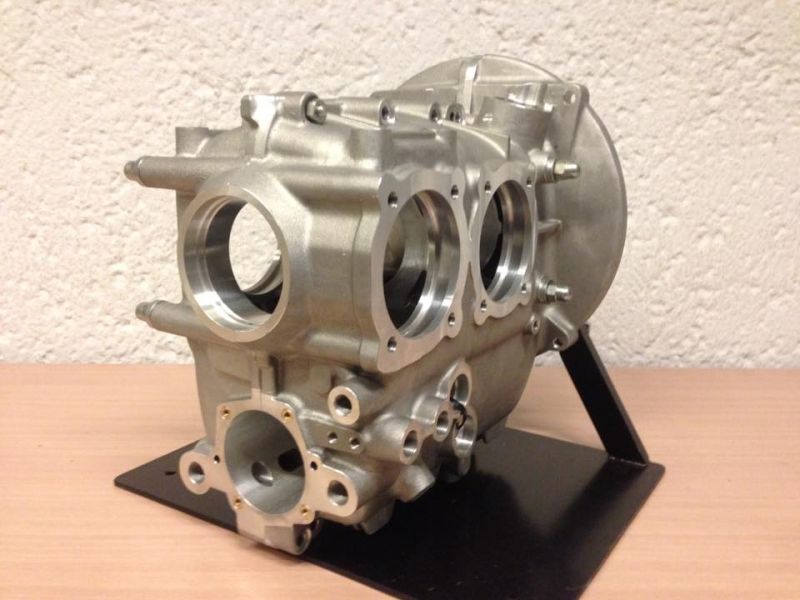

                              New 547/1 engine cases. These are made by a friend of mine. My case was used for the initial scanning and CT scan

                              Comment


                              • #30
                                WOW Joris, that is absolutely gorgeous!! Is a proper roller-bearing crank in the works as well?? Same outfit developing your heads??
                                Thanks for posting!
                                Justin
                                Justin Rio

                                Comment
