  • Tacking the rest of the skin up the sides of trough.
    Click image for larger version  Name:	IMG_1387.jpg Views:	0 Size:	207.1 KB ID:	114775 Went up the left side first by carefully shaping a filler strip to bridge the gap where the trough edge needs to be and where it once was at the skins edge. All tacked in with my 3MM+ gap and leveled off from the hood's edge. Of course this will change slightly as the welding continues so I'm only committing to tack welds for a while.
    Click image for larger version  Name:	IMG_1388.jpg Views:	0 Size:	204.2 KB ID:	114776 Then onto the left side; and again this damn lower corner still wants to sit low and not carry the line off the edge of the hood. I think this problem is a combination of some slight residual damage on the hood and maybe some tightness with the new skins profile. Either way most the give has to come from the skin side as the substructure will begin asserting itself if I try heeling the edge over more than a mm or two.
    Click image for larger version  Name:	IMG_1389.jpg Views:	3 Size:	183.4 KB ID:	114777 Before any tack welding along this side the skin had to be raised to the needed level with the hoods edge. Began adding paint sticks in behind it to get the needed height.
    Click image for larger version  Name:	IMG_1390.jpg Views:	3 Size:	197.7 KB ID:	114778 This compensation height now made the vertical lip too short along this troubling run so an extension strip was added.
    Click image for larger version  Name:	IMG_1391.jpg Views:	3 Size:	210.5 KB ID:	114779 Extension strip shaved down to needed height against the edge of the hood and then the right side was tacked locking in that shape. Not perfect but its all well within striking distance.
    Last edited by JTR70; 02-13-2024, 07:42 AM.
    Justin Rio

    Comment

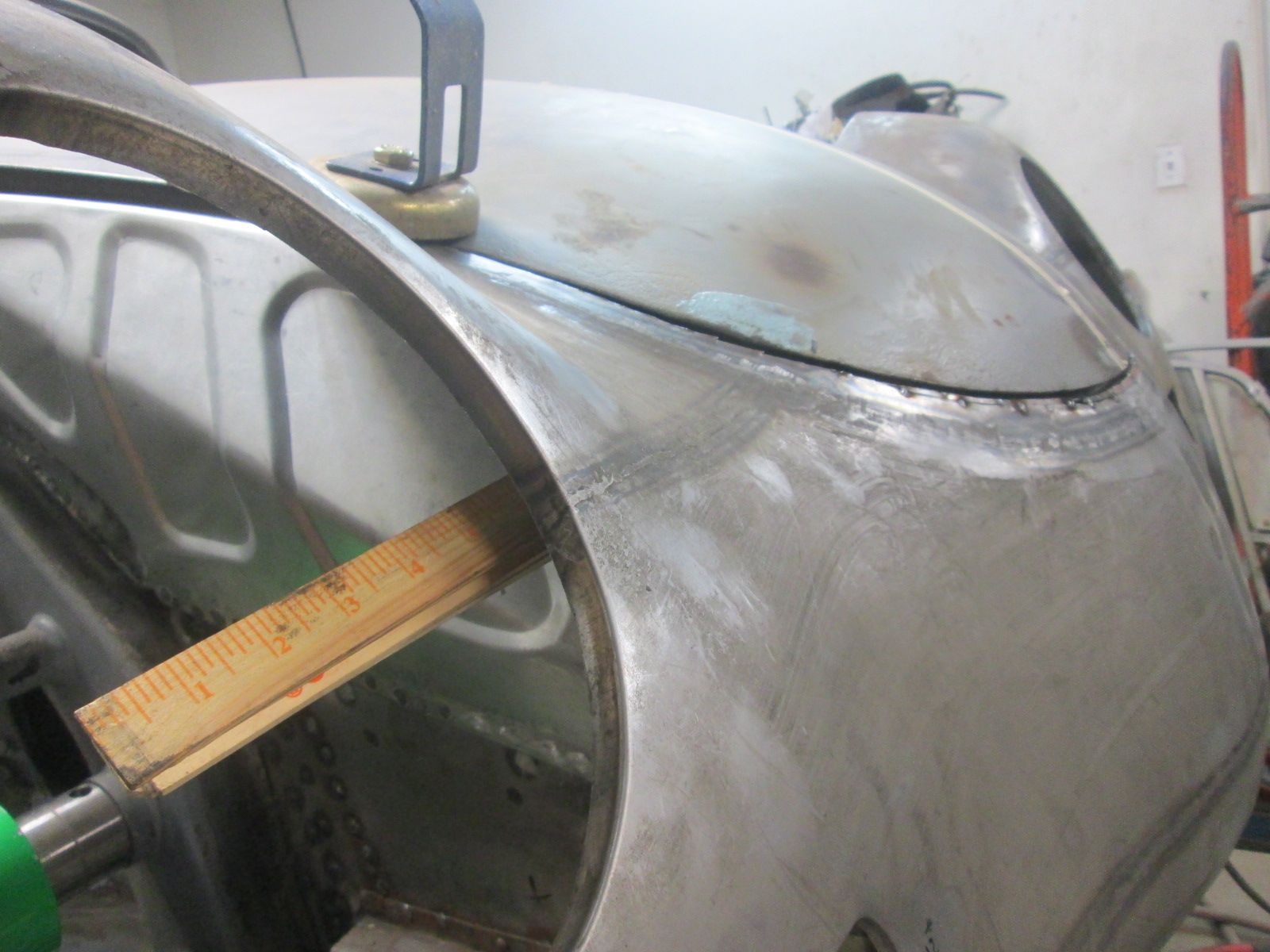

    • Click image for larger version

Name:	IMG_1394.jpg
Views:	574
Size:	191.5 KB
ID:	114781 Can't tell you what a relief that it was to finally see this corner falling into line with all the trouble I've had with it since fitment began.
      Click image for larger version

Name:	IMG_1393.jpg
Views:	548
Size:	202.4 KB
ID:	114782 Basic gap and body profile off the edge of the hood established. Gone as far as I want to go up here for the moment.
      Click image for larger version

Name:	IMG_1395.jpg
Views:	546
Size:	207.7 KB
ID:	114783 Now that the nose is centered with the chassis and gapped to the hood I can begin tying it in further with confidence.

      Fender braces and headlight buckets up next.
      Thanks for looking!

      Justin
      Justin Rio

      Comment


      • Well done Justin

        Roy

        Comment


        • JTR70
          JTR70 commented
          Editing a comment
          Thank you Sir!

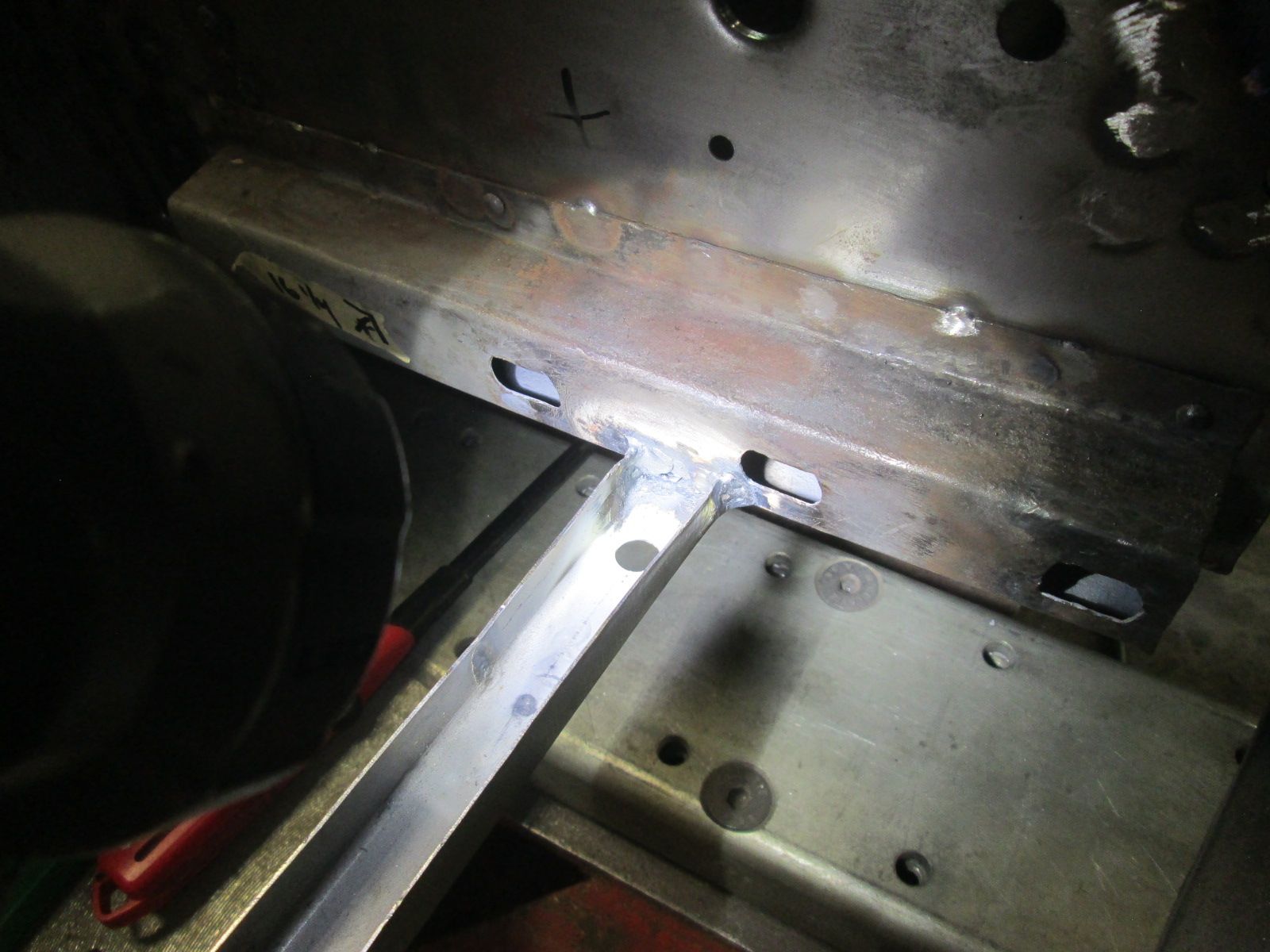

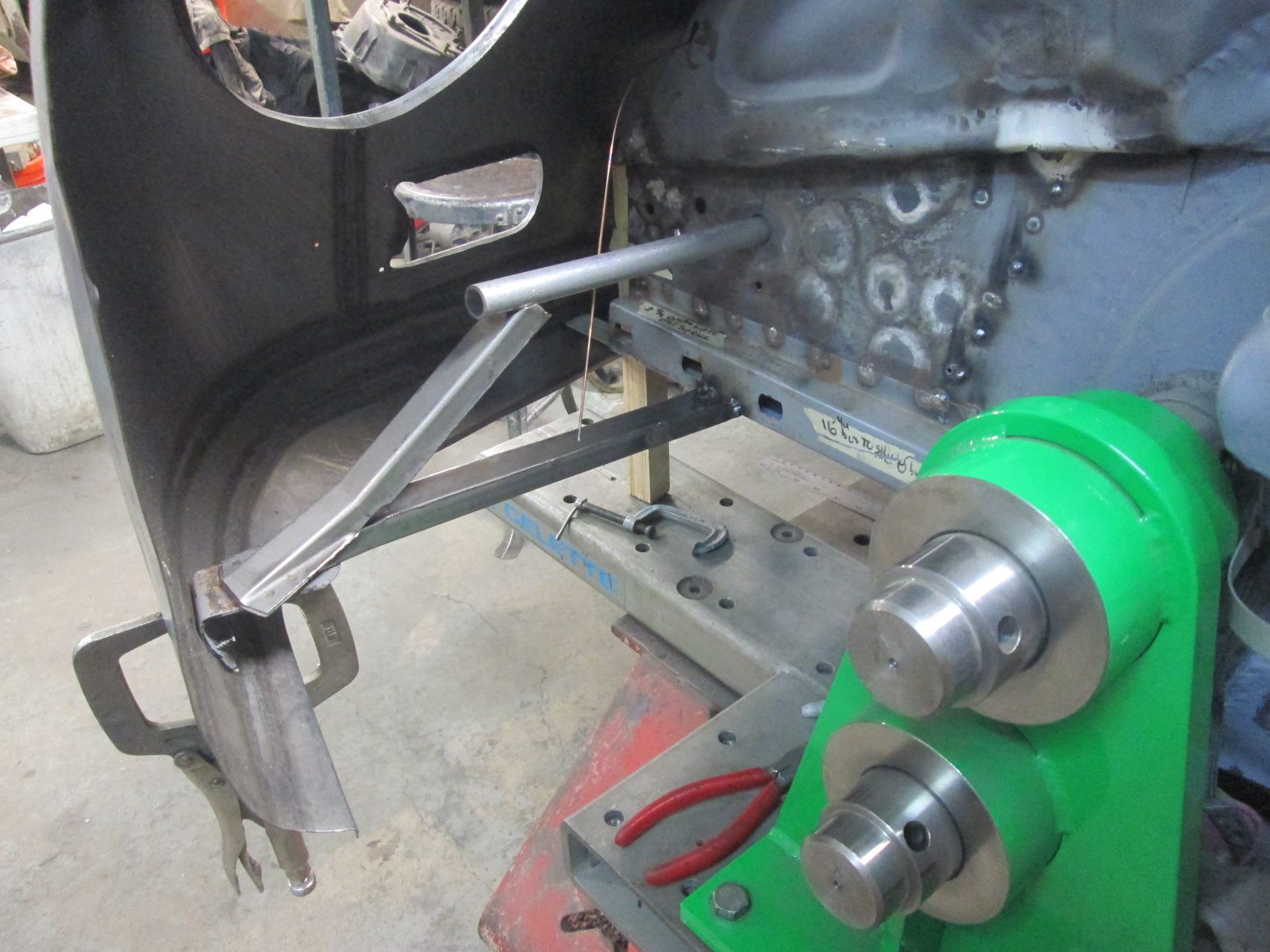

      • Adding in the fender braces:

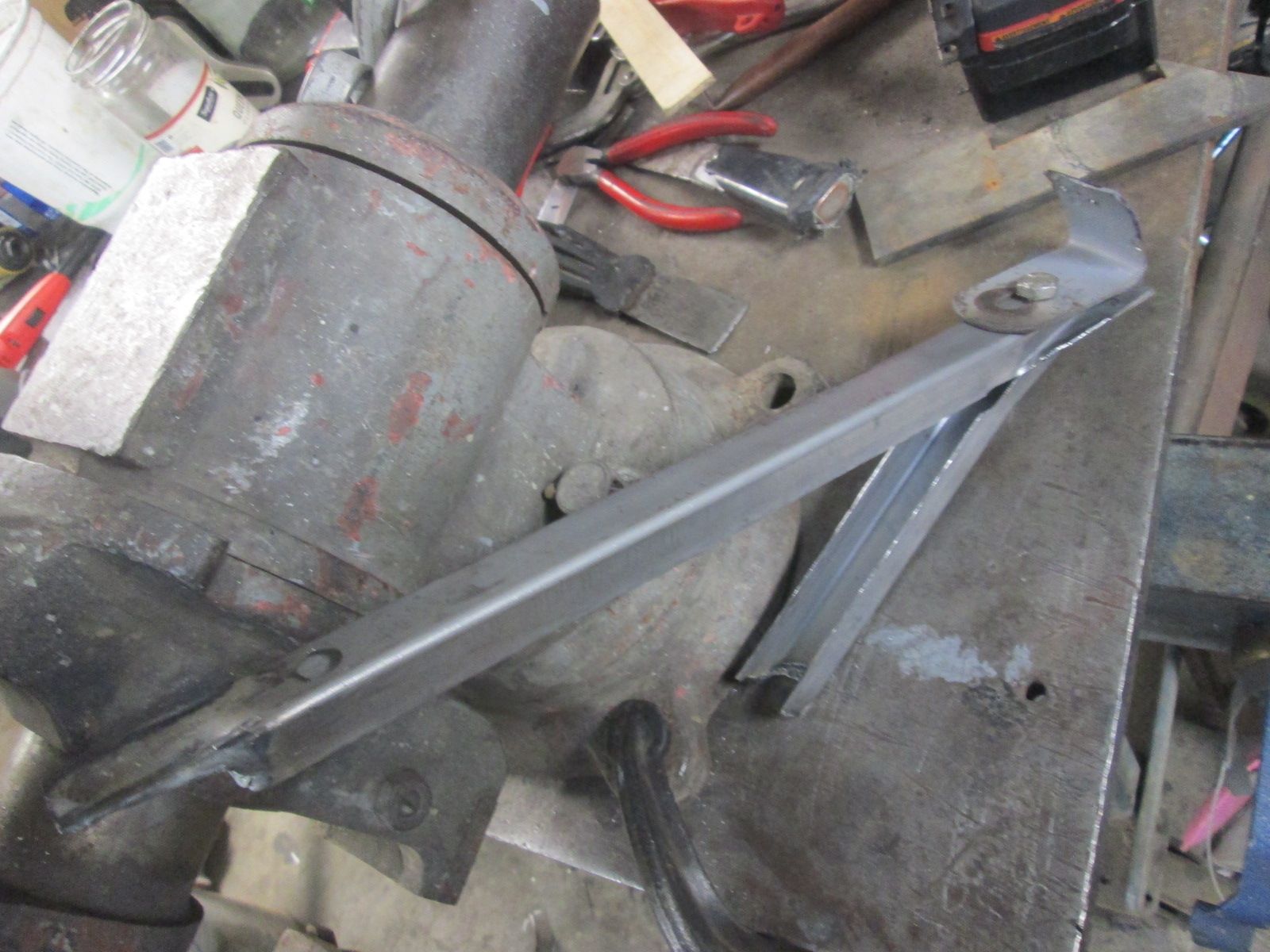

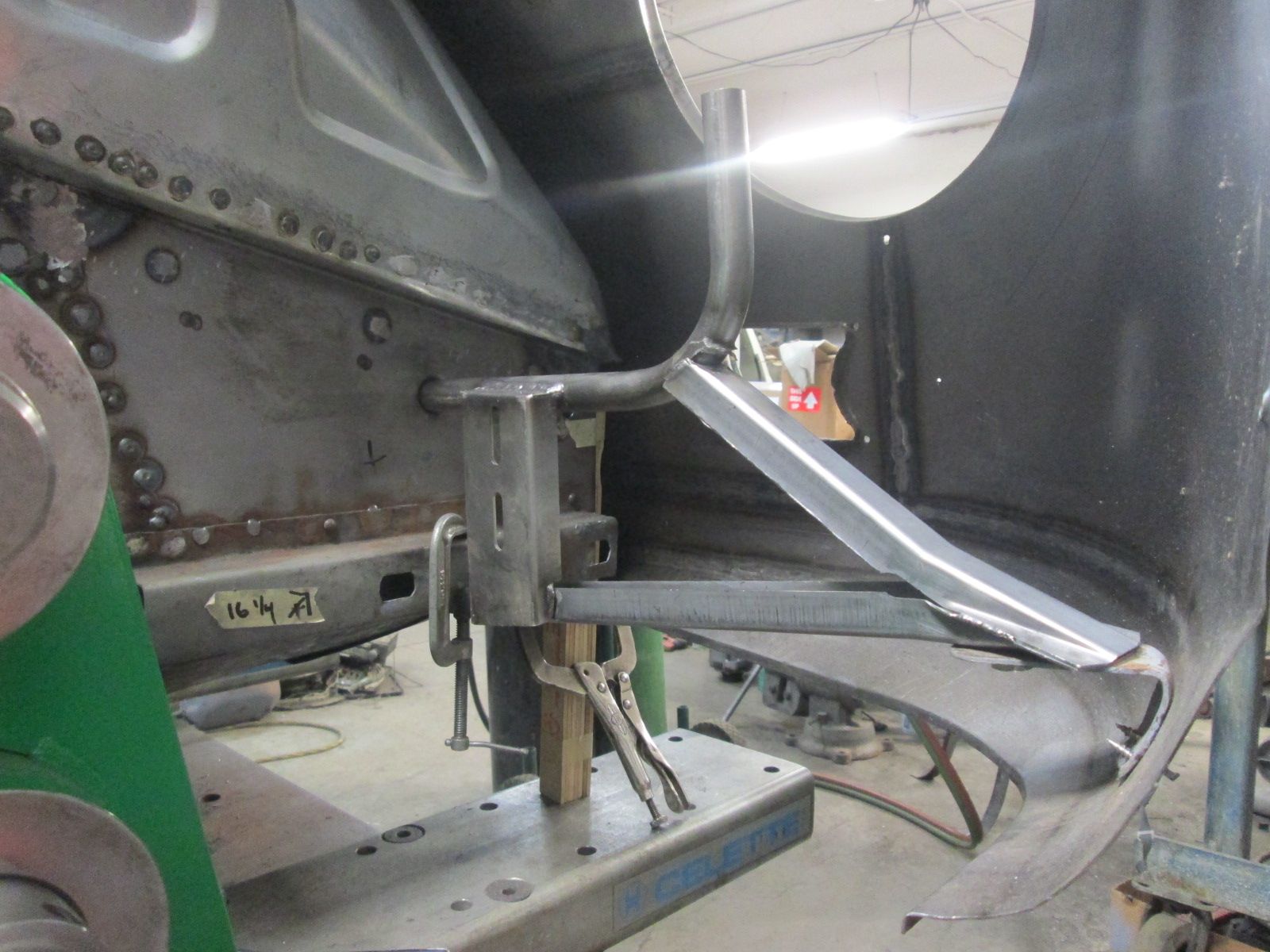

        Click image for larger version  Name:	IMG_1396.jpg Views:	0 Size:	215.8 KB ID:	114789 Approximate distance from the battery box wall to the edge of the fender on my undamaged original reference car is 16 3/4 inches. This nose in its relaxed state is just shy of 18 inches.

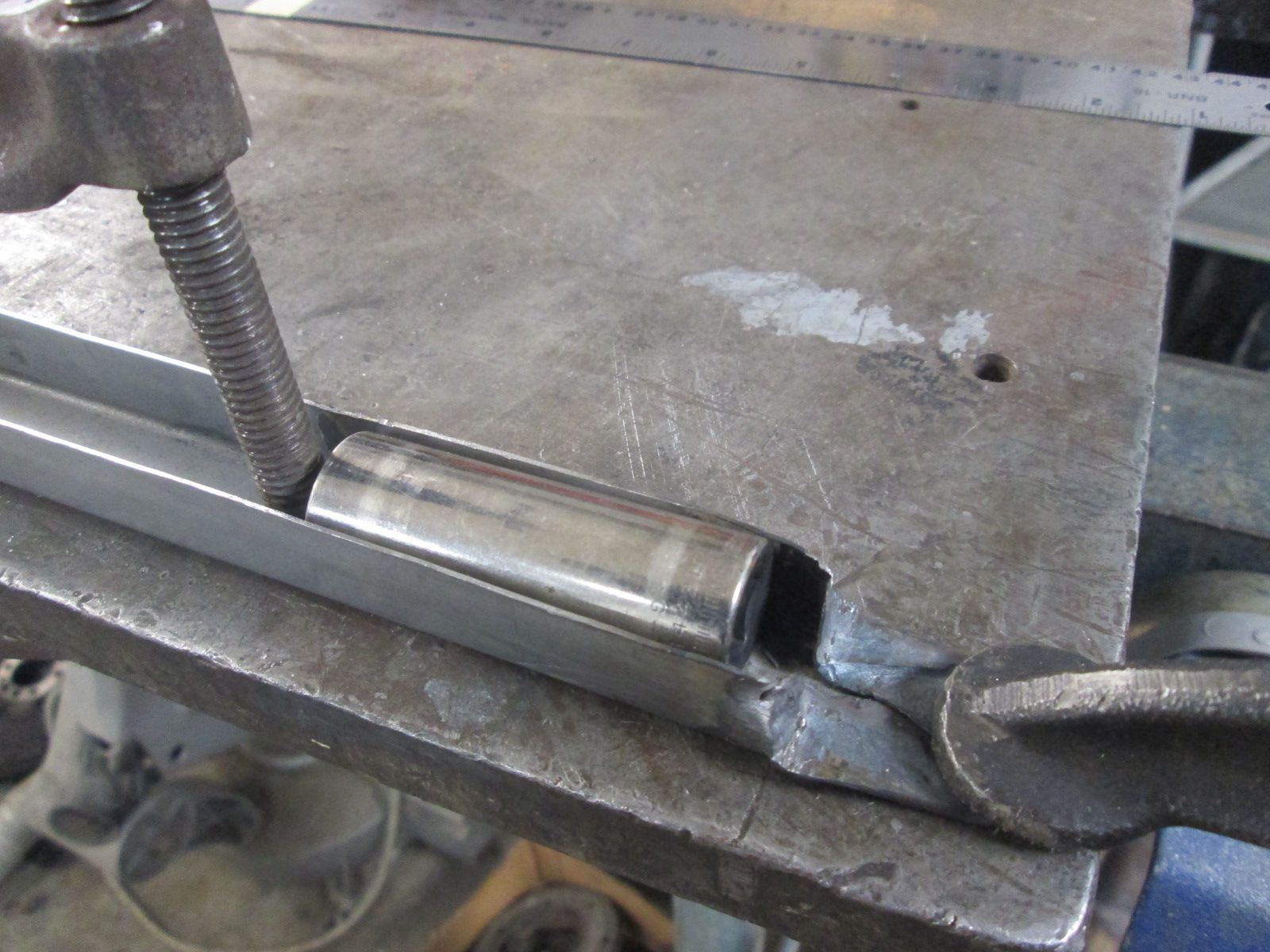

        Click image for larger version  Name:	IMG_1397.jpg Views:	0 Size:	225.4 KB ID:	114790 I would normally like to set that outer bolt in the center position but with the preliminary measurement I'm getting the edges of this nose must do nothing but come inward.
        Click image for larger version  Name:	IMG_1398.jpg Views:	0 Size:	228.9 KB ID:	114791 So I'm going to shorten this brace a little more so the bolt starts the tangs inner edge giving me full adjustment to push the bodywork inwards. Chalked up my table here and ready hammer a little more of the shoulder down flat allowing the brace to mount inward a little more.
        Click image for larger version  Name:	IMG_1399.jpg Views:	0 Size:	225.7 KB ID:	114792 First mock with the reshortened brace now locating the bolt at the inner edge of the slot giving me full range to come inward. Brace sitting square upper conduit slipping in nicely so far.
        Click image for larger version  Name:	IMG_1430.jpg Views:	0 Size:	182.7 KB ID:	114793 Brace attached to the bumper mount. Gas welded along the sides as originally. Every undisturbed original I've removed were also welded and attached internally. With the conduit out of my I was able to get in there and catch the folded shoulders and attach them to the mount as the factory did. Moving onto the left side.

        Thanks for looking!

        Justin
        Last edited by JTR70; 02-18-2024, 06:00 AM.
        Justin Rio

        Comment


        • Every job you do on this car needs thought before you weld !! Just as well you do that Justin.

          Roy

          Comment


          • JTR70
            JTR70 commented
            Editing a comment
            I have to Roy, I've been punished too many times in the past. LOL...

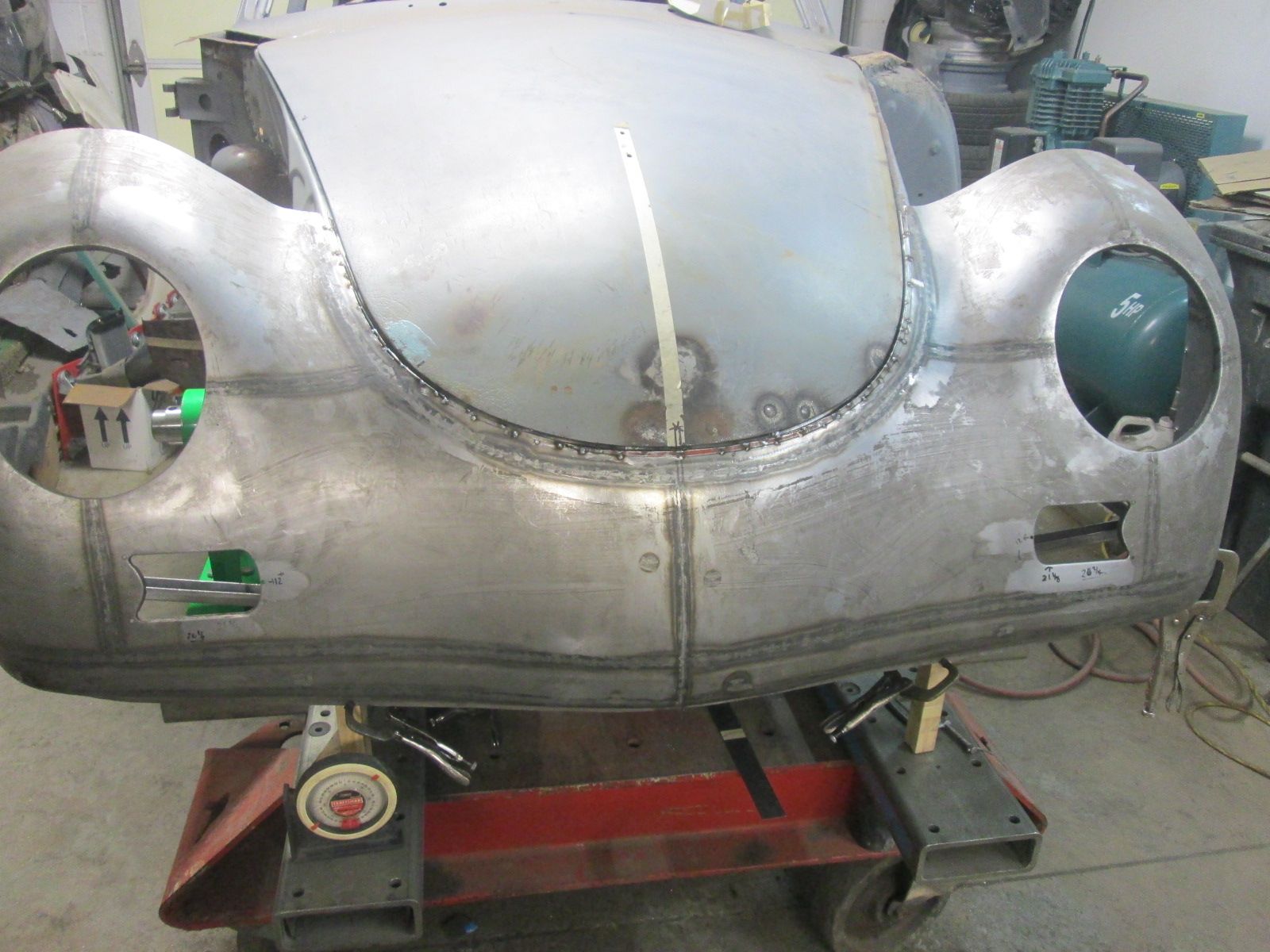

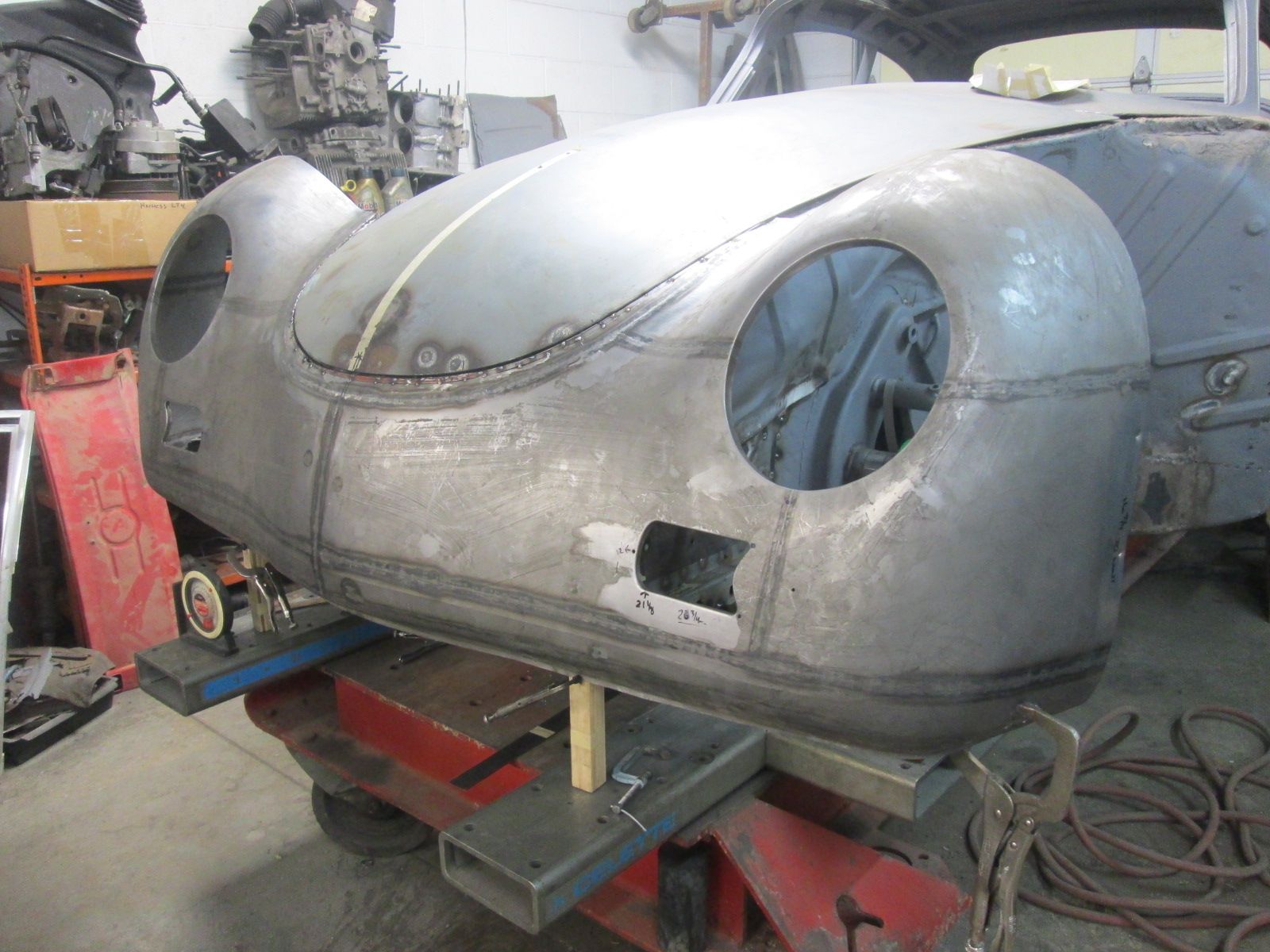

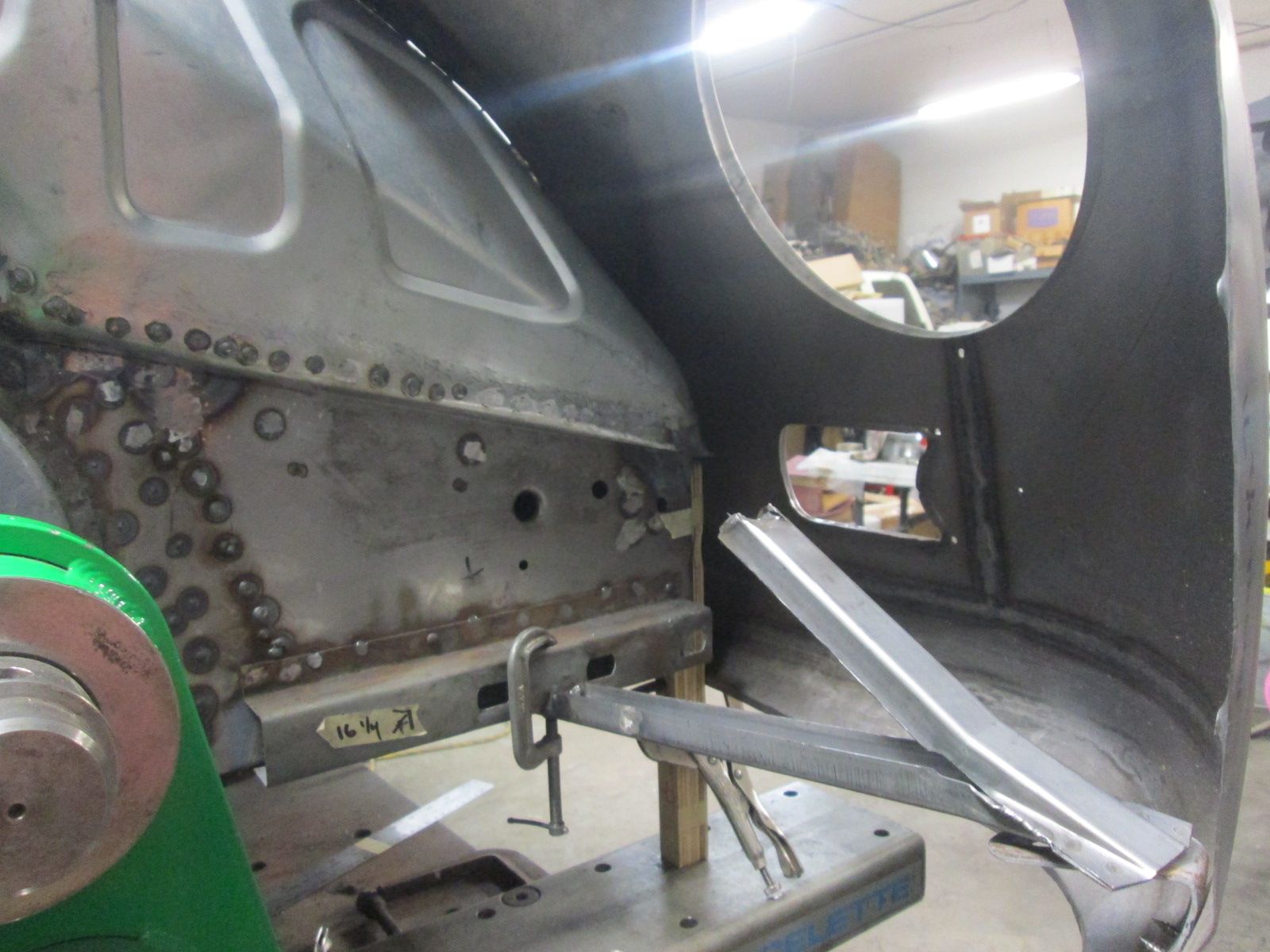

        • Left lower brace in further solidifying the new nose into its final position.

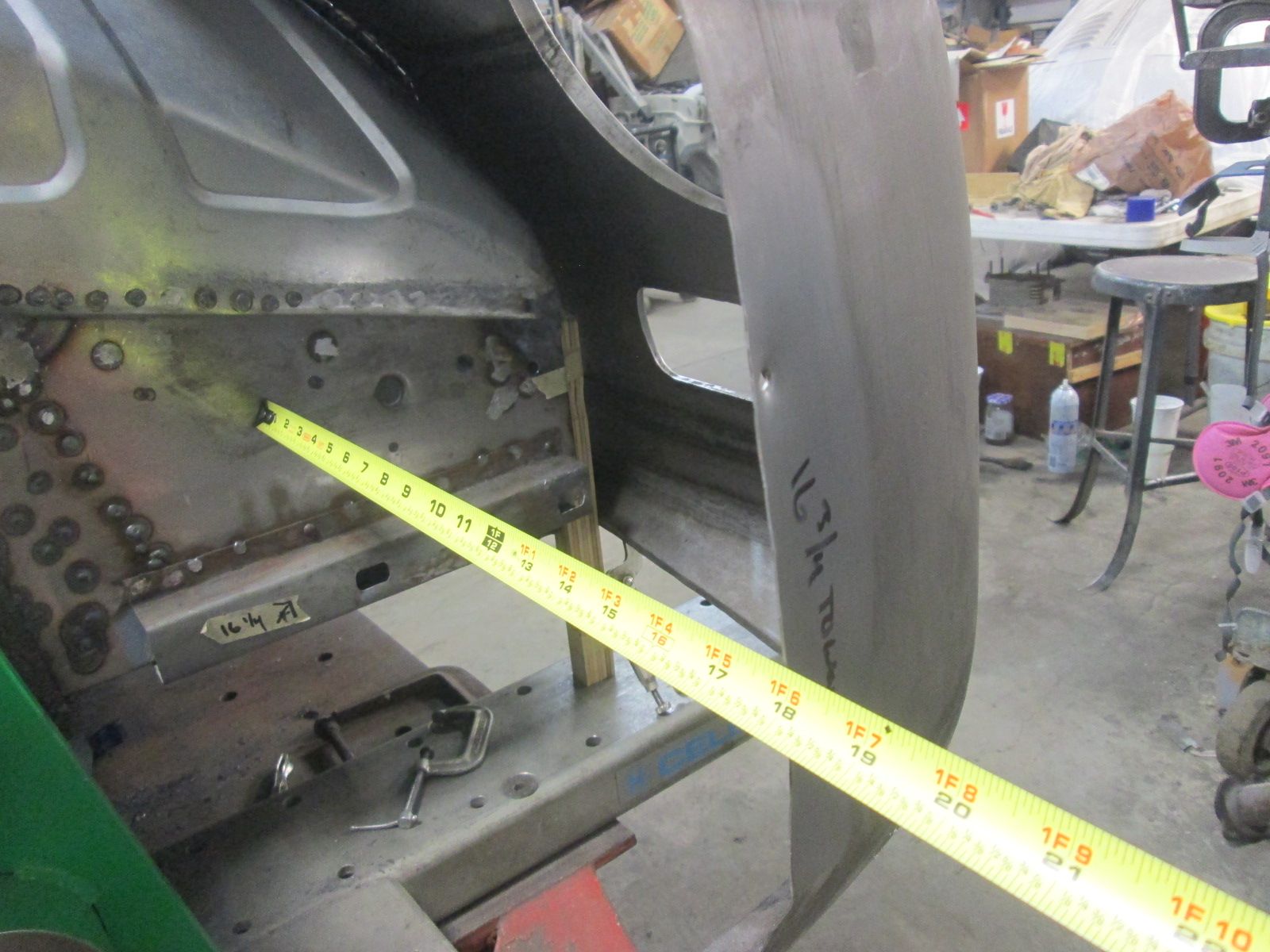

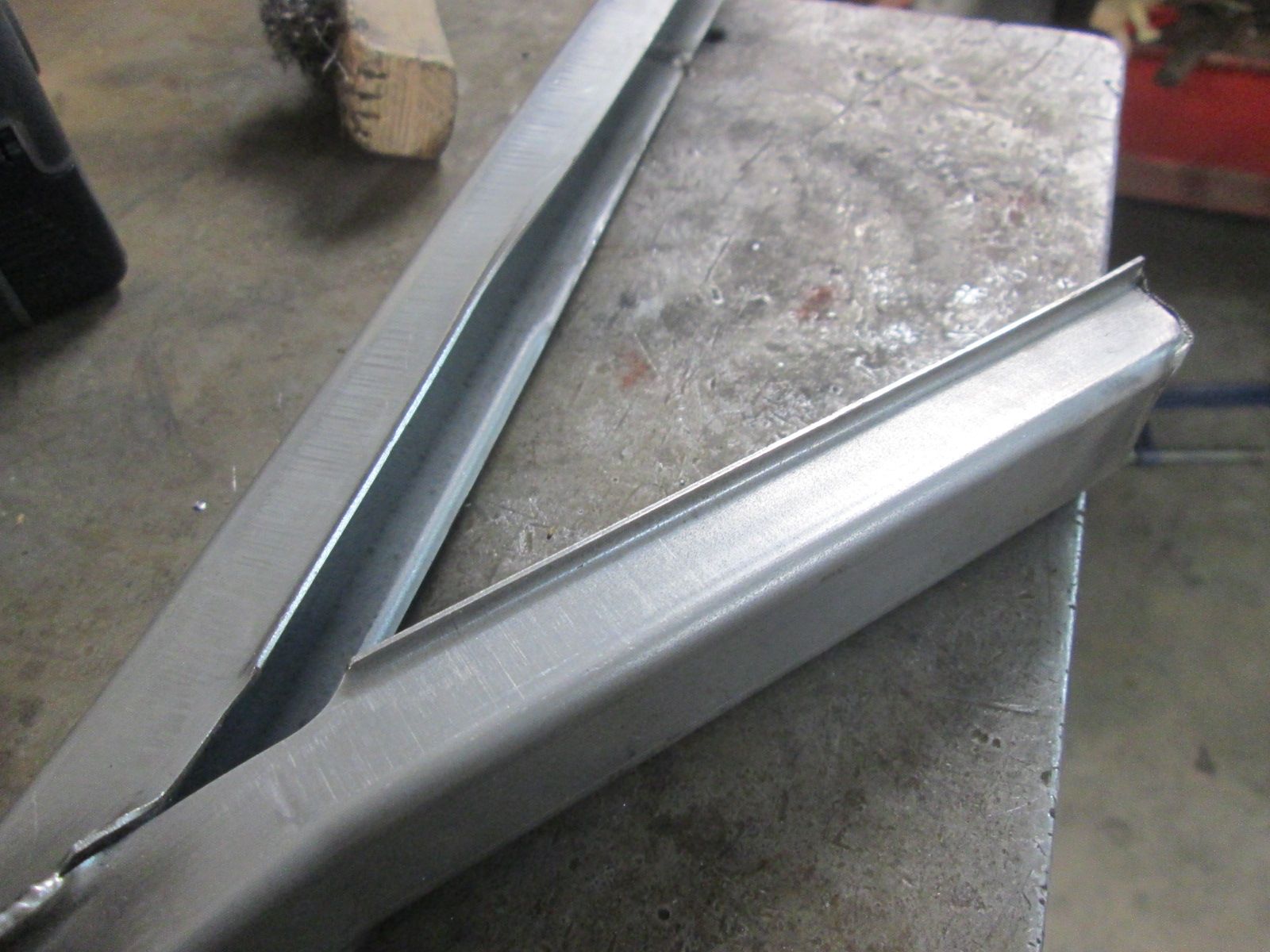

          Click image for larger version  Name:	IMG_1432.jpg Views:	0 Size:	215.5 KB ID:	114801 Before it went on for good I had to hammer flat those incorrect rolled edges.
          Click image for larger version  Name:	IMG_1433.jpg Views:	0 Size:	231.2 KB ID:	114802 After a bit of checking and rechecking for square and even then the end of it was welded to the bracket mount. Had it at the needed length on the last try so no further adjustments there. I did move the fender tab upward a touch so the approach angle matched the other side.
          Click image for larger version  Name:	IMG_1434.jpg Views:	0 Size:	218.7 KB ID:	114803 Wanted the brace runs to appear symmetrical through the windows of the horn grill openings. Not a big deal but it was just bugging me until I made that quick simple adjustment.
          Click image for larger version  Name:	IMG_1435.jpg Views:	0 Size:	232.4 KB ID:	114804 It took some doing but this nose is now squared and evenly mounted with the chassis; spaced and angled to match my reference car and finally gaped and matched to the edge of this hood. A lot of ducks to get in a row for sure.
          Click image for larger version  Name:	IMG_1438.jpg Views:	0 Size:	239.3 KB ID:	114805 Now onto stitching it back up with the trough starting with the leading edge first.

          Thanks for looking.

          Justin
          Last edited by JTR70; 02-21-2024, 08:16 AM.
          Justin Rio

          Comment


          • You must be so pleased with that effort Justin. You deserve that excellent result. I never ever thought , it would involve so much work to correct it all to your exacting standard. Mind you, without the Cellette jig and a known 356 in good condition to refer back to so many factory measurements ,it could have been so much more difficult for you. I hope many have followed this thread to become fully aware, of just how complicated a repair can be on a damaged 356 front end !

            Roy

            Comment


            • JTR70
              JTR70 commented
              Editing a comment
              Thanks Roy! There is a lot all going on at once and you have to cover all the bases otherwise you'll have to back track to take care of the detail you missed...ask me how I know. I'm shooting for minimal amounts of required filler lead or plastic so a little more effort is needed to get it there. The next challenge will be adding in the fenders and getting them to flow smoothly in with this new nose. Something new to look forward to.. Thanks again! Justin

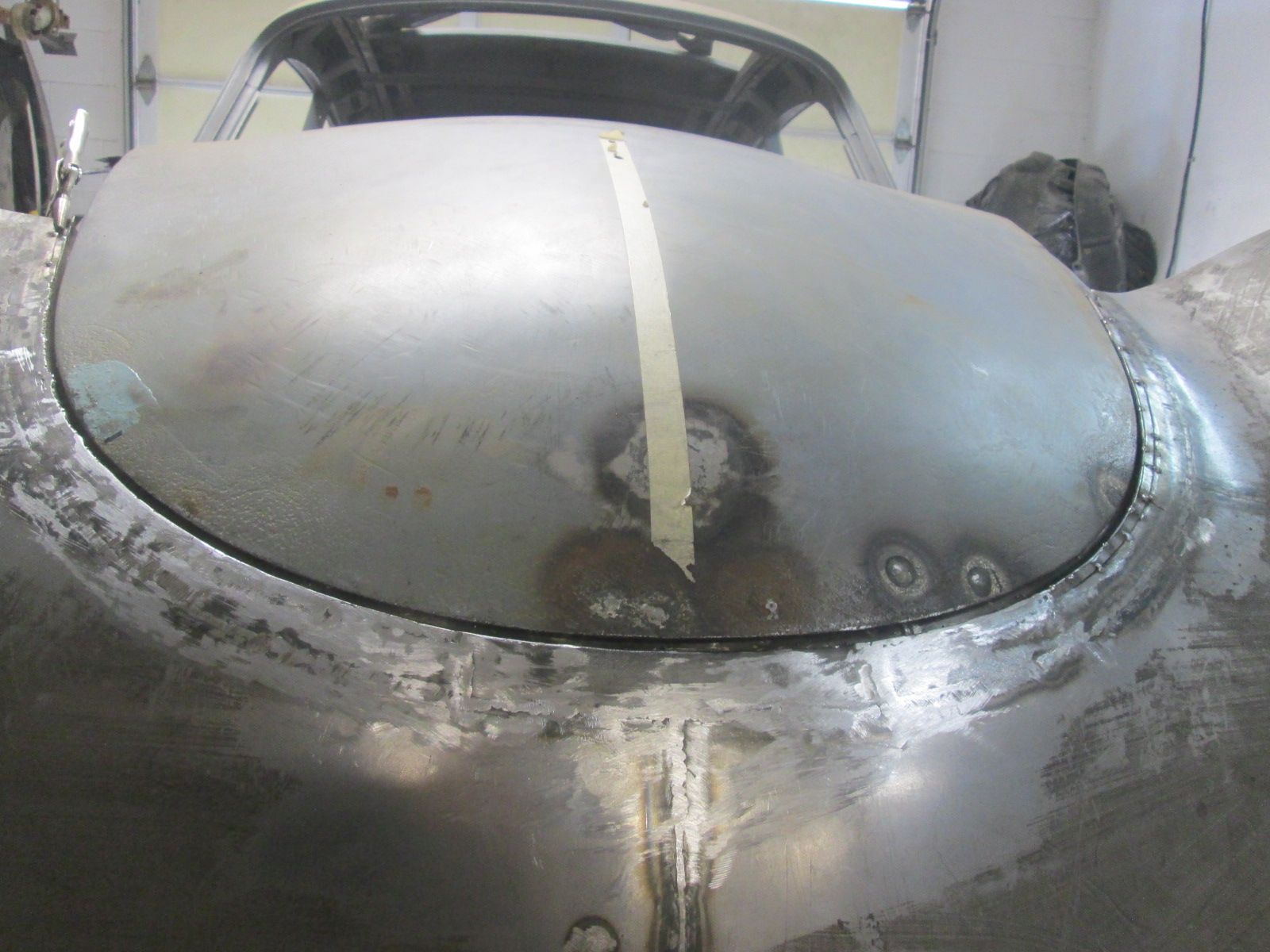

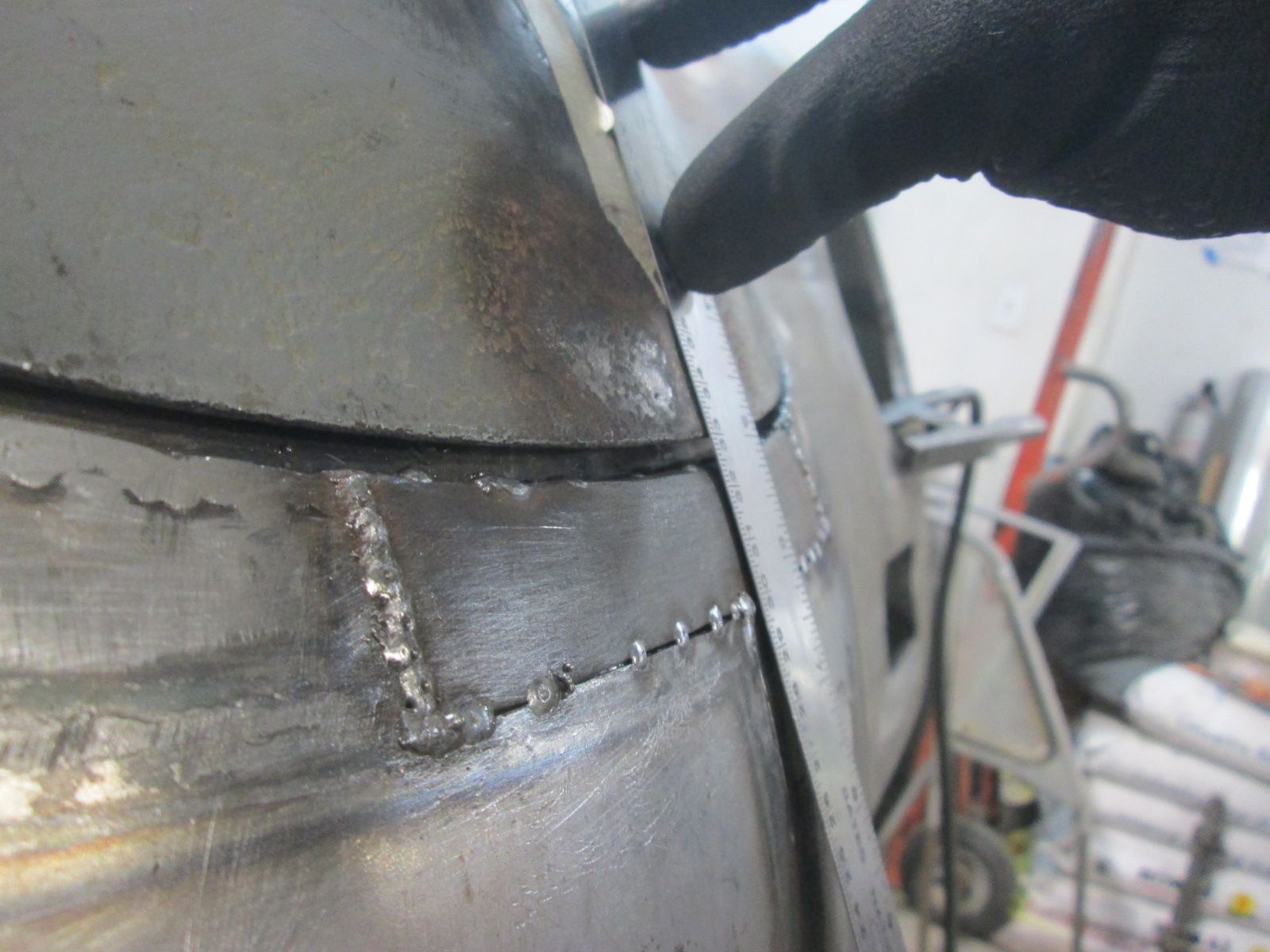

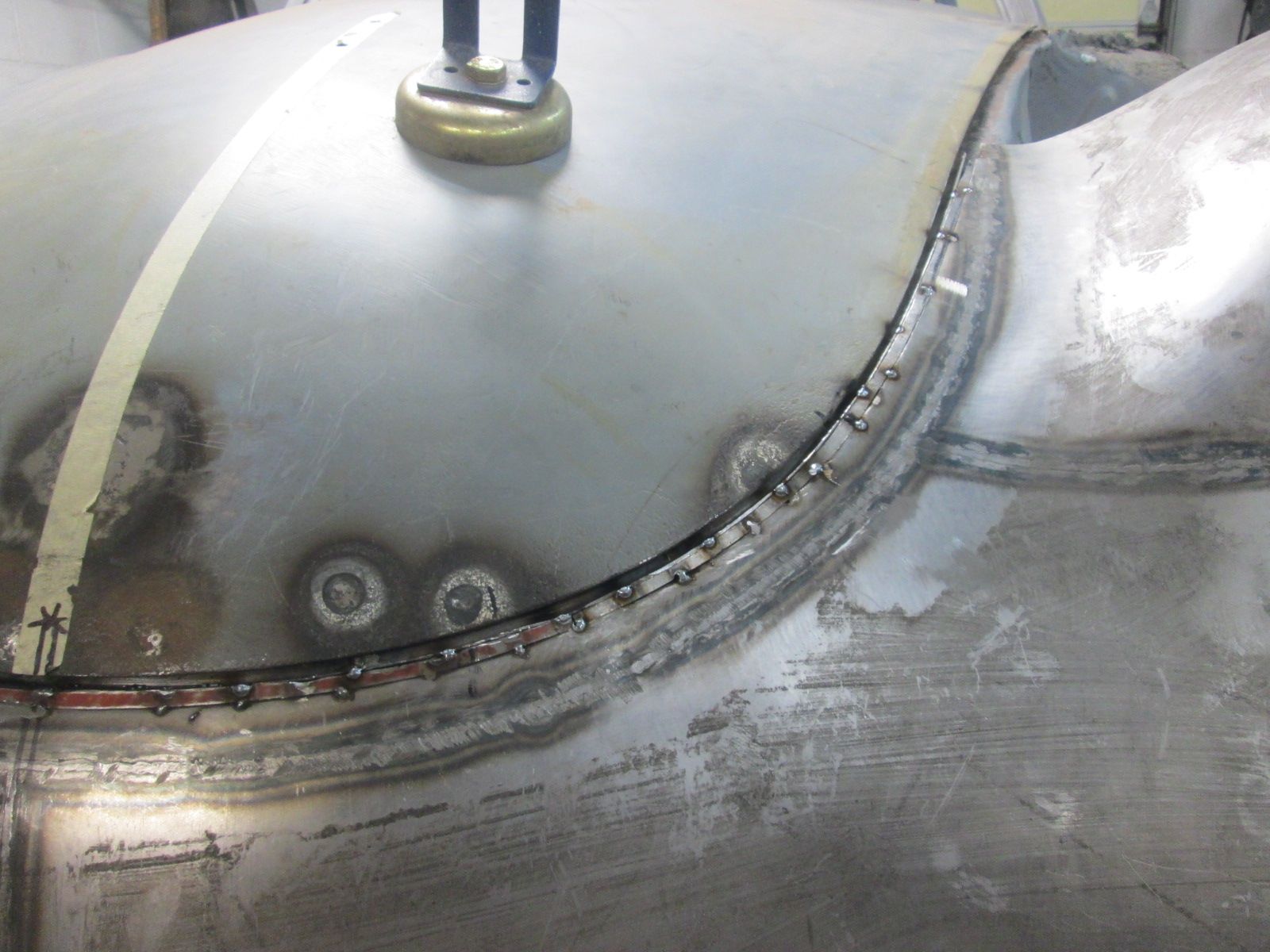

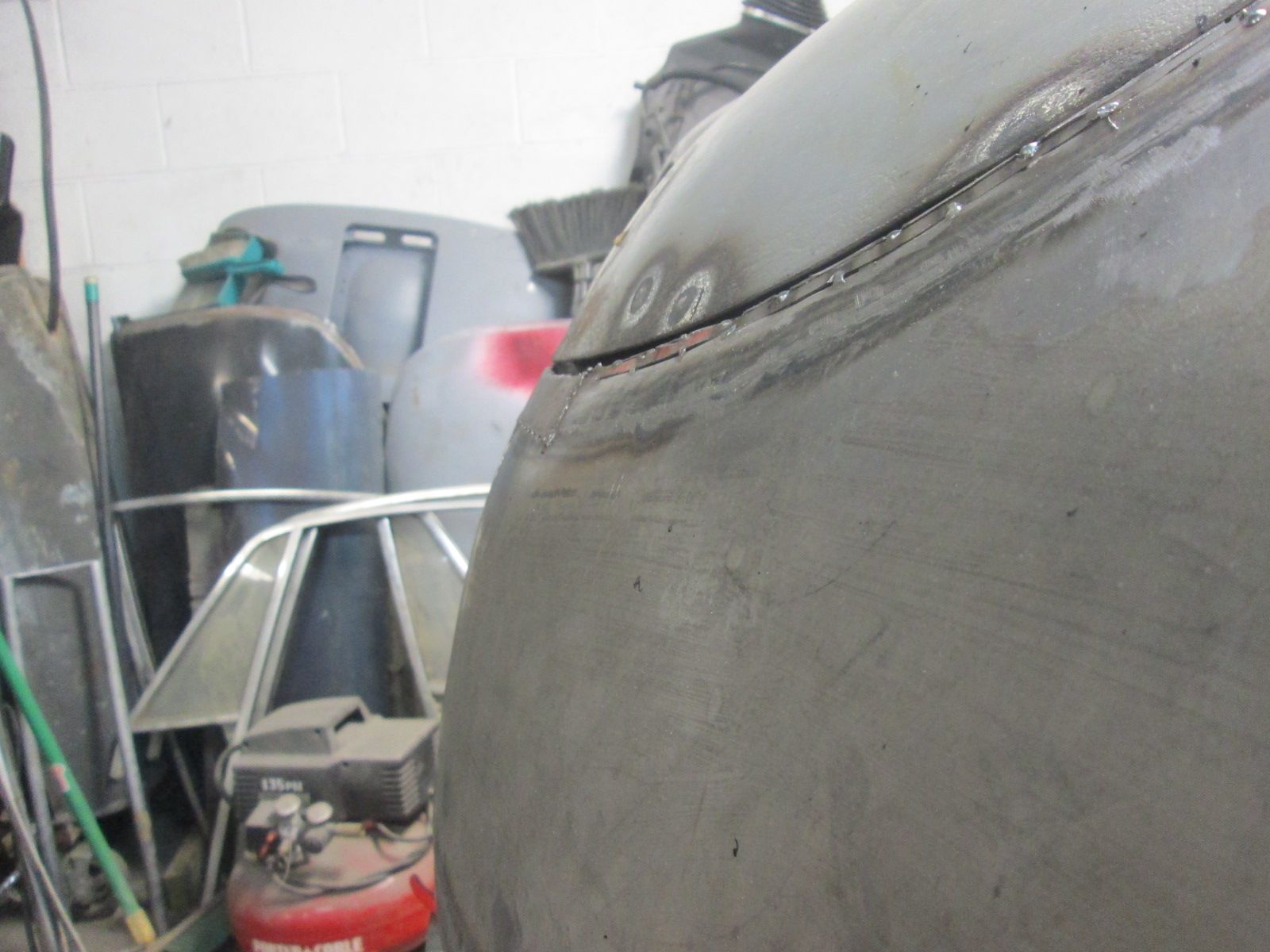

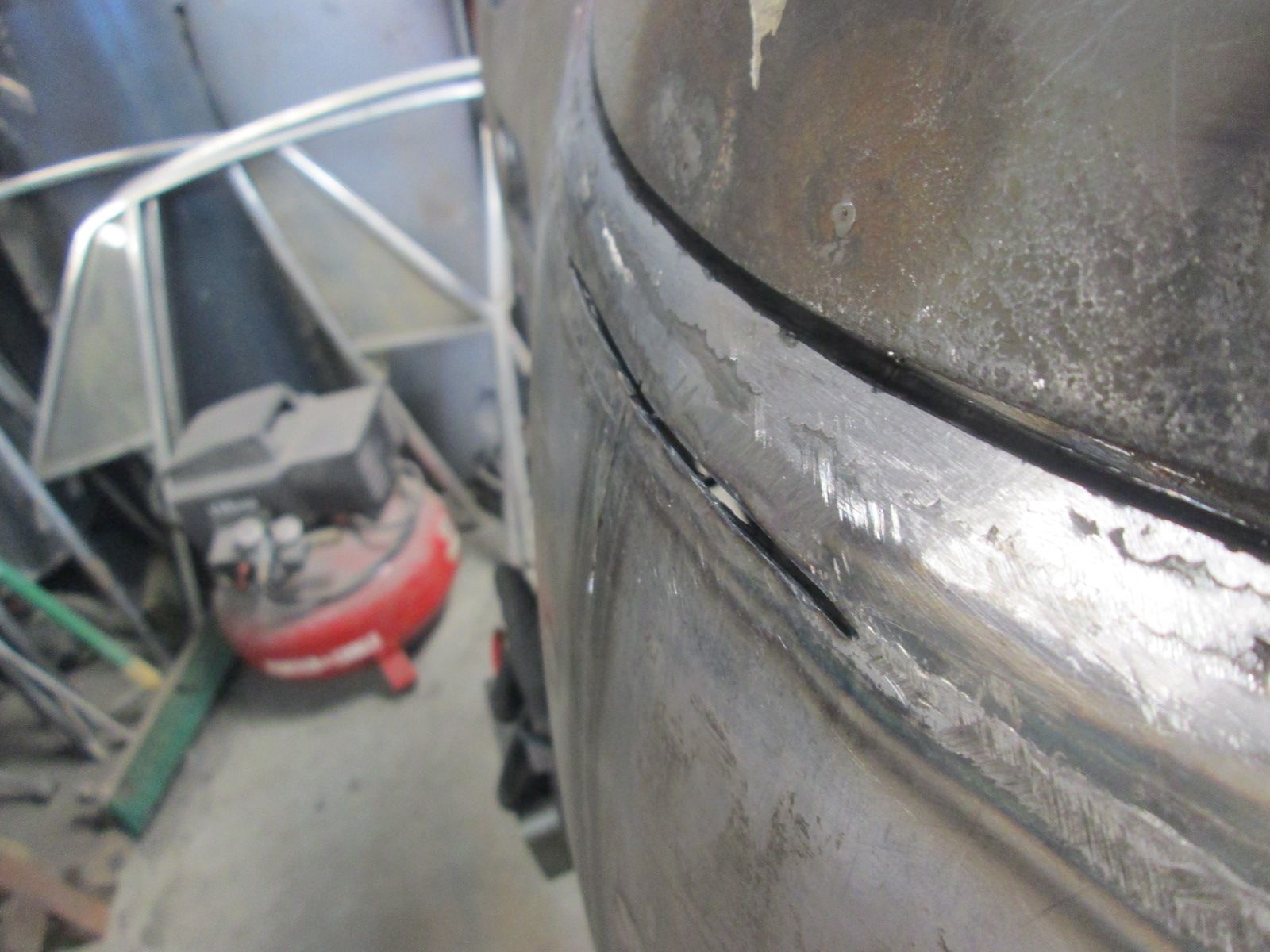

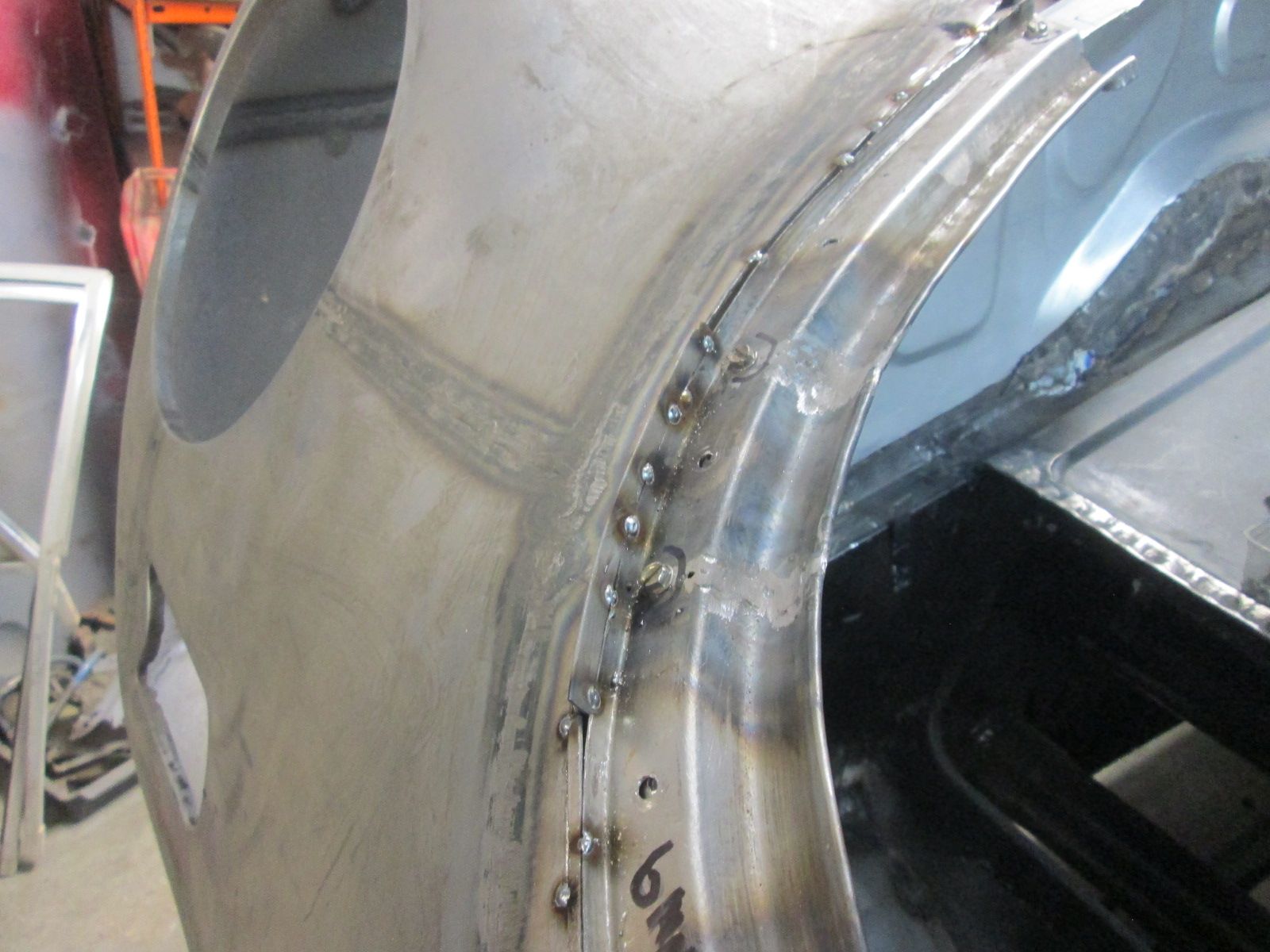

          • Begin stitching the trough and then a needed profile correction.
            Click image for larger version

Name:	IMG_1441.jpg
Views:	283
Size:	216.1 KB
ID:	114811 Began stitching the trough back on working from the center outward.
            Click image for larger version

Name:	IMG_1442.jpg
Views:	257
Size:	230.8 KB
ID:	114812 Had a good basic gap started but as I looked at it the center was just too blunt and flat.
            Click image for larger version

Name:	IMG_1444.jpg
Views:	237
Size:	200.4 KB
ID:	114813 Suspecting that the original hood though very nicely repaired all those years ago might still be a touch too curled over at the leading edge from the collision. I mounted my pristine hood and it confirmed what I was seeing. The hood is supposed to hang out just a touch more.
            Click image for larger version

Name:	IMG_1445.jpg
Views:	231
Size:	203.2 KB
ID:	114814 The rule is you've got to build around the closing panel but if its out so too will be the adjacent panel. These two wrongs where not going to come out right. I began pounding the edge of the hood out and in turn had to reprofile this center section. Its too much to recut, stretch and reweld what was just seamed welded up so a fresh piece was needed.
            Click image for larger version

Name:	IMG_1446.jpg
Views:	208
Size:	206.5 KB
ID:	114815 Profile shaping a fresh piece from some old original metal.

            Thanks for looking.

            Justin



            Justin Rio

            Comment


            • Justin I can see it looks better even without any work yet, the fresh piece of steel will work . Yes two wrongs do not make a right. You have found out the hard way. Its true also, photo's can disguise a lot and you have to see it in front of you ,to be sure if the action to take. You cannot always see as a bystander like me, the problems you have been faced with. I just saw the lid that was miles out from the nose suddenly coming into spec with all that work. What I did not notice were points you raised about the flatness aspect which proves you have to be in front of it, or a perfect example you can copy to see the error's you make.

              Keep at it and keep smiling !

              Roy

              Comment


              • JTR70
                JTR70 commented
                Editing a comment
                Hi Roy, Its getting there. Sometimes I don't see it all even being right in front of it but eventually the flaws come into focus at least i hope that it does and that I catch them before its too late. Thanks again!
                Justin

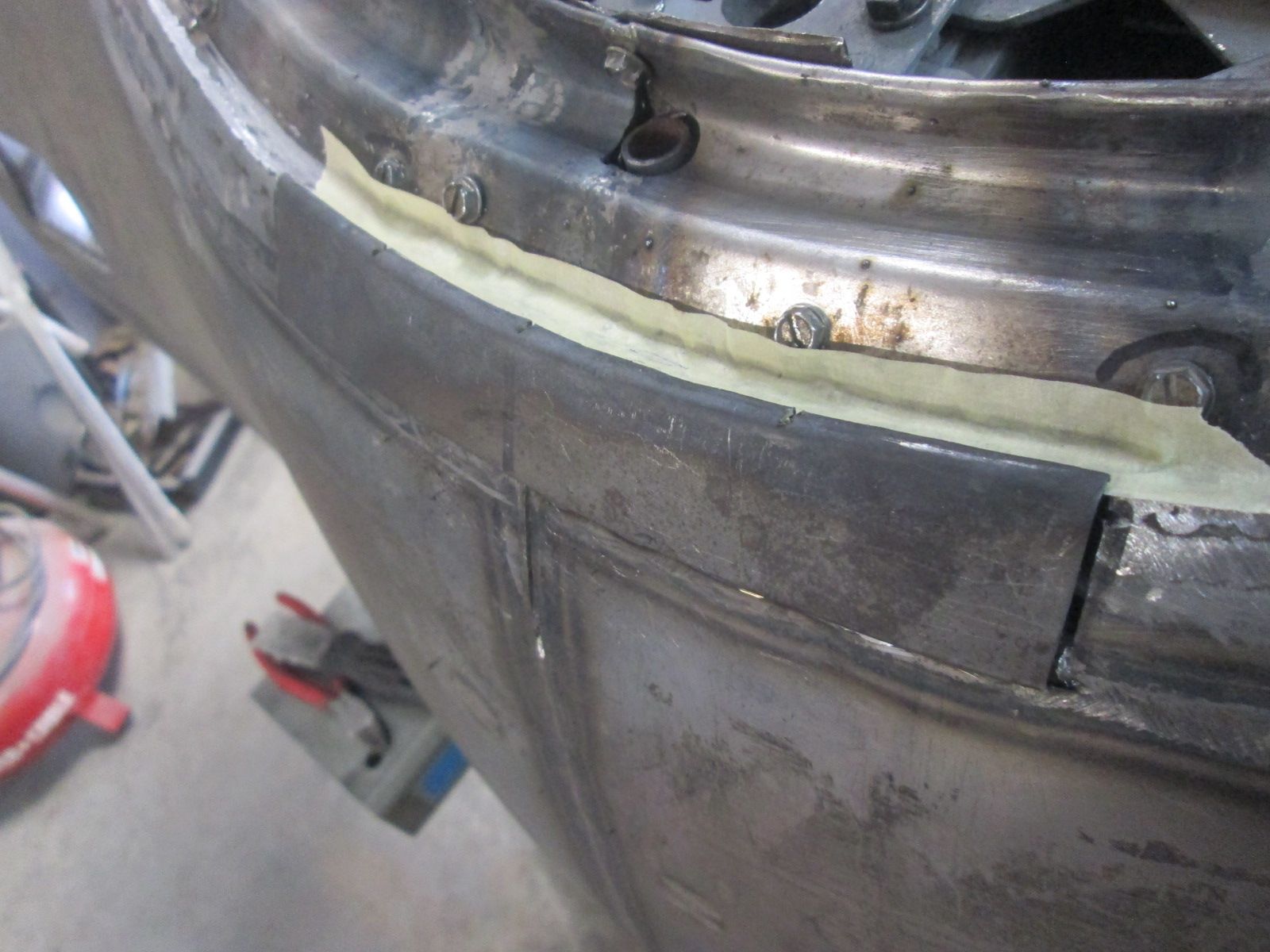

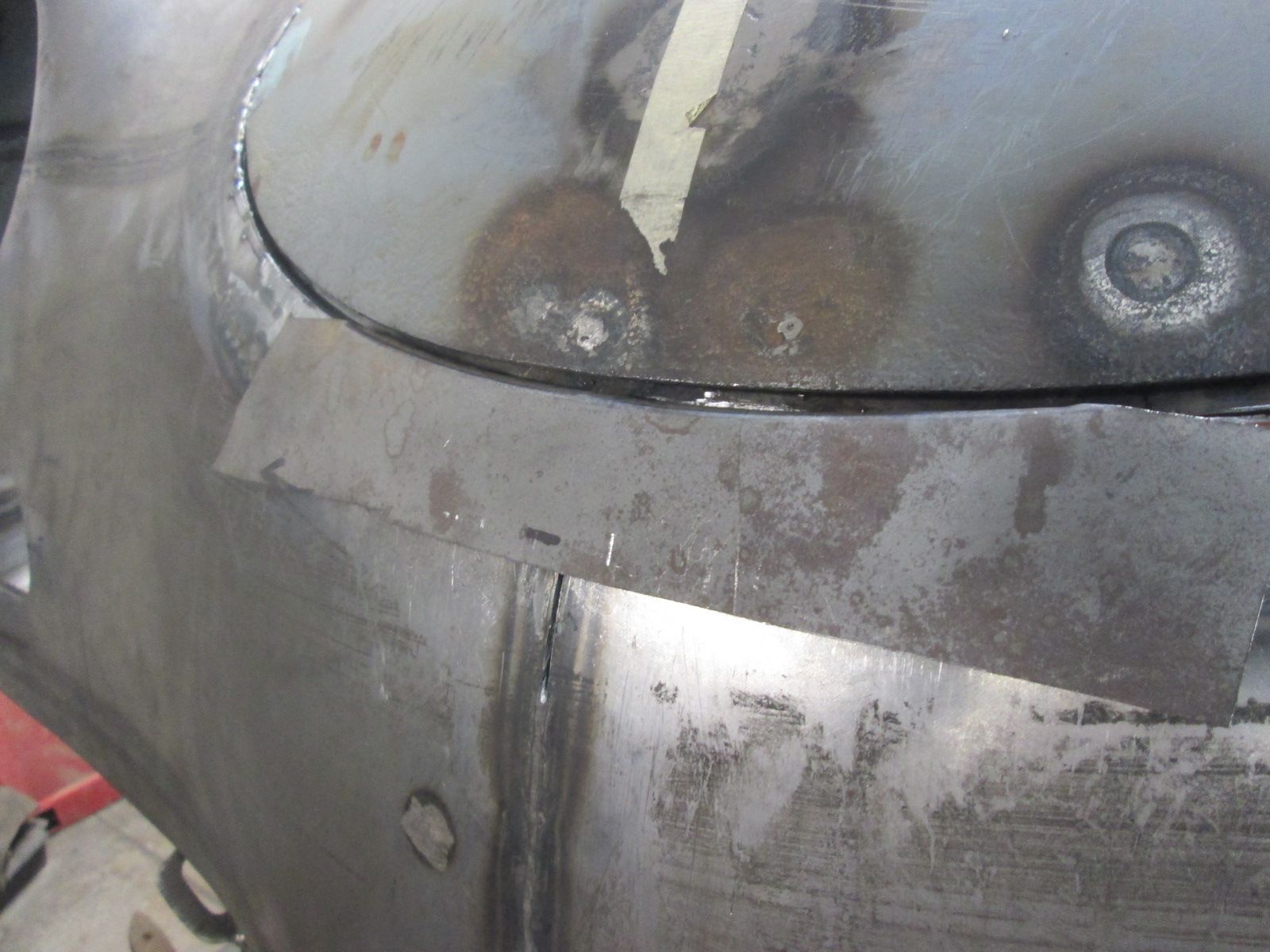

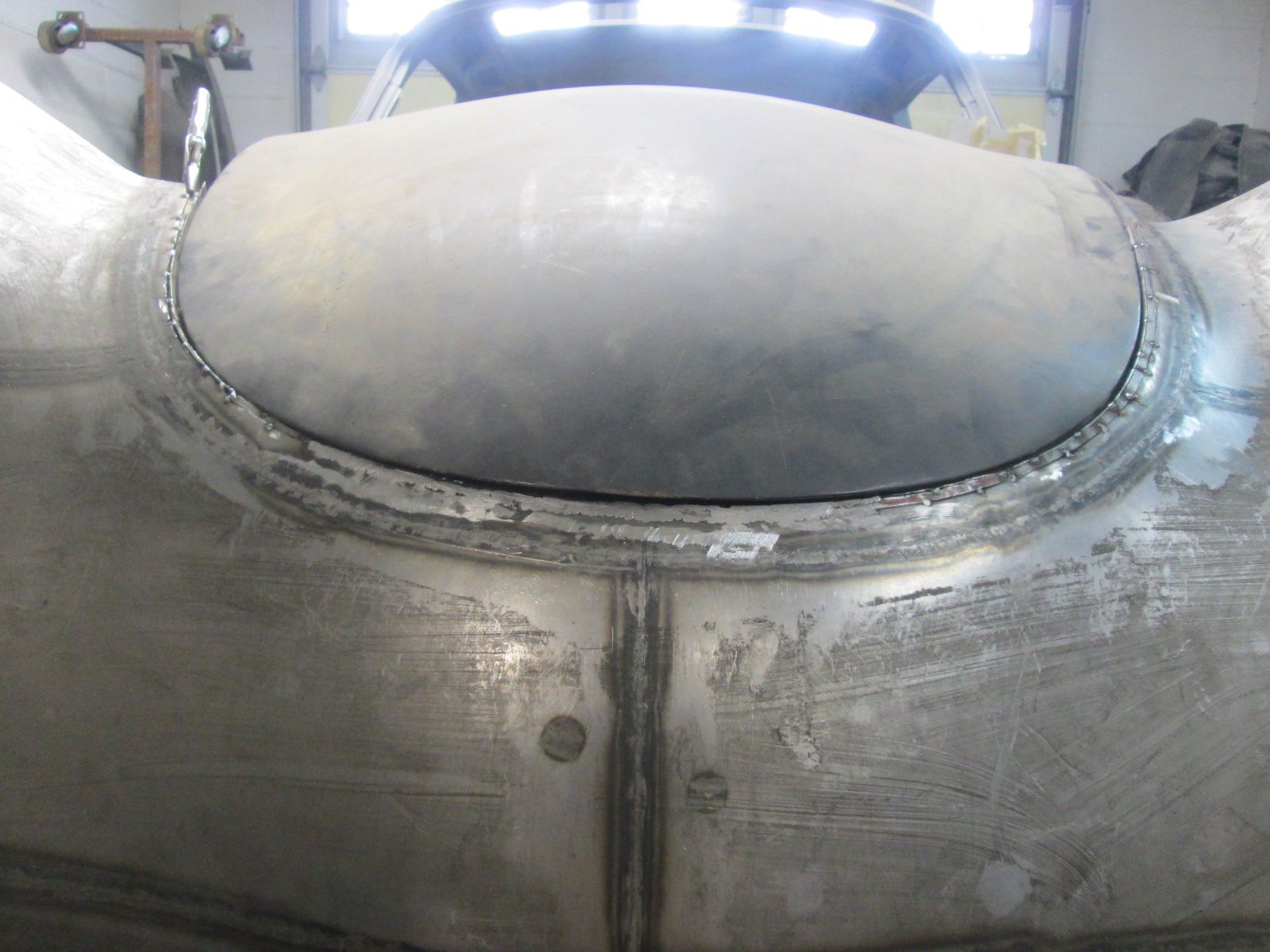

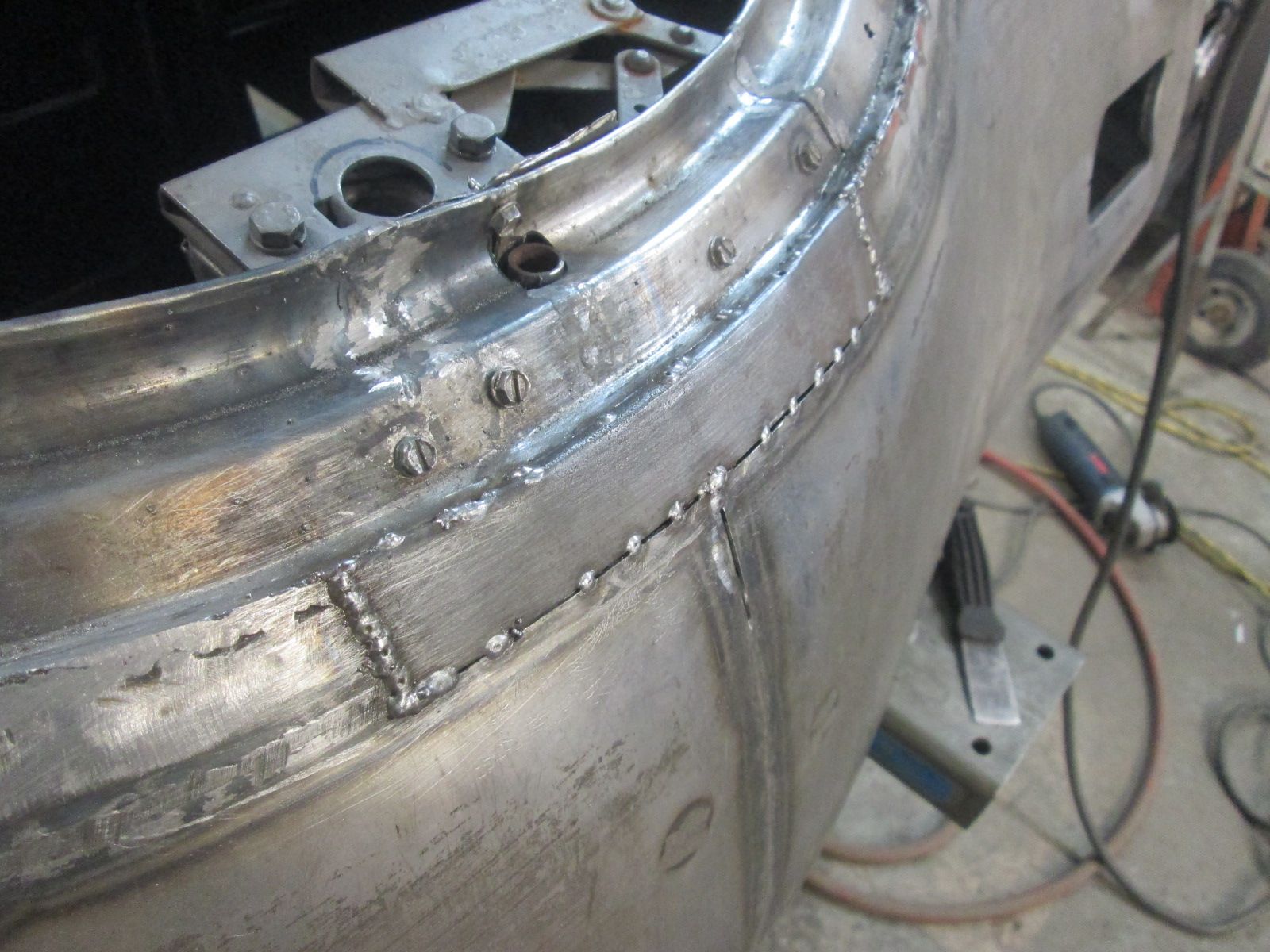

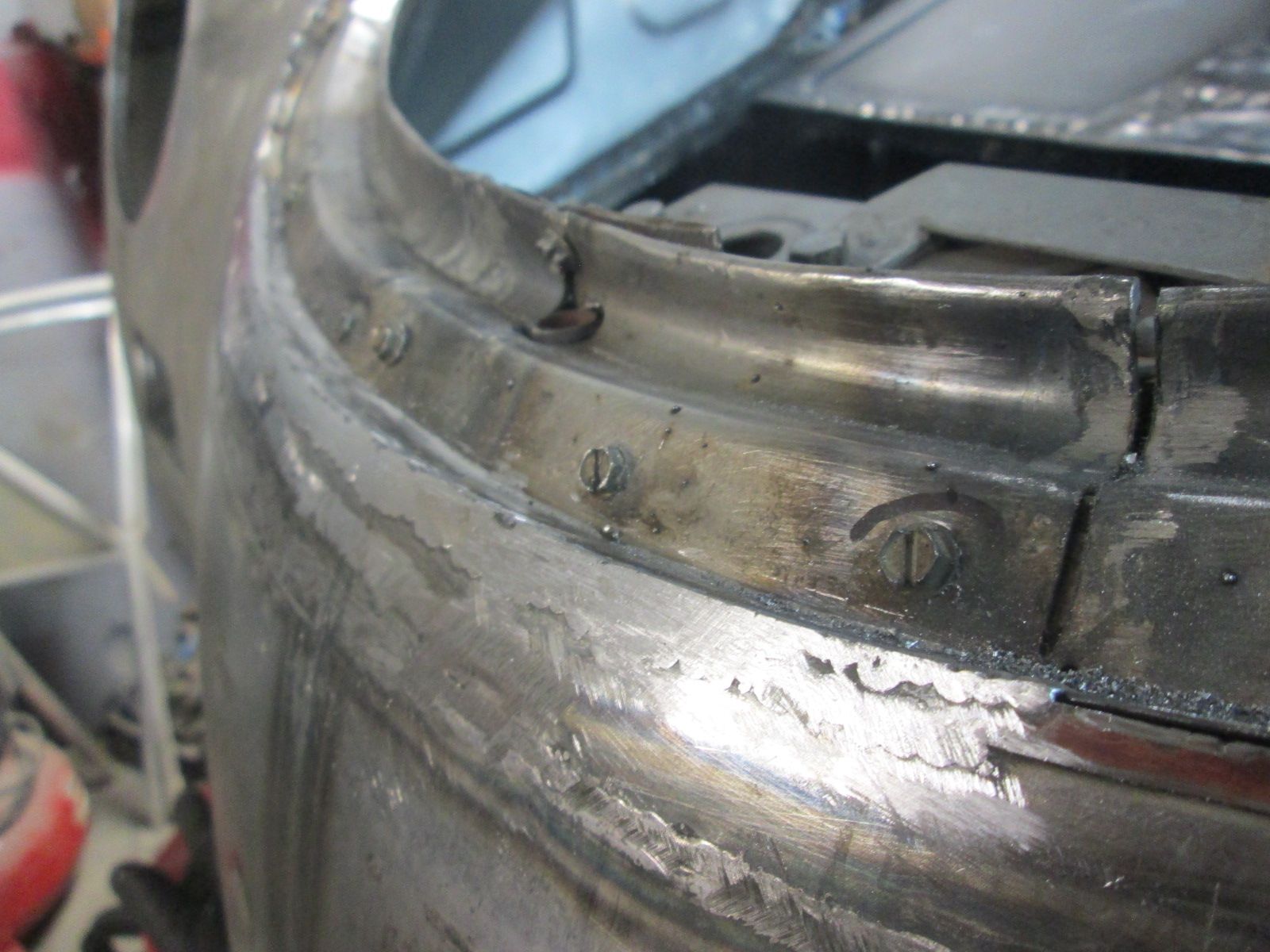

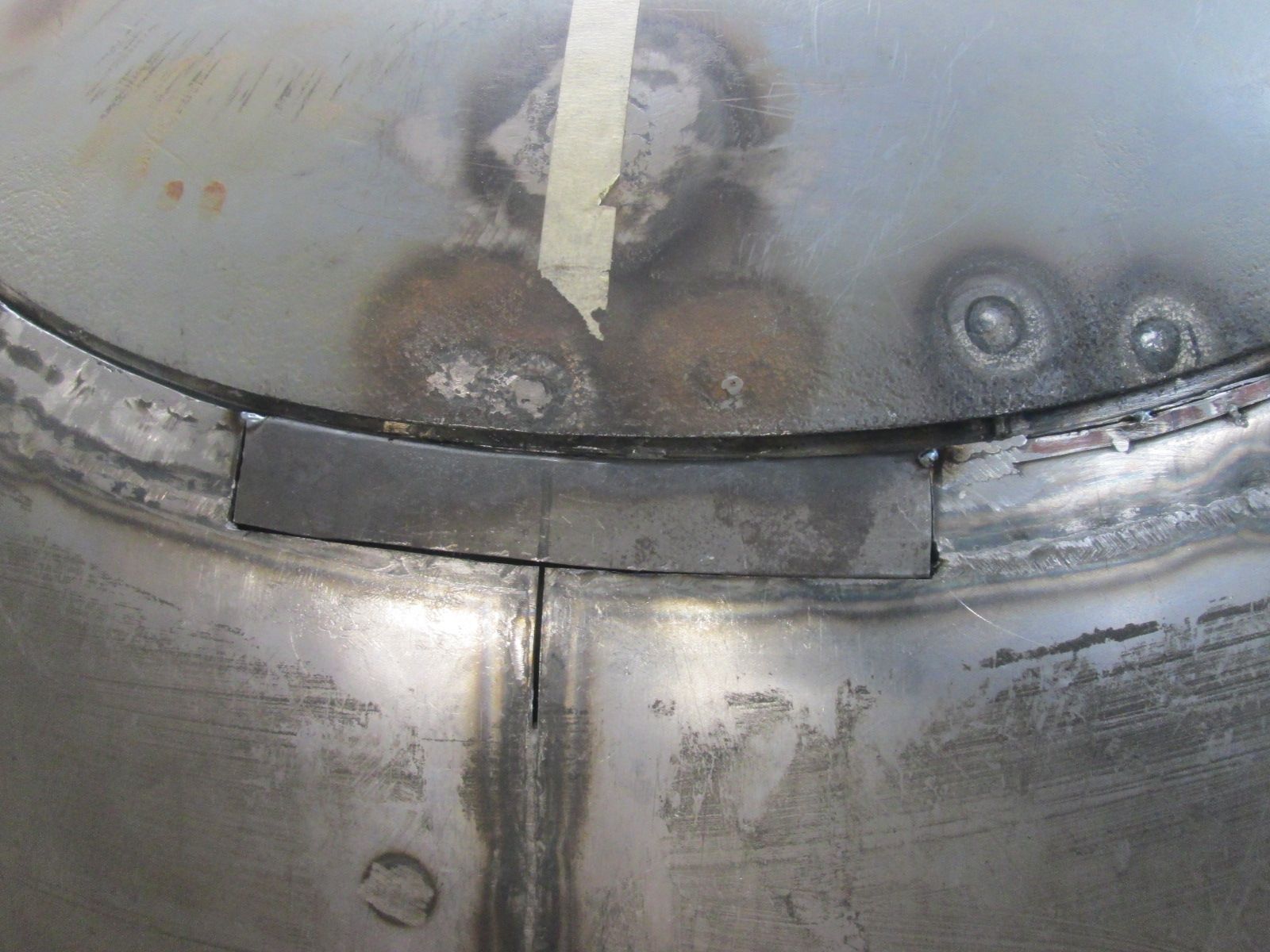

            • center correction patch.
              Click image for larger version

Name:	IMG_1447.jpg
Views:	201
Size:	203.0 KB

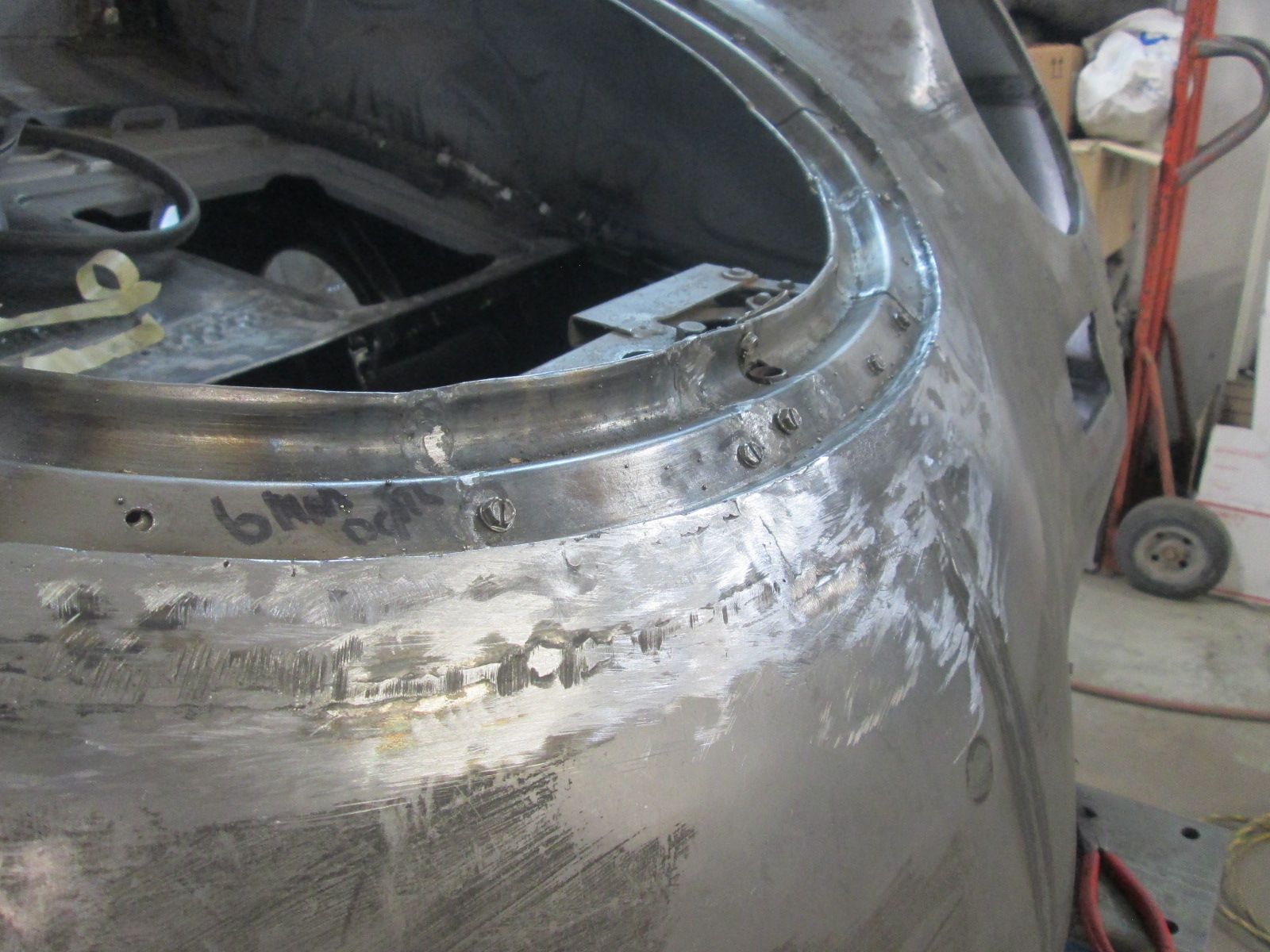

ID:	114819 Basic shape and contour I was after. Small lip was left to make up for the slight distance outward it needed to carry on the line of the hood.
              Click image for larger version

Name:	IMG_1448.jpg
Views:	193
Size:	234.2 KB
ID:	114820 Final trim and new section tacked in. A relief cut was added below it as there was a touch too much crown and I needed to gather up the metal along here.
              Click image for larger version

Name:	IMG_1450.jpg
Views:	177
Size:	253.0 KB
ID:	114821 A tack was added with each slight adjustment as it went in. All but set here and ready to just lay down some final seam welds.
              Click image for larger version

Name:	IMG_1451.jpg
Views:	169
Size:	195.9 KB
ID:	114822 With the edge of the hood relaxed outward the new section is about 90% there. I'll take it in the rest of the way with skim coat of lead.
              Click image for larger version

Name:	IMG_1454.jpg
Views:	162
Size:	181.8 KB

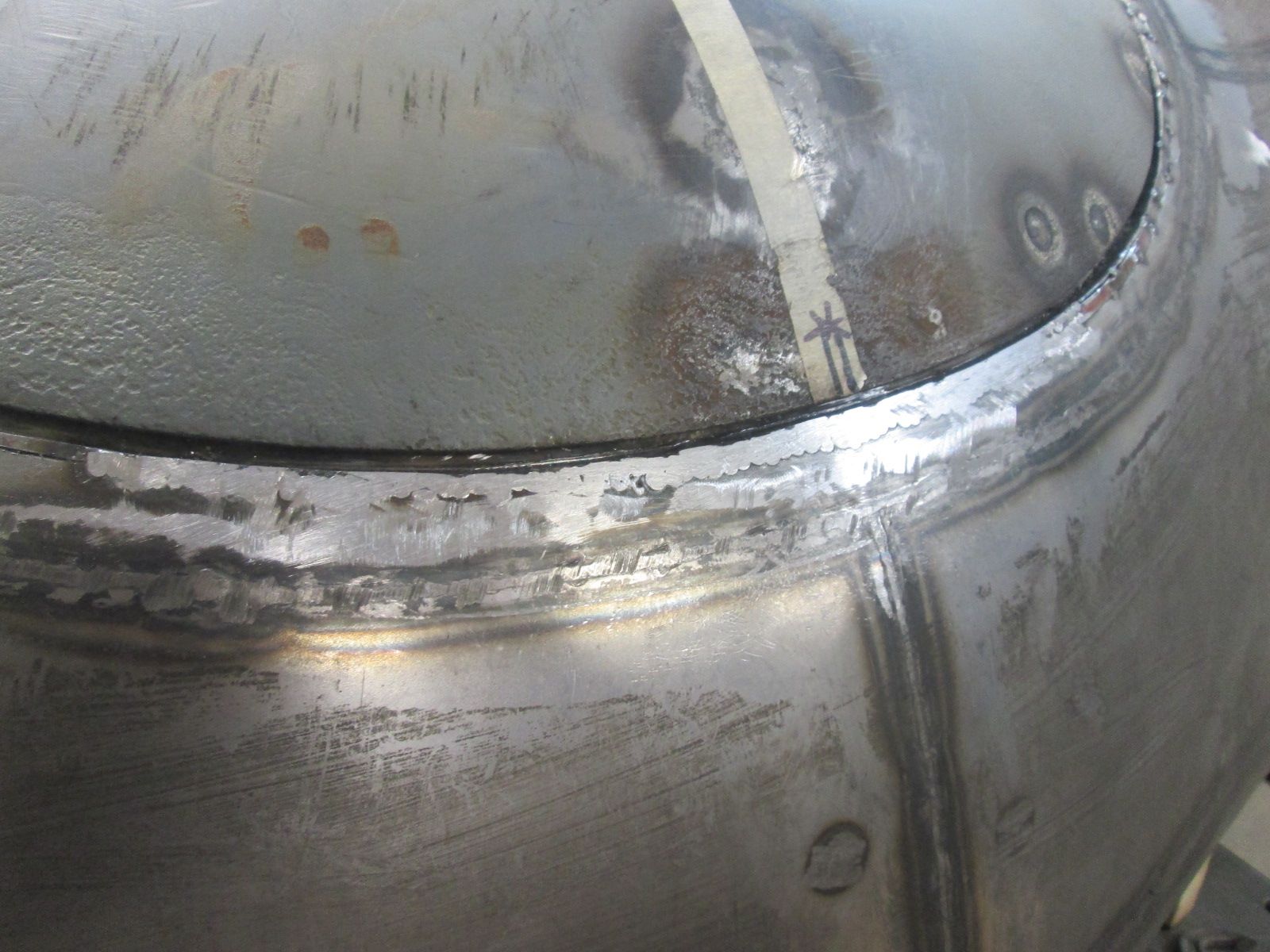

ID:	114823 General profile is now well within striking distance. Again just a smear of lead will correct the shortfalls.
              Last edited by JTR70; 03-02-2024, 10:24 PM.
              Justin Rio

              Comment

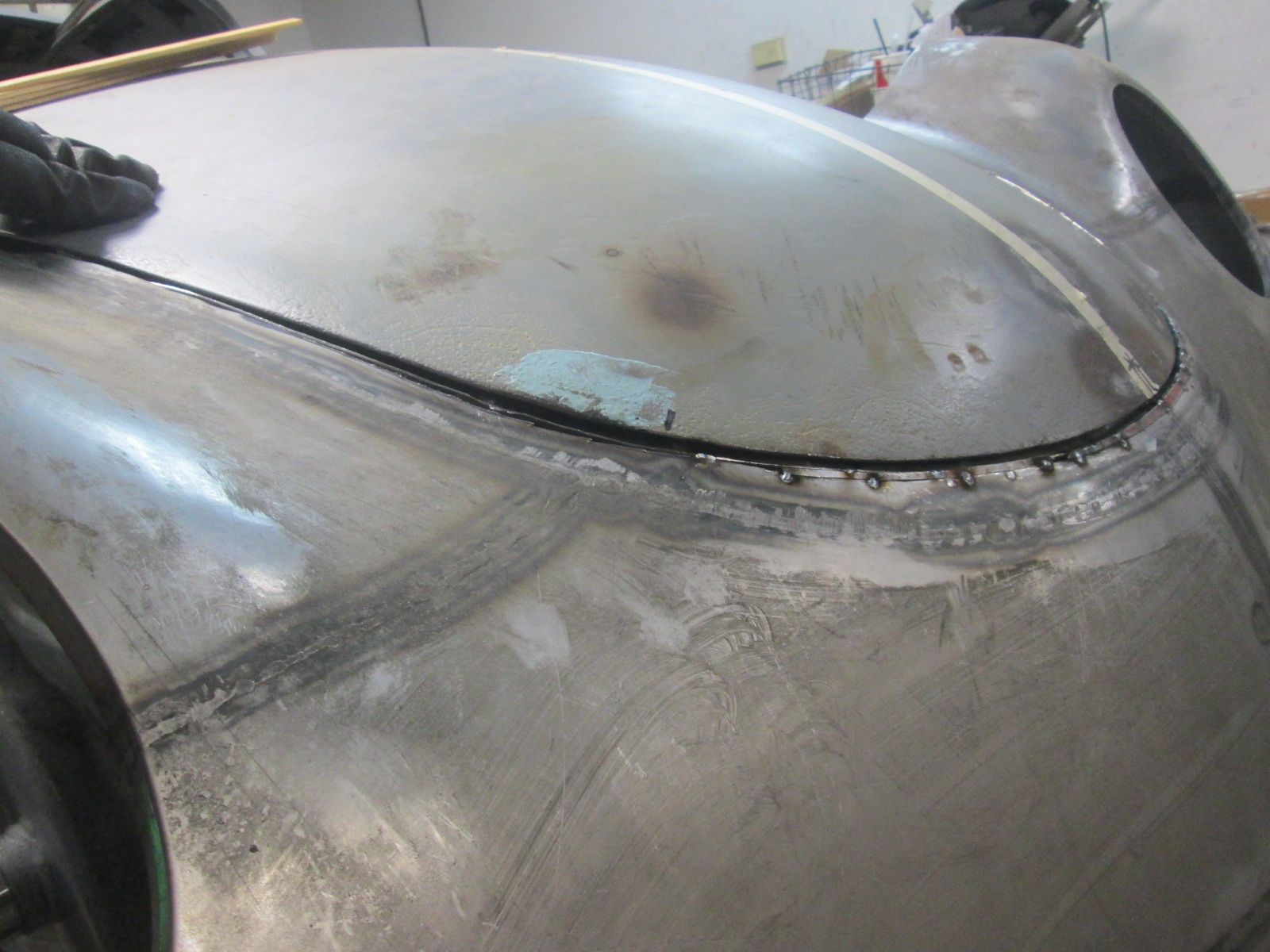

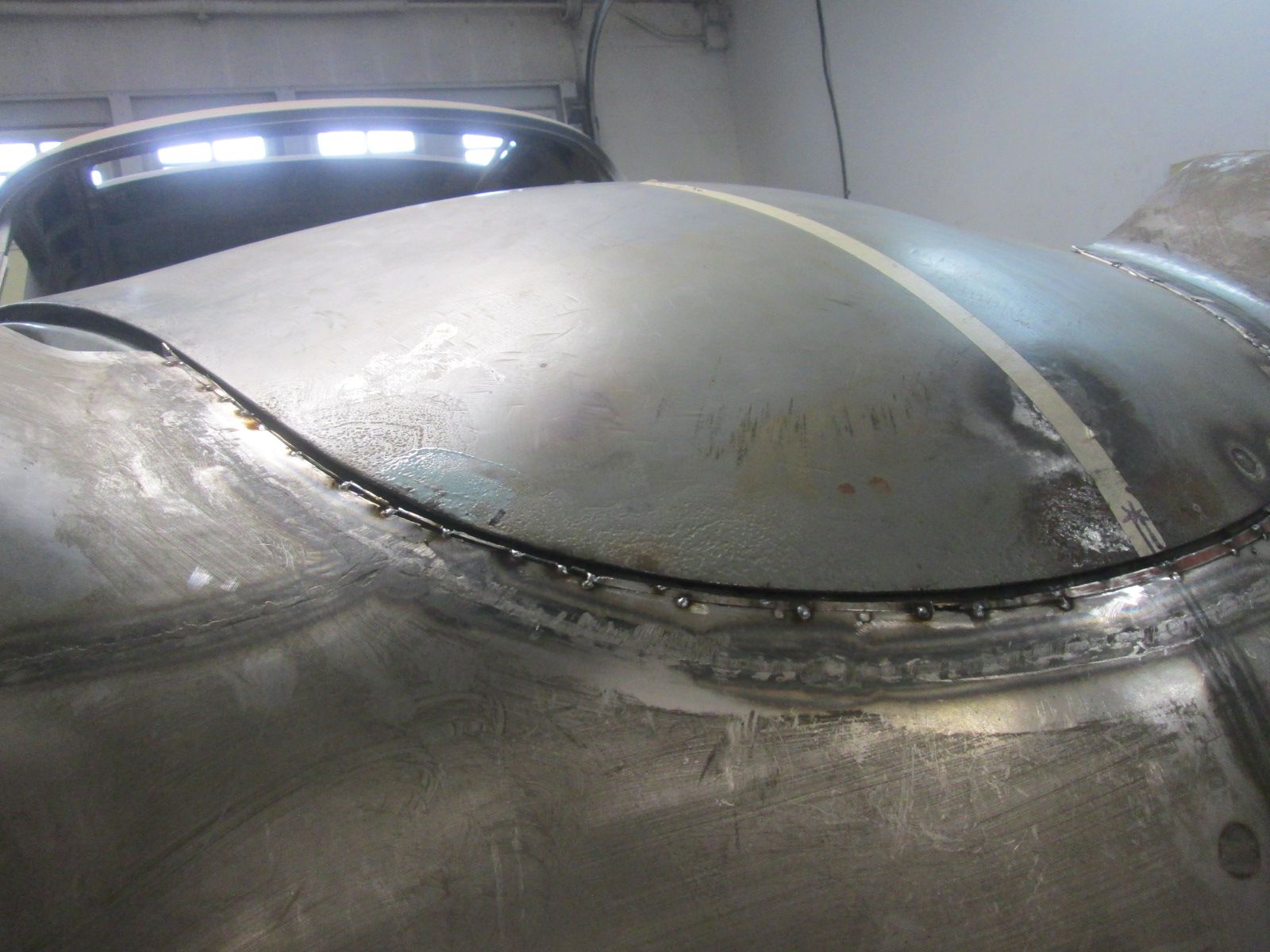

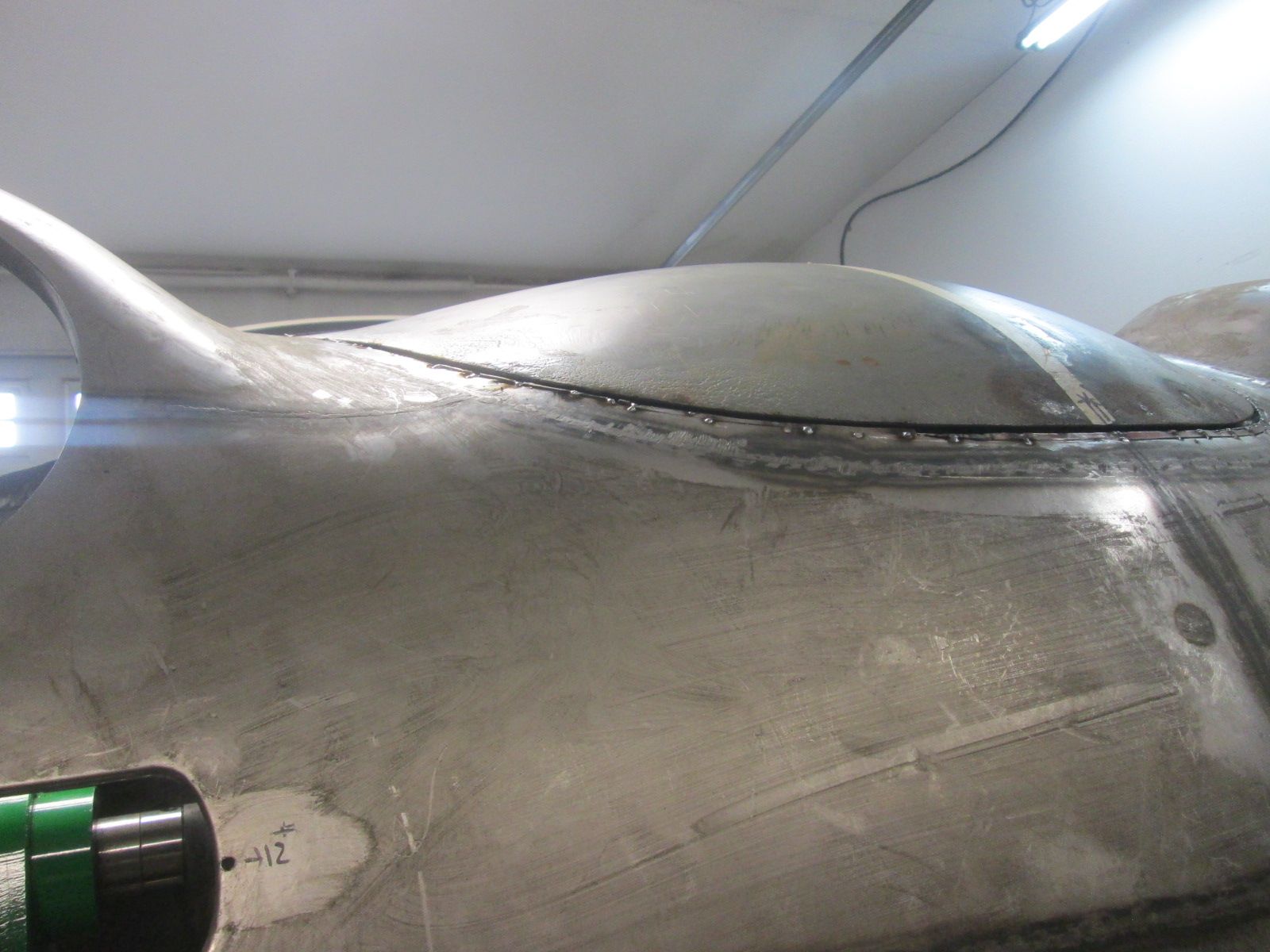

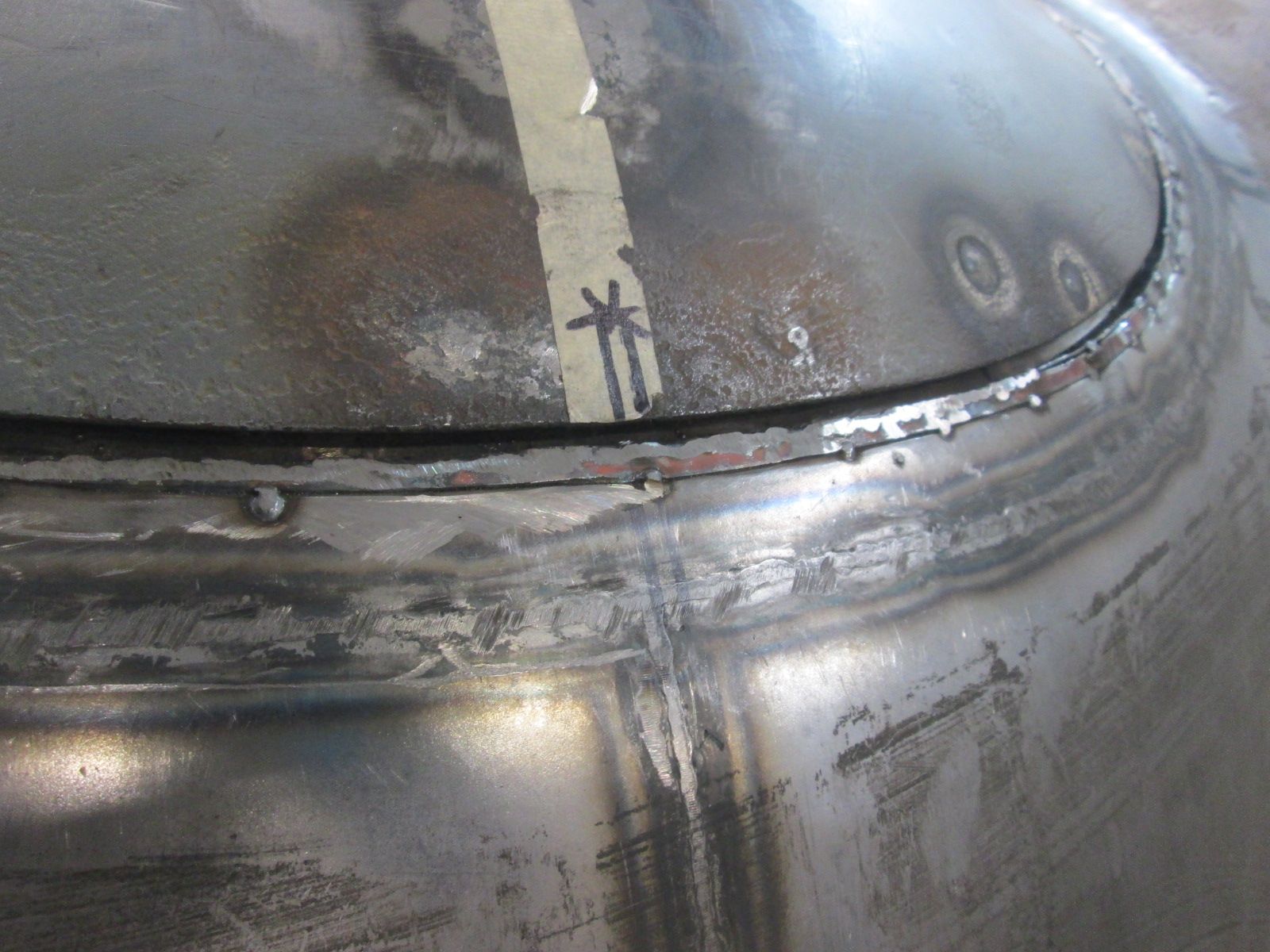

              • Click image for larger version

Name:	IMG_1461.jpg
Views:	152
Size:	238.1 KB

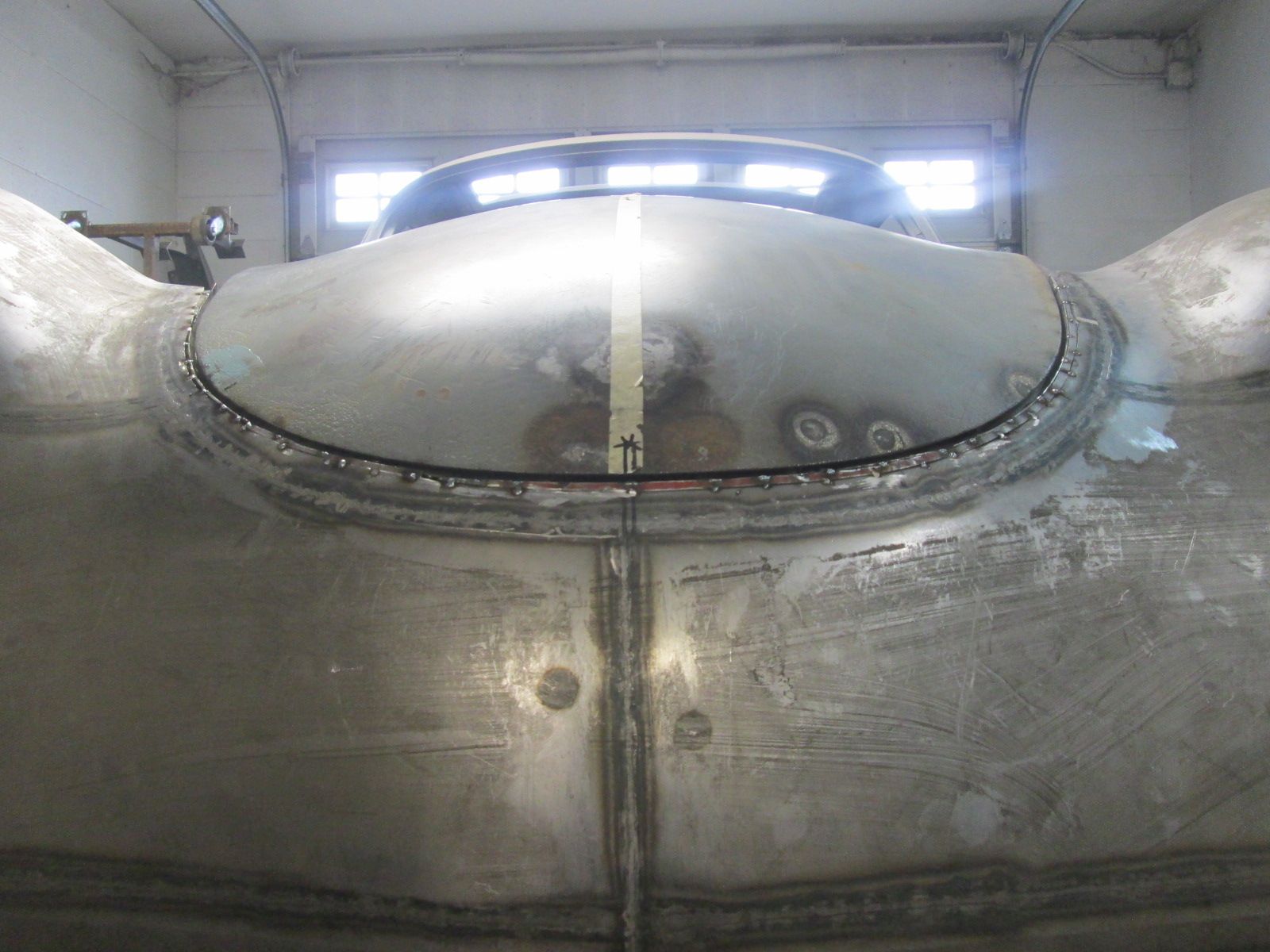

ID:	114825 All stitched with welds dressed down. Still have some stitching and finishing along the tough but I wanted to get the welding with the nose completed first.
                Click image for larger version

Name:	IMG_1462.jpg
Views:	144
Size:	199.7 KB
ID:	114826 Most of this run all welded back together with only the left side run remaining. Far from perfect but again only skim coat of lead needed to finish out the final gap and contour shapes of the end of the hood.
                Click image for larger version

Name:	IMG_1455.jpg
Views:	136
Size:	132.4 KB
ID:	114827 Got tired of welding and grinding so I took a break to locate and drill the front emblem holes. Once again an original reference saves the day.
                Click image for larger version

Name:	IMG_1456.jpg
Views:	136
Size:	138.5 KB
ID:	114828 Basic template off of it.
                Click image for larger version

Name:	IMG_1463.jpg
Views:	132
Size:	191.6 KB
ID:	114829 Then transferred over onto the new nose.
                Justin Rio

                Comment


                • Justin, well done indeed you must be happy about that correction. That job would have been beyond most peoples ability and once lead skimmed will turn out just fine I think. Your experiences gained even down to the template for the badge tell me you never give up when many would!!

                  Roy

                  Comment


                  • JTR70
                    JTR70 commented
                    Editing a comment
                    Thank you Roy, but actually by this point I still wasn't out of the woods with that hood to nose transition. It would fight little more before I finally put it to bed. That up here shortly. Thanks again! Justin

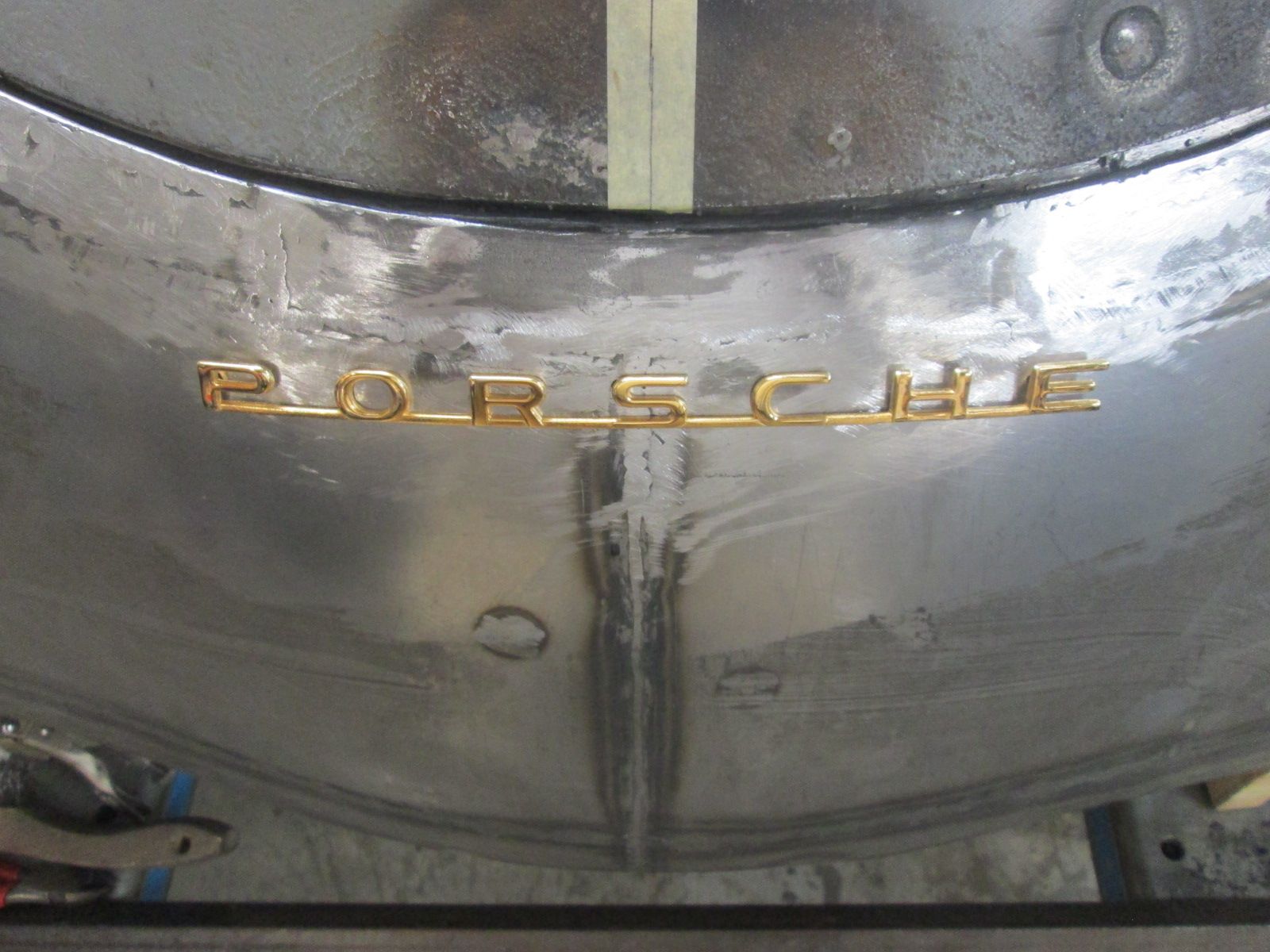

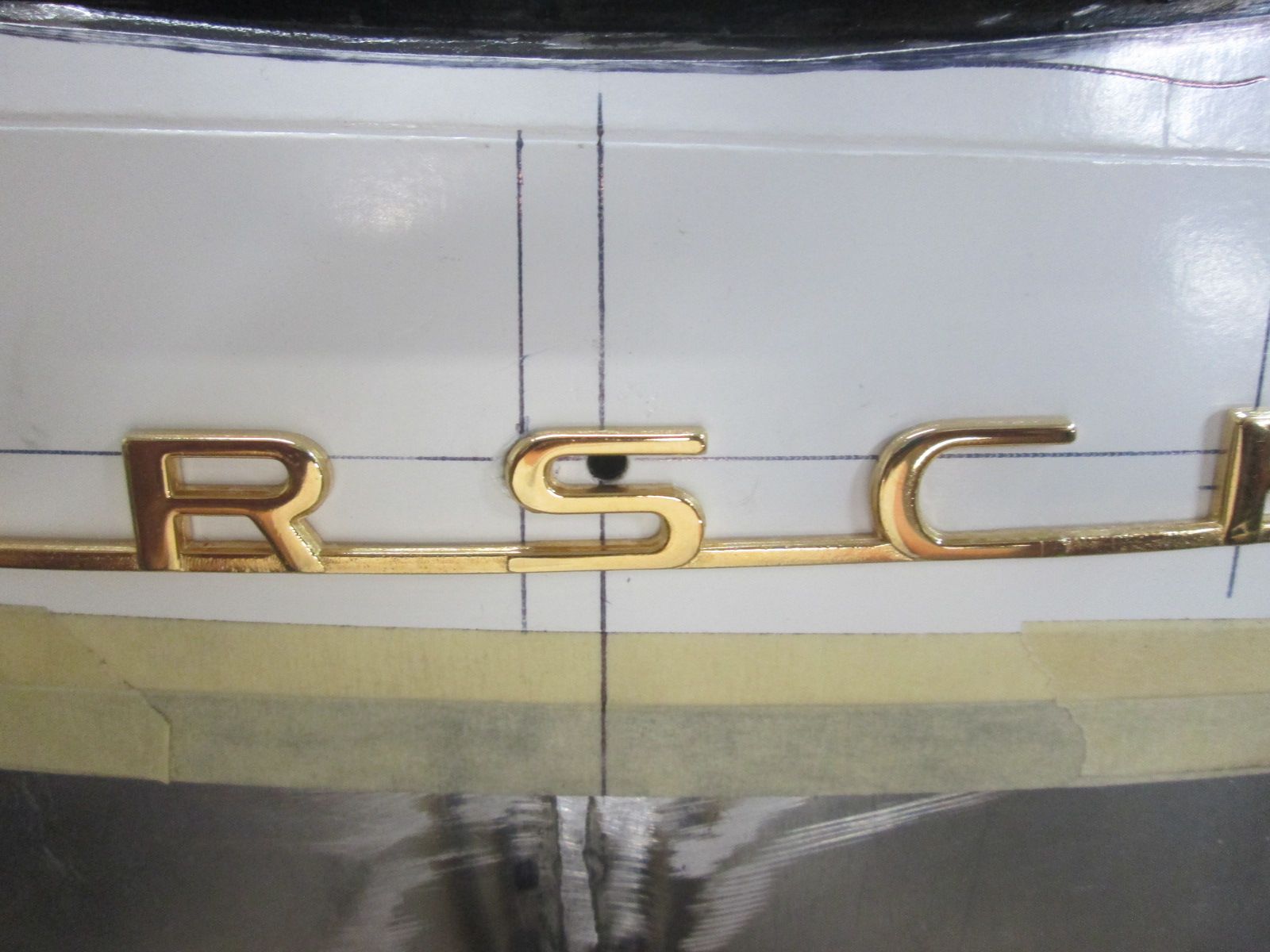

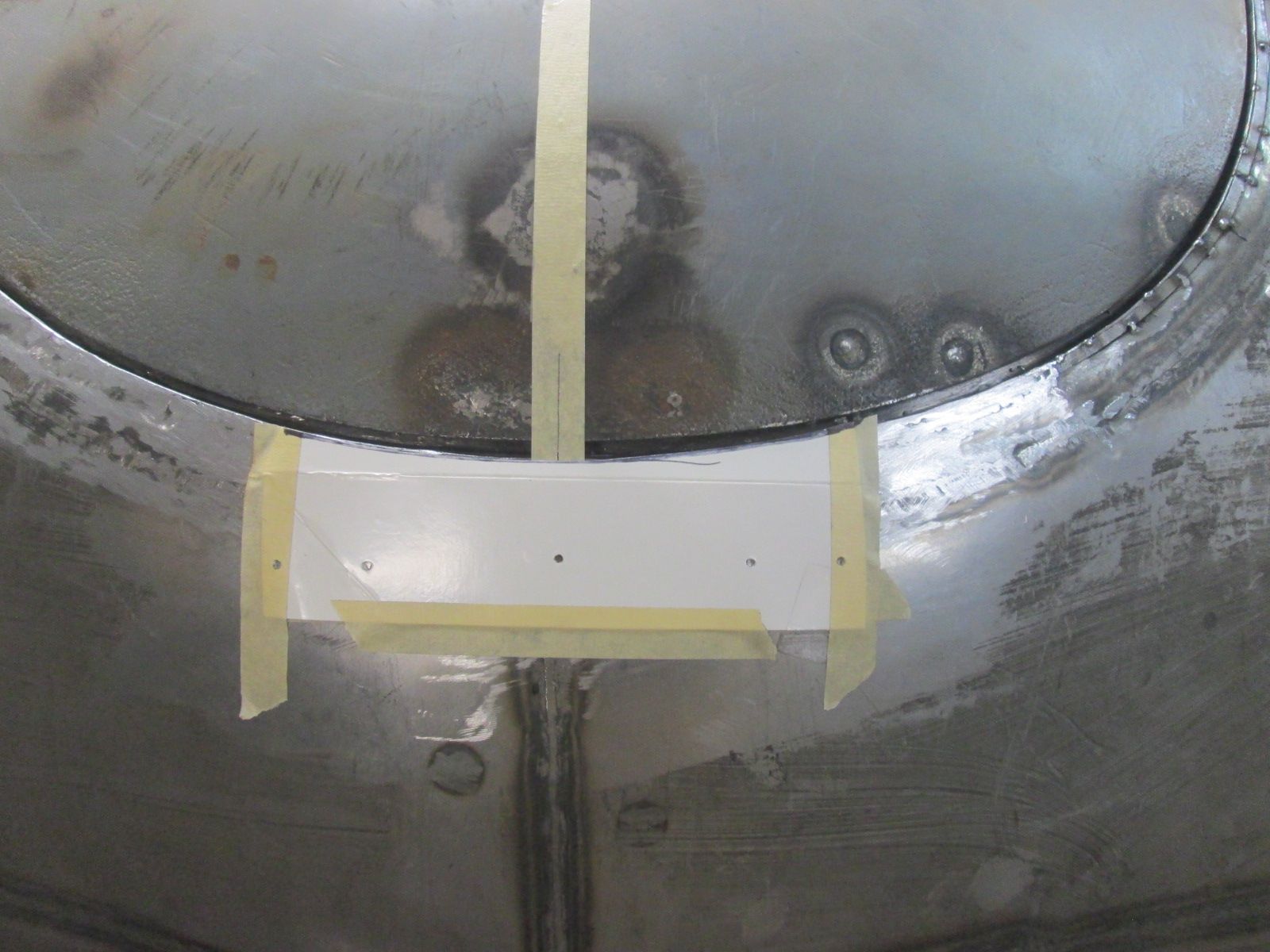

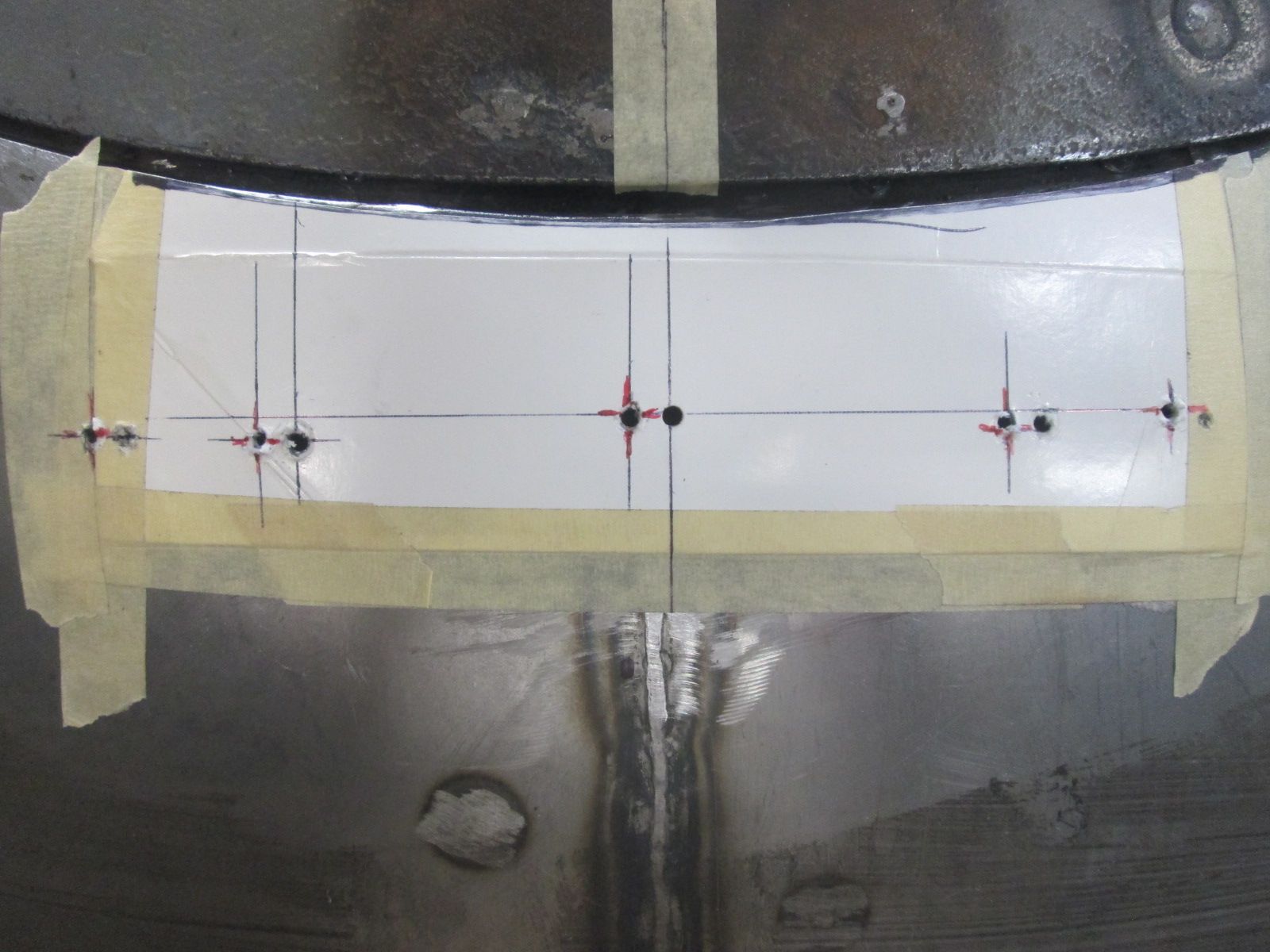

                • Emblem placement trial and error.

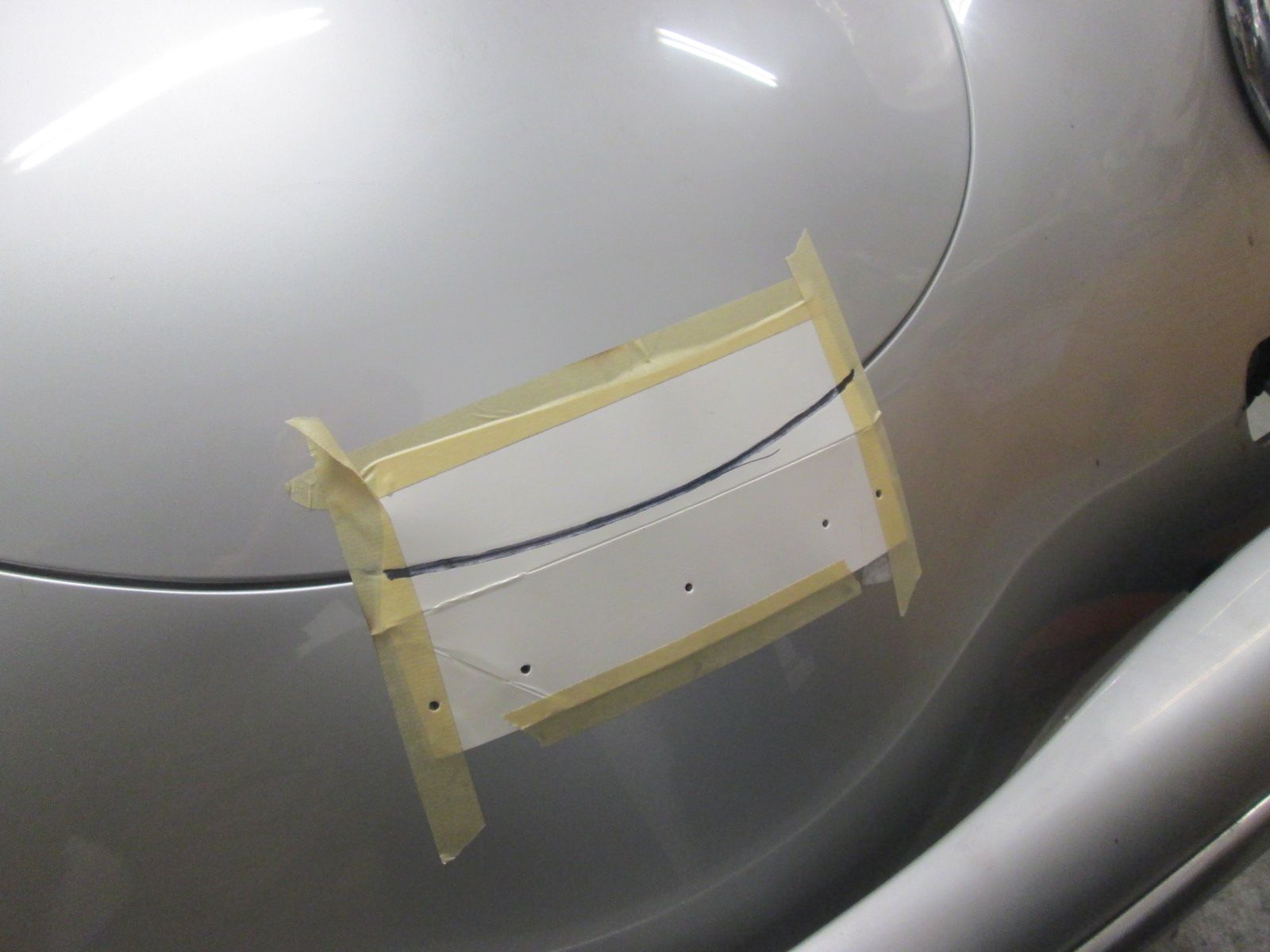

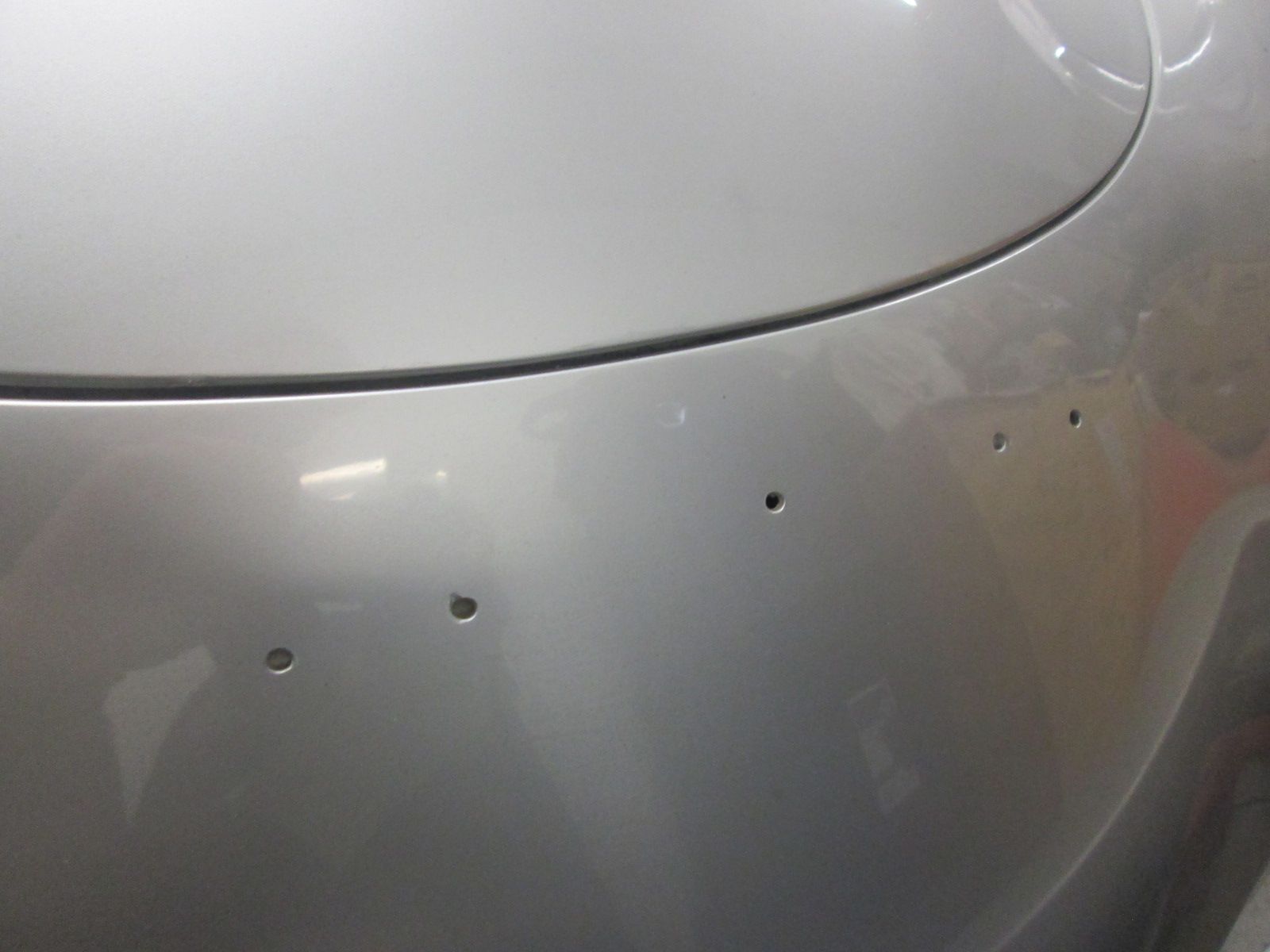

                  Click image for larger version  Name:	IMG_1469.jpg Views:	0 Size:	166.9 KB ID:	114848 Jumped the gun and drilled the emblem holes at center nose. Then I got around to digging out my original emblems only to discover the center pin is off center of the center letter by about 5MM.
                  Click image for larger version  Name:	IMG_1471.jpg Views:	0 Size:	190.6 KB ID:	114849
                  This discrepancy might well have slipped past detection but I couldn't look at it from here on in as it would have drove me nuts. Correction holes in red moved off center that 5mm to compensate for this pin placement.

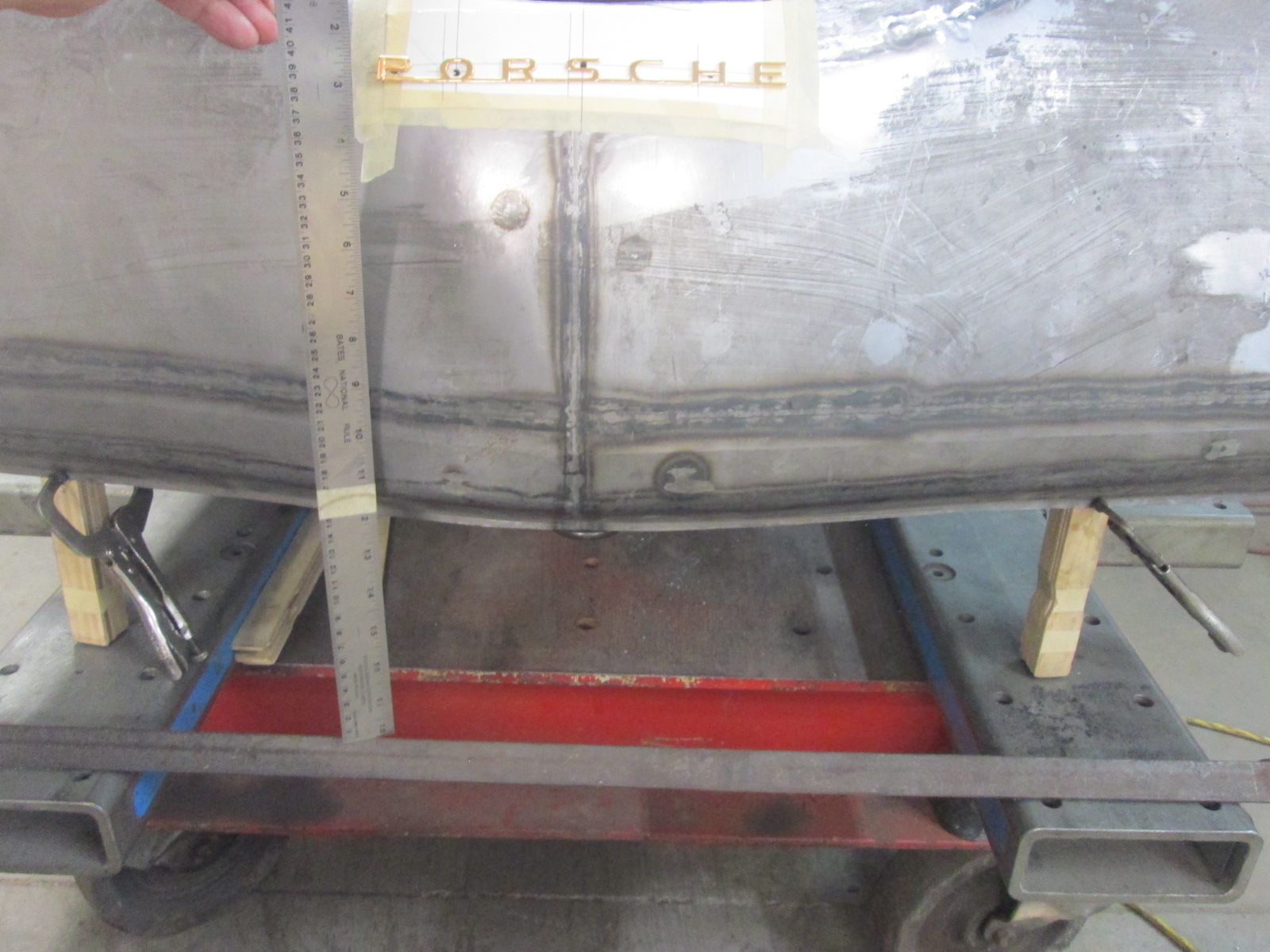

                  Click image for larger version  Name:	IMG_1468.jpg Views:	0 Size:	175.4 KB ID:	114850 Emblem now mounts fully centered on the nose.
                  Click image for larger version  Name:	IMG_1467.jpg Views:	0 Size:	202.3 KB ID:	114851 Cellette bench used once again as a sight mark to ensure the emblem sits level.
                  Click image for larger version  Name:	IMG_1472.jpg Views:	0 Size:	218.1 KB ID:	114852 Initial holes back filled and dressed smooth. Emblem set. The lateral pair of holes are drilled slightly lower than the center putting a slight arc in the emblems overall profile as it wraps around the nose. As I became more aware of this detail the emblem does take on a banner shape which gives it some flair. Without an original reference I would have just laid it straight across the nose.
                  Last edited by JTR70; 03-12-2024, 07:17 AM.
                  Justin Rio

                  Comment

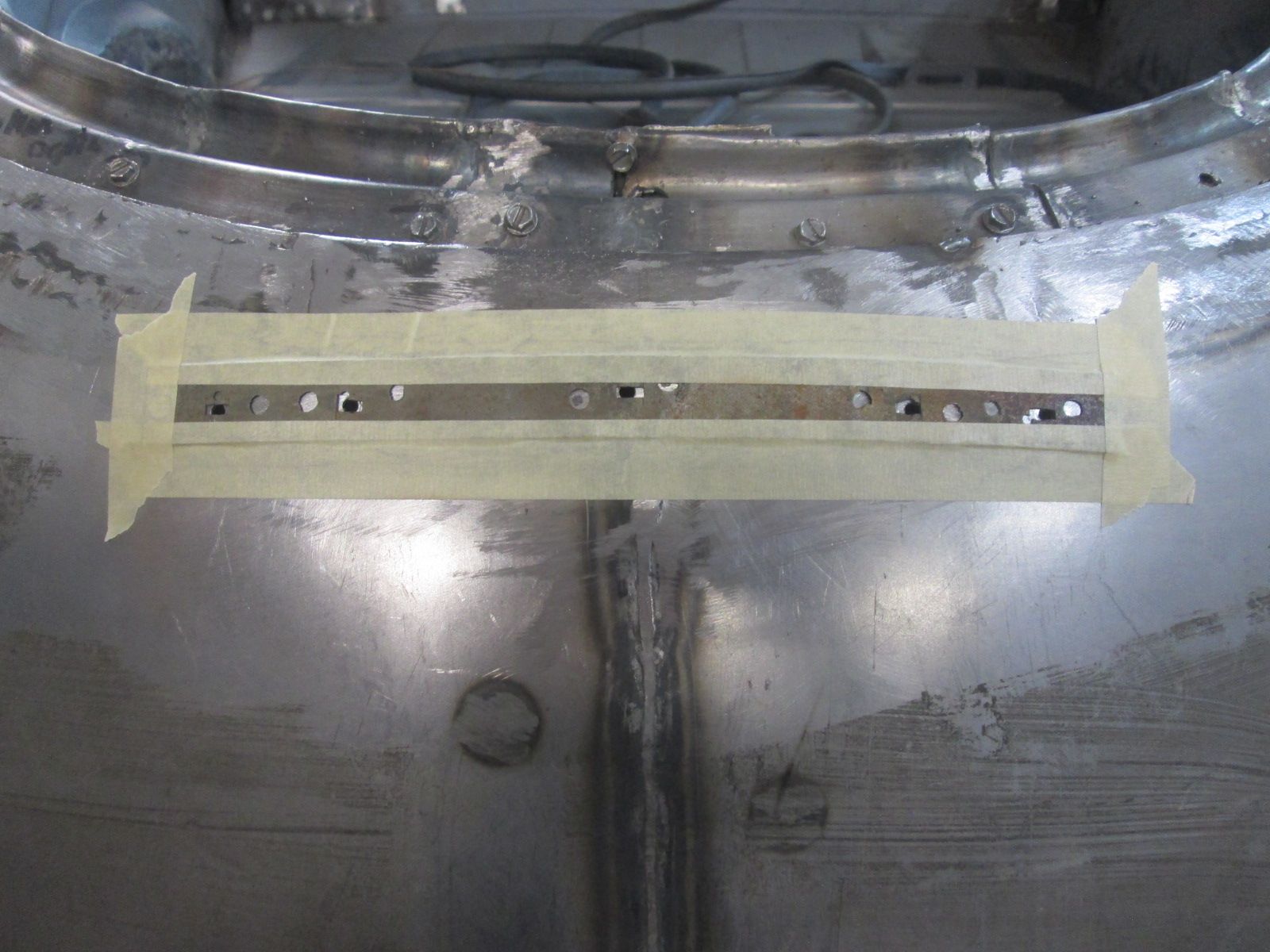

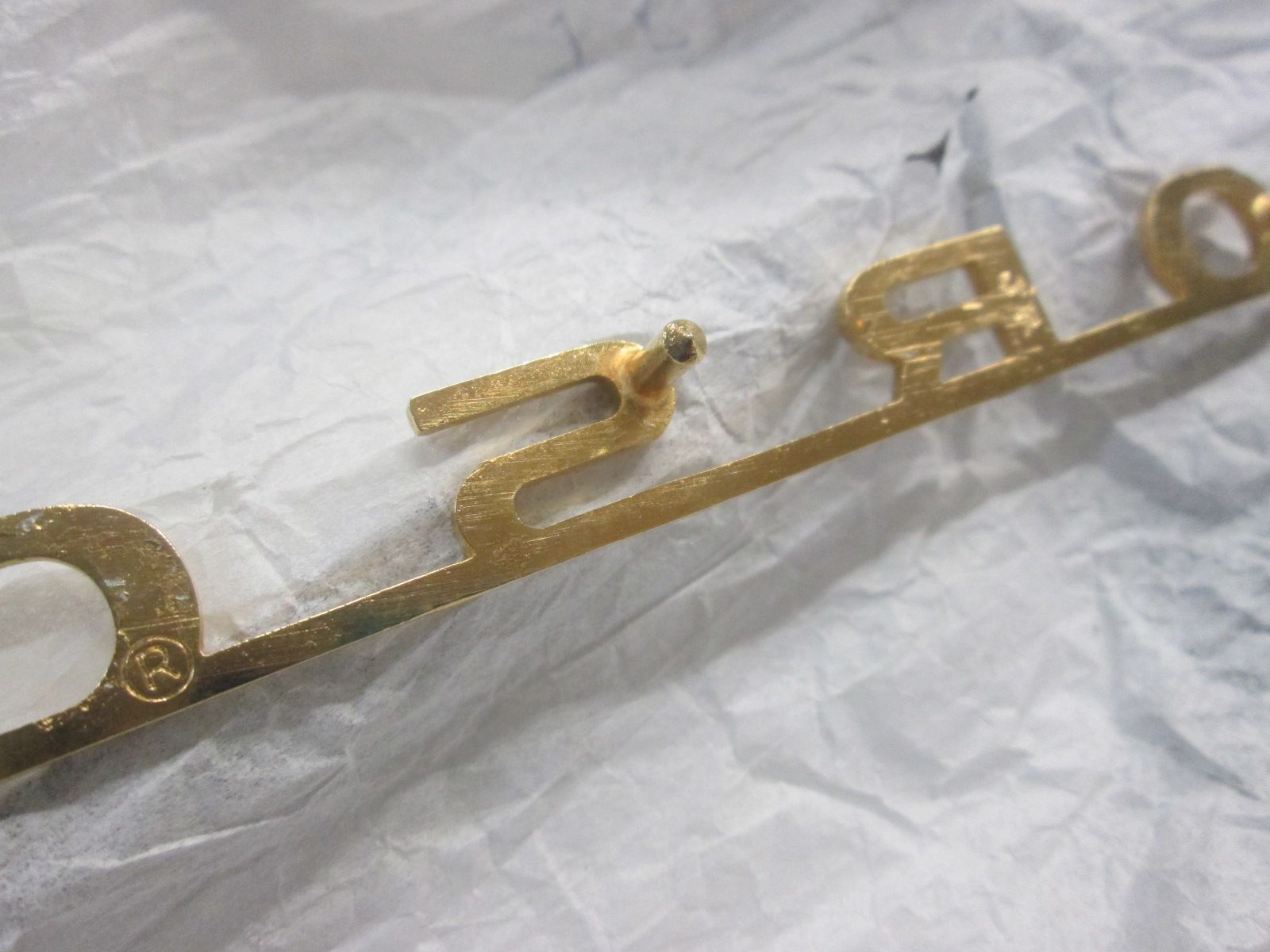

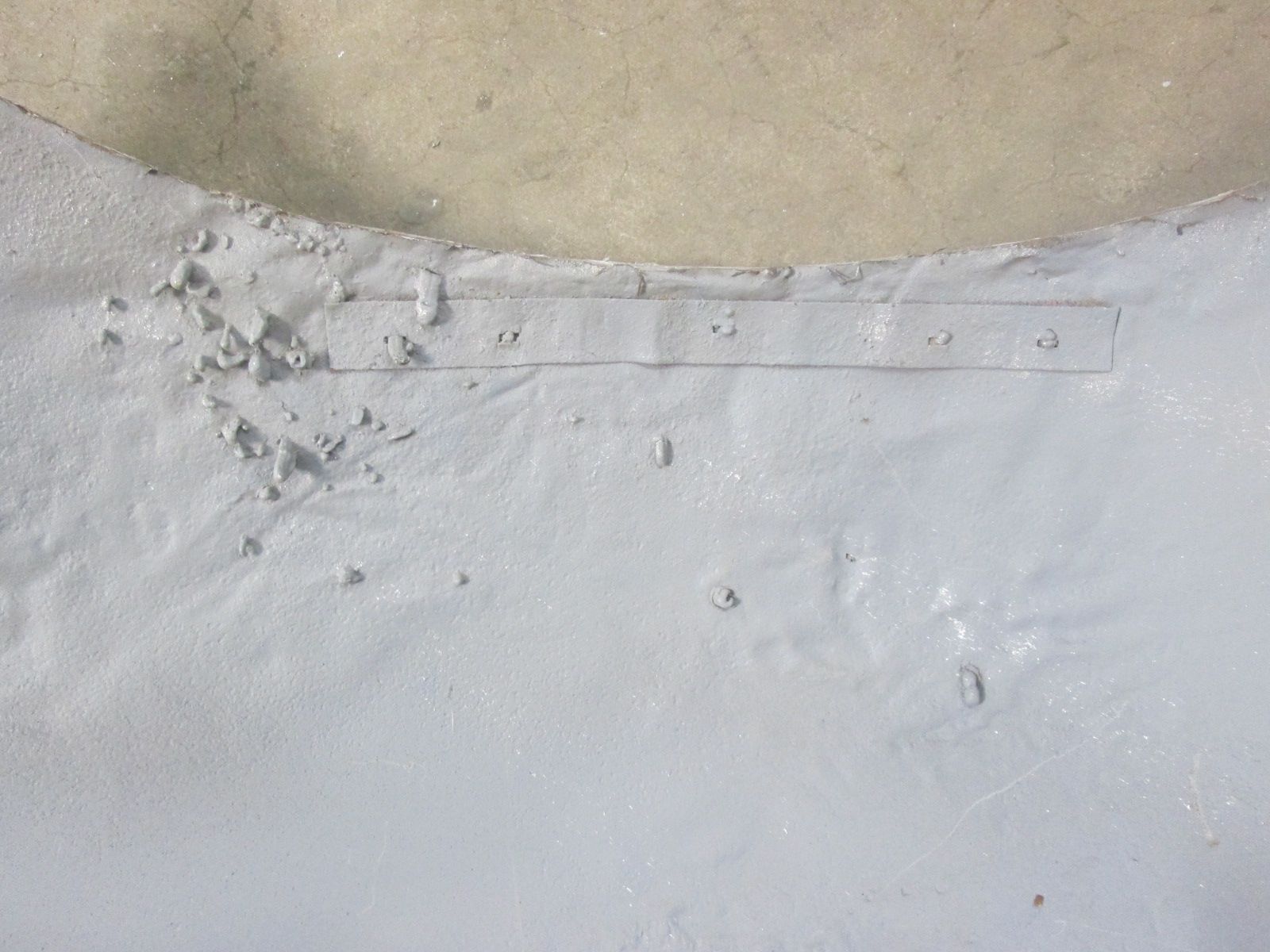

                  • Click image for larger version  Name:	IMG_1453.jpg Views:	0 Size:	215.8 KB ID:	114854 Harvested the original clipping strip for additional hole placement confirmation.
                    Click image for larger version  Name:	IMG_1478.jpg Views:	0 Size:	211.8 KB ID:	114856 Confirmed. Holes in just about the right spot and slightly lower than the center hole.
                    Click image for larger version  Name:	IMG_1477.jpg Views:	0 Size:	232.1 KB ID:	114855 Again, this easily overlooked detail gives a nice victorious banner type attitude to the emblem. Now back to messaging that poor roughed up trough section.

                    Thanks for looking!

                    Justin
                    Last edited by JTR70; 03-12-2024, 07:20 AM.
                    Justin Rio

                    Comment
