  • 356 chrome overider bars dimensions to fit.

    Guys,

    Have a friend in the Netherlands who needs the following dimensions to fit his chrome over rider bars to his car. I cannot help because my UK car never had them fitted by the factory.

    It would be great if someone knew the measurements I show on the photo attached.


    Click image for larger version

Name:	turbobart356.jpg
Views:	11
Size:	17.1 KB
ID:	83317


    Roy

  • #2
    Hey Roy,

    I can get those dimensions for you but what year is your buddy's car? If its a '59 it will have the high over rider bar and would have a corresponding higher hole position. Your sample photo shows the '59 higher position. 56-58 had a low bar and that hole is a few mm's lower making it a bit more centered to the horn grill opening.
    Justin
    Justin Rio

    Comment


    • #3
      Hello

      It's my car that Roy is talking about.
      I'm new here so here's a little intro from myself.

      I'm a real Porsche enthusiast from Belgium (Not Netherland, Roy ).
      I've bought my 356A few years ago
      It's a USA model (Coming from Orlando)
      Build: 15/09/1959

      Hope to start the restoration this year
      (Have been collecting all needed parts to start; sheet metal, rubbers, gaskets,...)

      So the car has indeed the high over rider bars.

      Hope you can help me on the dimensions

      Regards
      Bart

      Comment


      • #4
        Thanks Justin, Bart has excellent English I have a poor memory
        guess that's my age showing up

        Its nice to have another 1959 356A owner contributing on board here even if it is a LHD car

        Roy

        Comment


        • #5
          Welcome Bart and thanks for joining us here. This is what I found:
          Click image for larger version

Name:	GScar004.JPG
Views:	7
Size:	64.7 KB
ID:	83384

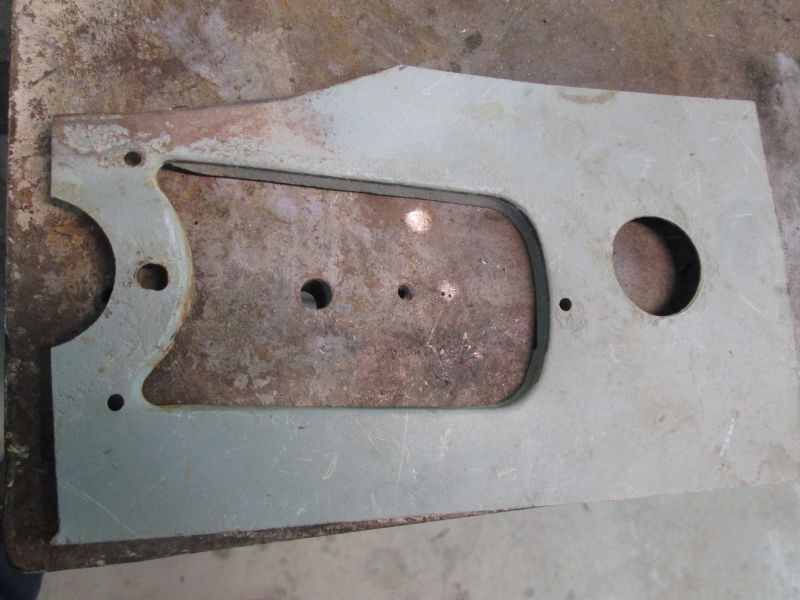

          Original nose section with 9 & 3 O'clock turn signal hole position confirming it to be from a T2 which was fitted with the light pedistals.
          Click image for larger version

Name:	GScar001.JPG
Views:	7
Size:	63.6 KB
ID:	83385

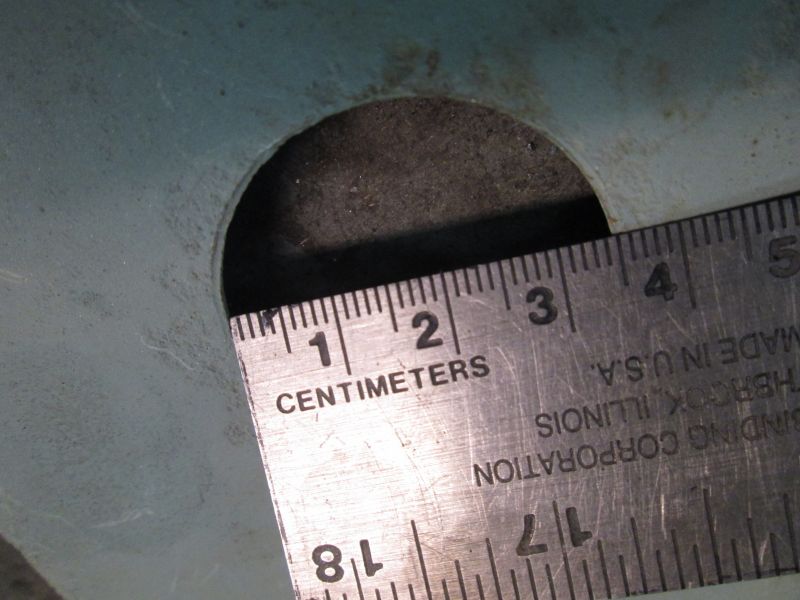

          Diameter of the hole itself is 35mm
          Click image for larger version

Name:	GScar002.JPG
Views:	6
Size:	55.0 KB
ID:	83386

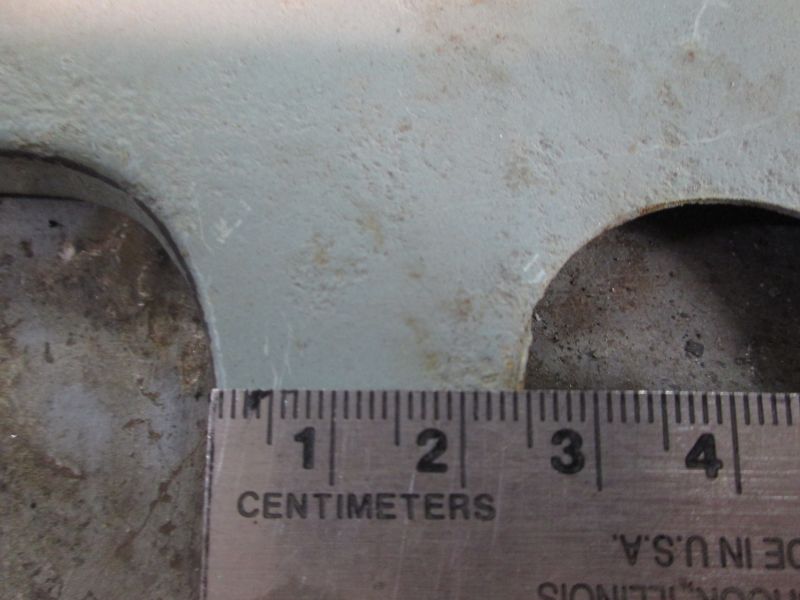

          From center of this hole to the horn grill opening is 25mm

          Click image for larger version

Name:	GScar003.JPG
Views:	6
Size:	69.3 KB
ID:	83387

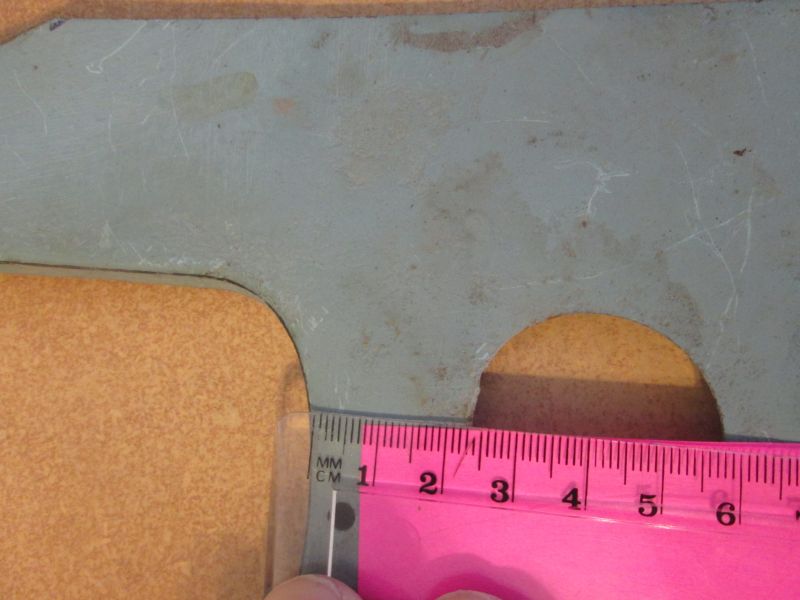

          From the base of horn grill opening to the bottom edge of the hole at center is 30mm or 65mm to the top which ever way you want to look at it.

          Hope these answered your question. If not let me know and I can take another sight marking. Best of luck with your new project!
          Justin
          Justin Rio

          Comment


          • #6
            Hello Justin

            THANKS A LOT for your measurements !!

            Great forum here

            Meanwhile I also received some info from someone else who had a printout from a Porsche 356 manual (I don't know the source)?

            Comment


            • #7
              Justin,

              Thanks so much for helping Bart, you know like me when the job you need to do stops, because you just cannot find anywhere the info you need its so frustrating. Its always a relief when suddenly its all clear.

              Roy

              Comment


              • #8

                Comment


                • #9
                  Yes Bart, maybe cover the area in masking tape mark the dimensions and by placing things in position but not drilling make a full ' mock up' to check. The cut angled end has to be parallel to the panel it attaches to and in relation to the bumper so it surely must have to be correct to the 'eye ' as well.

                  If those bars were fitted and supplied by the factory I am sure they would have a template marking situation governed by the other holes for the horn grill. That would be the datums,and not I think using a ruler from the chrome horn grill after its fitted.

                  However, better to be safe than sorry and always make the check before holding the drill !!

                  Roy

                  Comment


                  • #10
                    Hi Roy

                    Yes, this approach seems to be the way to tackle it

                    I'm going to create a template (in the shape of the rubber that has to sit in this -to be cut- hole) and then check what dimension comes closest.

                    Grts
                    Bart

                    Comment


                    • #11
                      It's my pleasure Roy, I'm always grateful when someone supplies an answer to a question I have.

                      Bart, I'm glad you posted that factory shot with the dimensions. I'm sorry for the confusion I've caused:
                      Click image for larger version

Name:	GScar009.JPG
Views:	6
Size:	53.1 KB
ID:	83413

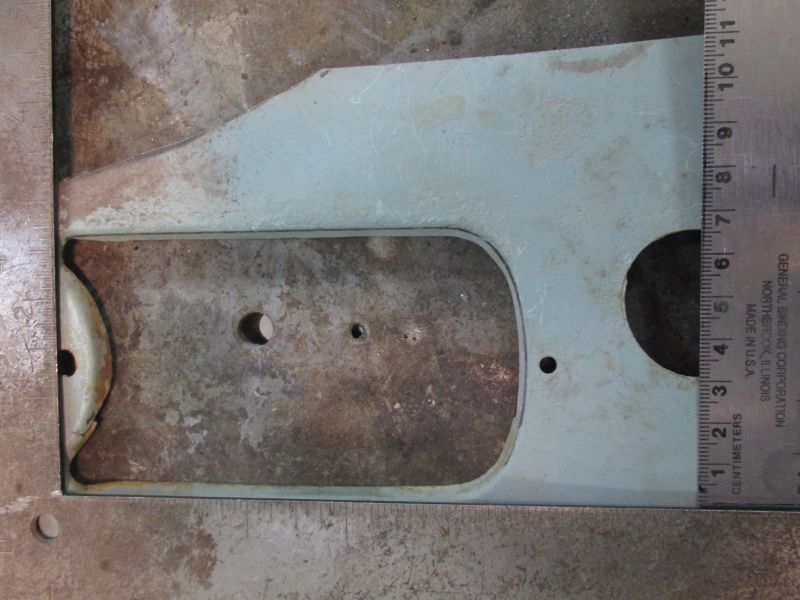

                      That 25mm measurement was taken at the horizontal center of the tube hole to the edge of the grill opening. But thats not what you were asking for.
                      Click image for larger version

Name:	GScar008.JPG
Views:	5
Size:	48.3 KB
ID:	83412

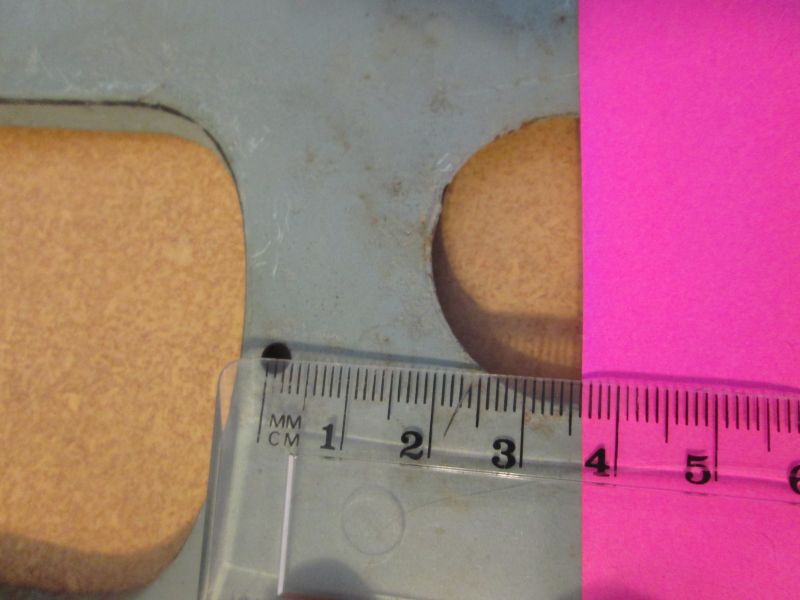

                      From center rib for the grill stud hole to vertical center of the tube hole is approximately 36mm. That puts us back on the same page. Again sorry for the confusion and I hope this clears things up.
                      Justin
                      Justin Rio

                      Comment


                      • #12


                        Grts
                        Bart

                        Comment


                        • #13
                          Hi Bart

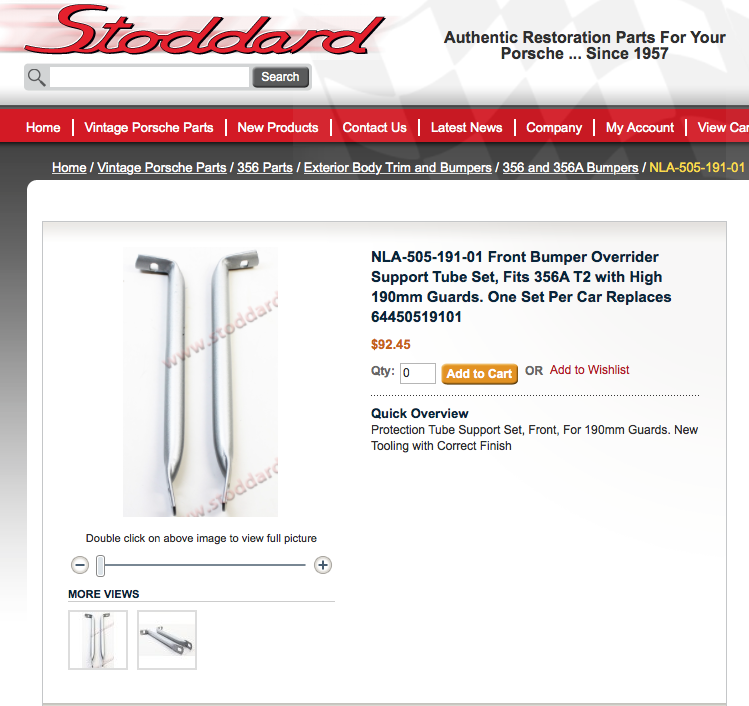

                          Are these the ones you're after?

                          Click image for larger version

Name:	ScreenShot2017-01-06at11.32.53.png
Views:	7
Size:	189.0 KB
ID:	83431

                          I am after 2 sets of the shorter T2 1958 version if anyone knows of a source for original or used.

                          Regards
                          Drew

                          Comment


                          • #14
                            Hi Drew

                            Yes these are the ones. Found these also on the web.

                            Just waiting ...maybe someone has a set laying around

                            Grts
                            Bart

                            Comment


                            • #15

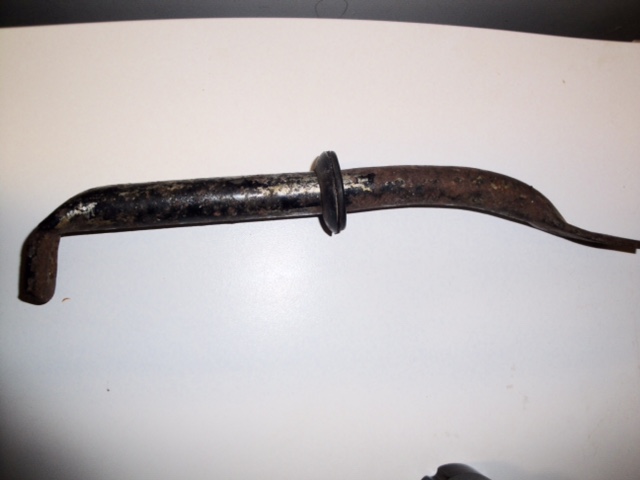

                              Hi Bart,

                              sorry no pair lying around, but a single one!

                              this one came off a parts car-59 Cabriolet out of Canada.

                              i believe it to be original, but longer than what you have stated you need.

                              let me know if you are interested.

                              regards
                              Colin
                              Attached Files
