    Hi. Could someone please help me with the correct bumper hole size/placement on an 356 speedster, I have enjoyed alle JTR70`s impressive pictures in the 356 restoration section. But need the measures so that i can mount original style bumper brackets on my replica .

    Best regards
    Bjarne Brodersen
    Denmark

  • #2
    Hello Bjarne,

    Thanks for joining us and Welcome! I can get the hole size dimensions for you tomorrow however their exact placement is going to depend entirely on where the bumper irons mount to your frame in relation to the body. Don't get too caught up with that, I would personally be shooting for the irons to exit as close to center of the holes as possible. This is unless of course your iron mounting points haven't been built yet? Thanks for the nice words and welcome once again!

    Justin
    Justin Rio

    Comment


    • #3
      Hi Justin,
      Thank you for the fast response, Im going to make new mounting points fore the irons too, so if you have the correct messure between them, it Would be a great help
      Bjarne

      Comment


      • #4
        Here they are. I hope this helps and makes sense to you.

        Front holes:
        Click image for larger version

Name:	IMG_6436.JPG
Views:	104
Size:	39.2 KB
ID:	95606

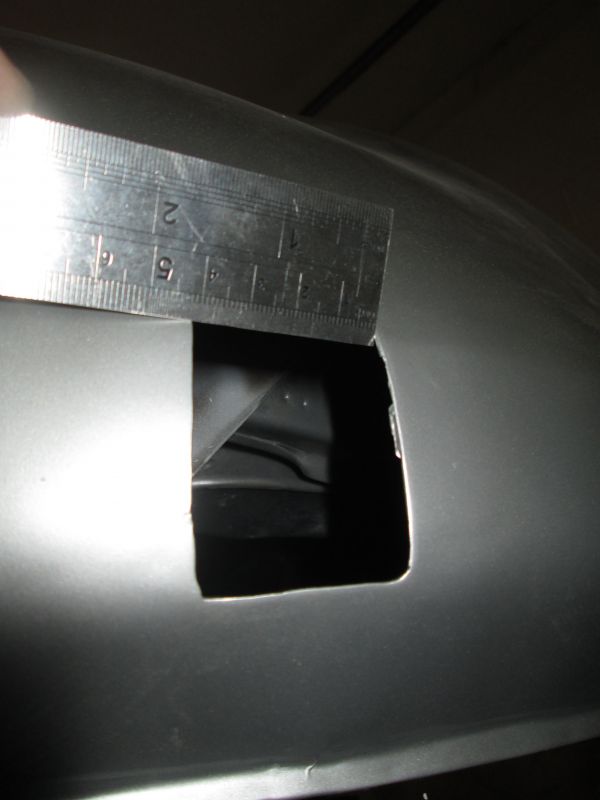

        Not particularly shaped clean when the factory cut them in.
        Click image for larger version

Name:	IMG_6433.JPG
Views:	103
Size:	48.8 KB
ID:	95607

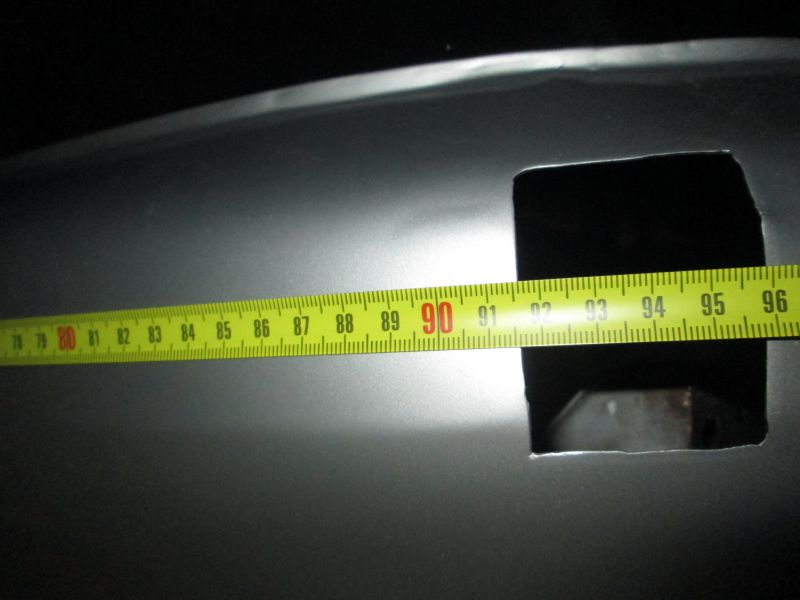

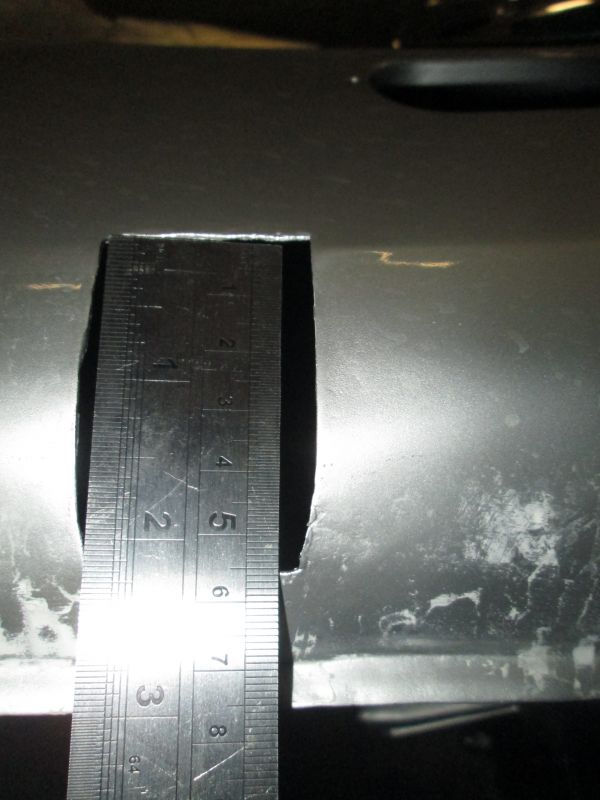

        Width
        Click image for larger version

Name:	IMG_6431.JPG
Views:	104
Size:	56.6 KB
ID:	95608
        Height
        Click image for larger version

Name:	IMG_6437.JPG
Views:	115
Size:	50.0 KB
ID:	95609

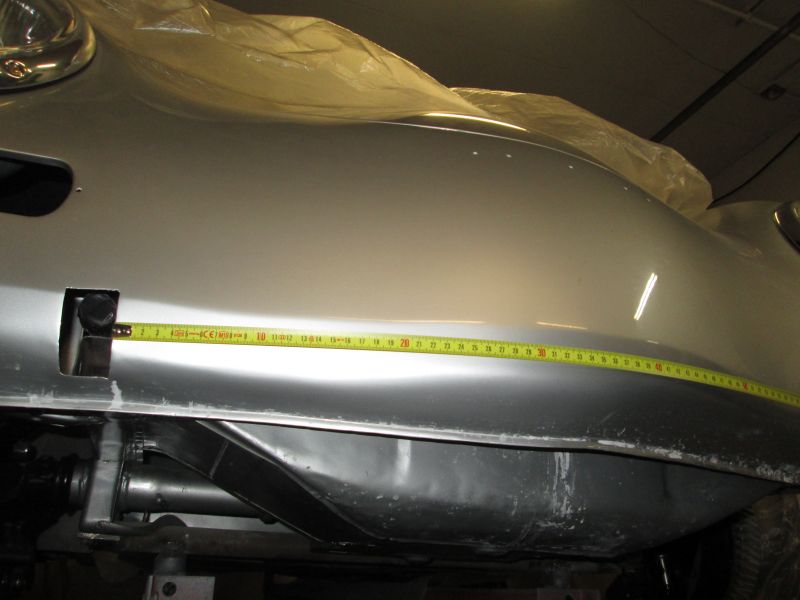

        Distance between the inner edge of the holes.
        Click image for larger version

Name:	IMG_6438.JPG
Views:	107
Size:	47.7 KB
ID:	95610
        The crown of the nose is of course affecting this distance so depending on how close this crown was replicated on your body I would use this only as a guide while determining your best average fit.

        Rear holes: Cut a little larger than the fronts but equally as rough in shape.
        Click image for larger version

Name:	IMG_6443.JPG
Views:	110
Size:	37.4 KB
ID:	95611

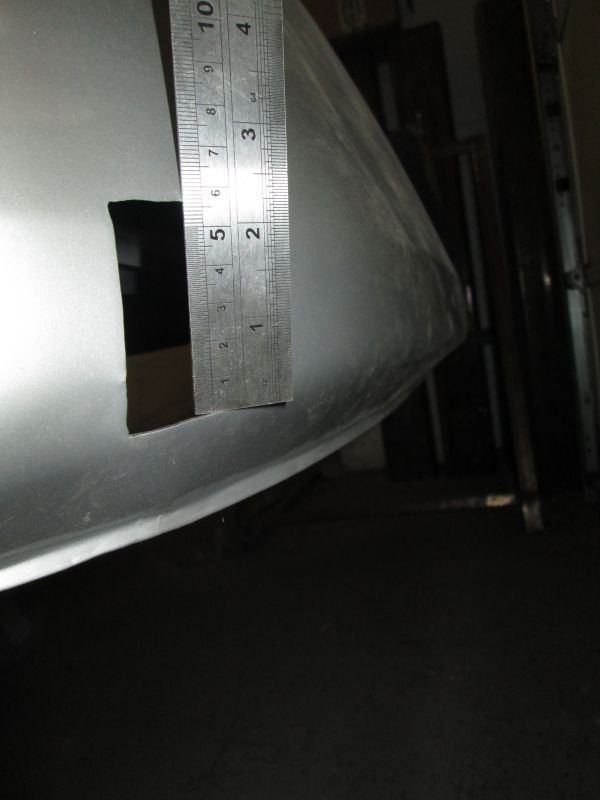

        Height
        Click image for larger version

Name:	IMG_6440.JPG
Views:	99
Size:	35.9 KB
ID:	95612

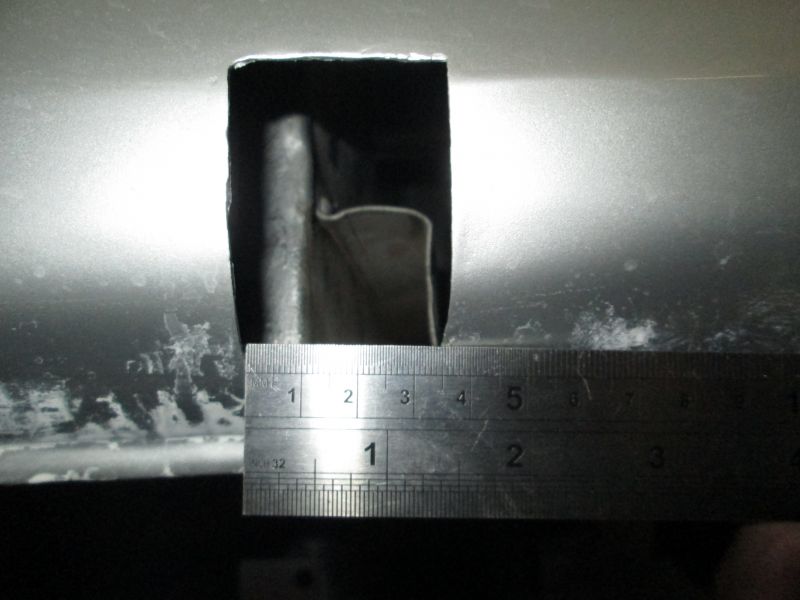

        Width
        Click image for larger version

Name:	IMG_6446.JPG
Views:	100
Size:	44.5 KB
ID:	95613

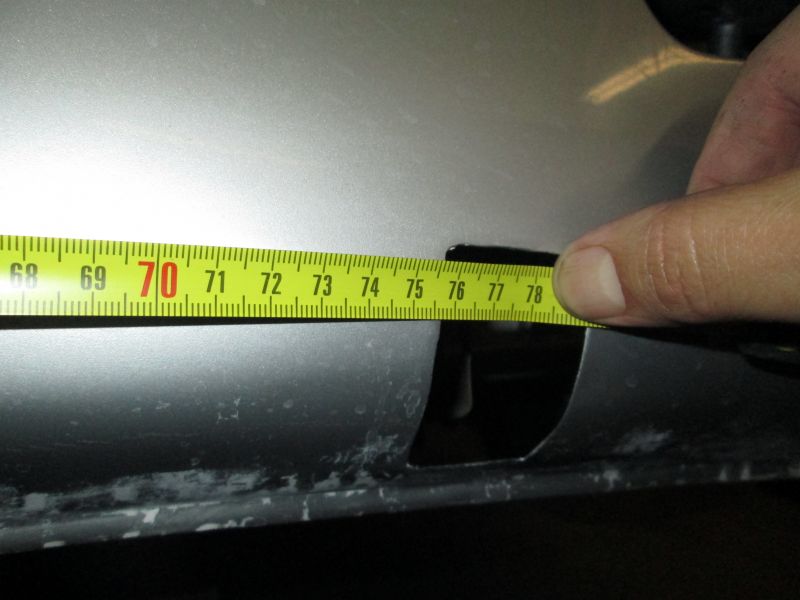

        Distance between inner edges of the holes.

        HTH

        Justin
