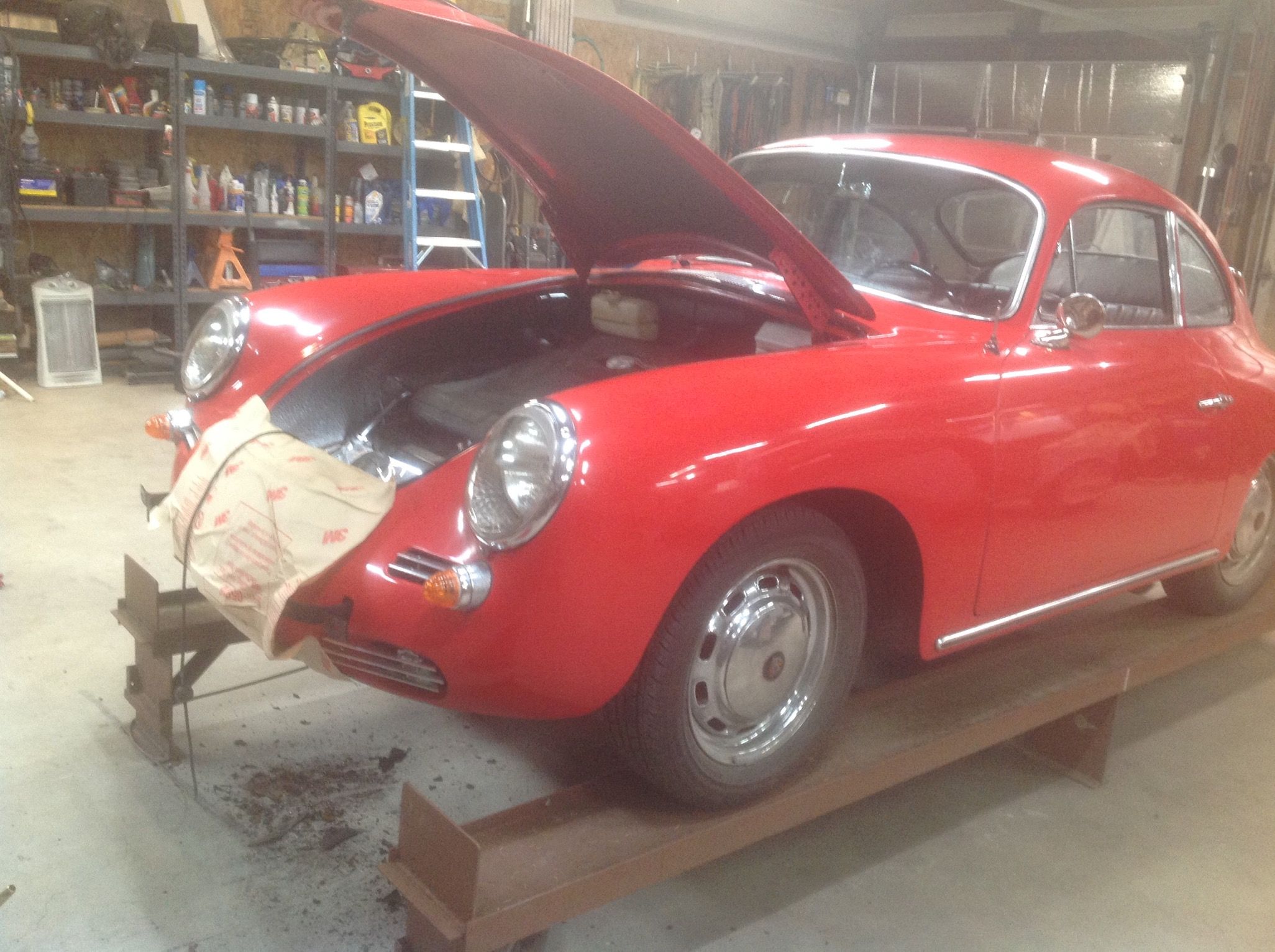

    We after a month of “road worthy driving” fun the SC coupe is side lined for new floors. Dick put three tanks of gas through the car getting it sorted. I went through the wiring made a list of this needs fixed. We bit the bullet side lined it and started the big fixes. She looks good, drives super, quick aggressive typical of a good 356. Has a few minor things,

    Click image for larger version  Name:	AA890B78-0216-4084-A09A-903C184B43D4.jpeg Views:	5 Size:	416.4 KB ID:	111968

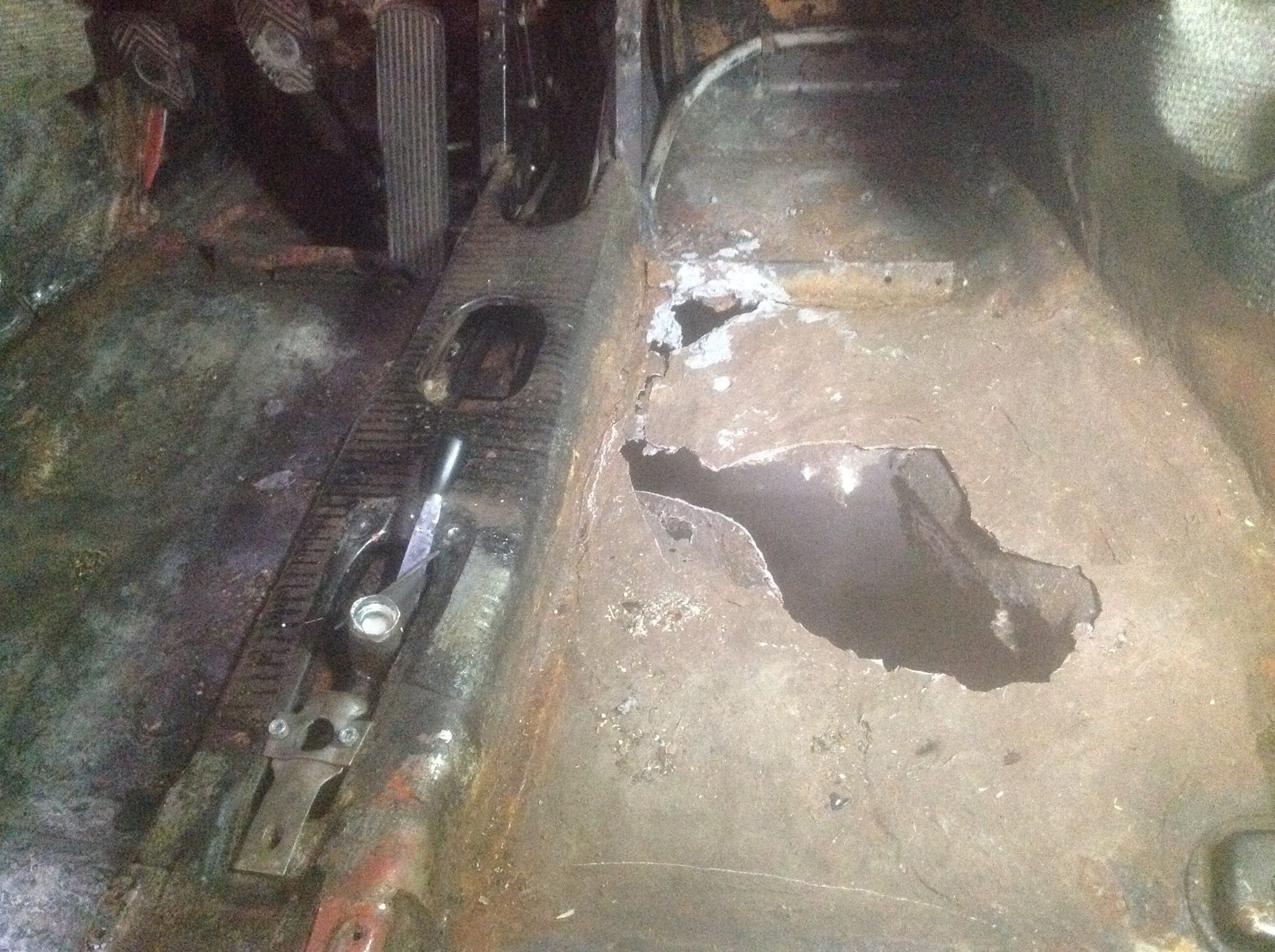

    The turn signal switch on worked on one side. Brake light were intermittent, has 1/2” thick passenger front floors, a square hole under the battery, flaky undercoating, poor original rubber seals. So the turn signal switch is a 3-5 weeks turnaround for rebuild, so while thats out, let’s fix the rest. Click image for larger version  Name:	AAE9D052-A490-4955-BD34-33F7766F6E88.jpeg Views:	5 Size:	527.6 KB ID:	111970 Click image for larger version  Name:	EBF0267C-BEC3-4BBE-85A0-F8A6F5348AFD.jpeg Views:	5 Size:	591.7 KB ID:	111972


    Bob has a hole in the shop schedule, Mike DeJong has sheet metal, at restoration design, the car has no lights so let’s fix all of it. We ordered floors, toe boards battery box floor and launched into the heavy work. Sheet metal took a week to arrive
    Click image for larger version  Name:	EA350B1D-A406-4DA7-AE87-4D5C3398B6E5.jpeg Views:	5 Size:	370.0 KB ID:	111971
    Stalk and combo gauge out and off for repair.
    Attached Files
    Last edited by Jbrooks; 10-02-2021, 05:26 AM.
    Pushed around since 1966.

  • #2

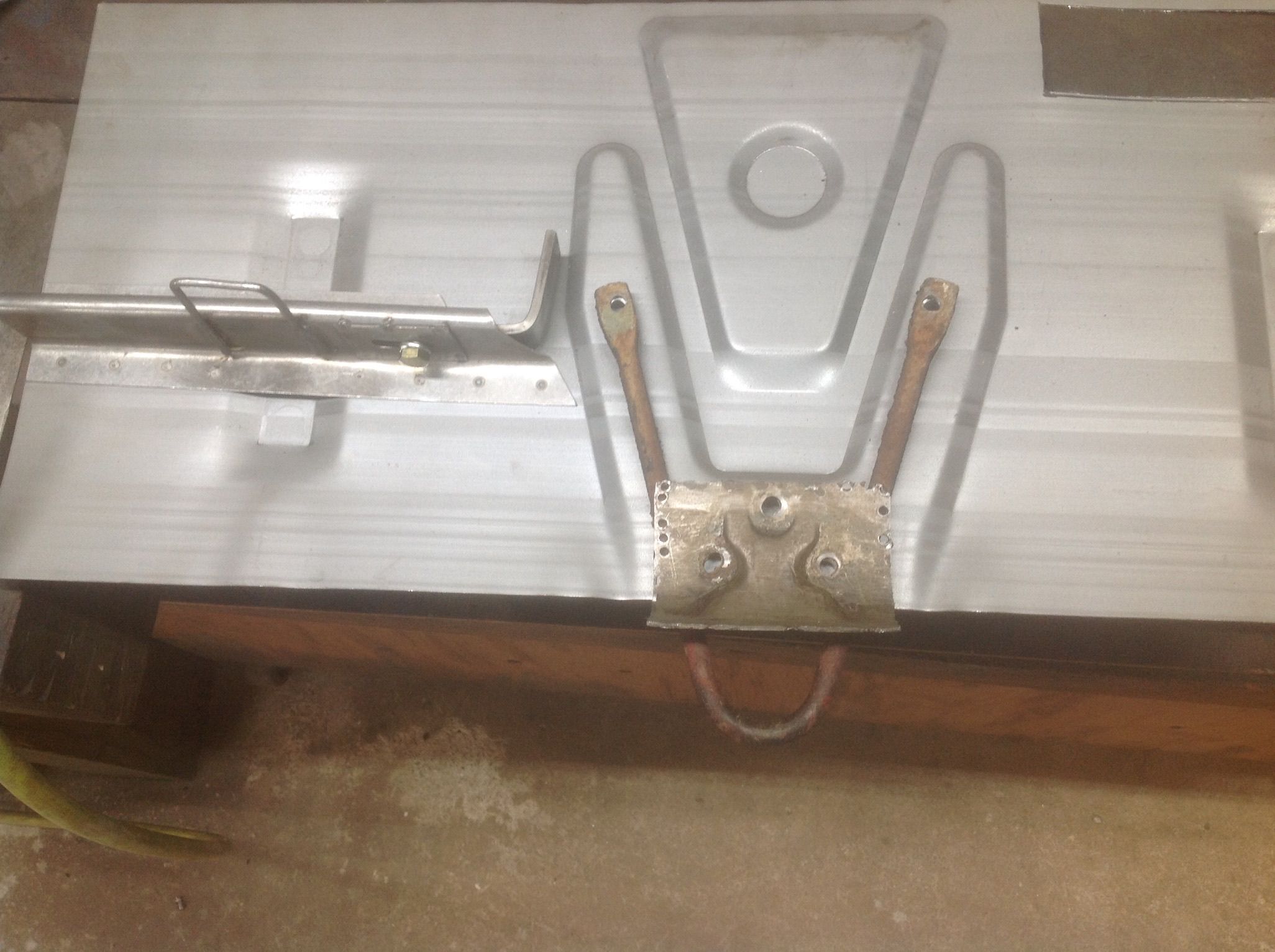

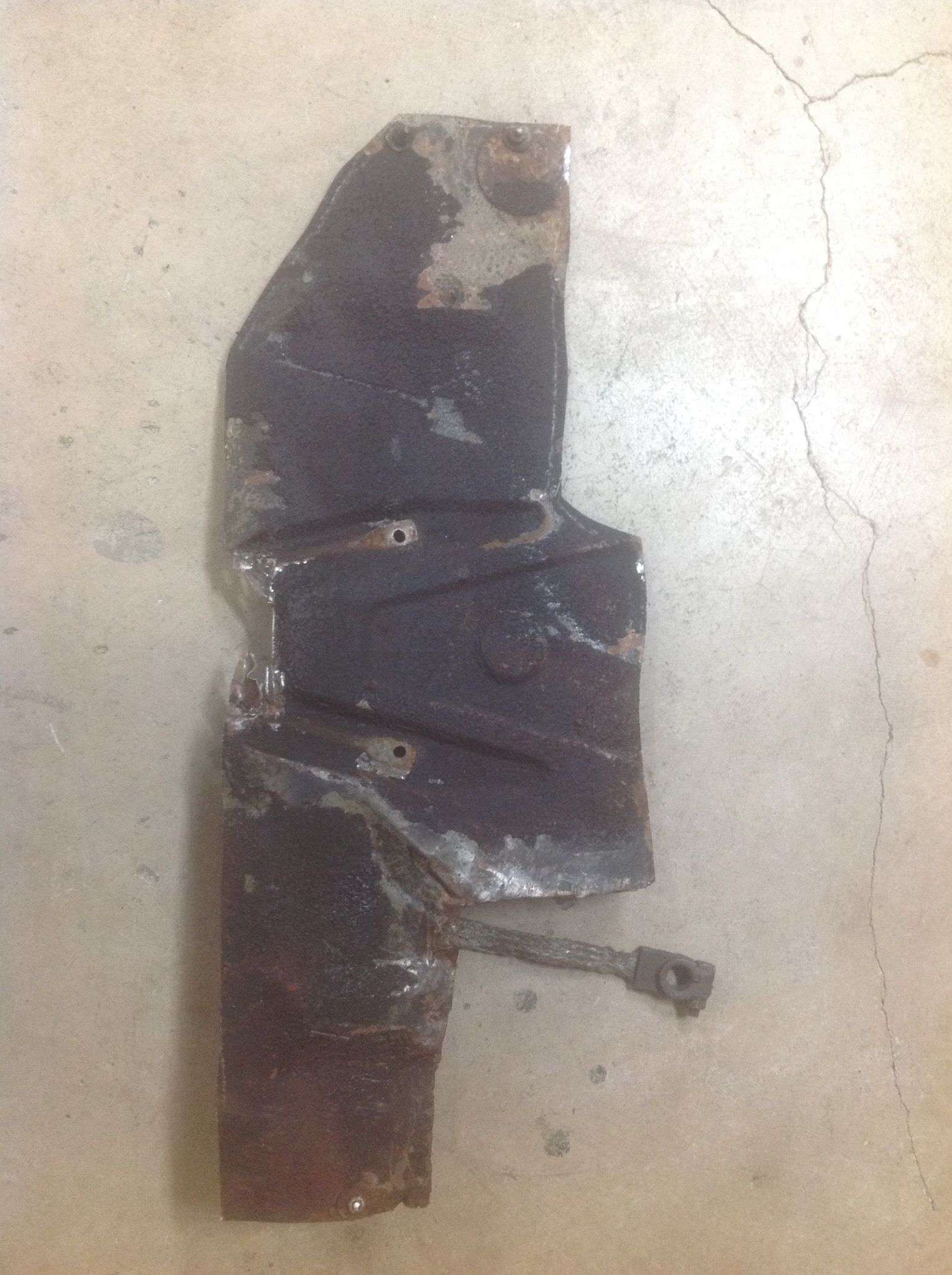

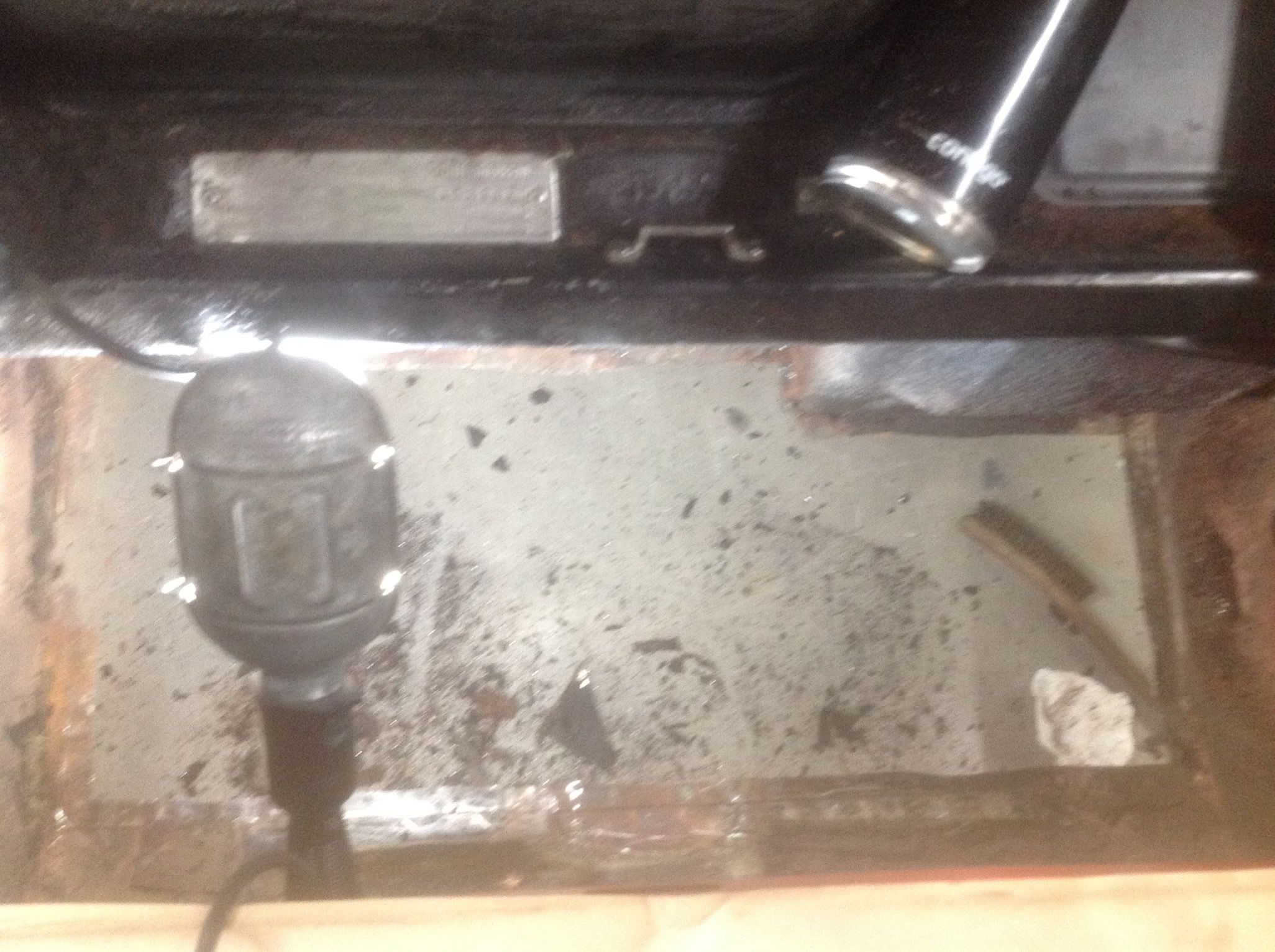

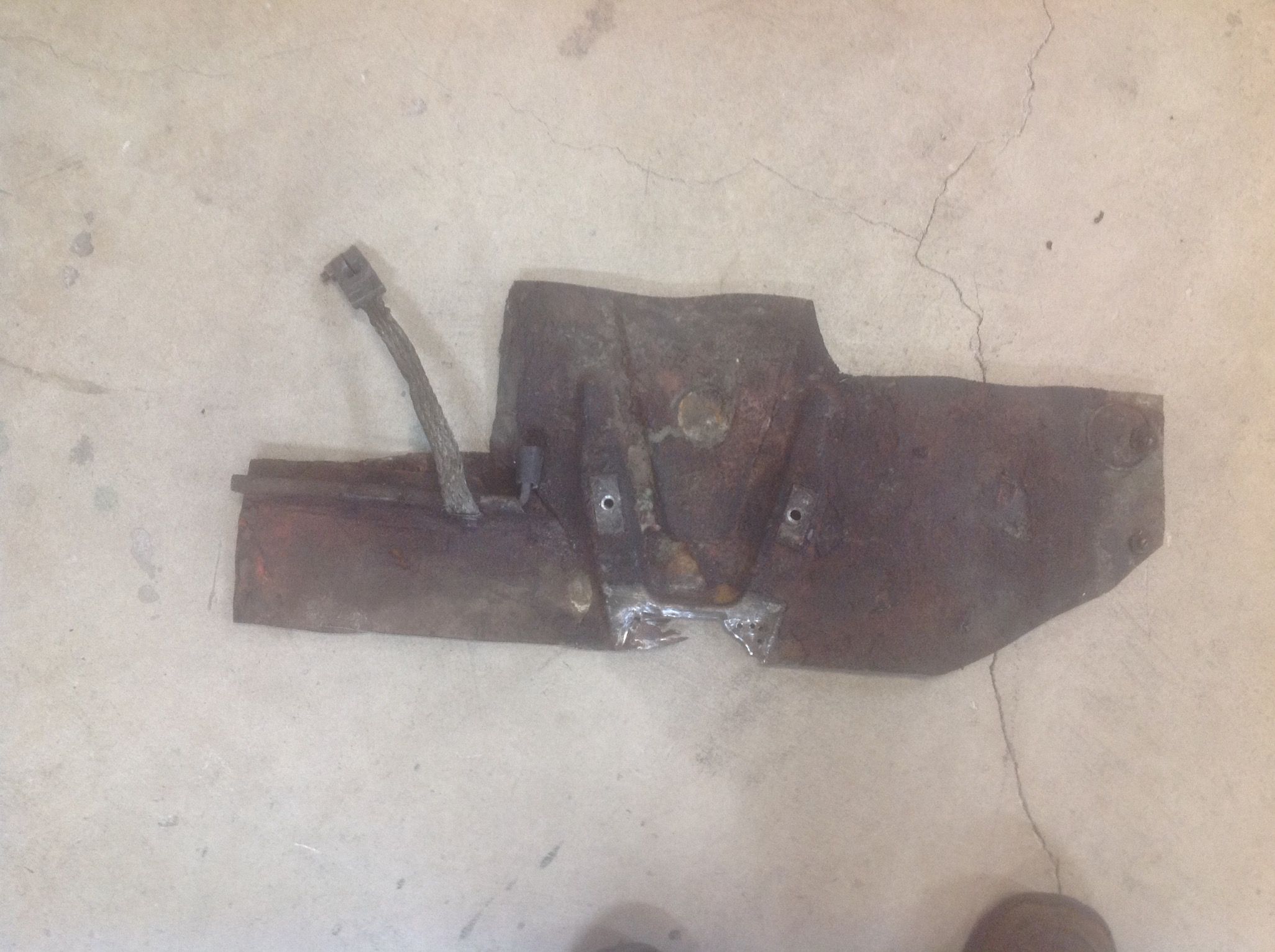

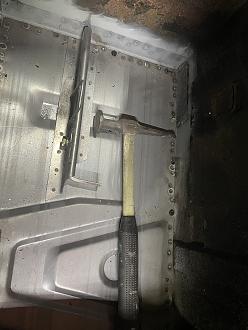

    Cut out the battery box floor, made a new strip an out 2” tall along the outer wall removed all the damaged sheetmetal. Below is the removed floor section. The section under the battery cable was missing. Panel saw and 10 minutes it was out. Most of the edge was good except for right at the battery.

    Click image for larger version

Name:	F04A14AE-0A00-4200-958C-0E8684562CDD.jpeg
Views:	178
Size:	366.1 KB
ID:	111977 Click image for larger version

Name:	164E136D-32F6-4F32-85D6-574A3B52EB41.jpeg
Views:	177
Size:	427.7 KB
ID:	111976

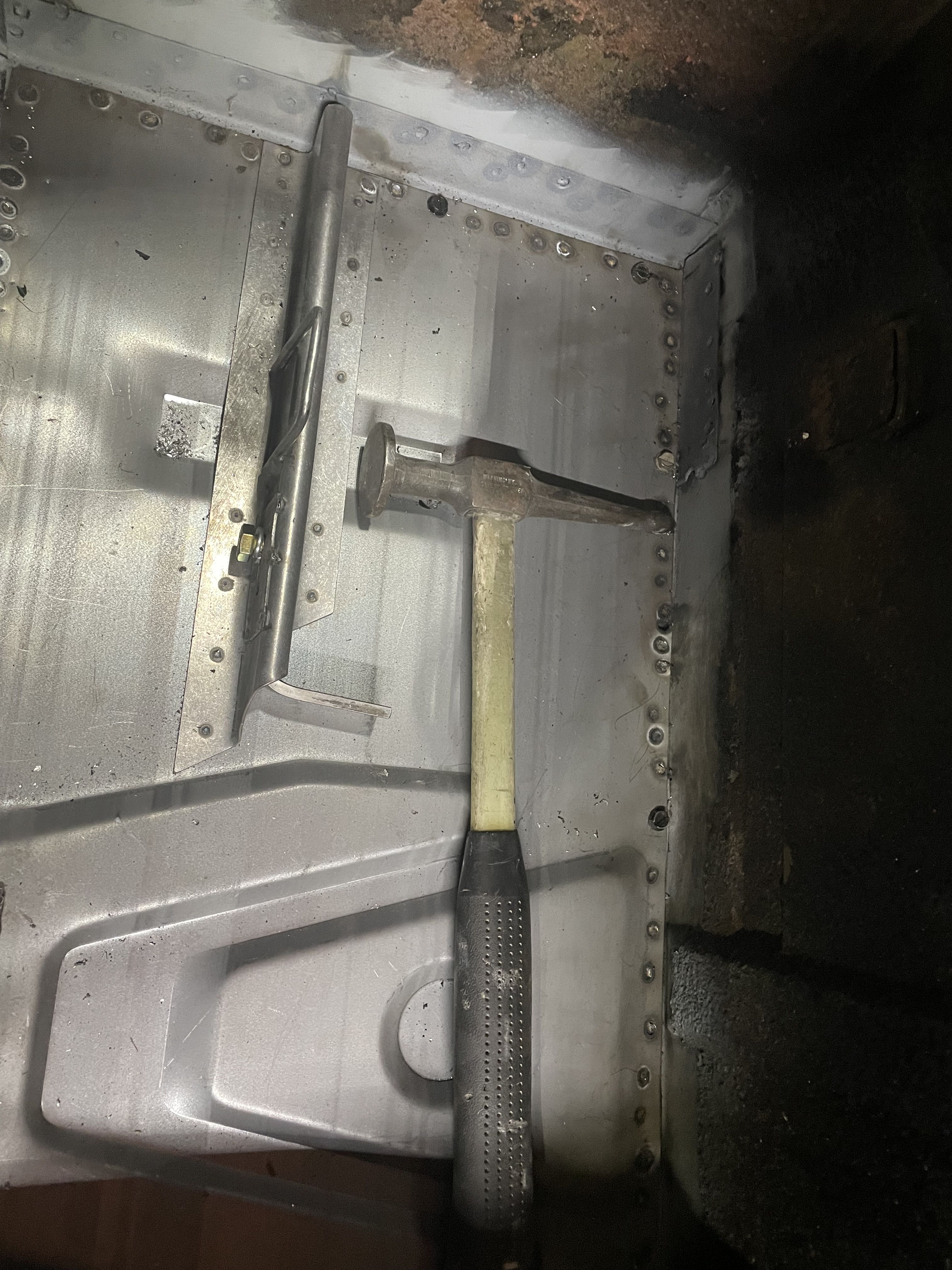

    Cleaned it all down to bright clean metal. Fitted the new floor and replacement panels. Bob is amazing on metal repair. Floor was fitted and ready to weld in a day.

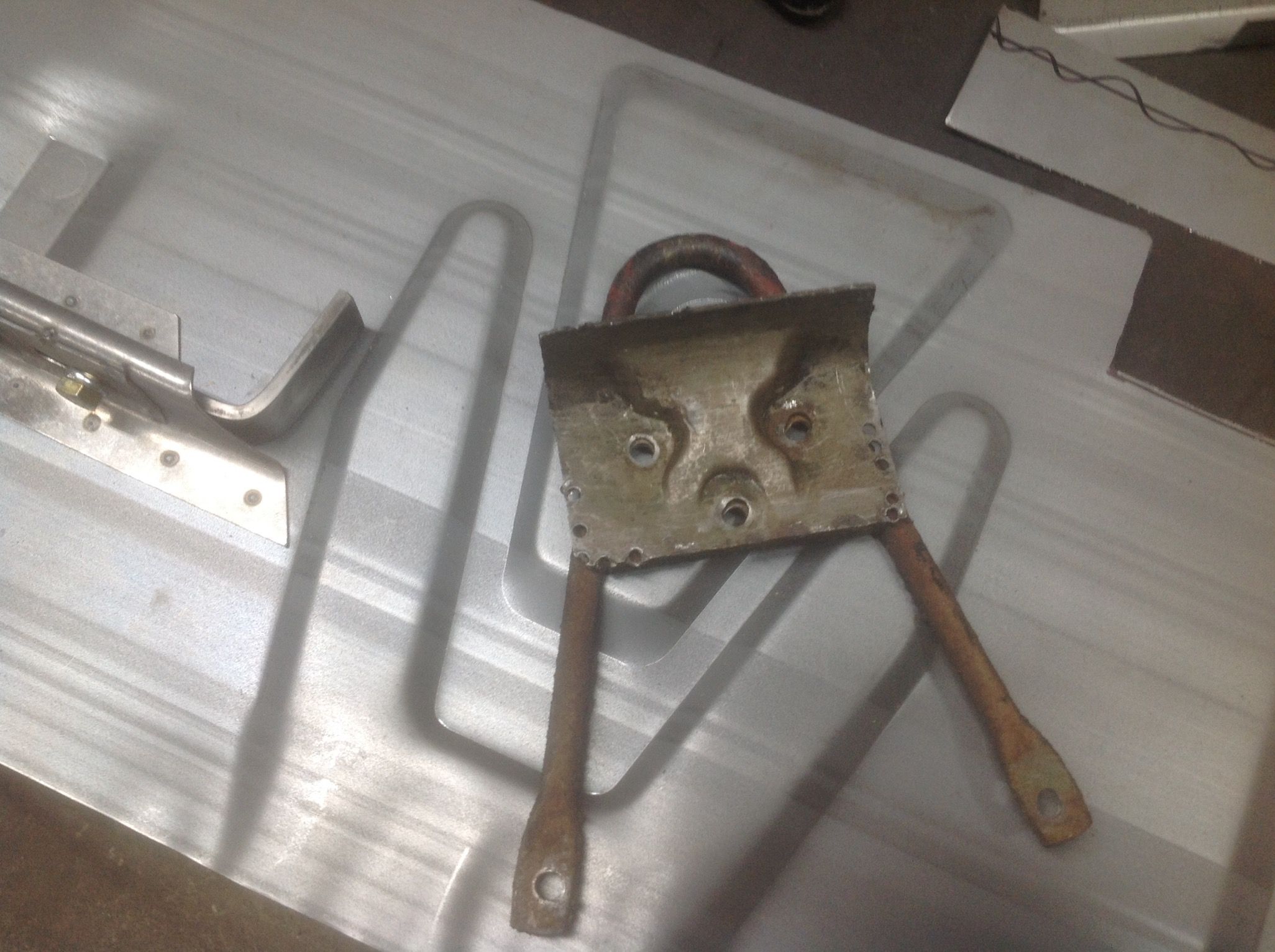

    Used the “Panel Spotter” spot welder to install the new section, It’s a Karman body so it has a extra reinforced doubler inside on the tow hook. Battery floor in, toe hook rivets and bracing complete. Now awaiting epoxy primer, seal sealer and Wurth Shatz.
    .
    Click image for larger version

Name:	0192E489-CB00-4ED4-B7A1-01CAC550C422.jpeg
Views:	189
Size:	305.5 KB
ID:	111974 Click image for larger version

Name:	C0D01FE7-2A57-45CB-BA70-70D44987610F.jpeg
Views:	180
Size:	370.0 KB
ID:	111975
    The new sheetmetal was easy to fit and trim, screwed sown to the existing flanges and spot welded back in. Will MIG the screw holes and polish the welds.
    Click image for larger version

Name:	6EA2DFE2-040C-4012-BBF1-BE04DF2D69E1.jpeg
Views:	178
Size:	1.77 MB
ID:	111978

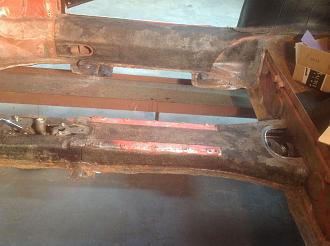

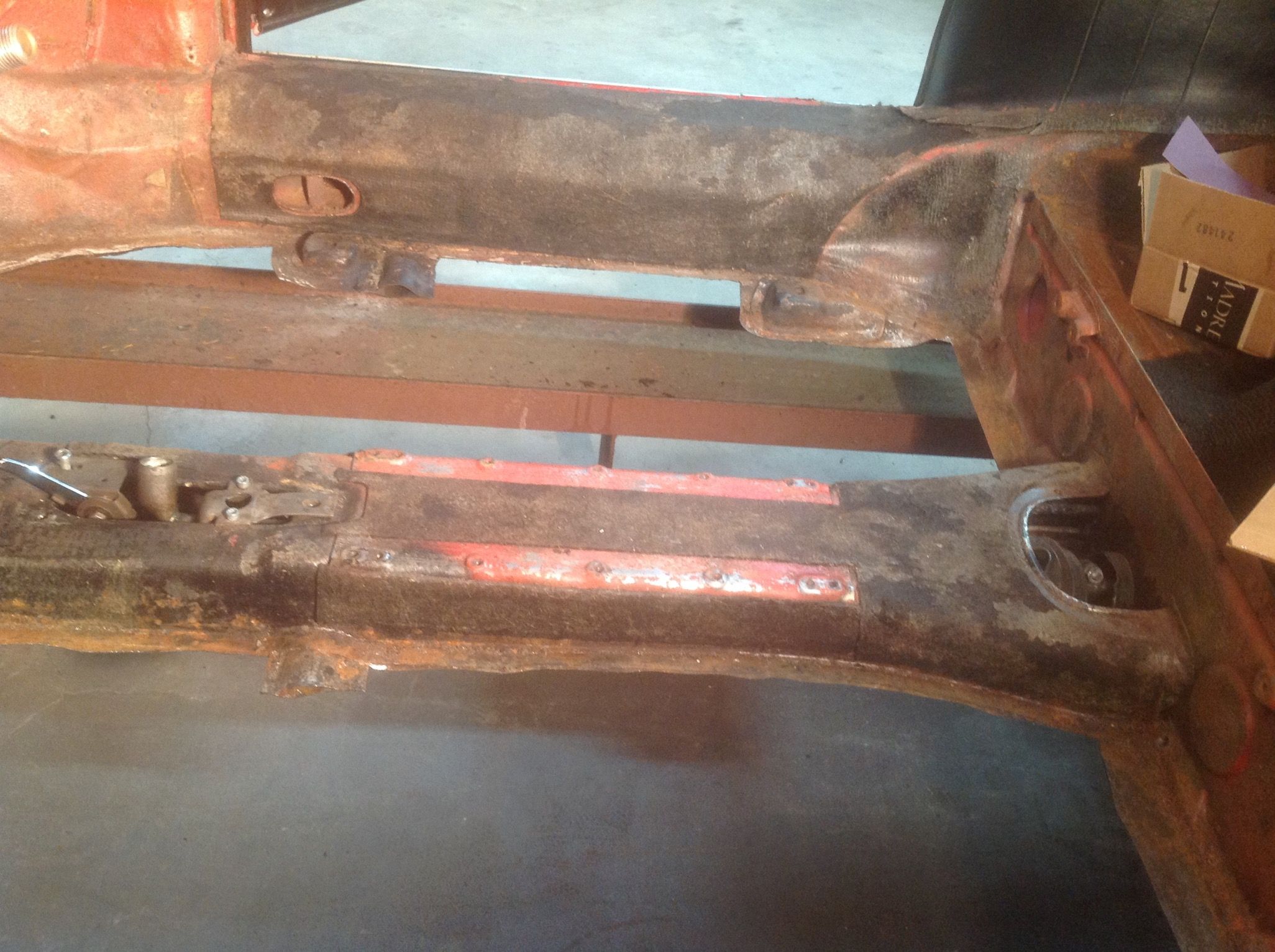

    While Bob was working in the front Dick and I started in the back. Started all the small stuff. Things you would normally over look and keep driving. Replacing the Heater Cable, adjusting heater flappers and air valves. We installed a remote starter relay, rear starter push button switch. Pulled the distributor re- clocked the distributor drive gear to get No1 plug in the correct position. Installed a bunch of rubber seals under the car. Pulled the steering wheel, signal stalk, removed the seats, seat rails carpets to access the floor. Started poking and prodding with picks and punched looking for rust up in the smugglers box.

    was a good week overall.
    Pushed around since 1966.

    Comment


    • #3

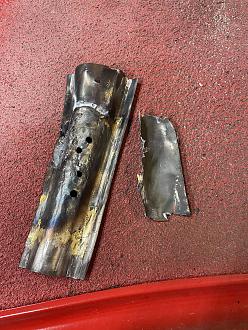

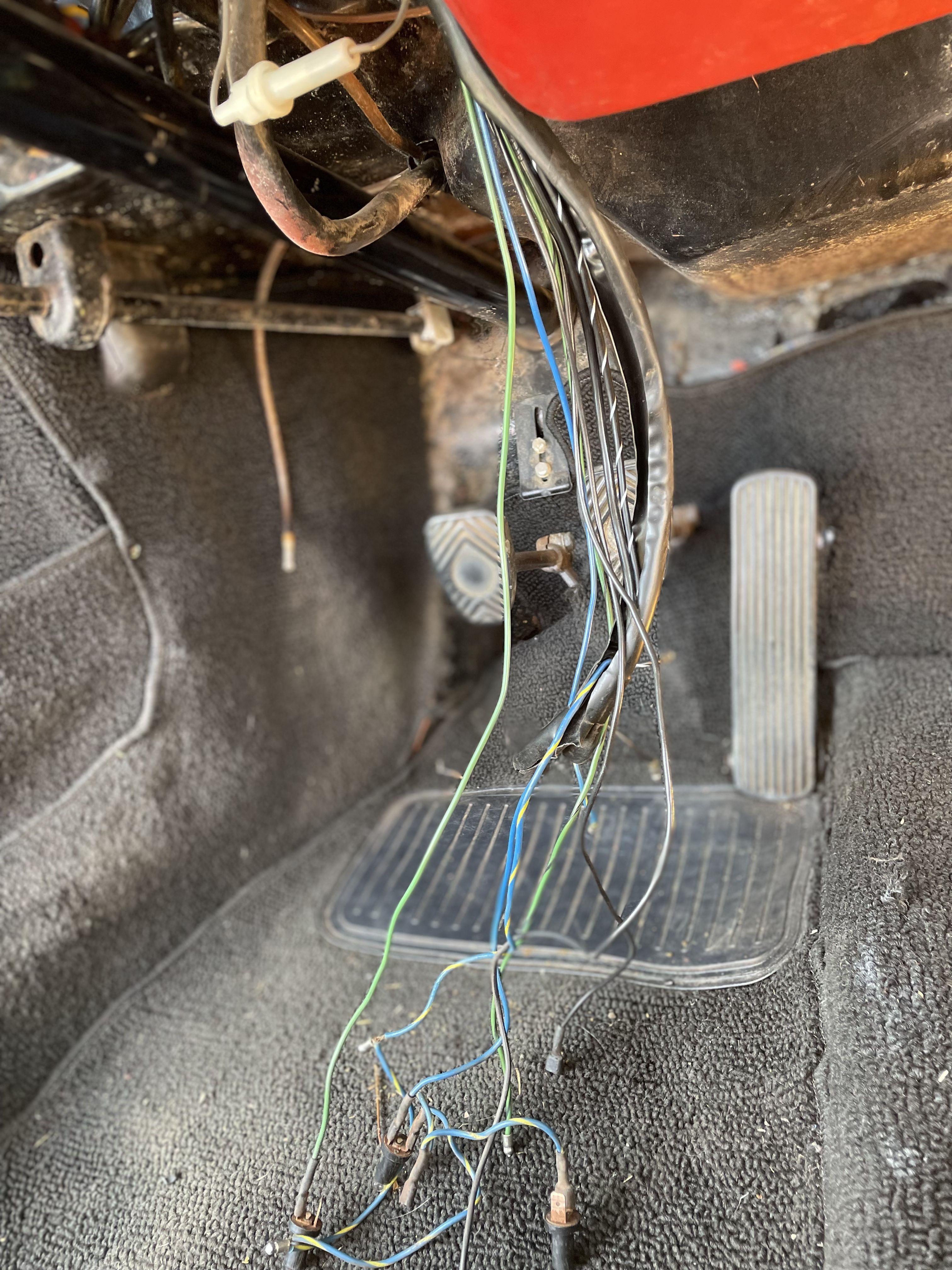

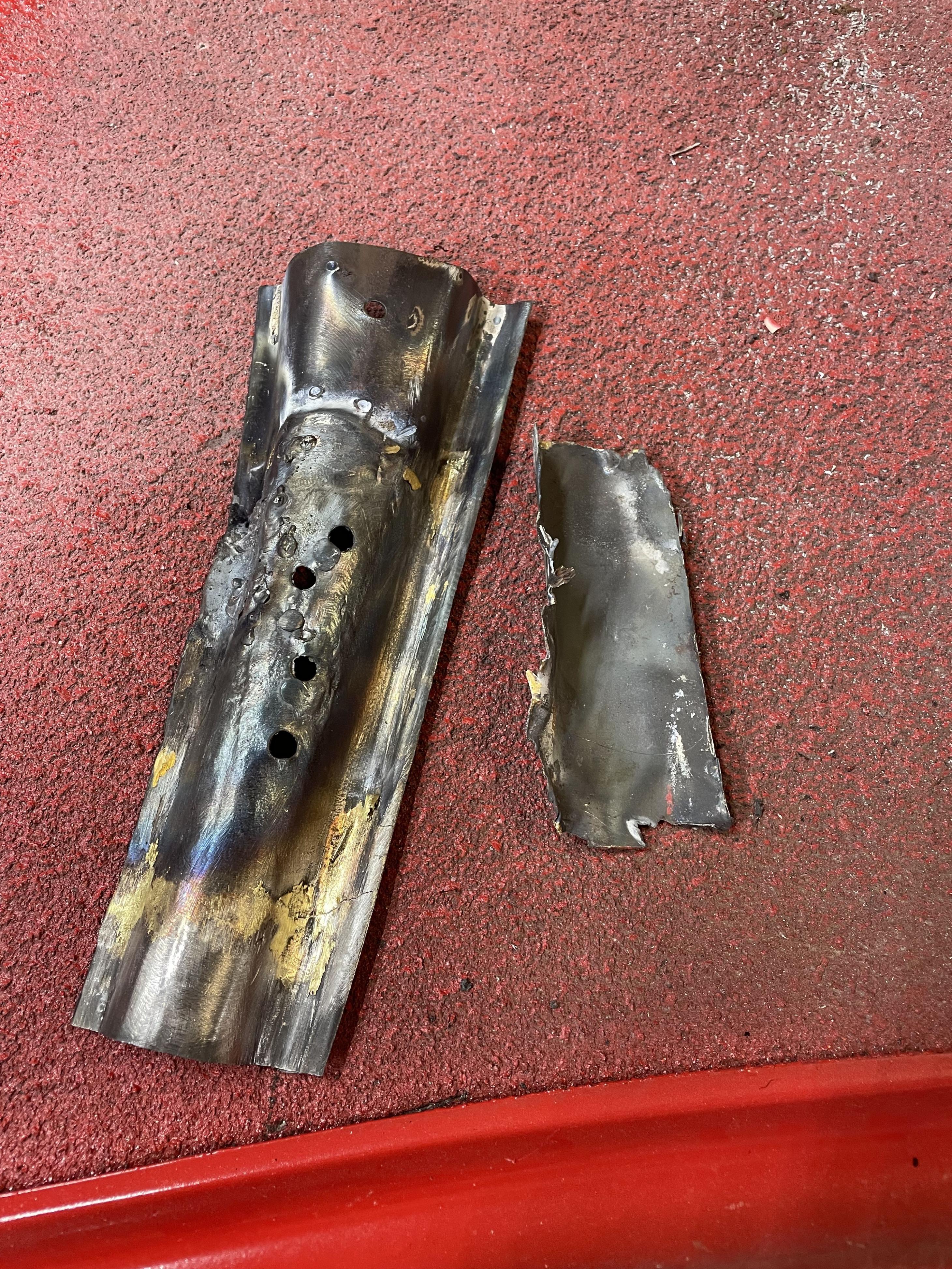

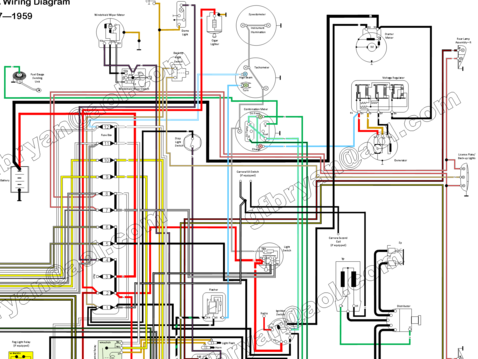

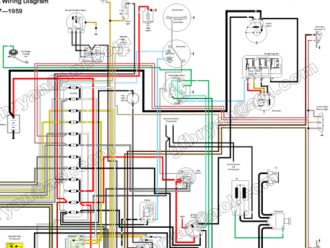

      Started going through the wiring. Pulled the turn signal Stalk and combo gauge, now it must has a dozen or more loose wires up in front of the wheel. I have one of Greg Bryan’s wire diagrams ( https://www.vintagewiringdiagrams.com ). Its a 18" X 24" color wiring diagram, with wire size, contact numbers and color codes! I can not tell you how easy this makes the wire checks. Having a full color wire diagram the size of the windshield, plastic laminated, so it stays clean to reference is amazing. I bought his entire set 356A,B&C 912 and several 911’s, looks good enough to frame. Real Man Cave stuff, that works.
      Click image for larger version  Name:	258DA71C-0DE4-42A8-930C-9885B6BECABA.png Views:	1 Size:	114.4 KB ID:	111985
      Click image for larger version  Name:	image_64771.jpg Views:	6 Size:	1.50 MB ID:	111984

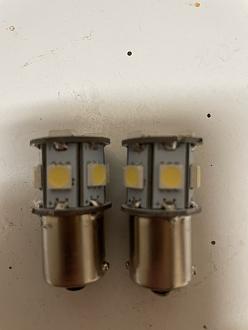

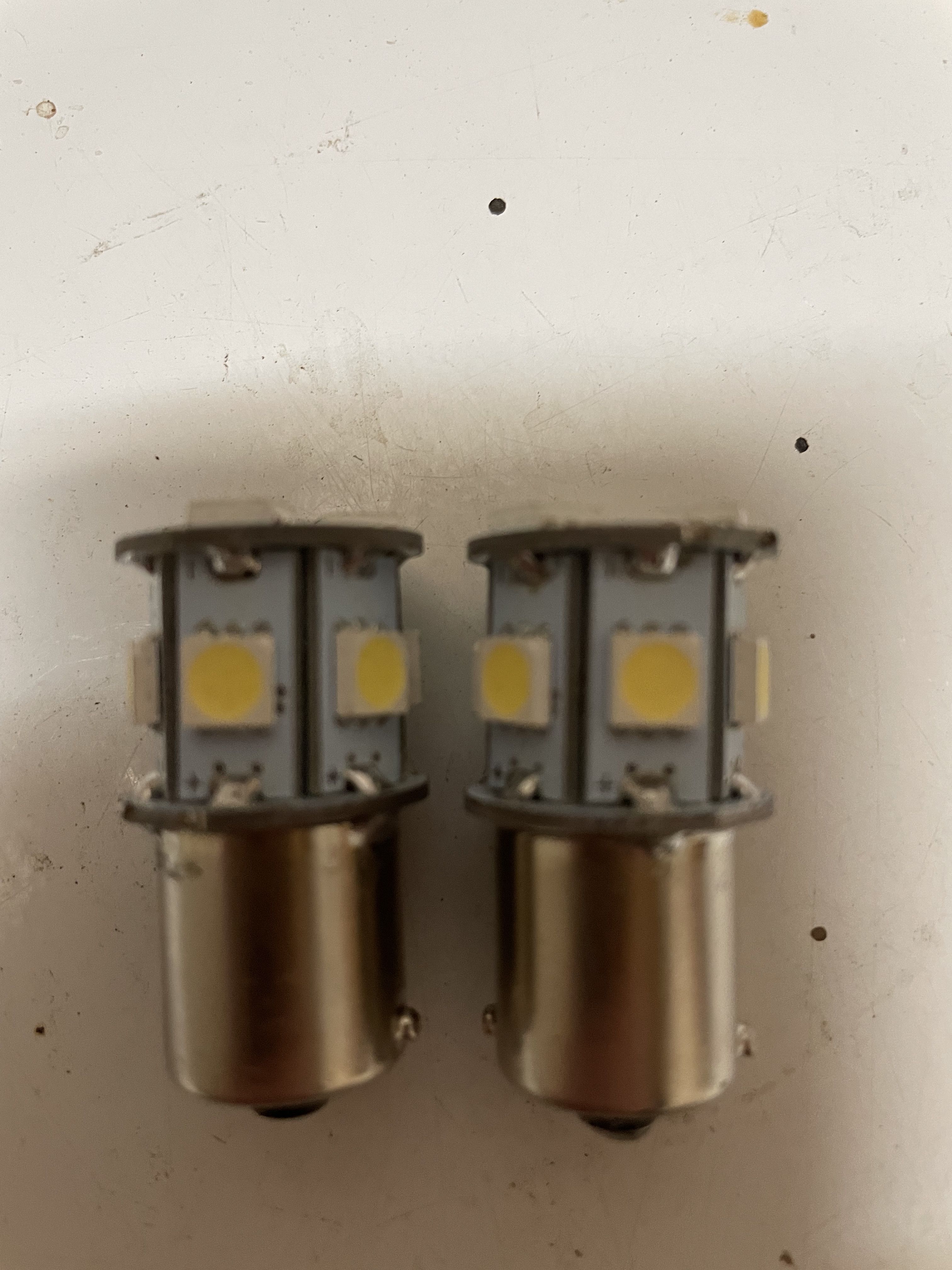

      Cleaning all the bullet connectors and cleaned up the rear light assemblies while installing new rubber seals. Converting to all the rear lights LED bulbs. The are the same brightness as the original, but way less current. Replaced one license light assembly. Rebuilt the interior light assemblies, the head light buckets, replaced all the rubber seals.
      The turn signal stalk will be a while (2-3 months) to overhaul. Sent it out to a guy in Chicago who specializes in their repair. He is good but is way backlogged. This may end up being the driving force on the entire rebuild.

      Click image for larger version  Name:	image_64857.jpg Views:	5 Size:	1.36 MB ID:	111982
      Attached Files
      Last edited by Jbrooks; 10-03-2021, 09:57 PM.
      Pushed around since 1966.

      Comment


      • #4
        Well John you three have been really busy for sure. That is a lot of work to have completed. Well done!
        Roy

        Comment


        • #5

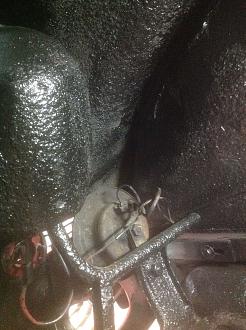

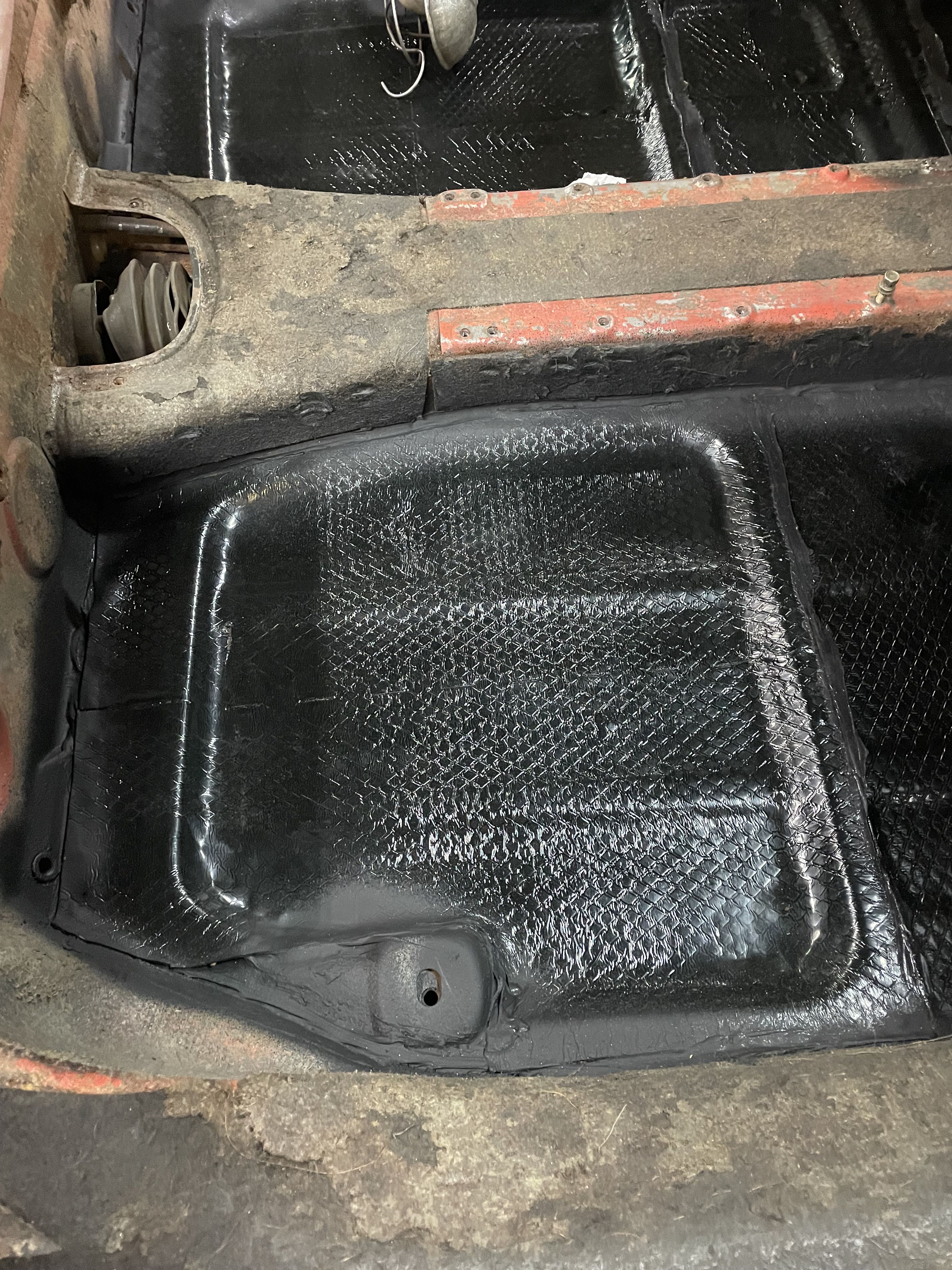

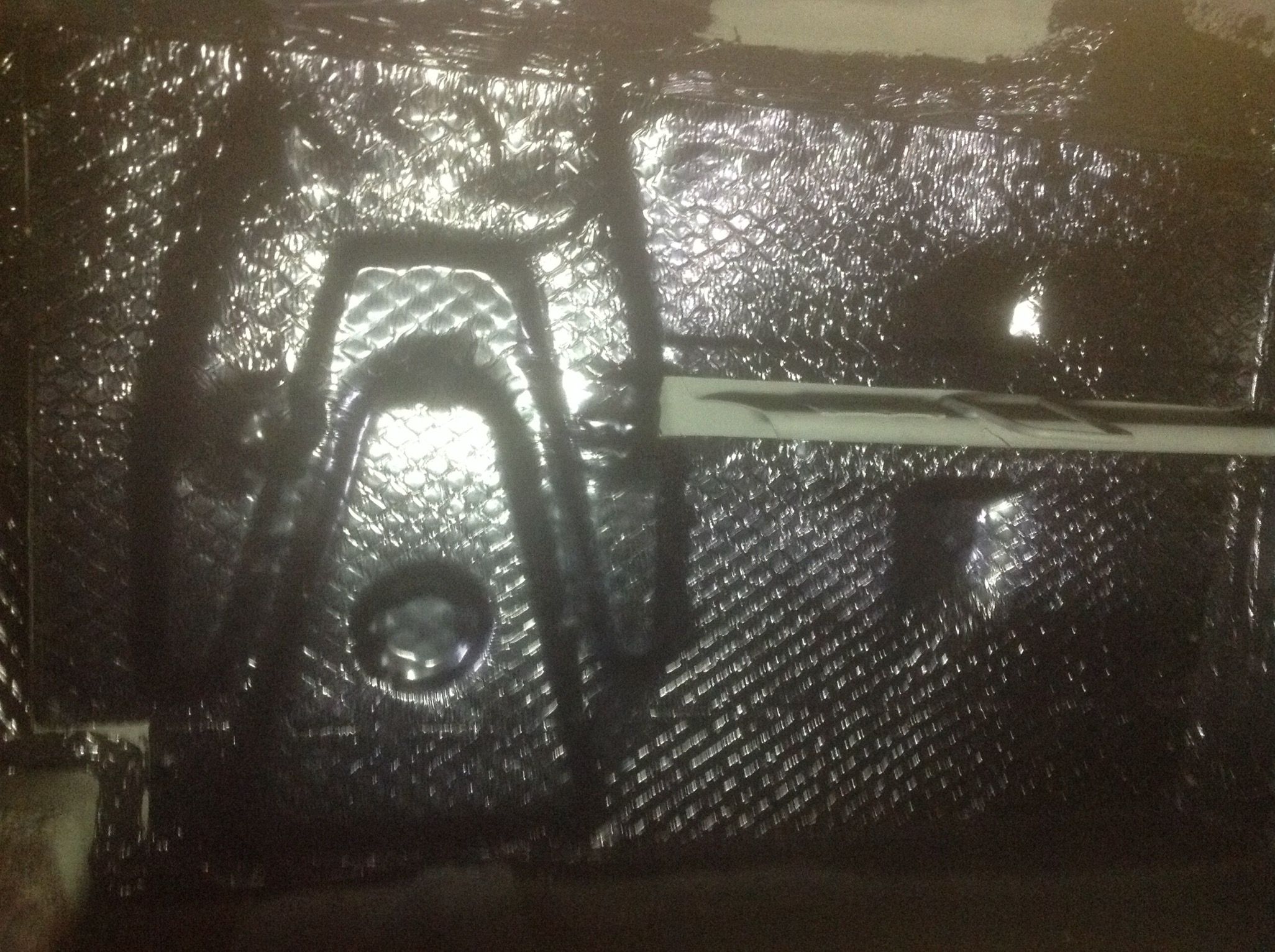

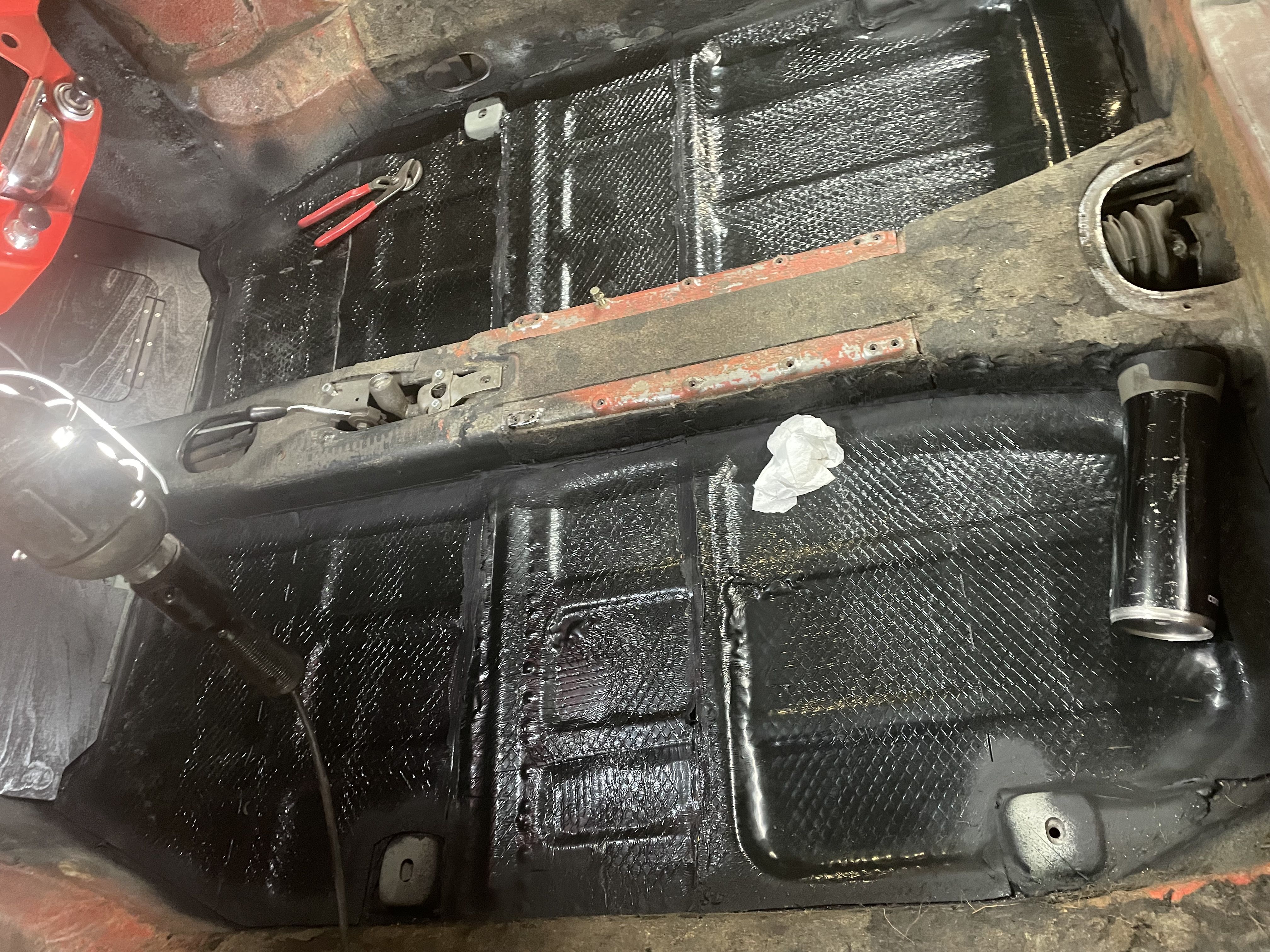

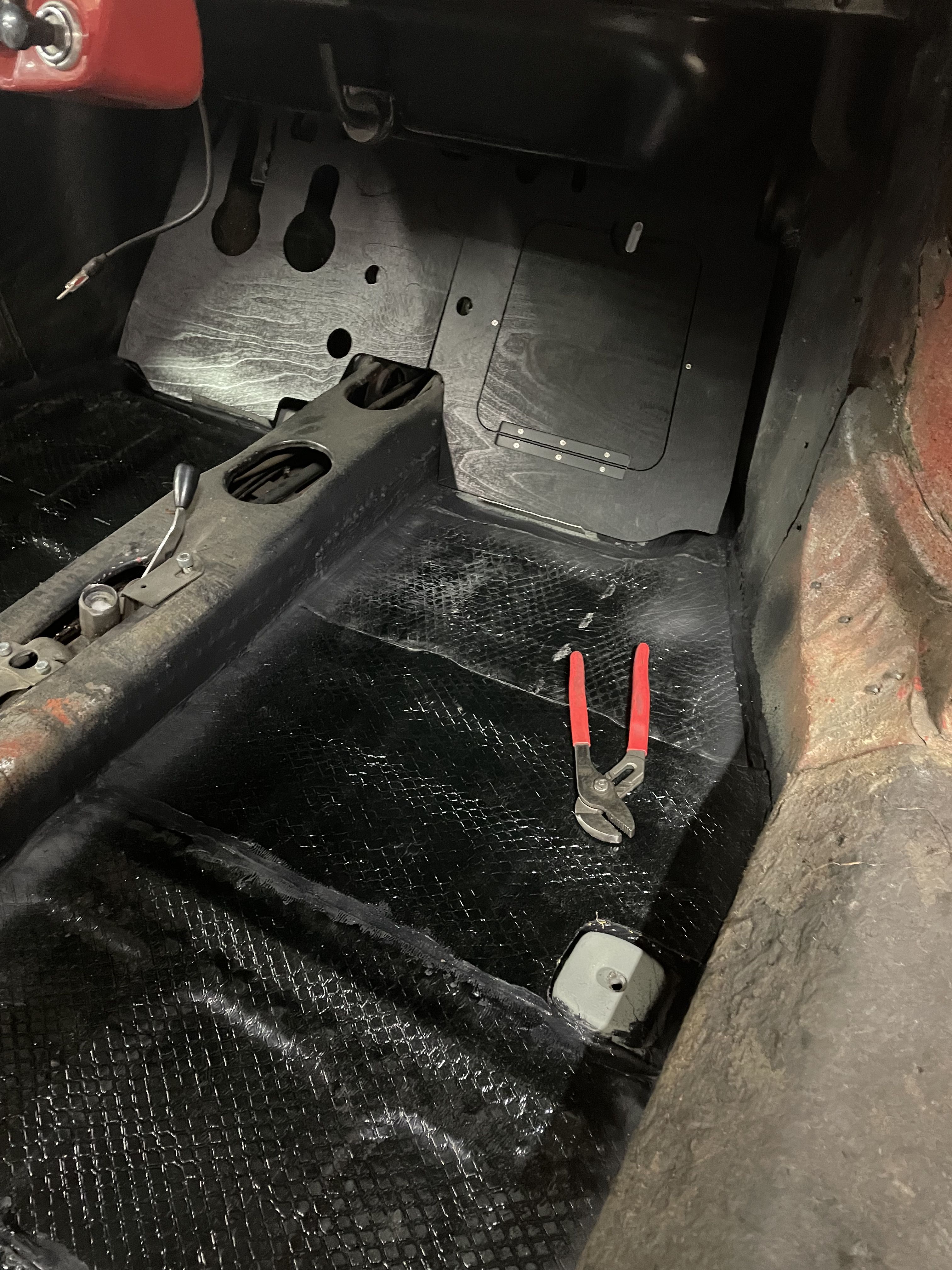

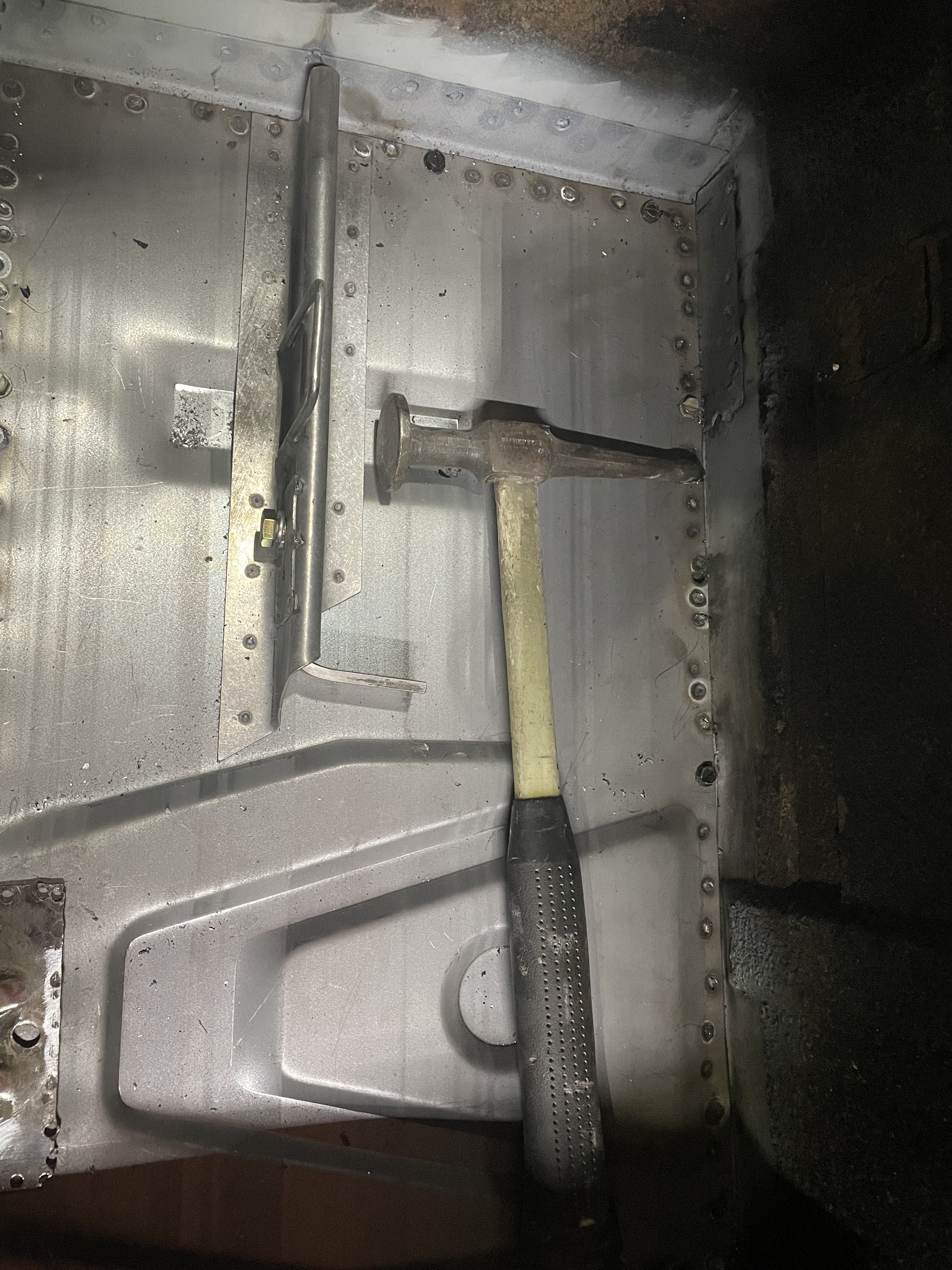

          Battery box is in , primed and sealed. Used 3M 08840 sound deadening pads for the bottom. There are similar of everyone’s tar pads, but have a urethane layer on the top to keep it’s from smudging. Used a heat gun to stretch and conform to the ridges. Battery bracket will get original color to match the car.
          Click image for larger version  Name:	BCE7C0A6-BDF6-42FC-86FF-291EE98A730E.jpeg Views:	8 Size:	528.6 KB ID:	111988 Click image for larger version  Name:	B82C9D2A-86DD-46F2-BB49-7D682A43DB88.jpeg Views:	8 Size:	1.73 MB ID:	111990

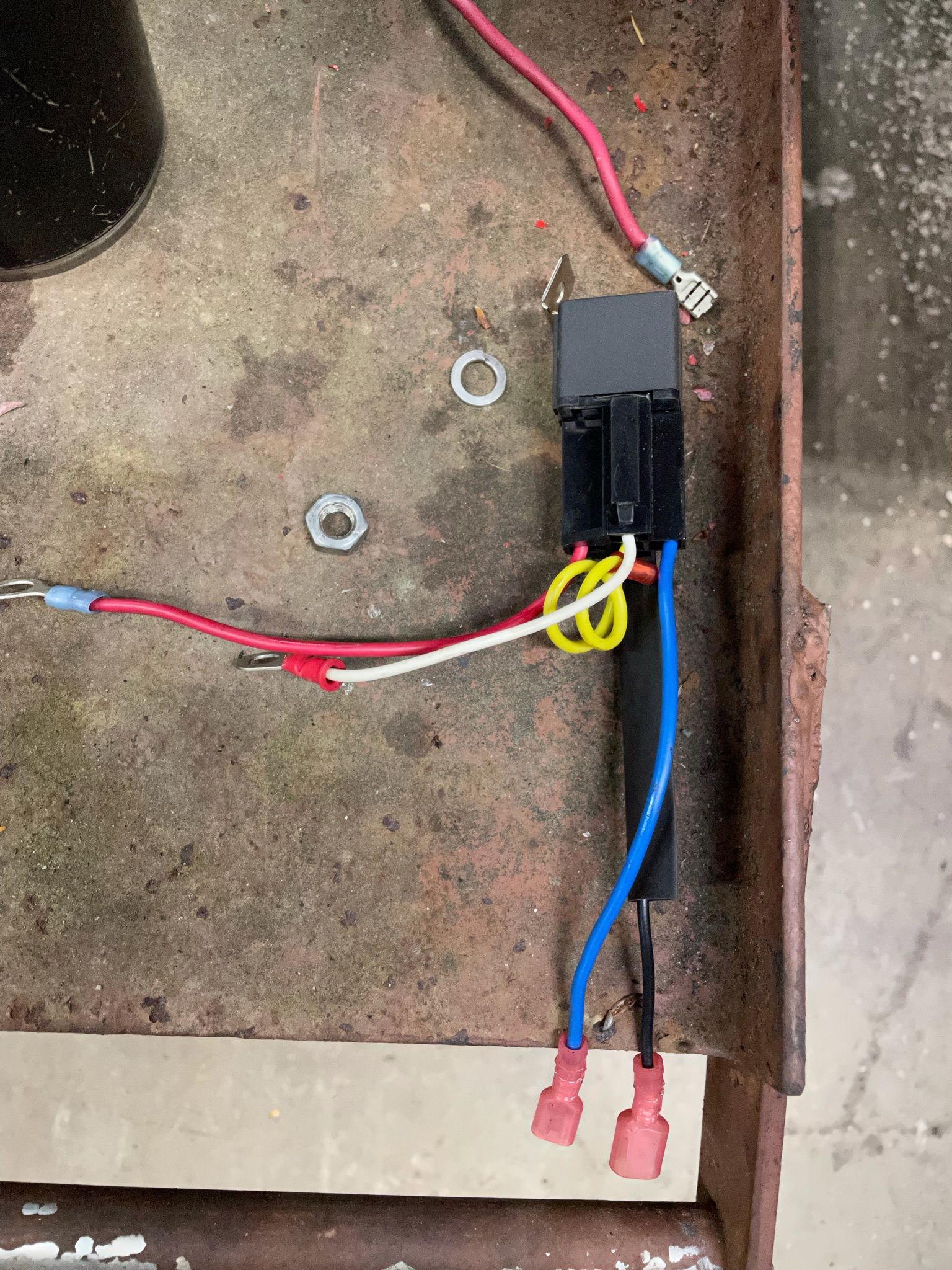

          Also built up the remote starter relay! And put a remote starter button on the voltage regulator mount for ease of maintenance in the future . Now off to the floors
          Click image for larger version  Name:	92681D6E-88FA-4750-9E9E-B288B2750066.jpeg Views:	8 Size:	589.6 KB ID:	111989

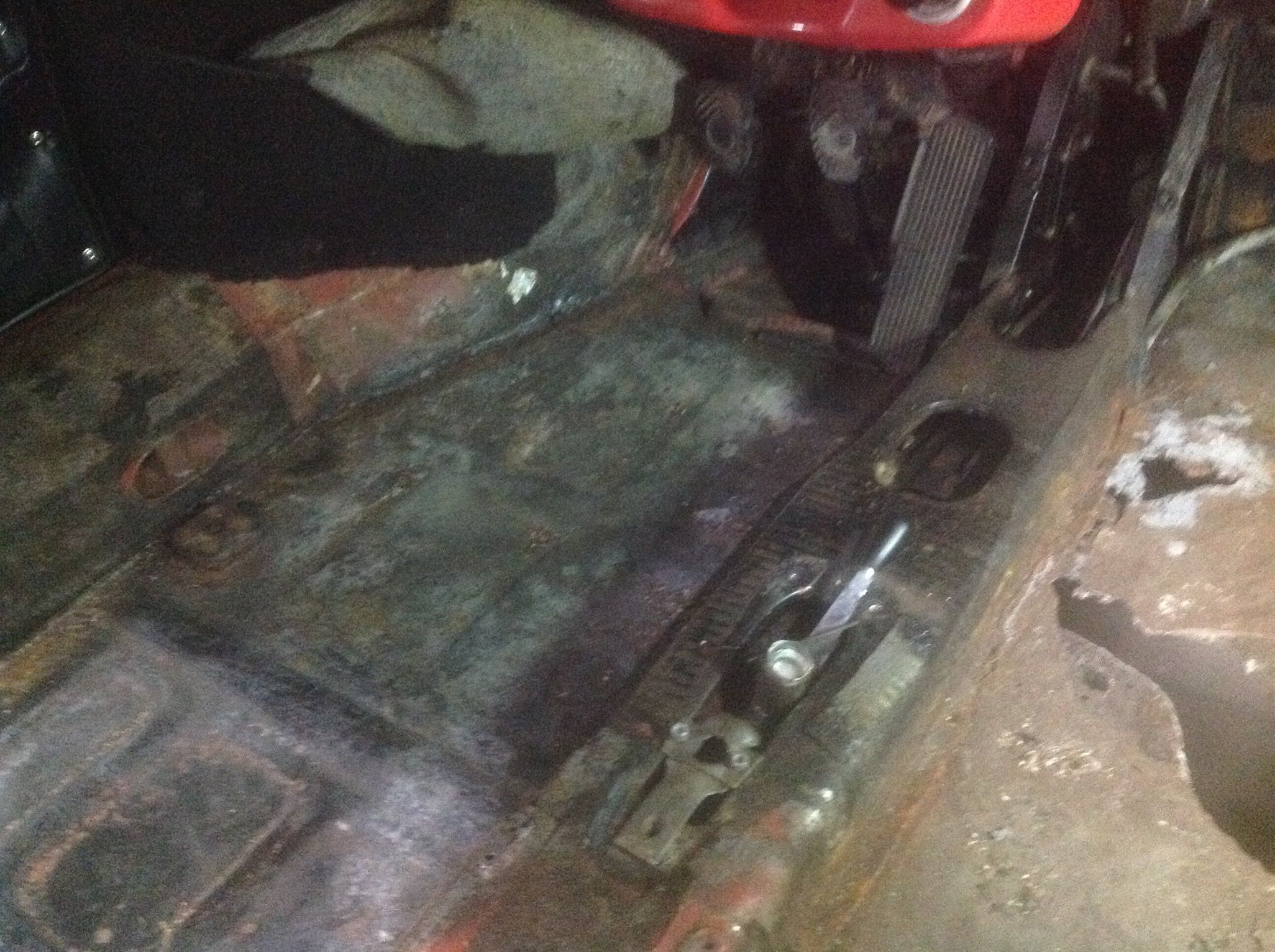

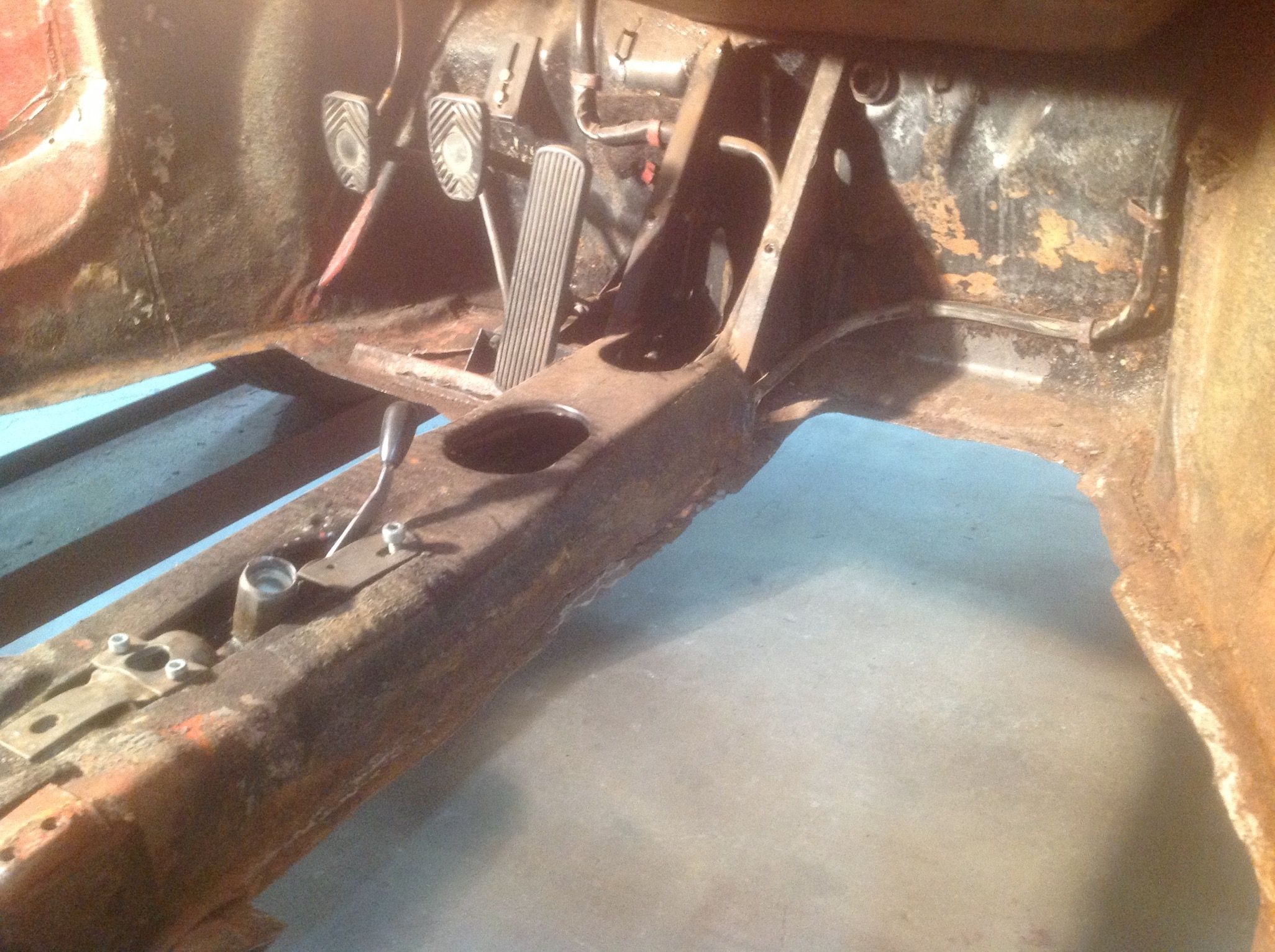

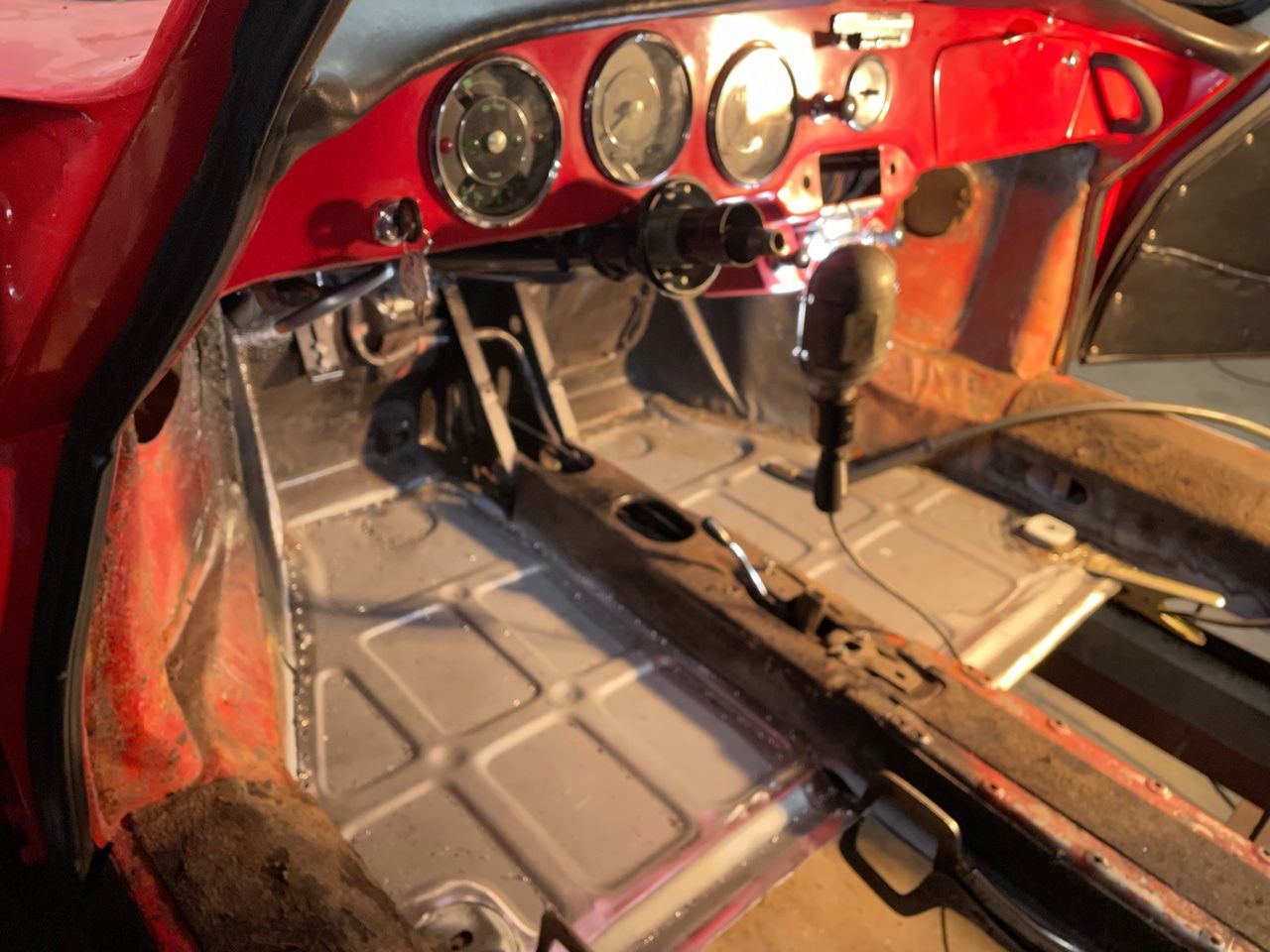

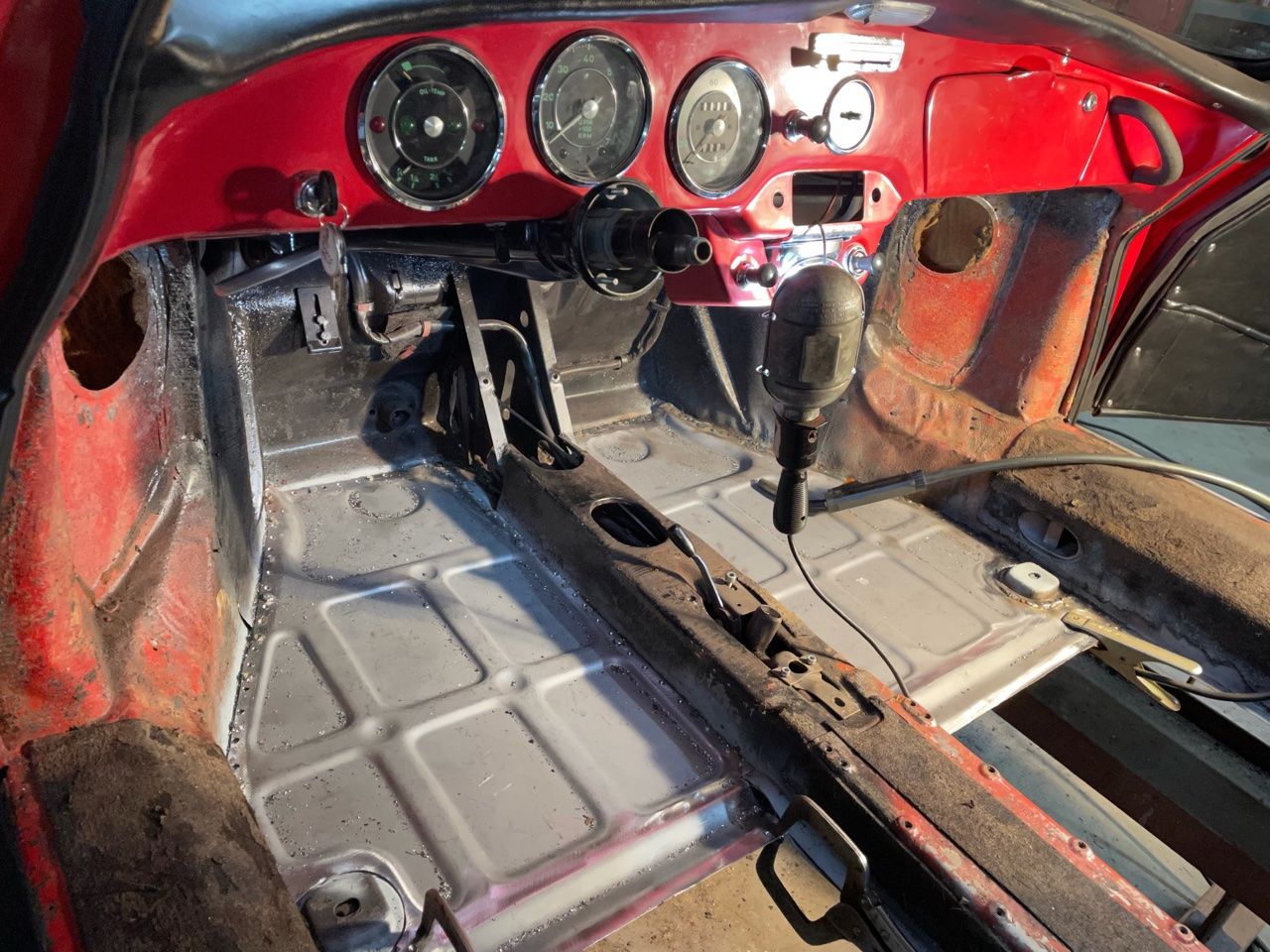

          Got the pedals pulled out and the floors removes. Other than the Passengers side the rest of the floors were fine. But since we are in there they all came out.cleaning and measuring, should have the floors in tomorrow.

          Click image for larger version

Name:	AB37AAA8-EC55-431A-B680-3F9DC8B5A358.jpeg
Views:	156
Size:	469.3 KB
ID:	111992 Click image for larger version

Name:	C80E82C0-4119-480E-BC01-410D90C93687.jpeg
Views:	150
Size:	418.2 KB
ID:	111991
          thanks got looking

          Last edited by Jbrooks; 10-08-2021, 02:07 AM.
          Pushed around since 1966.

          Comment


          • JTR70
            JTR70 commented
            Editing a comment
            Looks like a very straight forward replacement. No vertical wall or flange repairs needed it seems...

        • #6
          Justin

          just a little patch on the back of the battery rear corner, about an inch of vertical wall replaced. Better than we thought when first looked in there and there was a battery shaped hole in the floor. Looks like the battery matt ate away the floor. All good now.
          Pushed around since 1966.

          Comment


          • #7

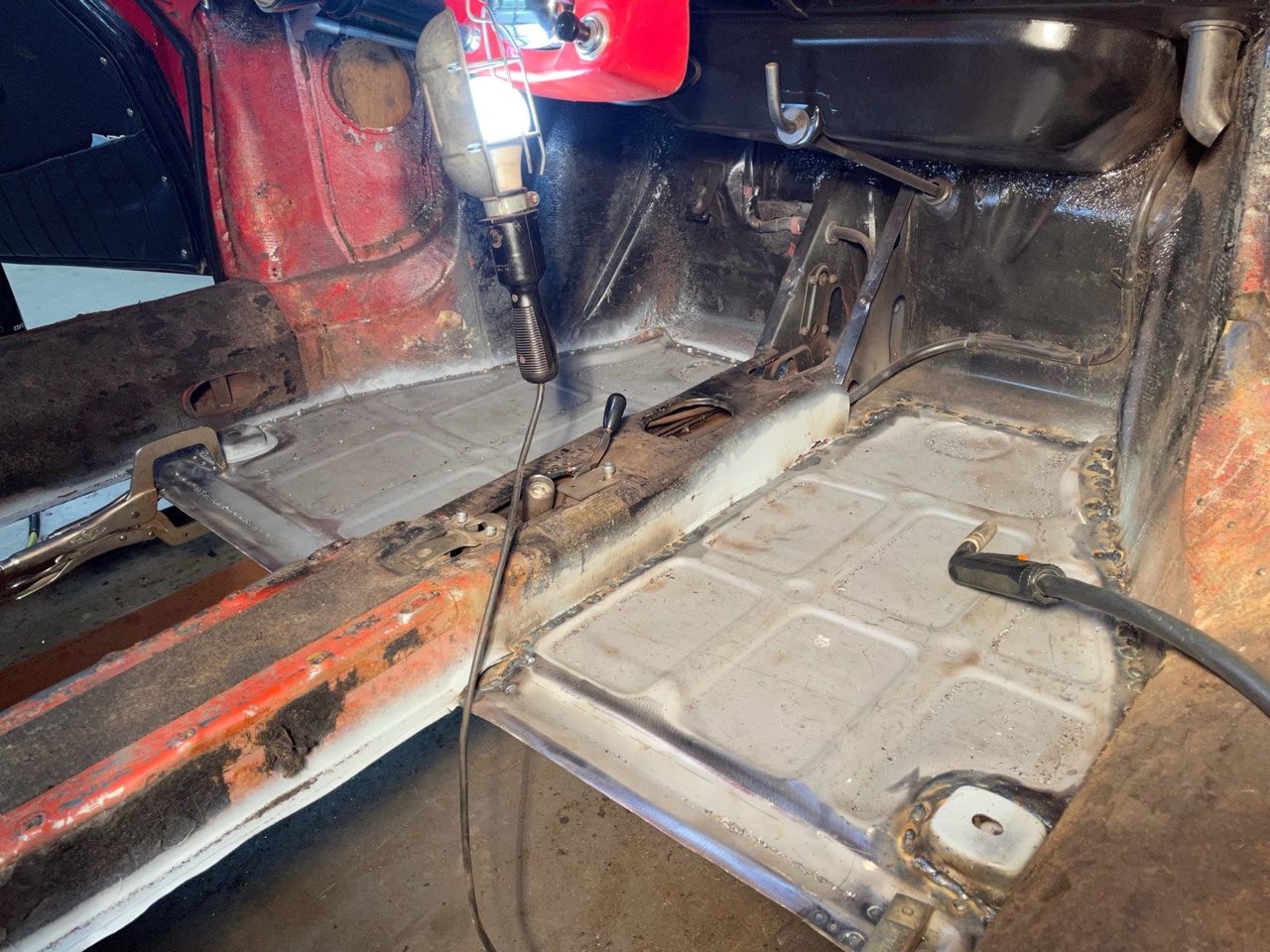

            Front floors are in. Went easy just some trimming. Old floors were not all that bad, just the one hole in the passengers foot area, the rest were solid and after we removed the fiberglass were actually fine.
            Click image for larger version

Name:	EC760FAD-5D73-41D4-B573-63A4CB155258.jpeg
Views:	133
Size:	153.6 KB
ID:	112061 Click image for larger version

Name:	4E3FD0C9-8DFF-4619-B4EA-C856764498D4.jpeg
Views:	121
Size:	231.4 KB
ID:	112063
            Attached Files
            Pushed around since 1966.

            Comment


            • JTR70
              JTR70 commented
              Editing a comment
              A very nice straight forward replacement but it seems like its going to get very tricky to fit and slide in the rear section in one piece? Its looking though John.

          • #8

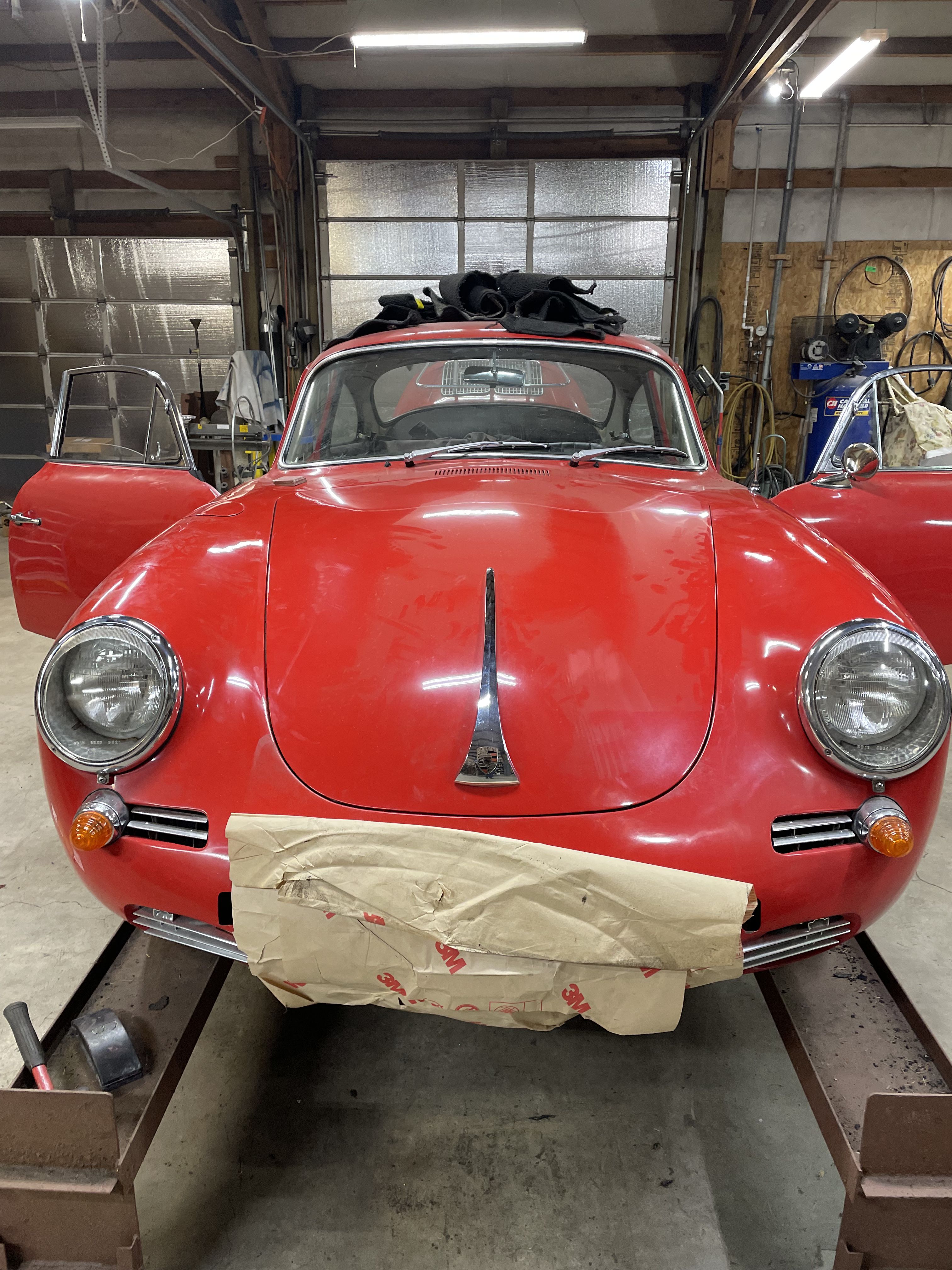

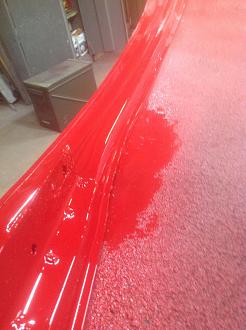

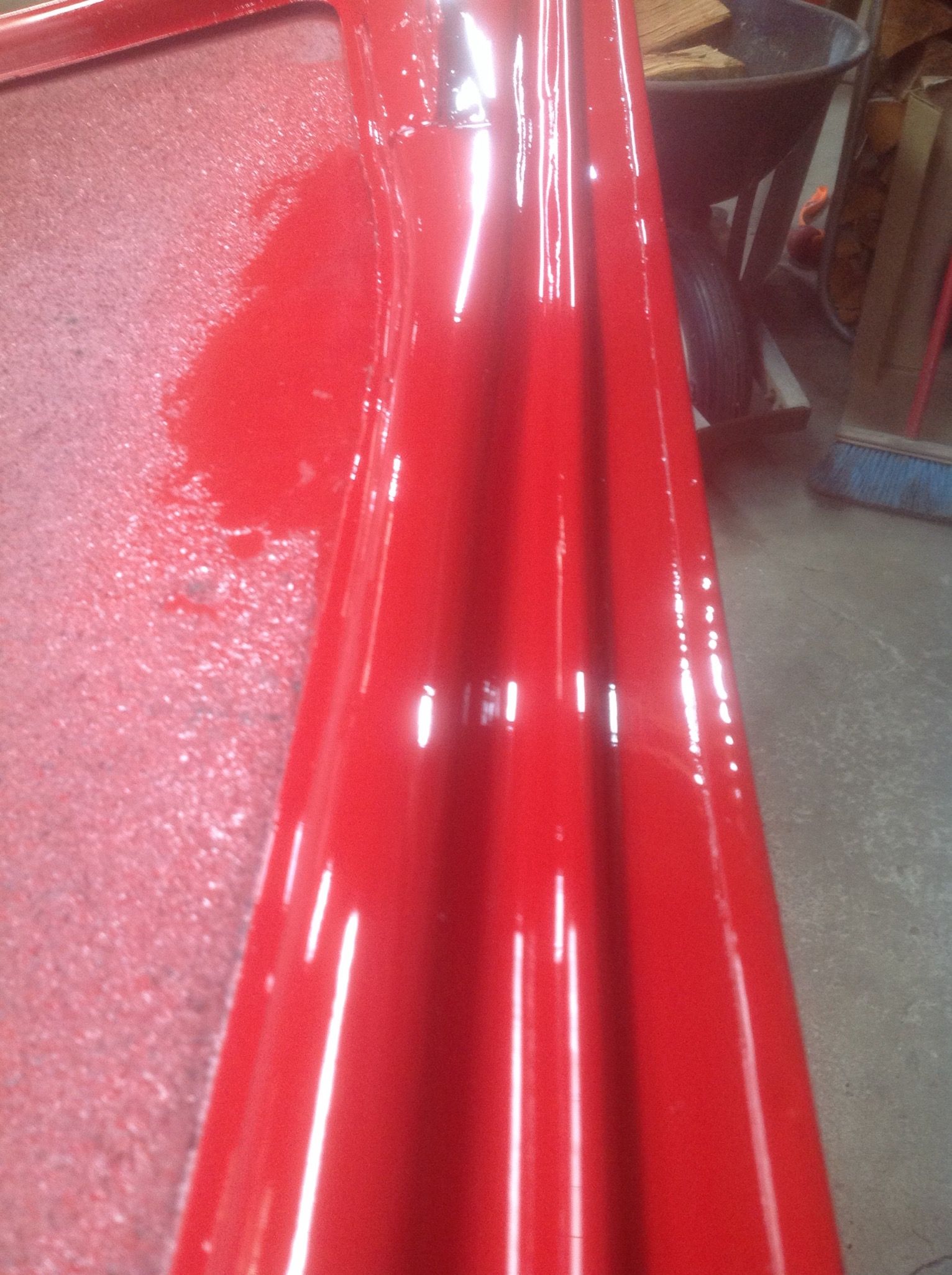

            Floors are in and complete. Now working on previous hood kink repair. Forgot to photo the back half, prime and paint. We have the sound deadening and seam sealer inside complete. Looks well, not factory original, but with better modern materials. New toe boards from Tom Perazzo with trap door access.
            Click image for larger version

Name:	2064FB1D-5E6D-45B5-A843-948650F45E6D.jpeg
Views:	88
Size:	2.25 MB
ID:	112097 Click image for larger version

Name:	3CB9EFED-488B-478E-A98B-8FD43840FCF5.jpeg
Views:	88
Size:	2.37 MB
ID:	112098 Click image for larger version

Name:	853CEB9C-E755-48CE-A4FA-937CAA01C83E.jpeg
Views:	97
Size:	1.74 MB
ID:	112096

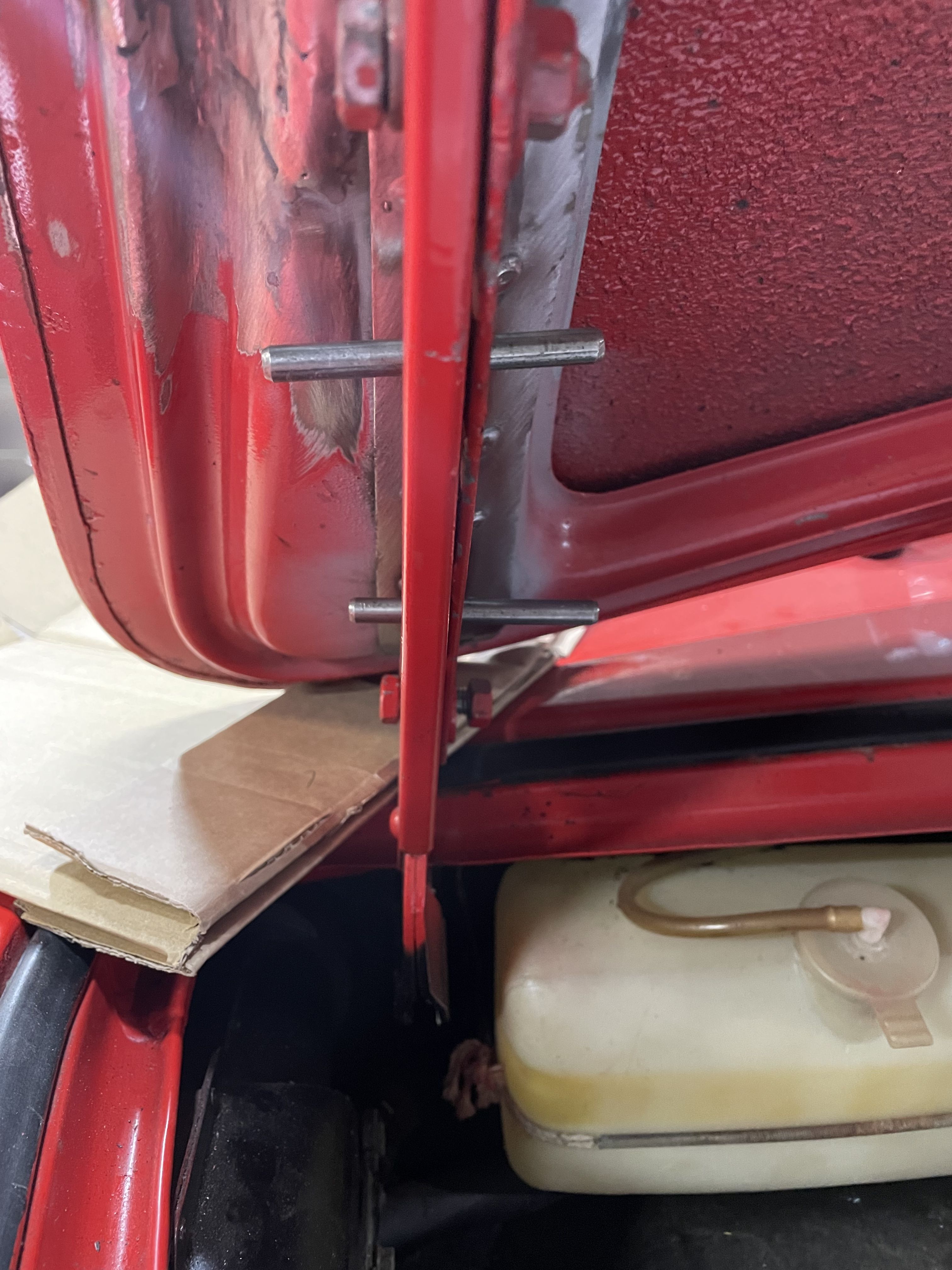

            The floors went well, then on to the hood. Reworked the hinges. Not too much wear, but dirty and very old grease in the three pointed star axel bushings. The little centering springs on the star bushings we’re binding the stars. These stars need to be super loose. Spin easy and move with gravity, so the lock cam and make then release. Also they need to be aligned so the cam and star tips align. It has a poor kink repair with a brazed misfitted lap patch. It was cracked and let the hood droop on one side. That’s cut out and replaced now.
            Last edited by Jbrooks; 10-27-2021, 01:25 AM.
            Pushed around since 1966.

            Comment


            • #9

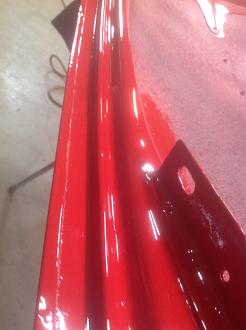

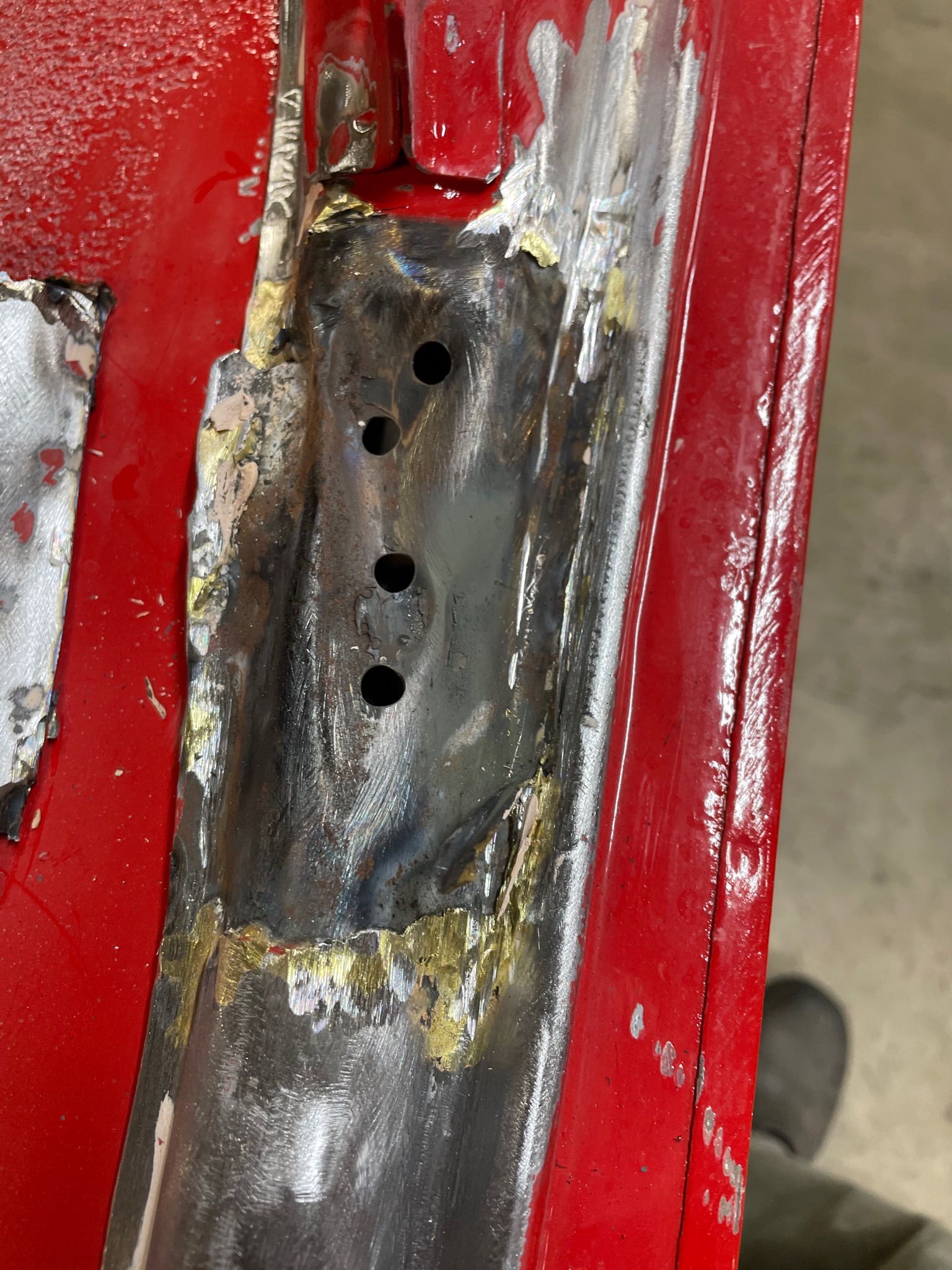

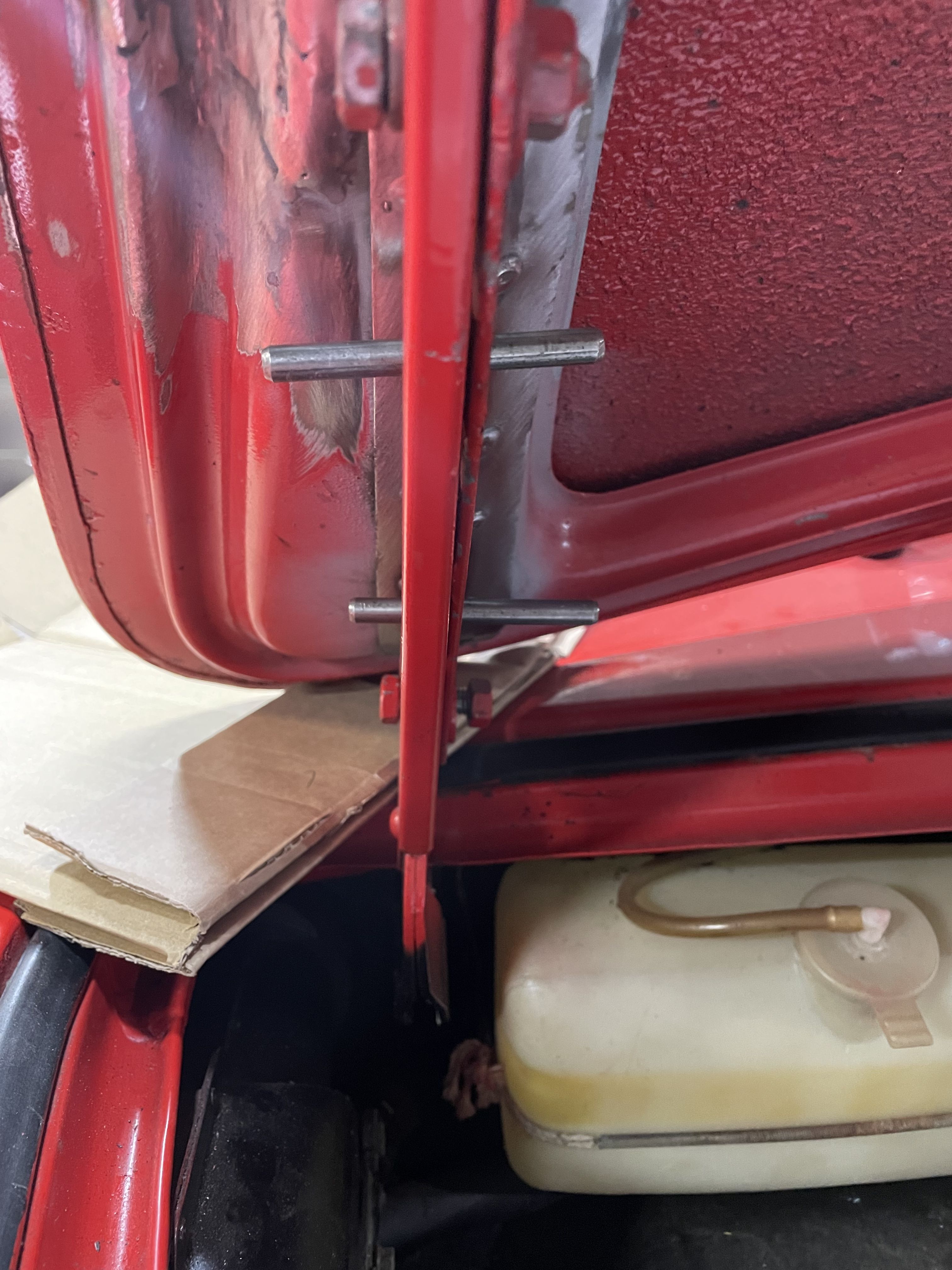

              Hood repair done, cut out the old brazed lap patch and underlaying hood frame. Made a butt patch welded it back in. Then checked the hood gap and curve. a little tweaking to get the curve back to original. Went well removed the hood again for lead and paint.
              Original repair is pretty ugly, brazed crack and holes from the slide hammer
              Click image for larger version

Name:	26F8792B-C693-4D6A-B925-ADB5450AD8B0.jpeg
Views:	92
Size:	2.34 MB
ID:	112101

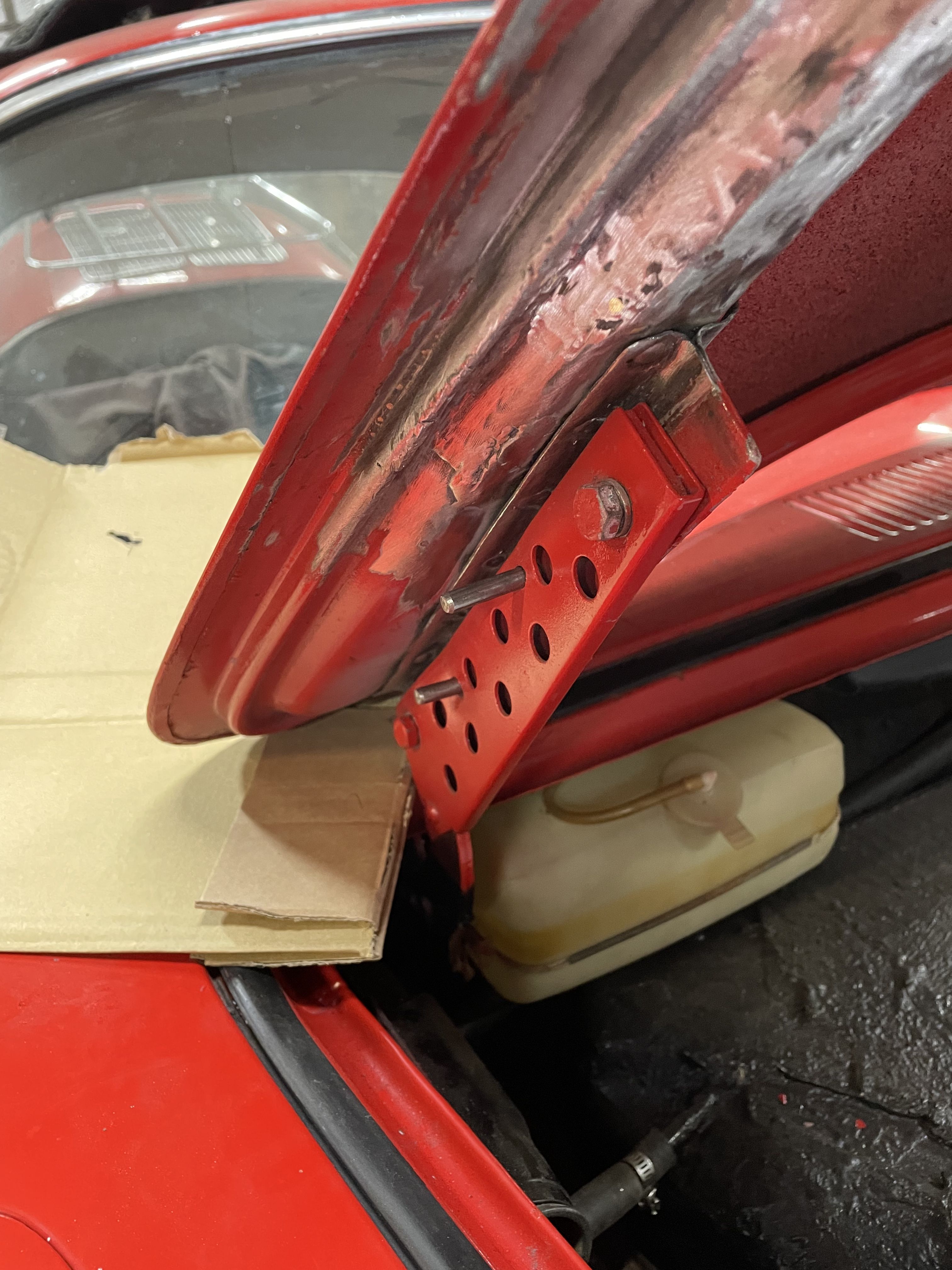

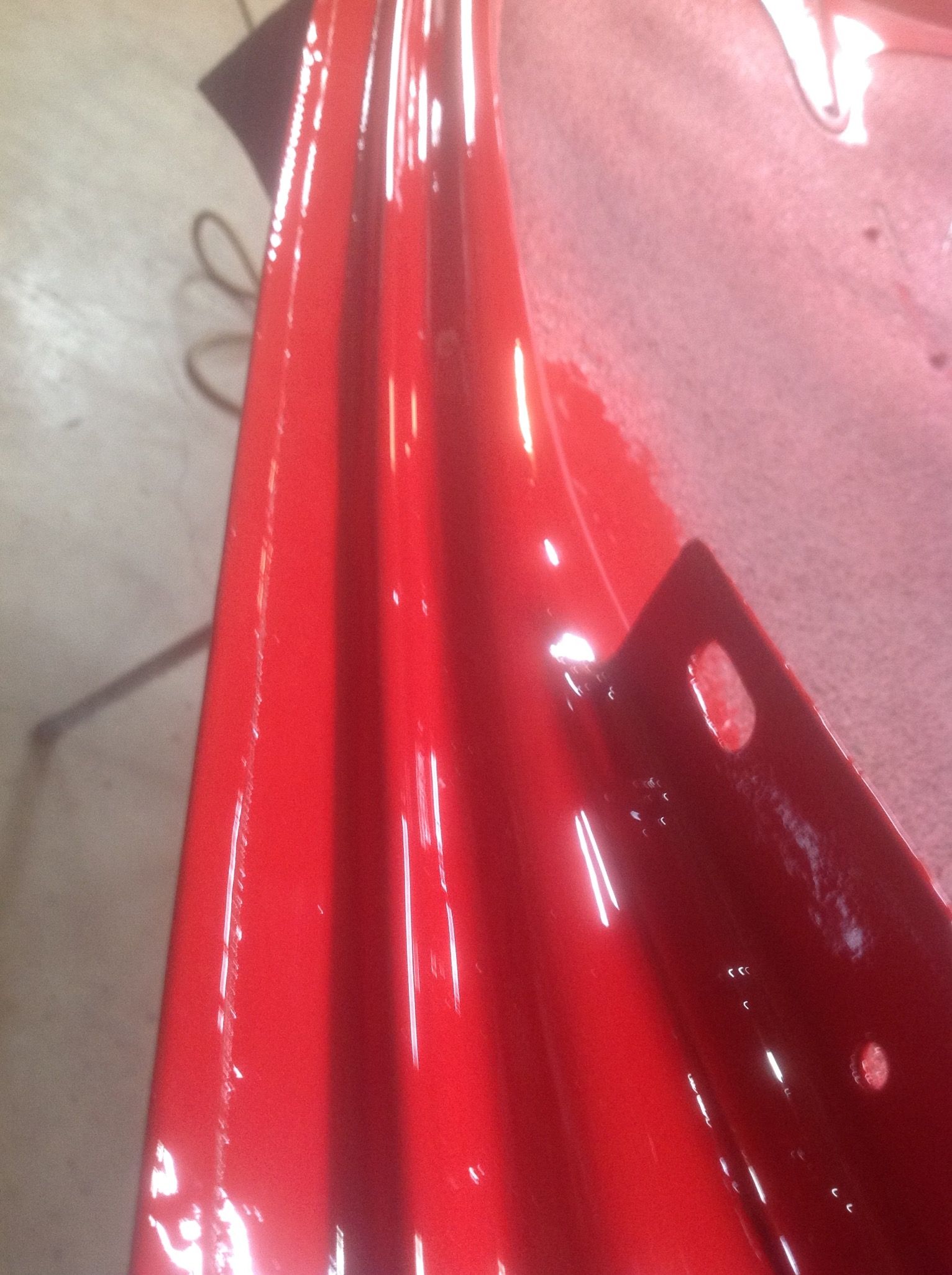

              new patch is a good fit flush welded and leaded. Used the “magic 6 mm pins” and got factory alignment,


              Click image for larger version

Name:	64294A33-F9D8-404D-9460-A300FB669CA4.jpeg
Views:	100
Size:	1.18 MB
ID:	112100 Click image for larger version

Name:	8D14EEC5-06F4-4A97-B96C-3E542A0954CE.jpeg
Views:	94
Size:	1.23 MB
ID:	112102
              Have a 2 mm gap all they way around the hood, I am a happy camper no external paint.
              Click image for larger version

Name:	AFC09DC4-CA32-4E64-8D2C-1859E5BDA4EE.jpeg
Views:	86
Size:	1.69 MB
ID:	112104 thanks for looking
              Attached Files
              Pushed around since 1966.

              Comment


              • #10
                Click image for larger version  Name:	E29E3AB4-7B39-49C1-AFC6-4820544B16E9.jpeg Views:	3 Size:	444.9 KB ID:	112106 Click image for larger version  Name:	53196C71-0200-4185-B385-AD2C83D7CDB3.jpeg Views:	3 Size:	377.1 KB ID:	112107 Click image for larger version  Name:	F600B030-DE63-4B3A-9496-A397AC852203.jpeg Views:	3 Size:	395.5 KB ID:	112109

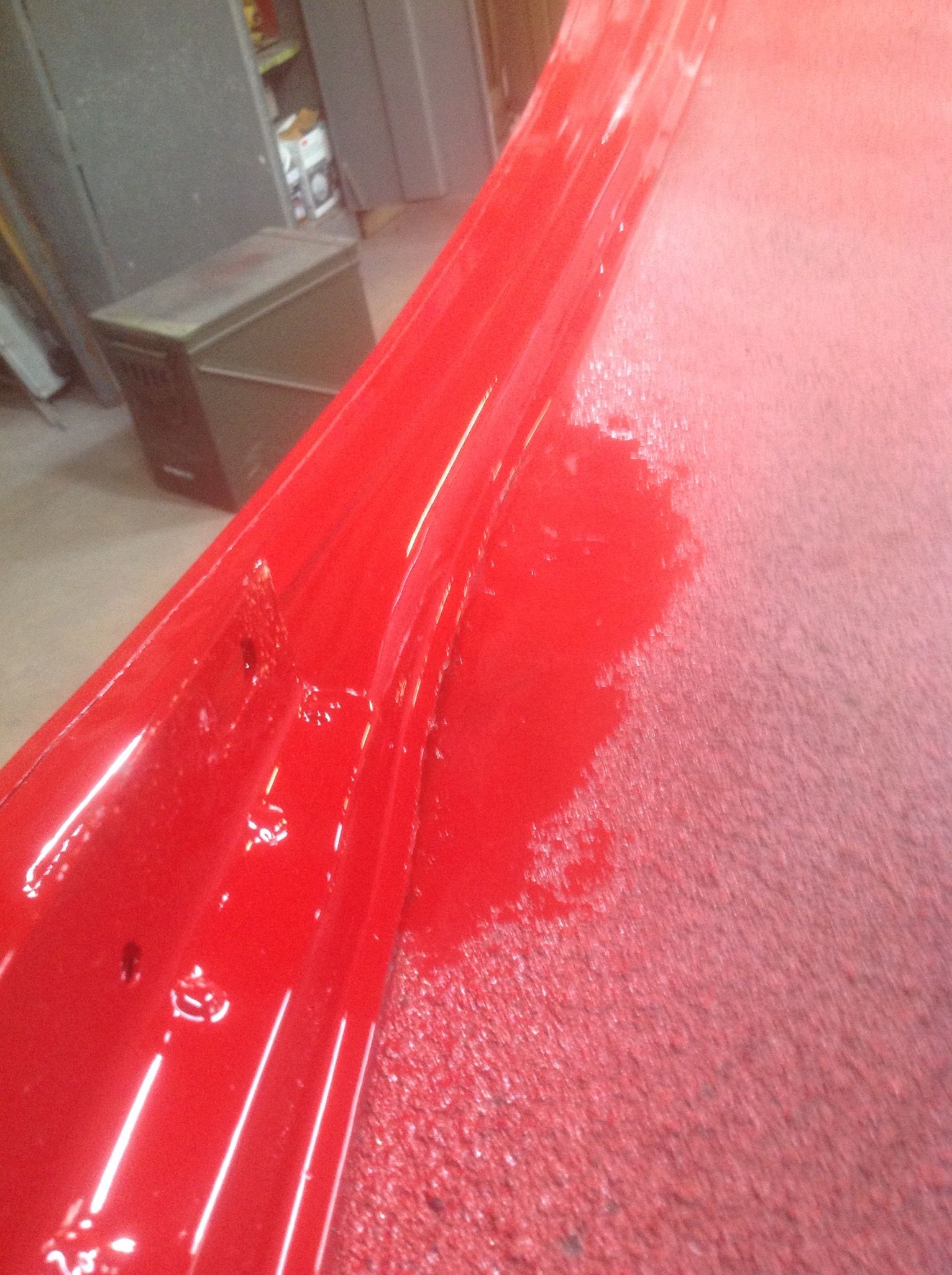

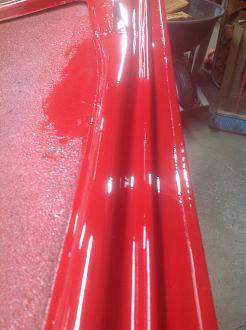

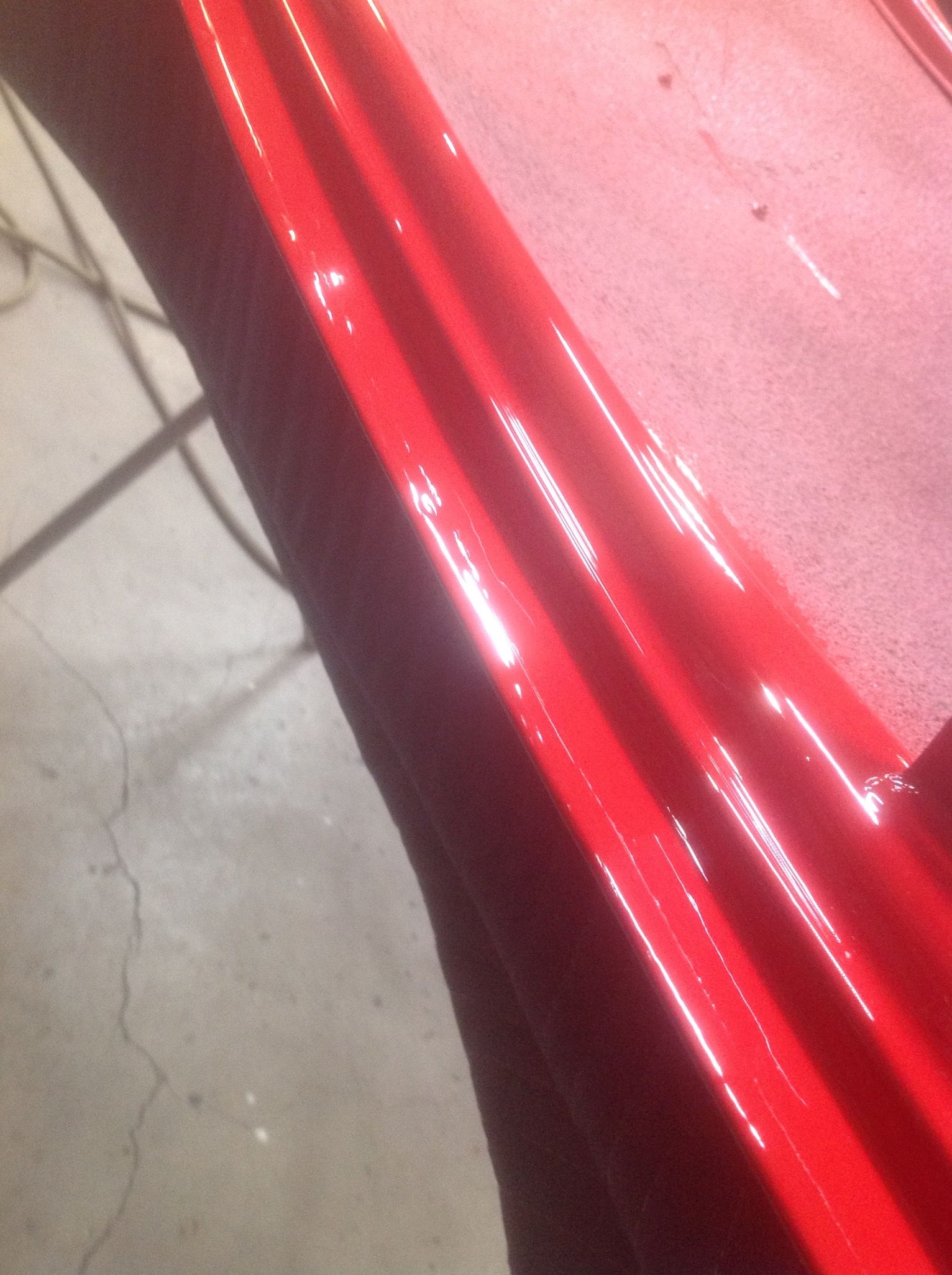

                Hoods done. Was pretty ugly to start but other than new paint it went away. Hinges stars rebuilt and lubed. Looks good overall.
                Click image for larger version  Name:	BD910751-1587-4444-8C2C-ADEF39AF593C.jpeg Views:	3 Size:	478.8 KB ID:	112110 Click image for larger version  Name:	CC939E56-DF4F-46DA-8E65-BFD907C23DD1.jpeg Views:	3 Size:	421.2 KB ID:	112108
                Before and after. Now interior goes back in and we get to wait on the turn signal assembly to come back. I may rig up a temporary bypass for the lights. Get it back together and drivable.
                Last edited by Jbrooks; 10-29-2021, 11:12 PM.
                Pushed around since 1966.

                Comment


                • JTR70
                  JTR70 commented
                  Editing a comment
                  This repair turned out great, like it never happened...

              • #11
                Well done John, your car must have been really in good condition for its age before you started. The repair work did not extend further than it could have done as so often with so many other 356 cars. Floors look good and that 2mm front bonnet lid gap is just perfect. I used the pins as well when I had my lid off but still had to tweek a little to get the best result. I have often wondered if over 60 years the front wings move slightly ( only marginal ) from when new.? My gap is acceptable but in places a couple of MM wider than I would prefer. Could have leaded the problem 40 odd years ago but this aspect of restoration back then was not so paramount as I think today. When I think of some of the rust repair jobs I have seen years ago on 356 cars I shudder.

                Nice photos to explain your work as I have said many times to Justin its not a five minute job to keep us all informed it is very much appreciated though!!
                Roy

                Comment


                • #12
                  Thanks Roy. Have the Coupe mostly back together, all the metal work complete. Terry stopped by today to have the clutch
                  and heater boxes adjusted. Raining so he wanted defrosters, went well. We did his car a couple years ago. so we had a pair red cars in the shop today, both 65’s one ruby, the other signal.
                  Click image for larger version

Name:	3AB7D3B3-C57F-457F-8EFE-F950E701F9EA.jpeg
Views:	54
Size:	489.9 KB
ID:	112113
                  Pushed around since 1966.

                  Comment


                  • #13
                    Nice Pic there John. Ruby red looks good too!
                    Roy

                    Comment


                    • JTR70
                      JTR70 commented
                      Editing a comment
                      The photo above highlights it perfectly me, I've always been more partial to the darker blood red versions.

                  • #14
                    Thanks guys. Justin the Ruby Red was matched by Glasuirt and the RAL color system. Its 100% correct. I have the mixing instructions for the 22 line if you need them, Nothing I like more than going to a show and seeing 5 Ruby cars together and they are all a different color. This one is correct.

                    Getting the interior back in now and awaiting to the turn signal stalk to return from overhaul. I can't tell you how nice it is to work on a pretty original car, All the washers are still there and everything fits. Heater box cables adjusted, heater rods and valves set perfect, Should have it home by Wednesday for a light wet sand, paint correction and polish. Going to swap out the lamps for LED individual bulbs, fond some on eBay that are a drop in. We tested them and they are all brighter than the filament bulbs, but need a electronic flasher but all work well, even the instrument and running lights. Has been a good project overall and it should be ready for many miles of driving. New owner is not afraid to use it, and pushes it pretty hard on our local two lane roads.
                    Last edited by Jbrooks; 11-07-2021, 11:49 PM.
                    Pushed around since 1966.

                    Comment


                    • #15

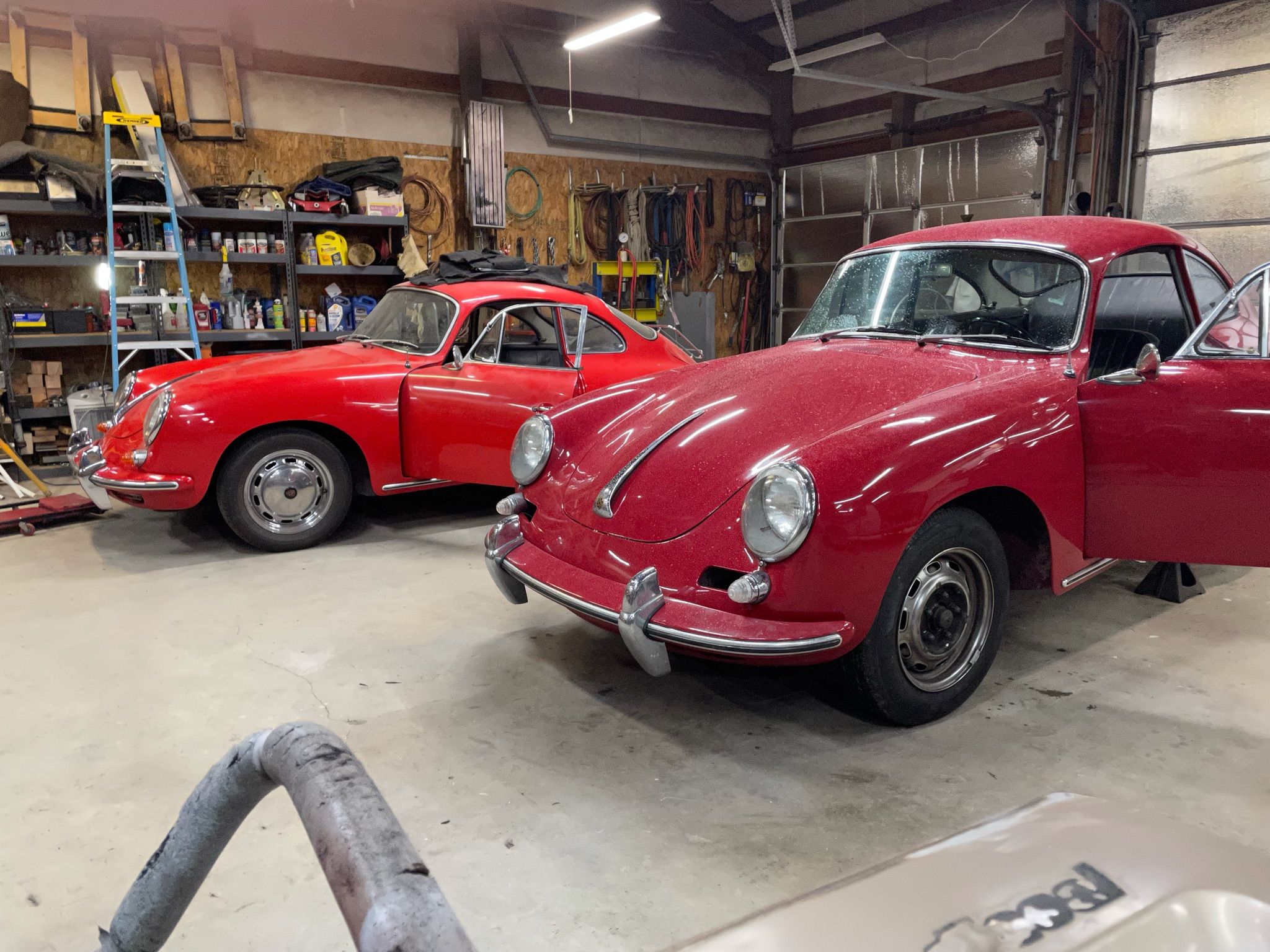

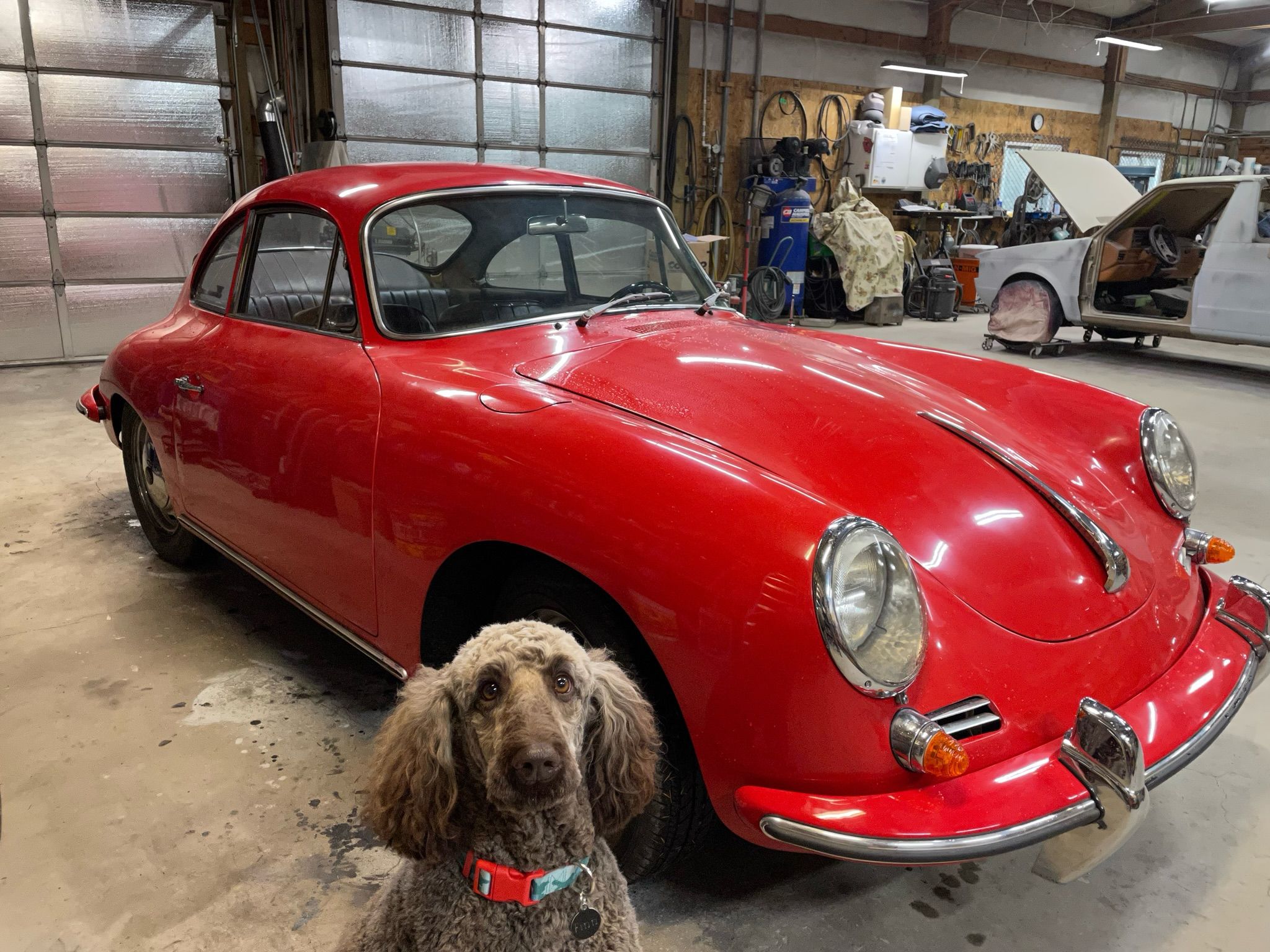

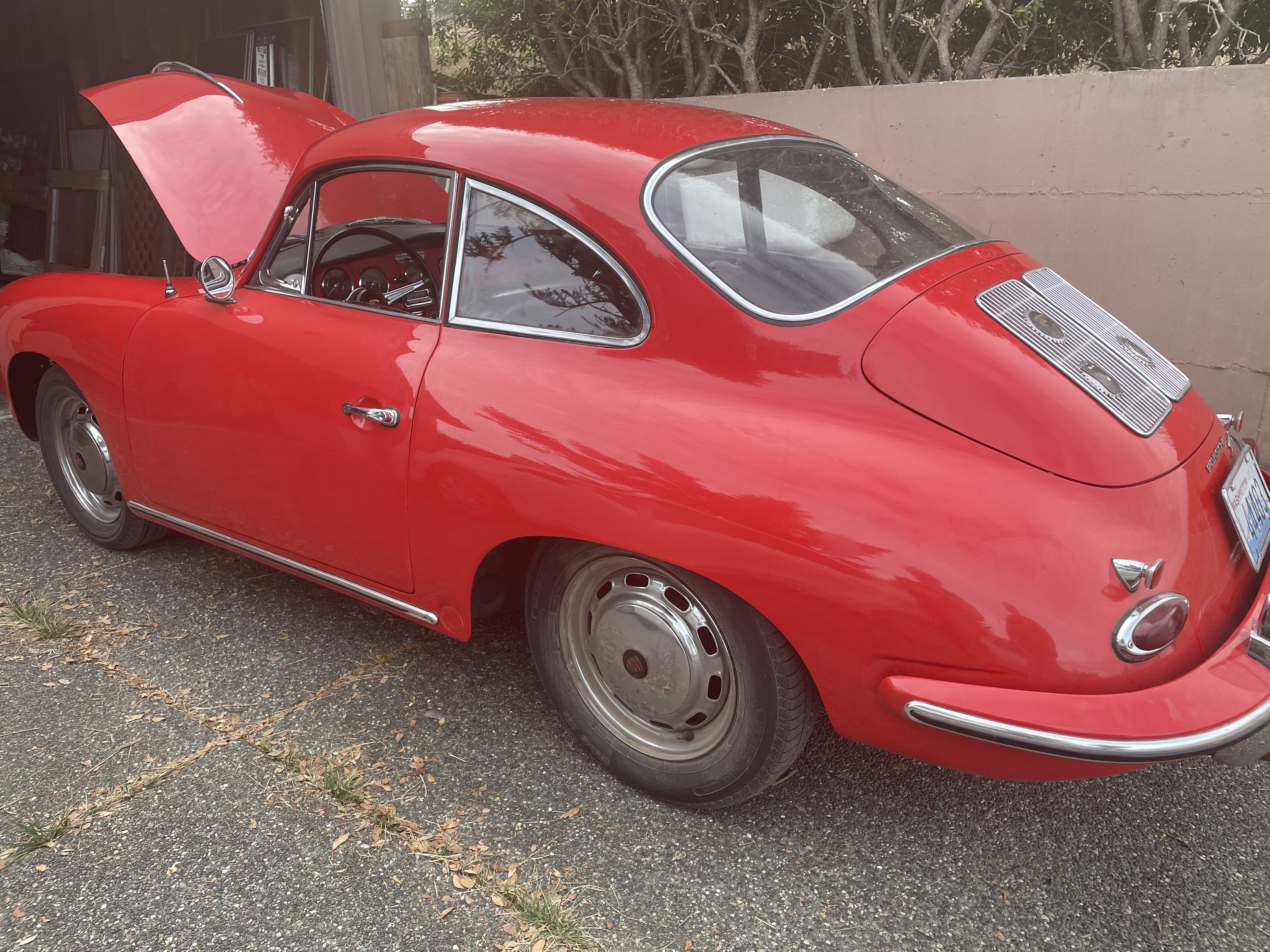

                      Well it’s done for now, interior in back in
                      Click image for larger version

Name:	9B092D4A-C923-4712-948E-4826AA6A093F.jpeg
Views:	12
Size:	513.3 KB
ID:	112219 Click image for larger version

Name:	B93EFC78-FB8E-466C-B1FC-0855EDAF33DB.jpeg
Views:	11
Size:	511.5 KB
ID:	112220

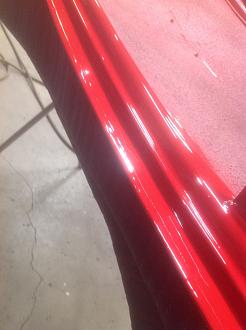

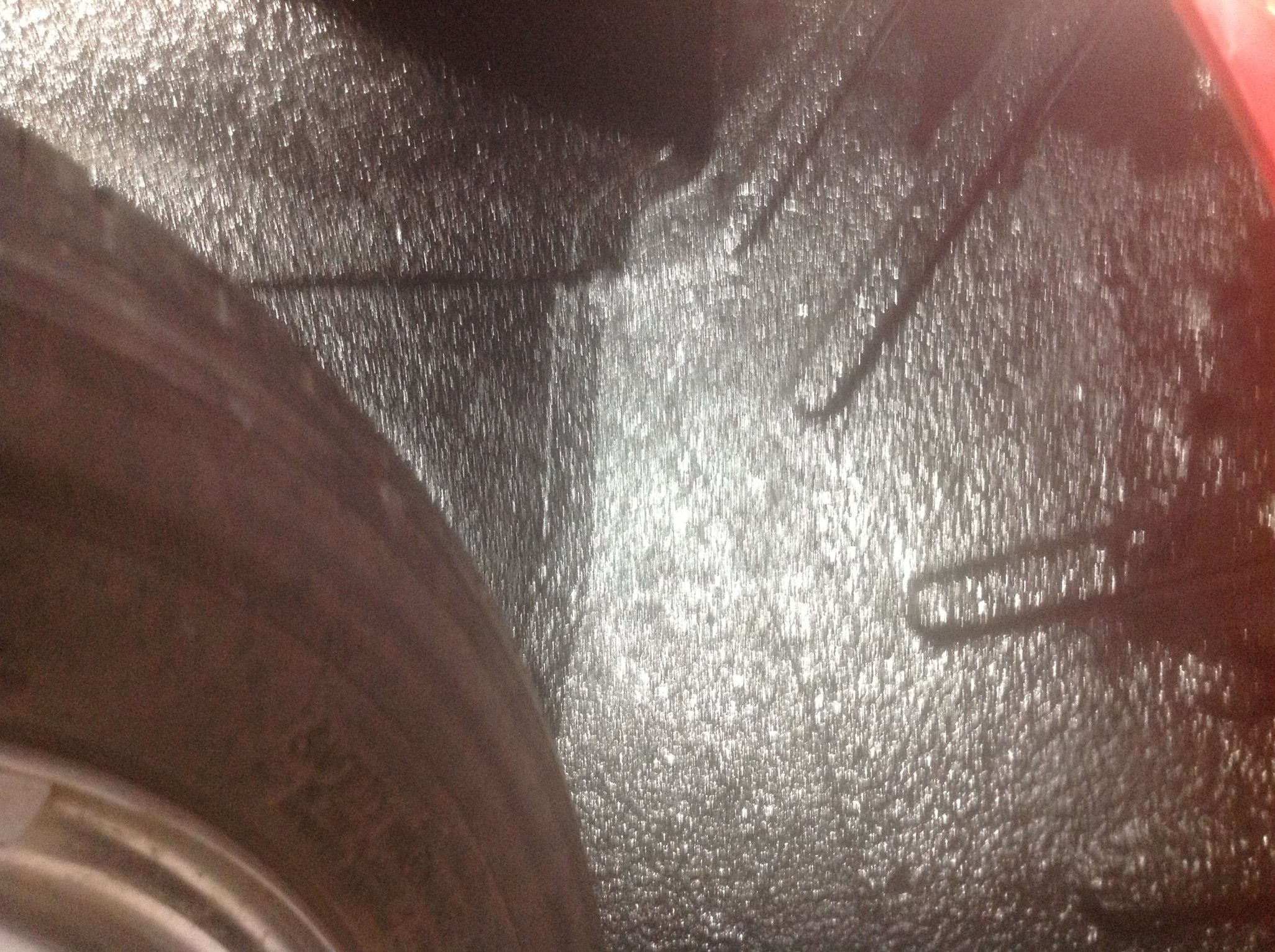

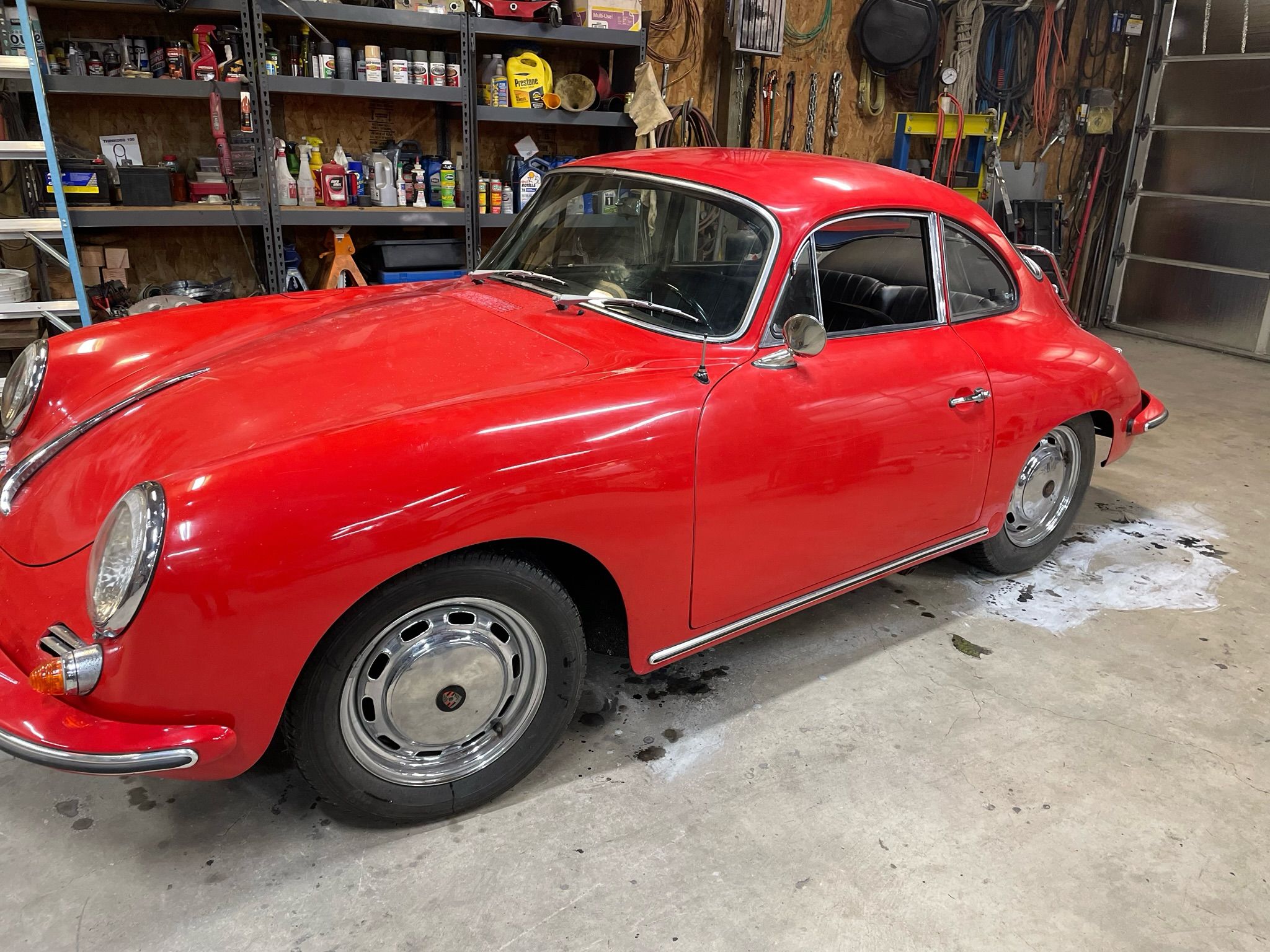

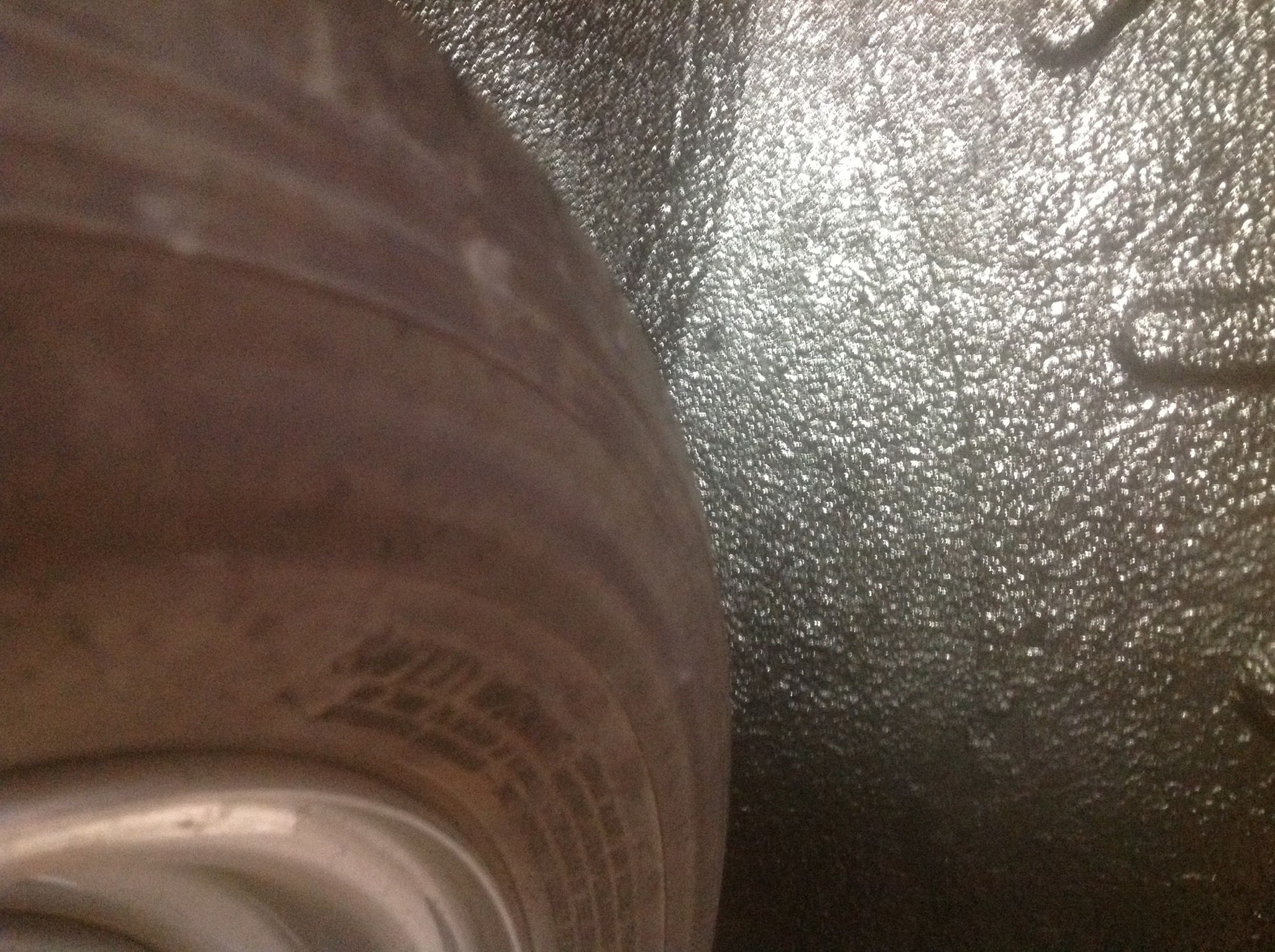

                      Wire brushed and cleaned the wheel wells, repacked the seam sealer into the joints. Shined up the rust spots, treated with Ashpo, a coat or so of POR15, then a coating of Wurth Schatz, not as clean as Bob’s but close
                      It’s finally back home for a wet sand and polish. Fun project and it’s road ready for a while.
                      Click image for larger version

Name:	D9BE5EE1-B3CF-4D14-80F3-D0E3848EB6EC.jpeg
Views:	14
Size:	570.0 KB
ID:	112217 Click image for larger version

Name:	CFDA1EDC-CBFF-4988-8C18-4B111E94FAA8.jpeg
Views:	12
Size:	623.3 KB
ID:	112221
                      Everything has been adjusted, lubed, and or painted. Heaters and fresh air vents are perfect, it’s done. Finally the disassembled boxed up missing parts auction car is complete. All I need is the turn signal stalk, (that’s out for overhaul) and it’s complete.
                      Attached Files
                      Pushed around since 1966.

                      Comment


                      • JTR70
                        JTR70 commented
                        Editing a comment
                        She looks great! Nice turn around time too...
