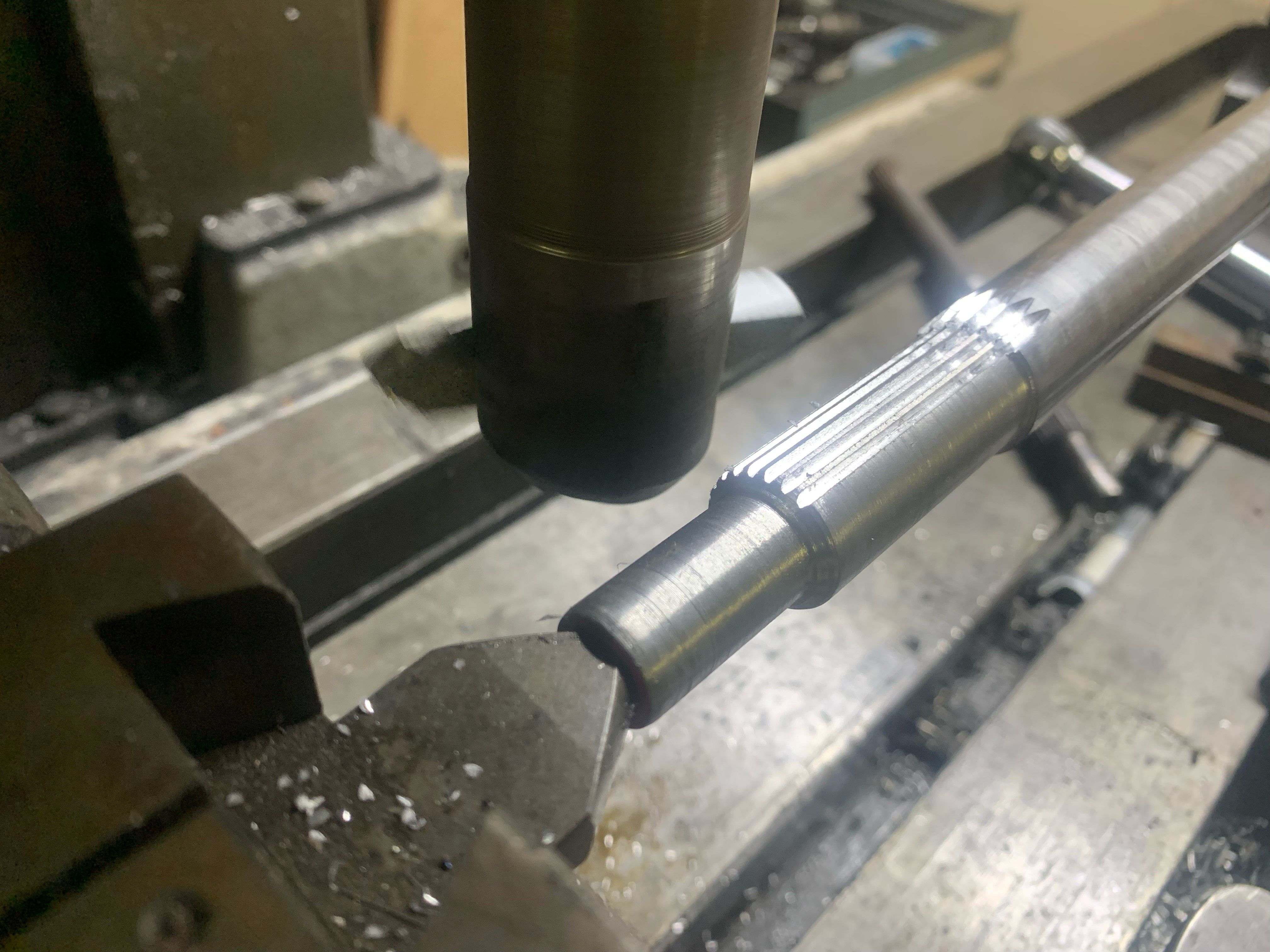

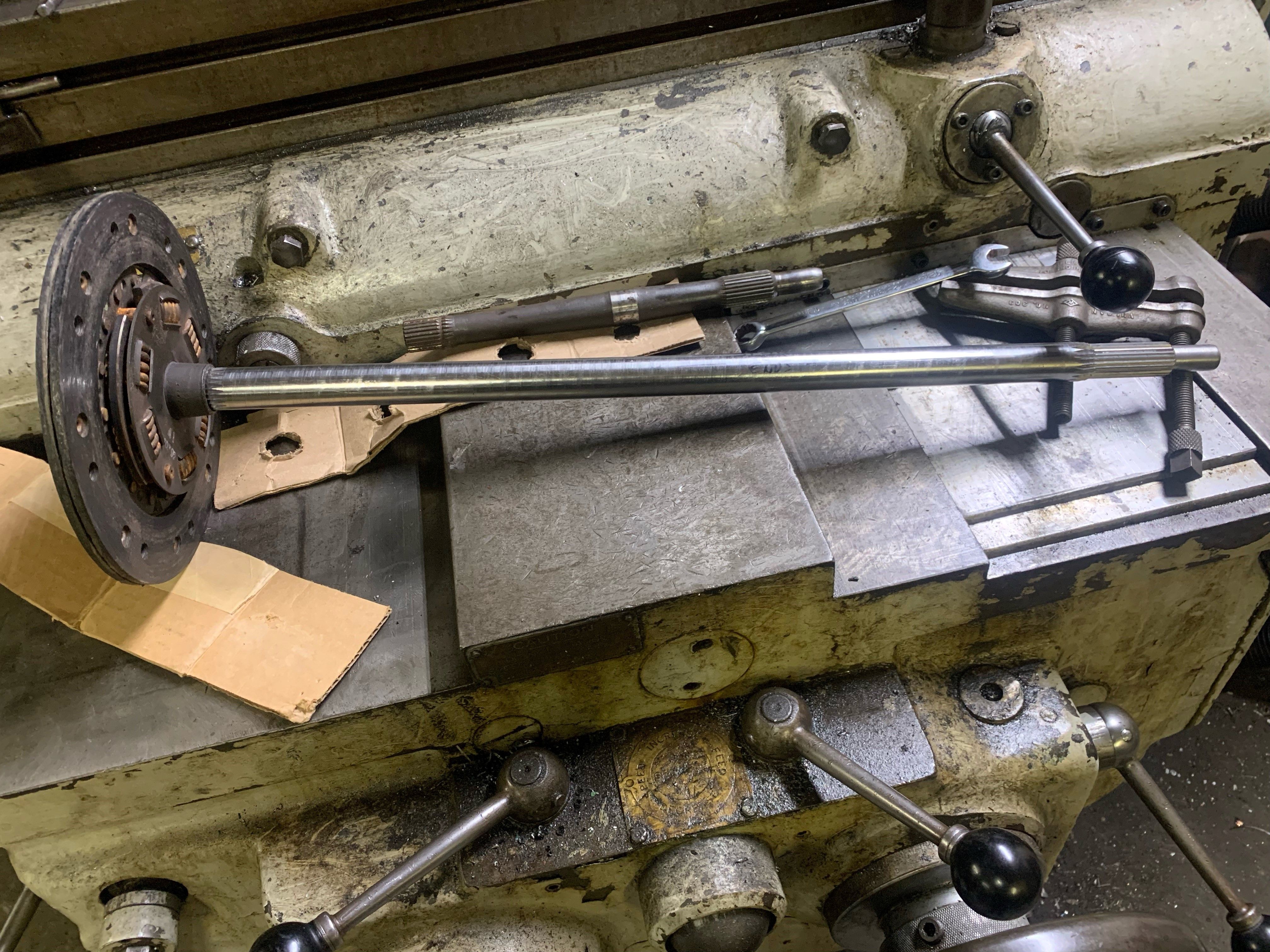

    Well guys soon I will be able to get back to the dynometer build. Just got an e-mail from a machinist friend, Brian Block back in Ky. He has one of the shafts complete, should have the other shortly. This has been a real journey, turns out the transmission spline was way more complicated than I thought. Finding a machine shop with a horizontal milling machine large enough to hold the fixture and indexing head on the table was difficult. Then the DIN spline cutter had to be ground and sharpened. Brian has some huge machines and the capabilities. He builds pulling tractors and turbochargers so he is the guy for this stuff. Brian has a YouTube channel if you like machine work. Check him out.

    Click image for larger version

Name:	dyno spline 2.jpg
Views:	141
Size:	1.35 MB
ID:	112497 Click image for larger version

Name:	dyno spline 1.jpg
Views:	223
Size:	2.07 MB
ID:	112498

    But the shafts are done at last. I hope to get the shafts in the next week so I can get back to work. The stock is long enough I can cut it in half and get another main shaft as a spare

    Note: Capt. Evan Reese, USN ( Pee Wee) passed away comfortably at home as planned and now its just closing his estate stuff. We lost a great Naval Aviator.
    Pushed around since 1966.

    Comment


    • #32
      Well guys soon I will be able to get back to the dynometer build. Just got an e-mail from a machinist friend, Brian Block back in Ky. He has one of the shafts complete, should have the other shortly. This has been a real journey, turns out the transmission spline was way more complicated than I thought. Finding a machine shop with a horizontal milling machine large enough to hold the fixture and indexing head on the table was difficult. Then the DIN single point spline cutter had to be ground and sharpened. Brian has some huge machines and the capabilities. He builds pulling tractors and turbochargers so he is the guy for this stuff. Brian has a YouTube channel if you like machine work. Check him out. https://www.youtube.com/watch?v=uK-OJ3k6Ne8&t=1s

      Click image for larger version  Name:	dyno spline 2.jpg Views:	7 Size:	1.35 MB ID:	112500 Click image for larger version  Name:	dyno spline 1.jpg Views:	8 Size:	2.07 MB ID:	112501

      But the shafts are done at last. I hope to get the shafts in the next week so I can get back to work. The stock is long enough I can cut it in half and get another main shaft as a spare

      Note: Capt. Evan Reese, USN ( Pee Wee) passed away comfortably at home as planned and now its just closing his estate stuff. We lost a great Naval Aviator.
      Last edited by Jbrooks; 02-19-2022, 06:50 PM.
      Pushed around since 1966.

      Comment


      • #33
        John, just read this thread. I have a CNC horizontal/vertical mill and would be happy to help with the project. I'm surprised you didn't use a VW stub mainshaft (either weld it on or machine the dyno shaft to fit the VW stub shaft).
        Last edited by Rimcanyon; 02-22-2022, 04:51 AM.
        Retired software engineer
        '59 Convertible D
        '64 SC

        Comment


        • #34
          Rimcanyon

          Thanks, I have a VW shaft but just not long enough. I will keep the CNC in mind, and you are close to PG school. I have manual stuff but the table was too small to get the shaft in and the indexer on. Plus I hate splines, Brian did about 200 cranks cutting these, I would have lost count and screwed them up.
          Pushed around since 1966.

          Comment


          • #35
            Originally posted by Jbrooks View Post
            Rimcanyon

            Thanks, I have a VW shaft but just not long enough. I will keep the CNC in mind, and you are close to PG school.
            Did you attend the PG school when you were a Navy officer? I was an adjunct professor in the computer science dept. at NPS while I was working on my doctorate at Stanford, before I went to Silicon Valley. It is a great school, and I really enjoyed working with the Naval officers. A lot of them were pilots.
            Retired software engineer
            '59 Convertible D
            '64 SC

            Comment


            • #36
              Rimcanyon

              Passed through PG school several times over the last 50 years. Used to come up from Michelson Laboratory to do look at student projects. Stayed there for Rennsport couple years ago, a lot of new buildings, and a ton of the old ones. It still has the best library on the west coast.

              Finally getting back to the dyno after a year in the holding pattern. Need to go find all the parts and my notebook. Have a couple cars in the wings but I am going to see if I can make this pile of scrap work. Theory to practice used to be a strong my suit.
              Pushed around since 1966.

              Comment


              • #37

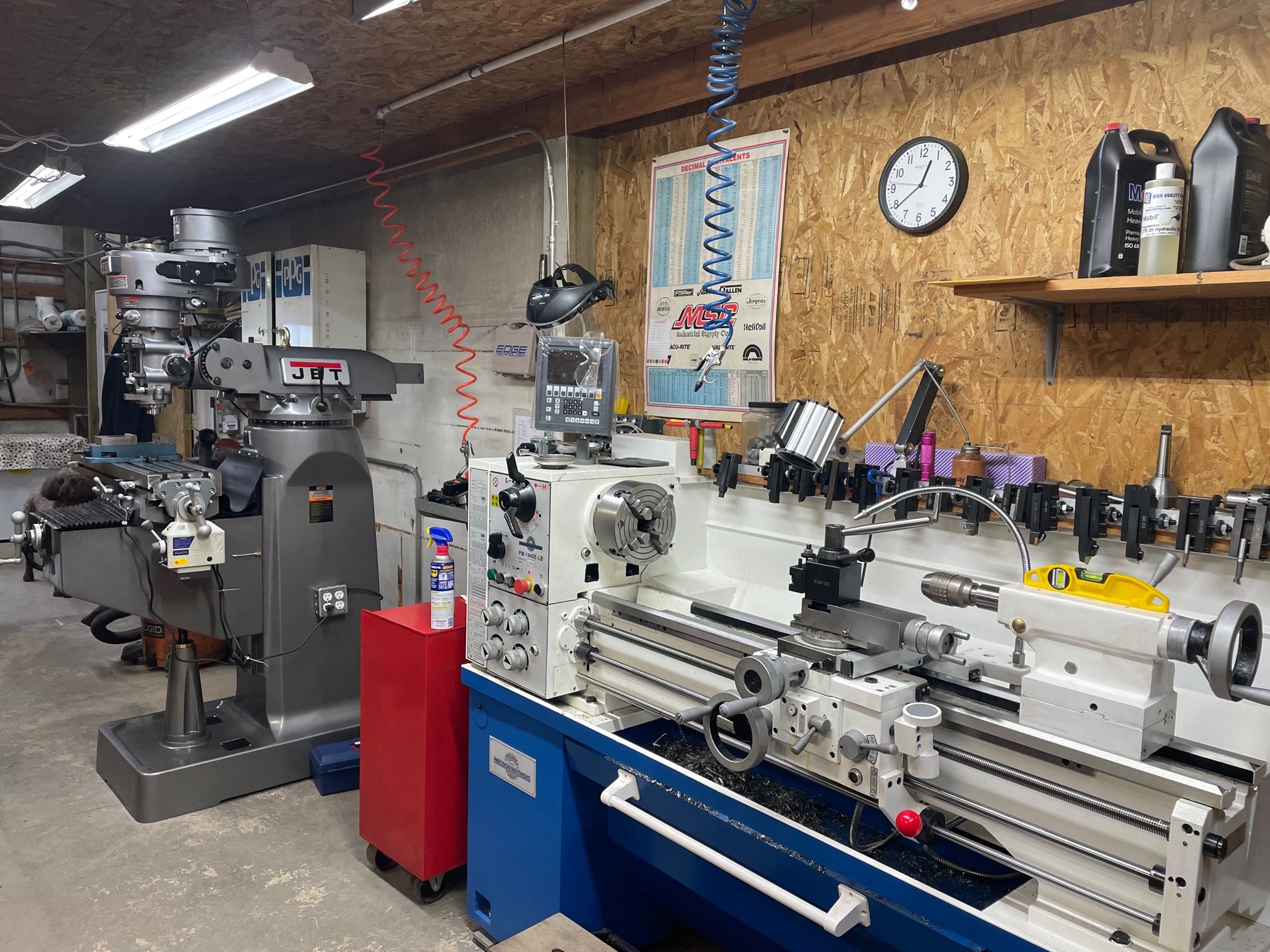

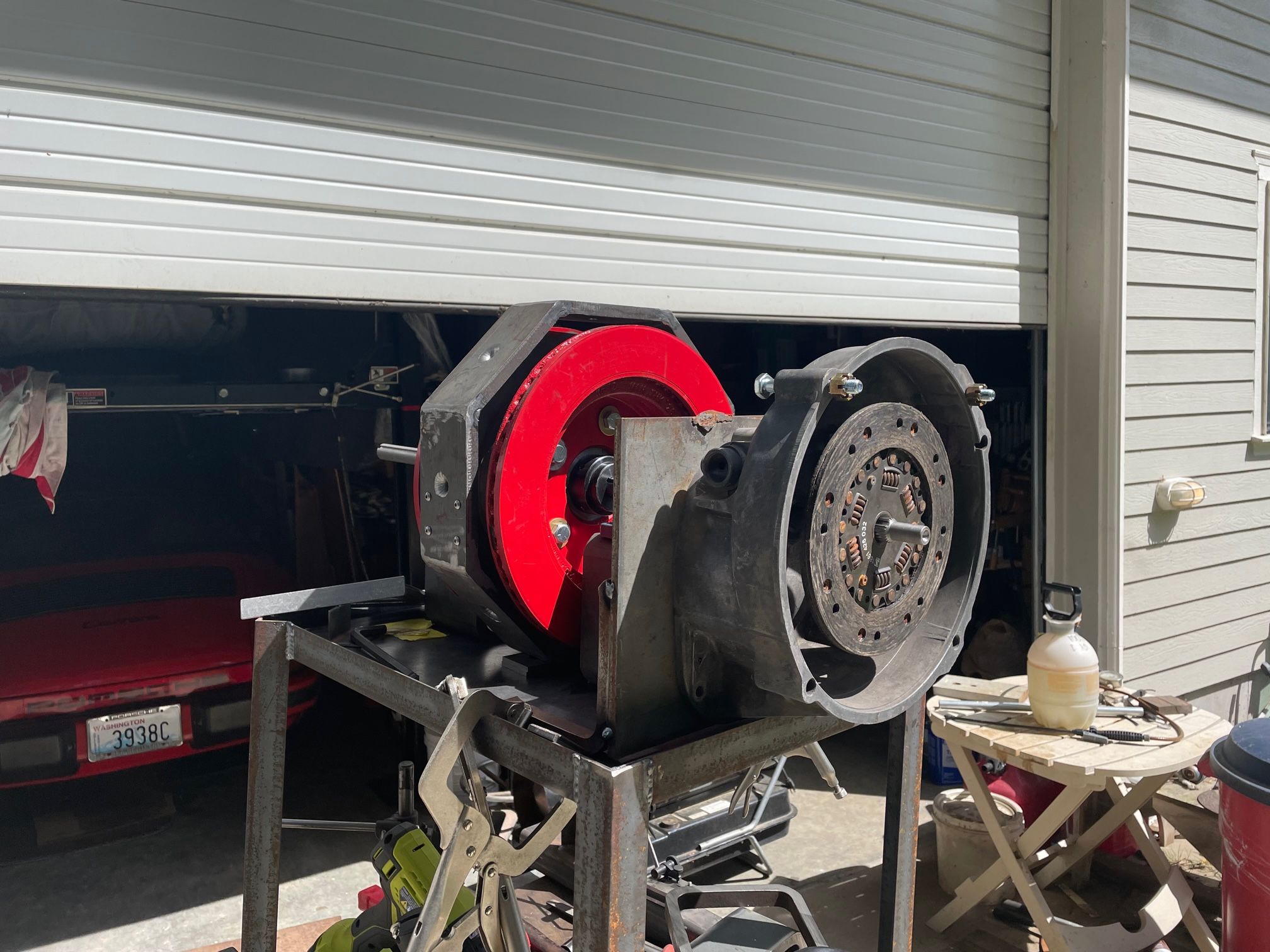

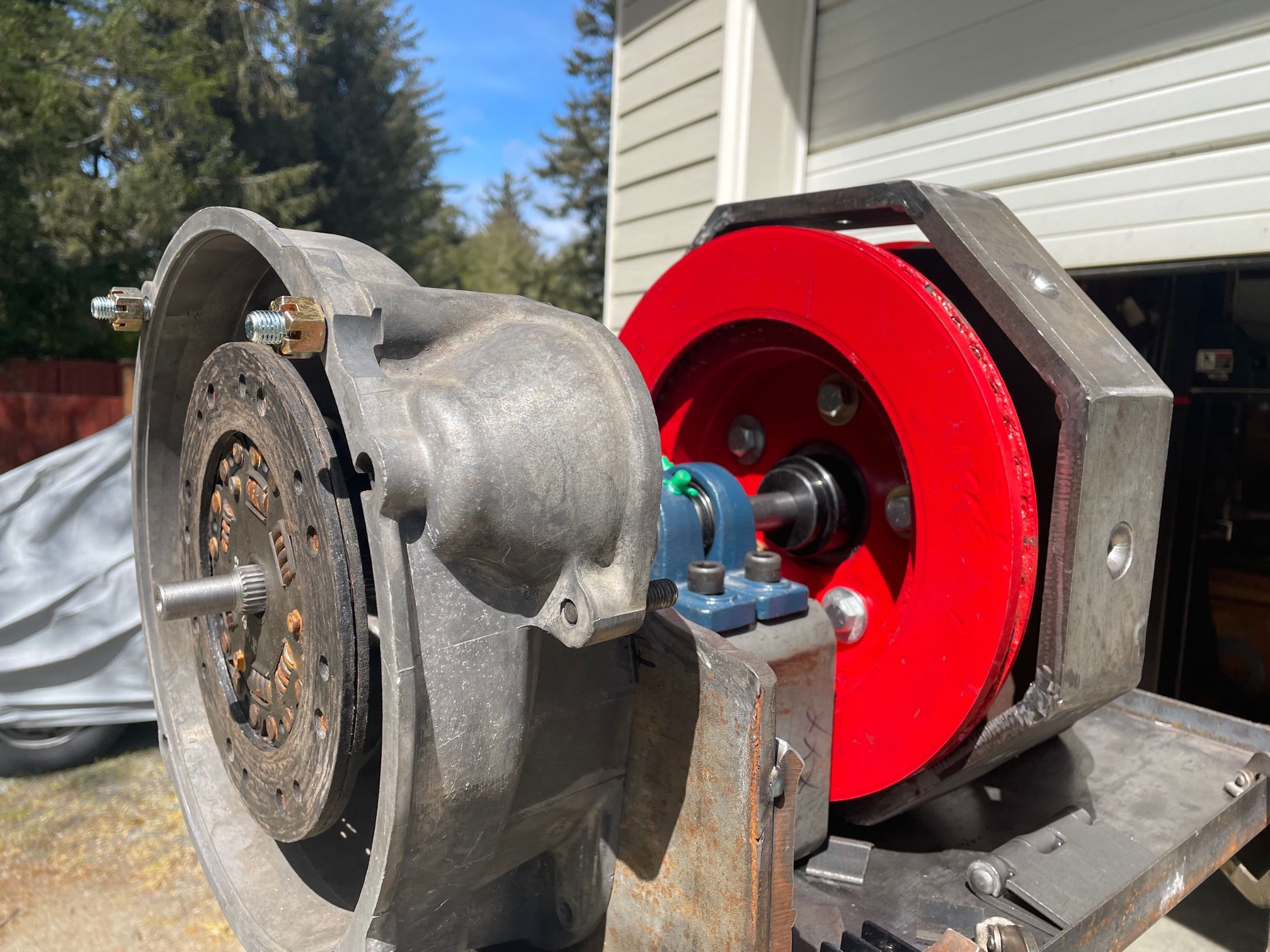

                Well finally got back to the DYNO after a couple weeks of distractions. New Lathe and Milling machine arrived and install. Installing the Digital Read Out (DRO) on both machines to share the same readout was interesting, but have it done now. Both a brand new and a real pleasure to run. Turns out these, DRO glass scales are brain dead simple. I probably saved 2500 bucks by doing my own DRO install opposed to buying them from the factory with the machine. Well worth a few days of research, and my eBay account..

                Click image for larger version

Name:	Mill and lathe.jpg
Views:	205
Size:	529.3 KB
ID:	112781

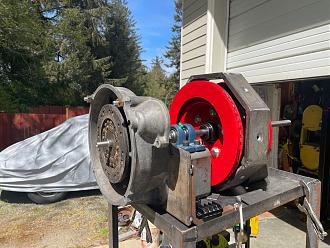

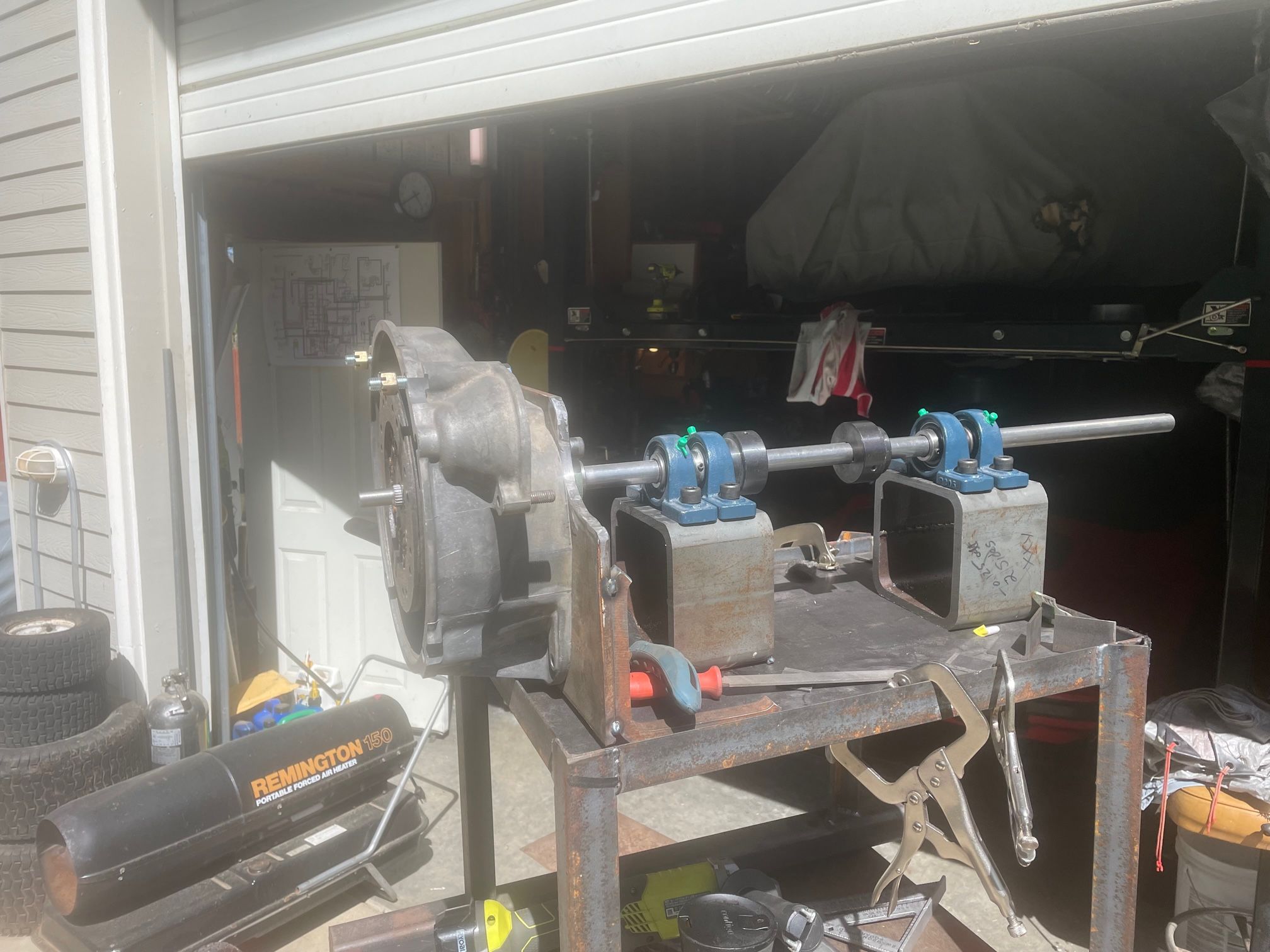

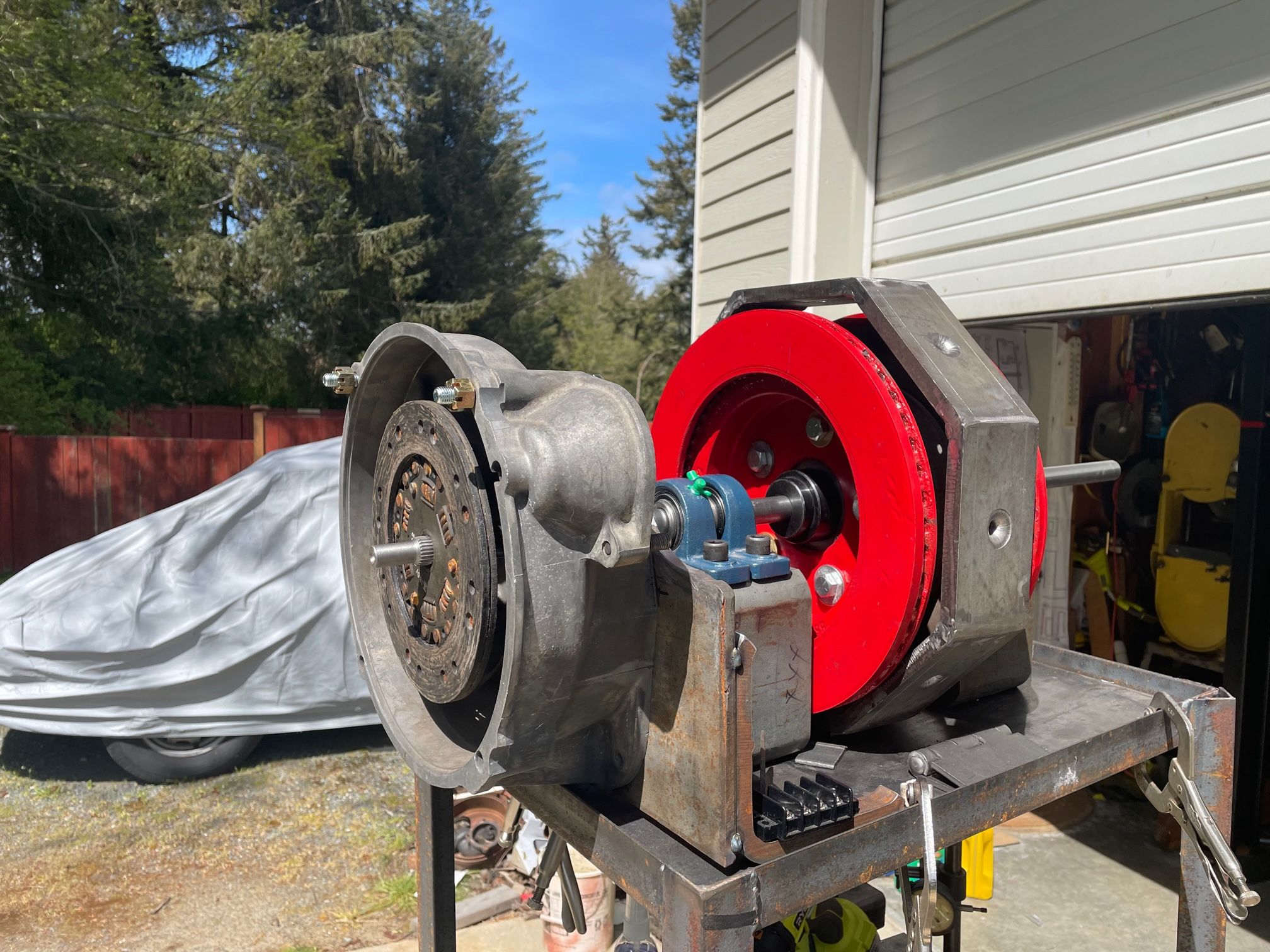

                Fly-cut the square tube to get the bearings aligned to the bell-housing flat and parallel. Now the shaft alignment is complete I can work the rotors and get them balanced next week . The two black spacers will attach to the central rotor carrier that the disc are attached to , All of the magnet coils measure the same resistance, and the north poles have been identified. I matched them by resistance and current flow in pairs so the magnetic fields will react equally on the spinning rotors.

                As soon as I get the rotating mass balanced I will mock it up with the coil carrier on and determine the final locations of everything. Its getting close

                Click image for larger version

Name:	Dyno 01 .jpg
Views:	215
Size:	305.8 KB
ID:	112782
                Pushed around since 1966.

                Comment


                • #38
                  Nice lathe, John. I see you have had a chance to use it, how do you like it?
                  Retired software engineer
                  '59 Convertible D
                  '64 SC

                  Comment


                  • #39
                    Dave

                    Still getting trying to figure it out. I have had a prewar 9” south bend for 40 years. This is 14” a quick change gears, SAE and metric threads, Big dial numbers, gap bed, DRO. It’s almost too new. I only a have 5 hours on it, just did the first oil change. My first digital readout, that’s pretty cool.

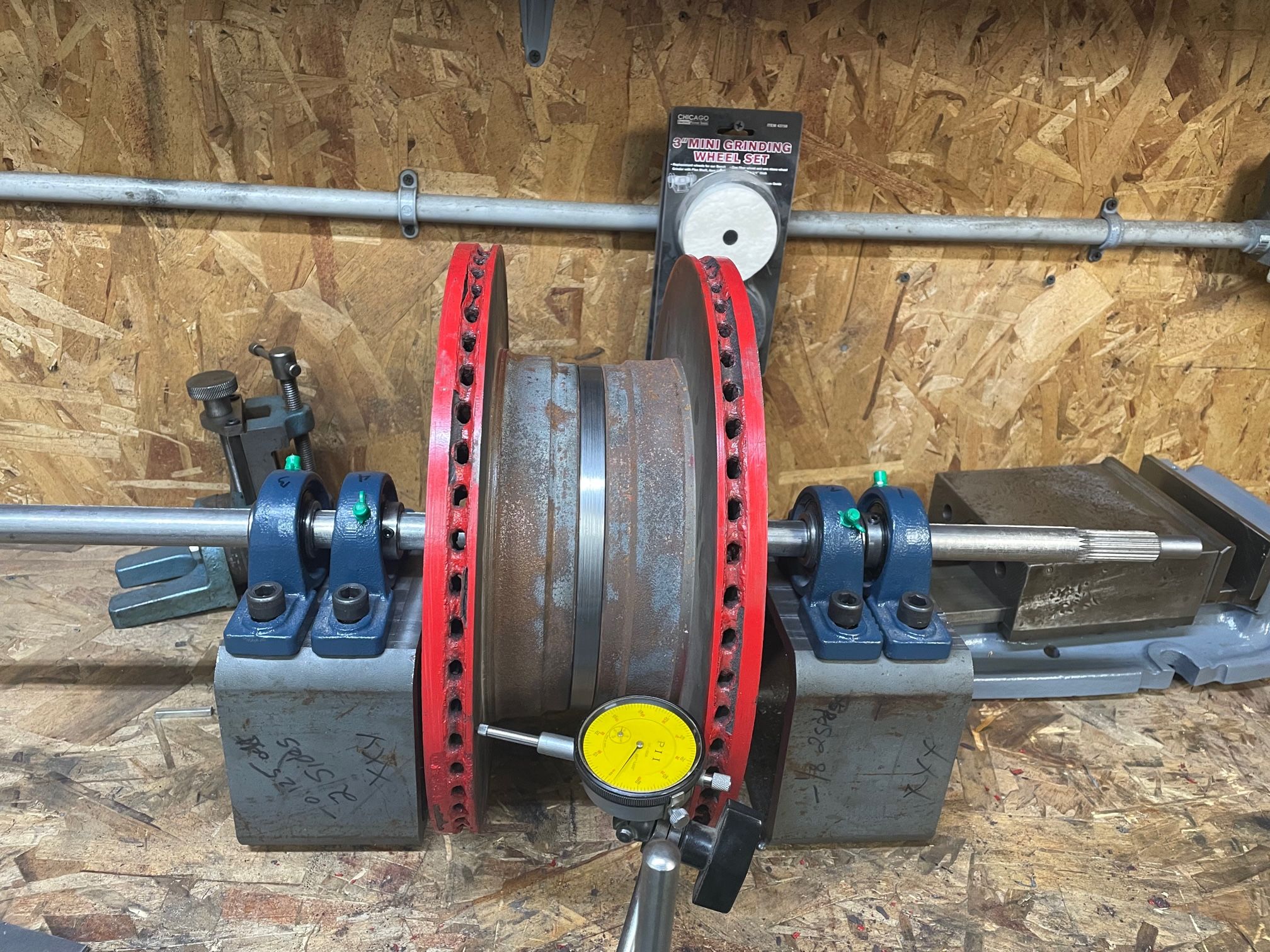

                    checking the runout on the rotors. Too big for the surface plate but showing around 0.003” on one side. So I figure it’s good enough. Just worried about vibration, now for balancing the complete assembly

                    Click image for larger version

Name:	EC4533E9-5989-43A2-B89B-74A03A6B0664.jpg
Views:	162
Size:	620.7 KB
ID:	112801
                    Last edited by Jbrooks; 04-19-2022, 07:31 PM.
                    Pushed around since 1966.

                    Comment


                    • #40

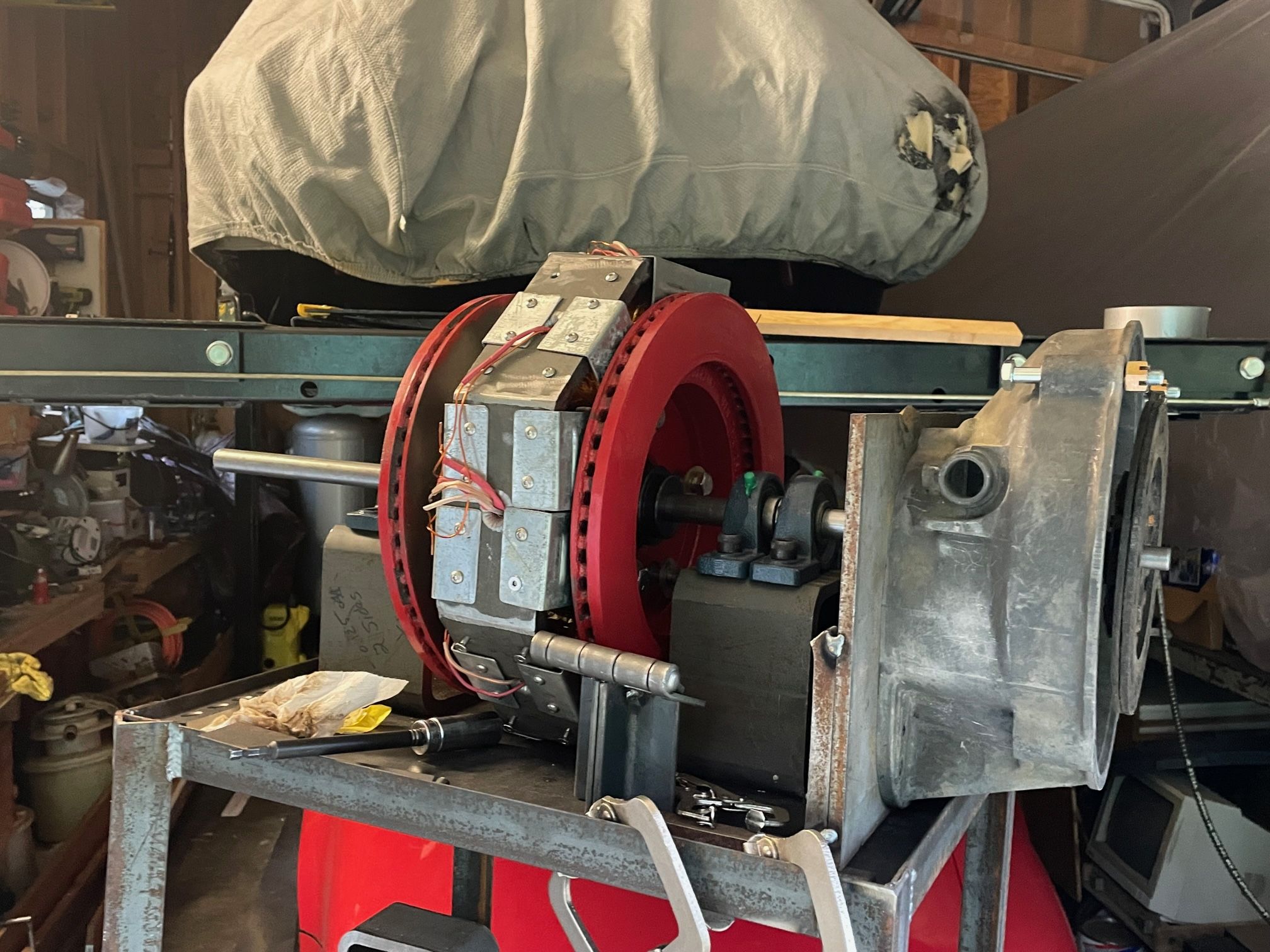

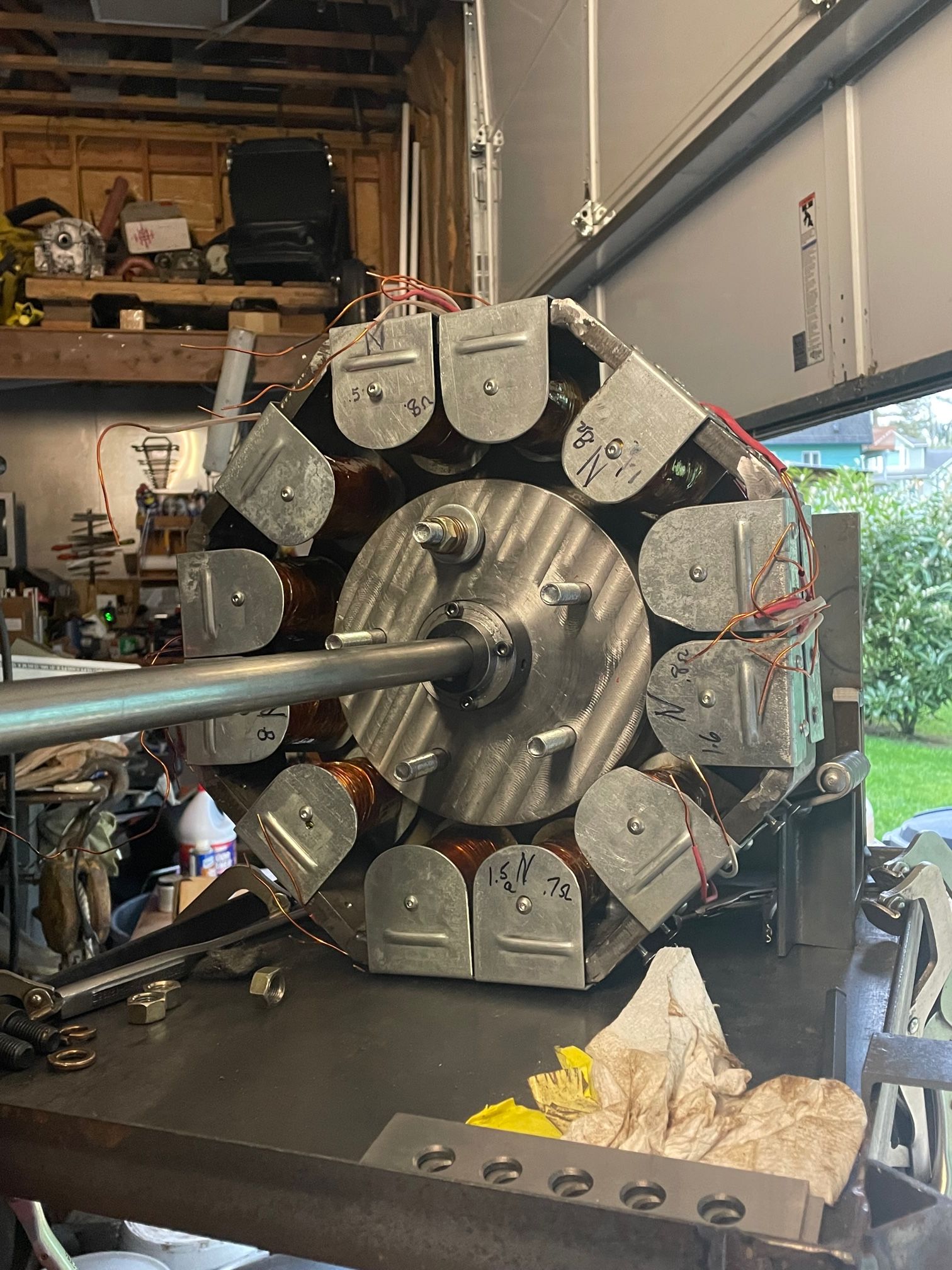

                      Ruff assembly on the rotating parts today, with the key ways broached and disc torqued, still have a little run out on one side. Assembly got a little complicated due the no tolerance slip fit on everything. But it did go together. Next is balance of the rotating disc and install the electromagnetic coils into the octagon.

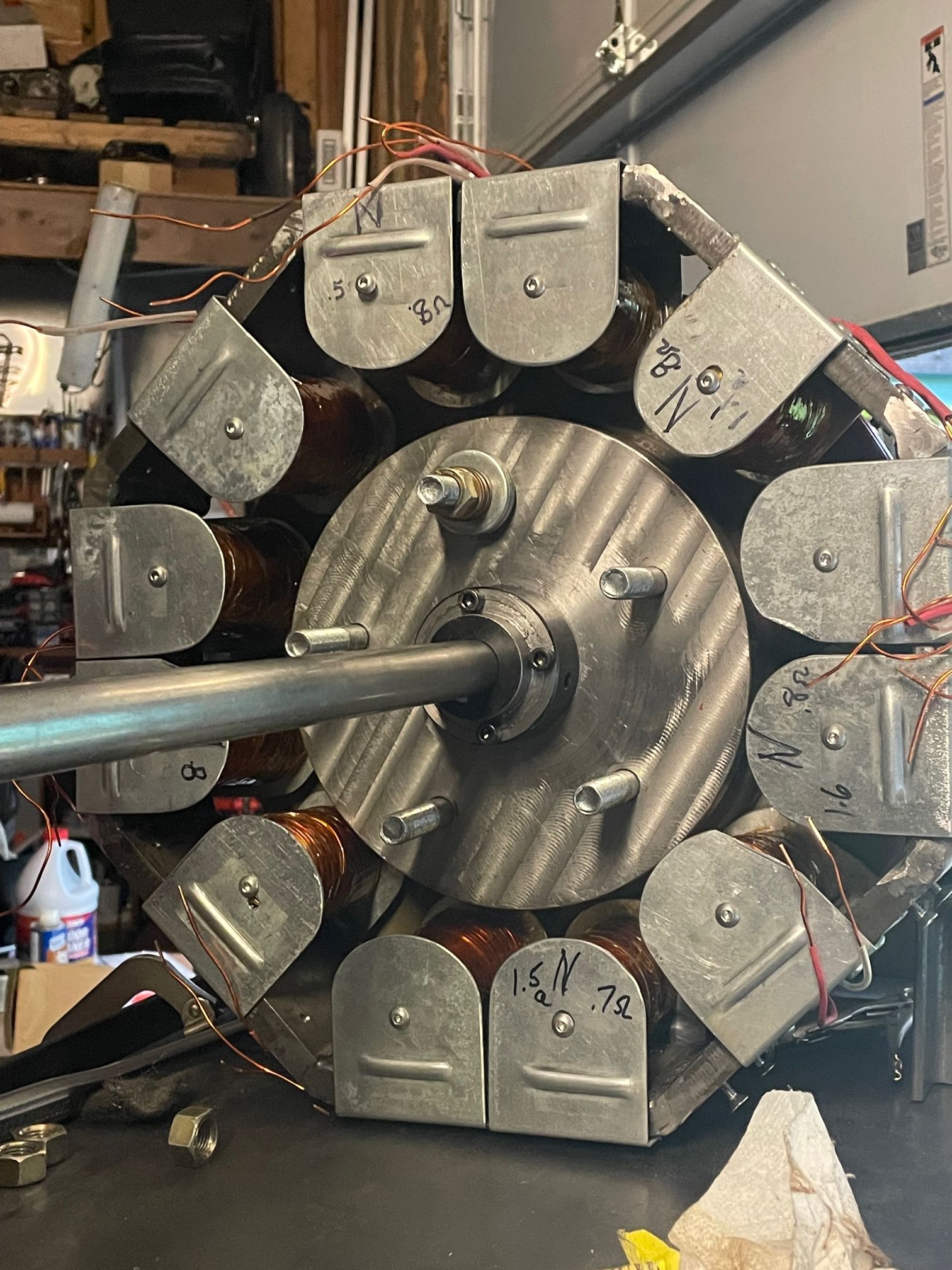

                      The coils will be wired as 8 pairs, 2 coils in series. Wired so the N / S polarity is opposite 180 degrees to each other, I will install two coils per flat. The theory is "one will pull and the other push and counter act any bending moment. I will also put the ones next to each other on the same flat in N / S opposite polarity. The math sez the induced eddies currents in the spinning disc with oppose each other, increasing the drag. I will power them individually as pairs. Now that I know what the final clearance is I may re do the coil mounts to get the lower toward the center shaft, but for now all is well here. Next is the octagon hinge and strain gauge install. Still trying to decide weather to push or pull the strain gauge transmitter.

                      Click image for larger version

Name:	Dyno 03 .jpg
Views:	242
Size:	452.5 KB
ID:	112819 Click image for larger version

Name:	Dyno 05 .jpg
Views:	252
Size:	341.1 KB
ID:	112816 Click image for larger version

Name:	Dyno 02 .jpg
Views:	238
Size:	398.9 KB
ID:	112818

                      Thanks for looking
                      Attached Files
                      Pushed around since 1966.

                      Comment


                      • #41

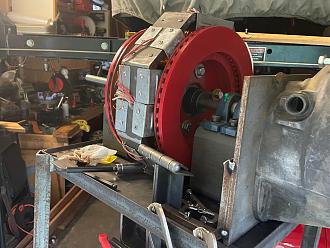

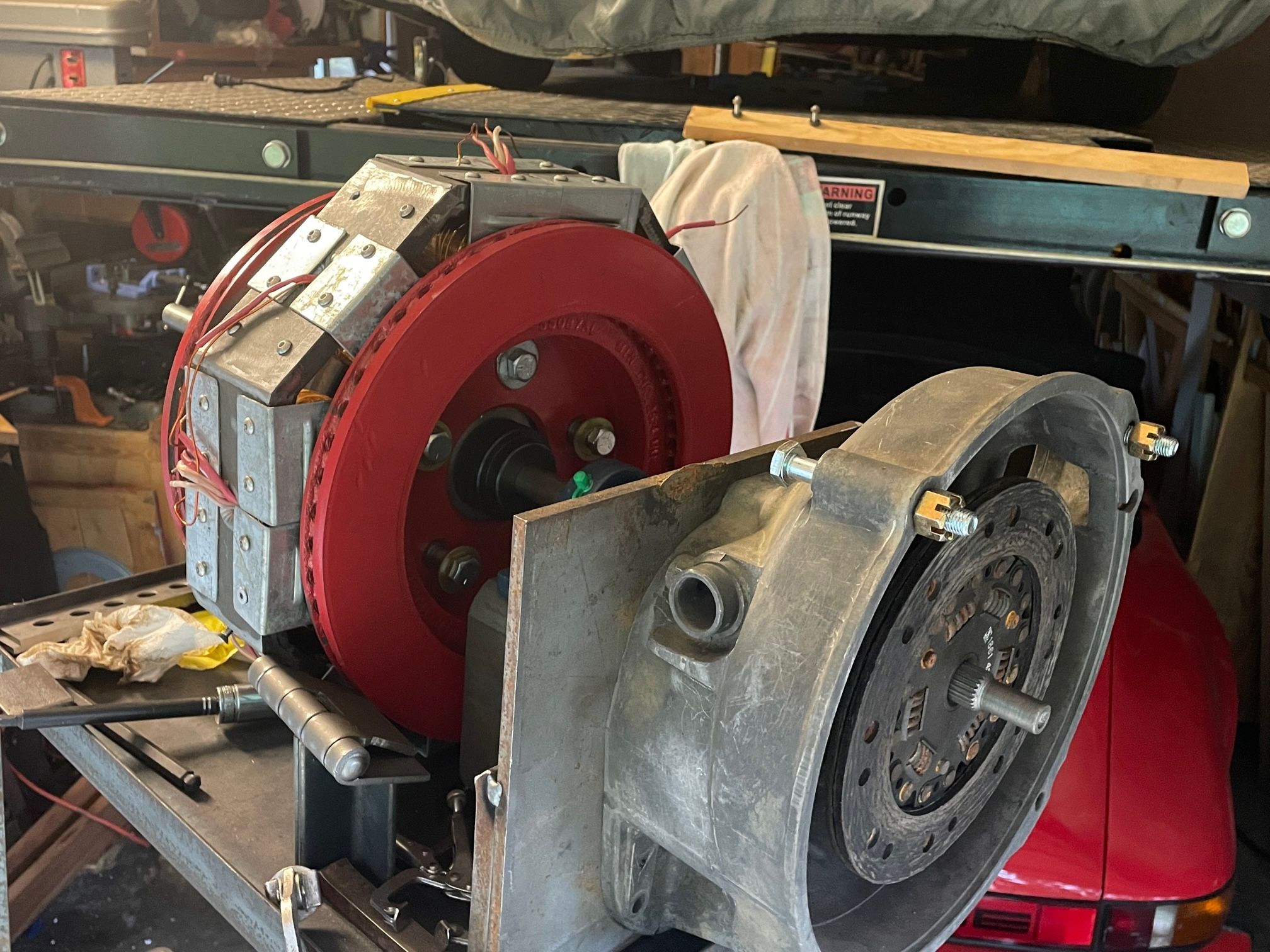

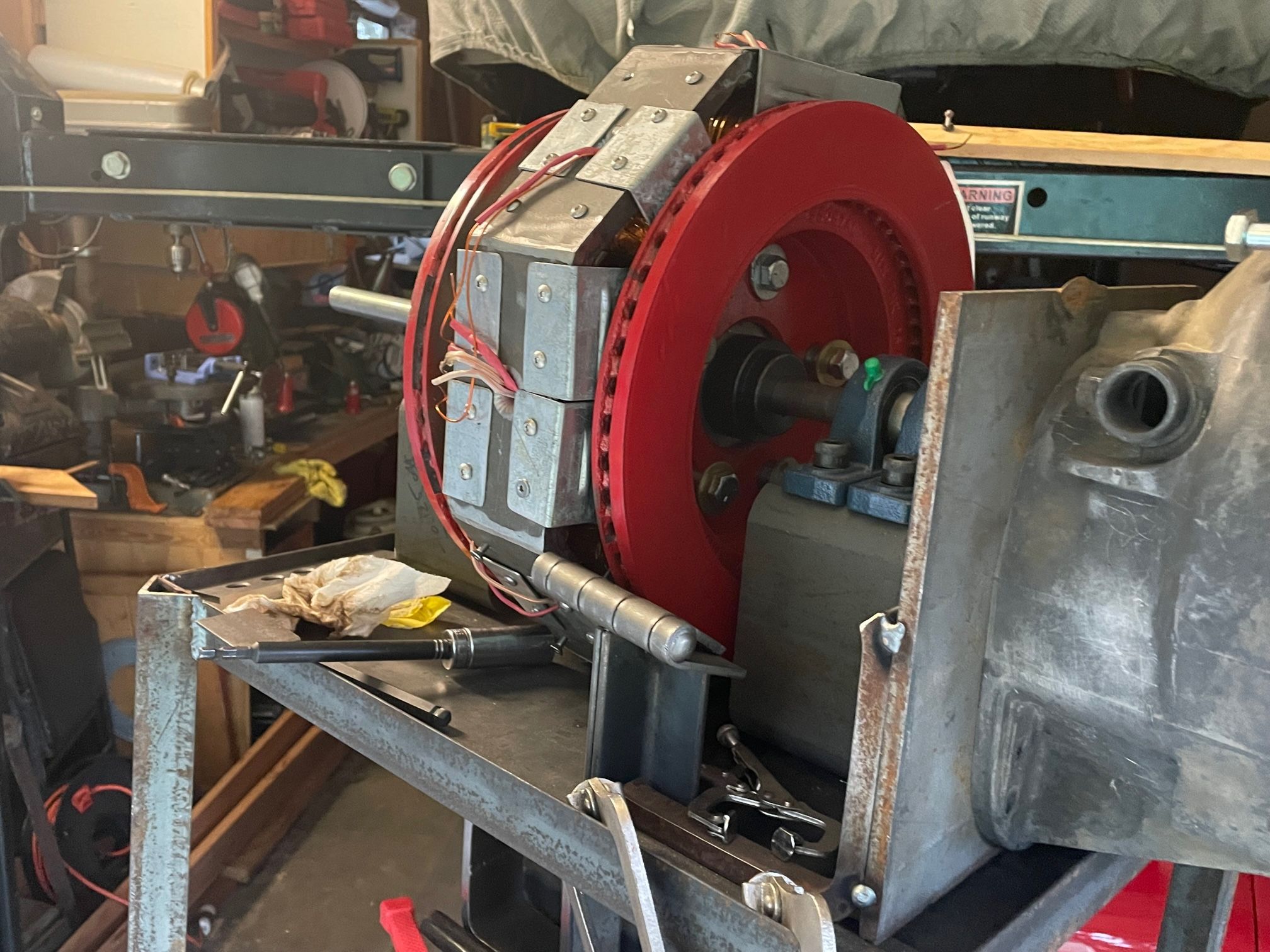

                        Started fitting out the coils today. Ran in to a clearance problem, and have reduced the number by 4 coils, for now. I think I can work around it with new extended brackets. but If not The math says it will still eat 200HP. I will fabricate a couple new longer brackets to drop the single coil flats down and get two coils back in the flat on each hexagon. I have a little over an inch in the inside clearance. They are mounted North - South - North to increase the eddies current resistance drag on the rotation disc. I am still working on the fit and pivot point and load cell mounting but its finally coming together. She is getting close

                        Click image for larger version

Name:	Dyno 07 .jpg
Views:	243
Size:	459.7 KB
ID:	112843 Click image for larger version

Name:	Dyno 10.jpg
Views:	226
Size:	416.5 KB
ID:	112844 Click image for larger version

Name:	Dyno 09 .jpg
Views:	226
Size:	430.3 KB
ID:	112846

                        Mounting the coils was a tasks. Over 80 #21 holes, Three broken 10-32 taps in steel, a true joy. The aligning the holes in the mount brackets. but she is looking like I planned 2 years ago.

                        thanks for looking
                        Attached Files
                        Pushed around since 1966.

                        Comment


                        • JTR70
                          JTR70 commented
                          Editing a comment
                          You obviously know what you're doing John, but watching this come together just blows my mind.

                      • #42
                        Justin I mostly flying blind.... But its a fun project.

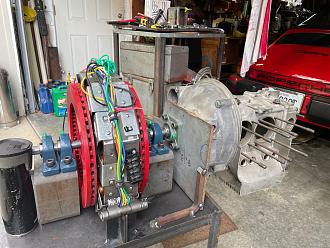

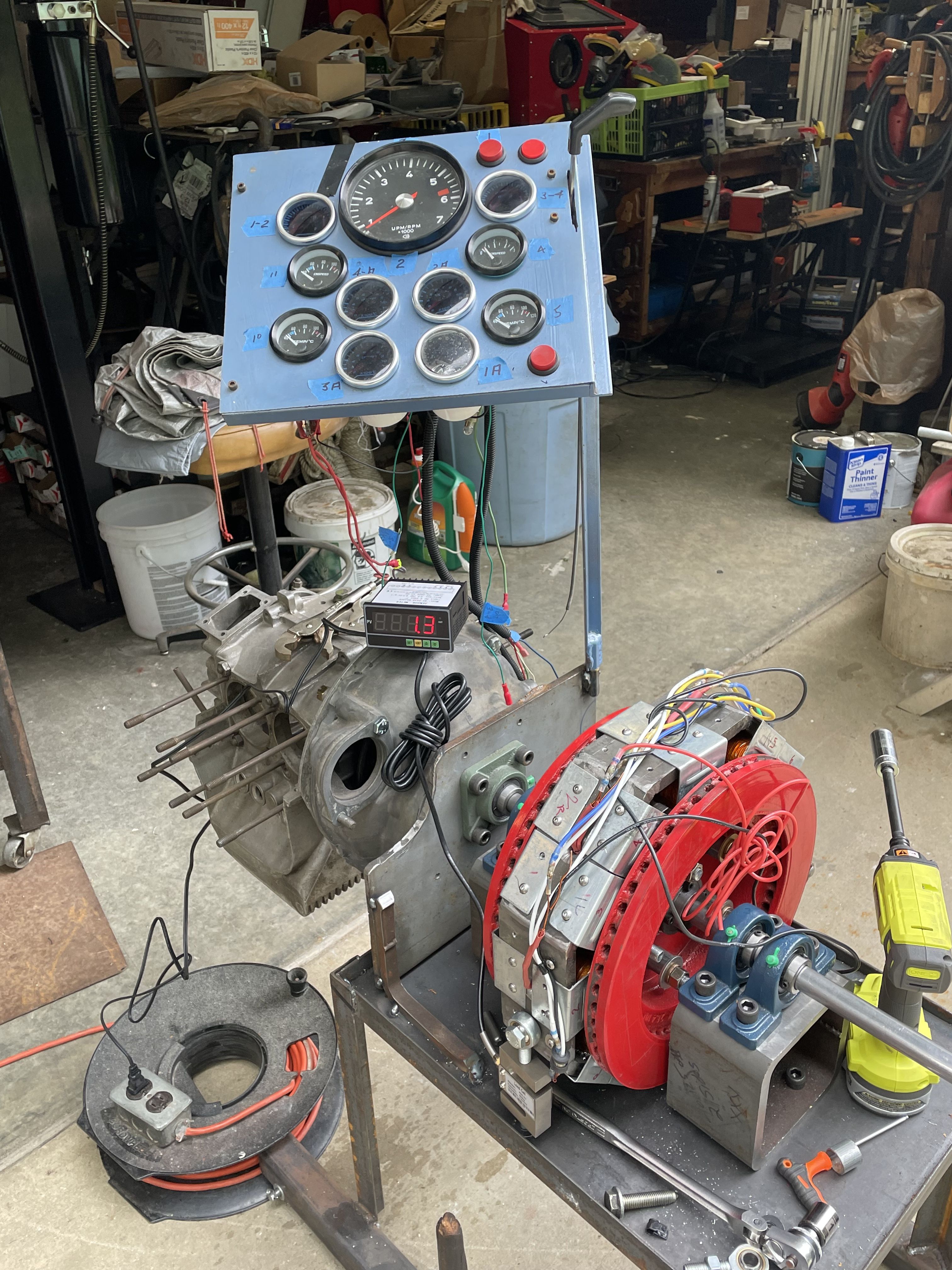

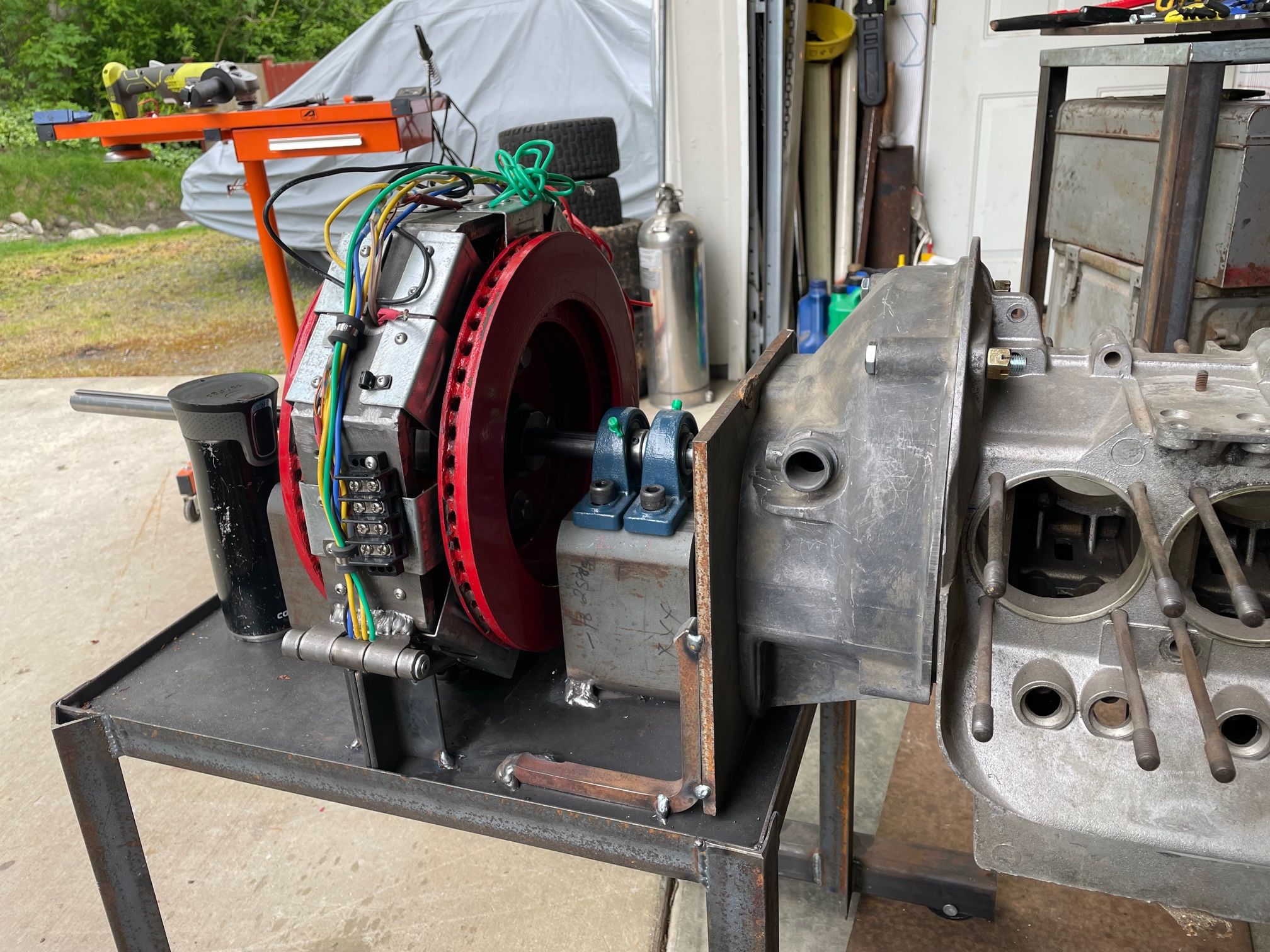

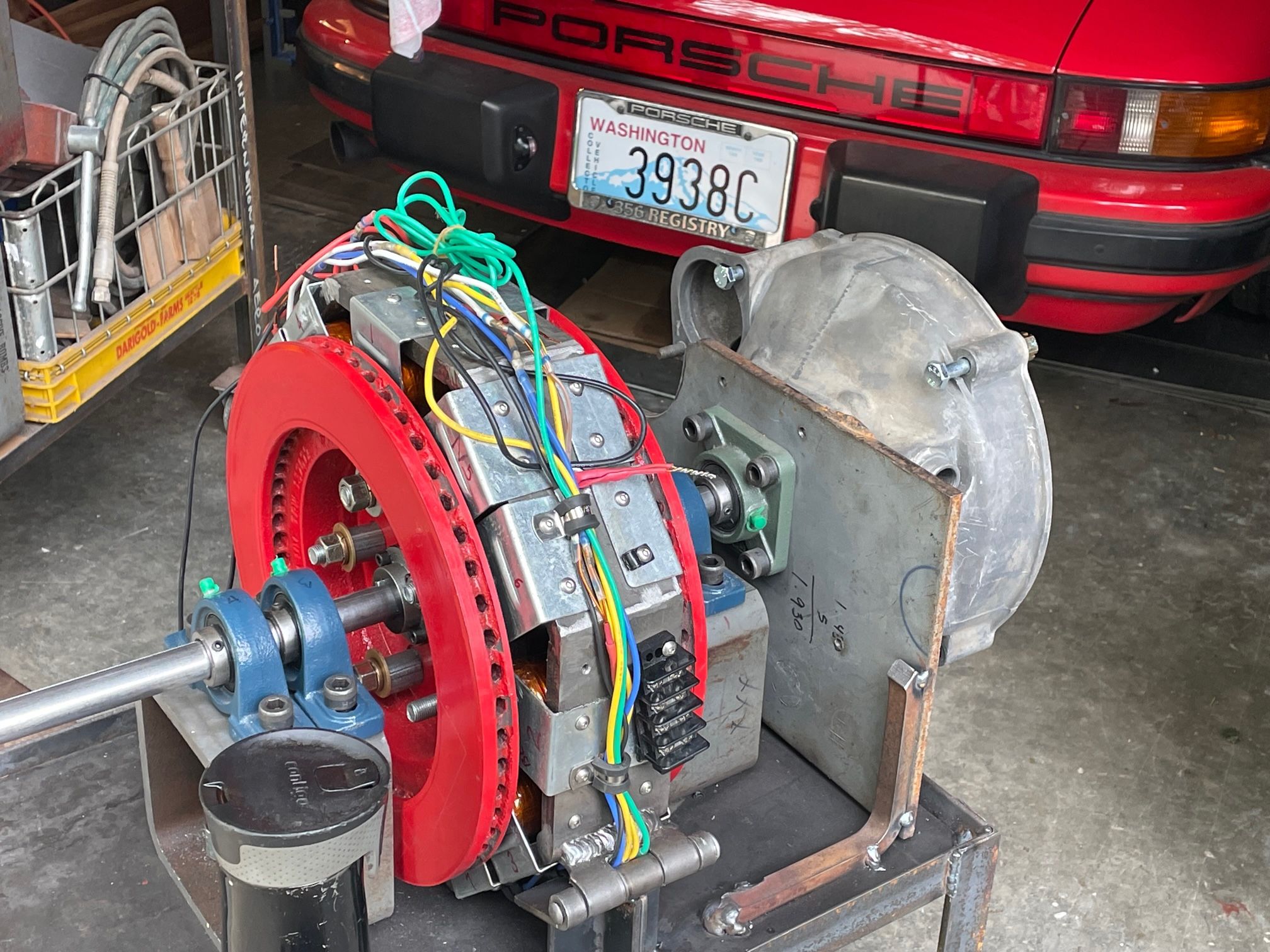

                        Got the wiring on the hexagon done and fitted. Did some current draw at 6V on the coils, they are as predicted, polarization is correct. Did a fit test assembly and it works and spins freely. Rotor disc are balanced, Now I need to build a electric motor with a belt drive to spin it up and start to characterize the coils.

                        Biggest unknown right now is what the low voltage current loads will be. Lenz's law and three variables for the flux density and drag based on velocity. So if i can make 25 pounds of load at 1500 RPM, I can get 2-3 times that load as the RPM or velocity increases through the field with the same voltage and current. So I have three variables to measure, voltage, current and velocity. All three can change the outcome load, plus I can change the flux density by turning on and off coils in pairs. lots of variables be I will figure it out.

                        Found a simple explanation video of what is going on here https://www.youtube.com/watch?v=DEAWglCiXgo He's a young kid but this is what we are doing. Also the magnet and copper pipe is a good trick for showing the kids.

                        Plan to use the digital welded as a power source since, I can change the DC voltage and current separately very accurately .

                        Click image for larger version  Name:	Dyno 12.jpg Views:	0 Size:	491.5 KB ID:	112869 Click image for larger version  Name:	Dyno 15 .jpg Views:	0 Size:	476.0 KB ID:	112870 Click image for larger version  Name:	Dyno 16 .jpg Views:	0 Size:	505.3 KB ID:	112871
                        Last edited by Jbrooks; 05-04-2022, 12:17 AM.
                        Pushed around since 1966.

                        Comment


                        • #43

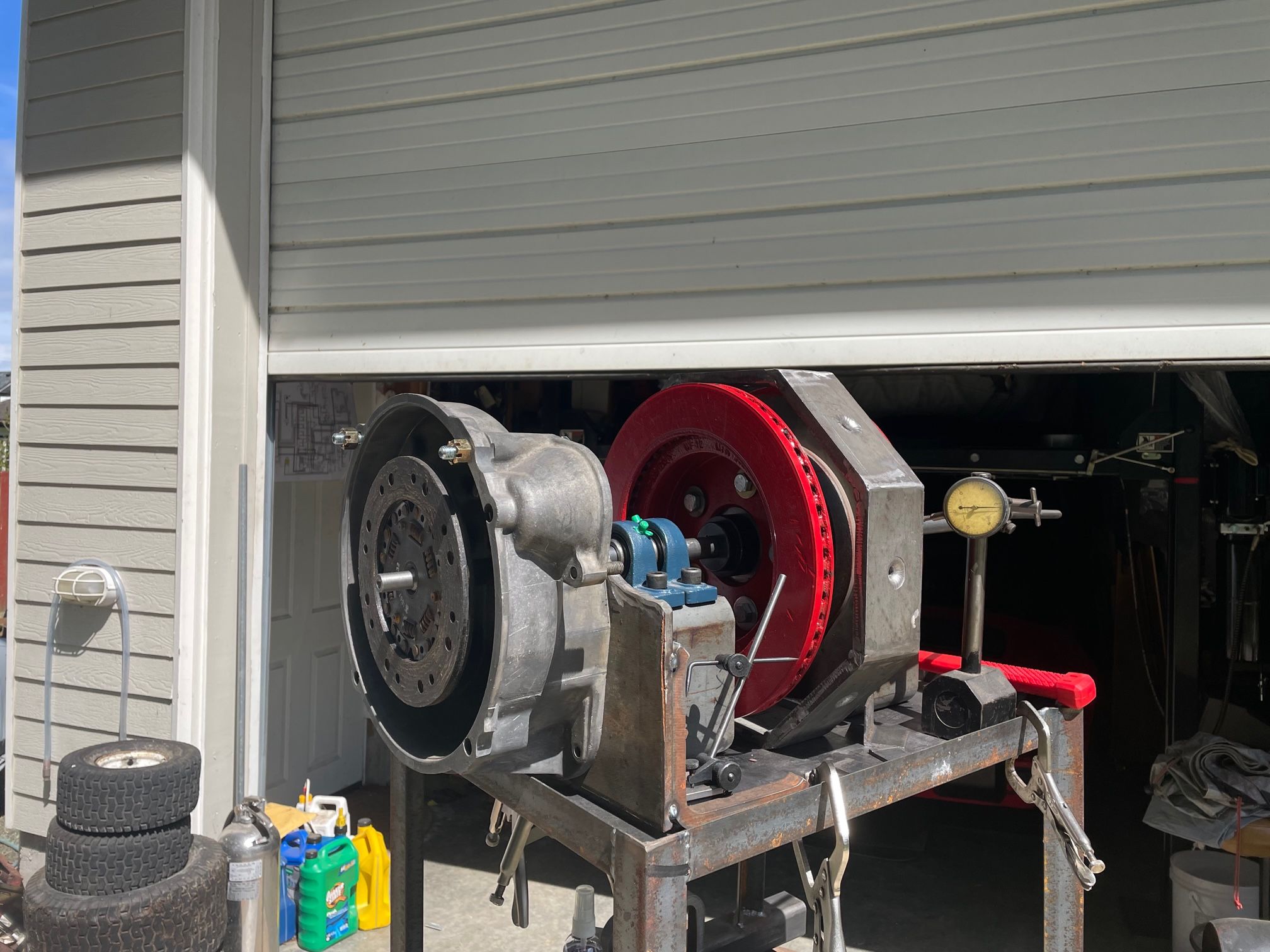

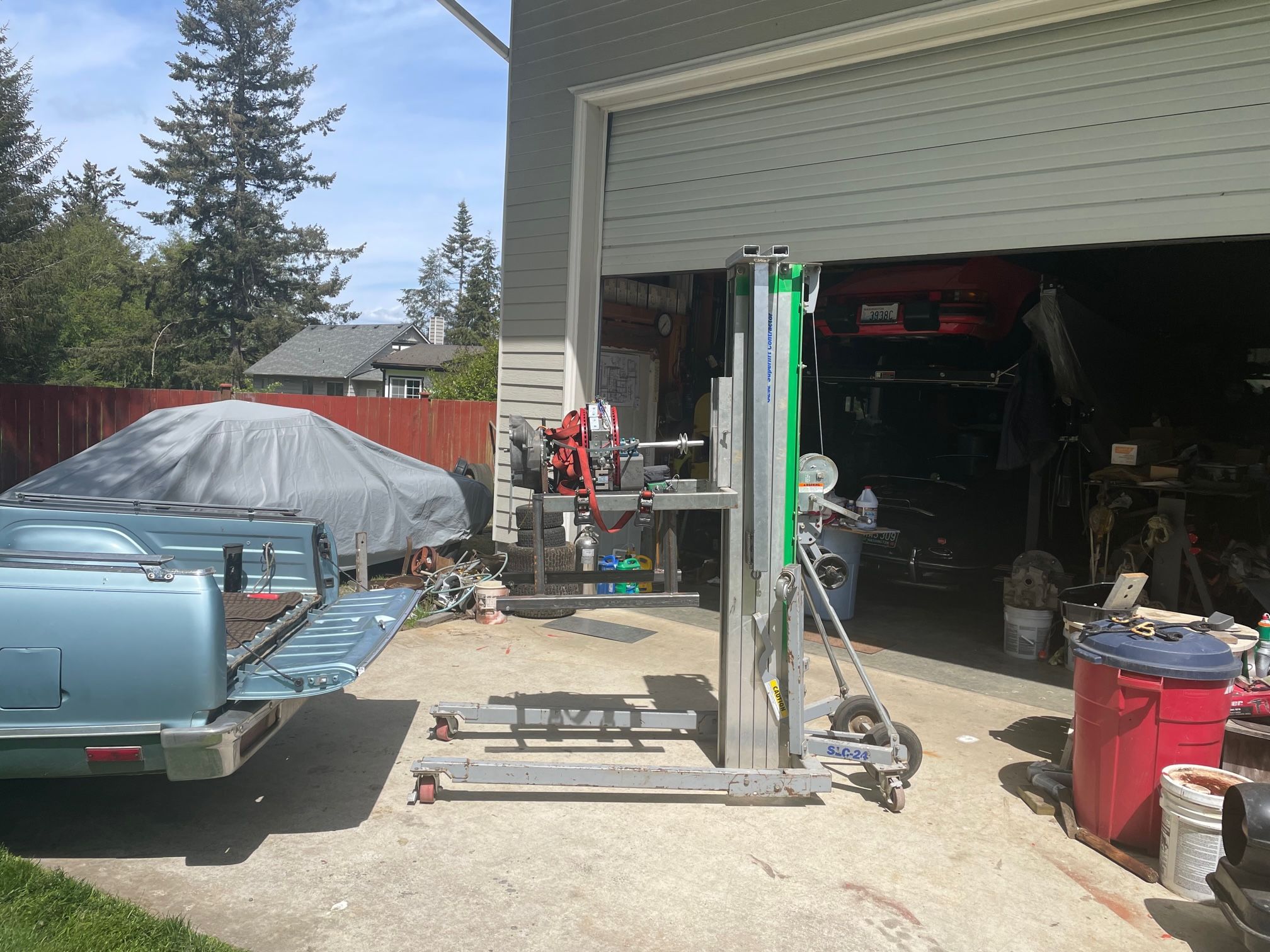

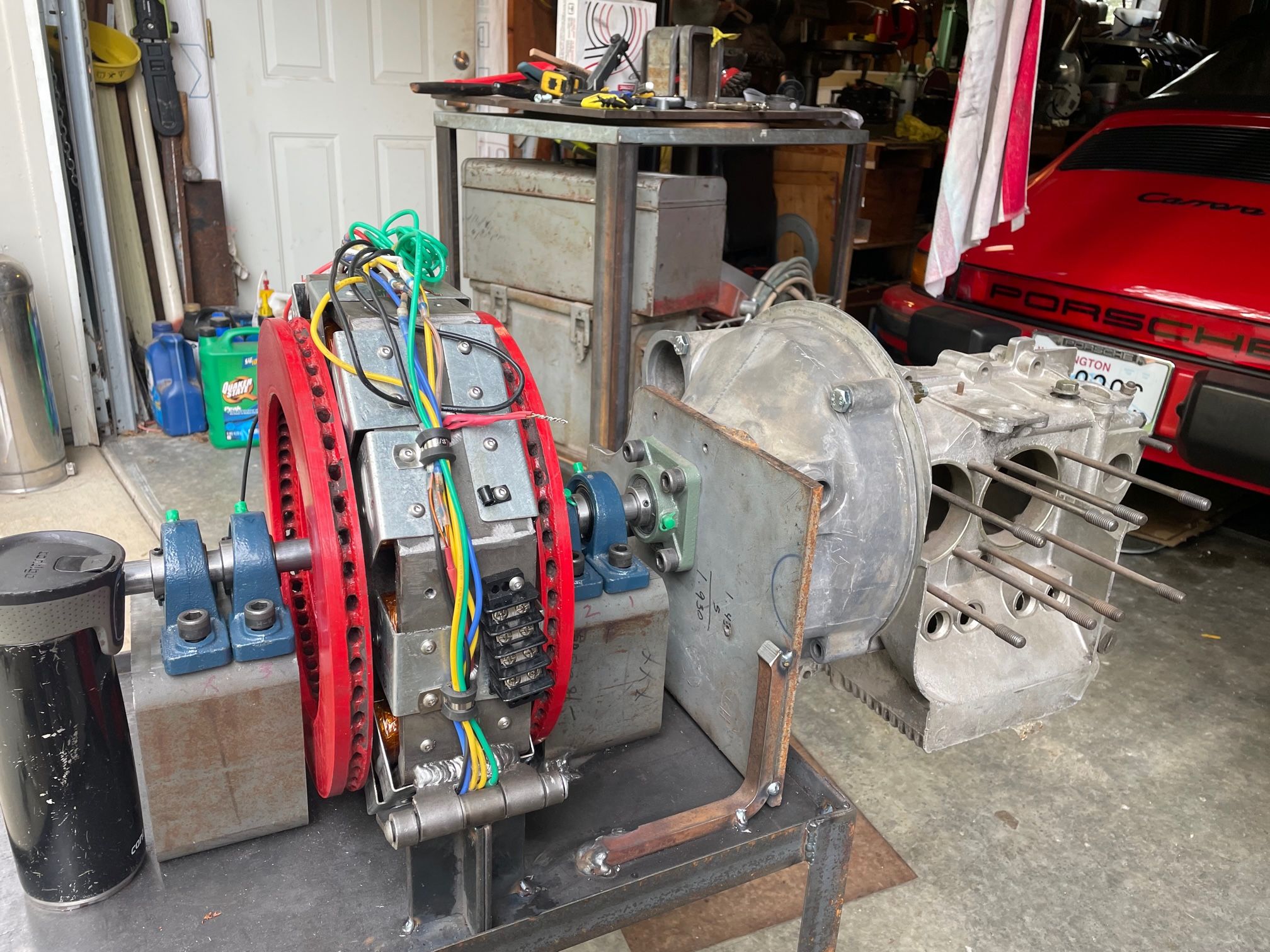

                          Moved it south today to the other shop. Will finish up the characterization and calibration there. Bob can provide the adult supervision. Never tried to pick it up completely assembled, I needed the crane to load it, must be north of 250 pounds, and no battery or instruments on it yet, But it stable and solid at 3700 RPM. really slows down with voltage applied. I have held the magnet field down to 1.5 tesla's for now. but it seems very effective at loading the disc, even at this small value. .
                          Click image for larger version

Name:	Dyno 20 .jpg
Views:	180
Size:	473.5 KB
ID:	112897
                          easy loading with a fork lift.

                          Pushed around since 1966.

                          Comment


                          • JTR70
                            JTR70 commented
                            Editing a comment
                            That thing really sounds like its going to work! Interested in seeing how it comes out.

                        • #44
                          Slowly progressing, the clearances are OK, I did have a couple coil holders that were rubbing slightly at high RPM. The hinge I selected is a little loose and allows the coil pact to wobble .030-.040. The opposite side of the hexagon sits on the strain gauge via a17mm bolt so the hexagon is basically 3 pointed. The load cell needs to float, but at the same time absorb all the torque forces created by the spinning disc. There is enough lateral play in the hinge to allow the hexagon to rock just a little. So it’s weld up the hinge, drill and ream it and make a new hinge pin.

                          I also am going to try a different power supply source. I bought a $60.00 DC IBGT welder from eBay. Yea I know but…. It did weld 1/16” rod OK and has a 60v open circuit voltage and might produce 100 amps max. The concept is the welder will provide sufficient current at a low setting to produce the magnetic fields. I know a battery charger works, but I am limited on the output voltages. I will vary the voltage and the current to have finer load adjustment.

                          Since I plan to switch on the individual coils pairs, I will put an big amp shunt and volt/amp meters on the negative side. This way I should be able to monitor the power consumed. Anyway the project is 90% complete, If I don’t let the smoke out, next Its the computer instrumentation and final calibration.

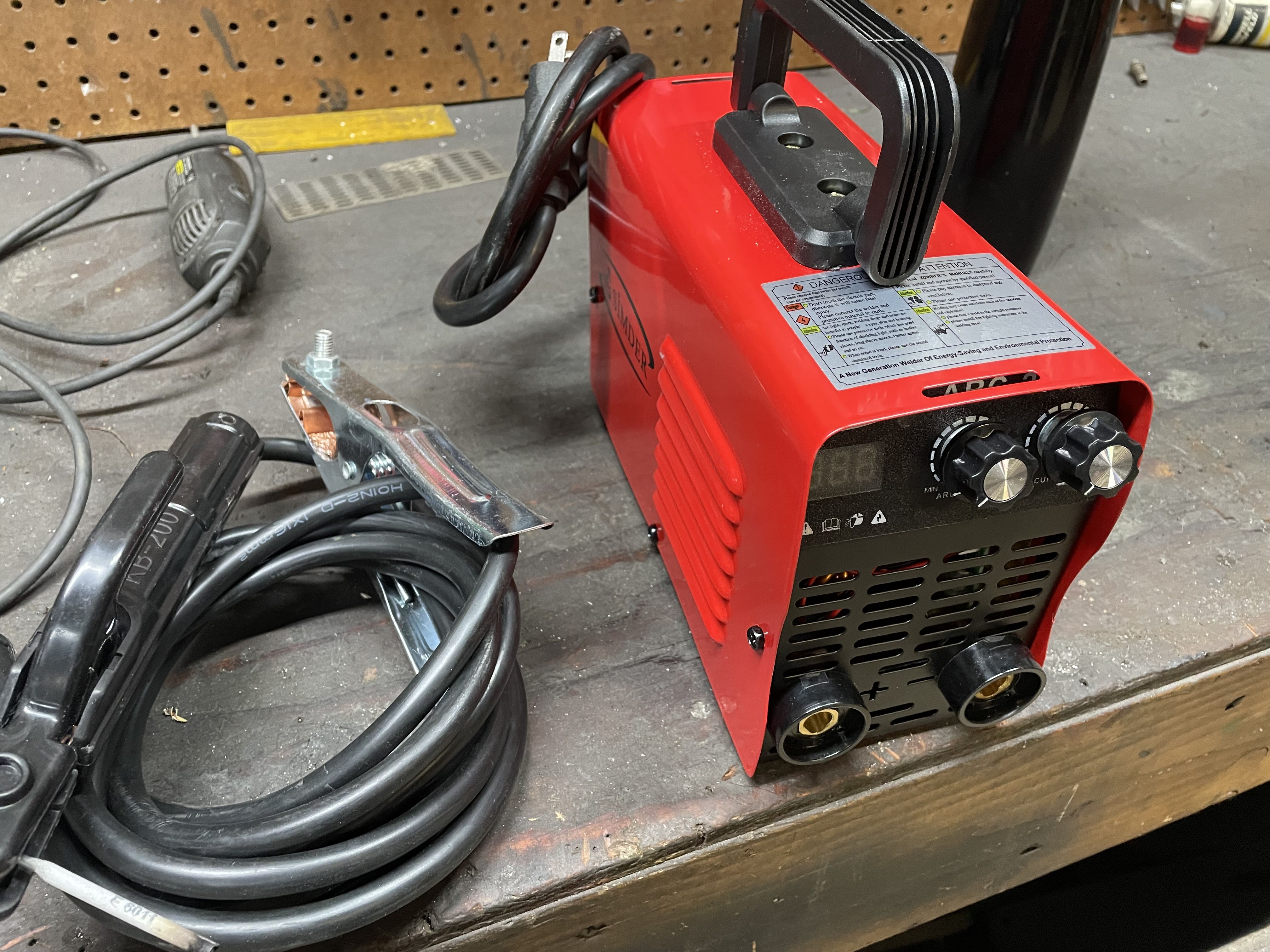

                          Tiny welder, it worked!
                          Click image for larger version

Name:	6802B5C9-F323-491C-A6D3-98D7BA948748.jpg
Views:	167
Size:	1.57 MB
ID:	112925 Click image for larger version

Name:	9C10BFB5-168B-4733-BF2B-F3FCB83F3113.jpg
Views:	162
Size:	1.64 MB
ID:	112926
                          thanks for looking
                          Pushed around since 1966.

                          Comment


                          • JTR70
                            JTR70 commented
                            Editing a comment
                            Fascinating exercise, Getting even more mind blowing.

                        • #45
                          This is all beyond my non-science mind, but I think it’s super-cool. That you manage to hold such tight tolerances is so impressive.

                          John

                          Comment
