Chevy LT4 V8 Conversion for my Toyota truck

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #16
    7/16/18

    Sheet metal modifications: Tunnel at shifter
    Click image for larger version

Name:	IMG_0123.JPG
Views:	13
Size:	79.5 KB
ID:	102452

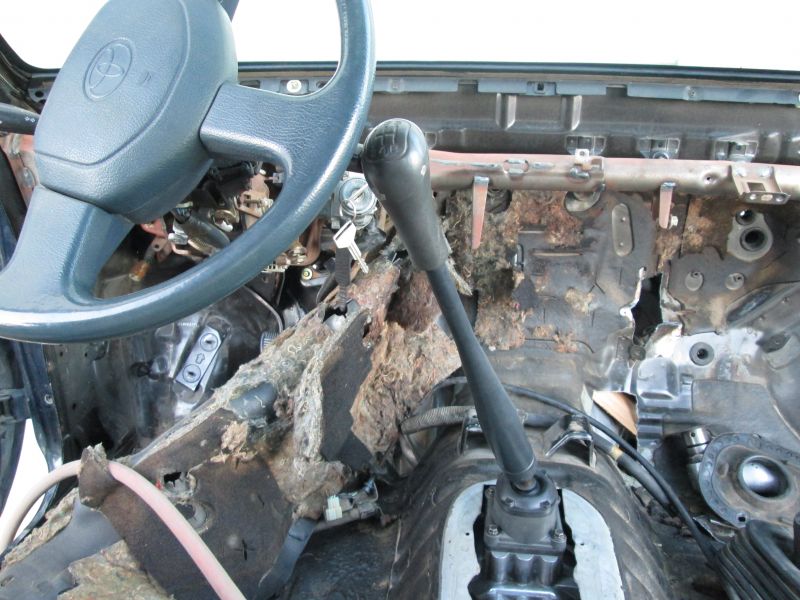

    Cut the tunnel back to accomidate the new shifter location and its larger base. Tried the stock lever that came with this trans and as you can see its a bit too long for this much smaller cab; almost like an old rat rod shifter.
    Click image for larger version

Name:	IMG_0125.JPG
Views:	28
Size:	92.7 KB
ID:	102453

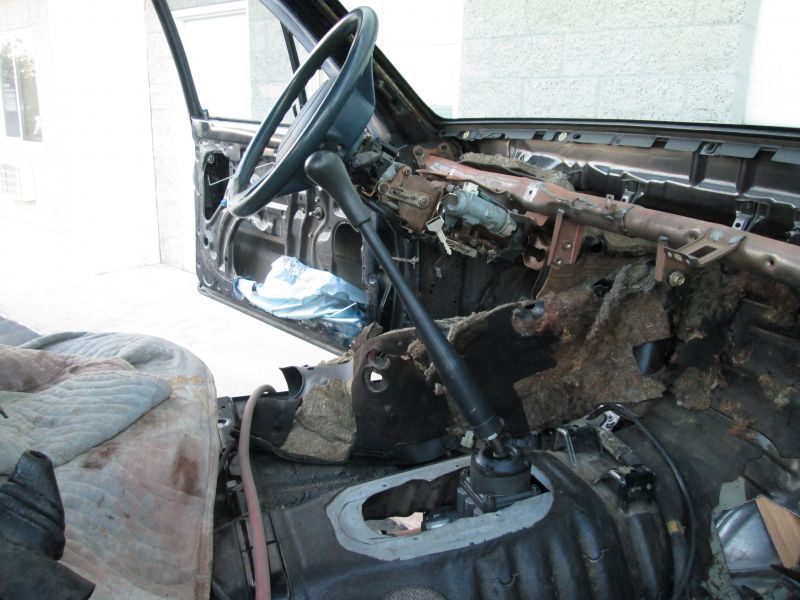

    Also gets into the steering wheel as its set up for a much wider full size cab. Custom lever for this application in works.

    Click image for larger version

Name:	IMG_0139.JPG
Views:	12
Size:	75.2 KB
ID:	102454

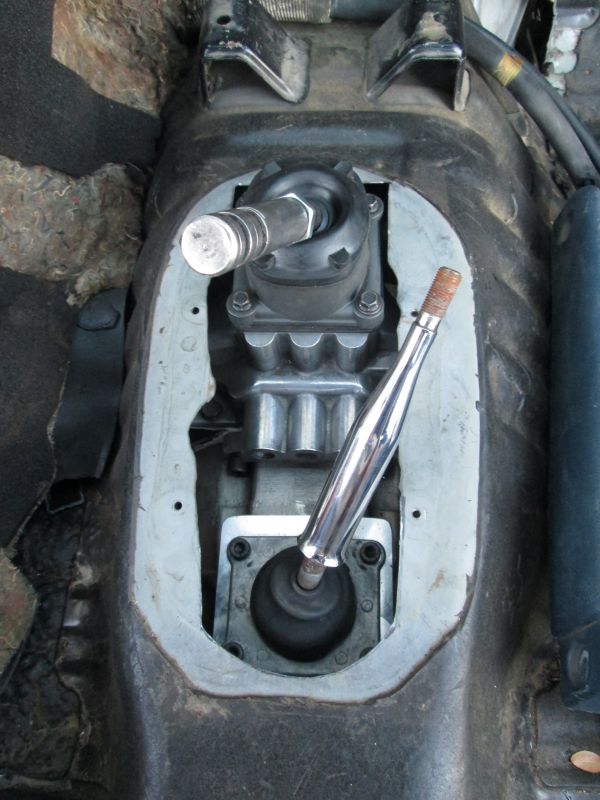

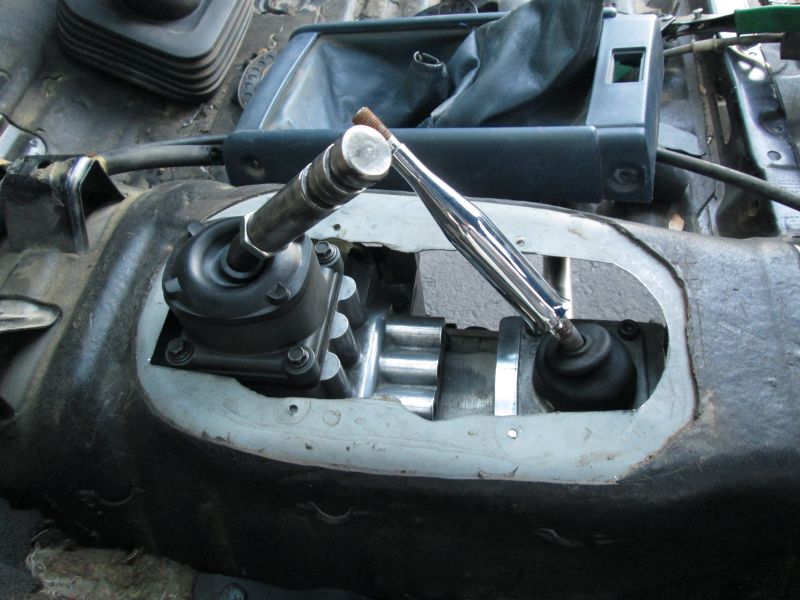

    Gutted that lever for the threaded insert and will build to suit. Rear of the tunnel now opened to accommodate the new 4WD selector location.
    Click image for larger version

Name:	IMG_0140.JPG
Views:	18
Size:	75.9 KB
ID:	102455
    The difference between now and what was there originally is minimal and they look like they belong together. So glad I moved that rear selector forward.
    Click image for larger version

Name:	IMG_0141.JPG
Views:	9
Size:	72.1 KB
ID:	102456

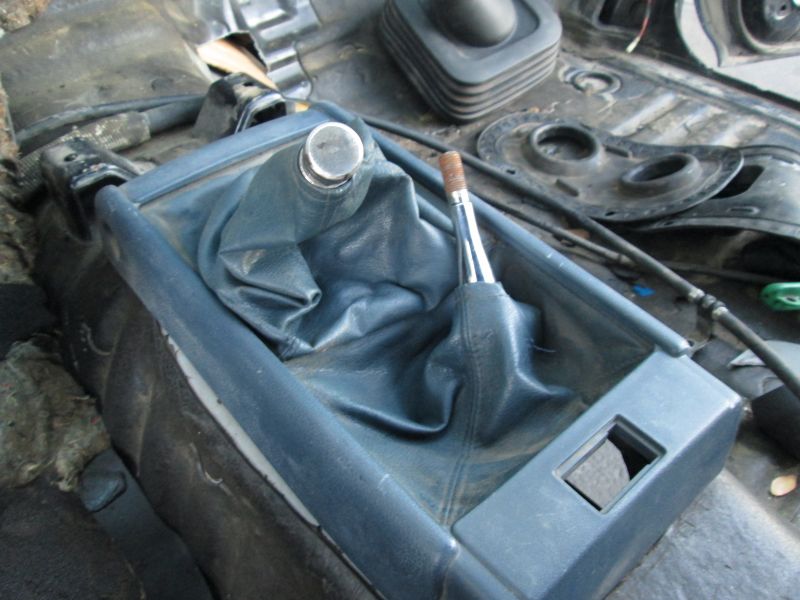

    My stock Toyota leather boots and console damn near fits though the span of these two levers is just a touch too wide to leave as is but it was close.
    Moving onto the firewall next.

    Thanks for looking!
    Justin
    Justin Rio

    Comment


    • #17
      7/22/18

      Begin Fire wall modifications

      Click image for larger version

Name:	IMG_0144.JPG
Views:	10
Size:	84.3 KB
ID:	102629

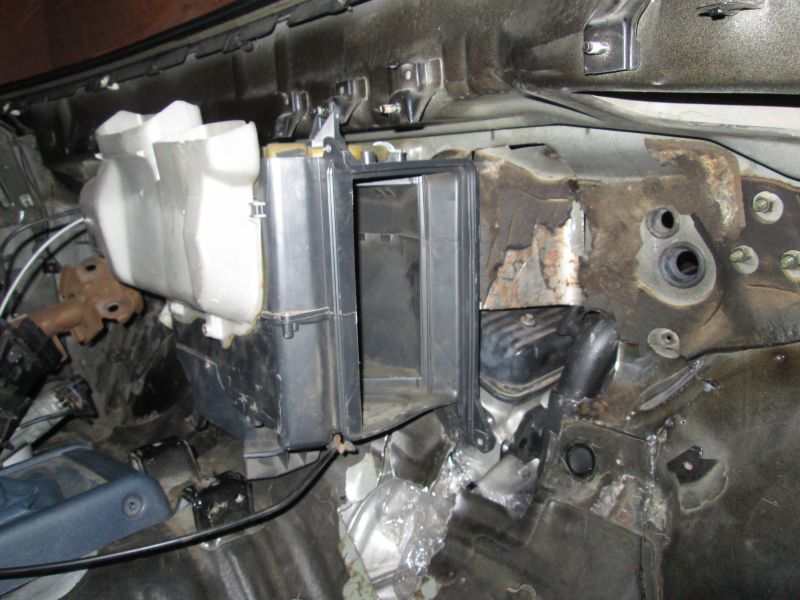

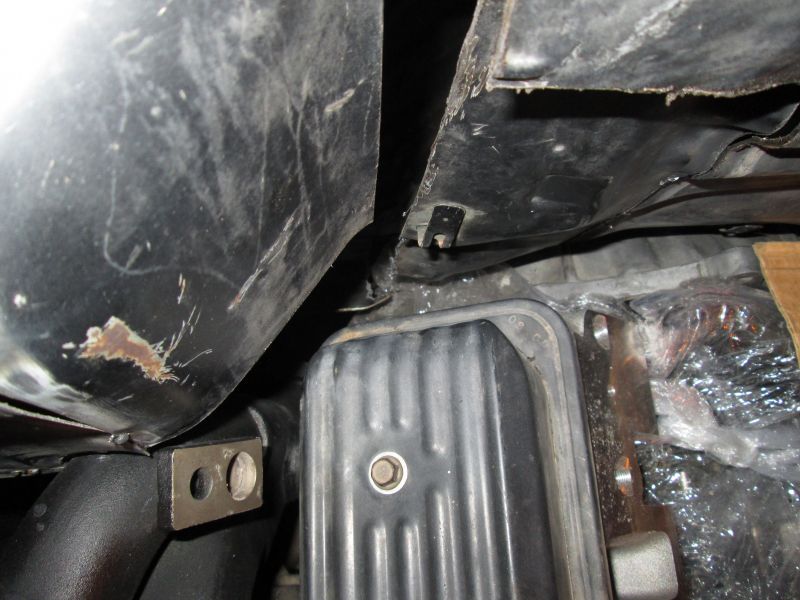

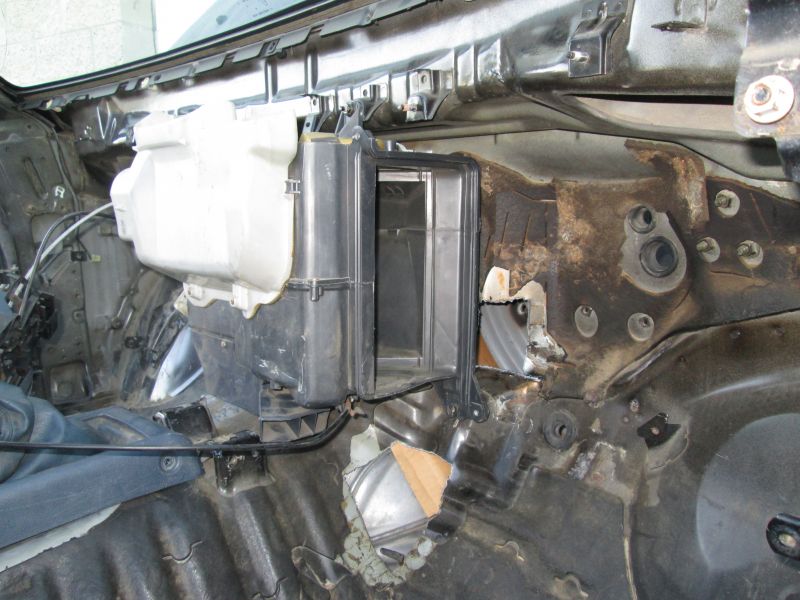

      Mocked up both my heater core and A/C evaporator box to see how much room if any to recess the firewall. My worst case scenario was that I'd have to buy a vintage air system and make my own custom dash, vents etc. Much to my great relief I found ample room between the wall and these housings to make the needed changes. This meant I was going to be able to keep the original dash, heater core, blower motor and ALL the stock ducting and under dash works. I can't begin to relay what a relief this was and just how much ceremony this saved me.

      Click image for larger version

Name:	IMG_0145s.JPG
Views:	10
Size:	97.5 KB
ID:	102630

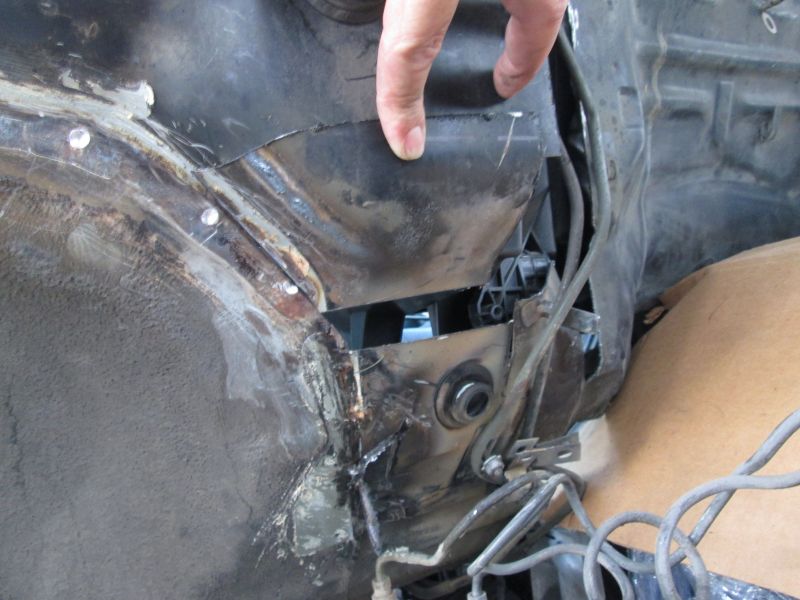

      The flap that was cut back to make way for the protruding valve cover still didn't reach the heater housing. I knew almost immediately that I'd be able to keep the original system.

      Click image for larger version

Name:	IMG_0143.JPG
Views:	14
Size:	99.3 KB
ID:	102631

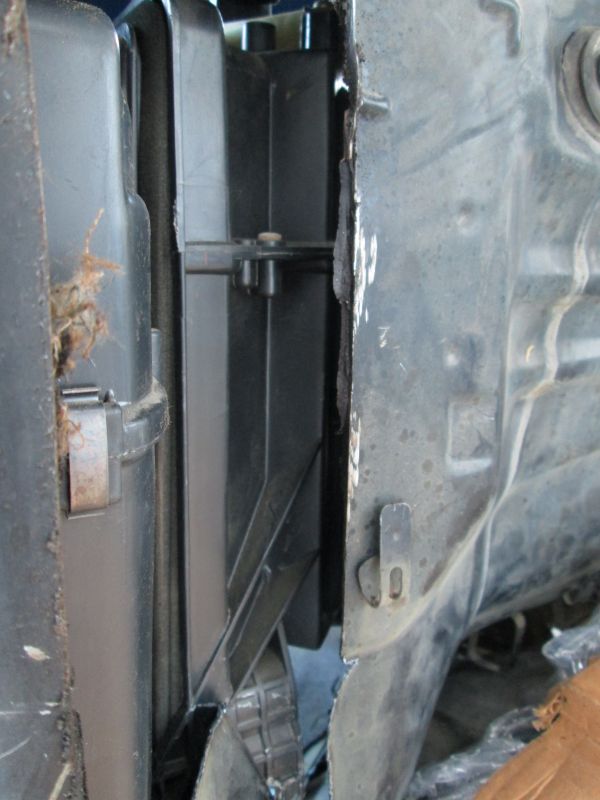

      Same amount of clearance to other side with the A/C evaporator box.
      Click image for larger version

Name:	IMG_0193.JPG
Views:	20
Size:	69.6 KB
ID:	102632

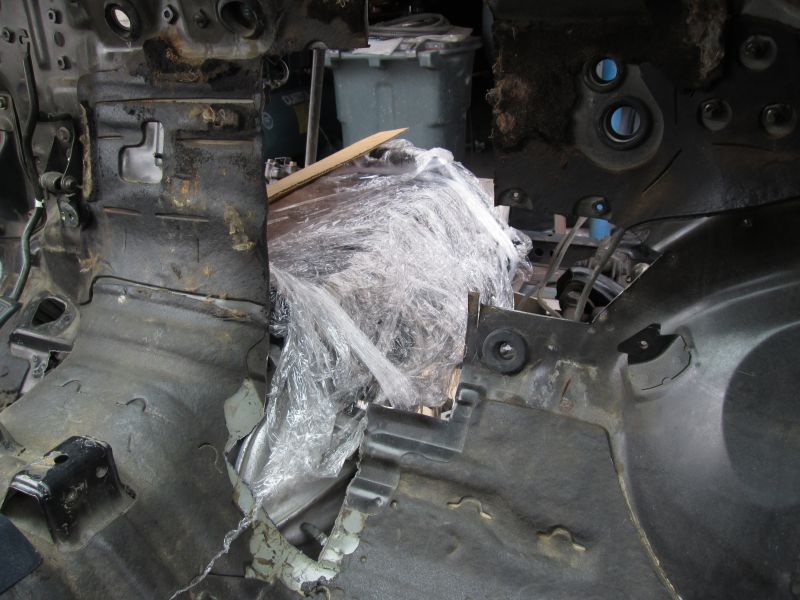

      planning my basic attack.
      Click image for larger version

Name:	IMG_0195.JPG
Views:	20
Size:	77.8 KB
ID:	102633

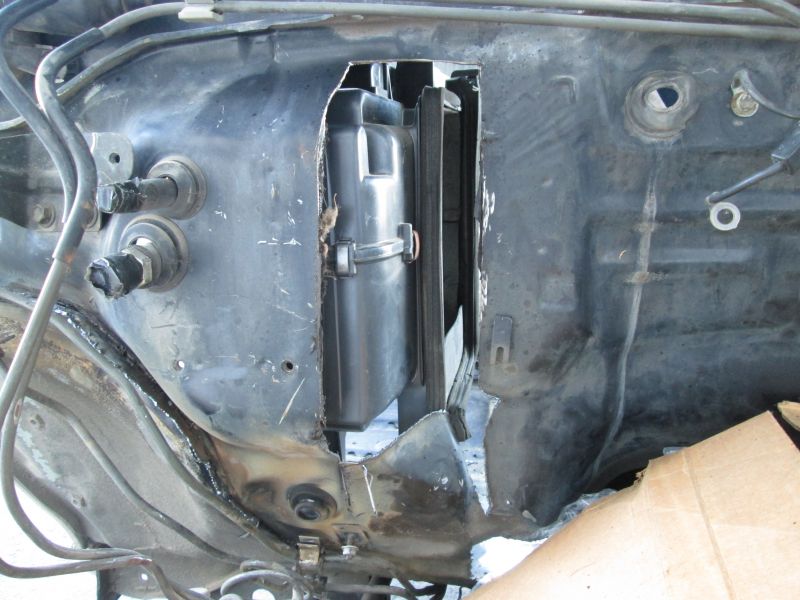

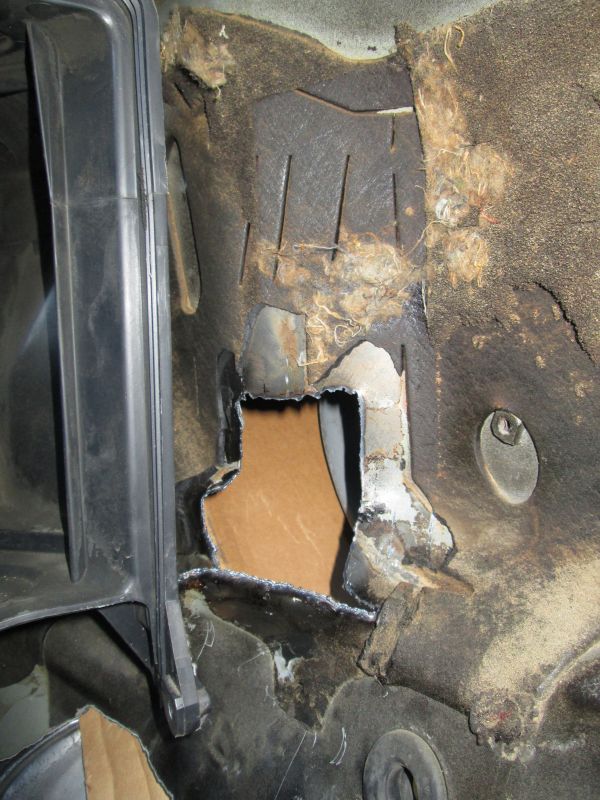

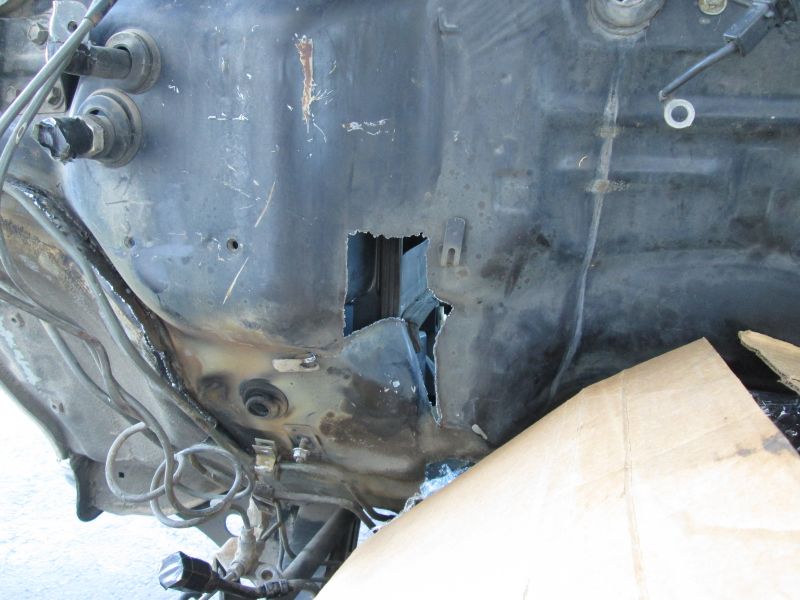

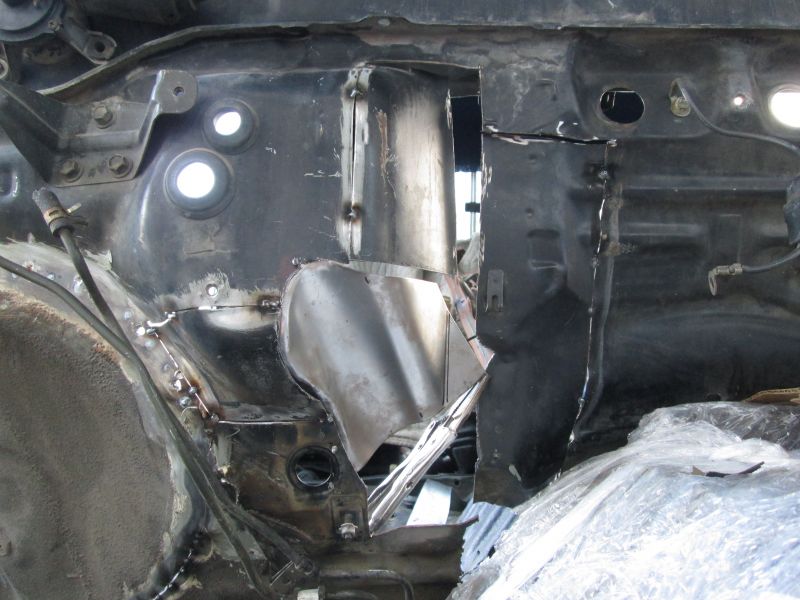

      Began cutting away the wall in and around the A/C housing.

      Click image for larger version

Name:	IMG_0199s.JPG
Views:	17
Size:	59.9 KB
ID:	102634

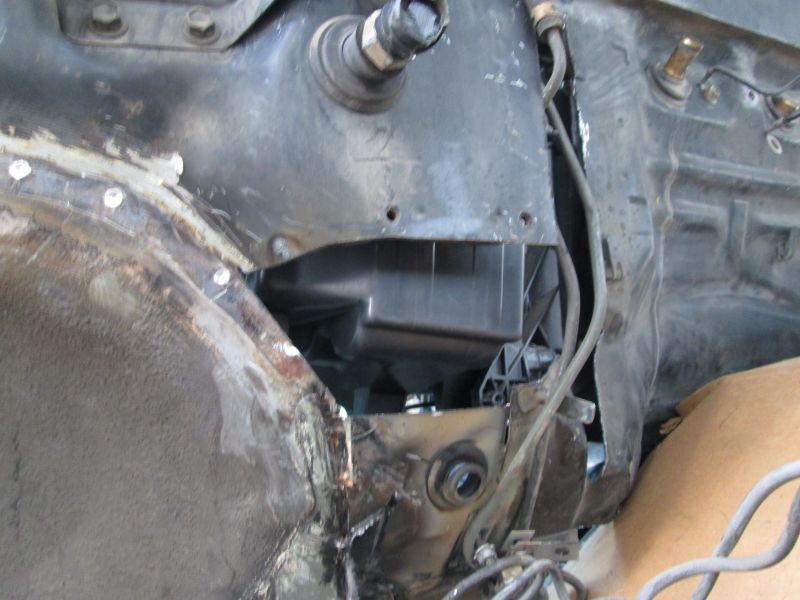

      Then a section in front of the heater core.
      Click image for larger version

Name:	IMG_0234.JPG
Views:	11
Size:	65.9 KB
ID:	102635
      Cut the bottom of this bowl feature
      Click image for larger version

Name:	IMG_0235.JPG
Views:	11
Size:	72.6 KB
ID:	102636
      with plans to raise it up out of the way and hug the A/C box more closely.
      Click image for larger version

Name:	IMG_0236.JPG
Views:	18
Size:	82.0 KB
ID:	102637
      Once I get the new section to hug those housings closer that will give the relief I need for the right engine bank.
      Click image for larger version

Name:	IMG_0244.JPG
Views:	11
Size:	78.6 KB
ID:	102638
      Big hole to fill but I'm getting my brain around what needs to happen.

      Thanks for looking!
      Justin
      Justin Rio

      Comment


      • #18
        7/29/18
        Mocking up more of the system to check for clearance with the firewall.

        Click image for larger version

Name:	IMG_0246.JPG
Views:	20
Size:	88.8 KB
ID:	102744

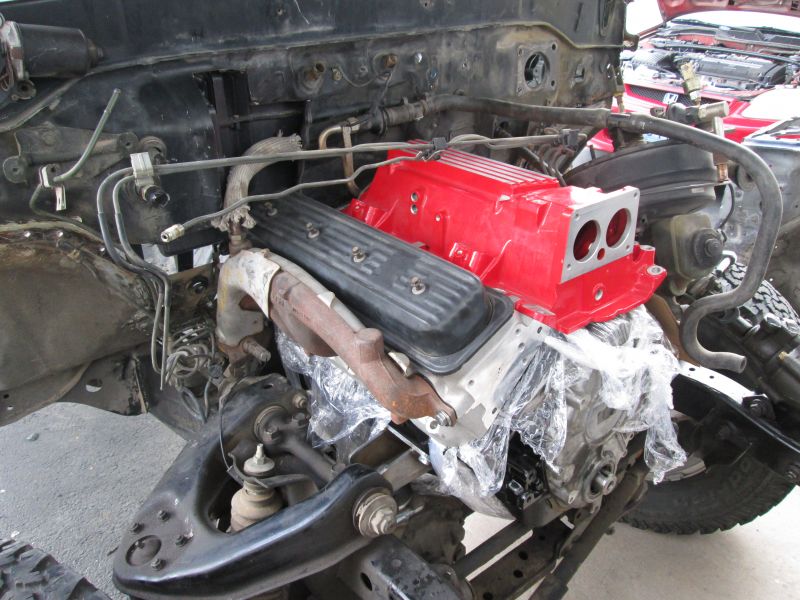

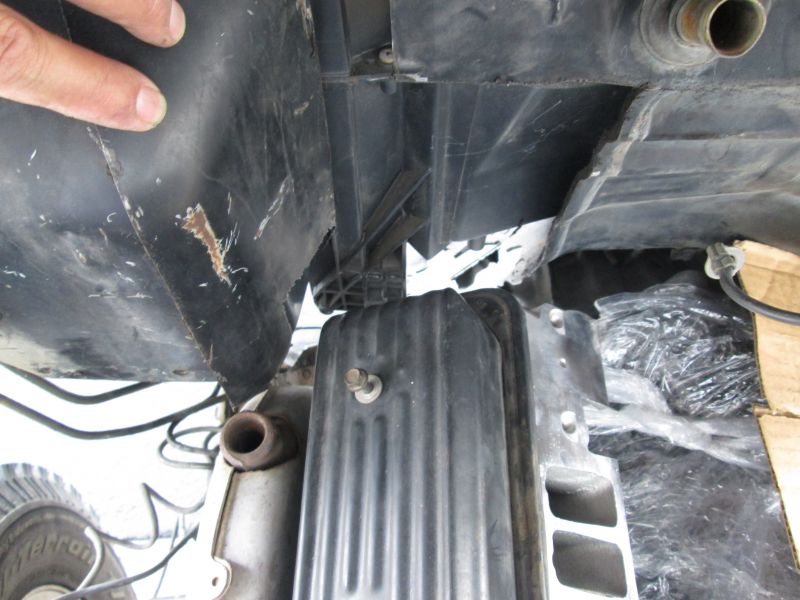

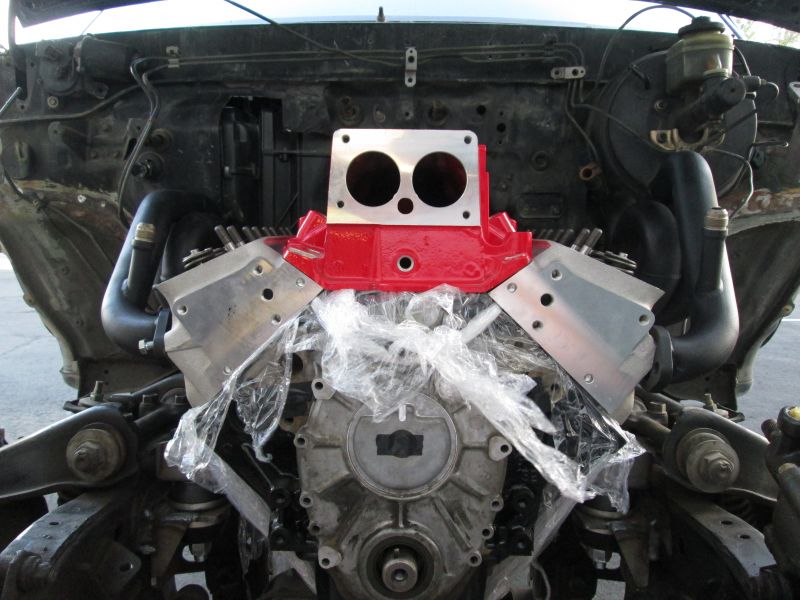

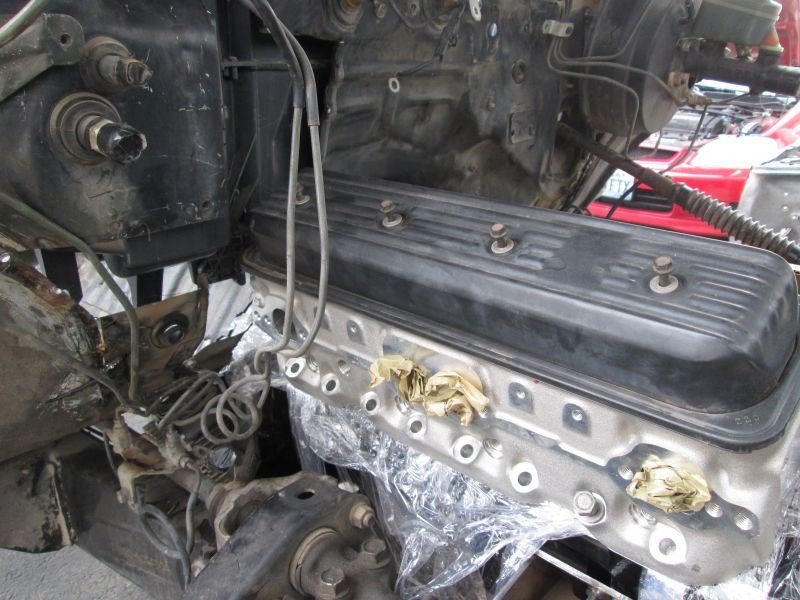

        Head and valve cover mock up
        Click image for larger version

Name:	IMG_0245.JPG
Views:	17
Size:	73.4 KB
ID:	102745

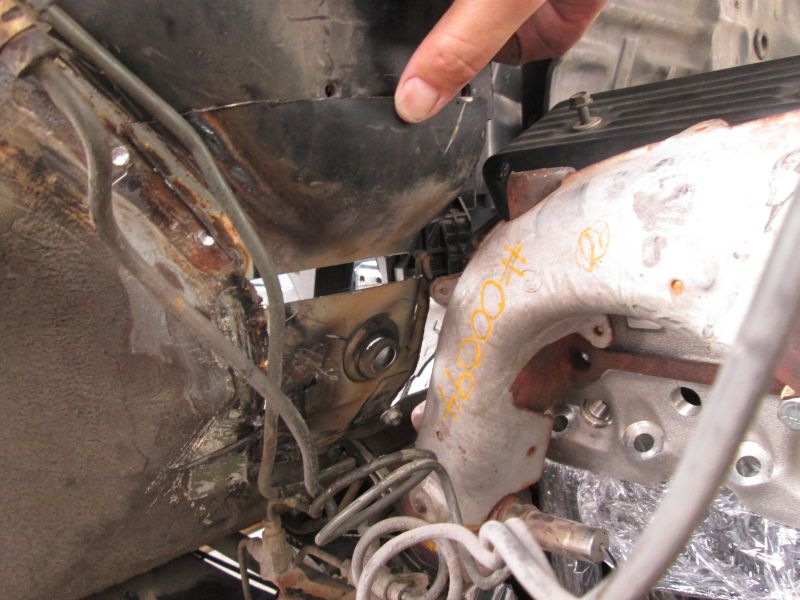

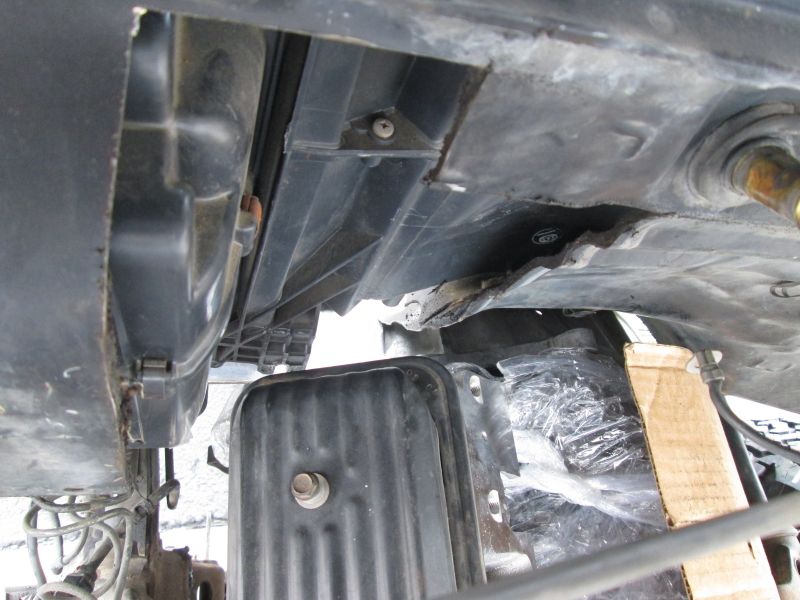

        If I can get the new wall section to run tight against the housings there will be ample clearance.
        Click image for larger version

Name:	IMG_0249.JPG
Views:	13
Size:	72.9 KB
ID:	102746
        Take the original relief section and just turn it quicker.
        Click image for larger version

Name:	IMG_0250.JPG
Views:	12
Size:	78.3 KB
ID:	102747
        Raise this lower bowl relief too.
        Click image for larger version

Name:	IMG_0247.JPG
Views:	27
Size:	88.5 KB
ID:	102748
        Oxygen tube added. Good clearance on this side but rubs the wall on the left. Will alter the tube to clear.
        Click image for larger version

Name:	IMG_0251.JPG
Views:	11
Size:	65.7 KB
ID:	102749

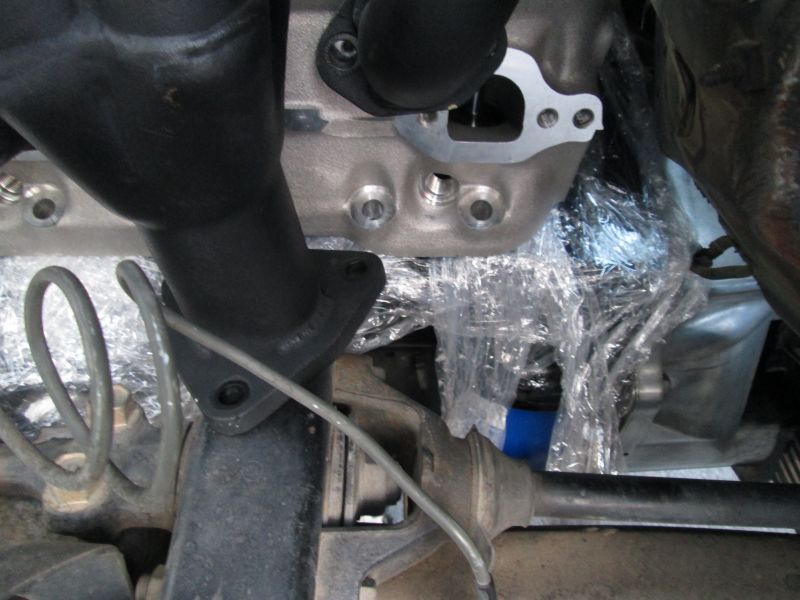

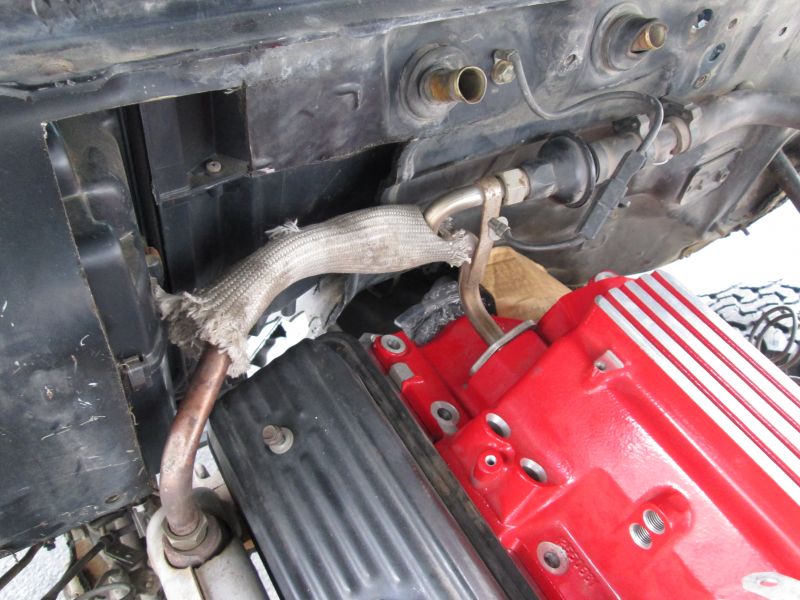

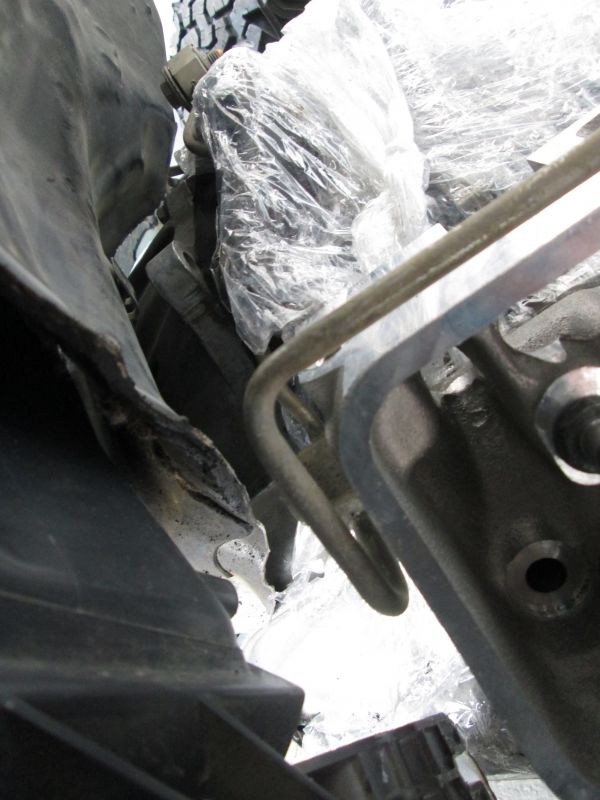

        Also mocked up a hardline that supplies coolant to the back of the heads.
        Click image for larger version

Name:	IMG_0253.JPG
Views:	11
Size:	69.1 KB
ID:	102750

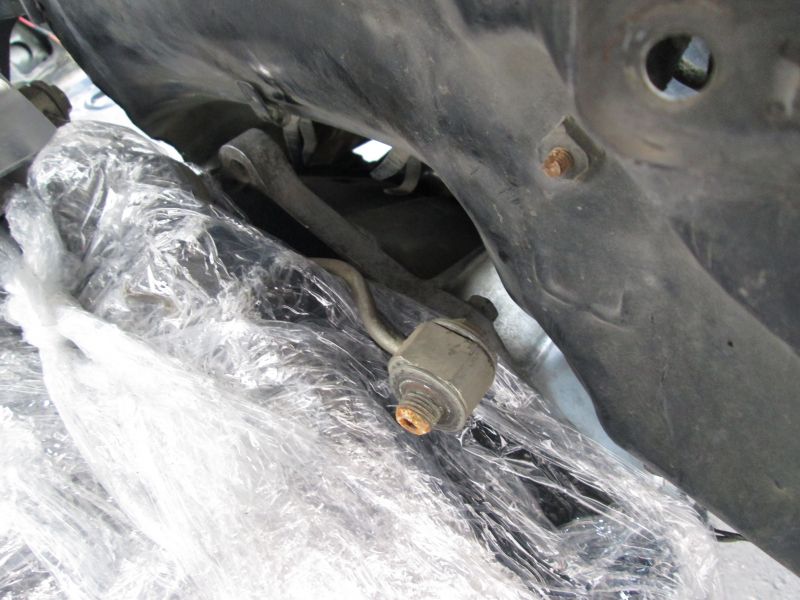

        Rear shot of it. Have to make sure all this will clear before I start welding new panels in.
        Click image for larger version

Name:	IMG_0252.JPG
Views:	29
Size:	76.3 KB
ID:	102751
        Will clear the left side just fine.
        Click image for larger version

Name:	IMG_0248.JPG
Views:	15
Size:	99.3 KB
ID:	102752
        Getting it all to fit together little by little.
        Thanks for looking!
        Justin
        Justin Rio

        Comment


        • #19
          7/31/18
          Exit port issues on the left manifold required me to look into headers a little sooner than expected as those cast iron units don't really lend themselves for modification. I have always wanted the header system by SLP. Much to my disappointment the company is still around but they have long since discontinued parts for this old motor.
          Click image for larger version

Name:	IMG_0436.JPG
Views:	26
Size:	69.3 KB
ID:	102898

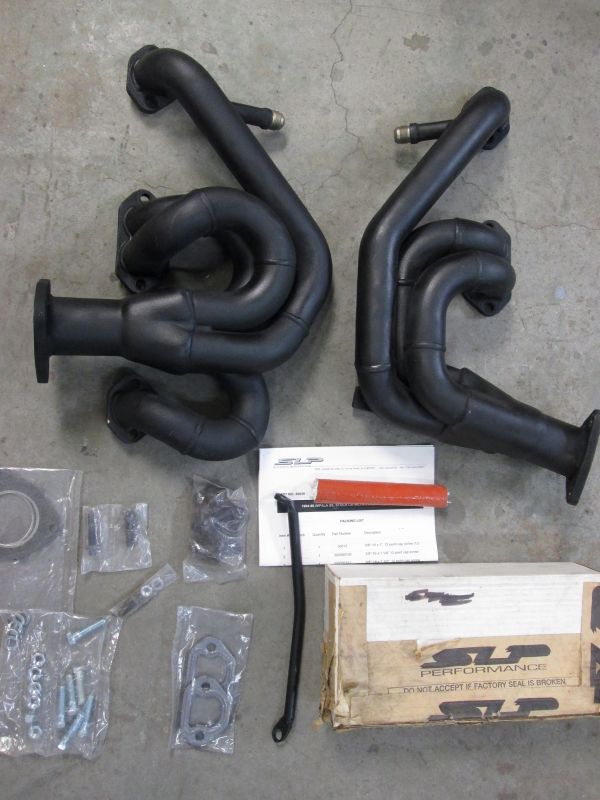

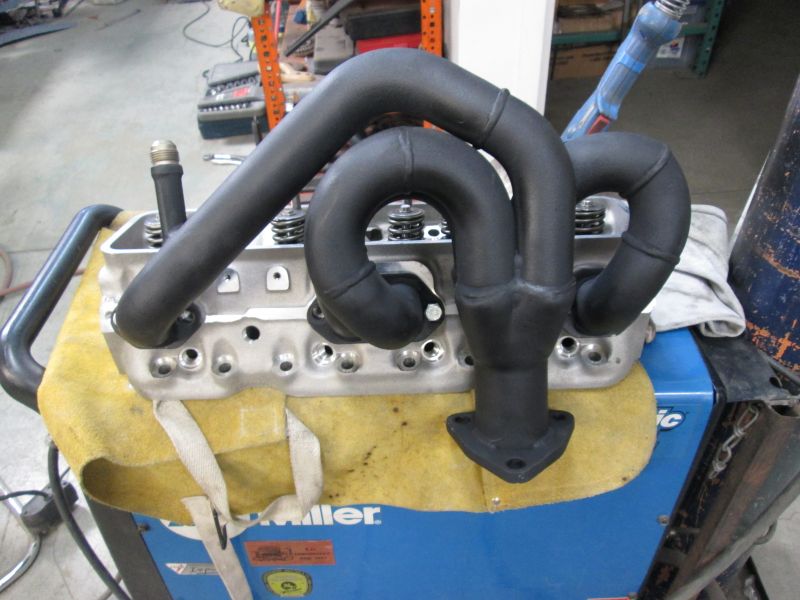

          After some searching I was able to snag this NOS set. Had to step up a bit but this is the system I wanted.
          Click image for larger version

Name:	IMG_0439.JPG
Views:	19
Size:	67.3 KB
ID:	102899

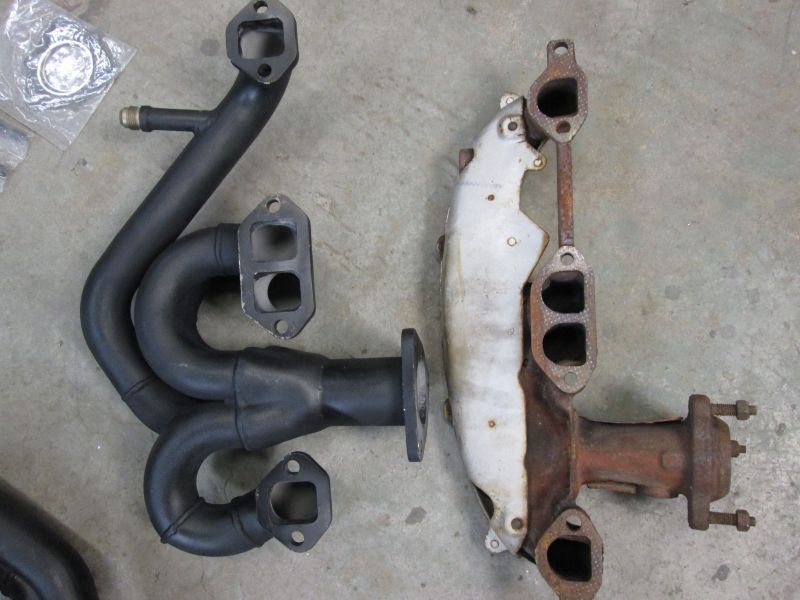

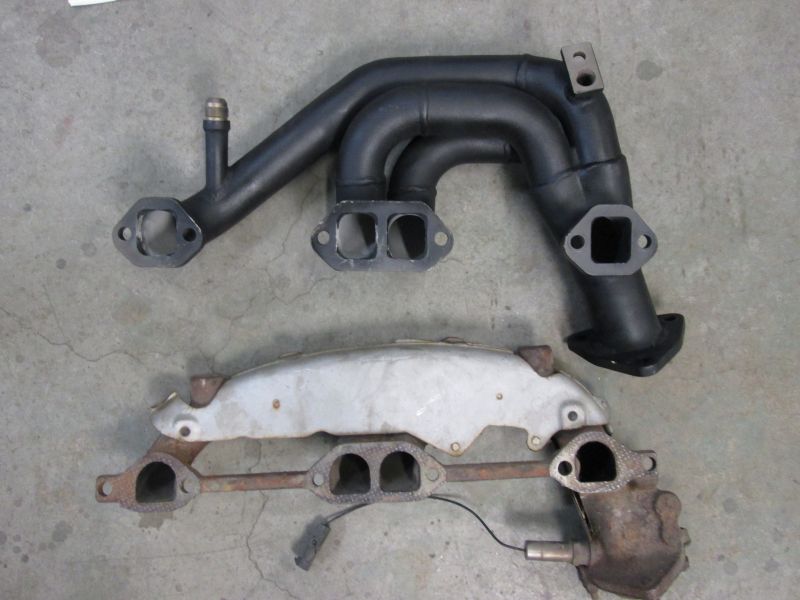

          Slightly larger than old cast iron units
          Click image for larger version

Name:	IMG_0440.JPG
Views:	12
Size:	60.6 KB
ID:	102900
          but will definitely flow better.
          Click image for larger version

Name:	IMG_0444.JPG
Views:	30
Size:	72.2 KB
ID:	102901

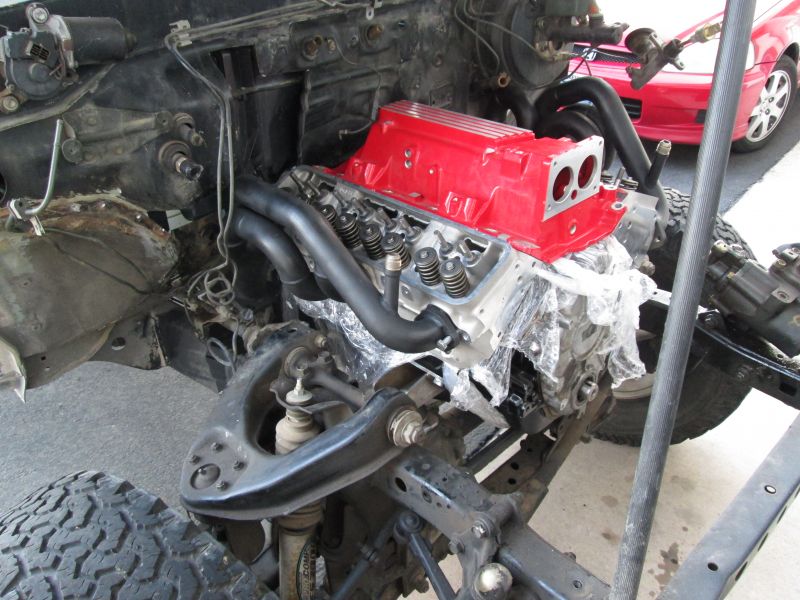

          Along with more performance they really are a work of art.
          Click image for larger version

Name:	IMG_0447.JPG
Views:	11
Size:	86.9 KB
ID:	102902

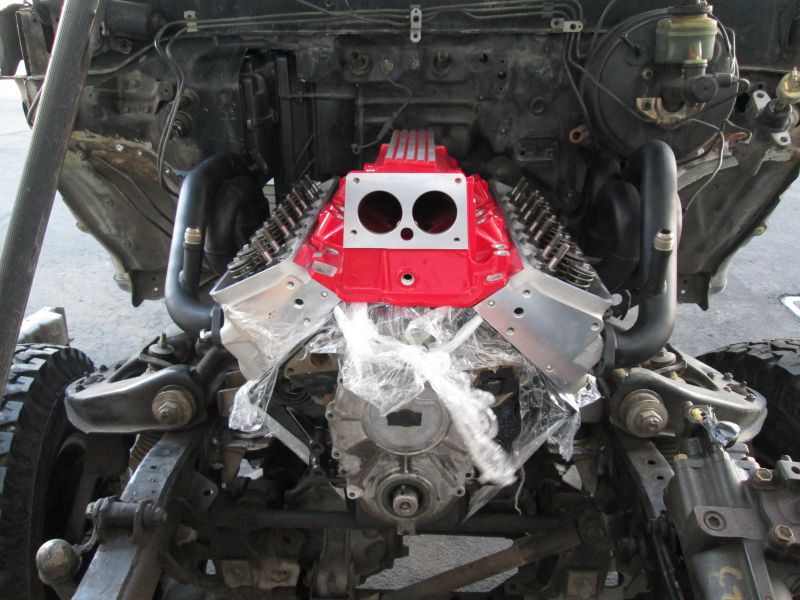

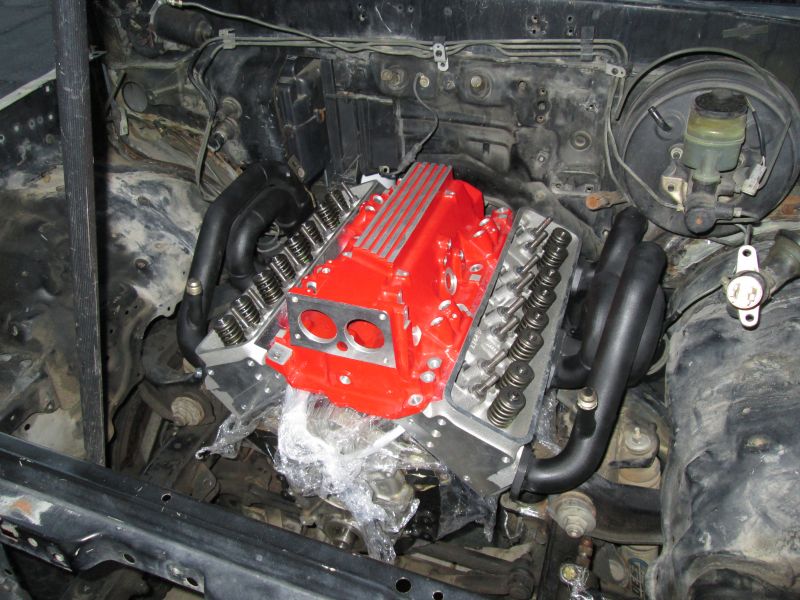

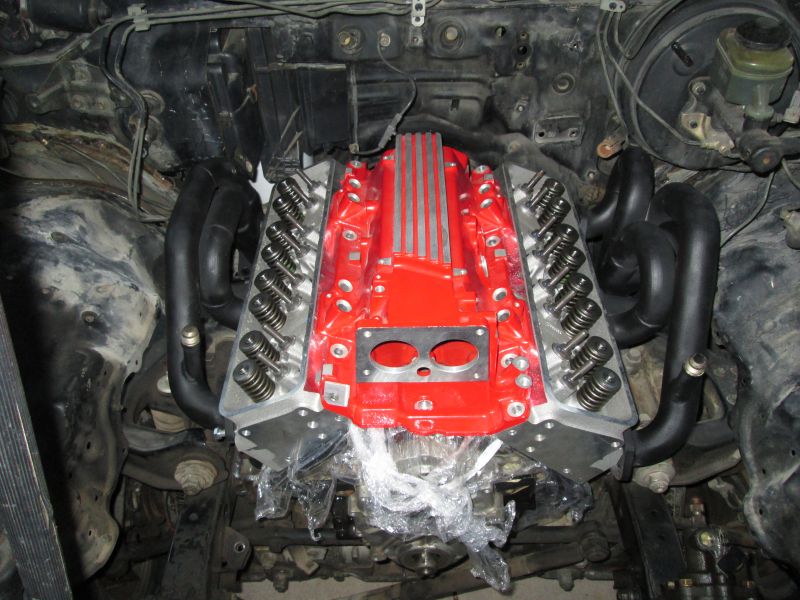

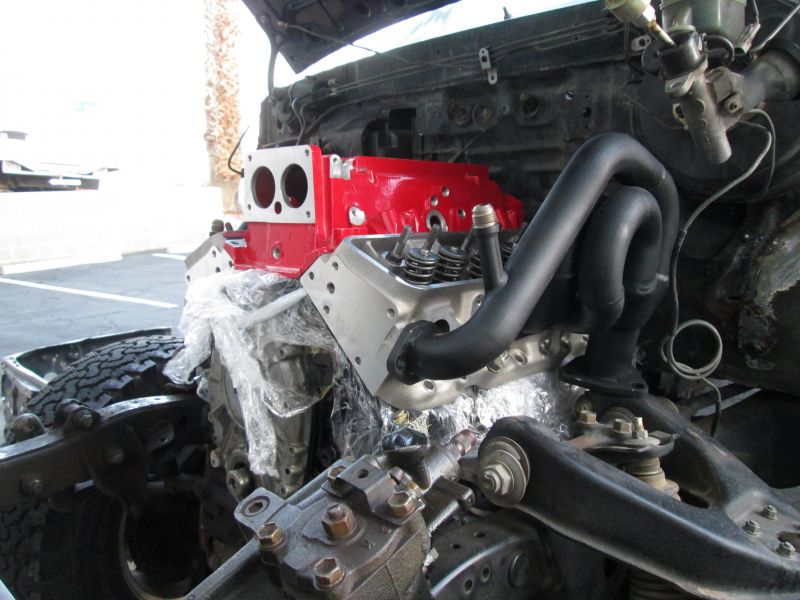

          Initial mock up.
          Click image for larger version

Name:	IMG_0449.JPG
Views:	14
Size:	97.4 KB
ID:	102903
          Right side fits about the same as the manifold did.
          Click image for larger version

Name:	IMG_0450.JPG
Views:	17
Size:	67.3 KB
ID:	102904
          However one of the tube runners does reach back deeper. Have to compensate for this clearance and for heat. Really glad I bought these before I welded that firewall back up.
          Click image for larger version

Name:	IMG_0452.JPG
Views:	23
Size:	78.3 KB
ID:	102905
          Left side of course has the same issues as the manifold.
          Click image for larger version

Name:	IMG_0458.JPG
Views:	12
Size:	68.2 KB
ID:	102906
          Exits right over the back of the A-arm. Some mild rerouting will be needed but I can at least modify this tube.
          Click image for larger version

Name:	IMG_0454.JPG
Views:	12
Size:	81.5 KB
ID:	102907
          I've complicated things more as other mods needed include the steering shaft but we'll get it all dialed in before its over. It will be worth the extra effort for the added performance not to mention they just look nice on there.
          Click image for larger version

Name:	IMG_0460.JPG
Views:	19
Size:	100.6 KB
ID:	102908
          Good clearance with the inner aprons.
          Click image for larger version

Name:	IMG_0461.JPG
Views:	13
Size:	95.2 KB
ID:	102909
          Continuing on down this rabbit hole. Thanks for looking!

          Justin
          Justin Rio

          Comment


          • #20
            8/7/18
            Jigsawing the firewall back together.
            Click image for larger version

Name:	IMG_0537.JPG
Views:	15
Size:	84.8 KB
ID:	102968

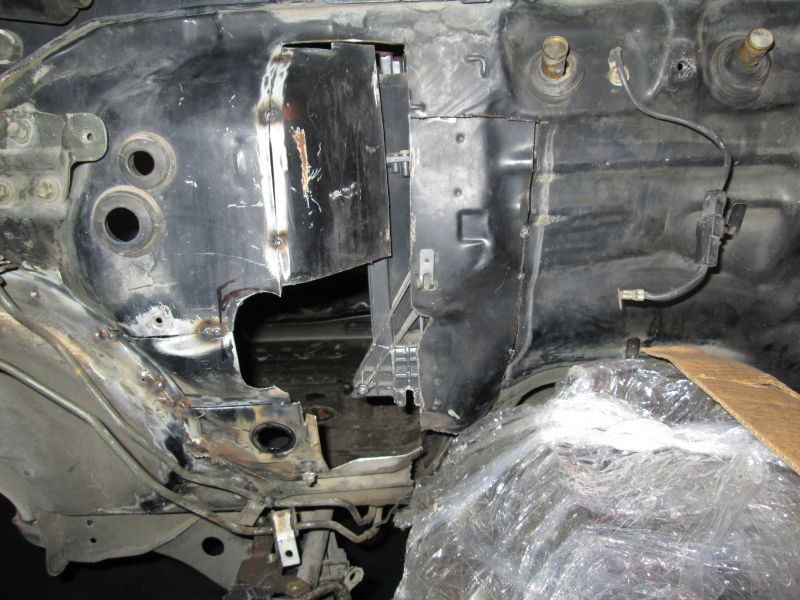

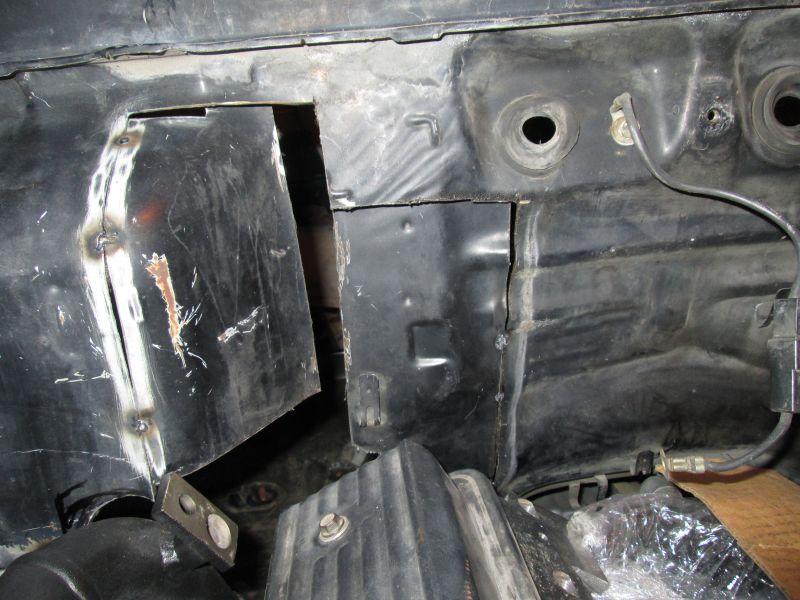

            Taking the original sections that where removed and slightly angling and fine trimming them to clear the head.
            Click image for larger version

Name:	IMG_0538.JPG
Views:	13
Size:	77.3 KB
ID:	102969
            Two sections just swing open more for clearance.
            Click image for larger version

Name:	IMG_0540.JPG
Views:	18
Size:	90.4 KB
ID:	102970

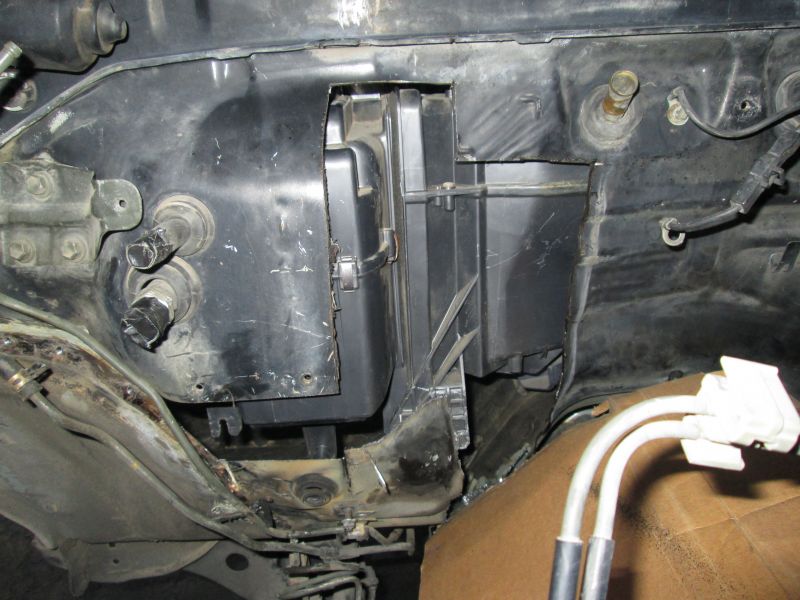

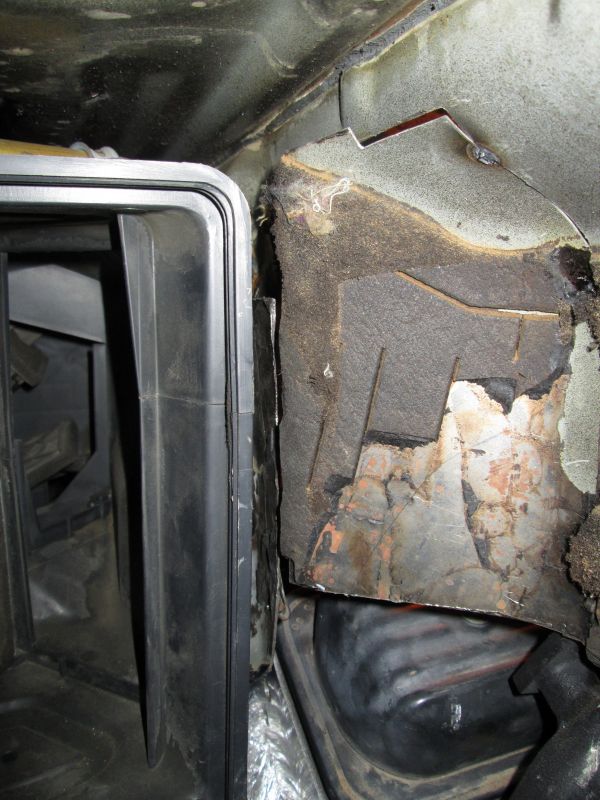

            Inside view and time to test fit the heater core.
            Click image for larger version

Name:	IMG_0541.JPG
Views:	13
Size:	79.5 KB
ID:	102971
            So far so good..
            Click image for larger version

Name:	IMG_0542.JPG
Views:	11
Size:	88.7 KB
ID:	102972
            Good clearance remains between the heater housing all the while clearing the motor.
            Click image for larger version

Name:	IMG_0543.JPG
Views:	16
Size:	91.3 KB
ID:	102973

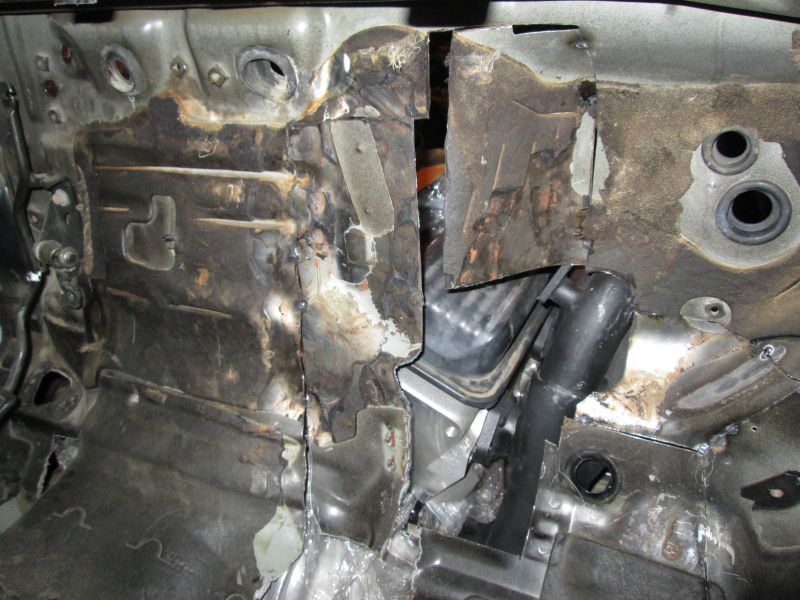

            What is nice about recycling these old sections is that I'll be able to keep a mostly unmolested appearance up top with all the corrugation details. That bottom corner though will have to be free styled. Developing that next.
            Thanks for looking!
            Justin
            Justin Rio

            Comment


            • #21
              8/24/18

              Jig sawing my firewall.
              Click image for larger version

Name:	IMG_0566.JPG
Views:	19
Size:	87.2 KB
ID:	103408

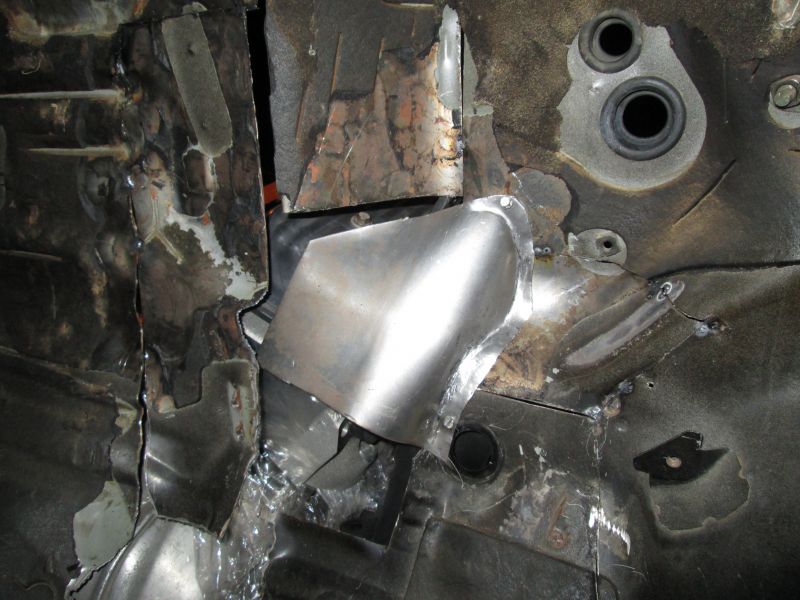

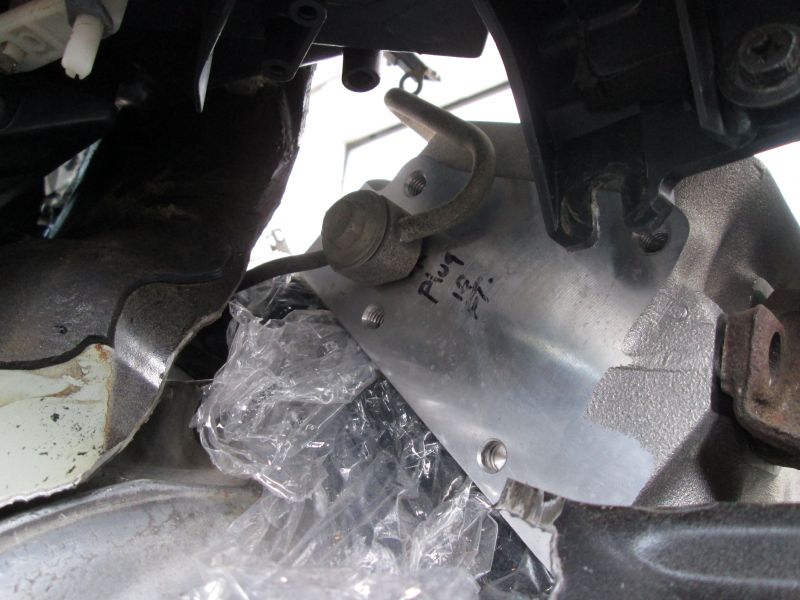

              Extremely time consuming and tedious chore of shape experiments to fill these holes. Looking for a continuous profile that will clear the header all the while not encroaching too much into the A/C evaporator housing to keep the modifications to it at a minimum. Decided on bending a section over a piece of tubing and now roughing in a flange.
              Click image for larger version

Name:	IMG_0599.JPG
Views:	11
Size:	78.5 KB
ID:	103409
              Promising and feeling on the right path as adjustment for better clearance with the header continued.
              Click image for larger version

Name:	IMG_0601.JPG
Views:	21
Size:	80.7 KB
ID:	103410

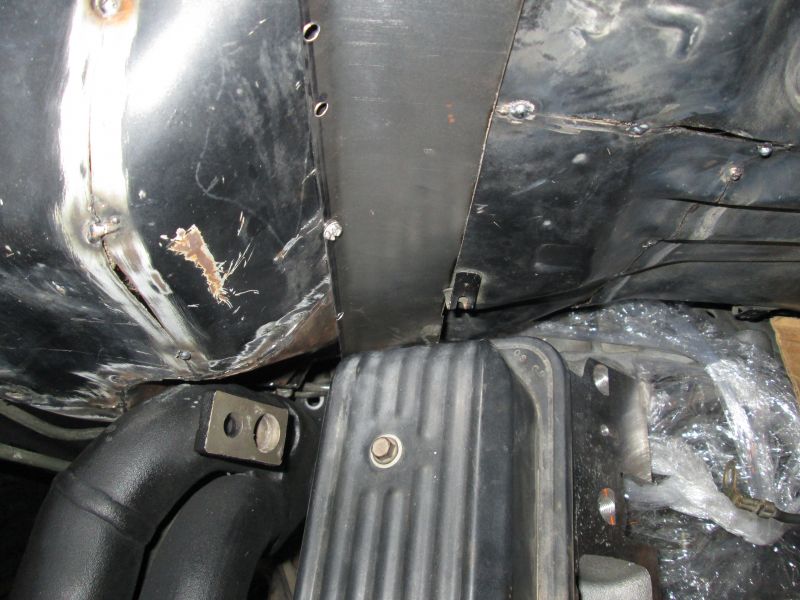

              Dialing it in and Flange shaped a little closer along the way.
              Click image for larger version

Name:	IMG_0603.JPG
Views:	14
Size:	82.2 KB
ID:	103411
              It will give me the clearance I'm looking for. Planning the second bend.
              Click image for larger version

Name:	IMG_0667.JPG
Views:	34
Size:	77.0 KB
ID:	103412

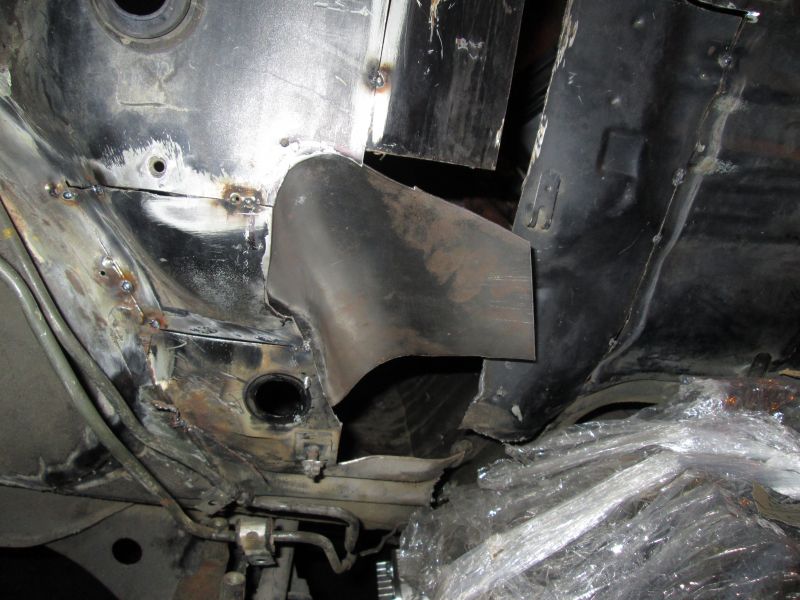

              Next bend continues contour of the relief all the while tapering back away from the motor.
              Click image for larger version

Name:	IMG_0664.JPG
Views:	12
Size:	81.6 KB
ID:	103413

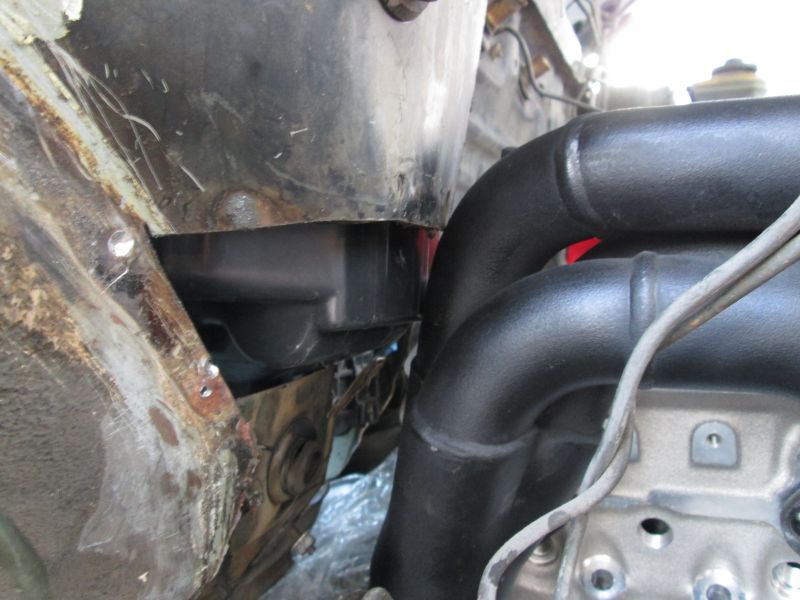

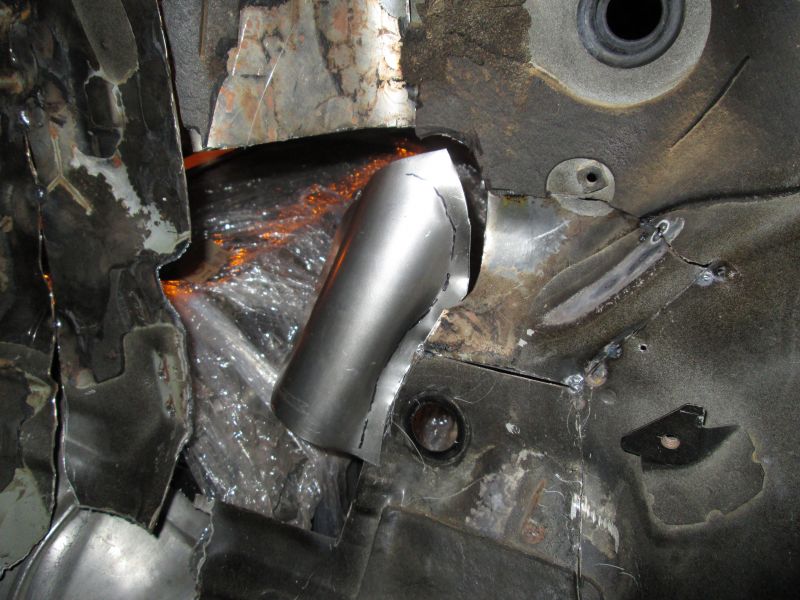

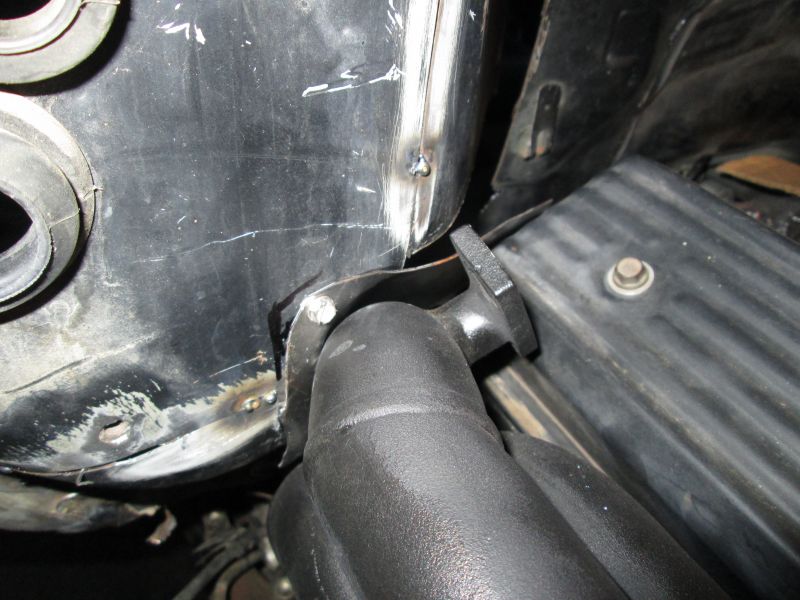

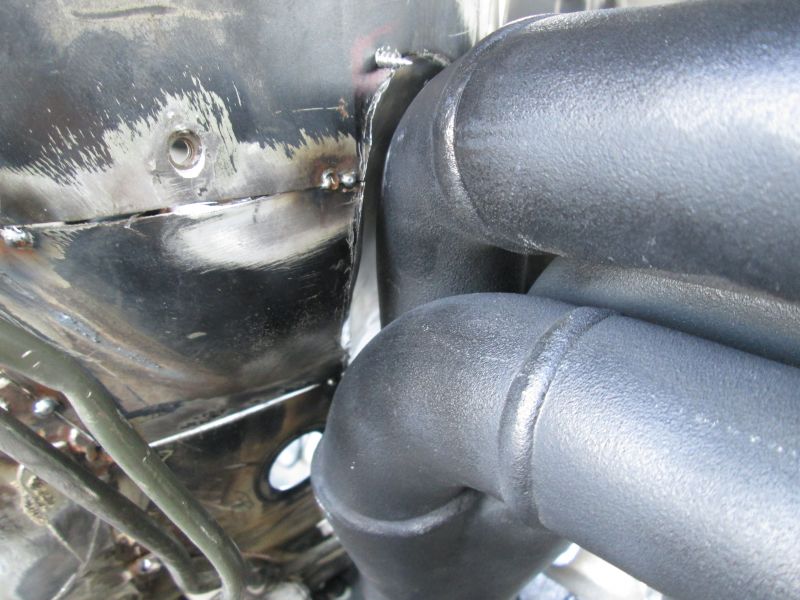

              It clears but that sucker is going to get HOT. I'll have to look into heat insulation on both sides.
              Click image for larger version

Name:	IMG_0741.JPG
Views:	59
Size:	81.8 KB
ID:	103414

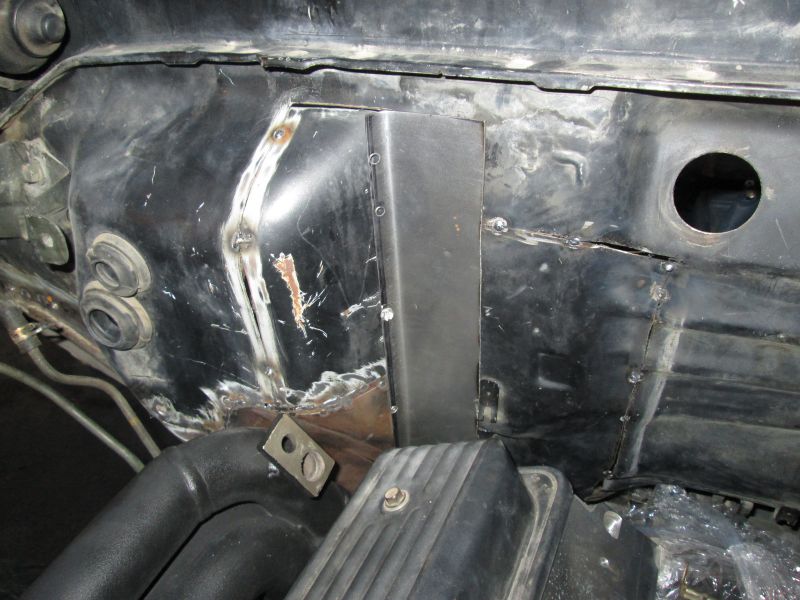

              Final section on the upper part of the wall was next. Carries a soft turn transition from the relief to the wall.
              Click image for larger version

Name:	IMG_0742.JPG
Views:	19
Size:	79.6 KB
ID:	103415
              Keeping an eye of head clearance as it goes.
              Click image for larger version

Name:	IMG_0743.JPG
Views:	10
Size:	89.7 KB
ID:	103416

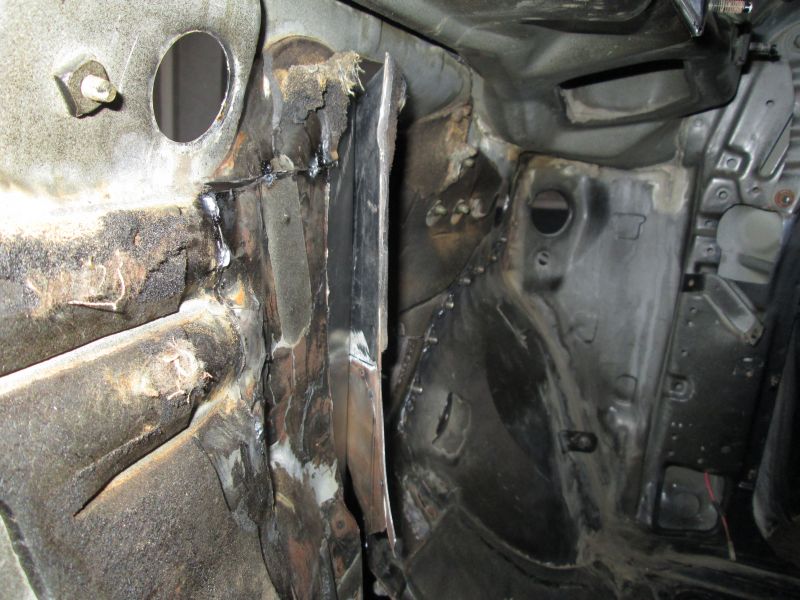

              A shot of the inside shows the excess that needs trimming next.

              Thanks for looking!
              Justin
